plumiSimilar shapes: AQA GCSE Maths questions
Every AQA GCSE Maths exam question on G19 Similar shapes, 2017–2025, with its mark scheme and examiner’s report.
Find questions1,304
Exam
All years
Calculator
All 22 questions on Similar shapes, as a list

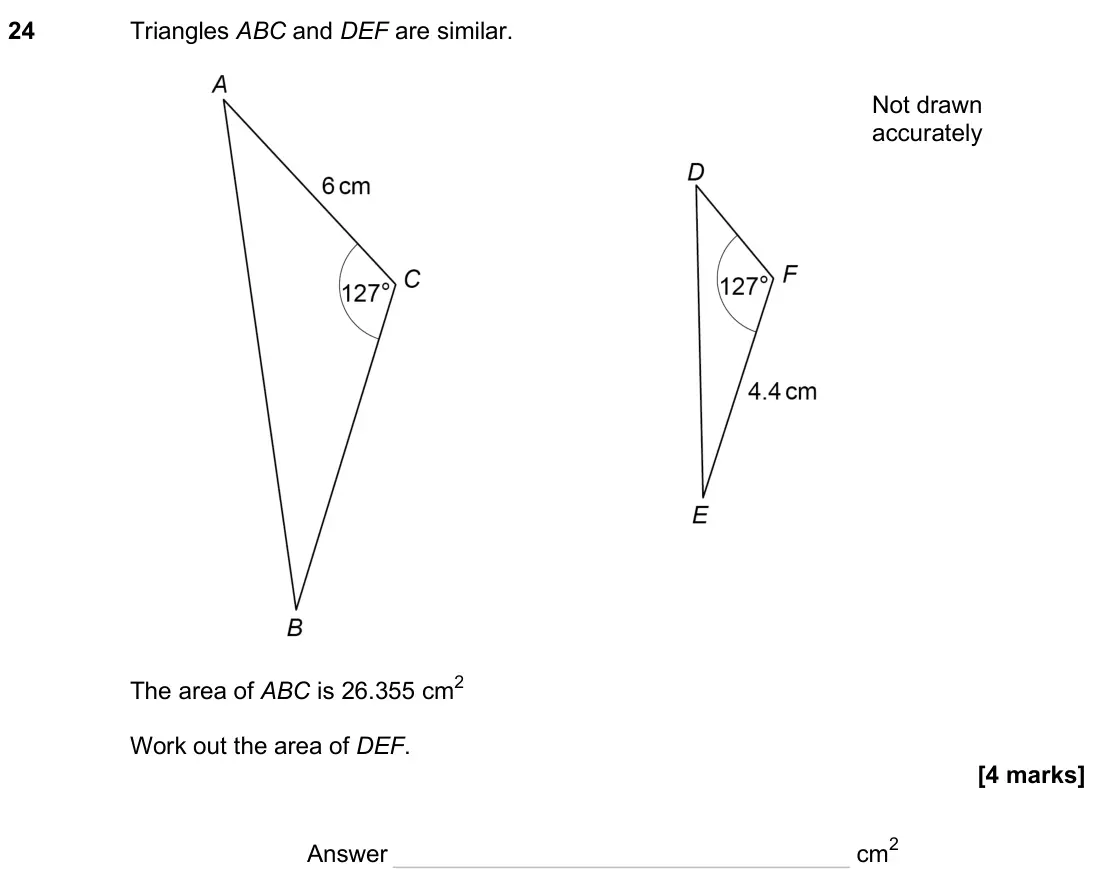

- June 2025, Paper 3H, Q24 (4 marks): Triangles ABC and DEF are similar. The area of ABC is 26.355 cm2 Work out the area of DEF. Not drawn accurately Answer cm2

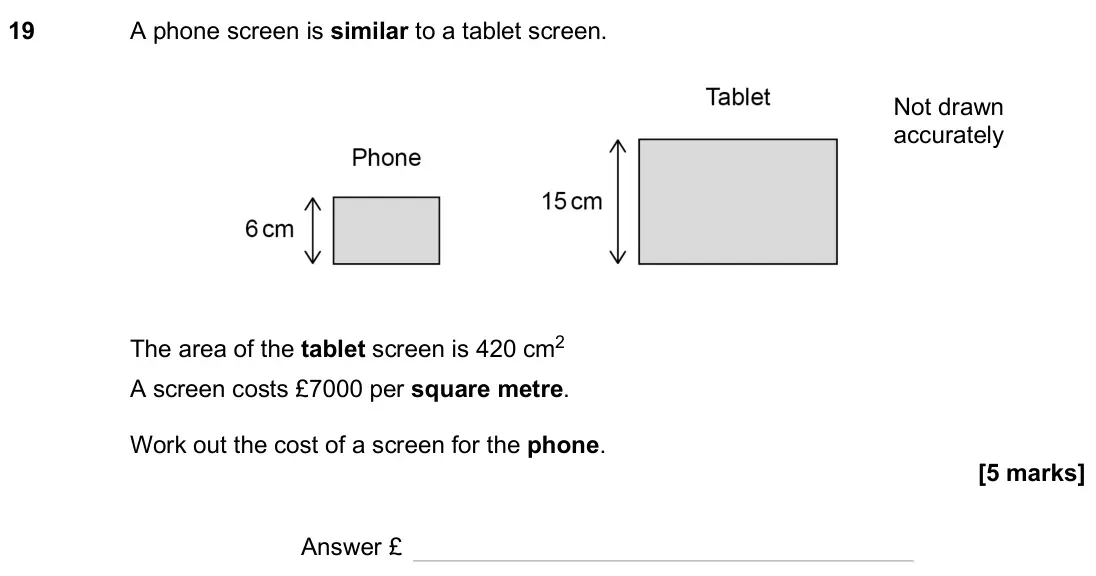

- November 2024, Paper 2H, Q19 (5 marks): A phone screen is similar to a tablet screen. The area of the tablet screen is 420 cm2 A screen costs £7000 per square metre. Work out the cost of a screen for

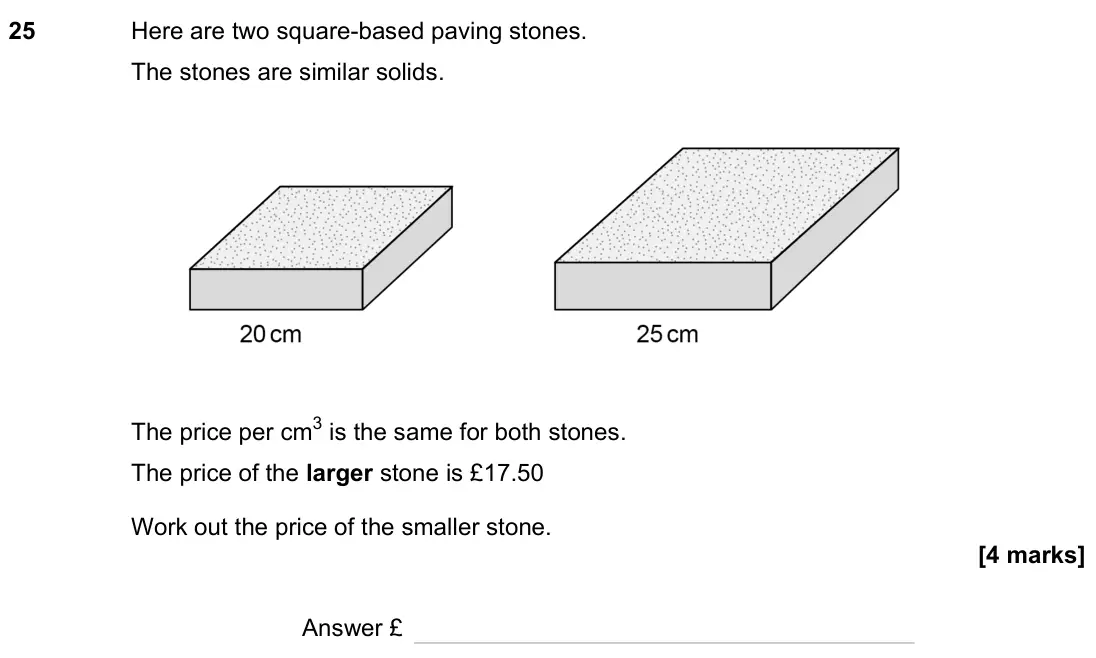

- November 2023, Paper 2H, Q25 (4 marks): Here are two square-based paving stones. The stones are similar solids. The price per cm3 is the same for both stones. The price of the larger stone is £17.50 W

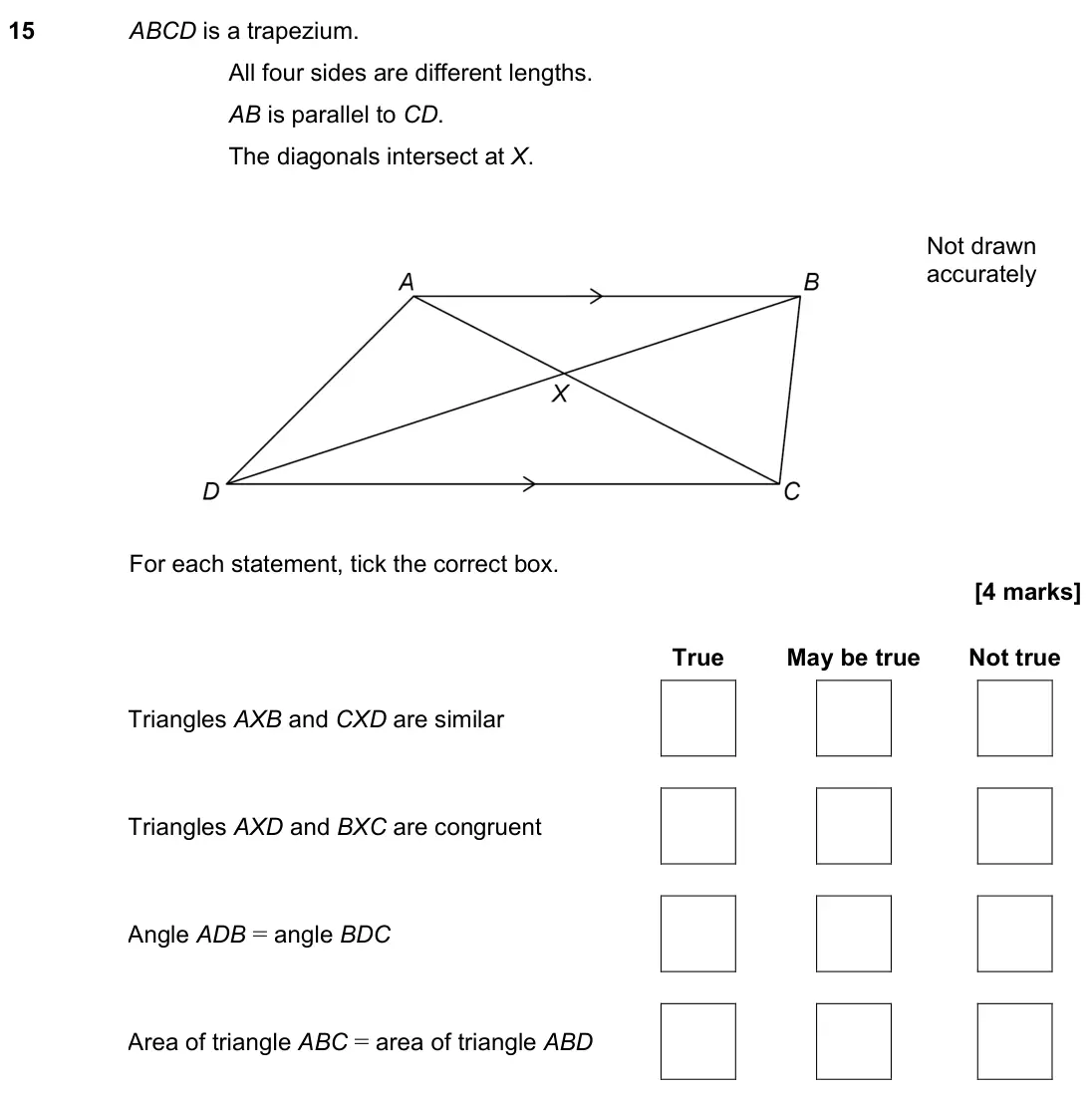

- June 2023, Paper 1H, Q15 (4 marks): ABCD is a trapezium. All four sides are different lengths. AB is parallel to CD. The diagonals intersect at X. Not drawn accurately For each statement, tick the

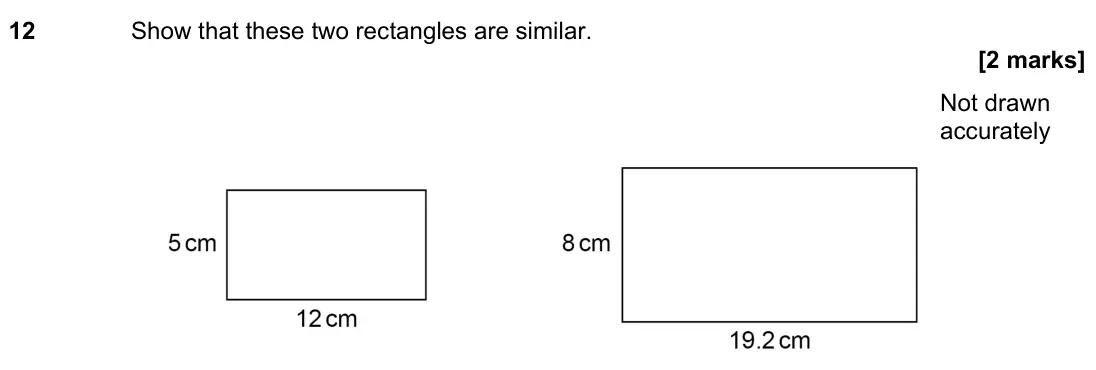

- June 2023, Paper 2H, Q12 (2 marks): Show that these two rectangles are similar. Not drawn accurately
- November 2022, Paper 2H, Q13 (5 marks): Trapezium DEFG is formed by joining triangle DEH to rectangle EFGH. ABC is similar to DEH. Work out the area of DEFG. Not drawn accurately Answer cm2

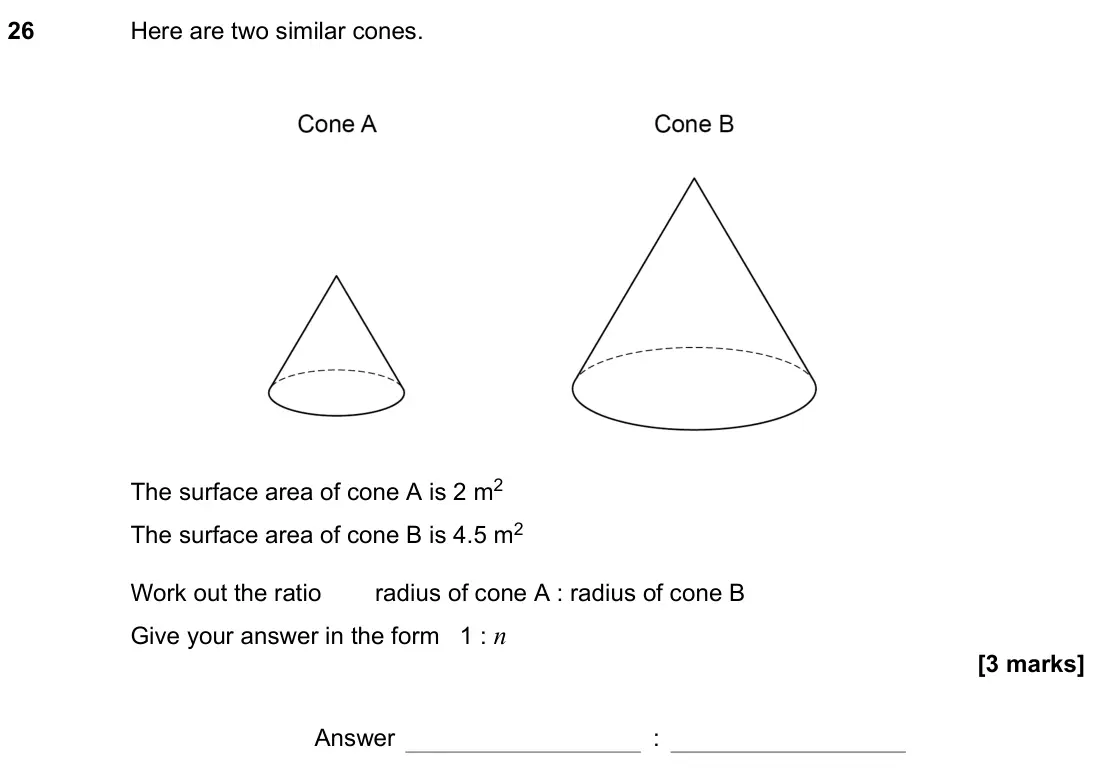

- November 2021, Paper 3H, Q26 (3 marks): Here are two similar cones. The surface area of cone A is 2 m2 The surface area of cone B is 4.5 m2 Work out the ratio radius of cone A : radius of cone B Give

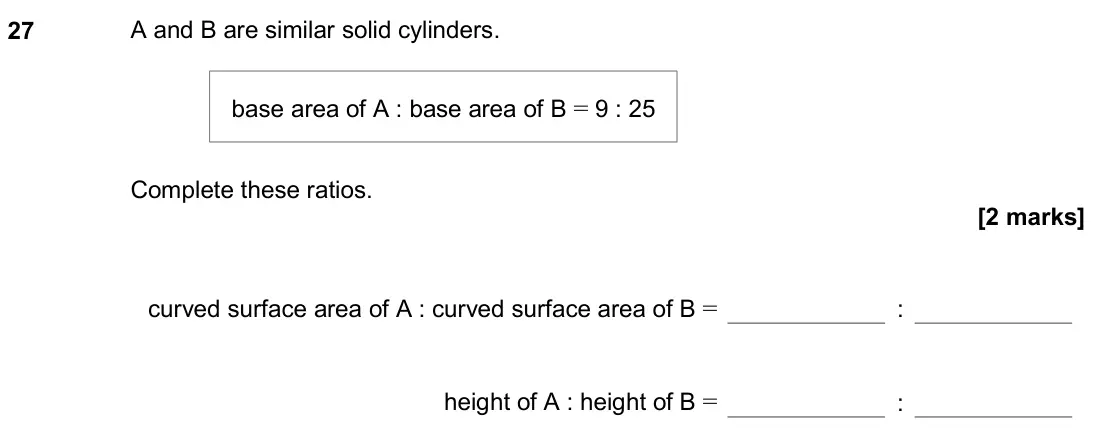

- November 2020, Paper 1H, Q27 (2 marks): A and B are similar solid cylinders. Complete these ratios. curved surface area of A : curved surface area of B = : height of A : height of B = : base area of A

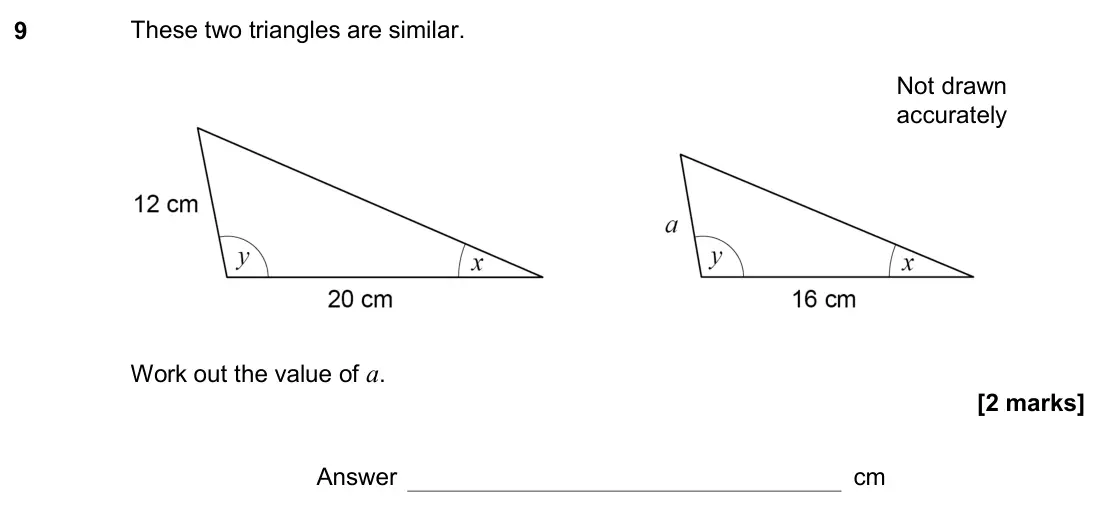

- November 2020, Paper 3H, Q9 (2 marks): These two triangles are similar. Not drawn accurately Work out the value of a. Answer cm

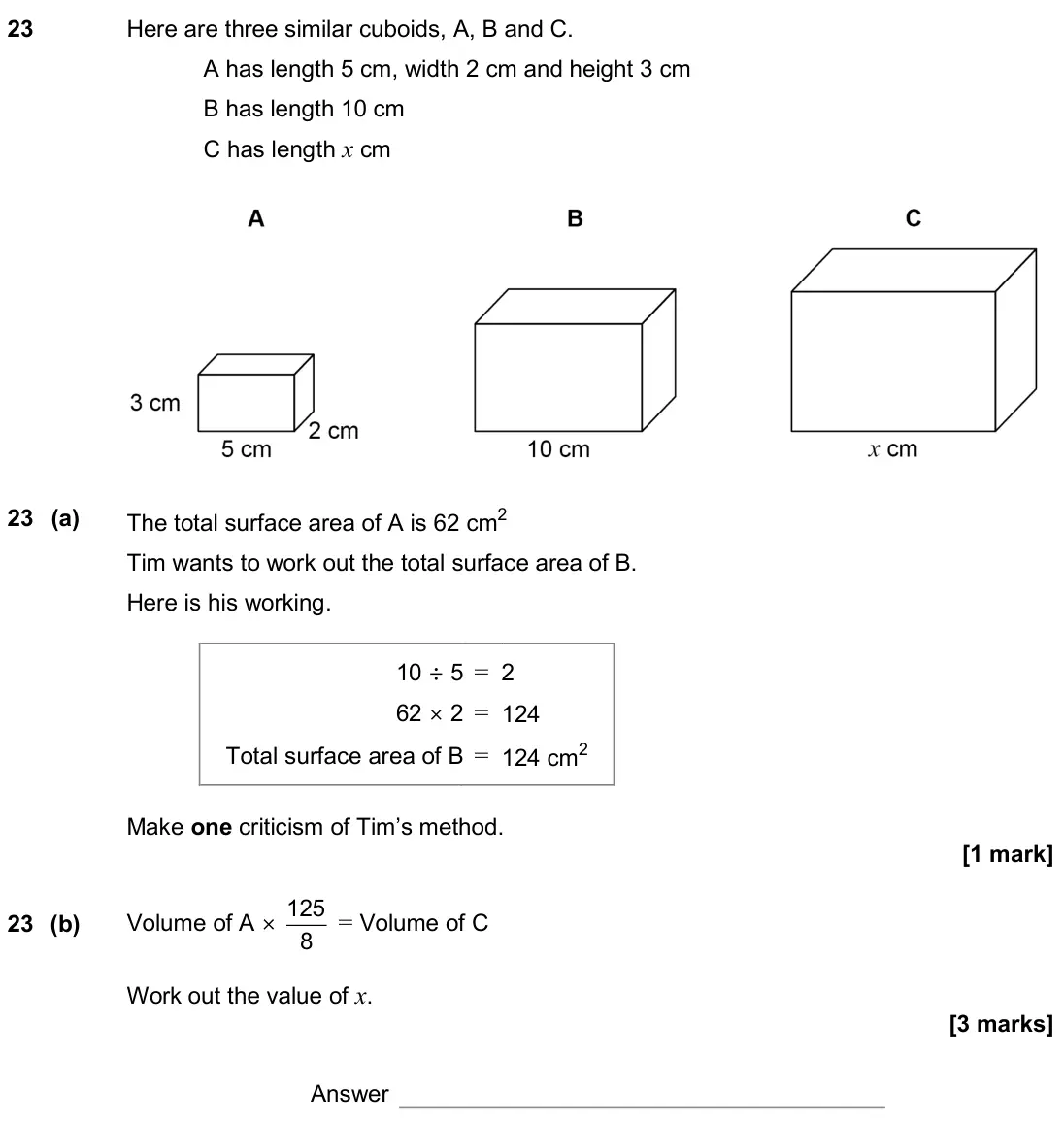

- November 2019, Paper 2H, Q23 (4 marks): Here are three similar cuboids, A, B and C. A has length 5 cm, width 2 cm and height 3 cm B has length 10 cm C has length x cm 23 (a) The total surface area of

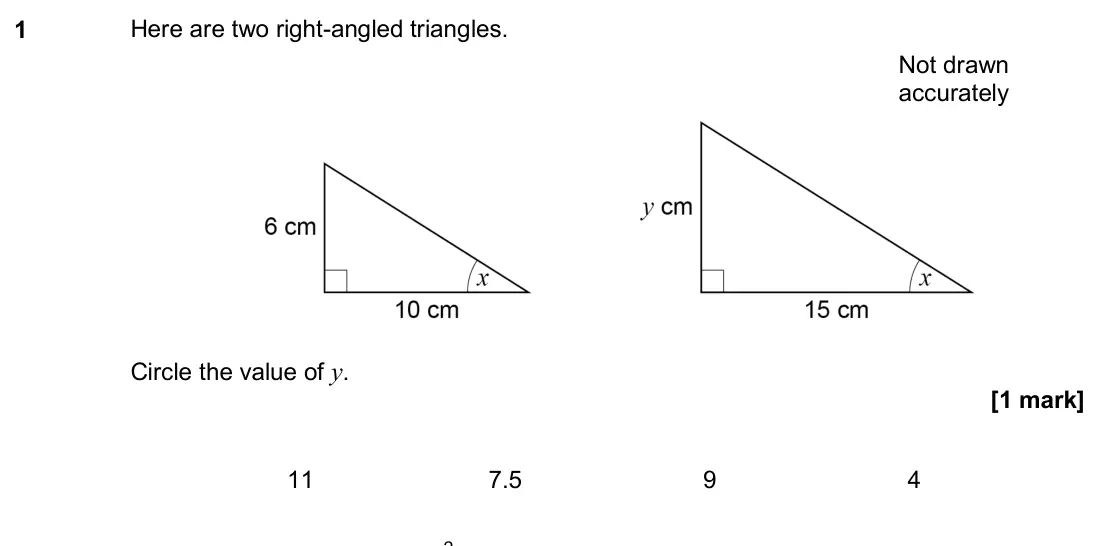

- June 2019, Paper 1H, Q1 (1 mark): Here are two right-angled triangles. Circle the value of y. 11 7.5 9 4 Not drawn accurately 2

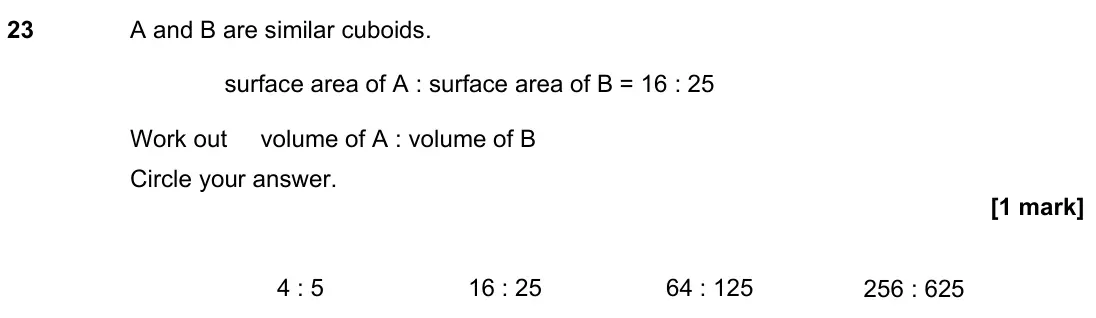

- June 2019, Paper 2H, Q23 (1 mark): A and B are similar cuboids. surface area of A : surface area of B = 16 : 25 Work out volume of A : volume of B Circle your answer. 4 : 5 16 : 25 64 : 125 256 :

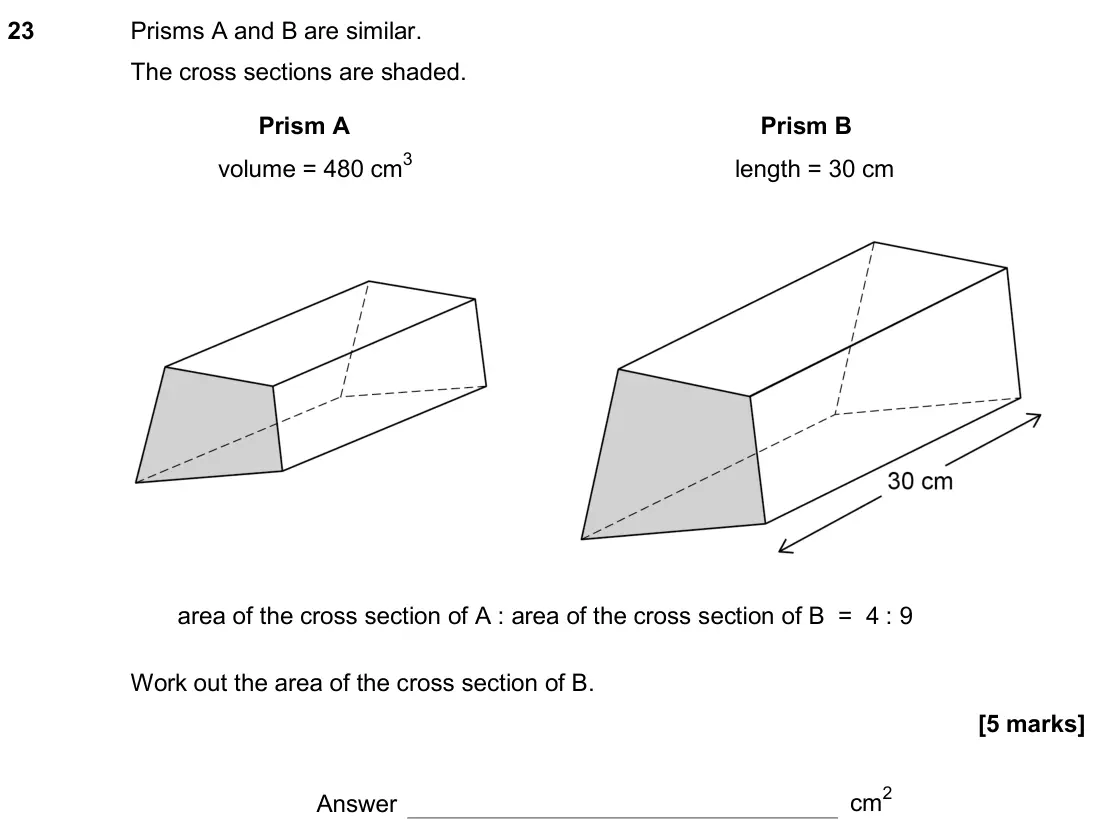

- November 2018, Paper 1H, Q23 (5 marks): Prisms A and B are similar. The cross sections are shaded. Prism A Prism B volume = 480 cm3 length = 30 cm area of the cross section of A : area of the cross se

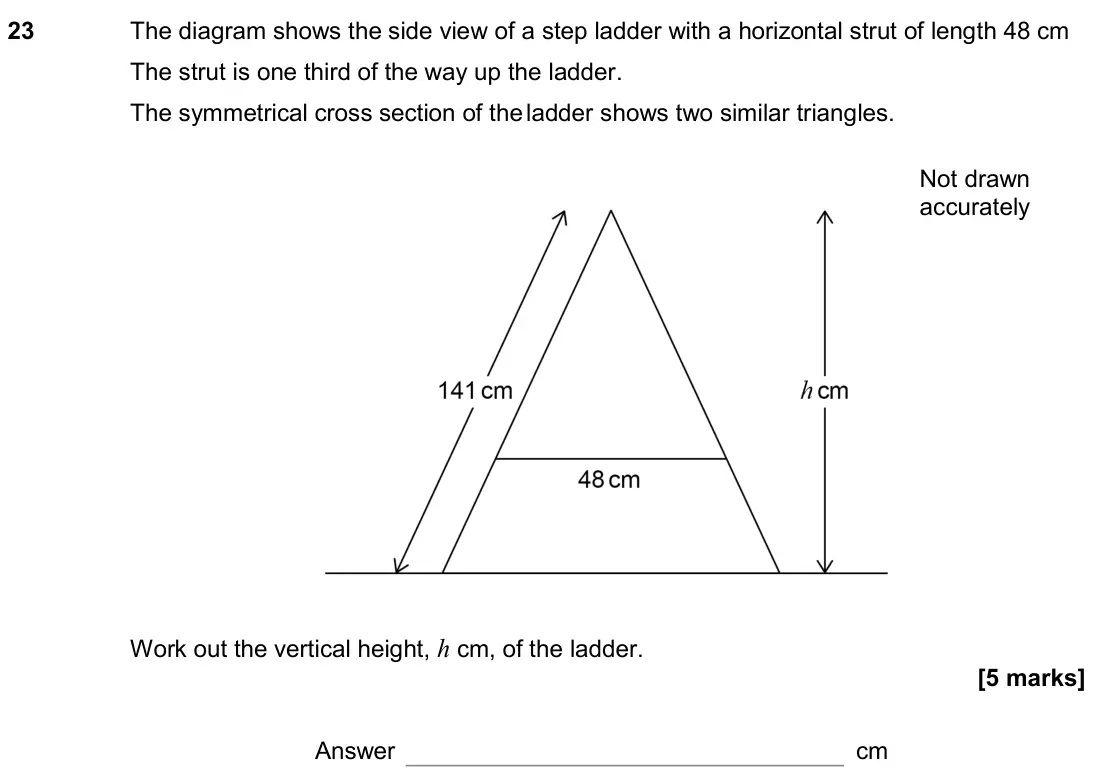

- November 2018, Paper 3H, Q23 (5 marks): The diagram shows the side view of a step ladder with a horizontal strut of length 48 cm The strut is one third of the way up the ladder. The symmetrical cross

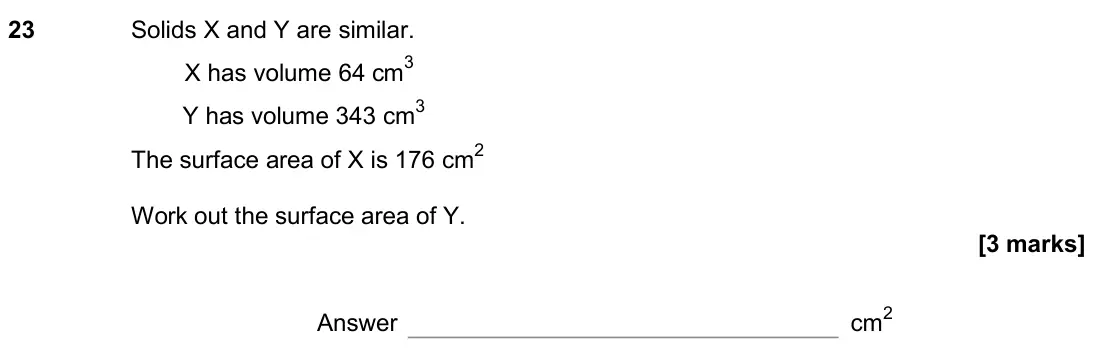

- June 2018, Paper 2H, Q23 (3 marks): Solids X and Y are similar. X has volume 64 cm3 Y has volume 343 cm3 The surface area of X is 176 cm2 Work out the surface area of Y. Answer cm2

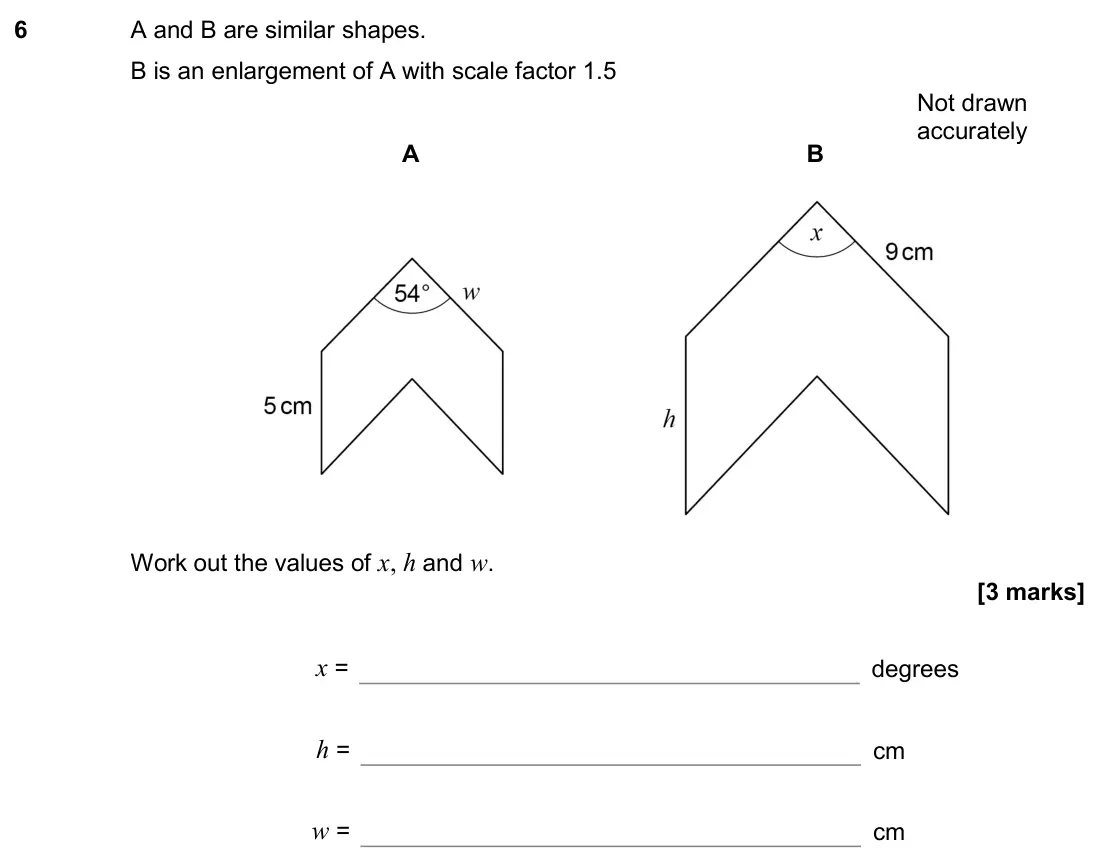

- June 2018, Paper 3H, Q6 (3 marks): A and B are similar shapes. B is an enlargement of A with scale factor 1.5 A B Work out the values of x, h and w. Not drawn accurately x = degrees h = cm w = cm

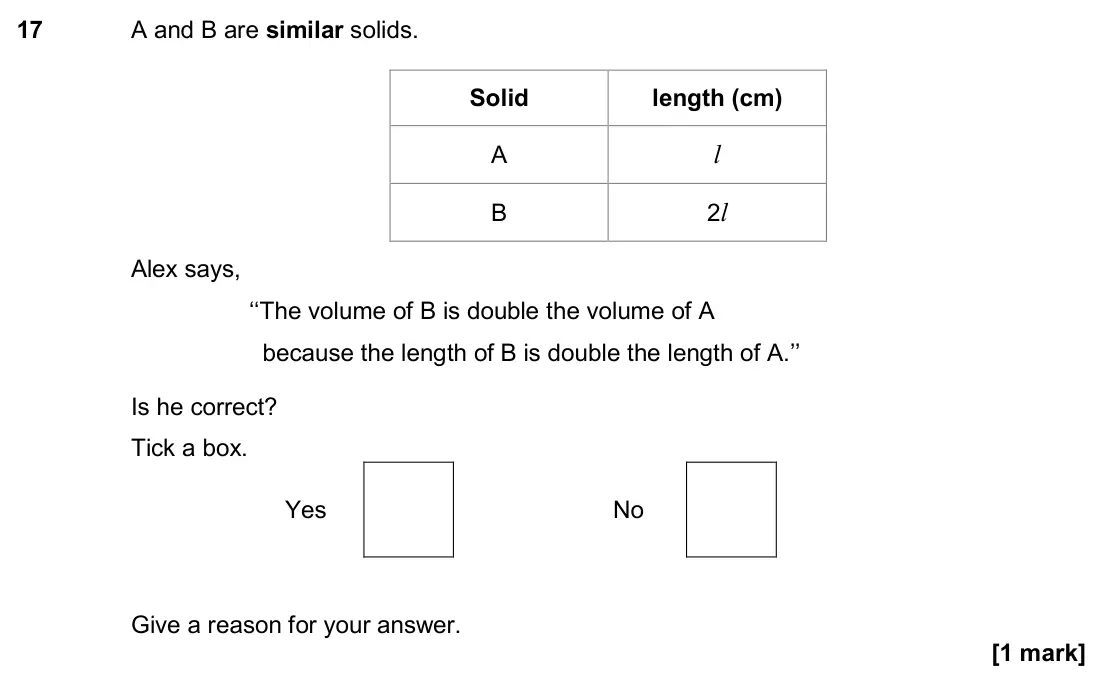

- November 2017, Paper 1H, Q17 (1 mark): A and B are similar solids. Solid length (cm) A l B 2l Alex says, ‘‘The volume of B is double the volume of A because the length of B is double the length of A.

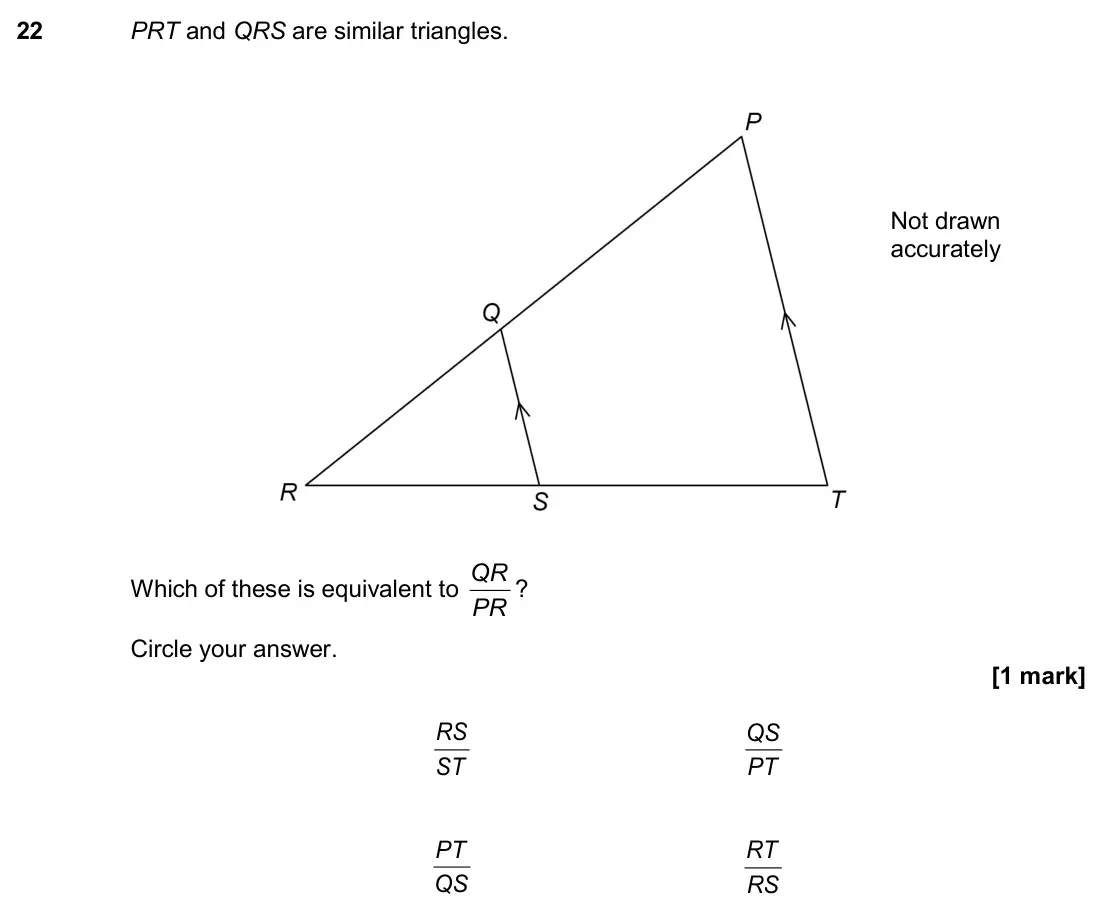

- June 2017, Paper 1H, Q22 (1 mark): PRT and QRS are similar triangles. Not drawn accurately Which of these is equivalent to PR QR ? Circle your answer. ST RS PT QS QS PT RS RT

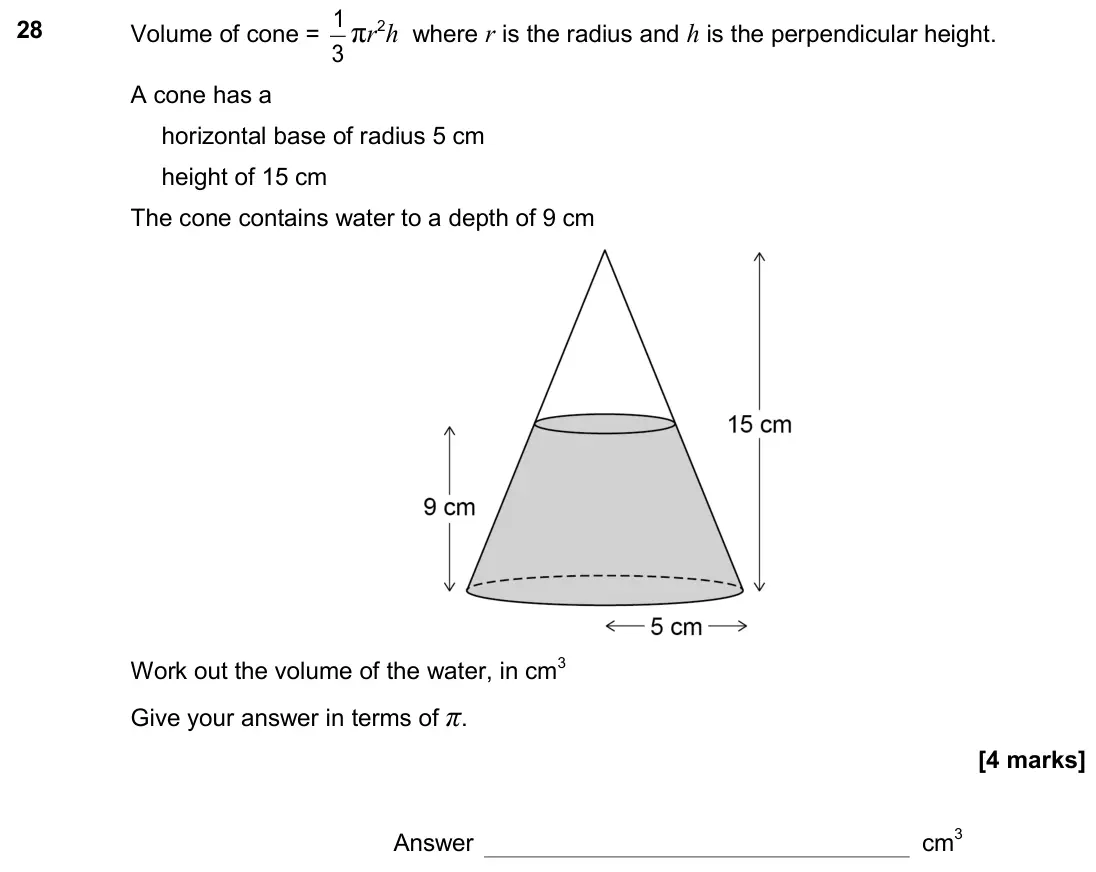

- June 2017, Paper 1H, Q28 (4 marks): Volume of cone = 3 1 πr2h where r is the radius and h is the perpendicular height. A cone has a horizontal base of radius 5 cm height of 15 cm The cone contains

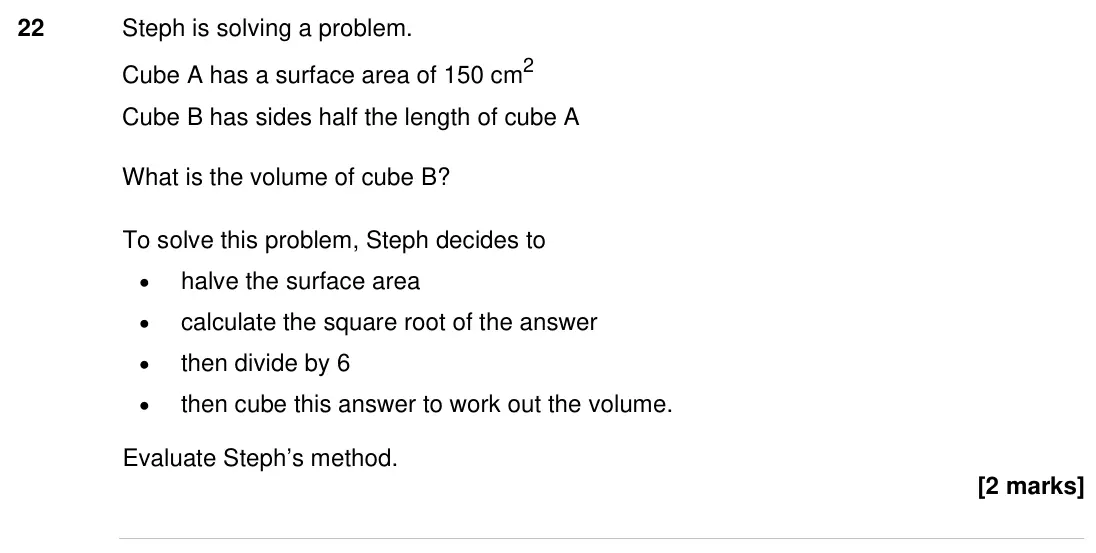

- Specimen, Paper 1H, Q22 (2 marks): Steph is solving a problem. Cube A has a surface area of 150 cm2 Cube B has sides half the length of cube A What is the volume of cube B? To solve this problem,
- Specimen, Paper 2H, Q14 (7 marks): (a) A pattern is made from two similar trapeziums. 18 cm 25 cm 10 cm 4 cm Not drawn accurately Show that the shaded area is 294 cm2 14 (b) The pattern has one l
- Specimen, Paper 2H, Q26 (4 marks): Two boxes are made with card. The boxes are similar cuboids. The smaller box has height 32 cm 32 cm h It takes 44% more card to make the larger box. Work out th
