plumiCircles, surface area and volume: AQA GCSE Maths questions
Every AQA GCSE Maths exam question on G17 Circles, surface area and volume, 2017–2025, with its mark scheme and examiner’s report.
Find questions1,304
Exam
All years
Calculator
All 41 questions on Circles, surface area and volume, as a list

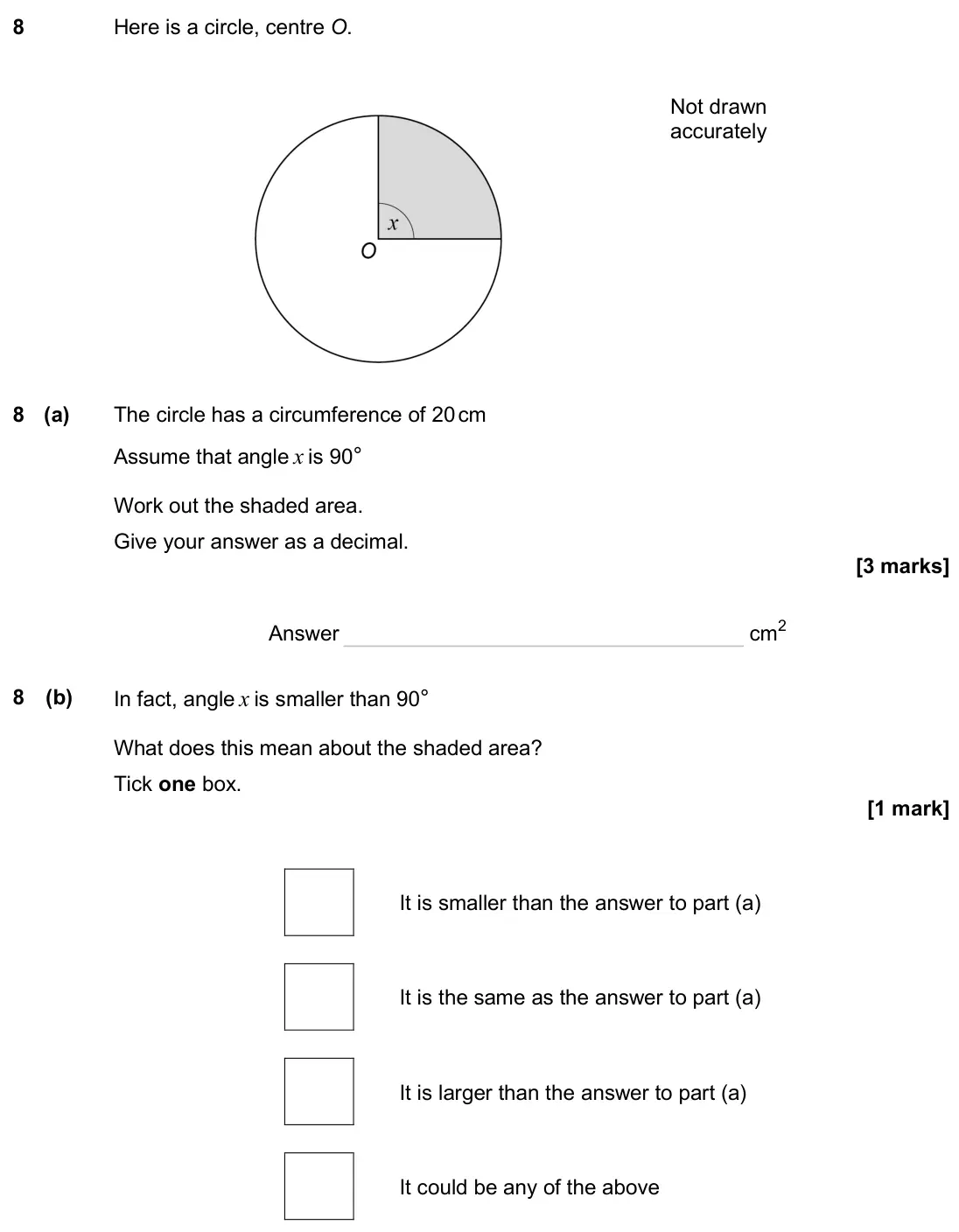

- June 2025, Paper 2H, Q8 (4 marks): Here is a circle, centre O. Not drawn accurately 8 (a) The circle has a circumference of 20 cm Assume that angle x is 90° Work out the shaded area. Give your an

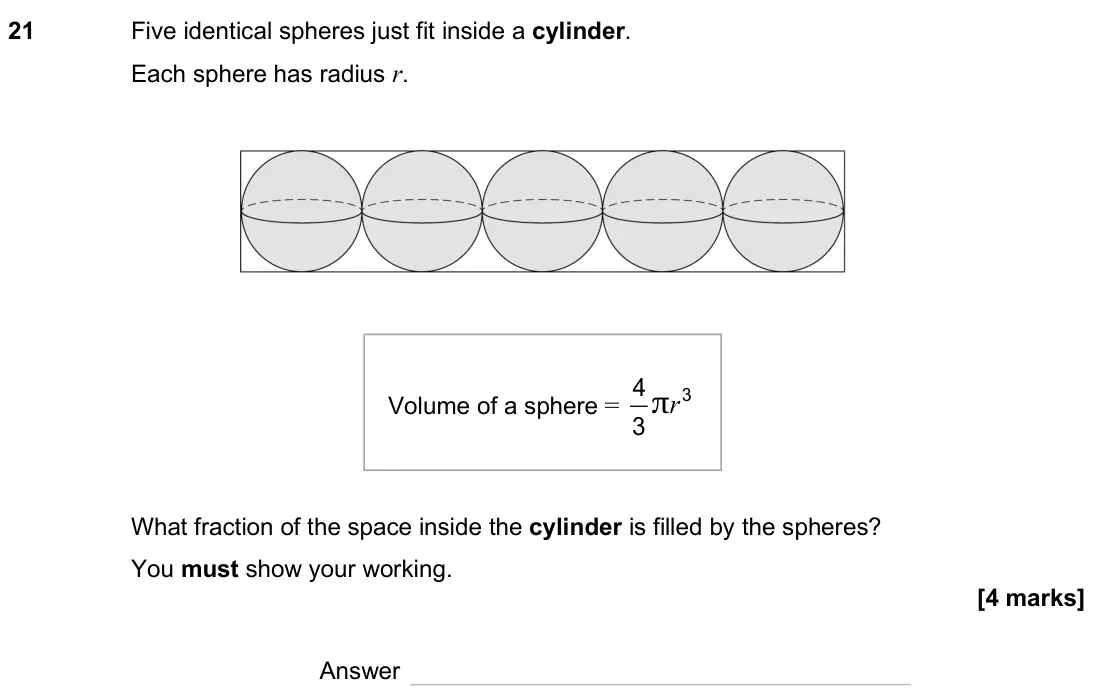

- June 2025, Paper 3H, Q21 (4 marks): Five identical spheres just fit inside a cylinder. Each sphere has radius r. Volume of a sphere = r3 4 3 π What fraction of the space inside the cylinder is fil

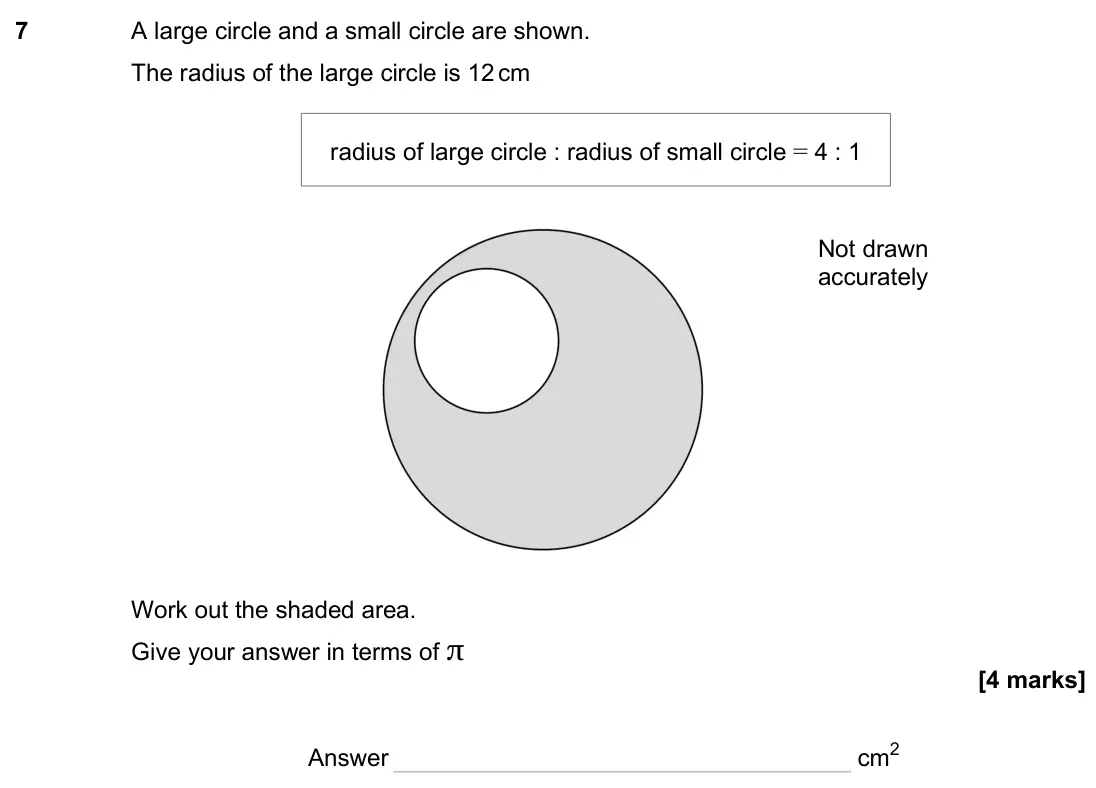

- November 2024, Paper 1H, Q7 (4 marks): A large circle and a small circle are shown. The radius of the large circle is 12cm radius of large circle : radius of small circle = 4 : 1 Not drawn accurately

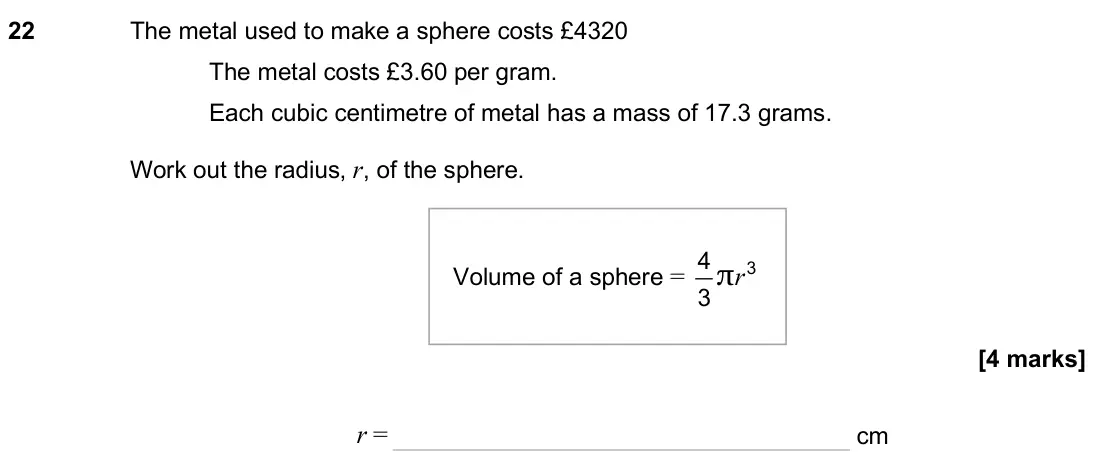

- November 2024, Paper 3H, Q22 (4 marks): The metal used to make a sphere costs £4320 The metal costs £3.60 per gram. Each cubic centimetre of metal has a mass of 17.3 grams. Work out the radius, r, of

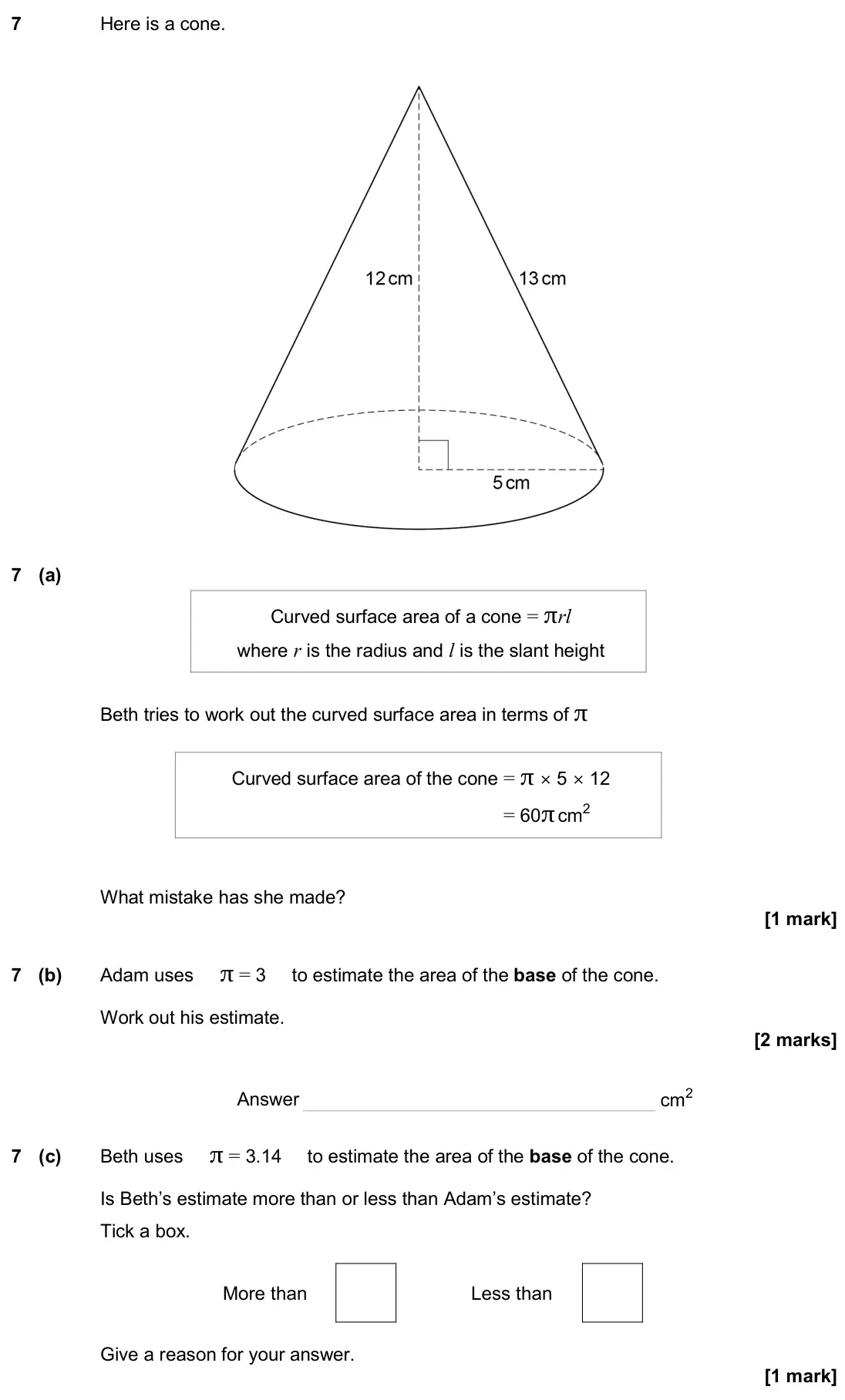

- June 2024, Paper 1H, Q7 (4 marks): Here is a cone. 7 (a) Curved surface area of a cone = πrl where r is the radius and l is the slant height Beth tries to work out the curved surface area in term

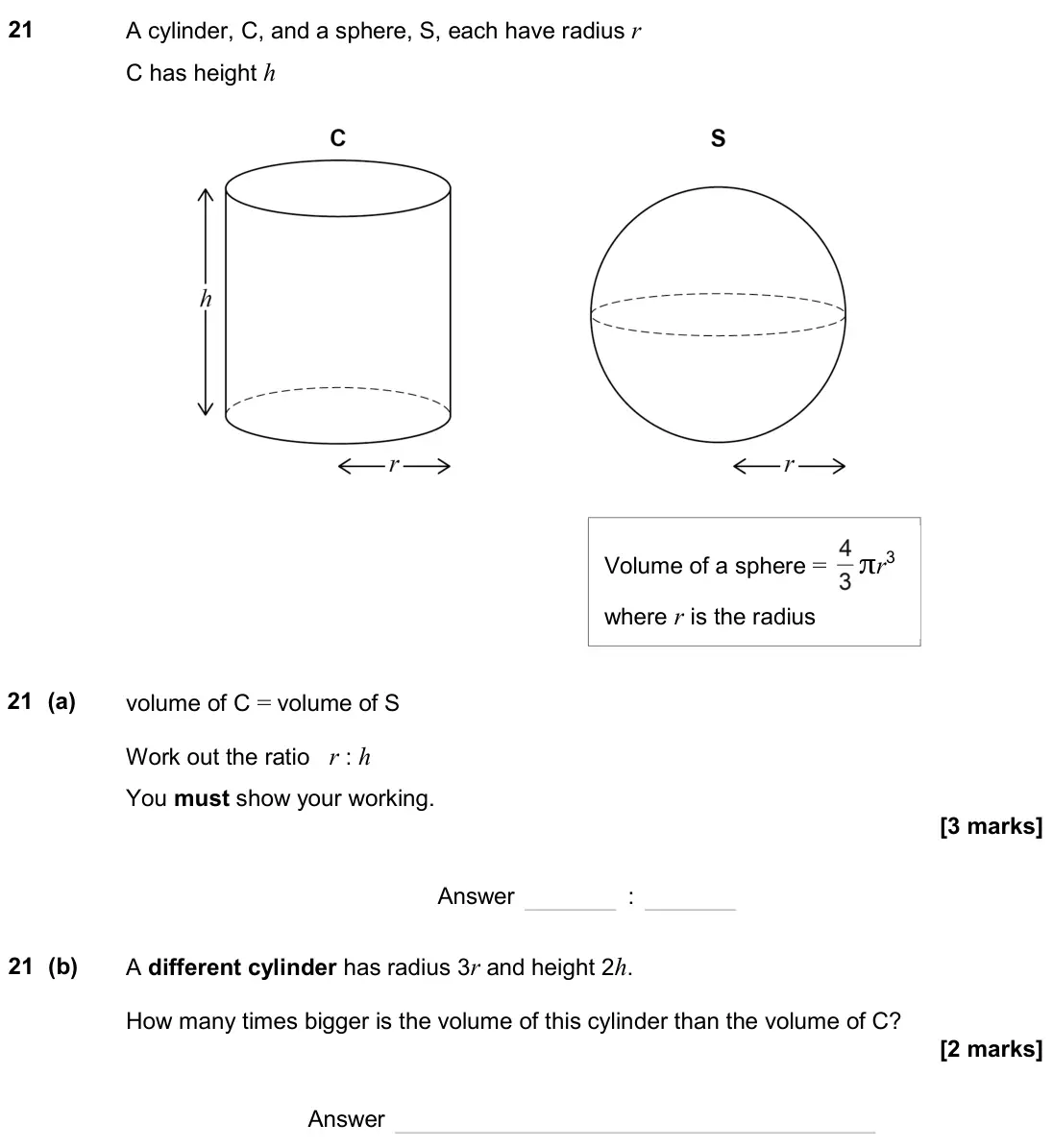

- June 2024, Paper 3H, Q21 (5 marks): A cylinder, C, and a sphere, S, each have radius r C has height h Volume of a sphere = πr3 where r is the radius 21 (a) volume of C = volume of S Work out the r

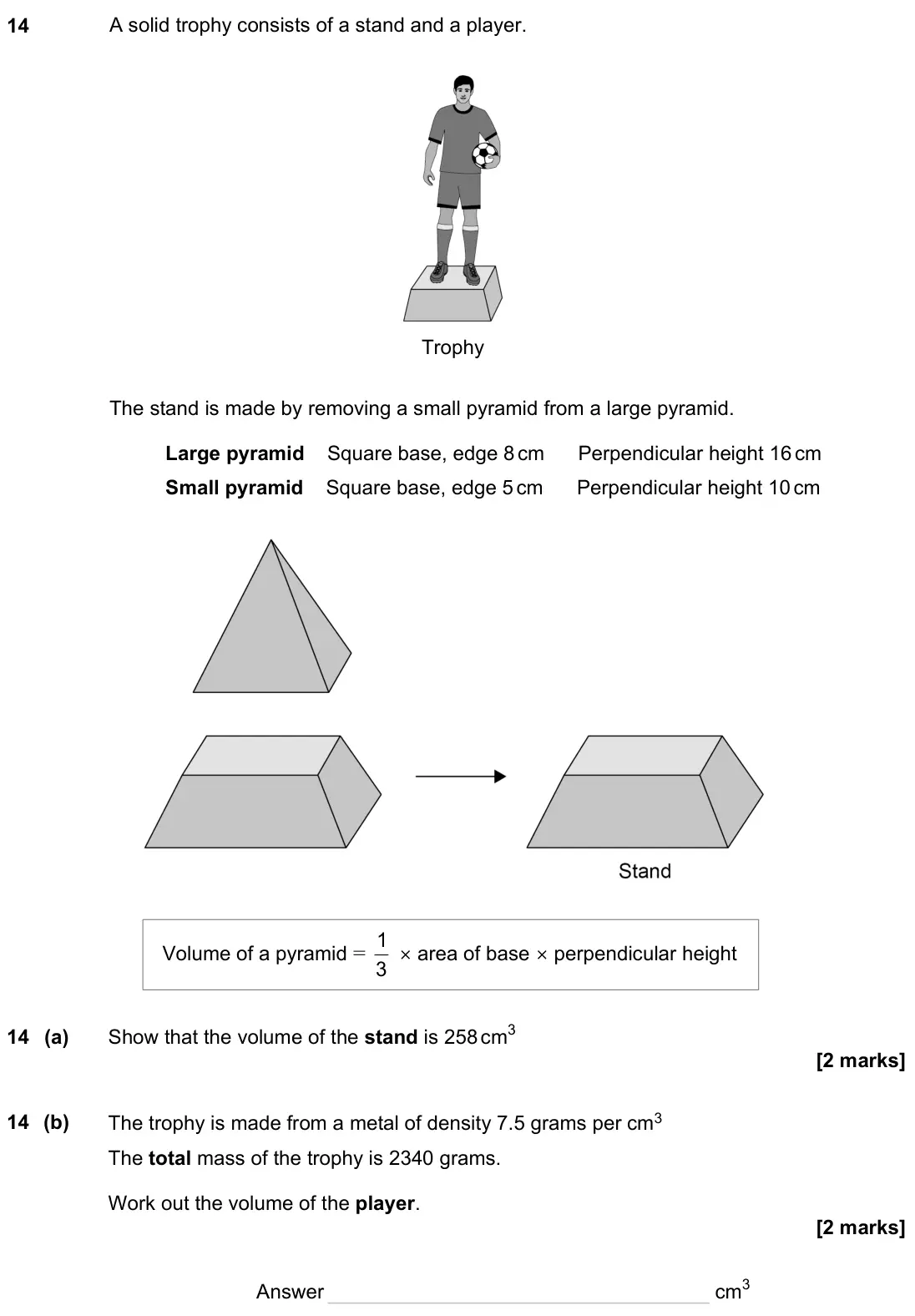

- November 2023, Paper 3H, Q14 (4 marks): A solid trophy consists of a stand and a player. Trophy The stand is made by removing a small pyramid from a large pyramid. Large pyramid Square base, edge 8 cm
- November 2023, Paper 3H, Q23 (4 marks): A chocolate box in the shape of a prism is being designed. All lengths are in centimetres. The cross section is a regular hexagon with side x The length is 5x A
- June 2023, Paper 1H, Q17 (3 marks): A solid hemisphere has radius x. A solid cylinder has radius 3x and height x. Work out the ratio total surface area of the hemisphere : total surface area of th

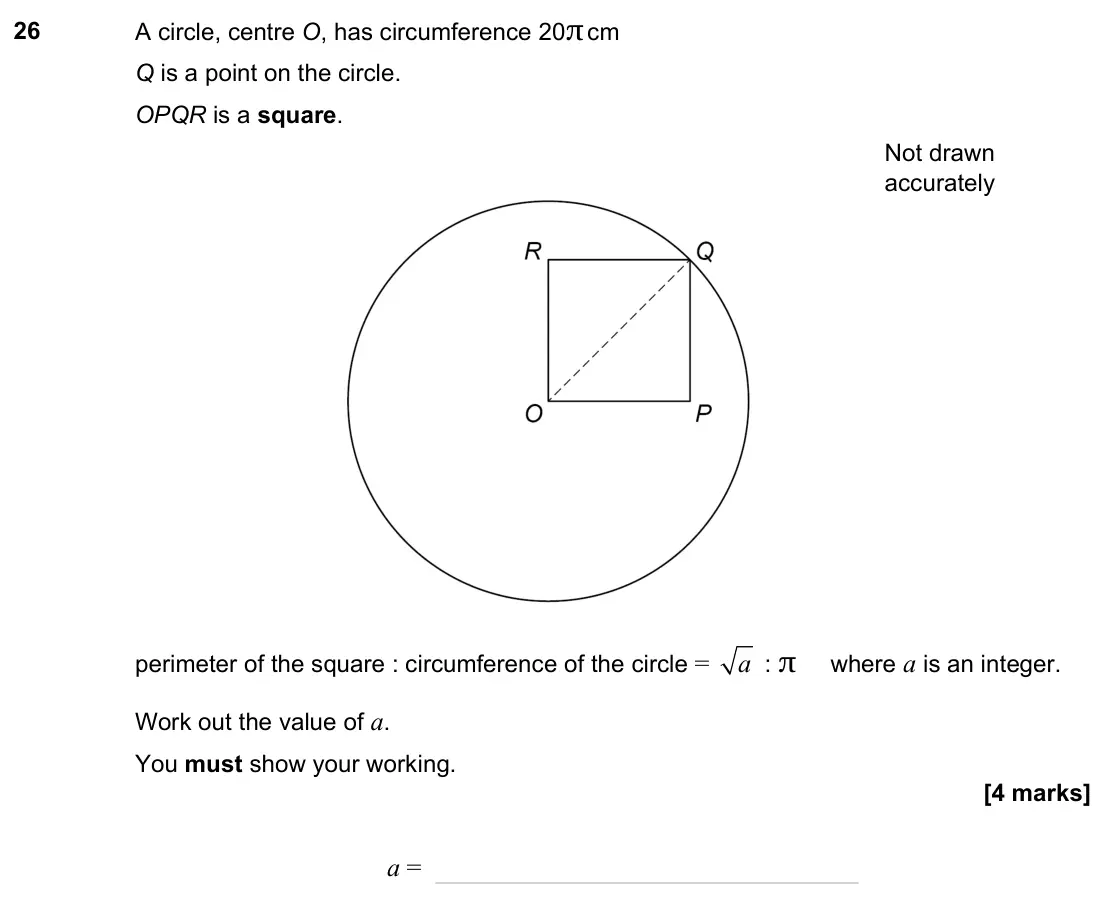

- June 2023, Paper 1H, Q26 (4 marks): A circle, centre O, has circumference 20πcm Q is a point on the circle. OPQR is a square. Not drawn accurately perimeter of the square : circumference of the ci

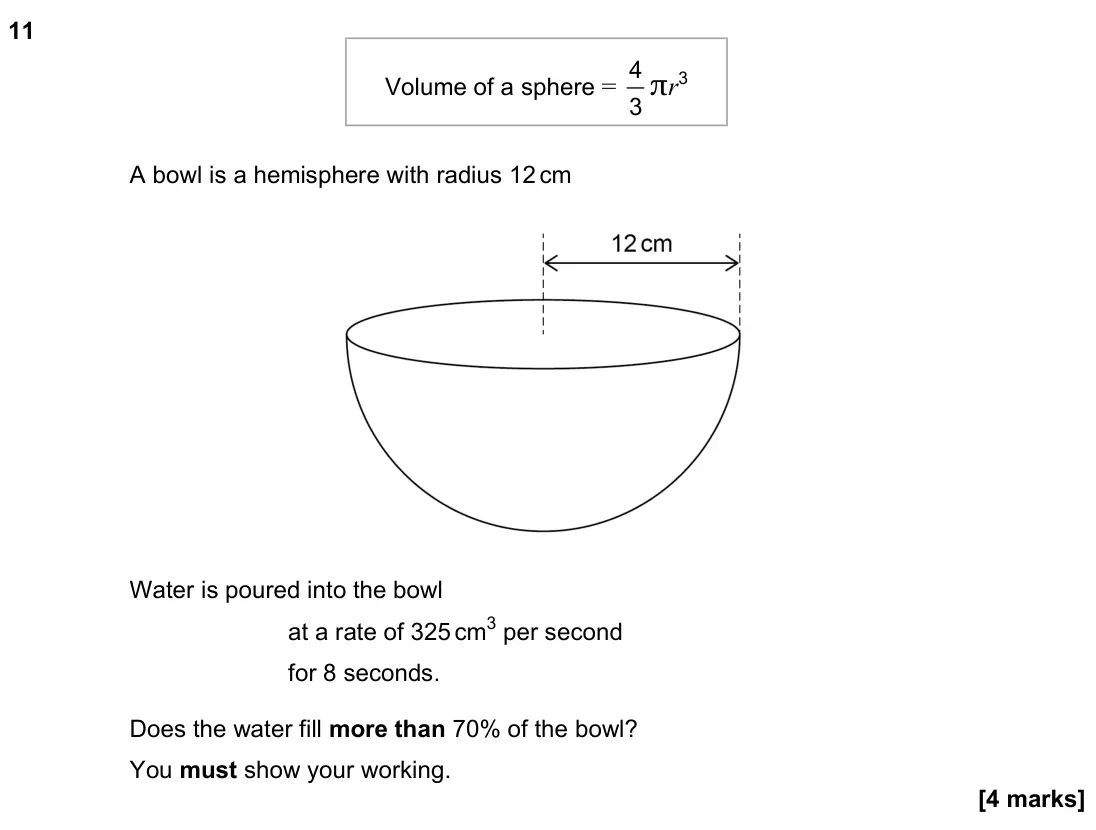

- June 2023, Paper 2H, Q11 (4 marks): A bowl is a hemisphere with radius 12 cm Volume of a sphere = 4 3 πr3 Water is poured into the bowl at a rate of 325 cm3 per second for 8 seconds. Does the wate

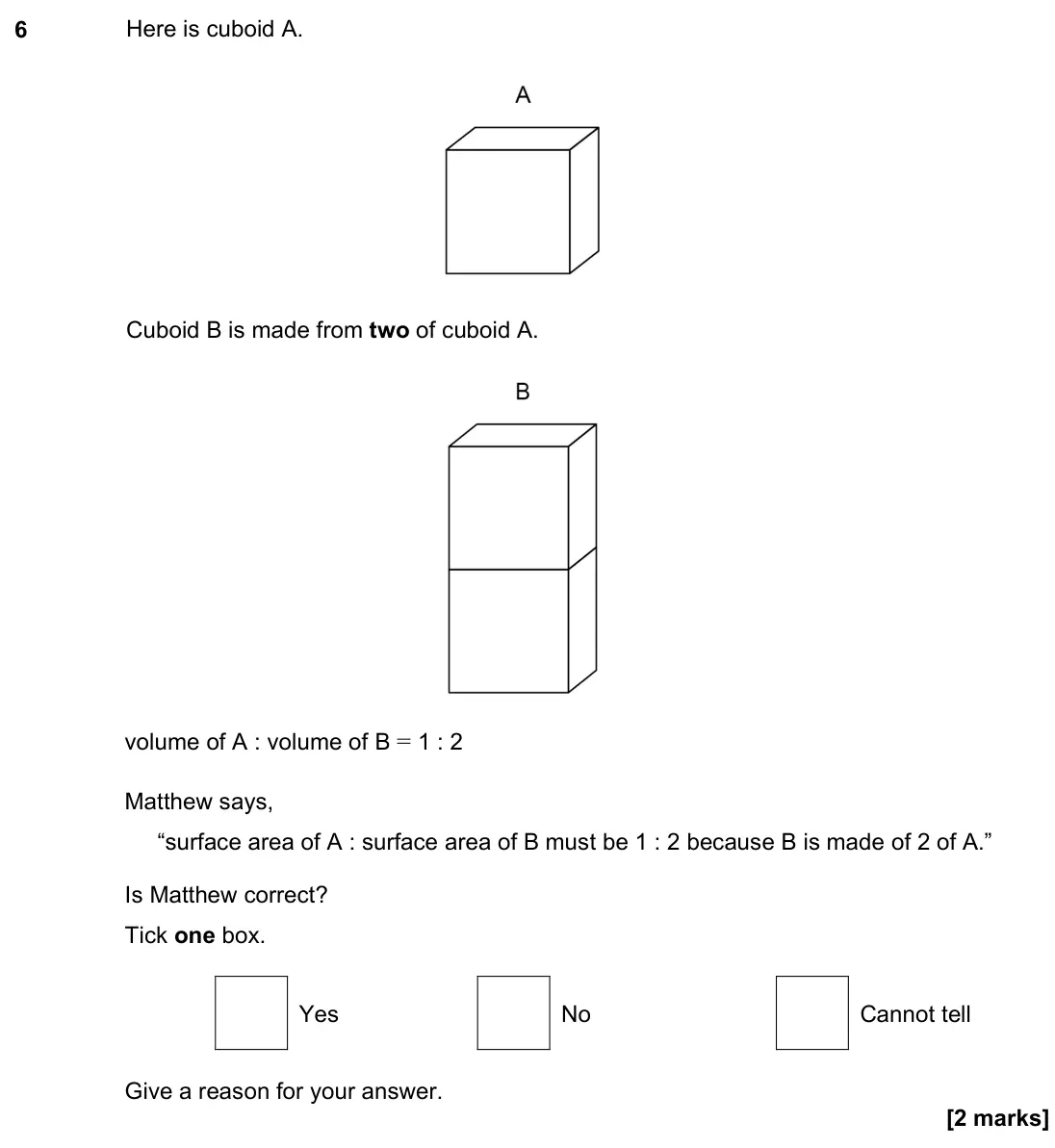

- June 2023, Paper 3H, Q6 (2 marks): Here is cuboid A. Cuboid B is made from two of cuboid A. volume of A : volume of B = 1 : 2 Matthew says, “surface area of A : surface area of B must be 1 : 2 be
- November 2022, Paper 2H, Q8 (3 marks): (a) Here is a cuboid. w, x and y are different whole numbers. The total length of all the edges of the cuboid is 80 cm The volume is greater than 200 cm3 Work o

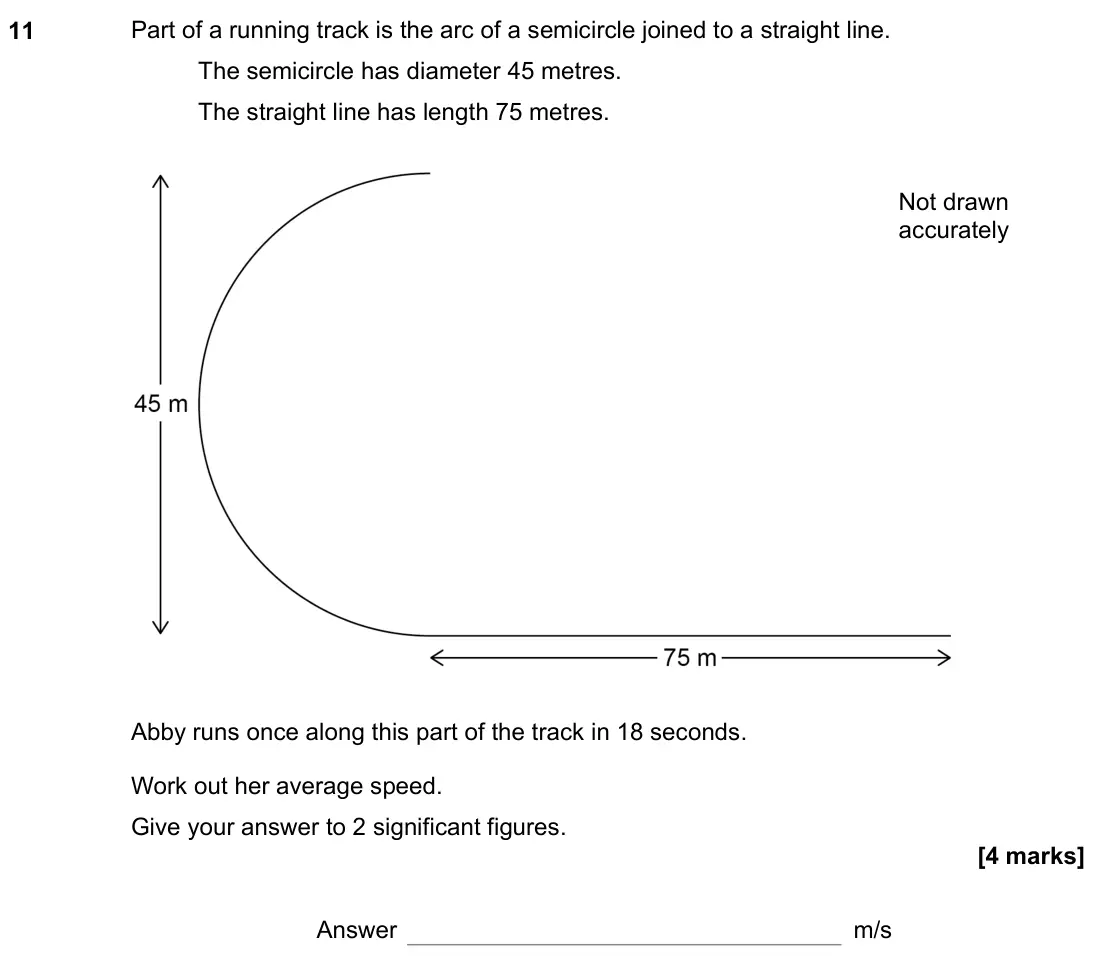

- November 2022, Paper 3H, Q11 (4 marks): Part of a running track is the arc of a semicircle joined to a straight line. The semicircle has diameter 45 metres. The straight line has length 75 metres. Not

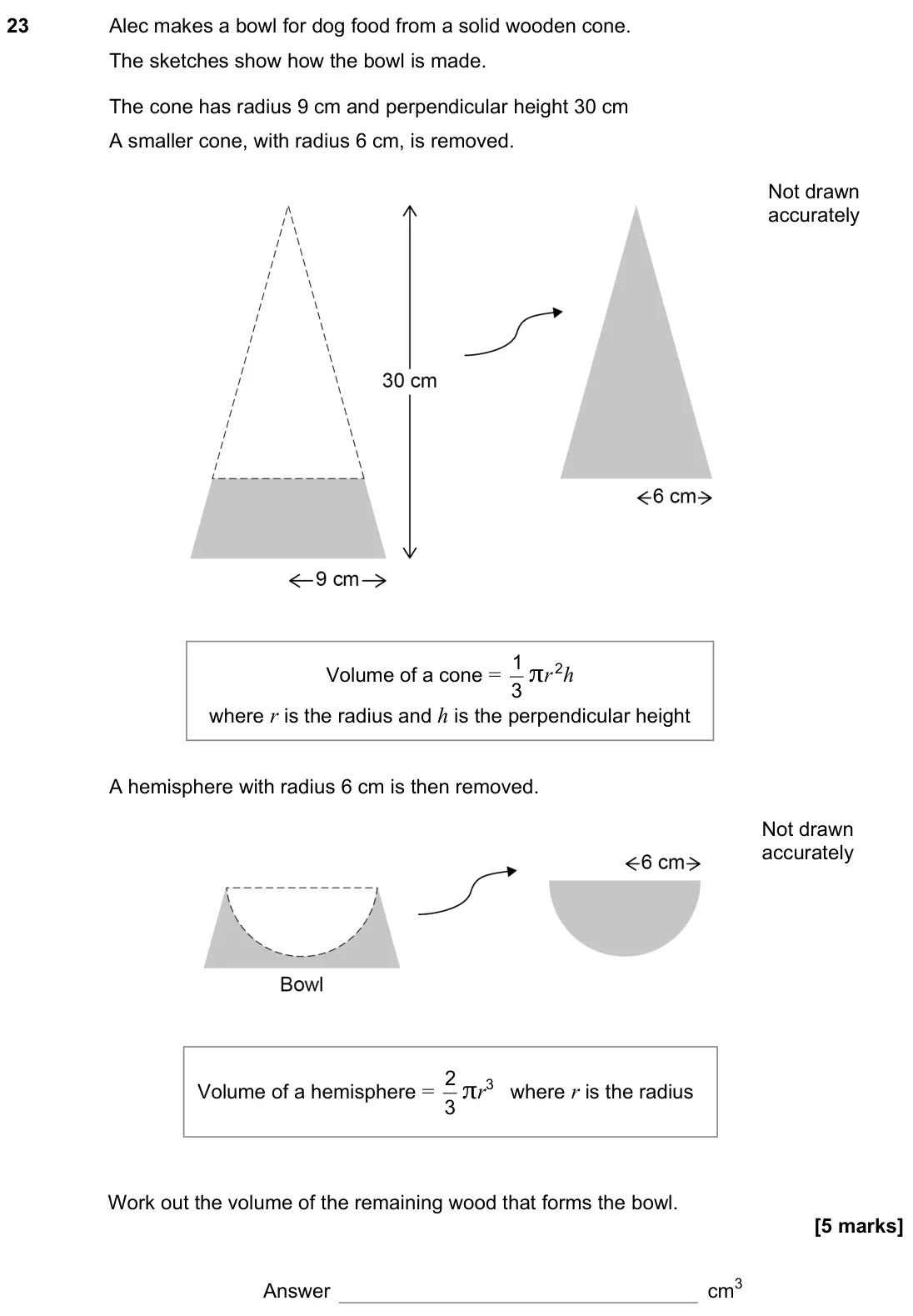

- November 2022, Paper 3H, Q23 (5 marks): Alec makes a bowl for dog food from a solid wooden cone. The sketches show how the bowl is made. The cone has radius 9 cm and perpendicular height 30 cm A small

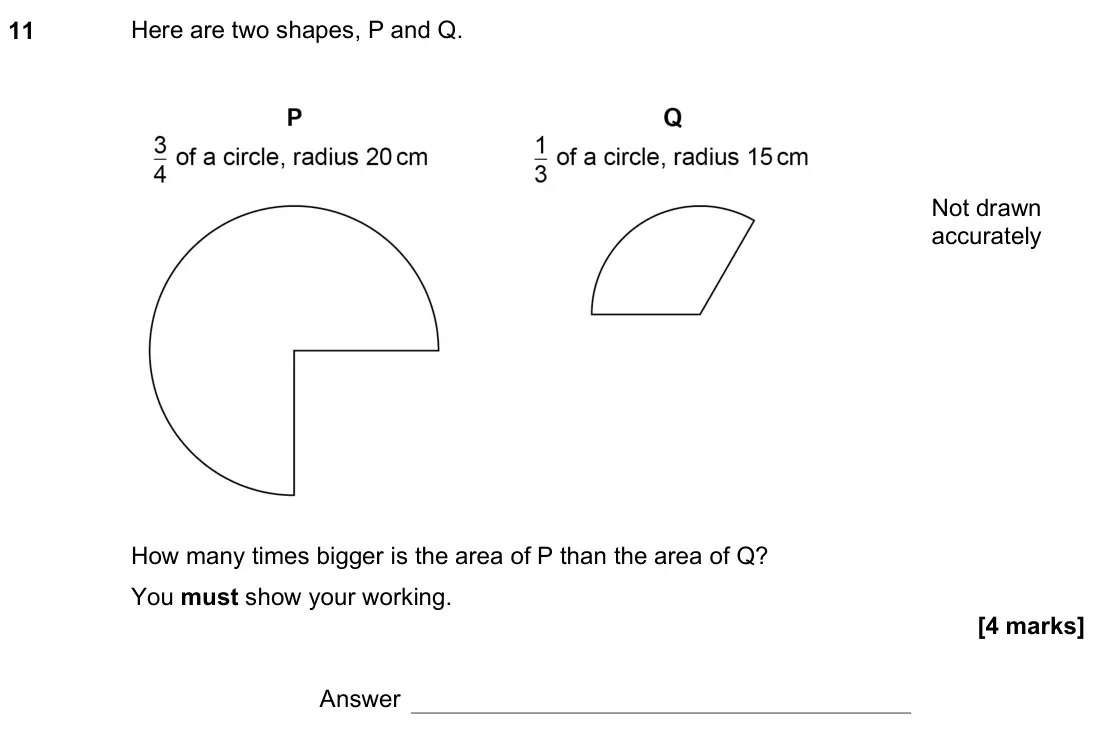

- June 2022, Paper 1H, Q11 (4 marks): Here are two shapes, P and Q. Not drawn accurately How many times bigger is the area of P than the area of Q? You must show your working. Answer

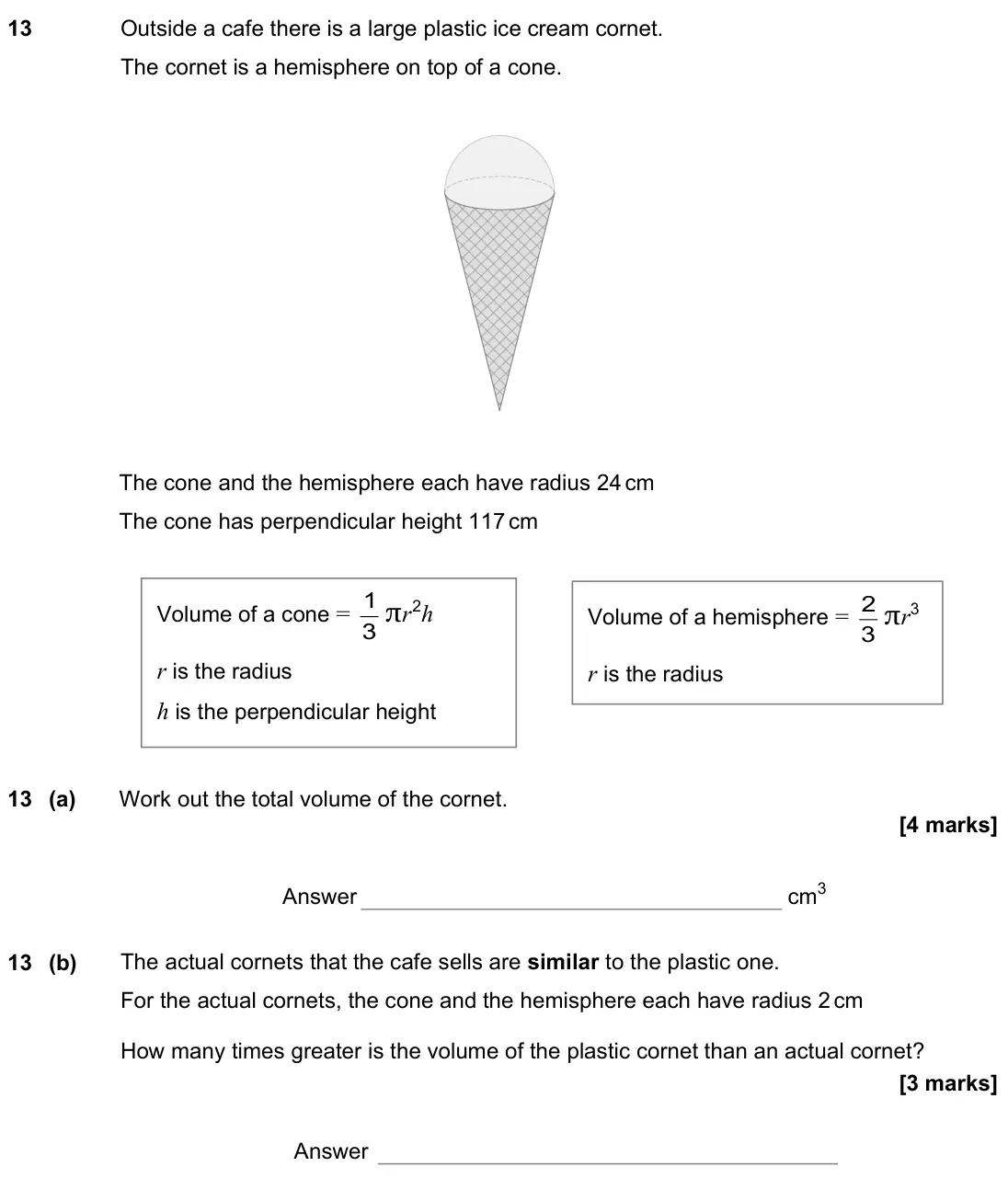

- June 2022, Paper 2H, Q13 (7 marks): Outside a cafe there is a large plastic ice cream cornet. The cornet is a hemisphere on top of a cone. The cone and the hemisphere each have radius 24 cm The co

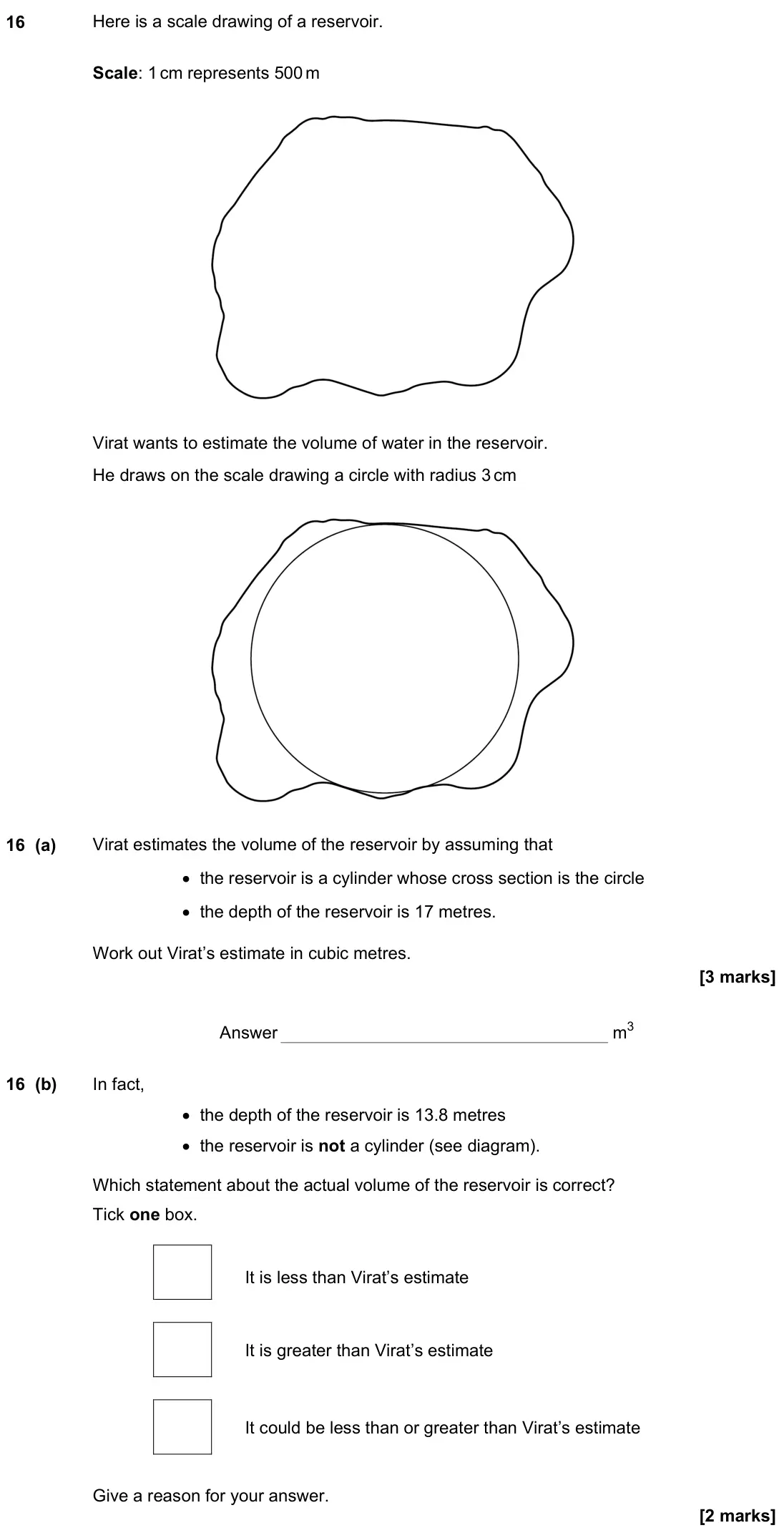

- June 2022, Paper 3H, Q16 (5 marks): Here is a scale drawing of a reservoir. Scale: 1 cm represents 500 m Virat wants to estimate the volume of water in the reservoir. He draws on the scale drawing

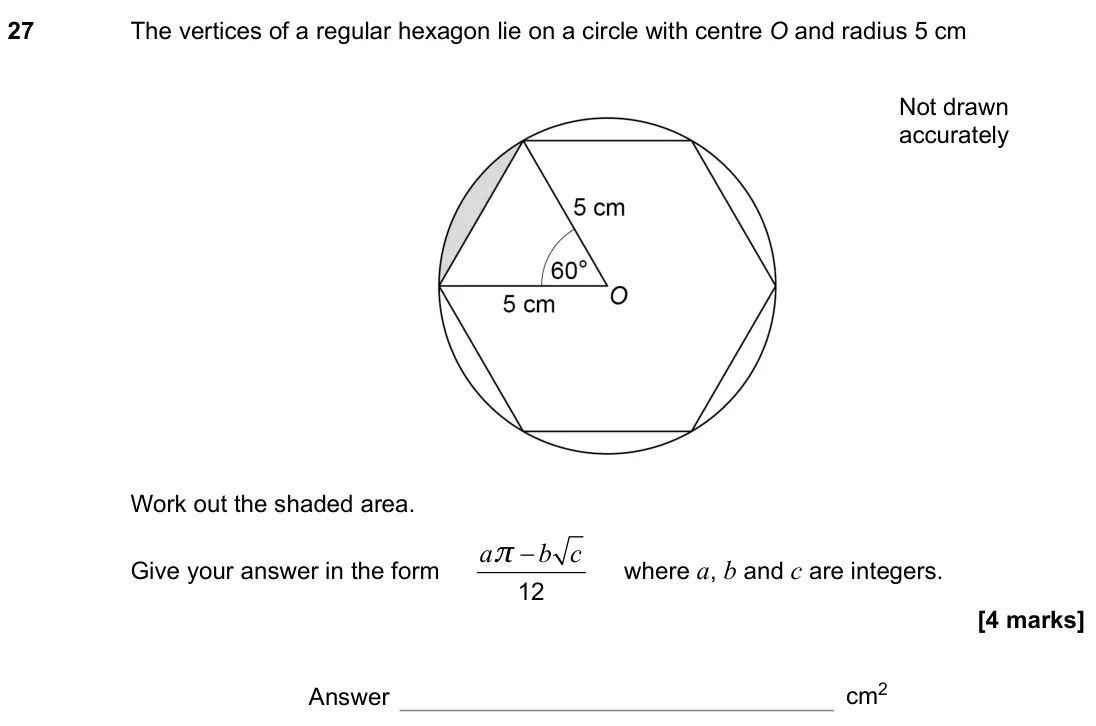

- November 2021, Paper 1H, Q27 (4 marks): The vertices of a regular hexagon lie on a circle with centre O and radius 5 cm Work out the shaded area. Give your answer in the form a b c − 12 π where a, b a

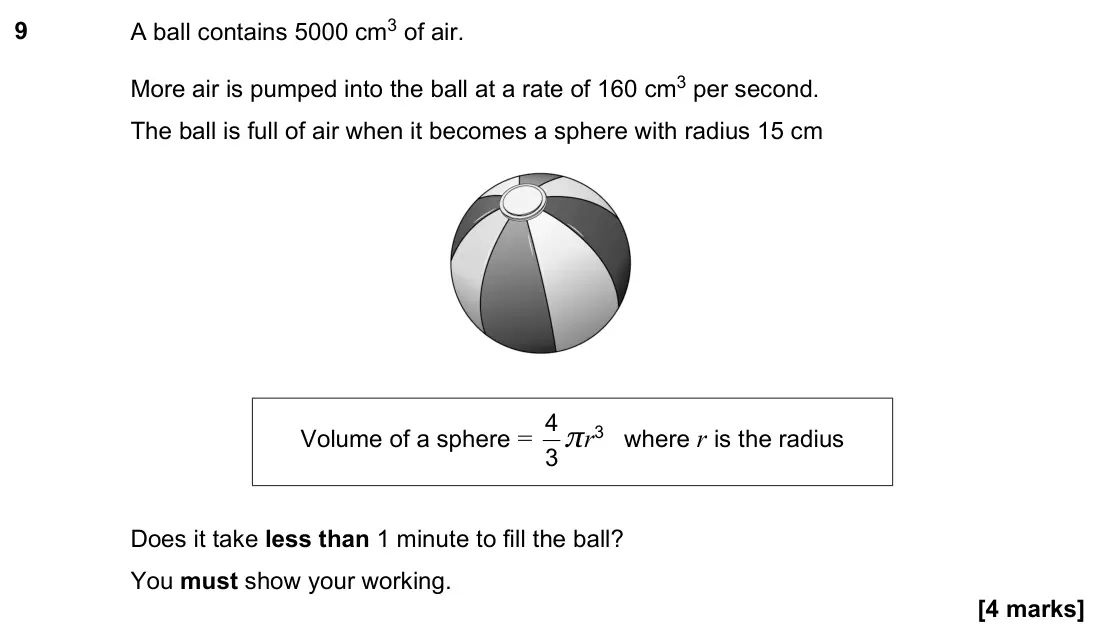

- November 2021, Paper 2H, Q9 (4 marks): A ball contains 5000 cm3 of air. More air is pumped into the ball at a rate of 160 cm3 per second. The ball is full of air when it becomes a sphere with radius
- November 2020, Paper 1H, Q8 (3 marks): The shorter side of a parallelogram has length 6.5 cm The length of the shorter side is 1 9 of the perimeter. Work out the length of the longer side. Not drawn
- November 2020, Paper 2H, Q9 (4 marks): Here is a cuboid. 9 (a) Assume that the total surface area of the cuboid is 200 cm2 Work out the volume of the cuboid. Answer cm3 9 (b) In fact, the total surfa
- November 2020, Paper 3H, Q29 (5 marks): A shape is made by joining triangle ABC to a semicircle with diameter AC. Not drawn accurately Work out the total area of the shape. Answer cm2
- November 2019, Paper 1H, Q9 (4 marks): Here are two solids. Cylinder radius 4 cm height 10 cm Hemisphere radius 6 cm volume of a hemisphere = 2 3 πr3 where r is the radius Which solid has the greater
- June 2019, Paper 1H, Q9 (4 marks): A shaded semicircle is inside a circle as shown. The radius of the circle is 10 cm The diameter of the semicircle is 8 cm How many times bigger is the unshaded
- June 2019, Paper 2H, Q21 (3 marks): A solid shape is made by joining two cones. Each cone has the same radius. One cone has slant height = 2 × radius The other cone has slant height = 3 × radius T
- November 2018, Paper 2H, Q5 (1 mark): A circle has circumference C and diameter d. C = kd What value does the constant k represent? Answer
- November 2018, Paper 2H, Q8 (4 marks): Two identical quarter circles are cut from a rectangle as shown. Work out the shaded area. Not drawn accurately Answer cm2
- November 2018, Paper 3H, Q9 (5 marks): A motor racing circuit consists of two parallel straight sections, each of length 0.75 km a semicircle of diameter 0.9 km three equal, smaller semicircles. The
- November 2018, Paper 3H, Q15 (5 marks): A company makes two types of lampshade using fabric on wire frames. Lampshade A Fabric is used to make the curved surface of a cylinder. The cylinder has radius
- November 2018, Paper 3H, Q24 (4 marks): A sphere has radius 2x cm A cone has radius 3x cm perpendicular height h cm The sphere and the cone have the same volume. Work out radius of cone : perpendicula
- June 2018, Paper 1H, Q11 (4 marks): A large rectangle is made by joining three identical small rectangles as shown. The perimeter of one small rectangle is 15 cm Work out the perimeter of the larg
- June 2018, Paper 1H, Q18 (5 marks): Here is a tunnel for a toy train. The diagram below shows the cross section of the tunnel. Not drawn accurately AD is a semicircular arc of radius 10 cm BC is a
- June 2018, Paper 2H, Q10 (3 marks): A container is a hemisphere of radius 30 cm Sand fills the container at a rate of 4000 cm3 per minute. Does it take less than a quarter of an hour to fill the c
- November 2017, Paper 1H, Q7 (2 marks): Here is a quarter circle of radius 6 cm Work out the area of the quarter circle. Give your answer in terms of π. Not drawn accurately Answer cm2
- November 2017, Paper 2H, Q22 (5 marks): The cross section of an earring is a semicircle, centre C, radius 25 mm The earring is black and white. The shaded area is black. Not drawn accurately Sector BC
- November 2017, Paper 3H, Q27 (6 marks): VABCD is a square-based pyramid. The horizontal base ABCD has side length 10 cm and centre M. Angle VMA is 90° Angle VAM is 68° Volume of pyramid = 3 1 × area o
- June 2017, Paper 1H, Q12 (3 marks): Here is a circle touching a square. The area of the square is 64 cm2 Work out the area of the circle. Give your answer in terms of π. Not drawn accurately Answe
- June 2017, Paper 1H, Q28 (4 marks): Volume of cone = 3 1 πr2h where r is the radius and h is the perpendicular height. A cone has a horizontal base of radius 5 cm height of 15 cm The cone contains
- Specimen, Paper 2H, Q17 (5 marks): The distance from the Earth to the Sun is 93 million miles. Assume it takes 365 days for the Earth to travel once around the Sun the Earth travels in a circle w
- Specimen, Paper 2H, Q23 (4 marks): A bowl is a hemisphere with radius 6 cm Water fills two-fifths of the volume of the bowl. The water is poured into a hollow cone. The depth of the water in the
