Constructions and loci: AQA GCSE Maths questions

Every AQA GCSE Maths exam question on G2 Constructions and loci, 2017–2025, with its mark scheme and examiner’s report.

Find questions1,304
Exam
All years
Calculator

1,304 questions

  1. Q11

    November 2024 · Paper 1H

    3 marksG2 Constructions and loci
    The whole paper ↗

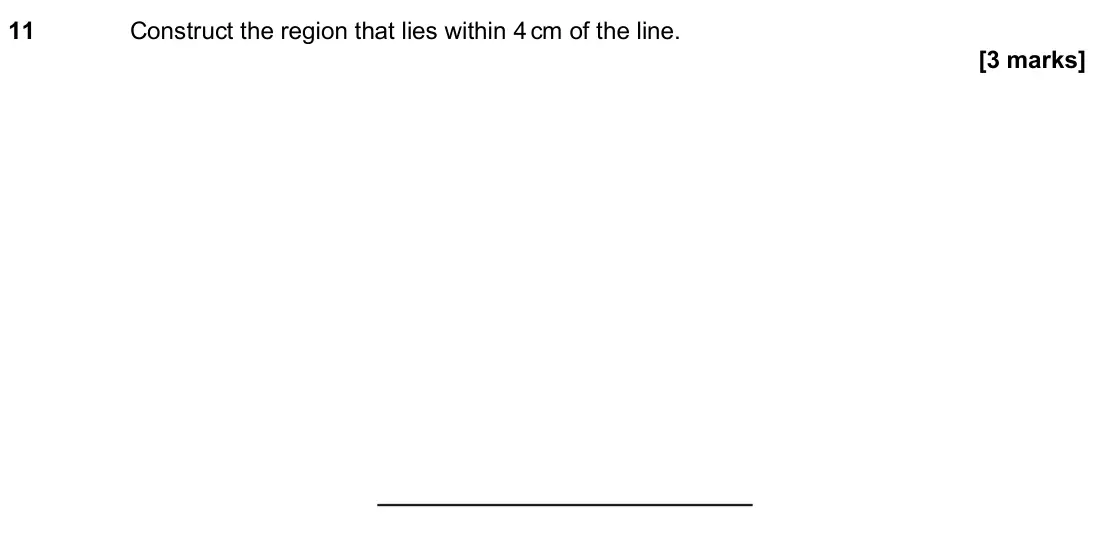

    November 2024 Paper 1H, question 11: Construct the region that lies within 4 cm of the line.

  2. Q14

    November 2023 · Paper 2H

    4 marksG2 Constructions and loci
    The whole paper ↗

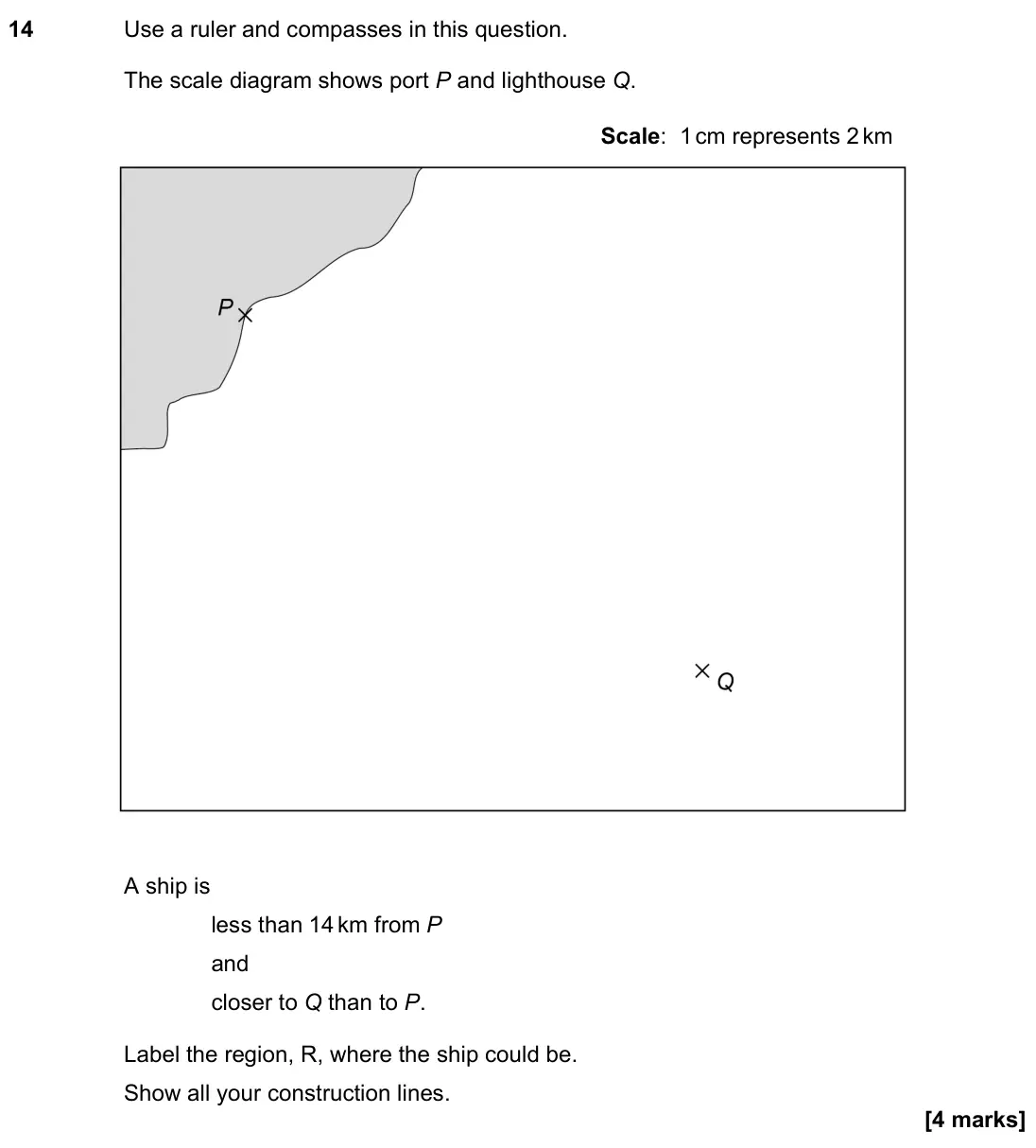

    November 2023 Paper 2H, question 14: Use a ruler and compasses in this question. The scale diagram shows port P and lighthouse Q. Scale: 1 cm represents 2 km A ship is less than 14 km from P and cl

  3. Q10

    June 2022 · Paper 1H

    3 marksG2 Constructions and loci
    The whole paper ↗

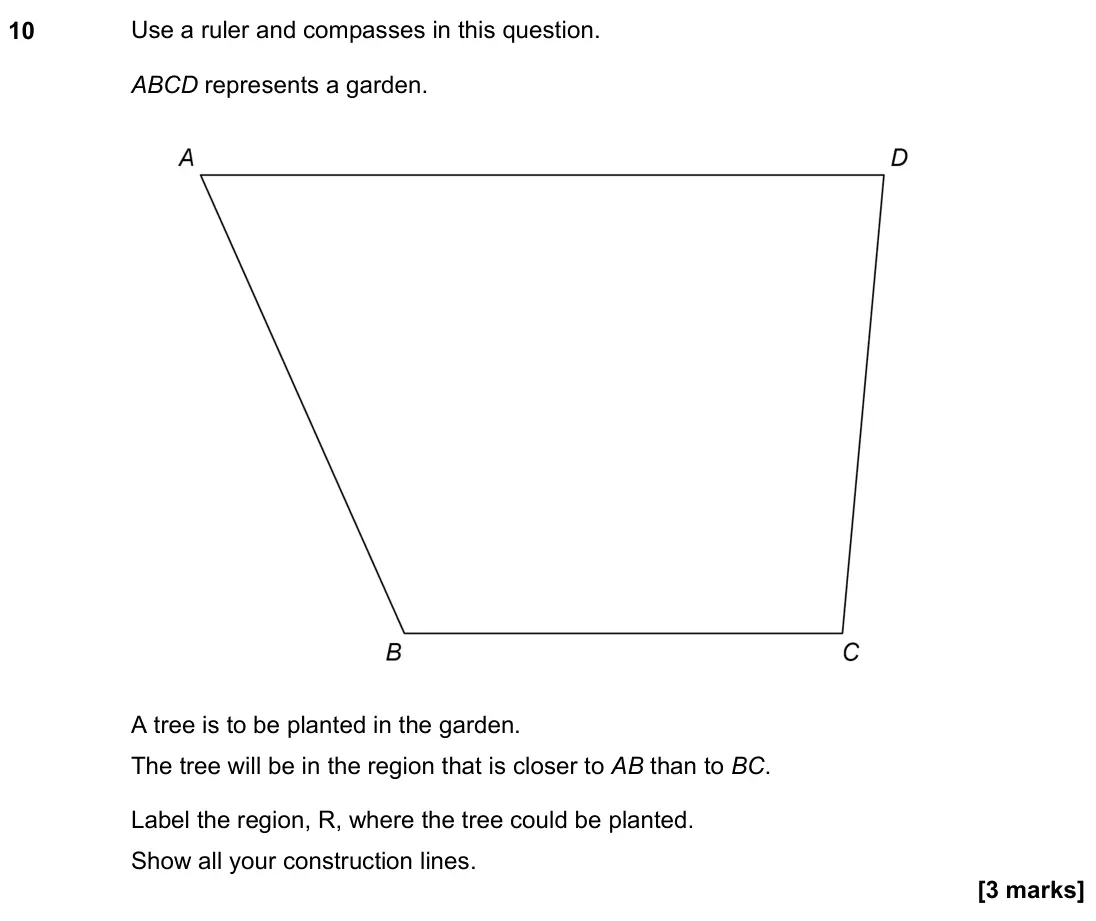

    June 2022 Paper 1H, question 10: Use a ruler and compasses in this question. ABCD represents a garden. A tree is to be planted in the garden. The tree will be in the region that is closer to AB

  4. Q6

    November 2020 · Paper 3H

    2 marksG2 Constructions and loci
    The whole paper ↗

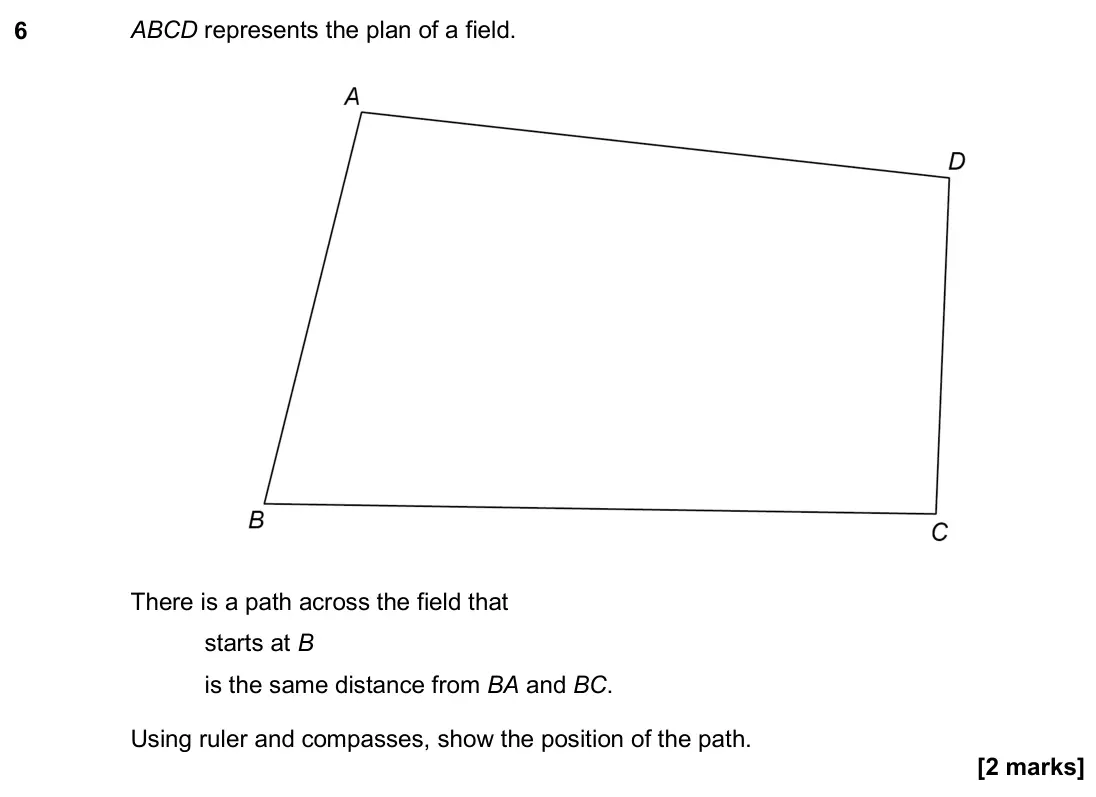

    November 2020 Paper 3H, question 6: ABCD represents the plan of a field. There is a path across the field that starts at B is the same distance from BA and BC. Using ruler and compasses, show the

  5. Q7

    November 2019 · Paper 3H

    3 marksG2 Constructions and lociR2 Scale factors, scale drawings and maps
    The whole paper ↗

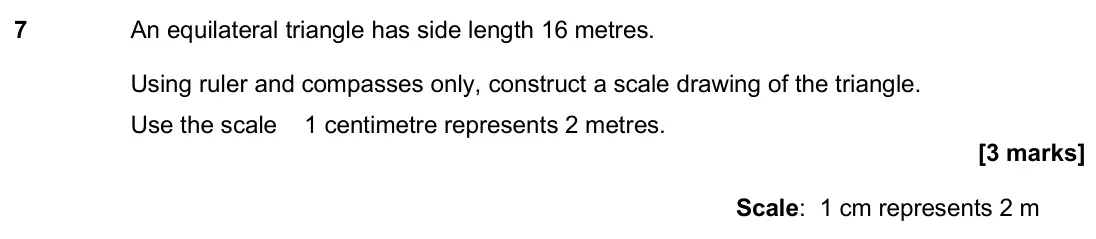

    November 2019 Paper 3H, question 7: An equilateral triangle has side length 16 metres. Using ruler and compasses only, construct a scale drawing of the triangle. Use the scale 1 centimetre represe

  6. Q5

    June 2019 · Paper 2H

    3 marksG2 Constructions and loci
    The whole paper ↗

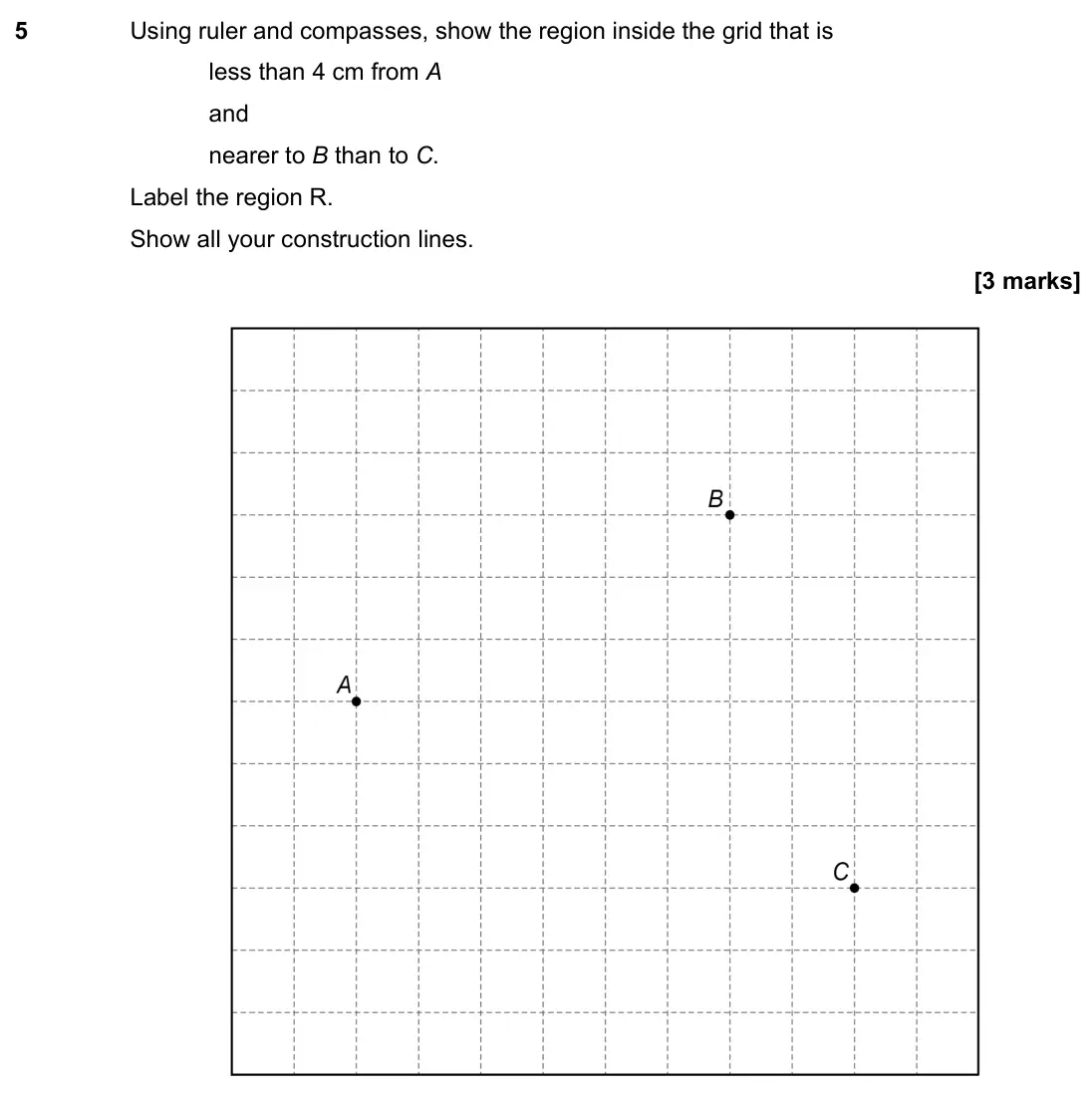

    June 2019 Paper 2H, question 5: Using ruler and compasses, show the region inside the grid that is less than 4 cm from A and nearer to B than to C. Label the region R. Show all your constructi

  7. Q14

    June 2018 · Paper 2H

    2 marksG2 Constructions and lociR2 Scale factors, scale drawings and maps
    The whole paper ↗

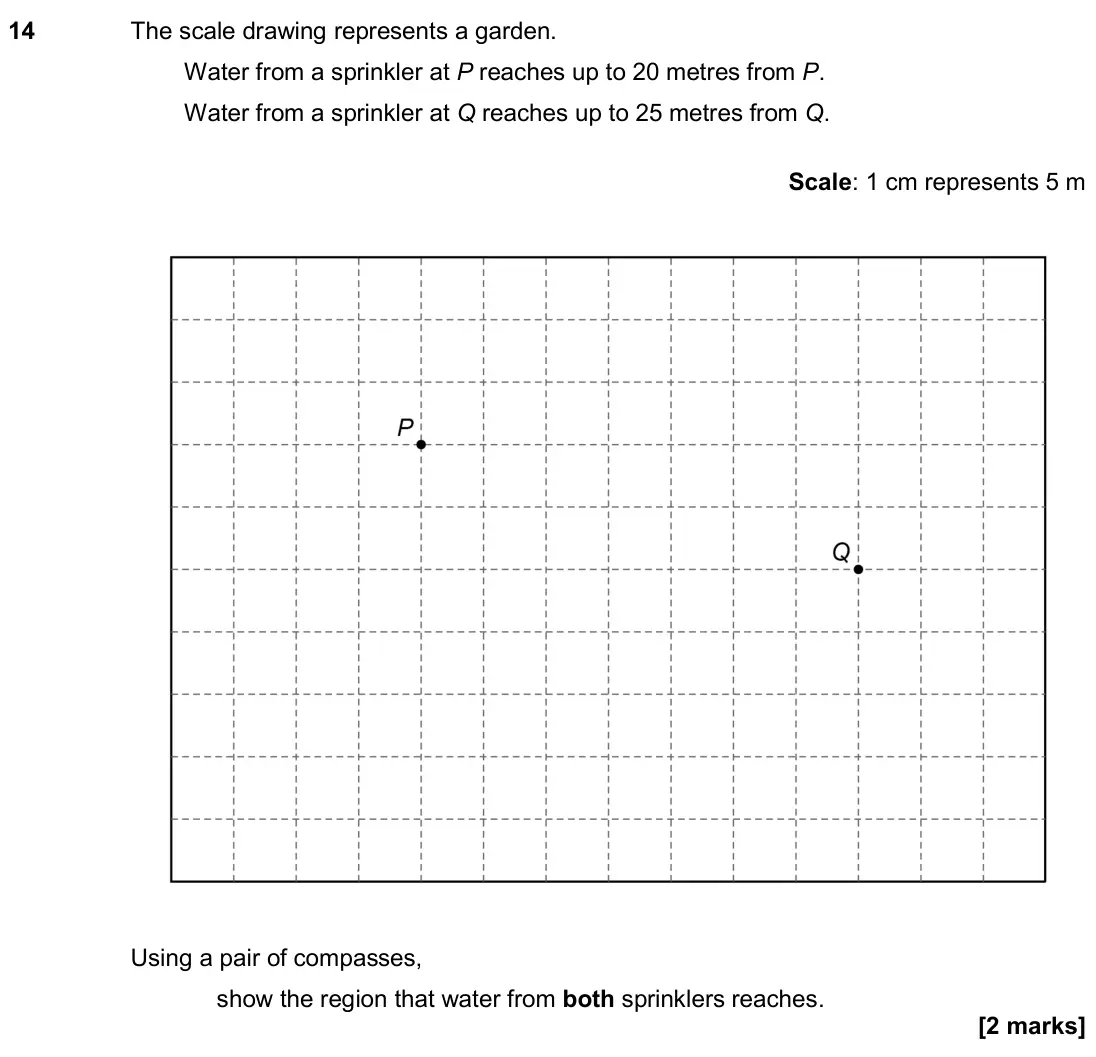

    June 2018 Paper 2H, question 14: The scale drawing represents a garden. Water from a sprinkler at P reaches up to 20 metres from P. Water from a sprinkler at Q reaches up to 25 metres from Q. S

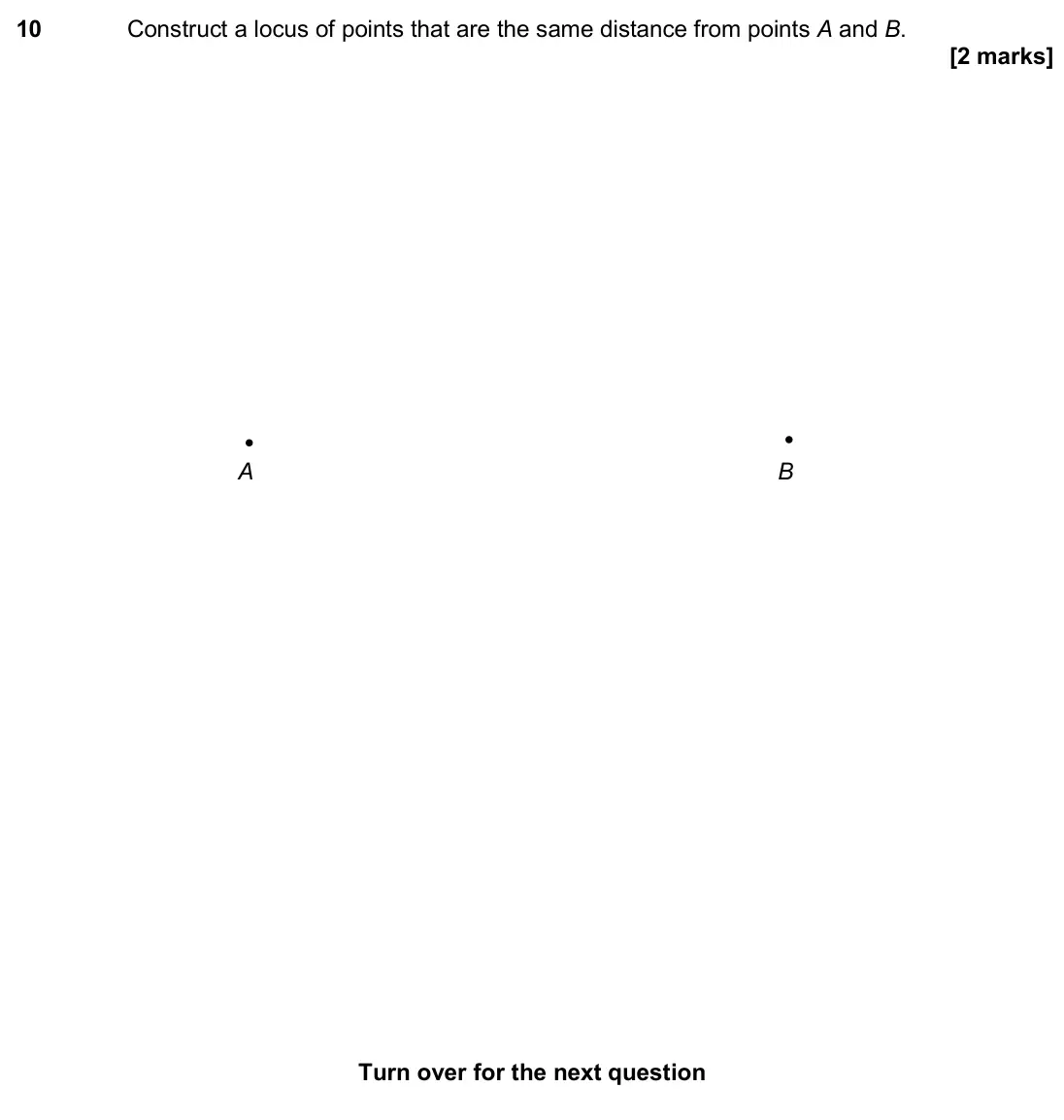

  8. Q10

    November 2017 · Paper 3H

    2 marksG2 Constructions and loci
    The whole paper ↗
    November 2017 Paper 3H, question 10: Construct a locus of points that are the same distance from points A and B. for the next question A B

  9. Q7

    Specimen · Paper 3H

    3 marksG2 Constructions and loci
    The whole paper ↗

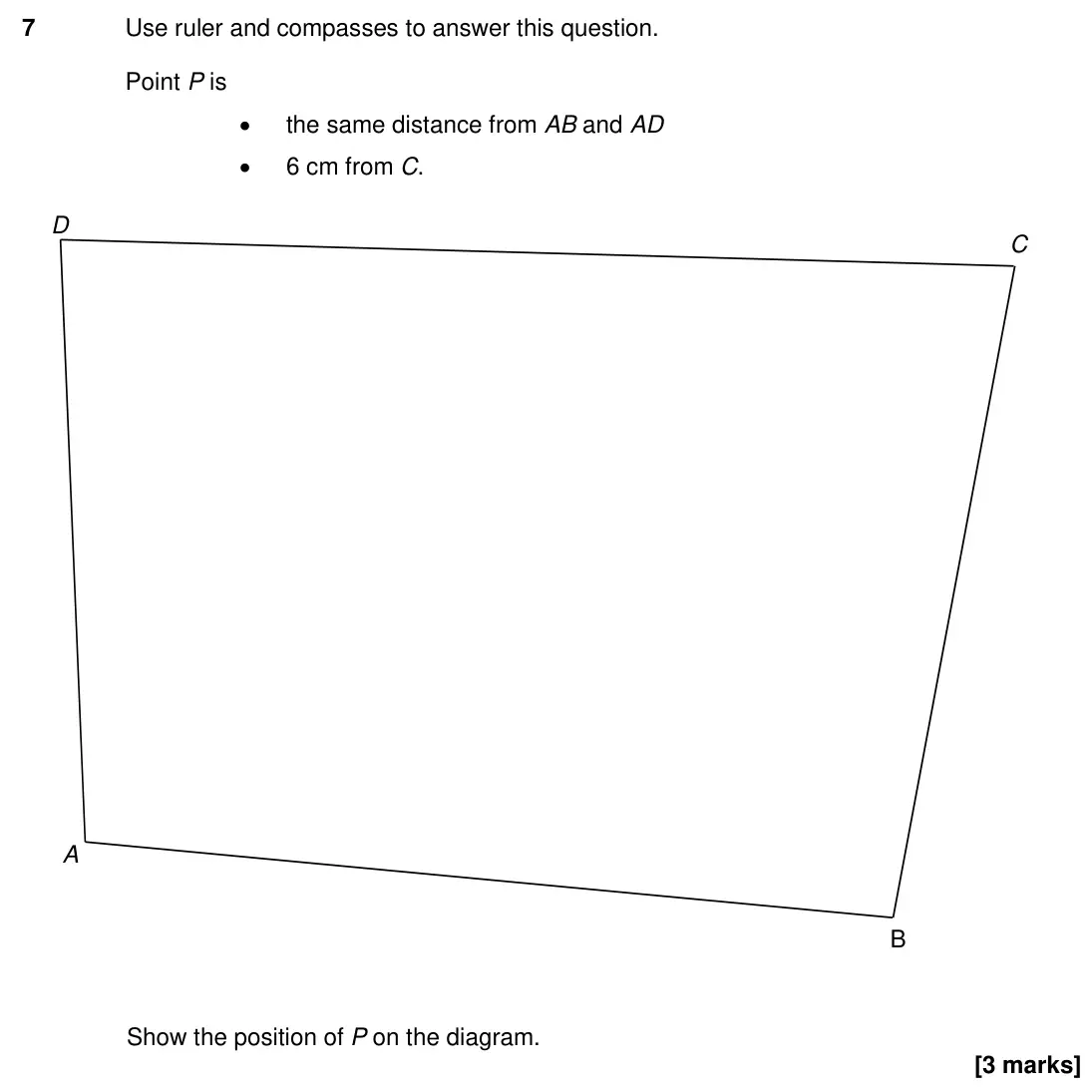

    Specimen Paper 3H, question 7: Use ruler and compasses to answer this question. Point P is  the same distance from AB and AD  6 cm from C. Show the position of P on the diagram. D C A B
All 9 questions on Constructions and loci, as a list
  1. November 2024, Paper 1H, Q11 (3 marks): Construct the region that lies within 4 cm of the line.
  2. November 2023, Paper 2H, Q14 (4 marks): Use a ruler and compasses in this question. The scale diagram shows port P and lighthouse Q. Scale: 1 cm represents 2 km A ship is less than 14 km from P and cl
  3. June 2022, Paper 1H, Q10 (3 marks): Use a ruler and compasses in this question. ABCD represents a garden. A tree is to be planted in the garden. The tree will be in the region that is closer to AB
  4. November 2020, Paper 3H, Q6 (2 marks): ABCD represents the plan of a field. There is a path across the field that starts at B is the same distance from BA and BC. Using ruler and compasses, show the
  5. November 2019, Paper 3H, Q7 (3 marks): An equilateral triangle has side length 16 metres. Using ruler and compasses only, construct a scale drawing of the triangle. Use the scale 1 centimetre represe
  6. June 2019, Paper 2H, Q5 (3 marks): Using ruler and compasses, show the region inside the grid that is less than 4 cm from A and nearer to B than to C. Label the region R. Show all your constructi
  7. June 2018, Paper 2H, Q14 (2 marks): The scale drawing represents a garden. Water from a sprinkler at P reaches up to 20 metres from P. Water from a sprinkler at Q reaches up to 25 metres from Q. S
  8. November 2017, Paper 3H, Q10 (2 marks): Construct a locus of points that are the same distance from points A and B. for the next question A B
  9. Specimen, Paper 3H, Q7 (3 marks): Use ruler and compasses to answer this question. Point P is  the same distance from AB and AD  6 cm from C. Show the position of P on the diagram. D C A B
