Geometry on coordinate axes: AQA GCSE Maths questions

Every AQA GCSE Maths exam question on G11 Geometry on coordinate axes, 2017–2025, with its mark scheme and examiner’s report.

Find questions1,304
Exam
All years
Calculator

1,304 questions

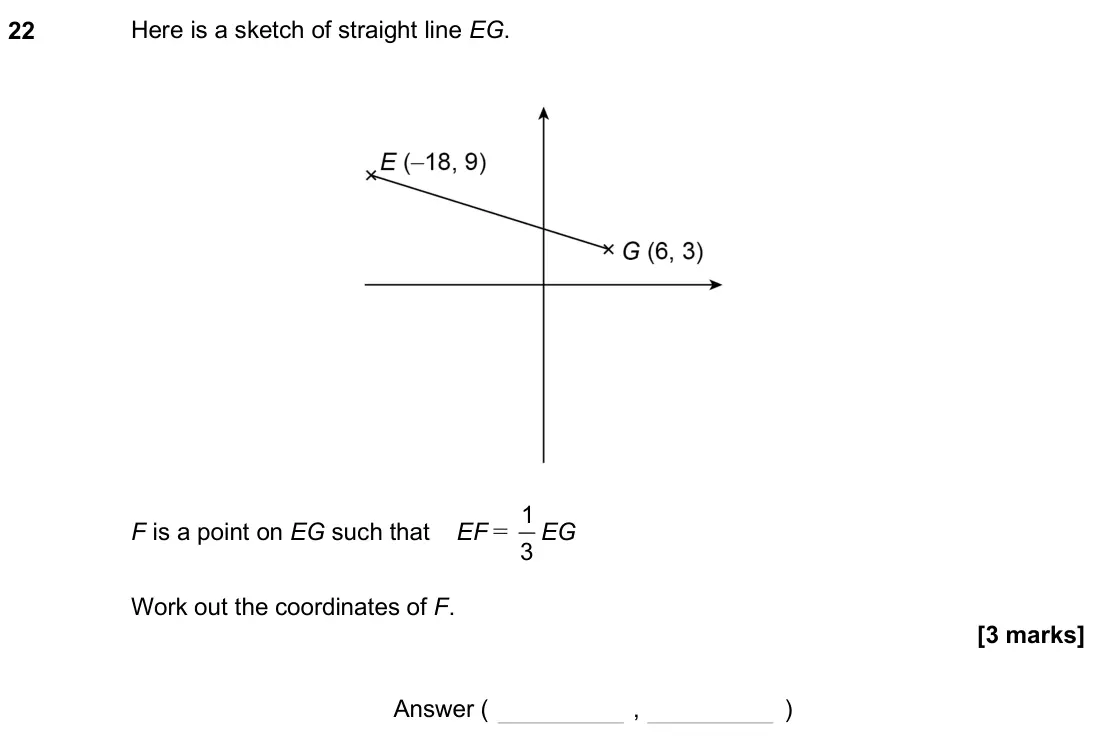

  1. Q22

    June 2025 · Paper 1H

    3 marksG11 Geometry on coordinate axes
    The whole paper ↗
    June 2025 Paper 1H, question 22: Here is a sketch of straight line EG. F is a point on EG such that EF = 1 3 EG Work out the coordinates of F. Answer ( , )

  2. Q8

    November 2024 · Paper 3H

    4 marksG11 Geometry on coordinate axesA9 Straight-line graphs
    The whole paper ↗
    November 2024 Paper 3H, question 8: A triangle is drawn using the lines y = x x = –2 y = 4 Work out the coordinates of the three vertices of the triangle. Answer ( , ) ( , ) ( , )

  3. Q15

    June 2024 · Paper 3H

    7 marksG11 Geometry on coordinate axesA9 Straight-line graphs
    The whole paper ↗
    June 2024 Paper 3H, question 15: A straight line passes through points A (–5, 9), B and C (3, –7). Not drawn accurately 15 (a) AB : BC = 1 : 3 Work out the coordinates of point B. Answer ( , )

  4. Q3

    November 2023 · Paper 1H

    1 markG11 Geometry on coordinate axes
    The whole paper ↗

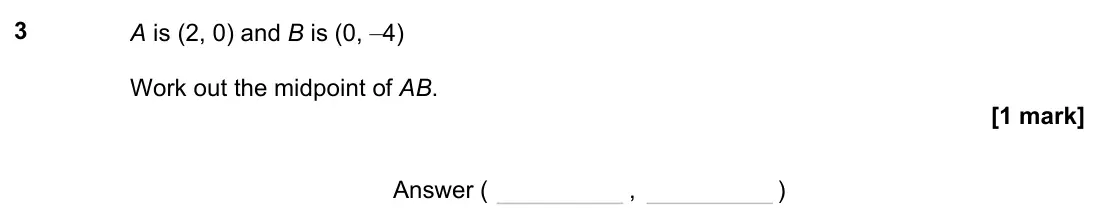

    November 2023 Paper 1H, question 3: A is (2, 0) and B is (0, –4) Work out the midpoint of AB. Answer ( , )

  5. Q24

    June 2023 · Paper 1H

    5 marksG11 Geometry on coordinate axesA9 Straight-line graphs
    The whole paper ↗
    June 2023 Paper 1H, question 24: Points P, Q and R (8, 22) form a triangle. PQ is a horizontal line, with P on the y-axis. Angle PRQ is a right angle. The gradient of PR is 2 Work out the coord

  6. Q9

    June 2023 · Paper 2H

    4 marksG11 Geometry on coordinate axesG4 Quadrilaterals
    The whole paper ↗
    June 2023 Paper 2H, question 9: A (1, 3) and B (2, 9) are points on a centimetre grid. ABCD is a parallelogram. AD and BC are horizontal and each has length 5 cm The diagonals of ABCD cross at

  7. Q19

    June 2022 · Paper 2H

    3 marksG11 Geometry on coordinate axes
    The whole paper ↗

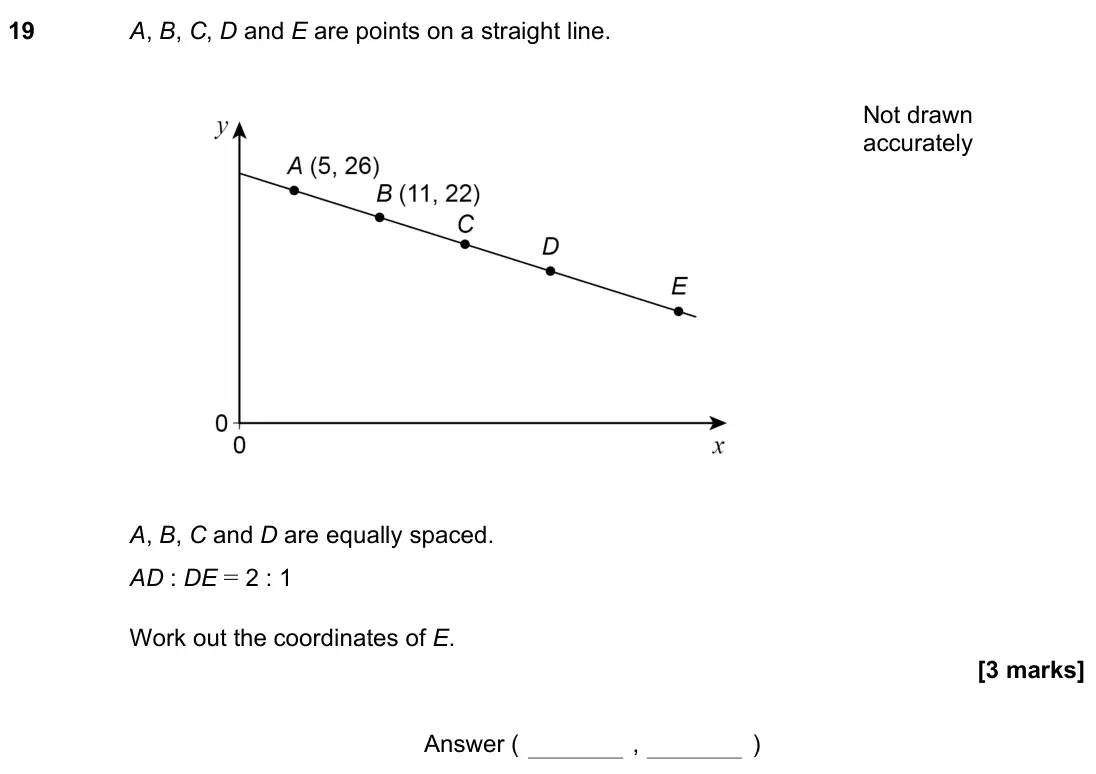

    June 2022 Paper 2H, question 19: A, B, C, D and E are points on a straight line. A, B, C and D are equally spaced. AD : DE = 2 : 1 Work out the coordinates of E. Answer ( , )

  8. Q9

    November 2021 · Paper 1H

    2 marksG11 Geometry on coordinate axes
    The whole paper ↗

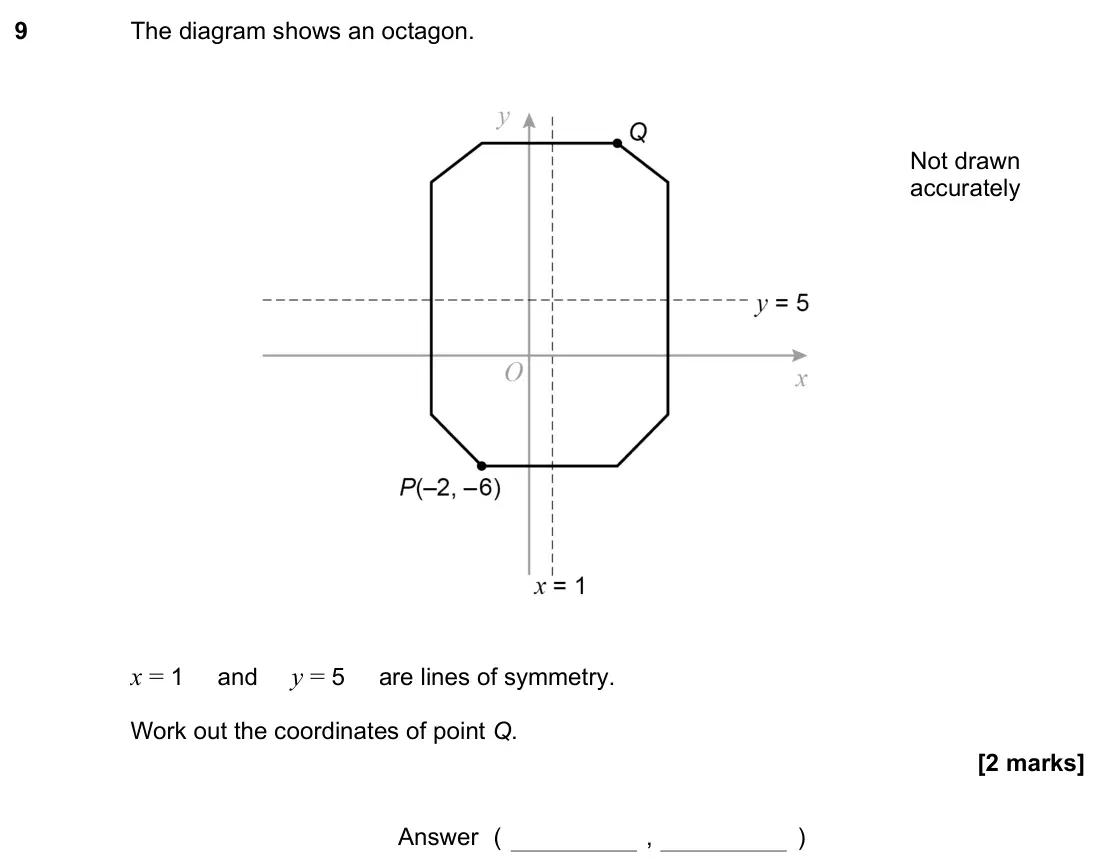

    November 2021 Paper 1H, question 9: The diagram shows an octagon. x = 1 and y = 5 are lines of symmetry. Work out the coordinates of point Q. Not drawn accurately Answer ( , )

  9. Q3

    November 2019 · Paper 1H

    1 markG11 Geometry on coordinate axes
    The whole paper ↗

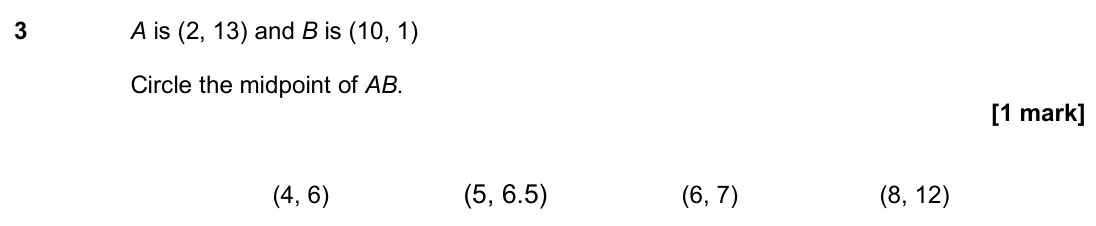

    November 2019 Paper 1H, question 3: A is (2, 13) and B is (10, 1) Circle the midpoint of AB. (4, 6) (5, 6.5) (6, 7) (8, 12)

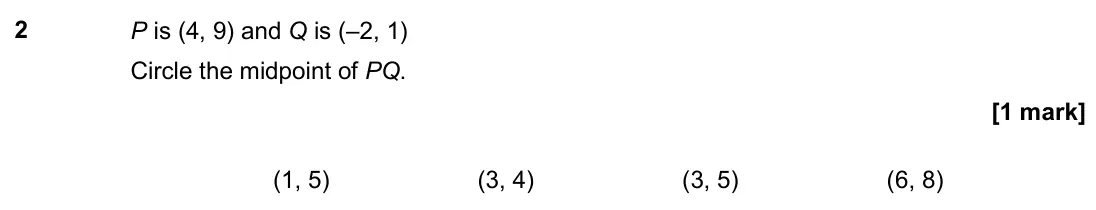

  10. Q2

    November 2018 · Paper 2H

    1 markG11 Geometry on coordinate axes
    The whole paper ↗
    November 2018 Paper 2H, question 2: P is (4, 9) and Q is (–2, 1) Circle the midpoint of PQ. (1, 5) (3, 4) (3, 5) (6, 8)

  11. Q7

    June 2018 · Paper 1H

    3 marksG11 Geometry on coordinate axes
    The whole paper ↗

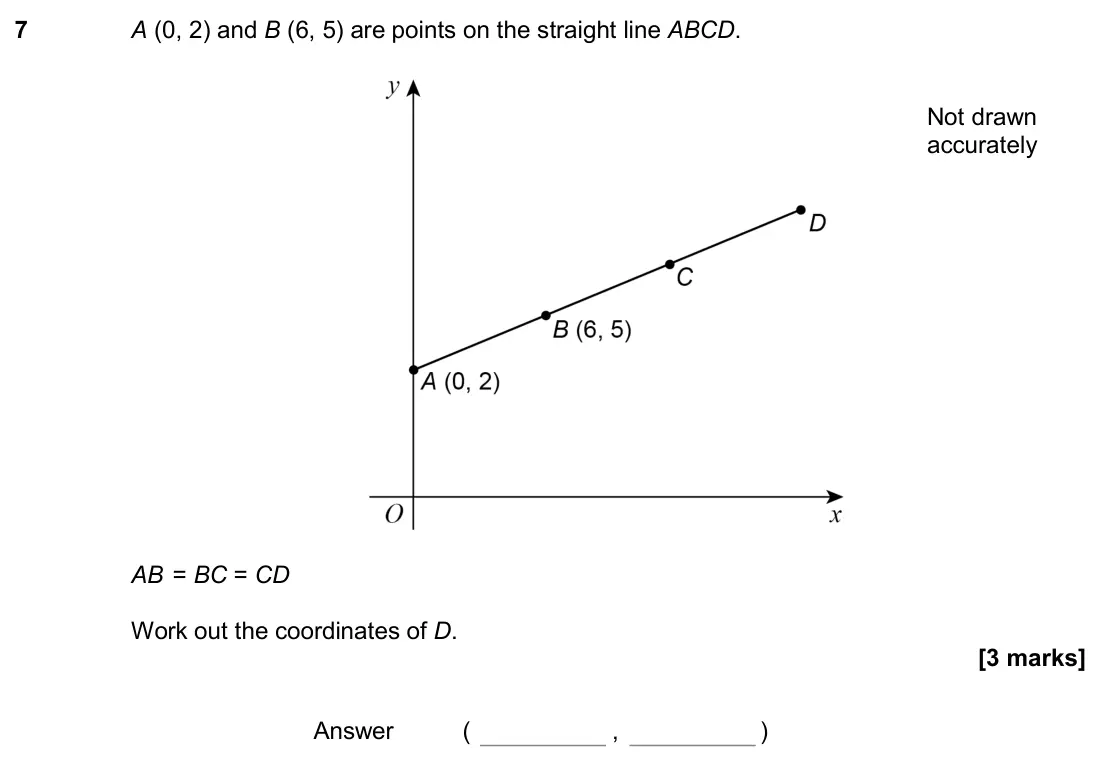

    June 2018 Paper 1H, question 7: A (0, 2) and B (6, 5) are points on the straight line ABCD. AB = BC = CD Work out the coordinates of D. Not drawn accurately Answer ( , )

  12. Q21

    November 2017 · Paper 1H

    2 marksG11 Geometry on coordinate axes
    The whole paper ↗

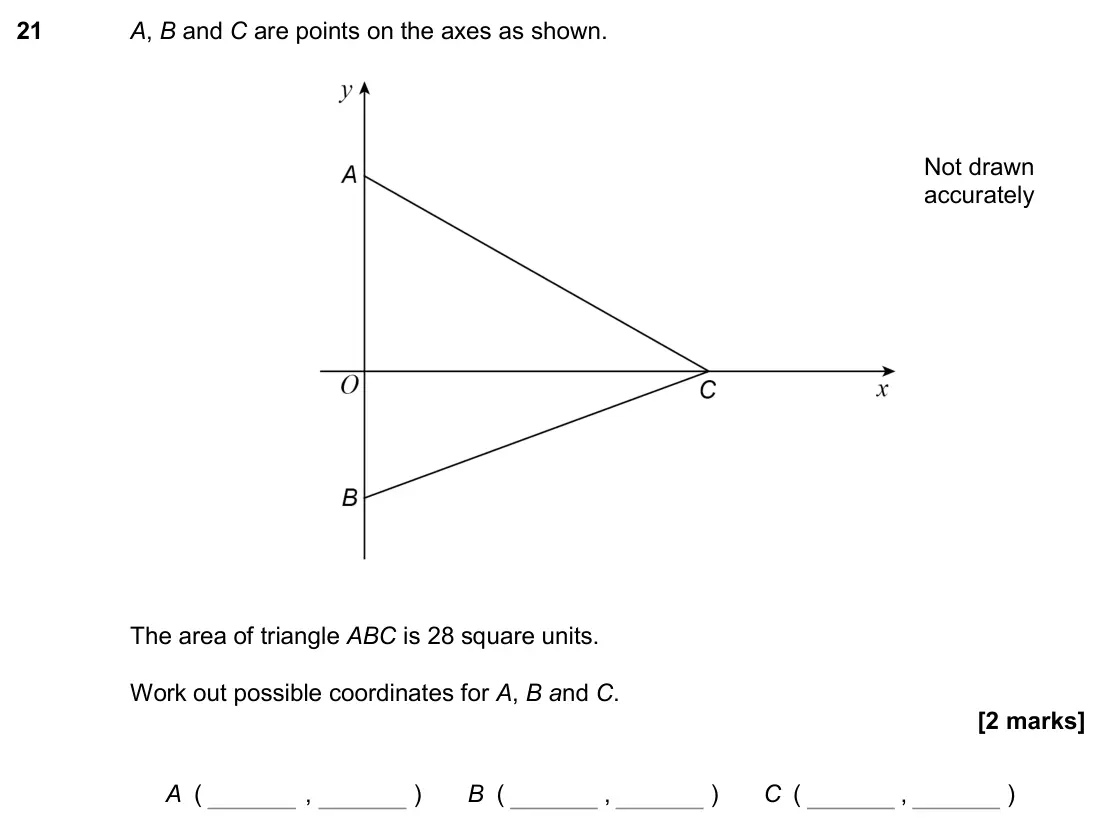

    November 2017 Paper 1H, question 21: A, B and C are points on the axes as shown. The area of triangle ABC is 28 square units. Work out possible coordinates for A, B and C. Not drawn accurately A (

  13. Q3

    June 2017 · Paper 2H

    1 markG11 Geometry on coordinate axes
    The whole paper ↗

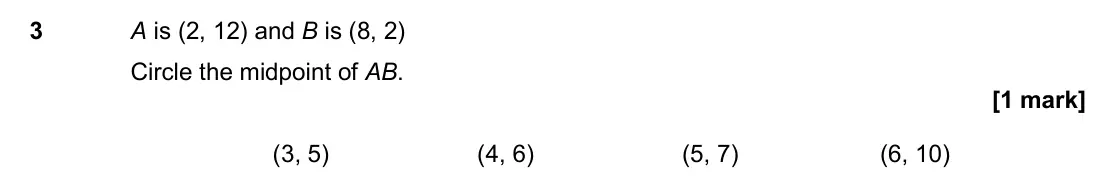

    June 2017 Paper 2H, question 3: A is (2, 12) and B is (8, 2) Circle the midpoint of AB. (3, 5) (4, 6) (5, 7) (6, 10)

  14. Q28

    Specimen · Paper 3H

    4 marksG11 Geometry on coordinate axesG20 Pythagoras and trigonometry
    The whole paper ↗

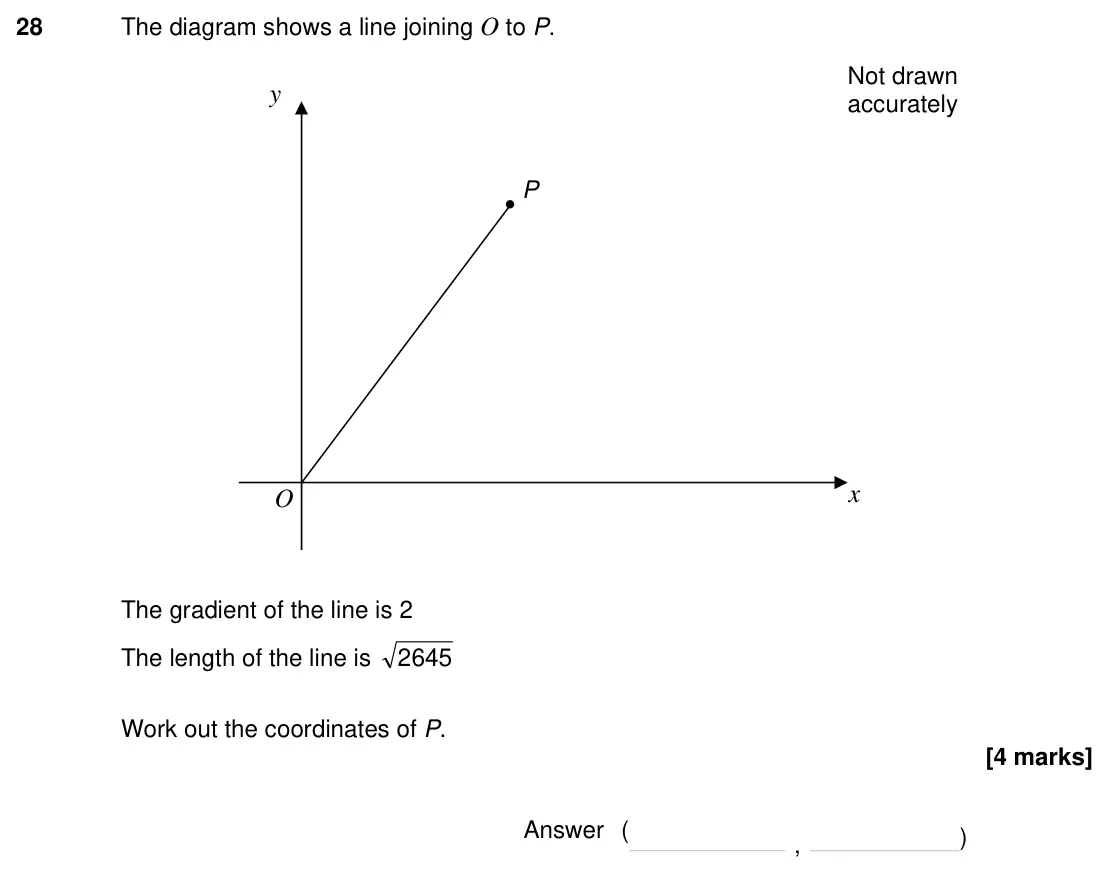

    Specimen Paper 3H, question 28: The diagram shows a line joining O to P. The gradient of the line is 2 The length of the line is 2645 Work out the coordinates of P. O P x Not drawn accurately
All 14 questions on Geometry on coordinate axes, as a list
  1. June 2025, Paper 1H, Q22 (3 marks): Here is a sketch of straight line EG. F is a point on EG such that EF = 1 3 EG Work out the coordinates of F. Answer ( , )
  2. November 2024, Paper 3H, Q8 (4 marks): A triangle is drawn using the lines y = x x = –2 y = 4 Work out the coordinates of the three vertices of the triangle. Answer ( , ) ( , ) ( , )
  3. June 2024, Paper 3H, Q15 (7 marks): A straight line passes through points A (–5, 9), B and C (3, –7). Not drawn accurately 15 (a) AB : BC = 1 : 3 Work out the coordinates of point B. Answer ( , )
  4. November 2023, Paper 1H, Q3 (1 mark): A is (2, 0) and B is (0, –4) Work out the midpoint of AB. Answer ( , )
  5. June 2023, Paper 1H, Q24 (5 marks): Points P, Q and R (8, 22) form a triangle. PQ is a horizontal line, with P on the y-axis. Angle PRQ is a right angle. The gradient of PR is 2 Work out the coord
  6. June 2023, Paper 2H, Q9 (4 marks): A (1, 3) and B (2, 9) are points on a centimetre grid. ABCD is a parallelogram. AD and BC are horizontal and each has length 5 cm The diagonals of ABCD cross at
  7. June 2022, Paper 2H, Q19 (3 marks): A, B, C, D and E are points on a straight line. A, B, C and D are equally spaced. AD : DE = 2 : 1 Work out the coordinates of E. Answer ( , )
  8. November 2021, Paper 1H, Q9 (2 marks): The diagram shows an octagon. x = 1 and y = 5 are lines of symmetry. Work out the coordinates of point Q. Not drawn accurately Answer ( , )
  9. November 2019, Paper 1H, Q3 (1 mark): A is (2, 13) and B is (10, 1) Circle the midpoint of AB. (4, 6) (5, 6.5) (6, 7) (8, 12)
  10. November 2018, Paper 2H, Q2 (1 mark): P is (4, 9) and Q is (–2, 1) Circle the midpoint of PQ. (1, 5) (3, 4) (3, 5) (6, 8)
  11. June 2018, Paper 1H, Q7 (3 marks): A (0, 2) and B (6, 5) are points on the straight line ABCD. AB = BC = CD Work out the coordinates of D. Not drawn accurately Answer ( , )
  12. November 2017, Paper 1H, Q21 (2 marks): A, B and C are points on the axes as shown. The area of triangle ABC is 28 square units. Work out possible coordinates for A, B and C. Not drawn accurately A (
  13. June 2017, Paper 2H, Q3 (1 mark): A is (2, 12) and B is (8, 2) Circle the midpoint of AB. (3, 5) (4, 6) (5, 7) (6, 10)
  14. Specimen, Paper 3H, Q28 (4 marks): The diagram shows a line joining O to P. The gradient of the line is 2 The length of the line is 2645 Work out the coordinates of P. O P x Not drawn accurately
