Arcs and sectors: AQA GCSE Maths questions

Every AQA GCSE Maths exam question on G18 Arcs and sectors, 2017–2025, with its mark scheme and examiner’s report.

Find questions1,304
Exam
All years
Calculator

1,304 questions

  1. Q8

    June 2025 · Paper 2H

    4 marksG18 Arcs and sectorsG17 Circles, surface area and volume
    The whole paper ↗
    June 2025 Paper 2H, question 8: Here is a circle, centre O. Not drawn accurately 8 (a) The circle has a circumference of 20 cm Assume that angle x is 90° Work out the shaded area. Give your an

  2. Q12

    June 2024 · Paper 1H

    3 marksG18 Arcs and sectors
    The whole paper ↗

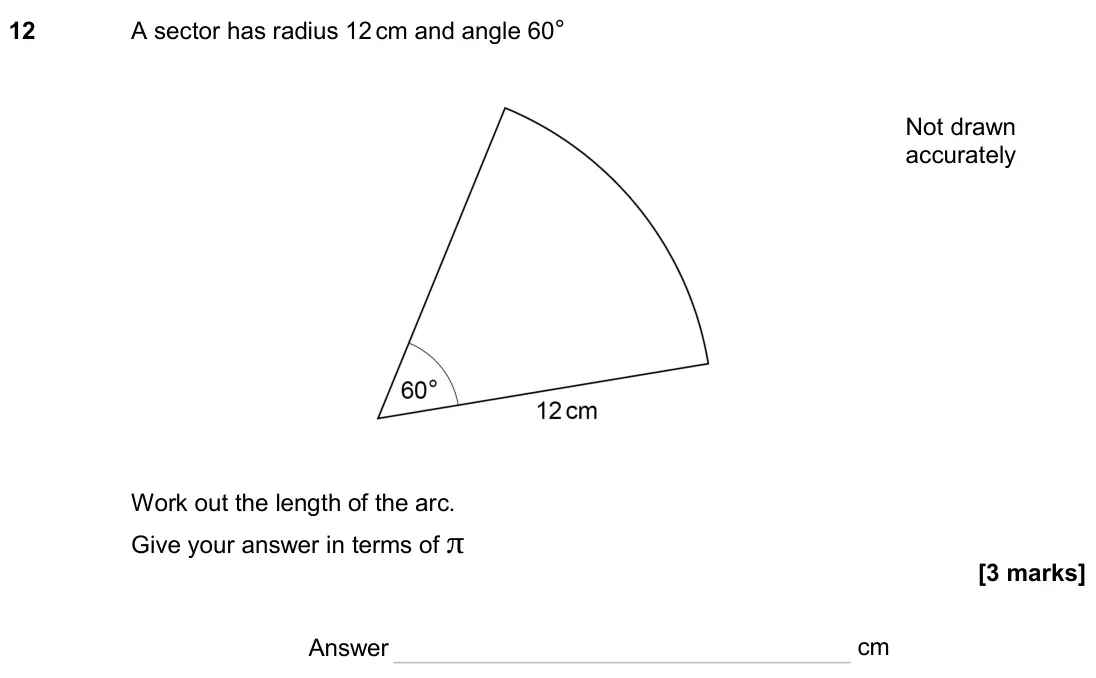

    June 2024 Paper 1H, question 12: A sector has radius 12 cm and angle 60° Work out the length of the arc. Give your answer in terms of π Not drawn accurately Answer cm

  3. Q10

    November 2023 · Paper 1H

    5 marksG18 Arcs and sectors
    The whole paper ↗

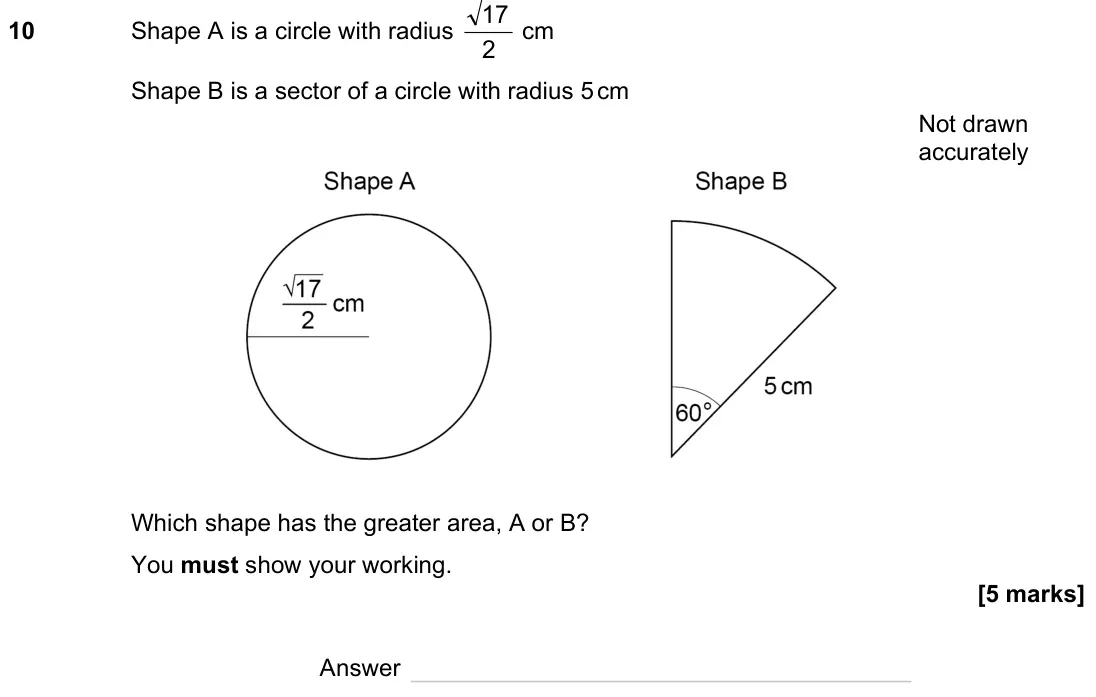

    November 2023 Paper 1H, question 10: Shape A is a circle with radius 2 17 cm Shape B is a sector of a circle with radius 5cm Not drawn accurately Which shape has the greater area, A or B? You must

  4. Q11

    June 2022 · Paper 1H

    4 marksG18 Arcs and sectorsG17 Circles, surface area and volume
    The whole paper ↗
    June 2022 Paper 1H, question 11: Here are two shapes, P and Q. Not drawn accurately How many times bigger is the area of P than the area of Q? You must show your working. Answer

  5. Q12

    November 2020 · Paper 1H

    5 marksR4 Ratio notationG18 Arcs and sectors
    The whole paper ↗
    November 2020 Paper 1H, question 12: Two wire shapes make an earring. The shapes are a circle with radius 21 mm and a quarter circle. Not drawn accurately radius of circle : radius of quarter circl

  6. Q26

    November 2019 · Paper 1H

    4 marksG18 Arcs and sectors
    The whole paper ↗

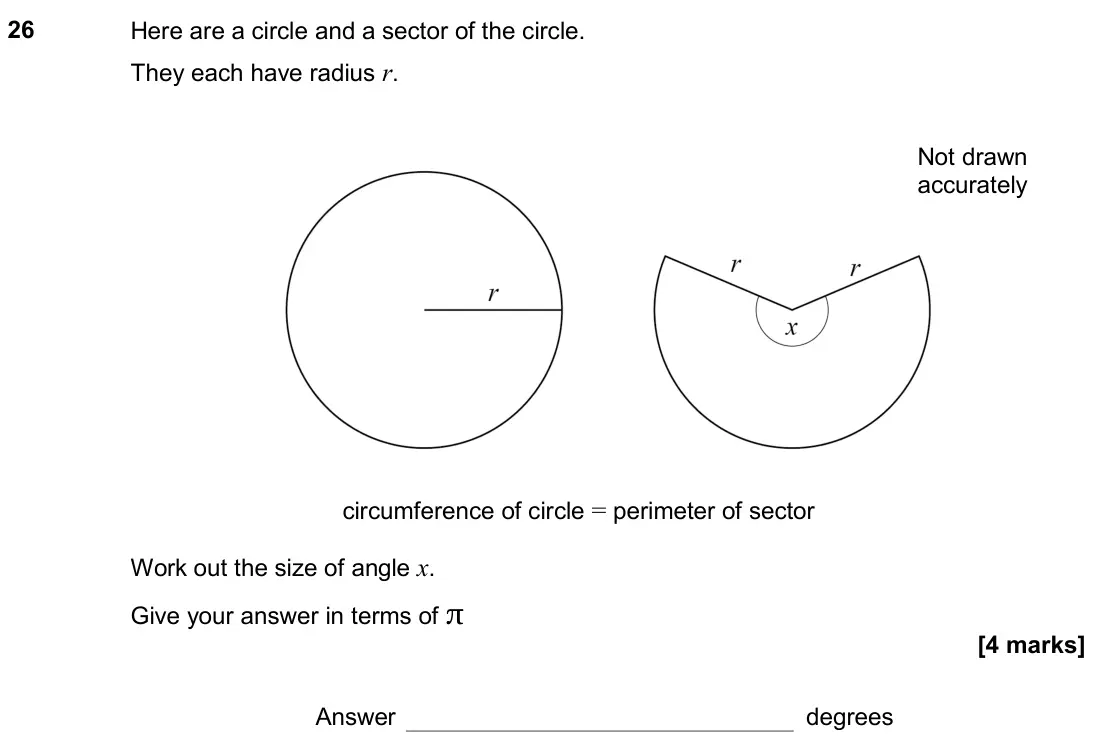

    November 2019 Paper 1H, question 26: Here are a circle and a sector of the circle. They each have radius r. Not drawn accurately circumference of circle = perimeter of sector Work out the size of a

  7. Q3

    June 2019 · Paper 1H

    1 markG18 Arcs and sectors
    The whole paper ↗

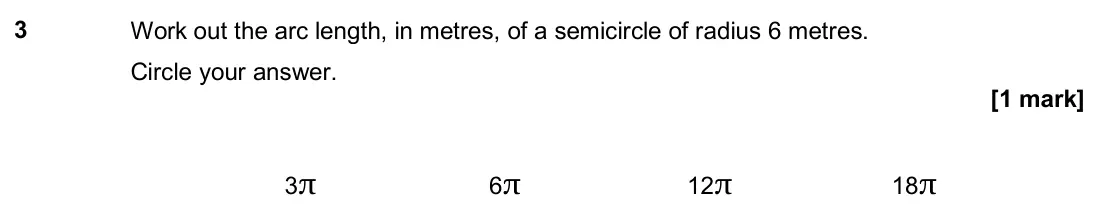

    June 2019 Paper 1H, question 3: Work out the arc length, in metres, of a semicircle of radius 6 metres. Circle your answer. 3π 6π 12π 18π

  8. Q16

    June 2019 · Paper 3H

    2 marksG18 Arcs and sectors
    The whole paper ↗

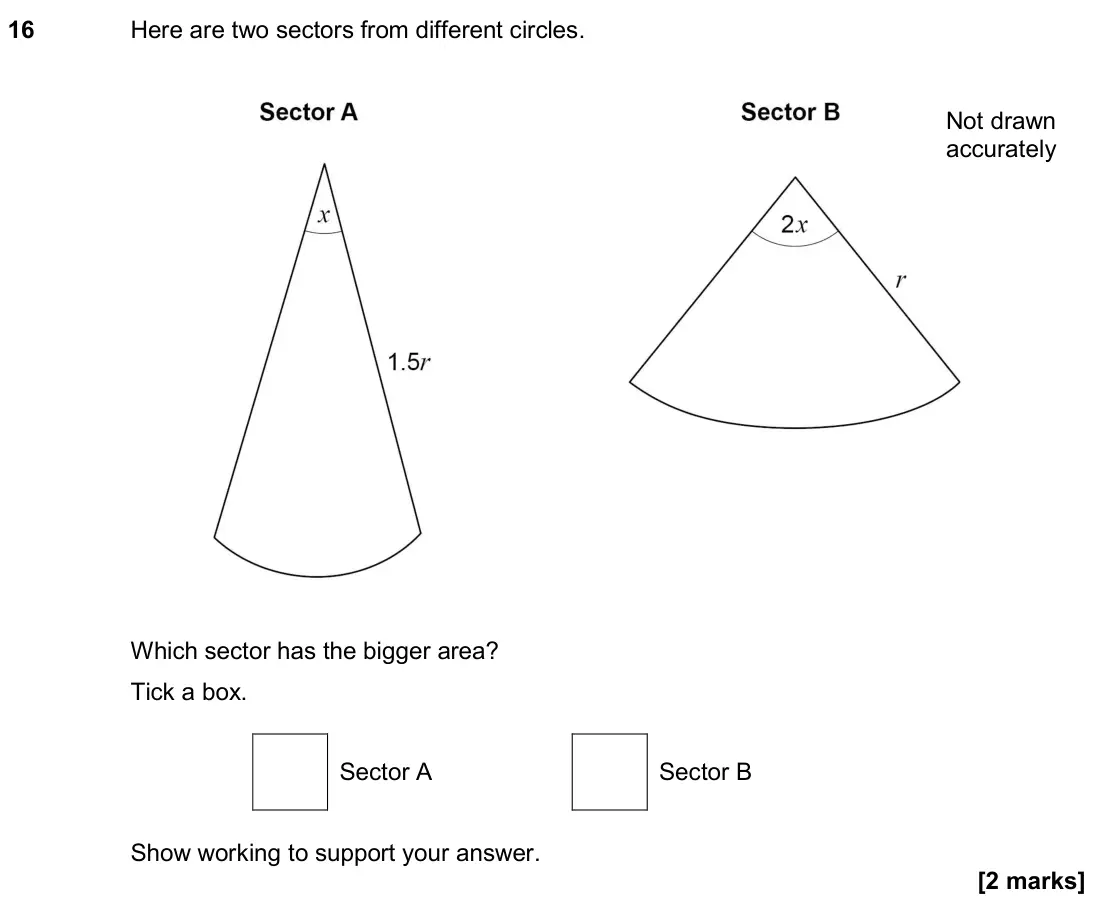

    June 2019 Paper 3H, question 16: Here are two sectors from different circles. Which sector has the bigger area? Tick a box. Sector A Sector B Show working to support your answer. Not drawn accu

  9. Q22

    November 2017 · Paper 2H

    5 marksG18 Arcs and sectorsG17 Circles, surface area and volume
    The whole paper ↗

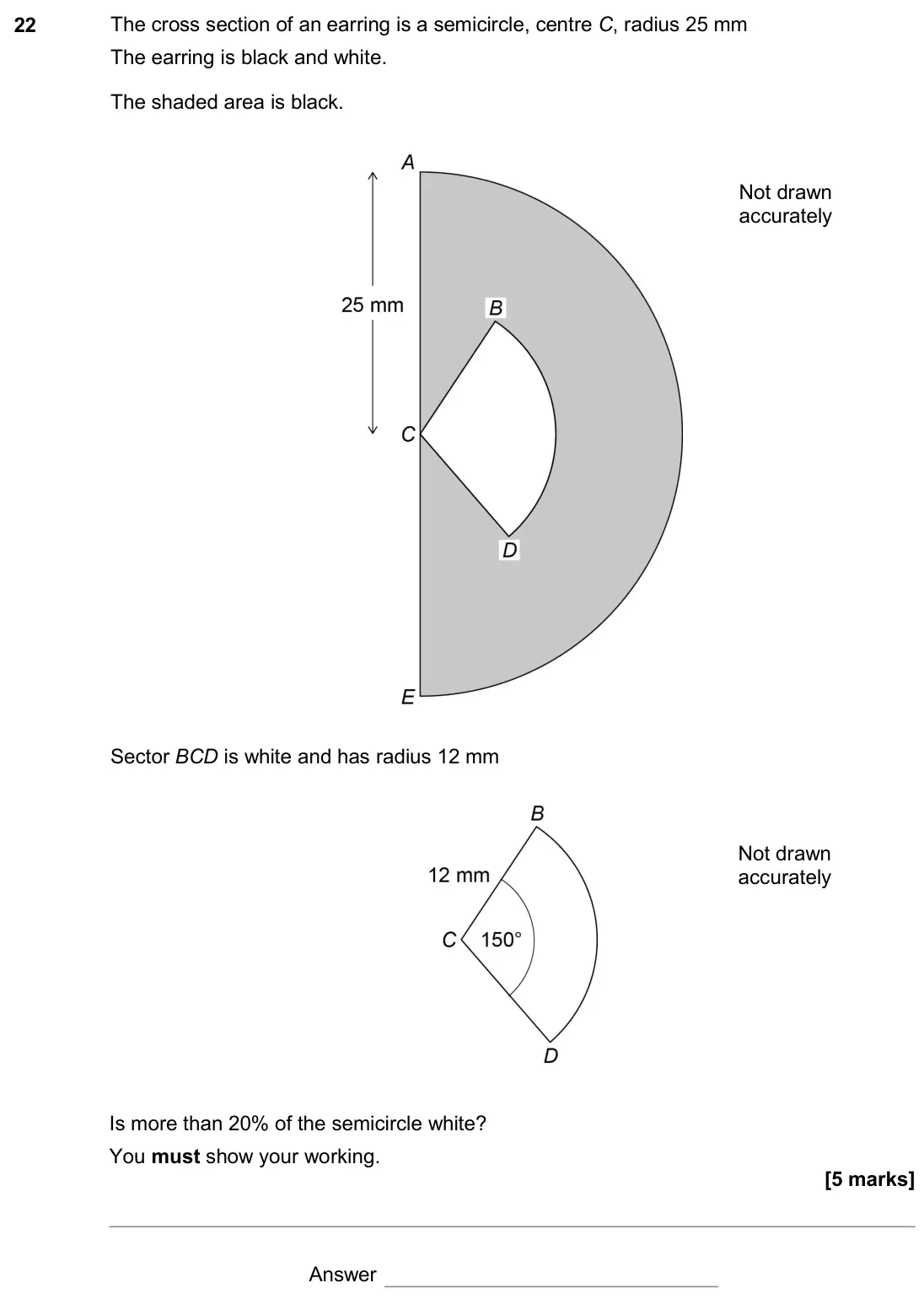

    November 2017 Paper 2H, question 22: The cross section of an earring is a semicircle, centre C, radius 25 mm The earring is black and white. The shaded area is black. Not drawn accurately Sector BC

  10. Q25

    June 2017 · Paper 2H

    5 marksG22 Sine and cosine rulesG18 Arcs and sectors
    The whole paper ↗

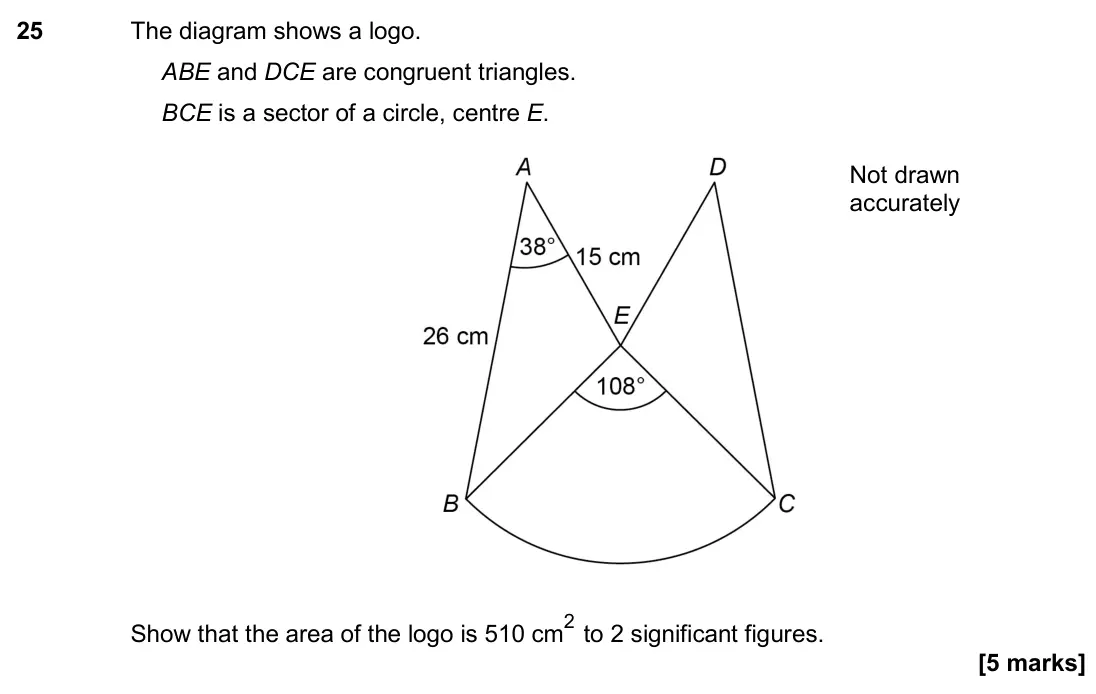

    June 2017 Paper 2H, question 25: The diagram shows a logo. ABE and DCE are congruent triangles. BCE is a sector of a circle, centre E. Not drawn accurately Show that the area of the logo is 510
All 10 questions on Arcs and sectors, as a list
  1. June 2025, Paper 2H, Q8 (4 marks): Here is a circle, centre O. Not drawn accurately 8 (a) The circle has a circumference of 20 cm Assume that angle x is 90° Work out the shaded area. Give your an
  2. June 2024, Paper 1H, Q12 (3 marks): A sector has radius 12 cm and angle 60° Work out the length of the arc. Give your answer in terms of π Not drawn accurately Answer cm
  3. November 2023, Paper 1H, Q10 (5 marks): Shape A is a circle with radius 2 17 cm Shape B is a sector of a circle with radius 5cm Not drawn accurately Which shape has the greater area, A or B? You must
  4. June 2022, Paper 1H, Q11 (4 marks): Here are two shapes, P and Q. Not drawn accurately How many times bigger is the area of P than the area of Q? You must show your working. Answer
  5. November 2020, Paper 1H, Q12 (5 marks): Two wire shapes make an earring. The shapes are a circle with radius 21 mm and a quarter circle. Not drawn accurately radius of circle : radius of quarter circl
  6. November 2019, Paper 1H, Q26 (4 marks): Here are a circle and a sector of the circle. They each have radius r. Not drawn accurately circumference of circle = perimeter of sector Work out the size of a
  7. June 2019, Paper 1H, Q3 (1 mark): Work out the arc length, in metres, of a semicircle of radius 6 metres. Circle your answer. 3π 6π 12π 18π
  8. June 2019, Paper 3H, Q16 (2 marks): Here are two sectors from different circles. Which sector has the bigger area? Tick a box. Sector A Sector B Show working to support your answer. Not drawn accu
  9. November 2017, Paper 2H, Q22 (5 marks): The cross section of an earring is a semicircle, centre C, radius 25 mm The earring is black and white. The shaded area is black. Not drawn accurately Sector BC
  10. June 2017, Paper 2H, Q25 (5 marks): The diagram shows a logo. ABE and DCE are congruent triangles. BCE is a sector of a circle, centre E. Not drawn accurately Show that the area of the logo is 510
