Circle theorems: AQA GCSE Maths questions

Every AQA GCSE Maths exam question on G10 Circle theorems, 2017–2025, with its mark scheme and examiner’s report.

Find questions1,304
Exam
All years
Calculator

1,304 questions

  1. Q15

    June 2025 · Paper 1H

    4 marksG10 Circle theorems
    The whole paper ↗

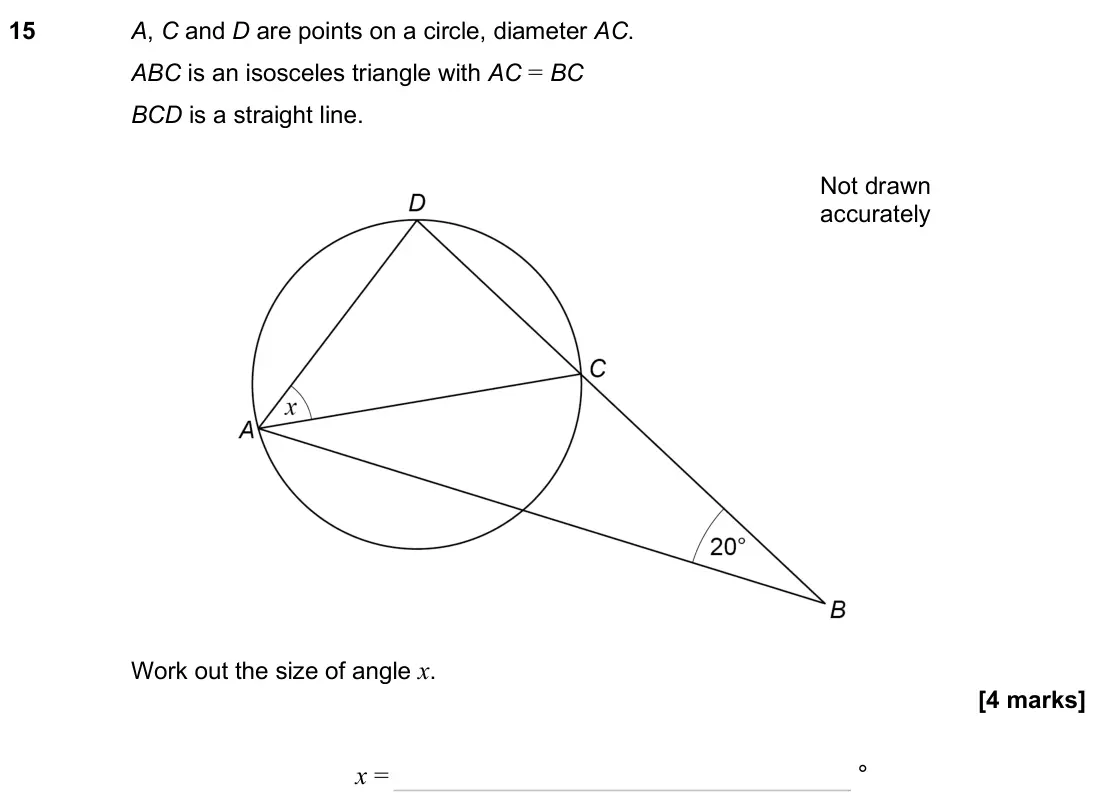

    June 2025 Paper 1H, question 15: A, C and D are points on a circle, diameter AC. ABC is an isosceles triangle with AC = BC BCD is a straight line. Work out the size of angle x. Not drawn accura

  2. Q23

    November 2024 · Paper 2H

    6 marksG10 Circle theoremsR4 Ratio notation
    The whole paper ↗

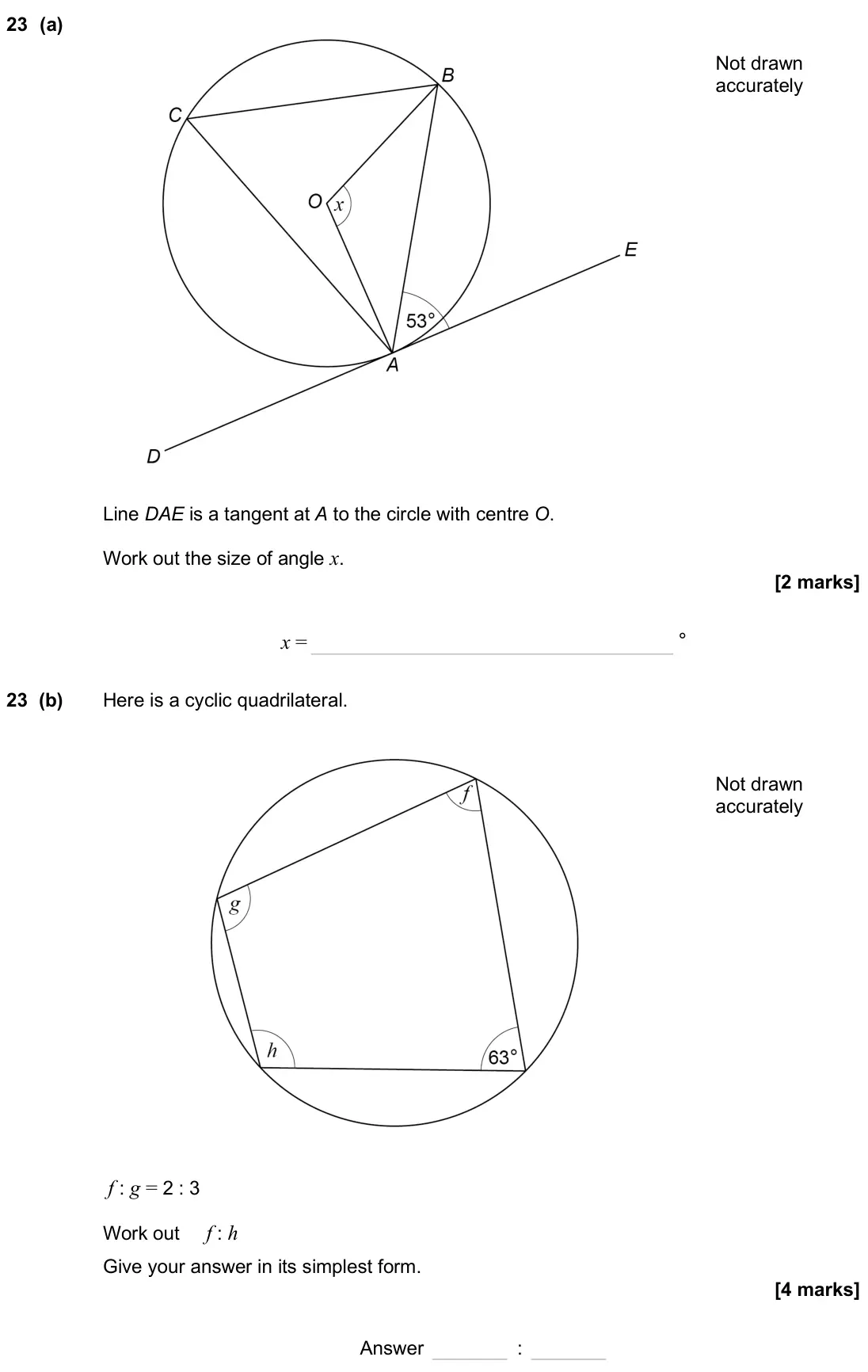

    November 2024 Paper 2H, question 23: (a) Not drawn accurately Line DAE is a tangent at A to the circle with centre O. Work out the size of angle x. x = ° 23 (b) Here is a cyclic quadrilateral. f :

  3. Q22

    June 2024 · Paper 1H

    3 marksG10 Circle theorems
    The whole paper ↗

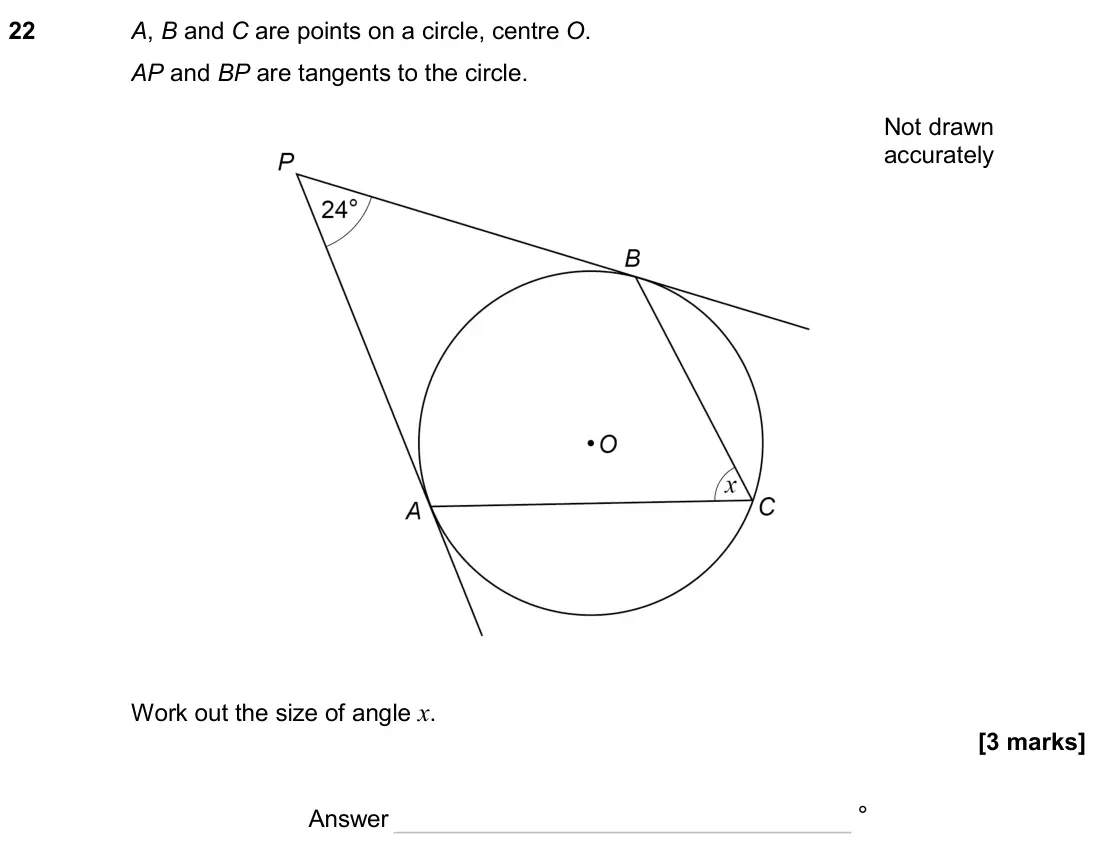

    June 2024 Paper 1H, question 22: A, B and C are points on a circle, centre O. AP and BP are tangents to the circle. Work out the size of angle x. Not drawn accurately Answer °

  4. Q22

    November 2023 · Paper 1H

    3 marksG10 Circle theoremsR4 Ratio notation
    The whole paper ↗

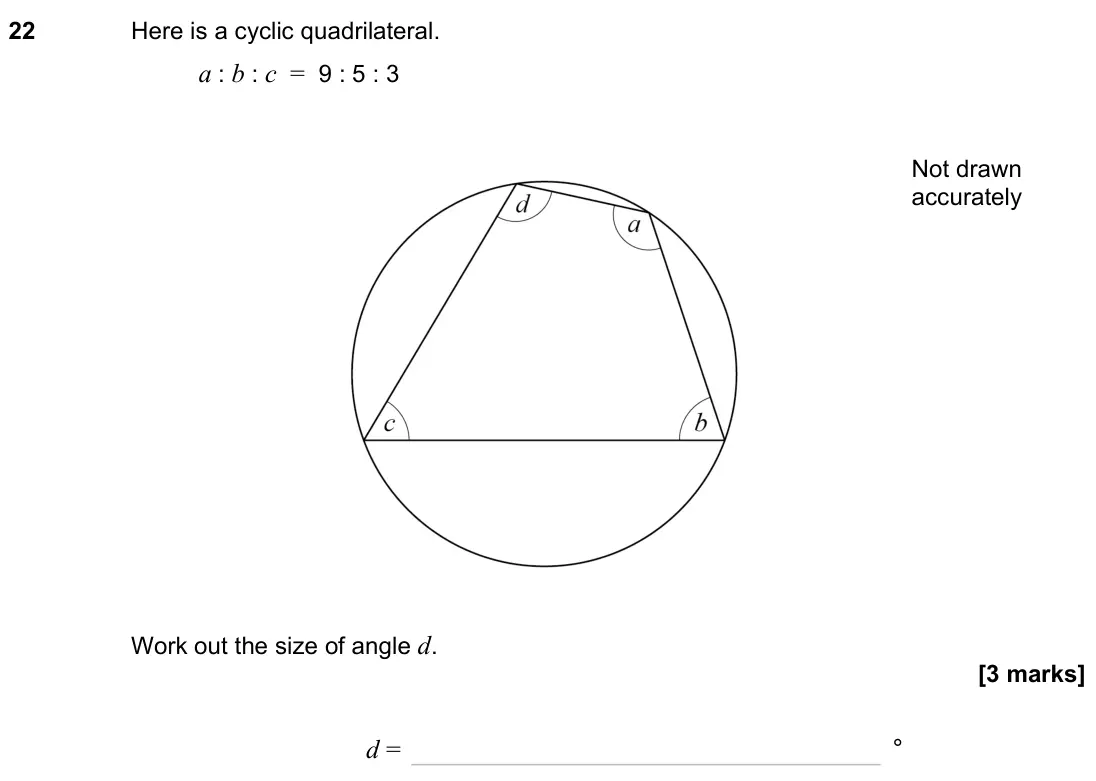

    November 2023 Paper 1H, question 22: Here is a cyclic quadrilateral. a : b : c = 9 : 5 : 3 Work out the size of angle d. Not drawn accurately d = °

  5. Q16

    November 2023 · Paper 3H

    3 marksG10 Circle theoremsG20 Pythagoras and trigonometry
    The whole paper ↗

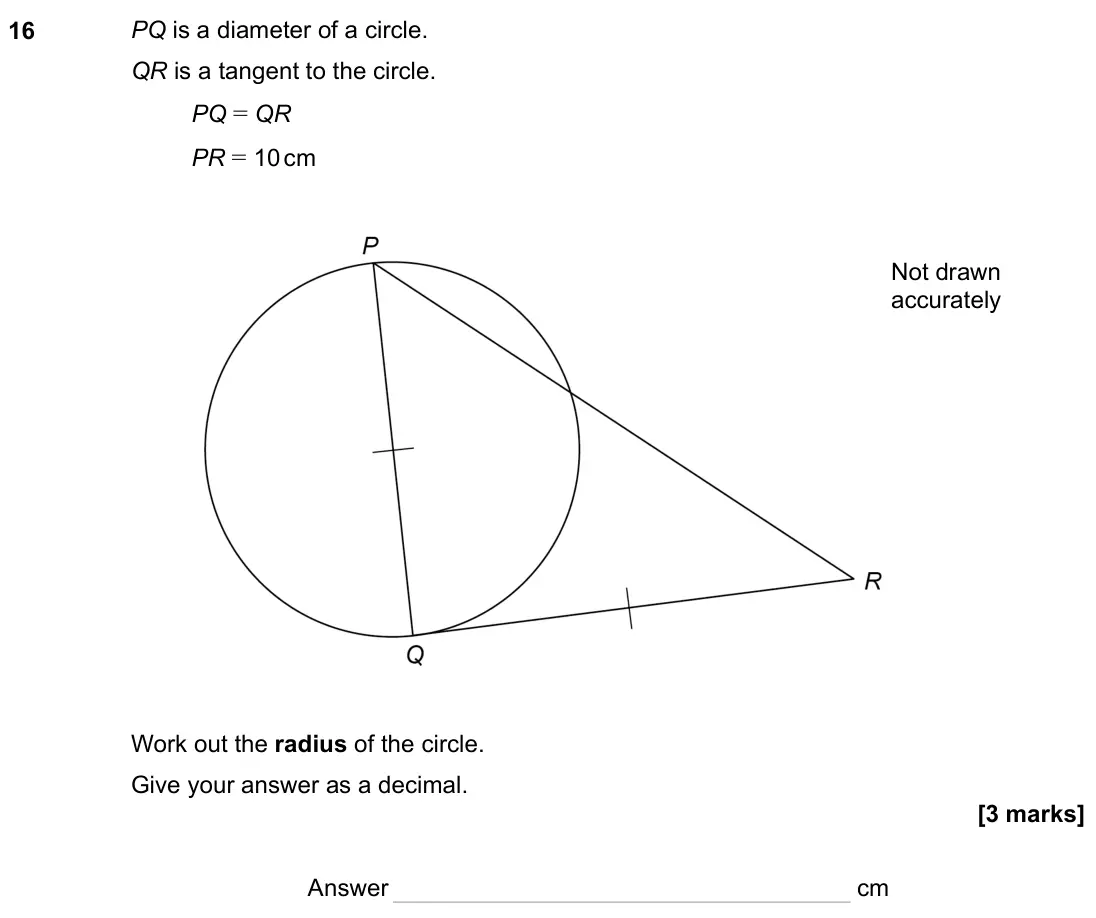

    November 2023 Paper 3H, question 16: PQ is a diameter of a circle. QR is a tangent to the circle. PQ = QR PR = 10 cm Work out the radius of the circle. Give your answer as a decimal. Not drawn accu

  6. Q20

    June 2023 · Paper 2H

    3 marksG10 Circle theorems
    The whole paper ↗

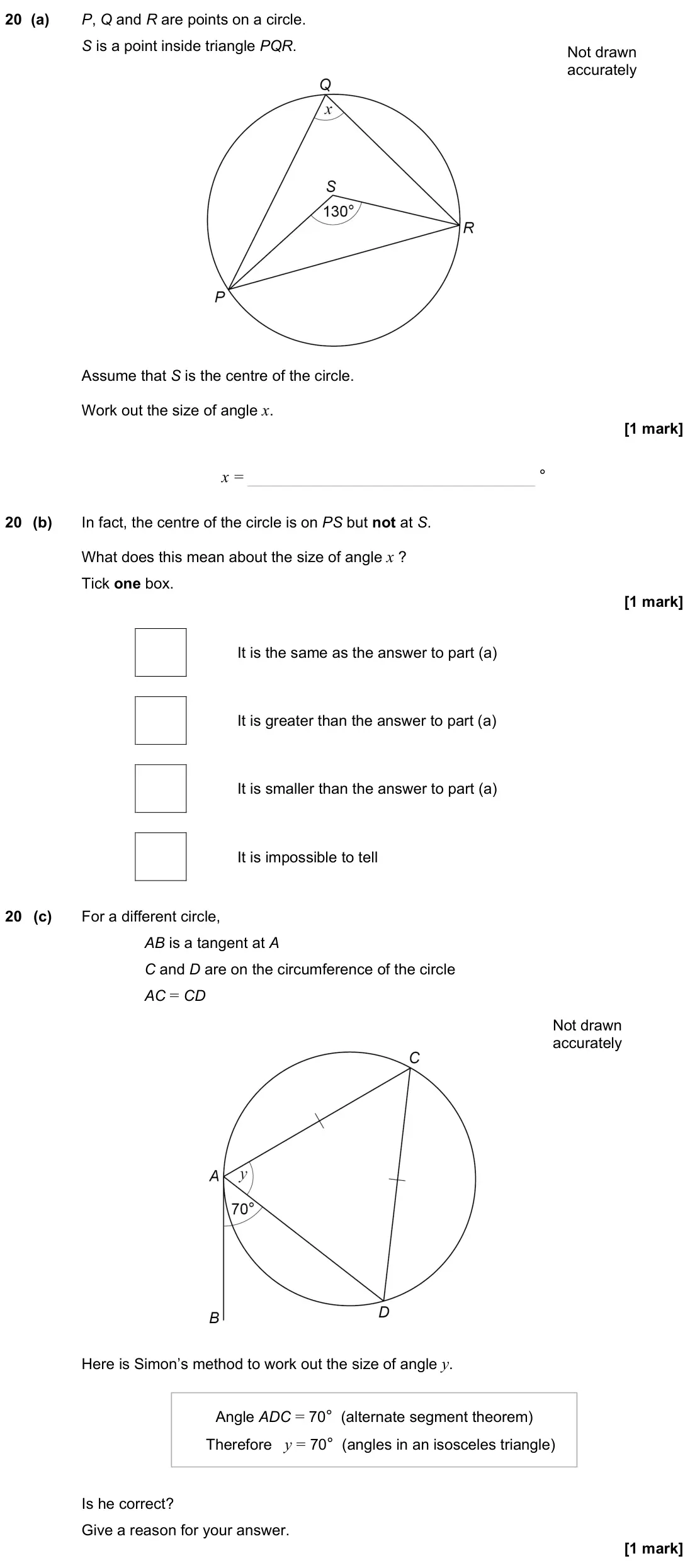

    June 2023 Paper 2H, question 20: (a) P, Q and R are points on a circle. S is a point inside triangle PQR. Assume that S is the centre of the circle. Work out the size of angle x. Not drawn accu

  7. Q26

    November 2022 · Paper 1H

    4 marksG10 Circle theorems
    The whole paper ↗

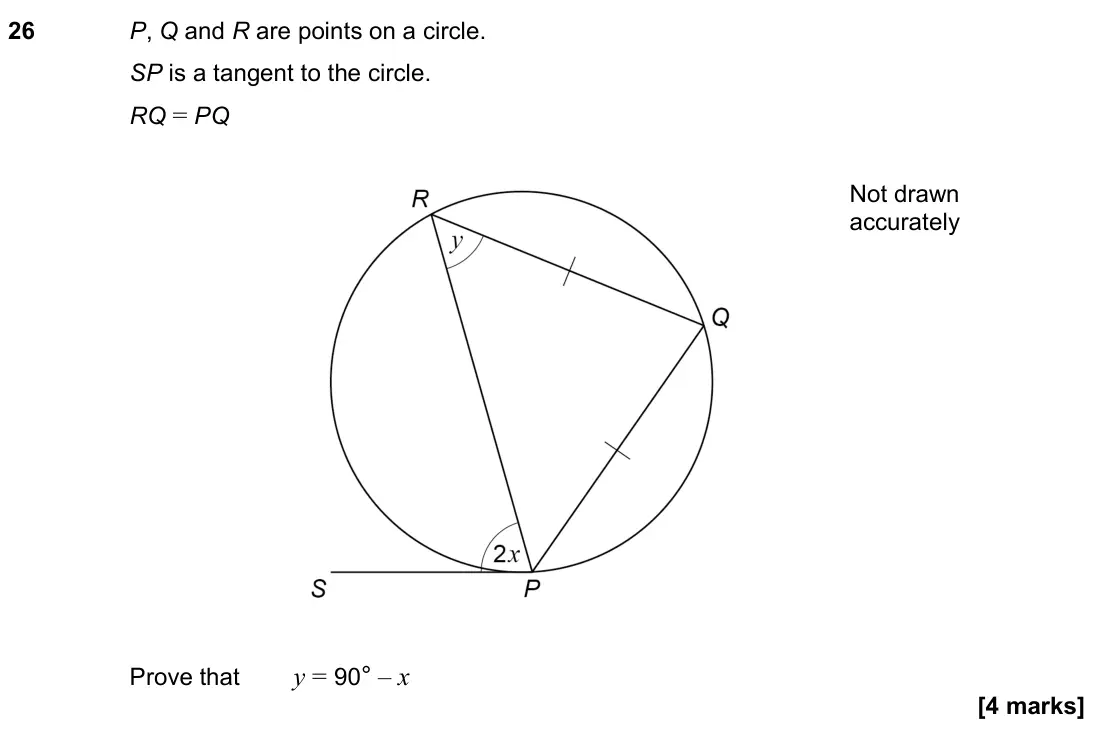

    November 2022 Paper 1H, question 26: P, Q and R are points on a circle. SP is a tangent to the circle. RQ = PQ Prove that y = 90° – x Not drawn accurately

  8. Q17

    November 2022 · Paper 3H

    3 marksG10 Circle theorems
    The whole paper ↗

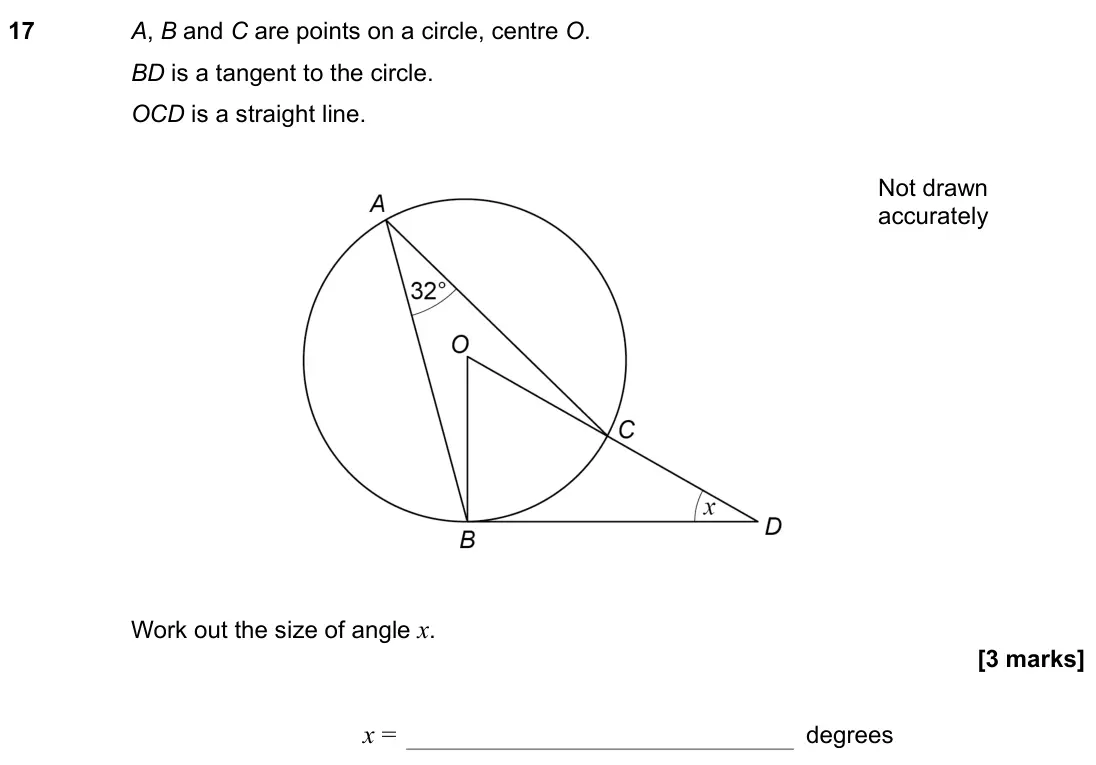

    November 2022 Paper 3H, question 17: A, B and C are points on a circle, centre O. BD is a tangent to the circle. OCD is a straight line. Work out the size of angle x. Not drawn accurately x = degre

  9. Q18

    June 2022 · Paper 3H

    5 marksG10 Circle theorems
    The whole paper ↗

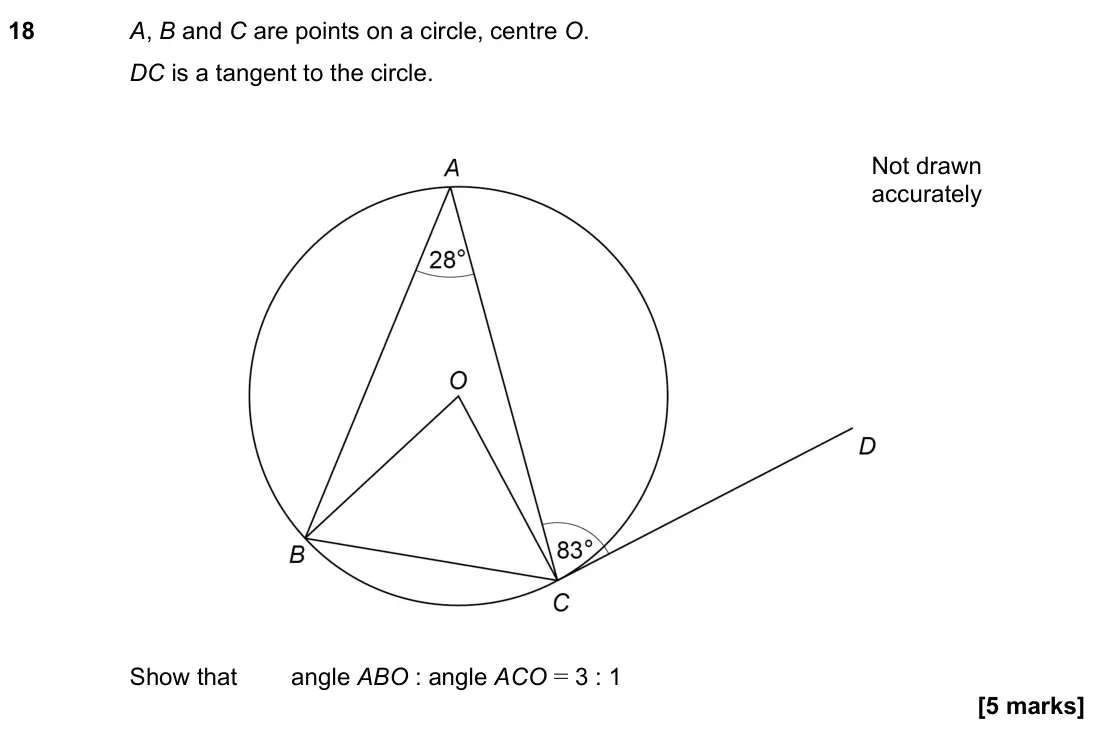

    June 2022 Paper 3H, question 18: A, B and C are points on a circle, centre O. DC is a tangent to the circle. Not drawn accurately Show that angle ABO : angle ACO = 3 : 1

  10. Q12

    November 2021 · Paper 2H

    3 marksG10 Circle theorems
    The whole paper ↗

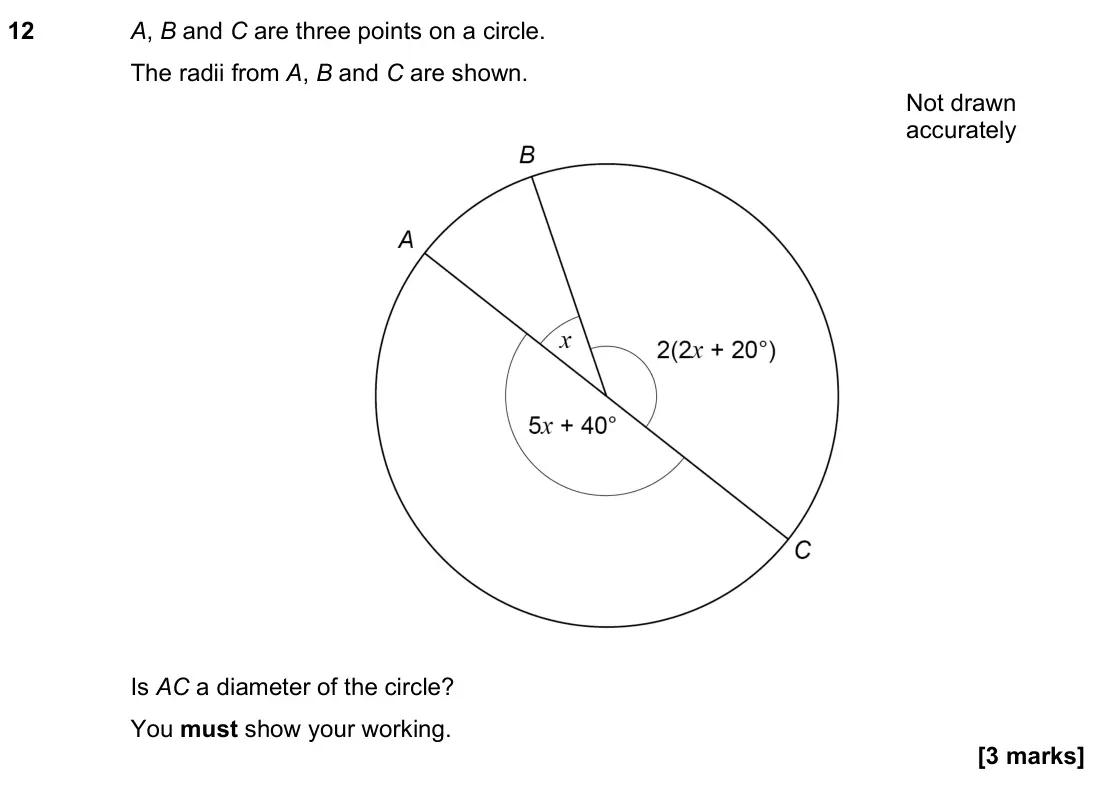

    November 2021 Paper 2H, question 12: A, B and C are three points on a circle. The radii from A, B and C are shown. Not drawn accurately Is AC a diameter of the circle? You must show your working.

  11. Q29

    November 2021 · Paper 3H

    4 marksG10 Circle theoremsG6 Geometric proof
    The whole paper ↗

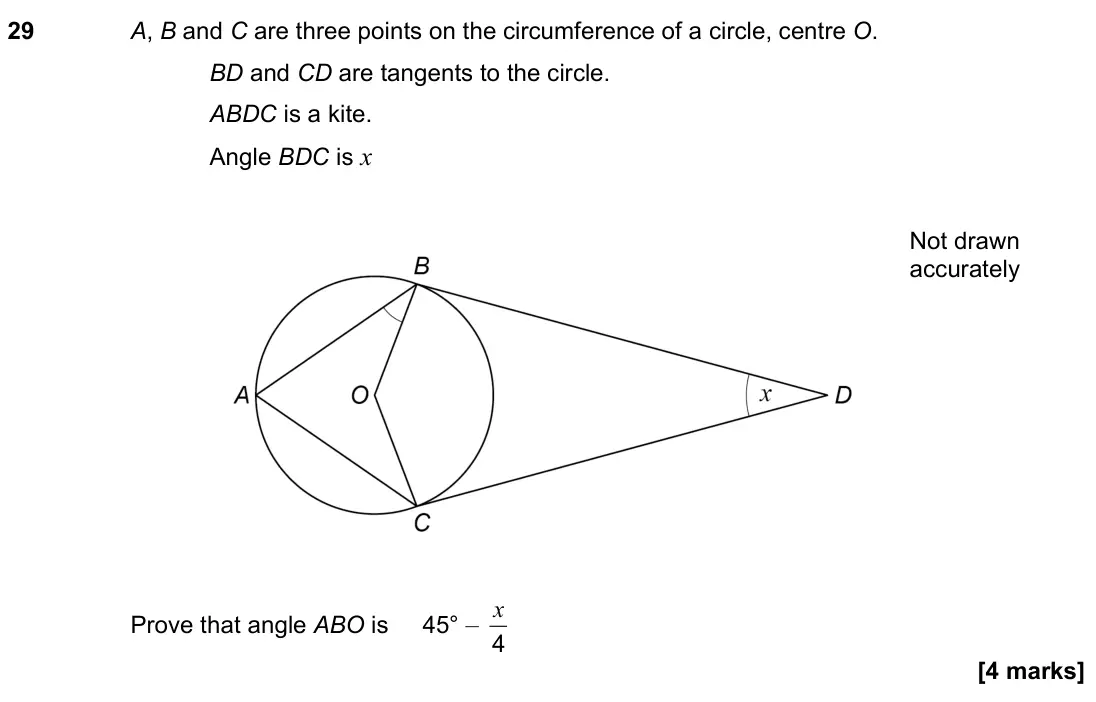

    November 2021 Paper 3H, question 29: A, B and C are three points on the circumference of a circle, centre O. BD and CD are tangents to the circle. ABDC is a kite. Angle BDC is x Prove that angle AB

  12. Q23

    November 2020 · Paper 1H

    4 marksG10 Circle theorems
    The whole paper ↗

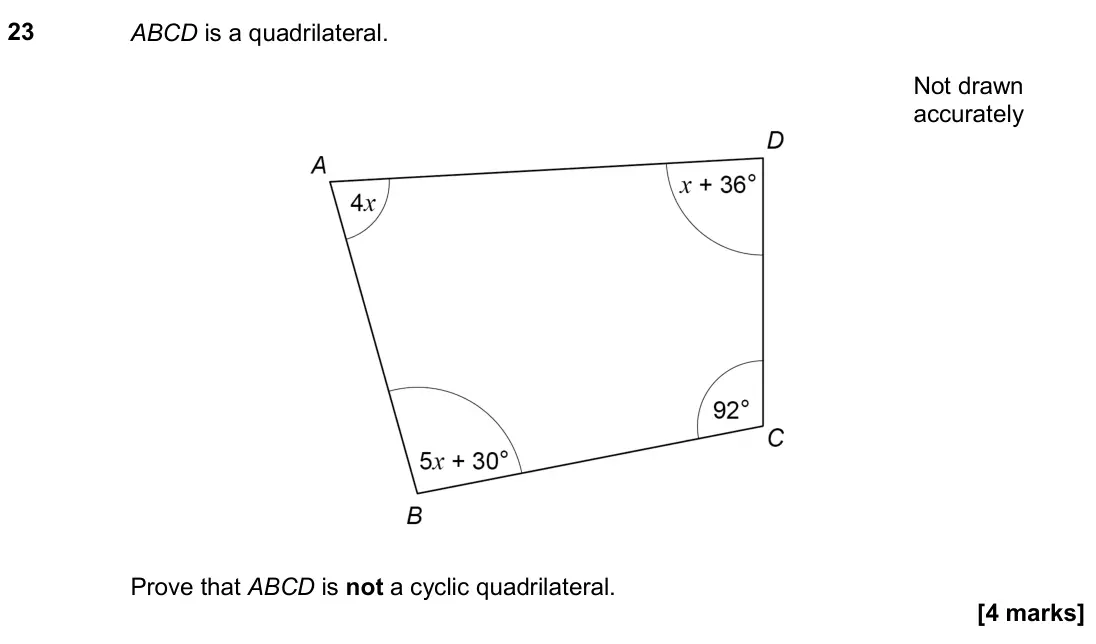

    November 2020 Paper 1H, question 23: ABCD is a quadrilateral. Prove that ABCD is not a cyclic quadrilateral. Not drawn accurately

  13. Q21

    November 2020 · Paper 3H

    4 marksG10 Circle theorems
    The whole paper ↗

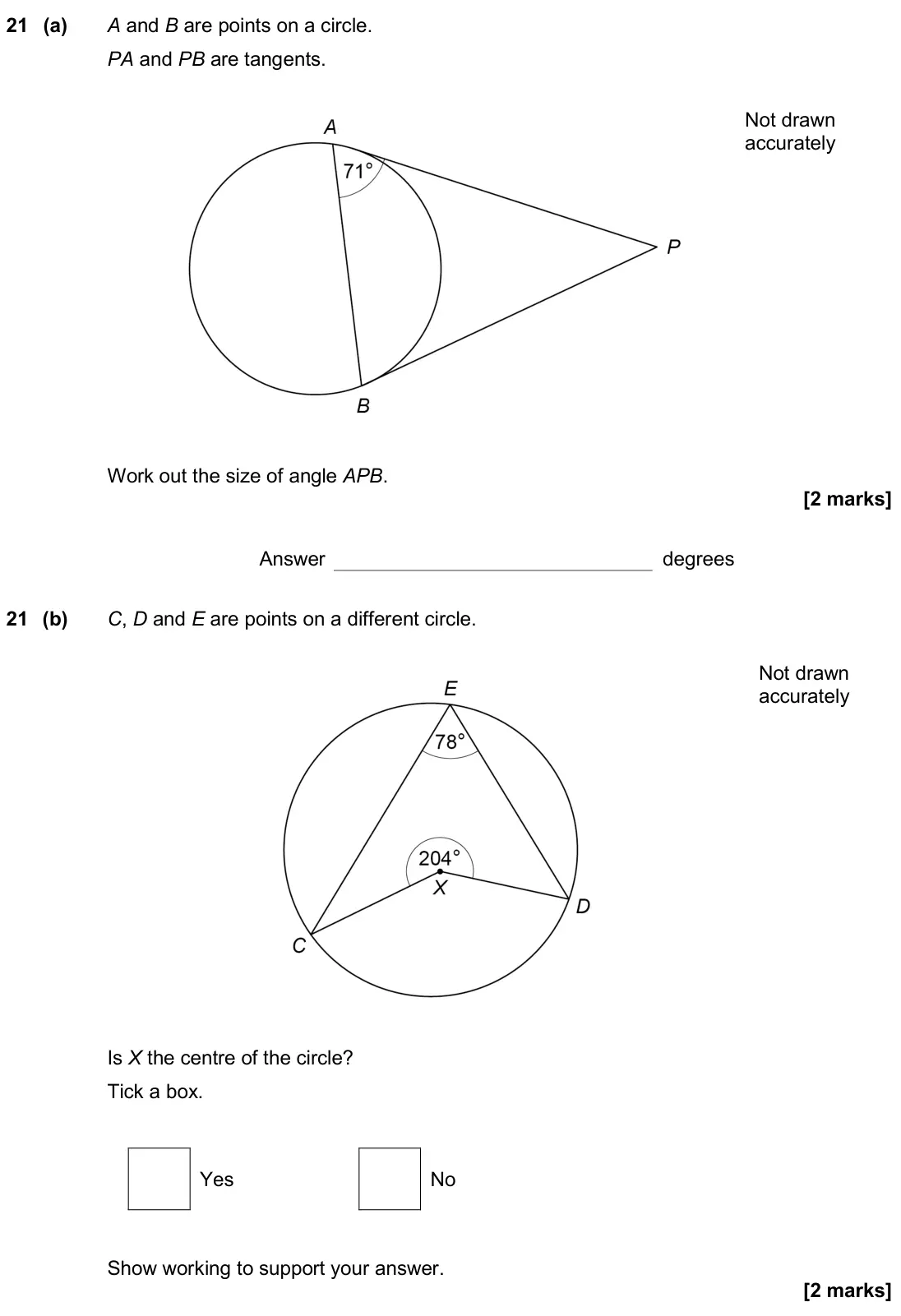

    November 2020 Paper 3H, question 21: (a) A and B are points on a circle. PA and PB are tangents. Work out the size of angle APB. Not drawn accurately Answer degrees 21 (b) C, D and E are points on

  14. Q25

    November 2019 · Paper 2H

    4 marksG10 Circle theorems
    The whole paper ↗

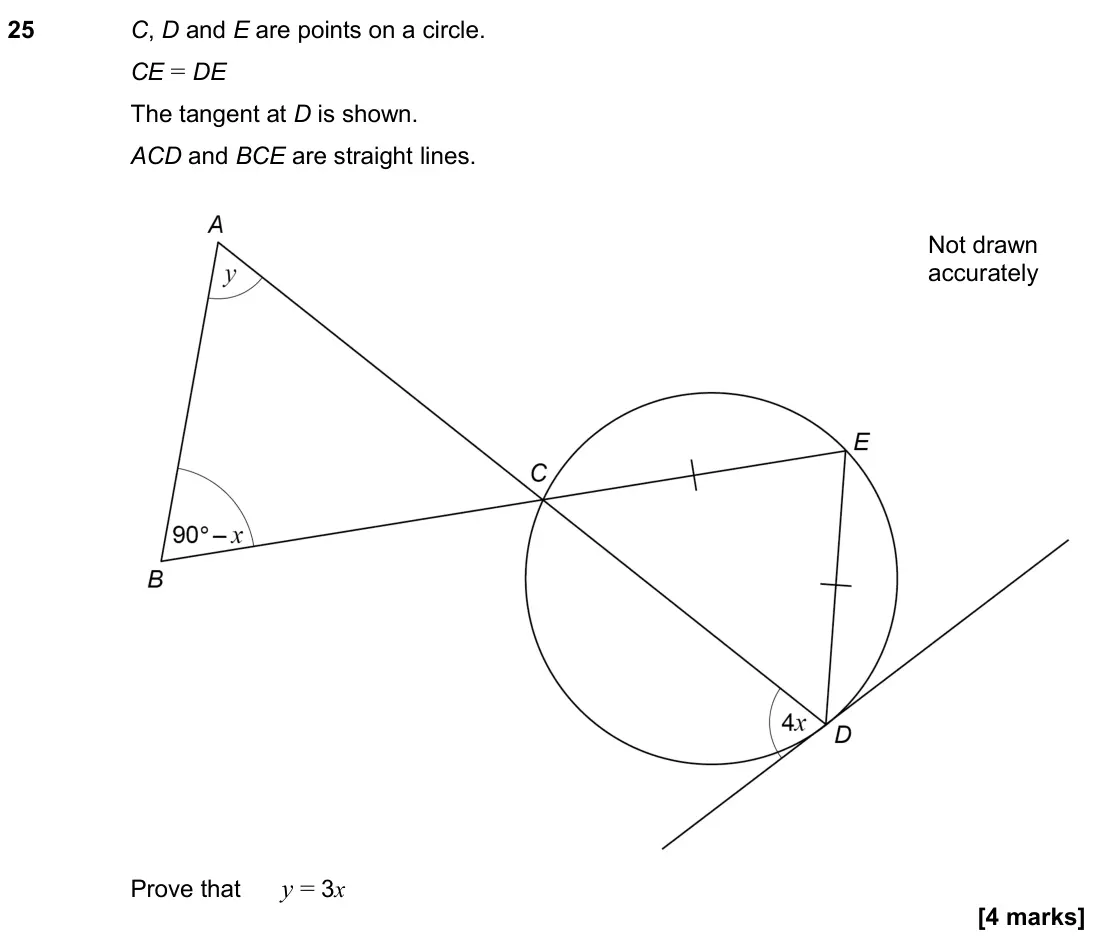

    November 2019 Paper 2H, question 25: C, D and E are points on a circle. CE = DE The tangent at D is shown. ACD and BCE are straight lines. Prove that y = 3x Not drawn accurately

  15. Q20

    June 2019 · Paper 1H

    5 marksG10 Circle theoremsG6 Geometric proof
    The whole paper ↗

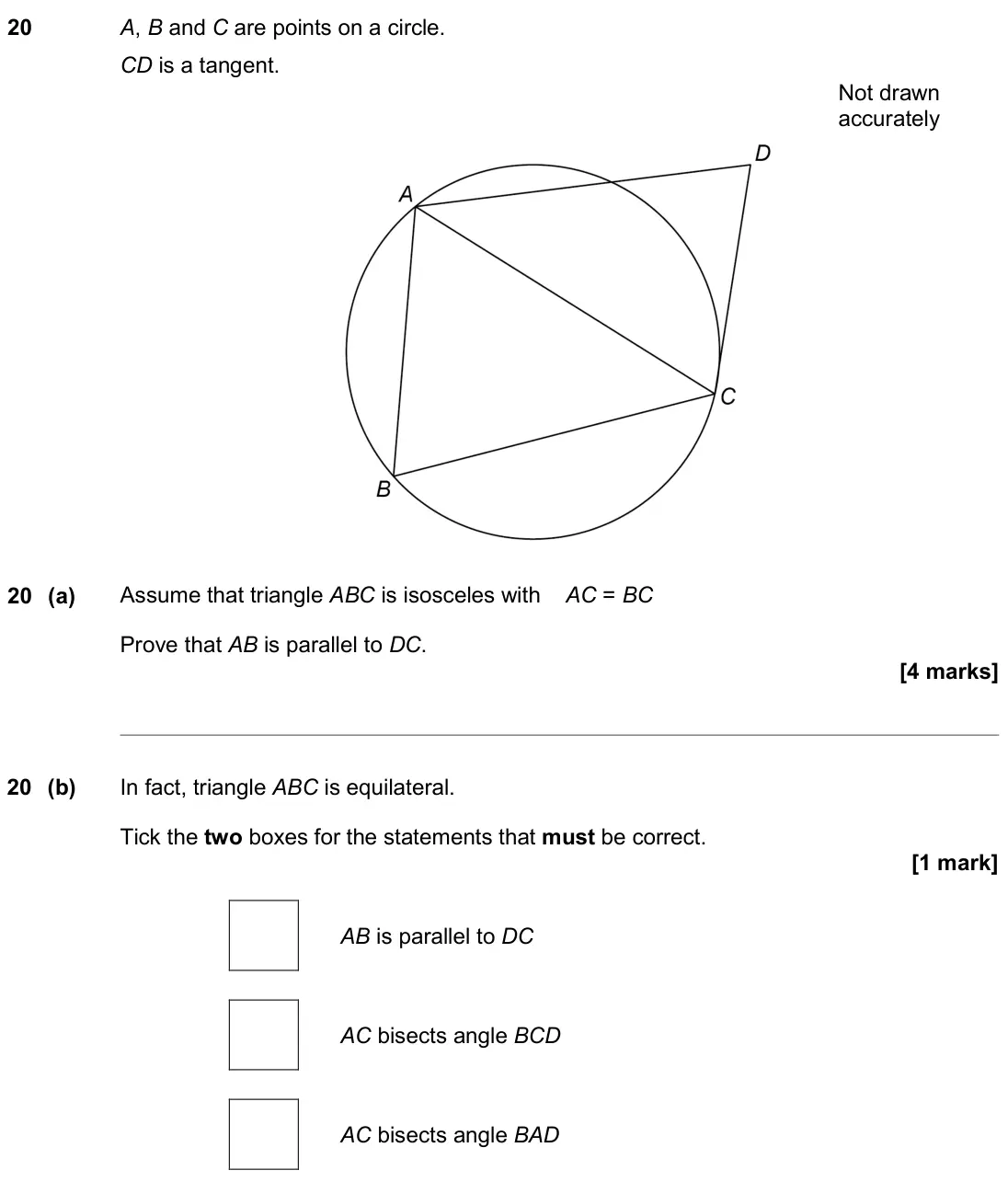

    June 2019 Paper 1H, question 20: A, B and C are points on a circle. CD is a tangent. Not drawn accurately 20 (a) Assume that triangle ABC is isosceles with AC = BC Prove that AB is parallel to

  16. Q20

    November 2018 · Paper 1H

    4 marksG10 Circle theorems
    The whole paper ↗

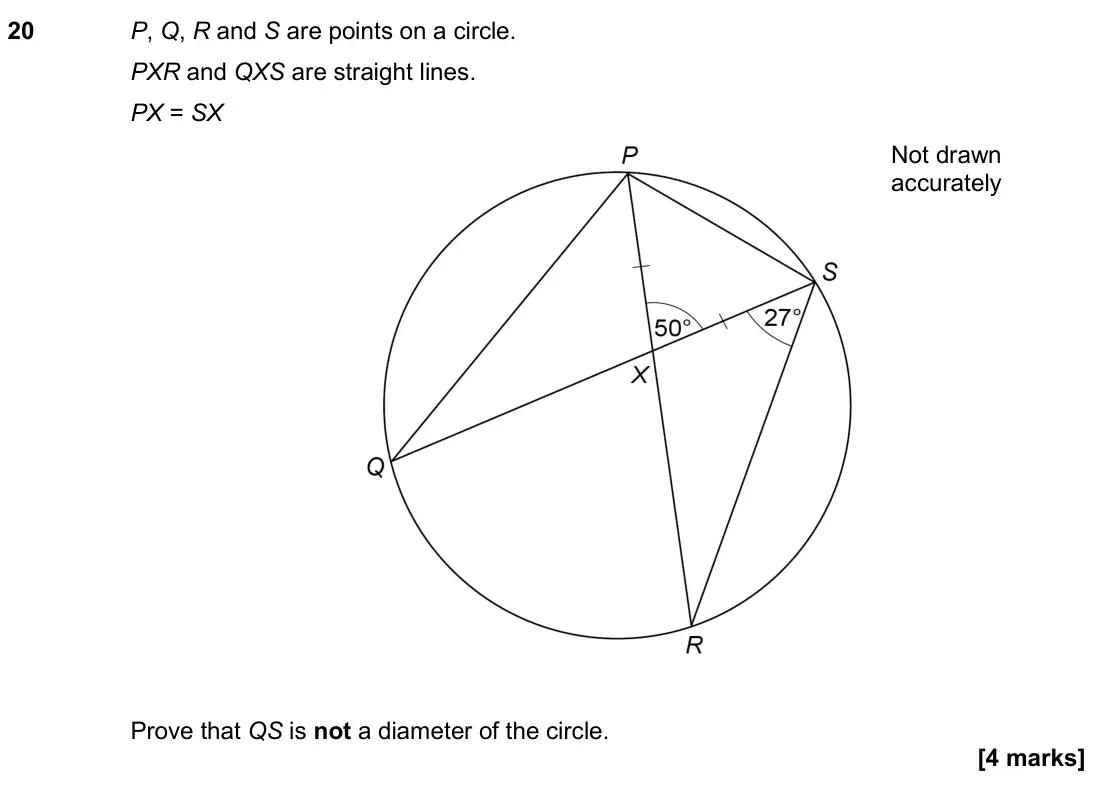

    November 2018 Paper 1H, question 20: P, Q, R and S are points on a circle. PXR and QXS are straight lines. PX = SX Prove that QS is not a diameter of the circle. Not drawn accurately

  17. Q22

    June 2018 · Paper 3H

    1 markG10 Circle theorems
    The whole paper ↗

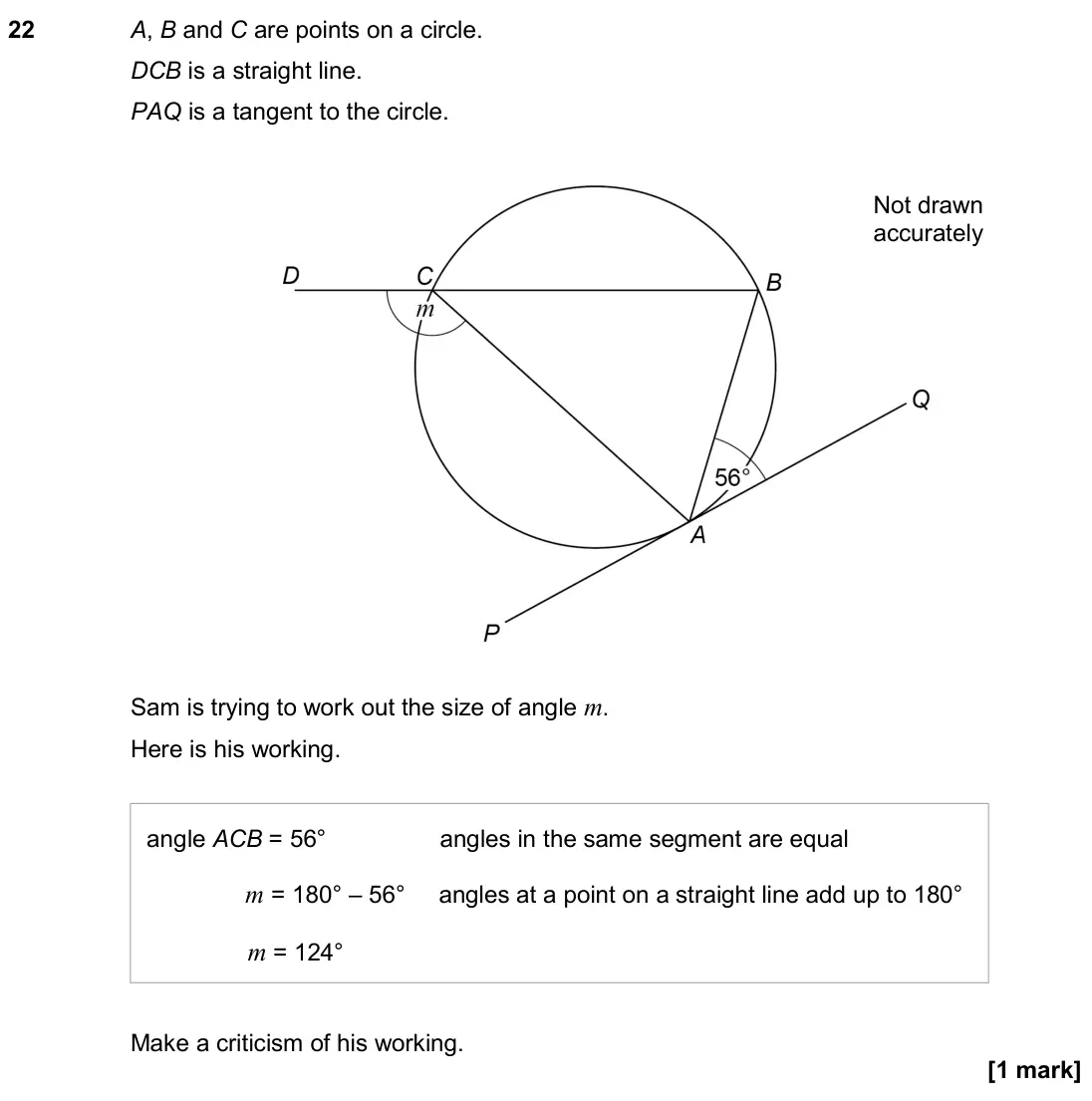

    June 2018 Paper 3H, question 22: A, B and C are points on a circle. DCB is a straight line. PAQ is a tangent to the circle. Not drawn accurately Sam is trying to work out the size of angle m. H

  18. Q24

    November 2017 · Paper 1H

    4 marksG10 Circle theorems
    The whole paper ↗

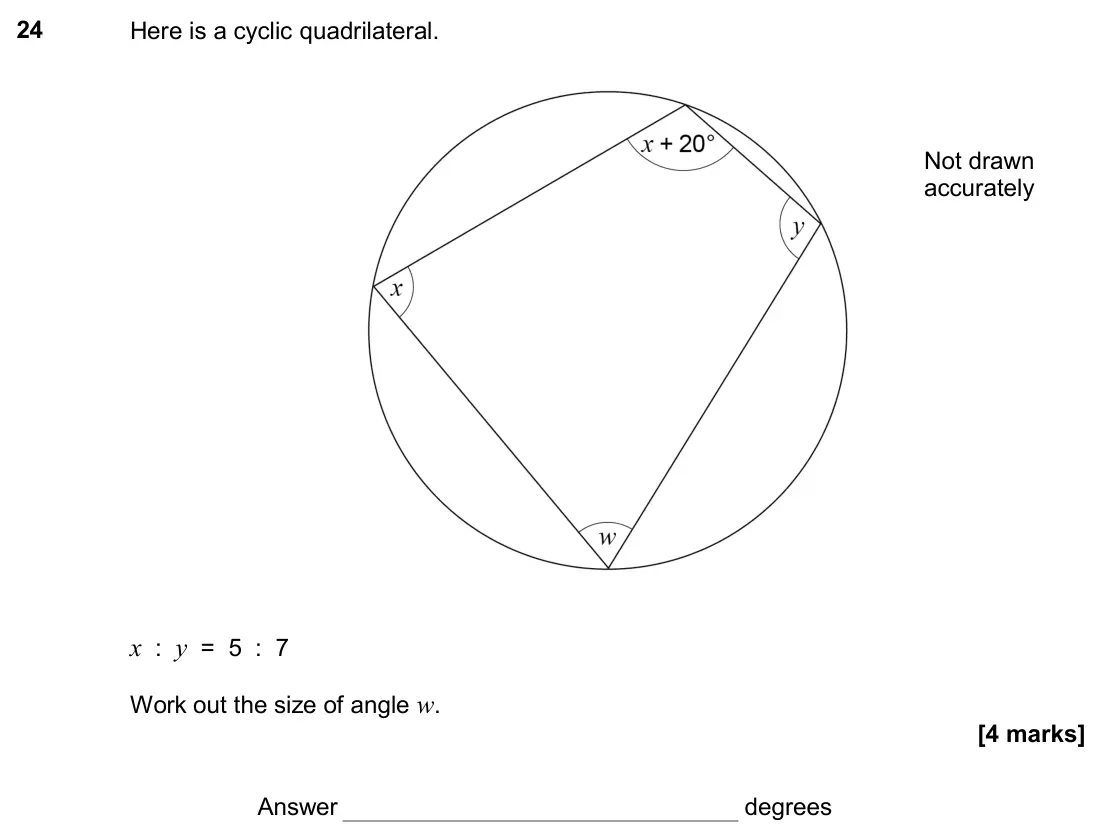

    November 2017 Paper 1H, question 24: Here is a cyclic quadrilateral. x : y = 5 : 7 Work out the size of angle w. Not drawn accurately Answer degrees

  19. Q19

    November 2017 · Paper 3H

    2 marksG10 Circle theorems
    The whole paper ↗

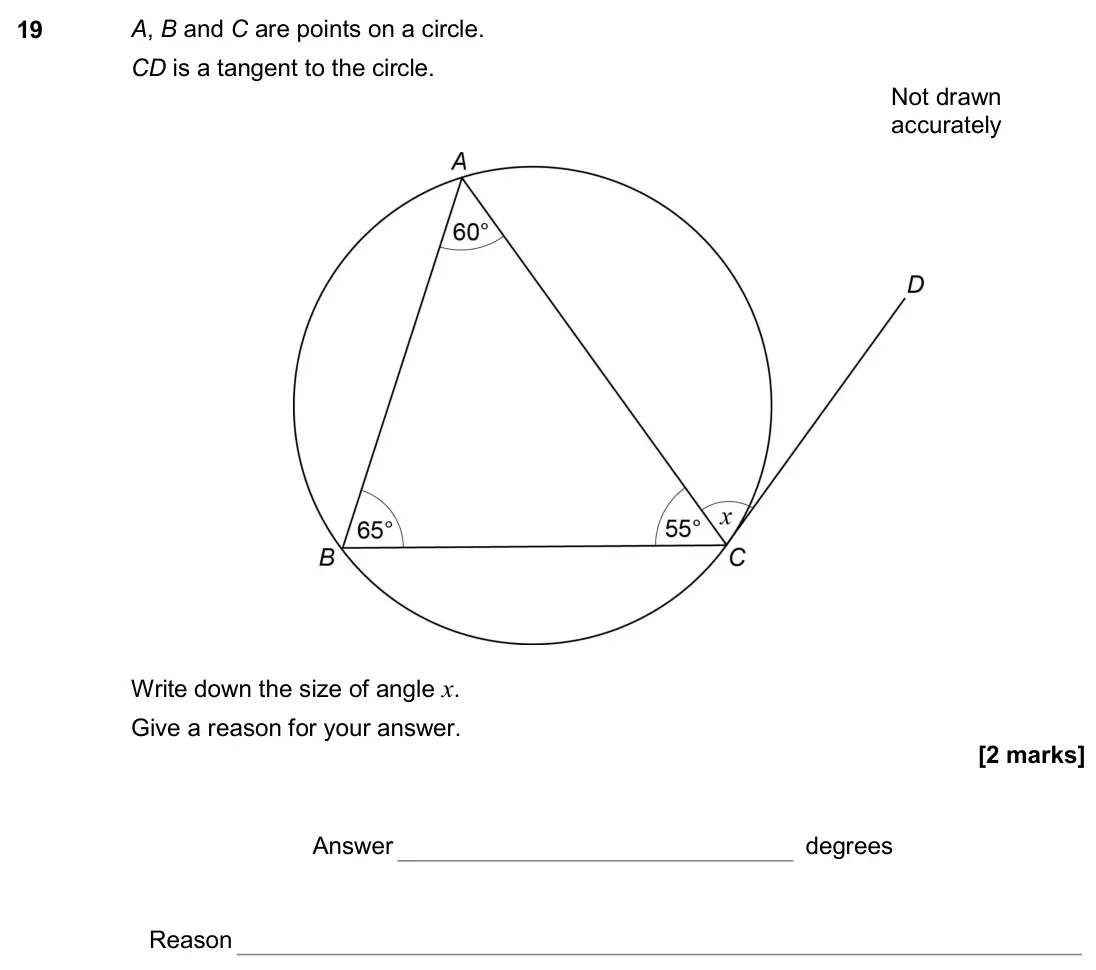

    November 2017 Paper 3H, question 19: A, B and C are points on a circle. CD is a tangent to the circle. Write down the size of angle x. Give a reason for your answer. Answer degrees Reason Not drawn

  20. Q19

    June 2017 · Paper 3H

    4 marksG10 Circle theoremsG3 Angles and polygons
    The whole paper ↗

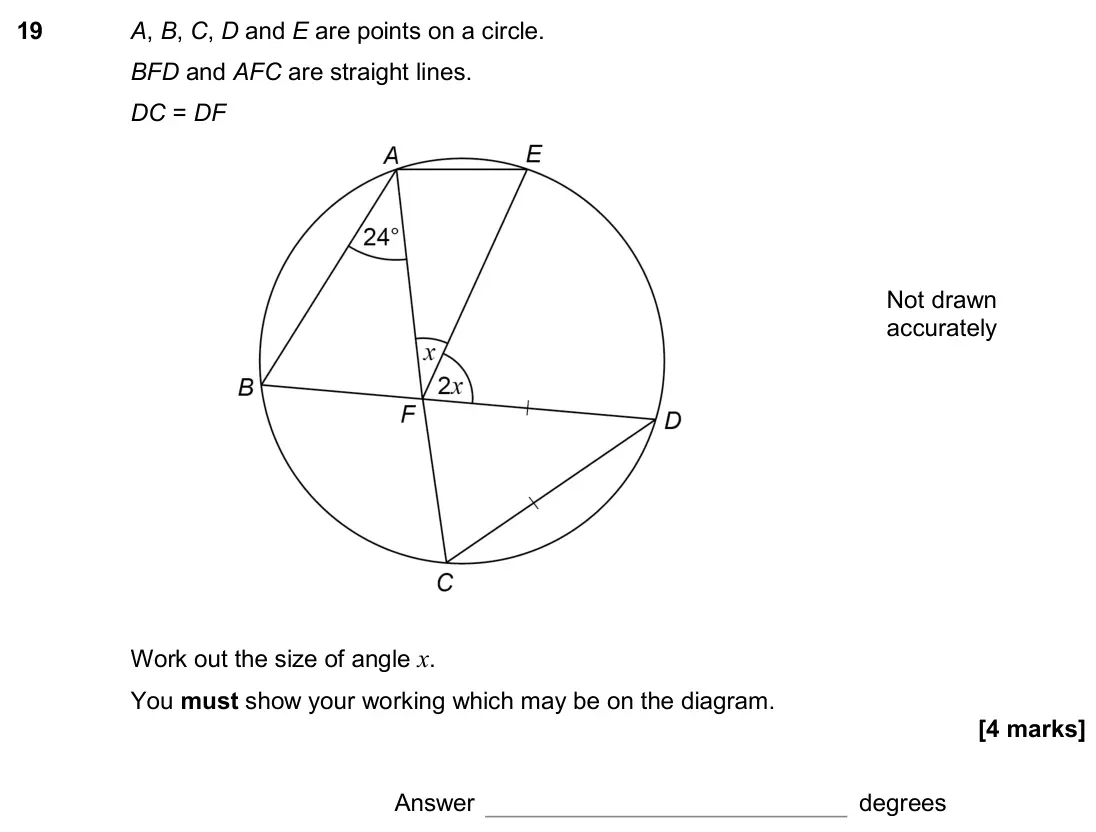

    June 2017 Paper 3H, question 19: A, B, C, D and E are points on a circle. BFD and AFC are straight lines. DC = DF Not drawn accurately Work out the size of angle x. You must show your working w
All 21 questions on Circle theorems, as a list
  1. June 2025, Paper 1H, Q15 (4 marks): A, C and D are points on a circle, diameter AC. ABC is an isosceles triangle with AC = BC BCD is a straight line. Work out the size of angle x. Not drawn accura
  2. November 2024, Paper 2H, Q23 (6 marks): (a) Not drawn accurately Line DAE is a tangent at A to the circle with centre O. Work out the size of angle x. x = ° 23 (b) Here is a cyclic quadrilateral. f :
  3. June 2024, Paper 1H, Q22 (3 marks): A, B and C are points on a circle, centre O. AP and BP are tangents to the circle. Work out the size of angle x. Not drawn accurately Answer °
  4. November 2023, Paper 1H, Q22 (3 marks): Here is a cyclic quadrilateral. a : b : c = 9 : 5 : 3 Work out the size of angle d. Not drawn accurately d = °
  5. November 2023, Paper 3H, Q16 (3 marks): PQ is a diameter of a circle. QR is a tangent to the circle. PQ = QR PR = 10 cm Work out the radius of the circle. Give your answer as a decimal. Not drawn accu
  6. June 2023, Paper 2H, Q20 (3 marks): (a) P, Q and R are points on a circle. S is a point inside triangle PQR. Assume that S is the centre of the circle. Work out the size of angle x. Not drawn accu
  7. November 2022, Paper 1H, Q26 (4 marks): P, Q and R are points on a circle. SP is a tangent to the circle. RQ = PQ Prove that y = 90° – x Not drawn accurately
  8. November 2022, Paper 3H, Q17 (3 marks): A, B and C are points on a circle, centre O. BD is a tangent to the circle. OCD is a straight line. Work out the size of angle x. Not drawn accurately x = degre
  9. June 2022, Paper 3H, Q18 (5 marks): A, B and C are points on a circle, centre O. DC is a tangent to the circle. Not drawn accurately Show that angle ABO : angle ACO = 3 : 1
  10. November 2021, Paper 2H, Q12 (3 marks): A, B and C are three points on a circle. The radii from A, B and C are shown. Not drawn accurately Is AC a diameter of the circle? You must show your working.
  11. November 2021, Paper 3H, Q29 (4 marks): A, B and C are three points on the circumference of a circle, centre O. BD and CD are tangents to the circle. ABDC is a kite. Angle BDC is x Prove that angle AB
  12. November 2020, Paper 1H, Q23 (4 marks): ABCD is a quadrilateral. Prove that ABCD is not a cyclic quadrilateral. Not drawn accurately
  13. November 2020, Paper 3H, Q21 (4 marks): (a) A and B are points on a circle. PA and PB are tangents. Work out the size of angle APB. Not drawn accurately Answer degrees 21 (b) C, D and E are points on
  14. November 2019, Paper 2H, Q25 (4 marks): C, D and E are points on a circle. CE = DE The tangent at D is shown. ACD and BCE are straight lines. Prove that y = 3x Not drawn accurately
  15. June 2019, Paper 1H, Q20 (5 marks): A, B and C are points on a circle. CD is a tangent. Not drawn accurately 20 (a) Assume that triangle ABC is isosceles with AC = BC Prove that AB is parallel to
  16. November 2018, Paper 1H, Q20 (4 marks): P, Q, R and S are points on a circle. PXR and QXS are straight lines. PX = SX Prove that QS is not a diameter of the circle. Not drawn accurately
  17. June 2018, Paper 3H, Q22 (1 mark): A, B and C are points on a circle. DCB is a straight line. PAQ is a tangent to the circle. Not drawn accurately Sam is trying to work out the size of angle m. H
  18. November 2017, Paper 1H, Q24 (4 marks): Here is a cyclic quadrilateral. x : y = 5 : 7 Work out the size of angle w. Not drawn accurately Answer degrees
  19. November 2017, Paper 3H, Q19 (2 marks): A, B and C are points on a circle. CD is a tangent to the circle. Write down the size of angle x. Give a reason for your answer. Answer degrees Reason Not drawn
  20. June 2017, Paper 3H, Q19 (4 marks): A, B, C, D and E are points on a circle. BFD and AFC are straight lines. DC = DF Not drawn accurately Work out the size of angle x. You must show your working w
  21. Specimen, Paper 1H, Q21 (3 marks): A, B and C are points on a circle.  BC bisects angle ABQ.  PBQ is a tangent to the circle. Not drawn accurately A C P B Q x Angle CBQ = x Prove that AC = BC
