Measuring, scale drawings and bearings: AQA GCSE Maths questions

Every AQA GCSE Maths exam question on G15 Measuring, scale drawings and bearings, 2017–2025, with its mark scheme and examiner’s report.

Find questions1,304
Exam
All years
Calculator

1,304 questions

  1. Q6

    June 2025 · Paper 3H

    5 marksR2 Scale factors, scale drawings and mapsG15 Measuring, scale drawings and bearings
    The whole paper ↗

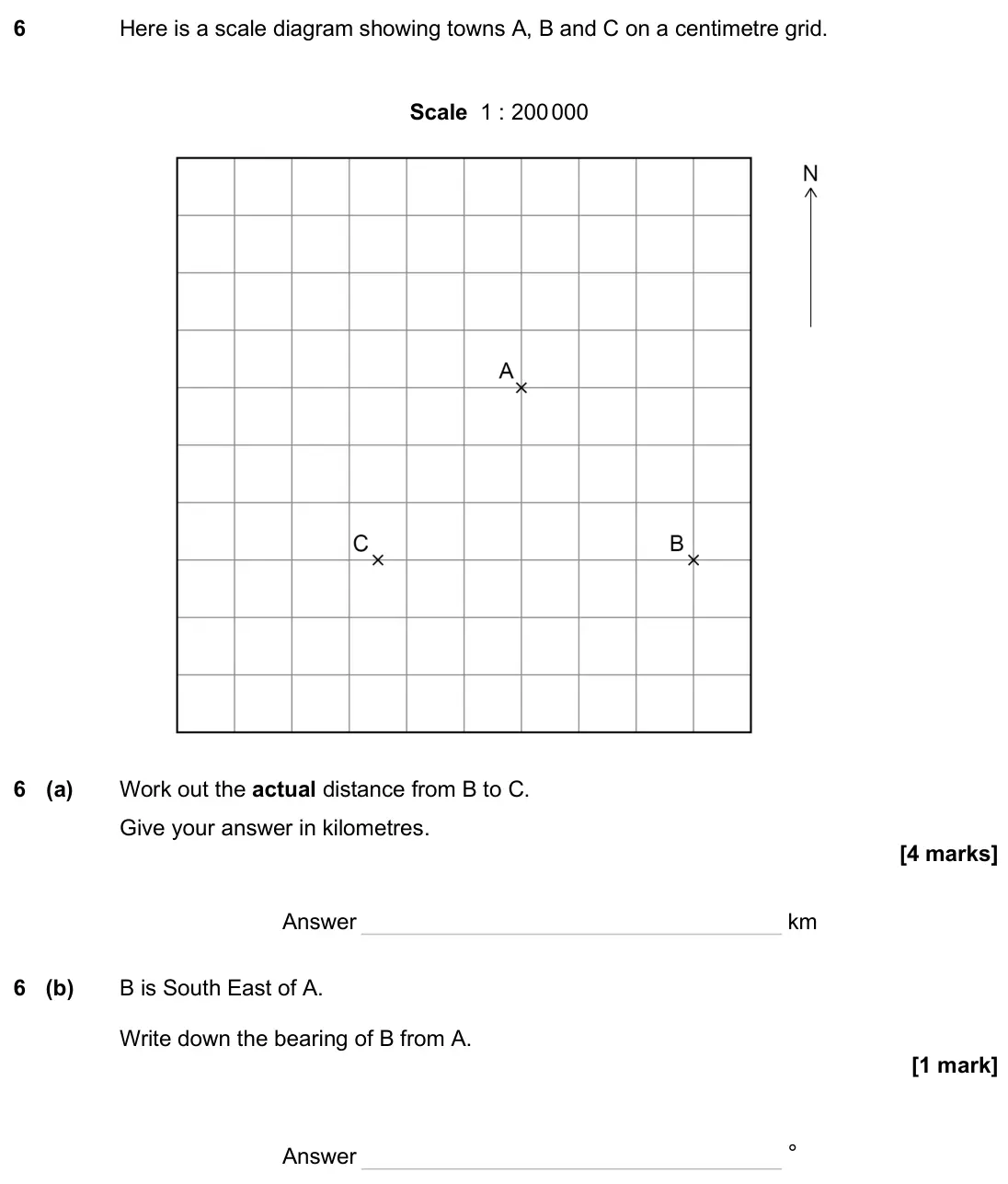

    June 2025 Paper 3H, question 6: Here is a scale diagram showing towns A, B and C on a centimetre grid. Scale 1 : 200 000 6 (a) Work out the actual distance from B to C. Give your answer in kil

  2. Q2

    June 2024 · Paper 1H

    1 markG15 Measuring, scale drawings and bearings
    The whole paper ↗

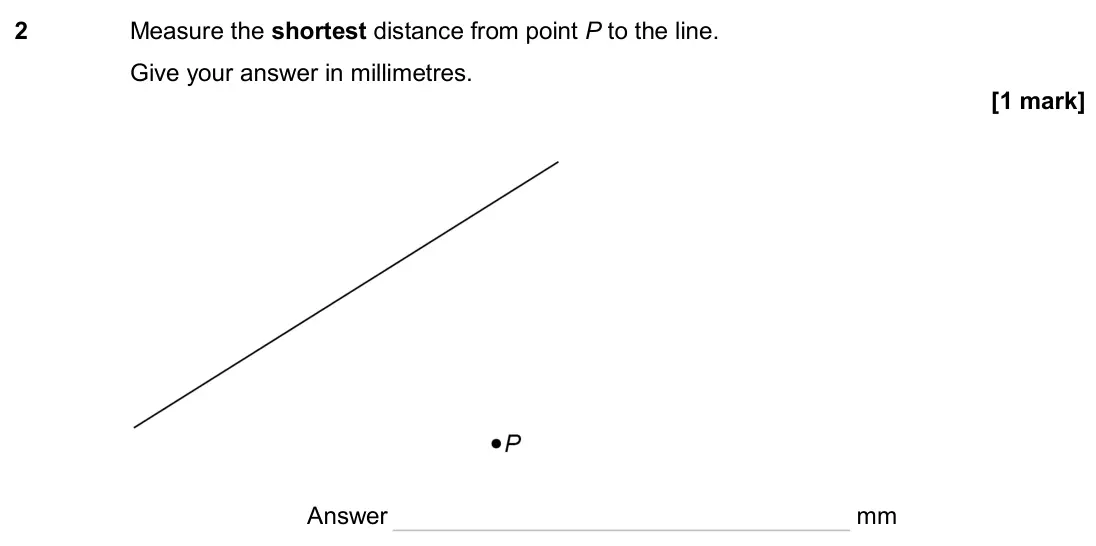

    June 2024 Paper 1H, question 2: Measure the shortest distance from point P to the line. Give your answer in millimetres. Answer mm

  3. Q4

    November 2023 · Paper 2H

    1 markG15 Measuring, scale drawings and bearings
    The whole paper ↗

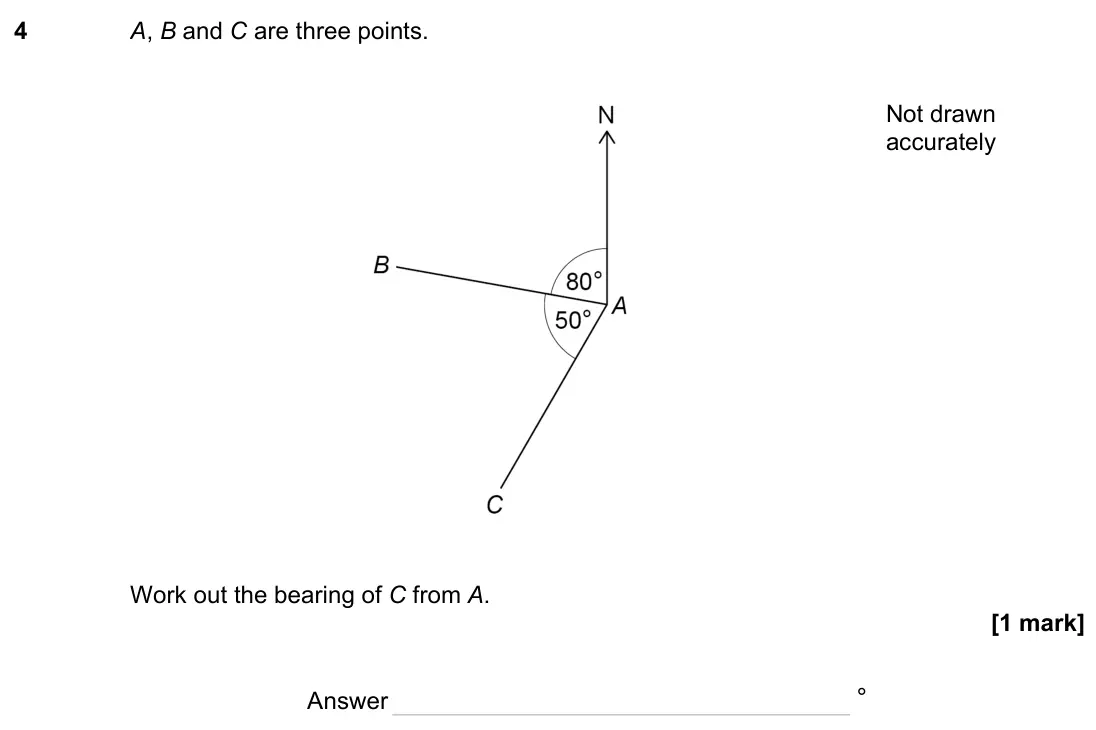

    November 2023 Paper 2H, question 4: A, B and C are three points. Work out the bearing of C from A. Not drawn accurately Answer °

  4. Q23

    June 2023 · Paper 3H

    6 marksG22 Sine and cosine rulesG15 Measuring, scale drawings and bearings
    The whole paper ↗
    June 2023 Paper 3H, question 23: Not drawn accurately A boat sails 35 km North from A to B. From B the boat sails to C and then back to A. 23 (a) Show that the distance the boat sails from C to

  5. Q24

    November 2022 · Paper 2H

    5 marksG22 Sine and cosine rulesG15 Measuring, scale drawings and bearings
    The whole paper ↗
    November 2022 Paper 2H, question 24: B is 60 miles from A on a bearing of 170° A ship sails from A on a bearing of 247° It travels at a constant speed of 23 mph for 1 2 1 hours. Is the ship now clo

  6. Q12

    June 2022 · Paper 3H

    3 marksG15 Measuring, scale drawings and bearings
    The whole paper ↗

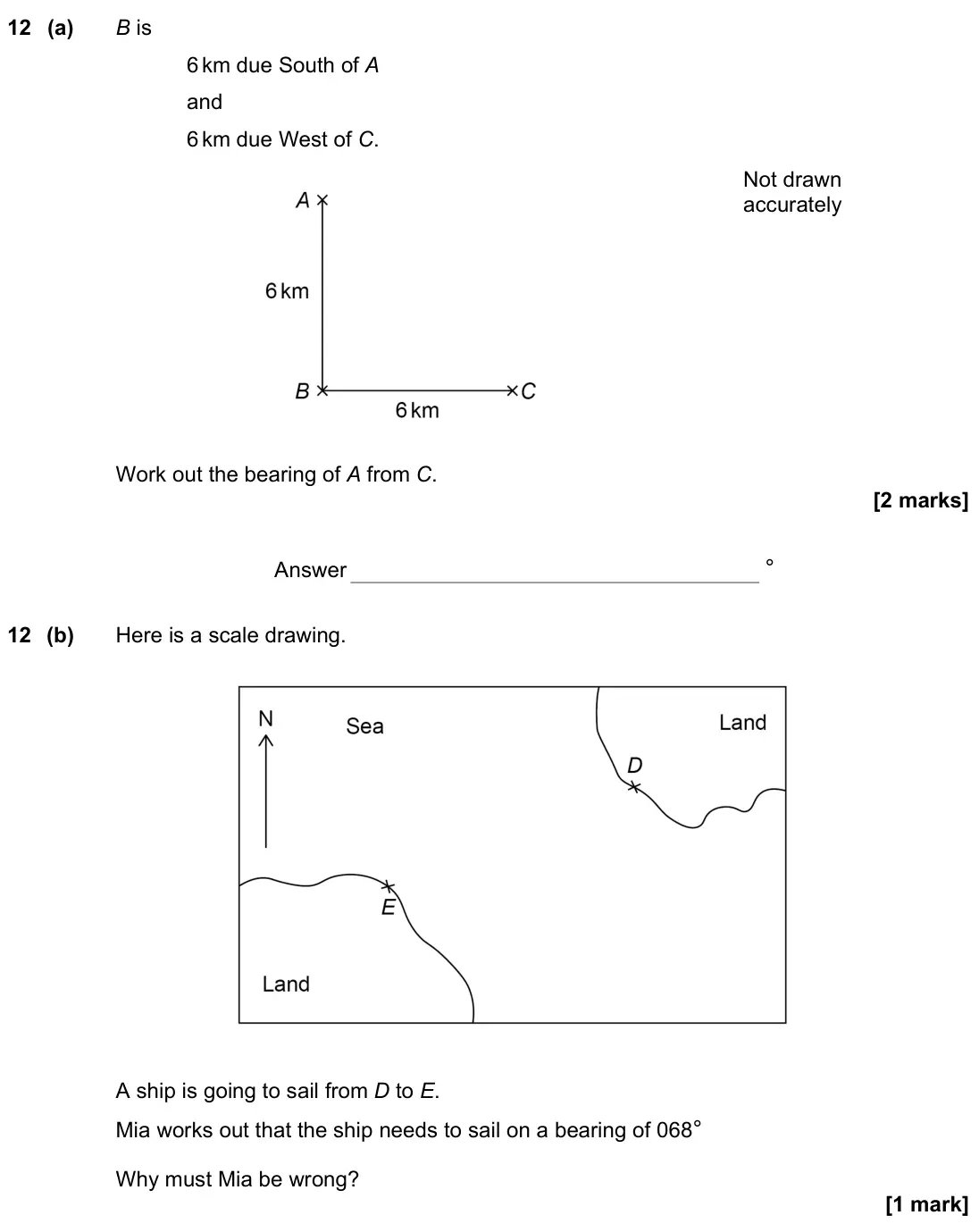

    June 2022 Paper 3H, question 12: (a) B is 6 km due South of A and 6 km due West of C. Work out the bearing of A from C. Not drawn accurately Answer ° 12 (b) Here is a scale drawing. A ship is g

  7. Q23

    November 2021 · Paper 2H

    4 marksG22 Sine and cosine rulesG15 Measuring, scale drawings and bearings
    The whole paper ↗
    November 2021 Paper 2H, question 23: A ship sails from P to Q and then from Q to R. Q is 12 miles from P, on a bearing of 080° R is 28 miles from Q, on a bearing of 155° Work out the direct distanc

  8. Q9

    November 2019 · Paper 2H

    3 marksG15 Measuring, scale drawings and bearingsG3 Angles and polygons
    The whole paper ↗
    November 2019 Paper 2H, question 9: J and K are ships. P is a port. J is due South of P. Angle JPK = 56° JP = KP Work out the bearing of J from K. Not drawn accurately Answer °

  9. Q4

    November 2018 · Paper 2H

    1 markG15 Measuring, scale drawings and bearings
    The whole paper ↗

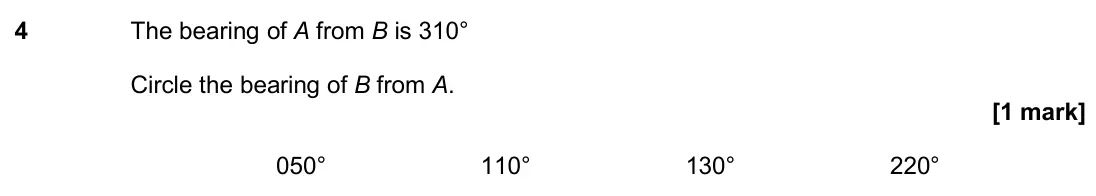

    November 2018 Paper 2H, question 4: The bearing of A from B is 310° Circle the bearing of B from A. 050° 110° 130° 220°

  10. Q4

    June 2017 · Paper 3H

    1 markG15 Measuring, scale drawings and bearings
    The whole paper ↗

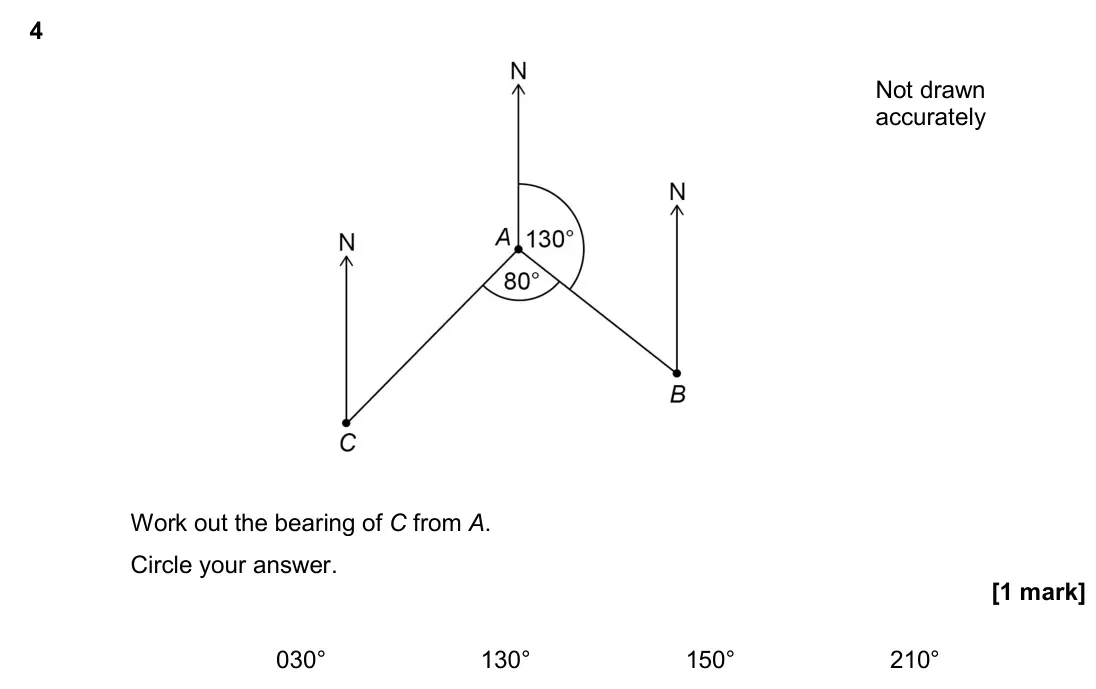

    June 2017 Paper 3H, question 4: Work out the bearing of C from A. Circle your answer. 030° 130° 150° 210° Not drawn accurately
All 10 questions on Measuring, scale drawings and bearings, as a list
  1. June 2025, Paper 3H, Q6 (5 marks): Here is a scale diagram showing towns A, B and C on a centimetre grid. Scale 1 : 200 000 6 (a) Work out the actual distance from B to C. Give your answer in kil
  2. June 2024, Paper 1H, Q2 (1 mark): Measure the shortest distance from point P to the line. Give your answer in millimetres. Answer mm
  3. November 2023, Paper 2H, Q4 (1 mark): A, B and C are three points. Work out the bearing of C from A. Not drawn accurately Answer °
  4. June 2023, Paper 3H, Q23 (6 marks): Not drawn accurately A boat sails 35 km North from A to B. From B the boat sails to C and then back to A. 23 (a) Show that the distance the boat sails from C to
  5. November 2022, Paper 2H, Q24 (5 marks): B is 60 miles from A on a bearing of 170° A ship sails from A on a bearing of 247° It travels at a constant speed of 23 mph for 1 2 1 hours. Is the ship now clo
  6. June 2022, Paper 3H, Q12 (3 marks): (a) B is 6 km due South of A and 6 km due West of C. Work out the bearing of A from C. Not drawn accurately Answer ° 12 (b) Here is a scale drawing. A ship is g
  7. November 2021, Paper 2H, Q23 (4 marks): A ship sails from P to Q and then from Q to R. Q is 12 miles from P, on a bearing of 080° R is 28 miles from Q, on a bearing of 155° Work out the direct distanc
  8. November 2019, Paper 2H, Q9 (3 marks): J and K are ships. P is a port. J is due South of P. Angle JPK = 56° JP = KP Work out the bearing of J from K. Not drawn accurately Answer °
  9. November 2018, Paper 2H, Q4 (1 mark): The bearing of A from B is 310° Circle the bearing of B from A. 050° 110° 130° 220°
  10. June 2017, Paper 3H, Q4 (1 mark): Work out the bearing of C from A. Circle your answer. 030° 130° 150° 210° Not drawn accurately
