Plans and elevations: AQA GCSE Maths questions

Every AQA GCSE Maths exam question on G13 Plans and elevations, 2017–2025, with its mark scheme and examiner’s report.

Find questions1,304
Exam
All years
Calculator

1,304 questions

  1. Q3

    November 2024 · Paper 3H

    4 marksG13 Plans and elevations
    The whole paper ↗

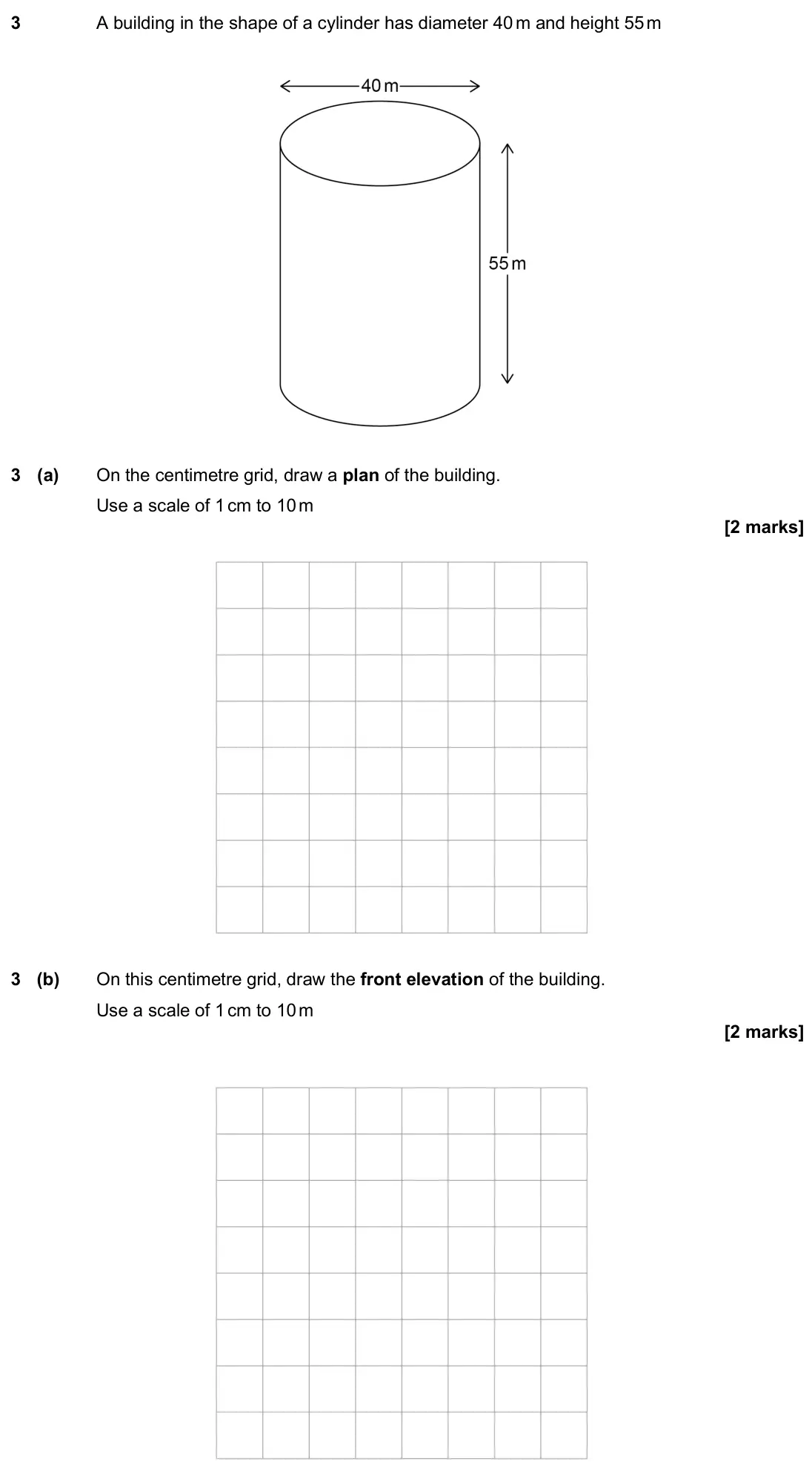

    November 2024 Paper 3H, question 3: A building in the shape of a cylinder has diameter 40 m and height 55 m 3 (a) On the centimetre grid, draw a plan of the building. Use a scale of 1 cm to 10 m 3

  2. Q5

    June 2024 · Paper 3H

    2 marksG13 Plans and elevations
    The whole paper ↗

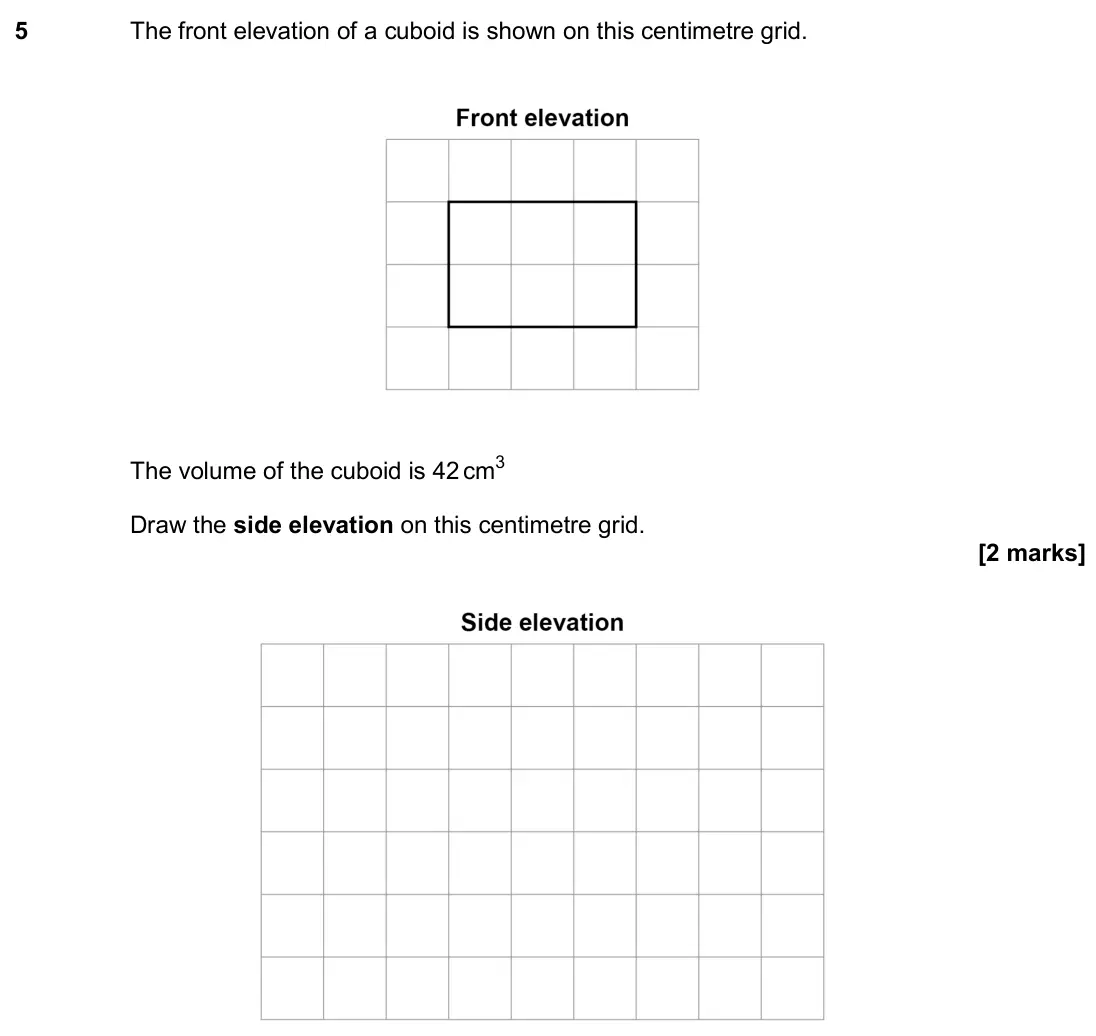

    June 2024 Paper 3H, question 5: The front elevation of a cuboid is shown on this centimetre grid. The volume of the cuboid is 42 cm3 Draw the side elevation on this centimetre grid.

  3. Q21

    June 2023 · Paper 3H

    3 marksG13 Plans and elevations
    The whole paper ↗

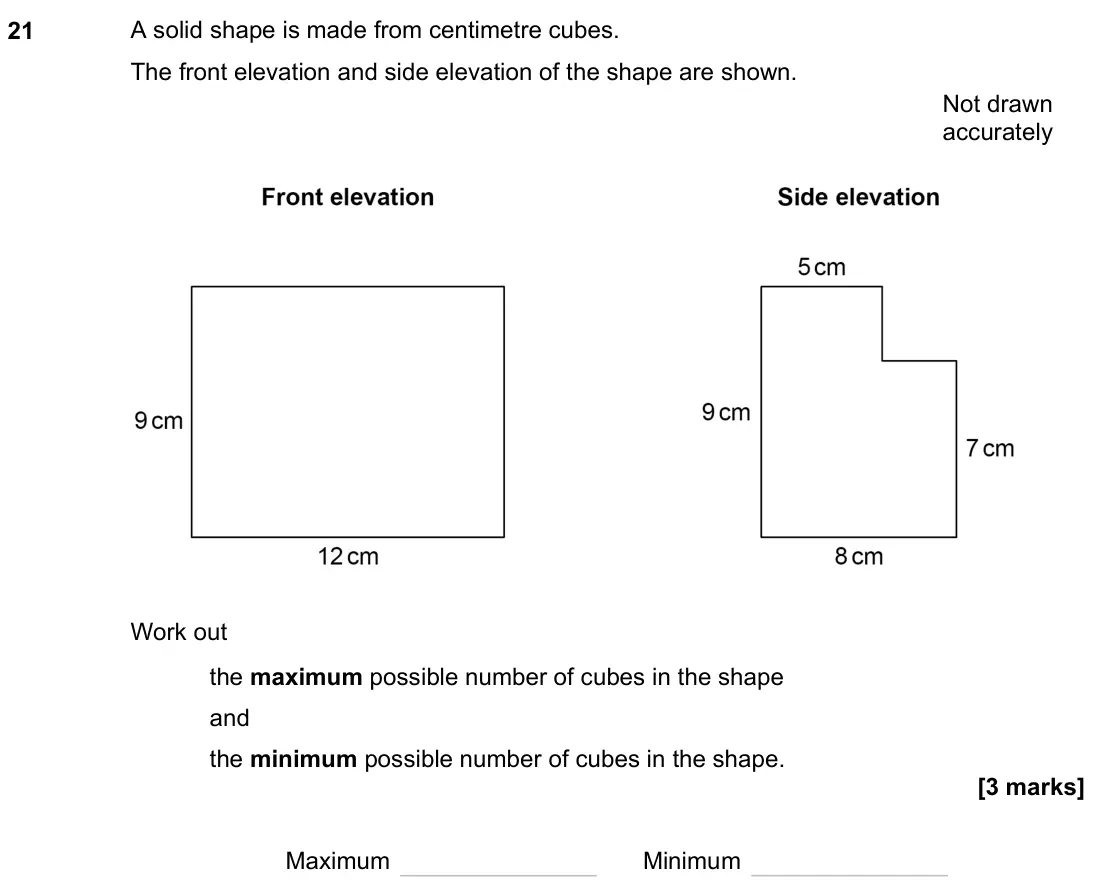

    June 2023 Paper 3H, question 21: A solid shape is made from centimetre cubes. The front elevation and side elevation of the shape are shown. Work out the maximum possible number of cubes in the

  4. Q17

    June 2022 · Paper 2H

    1 markG13 Plans and elevations
    The whole paper ↗

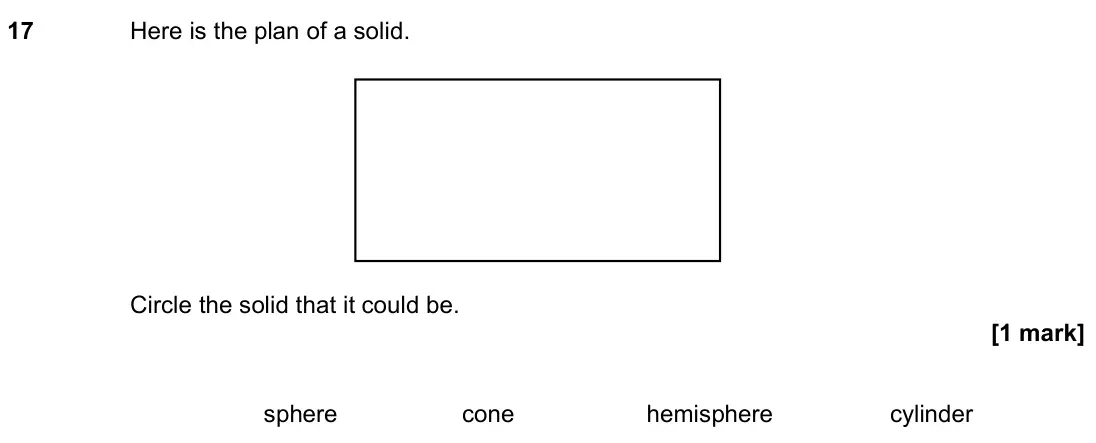

    June 2022 Paper 2H, question 17: Here is the plan of a solid. Circle the solid that it could be. sphere cone hemisphere cylinder

  5. Q10

    November 2021 · Paper 3H

    2 marksG13 Plans and elevations
    The whole paper ↗

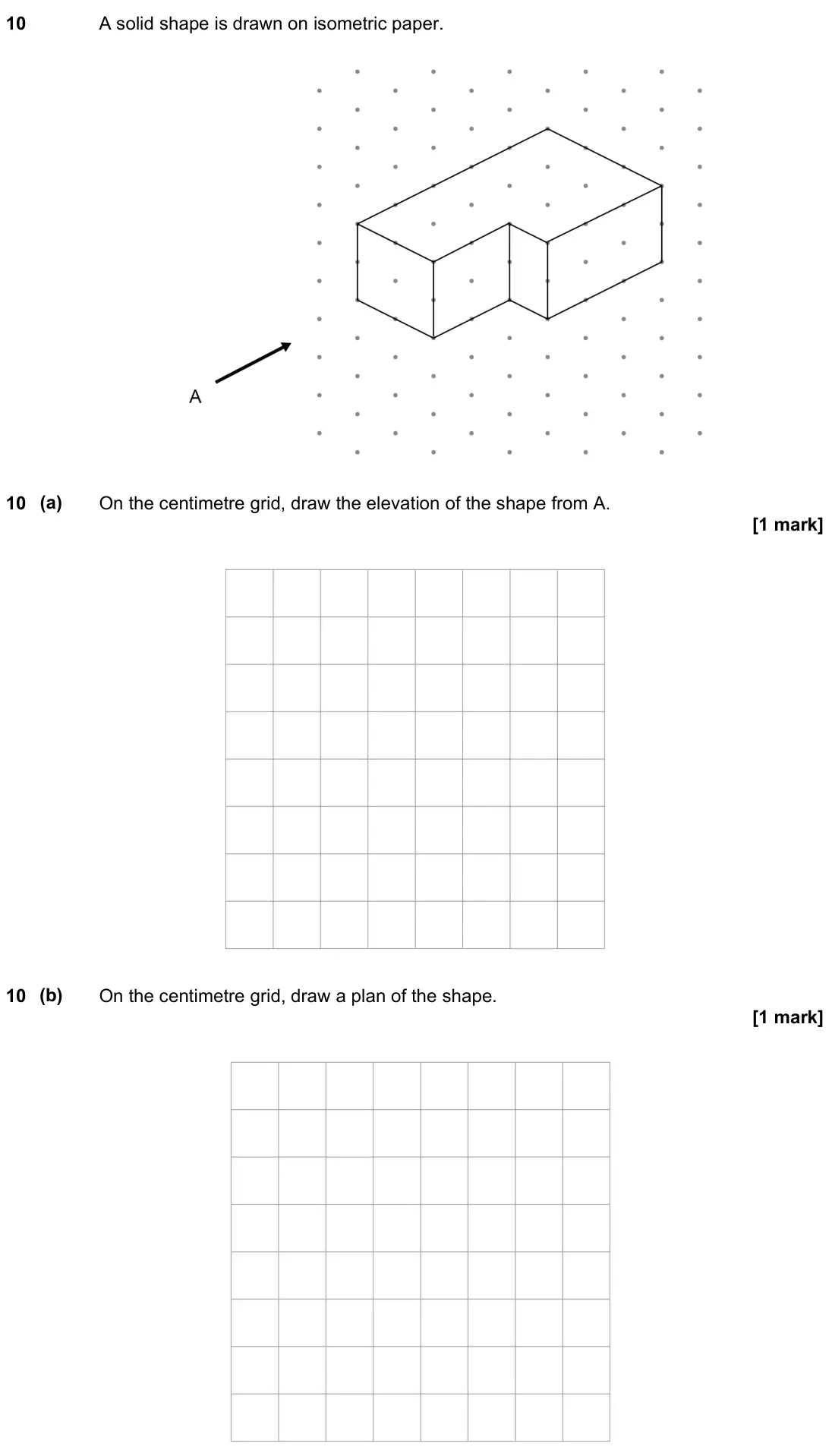

    November 2021 Paper 3H, question 10: A solid shape is drawn on isometric paper. 10 (a) On the centimetre grid, draw the elevation of the shape from A. 10 (b) On the centimetre grid, draw a plan of
All 5 questions on Plans and elevations, as a list
  1. November 2024, Paper 3H, Q3 (4 marks): A building in the shape of a cylinder has diameter 40 m and height 55 m 3 (a) On the centimetre grid, draw a plan of the building. Use a scale of 1 cm to 10 m 3
  2. June 2024, Paper 3H, Q5 (2 marks): The front elevation of a cuboid is shown on this centimetre grid. The volume of the cuboid is 42 cm3 Draw the side elevation on this centimetre grid.
  3. June 2023, Paper 3H, Q21 (3 marks): A solid shape is made from centimetre cubes. The front elevation and side elevation of the shape are shown. Work out the maximum possible number of cubes in the
  4. June 2022, Paper 2H, Q17 (1 mark): Here is the plan of a solid. Circle the solid that it could be. sphere cone hemisphere cylinder
  5. November 2021, Paper 3H, Q10 (2 marks): A solid shape is drawn on isometric paper. 10 (a) On the centimetre grid, draw the elevation of the shape from A. 10 (b) On the centimetre grid, draw a plan of
