Area of 2D shapes and volume of prisms: AQA GCSE Maths questions

Every AQA GCSE Maths exam question on G16 Area of 2D shapes and volume of prisms, 2017–2025, with its mark scheme and examiner’s report.

Find questions1,304
Exam
All years
Calculator

1,304 questions

  1. Q5

    November 2024 · Paper 1H

    3 marksG16 Area of 2D shapes and volume of prismsG12 Properties of 3D shapes
    The whole paper ↗
    November 2024 Paper 1H, question 5: Here is a solid prism. 5 (a) How many faces does the prism have? Answer 5 (b) The prism has volume = 3500 cm3 and length = 20 cm Work out the area of the cross-

  2. Q13

    June 2024 · Paper 1H

    4 marksG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

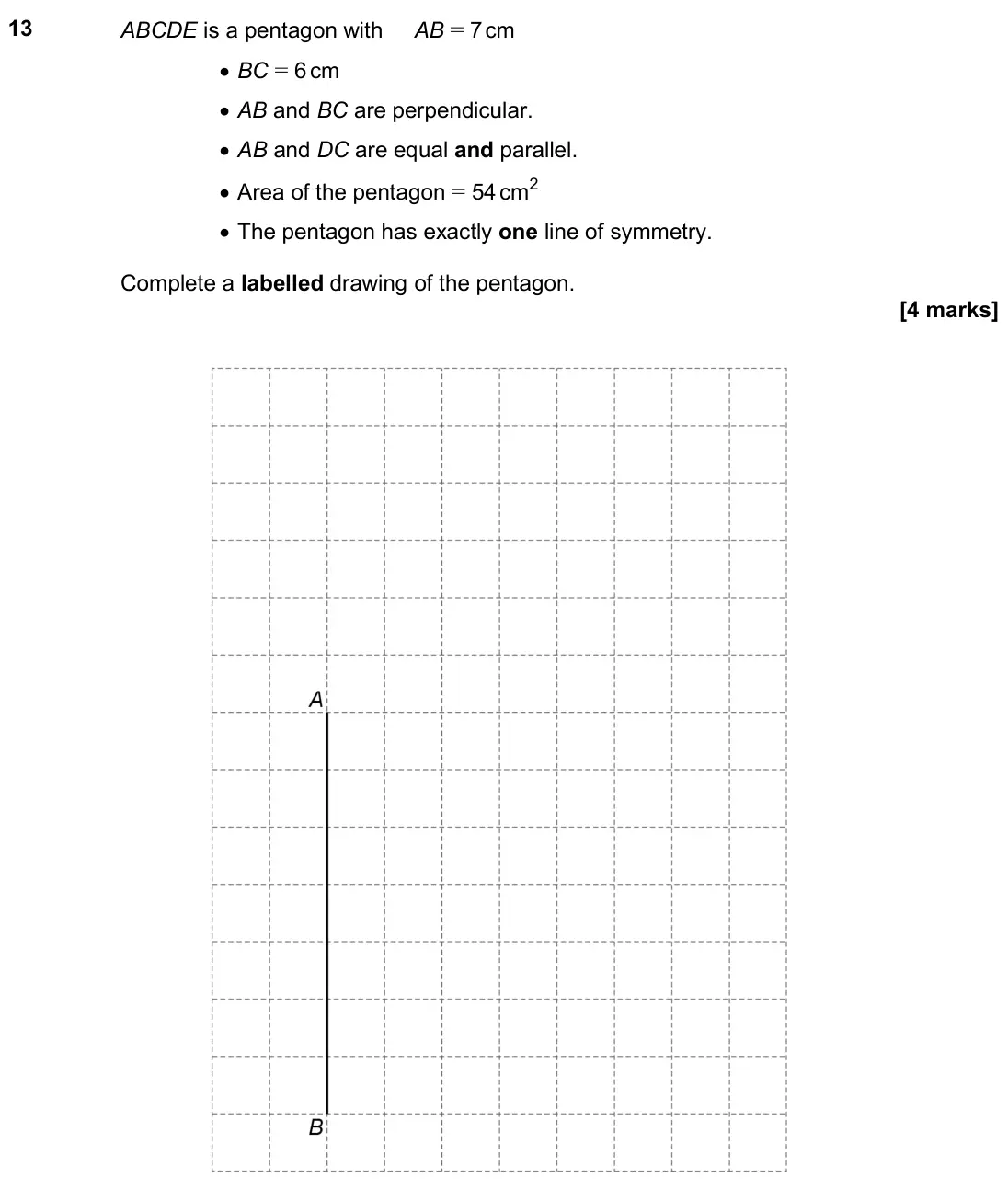

    June 2024 Paper 1H, question 13: ABCDE is a pentagon with AB = 7 cm • BC = 6 cm • AB and BC are perpendicular. • AB and DC are equal and parallel. • Area of the pentagon = 54 cm2 • The pentagon

  3. Q25

    June 2024 · Paper 2H

    5 marksG16 Area of 2D shapes and volume of prismsR4 Ratio notation
    The whole paper ↗
    June 2024 Paper 2H, question 25: Here is a right-angled triangular prism. The ratio of the edges is a : b : c : d = 3 : 4 : 5 : 12 The volume of the prism is 1125 cm3 Work out the total length

  4. Q8

    November 2023 · Paper 1H

    3 marksG16 Area of 2D shapes and volume of prismsR4 Ratio notation
    The whole paper ↗
    November 2023 Paper 1H, question 8: In the diagrams, all lengths are in centimetres. The two shapes have equal areas. Work out k : m Not drawn accurately Answer :

  5. Q7

    November 2023 · Paper 2H

    3 marksG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

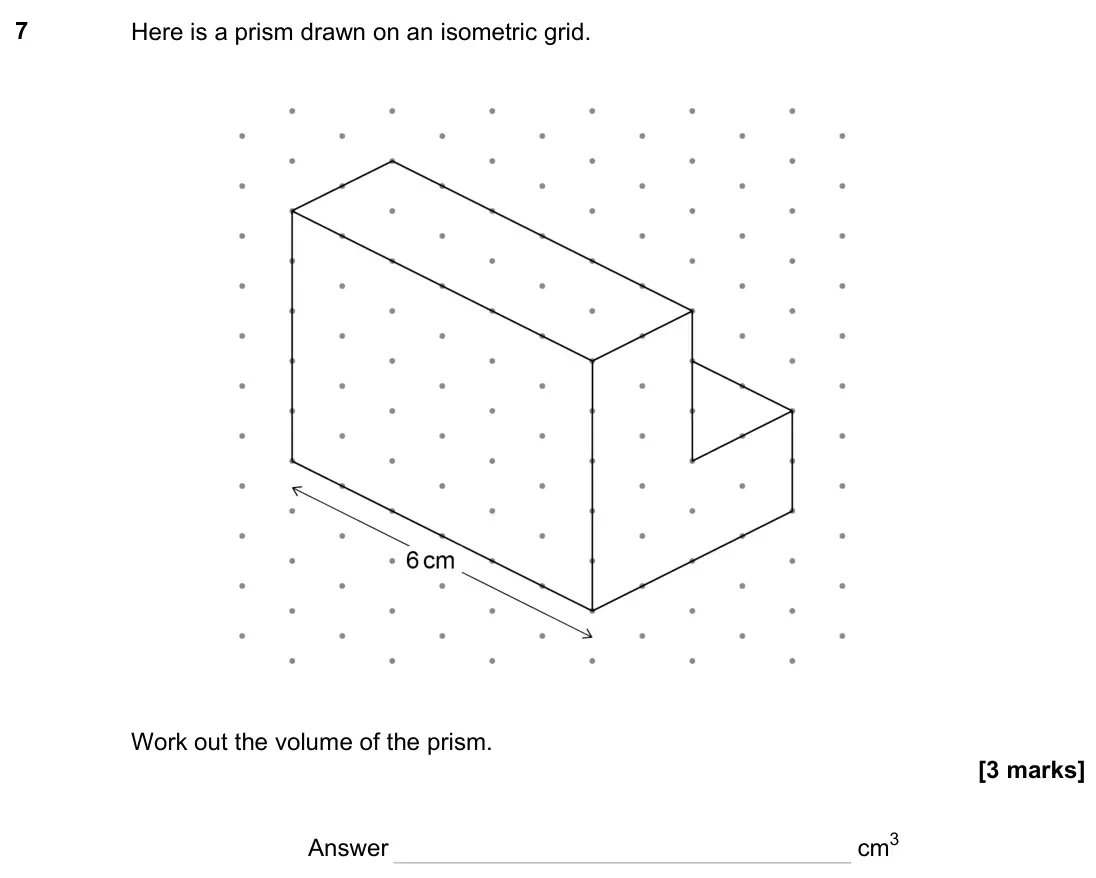

    November 2023 Paper 2H, question 7: Here is a prism drawn on an isometric grid. Work out the volume of the prism. Answer cm3

  6. Q5

    November 2022 · Paper 3H

    3 marksG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

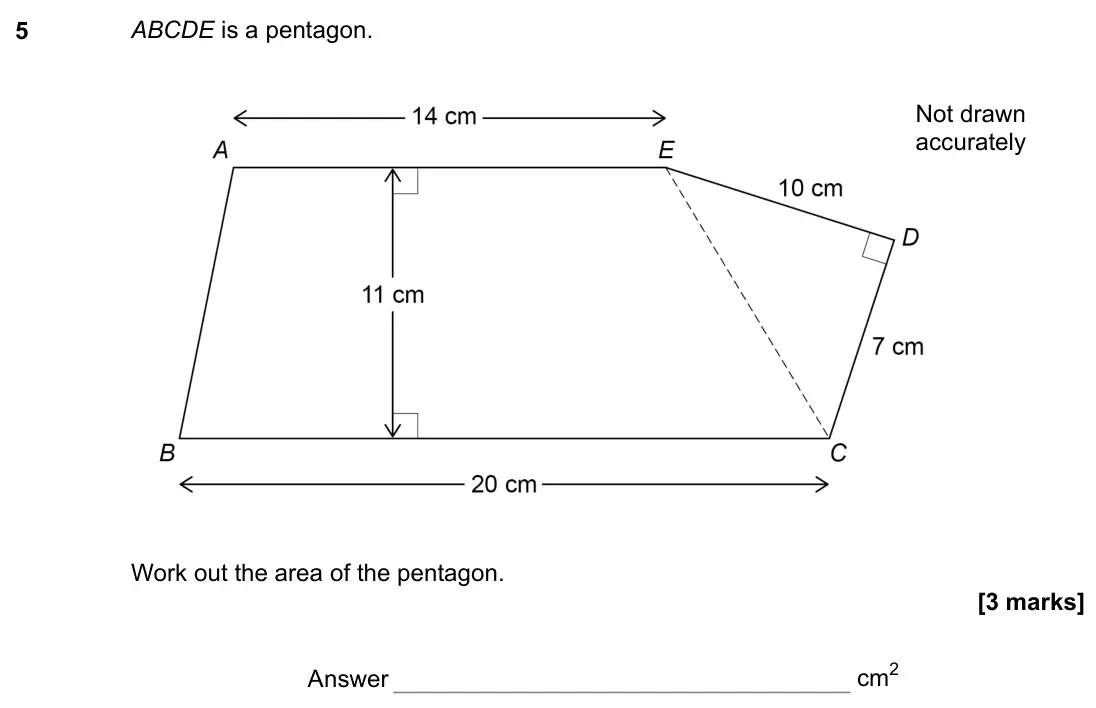

    November 2022 Paper 3H, question 5: ABCDE is a pentagon. Work out the area of the pentagon. Not drawn accurately Answer cm2

  7. Q14

    November 2022 · Paper 3H

    5 marksR11 Compound units: speed, density and pressureG16 Area of 2D shapes and volume of prisms
    The whole paper ↗
    November 2022 Paper 3H, question 14: Here are two solid cubes, X and Y. The mass of X is 10.976 kg The area of each face of X is 784 cm2 14 (a) Zayan wants to know the density of Y. He assumes that

  8. Q11

    June 2022 · Paper 2H

    5 marksG20 Pythagoras and trigonometryG16 Area of 2D shapes and volume of prisms
    The whole paper ↗
    June 2022 Paper 2H, question 11: A shape is made by joining a right-angled triangle to a rectangle. Work out the area of the shape. Not drawn accurately Answer cm2

  9. Q9

    November 2021 · Paper 3H

    4 marksR5 Sharing in a ratioG16 Area of 2D shapes and volume of prisms
    The whole paper ↗
    November 2021 Paper 3H, question 9: Rectangle ABCD is split into four smaller rectangles. Two of the smaller rectangles are shaded. 4 : x = 1 : 2 For rectangle ABCD, work out the ratio shaded area

  10. Q13

    November 2021 · Paper 3H

    4 marksG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

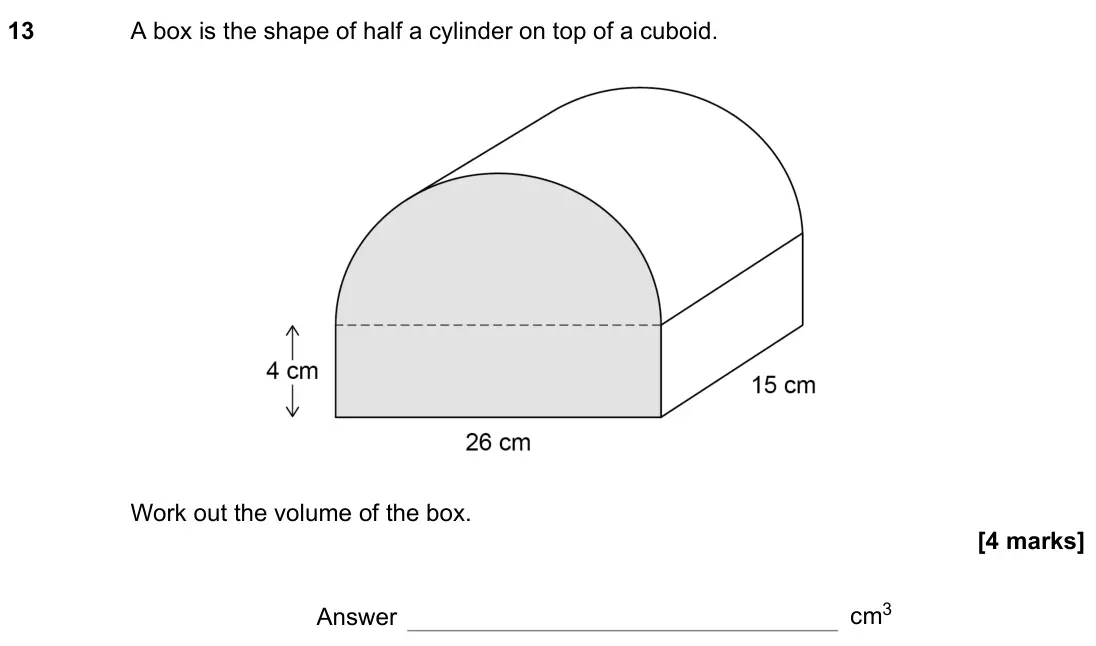

    November 2021 Paper 3H, question 13: A box is the shape of half a cylinder on top of a cuboid. Work out the volume of the box. Answer cm3

  11. Q13

    November 2020 · Paper 2H

    3 marksG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

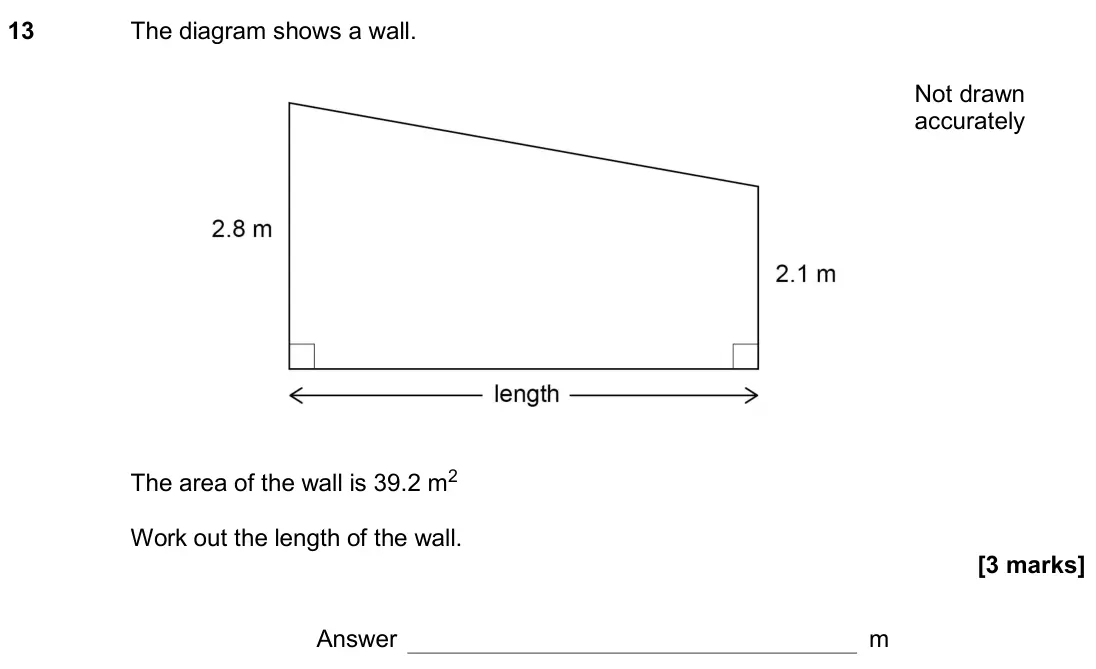

    November 2020 Paper 2H, question 13: The diagram shows a wall. The area of the wall is 39.2 m2 Work out the length of the wall. Not drawn accurately Answer m

  12. Q23

    November 2020 · Paper 2H

    4 marksG16 Area of 2D shapes and volume of prismsG20 Pythagoras and trigonometry
    The whole paper ↗

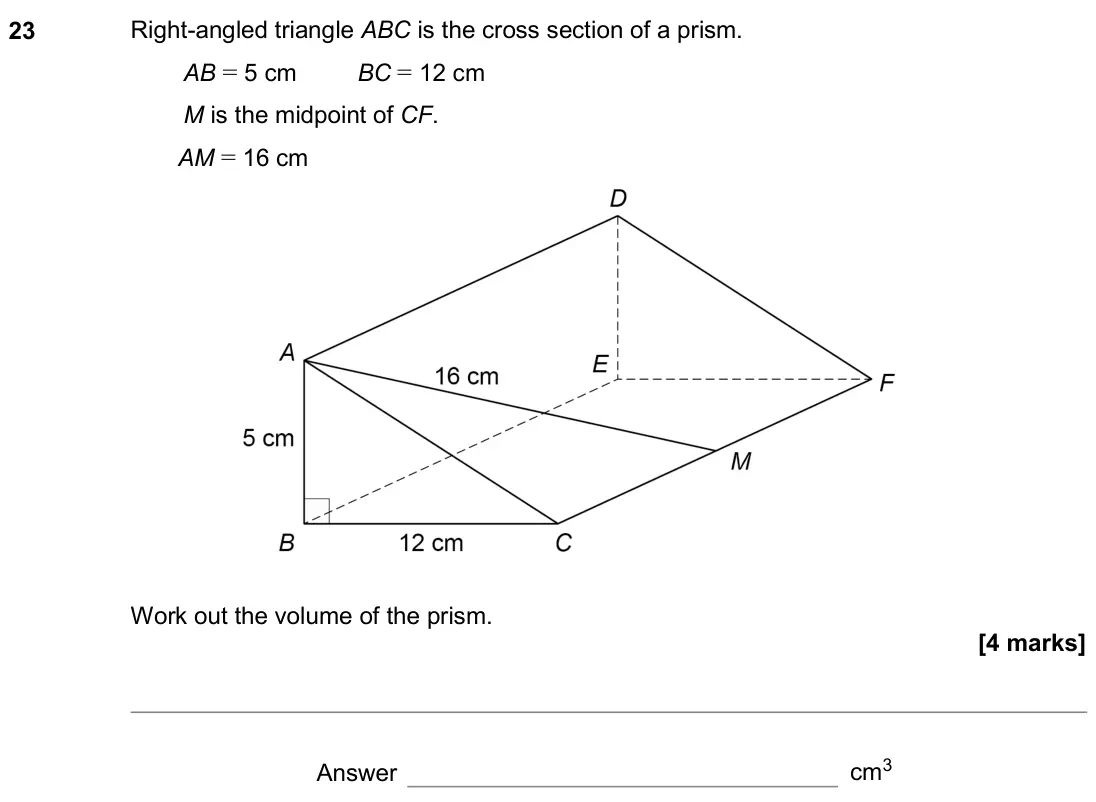

    November 2020 Paper 2H, question 23: Right-angled triangle ABC is the cross section of a prism. AB = 5 cm BC = 12 cm M is the midpoint of CF. AM = 16 cm Work out the volume of the prism. Answer cm3

  13. Q14

    November 2019 · Paper 2H

    6 marksR11 Compound units: speed, density and pressureG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

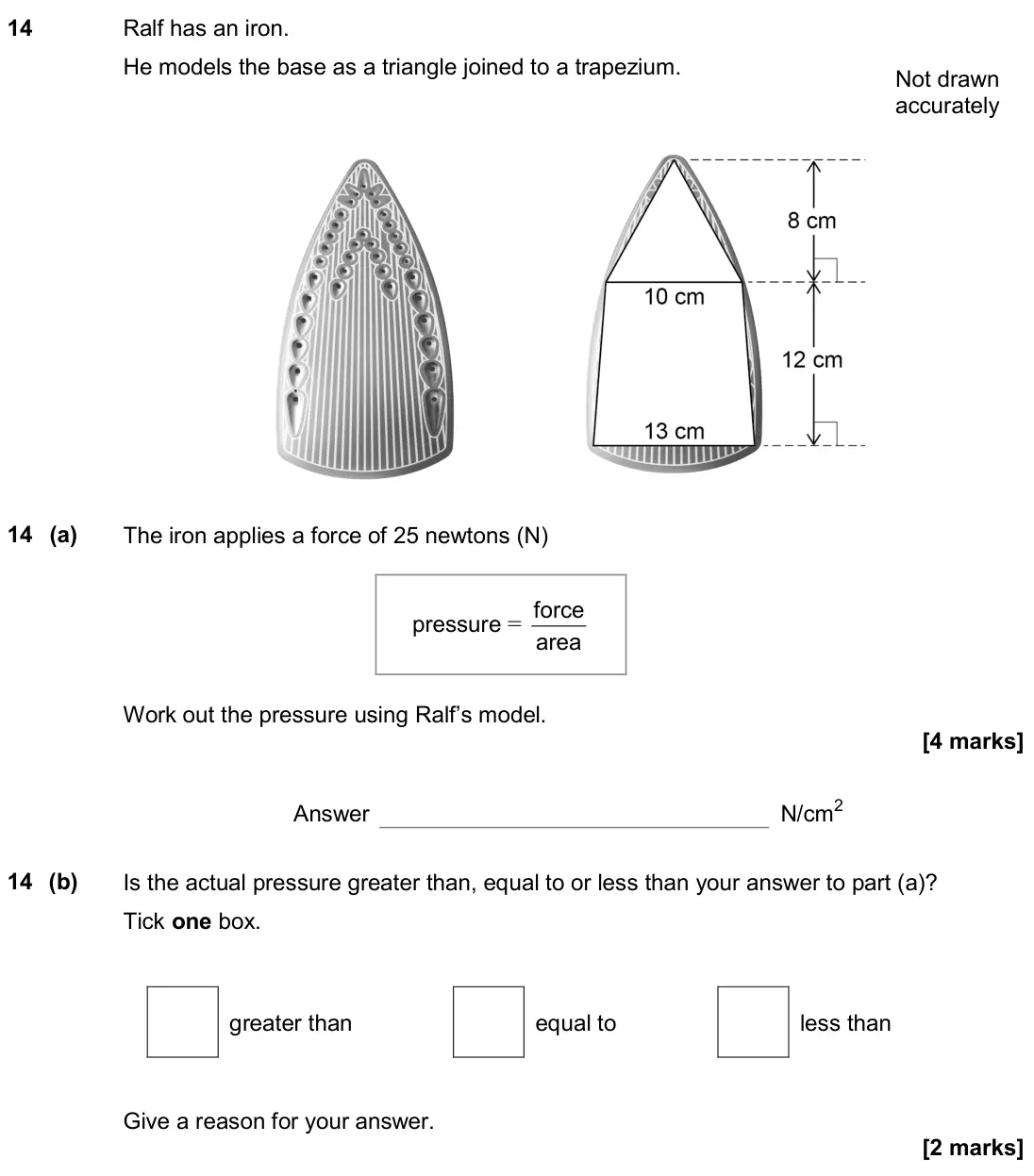

    November 2019 Paper 2H, question 14: Ralf has an iron. He models the base as a triangle joined to a trapezium. Not drawn accurately 14 (a) The iron applies a force of 25 newtons (N) pressure = area

  14. Q13

    June 2019 · Paper 1H

    3 marksN14 EstimationG16 Area of 2D shapes and volume of prisms
    The whole paper ↗
    June 2019 Paper 1H, question 13: The triangular cross section of a prism is an isosceles right-angled triangle. The volume of the prism is 102 cm3 Use approximations to estimate the value of x.

  15. Q2

    November 2018 · Paper 1H

    1 markG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

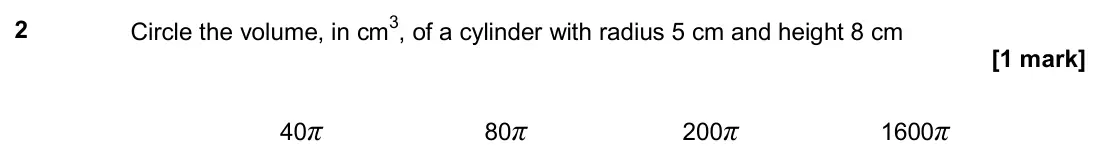

    November 2018 Paper 1H, question 2: Circle the volume, in cm3, of a cylinder with radius 5 cm and height 8 cm 40π 80π 200π 1600π

  16. Q13

    November 2018 · Paper 2H

    2 marksG16 Area of 2D shapes and volume of prismsR1 Converting units
    The whole paper ↗
    November 2018 Paper 2H, question 13: Ashraf is going to put boxes into a crate. The crate is a cuboid measuring 2.5 m by 2 m by 1.2 m Each box is a cube of length 50 cm He does these calculations.

  17. Q16

    June 2018 · Paper 2H

    4 marksR11 Compound units: speed, density and pressureG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

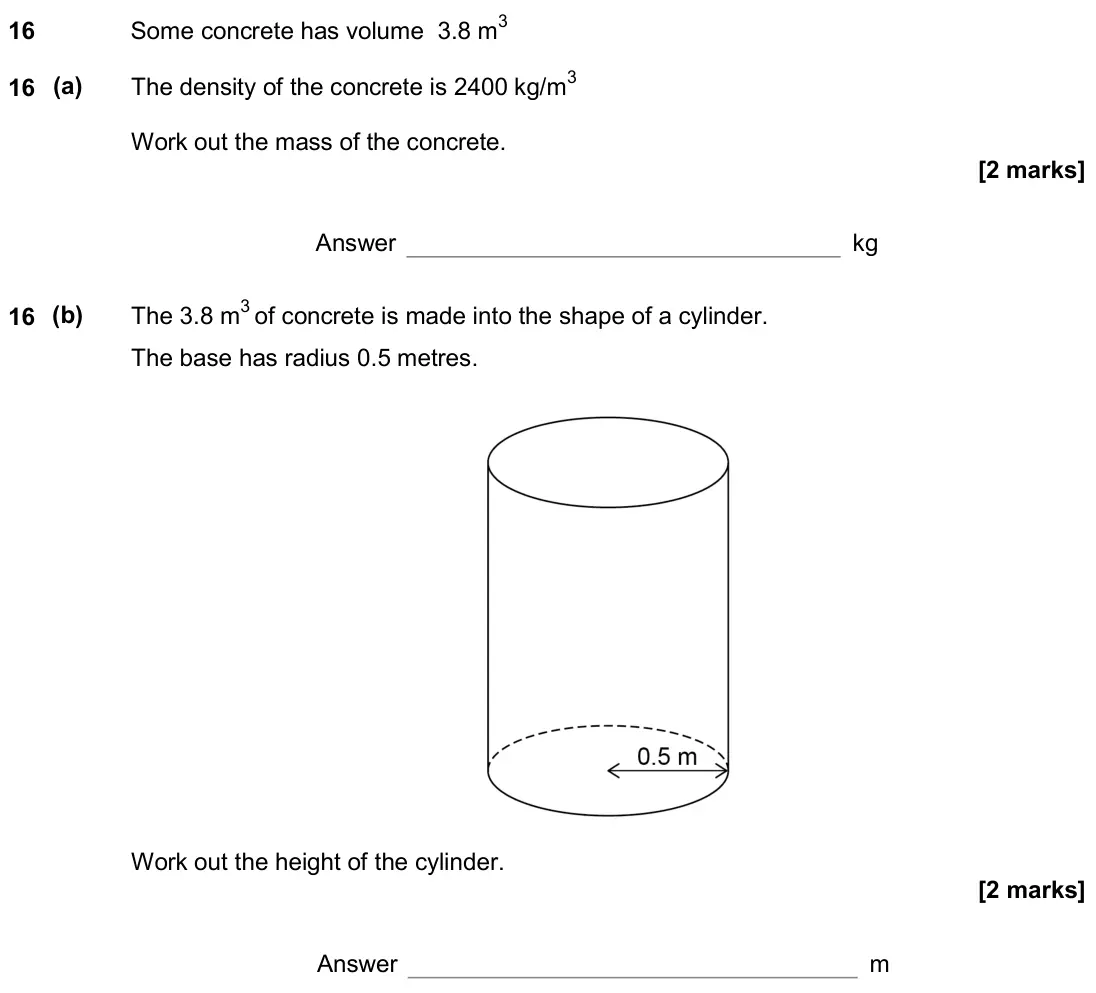

    June 2018 Paper 2H, question 16: Some concrete has volume 3.8 m3 16 (a) The density of the concrete is 2400 kg/m3 Work out the mass of the concrete. Answer kg 16 (b) The 3.8 m3 of concrete is m

  18. Q10

    November 2017 · Paper 1H

    4 marksG16 Area of 2D shapes and volume of prisms
    The whole paper ↗

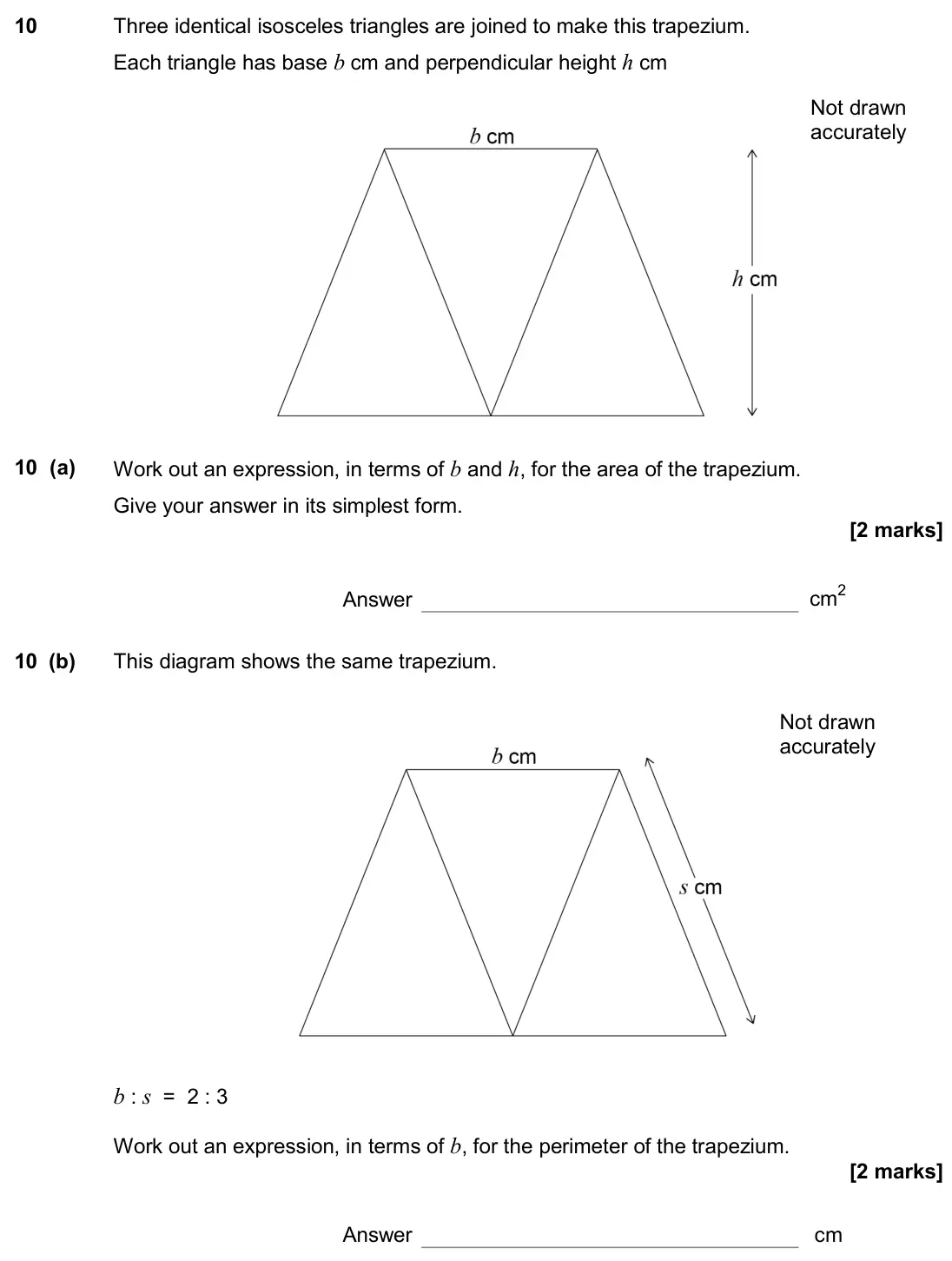

    November 2017 Paper 1H, question 10: Three identical isosceles triangles are joined to make this trapezium. Each triangle has base b cm and perpendicular height h cm Not drawn accurately 10 (a) Wor

  19. Q6

    November 2017 · Paper 2H

    4 marksR10 Direct and inverse proportionG16 Area of 2D shapes and volume of prisms
    The whole paper ↗
    November 2017 Paper 2H, question 6: The graph shows information about prisms with the same volume. 6 (a) Give one example to show the volume is 24 cm3 6 (b) The diagram shows a prism with volume 2

  20. Q17

    November 2017 · Paper 2H

    3 marksG16 Area of 2D shapes and volume of prismsG20 Pythagoras and trigonometry
    The whole paper ↗

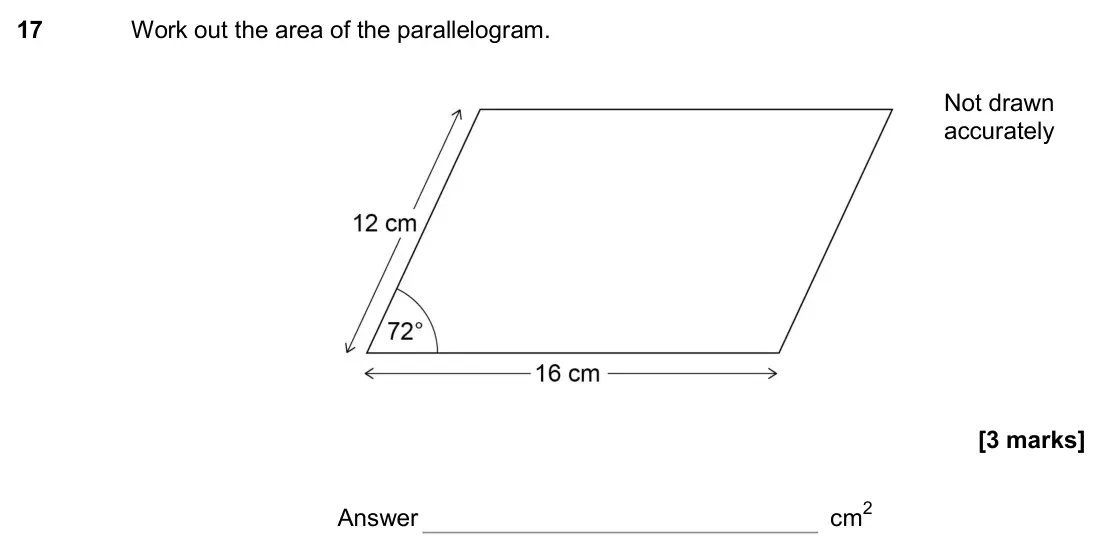

    November 2017 Paper 2H, question 17: Work out the area of the parallelogram. Not drawn accurately Answer cm2
All 22 questions on Area of 2D shapes and volume of prisms, as a list
  1. November 2024, Paper 1H, Q5 (3 marks): Here is a solid prism. 5 (a) How many faces does the prism have? Answer 5 (b) The prism has volume = 3500 cm3 and length = 20 cm Work out the area of the cross-
  2. June 2024, Paper 1H, Q13 (4 marks): ABCDE is a pentagon with AB = 7 cm • BC = 6 cm • AB and BC are perpendicular. • AB and DC are equal and parallel. • Area of the pentagon = 54 cm2 • The pentagon
  3. June 2024, Paper 2H, Q25 (5 marks): Here is a right-angled triangular prism. The ratio of the edges is a : b : c : d = 3 : 4 : 5 : 12 The volume of the prism is 1125 cm3 Work out the total length
  4. November 2023, Paper 1H, Q8 (3 marks): In the diagrams, all lengths are in centimetres. The two shapes have equal areas. Work out k : m Not drawn accurately Answer :
  5. November 2023, Paper 2H, Q7 (3 marks): Here is a prism drawn on an isometric grid. Work out the volume of the prism. Answer cm3
  6. November 2022, Paper 3H, Q5 (3 marks): ABCDE is a pentagon. Work out the area of the pentagon. Not drawn accurately Answer cm2
  7. November 2022, Paper 3H, Q14 (5 marks): Here are two solid cubes, X and Y. The mass of X is 10.976 kg The area of each face of X is 784 cm2 14 (a) Zayan wants to know the density of Y. He assumes that
  8. June 2022, Paper 2H, Q11 (5 marks): A shape is made by joining a right-angled triangle to a rectangle. Work out the area of the shape. Not drawn accurately Answer cm2
  9. November 2021, Paper 3H, Q9 (4 marks): Rectangle ABCD is split into four smaller rectangles. Two of the smaller rectangles are shaded. 4 : x = 1 : 2 For rectangle ABCD, work out the ratio shaded area
  10. November 2021, Paper 3H, Q13 (4 marks): A box is the shape of half a cylinder on top of a cuboid. Work out the volume of the box. Answer cm3
  11. November 2020, Paper 2H, Q13 (3 marks): The diagram shows a wall. The area of the wall is 39.2 m2 Work out the length of the wall. Not drawn accurately Answer m
  12. November 2020, Paper 2H, Q23 (4 marks): Right-angled triangle ABC is the cross section of a prism. AB = 5 cm BC = 12 cm M is the midpoint of CF. AM = 16 cm Work out the volume of the prism. Answer cm3
  13. November 2019, Paper 2H, Q14 (6 marks): Ralf has an iron. He models the base as a triangle joined to a trapezium. Not drawn accurately 14 (a) The iron applies a force of 25 newtons (N) pressure = area
  14. June 2019, Paper 1H, Q13 (3 marks): The triangular cross section of a prism is an isosceles right-angled triangle. The volume of the prism is 102 cm3 Use approximations to estimate the value of x.
  15. November 2018, Paper 1H, Q2 (1 mark): Circle the volume, in cm3, of a cylinder with radius 5 cm and height 8 cm 40π 80π 200π 1600π
  16. November 2018, Paper 2H, Q13 (2 marks): Ashraf is going to put boxes into a crate. The crate is a cuboid measuring 2.5 m by 2 m by 1.2 m Each box is a cube of length 50 cm He does these calculations.
  17. June 2018, Paper 2H, Q16 (4 marks): Some concrete has volume 3.8 m3 16 (a) The density of the concrete is 2400 kg/m3 Work out the mass of the concrete. Answer kg 16 (b) The 3.8 m3 of concrete is m
  18. November 2017, Paper 1H, Q10 (4 marks): Three identical isosceles triangles are joined to make this trapezium. Each triangle has base b cm and perpendicular height h cm Not drawn accurately 10 (a) Wor
  19. November 2017, Paper 2H, Q6 (4 marks): The graph shows information about prisms with the same volume. 6 (a) Give one example to show the volume is 24 cm3 6 (b) The diagram shows a prism with volume 2
  20. November 2017, Paper 2H, Q17 (3 marks): Work out the area of the parallelogram. Not drawn accurately Answer cm2
  21. Specimen, Paper 1H, Q18 (4 marks): In this question all dimensions are in centimetres. A solid has uniform cross section. The cross section is a rectangle and a semicircle joined together. x x 2x
  22. Specimen, Paper 2H, Q14 (7 marks): (a) A pattern is made from two similar trapeziums. 18 cm 25 cm 10 cm 4 cm Not drawn accurately Show that the shaded area is 294 cm2 14 (b) The pattern has one l
