plumiArea of 2D shapes and volume of prisms: Edexcel GCSE Maths questions
Every Edexcel GCSE Maths exam question on G16 Area of 2D shapes and volume of prisms, 2017–2025, with its mark scheme and examiner’s report.
Find questions997
Exam
All years
Calculator
All 30 questions on Area of 2D shapes and volume of prisms, as a list
- June 2025, Paper 2H, Q3 (5 marks): Here is a plan of part of Macsen’s garden. There is a circle inside a triangle. The circle has a diameter of 7 m. 14 m 7 m 16 m Macsen will cover the shaded are
- June 2025, Paper 3H, Q8 (5 marks): The diagram shows trapezium ABCD. D C 8 cm A B 12 cm AB = 12 cm AD = 8 cm The trapezium has an area of 112 cm 2 Work out the perimeter of the trapezium. Give yo
- November 2024, Paper 1H, Q8 (3 marks): The diagram shows a solid triangular prism on a horizontal floor. pressure = force area 2 m The face in contact with the floor is a rectangle of width 2 m. The
- November 2024, Paper 1H, Q13 (5 marks): Here are two cuboids. x + 2 A x + 3 B x – 1 x – 3 2x – 1 2x All lengths are measured in centimetres. The volume of cuboid A is 142 cm 3 greater than the volume
- November 2024, Paper 2H, Q7 (5 marks): The diagram shows triangle ABC. C 2x + 11 4x – 4 A B 2x + 5 In the diagram, all measurements are in centimetres. AC = BC The perimeter of the triangle is 72 cm.
- November 2024, Paper 2H, Q12 (5 marks): The diagram shows a solid cylinder with base radius 3 cm and height 8 cm. It also shows a solid cube with side length h cm. 8 cm 3 cm h cm The cylinder is made
- November 2024, Paper 3H, Q13 (3 marks): ABC and AED are straight lines. BE and CD are parallel. C B D E A BE = 4.2 cm CD = 6.3 cm AC = 10.8 cm Work out the area of trapezium BCDE. cm 2
- June 2024, Paper 1H, Q3 (5 marks): The diagram shows a plan of a floor. 10 m 5 m 8 m 6 m Petra is going to cover the floor with paint. Petra has 3 tins of paint. There are 2.5 litres of paint in
- June 2024, Paper 3H, Q7 (4 marks): A paddling pool is in the shape of a cylinder. 100 cm 30 cm The pool has radius 100 cm. The pool has depth 30 cm. The pool is empty. It is then filled with wate
- November 2023, Paper 2H, Q7 (4 marks): The diagram shows an empty tank in the shape of a cylinder. 15 cm 43 cm The cylinder has radius 15 cm and height 43 cm. Water flows into the tank at a rate of 0
- June 2023, Paper 2H, Q5 (4 marks): Here is a triangle and a rectangle. 6x 4x – 1 5 8 All measurements are in centimetres. 2 greater than the area of the rectangle. The area of the triangle is 10
- June 2023, Paper 2H, Q24 (5 marks): The diagram shows 8 identical regular octagons joined to enclose a shaded shape. Each octagon has sides of length a. Find, in terms of a, an expression for the
- November 2022, Paper 2H, Q4 (5 marks): The diagram shows a plan of Jason’s garden. ABCO and DEFO are rectangles. CDO is a right-angled triangle. AFO is a sector of a circle with centre O and angle AO
- November 2022, Paper 3H, Q4 (4 marks): Karina has 4 tanks on her tractor. Each tank is a cylinder with diameter 80 cm and height 160 cm. 80 cm 160 cm The 4 tanks are to be filled completely with a mi
- June 2022, Paper 1H, Q7 (3 marks): Here are two cubes, A and B. 4 cm 3 cm A B Cube A has a mass of 81 g. Cube B has a mass of 128 g. Work out the density of cube A : the density of cube B Give yo

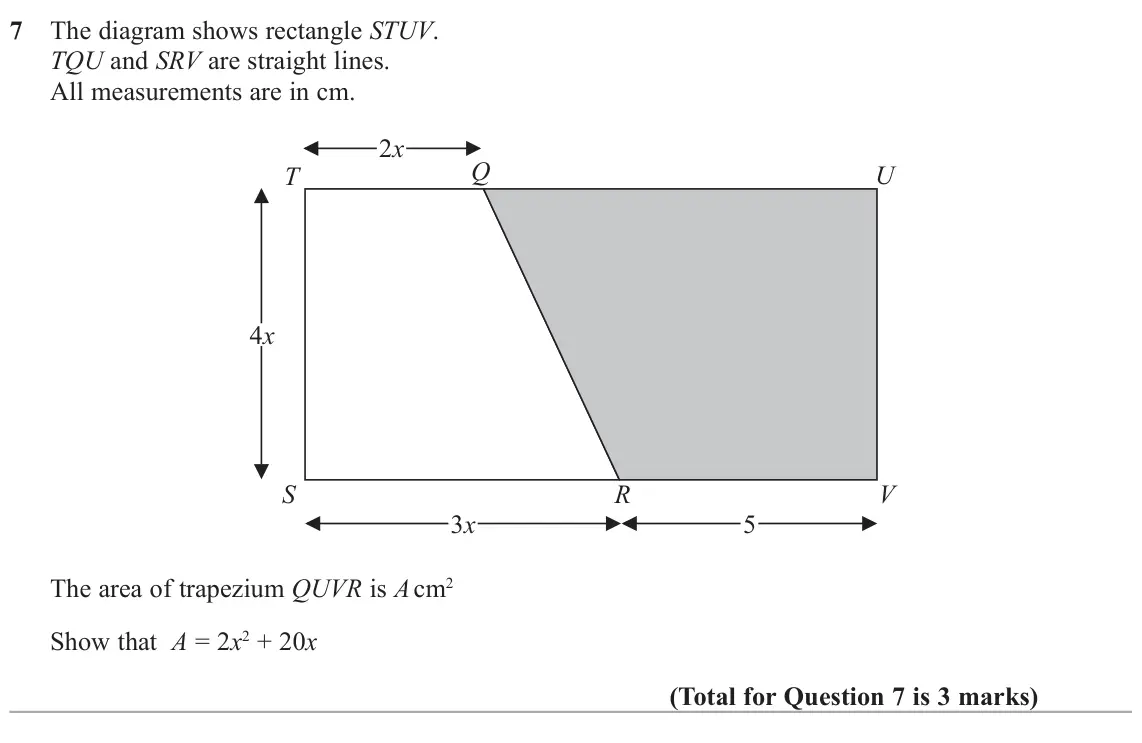

- June 2022, Paper 3H, Q7 (3 marks): The diagram shows rectangle STUV. TQU and SRV are straight lines. All measurements are in cm. 2x Q U T 4x S R V 3x 5 The area of trapezium QUVR is A cm2 Show th

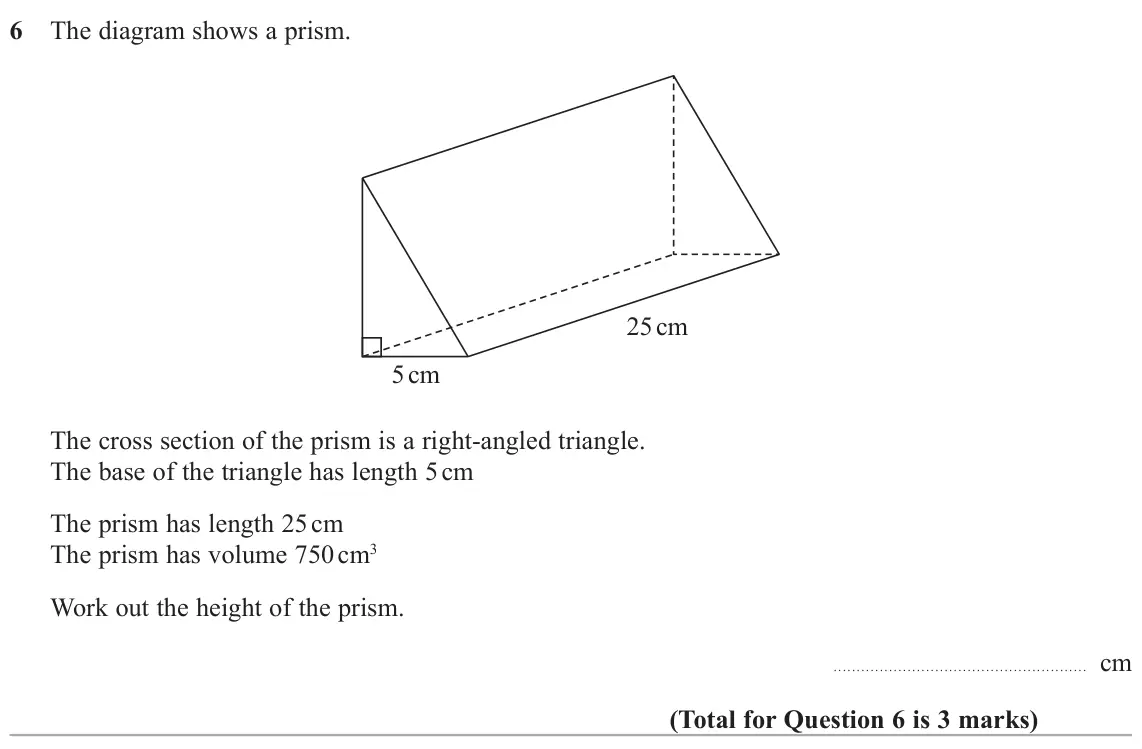

- November 2021, Paper 1H, Q6 (3 marks): The diagram shows a prism. 25 cm 5 cm The cross section of the prism is a right‑angled triangle. The base of the triangle has length 5 cm The prism has length 2

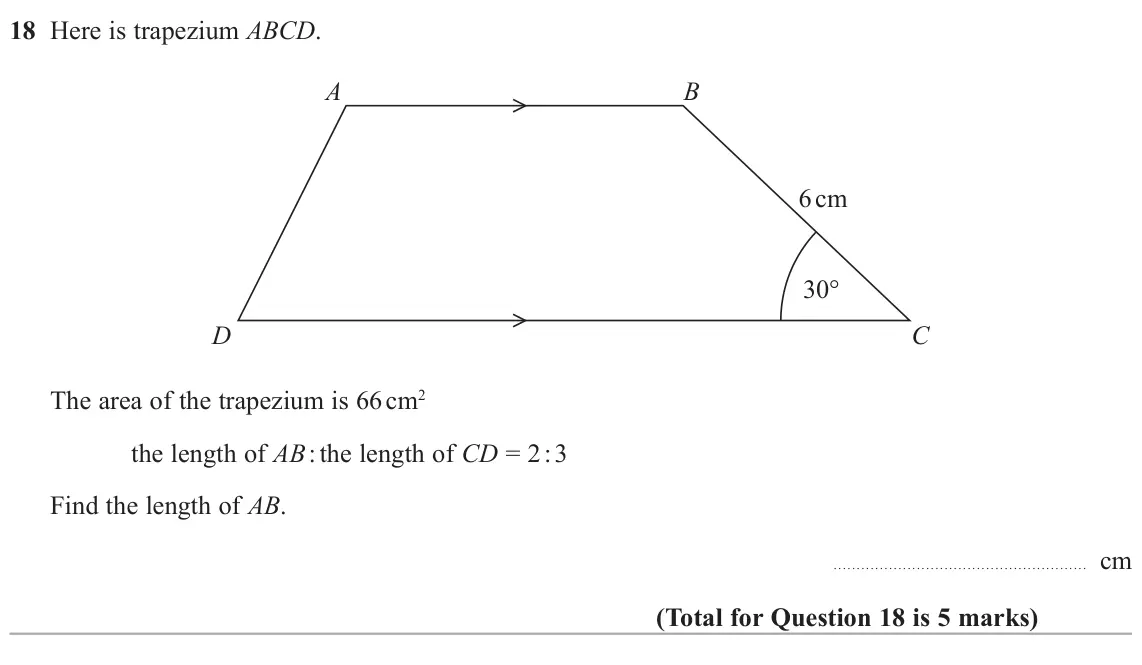

- November 2021, Paper 1H, Q18 (5 marks): Here is trapezium ABCD. A B 6 cm 30° D C The area of the trapezium is 66 cm2 the length of AB : the length of CD = 2 : 3 Find the length of AB. cm

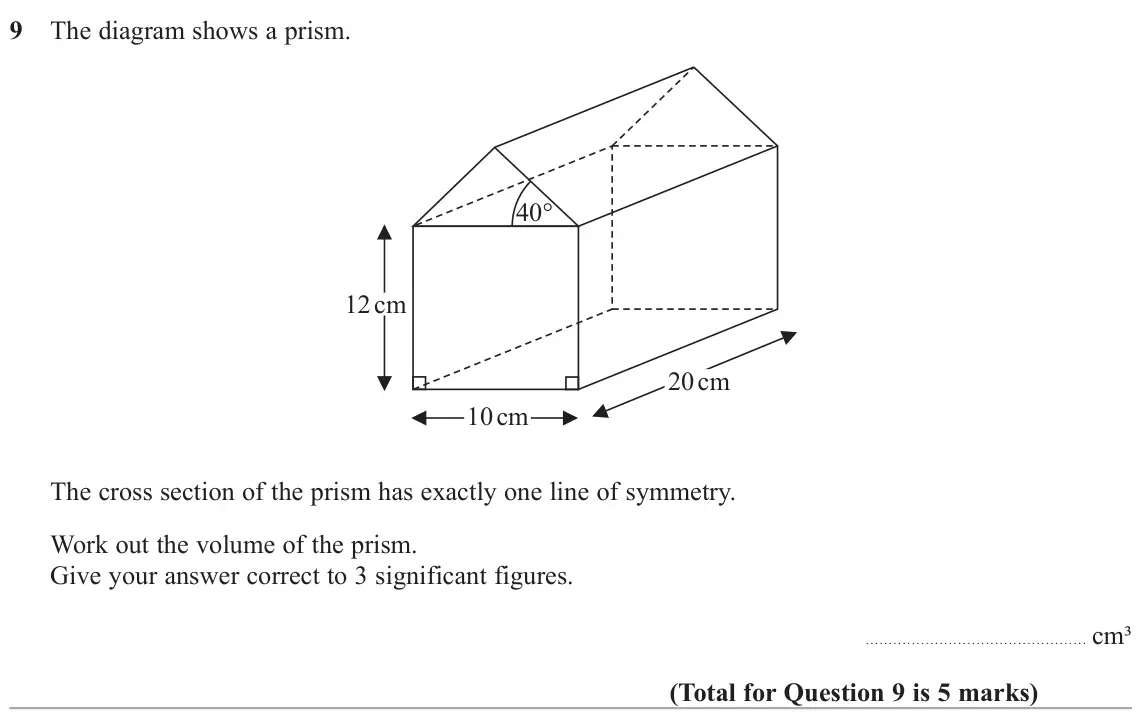

- November 2020, Paper 3H, Q9 (5 marks): The diagram shows a prism. 40° 12 cm 20 cm 10 cm The cross section of the prism has exactly one line of symmetry. Work out the volume of the prism. Give your an

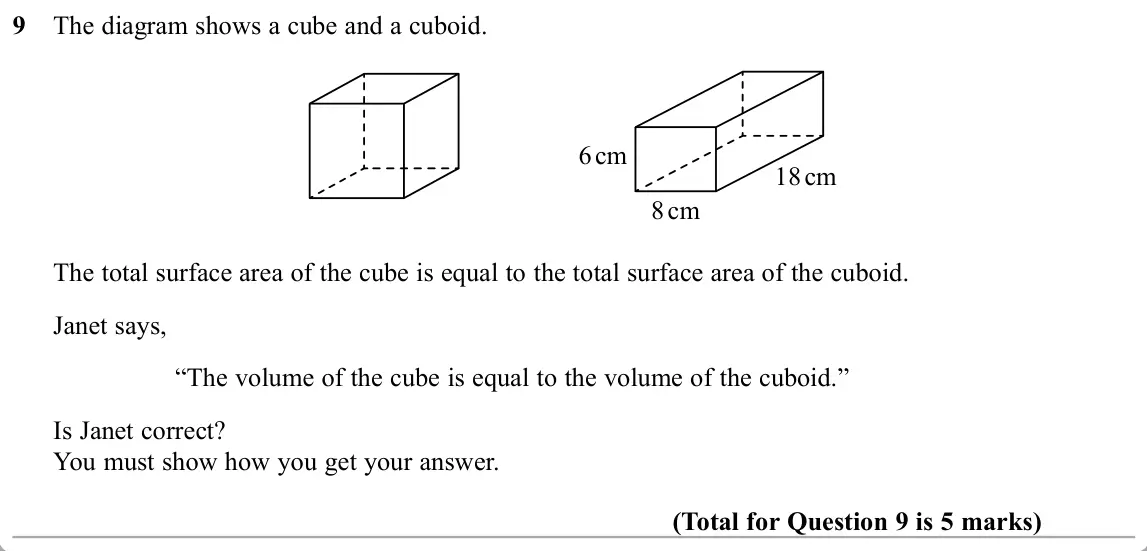

- November 2019, Paper 2H, Q9 (5 marks): The diagram shows a cube and a cuboid. 6 cm 18 cm 8 cm The total surface area of the cube is equal to the total surface area of the cuboid. Janet says, “The vol
- November 2019, Paper 3H, Q13 (4 marks): Liquid A and liquid B are mixed together in the ratio 2 : 13 by volume to make liquid C. Liquid A has density 1.21 g/cm3 Liquid B has density 1.02 g/cm3 A cylin
- June 2019, Paper 2H, Q4 (4 marks): A container is in the shape of a cuboid. 19 cm 6 cm 30 cm The container is 2 3 full of water. A cup holds 275 ml of water. What is the greatest number of cups t
- June 2019, Paper 3H, Q14 (4 marks): The diagram shows a rectangle, ABDE, and two congruent triangles, AFE and BCD. A B 30° 30° 24 cm 24 cm F C E D area of rectangle ABDE area of triangle AFE are
- November 2018, Paper 1H, Q7 (4 marks): The diagram shows a square ABCD with sides of length 20 cm. It also shows a semicircle and an arc of a circle. D C A B 20 cm AB is the diameter of the semicircl
- November 2018, Paper 2H, Q5 (5 marks): The diagram shows a floor in the shape of a trapezium. 10 m 7 m 5 litres 16 m £16.99 John is going to paint the floor. Each 5 litre tin of paint costs £16.99 1
- November 2018, Paper 3H, Q8 (5 marks): The diagram shows a solid metal cuboid. The areas of three of the faces are marked on the diagram. The lengths, in cm, of the edges of the cuboid are whole numb
- June 2018, Paper 3H, Q3 (2 marks): Here is a trapezium drawn on a centimetre grid. On the grid, draw a triangle equal in area to this trapezium.
- November 2017, Paper 1H, Q23 (5 marks): Here is a rectangle and a right-angled triangle. 3x – 2 2x x – 1 x All measurements are in centimetres. The area of the rectangle is greater than the area of th
- November 2017, Paper 3H, Q6 (5 marks): Here is a rectangle. The length of the rectangle is 7 cm longer than the width of the rectangle. 4 of these rectangles are used to make this 8-sided shape. The
- June 2017, Paper 2H, Q21 (4 marks): The diagram shows 3 identical circles inside a rectangle. Each circle touches the other two circles and the sides of the rectangle, as shown in the diagram. The
