Geometry on coordinate axes: Edexcel GCSE Maths questions

Every Edexcel GCSE Maths exam question on G11 Geometry on coordinate axes, 2017–2025, with its mark scheme and examiner’s report.

Find questions997
Exam
All years
Calculator

997 questions

  1. Q20

    June 2025 · Paper 2H

    5 marksA9 Straight-line graphsG11 Geometry on coordinate axes
    The whole paper ↗

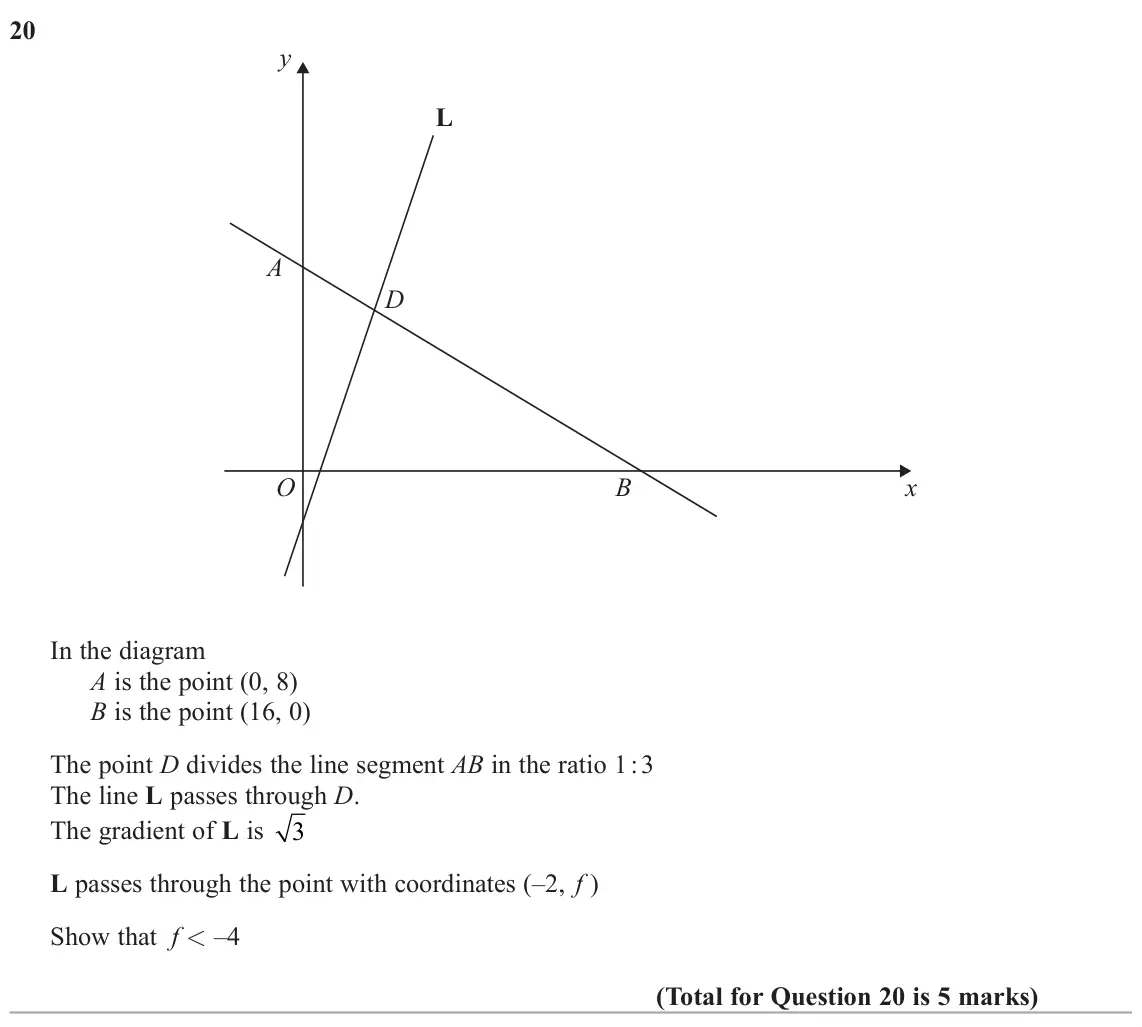

    June 2025 Paper 2H, question 20: y L A D O B x In the diagram A is the point (0, 8) B is the point (16, 0) The point D divides the line segment AB in the ratio 1 : 3 The line L passes through D

  2. Q7

    June 2025 · Paper 3H

    3 marksG11 Geometry on coordinate axesR5 Sharing in a ratio
    The whole paper ↗

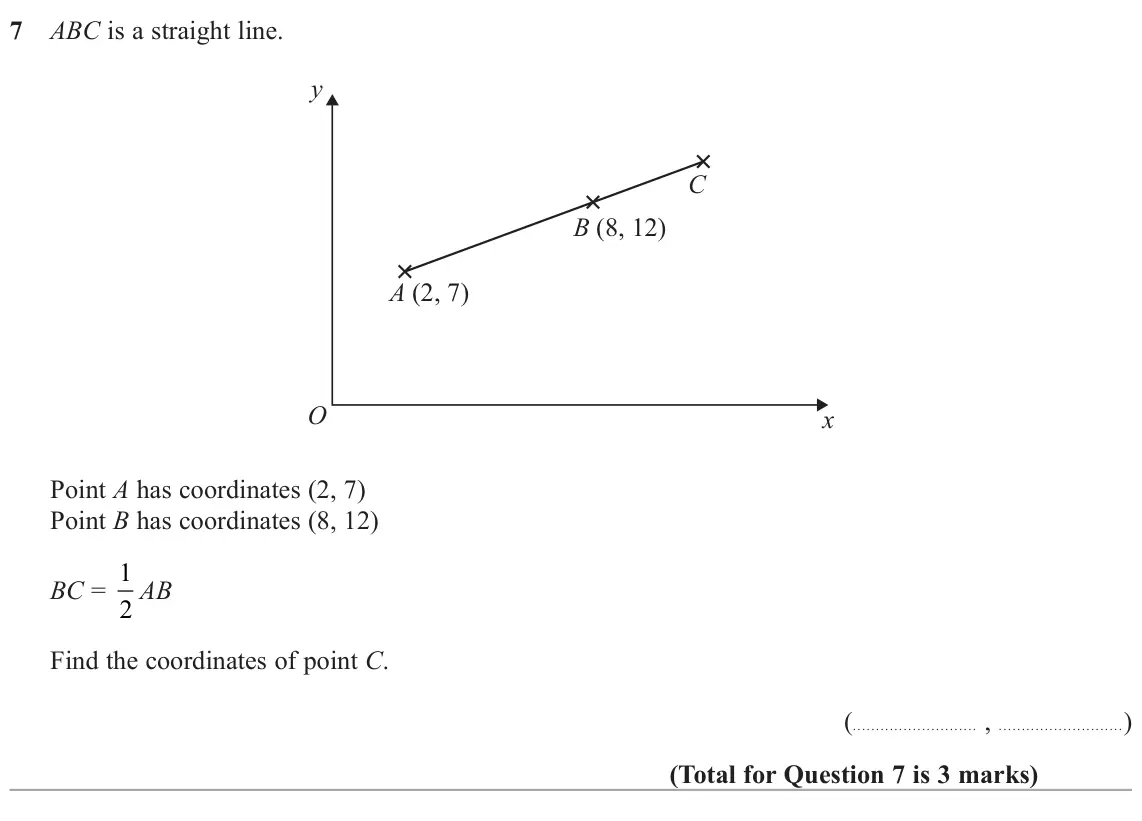

    June 2025 Paper 3H, question 7: ABC is a straight line. y C B (8, 12) A (2, 7) O x Point A has coordinates (2, 7) Point B has coordinates (8, 12) BC = 1 2 AB Find the coordinates of point C. (

  3. Q21

    November 2024 · Paper 2H

    5 marksG11 Geometry on coordinate axesA9 Straight-line graphs
    The whole paper ↗
    November 2024 Paper 2H, question 21: The point P has coordinates (–4, 5) The point Q has coordinates (6, –6) The point R has coordinates (k, k + 3) Given that angle PRQ is a right angle, find the p

  4. Q16

    November 2024 · Paper 3H

    5 marksA9 Straight-line graphsG11 Geometry on coordinate axes
    The whole paper ↗

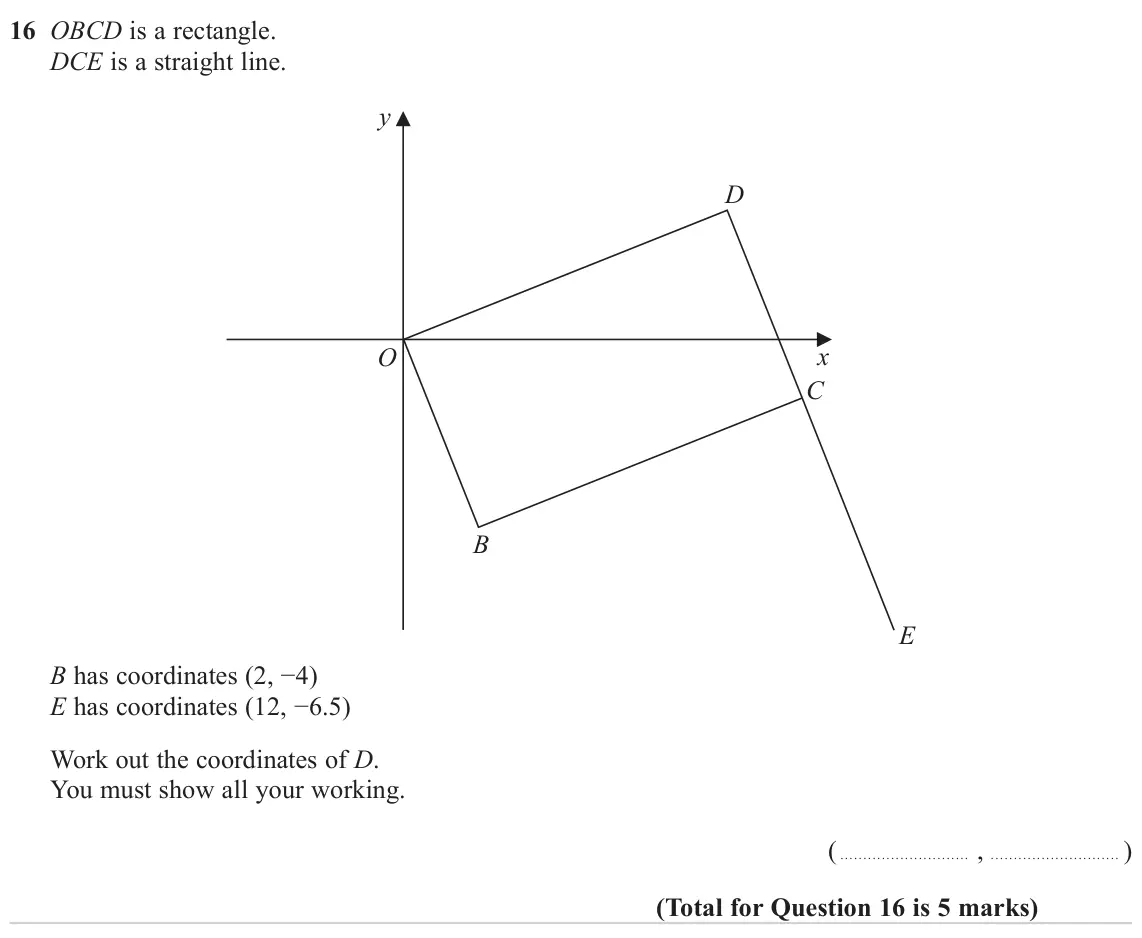

    November 2024 Paper 3H, question 16: OBCD is a rectangle. DCE is a straight line. y D x O C B E B has coordinates (2, −4) E has coordinates (12, −6.5) Work out the coordinates of D. You must show a

  5. Q12

    November 2023 · Paper 2H

    3 marksG11 Geometry on coordinate axes
    The whole paper ↗

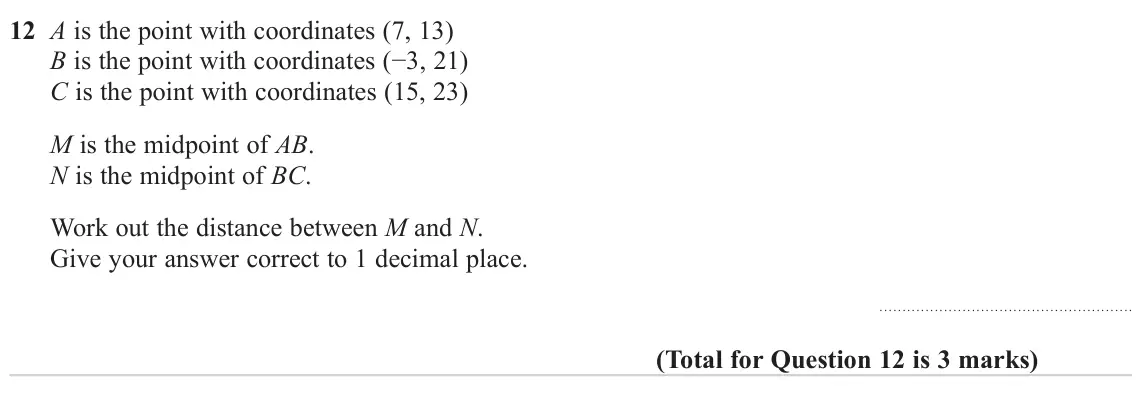

    November 2023 Paper 2H, question 12: A is the point with coordinates (7, 13) B is the point with coordinates (−3, 21) C is the point with coordinates (15, 23) M is the midpoint of AB. N is the midp

  6. Q13

    November 2022 · Paper 2H

    2 marksG11 Geometry on coordinate axesG20 Pythagoras and trigonometry
    The whole paper ↗

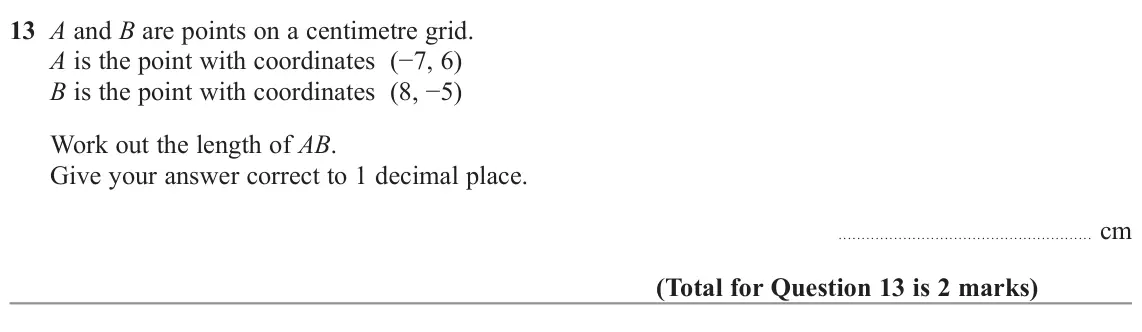

    November 2022 Paper 2H, question 13: A and B are points on a centimetre grid. A is the point with coordinates (−7, 6) B is the point with coordinates (8, −5) Work out the length of AB. Give your an

  7. Q5

    June 2022 · Paper 2H

    4 marksG11 Geometry on coordinate axesR5 Sharing in a ratio
    The whole paper ↗

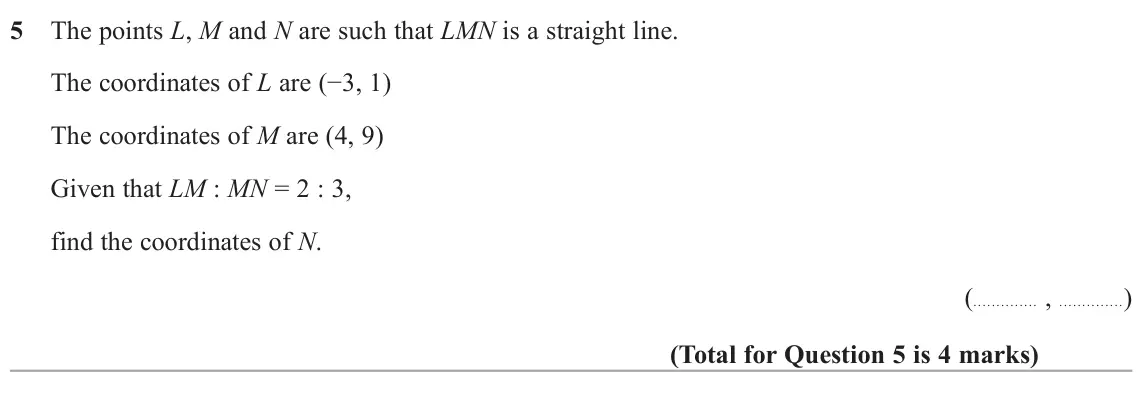

    June 2022 Paper 2H, question 5: The points L, M and N are such that LMN is a straight line. The coordinates of L are (−3, 1) The coordinates of M are (4, 9) Given that LM : MN = 2 : 3, find th

  8. Q11

    November 2021 · Paper 2H

    5 marksG11 Geometry on coordinate axesA9 Straight-line graphs
    The whole paper ↗

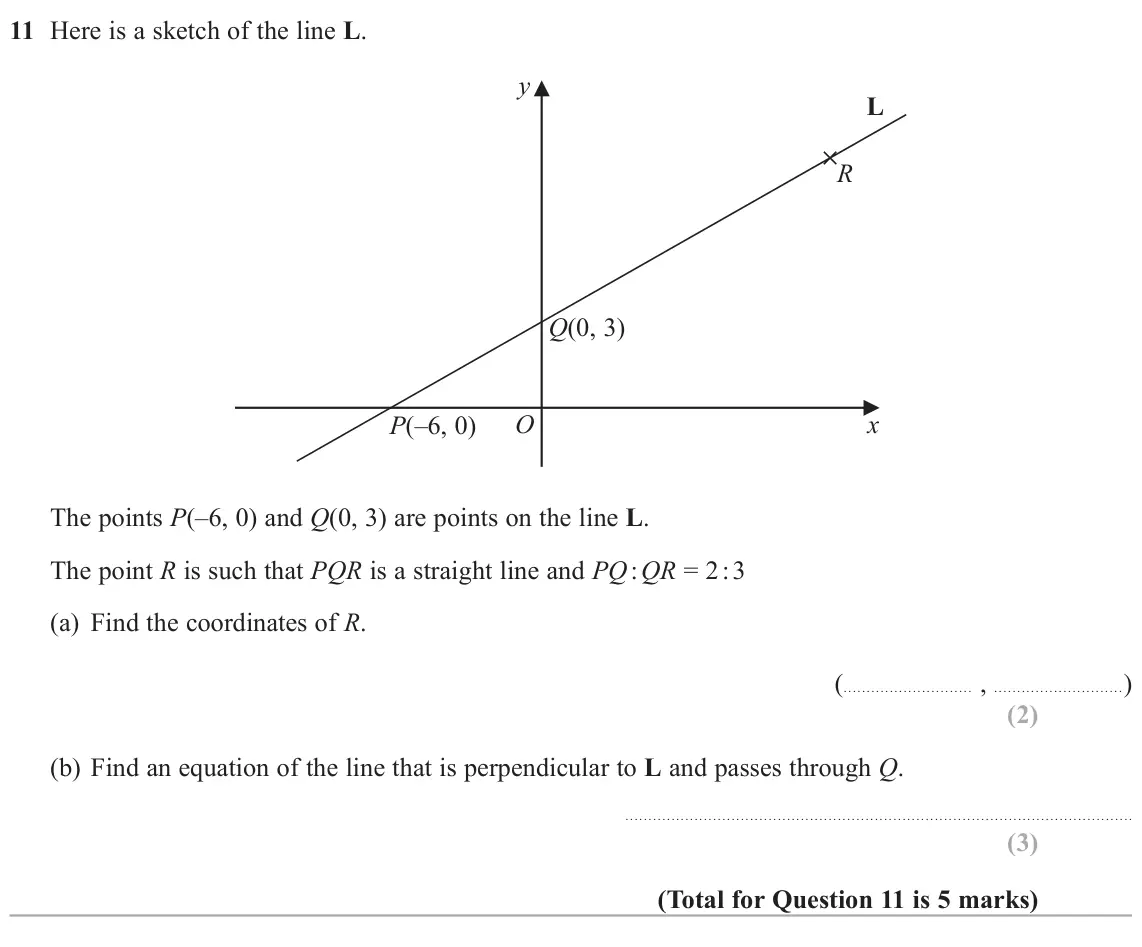

    November 2021 Paper 2H, question 11: Here is a sketch of the line L. y L R Q(0, 3) P(–6, 0) O x The points P(–6, 0) and Q(0, 3) are points on the line L. The point R is such that PQR is a straight

  9. Q13

    November 2021 · Paper 3H

    5 marksG11 Geometry on coordinate axesA21 Forming and solving equations
    The whole paper ↗

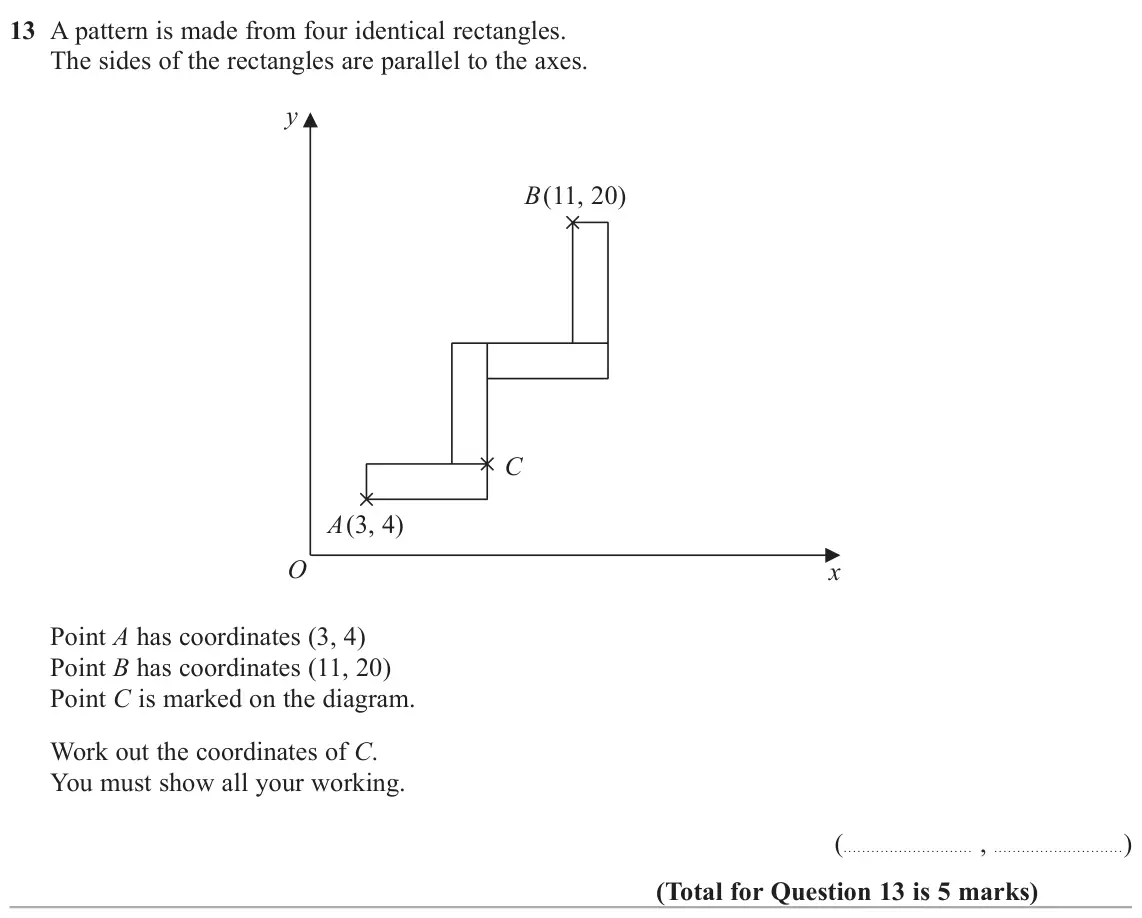

    November 2021 Paper 3H, question 13: A pattern is made from four identical rectangles. The sides of the rectangles are parallel to the axes. y B(11, 20) C A(3, 4) O x Point A has coordinates (3, 4)

  10. Q25

    November 2019 · Paper 2H

    5 marksA9 Straight-line graphsG11 Geometry on coordinate axes
    The whole paper ↗

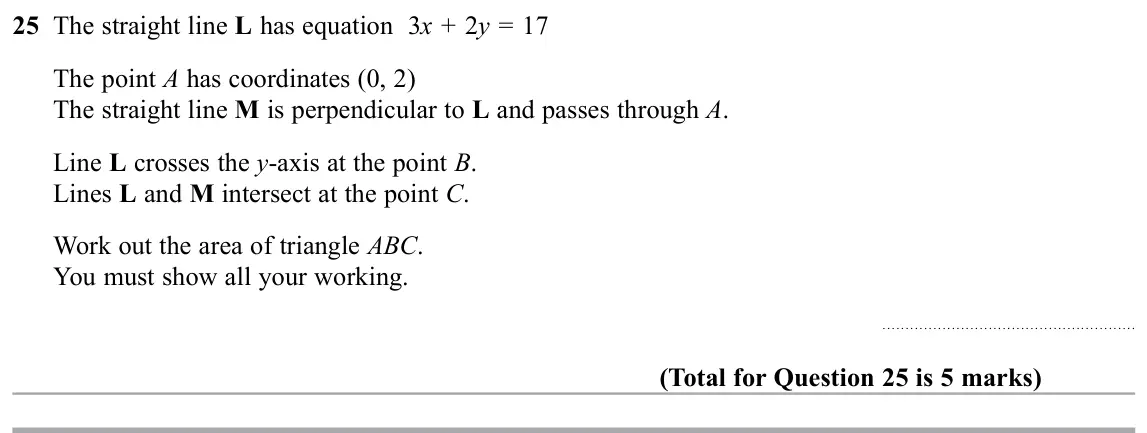

    November 2019 Paper 2H, question 25: The straight line L has equation 3x + 2y = 17 The point A has coordinates (0, 2) The straight line M is perpendicular to L and passes through A. Line L crosses

  11. Q22

    June 2019 · Paper 3H

    4 marksG20 Pythagoras and trigonometryG11 Geometry on coordinate axes
    The whole paper ↗

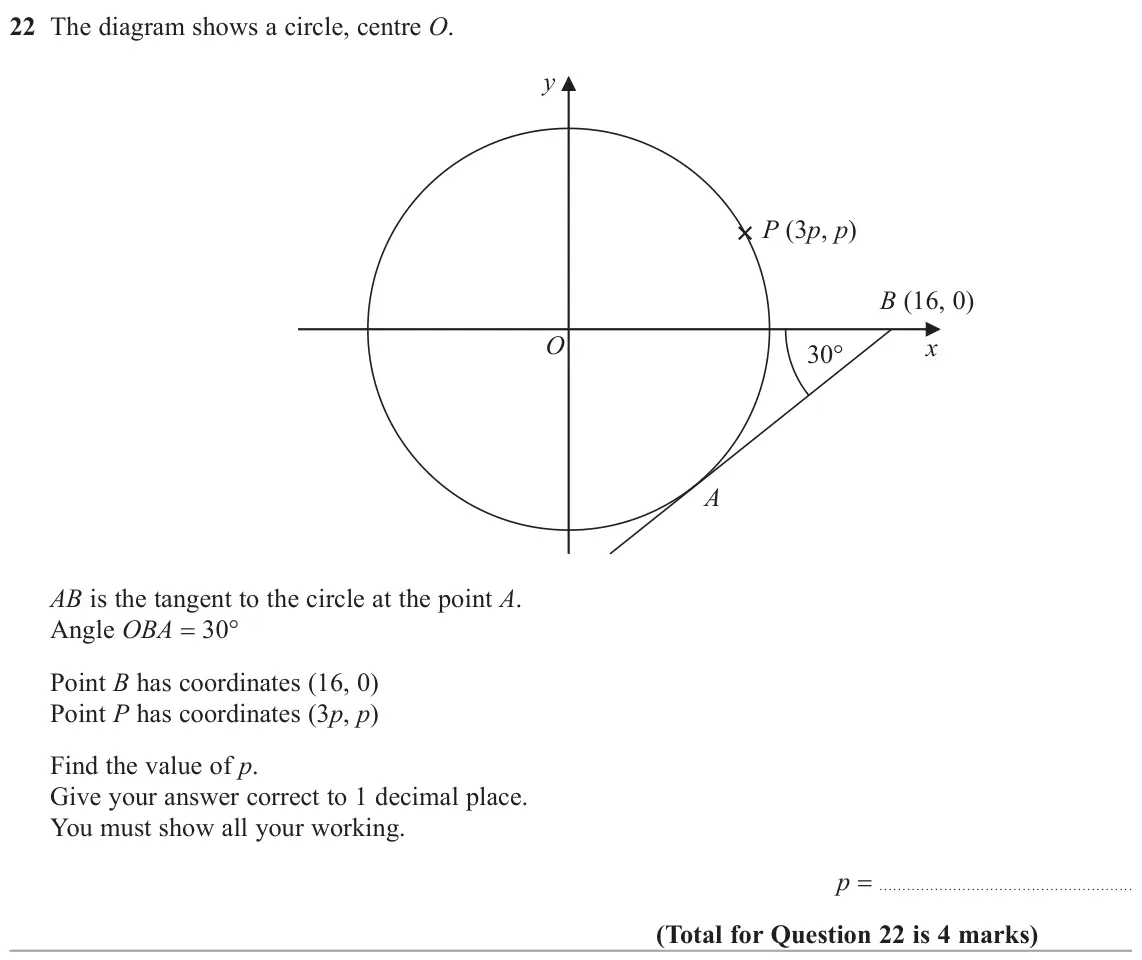

    June 2019 Paper 3H, question 22: The diagram shows a circle, centre O. y P (3p, p) B (16, 0) O x 30° A AB is the tangent to the circle at the point A. Angle OBA 30° Point B has coordinates (16,

  12. Q6

    June 2018 · Paper 1H

    5 marksG11 Geometry on coordinate axes
    The whole paper ↗

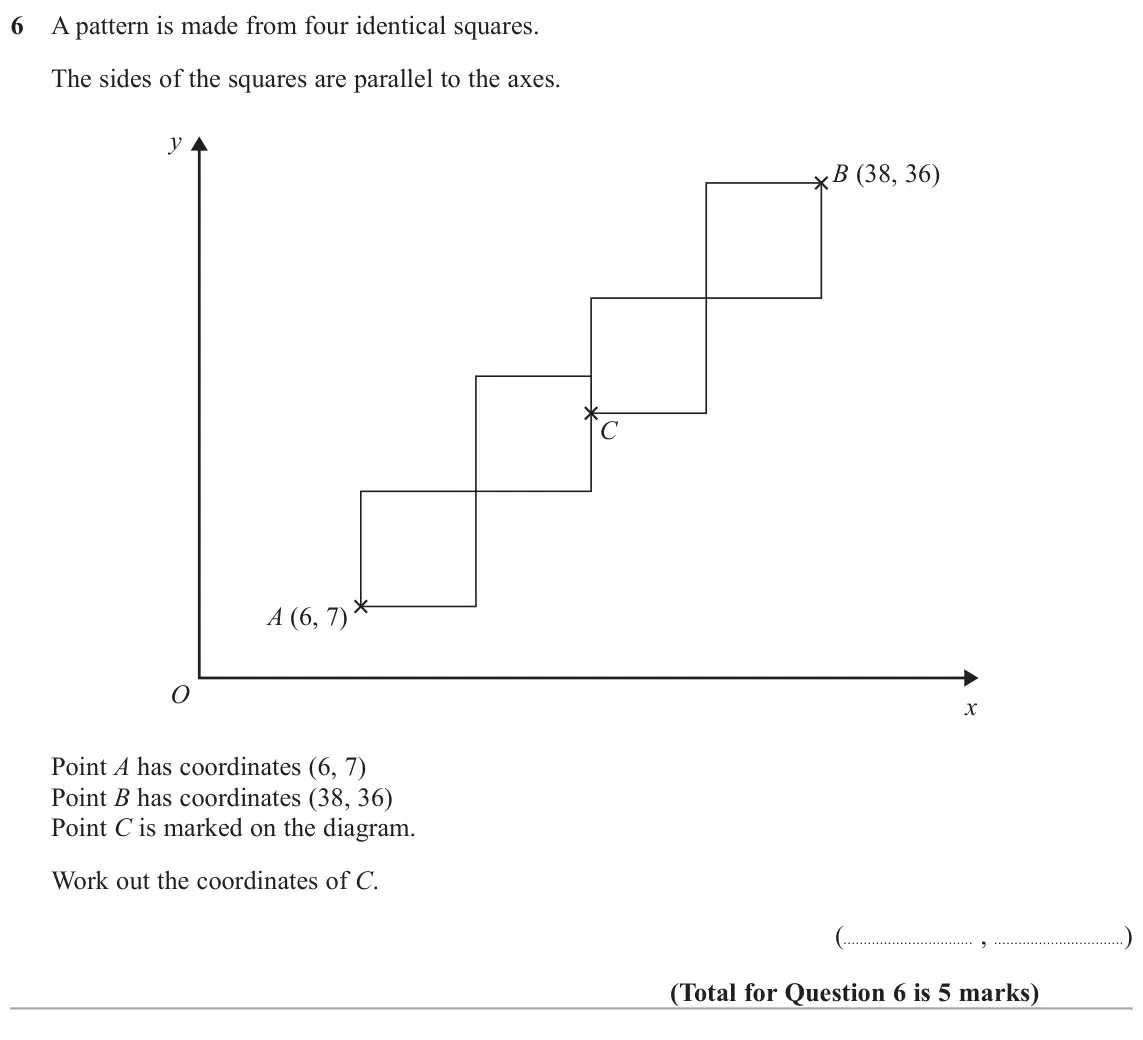

    June 2018 Paper 1H, question 6: A pattern is made from four identical squares. The sides of the squares are parallel to the axes. y B (38, 36) C A (6, 7) O x Point A has coordinates (6, 7) Poi

  13. Q19

    November 2017 · Paper 1H

    4 marksA9 Straight-line graphsG11 Geometry on coordinate axes
    The whole paper ↗

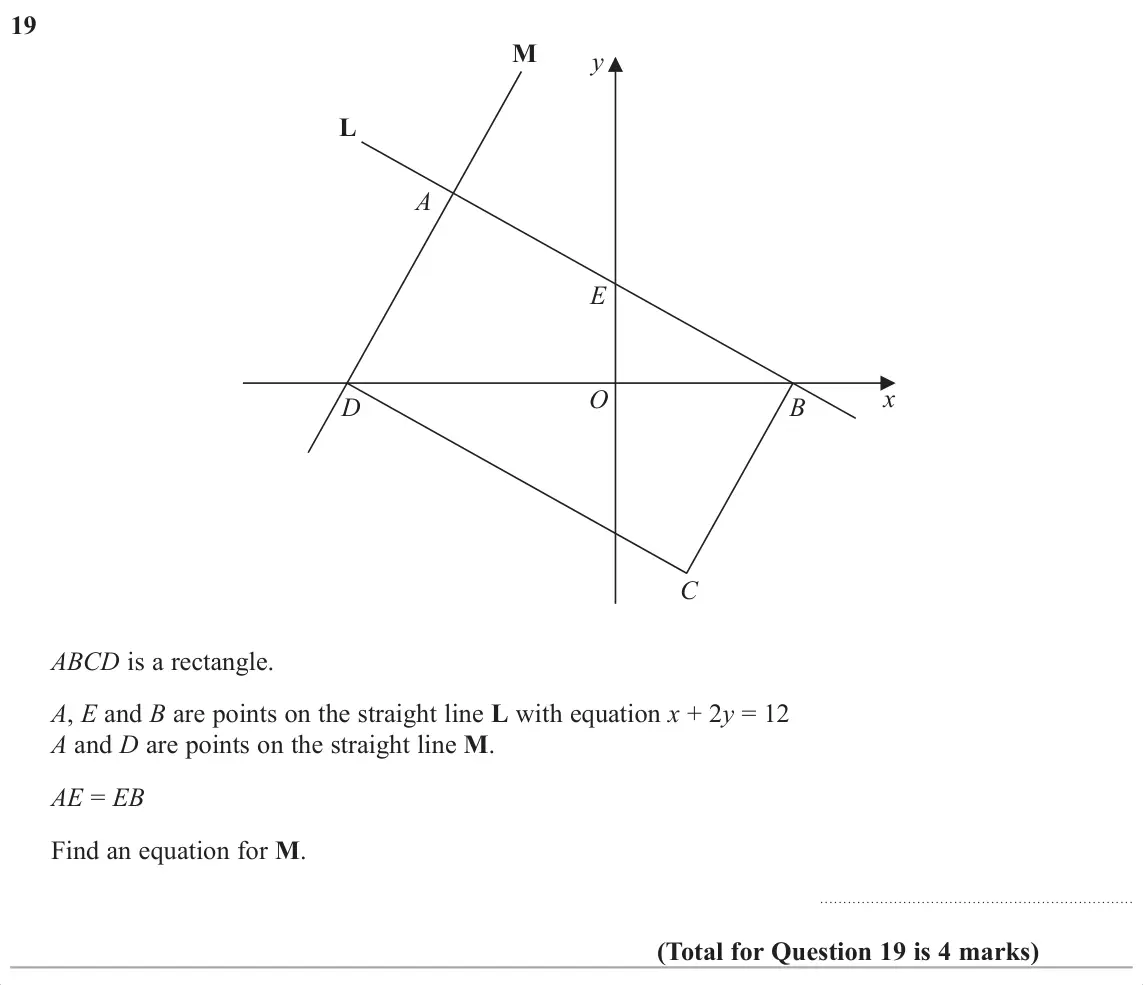

    November 2017 Paper 1H, question 19: M y L A E x O D B C ABCD is a rectangle. A, E and B are points on the straight line L with equation x + 2y = 12 A and D are points on the straight line M. AE =

  14. Q19

    November 2017 · Paper 2H

    4 marksG11 Geometry on coordinate axesA9 Straight-line graphs
    The whole paper ↗

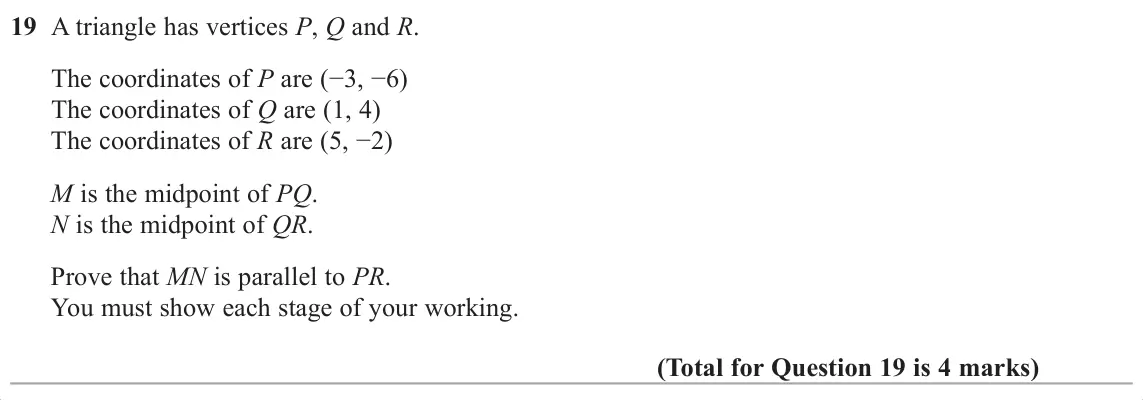

    November 2017 Paper 2H, question 19: is 4 marks)

  15. Q18

    June 2017 · Paper 1H

    4 marksA9 Straight-line graphsG11 Geometry on coordinate axes
    The whole paper ↗

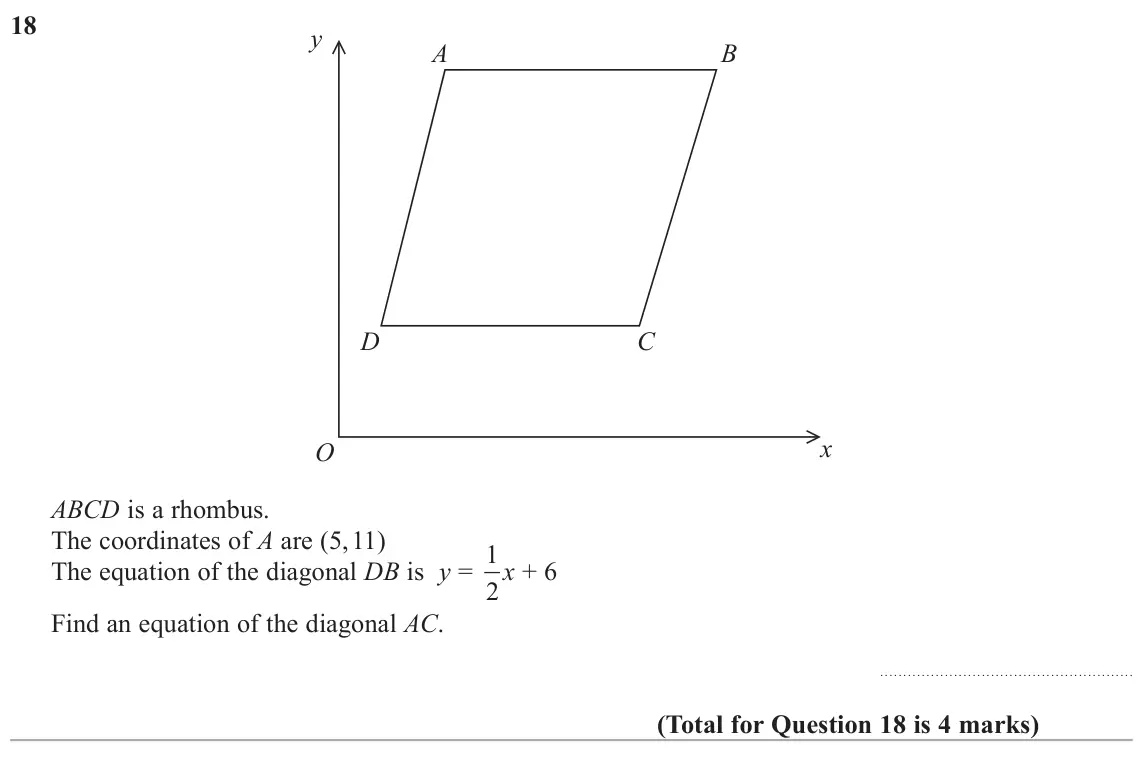

    June 2017 Paper 1H, question 18: y A B D C x O ABCD is a rhombus. The coordinates of A are (5,11) The equation of the diagonal DB is y = 1 2 x + 6 Find an equation of the diagonal AC.
All 15 questions on Geometry on coordinate axes, as a list
  1. June 2025, Paper 2H, Q20 (5 marks): y L A D O B x In the diagram A is the point (0, 8) B is the point (16, 0) The point D divides the line segment AB in the ratio 1 : 3 The line L passes through D
  2. June 2025, Paper 3H, Q7 (3 marks): ABC is a straight line. y C B (8, 12) A (2, 7) O x Point A has coordinates (2, 7) Point B has coordinates (8, 12) BC = 1 2 AB Find the coordinates of point C. (
  3. November 2024, Paper 2H, Q21 (5 marks): The point P has coordinates (–4, 5) The point Q has coordinates (6, –6) The point R has coordinates (k, k + 3) Given that angle PRQ is a right angle, find the p
  4. November 2024, Paper 3H, Q16 (5 marks): OBCD is a rectangle. DCE is a straight line. y D x O C B E B has coordinates (2, −4) E has coordinates (12, −6.5) Work out the coordinates of D. You must show a
  5. November 2023, Paper 2H, Q12 (3 marks): A is the point with coordinates (7, 13) B is the point with coordinates (−3, 21) C is the point with coordinates (15, 23) M is the midpoint of AB. N is the midp
  6. November 2022, Paper 2H, Q13 (2 marks): A and B are points on a centimetre grid. A is the point with coordinates (−7, 6) B is the point with coordinates (8, −5) Work out the length of AB. Give your an
  7. June 2022, Paper 2H, Q5 (4 marks): The points L, M and N are such that LMN is a straight line. The coordinates of L are (−3, 1) The coordinates of M are (4, 9) Given that LM : MN = 2 : 3, find th
  8. November 2021, Paper 2H, Q11 (5 marks): Here is a sketch of the line L. y L R Q(0, 3) P(–6, 0) O x The points P(–6, 0) and Q(0, 3) are points on the line L. The point R is such that PQR is a straight
  9. November 2021, Paper 3H, Q13 (5 marks): A pattern is made from four identical rectangles. The sides of the rectangles are parallel to the axes. y B(11, 20) C A(3, 4) O x Point A has coordinates (3, 4)
  10. November 2019, Paper 2H, Q25 (5 marks): The straight line L has equation 3x + 2y = 17 The point A has coordinates (0, 2) The straight line M is perpendicular to L and passes through A. Line L crosses
  11. June 2019, Paper 3H, Q22 (4 marks): The diagram shows a circle, centre O. y P (3p, p) B (16, 0) O x 30° A AB is the tangent to the circle at the point A. Angle OBA 30° Point B has coordinates (16,
  12. June 2018, Paper 1H, Q6 (5 marks): A pattern is made from four identical squares. The sides of the squares are parallel to the axes. y B (38, 36) C A (6, 7) O x Point A has coordinates (6, 7) Poi
  13. November 2017, Paper 1H, Q19 (4 marks): M y L A E x O D B C ABCD is a rectangle. A, E and B are points on the straight line L with equation x + 2y = 12 A and D are points on the straight line M. AE =
  14. November 2017, Paper 2H, Q19 (4 marks): is 4 marks)
  15. June 2017, Paper 1H, Q18 (4 marks): y A B D C x O ABCD is a rhombus. The coordinates of A are (5,11) The equation of the diagonal DB is y = 1 2 x + 6 Find an equation of the diagonal AC.
