plumiPythagoras and trigonometry: Edexcel GCSE Maths questions
Every Edexcel GCSE Maths exam question on G20 Pythagoras and trigonometry, 2017–2025, with its mark scheme and examiner’s report.
Find questions997
Exam
All years
Calculator
All 50 questions on Pythagoras and trigonometry, as a list

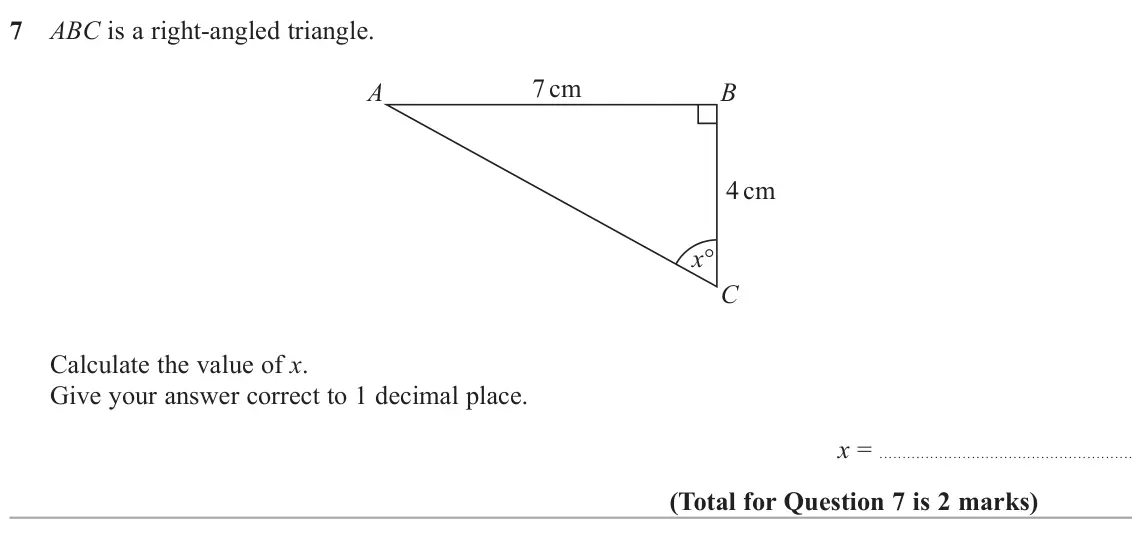

- June 2025, Paper 2H, Q7 (2 marks): ABC is a right-angled triangle. 7 cm A B 4 cm x C Calculate the value of x. Give your answer correct to 1 decimal place. x =

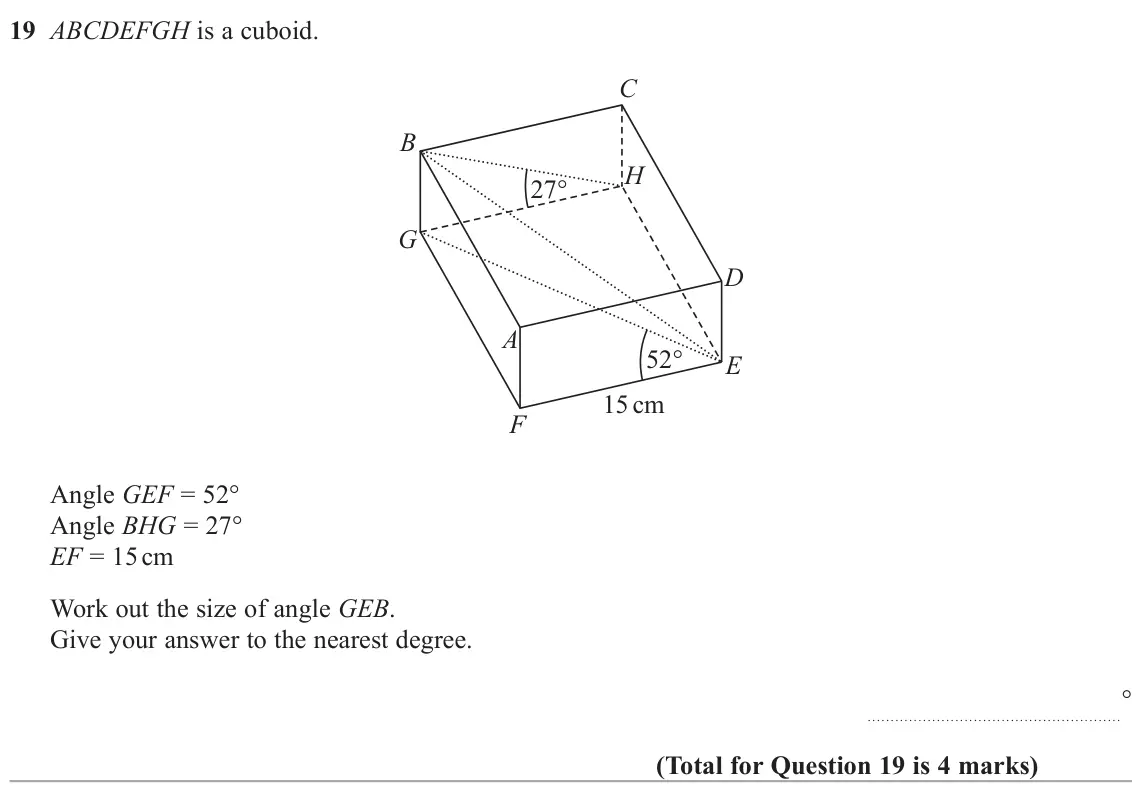

- June 2025, Paper 2H, Q19 (4 marks): ABCDEFGH is a cuboid. C B H 27 G D A 52 E 15 cm F Angle GEF = 52° Angle BHG = 27° EF = 15 cm Work out the size of angle GEB. Give your answer to the nearest deg

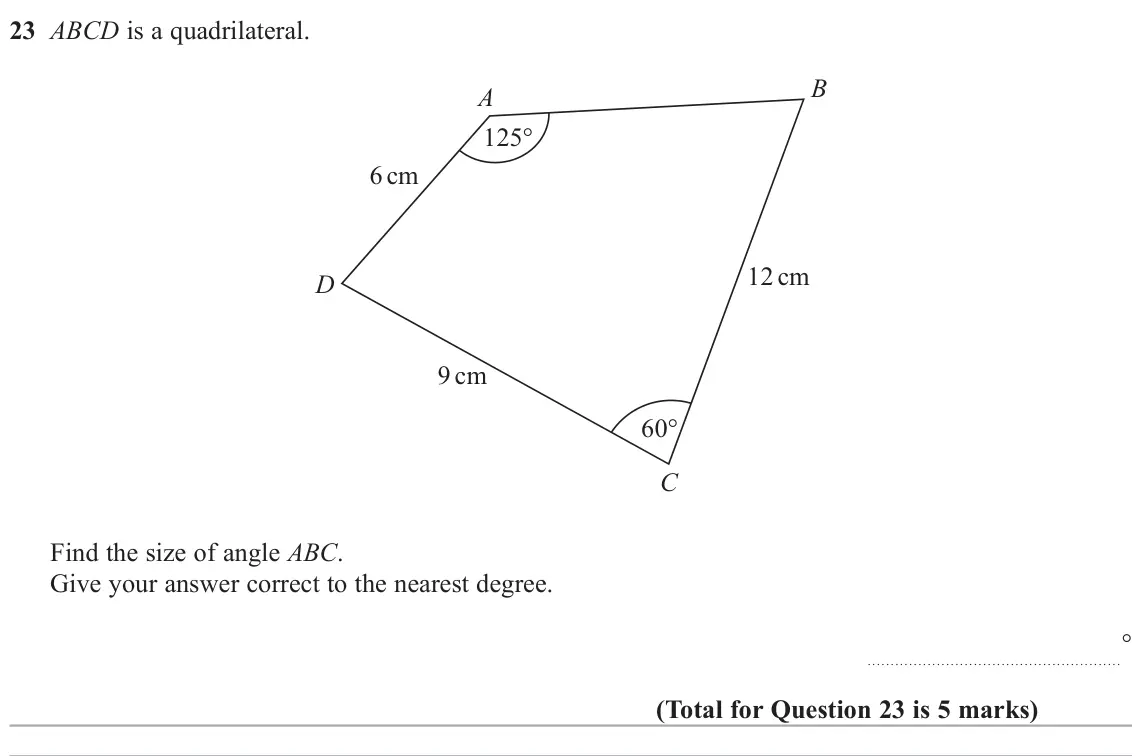

- June 2025, Paper 2H, Q23 (5 marks): ABCD is a quadrilateral. B A 125 6 cm 12 cm D 9 cm 60 C Find the size of angle ABC. Give your answer correct to the nearest degree. °

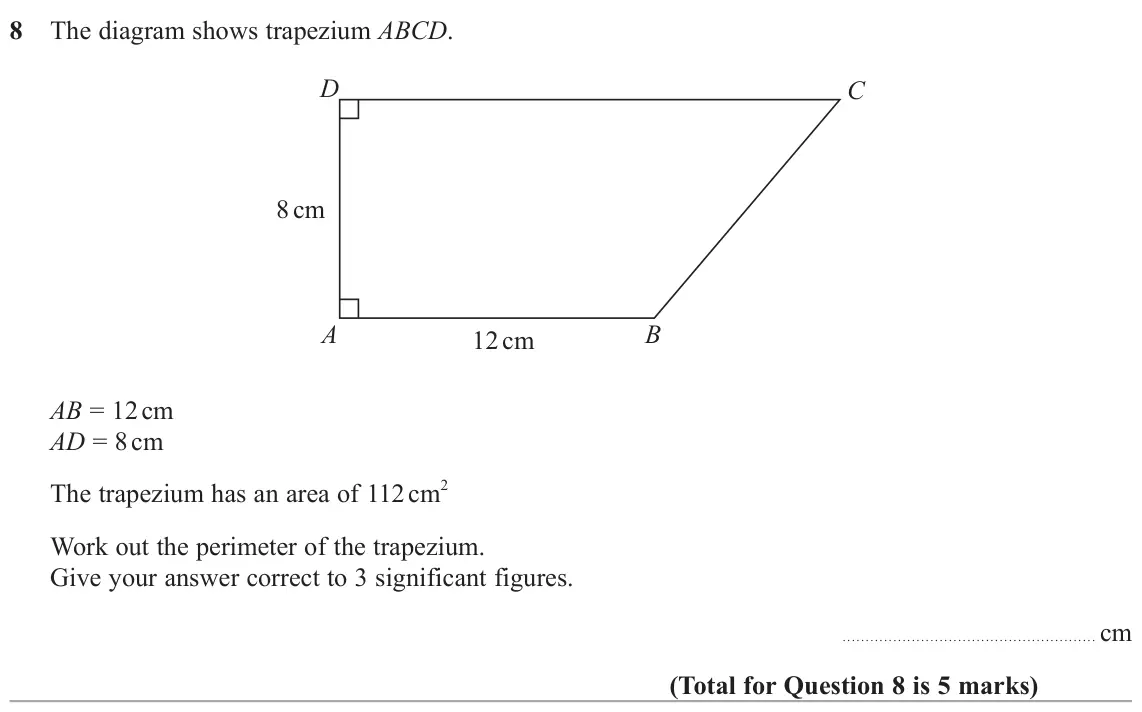

- June 2025, Paper 3H, Q8 (5 marks): The diagram shows trapezium ABCD. D C 8 cm A B 12 cm AB = 12 cm AD = 8 cm The trapezium has an area of 112 cm 2 Work out the perimeter of the trapezium. Give yo

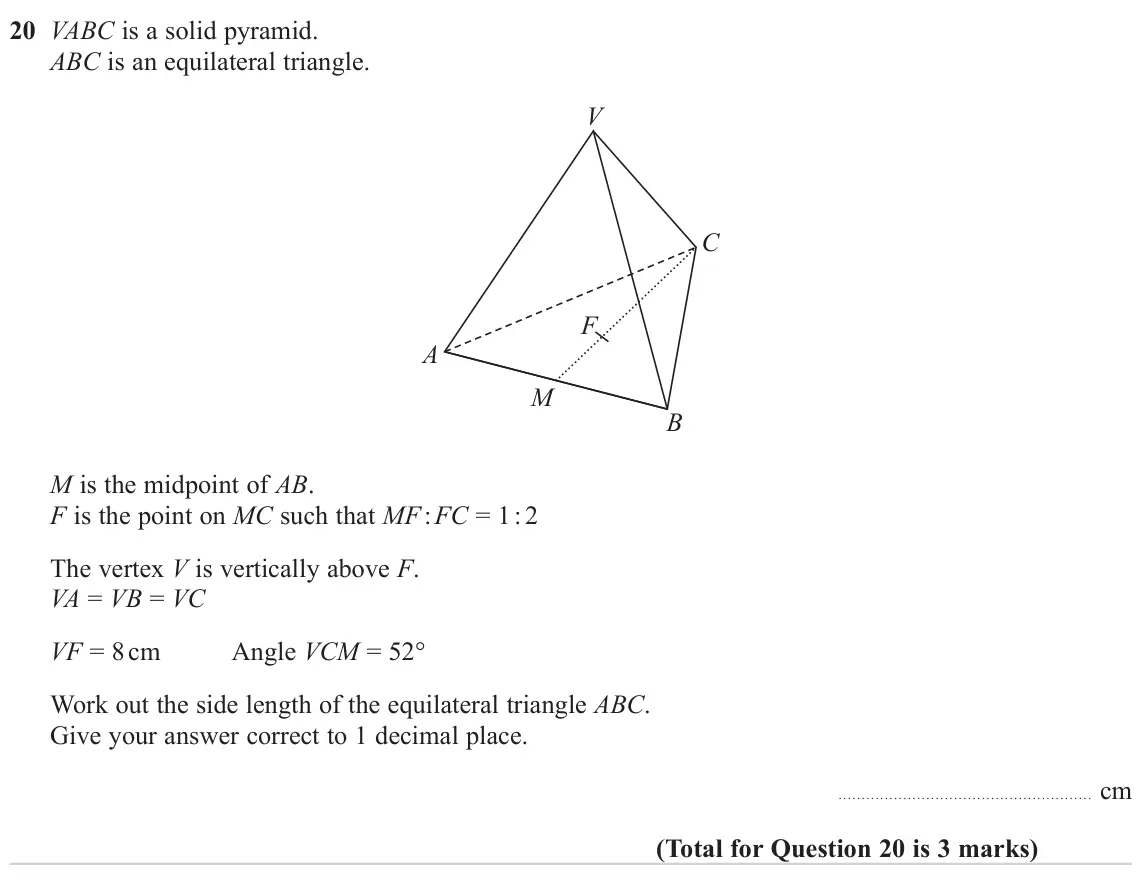

- November 2024, Paper 2H, Q20 (3 marks): VABC is a solid pyramid. ABC is an equilateral triangle. V C F A M B M is the midpoint of AB. F is the point on MC such that MF : FC = 1 : 2 The vertex V is ver
- November 2024, Paper 3H, Q8 (2 marks): ABC is a right-angled triangle. A B 7.6 cm 62° C Calculate the length of AB. Give your answer correct to 1 decimal place. cm

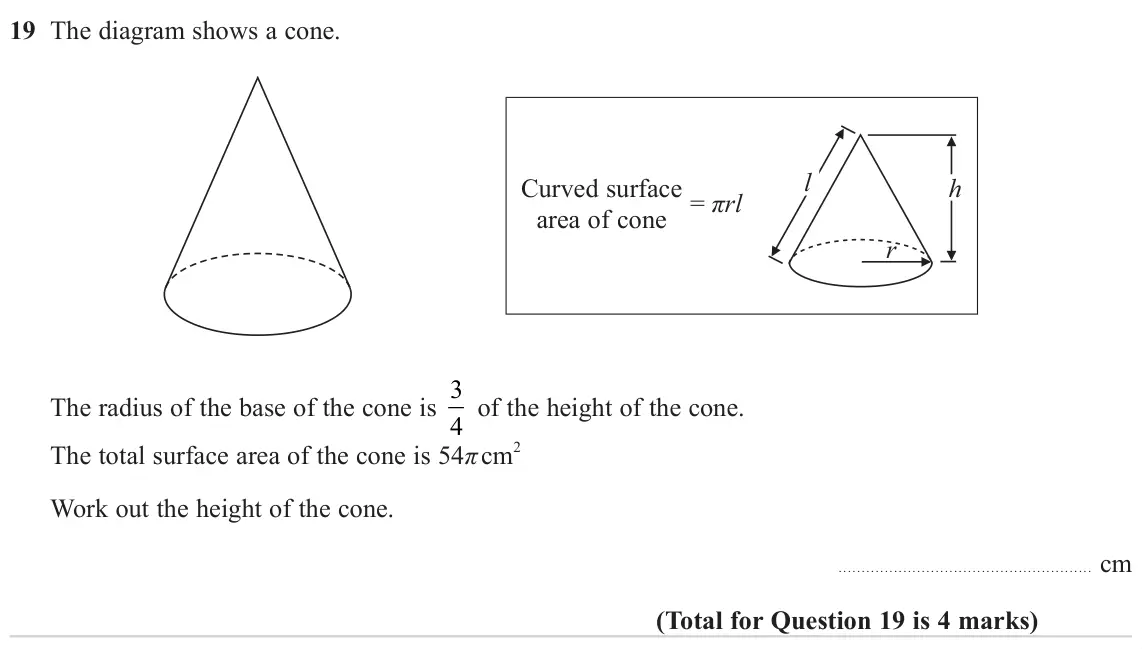

- November 2024, Paper 3H, Q19 (4 marks): The diagram shows a cone. l Curved surface h area of cone = πrl r The radius of the base of the cone is 3 4 of the height of the cone. The total surface area of

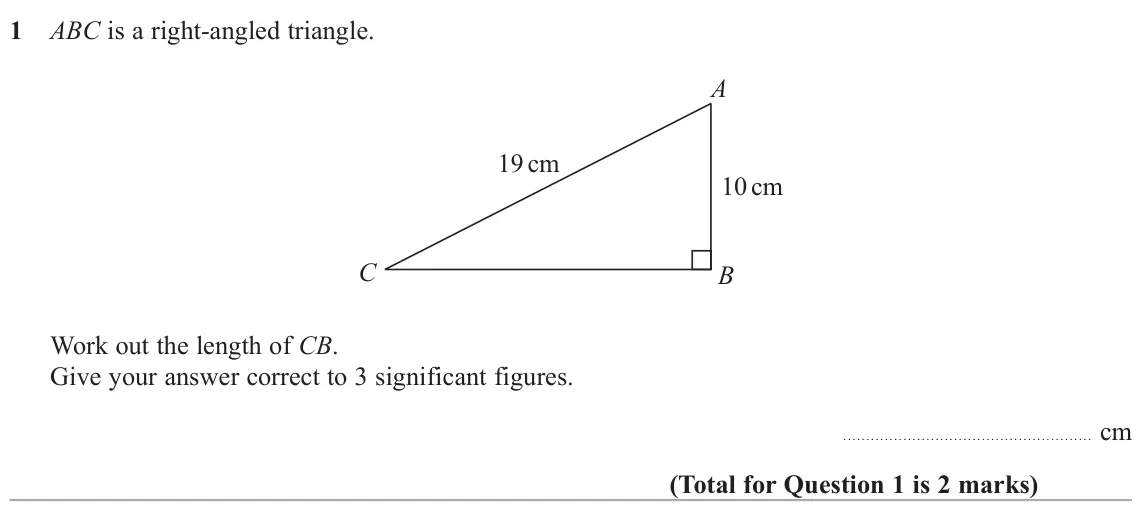

- June 2024, Paper 2H, Q1 (2 marks): ABC is a right-angled triangle. A 19 cm 10 cm C B Work out the length of CB. Give your answer correct to 3 significant figures. cm
- June 2024, Paper 2H, Q10 (3 marks): The diagram shows two right-angled triangles. a 8 1 + x b 7 – 2x 4 All lengths are measured in centimetres. Given that sin a = tan b work out the value of x. x

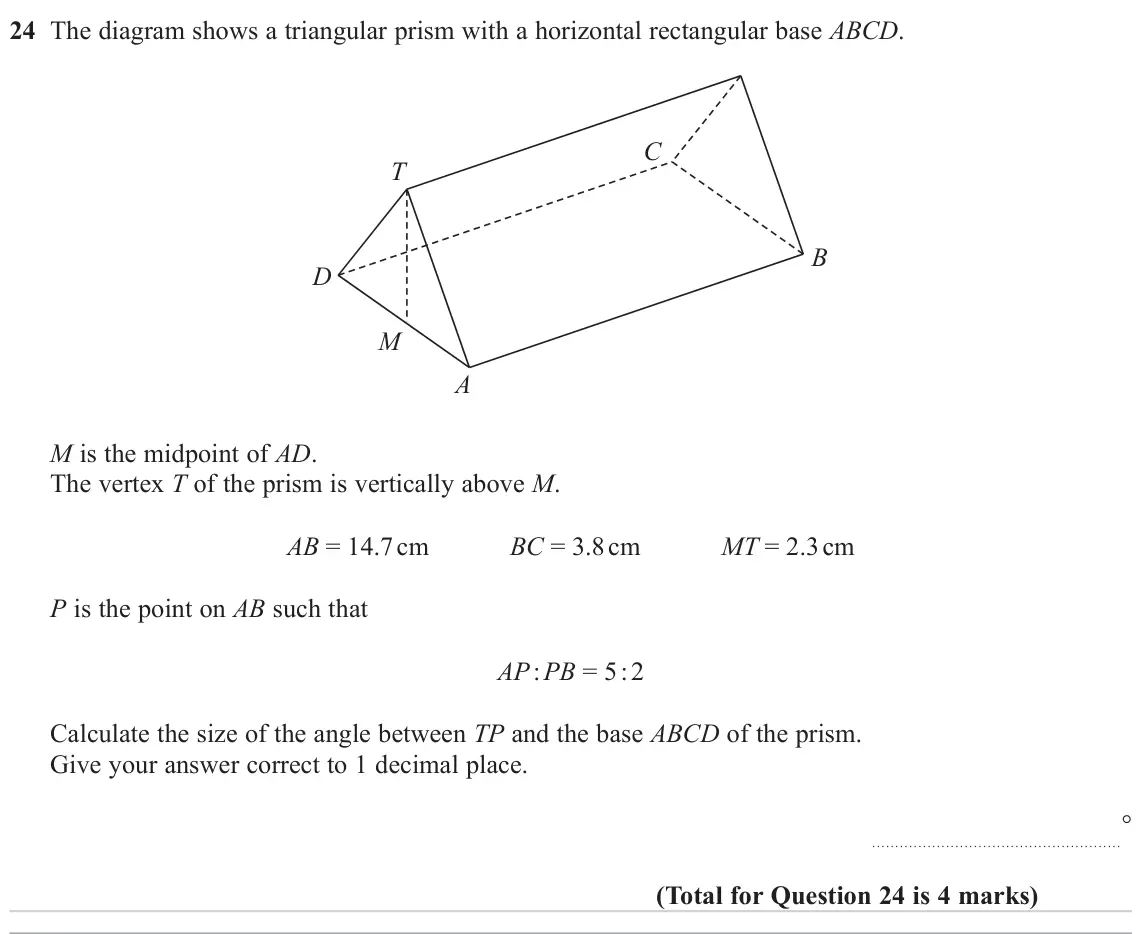

- November 2023, Paper 3H, Q24 (4 marks): The diagram shows a triangular prism with a horizontal rectangular base ABCD. C T B D M A M is the midpoint of AD. The vertex T of the prism is vertically above

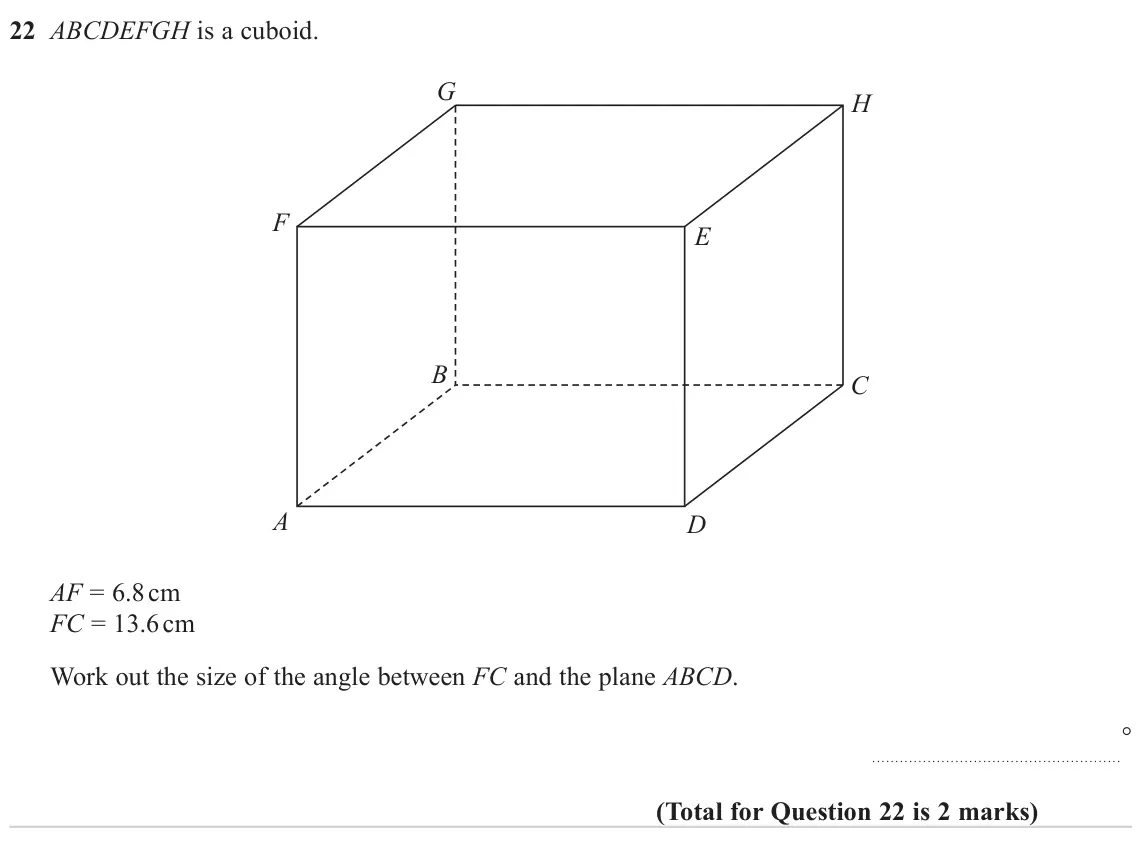

- June 2023, Paper 1H, Q22 (2 marks): ABCDEFGH is a cuboid. G H F E B C A D AF = 6.8 cm FC = 13.6 cm Work out the size of the angle between FC and the plane ABCD. °

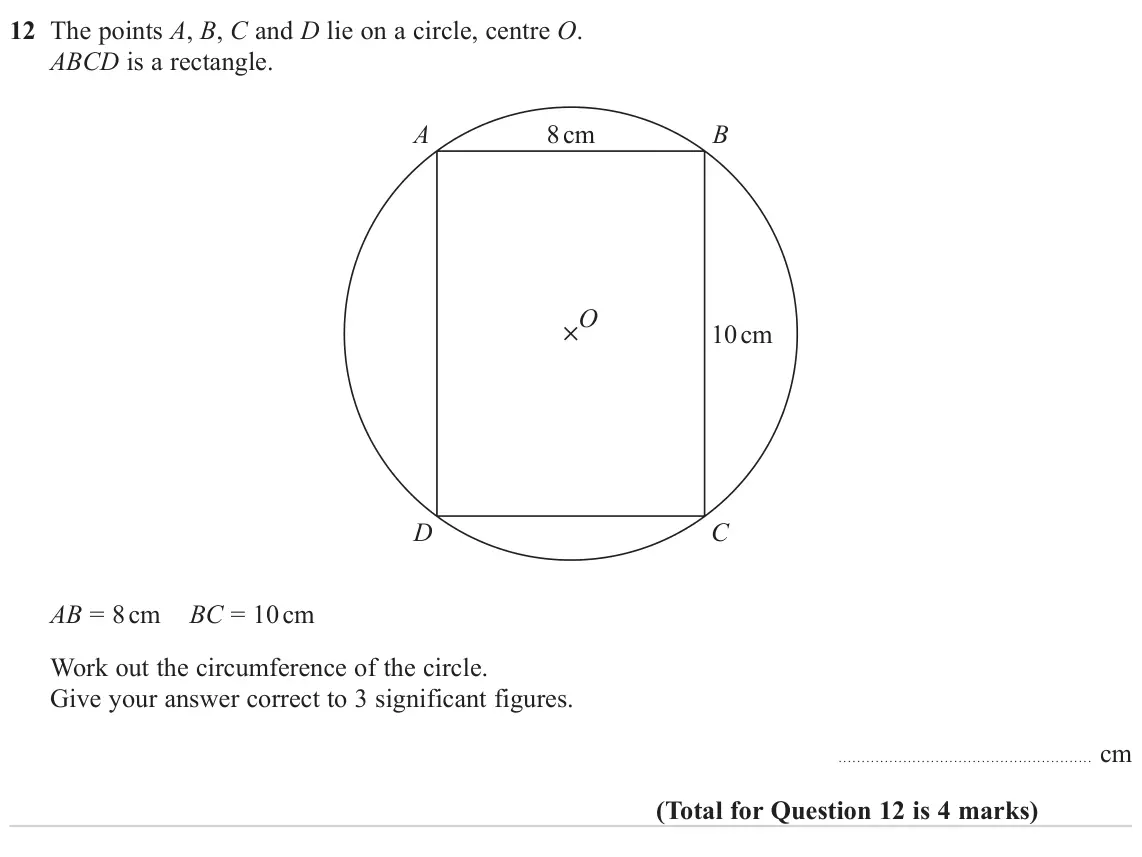

- June 2023, Paper 2H, Q12 (4 marks): The points A, B, C and D lie on a circle, centre O. ABCD is a rectangle. 8 cm A B O 10 cm D C AB = 8 cm BC = 10 cm Work out the circumference of the circle. Giv
- June 2023, Paper 2H, Q19 (3 marks): ABC is a right-angled triangle. A 12.6 cm 9.3 cm x B C AB = 9.3 cm correct to the nearest mm. AC = 12.6 cm correct to the nearest mm. Calculate the lower bound

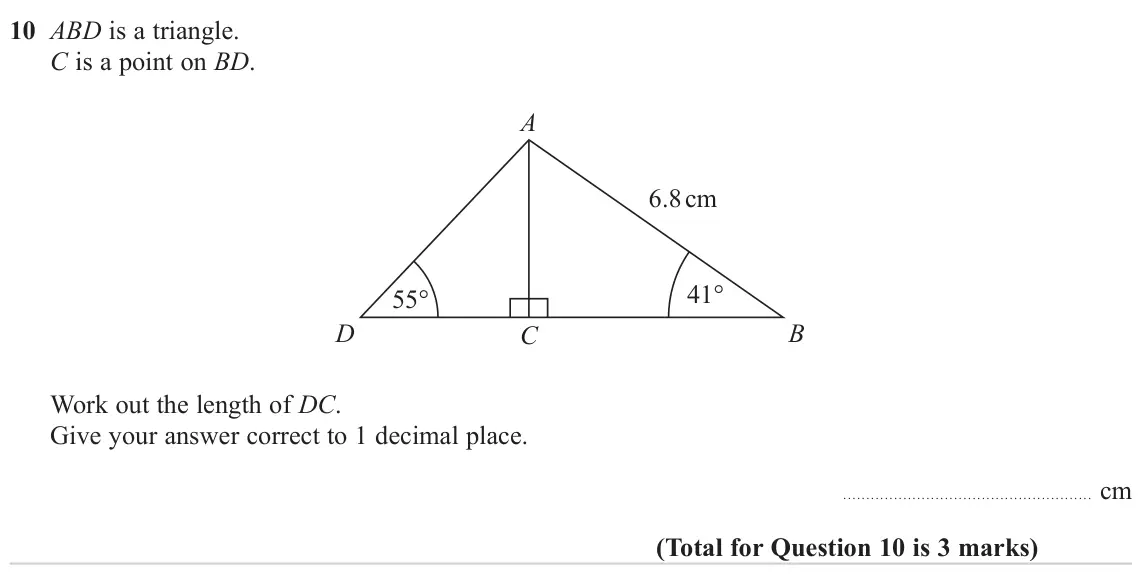

- June 2023, Paper 3H, Q10 (3 marks): ABD is a triangle. C is a point on BD. A 6.8 cm 41° 55° D B C Work out the length of DC. Give your answer correct to 1 decimal place. cm

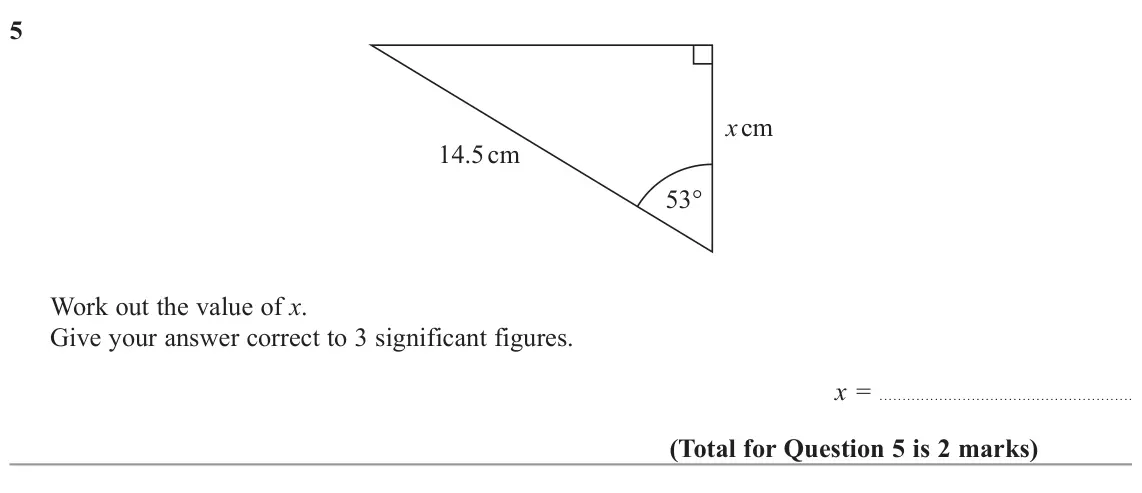

- November 2022, Paper 2H, Q5 (2 marks): x cm 14.5 cm 53° Work out the value of x. Give your answer correct to 3 significant figures. x =
- November 2022, Paper 2H, Q13 (2 marks): A and B are points on a centimetre grid. A is the point with coordinates (−7, 6) B is the point with coordinates (8, −5) Work out the length of AB. Give your an

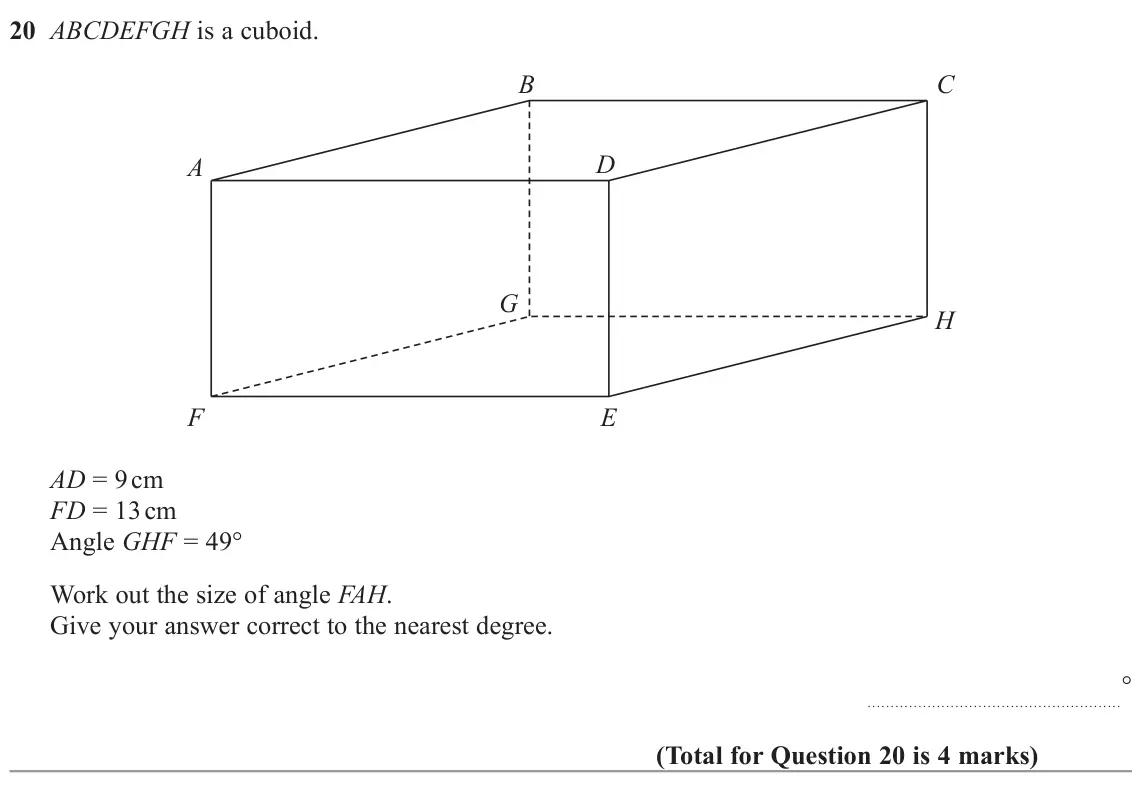

- November 2022, Paper 2H, Q20 (4 marks): ABCDEFGH is a cuboid. B C D A G H F E AD = 9 cm FD = 13 cm Angle GHF = 49° Work out the size of angle FAH. Give your answer correct to the nearest degree. °

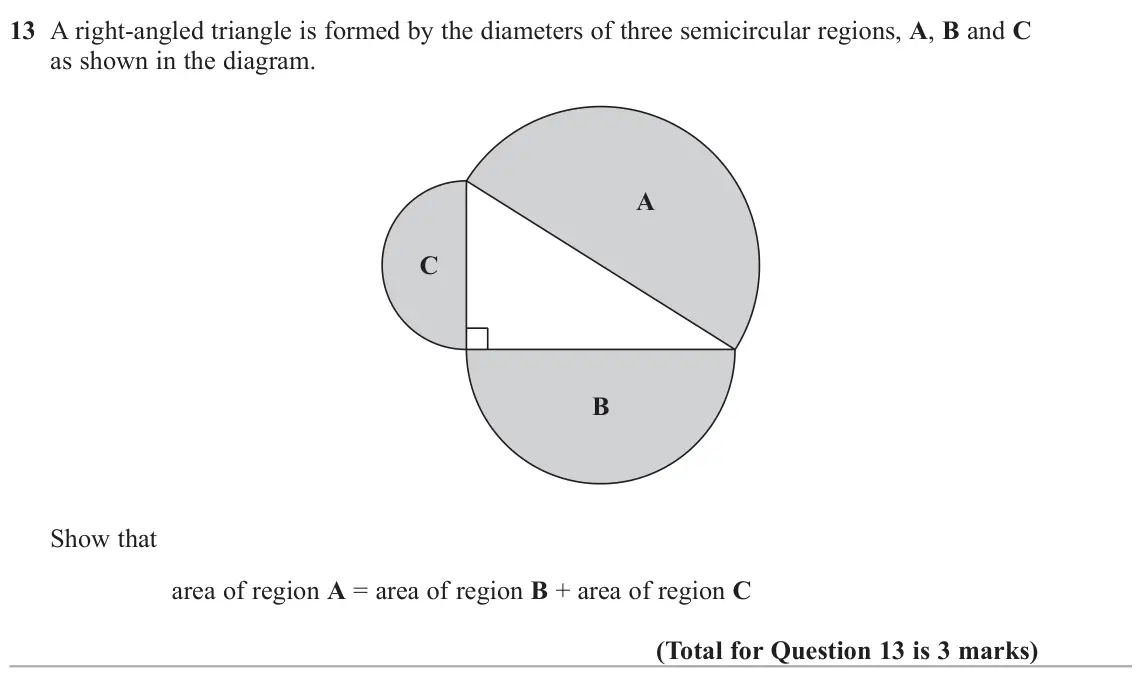

- June 2022, Paper 1H, Q13 (3 marks): A right-angled triangle is formed by the diameters of three semicircular regions, A, B and C as shown in the diagram. A C B Show that area of region A = area of

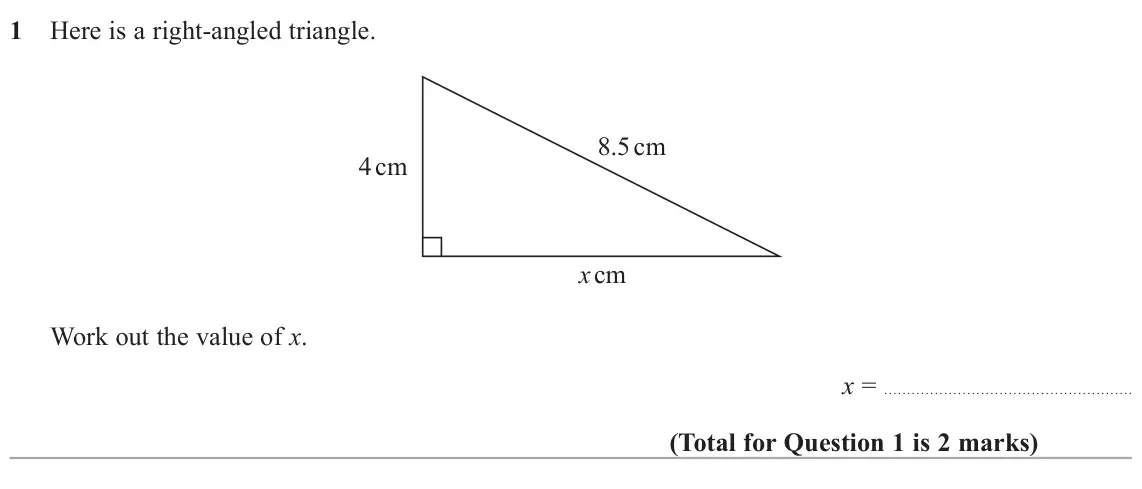

- June 2022, Paper 3H, Q1 (2 marks): Here is a right-angled triangle. 8.5 cm 4 cm x cm Work out the value of x. x =

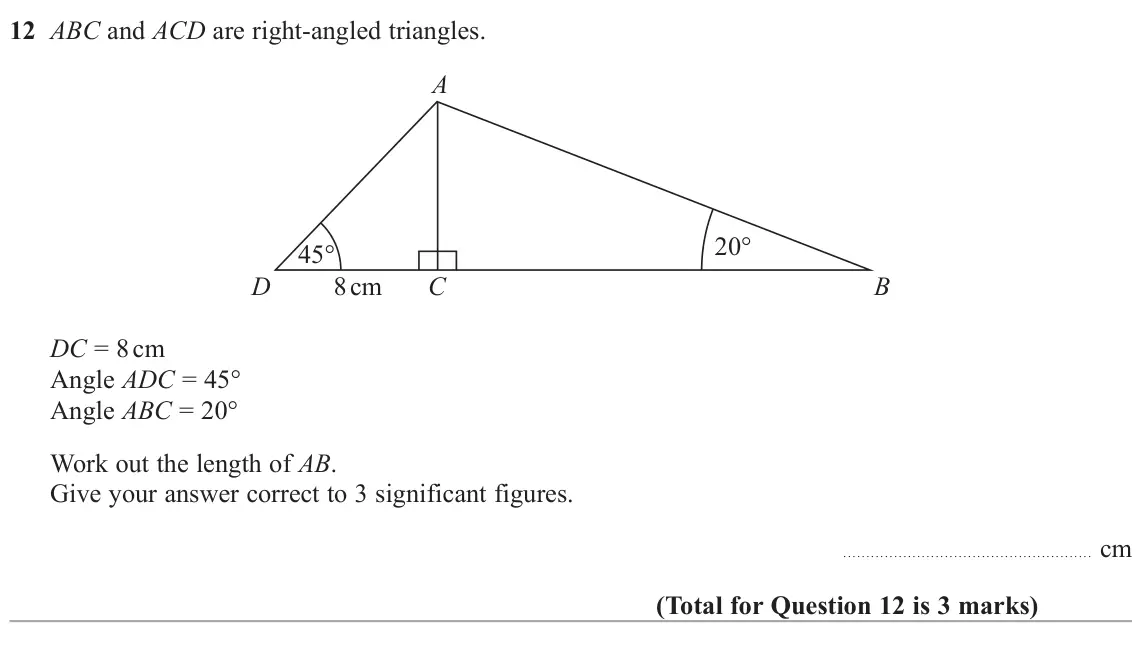

- June 2022, Paper 3H, Q12 (3 marks): ABC and ACD are right-angled triangles. A 20° 45° D 8 cm C B DC = 8 cm Angle ADC = 45° Angle ABC = 20° Work out the length of AB. Give your answer correct to 3
- June 2022, Paper 3H, Q18 (5 marks): Here is a prism ABCDSPQR. R S 12 cm Q P D C T 14 cm A B The base ABCD of the prism is a square of side 14 cm T is the point on BC such that BT : TC = 4 : 3 The
- November 2021, Paper 1H, Q18 (5 marks): Here is trapezium ABCD. A B 6 cm 30° D C The area of the trapezium is 66 cm2 the length of AB : the length of CD = 2 : 3 Find the length of AB. cm
- November 2021, Paper 2H, Q5 (4 marks): Here is a right‑angled triangle. 8 mm 10 mm The shaded shape below is made from two of these triangles. 8 mm 8 mm 10 mm Work out the perimeter of the shaded sha
- November 2021, Paper 2H, Q6 (4 marks): ABC is a right‑angled triangle. A 56° 12 cm C B (a) Work out the length of BC. Give your answer correct to 1 decimal place. cm PQR is a right‑angled triangle. P
- November 2020, Paper 2H, Q5 (2 marks): 178 mm x mm 34° Work out the value of x. Give your answer correct to 1 decimal place.
- November 2020, Paper 2H, Q7 (4 marks): The diagram shows a right-angled triangle and a quarter circle. C D 9 m A 6 m B The right-angled triangle ABC has angle ABC = 90° The quarter circle has centre
- November 2020, Paper 3H, Q9 (5 marks): The diagram shows a prism. 40° 12 cm 20 cm 10 cm The cross section of the prism has exactly one line of symmetry. Work out the volume of the prism. Give your an
- November 2020, Paper 3H, Q18 (4 marks): The diagram shows a cube. A B D C F G E H AH = 11.3 cm correct to the nearest mm. Calculate the lower bound for the length of an edge of the cube. You must show
- November 2019, Paper 2H, Q12 (4 marks): The diagram shows triangle ABC. B 8.6 cm E 40° A C 4.4 cm D ADC and DEB are straight lines. AD = 4.4 cm BC = 8.6 cm E is the midpoint of DB. Angle CDB = 90° Ang
- June 2019, Paper 2H, Q5 (2 marks): ABC is a right-angled triangle. A 16 cm 38° B C Calculate the length of AB. Give your answer correct to 2 decimal places. cm
- June 2019, Paper 2H, Q19 (4 marks): The diagram shows a triangular prism. F E C B 35° 15 cm D 15 cm A The base, ABCD, of the prism is a square of side length 15 cm. Angle ABE and angle CBE are rig
- June 2019, Paper 3H, Q8 (2 marks): ABC is a right-angled triangle. B 6 cm A 8 cm C Here is Sarah’s method to find the length of BC. BC2 = AB2 + AC2 = 62 + 82 = 100 BC = 10 (a) What mistake has
- June 2019, Paper 3H, Q22 (4 marks): The diagram shows a circle, centre O. y P (3p, p) B (16, 0) O x 30° A AB is the tangent to the circle at the point A. Angle OBA 30° Point B has coordinates (16,
- November 2018, Paper 1H, Q8 (3 marks): (a) Write down the exact value of tan 45° Here is a right-angled triangle. 60° x cm 4 cm cos 60° = 0.5 (b) Work out the value of x.
- November 2018, Paper 2H, Q13 (3 marks): The diagram shows a circle and an equilateral triangle. One side of the equilateral triangle is a diameter of the circle. The circle has a circumference of 44 c
- November 2018, Paper 3H, Q6 (4 marks): ABC is a right-angled triangle. B A C 14 cm AC = 14 cm. Angle C = 90q size of angle B : size of angle A = 3 : 2 Work out the length of AB. Give your answer corr
- November 2018, Paper 3H, Q12 (4 marks): Here is a pyramid with a square base ABCD. T B C A D AB = 5 m The vertex T is 12 m vertically above the midpoint of AC. Calculate the size of angle TAC. °
- November 2018, Paper 3H, Q16 (5 marks): Here is a shaded shape ABCD. B D C O A The shape is made from a triangle and a sector of a circle, centre O and radius 6 cm. OCD is a straight line. AD = 14 cm
- June 2018, Paper 1H, Q8 (4 marks): The perimeter of a right-angled triangle is 72 cm. The lengths of its sides are in the ratio 3 : 4 : 5 Work out the area of the triangle. cm2
- June 2018, Paper 2H, Q18 (4 marks): ABCDEFGH is a cuboid. F G H E B A D C AB = 7.3 cm CH = 8.1 cm Angle BCA = 48q Find the size of the angle between AH and the plane ABCD. Give your answer correct
- June 2018, Paper 3H, Q5 (3 marks): ABC is a right-angled triangle. A 11 cm C 7 cm B (a) Work out the size of angle ABC. Give your answer correct to 1 decimal place. q The length of the side AB is
- June 2018, Paper 3H, Q17 (5 marks): A 11.4 cm B 86q 109q 34q C 12.5 cm D Work out the length of AD. Give your answer correct to 3 significant figures. cm
- June 2018, Paper 3H, Q19 (5 marks): Here are two right-angled triangles. 6x + 5 x f e 4x – 1 12x + 31 Given that tan e = tan f find the value of x. You must show all your working.
- November 2017, Paper 2H, Q7 (5 marks): ABCDLVDWUDSH]LXP FP B C FP FP A D FP :RUNRXWWKHVL]HRIDQJOHCDA. *LYH\RXUDQVZHUFRUUHFWWRGHFLPDOSODFH
- November 2017, Paper 2H, Q20 (5 marks): B A C P O OACLVDVHFWRURIDFLUFOHFHQWUHOUDGLXV P BALVWKHWDQJHQWWRWKHFLUFOHDWSRLQWA. BCLVWKHWDQJHQWWRWKHFLUFOHDWSRLQWC.
- June 2017, Paper 1H, Q5 (5 marks): This rectangular frame is made from 5 straight pieces of metal. 5 m 12 m The weight of the metal is 1.5 kg per metre. Work out the total weight of the metal in
- June 2017, Paper 2H, Q21 (4 marks): The diagram shows 3 identical circles inside a rectangle. Each circle touches the other two circles and the sides of the rectangle, as shown in the diagram. The
- June 2017, Paper 3H, Q7 (2 marks): ABC is a right-angled triangle. B C 23q 15 cm A Calculate the length of AB. Give your answer correct to 3 significant figures. cm
- June 2017, Paper 3H, Q8 (4 marks): A square, with sides of length x cm, is inside a circle. Each vertex of the square is on the circumference of the circle. The area of the circle is 49 cm2. Work
- June 2017, Paper 3H, Q18 (5 marks): A 5 cm B O D 5 cm C A, B and C are points on a circle of radius 5 cm, centre O. DA and DC are tangents to the circle. DO = 9 cm Work out the length of arc ABC.
