plumiArcs and sectors: Edexcel GCSE Maths questions
Every Edexcel GCSE Maths exam question on G18 Arcs and sectors, 2017–2025, with its mark scheme and examiner’s report.
Find questions997
Exam
All years
Calculator
All 14 questions on Arcs and sectors, as a list

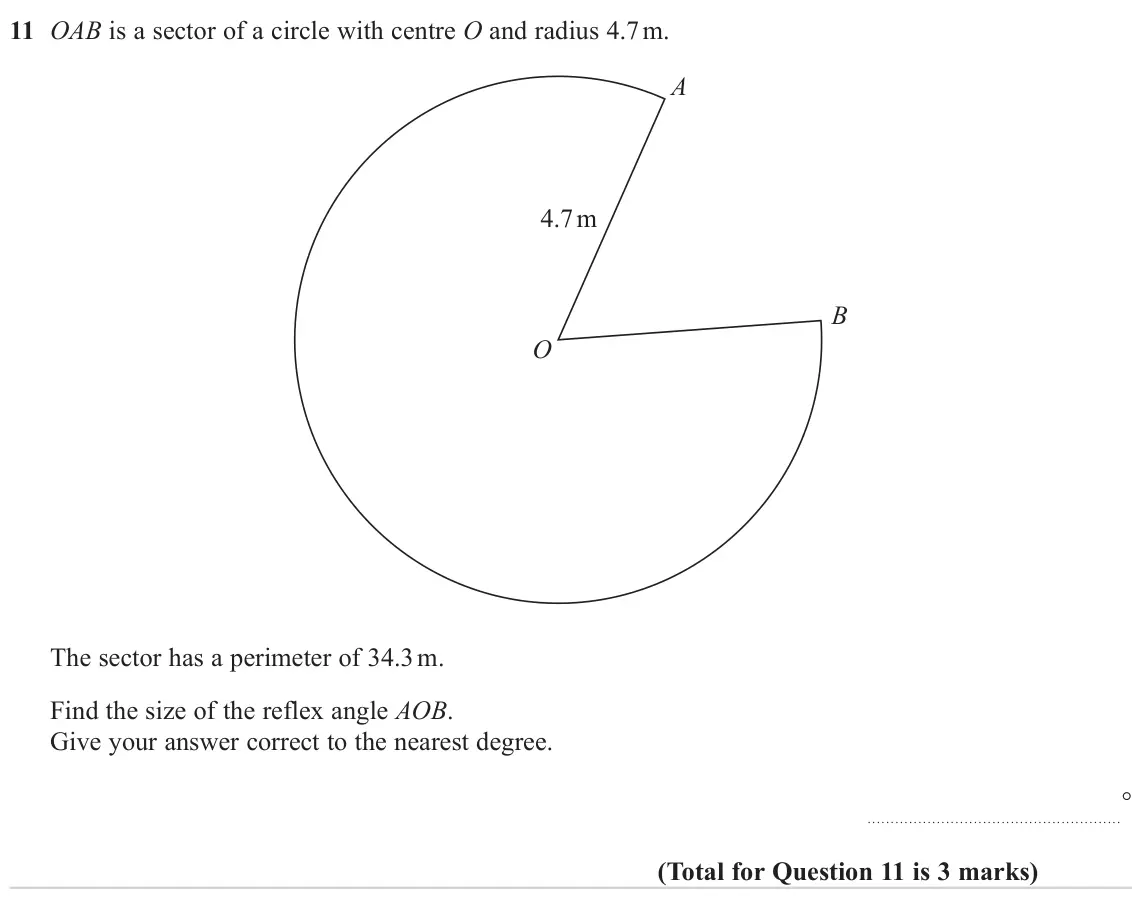

- November 2024, Paper 3H, Q11 (3 marks): OAB is a sector of a circle with centre O and radius 4.7 m. A 4.7 m B O The sector has a perimeter of 34.3 m. Find the size of the reflex angle AOB. Give your a

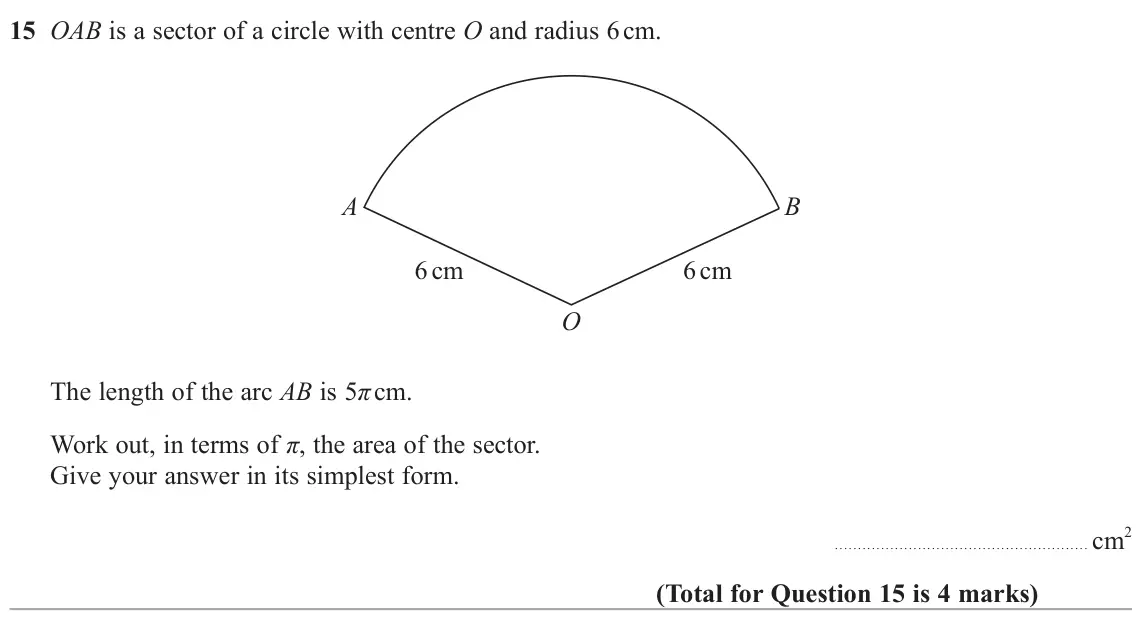

- June 2024, Paper 1H, Q15 (4 marks): OAB is a sector of a circle with centre O and radius 6 cm. A B 6 cm 6 cm O The length of the arc AB is 5π cm. Work out, in terms of π, the area of the sector. G

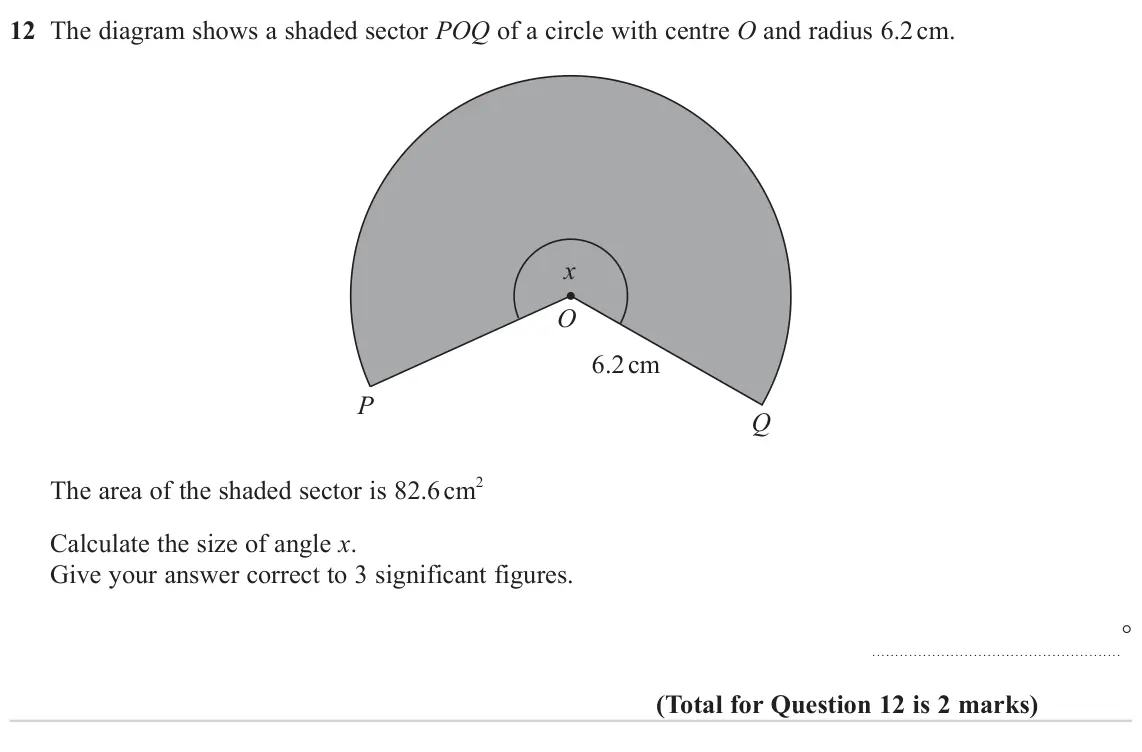

- November 2023, Paper 3H, Q12 (2 marks): The diagram shows a shaded sector POQ of a circle with centre O and radius 6.2 cm. x O 6.2 cm P Q The area of the shaded sector is 82.6 cm2 Calculate the size o

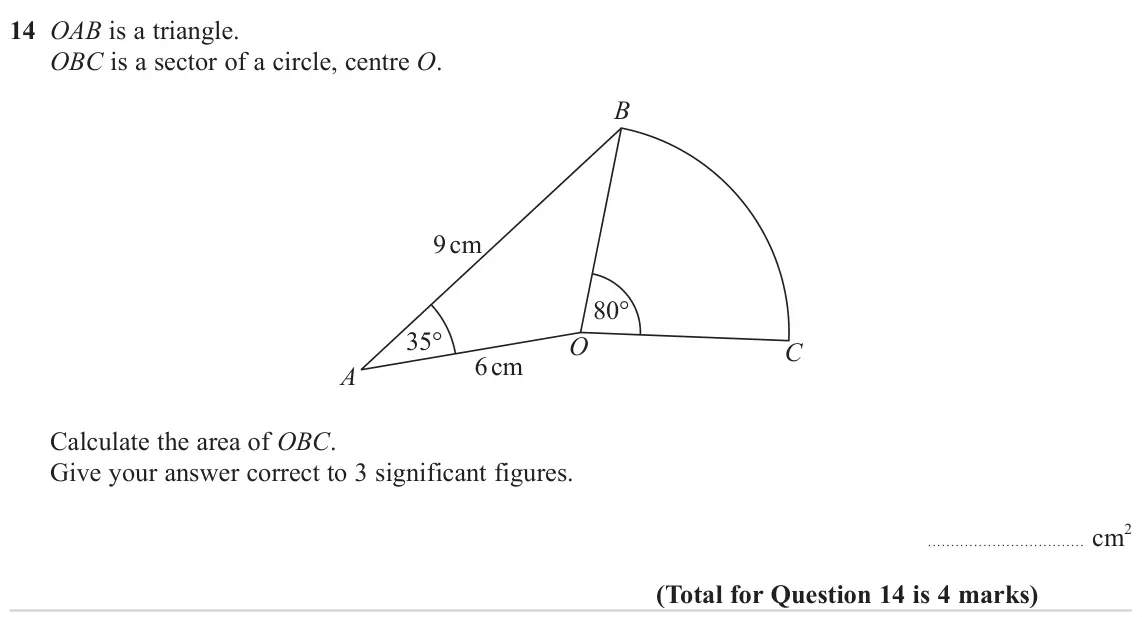

- June 2023, Paper 3H, Q14 (4 marks): OAB is a triangle. OBC is a sector of a circle, centre O. B 9 cm 80° 35° O C 6 cm A Calculate the area of OBC. Give your answer correct to 3 significant figures

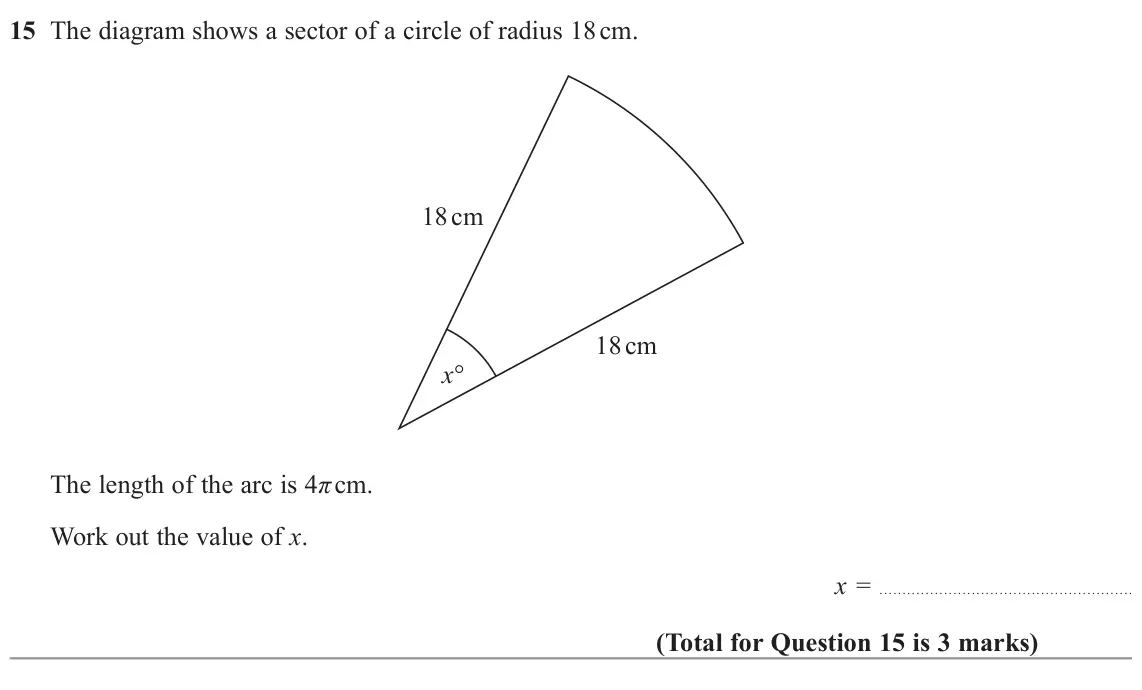

- November 2022, Paper 1H, Q15 (3 marks): The diagram shows a sector of a circle of radius 18 cm. 18 cm 18 cm x° The length of the arc is 4π cm. Work out the value of x. x =

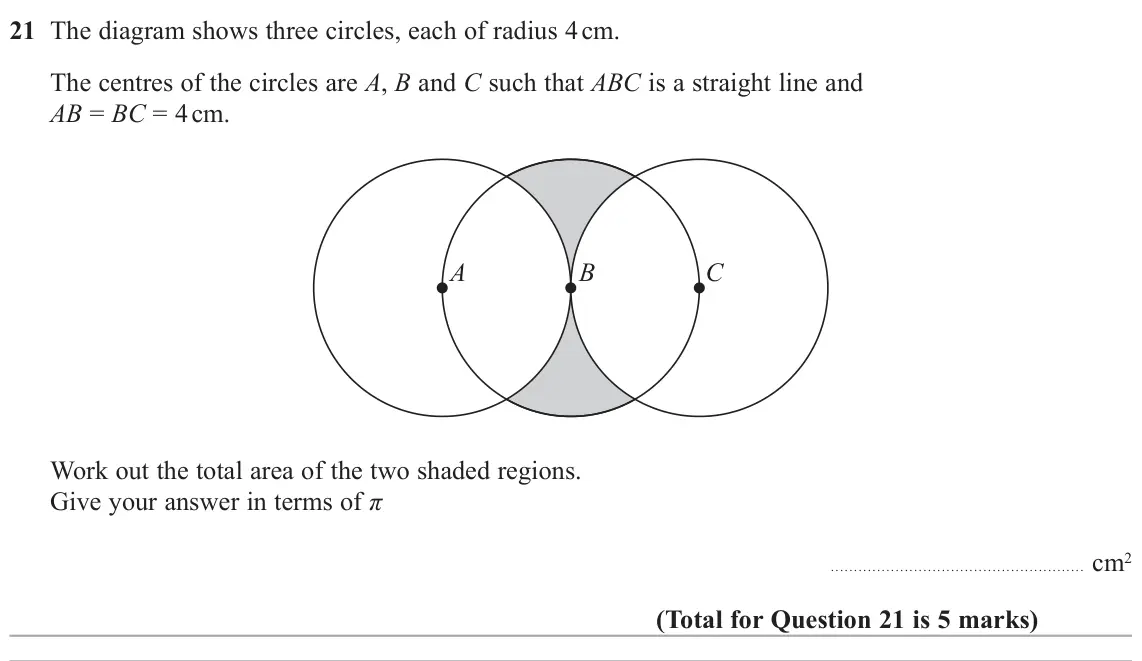

- June 2022, Paper 1H, Q21 (5 marks): The diagram shows three circles, each of radius 4 cm. The centres of the circles are A, B and C such that ABC is a straight line and AB = BC = 4 cm. A B C Work

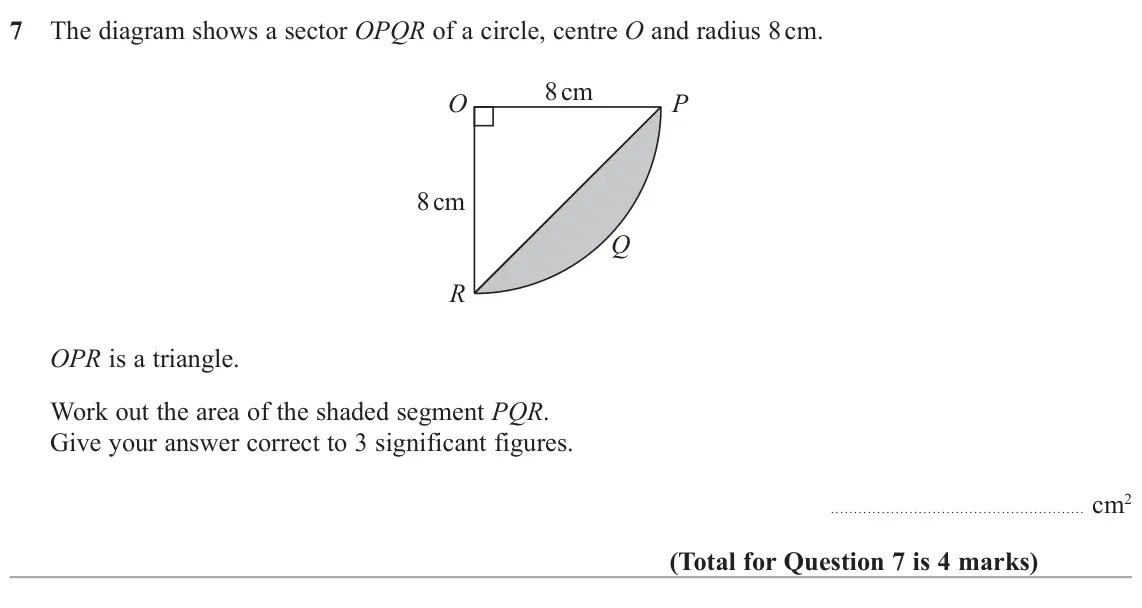

- November 2021, Paper 3H, Q7 (4 marks): The diagram shows a sector OPQR of a circle, centre O and radius 8 cm. 8 cm O P 8 cm Q R OPR is a triangle. Work out the area of the shaded segment PQR. Give yo
- November 2020, Paper 1H, Q22 (5 marks): The diagram shows two shaded shapes, A and B. Shape A is formed by removing a sector of a circle with radius (3x – 1) cm from a sector of the circle with radius

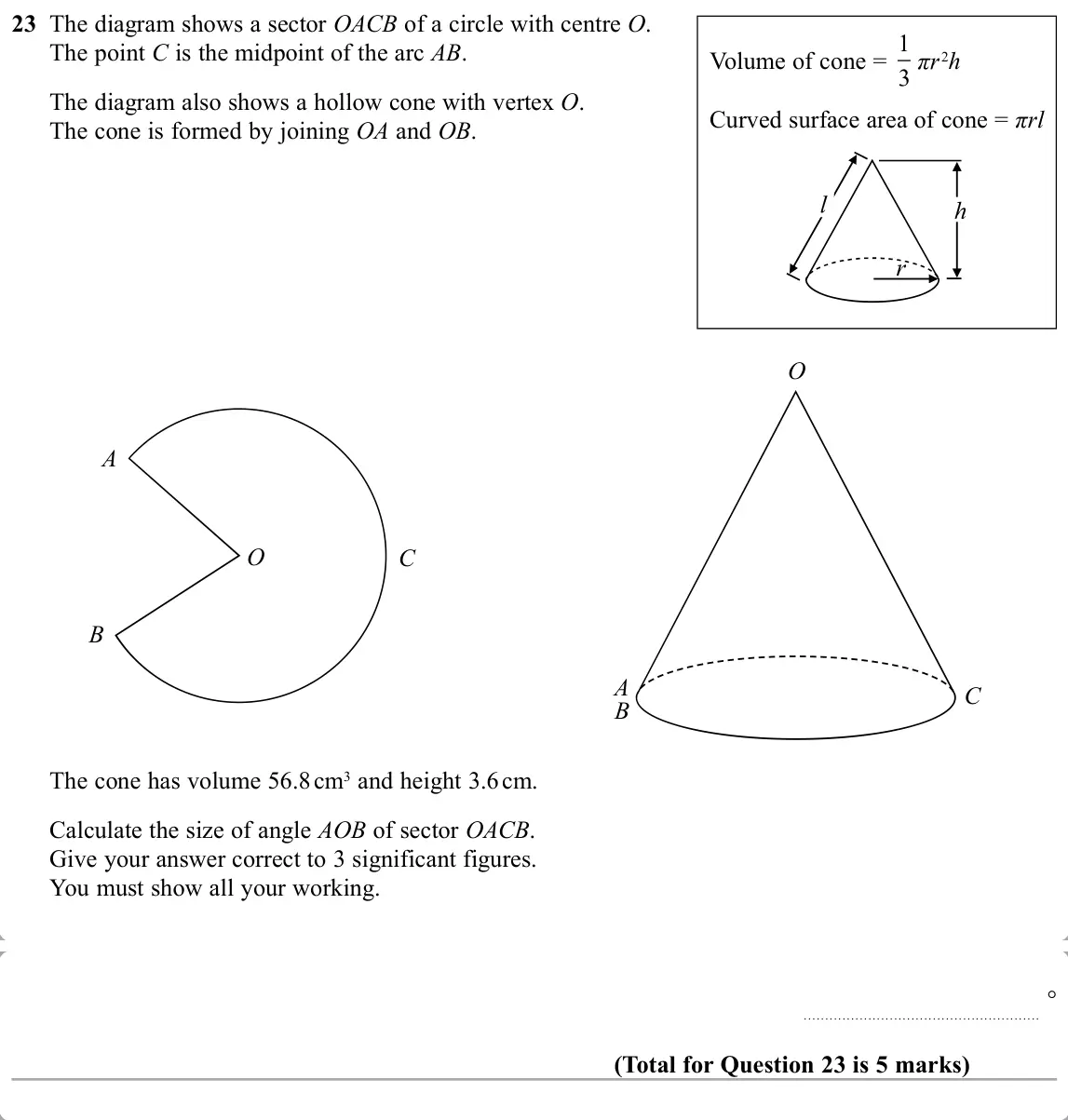

- November 2019, Paper 3H, Q23 (5 marks): The diagram shows a sector OACB of a circle with centre O. The point C is the midpoint of the arc AB. Volume of cone = 2h The diagram also shows a hollow cone w

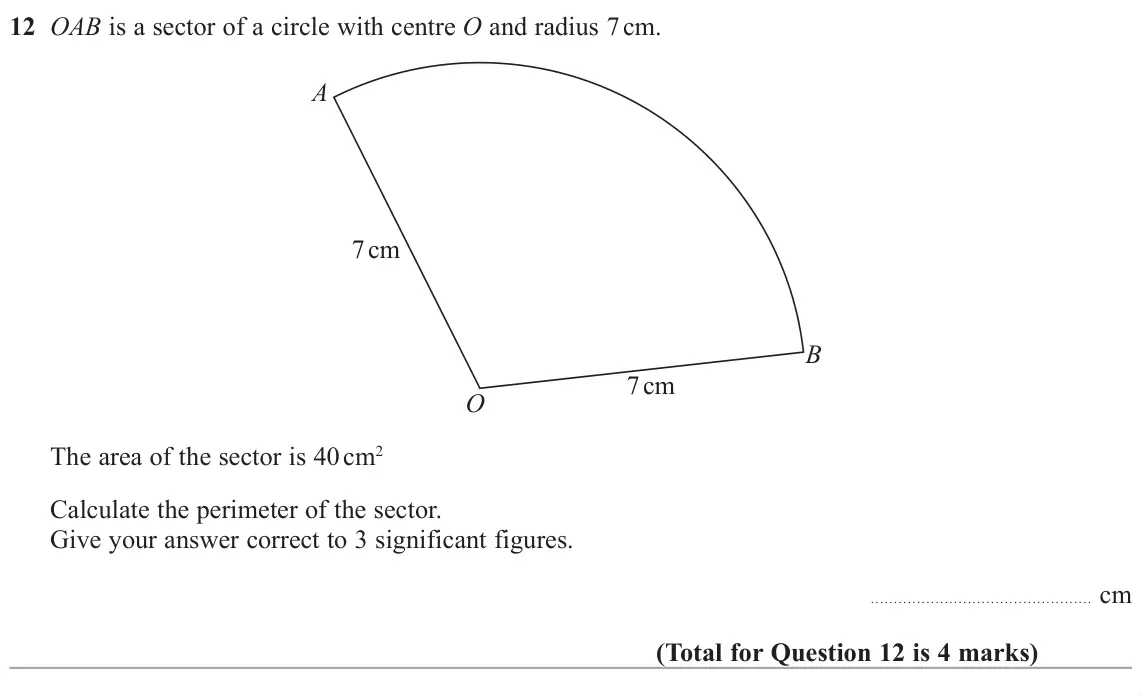

- June 2019, Paper 2H, Q12 (4 marks): OAB is a sector of a circle with centre O and radius 7 cm. A 7 cm B 7 cm O The area of the sector is 40 cm2 Calculate the perimeter of the sector. Give your ans

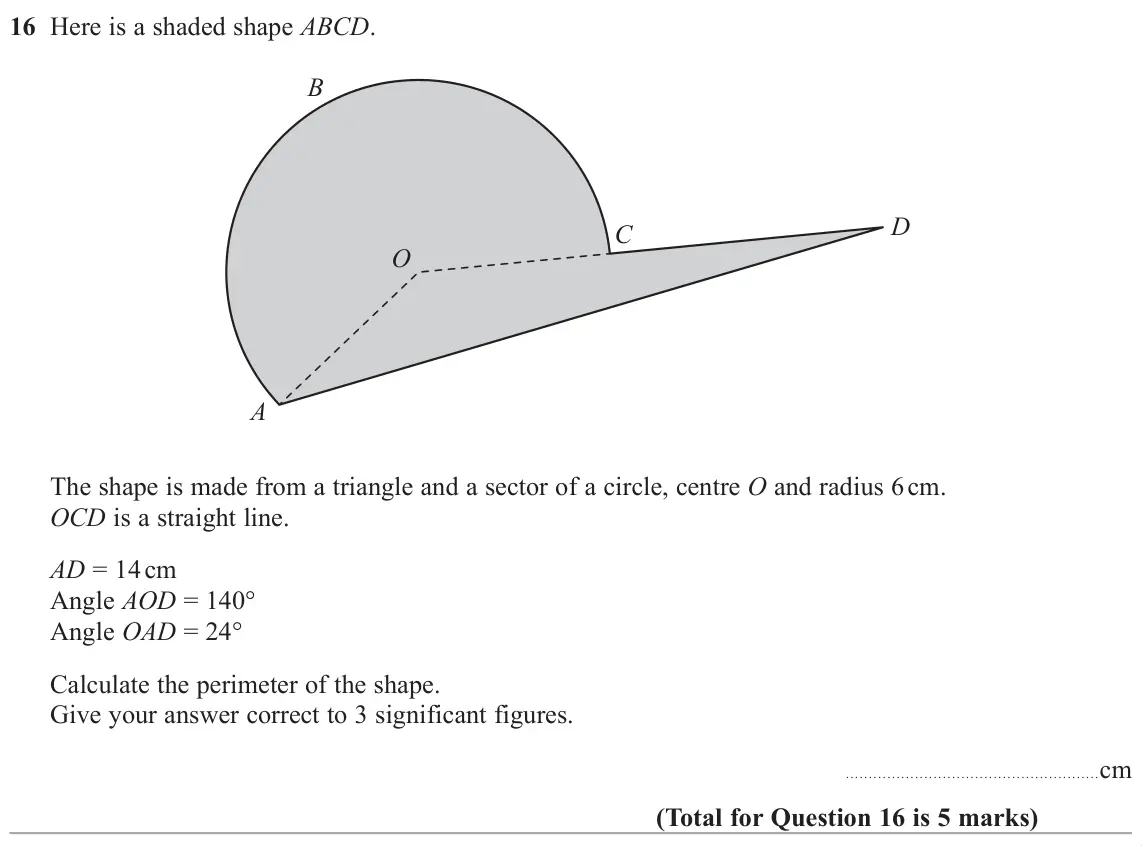

- November 2018, Paper 3H, Q16 (5 marks): Here is a shaded shape ABCD. B D C O A The shape is made from a triangle and a sector of a circle, centre O and radius 6 cm. OCD is a straight line. AD = 14 cm

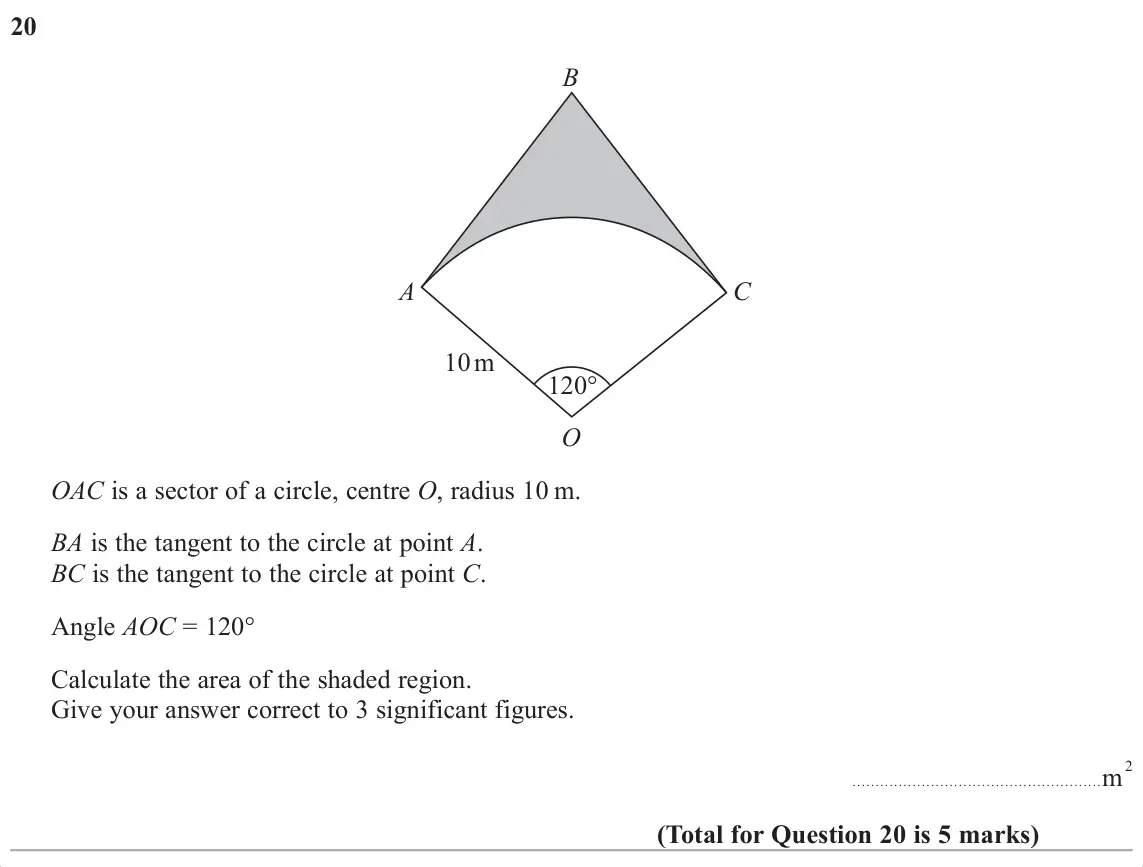

- November 2017, Paper 2H, Q20 (5 marks): B A C P O OACLVDVHFWRURIDFLUFOHFHQWUHOUDGLXV P BALVWKHWDQJHQWWRWKHFLUFOHDWSRLQWA. BCLVWKHWDQJHQWWRWKHFLUFOHDWSRLQWC.

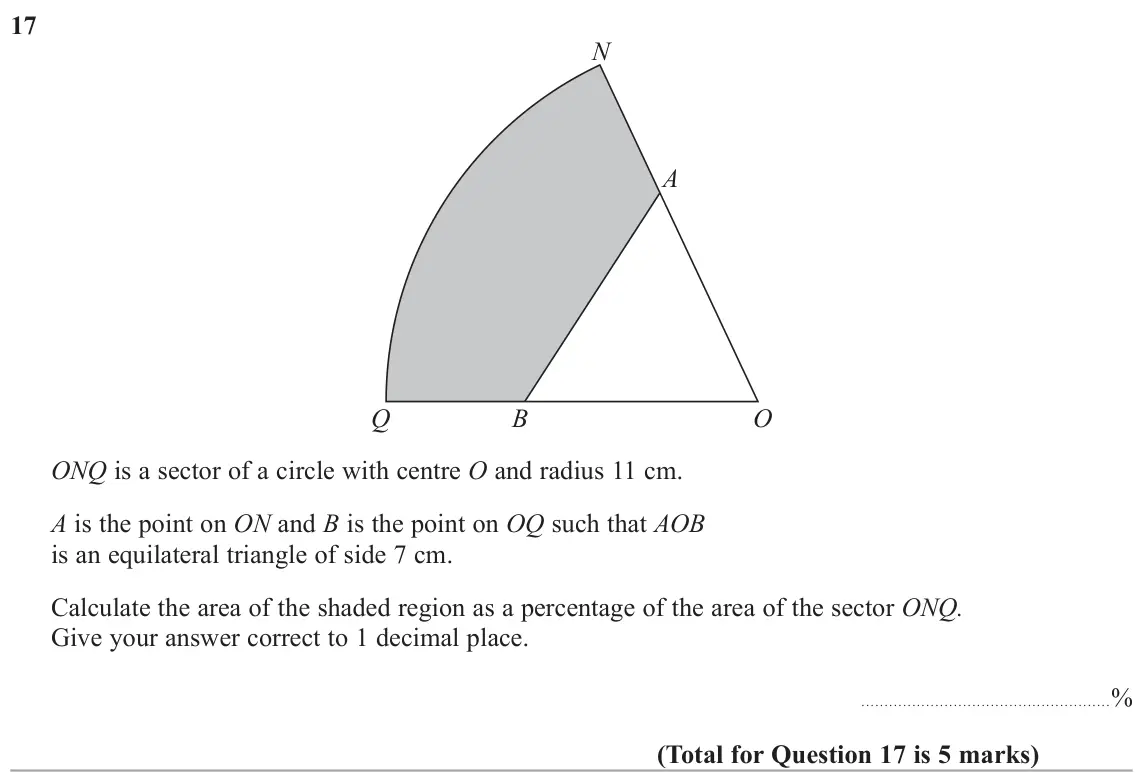

- June 2017, Paper 2H, Q17 (5 marks): N A Q B O ONQ is a sector of a circle with centre O and radius 11 cm. A is the point on ON and B is the point on OQ such that AOB is an equilateral triangle of

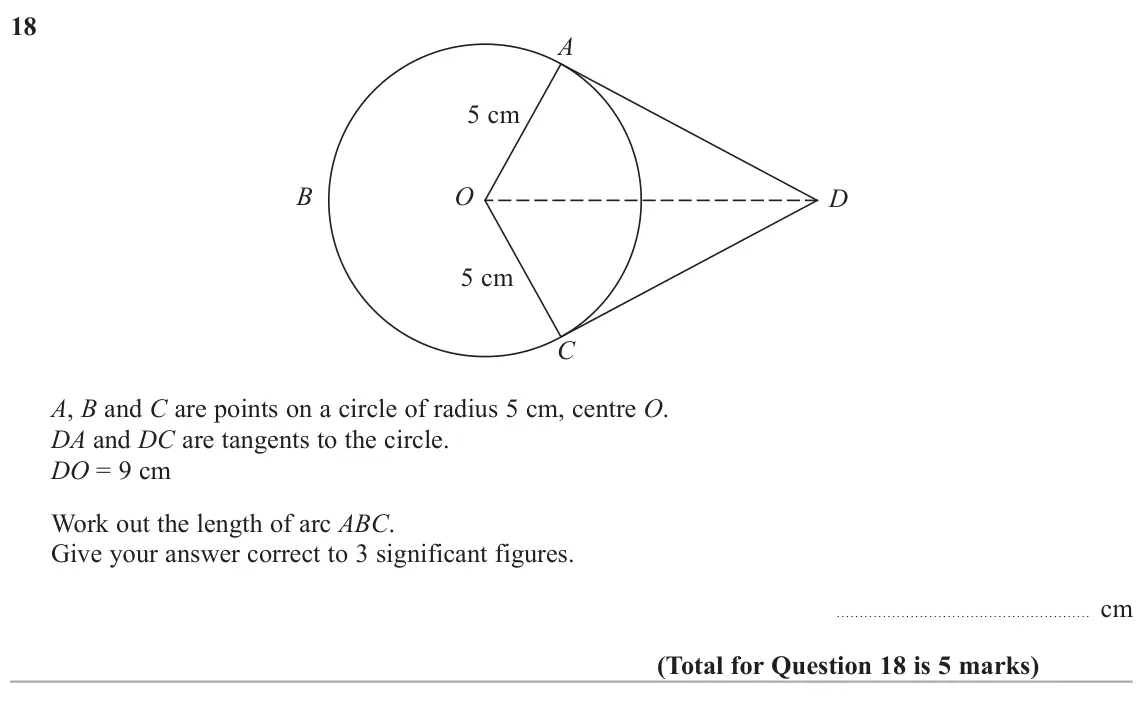

- June 2017, Paper 3H, Q18 (5 marks): A 5 cm B O D 5 cm C A, B and C are points on a circle of radius 5 cm, centre O. DA and DC are tangents to the circle. DO = 9 cm Work out the length of arc ABC.
