plumiSimilar shapes: Edexcel GCSE Maths questions
Every Edexcel GCSE Maths exam question on G19 Similar shapes, 2017–2025, with its mark scheme and examiner’s report.
Find questions997
Exam
All years
Calculator
All 26 questions on Similar shapes, as a list
- June 2025, Paper 1H, Q8 (5 marks): ABC is a right-angled triangle. A 18 cm 20 cm D E B C 30 cm AEC and ADB are straight lines. ED is parallel to CB. (a) Prove that triangle ABC is similar to tria

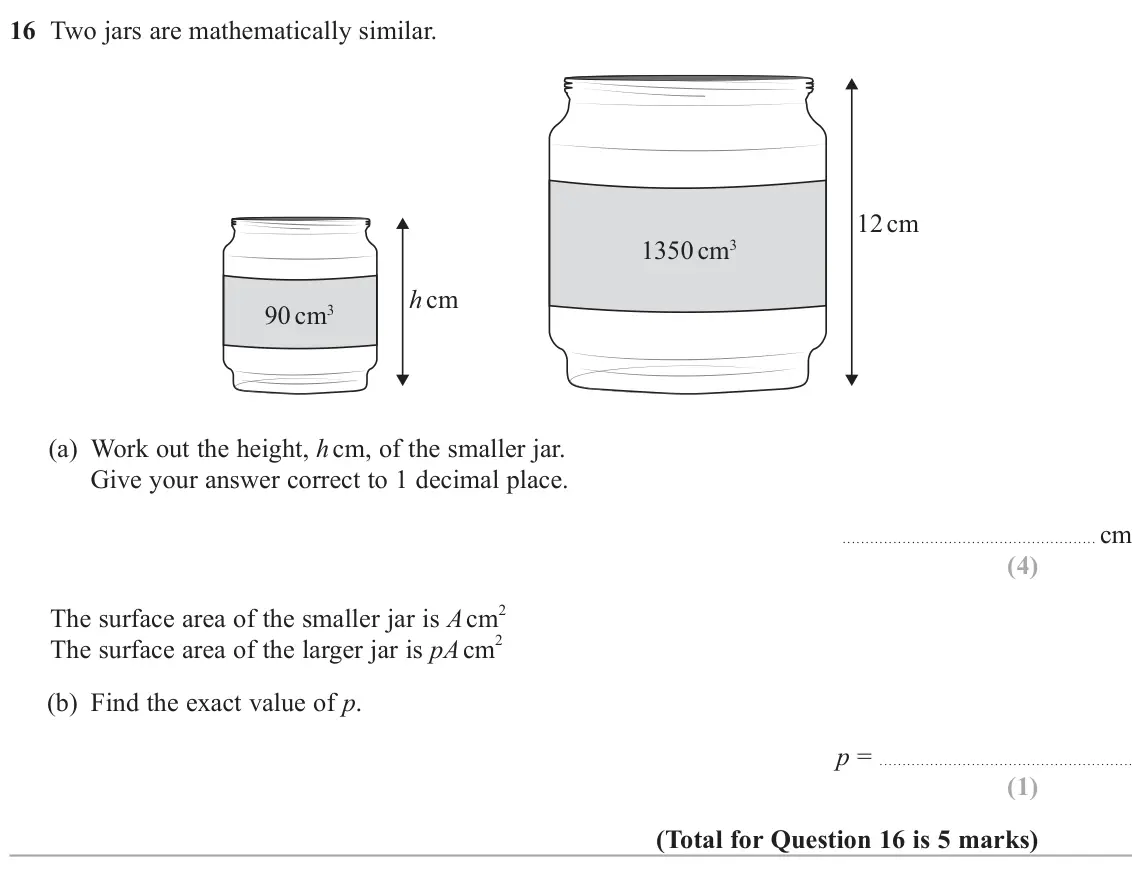

- June 2025, Paper 2H, Q16 (5 marks): Two jars are mathematically similar. 12 cm 1350 cm3 h cm 90 cm3 (a) Work out the height, h cm, of the smaller jar. Give your answer correct to 1 decimal place.

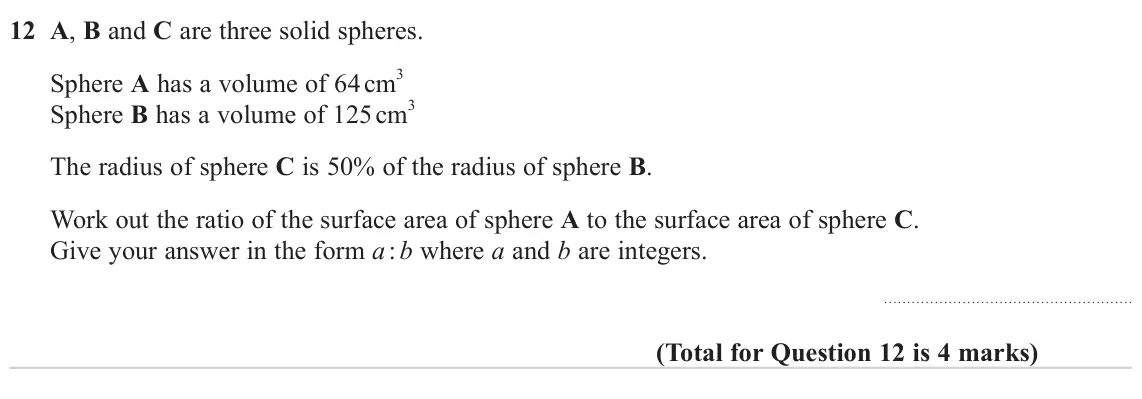

- November 2024, Paper 1H, Q12 (4 marks): A, B and C are three solid spheres. Sphere A has a volume of 64 cm 3 Sphere B has a volume of 125 cm 3 The radius of sphere C is 50% of the radius of sphere B.

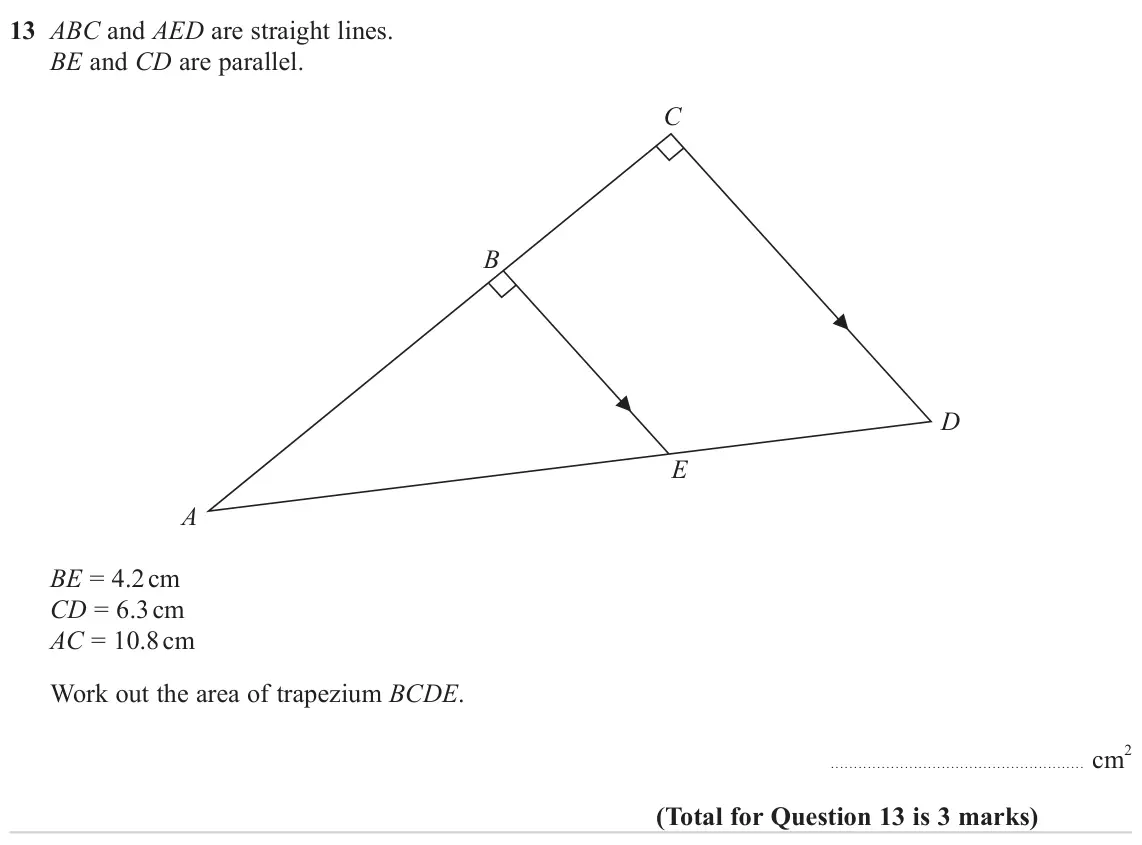

- November 2024, Paper 3H, Q13 (3 marks): ABC and AED are straight lines. BE and CD are parallel. C B D E A BE = 4.2 cm CD = 6.3 cm AC = 10.8 cm Work out the area of trapezium BCDE. cm 2

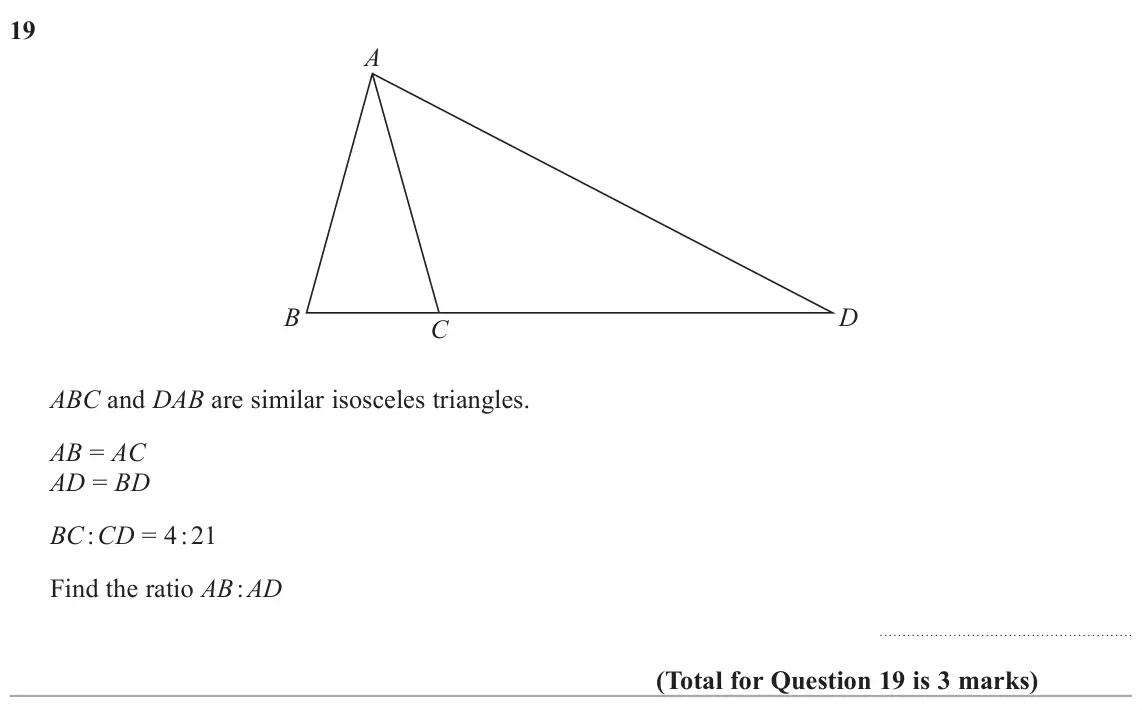

- June 2024, Paper 1H, Q19 (3 marks): A B D C ABC and DAB are similar isosceles triangles. AB = AC AD = BD BC : CD = 4 : 21 Find the ratio AB : AD

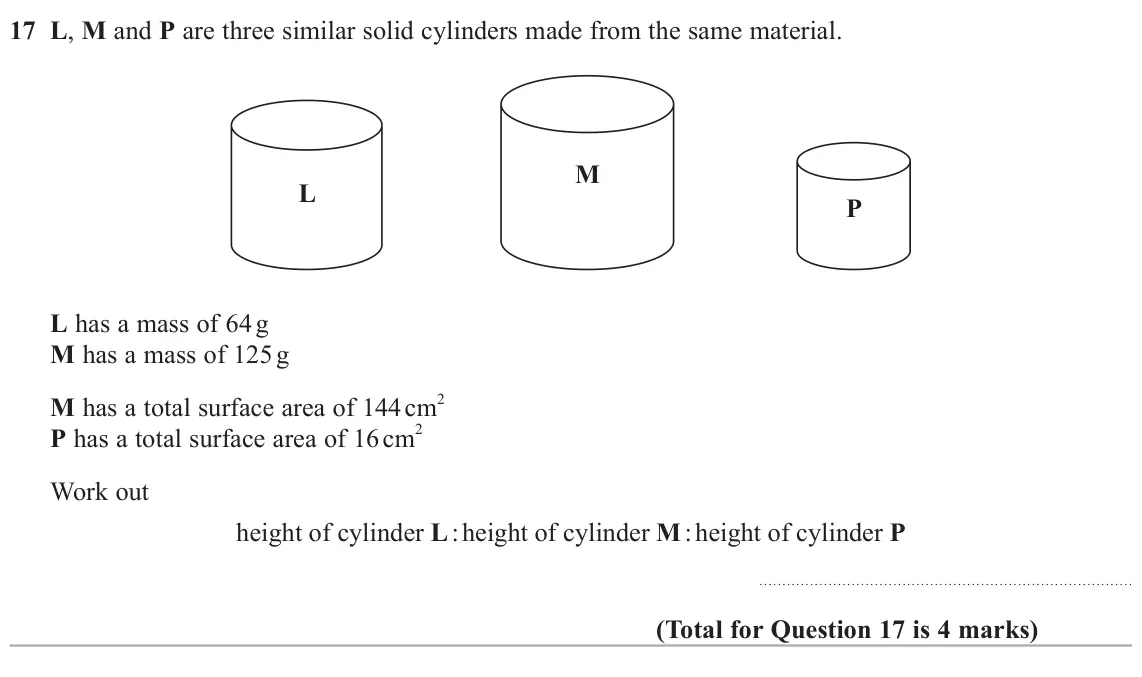

- June 2024, Paper 2H, Q17 (4 marks): L, M and P are three similar solid cylinders made from the same material. M L P L has a mass of 64 g M has a mass of 125 g 2 M has a total surface area of 144 c

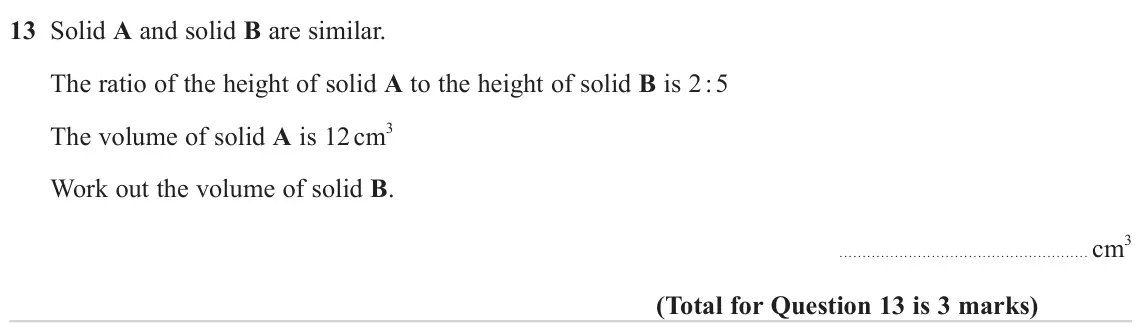

- November 2023, Paper 1H, Q13 (3 marks): Solid A and solid B are similar. The ratio of the height of solid A to the height of solid B is 2 : 5 The volume of solid A is 12 cm3 Work out the volume of sol

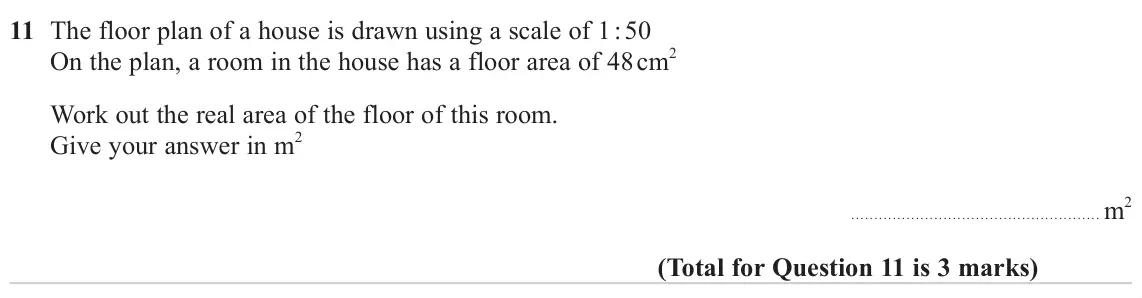

- November 2023, Paper 3H, Q11 (3 marks): The floor plan of a house is drawn using a scale of 1 : 50 On the plan, a room in the house has a floor area of 48 cm2 Work out the real area of the floor of th

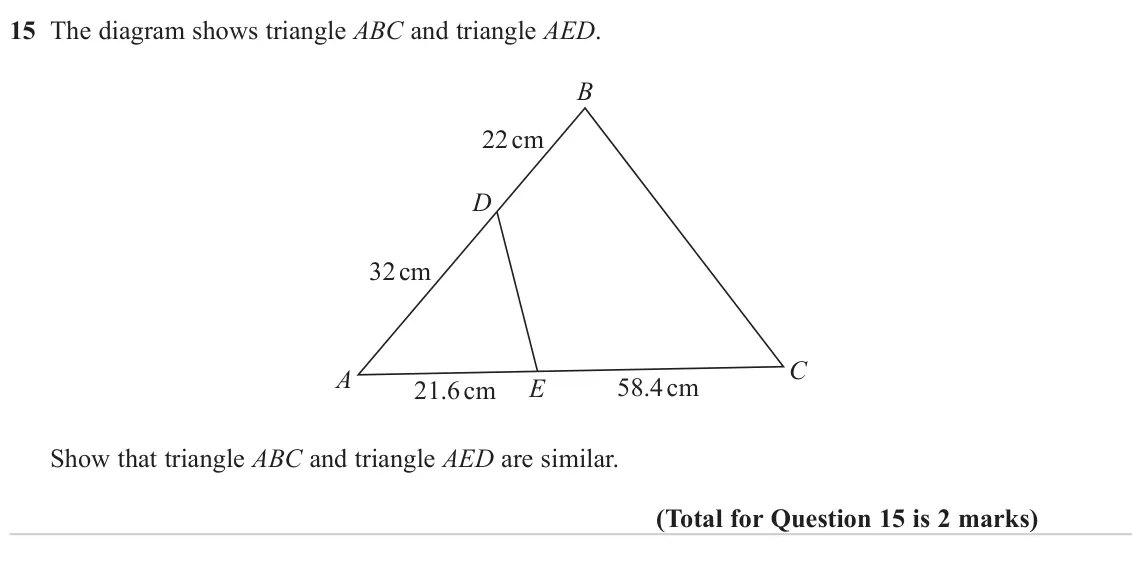

- November 2023, Paper 3H, Q15 (2 marks): The diagram shows triangle ABC and triangle AED. B 22 cm D 32 cm C A 58.4 cm E 21.6 cm Show that triangle ABC and triangle AED are similar.
- November 2023, Paper 3H, Q19 (4 marks): 24 cm r Volume of sphere = 4 3 πr3 5 cm Volume of cone = 1 l h 3 πr2h r The diagram above shows a frustum F of a cone. The frustum is made by removing a cone wi

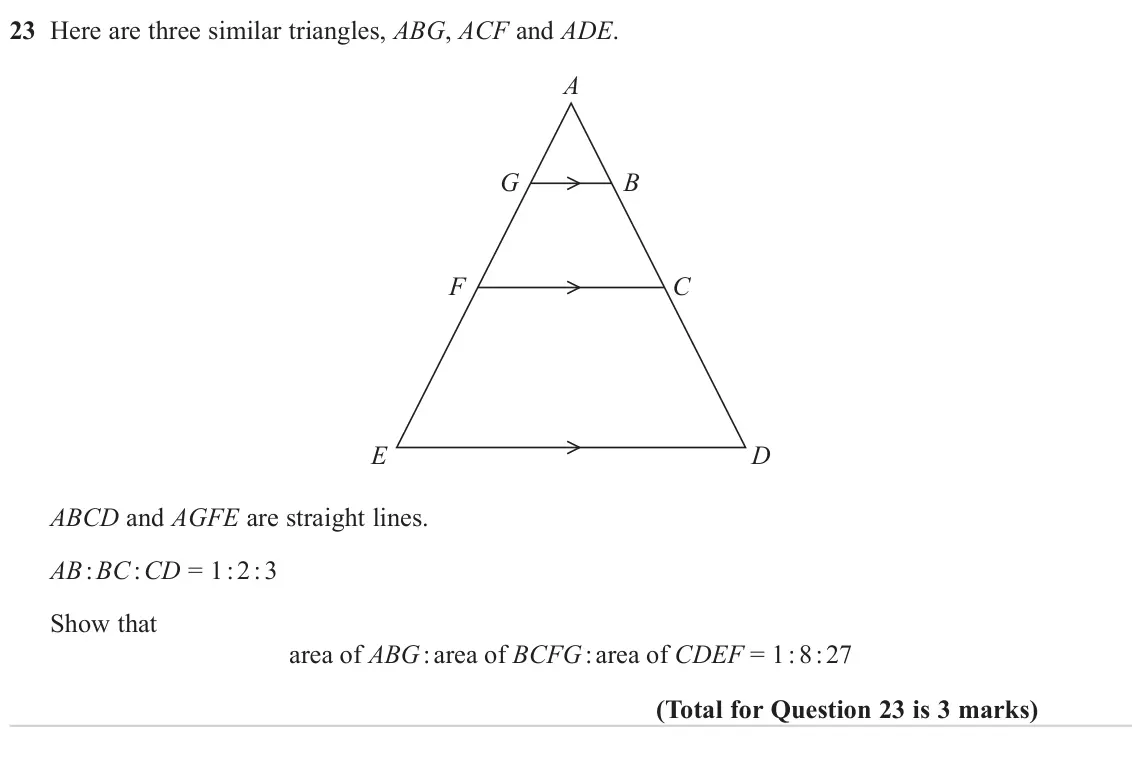

- June 2023, Paper 2H, Q23 (3 marks): Here are three similar triangles, ABG, ACF and ADE. A G B F C E D ABCD and AGFE are straight lines. AB : BC : CD = 1 : 2 : 3 Show that area of ABG : area of BCF
- June 2023, Paper 3H, Q18 (5 marks): A solid frustum is made by removing a small cone from a large cone as shown in the diagram. Curved surface area of cone = πrl 6 cm 10 cm l r 3 cm The slant heig

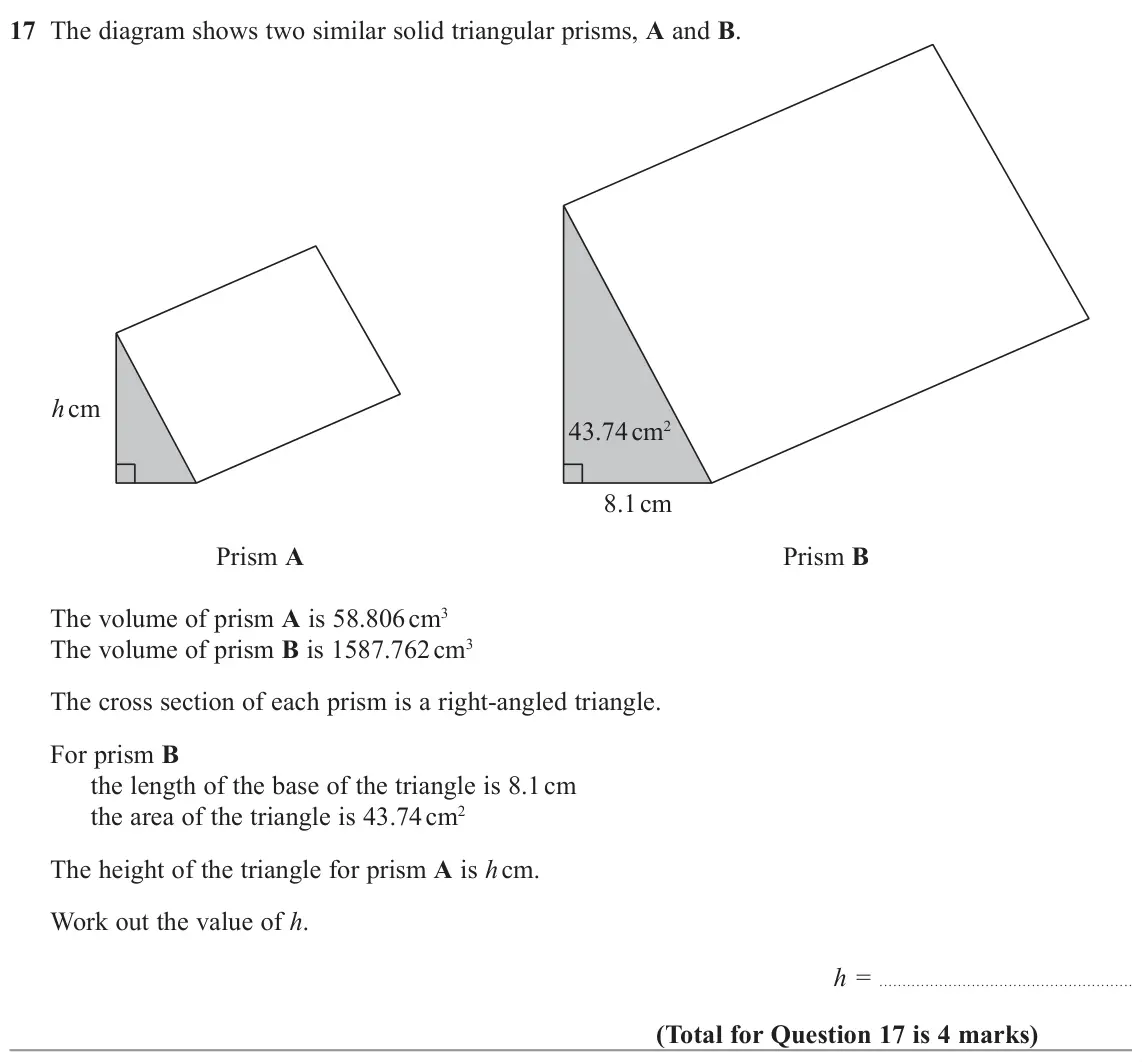

- November 2022, Paper 2H, Q17 (4 marks): The diagram shows two similar solid triangular prisms, A and B. h cm 43.74 cm2 8.1 cm Prism A Prism B The volume of prism A is 58.806 cm3 The volume of prism B

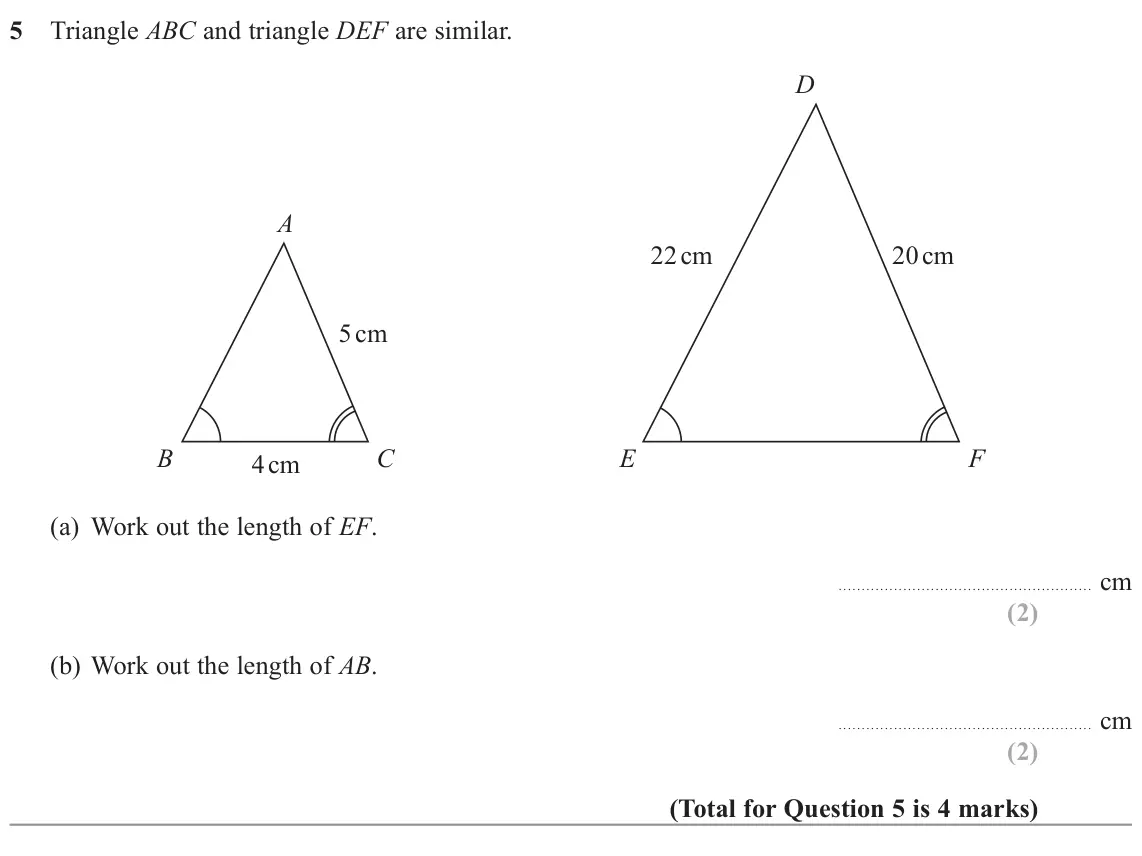

- November 2022, Paper 3H, Q5 (4 marks): Triangle ABC and triangle DEF are similar. D A 22 cm 20 cm 5 cm B C E F 4 cm (a) Work out the length of EF. cm (b) Work out the length of AB. cm

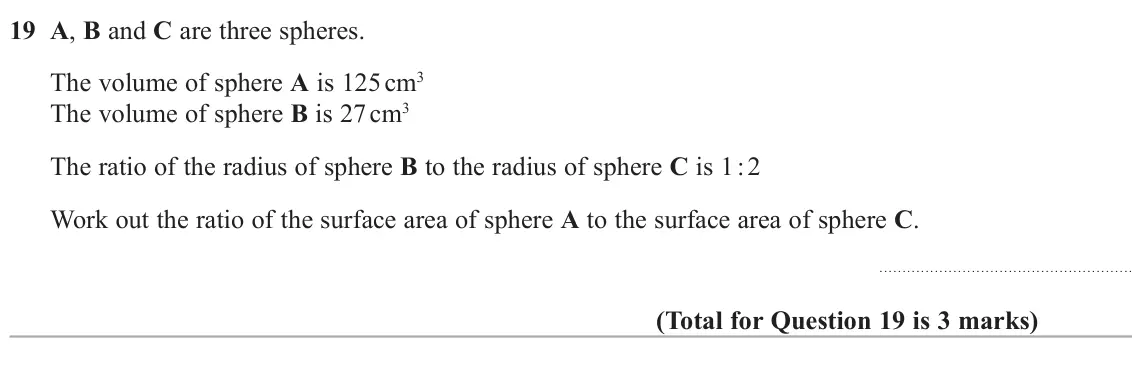

- November 2021, Paper 2H, Q19 (3 marks): A, B and C are three spheres. The volume of sphere A is 125 cm3 The volume of sphere B is 27 cm3 The ratio of the radius of sphere B to the radius of sphere C i

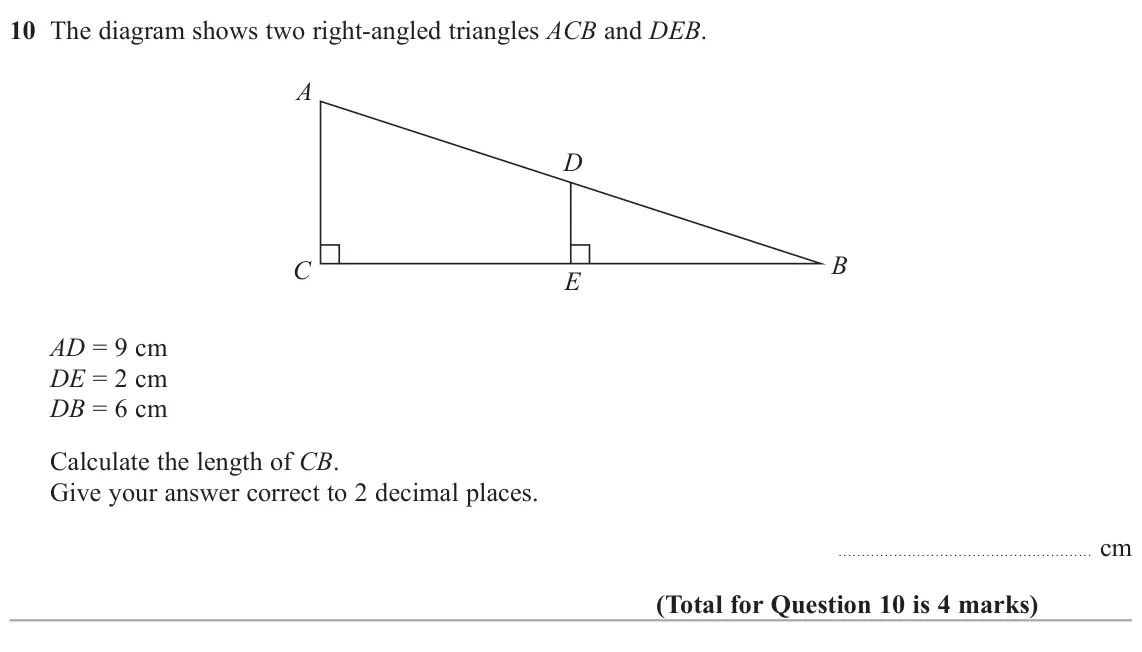

- November 2021, Paper 3H, Q10 (4 marks): The diagram shows two right-angled triangles ACB and DEB. A D B C E AD = 9 cm DE = 2 cm DB = 6 cm Calculate the length of CB. Give your answer correct to 2 deci

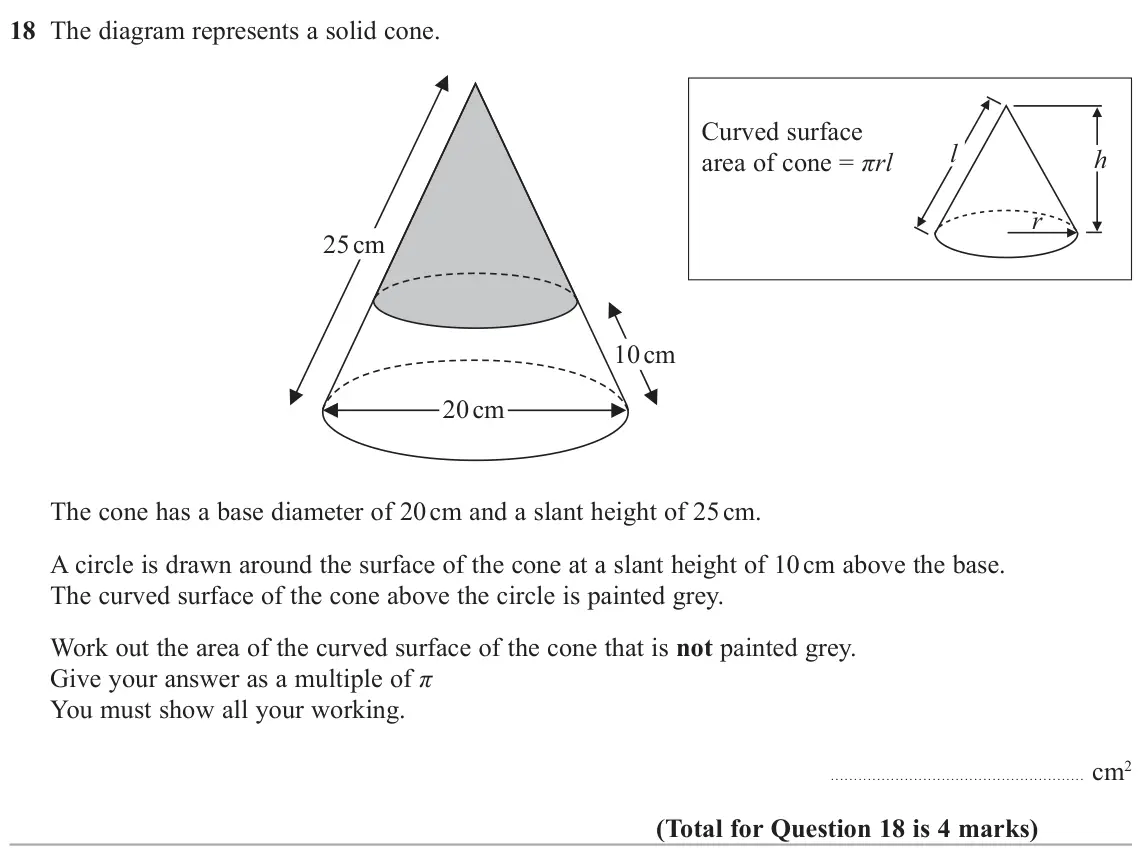

- November 2020, Paper 2H, Q18 (4 marks): The diagram represents a solid cone. Curved surface l h area of cone = πrl r 25 cm 10 cm 20 cm The cone has a base diameter of 20 cm and a slant height of 25 cm

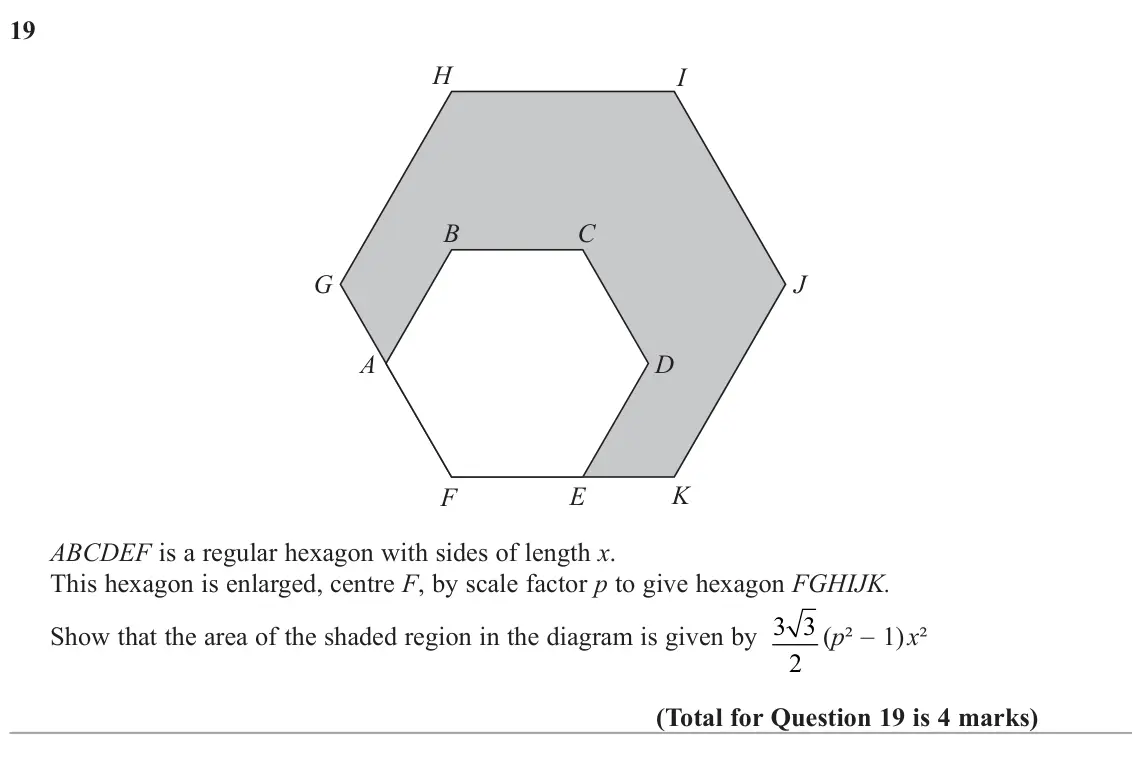

- November 2020, Paper 3H, Q19 (4 marks): H I B C G J A D K F E ABCDEF is a regular hexagon with sides of length x. This hexagon is enlarged, centre F, by scale factor p to give hexagon FGHIJK. Show tha

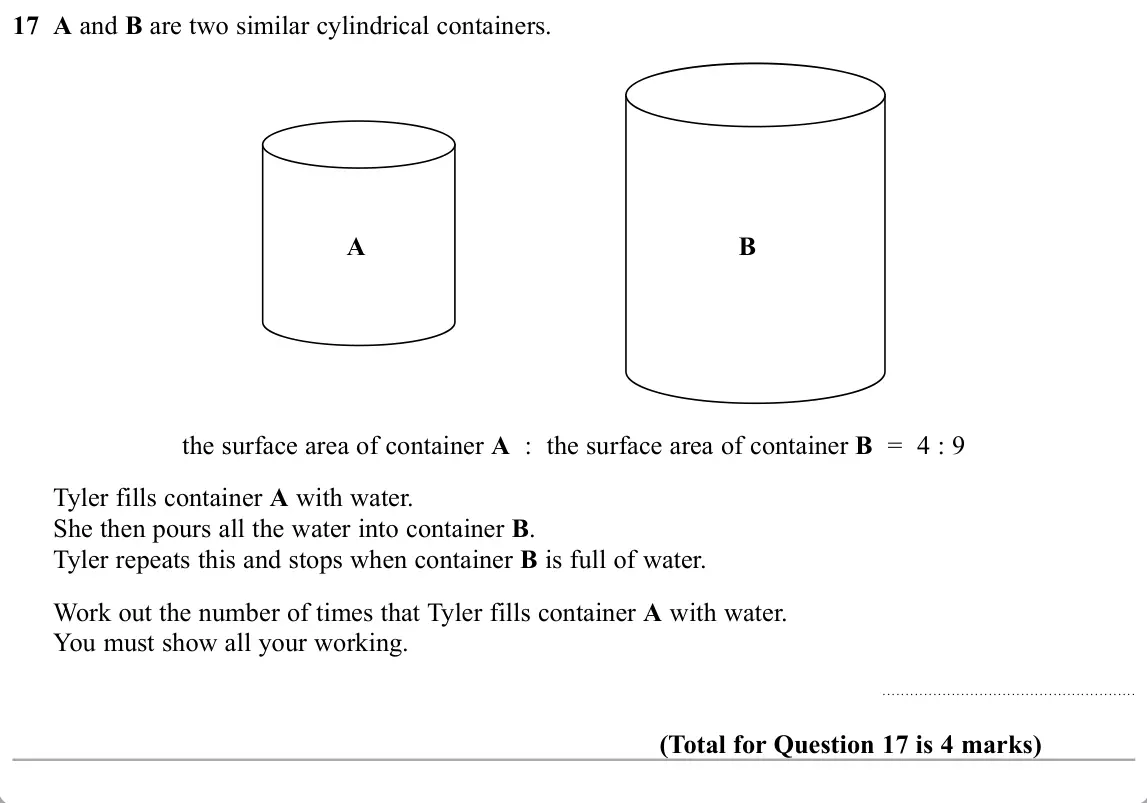

- November 2019, Paper 1H, Q17 (4 marks): A and B are two similar cylindrical containers. A B the surface area of container A : the surface area of container B = 4 : 9 Tyler fills container A with water

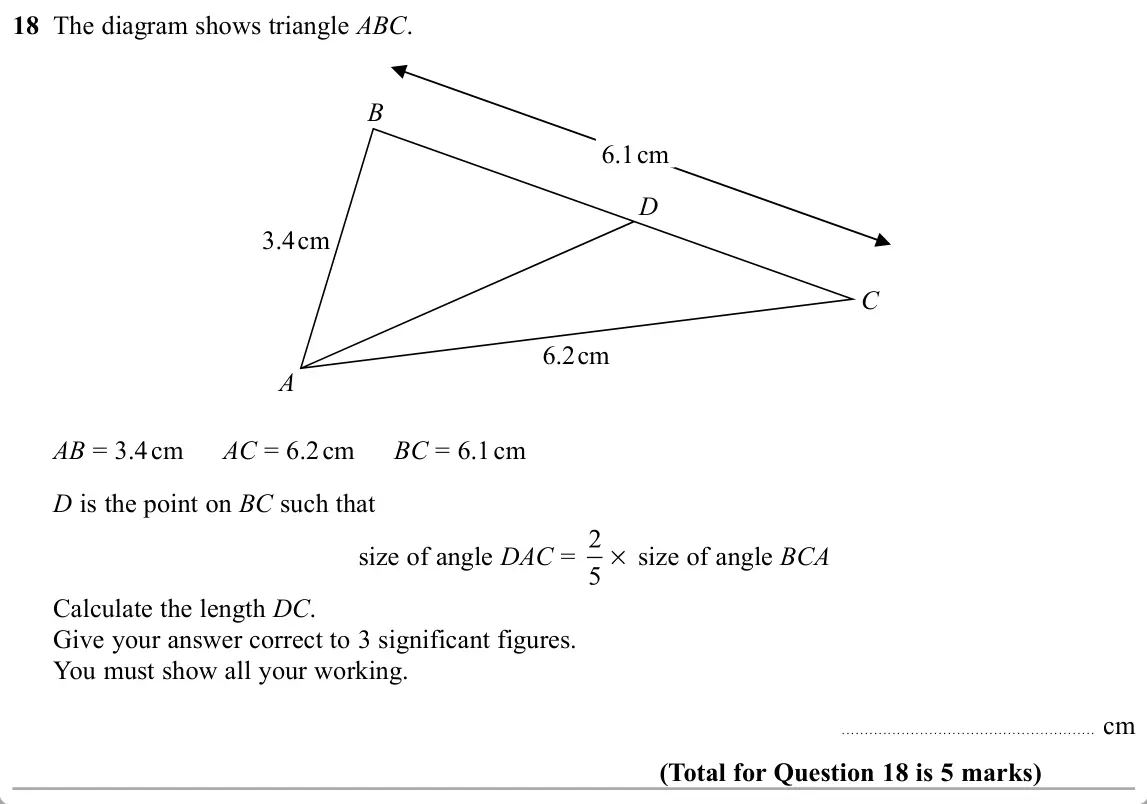

- November 2019, Paper 3H, Q18 (5 marks): The diagram shows triangle ABC. B 6.1cm D 3.4cm C 6.2cm A AB = 3.4 cm AC = 6.2 cm BC = 6.1 cm D is the point on BC such that size of angle DAC = size of angle B
- June 2019, Paper 2H, Q9 (4 marks): The circumference of circle B is 90% of the circumference of circle A. (a) Find the ratio of the area of circle A to the area of circle B. Square E has sides of
- November 2018, Paper 1H, Q15 (4 marks): Three solid shapes A, B and C are similar. The surface area of shape A is 4 cm2 The surface area of shape B is 25 cm2 The ratio of the volume of shape B to the
- June 2018, Paper 3H, Q13 (3 marks): Here are two similar solid shapes. A B surface area of shape A : surface area of shape B = 3 : 4 The volume of shape B is 10 cm3 Work out the volume of shape A.
- November 2017, Paper 1H, Q22 (5 marks): The two triangles in the diagram are similar. C x cm B 8 cm D 3 cm E 12 cm A There are two possible values of x. Work out each of these values. State any assump
- November 2017, Paper 3H, Q14 (3 marks): Cone A and cone B are mathematically similar. The ratio of the volume of cone A to the volume of cone B is 27 : 8 The surface area of cone A is 297 cm2 Show tha
- June 2017, Paper 2H, Q5 (4 marks): A B E D C ABC and EDC are straight lines. EA is parallel to DB. EC = 8.1 cm. DC = 5.4 cm. DB = 2.6 cm. (a) Work out the length of AE. cm AC = 6.15 cm. (b) Work
