Congruent triangles: Edexcel GCSE Maths questions

Every Edexcel GCSE Maths exam question on G5 Congruent triangles, 2017–2025, with its mark scheme and examiner’s report.

Find questions997
Exam
All years
Calculator

997 questions

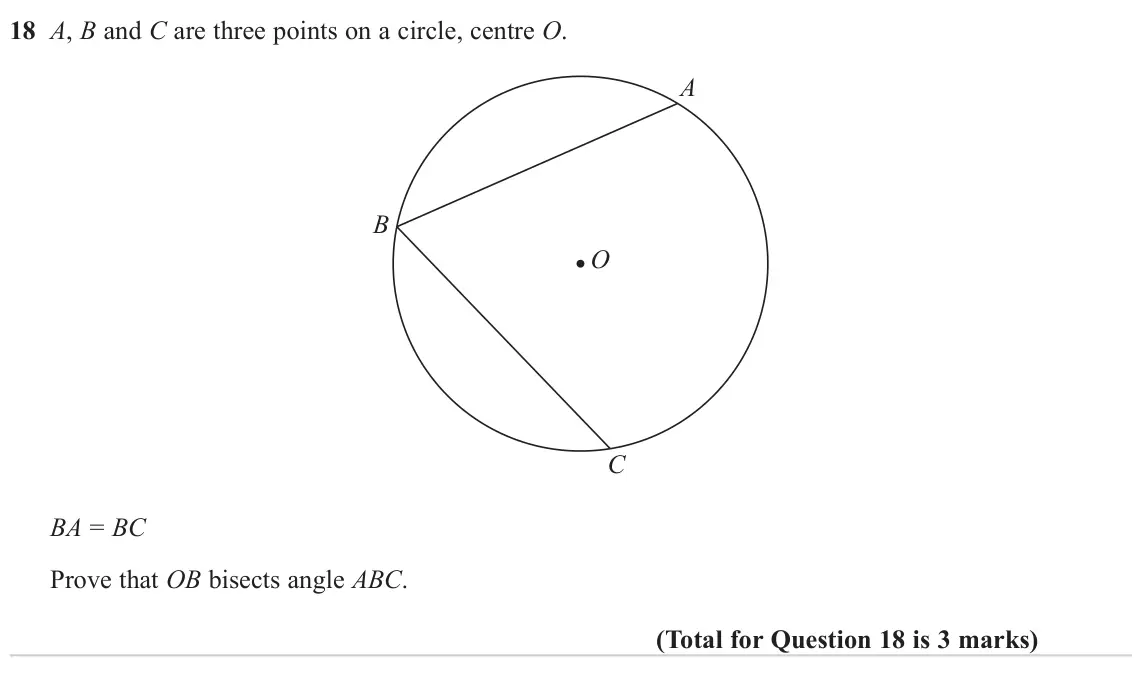

  1. Q18

    November 2024 · Paper 2H

    3 marksG6 Geometric proofG5 Congruent triangles
    The whole paper ↗
    November 2024 Paper 2H, question 18: A, B and C are three points on a circle, centre O. A B O C BA = BC Prove that OB bisects angle ABC.

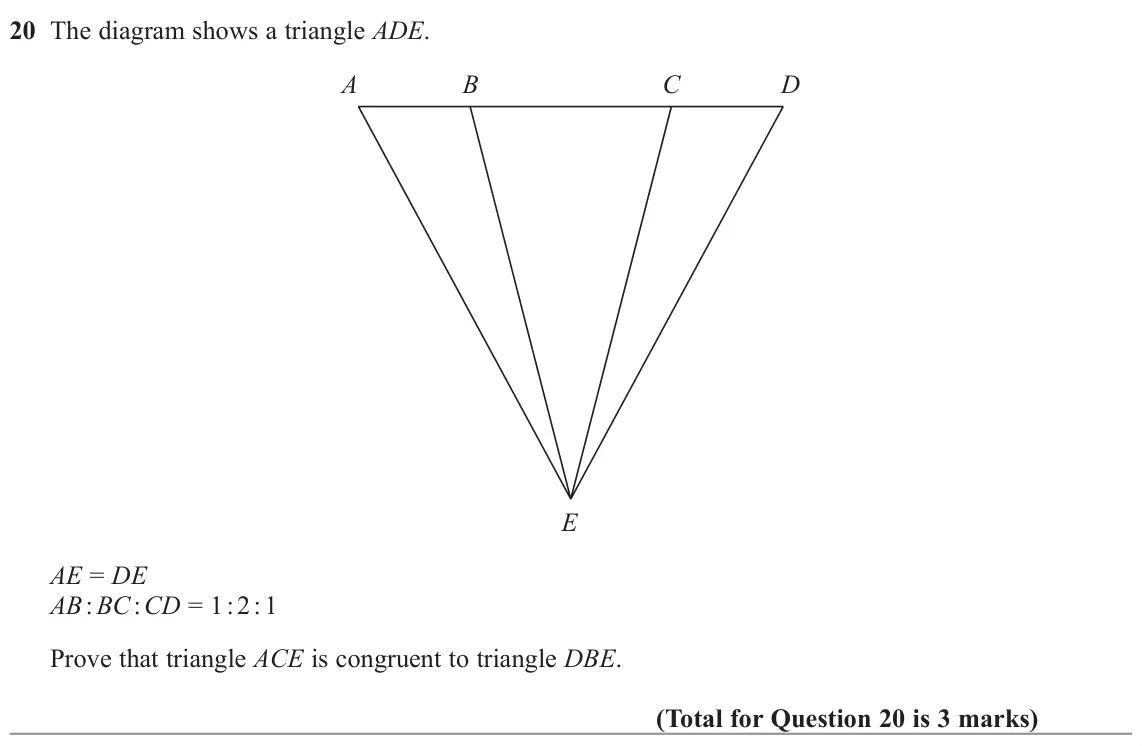

  2. Q20

    November 2022 · Paper 3H

    3 marksG5 Congruent trianglesG6 Geometric proof
    The whole paper ↗
    November 2022 Paper 3H, question 20: The diagram shows a triangle ADE. A B C D E AE = DE AB : BC : CD = 1 : 2 : 1 Prove that triangle ACE is congruent to triangle DBE.

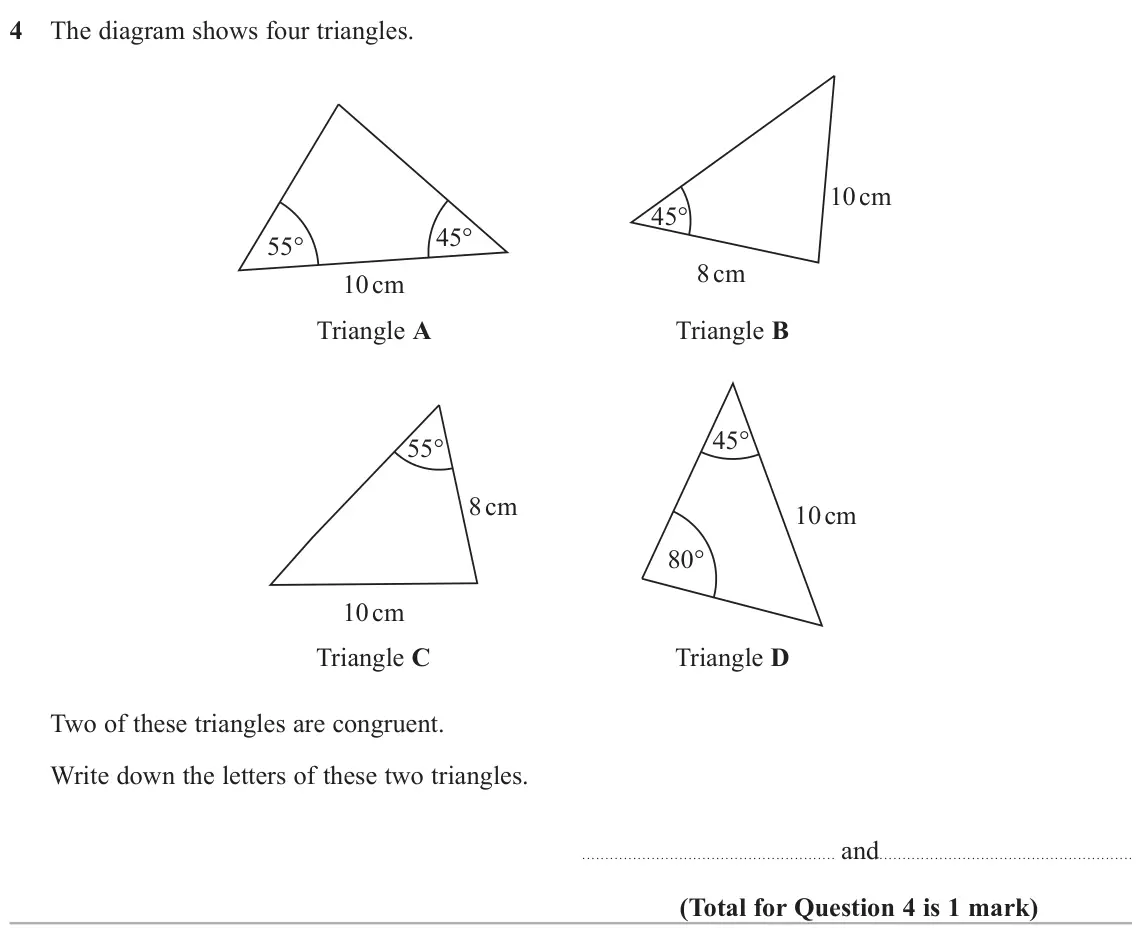

  3. Q4

    November 2020 · Paper 1H

    1 markG5 Congruent triangles
    The whole paper ↗
    November 2020 Paper 1H, question 4: The diagram shows four triangles. 10 cm 45° 45° 55° 8 cm 10 cm Triangle A Triangle B 45° 55° 8 cm 10 cm 80° 10 cm Triangle C Triangle D Two of these triangles a

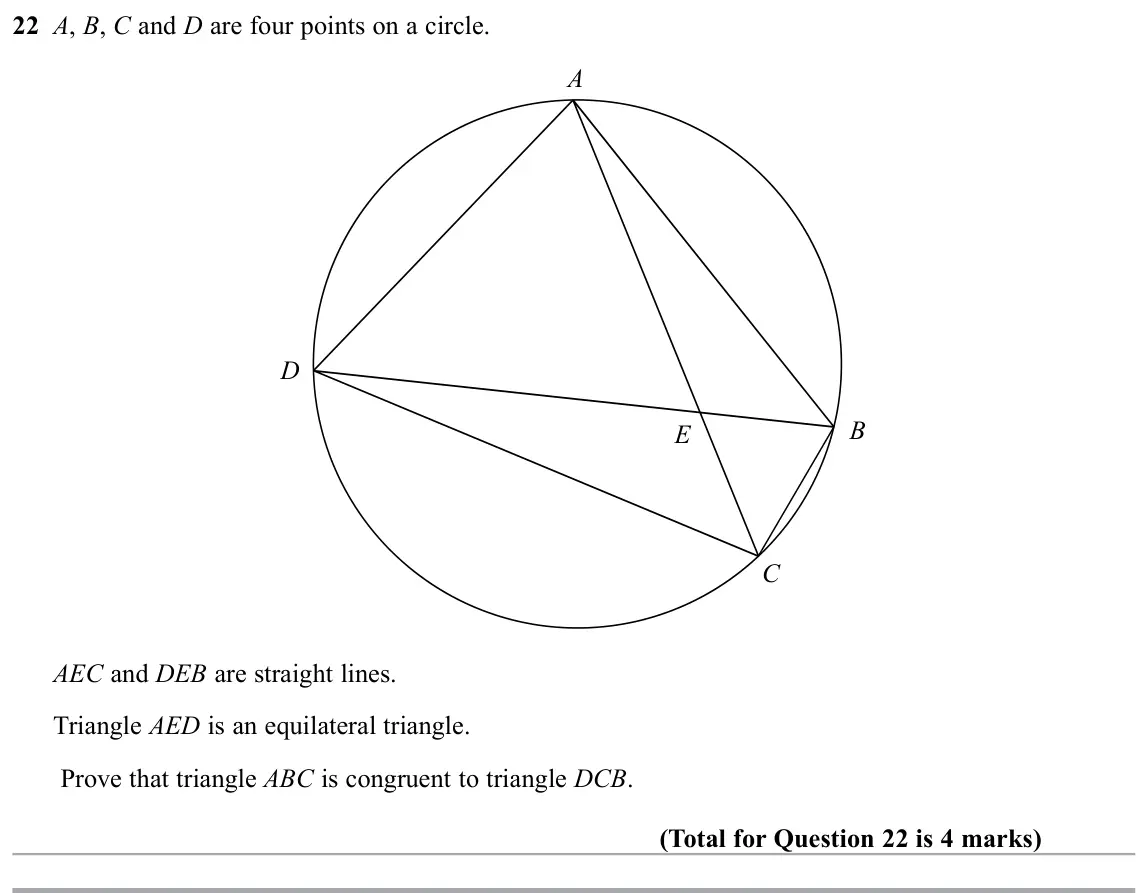

  4. Q22

    November 2019 · Paper 1H

    4 marksG6 Geometric proofG5 Congruent triangles
    The whole paper ↗
    November 2019 Paper 1H, question 22: A, B, C and D are four points on a circle. A D B E C AEC and DEB are straight lines. Triangle AED is an equilateral triangle. Prove that triangle ABC is congrue

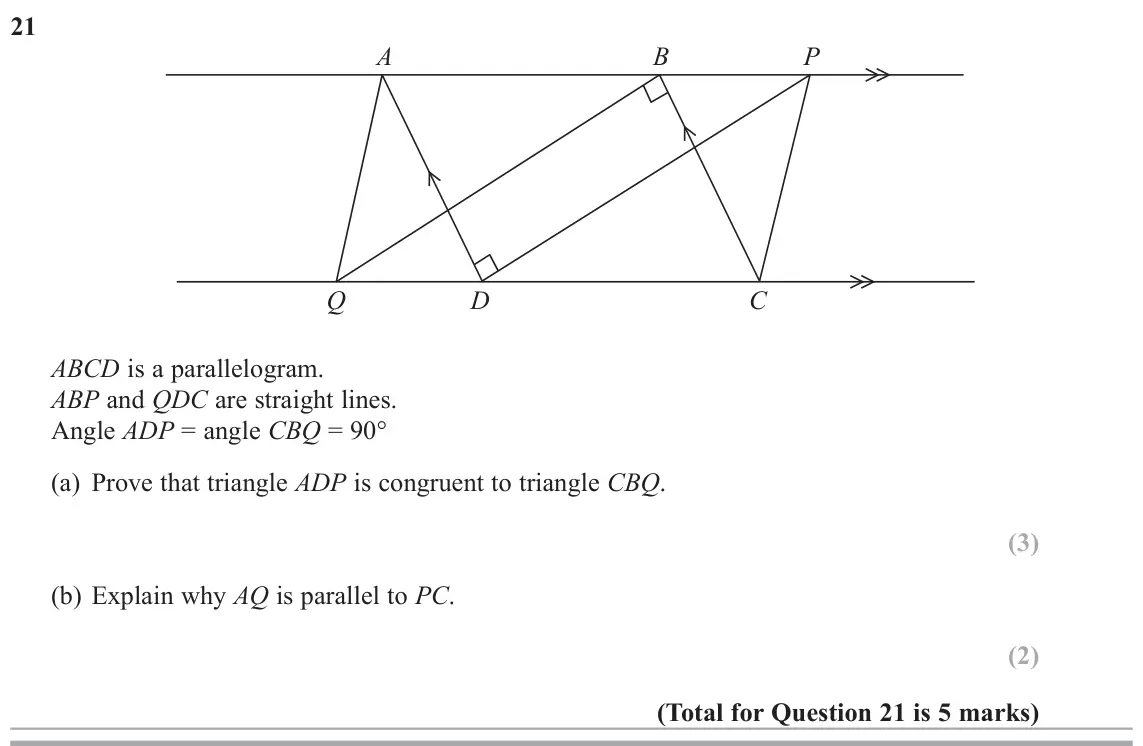

  5. Q21

    June 2018 · Paper 3H

    5 marksG5 Congruent trianglesG6 Geometric proof
    The whole paper ↗
    June 2018 Paper 3H, question 21: A B P Q D C ABCD is a parallelogram. ABP and QDC are straight lines. Angle ADP = angle CBQ = 90q (a) Prove that triangle ADP is congruent to triangle CBQ. (b) E

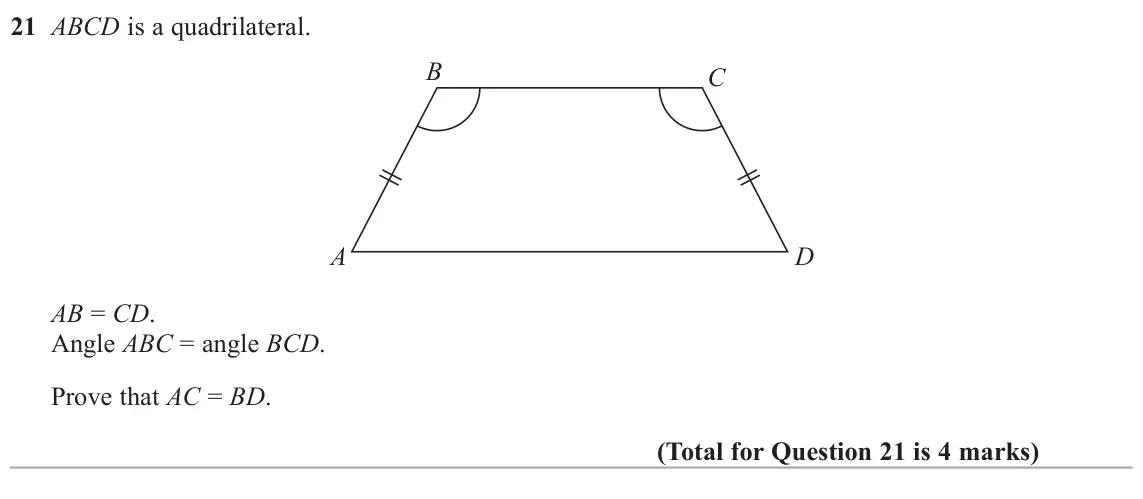

  6. Q21

    June 2017 · Paper 1H

    4 marksG6 Geometric proofG5 Congruent triangles
    The whole paper ↗
    June 2017 Paper 1H, question 21: ABCD is a quadrilateral. B C A D AB = CD. Angle ABC = angle BCD. Prove that AC = BD.
All 6 questions on Congruent triangles, as a list
  1. November 2024, Paper 2H, Q18 (3 marks): A, B and C are three points on a circle, centre O. A B O C BA = BC Prove that OB bisects angle ABC.
  2. November 2022, Paper 3H, Q20 (3 marks): The diagram shows a triangle ADE. A B C D E AE = DE AB : BC : CD = 1 : 2 : 1 Prove that triangle ACE is congruent to triangle DBE.
  3. November 2020, Paper 1H, Q4 (1 mark): The diagram shows four triangles. 10 cm 45° 45° 55° 8 cm 10 cm Triangle A Triangle B 45° 55° 8 cm 10 cm 80° 10 cm Triangle C Triangle D Two of these triangles a
  4. November 2019, Paper 1H, Q22 (4 marks): A, B, C and D are four points on a circle. A D B E C AEC and DEB are straight lines. Triangle AED is an equilateral triangle. Prove that triangle ABC is congrue
  5. June 2018, Paper 3H, Q21 (5 marks): A B P Q D C ABCD is a parallelogram. ABP and QDC are straight lines. Angle ADP = angle CBQ = 90q (a) Prove that triangle ADP is congruent to triangle CBQ. (b) E
  6. June 2017, Paper 1H, Q21 (4 marks): ABCD is a quadrilateral. B C A D AB = CD. Angle ABC = angle BCD. Prove that AC = BD.
