plumiCircle theorems: Edexcel GCSE Maths questions
Every Edexcel GCSE Maths exam question on G10 Circle theorems, 2017–2025, with its mark scheme and examiner’s report.
Find questions997
Exam
All years
Calculator
All 19 questions on Circle theorems, as a list

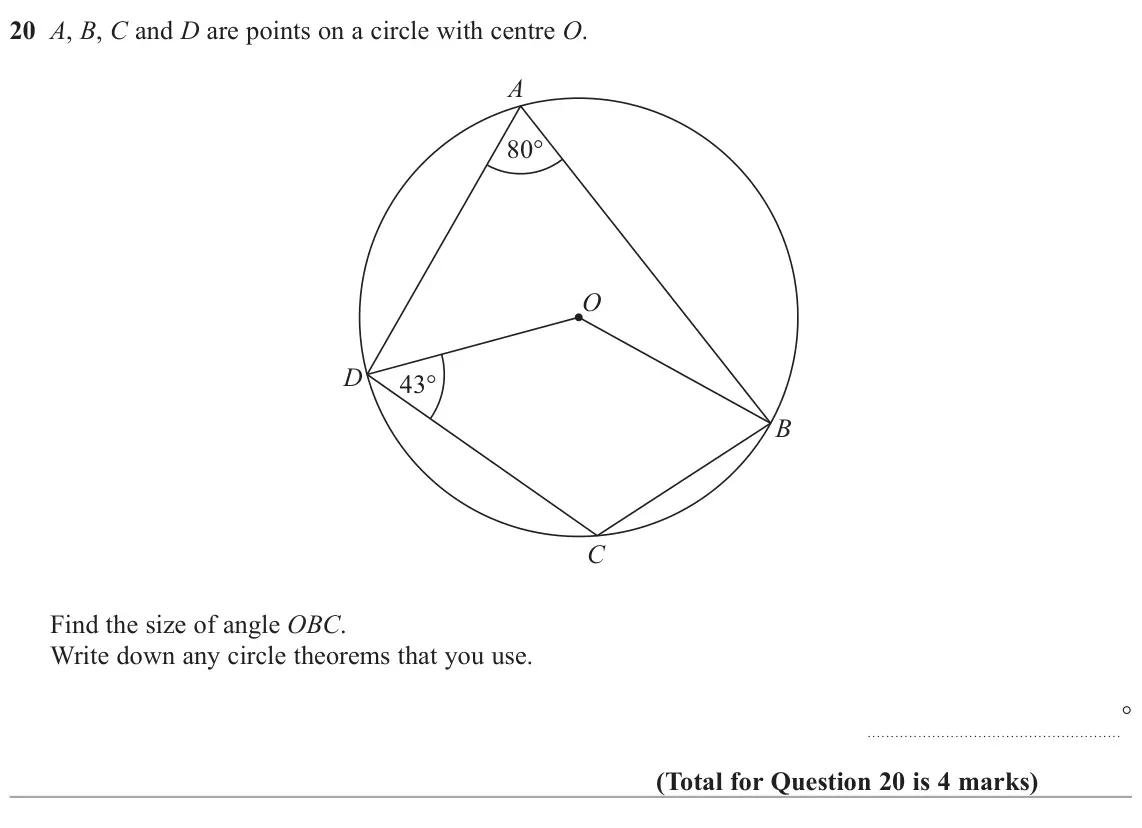

- June 2025, Paper 3H, Q20 (4 marks): A, B, C and D are points on a circle with centre O. A 80 O D 43 B C Find the size of angle OBC. Write down any circle theorems that you use. °

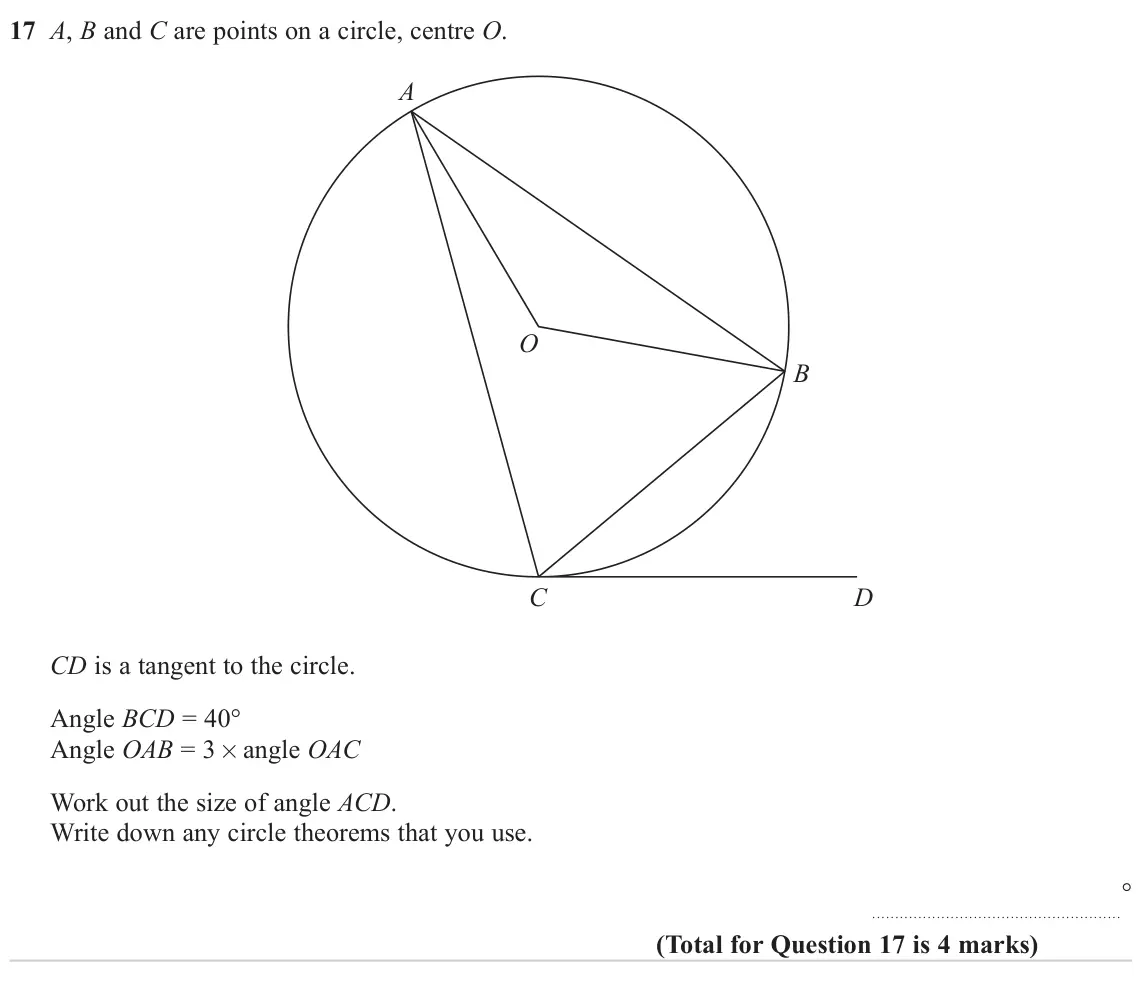

- November 2024, Paper 1H, Q17 (4 marks): A, B and C are points on a circle, centre O. A O B C D CD is a tangent to the circle. Angle BCD = 40° Angle OAB = 3 × angle OAC Work out the size of angle ACD.

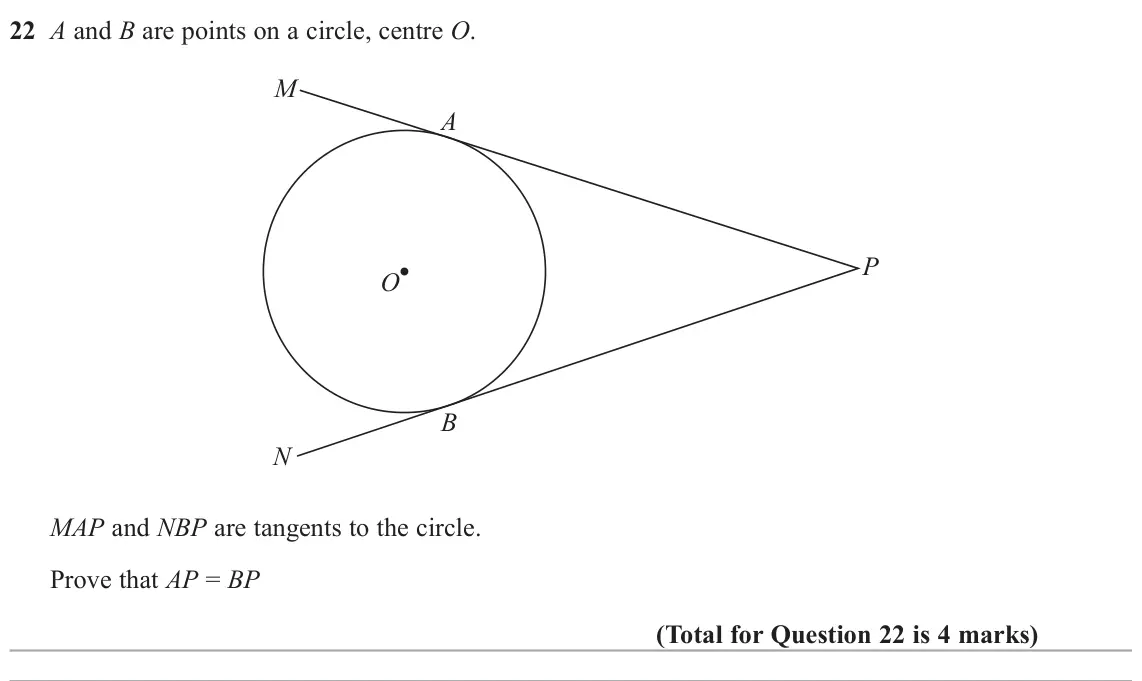

- June 2024, Paper 2H, Q22 (4 marks): A and B are points on a circle, centre O. M A P O B N MAP and NBP are tangents to the circle. Prove that AP = BP

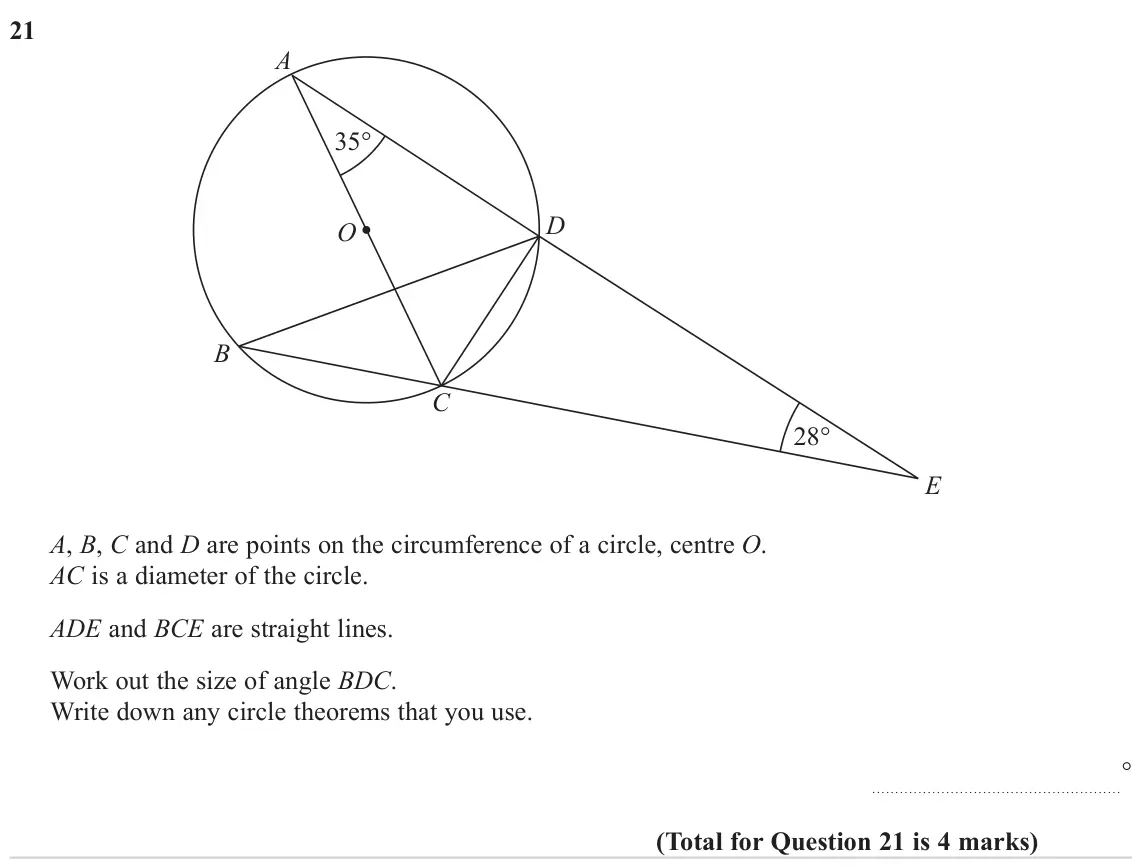

- November 2023, Paper 3H, Q21 (4 marks): A 35° D O B C 28° E A, B, C and D are points on the circumference of a circle, centre O. AC is a diameter of the circle. ADE and BCE are straight lines. Work ou

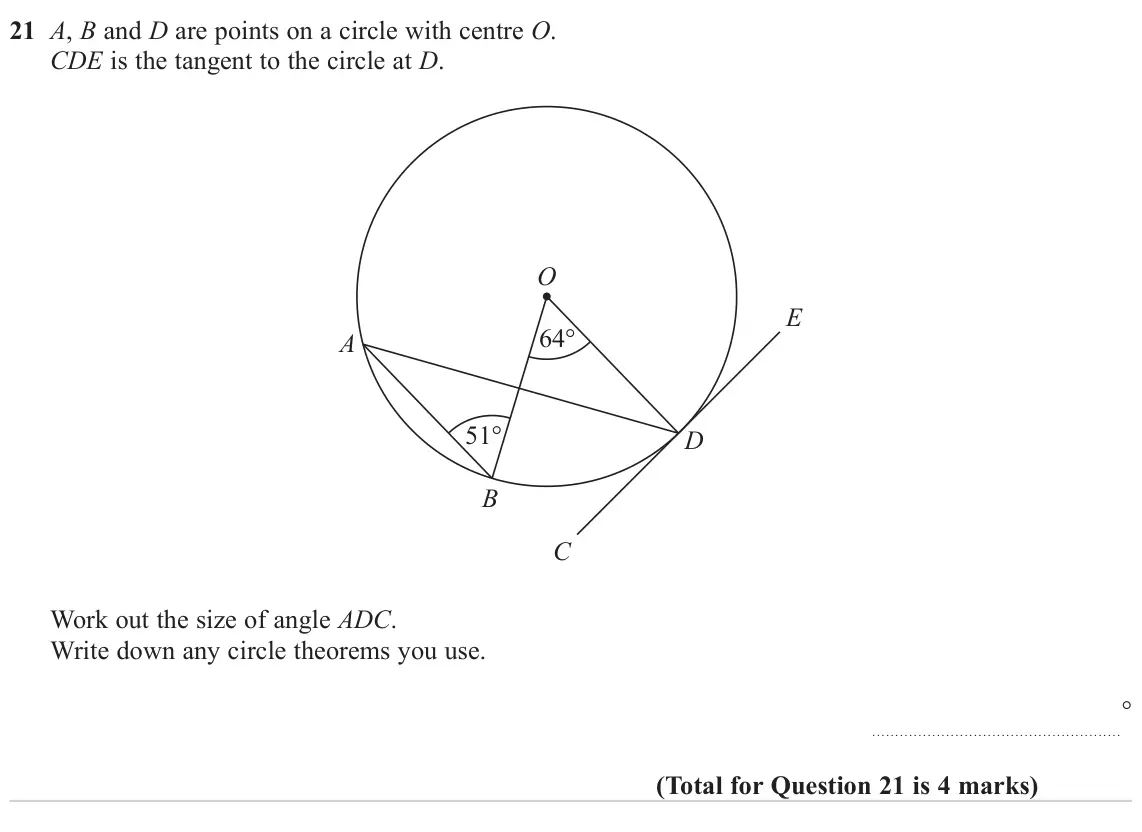

- June 2023, Paper 1H, Q21 (4 marks): A, B and D are points on a circle with centre O. CDE is the tangent to the circle at D. O E 64° A 51° D B C Work out the size of angle ADC. Write down any circl

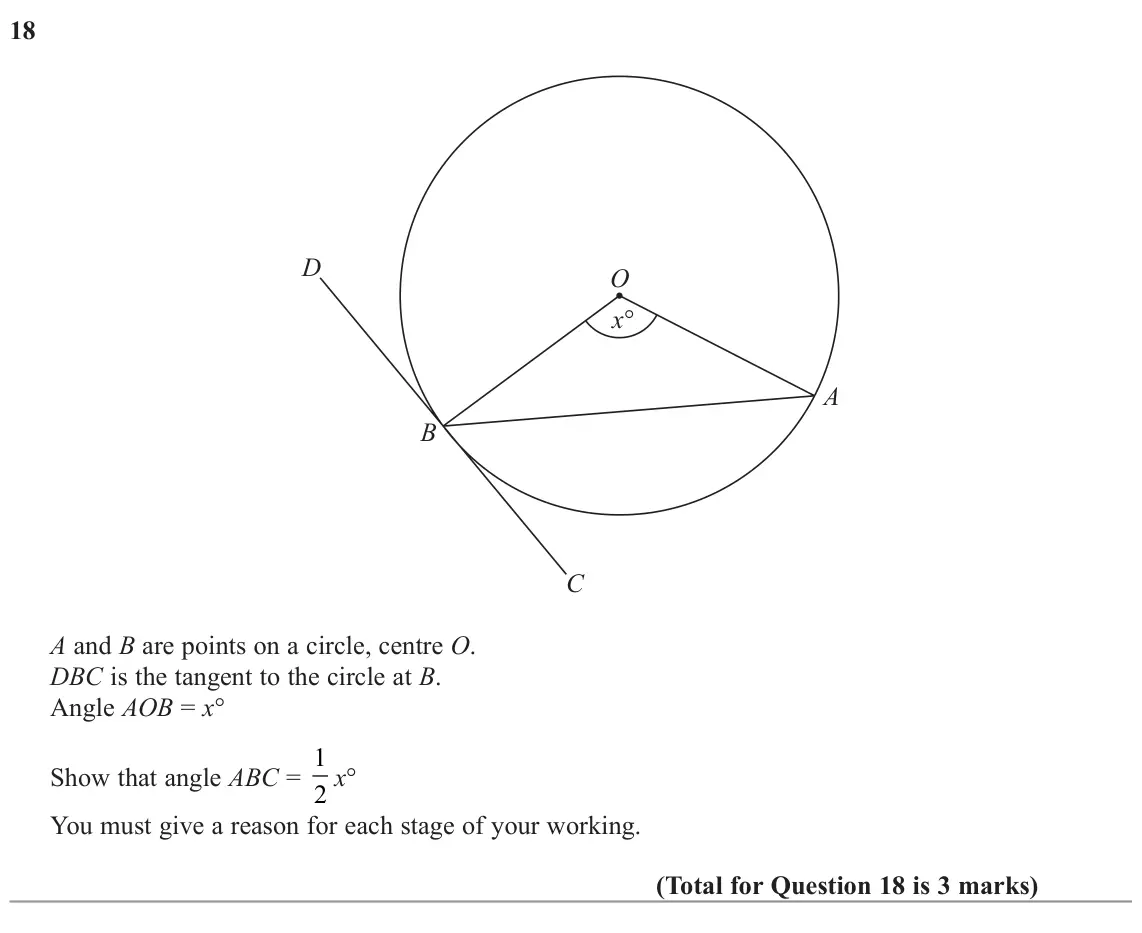

- November 2022, Paper 1H, Q18 (3 marks): D O x° A B C A and B are points on a circle, centre O. DBC is the tangent to the circle at B. Angle AOB = x° Show that angle ABC = 1 2 x° You must give a reason

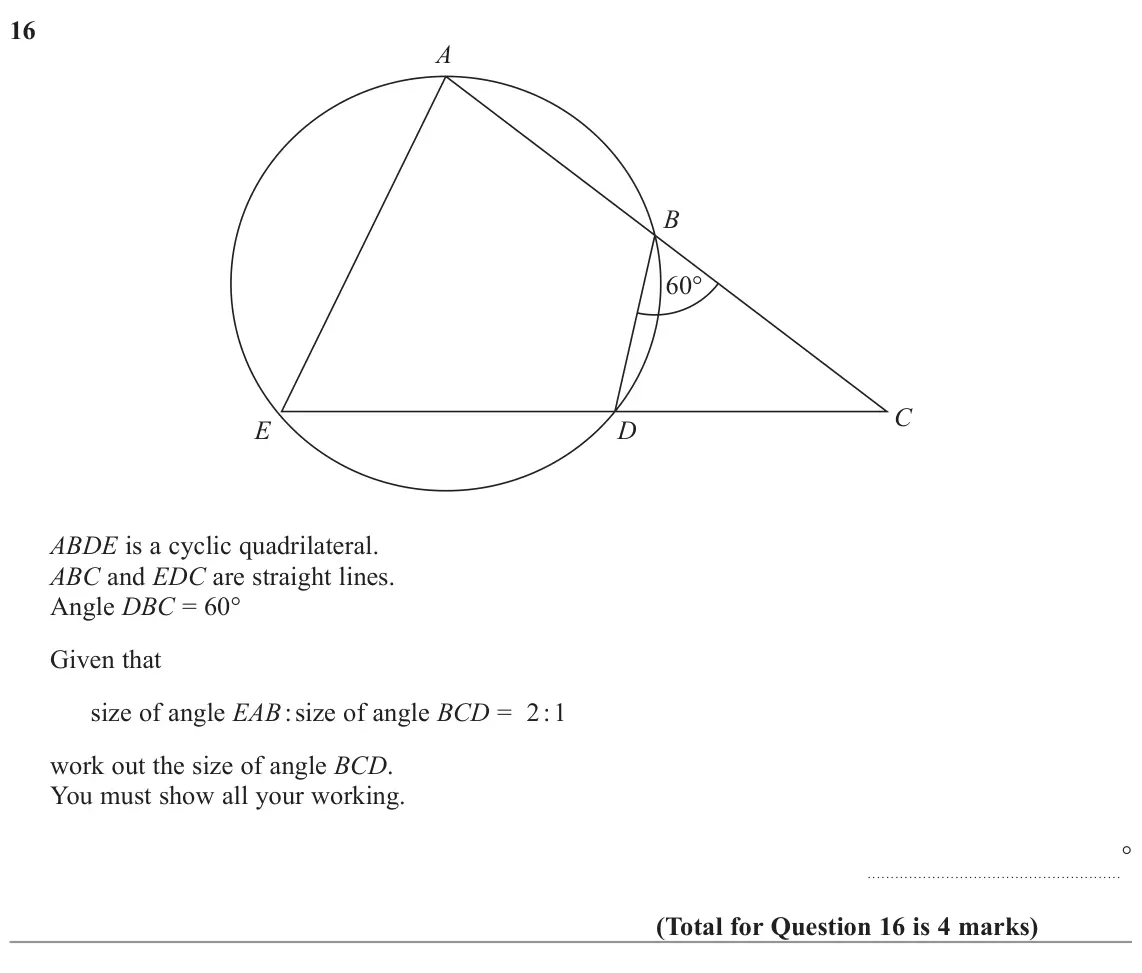

- November 2022, Paper 3H, Q16 (4 marks): A B 60° C E D ABDE is a cyclic quadrilateral. ABC and EDC are straight lines. Angle DBC = 60° Given that size of angle EAB : size of angle BCD = 2 : 1 work out

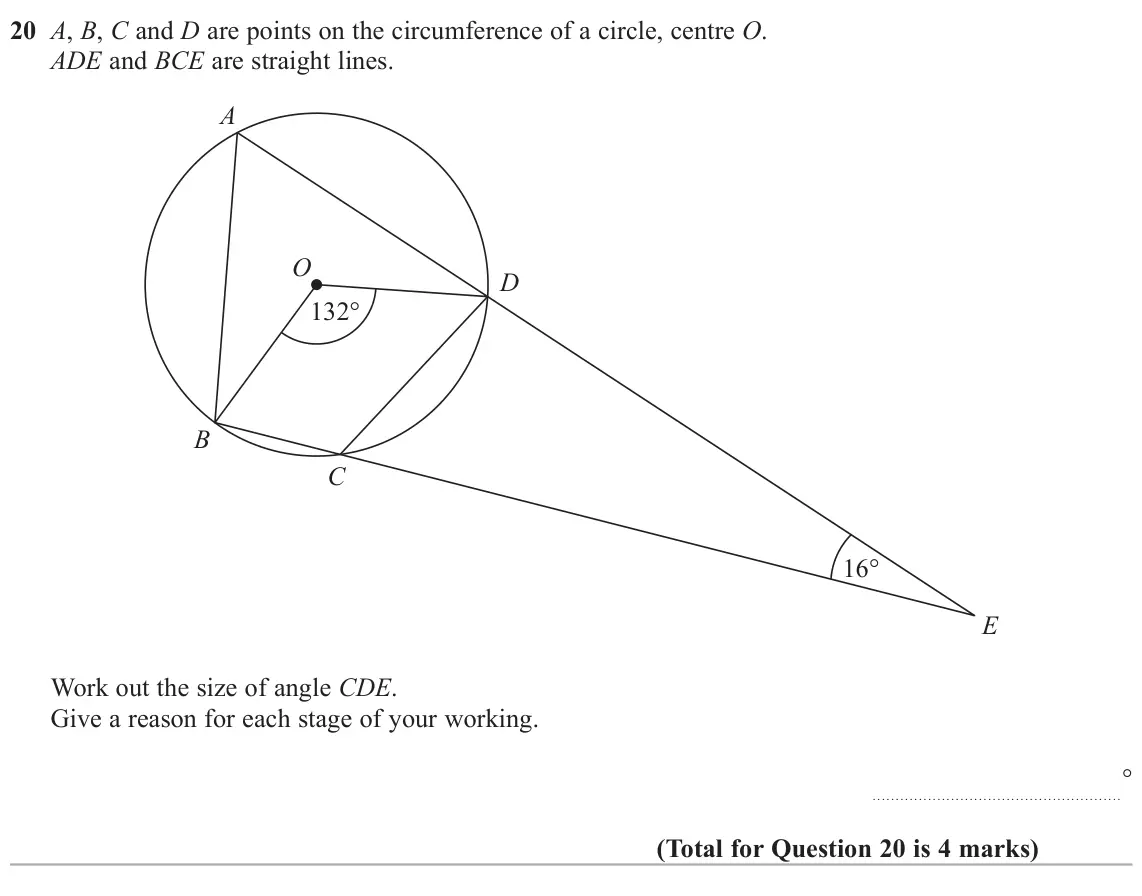

- June 2022, Paper 2H, Q20 (4 marks): A, B, C and D are points on the circumference of a circle, centre O. ADE and BCE are straight lines. A O D 132° B C 16° E Work out the size of angle CDE. Give a

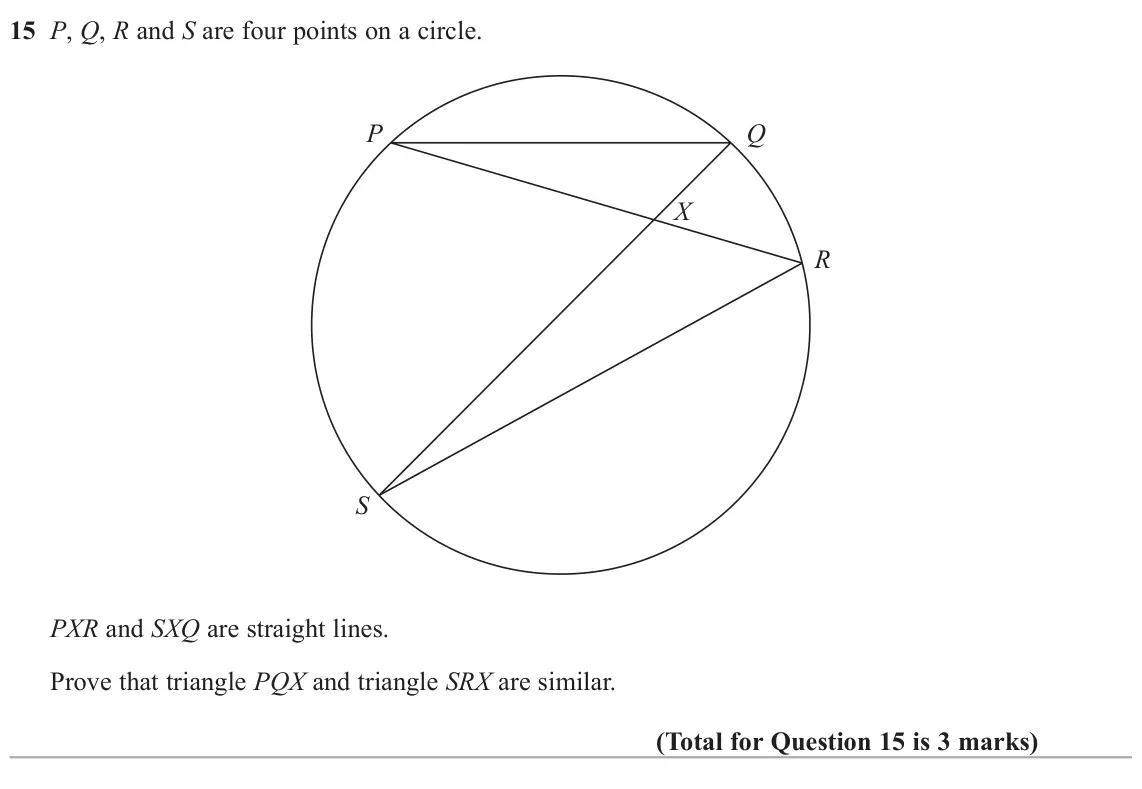

- June 2022, Paper 3H, Q15 (3 marks): P, Q, R and S are four points on a circle. P Q X R S PXR and SXQ are straight lines. Prove that triangle PQX and triangle SRX are similar.

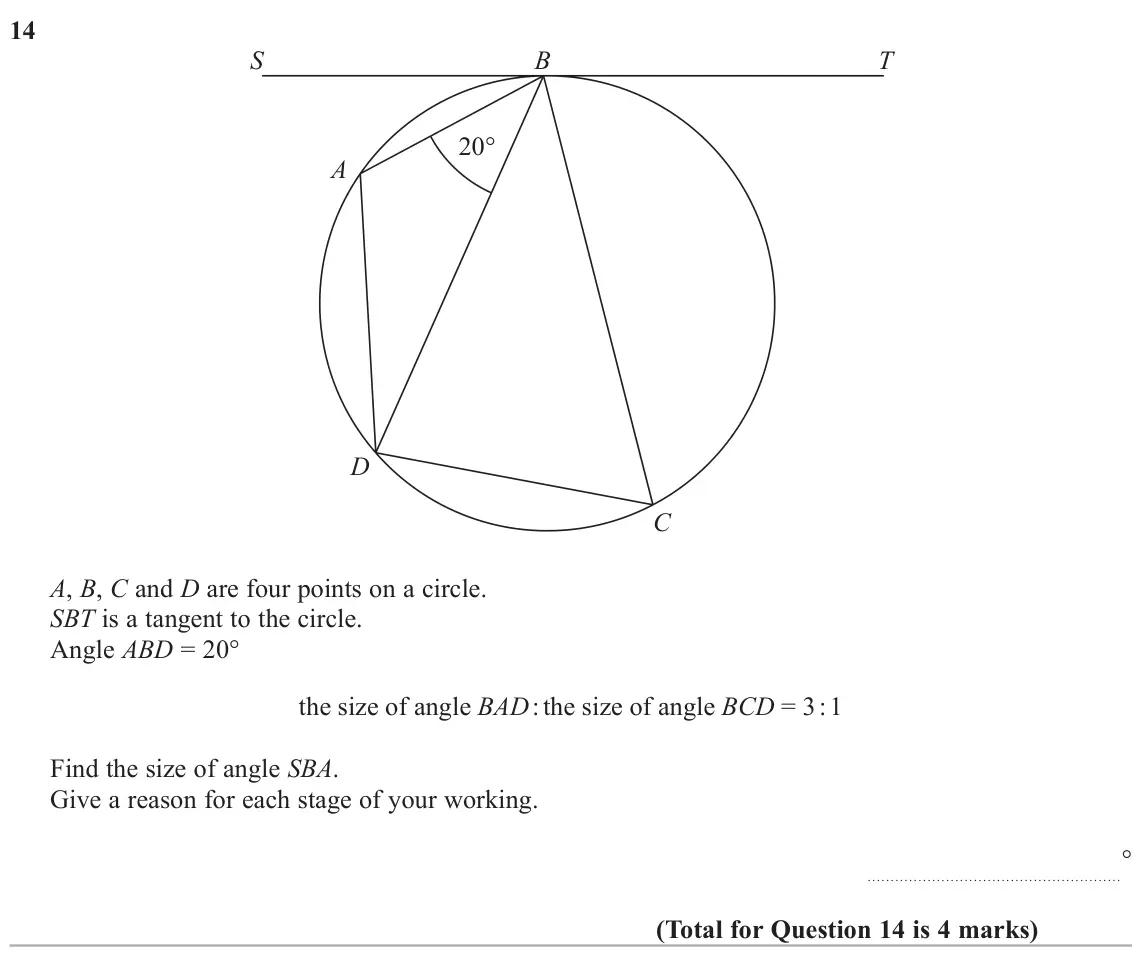

- November 2021, Paper 2H, Q14 (4 marks): S B T 20° A D C A, B, C and D are four points on a circle. SBT is a tangent to the circle. Angle ABD = 20° the size of angle BAD : the size of angle BCD = 3 : 1

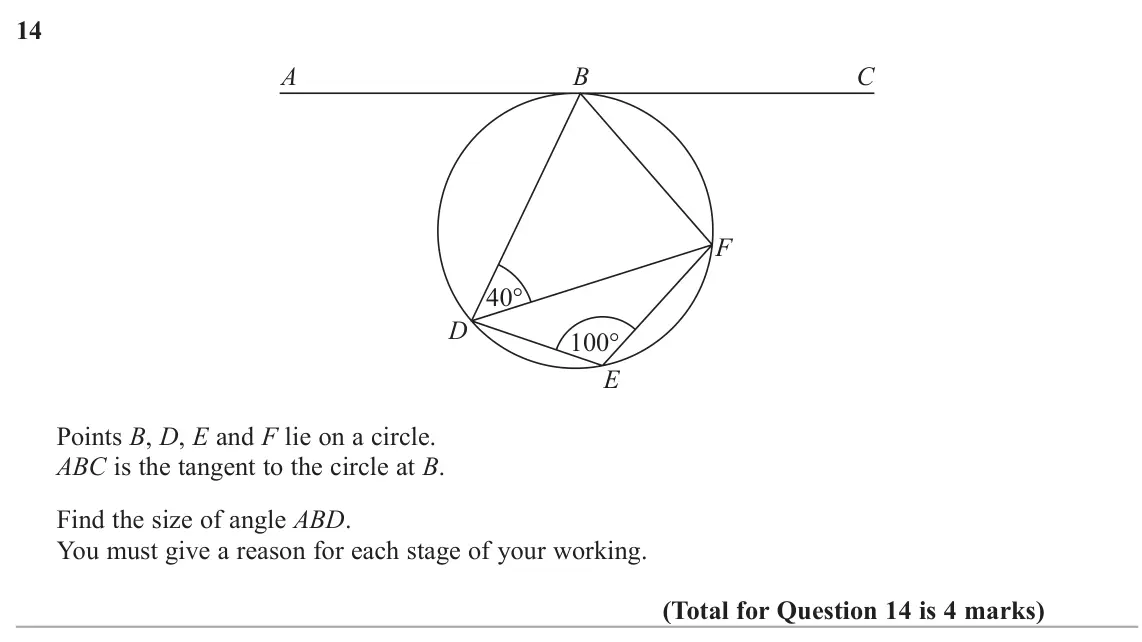

- November 2020, Paper 3H, Q14 (4 marks): A B C F 40° D 100° E Points B, D, E and F lie on a circle. ABC is the tangent to the circle at B. Find the size of angle ABD. You must give a reason for each st

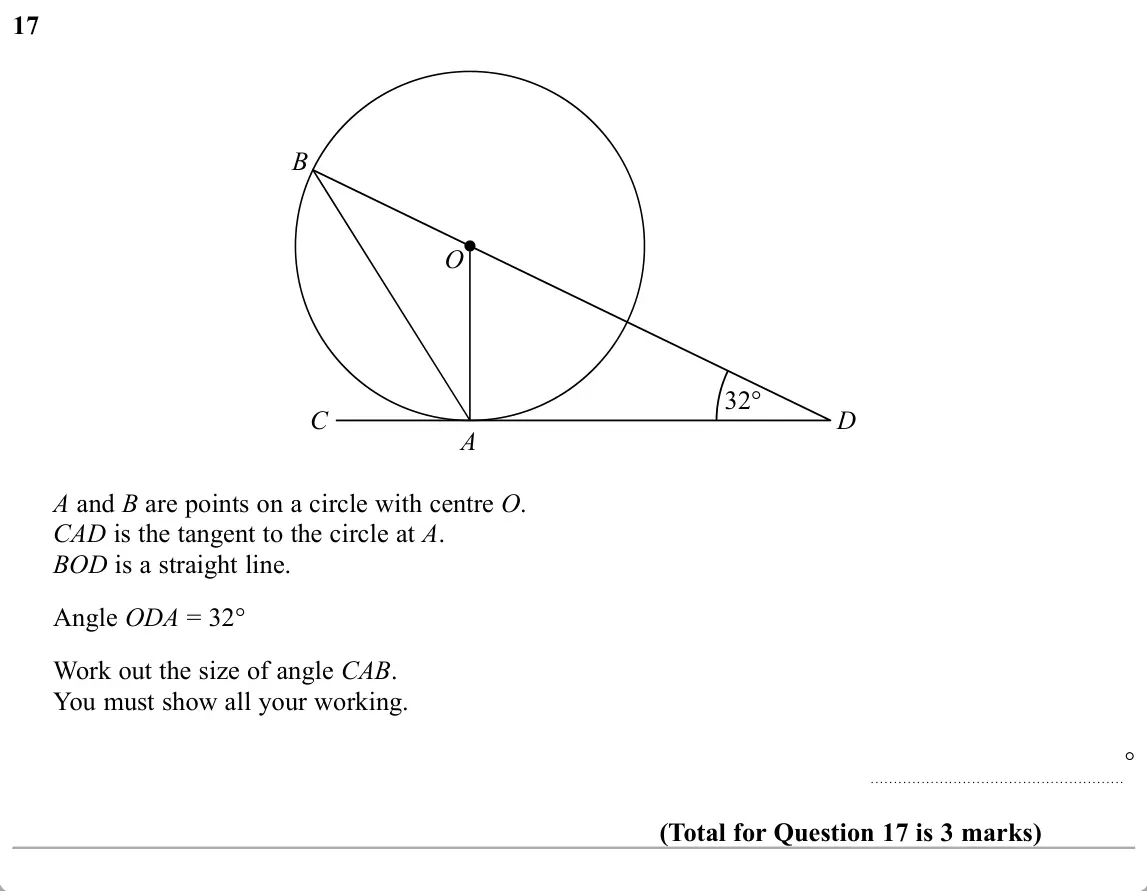

- November 2019, Paper 2H, Q17 (3 marks): B O 32° C D A A and B are points on a circle with centre O. CAD is the tangent to the circle at A. BOD is a straight line. Angle ODA = 32° Work out the size of

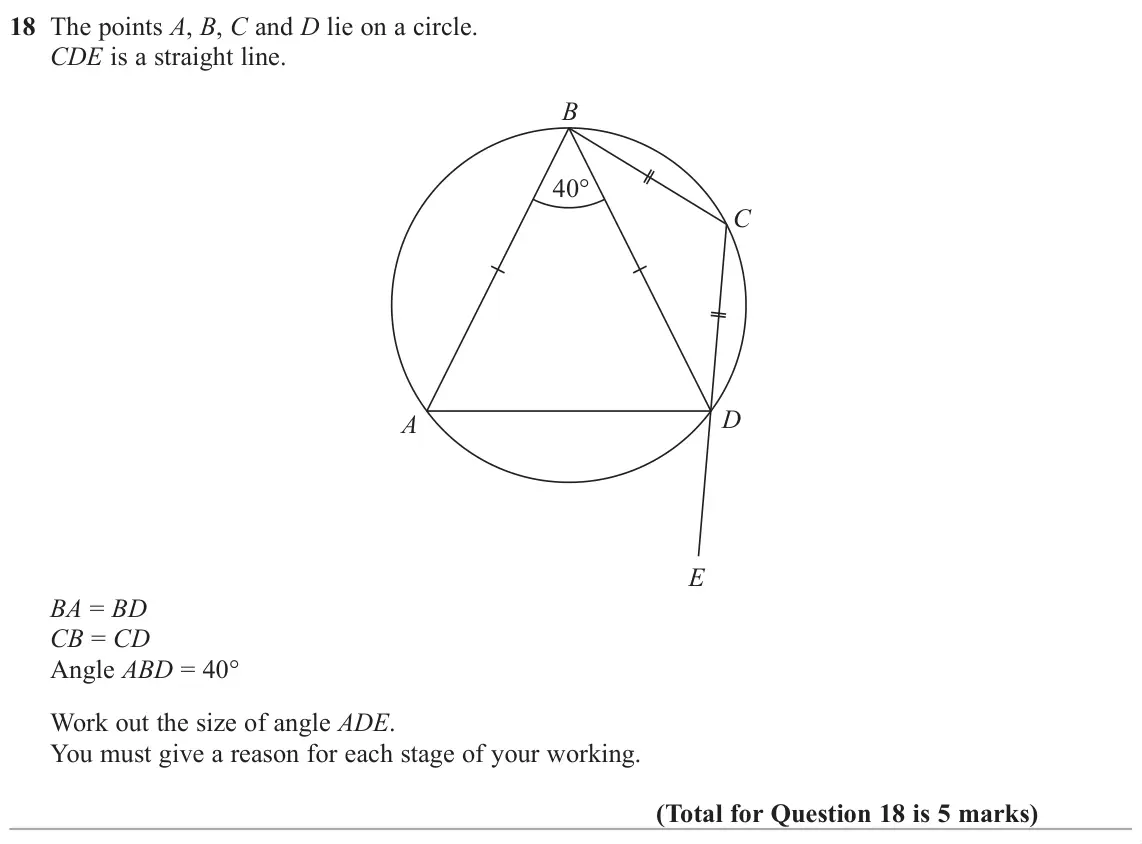

- June 2019, Paper 2H, Q18 (5 marks): The points A, B, C and D lie on a circle. CDE is a straight line. B 40° C D A E BA = BD CB = CD Angle ABD = 40° Work out the size of angle ADE. You must give a

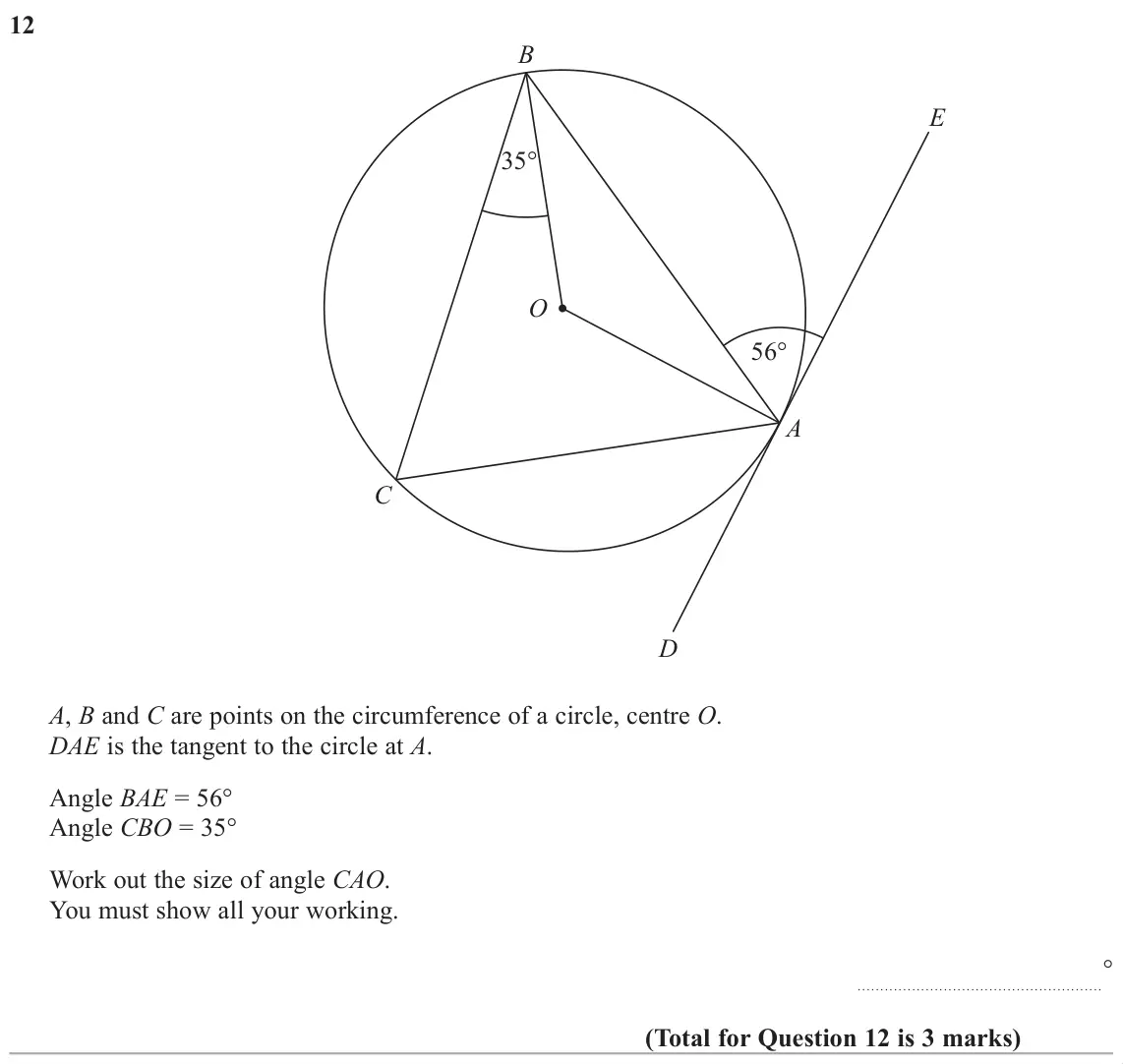

- November 2018, Paper 1H, Q12 (3 marks): B E 35° O 56° A C D A, B and C are points on the circumference of a circle, centre O. DAE is the tangent to the circle at A. Angle BAE = 56° Angle CBO = 35° Wor

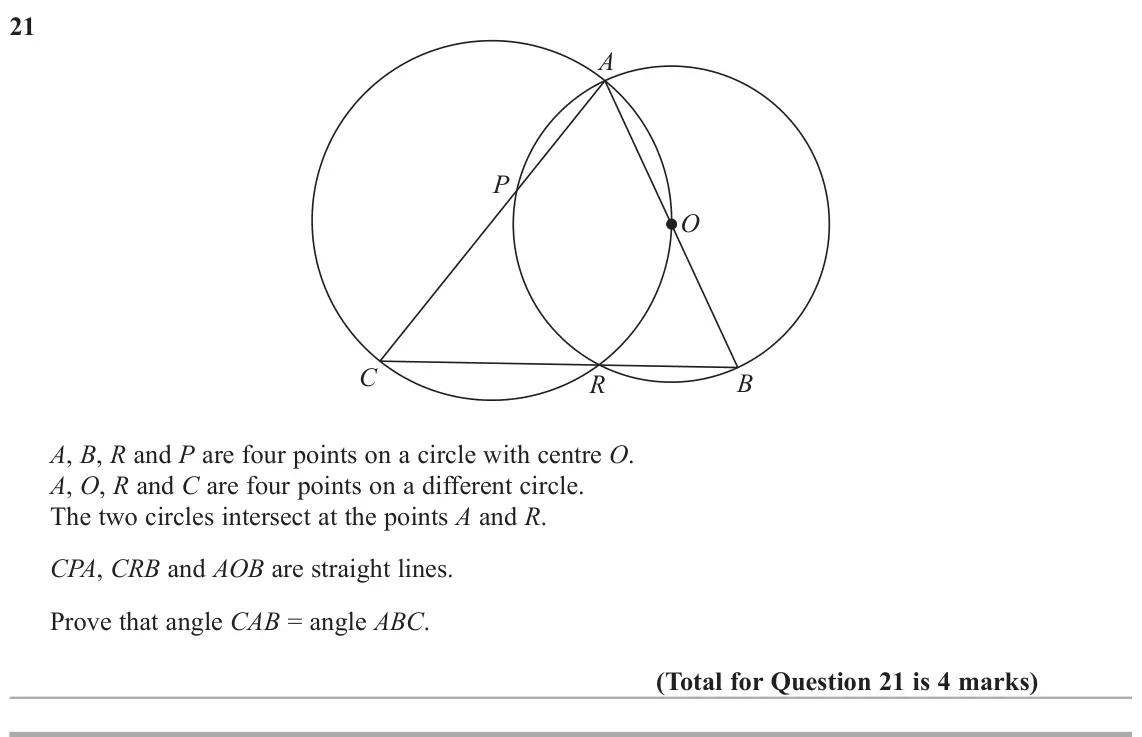

- November 2018, Paper 2H, Q21 (4 marks): A P O C R B A, B, R and P are four points on a circle with centre O. A, O, R and C are four points on a different circle. The two circles intersect at the point

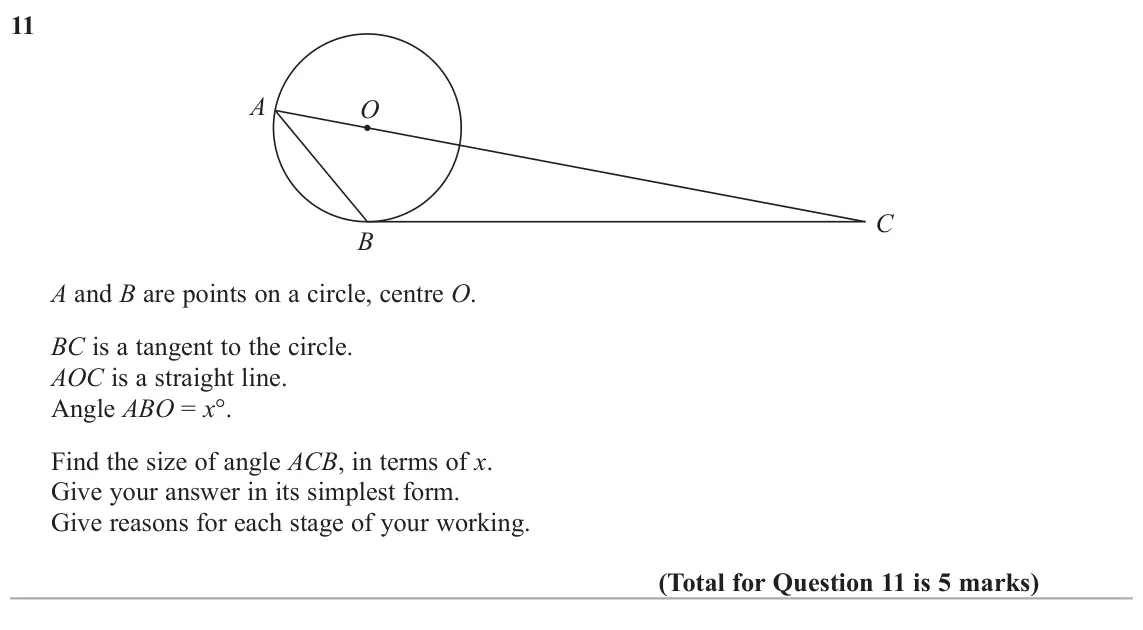

- June 2018, Paper 1H, Q11 (5 marks): A O C B A and B are points on a circle, centre O. BC is a tangent to the circle. AOC is a straight line. Angle ABO = x°. Find the size of angle ACB, in terms of

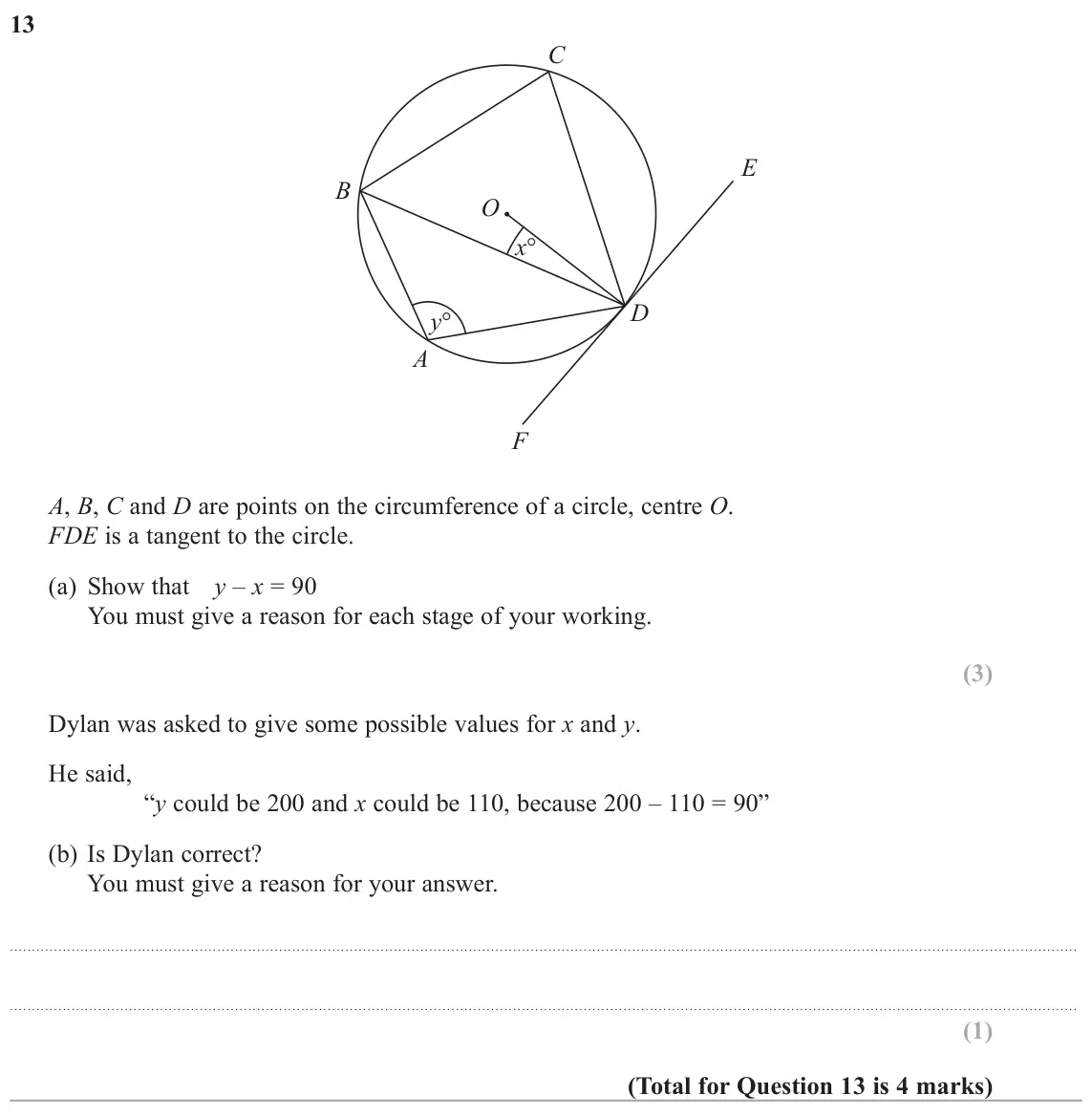

- June 2018, Paper 2H, Q13 (4 marks): C E B O xq D yq A F A, B, C and D are points on the circumference of a circle, centre O. FDE is a tangent to the circle. (a) Show that y – x = 90 You must give

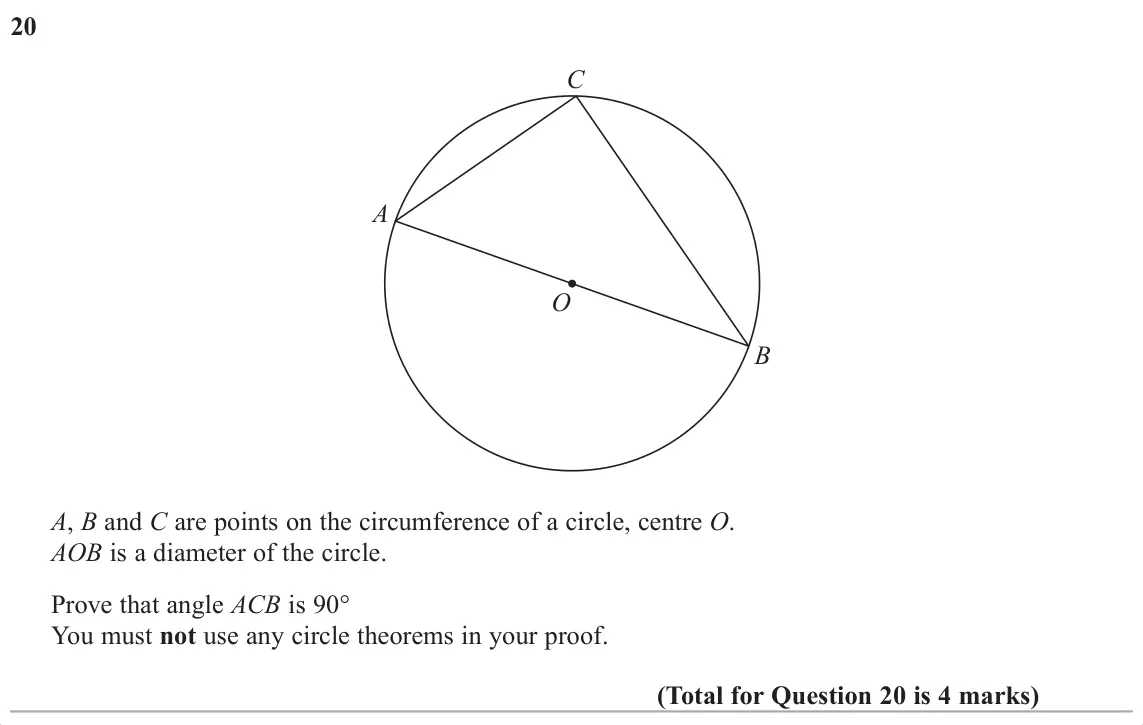

- November 2017, Paper 3H, Q20 (4 marks): C A O B A, B and C are points on the circumference of a circle, centre O. AOB is a diameter of the circle. Prove that angle ACB is 90° You must not use any circ

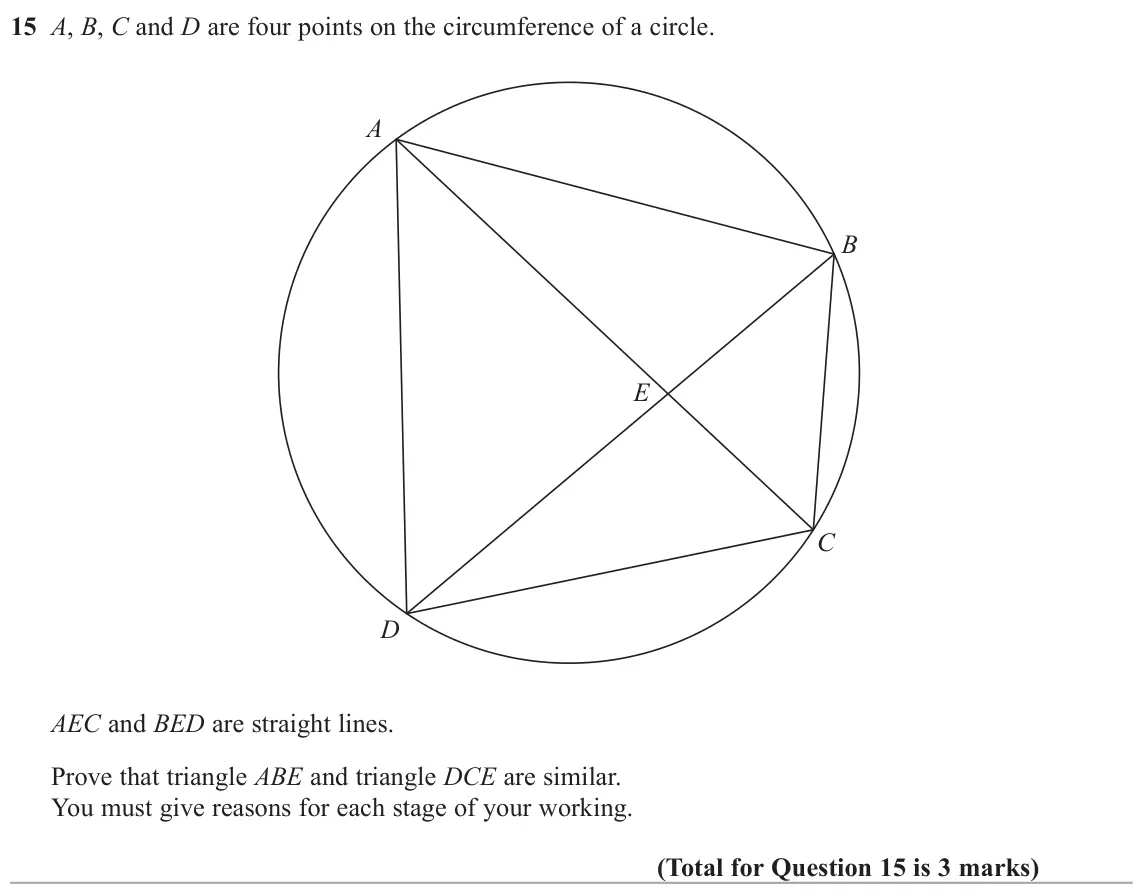

- June 2017, Paper 2H, Q15 (3 marks): A, B, C and D are four points on the circumference of a circle. A B E C D AEC and BED are straight lines. Prove that triangle ABE and triangle DCE are similar.
