Recognising and sketching graphs: Edexcel GCSE Maths questions

Every Edexcel GCSE Maths exam question on A12 Recognising and sketching graphs, 2017–2025, with its mark scheme and examiner’s report.

Find questions997
Exam
All years
Calculator

997 questions

  1. Q17

    June 2025 · Paper 2H

    2 marksA12 Recognising and sketching graphsR10 Direct and inverse proportion
    The whole paper ↗
    June 2025 Paper 2H, question 17: Here is a sketch of part of the graph of y = k x where k is a positive constant. y (–1, 1.5) x O The graph passes through the point with coordinates (–1, 1.5) F

  2. Q13

    June 2025 · Paper 3H

    3 marksA12 Recognising and sketching graphs
    The whole paper ↗

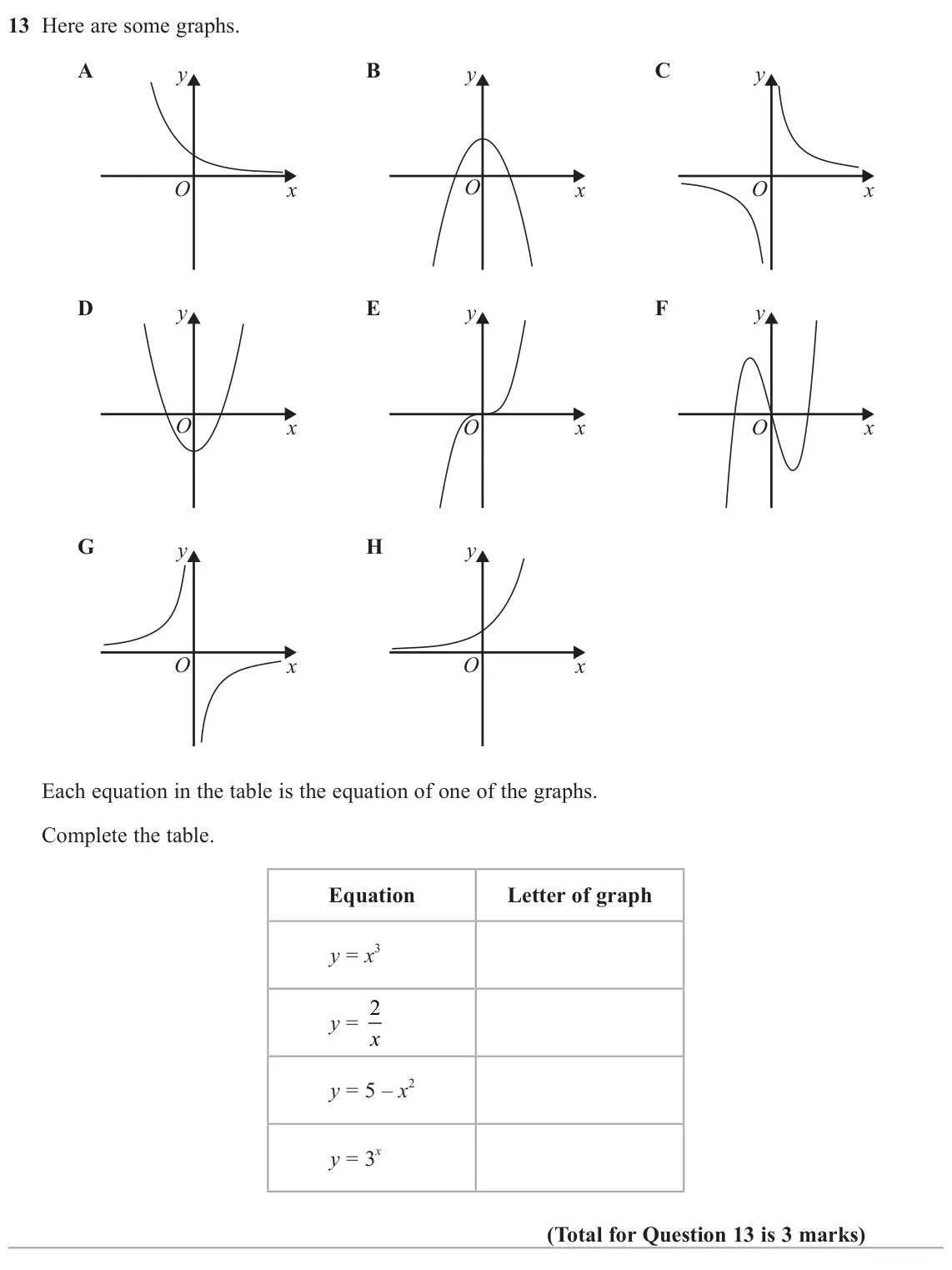

    June 2025 Paper 3H, question 13: Here are some graphs. A B C y y y O O x x O x D E F y y y O O O x x x G H y y O x O x Each equation in the table is the equation of one of the graphs. Complete

  3. Q21

    November 2024 · Paper 3H

    4 marksA13 Graph transformationsA12 Recognising and sketching graphs
    The whole paper ↗
    November 2024 Paper 3H, question 21: Here is the graph of y = f (x) y y = f (x) O x (a) On the grid, draw the graph of y = −f (x) Here is a sketch of the graph of y = sin x° y O x P The point marke

  4. Q23

    November 2024 · Paper 3H

    5 marksA11 Quadratic graphs and turning pointsA12 Recognising and sketching graphs
    The whole paper ↗

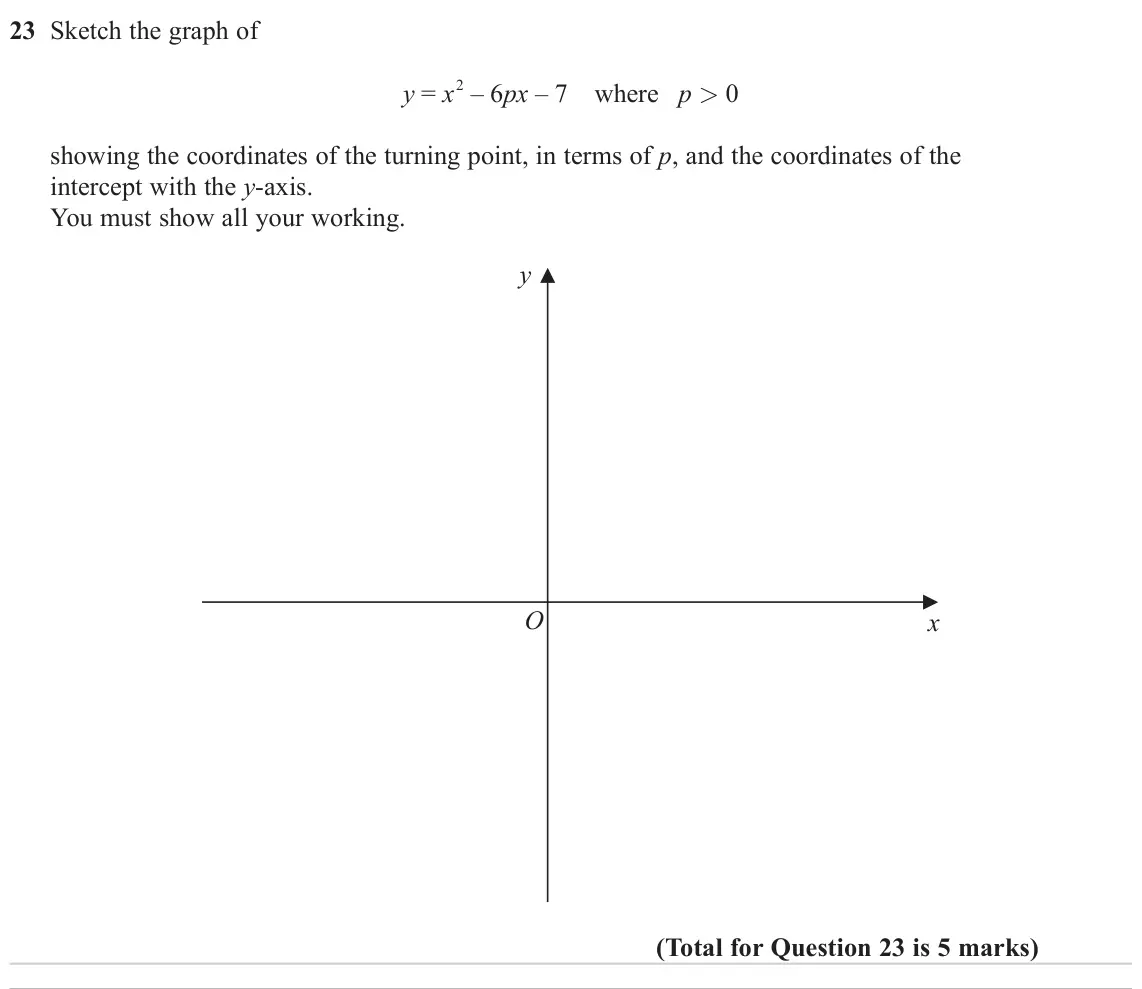

    November 2024 Paper 3H, question 23: Sketch the graph of 2 – 6px – 7 where p > 0 y = x showing the coordinates of the turning point, in terms of p, and the coordinates of the intercept with the y-a

  5. Q12

    June 2024 · Paper 1H

    3 marksA12 Recognising and sketching graphs
    The whole paper ↗

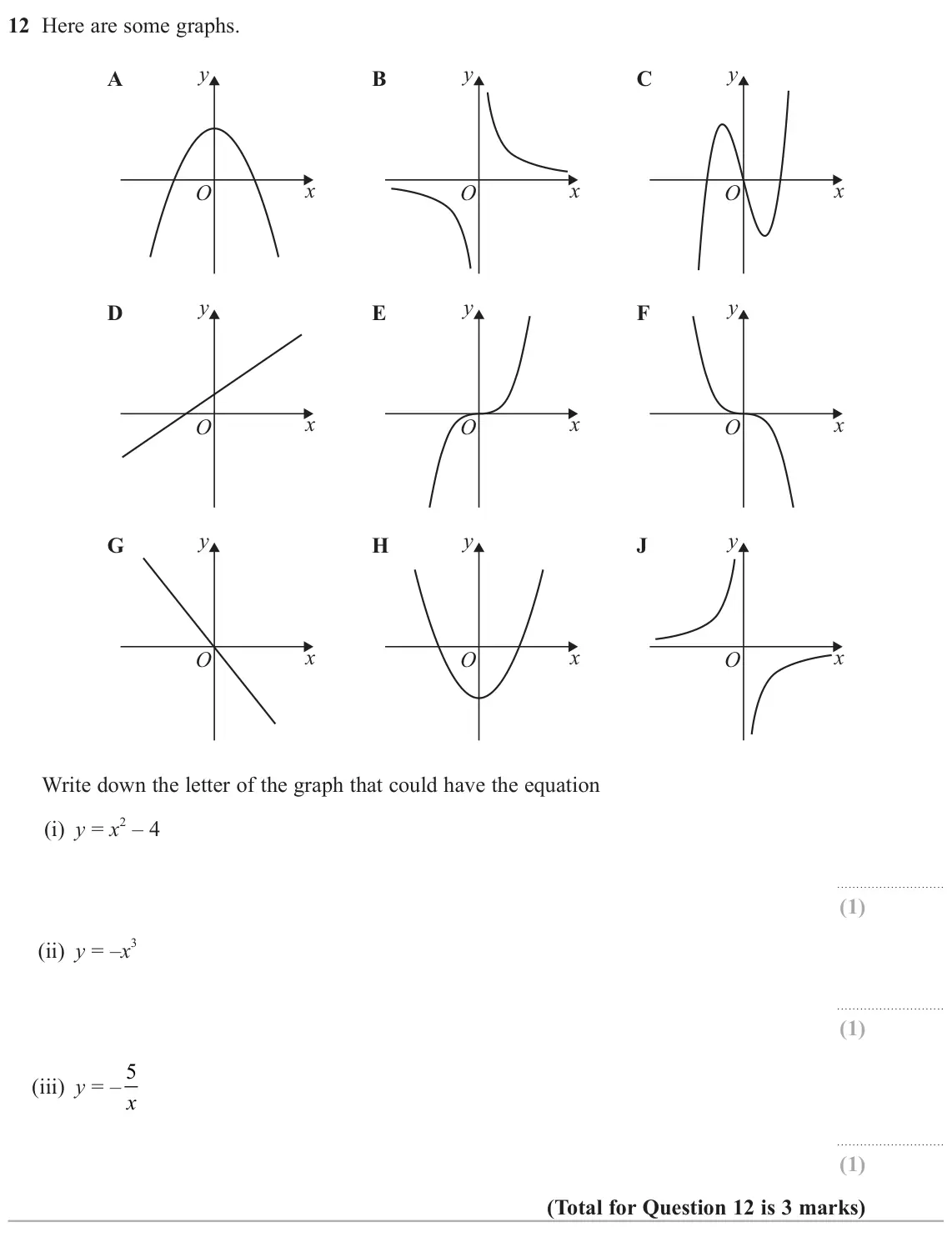

    June 2024 Paper 1H, question 12: Here are some graphs. y y y A B C x x x O O O y y y D E F x x x O O O y y y G H J x x x O O O Write down the letter of the graph that could have the equation (i

  6. Q22

    June 2024 · Paper 1H

    4 marksA12 Recognising and sketching graphs
    The whole paper ↗

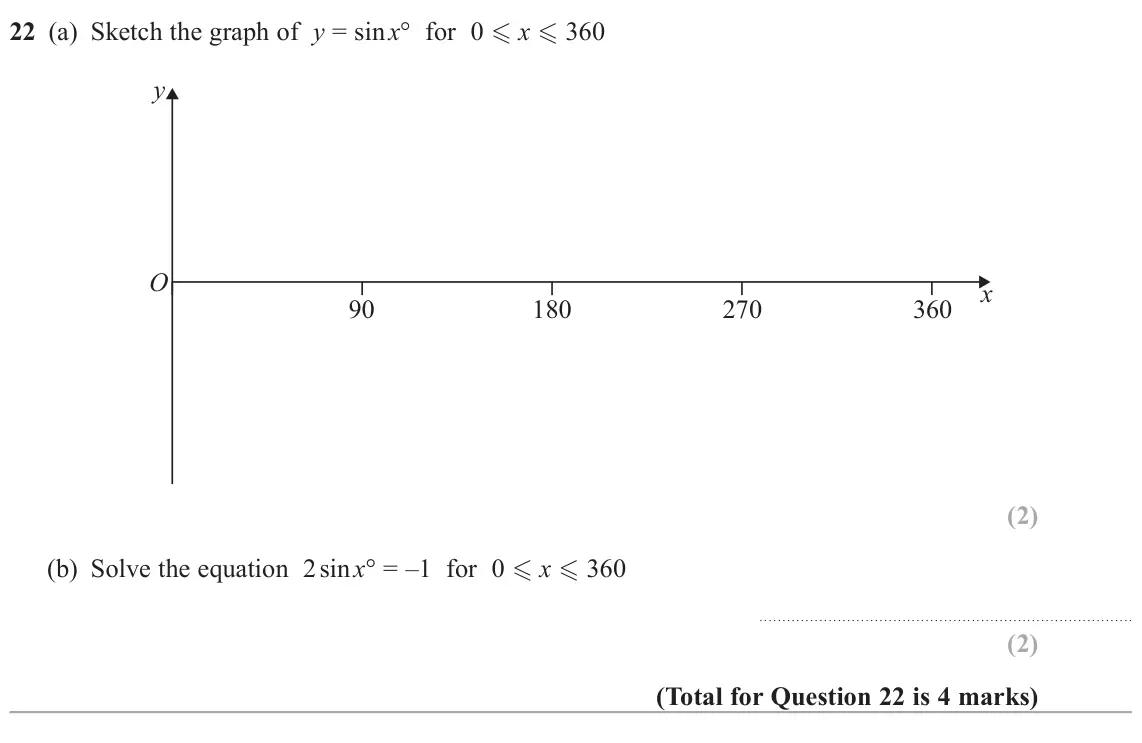

    June 2024 Paper 1H, question 22: (a) Sketch the graph of y = sin x° for 0  x  360 y O x 90 180 270 360 (b) Solve the equation 2 sin x° = –1 for 0  x  360

  7. Q19

    November 2023 · Paper 1H

    3 marksA12 Recognising and sketching graphsA13 Graph transformations
    The whole paper ↗
    November 2023 Paper 1H, question 19: Here is the graph of y = sin x° for –180  x  180 y 1 O x –180 –90 90 180 –1 (a) Use the graph to find estimates for the solutions of sin x° = 0.3 for –180  x

  8. Q19

    June 2023 · Paper 3H

    1 markA12 Recognising and sketching graphs
    The whole paper ↗

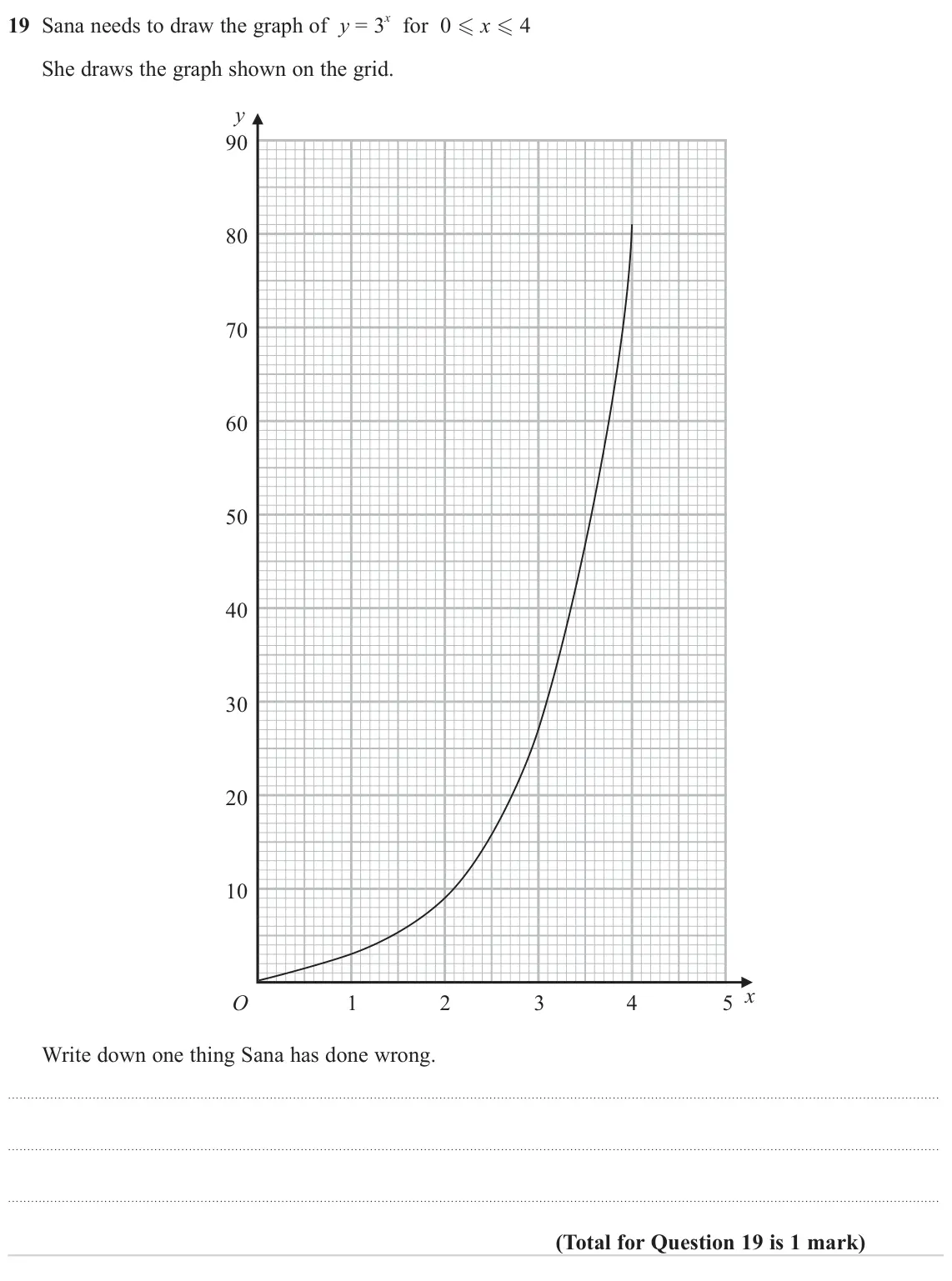

    June 2023 Paper 3H, question 19: Sana needs to draw the graph of y = 3 x for 0  x  4 She draws the graph shown on the grid. y 90 80 70 60 50 40 30 20 10 x O 1 2 3 4 5 Write down one thing San

  9. Q9

    November 2022 · Paper 1H

    4 marksA12 Recognising and sketching graphs
    The whole paper ↗

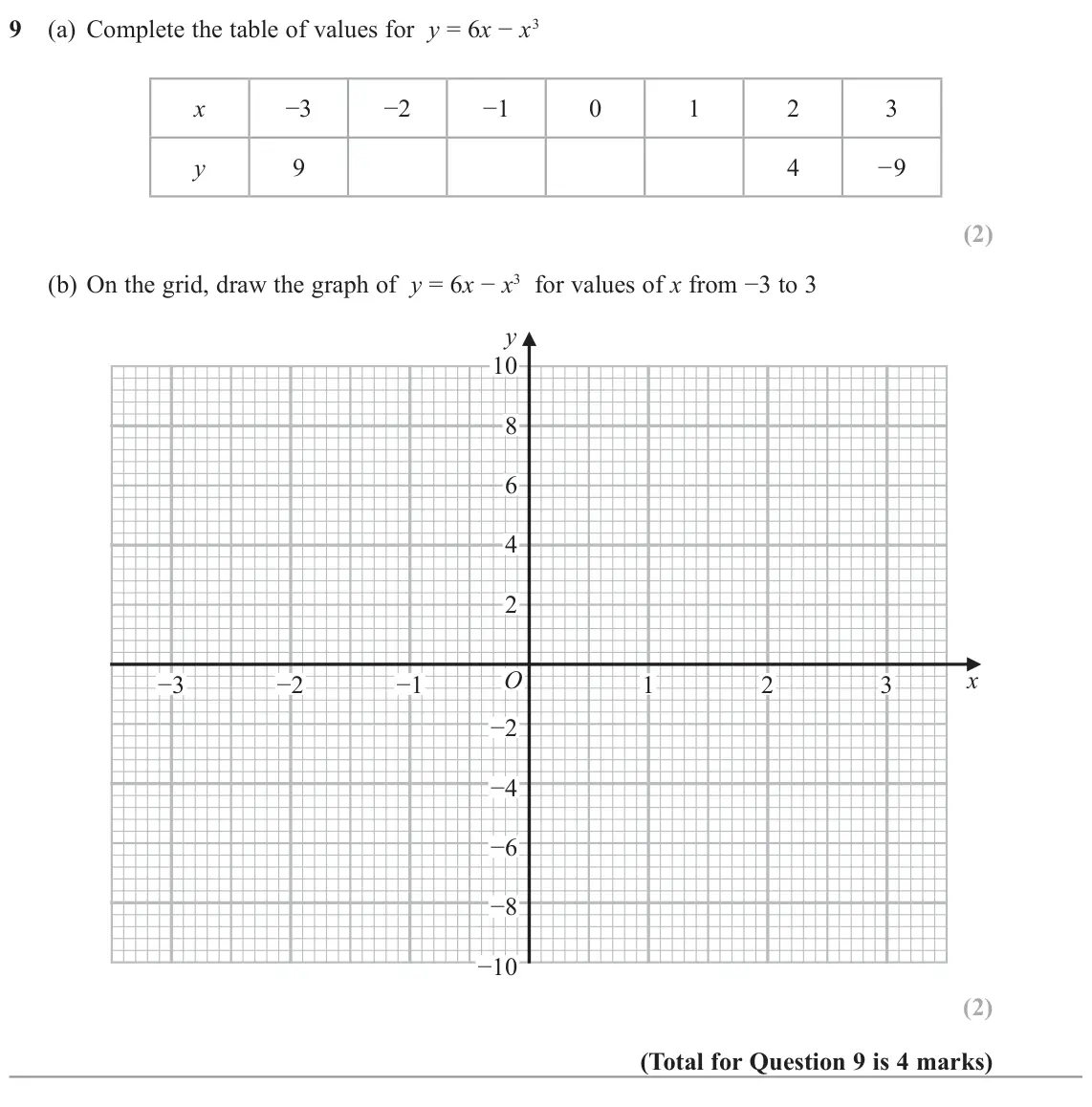

    November 2022 Paper 1H, question 9: (a) Complete the table of values for y = 6x − x3 −3 −2 −1 0 1 2 3 x 9 4 −9 y (b) On the grid, draw the graph of y = 6x − x3 for values of x from −3 to 3 y 10 8

  10. Q21

    November 2022 · Paper 1H

    2 marksA12 Recognising and sketching graphs
    The whole paper ↗

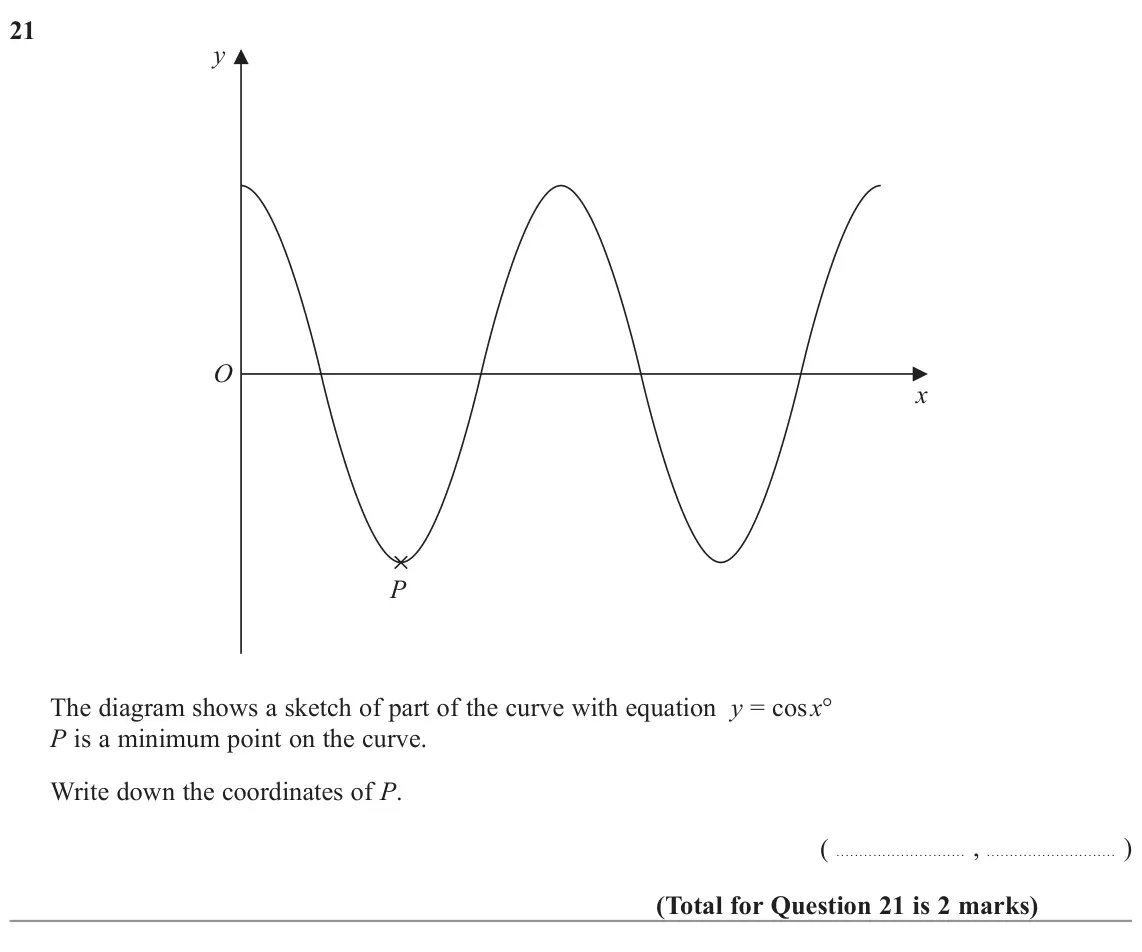

    November 2022 Paper 1H, question 21: y O x P The diagram shows a sketch of part of the curve with equation y = cos x° P is a minimum point on the curve. Write down the coordinates of P. ( , )

  11. Q18

    November 2021 · Paper 2H

    4 marksA12 Recognising and sketching graphsA13 Graph transformations
    The whole paper ↗
    November 2021 Paper 2H, question 18: Here is a graph of y = sin x° for 0  x  360 y 1 O 90 180 270 x 360 –1 (a) Using this graph, find estimates of all four solutions of sin x° = 0.6 for 0  x  7

  12. Q8

    November 2021 · Paper 3H

    2 marksR14 Gradient as a rate of changeA12 Recognising and sketching graphs
    The whole paper ↗

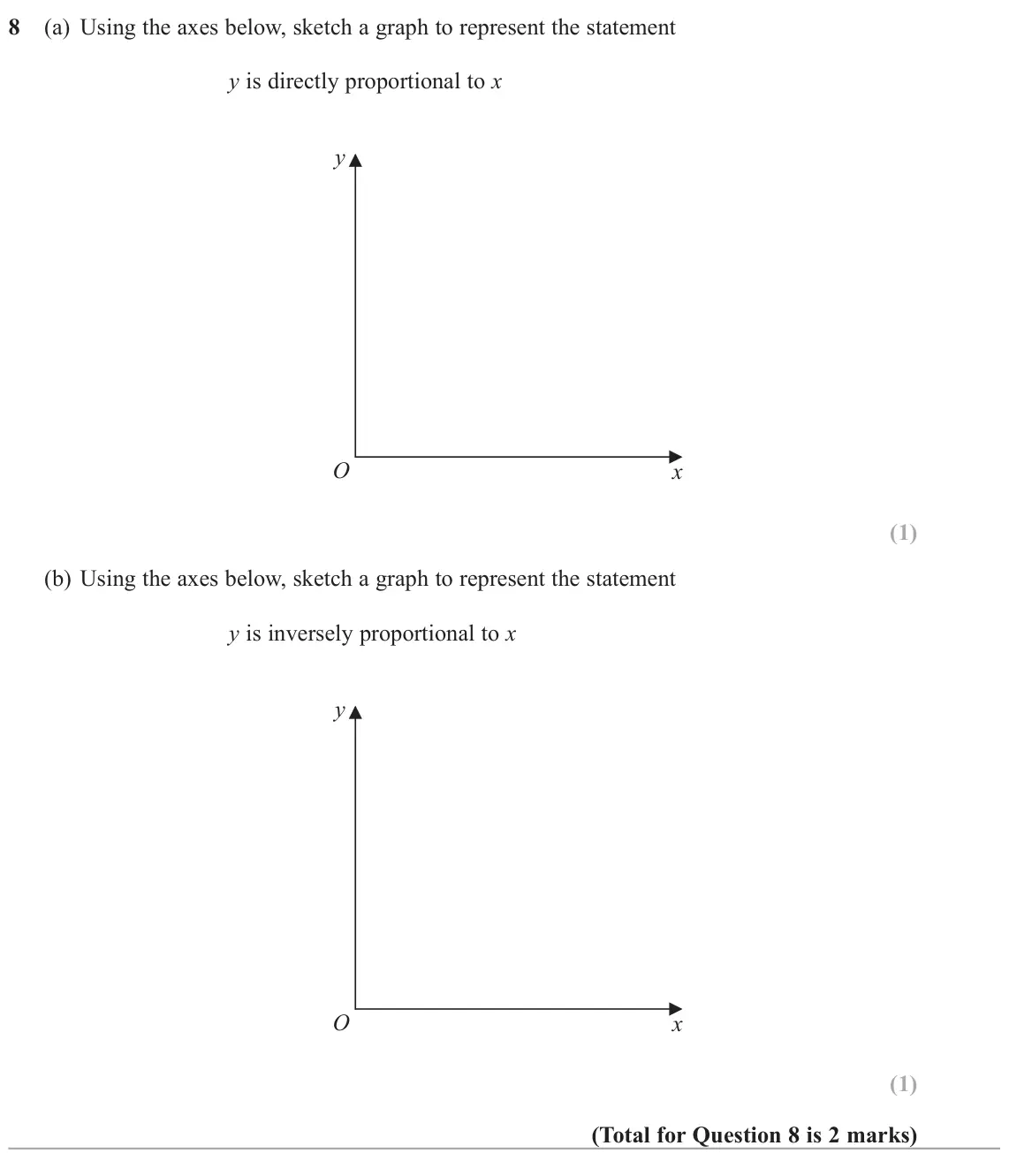

    November 2021 Paper 3H, question 8: (a) Using the axes below, sketch a graph to represent the statement y is directly proportional to x y O x (b) Using the axes below, sketch a graph to represent

  13. Q3

    November 2020 · Paper 1H

    2 marksA12 Recognising and sketching graphs
    The whole paper ↗

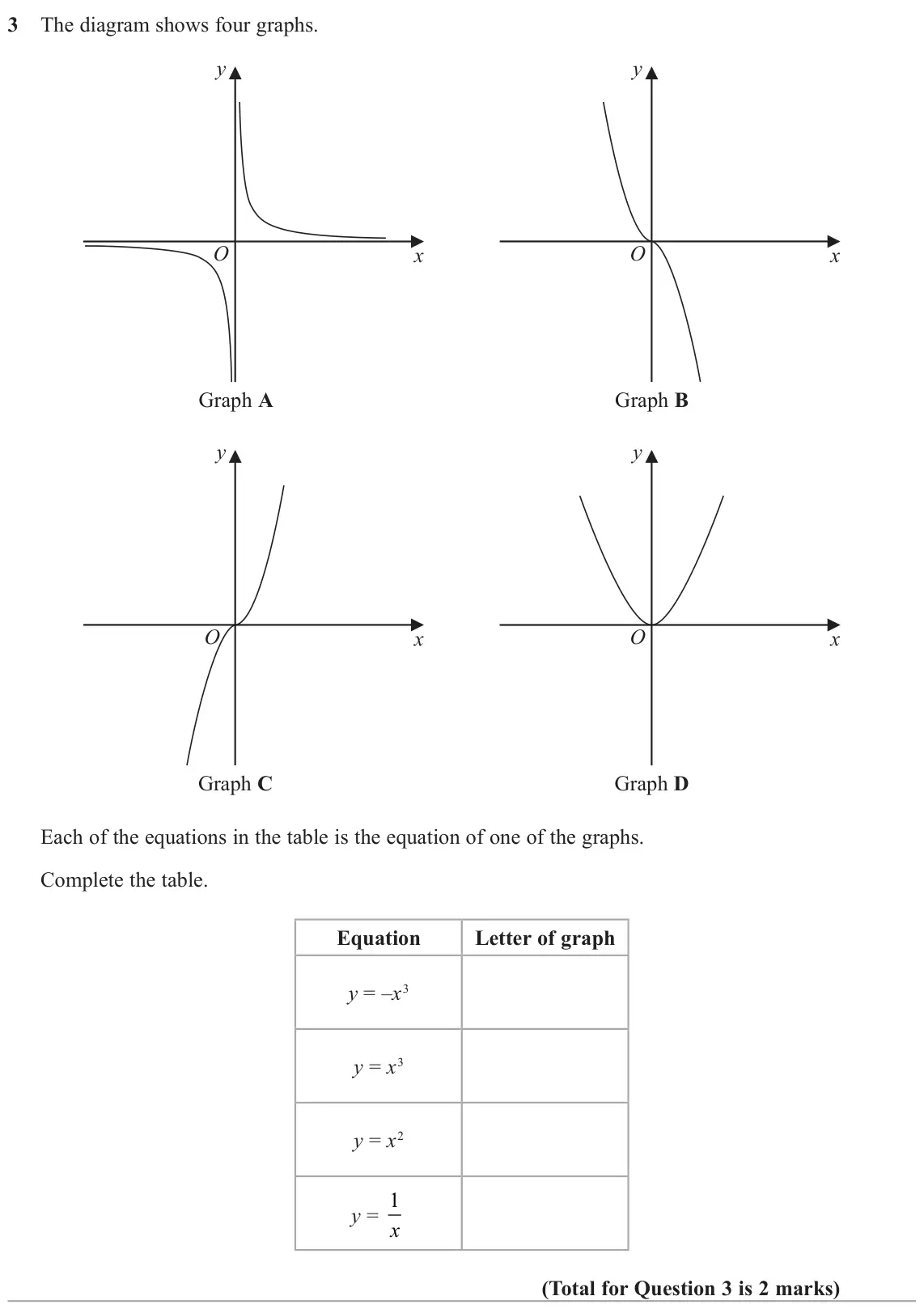

    November 2020 Paper 1H, question 3: The diagram shows four graphs. y y O O x x Graph A Graph B y y O O x x Graph C Graph D Each of the equations in the table is the equation of one of the graphs.

  14. Q4

    November 2020 · Paper 2H

    4 marksA12 Recognising and sketching graphs
    The whole paper ↗

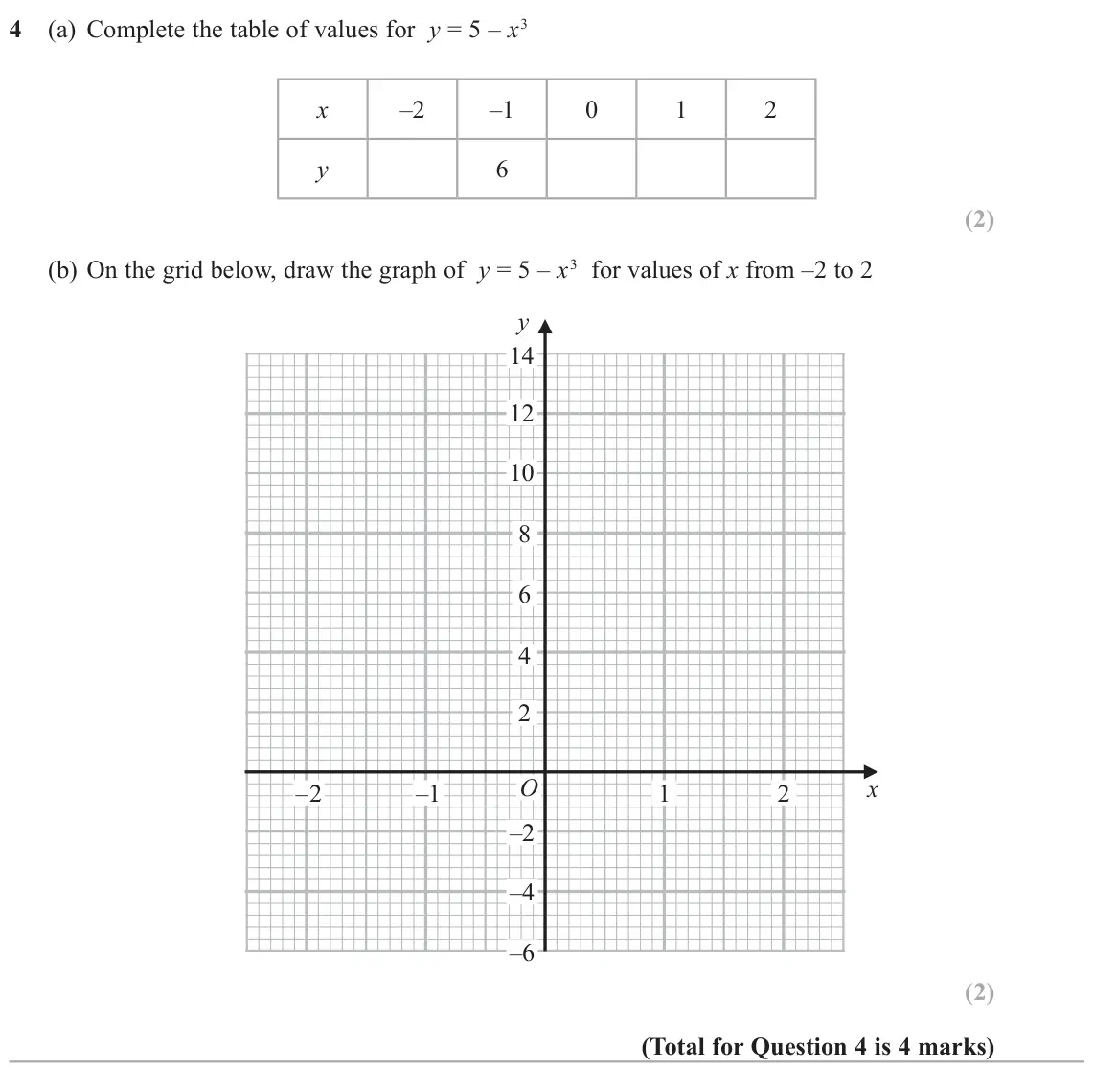

    November 2020 Paper 2H, question 4: (a) Complete the table of values for y = 5 – x3 x –2 –1 0 1 2 y 6 (b) On the grid below, draw the graph of y = 5 – x3 for values of x from –2 to 2 y 14 12 10 8

  15. Q21

    November 2019 · Paper 1H

    5 marksA11 Quadratic graphs and turning pointsA12 Recognising and sketching graphs
    The whole paper ↗

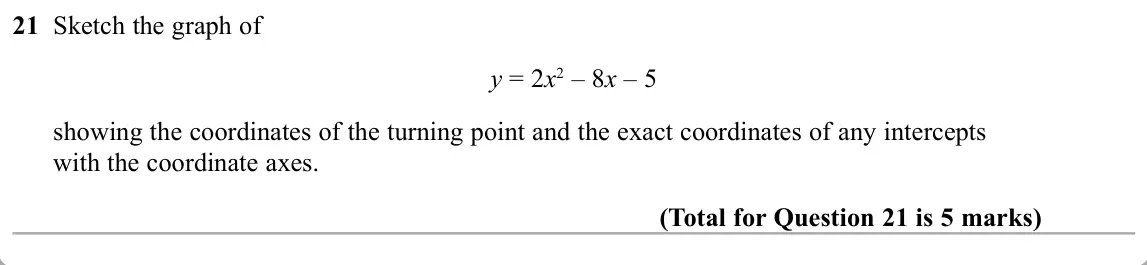

    November 2019 Paper 1H, question 21: Sketch the graph of y = 2x2 – 8x – 5 showing the coordinates of the turning point and the exact coordinates of any intercepts with the coordinate axes.

  16. Q5

    November 2019 · Paper 2H

    2 marksA12 Recognising and sketching graphs
    The whole paper ↗

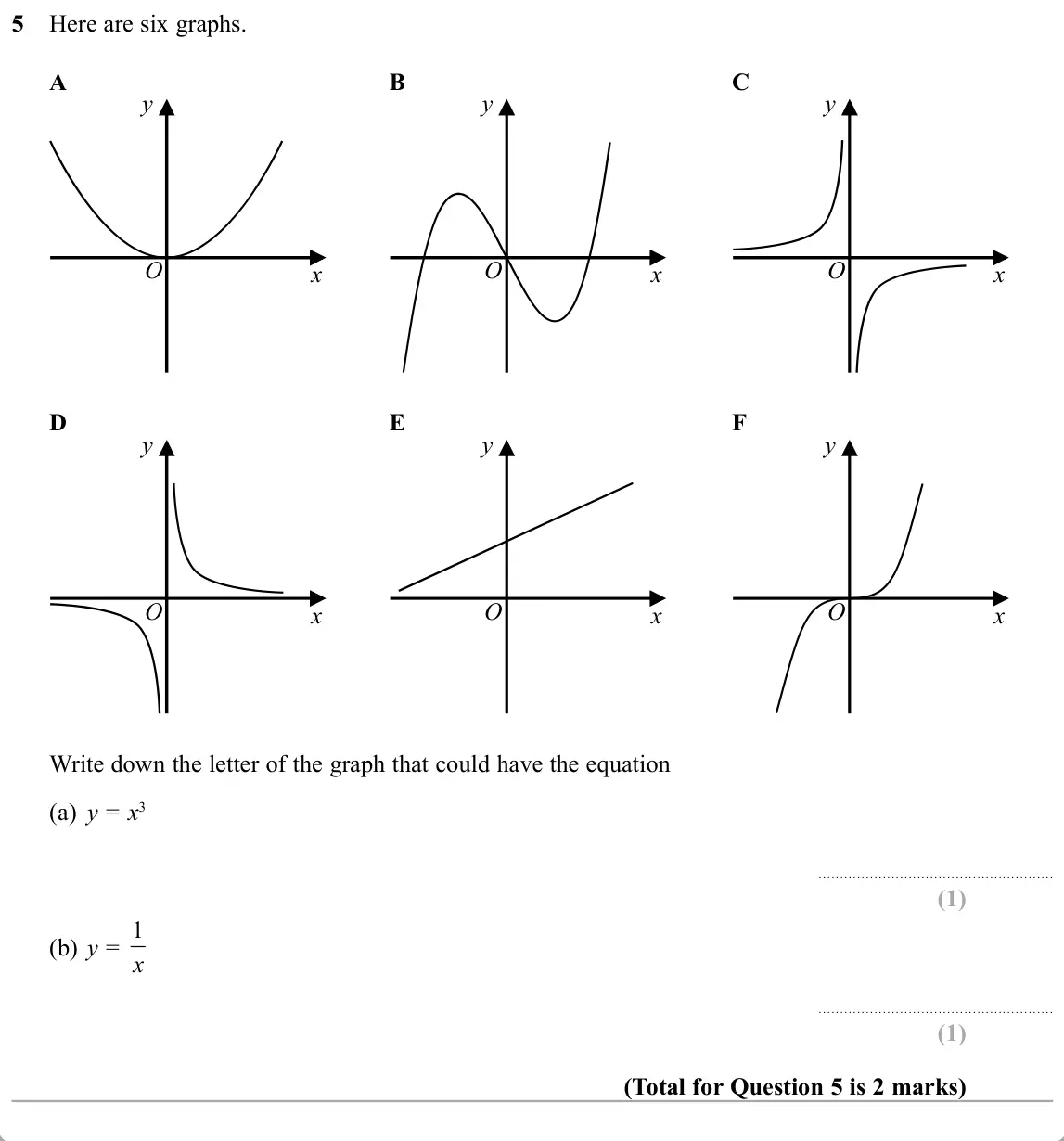

    November 2019 Paper 2H, question 5: Here are six graphs. A B C y y y O O O x x x D E F y y y O O O x x x Write down the letter of the graph that could have the equation (a) y = x3 (b) y = 1 x

  17. Q17

    November 2019 · Paper 3H

    4 marksA18 Quadratic equationsA12 Recognising and sketching graphs
    The whole paper ↗
    November 2019 Paper 3H, question 17: Here is the graph of y = x2 – 3 y 10 8 6 4 2 O x –4 –3 –2 –1 1 2 3 4 –2 –4 Use the graph to find estimates for the solutions to the equation x2 – 2x – 2 = 0 You

  18. Q17

    June 2019 · Paper 3H

    2 marksA12 Recognising and sketching graphs
    The whole paper ↗

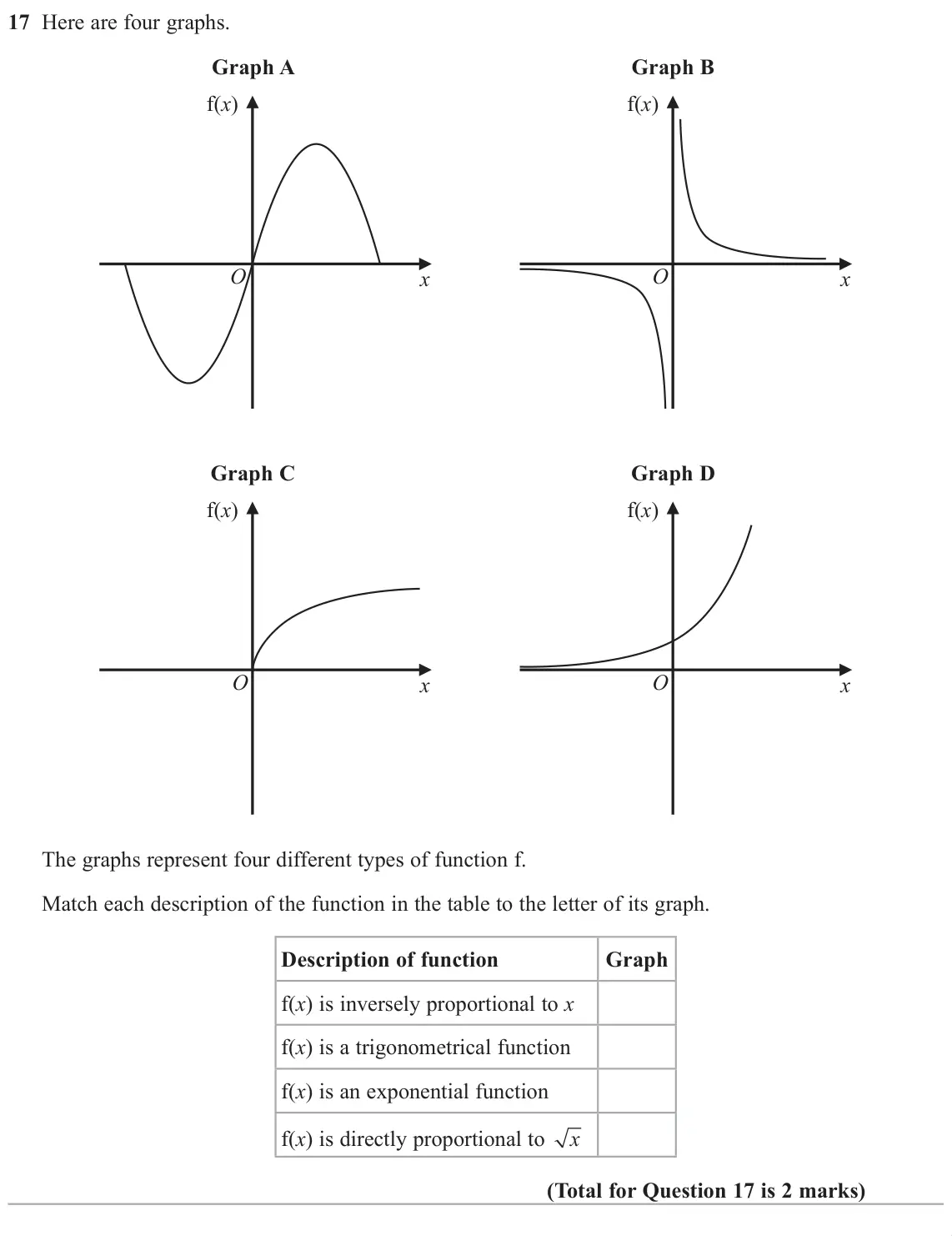

    June 2019 Paper 3H, question 17: Here are four graphs. Graph A Graph B f(x) f(x) O O x x Graph C Graph D f(x) f(x) O O x x The graphs represent four different types of function f. Match each de

  19. Q14

    November 2018 · Paper 2H

    2 marksA12 Recognising and sketching graphs
    The whole paper ↗

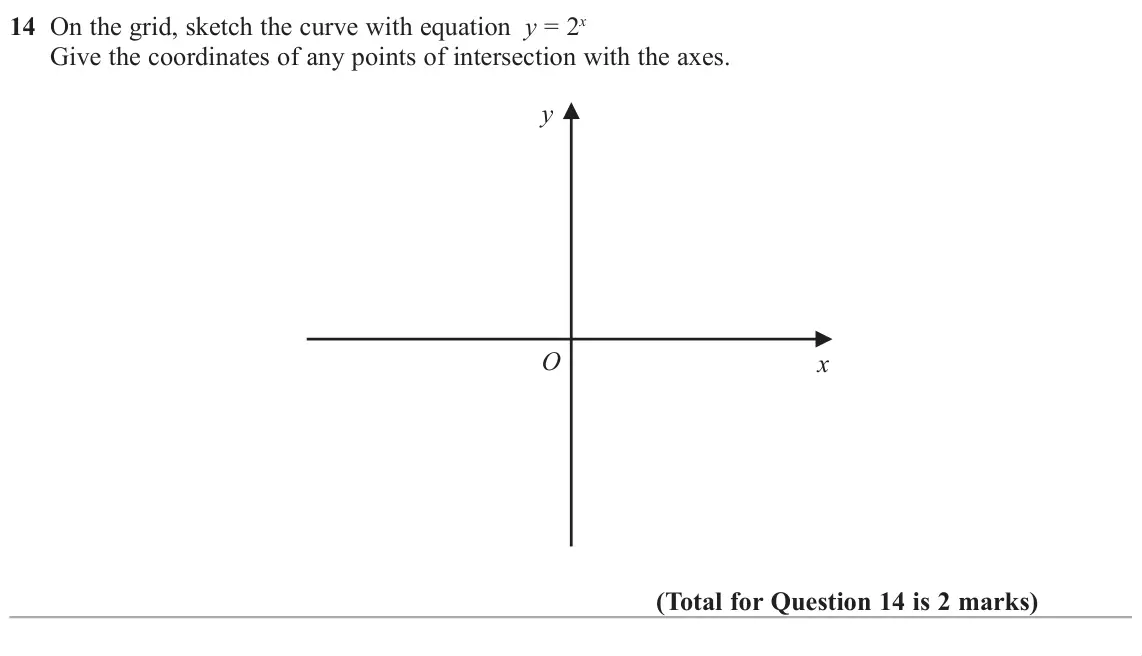

    November 2018 Paper 2H, question 14: On the grid, sketch the curve with equation y = 2x Give the coordinates of any points of intersection with the axes. y O x

  20. Q11

    November 2018 · Paper 3H

    2 marksA12 Recognising and sketching graphs
    The whole paper ↗

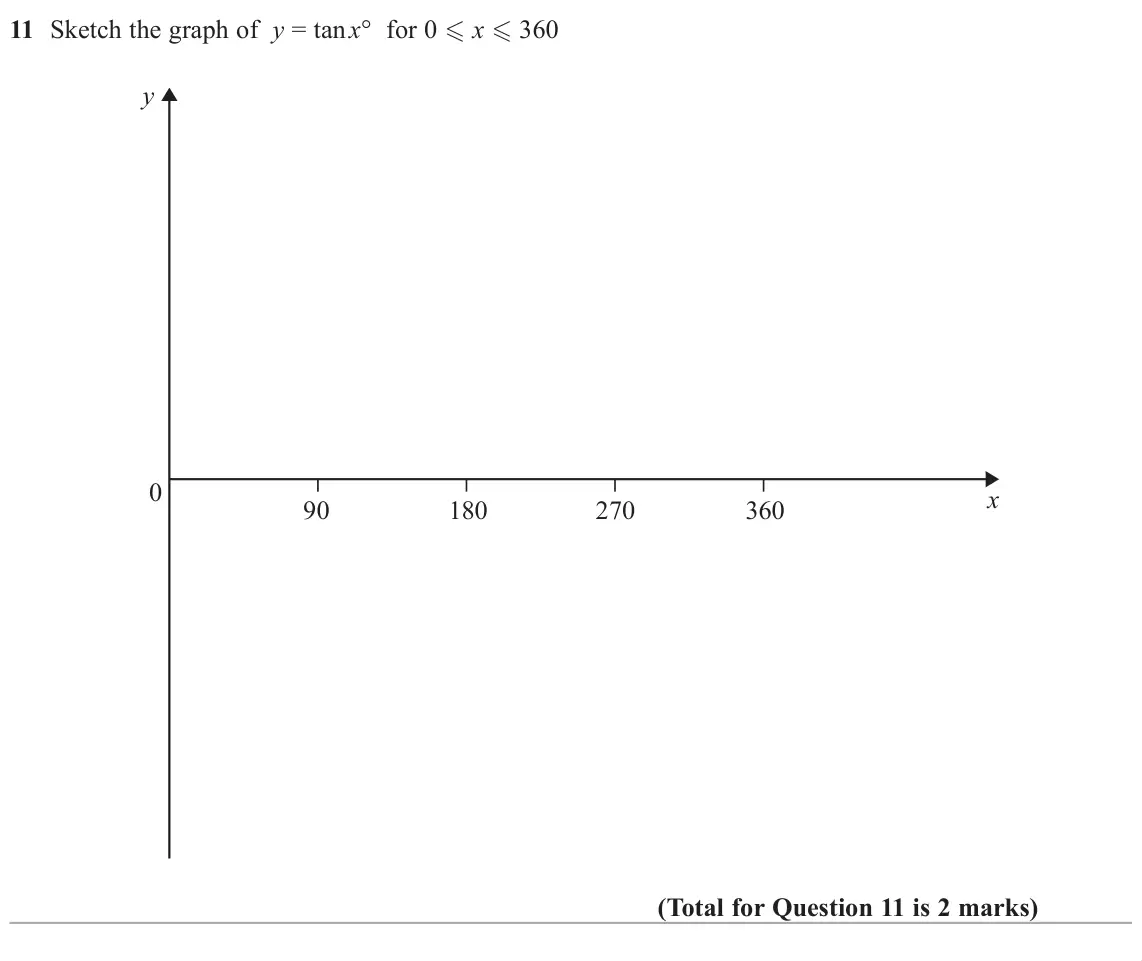

    November 2018 Paper 3H, question 11: Sketch the graph of y = tan x° for 0 - x - 360 y 0 x 90 180 270 360
All 24 questions on Recognising and sketching graphs, as a list
  1. June 2025, Paper 2H, Q17 (2 marks): Here is a sketch of part of the graph of y = k x where k is a positive constant. y (–1, 1.5) x O The graph passes through the point with coordinates (–1, 1.5) F
  2. June 2025, Paper 3H, Q13 (3 marks): Here are some graphs. A B C y y y O O x x O x D E F y y y O O O x x x G H y y O x O x Each equation in the table is the equation of one of the graphs. Complete
  3. November 2024, Paper 3H, Q21 (4 marks): Here is the graph of y = f (x) y y = f (x) O x (a) On the grid, draw the graph of y = −f (x) Here is a sketch of the graph of y = sin x° y O x P The point marke
  4. November 2024, Paper 3H, Q23 (5 marks): Sketch the graph of 2 – 6px – 7 where p > 0 y = x showing the coordinates of the turning point, in terms of p, and the coordinates of the intercept with the y-a
  5. June 2024, Paper 1H, Q12 (3 marks): Here are some graphs. y y y A B C x x x O O O y y y D E F x x x O O O y y y G H J x x x O O O Write down the letter of the graph that could have the equation (i
  6. June 2024, Paper 1H, Q22 (4 marks): (a) Sketch the graph of y = sin x° for 0  x  360 y O x 90 180 270 360 (b) Solve the equation 2 sin x° = –1 for 0  x  360
  7. November 2023, Paper 1H, Q19 (3 marks): Here is the graph of y = sin x° for –180  x  180 y 1 O x –180 –90 90 180 –1 (a) Use the graph to find estimates for the solutions of sin x° = 0.3 for –180  x
  8. June 2023, Paper 3H, Q19 (1 mark): Sana needs to draw the graph of y = 3 x for 0  x  4 She draws the graph shown on the grid. y 90 80 70 60 50 40 30 20 10 x O 1 2 3 4 5 Write down one thing San
  9. November 2022, Paper 1H, Q9 (4 marks): (a) Complete the table of values for y = 6x − x3 −3 −2 −1 0 1 2 3 x 9 4 −9 y (b) On the grid, draw the graph of y = 6x − x3 for values of x from −3 to 3 y 10 8
  10. November 2022, Paper 1H, Q21 (2 marks): y O x P The diagram shows a sketch of part of the curve with equation y = cos x° P is a minimum point on the curve. Write down the coordinates of P. ( , )
  11. November 2021, Paper 2H, Q18 (4 marks): Here is a graph of y = sin x° for 0  x  360 y 1 O 90 180 270 x 360 –1 (a) Using this graph, find estimates of all four solutions of sin x° = 0.6 for 0  x  7
  12. November 2021, Paper 3H, Q8 (2 marks): (a) Using the axes below, sketch a graph to represent the statement y is directly proportional to x y O x (b) Using the axes below, sketch a graph to represent
  13. November 2020, Paper 1H, Q3 (2 marks): The diagram shows four graphs. y y O O x x Graph A Graph B y y O O x x Graph C Graph D Each of the equations in the table is the equation of one of the graphs.
  14. November 2020, Paper 2H, Q4 (4 marks): (a) Complete the table of values for y = 5 – x3 x –2 –1 0 1 2 y 6 (b) On the grid below, draw the graph of y = 5 – x3 for values of x from –2 to 2 y 14 12 10 8
  15. November 2019, Paper 1H, Q21 (5 marks): Sketch the graph of y = 2x2 – 8x – 5 showing the coordinates of the turning point and the exact coordinates of any intercepts with the coordinate axes.
  16. November 2019, Paper 2H, Q5 (2 marks): Here are six graphs. A B C y y y O O O x x x D E F y y y O O O x x x Write down the letter of the graph that could have the equation (a) y = x3 (b) y = 1 x
  17. November 2019, Paper 3H, Q17 (4 marks): Here is the graph of y = x2 – 3 y 10 8 6 4 2 O x –4 –3 –2 –1 1 2 3 4 –2 –4 Use the graph to find estimates for the solutions to the equation x2 – 2x – 2 = 0 You
  18. June 2019, Paper 3H, Q17 (2 marks): Here are four graphs. Graph A Graph B f(x) f(x) O O x x Graph C Graph D f(x) f(x) O O x x The graphs represent four different types of function f. Match each de
  19. November 2018, Paper 2H, Q14 (2 marks): On the grid, sketch the curve with equation y = 2x Give the coordinates of any points of intersection with the axes. y O x
  20. November 2018, Paper 3H, Q11 (2 marks): Sketch the graph of y = tan x° for 0 - x - 360 y 0 x 90 180 270 360
  21. June 2018, Paper 1H, Q18 (2 marks): Here is the graph of y = sin xƒIRUí- x - 180 y 4 2 –180 –90 O x 90 180 –2 –4 On the grid, sketch the graph of y = sin xƒ±IRUí- x - 180
  22. November 2017, Paper 1H, Q7 (1 mark): Brogan needs to draw the graph of y = x2 + 1 Here is her graph. y y = x2 + 1 10 9 8 7 6 5 4 3 2 1 –5 –4 –3 –2 –1 O 1 2 3 4 5 x Write down one thing that is wron
  23. June 2017, Paper 2H, Q14 (3 marks): Here are some graphs. A B C y y y O O x O x x D E F y y y O x O x O x G H I y y y O O x x O x In the table below, match each equation with the letter of its gra
  24. June 2017, Paper 3H, Q20 (4 marks): The equation of a curve is y = ax A is the point where the curve intersects the y-axis. (a) State the coordinates of A. ( , ) The equation of circle C is x2 + y
