Graph transformations: Edexcel GCSE Maths questions

Every Edexcel GCSE Maths exam question on A13 Graph transformations, 2017–2025, with its mark scheme and examiner’s report.

Find questions997
Exam
All years
Calculator

997 questions

  1. Q22

    June 2025 · Paper 2H

    3 marksA16 Equation of a circle and tangentsA13 Graph transformations
    The whole paper ↗

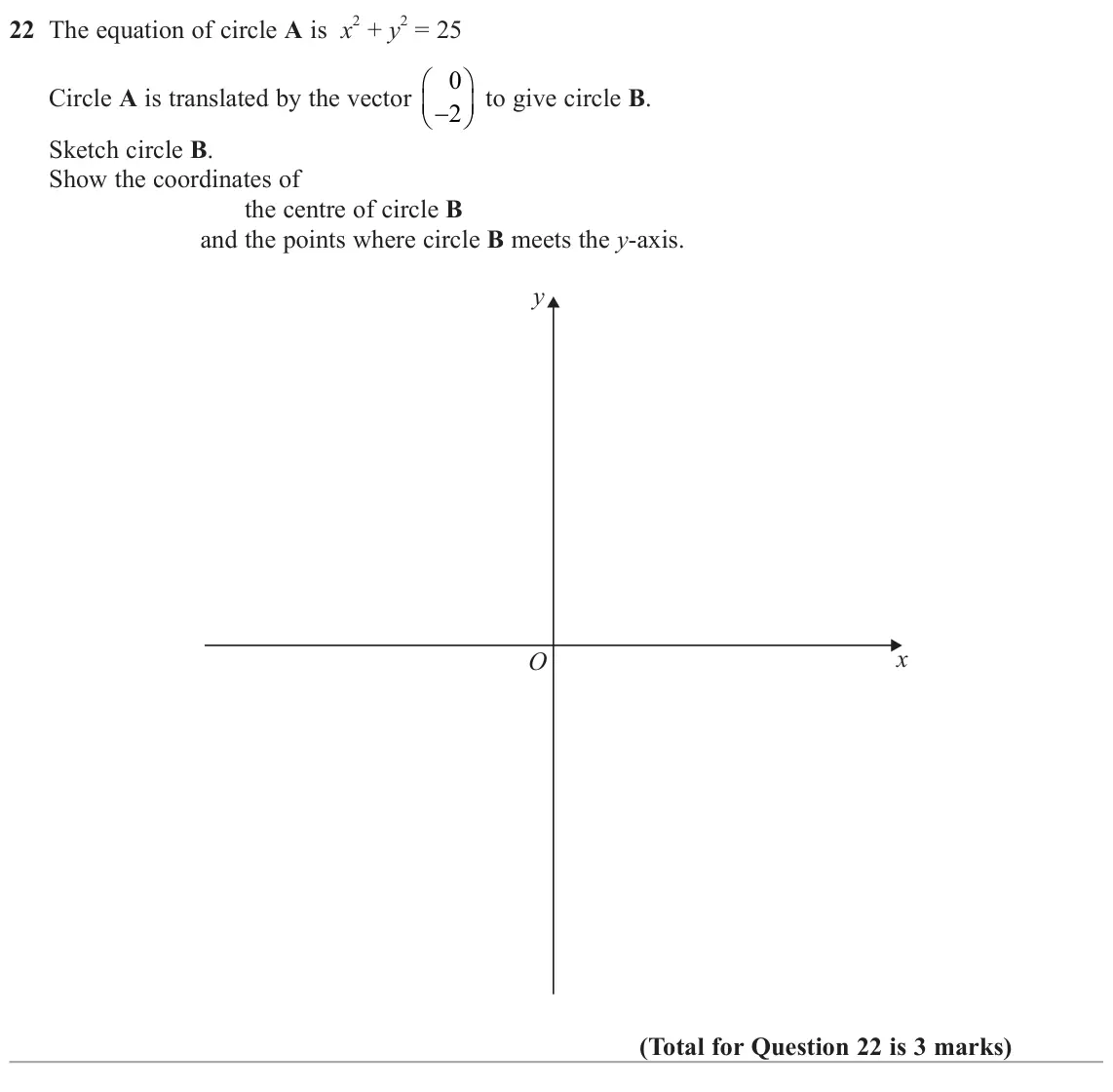

    June 2025 Paper 2H, question 22: The equation of circle A is x 2 + y 2 = 25 0  Circle A is translated by the vector  to give circle B. 2 Sketch circle B. Show the coordinates of the centre o

  2. Q21

    November 2024 · Paper 3H

    4 marksA13 Graph transformationsA12 Recognising and sketching graphs
    The whole paper ↗

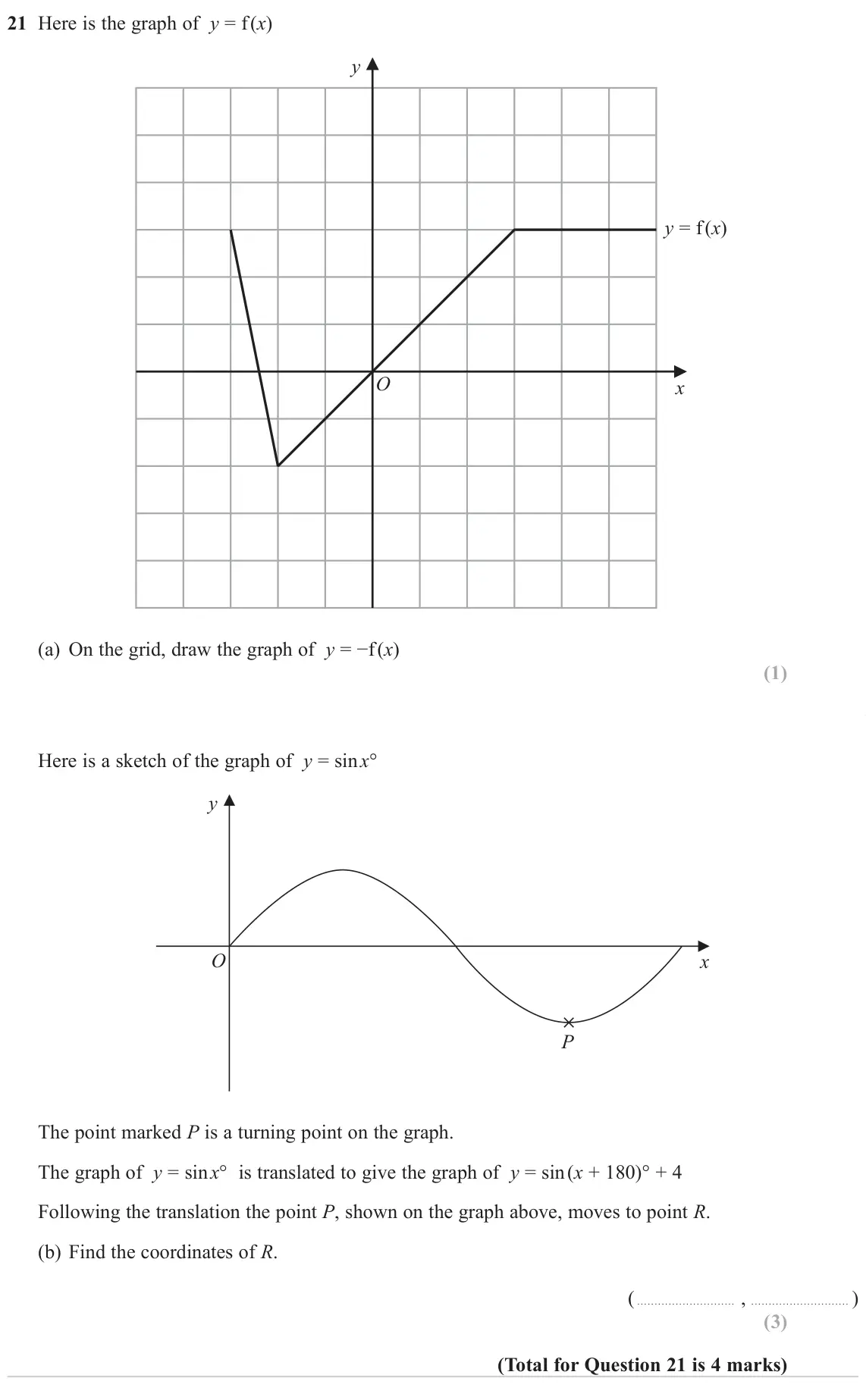

    November 2024 Paper 3H, question 21: Here is the graph of y = f (x) y y = f (x) O x (a) On the grid, draw the graph of y = −f (x) Here is a sketch of the graph of y = sin x° y O x P The point marke

  3. Q21

    June 2024 · Paper 2H

    2 marksA13 Graph transformations
    The whole paper ↗

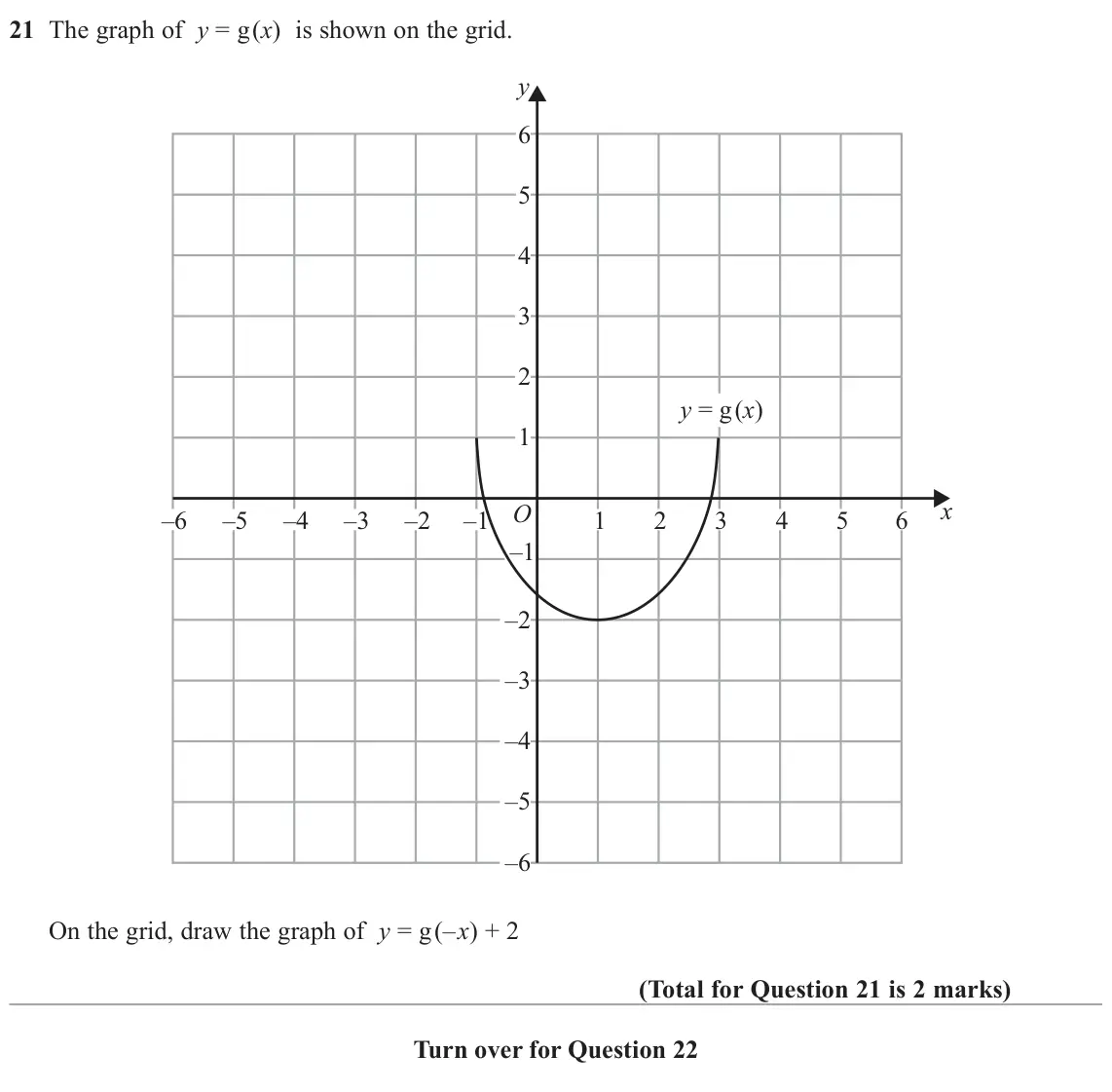

    June 2024 Paper 2H, question 21: The graph of y = g(x) is shown on the grid. y 6 5 4 3 2 y = g(x) 1 x O –6 –5 –4 –3 –2 –1 1 2 3 4 5 6 –1 –2 –3 –4 –5 –6 On the grid, draw the graph of y = g(– x)

  4. Q19

    November 2023 · Paper 1H

    3 marksA12 Recognising and sketching graphsA13 Graph transformations
    The whole paper ↗

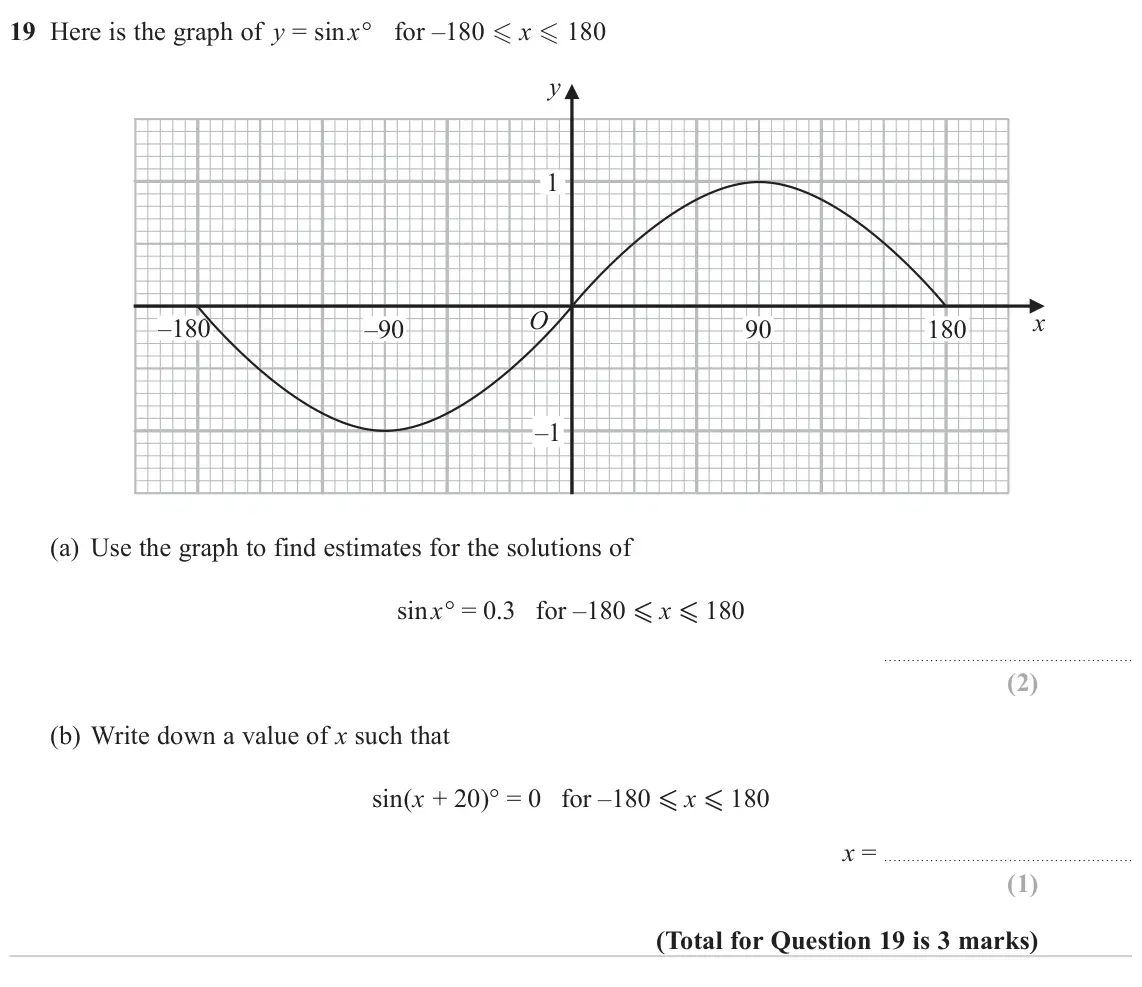

    November 2023 Paper 1H, question 19: Here is the graph of y = sin x° for –180  x  180 y 1 O x –180 –90 90 180 –1 (a) Use the graph to find estimates for the solutions of sin x° = 0.3 for –180  x

  5. Q20

    November 2023 · Paper 3H

    3 marksA13 Graph transformations
    The whole paper ↗

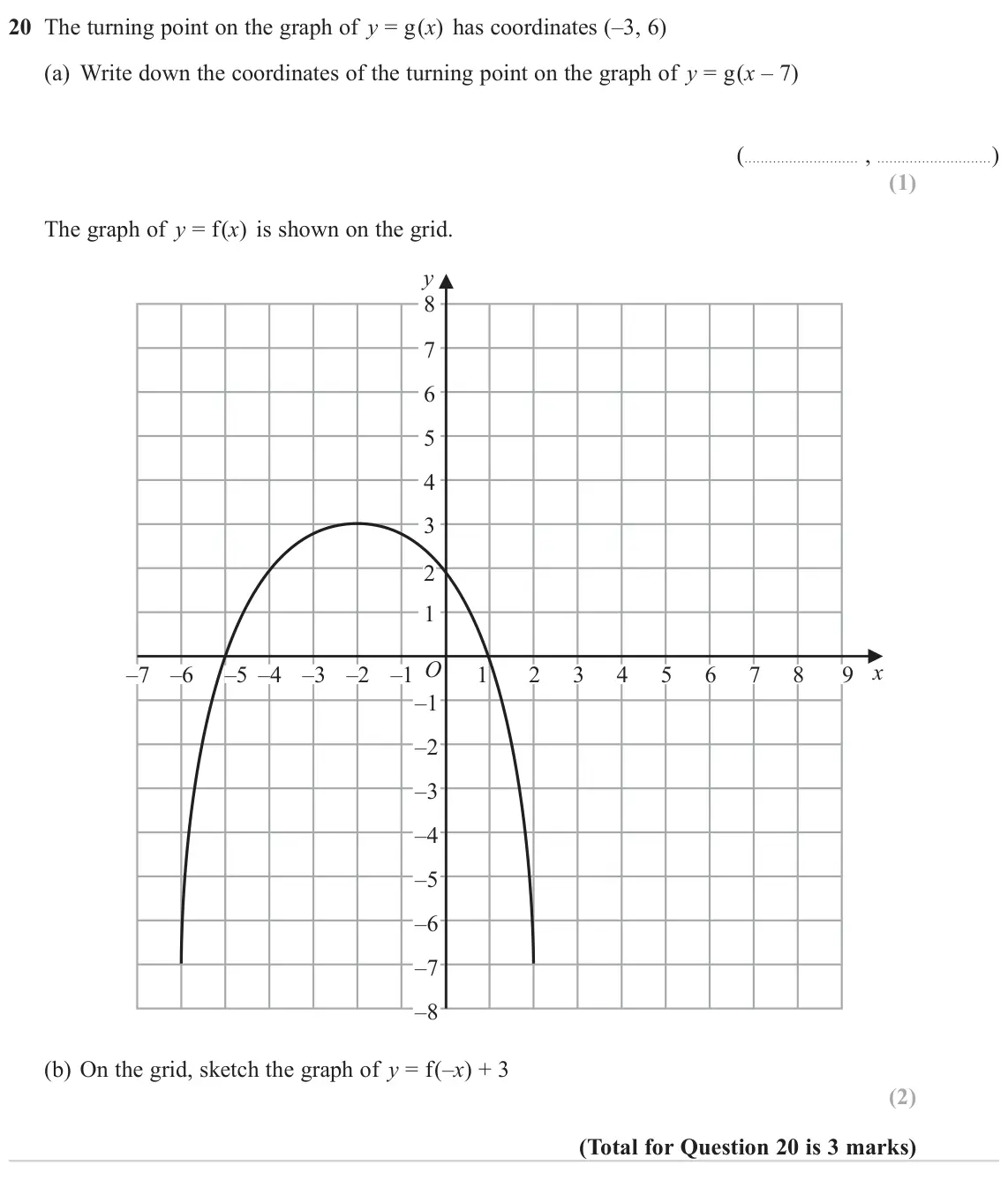

    November 2023 Paper 3H, question 20: The turning point on the graph of y = g(x) has coordinates (–3, 6) (a) Write down the coordinates of the turning point on the graph of y = g(x – 7) ( , ) The gr

  6. Q21

    June 2023 · Paper 2H

    2 marksA13 Graph transformations
    The whole paper ↗

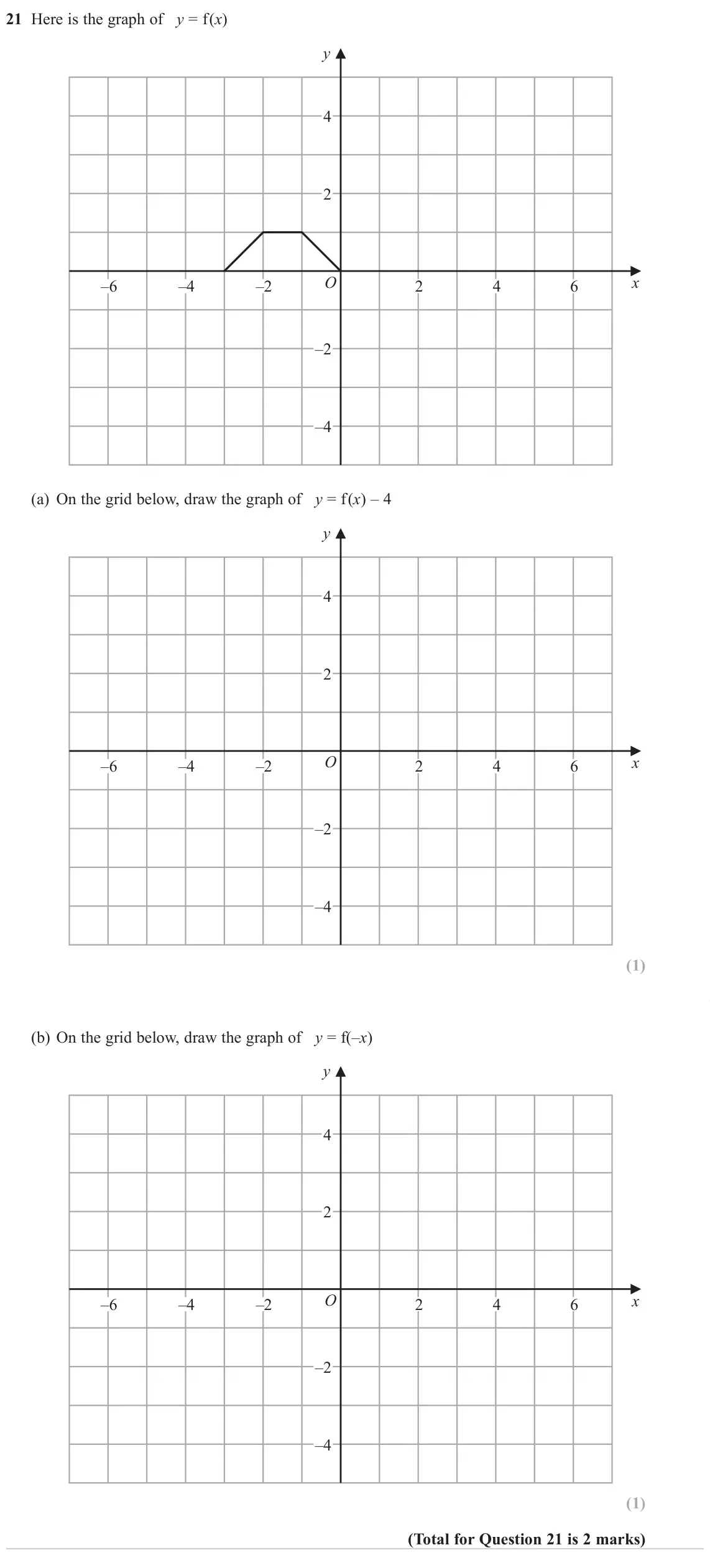

    June 2023 Paper 2H, question 21: Here is the graph of y = f(x) y 4 2 O x –6 –4 –2 2 4 6 –2 –4 (a) On the grid below, draw the graph of y = f(x) – 4 y 4 2 O x –6 –4 –2 2 4 6 –2 –4 (b) On the gri

  7. Q23

    November 2022 · Paper 3H

    2 marksA13 Graph transformations
    The whole paper ↗

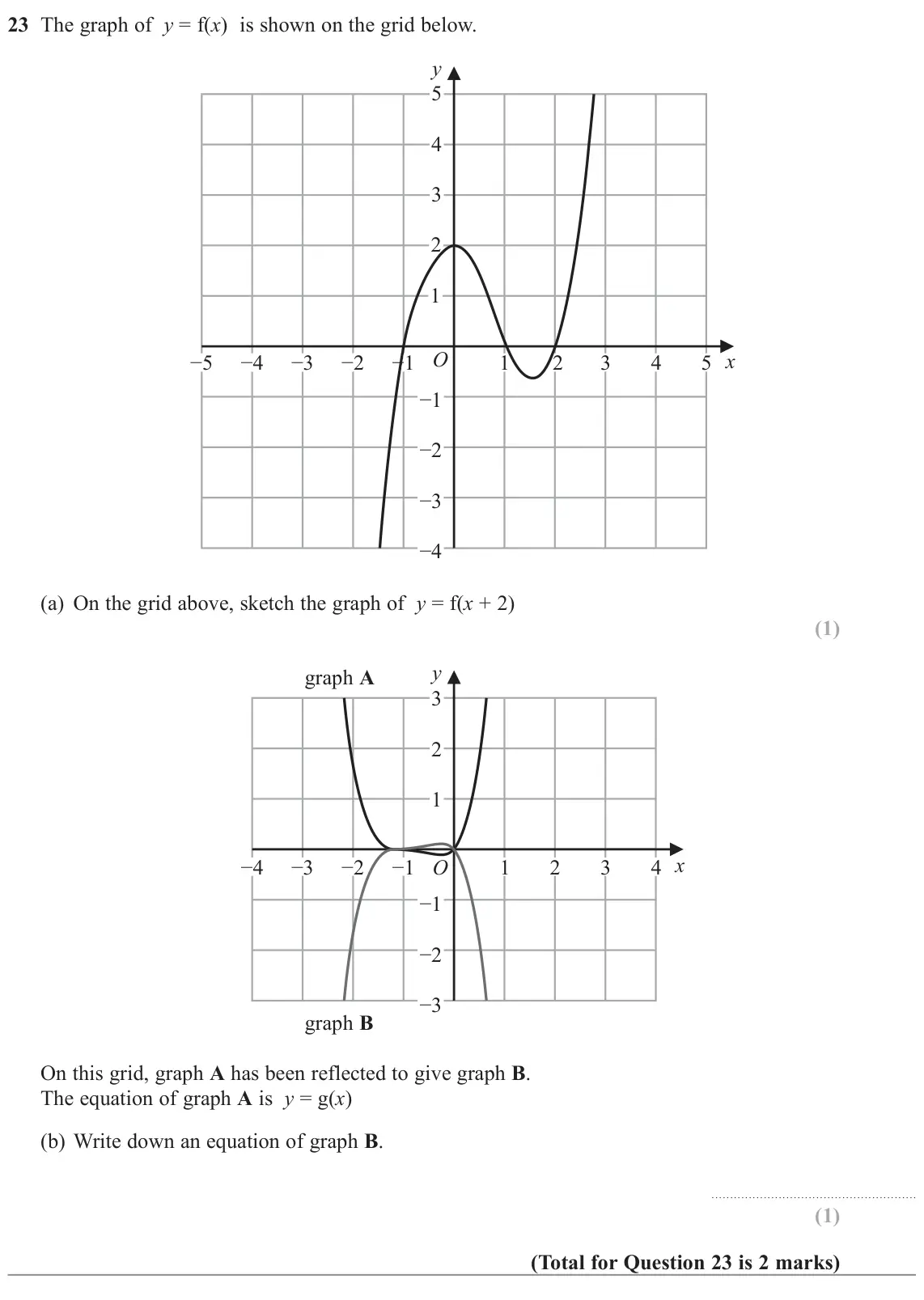

    November 2022 Paper 3H, question 23: The graph of y = f(x) is shown on the grid below. y 5 4 3 2 1 O x −5 −4 −3 −2 −1 1 2 3 4 5 −1 −2 −3 −4 (a) On the grid above, sketch the graph of y = f(x + 2) y

  8. Q21

    June 2022 · Paper 2H

    3 marksA13 Graph transformations
    The whole paper ↗

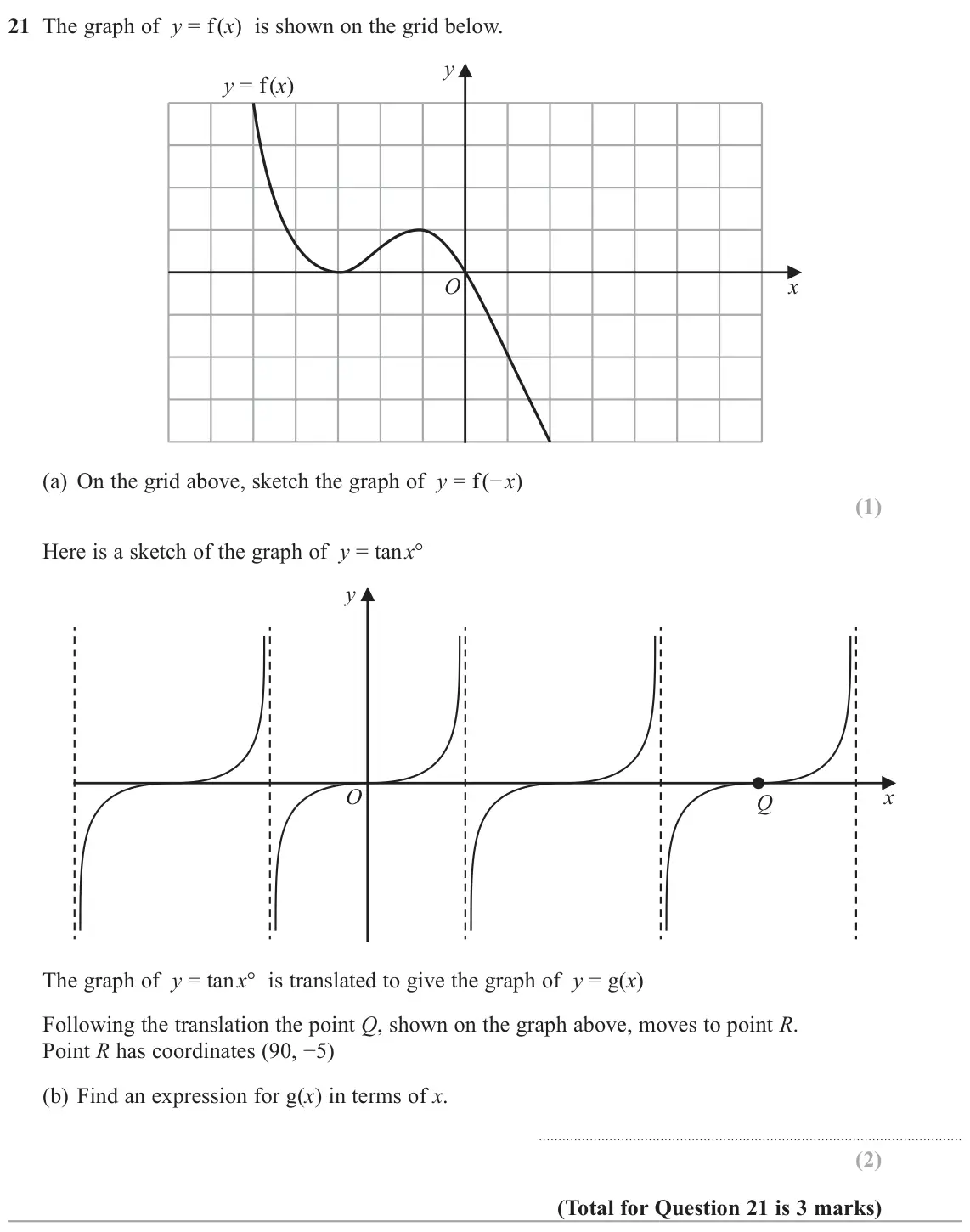

    June 2022 Paper 2H, question 21: The graph of y = f (x) is shown on the grid below. y y = f (x) O x (a) On the grid above, sketch the graph of y = f (− x) Here is a sketch of the graph of y = t

  9. Q18

    November 2021 · Paper 2H

    4 marksA12 Recognising and sketching graphsA13 Graph transformations
    The whole paper ↗

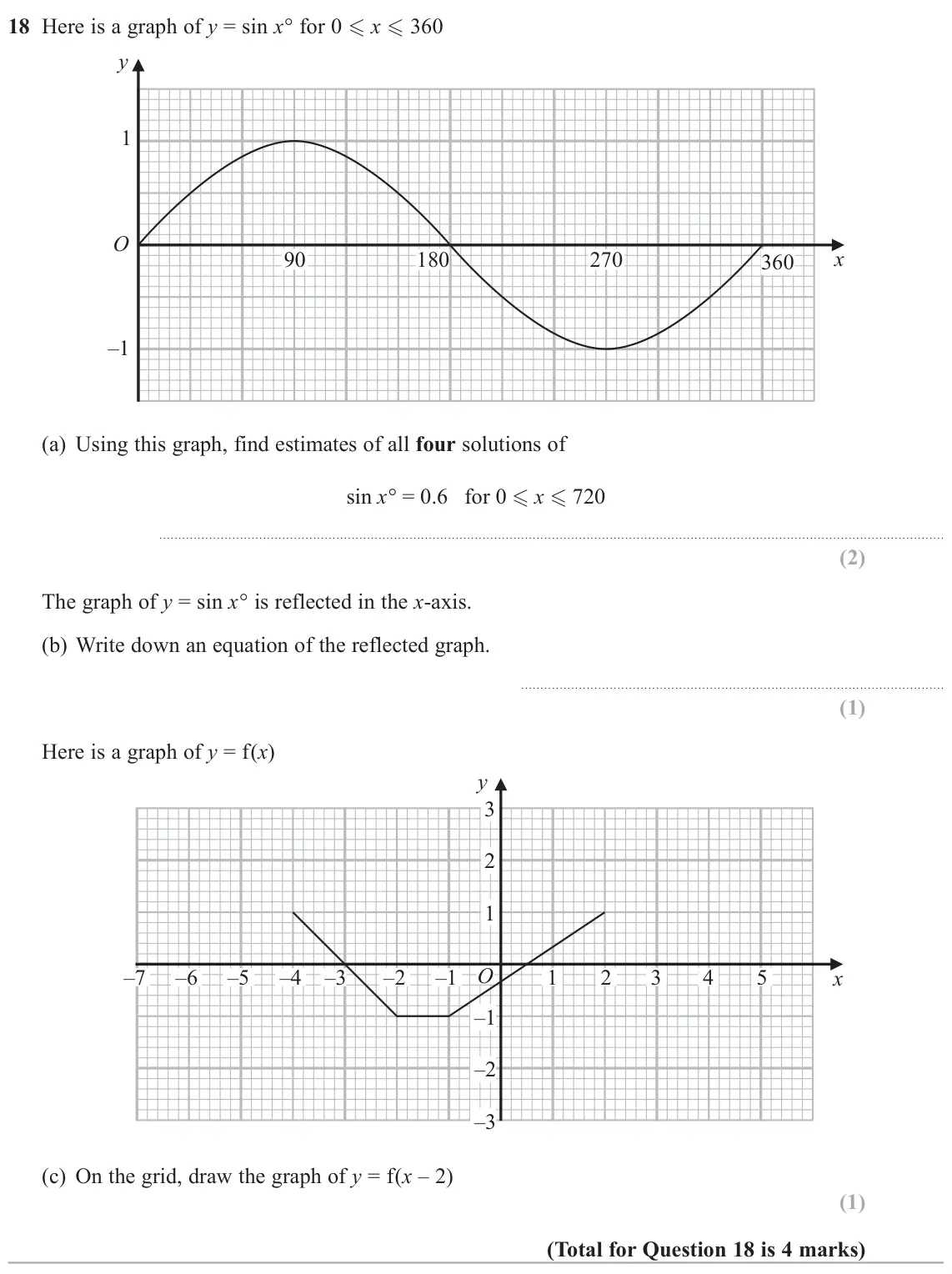

    November 2021 Paper 2H, question 18: Here is a graph of y = sin x° for 0  x  360 y 1 O 90 180 270 x 360 –1 (a) Using this graph, find estimates of all four solutions of sin x° = 0.6 for 0  x  7

  10. Q21

    November 2020 · Paper 2H

    4 marksA13 Graph transformations
    The whole paper ↗

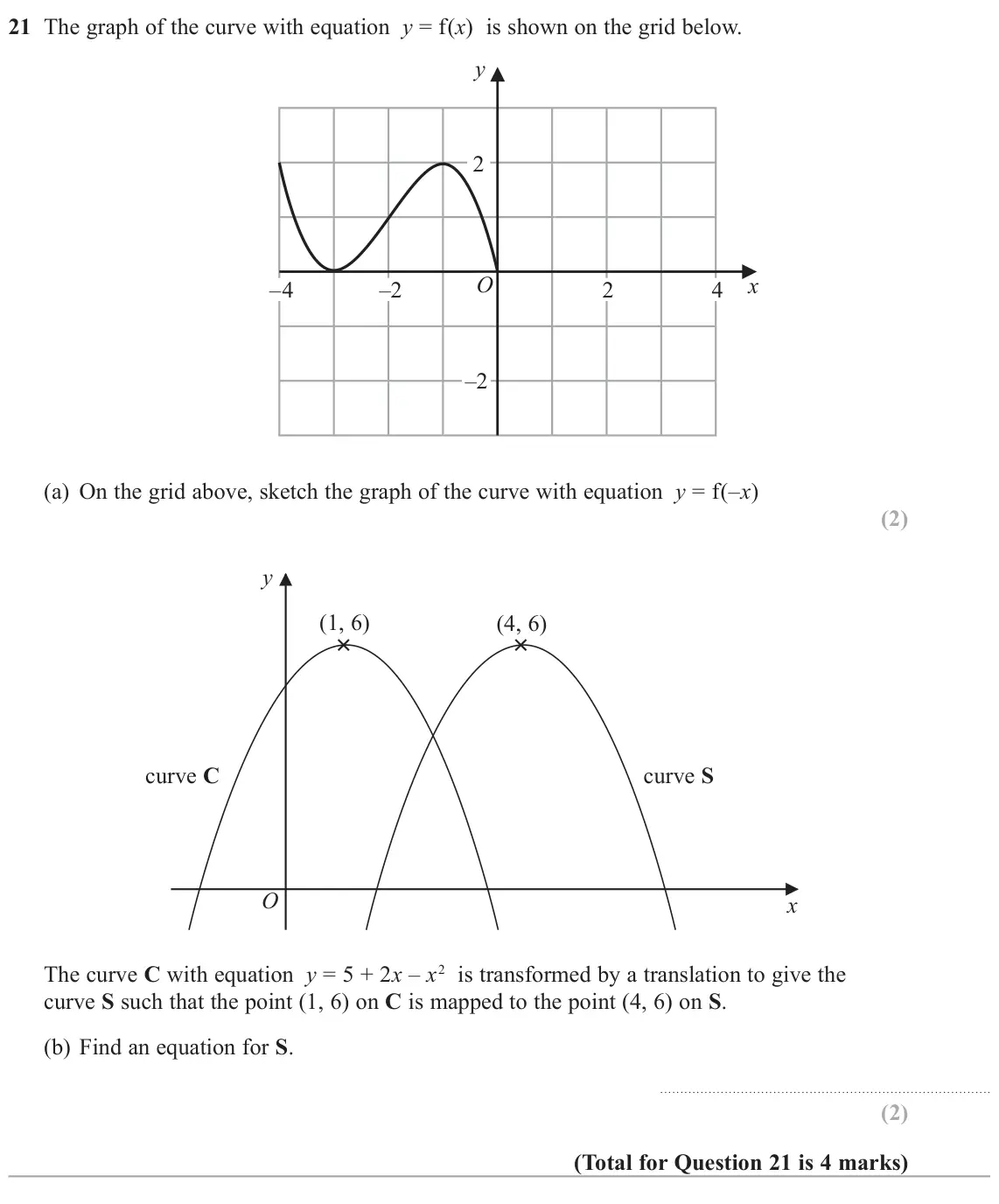

    November 2020 Paper 2H, question 21: The graph of the curve with equation y = f(x) is shown on the grid below. y 2 O x –4 –2 2 4 –2 (a) On the grid above, sketch the graph of the curve with equatio

  11. Q20

    November 2019 · Paper 1H

    3 marksA13 Graph transformations
    The whole paper ↗

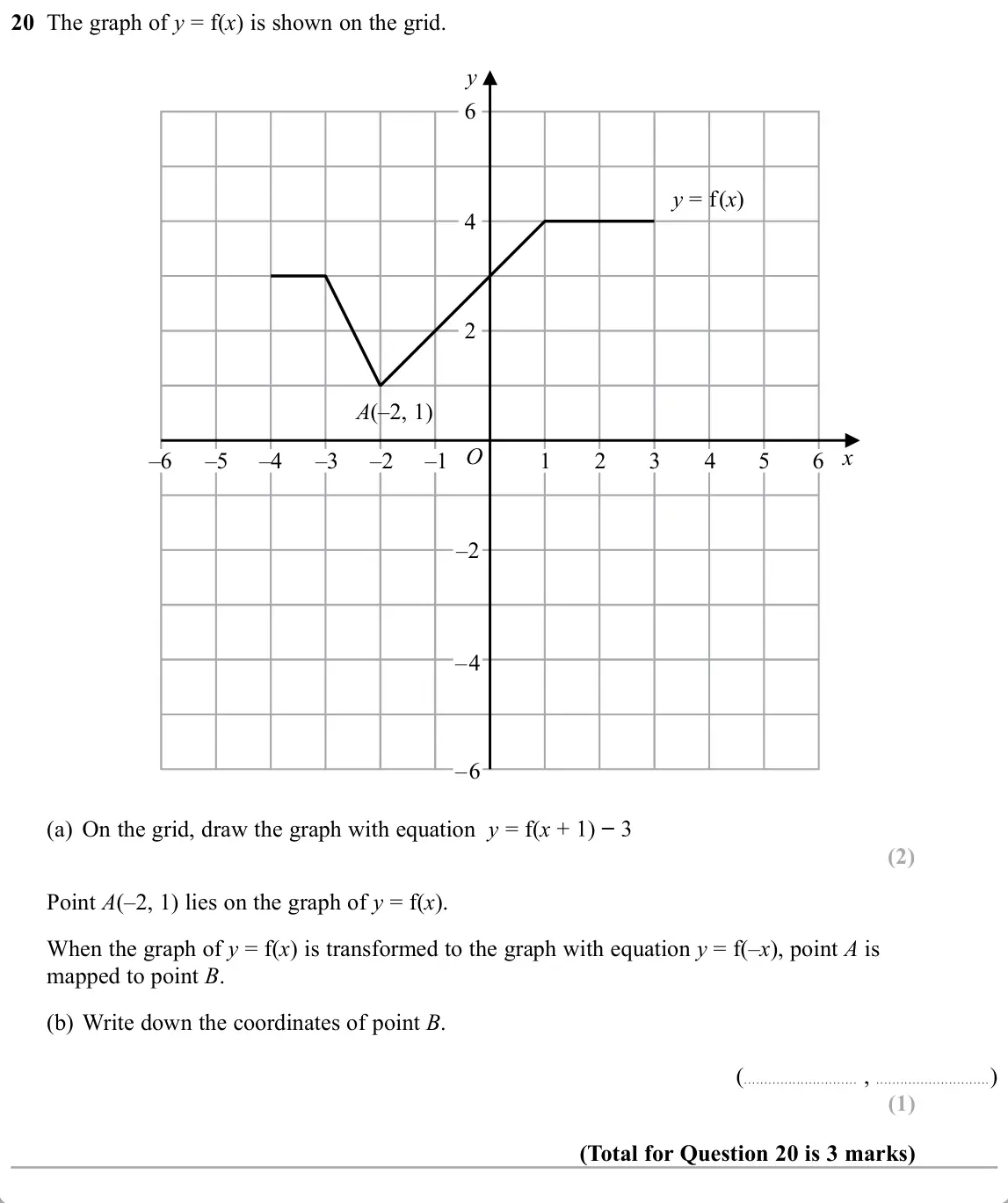

    November 2019 Paper 1H, question 20: The graph of y = f(x) is shown on the grid. y 6 y = f(x) 4 2 A(–2, 1) O x –6 –5 –4 –3 –2 –1 1 2 3 4 5 6 –2 –4 –6 (a) On the grid, draw the graph with equation y

  12. Q15

    June 2019 · Paper 3H

    2 marksA13 Graph transformations
    The whole paper ↗

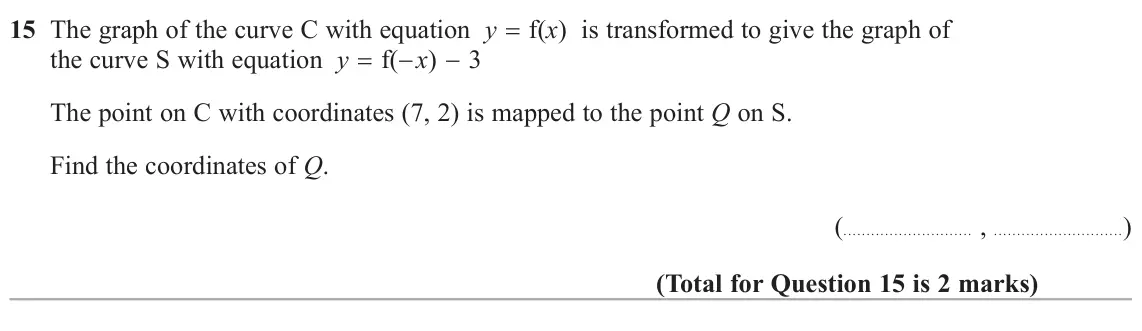

    June 2019 Paper 3H, question 15: The graph of the curve C with equation y f(x) is transformed to give the graph of the curve S with equation y f(x)  3 The point on C with coordinates (7, 2)

  13. Q18

    November 2018 · Paper 1H

    2 marksA13 Graph transformations
    The whole paper ↗

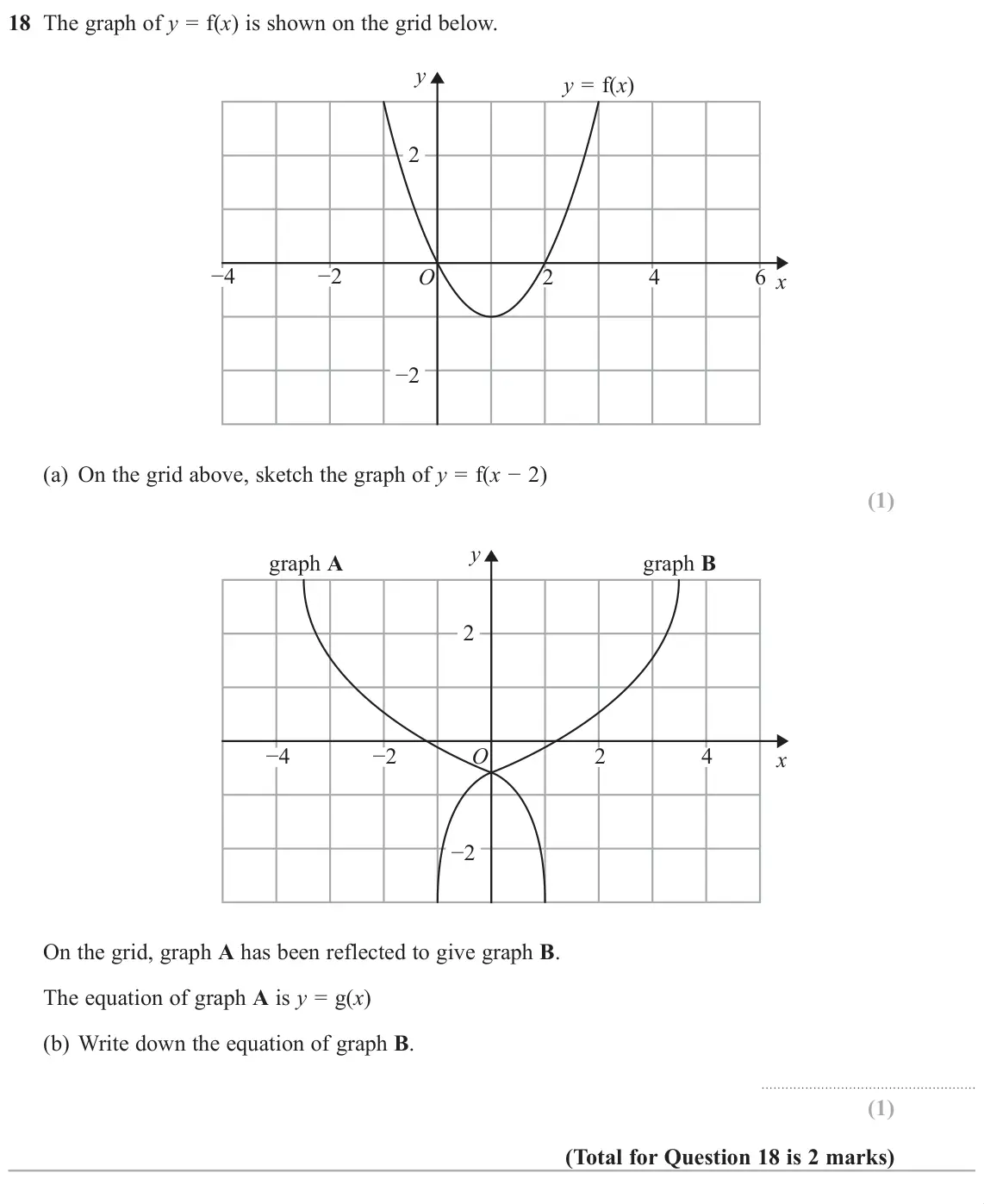

    November 2018 Paper 1H, question 18: The graph of y = f(x) is shown on the grid below. y y = f(x) 2 í í O 2 4 6 x í (a) On the grid above, sketch the graph of y = f(xí y graph A graph B 2 í

  14. Q18

    June 2018 · Paper 1H

    2 marksA13 Graph transformationsA12 Recognising and sketching graphs
    The whole paper ↗

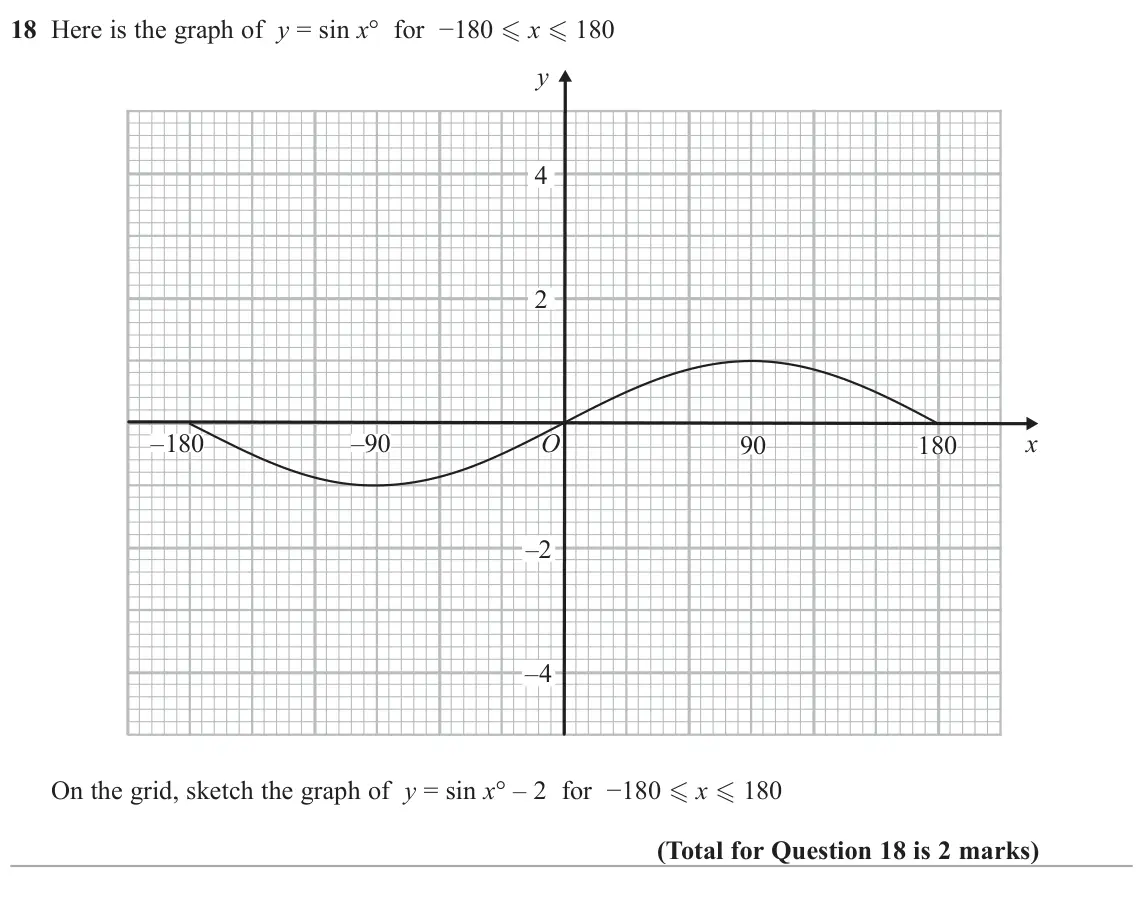

    June 2018 Paper 1H, question 18: Here is the graph of y = sin xƒIRUí- x - 180 y 4 2 –180 –90 O x 90 180 –2 –4 On the grid, sketch the graph of y = sin xƒ±IRUí- x - 180
All 14 questions on Graph transformations, as a list
  1. June 2025, Paper 2H, Q22 (3 marks): The equation of circle A is x 2 + y 2 = 25 0  Circle A is translated by the vector  to give circle B. 2 Sketch circle B. Show the coordinates of the centre o
  2. November 2024, Paper 3H, Q21 (4 marks): Here is the graph of y = f (x) y y = f (x) O x (a) On the grid, draw the graph of y = −f (x) Here is a sketch of the graph of y = sin x° y O x P The point marke
  3. June 2024, Paper 2H, Q21 (2 marks): The graph of y = g(x) is shown on the grid. y 6 5 4 3 2 y = g(x) 1 x O –6 –5 –4 –3 –2 –1 1 2 3 4 5 6 –1 –2 –3 –4 –5 –6 On the grid, draw the graph of y = g(– x)
  4. November 2023, Paper 1H, Q19 (3 marks): Here is the graph of y = sin x° for –180  x  180 y 1 O x –180 –90 90 180 –1 (a) Use the graph to find estimates for the solutions of sin x° = 0.3 for –180  x
  5. November 2023, Paper 3H, Q20 (3 marks): The turning point on the graph of y = g(x) has coordinates (–3, 6) (a) Write down the coordinates of the turning point on the graph of y = g(x – 7) ( , ) The gr
  6. June 2023, Paper 2H, Q21 (2 marks): Here is the graph of y = f(x) y 4 2 O x –6 –4 –2 2 4 6 –2 –4 (a) On the grid below, draw the graph of y = f(x) – 4 y 4 2 O x –6 –4 –2 2 4 6 –2 –4 (b) On the gri
  7. November 2022, Paper 3H, Q23 (2 marks): The graph of y = f(x) is shown on the grid below. y 5 4 3 2 1 O x −5 −4 −3 −2 −1 1 2 3 4 5 −1 −2 −3 −4 (a) On the grid above, sketch the graph of y = f(x + 2) y
  8. June 2022, Paper 2H, Q21 (3 marks): The graph of y = f (x) is shown on the grid below. y y = f (x) O x (a) On the grid above, sketch the graph of y = f (− x) Here is a sketch of the graph of y = t
  9. November 2021, Paper 2H, Q18 (4 marks): Here is a graph of y = sin x° for 0  x  360 y 1 O 90 180 270 x 360 –1 (a) Using this graph, find estimates of all four solutions of sin x° = 0.6 for 0  x  7
  10. November 2020, Paper 2H, Q21 (4 marks): The graph of the curve with equation y = f(x) is shown on the grid below. y 2 O x –4 –2 2 4 –2 (a) On the grid above, sketch the graph of the curve with equatio
  11. November 2019, Paper 1H, Q20 (3 marks): The graph of y = f(x) is shown on the grid. y 6 y = f(x) 4 2 A(–2, 1) O x –6 –5 –4 –3 –2 –1 1 2 3 4 5 6 –2 –4 –6 (a) On the grid, draw the graph with equation y
  12. June 2019, Paper 3H, Q15 (2 marks): The graph of the curve C with equation y f(x) is transformed to give the graph of the curve S with equation y f(x)  3 The point on C with coordinates (7, 2)
  13. November 2018, Paper 1H, Q18 (2 marks): The graph of y = f(x) is shown on the grid below. y y = f(x) 2 í í O 2 4 6 x í (a) On the grid above, sketch the graph of y = f(xí y graph A graph B 2 í
  14. June 2018, Paper 1H, Q18 (2 marks): Here is the graph of y = sin xƒIRUí- x - 180 y 4 2 –180 –90 O x 90 180 –2 –4 On the grid, sketch the graph of y = sin xƒ±IRUí- x - 180
