Graphs in real contexts: Edexcel GCSE Maths questions

Every Edexcel GCSE Maths exam question on A14 Graphs in real contexts, 2017–2025, with its mark scheme and examiner’s report.

Find questions997
Exam
All years
Calculator

997 questions

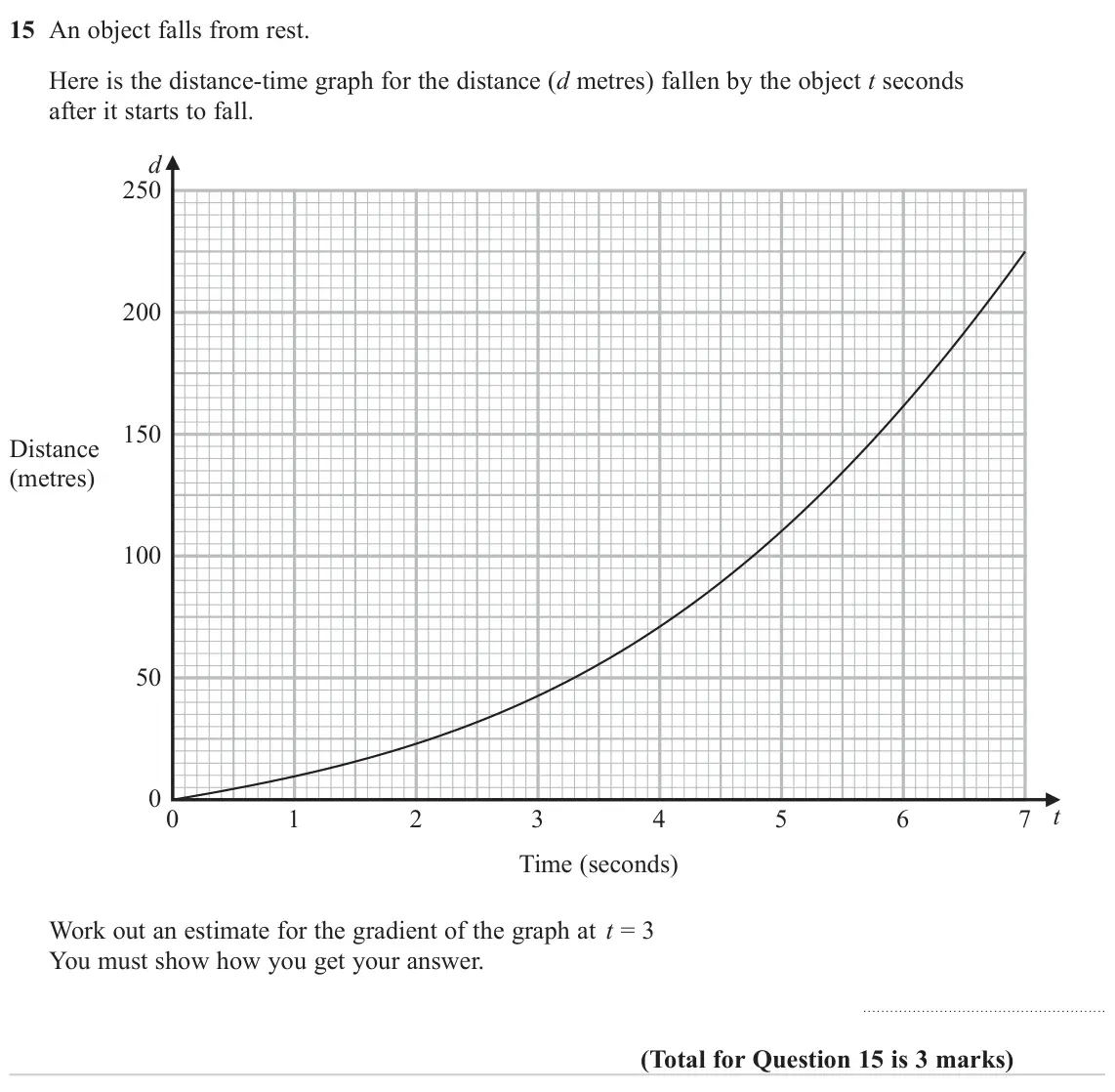

  1. Q15

    November 2023 · Paper 1H

    3 marksR15 Instantaneous and average rates of changeA14 Graphs in real contexts
    The whole paper ↗
    November 2023 Paper 1H, question 15: An object falls from rest. Here is the distance‑time graph for the distance (d metres) fallen by the object t seconds after it starts to fall. d 250 200 150 Dis

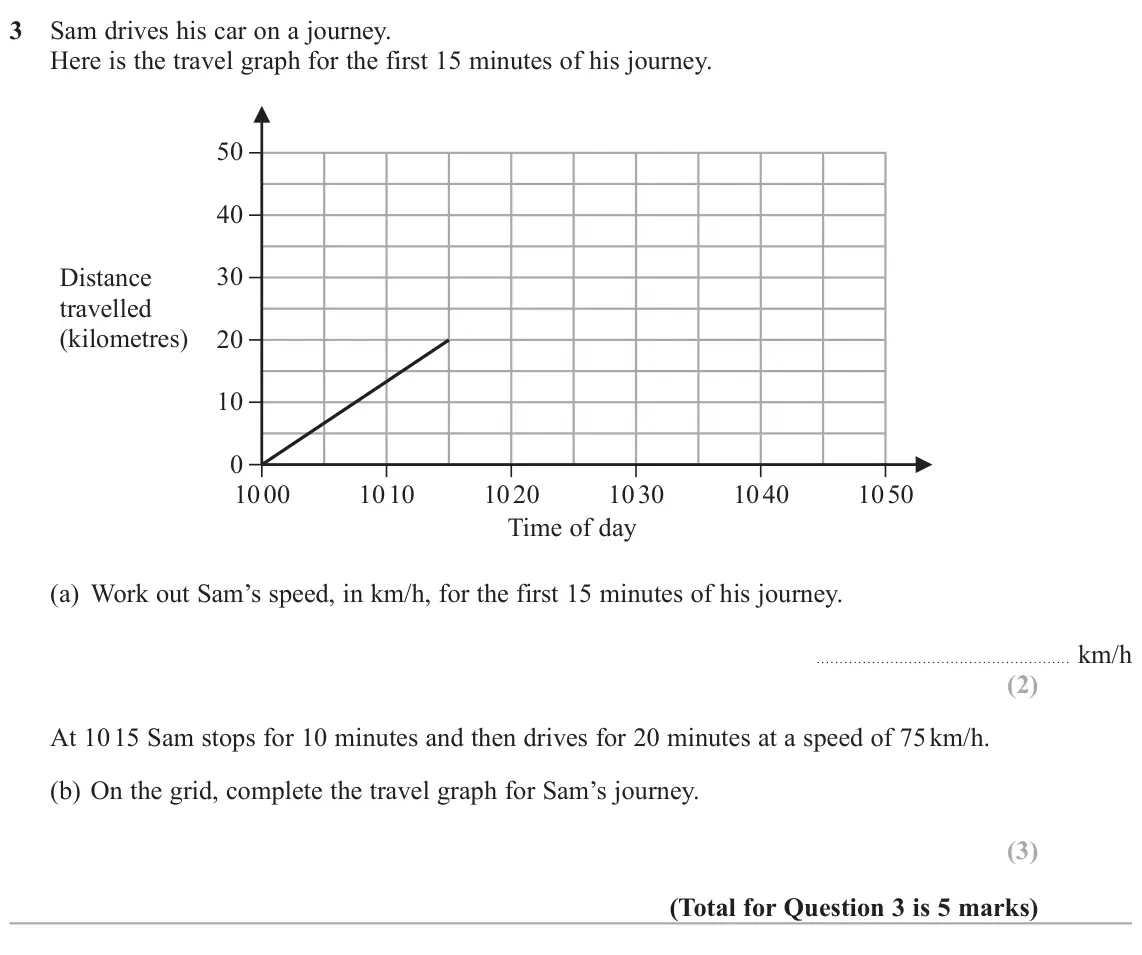

  2. Q3

    November 2021 · Paper 2H

    5 marksR11 Compound units: speed, density and pressureA14 Graphs in real contexts
    The whole paper ↗
    November 2021 Paper 2H, question 3: Sam drives his car on a journey. Here is the travel graph for the first 15 minutes of his journey. 50 40 30 Distance travelled (kilometres) 20 10 0 10 00 10 10

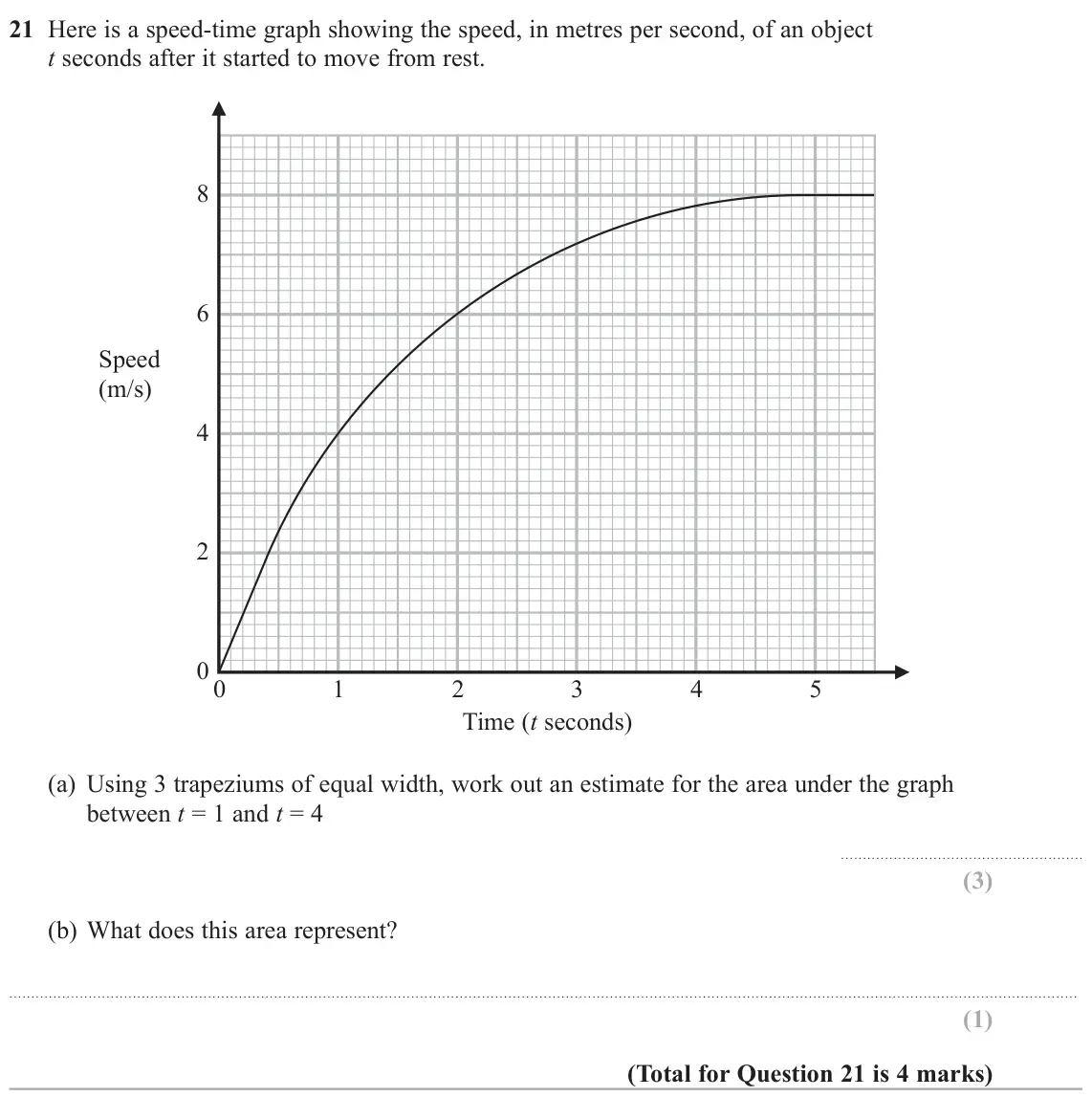

  3. Q21

    November 2021 · Paper 3H

    4 marksA15 Gradients and areas under graphsA14 Graphs in real contexts
    The whole paper ↗
    November 2021 Paper 3H, question 21: Here is a speed-time graph showing the speed, in metres per second, of an object t seconds after it started to move from rest. 8 6 Speed (m/s) 4 2 0 0 1 2 3 4 5

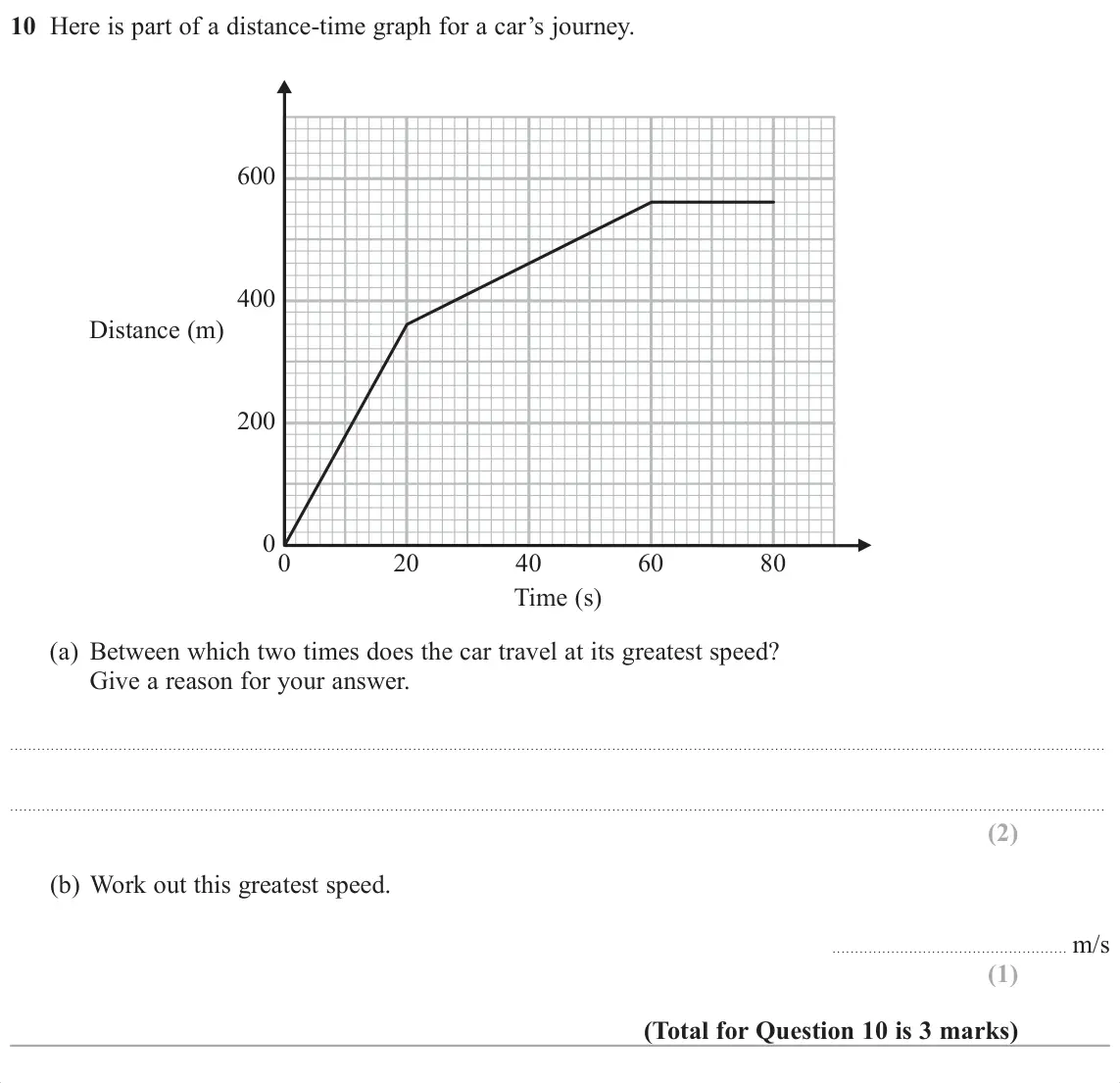

  4. Q10

    November 2017 · Paper 2H

    3 marksA15 Gradients and areas under graphsA14 Graphs in real contexts
    The whole paper ↗
    November 2017 Paper 2H, question 10: is 3 marks)
All 4 questions on Graphs in real contexts, as a list
  1. November 2023, Paper 1H, Q15 (3 marks): An object falls from rest. Here is the distance‑time graph for the distance (d metres) fallen by the object t seconds after it starts to fall. d 250 200 150 Dis
  2. November 2021, Paper 2H, Q3 (5 marks): Sam drives his car on a journey. Here is the travel graph for the first 15 minutes of his journey. 50 40 30 Distance travelled (kilometres) 20 10 0 10 00 10 10
  3. November 2021, Paper 3H, Q21 (4 marks): Here is a speed-time graph showing the speed, in metres per second, of an object t seconds after it started to move from rest. 8 6 Speed (m/s) 4 2 0 0 1 2 3 4 5
  4. November 2017, Paper 2H, Q10 (3 marks): is 3 marks)
