plumiSimple phenomena of magnetism: CAIE IGCSE Physics questions
Every CAIE IGCSE Physics exam question on 4.1 Simple phenomena of magnetism, June 2024 and the specimen papers, with its mark scheme and examiner’s report.
Find questions355
Calculations
Q8(a)(i)
The whole paper ↗![June 2024 Paper 3, question 8(a)(i): The electromagnet is a temporary magnet. State one material which is suitable for the core of the electromagnet. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062531-jun24-08-ai-qp.webp)
Q8(b)(i)
The whole paper ↗![June 2024 Paper 3, question 8(b)(i): There is a magnetic field around the electromagnet. State the name of a piece of equipment that can show the direction of a magnetic field. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062531-jun24-08-bi-qp.webp)
All 8 questions on Simple phenomena of magnetism, as a list

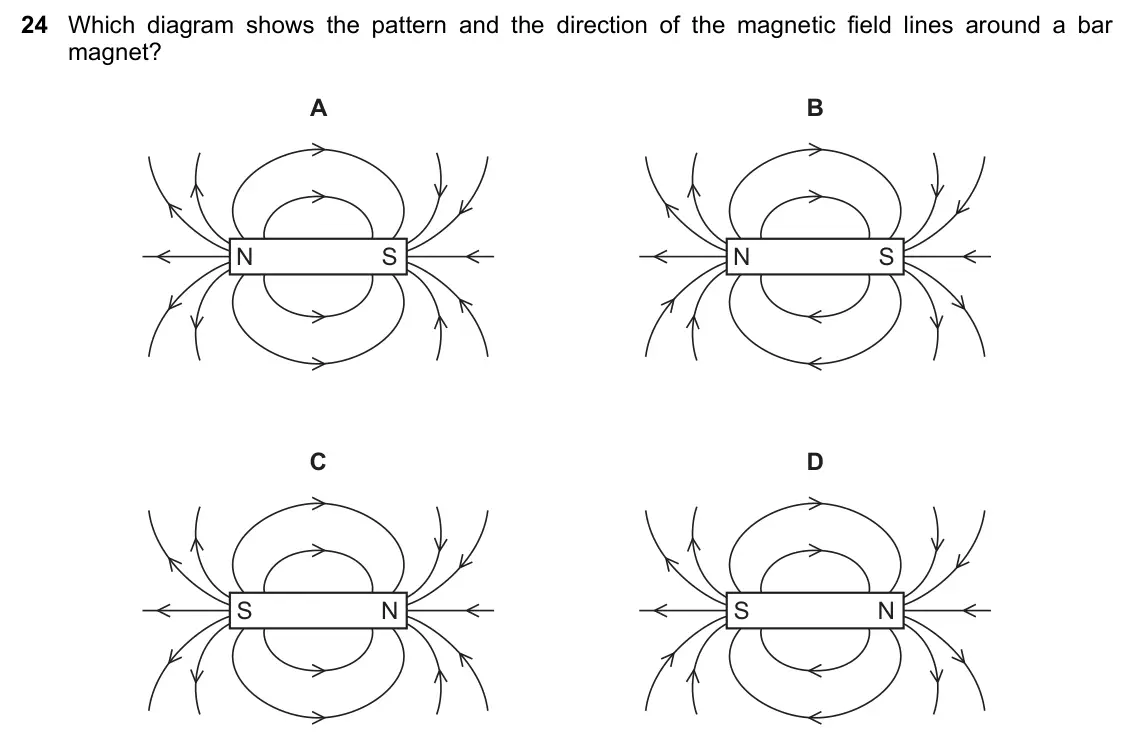

- June 2024, Paper 1, Q24 (1 mark): Which diagram shows the pattern and the direction of the magnetic field lines around a bar magnet? A B N S N S C D S N S N

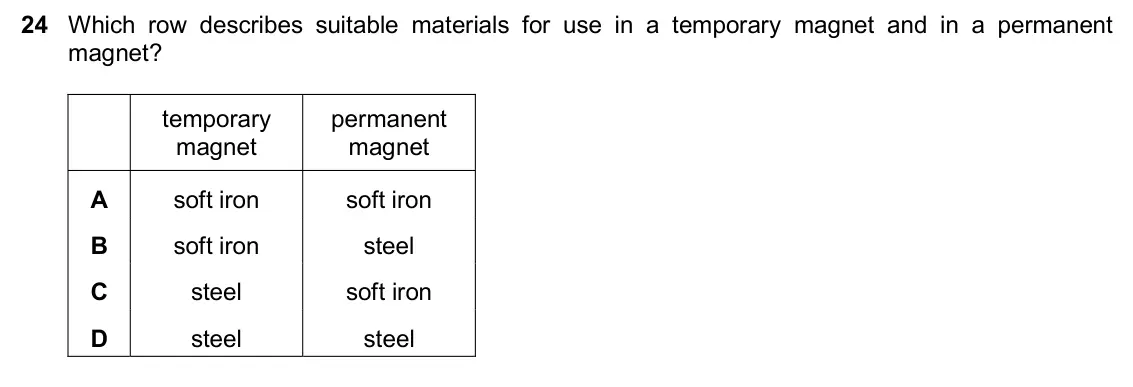

- June 2024, Paper 2, Q24 (1 mark): Which row describes suitable materials for use in a temporary magnet and in a permanent magnet? temporary permanent magnet magnet A soft iron soft iron B soft i

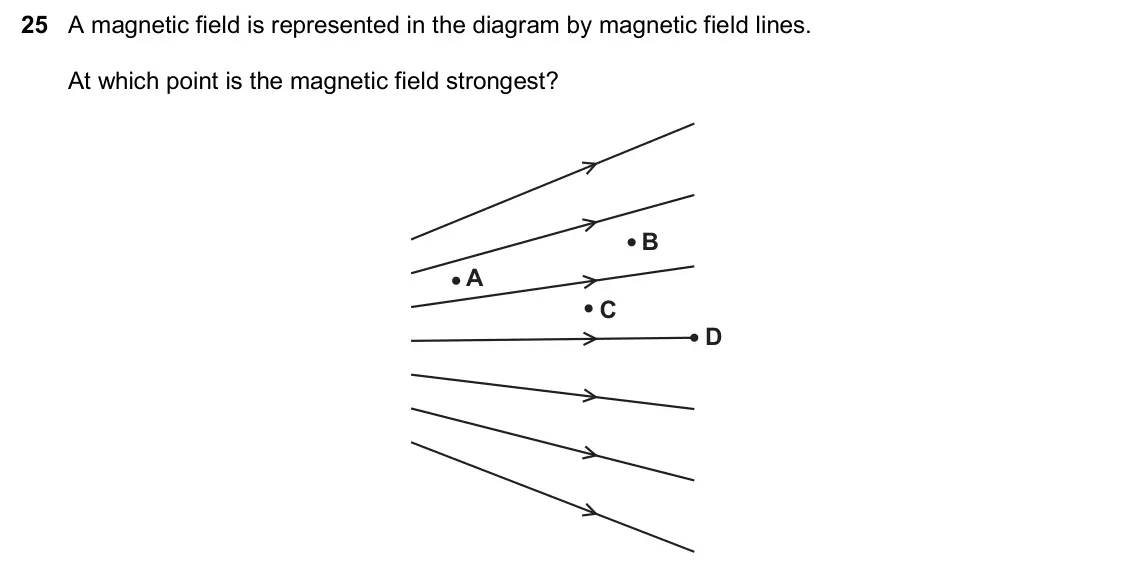

- June 2024, Paper 2, Q25 (1 mark): A magnetic field is represented in the diagram by magnetic field lines. At which point is the magnetic field strongest? B A C D

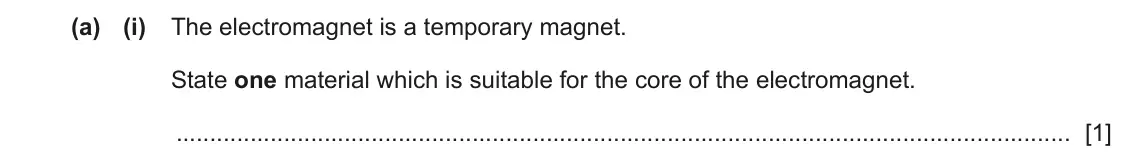

- June 2024, Paper 3, Q8(a)(i) (1 mark): The electromagnet is a temporary magnet. State one material which is suitable for the core of the electromagnet. [1]

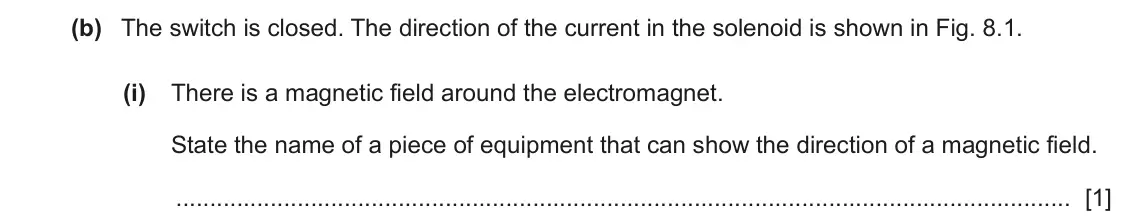

- June 2024, Paper 3, Q8(b)(i) (1 mark): There is a magnetic field around the electromagnet. State the name of a piece of equipment that can show the direction of a magnetic field. [1]

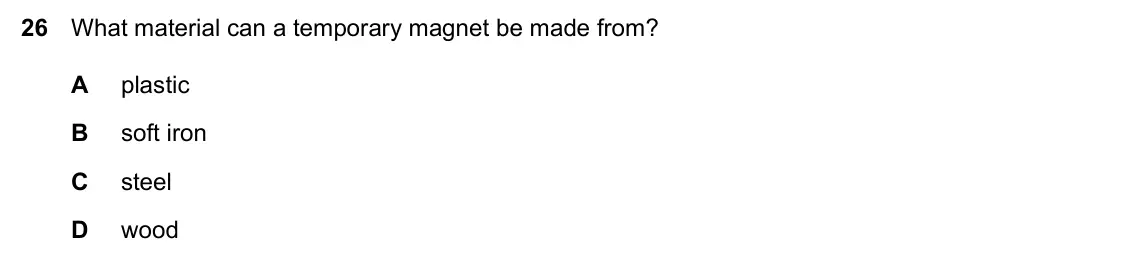

- Specimen, Paper 1, Q26 (1 mark): What material can a temporary magnet be made from? A plastic B soft iron C steel D wood

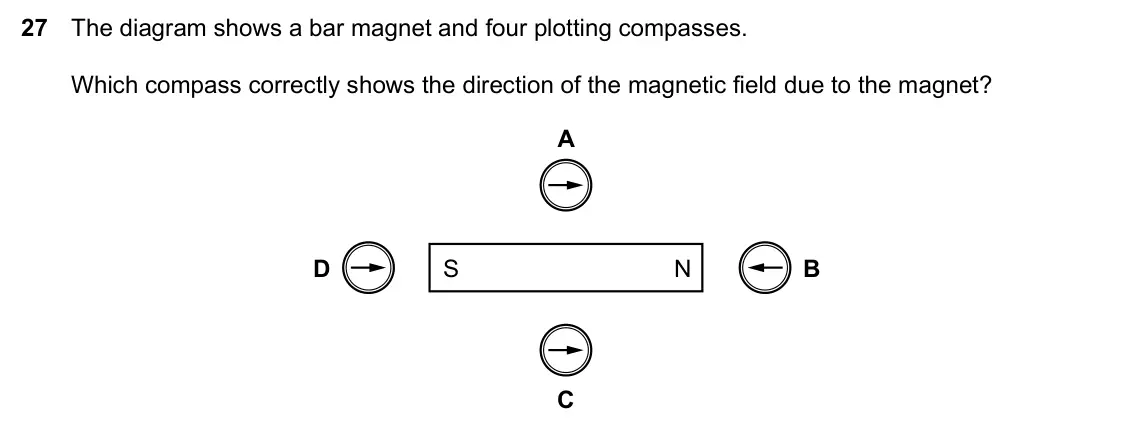

- Specimen, Paper 1, Q27 (1 mark): The diagram shows a bar magnet and four plotting compasses. Which compass correctly shows the direction of the magnetic field due to the magnet? A D S N B C
- Specimen, Paper 2, Q27 (1 mark): The diagram shows a bar magnet and four plotting compasses. Which compass correctly shows the direction of the magnetic field due to the magnet? A D S N B C
