plumiElectric circuits: CAIE IGCSE Physics questions
Every CAIE IGCSE Physics exam question on 4.3 Electric circuits, June 2024 and the specimen papers, with its mark scheme and examiner’s report.
Find questions355
Calculations
Q8(a)(ii)
The whole paper ↗
Q7(b)(i)
The whole paper ↗![June 2024 Paper 4, question 7(b)(i): Draw a circuit diagram that shows all the 1.5 V cells connected to produce an e.m.f. of 7.5 V, the variable resistor and the 30 Ω resistor. [3]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062541-jun24-07-bi-qp.webp)
Q7(b)(ii)
The whole paper ↗
Q2(c)
The whole paper ↗![June 2024 Paper 6, question 2(c): A variable resistor is a circuit component that can be made using a coil of resistance wire. Draw the electrical symbol for a variable resistor. [1] [Total: 11]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062561-jun24-02-c-qp.webp)
Q10(a)
The whole paper ↗![Specimen Paper 3, question 10(a): On Fig. 10.1, circle the symbol representing the heater. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062503-spec-10-a-qp.webp)
Q10(b)
The whole paper ↗![Specimen Paper 3, question 10(b): Fig. 10.1 includes a variable resistor. Explain the function of the variable resistor in this circuit. [2]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062503-spec-10-b-qp.webp)
Q8(a)
The whole paper ↗![Specimen Paper 4, question 8(a): Calculate the combined resistance between Y and Z. resistance = [4]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062504-spec-08-a-qp.webp)
Q8(b)
The whole paper ↗![Specimen Paper 4, question 8(b): Calculate the potential difference (p.d.) across the 8.0 Ω resistor. p.d. = [2] [Total: 6]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062504-spec-08-b-qp.webp)
Q2(f)(i)
The whole paper ↗![Specimen Paper 6, question 2(f)(i): Draw an X on the circuit in Fig. 2.1 to show where a variable resistor is connected for this purpose in the experiment. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062506-spec-02-fi-qp.webp)
Q2(f)(ii)
The whole paper ↗![Specimen Paper 6, question 2(f)(ii): In the space below, sketch the circuit symbol for a variable resistor. [1] [Total: 11]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062506-spec-02-fii-qp.webp)
All 18 questions on Electric circuits, as a list

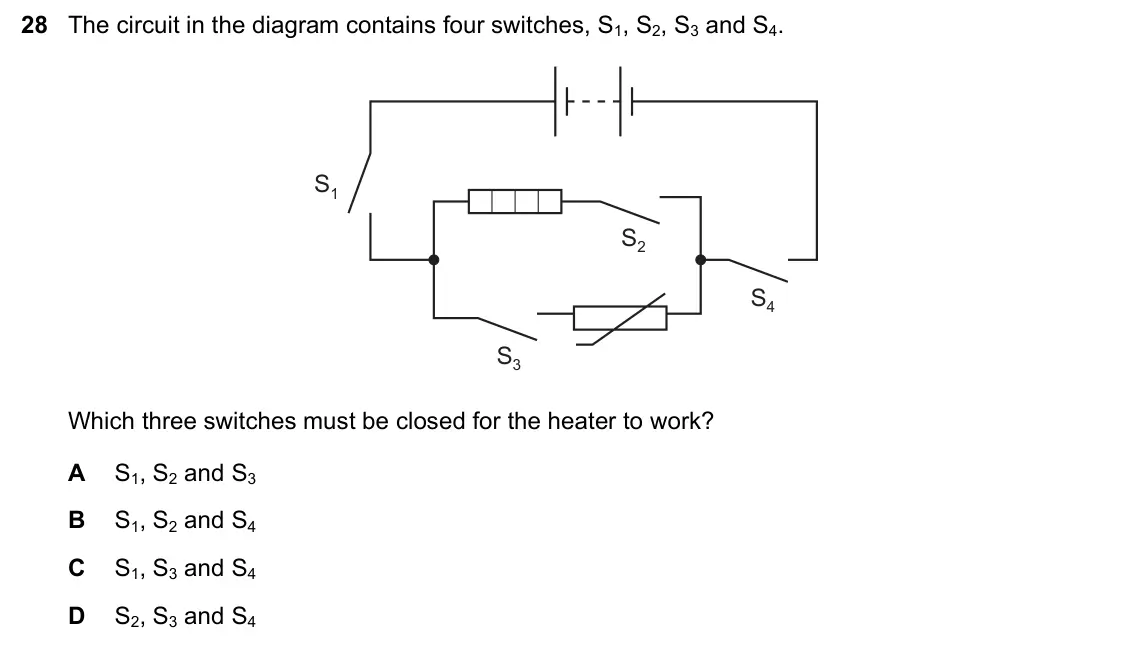

- June 2024, Paper 1, Q28 (1 mark): The circuit in the diagram contains four switches, S1, S2, S3 and S4. S1 S2 S4 S3 Which three switches must be closed for the heater to work? A S1, S2 and S3 B

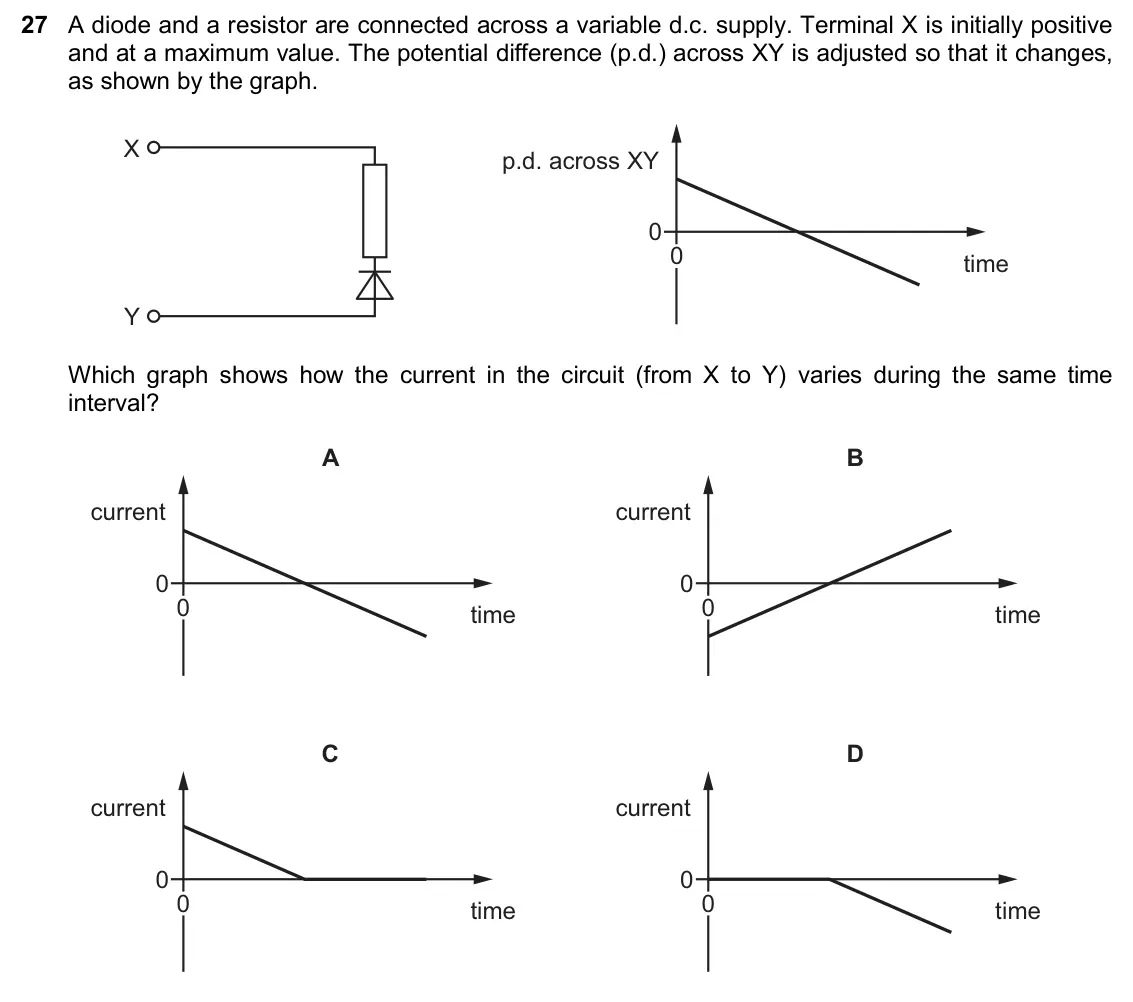

- June 2024, Paper 2, Q27 (1 mark): A diode and a resistor are connected across a variable d.c. supply. Terminal X is initially positive and at a maximum value. The potential difference (p.d.) acr

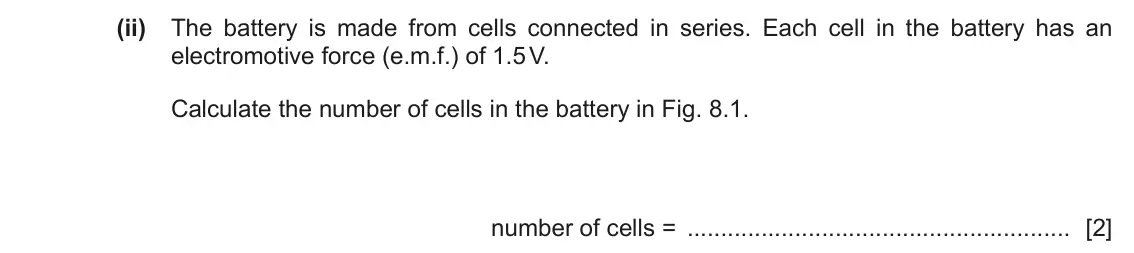

- June 2024, Paper 3, Q8(a)(ii) (2 marks): The battery is made from cells connected in series. Each cell in the battery has an electromotive force (e.m.f.) of 1.5 V. Calculate the number of cells in the

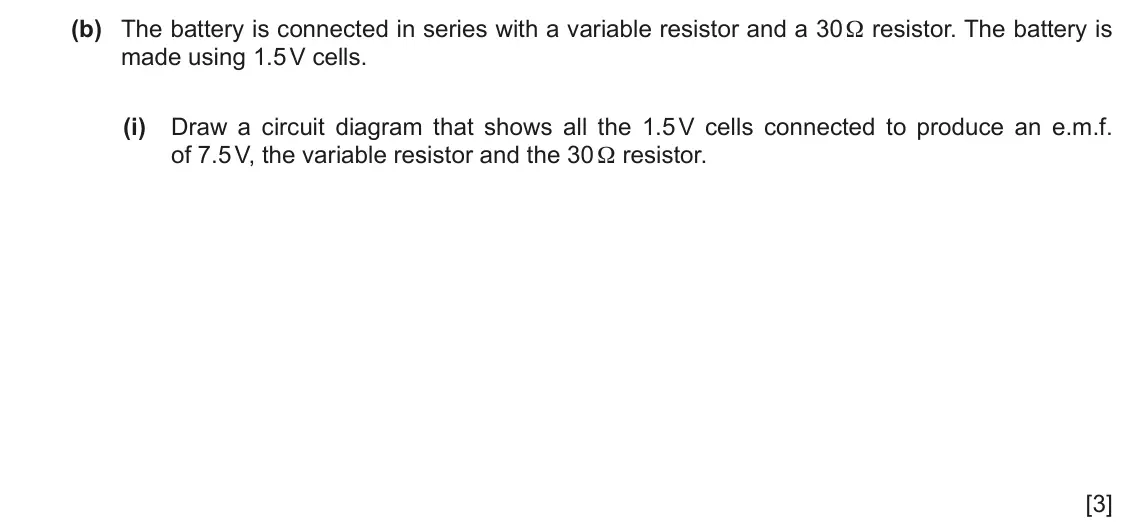

- June 2024, Paper 4, Q7(b)(i) (3 marks): Draw a circuit diagram that shows all the 1.5 V cells connected to produce an e.m.f. of 7.5 V, the variable resistor and the 30 Ω resistor. [3]
- June 2024, Paper 4, Q7(b)(ii) (4 marks): The resistance of the variable resistor can be varied from 0 Ω to a maximum resistance of 150 Ω. Using the axes in Fig. 7.1, draw a graph to show how the curren

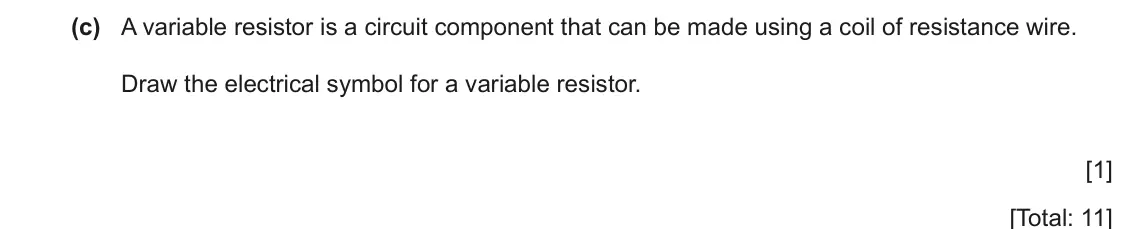

- June 2024, Paper 6, Q2(c) (1 mark): A variable resistor is a circuit component that can be made using a coil of resistance wire. Draw the electrical symbol for a variable resistor. [1] [Total: 11]

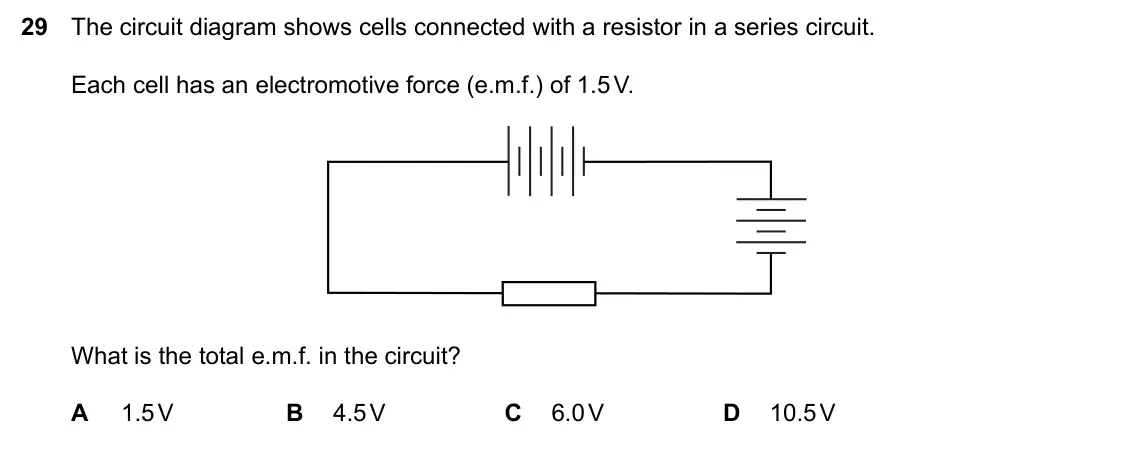

- Specimen, Paper 1, Q29 (1 mark): The circuit diagram shows cells connected with a resistor in a series circuit. Each cell has an electromotive force (e.m.f.) of 1.5 V. What is the total e.m.f.
- Specimen, Paper 1, Q30 (1 mark): A computer engineer wants the speed of a fan to increase when the temperature inside a computer increases. The engineer knows that a larger current causes the f

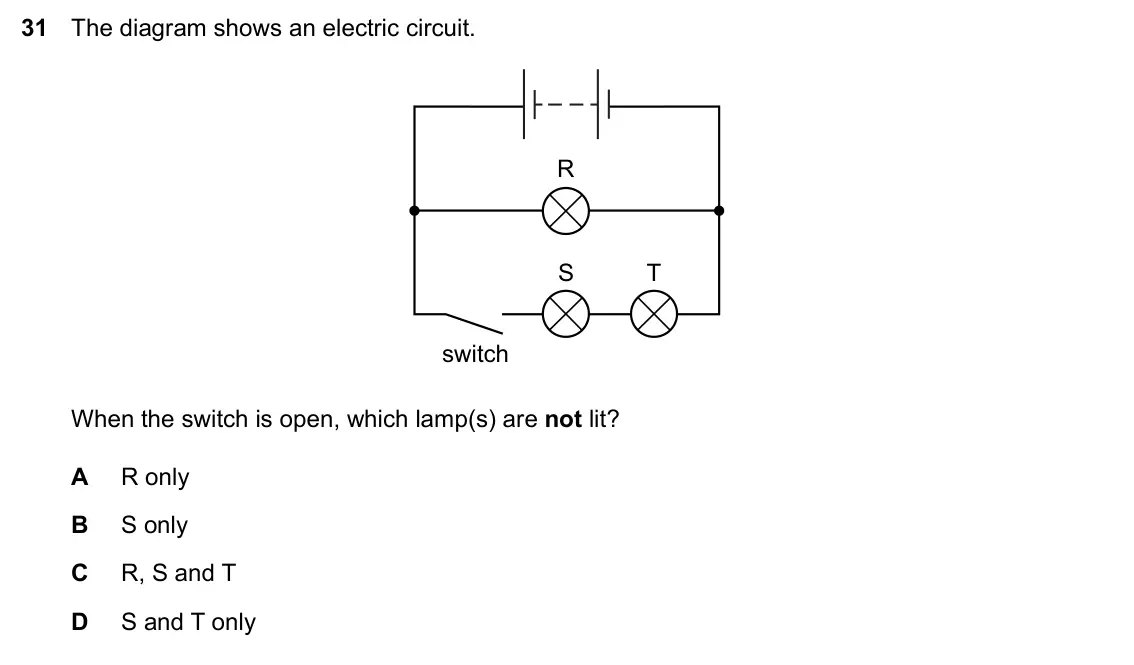

- Specimen, Paper 1, Q31 (1 mark): The diagram shows an electric circuit. R S T switch When the switch is open, which lamp(s) are not lit? A R only B S only C R, S and T D S and T only
- Specimen, Paper 1, Q33 (1 mark): An electric current can produce a heating effect and a magnetic effect. Which row shows the effect that a relay uses and one application of a relay? effect used

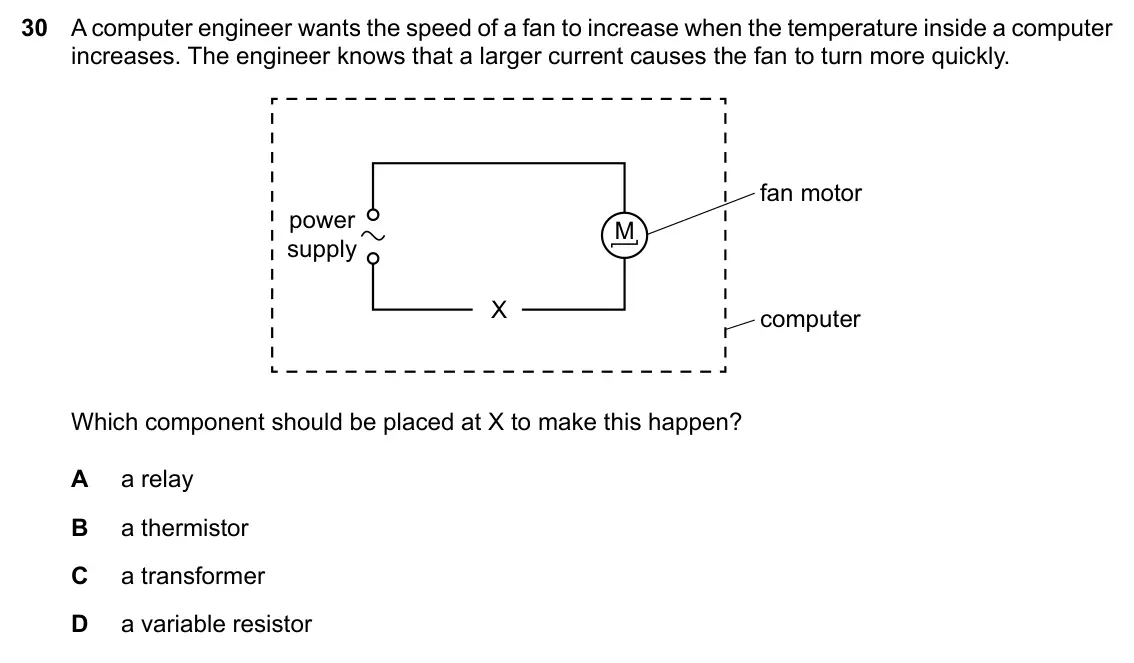

- Specimen, Paper 2, Q30 (1 mark): A computer engineer wants the speed of a fan to increase when the temperature inside a computer increases. The engineer knows that a larger current causes the f

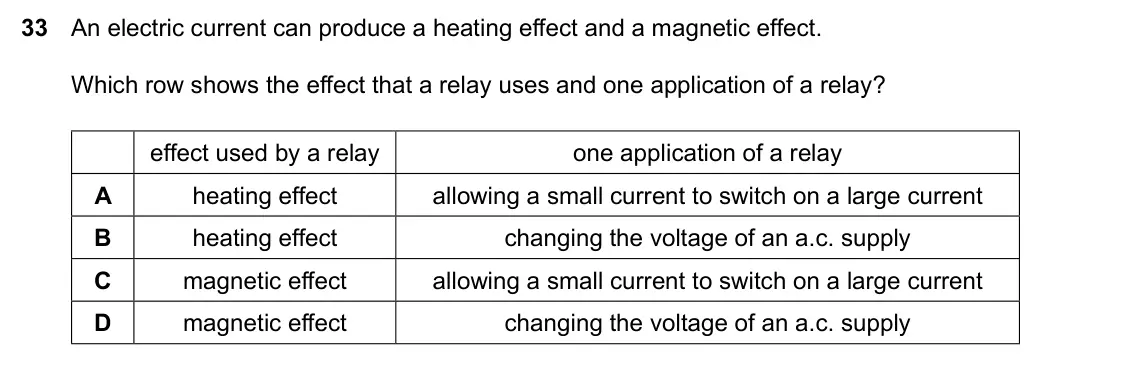

- Specimen, Paper 2, Q33 (1 mark): An electric current can produce a heating effect and a magnetic effect. Which row shows the effect that a relay uses and one application of a relay? effect used
- Specimen, Paper 3, Q10(a) (1 mark): On Fig. 10.1, circle the symbol representing the heater. [1]

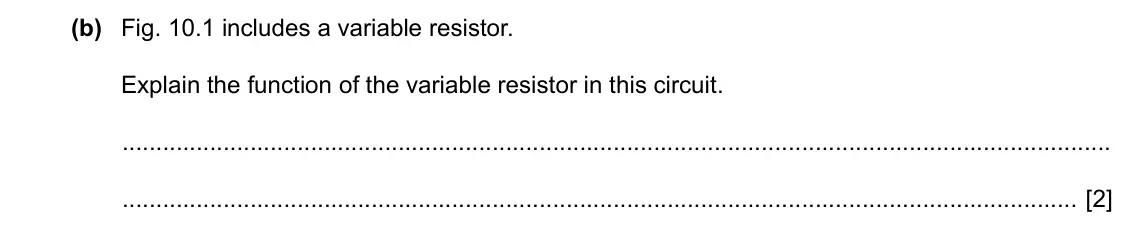

- Specimen, Paper 3, Q10(b) (2 marks): Fig. 10.1 includes a variable resistor. Explain the function of the variable resistor in this circuit. [2]

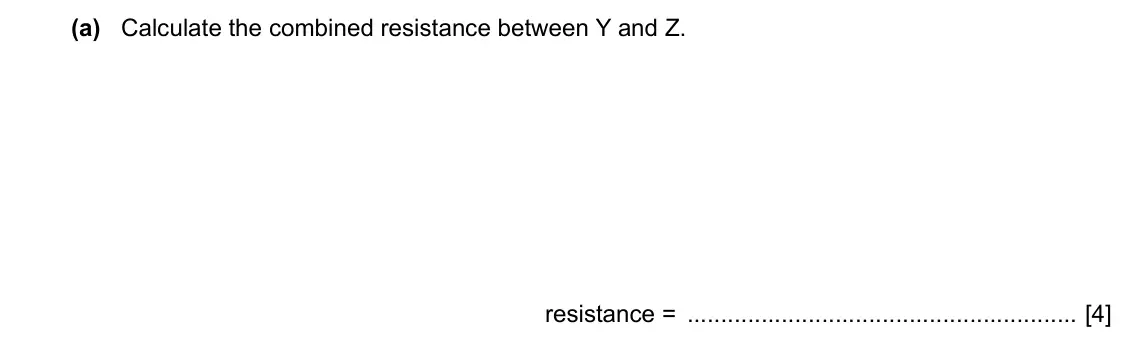

- Specimen, Paper 4, Q8(a) (4 marks): Calculate the combined resistance between Y and Z. resistance = [4]

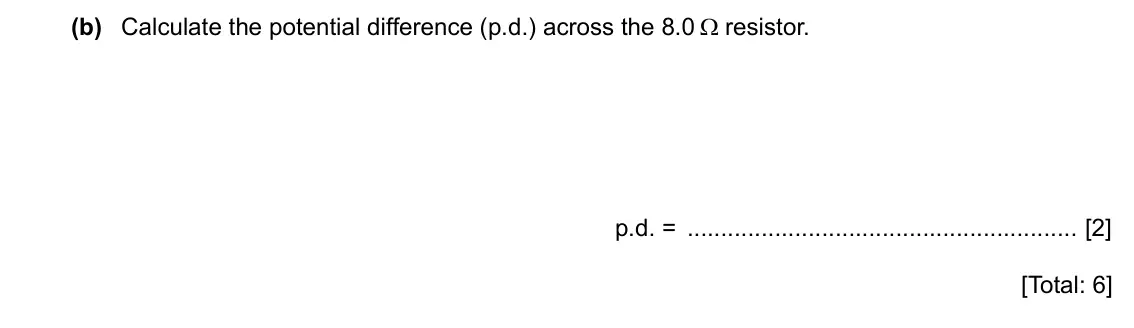

- Specimen, Paper 4, Q8(b) (2 marks): Calculate the potential difference (p.d.) across the 8.0 Ω resistor. p.d. = [2] [Total: 6]

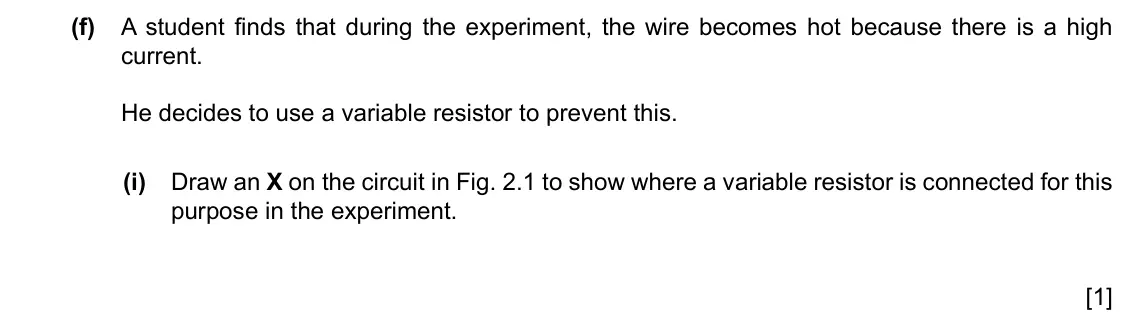

- Specimen, Paper 6, Q2(f)(i) (1 mark): Draw an X on the circuit in Fig. 2.1 to show where a variable resistor is connected for this purpose in the experiment. [1]

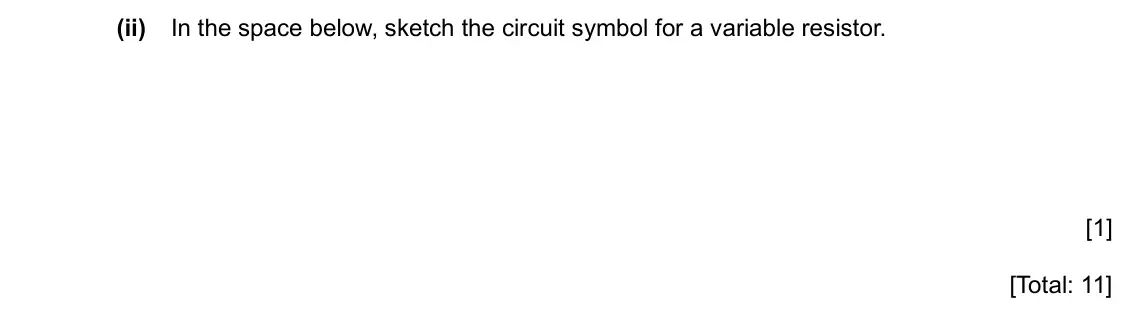

- Specimen, Paper 6, Q2(f)(ii) (1 mark): In the space below, sketch the circuit symbol for a variable resistor. [1] [Total: 11]
