plumiElectromagnetic effects: CAIE IGCSE Physics questions
Every CAIE IGCSE Physics exam question on 4.5 Electromagnetic effects, June 2024 and the specimen papers, with its mark scheme and examiner’s report.
Find questions355
Calculations
Q8(b)(ii)

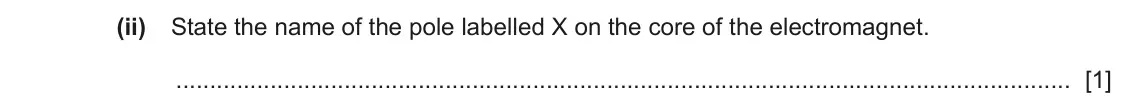

The whole paper ↗![June 2024 Paper 3, question 8(b)(ii): State the name of the pole labelled X on the core of the electromagnet. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062531-jun24-08-bii-qp.webp)
Q9(b)(i)

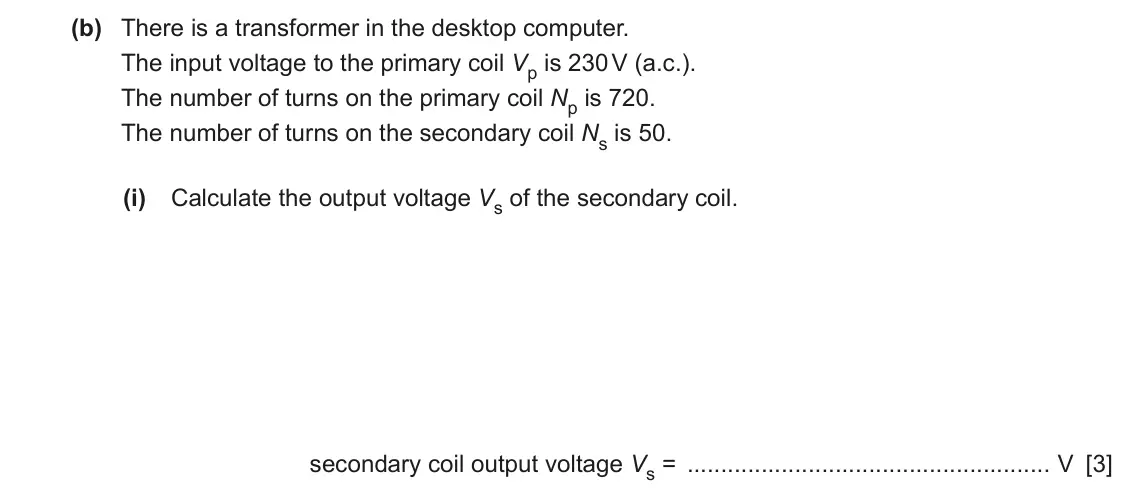

The whole paper ↗![June 2024 Paper 3, question 9(b)(i): Calculate the output voltage Vs of the secondary coil. secondary coil output voltage Vs = V [3]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062531-jun24-09-bi-qp.webp)
Q12(a)

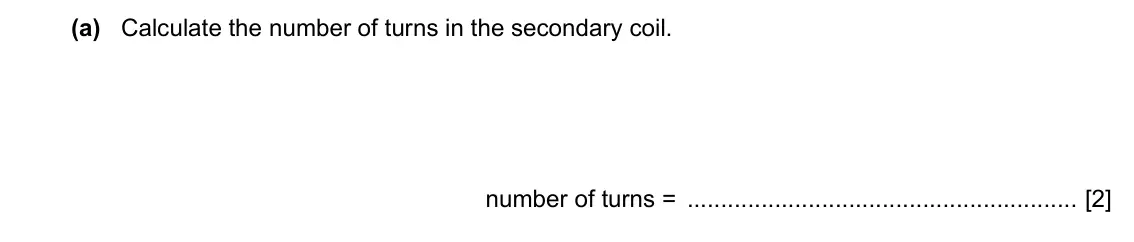

The whole paper ↗![Specimen Paper 4, question 12(a): Calculate the number of turns in the secondary coil. number of turns = [2]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062504-spec-12-a-qp.webp)
Q12(b)

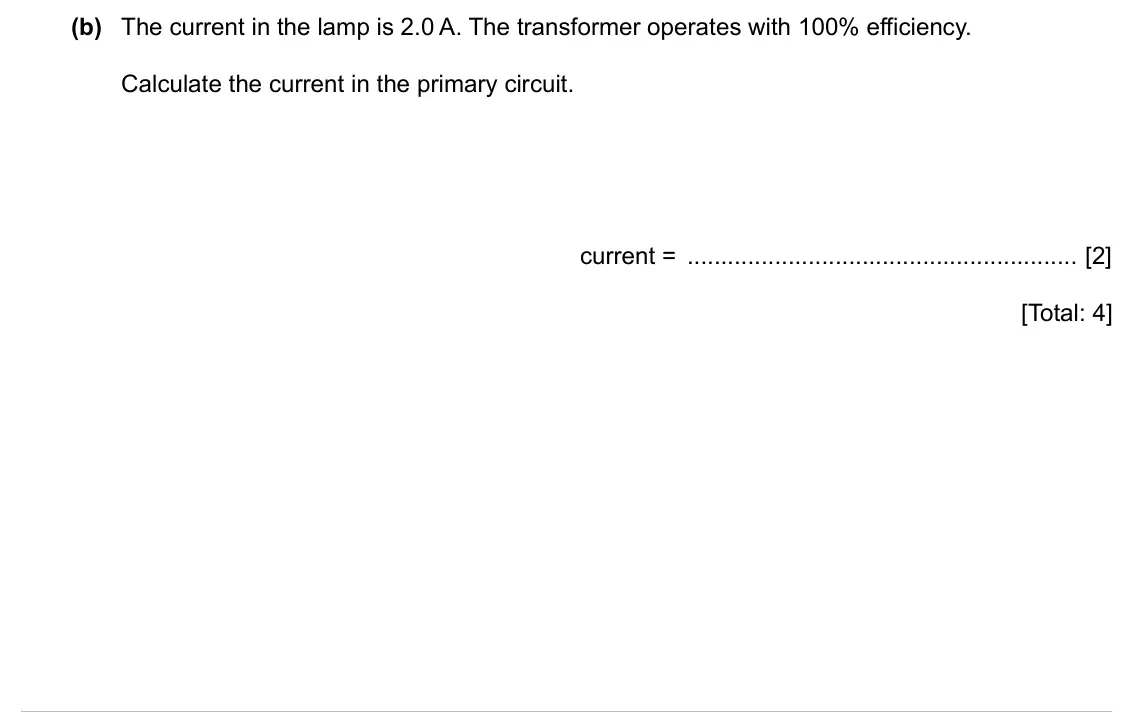

The whole paper ↗![Specimen Paper 4, question 12(b): The current in the lamp is 2.0 A. The transformer operates with 100% efficiency. Calculate the current in the primary circuit. current = [2] [Total: 4]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062504-spec-12-b-qp.webp)
All 18 questions on Electromagnetic effects, as a list

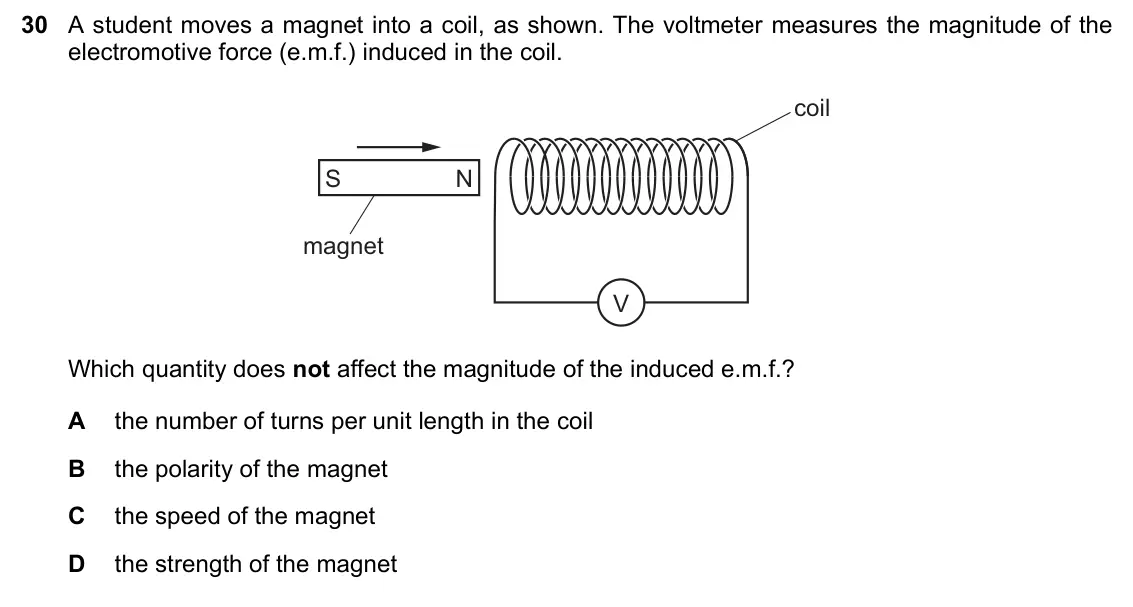

- June 2024, Paper 1, Q30 (1 mark): A student moves a magnet into a coil, as shown. The voltmeter measures the magnitude of the electromotive force (e.m.f.) induced in the coil. coil S N magnet V

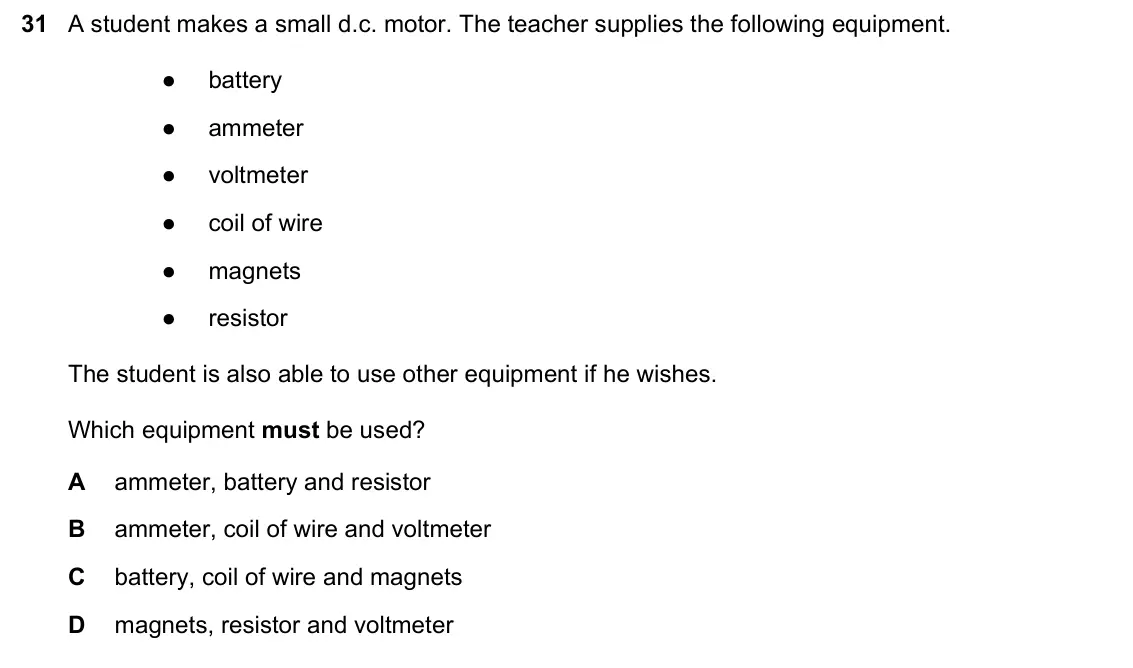

- June 2024, Paper 1, Q31 (1 mark): A student makes a small d.c. motor. The teacher supplies the following equipment. ● battery ● ammeter ● voltmeter ● coil of wire ● magnets ● resistor The studen

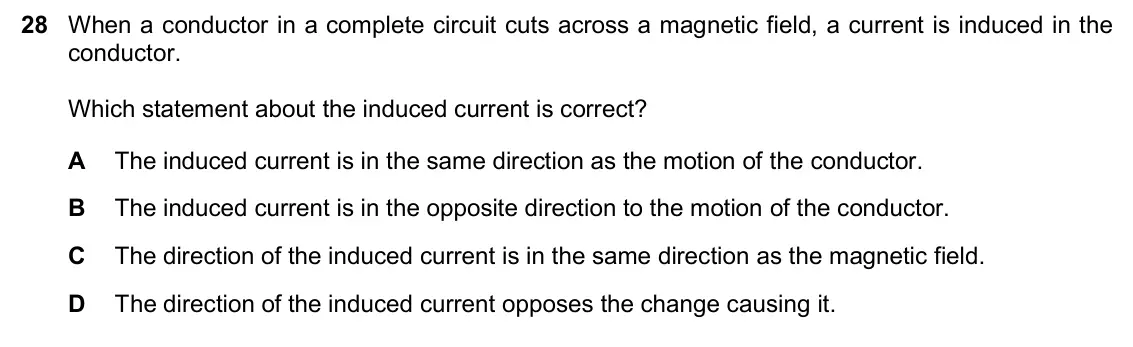

- June 2024, Paper 2, Q28 (1 mark): When a conductor in a complete circuit cuts across a magnetic field, a current is induced in the conductor. Which statement about the induced current is correct

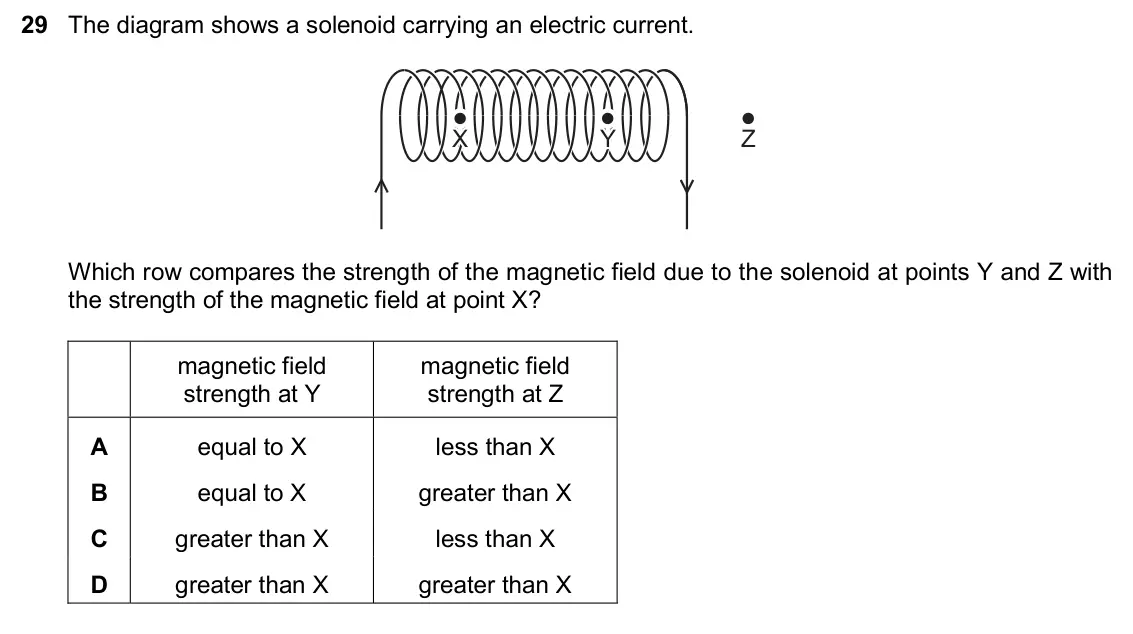

- June 2024, Paper 2, Q29 (1 mark): The diagram shows a solenoid carrying an electric current. X Y Z Which row compares the strength of the magnetic field due to the solenoid at points Y and Z wit

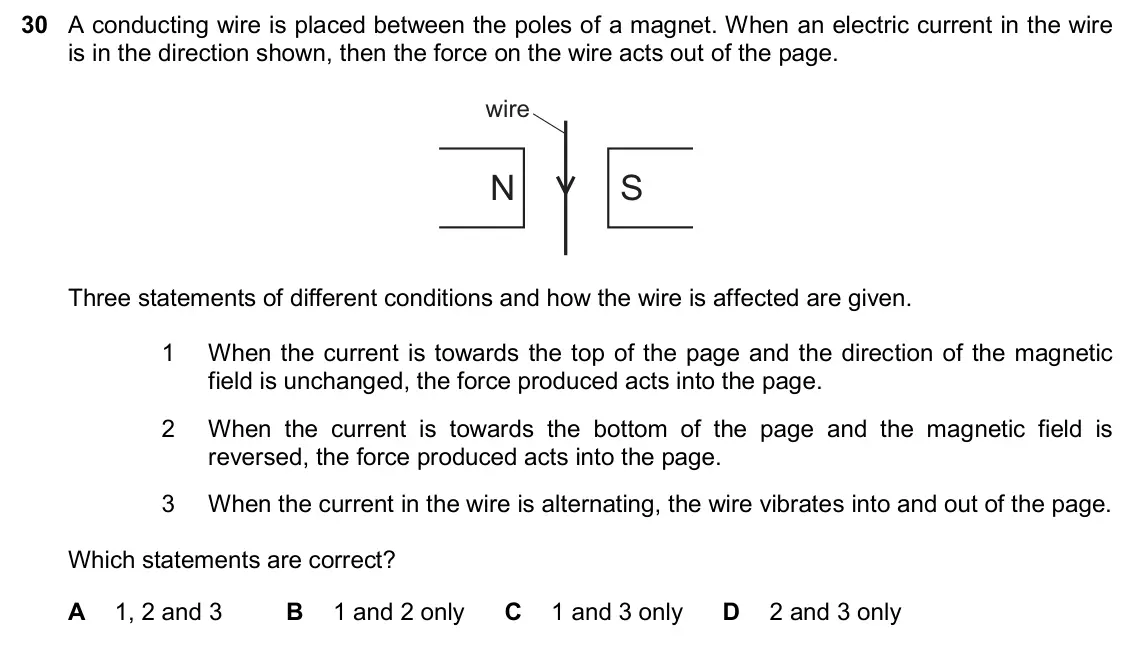

- June 2024, Paper 2, Q30 (1 mark): A conducting wire is placed between the poles of a magnet. When an electric current in the wire is in the direction shown, then the force on the wire acts out o

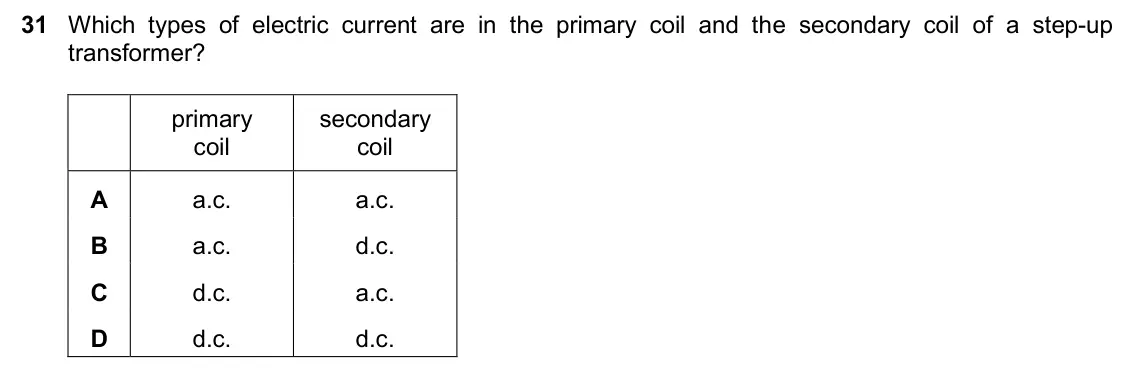

- June 2024, Paper 2, Q31 (1 mark): Which types of electric current are in the primary coil and the secondary coil of a step-up transformer? primary secondary coil coil A a.c. a.c. B a.c. d.c. C d
- June 2024, Paper 3, Q8(b)(ii) (1 mark): State the name of the pole labelled X on the core of the electromagnet. [1]
- June 2024, Paper 3, Q9(b)(i) (3 marks): Calculate the output voltage Vs of the secondary coil. secondary coil output voltage Vs = V [3]
- Specimen, Paper 1, Q33 (1 mark): An electric current can produce a heating effect and a magnetic effect. Which row shows the effect that a relay uses and one application of a relay? effect used

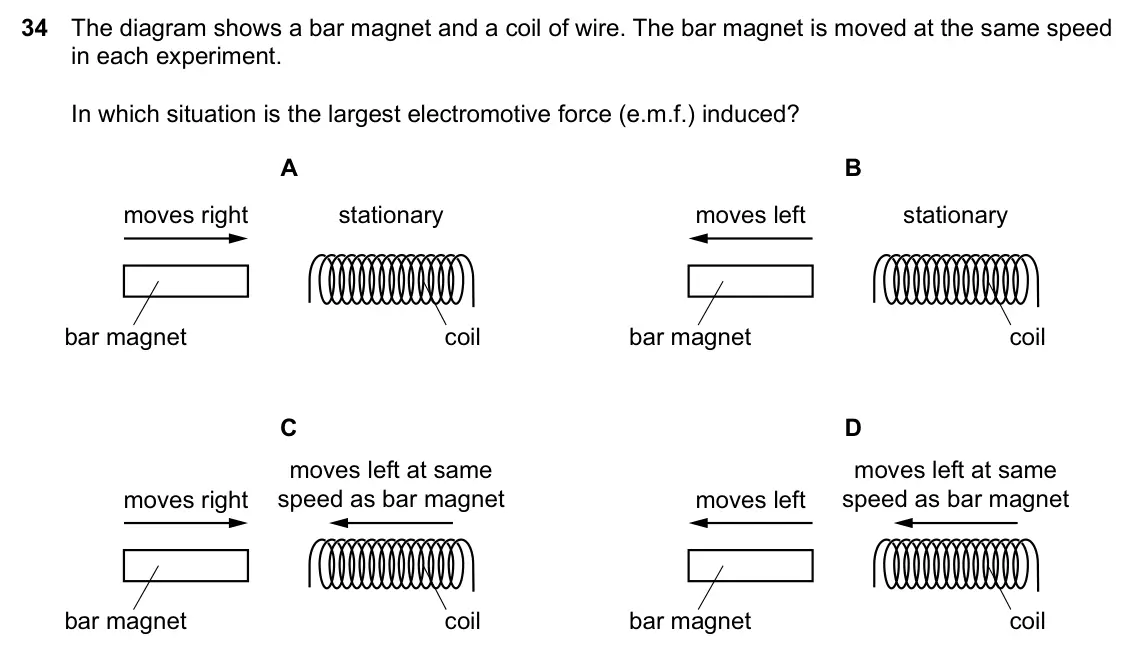

- Specimen, Paper 1, Q34 (1 mark): The diagram shows a bar magnet and a coil of wire. The bar magnet is moved at the same speed in each experiment. In which situation is the largest electromotive

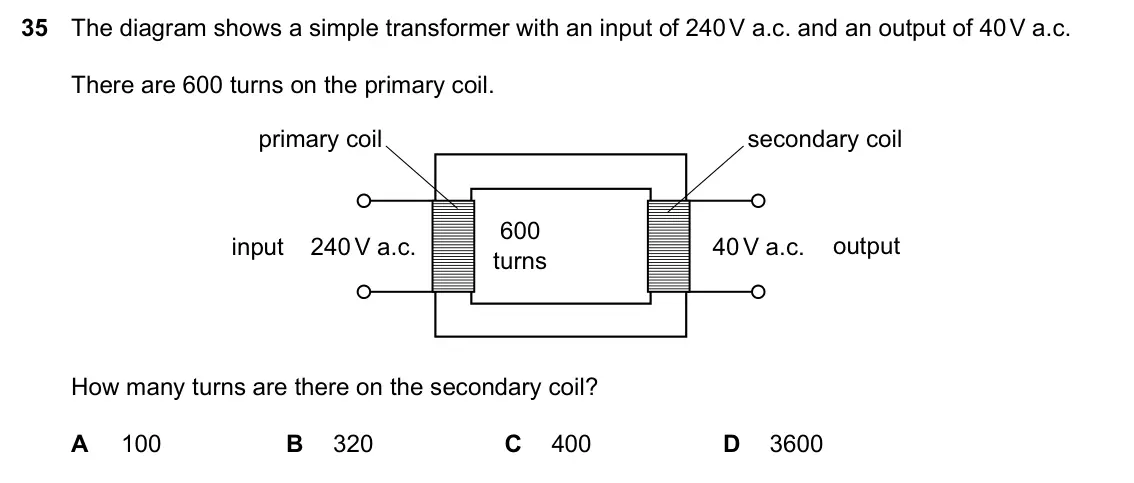

- Specimen, Paper 1, Q35 (1 mark): The diagram shows a simple transformer with an input of 240 V a.c. and an output of 40 V a.c. There are 600 turns on the primary coil. primary coil secondary co

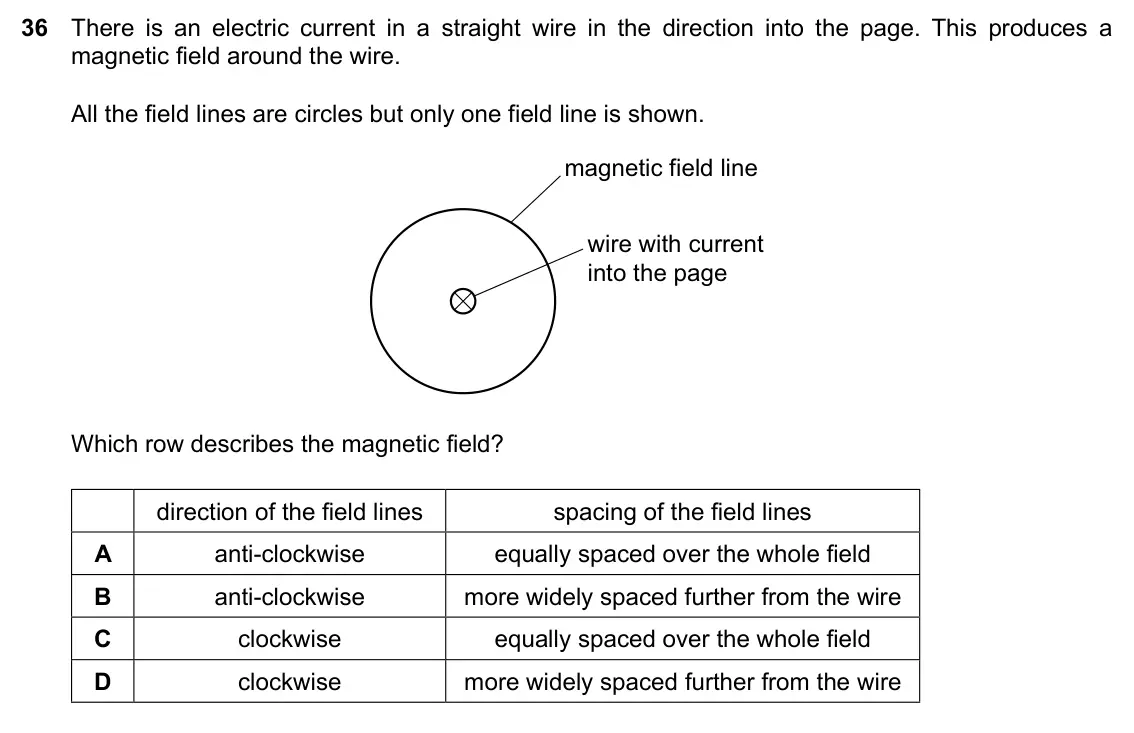

- Specimen, Paper 1, Q36 (1 mark): There is an electric current in a straight wire in the direction into the page. This produces a magnetic field around the wire. All the field lines are circles
- Specimen, Paper 2, Q33 (1 mark): An electric current can produce a heating effect and a magnetic effect. Which row shows the effect that a relay uses and one application of a relay? effect used
- Specimen, Paper 2, Q34 (1 mark): The diagram shows a bar magnet and a coil of wire. The bar magnet is moved at the same speed in each experiment. In which situation is the largest electromotive

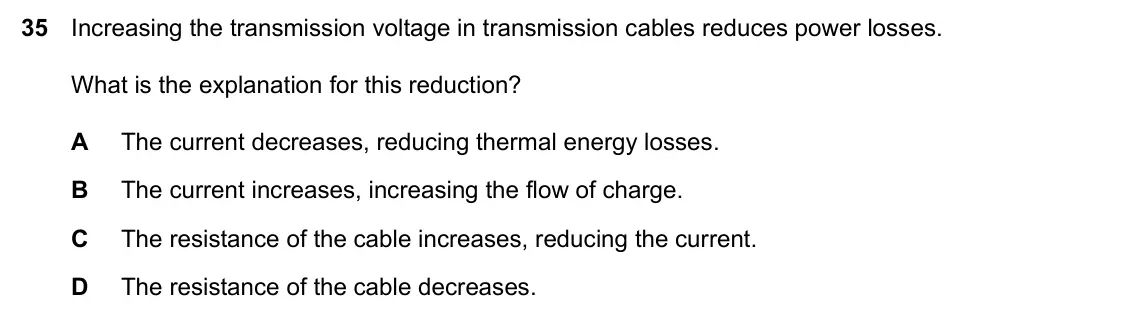

- Specimen, Paper 2, Q35 (1 mark): Increasing the transmission voltage in transmission cables reduces power losses. What is the explanation for this reduction? A The current decreases, reducing t
- Specimen, Paper 2, Q36 (1 mark): There is an electric current in a straight wire in the direction into the page. This produces a magnetic field around the wire. All the field lines are circles
- Specimen, Paper 4, Q12(a) (2 marks): Calculate the number of turns in the secondary coil. number of turns = [2]
- Specimen, Paper 4, Q12(b) (2 marks): The current in the lamp is 2.0 A. The transformer operates with 100% efficiency. Calculate the current in the primary circuit. current = [2] [Total: 4]
