plumiRecognising and sketching graphs: AQA GCSE Maths questions
Every AQA GCSE Maths exam question on A12 Recognising and sketching graphs, 2017–2025, with its mark scheme and examiner’s report.
Find questions1,304
Exam
All years
Calculator
All 35 questions on Recognising and sketching graphs, as a list
- June 2025, Paper 1H, Q9 (1 mark): y = x 1 Which of these values of x gives the greatest value of y ? Circle your answer. 9 20 2 5 – 80 95
- June 2025, Paper 1H, Q14 (4 marks): (a) Complete the table of values for y = 2x x –1 0 1 2 3 y 1 4 14 (b) Draw the graph of y = 2x for values of x from –1 to 3

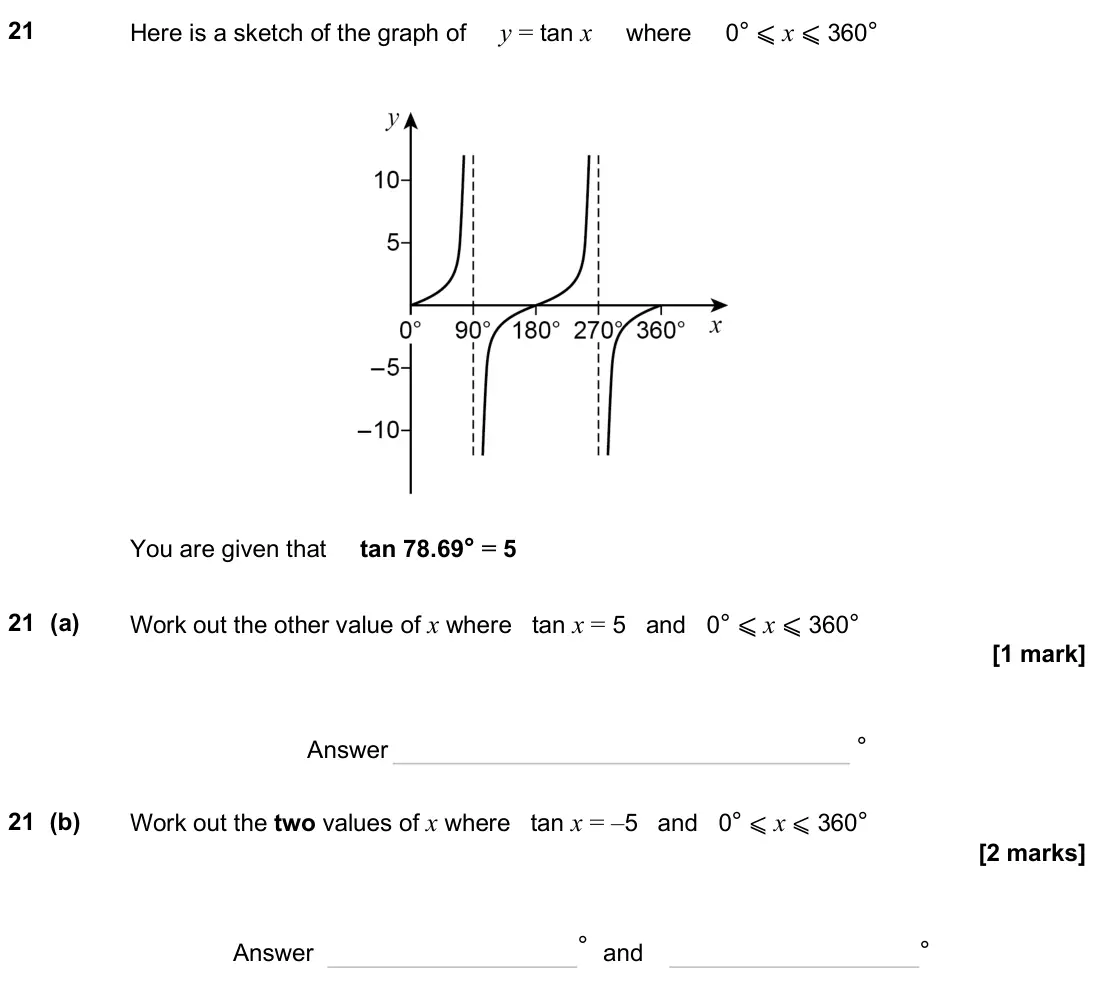

- November 2024, Paper 1H, Q21 (3 marks): Here is a sketch of the graph of y = tan x where 0° ⩽ x ⩽ 360° You are given that tan 78.69° = 5 21 (a) Work out the other value of x where tan x = 5 and 0° ⩽ x
- November 2024, Paper 3H, Q10 (3 marks): A car will travel 60 miles. Draw a graph to show the average speed of the car for times taken between 1 hour and 6 hours. You may use the table to help you. Tim

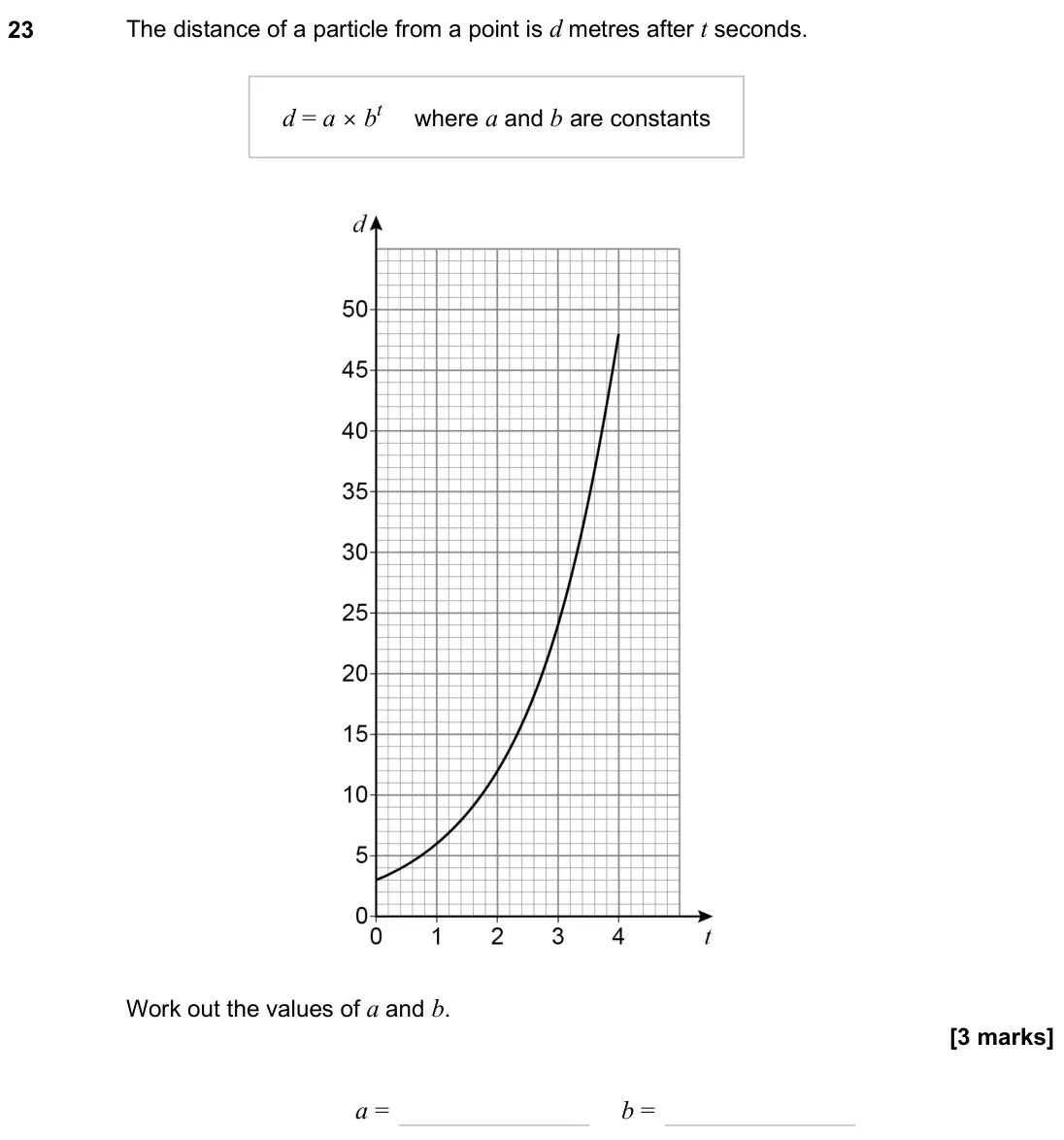

- November 2024, Paper 3H, Q23 (3 marks): The distance of a particle from a point is d metres after t seconds. d = a × bt where a and b are constants Work out the values of a and b. a = b =
- June 2024, Paper 2H, Q14 (4 marks): A graph passes through the points (3, 15) and (7, w) 14 (a) Assume that the equation of the graph has the form y = x2 + c Work out the value of w that this woul

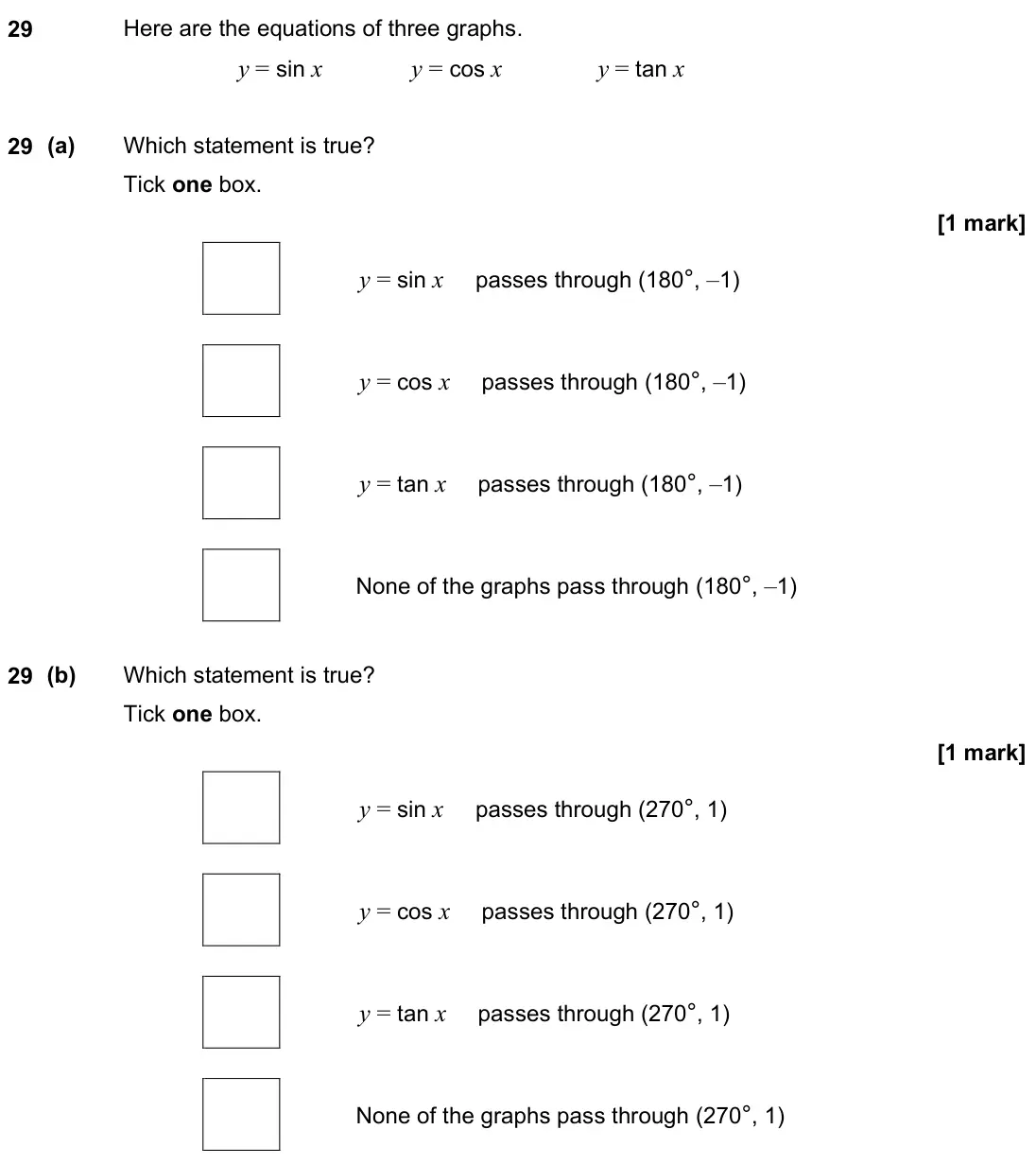

- November 2023, Paper 1H, Q29 (2 marks): Here are the equations of three graphs. y = sin x y = cos x y = tan x 29 (a) Which statement is true? Tick one box. y = sin x passes through (180°, –1) y = cos
- November 2023, Paper 2H, Q27 (4 marks): g(x) = a × bx where a and b are constants. g = 8 and g = 343 Work out the value of g Answer

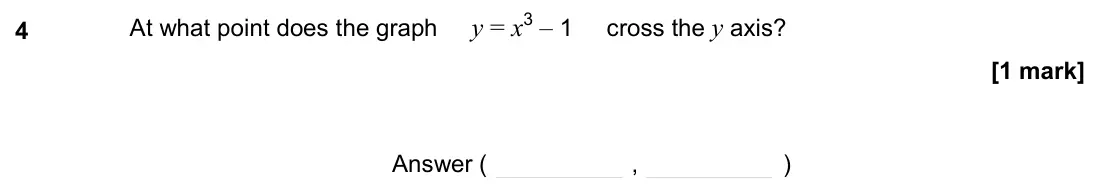

- November 2023, Paper 3H, Q4 (1 mark): At what point does the graph y = x3 – 1 cross the y axis? Answer ( , )

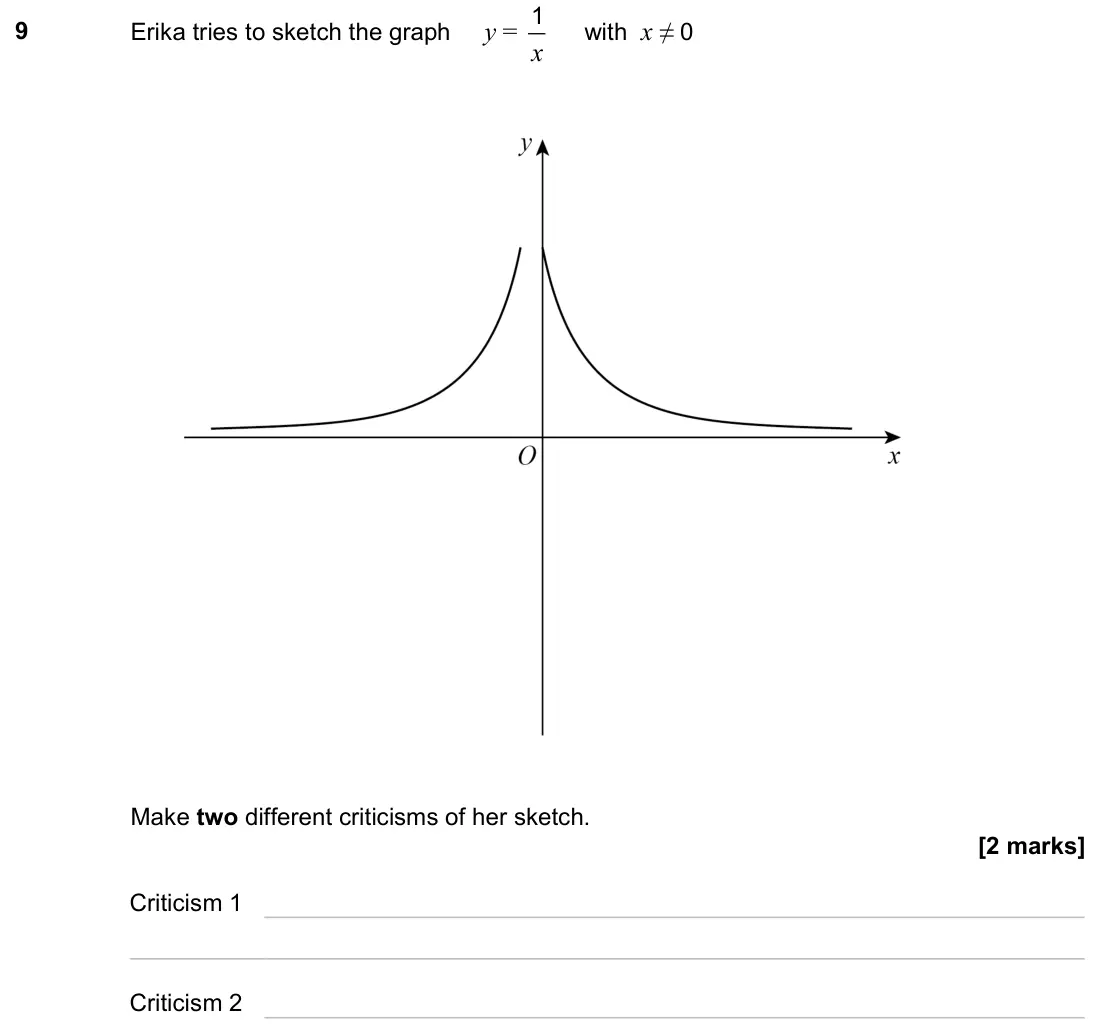

- June 2023, Paper 1H, Q9 (2 marks): Erika tries to sketch the graph y = x 1 with x ≠ 0 Make two different criticisms of her sketch. Criticism 1 Criticism 2

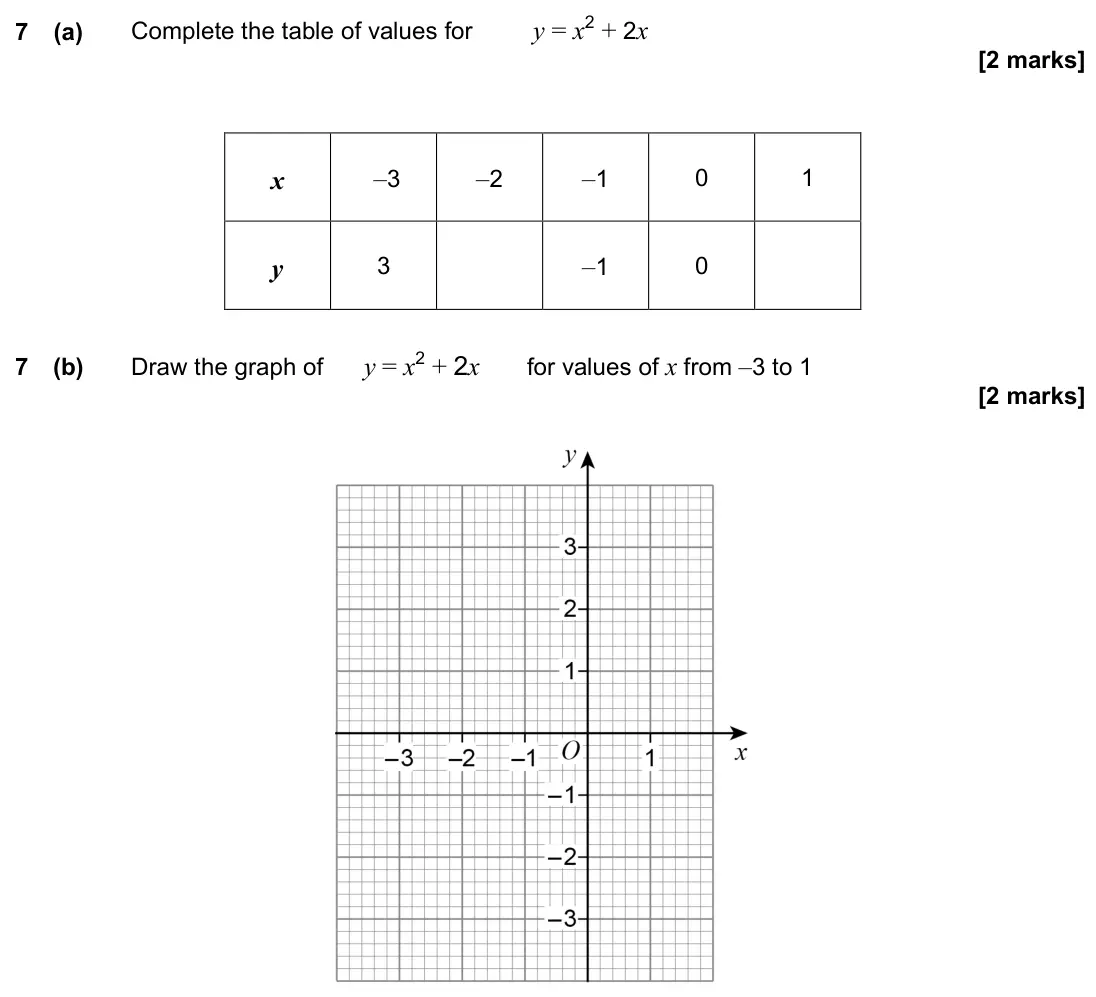

- June 2023, Paper 3H, Q7 (4 marks): (a) Complete the table of values for y = x2 + 2x x –3 –2 –1 0 1 y 3 –1 0 7 (b) Draw the graph of y = x2 + 2x for values of x from –3 to 1

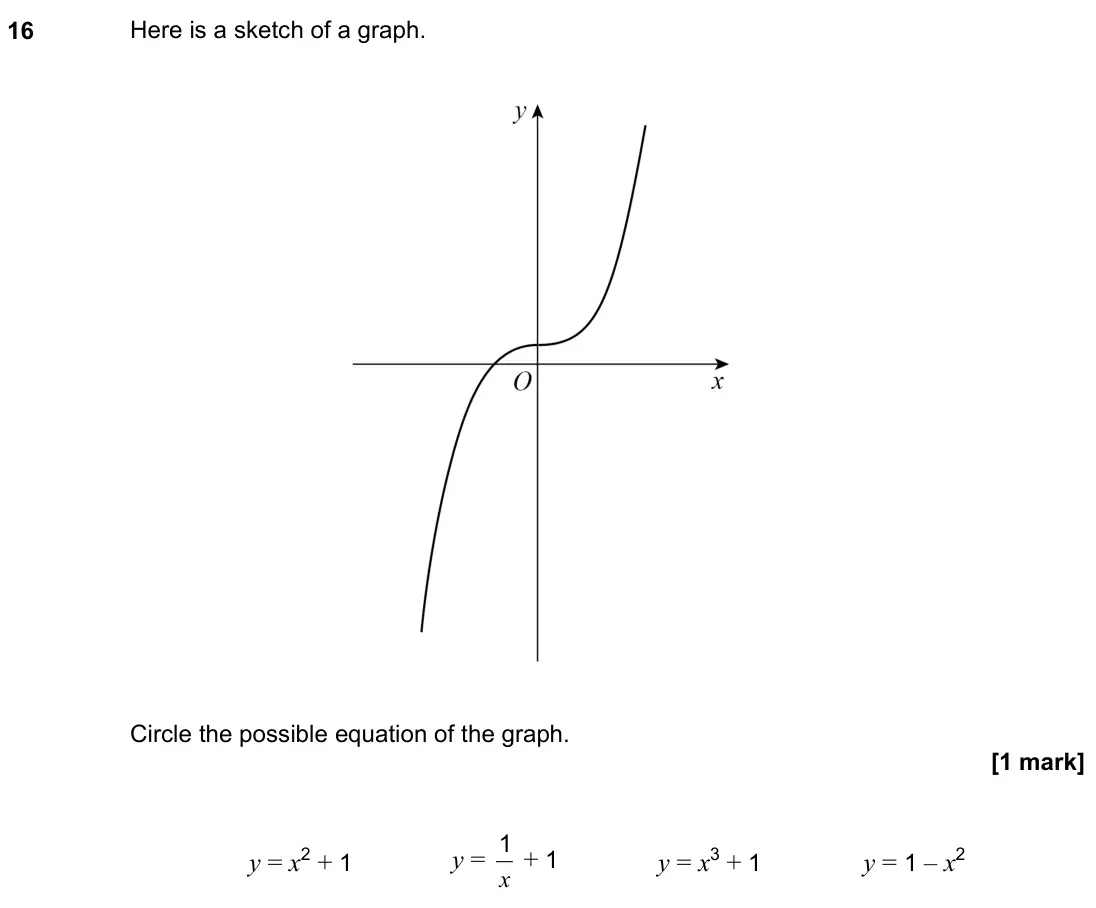

- November 2022, Paper 2H, Q16 (1 mark): Here is a sketch of a graph. Circle the possible equation of the graph. y = x2 + 1 y = x 1 + 1 y = x3 + 1 y = 1 – x2
- November 2022, Paper 3H, Q26 (2 marks): Here is a sketch of the graph of y = 5x In parts (a) and (b) the sketch of y = 5x is shown as a dashed line. 26 (a) On the axes below, sketch the graph of y = –

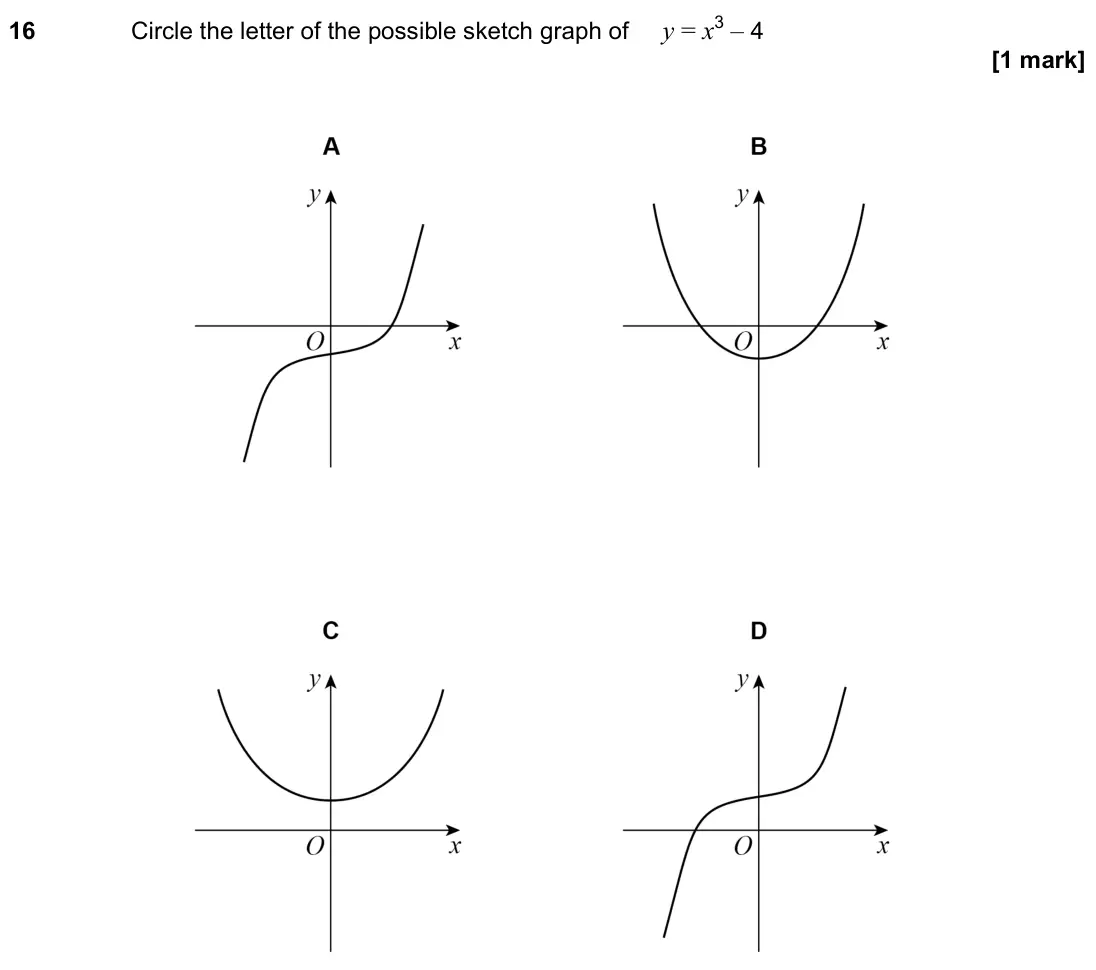

- June 2022, Paper 1H, Q16 (1 mark): Circle the letter of the possible sketch graph of y = x3 – 4
- June 2022, Paper 3H, Q24 (4 marks): Here is a sketch of the graphs of y = k x and y = x2 + c k and c are positive constants. Work out the value of r. r =

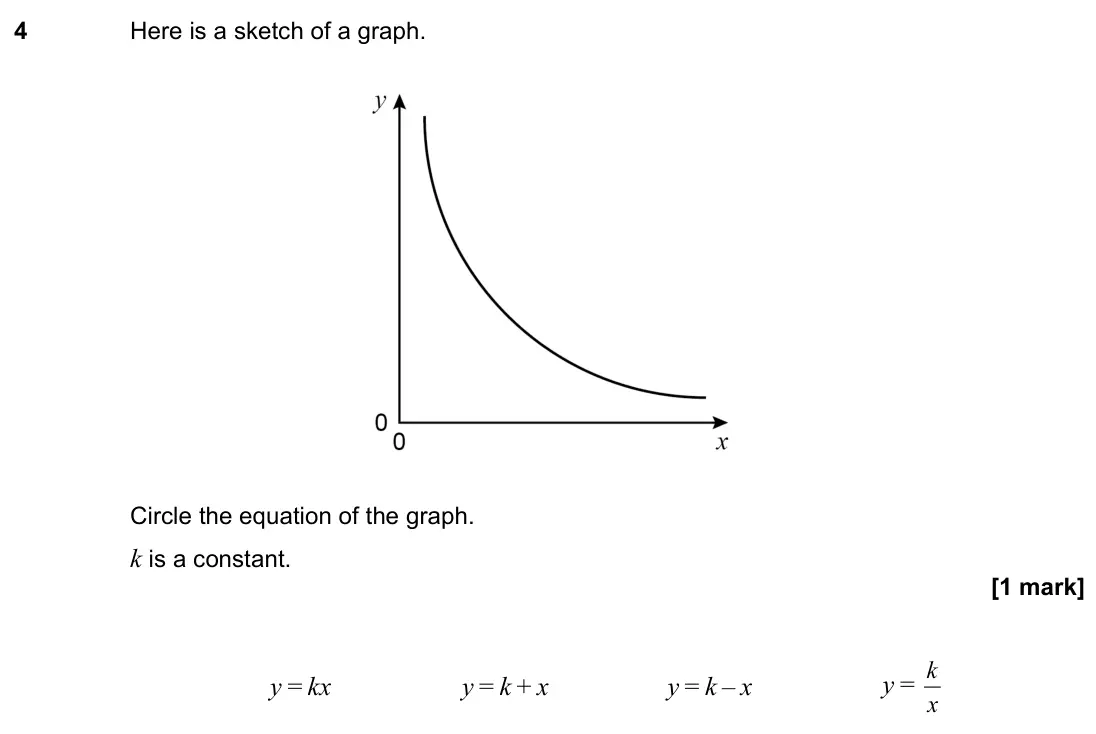

- November 2021, Paper 1H, Q4 (1 mark): Here is a sketch of a graph. Circle the equation of the graph. k is a constant. y = kx y = k + x y = k – x y = x k

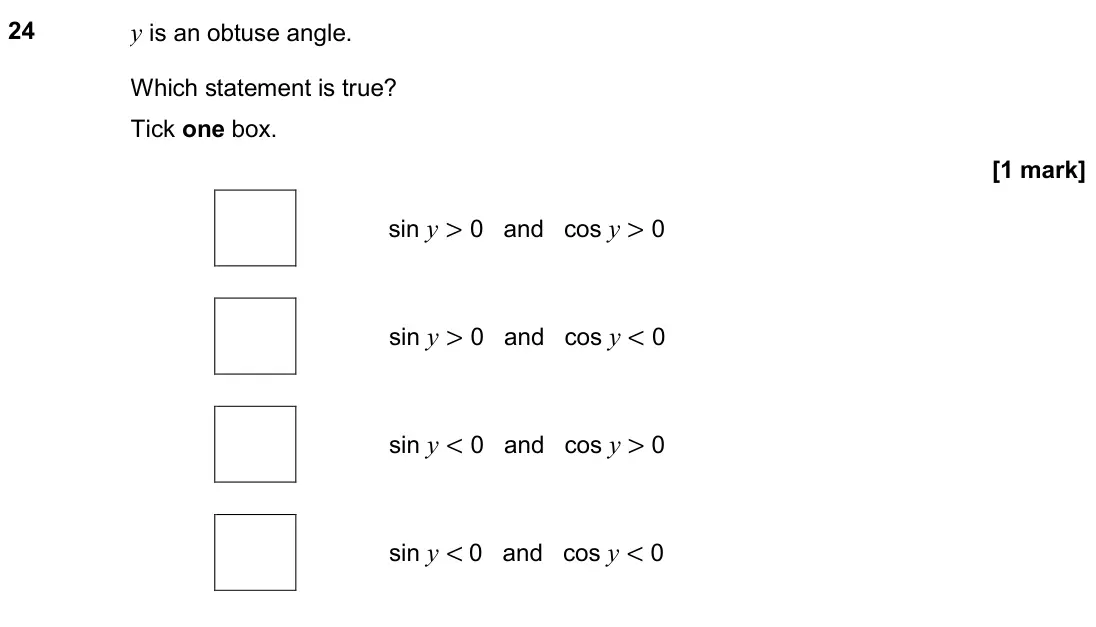

- November 2020, Paper 1H, Q24 (1 mark): y is an obtuse angle. Which statement is true? Tick one box. sin y > 0 and cos y > 0 sin y > 0 and cos y < 0 sin y < 0 and cos y > 0 sin y < 0 and cos y < 0

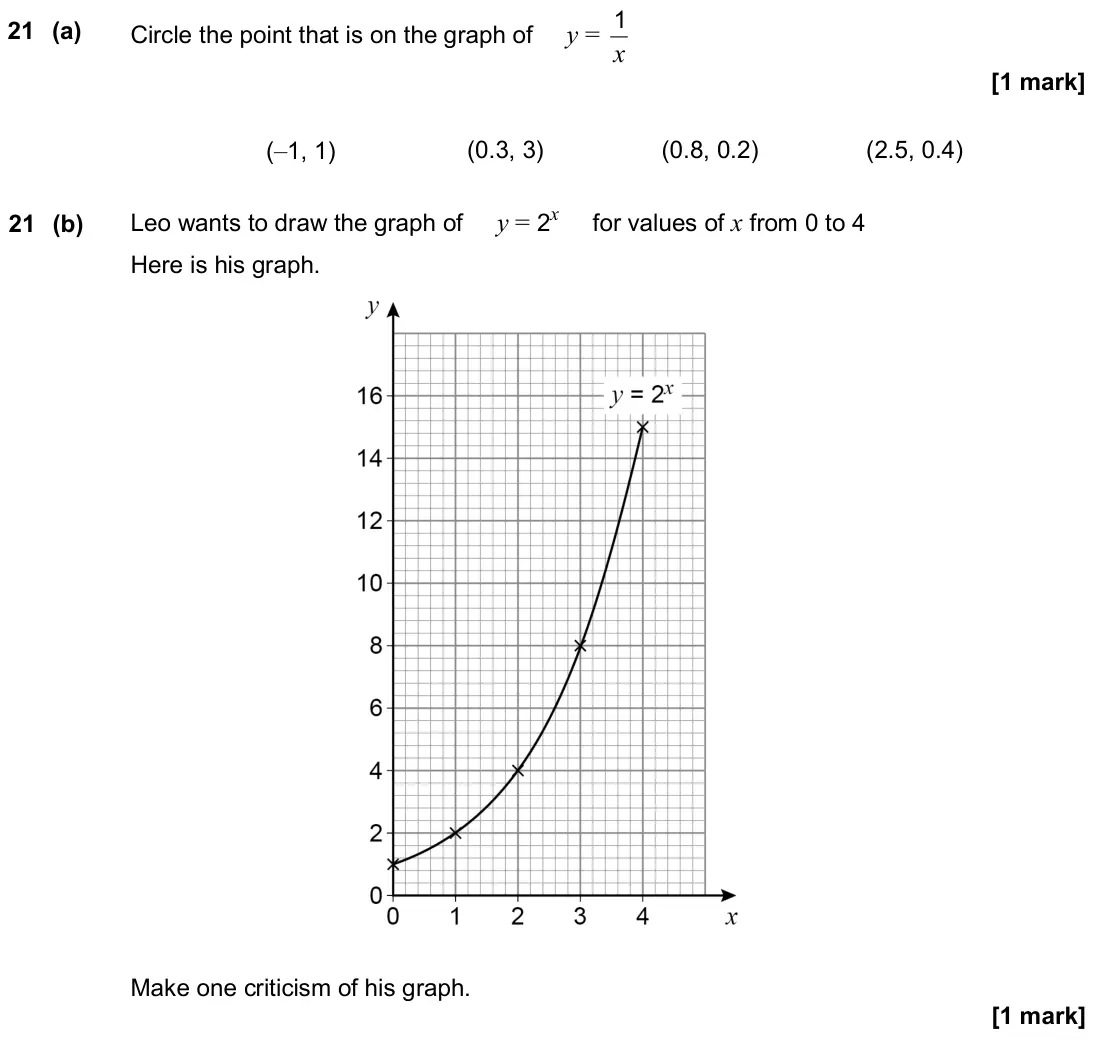

- November 2020, Paper 2H, Q21 (2 marks): (a) Circle the point that is on the graph of y = 1 x (–1, 1) (0.3, 3) (0.8, 0.2) (2.5, 0.4) 21 (b) Leo wants to draw the graph of y = 2x for values of x from 0

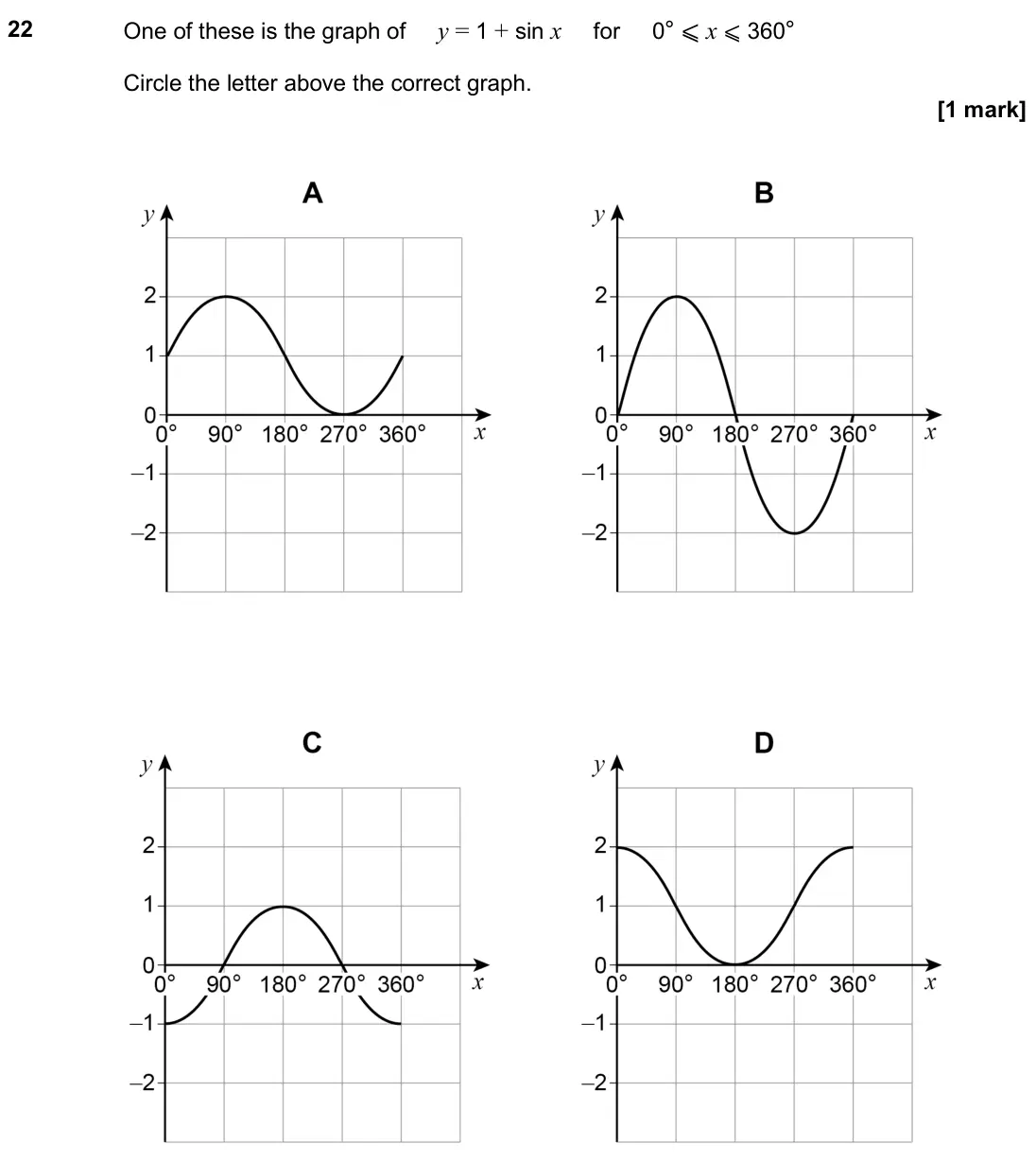

- November 2020, Paper 2H, Q22 (1 mark): One of these is the graph of y = 1 + sin x for 0° ⩽ x ⩽ 360° Circle the letter above the correct graph.

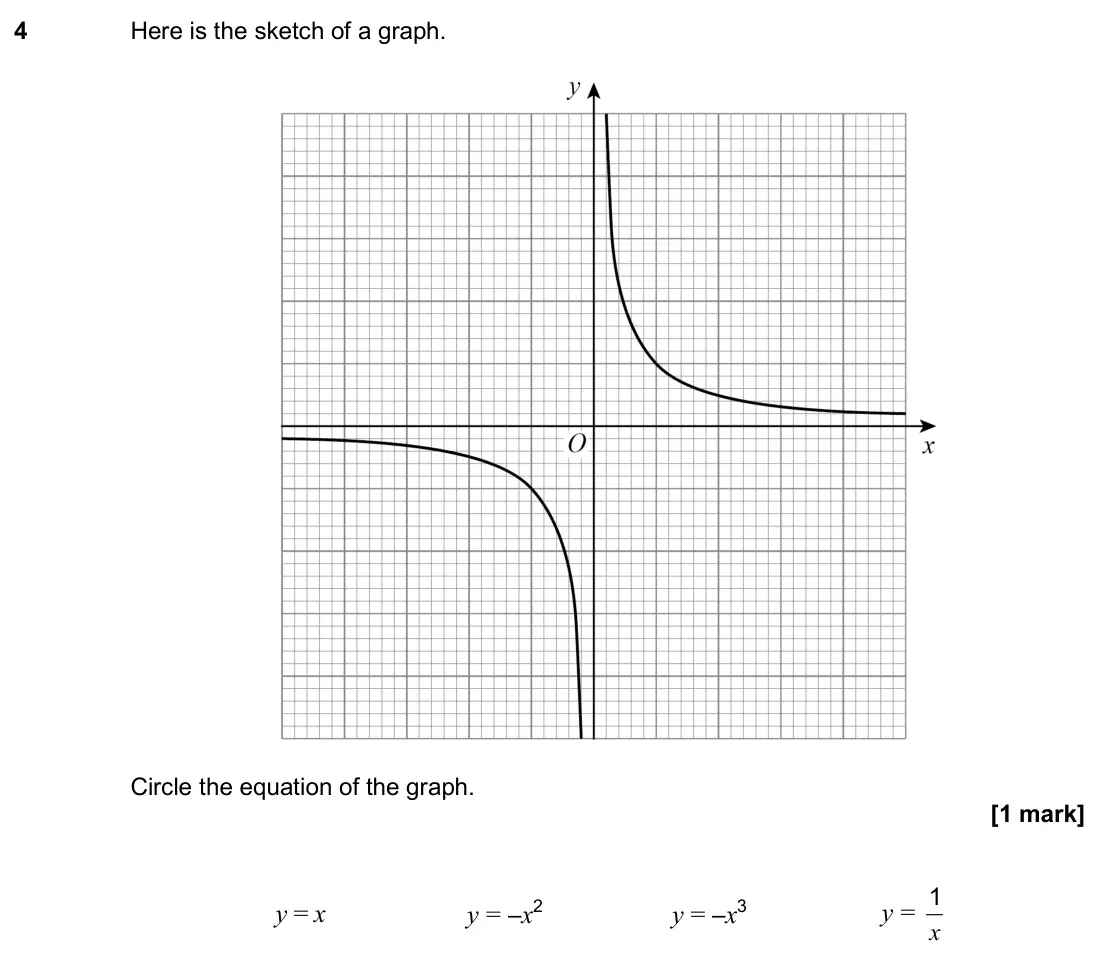

- November 2019, Paper 2H, Q4 (1 mark): Here is the sketch of a graph. Circle the equation of the graph. y = x y = –x2 y = –x3 y = x 1
- November 2019, Paper 2H, Q19 (1 mark): Circle the word that describes the graph y = sin x periodic exponential cubic quadratic
- November 2019, Paper 3H, Q14 (3 marks): A graph has equation y = x3 + a where a is an integer. The graph passes through the point (3, 29) Draw the graph for values of x from –3 to 3
- June 2019, Paper 1H, Q24 (1 mark): f(x) = sin(x – 90°) Circle the value of f(0°) 1 0 1 2 − –1
- June 2019, Paper 2H, Q8 (2 marks): On the axes, sketch the curve y = x3 – 2 You must show the coordinates of the y-intercept.
- June 2019, Paper 3H, Q23 (2 marks): Here is a sketch of the curve y = 2x On the axes above, sketch the curve y = 3x
- November 2018, Paper 1H, Q27 (2 marks): Here is a sketch of y = cos x for values of x from 0° to 360° α° is an acute angle. cos α° = k Not drawn accurately 27 (a) Circle the value of cos (180° – α°) 1
- November 2018, Paper 3H, Q12 (1 mark): Lewis wants to draw the graph y = x3 for values of x from –2 to 2 Here is his graph. Make one criticism of his graph.
- June 2018, Paper 1H, Q25 (2 marks): Here is a sketch of the graph of y = cos x for values of x from 0° to 360° 25 (a) cos x = cos 60° Work out the value of x when 90° ⩽ x ⩽ 360° Answer degrees 25
- June 2018, Paper 3H, Q14 (3 marks): Draw the graph of y = 0.8x for values of x from 0 to 6 x 0 1 2 3 4 5 6 y
- November 2017, Paper 1H, Q29 (2 marks): Here is a sketch of y = sin x° for –360 ⩽ x ⩽ 360 29 (a) Write down the coordinates of P. Answer ( , ) 29 (b) Write down the coordinates of Q. Answer ( , )
- November 2017, Paper 2H, Q3 (1 mark): Circle the point that does not lie on the curve y = x3 − − 8 1 , 2 1 (5, 125) 9 1 , 3 1 (–1, –1)
- November 2017, Paper 2H, Q21 (4 marks): (a) Meera is using a graphical method to solve 2x2 – 3x = 0 She draws the graph of y = 2x2 and a straight line graph on the same grid. Here is the graph of y =
- November 2017, Paper 3H, Q28 (5 marks): y = p × q x – 1 where p and q are numbers. y = 10 when x = 1 y = 0.3125 when x = 6 Work out the value of y when x = 3 Answer
- June 2017, Paper 3H, Q18 (1 mark): Nick sketches the graph of y = 0.5x for x ⩾ 0 Make one criticism of his sketch.
- Specimen, Paper 1H, Q4 (1 mark): One of these graphs is a sketch of y = 1 2x Which one? Circle the correct letter. A B O y x y x O 1 1 –2 y x y x O O C D –2
