plumiSine and cosine rules: OCR GCSE Maths questions
Every OCR GCSE Maths exam question on G22 Sine and cosine rules, 2017–2025, with its mark scheme and examiner’s report.
Find questions921
Exam
All years
Calculator
All 17 questions on Sine and cosine rules, as a list
- June 2025, Paper 4, Q20 (3 marks): The diagram shows triangle ABC. A Not to scale 40° 12 cm C 58° B AC 12 cm , angle CAB = 40 ° and angle ABC = 58 ° . = Calculate length BC. cm

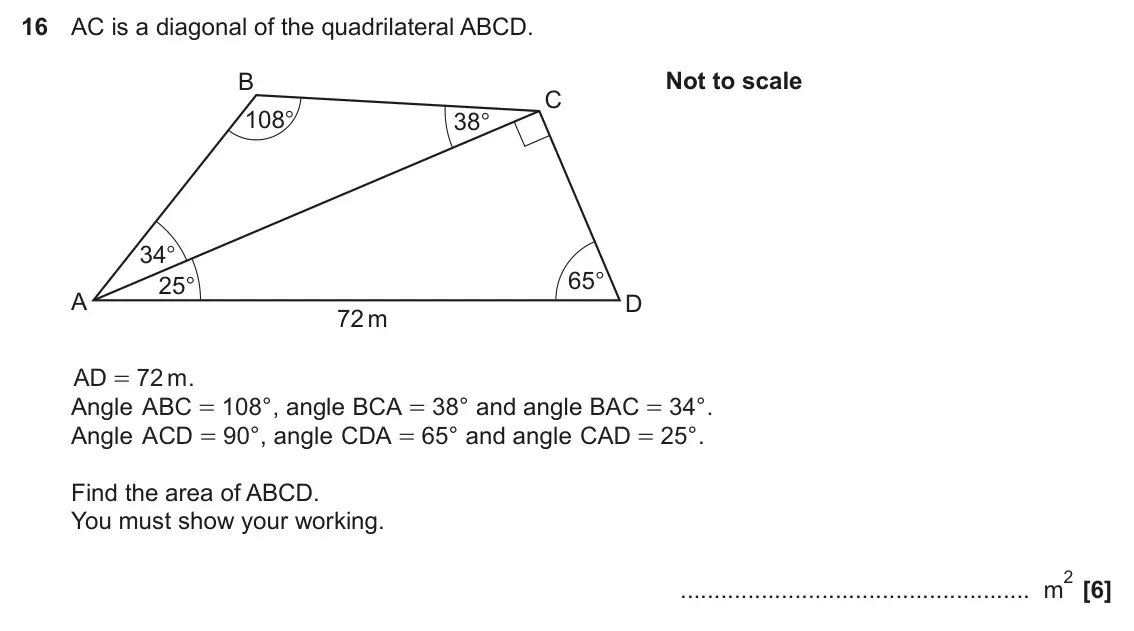

- November 2024, Paper 4, Q16 (6 marks): AC is a diagonal of the quadrilateral ABCD. B Not to scale C 108° 38° 34° 65° 25° A D 72 m AD = 72 m . Angle ABC = 108 ° , angle BCA = 3 8 ° and angle BAC = 34
- November 2024, Paper 6, Q16 (4 marks): Work out the exact value of x in this triangle. Not to scale 7 cm x cm 30° 6 3 cm x =

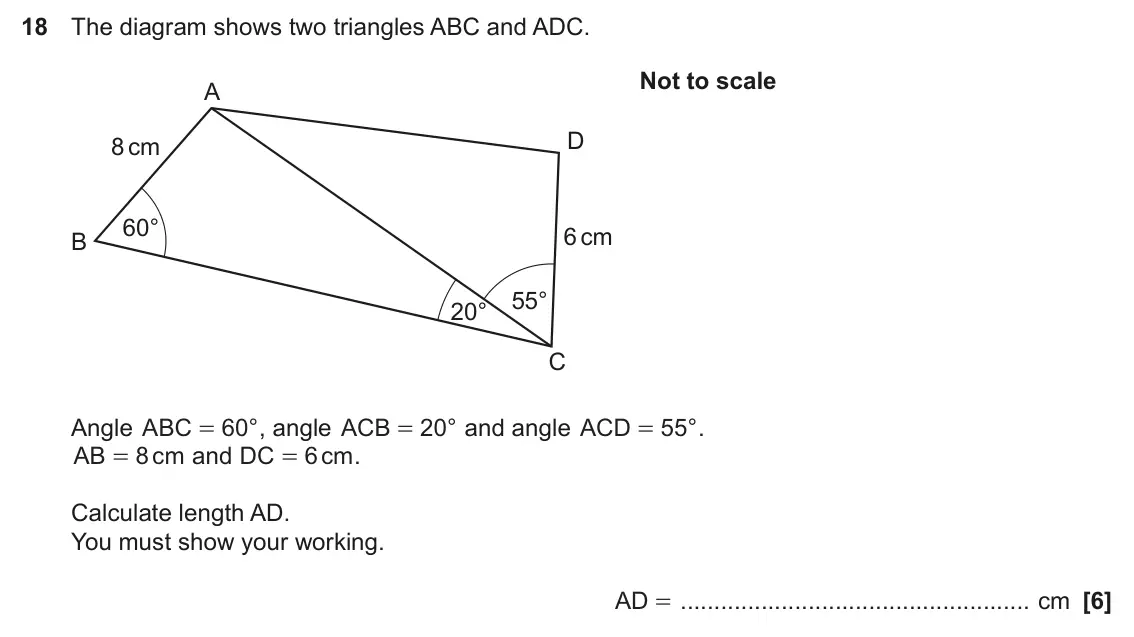

- June 2024, Paper 6, Q18 (6 marks): The diagram shows two triangles ABC and ADC. Not to scale A D 8 cm 60° 6 cm B 55° 20° C Angle ABC 60 ° , angle ACB = 20 ° and angle ACD = 55 ° . = AB = 8 cm and
- November 2023, Paper 4, Q19 (5 marks): The diagram shows the positions of three towns A, B and C. N Not to scale N B N 61 km 35 km C A The bearing of town B from town A is 053°. The bearing of town C
- November 2023, Paper 6, Q18 (4 marks): A, B and C are points on the circumference of a circle. A 8cm B Not to scale D 58° 45° C Points C and D lie on a tangent to the circle at C. Angle BCD 45 ° . =

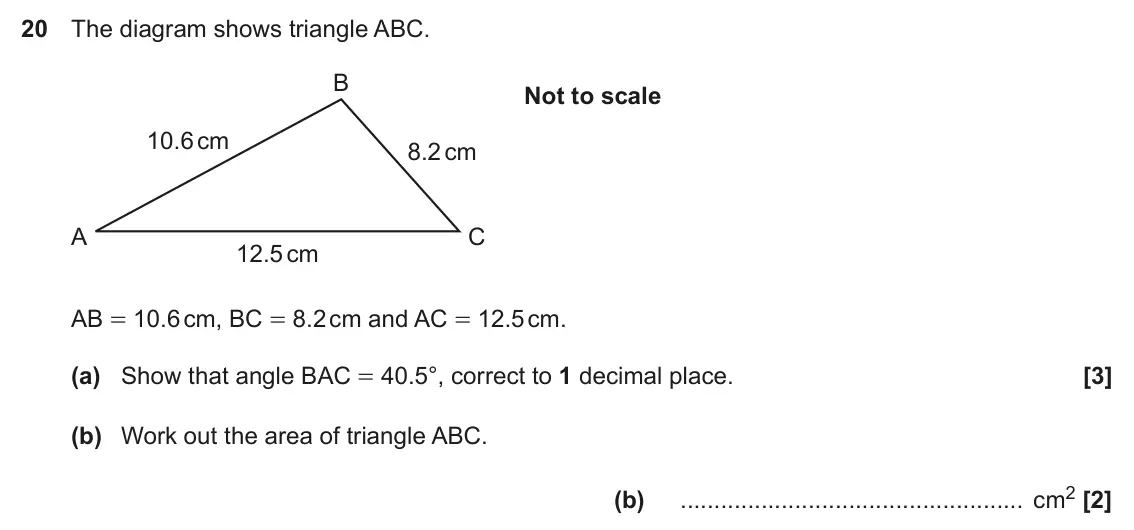

- June 2023, Paper 4, Q20 (5 marks): The diagram shows triangle ABC. B Not to scale 10.6 cm 8.2 cm A C 12.5 cm AB = 10.6 cm, BC = 8.2 cm and AC = 12.5 cm. (a) Show that angle BAC = 40.5°, correct t

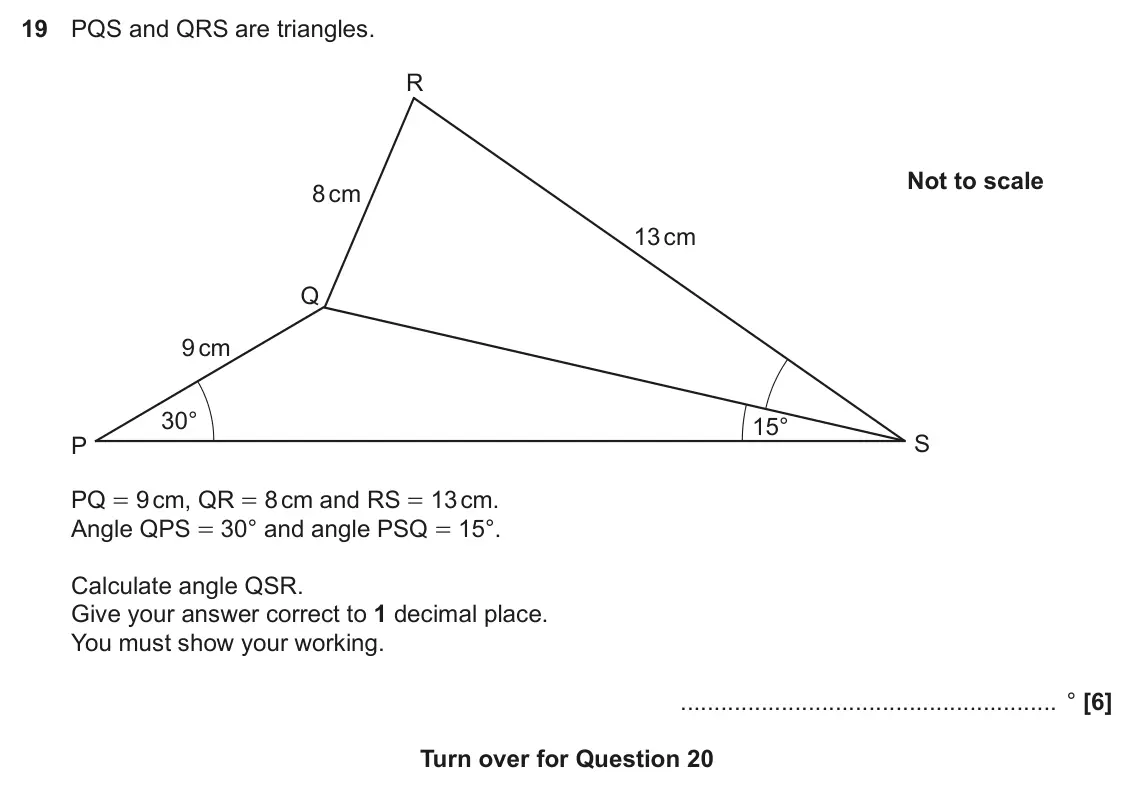

- November 2022, Paper 6, Q19 (6 marks): PQS and QRS are triangles. R Not to scale 8 cm 13 cm Q 9 cm 30° 15° S P PQ = 9 cm, QR = 8 cm and RS = 13 cm. Angle QPS = 30° and angle PSQ = 15°. Calculate angl

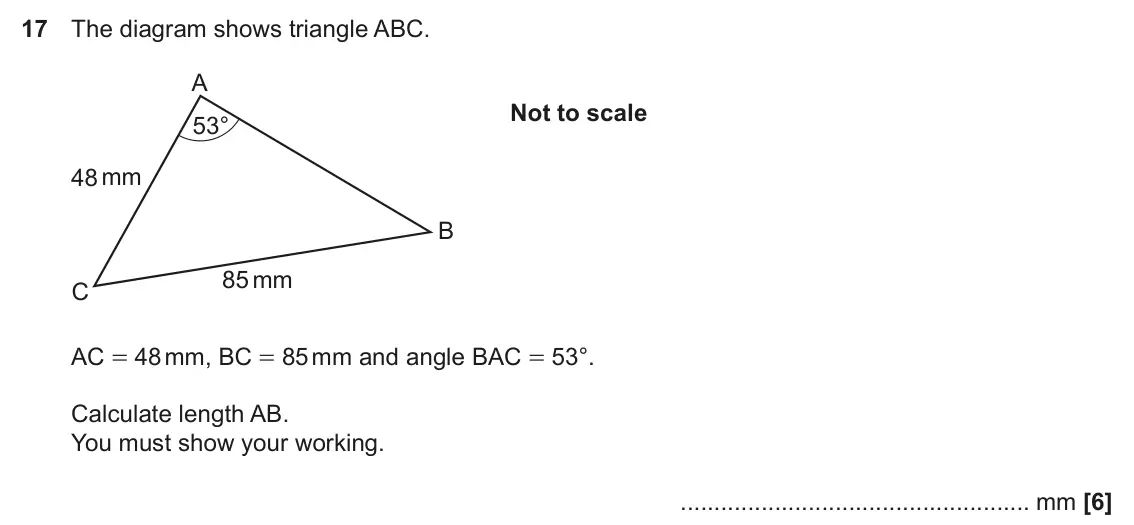

- November 2021, Paper 4, Q17 (6 marks): The diagram shows triangle ABC. A Not to scale 53° 48 mm B 85 mm C AC = 48 mm, BC = 85 mm and angle BAC = 53°. Calculate length AB. You must show your working.

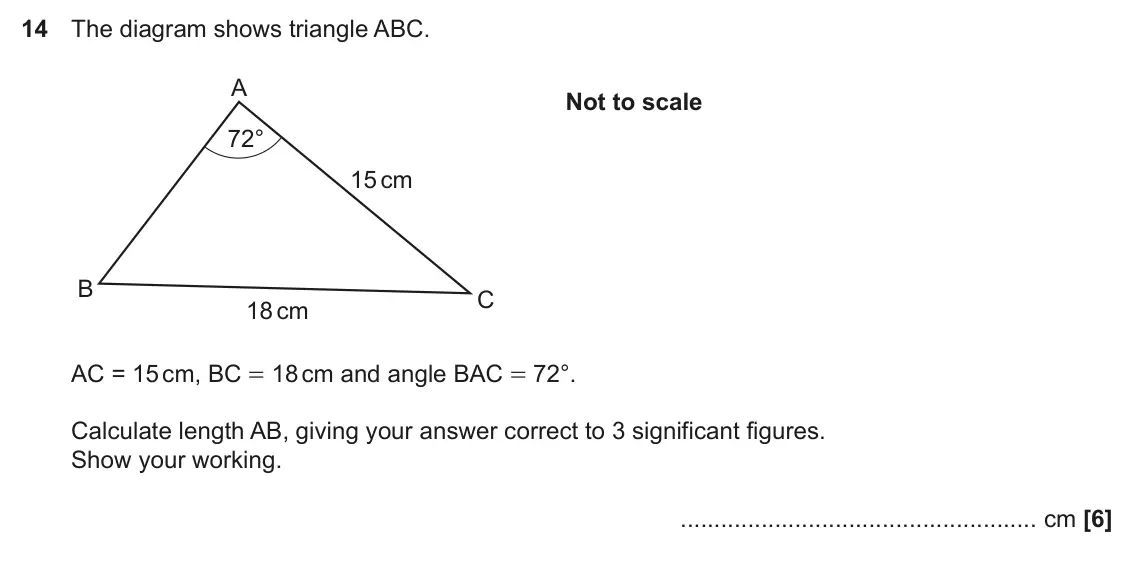

- November 2020, Paper 4, Q14 (6 marks): The diagram shows triangle ABC. A Not to scale 72° 15 cm B C 18 cm AC = 15 cm, BC = 18 cm and angle BAC = 72°. Calculate length AB, giving your answer correct t

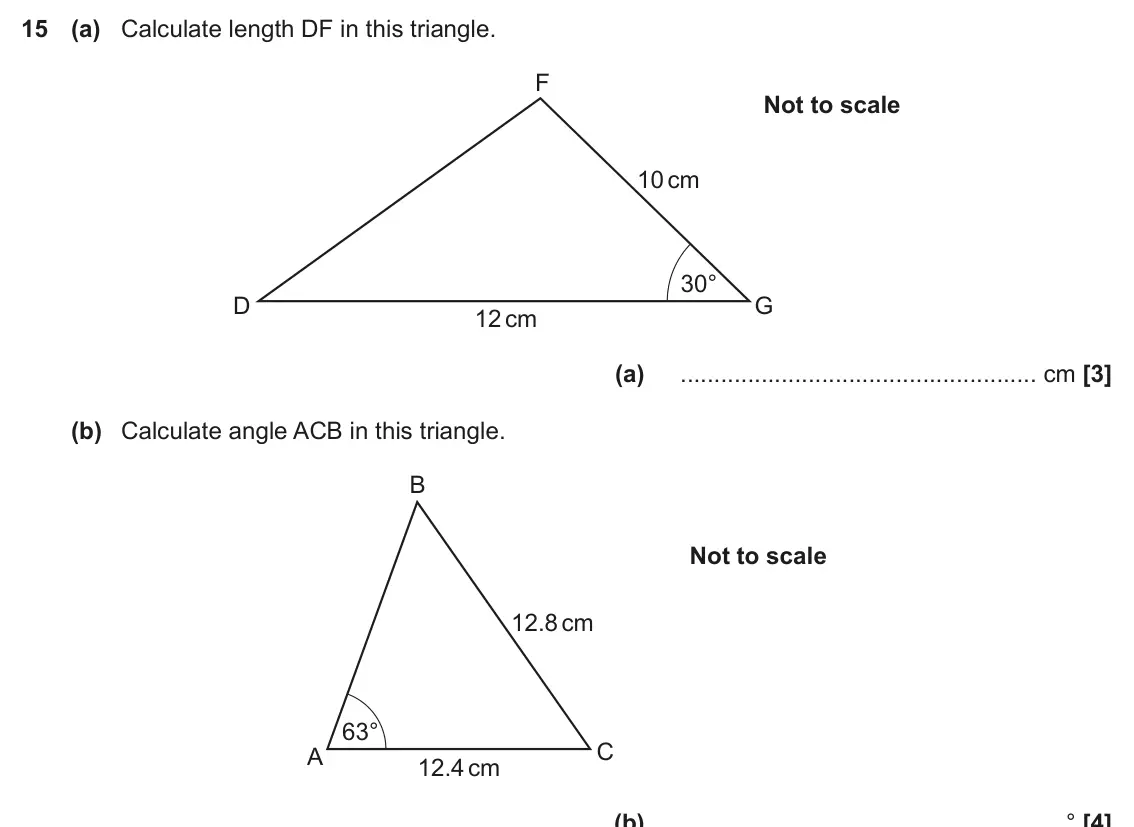

- November 2019, Paper 4, Q15 (7 marks): (a) Calculate length DF in this triangle. F Not to scale 10 cm 30° D G 12 cm (a) cm (b) Calculate angle ACB in this triangle. B Not to scale 12.8 cm 63° C A 12.
- June 2019, Paper 6, Q17 (8 marks): T is a radar tower. A and B are two aircraft. At 3pm • aircraft A is 3250 km from T on a bearing of 015° • aircraft B is 4960 km from T on a bearing of 057°. A

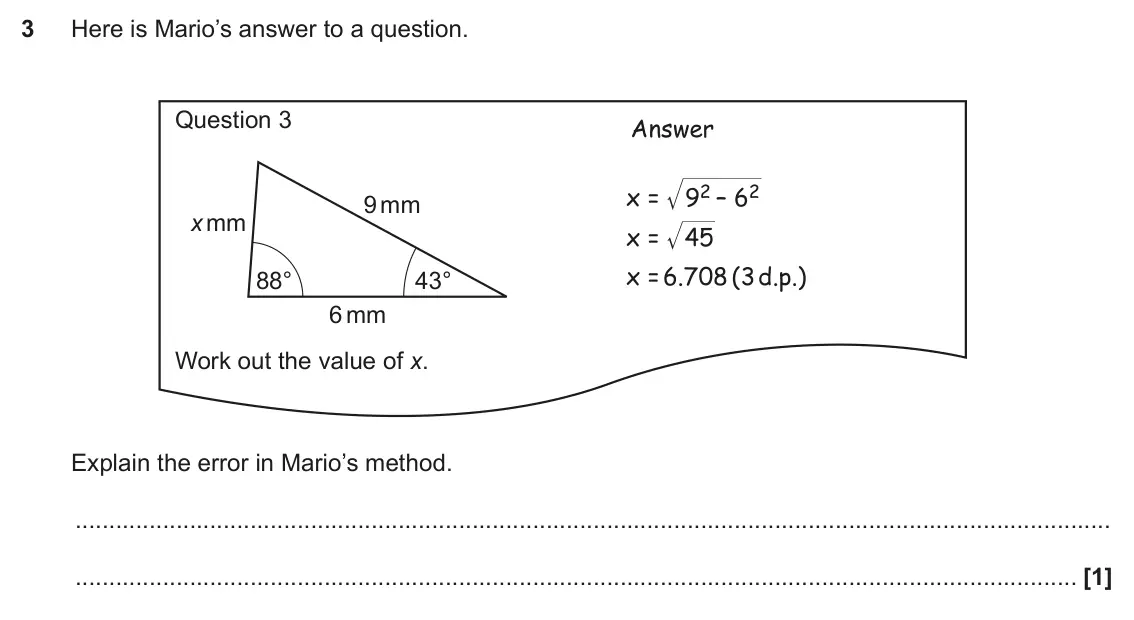

- November 2018, Paper 4, Q3 (1 mark): Here is Mario’s answer to a question. Question 3 Answer 92 – 62 x = 9 mm x mm x = 45 x = 6.708( d.p.) 3 88° 43° 6 mm Work out the value of x. Explain the error

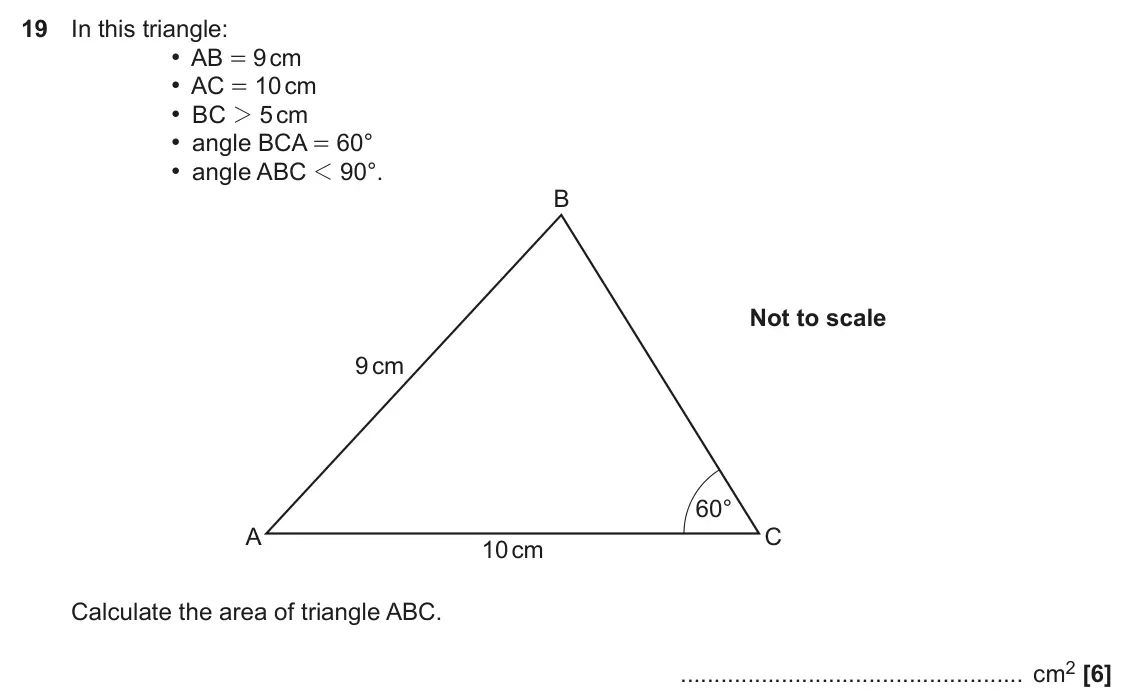

- November 2018, Paper 6, Q19 (6 marks): In this triangle: • AB = 9 cm • AC = 10 cm • BC 2 5 cm • angle BCA = 60° • angle ABC 1 90°. B Not to scale 9 cm 60° A C 10 cm Calculate the area of triangle ABC

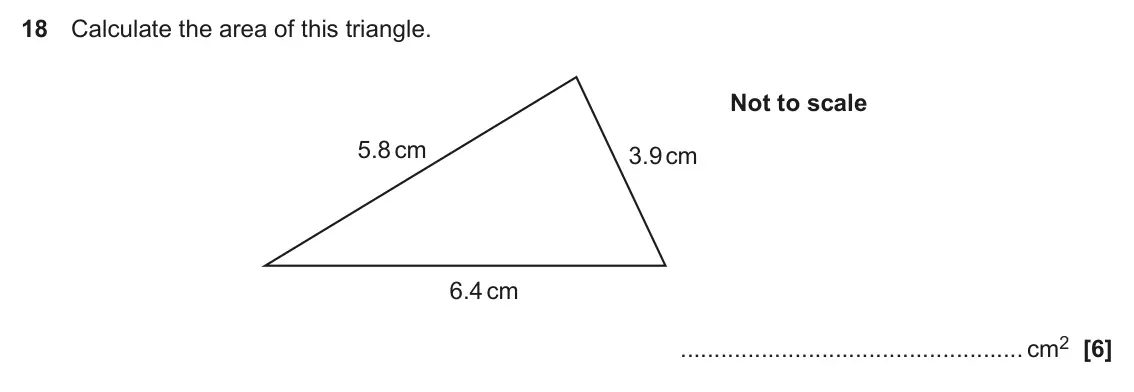

- June 2018, Paper 4, Q18 (6 marks): Calculate the area of this triangle. Not to scale 5.8 cm 3.9 cm 6.4 cm cm2

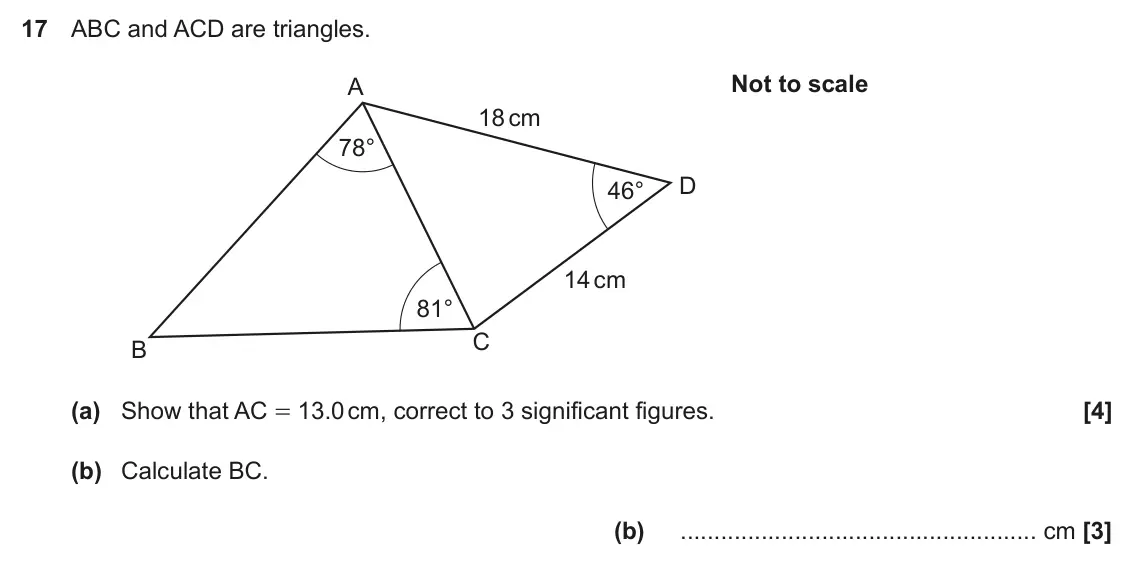

- November 2017, Paper 4, Q17 (7 marks): ABC and ACD are triangles. Not to scale A 18 cm 78° D 46° 14 cm 81° C B (a) Show that AC = 13.0 cm, correct to 3 significant figures. (b) Calculate BC. (b) cm

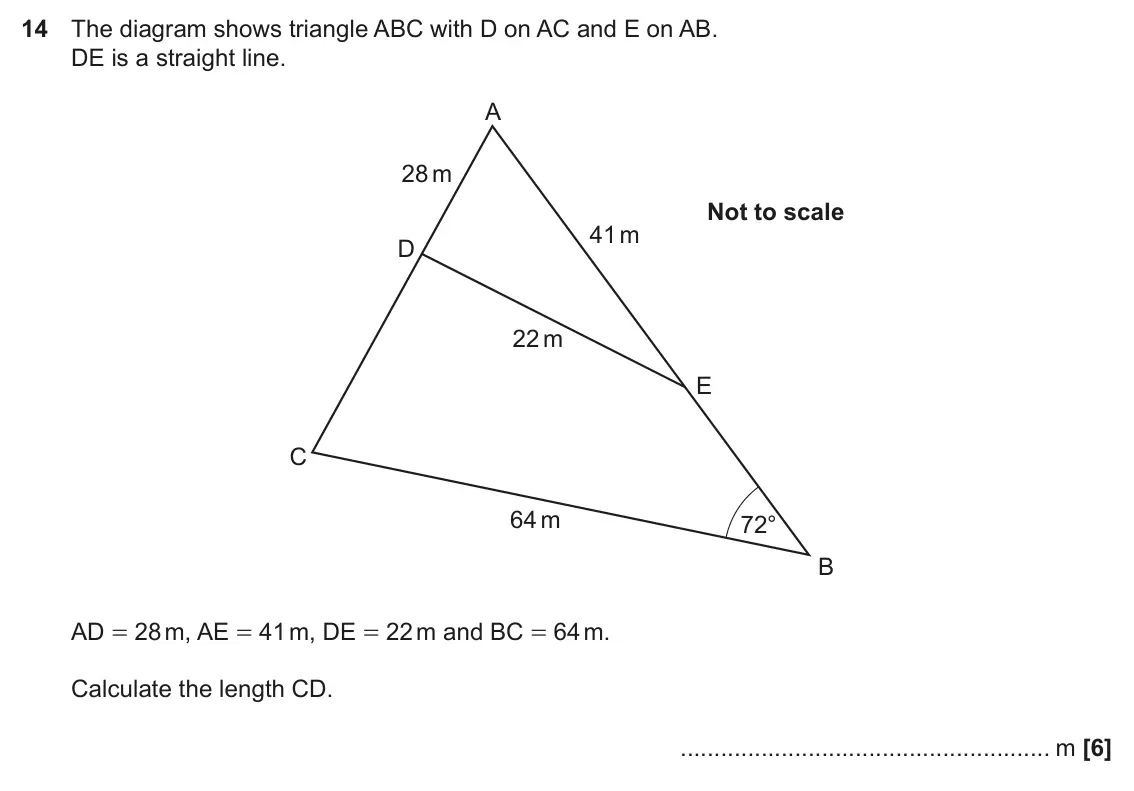

- June 2017, Paper 4, Q14 (6 marks): The diagram shows triangle ABC with D on AC and E on AB. DE is a straight line. A 28 m Not to scale 41 m D 22 m E C 64 m 72° B AD = 28 m, AE = 41 m, DE = 22 m a
