Pythagoras and trigonometry: OCR GCSE Maths questions

Every OCR GCSE Maths exam question on G20 Pythagoras and trigonometry, 2017–2025, with its mark scheme and examiner’s report.

Find questions921
Exam
All years
Calculator

921 questions

  1. Q3

    June 2025 · Paper 4

    4 marksG17 Circles, surface area and volumeG20 Pythagoras and trigonometry
    The whole paper ↗
    June 2025 Paper 4, question 3: The diagram shows a shape formed from a rectangle measuring 8 cm by 17 cm with a semicircle removed from one side. 4 cm 3 cm Not to scale 8 cm 17 cm Calculate t

  2. Q12

    June 2025 · Paper 4

    5 marksG16 Area of 2D shapes and volume of prismsG20 Pythagoras and trigonometry
    The whole paper ↗
    June 2025 Paper 4, question 12: The diagram shows a trapezium. 17.2 cm Not to scale 7 cm 7 cm 25.6 cm Calculate the area of the trapezium. You must show your working. 2 cm

  3. Q22

    June 2025 · Paper 5

    6 marksG23 Area of a triangle (½ab sin C)G20 Pythagoras and trigonometry
    The whole paper ↗

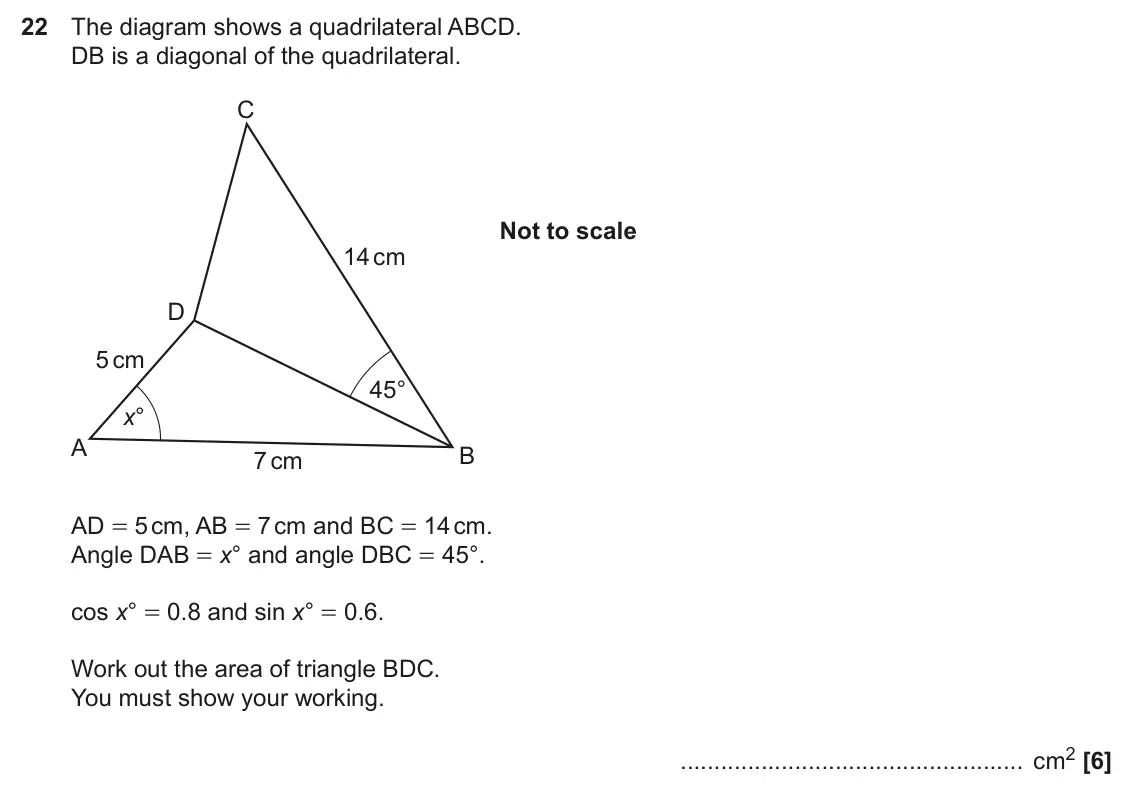

    June 2025 Paper 5, question 22: The diagram shows a quadrilateral ABCD. DB is a diagonal of the quadrilateral. C Not to scale 14 cm D 5 cm 45° x° A B 7 cm AD = 5 cm, AB = 7 cm and BC = 14 cm.

  4. Q22

    June 2025 · Paper 6

    6 marksG20 Pythagoras and trigonometryG12 Properties of 3D shapes
    The whole paper ↗

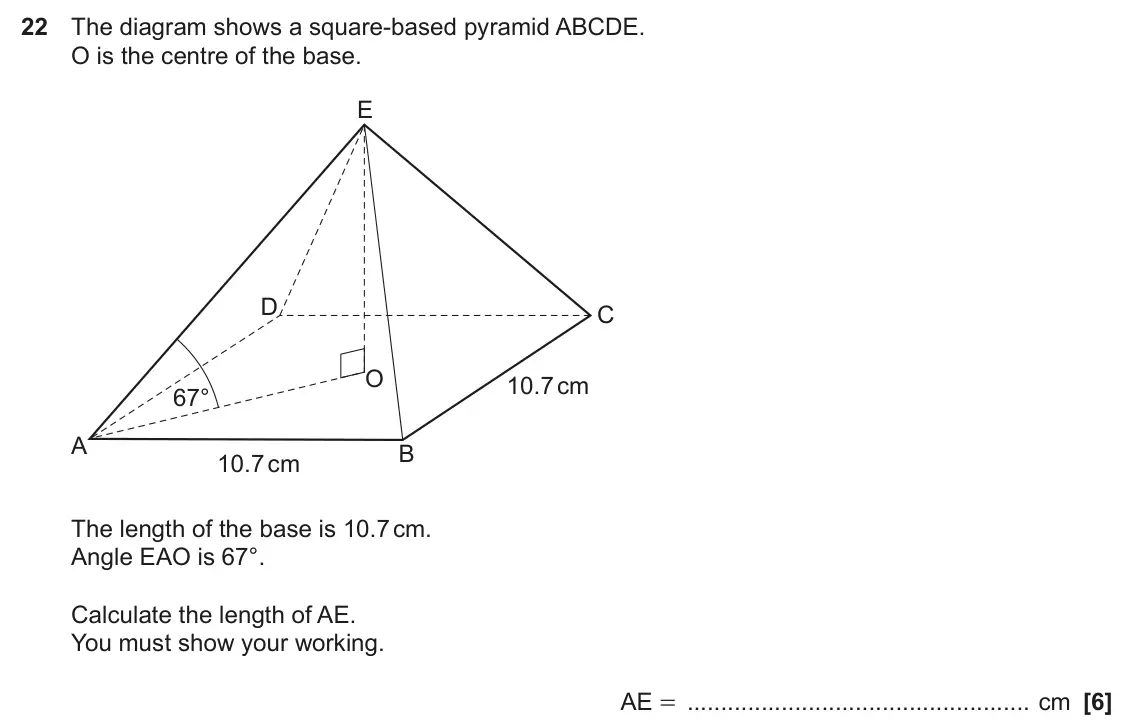

    June 2025 Paper 6, question 22: The diagram shows a square-based pyramid ABCDE. O is the centre of the base. E D C O 10.7 cm 67° A B 10.7 cm The length of the base is 10.7 cm. Angle EAO is 67°

  5. Q21

    November 2024 · Paper 6

    5 marksG20 Pythagoras and trigonometry
    The whole paper ↗

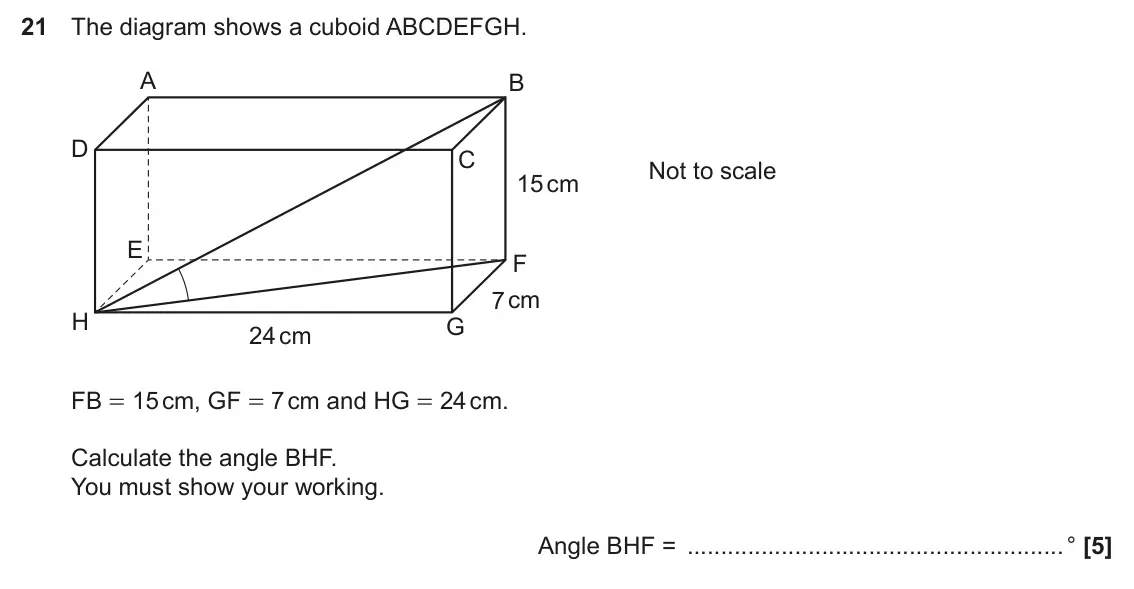

    November 2024 Paper 6, question 21: The diagram shows a cuboid ABCDEFGH. A B D C Not to scale 15 cm E F 7 cm H G 24 cm FB = 15 cm, GF = 7 cm and HG = 24 cm. Calculate the angle BHF. You must show

  6. Q14

    June 2024 · Paper 4

    6 marksG17 Circles, surface area and volumeG20 Pythagoras and trigonometry
    The whole paper ↗

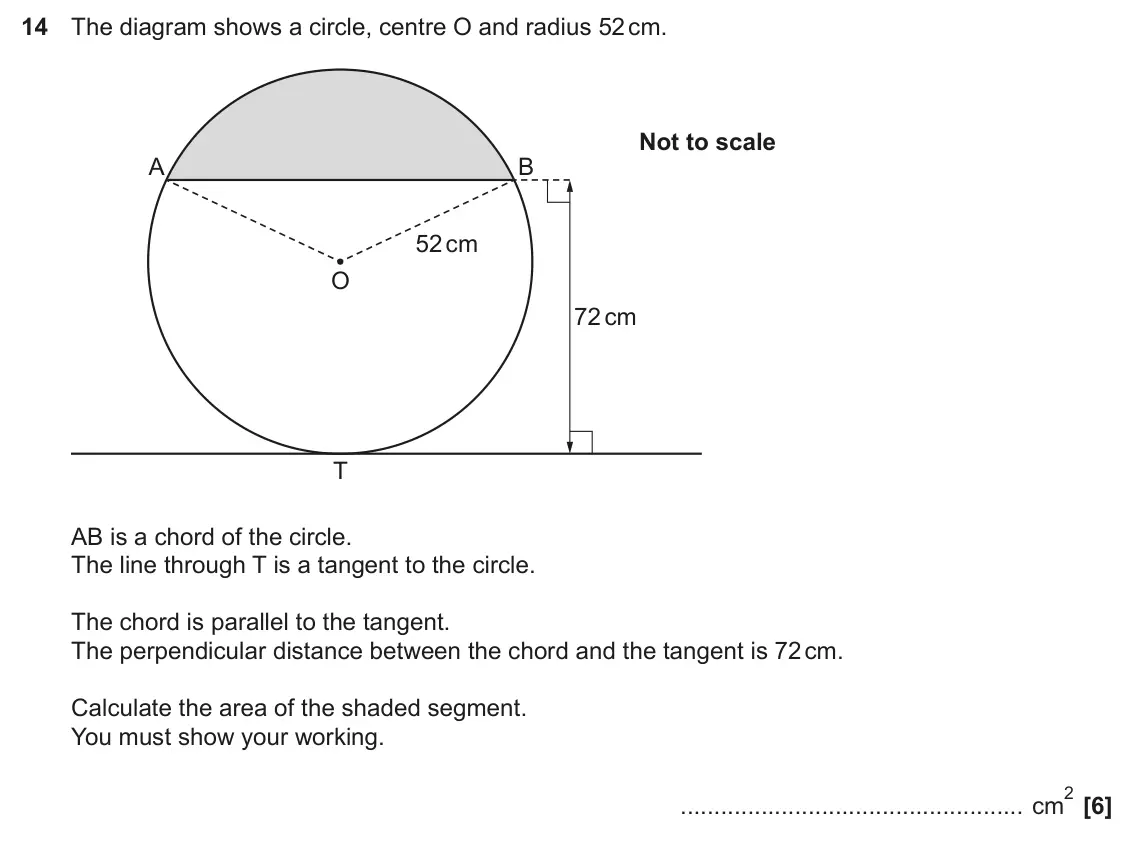

    June 2024 Paper 4, question 14: The diagram shows a circle, centre O and radius 52 cm. Not to scale A B 52 cm O 72 cm T AB is a chord of the circle. The line through T is a tangent to the circ

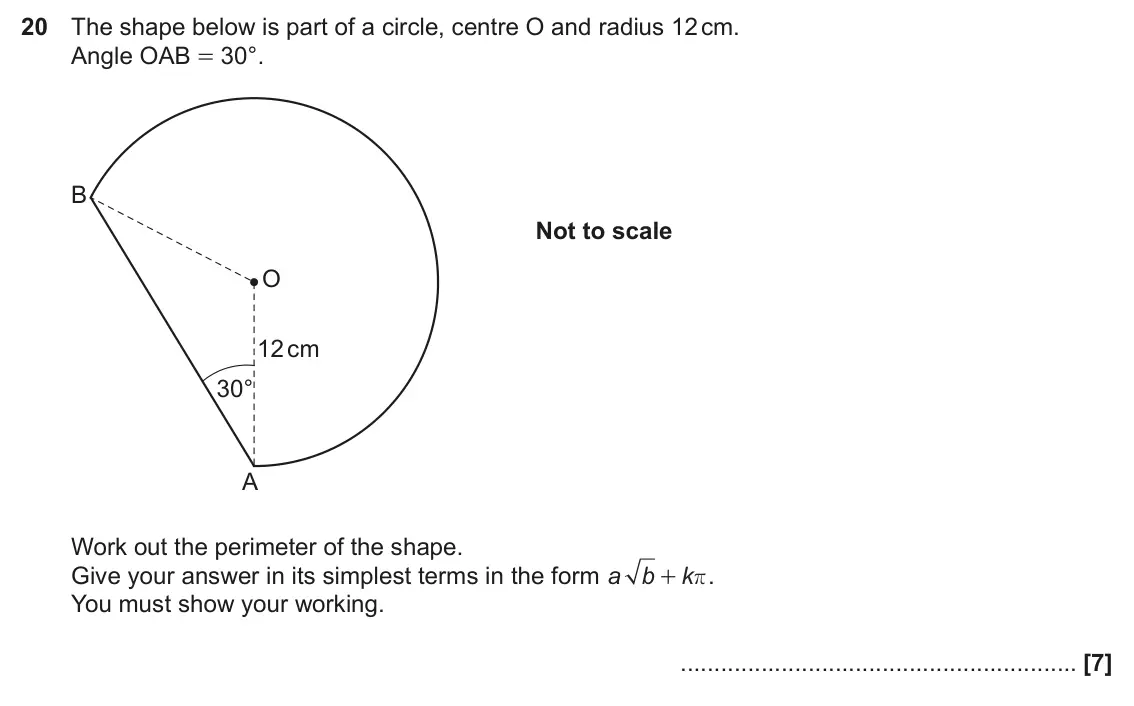

  7. Q20

    June 2024 · Paper 5

    7 marksG18 Arcs and sectorsG20 Pythagoras and trigonometry
    The whole paper ↗
    June 2024 Paper 5, question 20: The shape below is part of a circle, centre O and radius 12 cm. Angle OAB = 30°. B Not to scale O 12 cm 30° A Work out the perimeter of the shape. Give your ans

  8. Q5

    June 2024 · Paper 6

    9 marksG17 Circles, surface area and volumeG20 Pythagoras and trigonometry
    The whole paper ↗

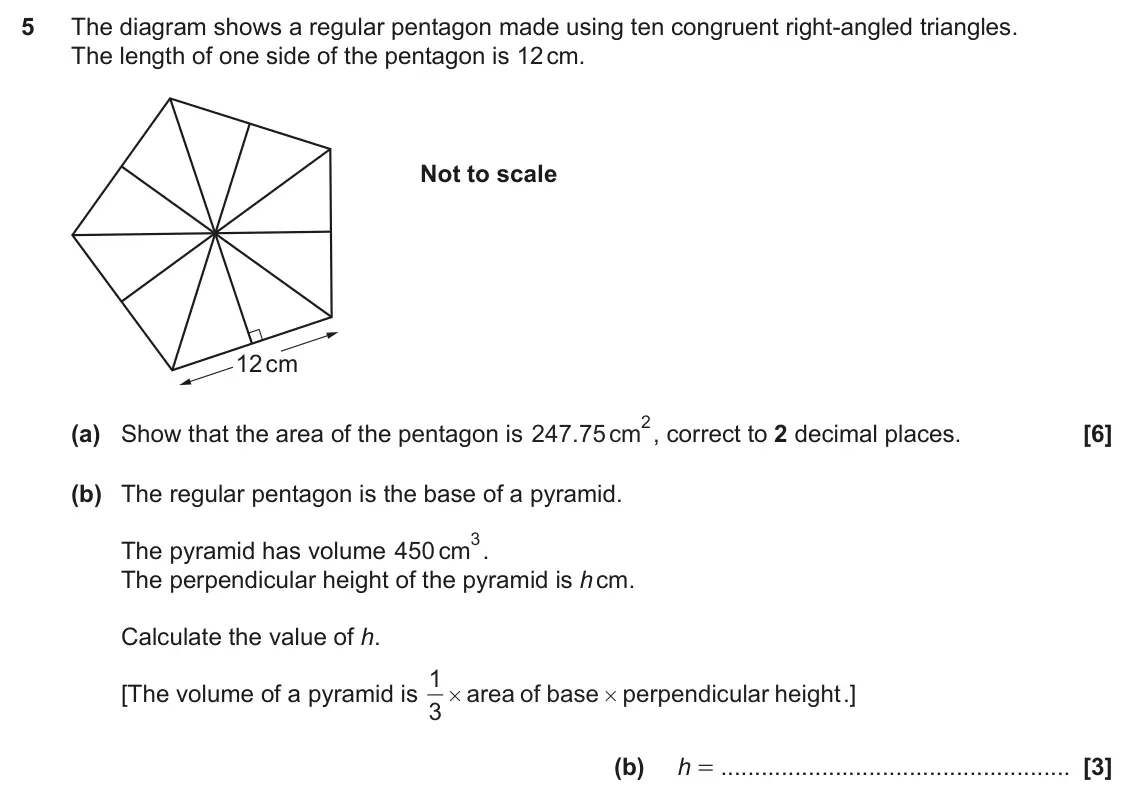

    June 2024 Paper 6, question 5: The diagram shows a regular pentagon made using ten congruent right-angled triangles. The length of one side of the pentagon is 12 cm. Not to scale 12 cm 2, cor

  9. Q14

    June 2024 · Paper 6

    5 marksG11 Geometry on coordinate axesG20 Pythagoras and trigonometry
    The whole paper ↗

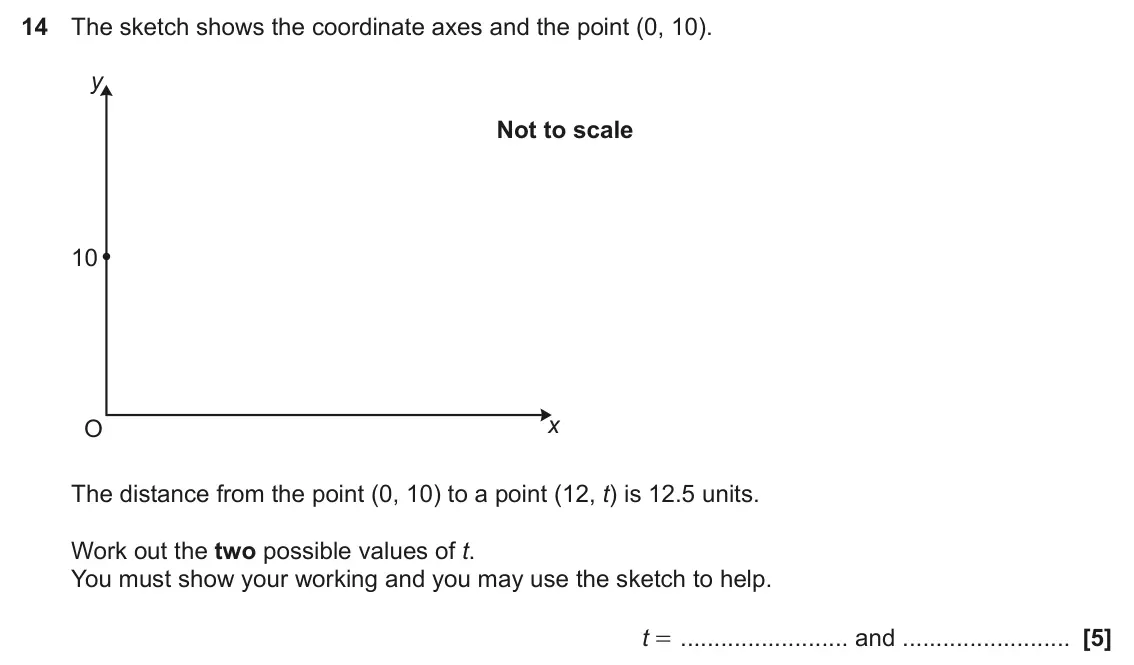

    June 2024 Paper 6, question 14: The sketch shows the coordinate axes and the point (0, 10). y Not to scale 10 x O The distance from the point (0, 10) to a point (12, t) is 12.5 units. Work out

  10. Q10

    November 2023 · Paper 4

    6 marksG16 Area of 2D shapes and volume of prismsG20 Pythagoras and trigonometry
    The whole paper ↗

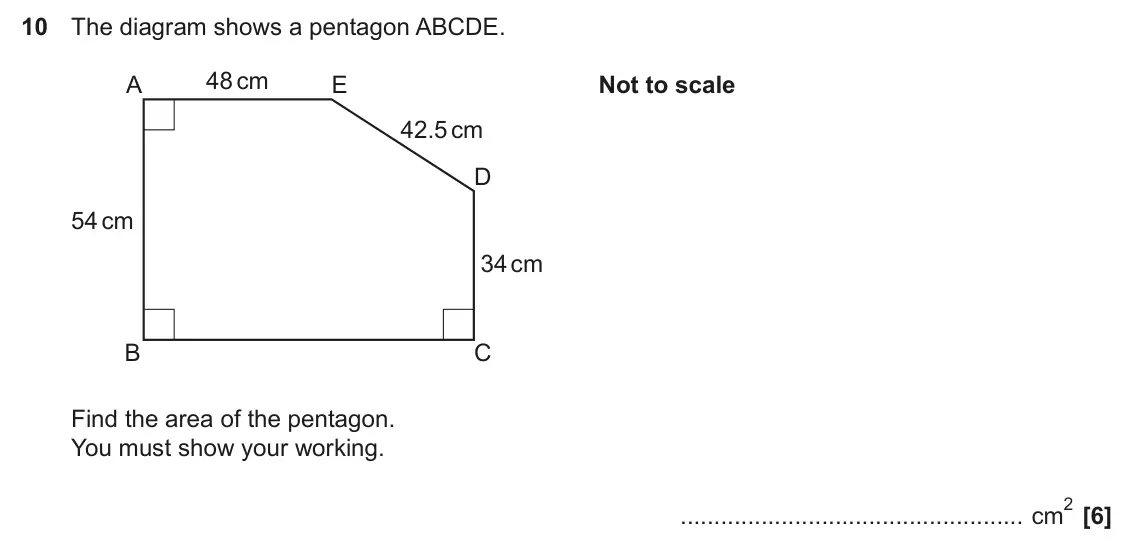

    November 2023 Paper 4, question 10: The diagram shows a pentagon ABCDE. 48 cm A E Not to scale 42.5 cm D 54 cm 34 cm B C Find the area of the pentagon. You must show your working. 2 cm

  11. Q23

    November 2023 · Paper 5

    9 marksG18 Arcs and sectorsG20 Pythagoras and trigonometry
    The whole paper ↗

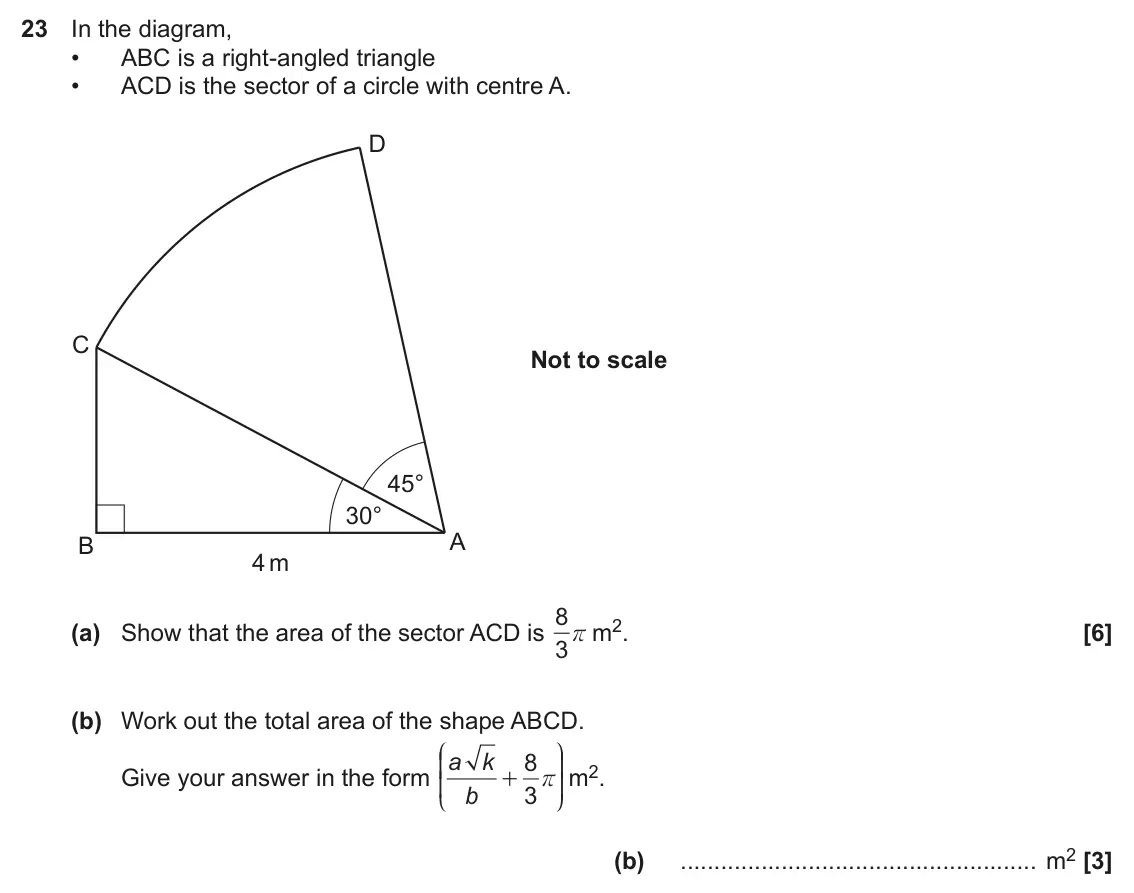

    November 2023 Paper 5, question 23: In the diagram, • ABC is a right-angled triangle • ACD is the sector of a circle with centre A. D C Not to scale 45° 30° A B 4 m 8 r m2. (a) Show that the area

  12. Q9

    June 2023 · Paper 4

    8 marksA21 Forming and solving equationsG20 Pythagoras and trigonometry
    The whole paper ↗

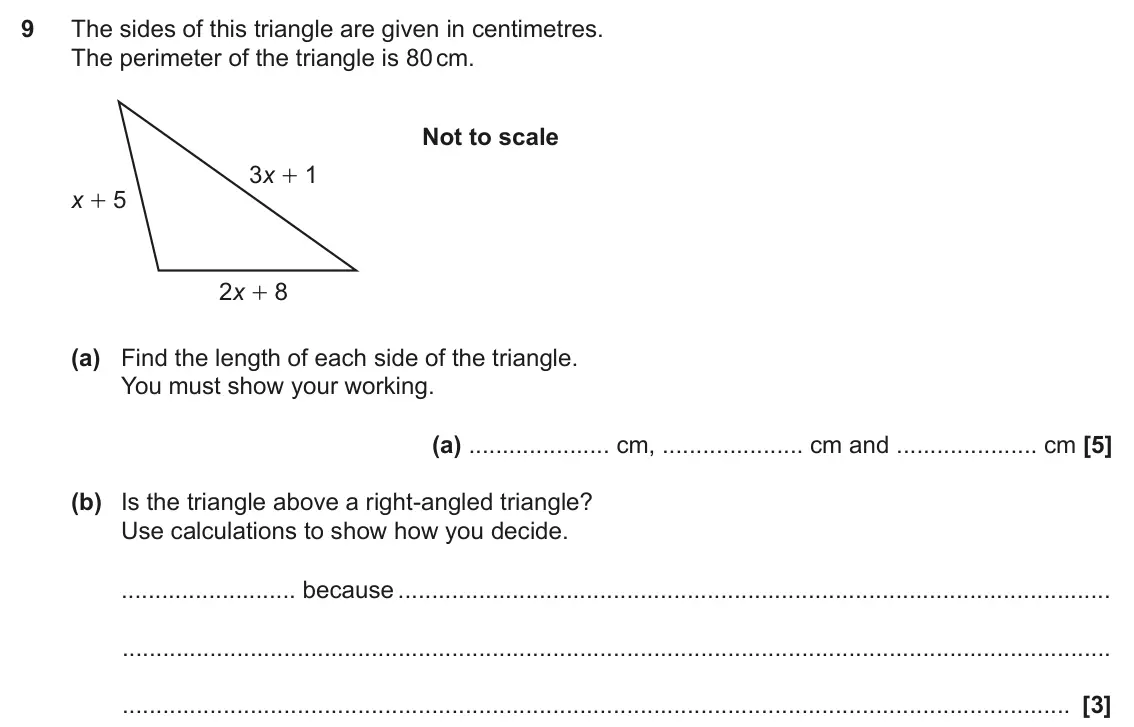

    June 2023 Paper 4, question 9: The sides of this triangle are given in centimetres. The perimeter of the triangle is 80 cm. Not to scale 3x + 1 x + 5 2x + 8 (a) Find the length of each side o

  13. Q13

    June 2023 · Paper 5

    6 marksG20 Pythagoras and trigonometryN8 Exact calculation and surds
    The whole paper ↗

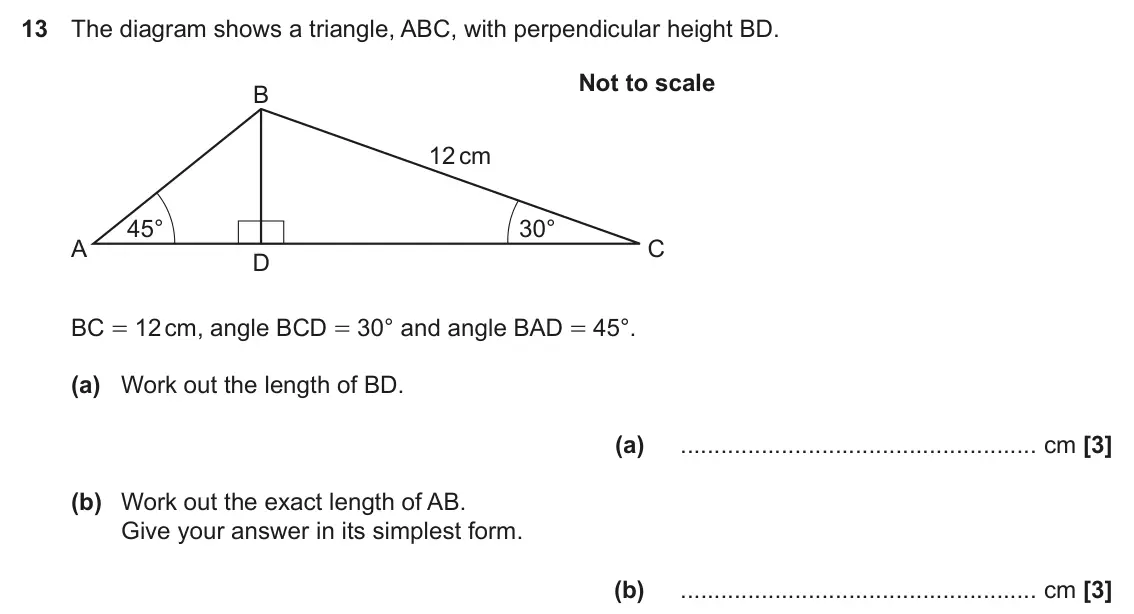

    June 2023 Paper 5, question 13: The diagram shows a triangle, ABC, with perpendicular height BD. Not to scale B 12 cm 45° 30° A C D BC = 12 cm, angle BCD = 30° and angle BAD = 45°. (a) Work ou

  14. Q8

    June 2023 · Paper 6

    4 marksG20 Pythagoras and trigonometryG3 Angles and polygons
    The whole paper ↗

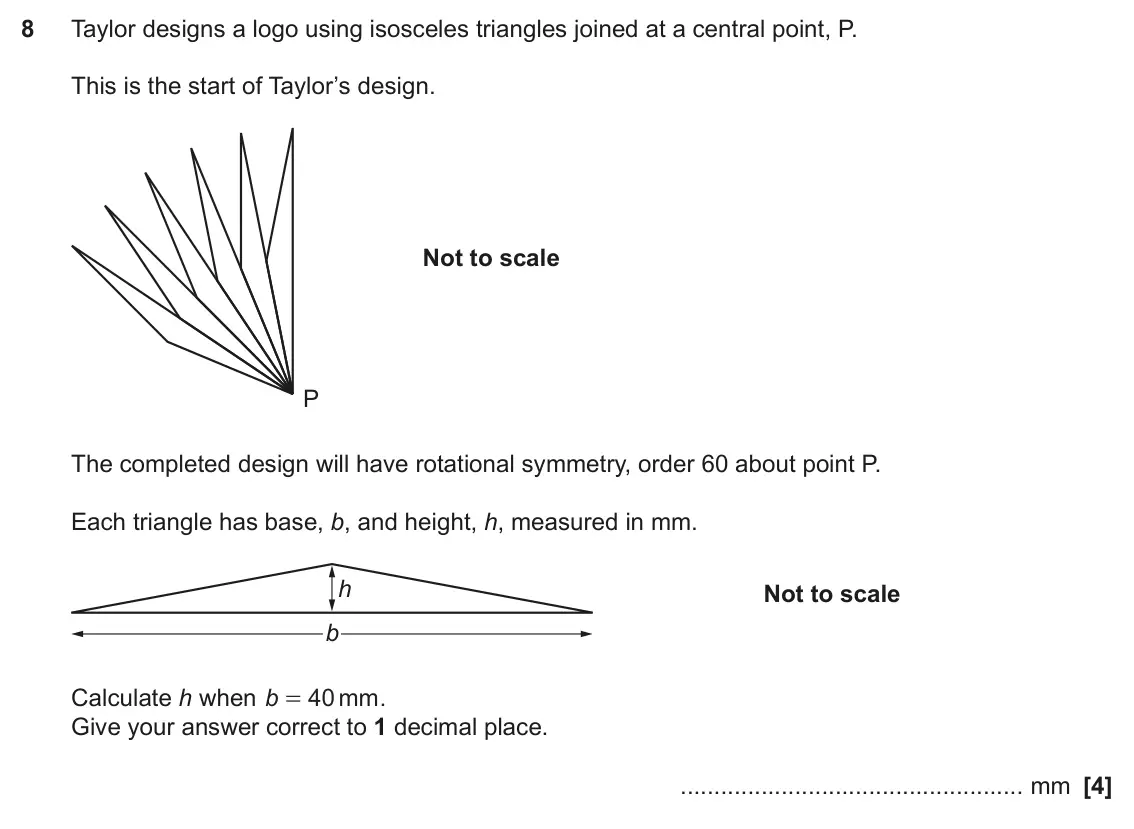

    June 2023 Paper 6, question 8: Taylor designs a logo using isosceles triangles joined at a central point, P. This is the start of Taylor’s design. Not to scale P The completed design will hav

  15. Q14

    June 2023 · Paper 6

    7 marksG17 Circles, surface area and volumeG20 Pythagoras and trigonometry
    The whole paper ↗
    June 2023 Paper 6, question 14: The diagram shows a square-based pyramid ABCDE. O is the centre of the base. E 14.5 cm 14.5 cm D C O 20 cm A 20 cm B The pyramid has base length 20 cm and each

  16. Q11

    November 2022 · Paper 4

    6 marksG20 Pythagoras and trigonometryN15 Rounding and error intervals
    The whole paper ↗

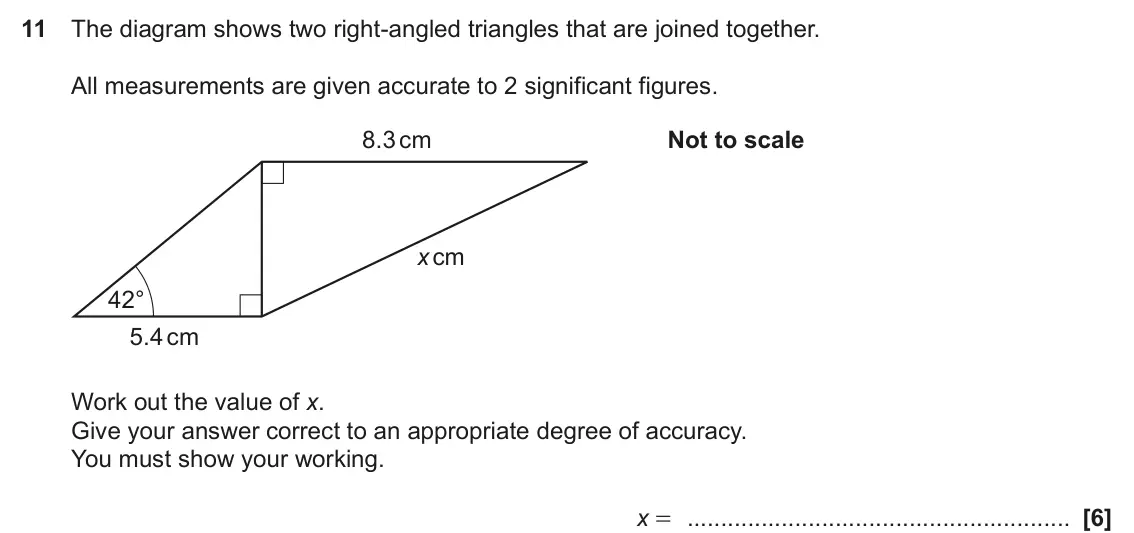

    November 2022 Paper 4, question 11: The diagram shows two right-angled triangles that are joined together. All measurements are given accurate to 2 significant figures. 8.3 cm Not to scale x cm 42

  17. Q20

    November 2022 · Paper 5

    4 marksG20 Pythagoras and trigonometry
    The whole paper ↗

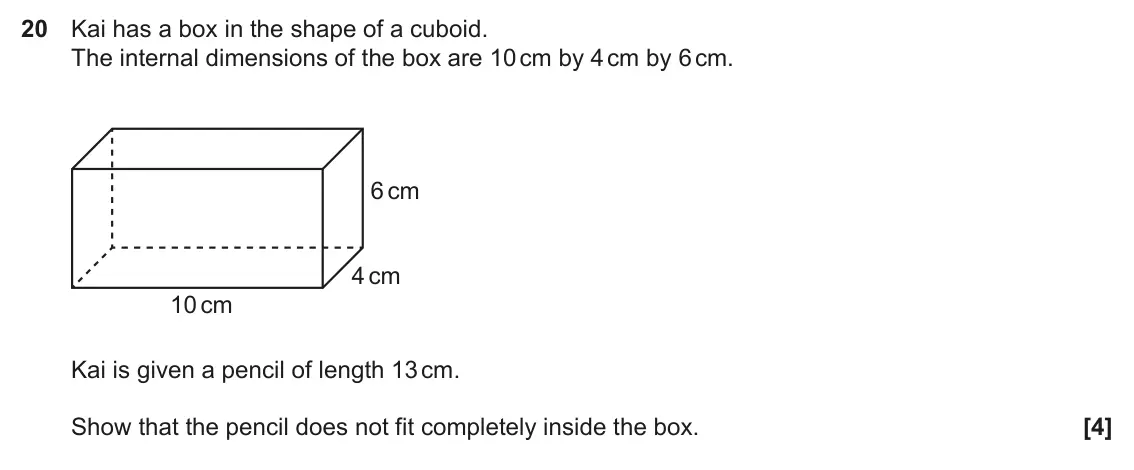

    November 2022 Paper 5, question 20: Kai has a box in the shape of a cuboid. The internal dimensions of the box are 10 cm by 4 cm by 6 cm. 6 cm 4 cm 10 cm Kai is given a pencil of length 13 cm. Sho

  18. Q9

    June 2022 · Paper 4

    5 marksG20 Pythagoras and trigonometryG17 Circles, surface area and volume
    The whole paper ↗

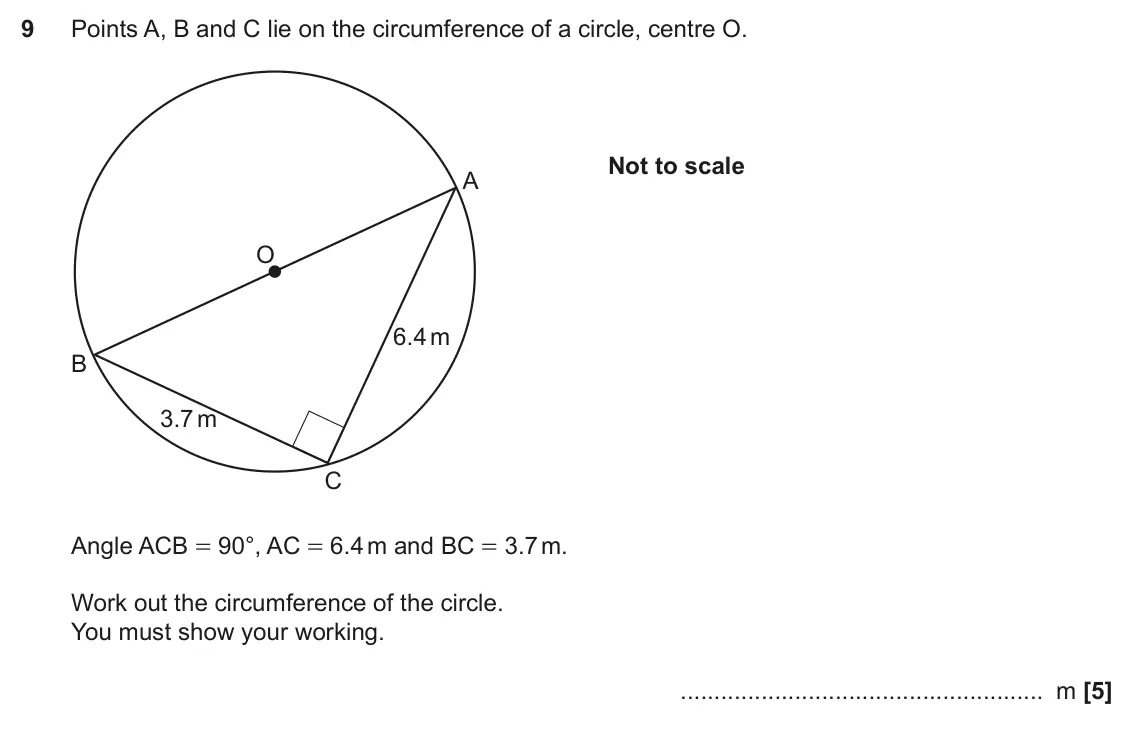

    June 2022 Paper 4, question 9: Points A, B and C lie on the circumference of a circle, centre O. Not to scale A O 6.4 m B 3.7 m C Angle ACB = 90°, AC = 6.4 m and BC = 3.7 m. Work out the circ

  19. Q15

    June 2022 · Paper 5

    4 marksG21 Exact trigonometric valuesG20 Pythagoras and trigonometry
    The whole paper ↗

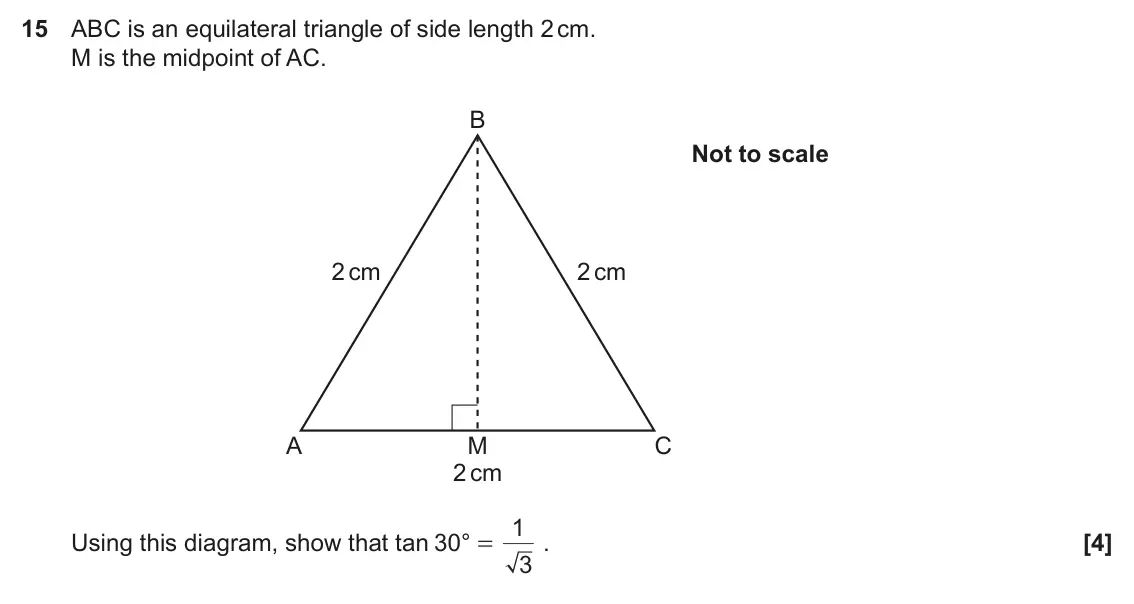

    June 2022 Paper 5, question 15: ABC is an equilateral triangle of side length 2 cm. M is the midpoint of AC. B Not to scale 2 cm 2 cm A M C 2 cm 1 . Using this diagram, show that tan 30° = 3

  20. Q21

    June 2022 · Paper 6

    6 marksG20 Pythagoras and trigonometry
    The whole paper ↗

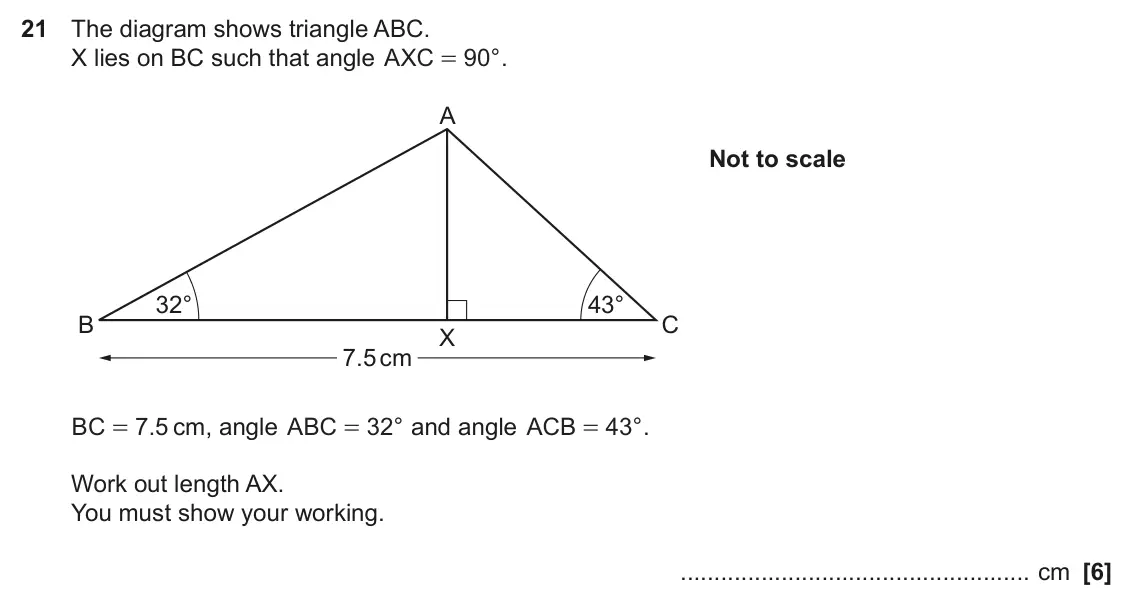

    June 2022 Paper 6, question 21: The diagram shows triangle ABC. X lies on BC such that angle AXC = 90 ° . A Not to scale 32° 43° B C X 7.5 cm BC = 7 5 . cm, angle ABC = 32 ° and angle ACB = 43
All 41 questions on Pythagoras and trigonometry, as a list
  1. June 2025, Paper 4, Q3 (4 marks): The diagram shows a shape formed from a rectangle measuring 8 cm by 17 cm with a semicircle removed from one side. 4 cm 3 cm Not to scale 8 cm 17 cm Calculate t
  2. June 2025, Paper 4, Q12 (5 marks): The diagram shows a trapezium. 17.2 cm Not to scale 7 cm 7 cm 25.6 cm Calculate the area of the trapezium. You must show your working. 2 cm
  3. June 2025, Paper 5, Q22 (6 marks): The diagram shows a quadrilateral ABCD. DB is a diagonal of the quadrilateral. C Not to scale 14 cm D 5 cm 45° x° A B 7 cm AD = 5 cm, AB = 7 cm and BC = 14 cm.
  4. June 2025, Paper 6, Q22 (6 marks): The diagram shows a square-based pyramid ABCDE. O is the centre of the base. E D C O 10.7 cm 67° A B 10.7 cm The length of the base is 10.7 cm. Angle EAO is 67°
  5. November 2024, Paper 6, Q21 (5 marks): The diagram shows a cuboid ABCDEFGH. A B D C Not to scale 15 cm E F 7 cm H G 24 cm FB = 15 cm, GF = 7 cm and HG = 24 cm. Calculate the angle BHF. You must show
  6. June 2024, Paper 4, Q14 (6 marks): The diagram shows a circle, centre O and radius 52 cm. Not to scale A B 52 cm O 72 cm T AB is a chord of the circle. The line through T is a tangent to the circ
  7. June 2024, Paper 5, Q20 (7 marks): The shape below is part of a circle, centre O and radius 12 cm. Angle OAB = 30°. B Not to scale O 12 cm 30° A Work out the perimeter of the shape. Give your ans
  8. June 2024, Paper 6, Q5 (9 marks): The diagram shows a regular pentagon made using ten congruent right-angled triangles. The length of one side of the pentagon is 12 cm. Not to scale 12 cm 2, cor
  9. June 2024, Paper 6, Q14 (5 marks): The sketch shows the coordinate axes and the point (0, 10). y Not to scale 10 x O The distance from the point (0, 10) to a point (12, t) is 12.5 units. Work out
  10. November 2023, Paper 4, Q10 (6 marks): The diagram shows a pentagon ABCDE. 48 cm A E Not to scale 42.5 cm D 54 cm 34 cm B C Find the area of the pentagon. You must show your working. 2 cm
  11. November 2023, Paper 5, Q23 (9 marks): In the diagram, • ABC is a right-angled triangle • ACD is the sector of a circle with centre A. D C Not to scale 45° 30° A B 4 m 8 r m2. (a) Show that the area
  12. June 2023, Paper 4, Q9 (8 marks): The sides of this triangle are given in centimetres. The perimeter of the triangle is 80 cm. Not to scale 3x + 1 x + 5 2x + 8 (a) Find the length of each side o
  13. June 2023, Paper 5, Q13 (6 marks): The diagram shows a triangle, ABC, with perpendicular height BD. Not to scale B 12 cm 45° 30° A C D BC = 12 cm, angle BCD = 30° and angle BAD = 45°. (a) Work ou
  14. June 2023, Paper 6, Q8 (4 marks): Taylor designs a logo using isosceles triangles joined at a central point, P. This is the start of Taylor’s design. Not to scale P The completed design will hav
  15. June 2023, Paper 6, Q14 (7 marks): The diagram shows a square-based pyramid ABCDE. O is the centre of the base. E 14.5 cm 14.5 cm D C O 20 cm A 20 cm B The pyramid has base length 20 cm and each
  16. November 2022, Paper 4, Q11 (6 marks): The diagram shows two right-angled triangles that are joined together. All measurements are given accurate to 2 significant figures. 8.3 cm Not to scale x cm 42
  17. November 2022, Paper 5, Q20 (4 marks): Kai has a box in the shape of a cuboid. The internal dimensions of the box are 10 cm by 4 cm by 6 cm. 6 cm 4 cm 10 cm Kai is given a pencil of length 13 cm. Sho
  18. June 2022, Paper 4, Q9 (5 marks): Points A, B and C lie on the circumference of a circle, centre O. Not to scale A O 6.4 m B 3.7 m C Angle ACB = 90°, AC = 6.4 m and BC = 3.7 m. Work out the circ
  19. June 2022, Paper 5, Q15 (4 marks): ABC is an equilateral triangle of side length 2 cm. M is the midpoint of AC. B Not to scale 2 cm 2 cm A M C 2 cm 1 . Using this diagram, show that tan 30° = 3
  20. June 2022, Paper 6, Q21 (6 marks): The diagram shows triangle ABC. X lies on BC such that angle AXC = 90 ° . A Not to scale 32° 43° B C X 7.5 cm BC = 7 5 . cm, angle ABC = 32 ° and angle ACB = 43
  21. November 2021, Paper 4, Q19 (9 marks): ABC is an isosceles triangle. The sides of the triangle ABC are all tangents to a circle of radius 6 cm, centre O. B Not to scale 6 cm O 70° A C Angle BAC = 70°
  22. November 2021, Paper 5, Q11 (7 marks): The diagram shows a quadrilateral ABCD. AD = 10 cm, angle BAD = 30° and angle ABD = angle BDC = 90°. D C 10 cm Not to scale 30° A B The ratio of length BD to le
  23. November 2021, Paper 6, Q17 (5 marks): The diagram shows a pyramid ABCDE. E Not to scale 6.8 cm D C O 5.6 cm A B 5.6 cm The pyramid has a square horizontal base ABCD with side 5.6 cm. The vertex E is
  24. November 2020, Paper 5, Q20 (7 marks): ABCD is a trapezium. D C Not to scale A B The perimeter of the trapezium is 56 cm. The ratio AD : AB : DC : BC = 5 : 12 : 6 : 5. Calculate the area of the trape
  25. November 2019, Paper 4, Q18 (8 marks): The diagram shows a right-angled triangular prism ABCDEF. E F 6 cm B C 10 cm A D 11 cm Length AD = 11 cm, length CD = 10 cm and length CF = 6 cm. (a) Calculate
  26. November 2019, Paper 5, Q19 (7 marks): (a) Write down the value of sin 45°. (a) (b) ADB and BCD are right-angled triangles. BC = CD. AD = 10 6 mm. Angle BAD = 30°. 1 tan 30° = 3 B Not to scale C 30°
  27. June 2019, Paper 4, Q7 (6 marks): The diagram shows a shape ABCDE. The shape is made from a rectangle, a right-angled triangle and a quarter of a circle. C Not to scale B D F 41 m A E 18 m F is
  28. June 2019, Paper 5, Q15 (6 marks): OAB is a sector of a circle, centre O. OA = 6 cm and AX is perpendicular to OB. A Not to scale 6 cm O X B The area of sector OAB is 6r cm2. Show that AX = 3 3 c
  29. June 2019, Paper 6, Q5 (3 marks): ABC is a right-angled triangle. AB = 20 cm and BC = 37 cm. 37 cm C B Not to scale 20 cm A Calculate angle BAC. °
  30. June 2019, Paper 6, Q14 (5 marks): The length of the longest diagonal of a cube is 25 cm. Calculate the total surface area of the cube. cm2
  31. November 2018, Paper 4, Q3 (1 mark): Here is Mario’s answer to a question. Question 3 Answer 92 – 62 x = 9 mm x mm x = 45 x = 6.708( d.p.) 3 88° 43° 6 mm Work out the value of x. Explain the error
  32. November 2018, Paper 4, Q20 (6 marks): The diagram shows a right-angled triangular prism ABCDEF. D A E 18 cm F 40 cm B C 25 cm Calculate angle AFB. °
  33. November 2018, Paper 5, Q13 (8 marks): In the diagram, ABC is a right-angled triangle. P is a point on AB. BC = 40 m, AP = 20 m and angle ABC = 30 °. C 40 m Not to scale 30° A B P 20 m (a) Show that
  34. June 2018, Paper 4, Q8 (5 marks): A, B, C and D are points on the circumference of a circle, centre O. C Not to scale 6.4 cm B O D 28° A Angle CAD = 28° and CD = 6.4 cm. BD is a diameter of the
  35. June 2018, Paper 5, Q11 (6 marks): The diagram shows two right-angled triangles ABD and BCD, sharing a common side BD. AD = 10 cm, BC = 12 cm and angle DBC = 60°. B A Not to scale 60° 12 cm 10 cm
  36. November 2017, Paper 4, Q14 (5 marks): The diagram shows a cuboid ABCDEFGH. A B D C 8 cm E F 6 cm H G 11 cm Calculate angle BHF. °
  37. November 2017, Paper 4, Q17 (7 marks): ABC and ACD are triangles. Not to scale A 18 cm 78° D 46° 14 cm 81° C B (a) Show that AC = 13.0 cm, correct to 3 significant figures. (b) Calculate BC. (b) cm
  38. November 2017, Paper 5, Q8 (6 marks): The angles in a triangle are in the ratio 1 : 2 : 3. (a) Show that the triangle is a right-angled triangle. (b) The hypotenuse of the triangle is 15 cm long. Ca
  39. June 2017, Paper 4, Q7 (6 marks): A, B, C and D are four towns. North Not to scale B is 25 kilometres due East of A. C C is 25 kilometres due North of A. D is 45 kilometres due South of A. A B D
  40. June 2017, Paper 5, Q20 (7 marks): The diagram shows some land in the shape of a quadrilateral, ABCD. B Not to scale 3 km 30° A C 5 km 12 km D AB = 3 km, AD = 5 km, CD = 12 km and angle BAC = 30°
  41. June 2017, Paper 6, Q18 (7 marks): Alvin has a crate in the shape of a cuboid. The crate is open at the top. The internal dimensions of the crate are 46 cm long by 46 cm wide by 55 cm high. 55 cm
