plumiCircles, surface area and volume: OCR GCSE Maths questions
Every OCR GCSE Maths exam question on G17 Circles, surface area and volume, 2017–2025, with its mark scheme and examiner’s report.
Find questions921
Exam
All years
Calculator
All 35 questions on Circles, surface area and volume, as a list
- June 2025, Paper 4, Q3 (4 marks): The diagram shows a shape formed from a rectangle measuring 8 cm by 17 cm with a semicircle removed from one side. 4 cm 3 cm Not to scale 8 cm 17 cm Calculate t
- June 2025, Paper 5, Q19 (5 marks): The diagram shows a shape formed by a semicircle joined to a sector of a circle, BAC, along a common length AB. C Not to scale 40° A B The area of the sector BA

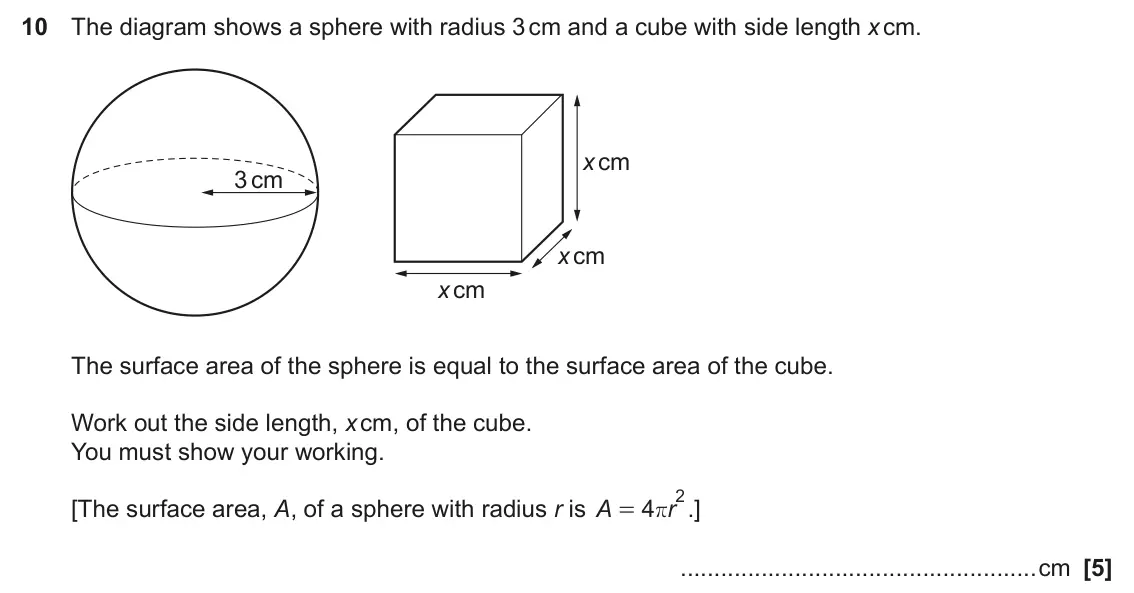

- June 2025, Paper 6, Q10 (5 marks): The diagram shows a sphere with radius 3 cm and a cube with side length x cm. x cm 3 cm x cm x cm The surface area of the sphere is equal to the surface area of
- November 2024, Paper 5, Q15 (8 marks): (a) The diagram shows a rectangle, OPQR, and a circle, centre O, which passes through Q. OR = 6 cm and RQ = 8 cm. Not to scale 8 cm R Q 6 cm O P Find the circum
- November 2024, Paper 6, Q10 (6 marks): A bowl in the shape of a hemisphere with radius 15 cm is used to collect raindrops. 15 cm - 4 Assume each raindrop has the volume of a sphere of radius 3 10 cm.
- June 2024, Paper 4, Q14 (6 marks): The diagram shows a circle, centre O and radius 52 cm. Not to scale A B 52 cm O 72 cm T AB is a chord of the circle. The line through T is a tangent to the circ

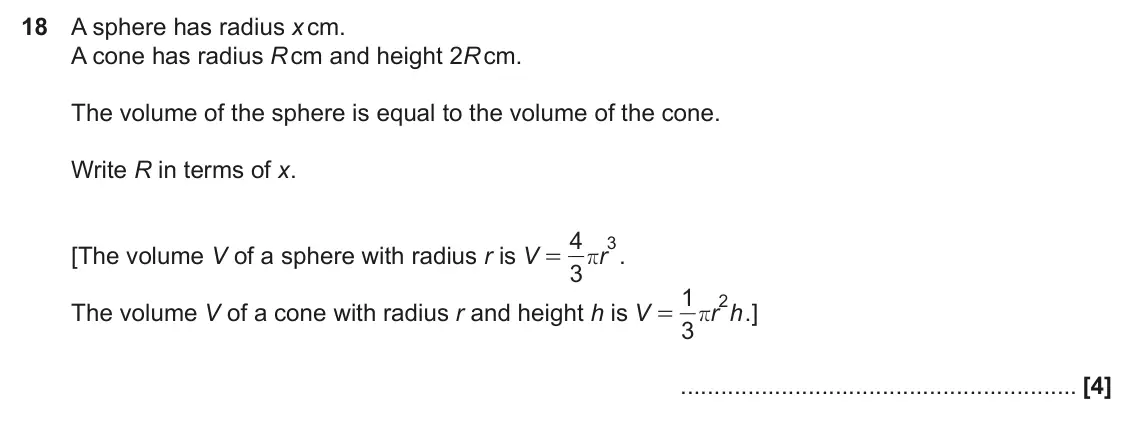

- June 2024, Paper 5, Q18 (4 marks): A sphere has radius x cm. A cone has radius R cm and height 2R cm. The volume of the sphere is equal to the volume of the cone. Write R in terms of x. 4 3 [The
- June 2024, Paper 6, Q5 (9 marks): The diagram shows a regular pentagon made using ten congruent right-angled triangles. The length of one side of the pentagon is 12 cm. Not to scale 12 cm 2, cor
- November 2023, Paper 6, Q11 (4 marks): The diagram shows a cone and a cube. The cone has radius 8 cm and height 10 cm. 10 cm 8 cm The volume of the cone is equal to the volume of the cube. Work out t
- November 2023, Paper 6, Q20 (7 marks): This shape is formed from a rectangle and two sectors of circles. C B 35° D Not to scale 5t A F E 2t Points A, B and C lie on a straight line. Angle CB D 3 ° 5

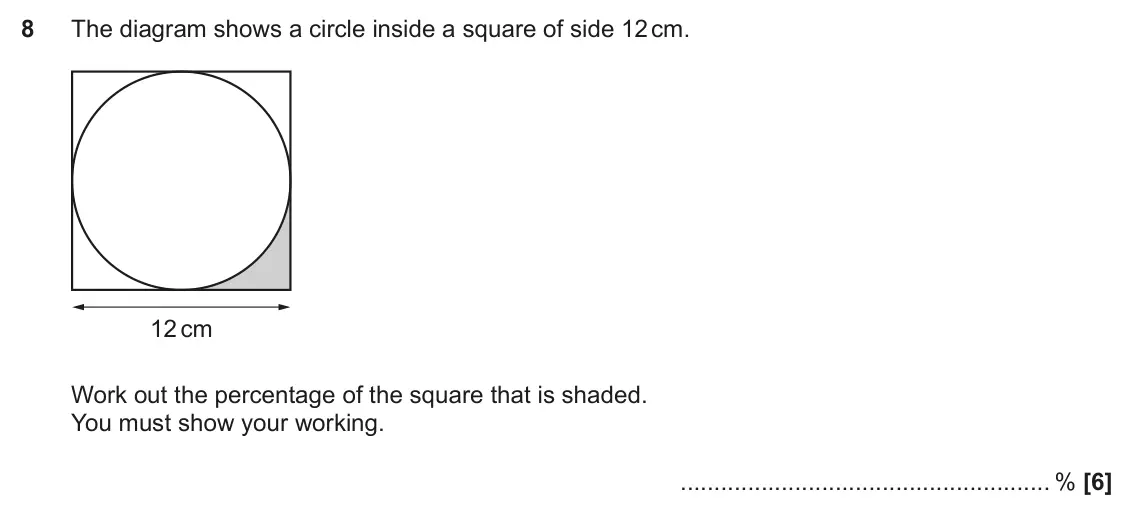

- June 2023, Paper 4, Q8 (6 marks): The diagram shows a circle inside a square of side 12 cm. 12 cm Work out the percentage of the square that is shaded. You must show your working. %
- June 2023, Paper 6, Q14 (7 marks): The diagram shows a square-based pyramid ABCDE. O is the centre of the base. E 14.5 cm 14.5 cm D C O 20 cm A 20 cm B The pyramid has base length 20 cm and each

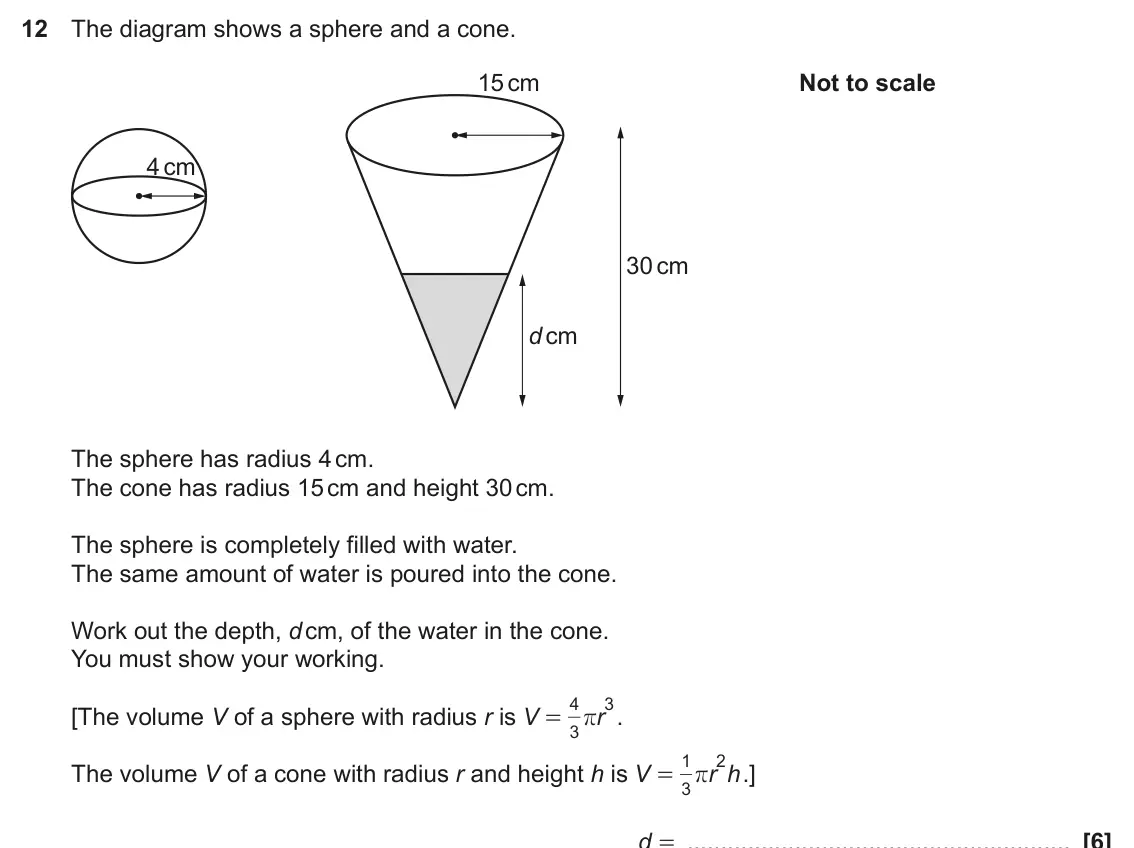

- November 2022, Paper 4, Q12 (6 marks): The diagram shows a sphere and a cone. 15 cm Not to scale 4 cm 30 cm d cm The sphere has radius 4 cm. The cone has radius 15 cm and height 30 cm. The sphere is
- November 2022, Paper 6, Q7 (6 marks): A child has four identical wooden cubes of side length 6 cm. 6 cm (a) They arrange the cubes in a 2 by 2 by 1 arrangement to form a cuboid. 2. Show that the sur

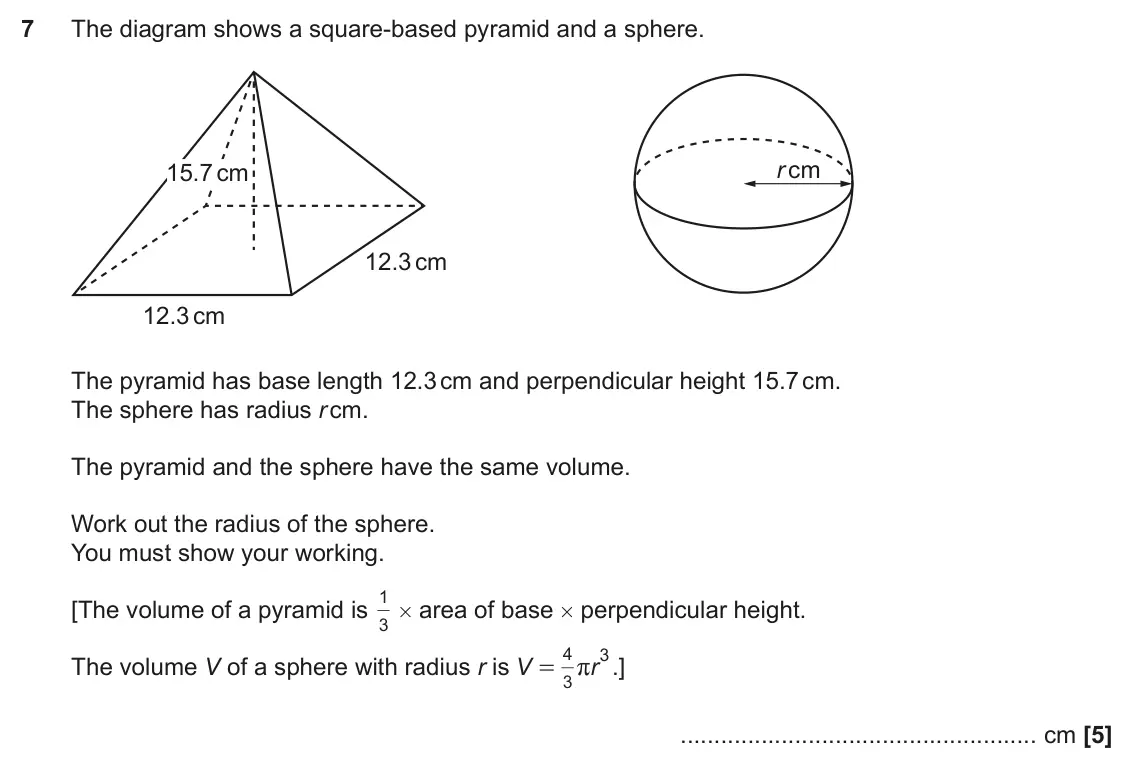

- June 2022, Paper 4, Q7 (5 marks): The diagram shows a square-based pyramid and a sphere. r cm 15.7 cm 15.7 cm 12.3 cm 12.3 cm The pyramid has base length 12.3 cm and perpendicular height 15.7 cm
- June 2022, Paper 4, Q9 (5 marks): Points A, B and C lie on the circumference of a circle, centre O. Not to scale A O 6.4 m B 3.7 m C Angle ACB = 90°, AC = 6.4 m and BC = 3.7 m. Work out the circ

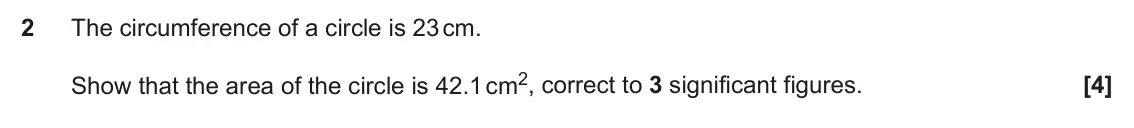

- June 2022, Paper 6, Q2 (4 marks): The circumference of a circle is 23 cm. Show that the area of the circle is 42.1 cm2, correct to 3 significant figures.

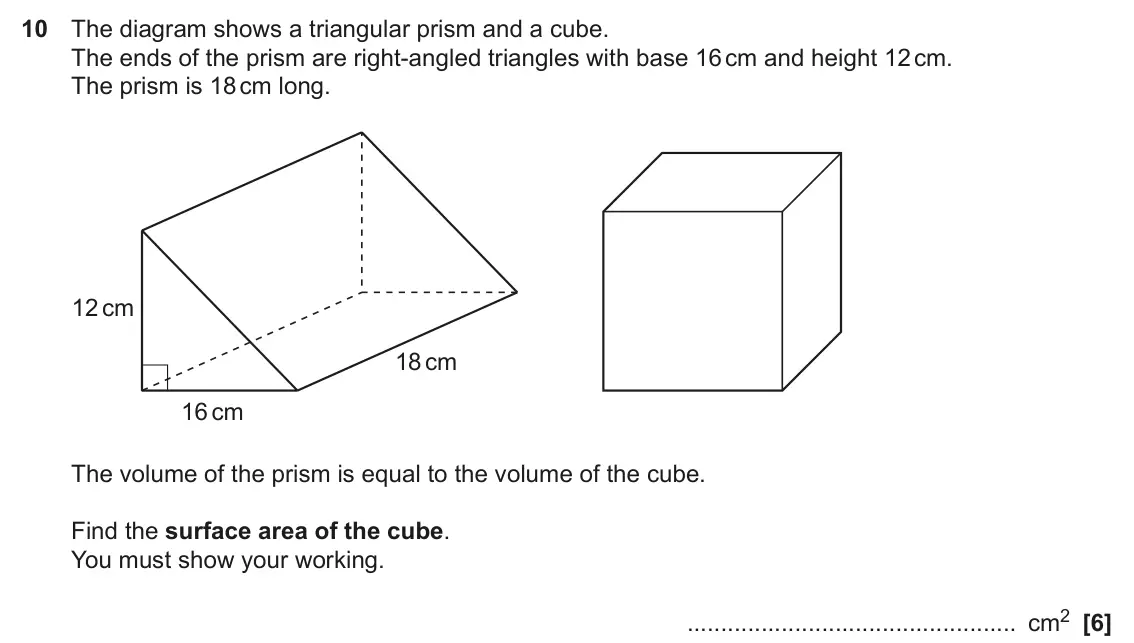

- June 2022, Paper 6, Q10 (6 marks): The diagram shows a triangular prism and a cube. The ends of the prism are right-angled triangles with base 16 cm and height 12 cm. The prism is 18 cm long. 12

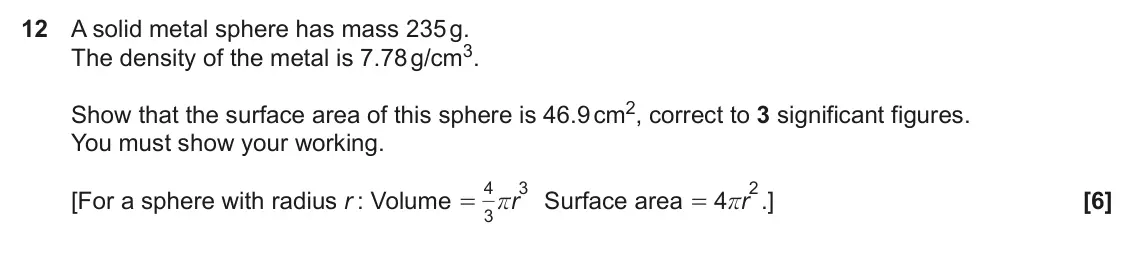

- November 2021, Paper 6, Q12 (6 marks): A solid metal sphere has mass 235 g. The density of the metal is 7.78 g/cm3. Show that the surface area of this sphere is 46.9 cm2, correct to 3 significant fig

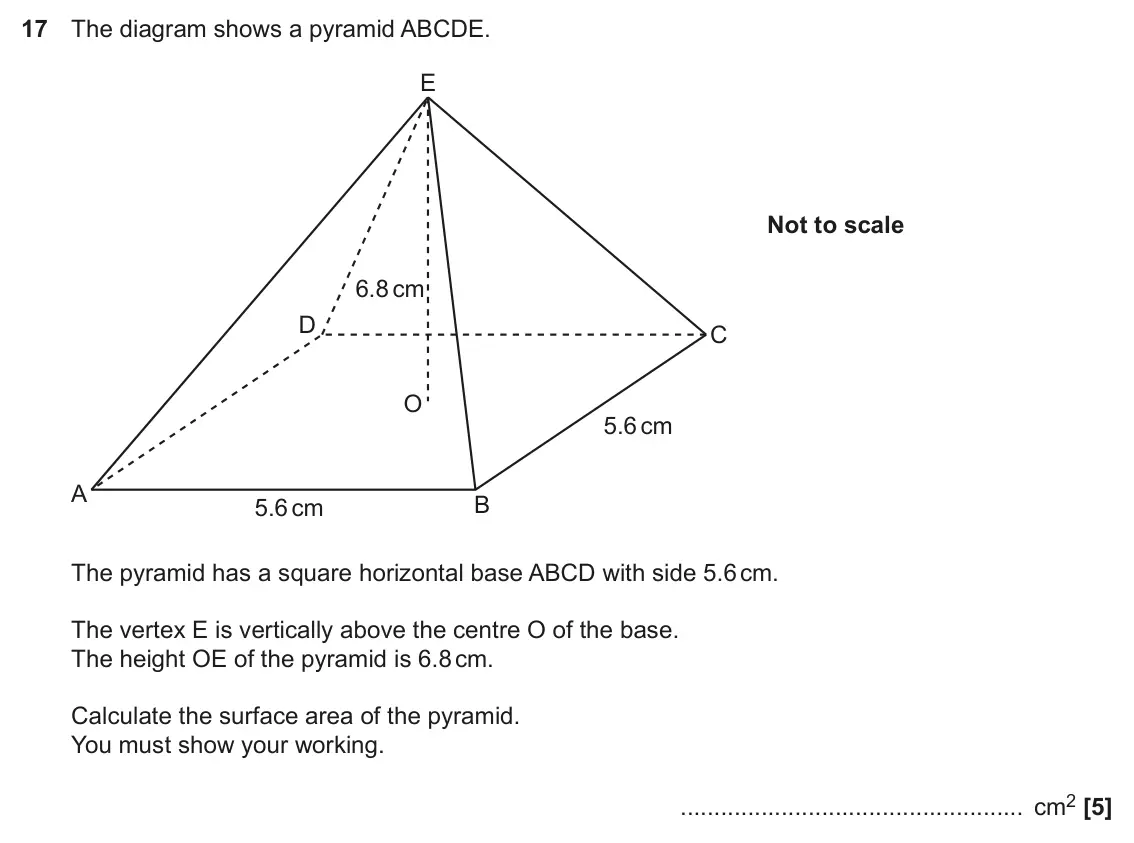

- November 2021, Paper 6, Q17 (5 marks): The diagram shows a pyramid ABCDE. E Not to scale 6.8 cm D C O 5.6 cm A B 5.6 cm The pyramid has a square horizontal base ABCD with side 5.6 cm. The vertex E is
- November 2020, Paper 4, Q6 (4 marks): A cuboid measures 6 cm by 8 cm by 15 cm. A cube has the same volume as the cuboid. Find the surface area of the cube, giving your answer correct to 3 significan
- November 2020, Paper 4, Q10 (6 marks): The diagram shows Jane’s lawn. It is in the shape of a square of side 36 m and three semi-circles. Not to scale She is going to spread fertiliser on the lawn at
- November 2020, Paper 6, Q14 (5 marks): The base of a cone is fixed to the top of a cylinder to make a decoration. 5r 6r r The radius of the base of the cone and of the cylinder is r cm. The cone’s he
- November 2019, Paper 6, Q8 (4 marks): An octahedron is formed from two identical square based pyramids. The square bases are stuck together as shown. h cm 3. The volume of the octahedron is 60 cm Th
- June 2019, Paper 4, Q7 (6 marks): The diagram shows a shape ABCDE. The shape is made from a rectangle, a right-angled triangle and a quarter of a circle. C Not to scale B D F 41 m A E 18 m F is
- June 2019, Paper 6, Q14 (5 marks): The length of the longest diagonal of a cube is 25 cm. Calculate the total surface area of the cube. cm2
- June 2019, Paper 6, Q18 (4 marks): A cone has radius r cm and height h cm. h cm r cm The height is three times the radius. 3. The volume of the cone is 2100 cm Calculate the radius of the cone. 1
- November 2018, Paper 4, Q6 (5 marks): The diagram shows a cylinder and a sphere. 12 cm r cm 30 cm The cylinder has radius 12 cm and height 30 cm. The cylinder and the sphere have the same volume. Wo
- November 2018, Paper 6, Q13 (3 marks): The shape below is formed from two semicircles and a straight line. Not to scale The radius of the large semicircle is 8 cm. The radius of the small semicircle
- June 2018, Paper 5, Q14 (5 marks): The diagram shows a cylinder and a cone. 2 cm h cm 9 cm r cm The cylinder has radius 2 cm and height 9 cm. The cone has radius r cm and height h cm. The ratio r
- June 2018, Paper 6, Q13 (7 marks): (a) Calculate the volume of a sphere with radius 6 cm. 6 cm 4 3 [The volume V of a sphere with radius r is . ] V r r = 3 cm3 (a) (b) An ornament is made from a
- November 2017, Paper 6, Q8 (5 marks): The design below is made from two sectors of circles, centre O. 6 cm 45° O 3.5 cm Calculate the perimeter of the shaded part. Give your answer correct to 3 sign
- November 2017, Paper 6, Q15 (3 marks): The following formula is for the area, A, of the curved surface area of a cone. A = rrl, where r is the radius and l is the slant height of the cone. Calculate
- June 2017, Paper 4, Q6 (5 marks): The diagram shows a semi-circle inside a rectangle of length 120 m. The semi-circle touches the rectangle at A, B and C. Not to scale B A C 120 m Calculate the
- June 2017, Paper 6, Q8 (5 marks): The object below is made from a square-based pyramid joined to a cuboid. 13 cm 8 cm 4 cm The base of the cuboid and the base of the pyramid are both squares of
