Electromagnetism and solenoids: Edexcel GCSE Physics questions

Every Edexcel GCSE Physics exam question on Electromagnetism and solenoids (specification points 12.7–12.9), 2018–2025, with its mark scheme and examiner’s report.

Find questions1,554
Exam
All years
Calculations

1,554 questions

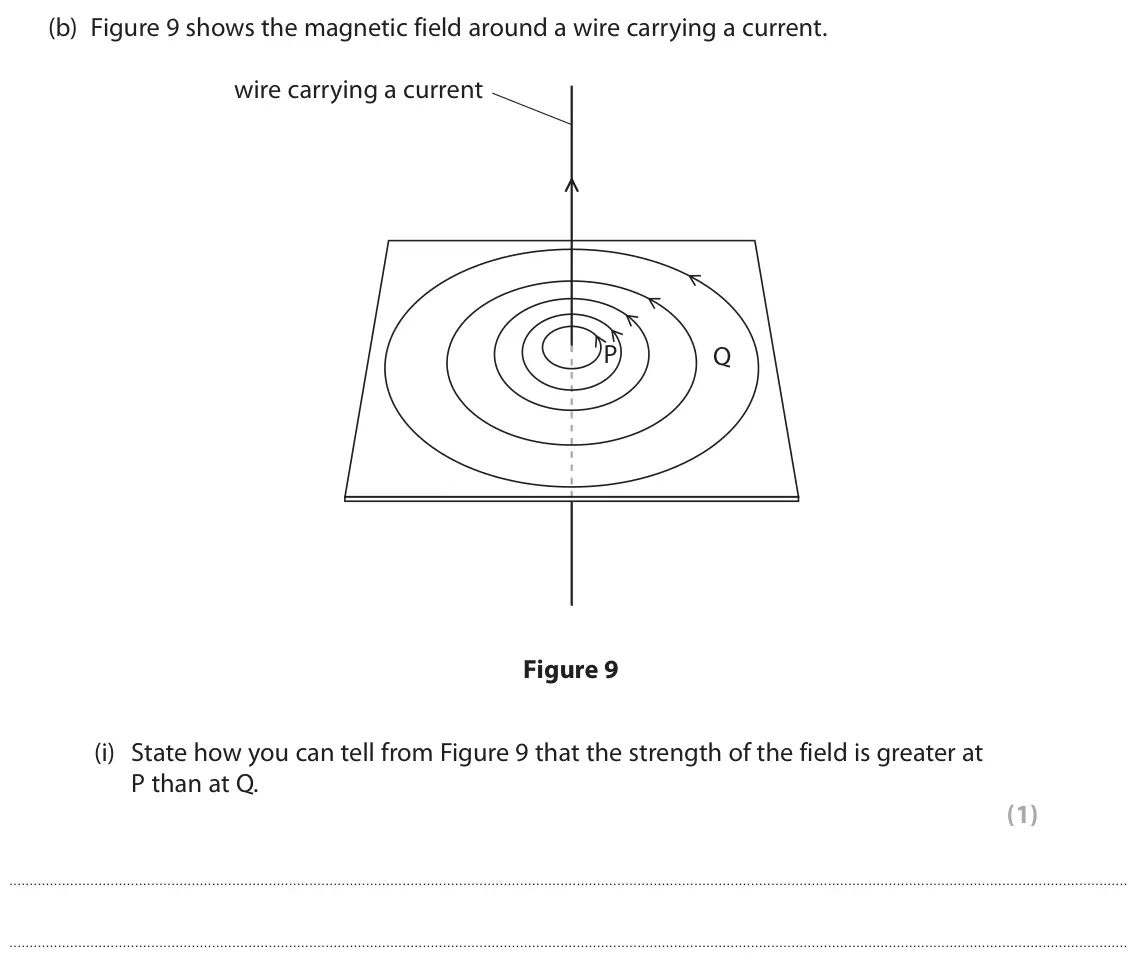

  1. Q4(b)(i)

    June 2023 · Paper 2 Foundation

    1 markElectromagnetism and solenoids
    The whole paper ↗
    June 2023 Paper 2 Foundation, question 4(b)(i): State how you can tell from Figure 9 that the strength of the field is greater at P than at Q. (1)

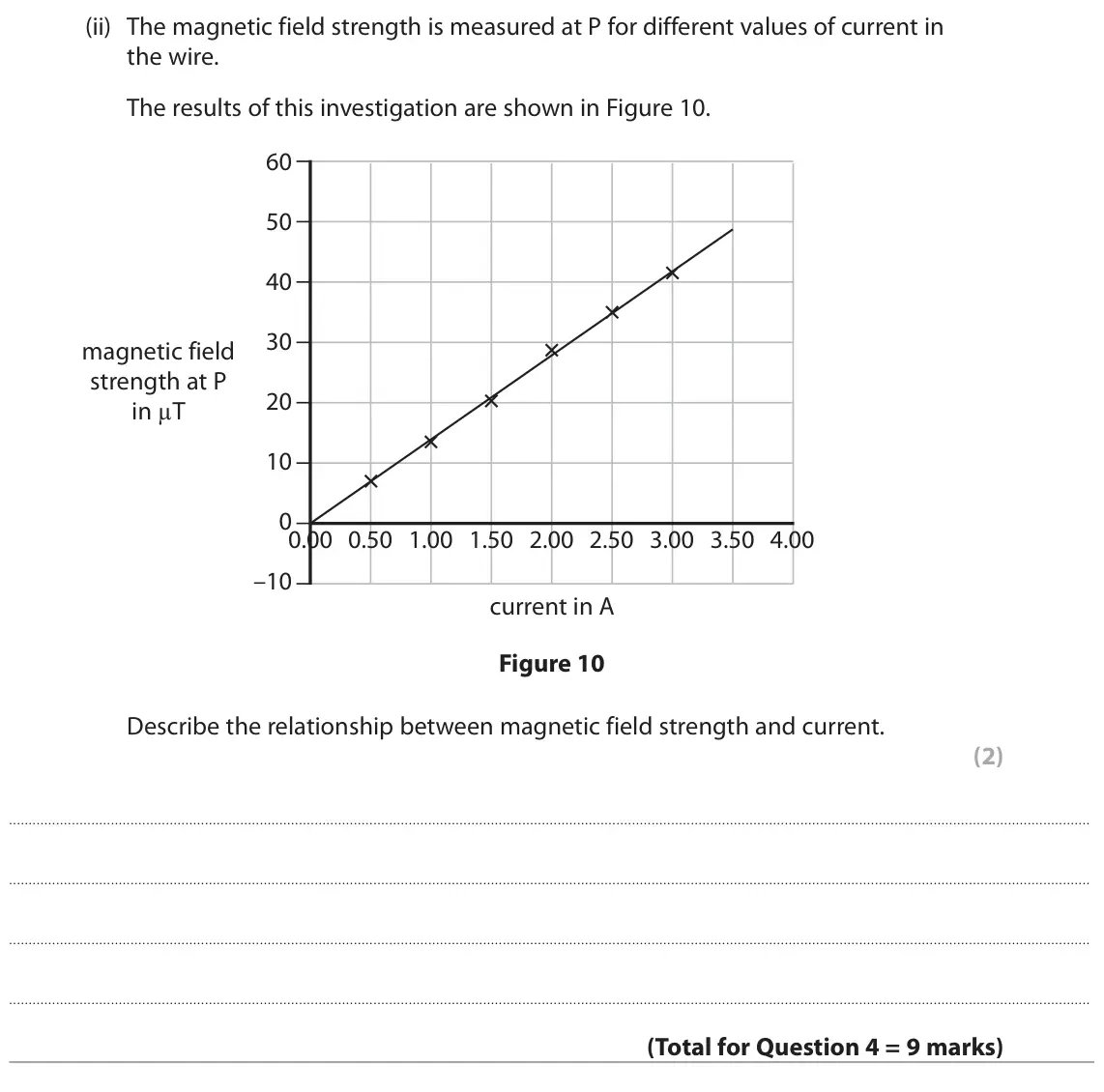

  2. Q4(b)(ii)

    June 2023 · Paper 2 Foundation

    2 marksElectromagnetism and solenoids
    The whole paper ↗
    June 2023 Paper 2 Foundation, question 4(b)(ii): The magnetic field strength is measured at P for different values of current in the wire. The results of this investigation are shown in Figure 10. 60 50 40 30

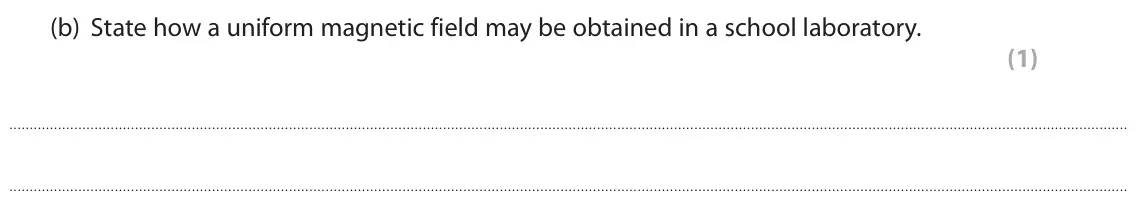

  3. Q5(b)

    June 2022 · Paper 2 Higher

    1 markElectromagnetism and solenoids
    The whole paper ↗
    June 2022 Paper 2 Higher, question 5(b): State how a uniform magnetic field may be obtained in a school laboratory. (1)

  4. Q4(a)(i)

    June 2022 · Paper 2 Foundation

    1 markElectromagnetism and solenoids
    The whole paper ↗

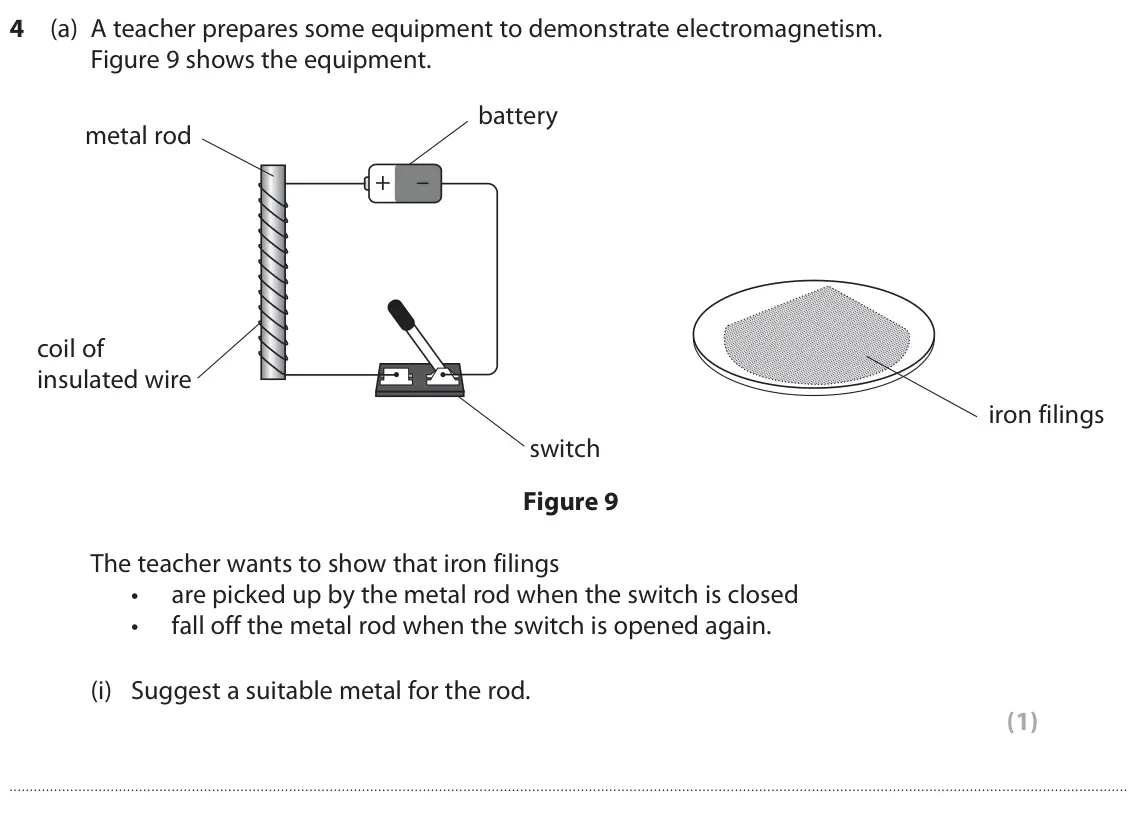

    June 2022 Paper 2 Foundation, question 4(a)(i): Suggest a suitable metal for the rod. (1)

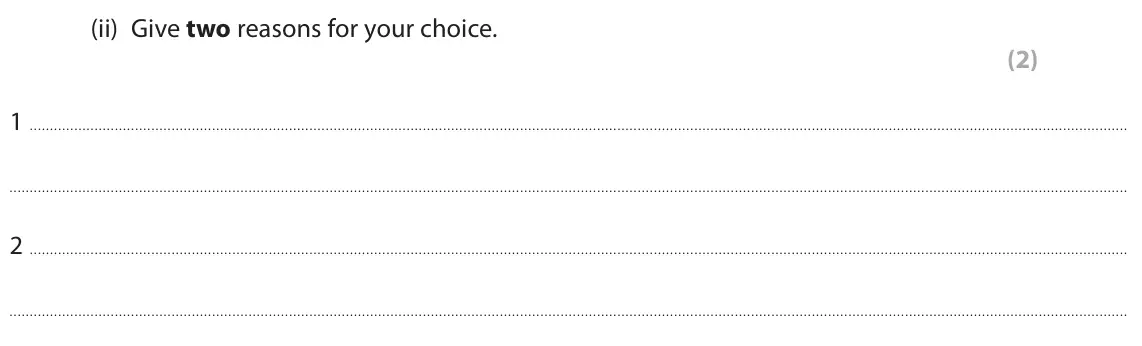

  5. Q4(a)(ii)

    June 2022 · Paper 2 Foundation

    2 marksElectromagnetism and solenoids
    The whole paper ↗
    June 2022 Paper 2 Foundation, question 4(a)(ii): Give two reasons for your choice. (2) 1 2

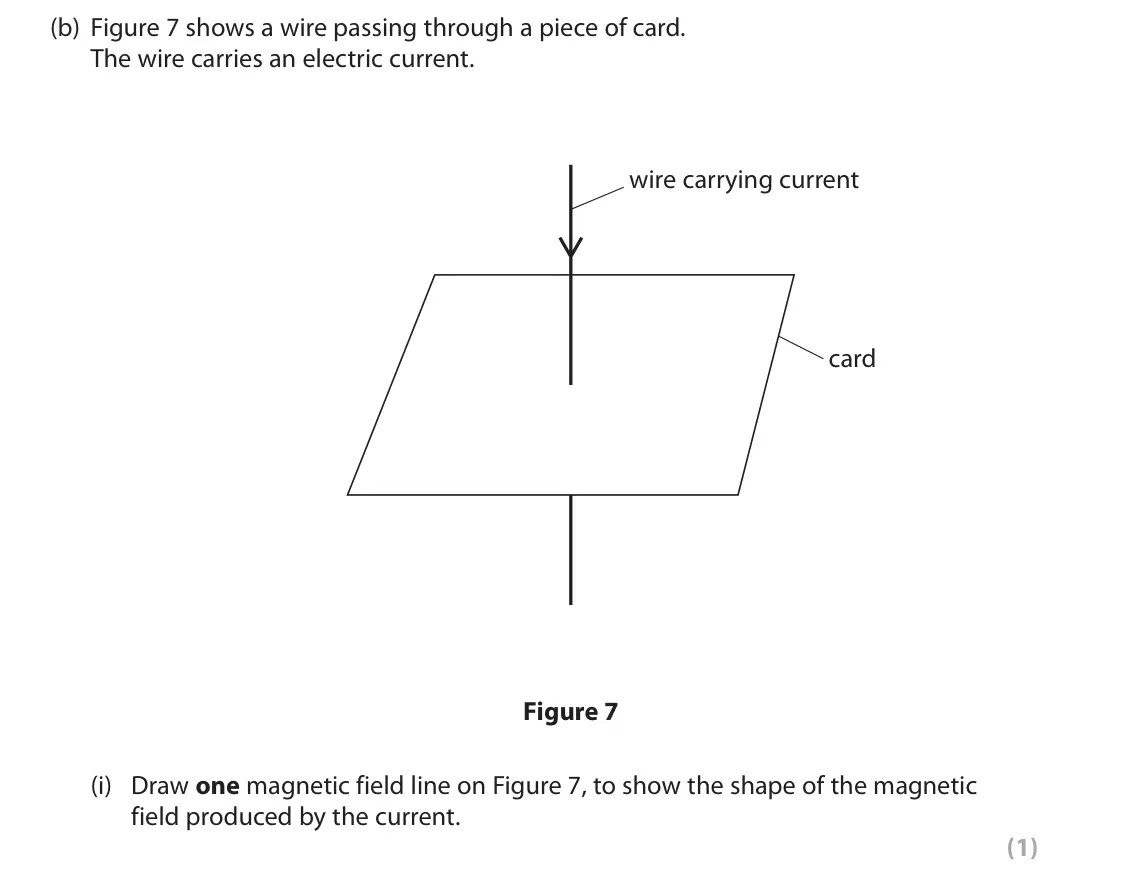

  6. Q4(b)(i)

    November 2021 · Paper 2 Foundation

    1 markElectromagnetism and solenoids
    The whole paper ↗
    November 2021 Paper 2 Foundation, question 4(b)(i): Draw one magnetic field line on Figure 7, to show the shape of the magnetic field produced by the current. (1)

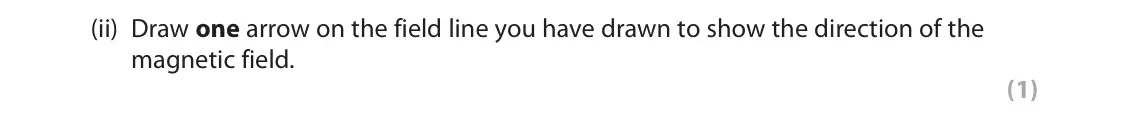

  7. Q4(b)(ii)

    November 2021 · Paper 2 Foundation

    1 markElectromagnetism and solenoids
    The whole paper ↗
    November 2021 Paper 2 Foundation, question 4(b)(ii): Draw one arrow on the field line you have drawn to show the direction of the magnetic field. (1)

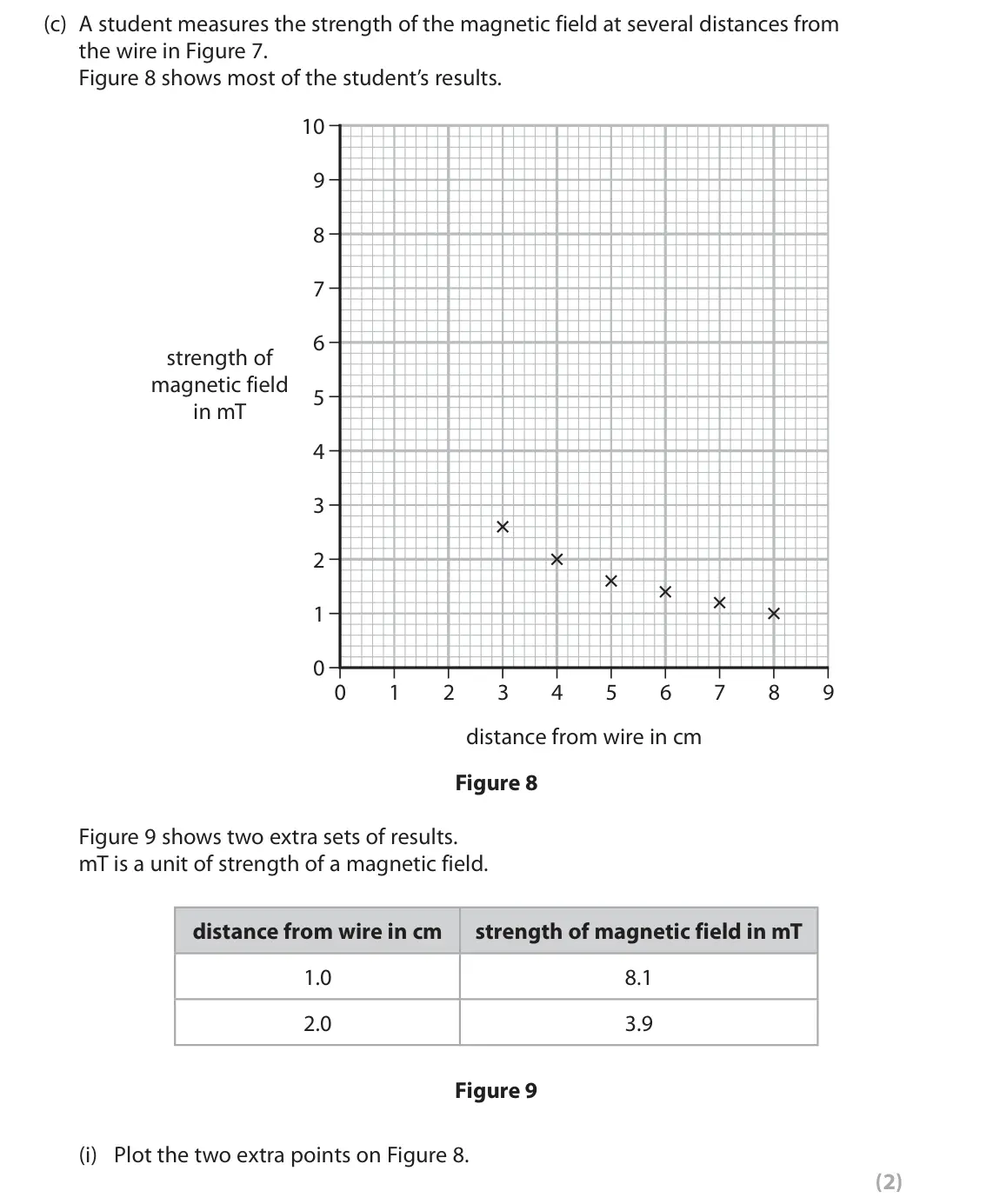

  8. Q4(c)(i)

    November 2021 · Paper 2 Foundation

    2 marksElectromagnetism and solenoids
    The whole paper ↗
    November 2021 Paper 2 Foundation, question 4(c)(i): Plot the two extra points on Figure 8. (2)

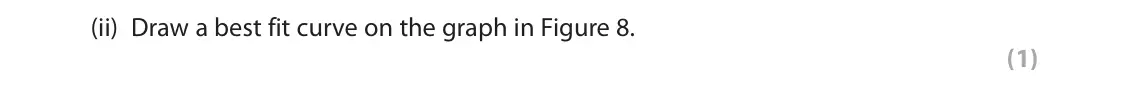

  9. Q4(c)(ii)

    November 2021 · Paper 2 Foundation

    1 markElectromagnetism and solenoids
    The whole paper ↗
    November 2021 Paper 2 Foundation, question 4(c)(ii): Draw a best fit curve on the graph in Figure 8. (1)

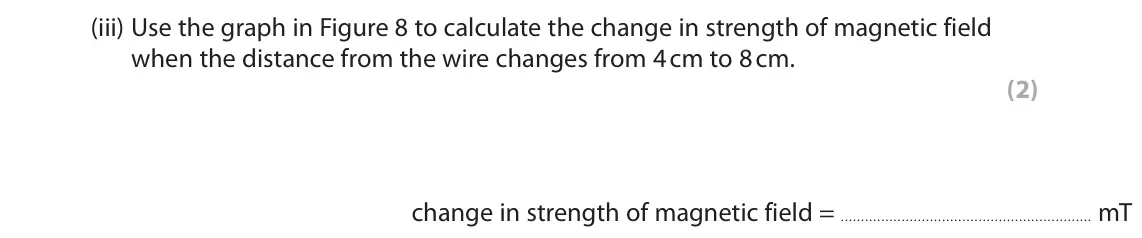

  10. Q4(c)(iii)

    November 2021 · Paper 2 Foundation

    2 marksElectromagnetism and solenoids
    The whole paper ↗
    November 2021 Paper 2 Foundation, question 4(c)(iii): Use the graph in Figure 8 to calculate the change in strength of magnetic field when the distance from the wire changes from 4 cm to 8 cm. (2) change in strengt

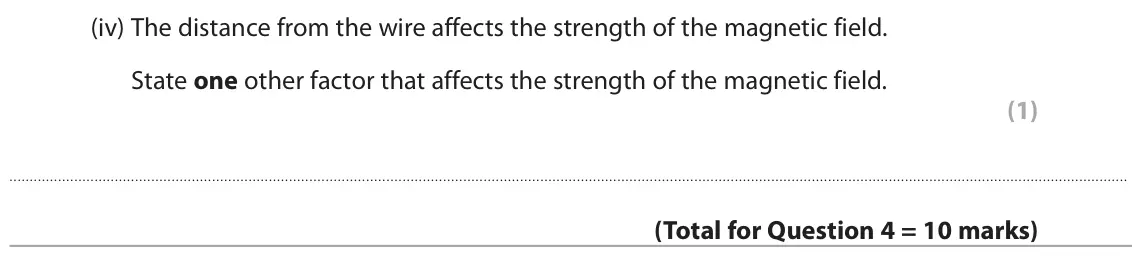

  11. Q4(c)(iv)

    November 2021 · Paper 2 Foundation

    1 markElectromagnetism and solenoids
    The whole paper ↗
    November 2021 Paper 2 Foundation, question 4(c)(iv): The distance from the wire affects the strength of the magnetic field. State one other factor that affects the strength of the magnetic field. (1)

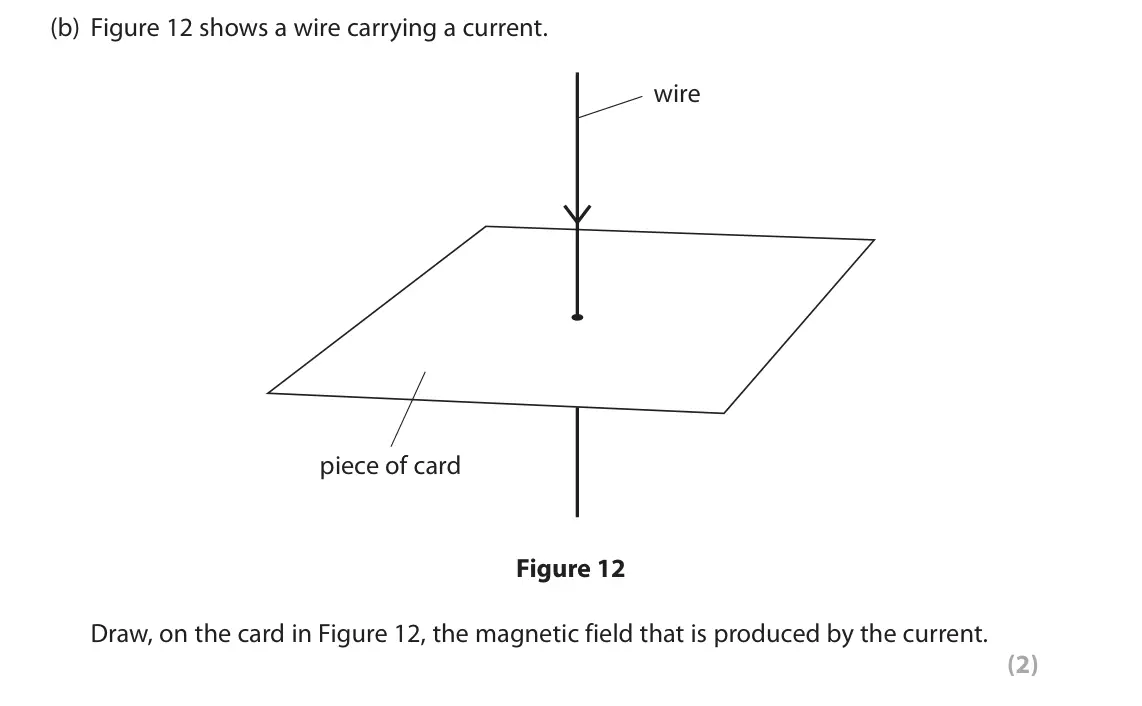

  12. Q5(b)

    November 2020 · Paper 2 Higher

    2 marksElectromagnetism and solenoids
    The whole paper ↗
    November 2020 Paper 2 Higher, question 5(b): Figure 12 shows a wire carrying a current. wire piece of card Figure 12 Draw, on the card in Figure 12, the magnetic field that is produced by the current. (2)

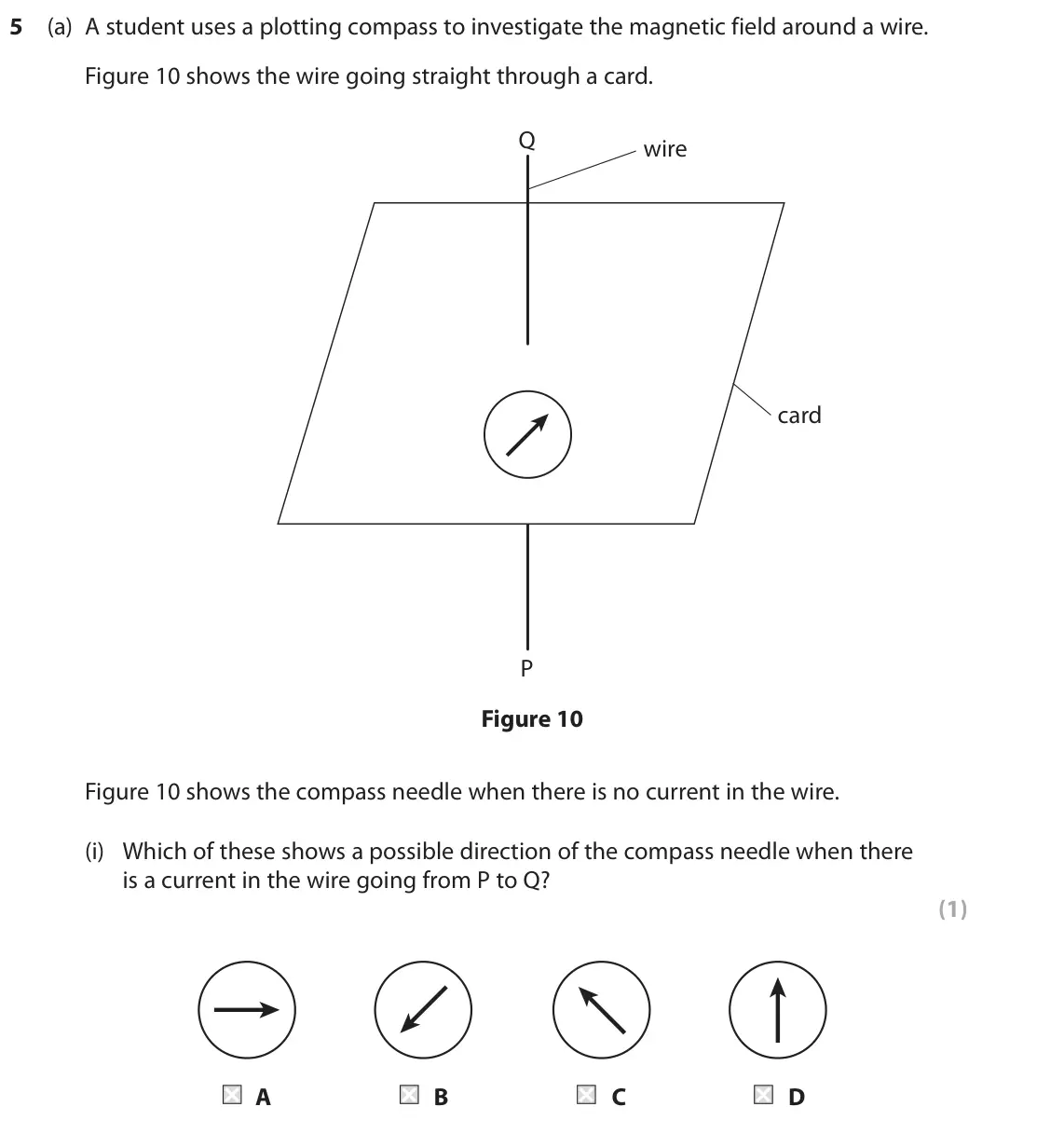

  13. Q5(a)(i)

    June 2019 · Paper 2 Higher

    1 markElectromagnetism and solenoids
    The whole paper ↗
    June 2019 Paper 2 Higher, question 5(a)(i): Which of these shows a possible direction of the compass needle when there is a current in the wire going from P to Q? (1) A B C D

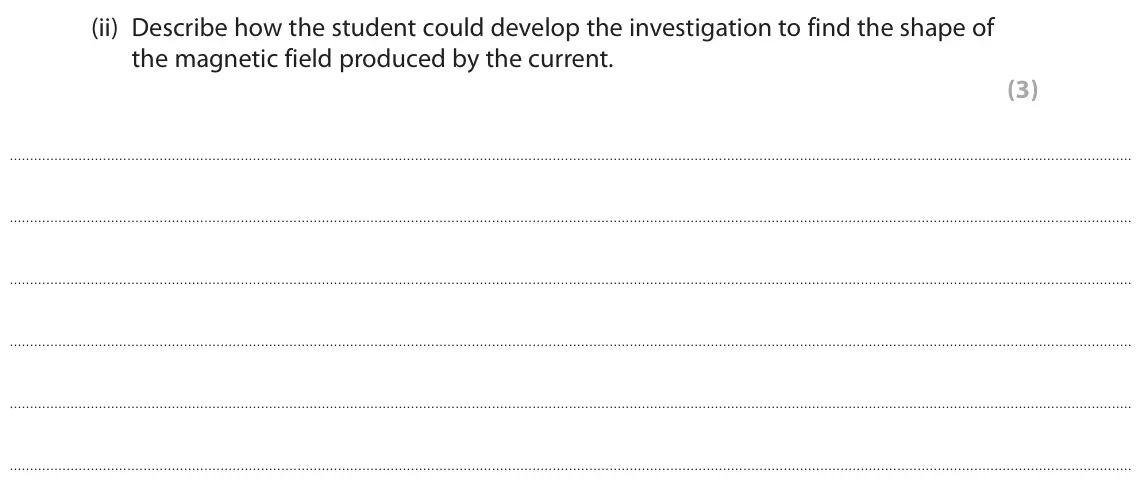

  14. Q5(a)(ii)

    June 2019 · Paper 2 Higher

    3 marksElectromagnetism and solenoids
    The whole paper ↗
    June 2019 Paper 2 Higher, question 5(a)(ii): Describe how the student could develop the investigation to find the shape of the magnetic field produced by the current. (3)

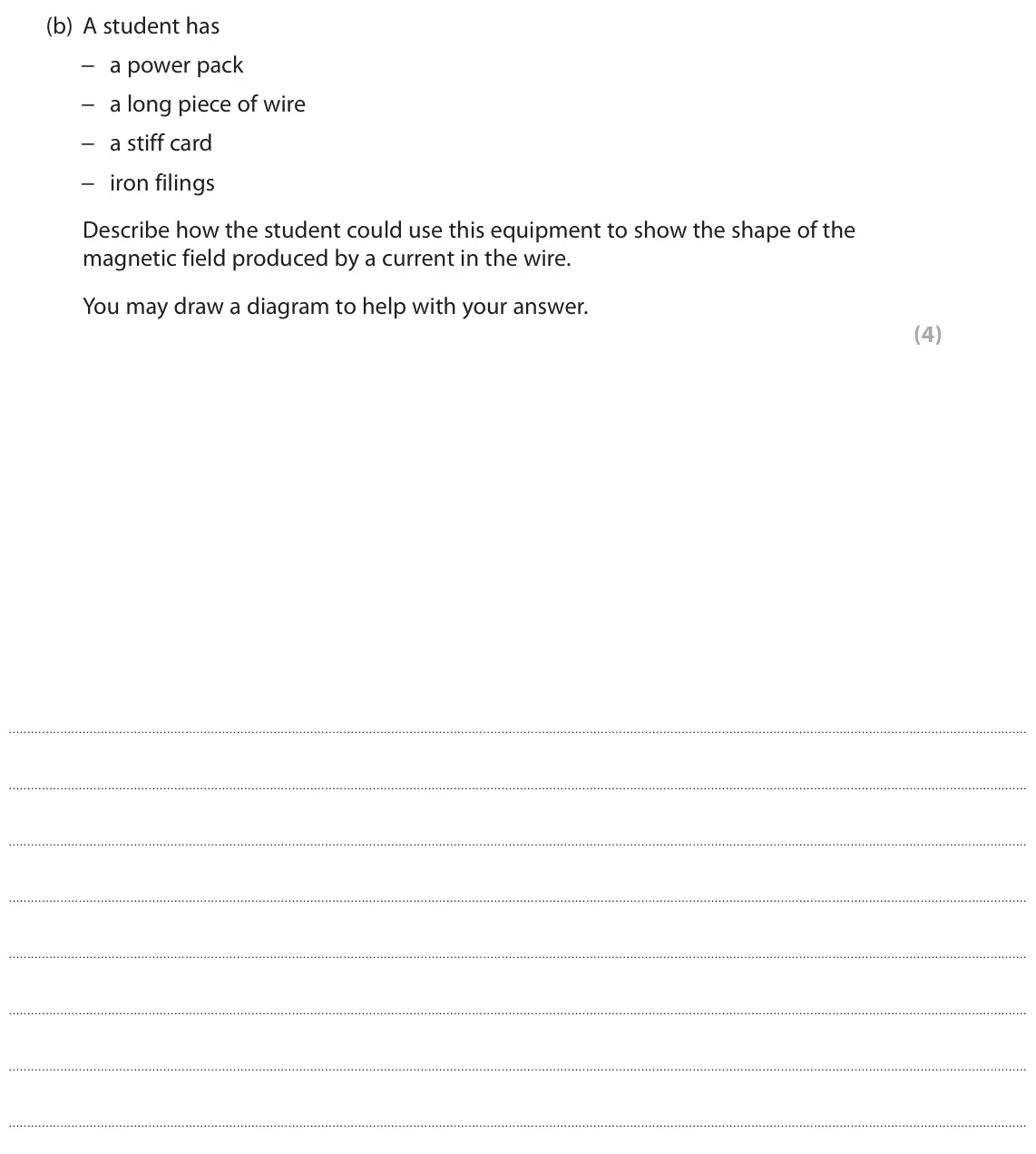

  15. Q3(b)

    June 2019 · Paper 2 Foundation

    4 marksElectromagnetism and solenoids
    The whole paper ↗
    June 2019 Paper 2 Foundation, question 3(b): A student has − a power pack − a long piece of wire − a stiff card − iron filings Describe how the student could use this equipment to show the shape of the mag

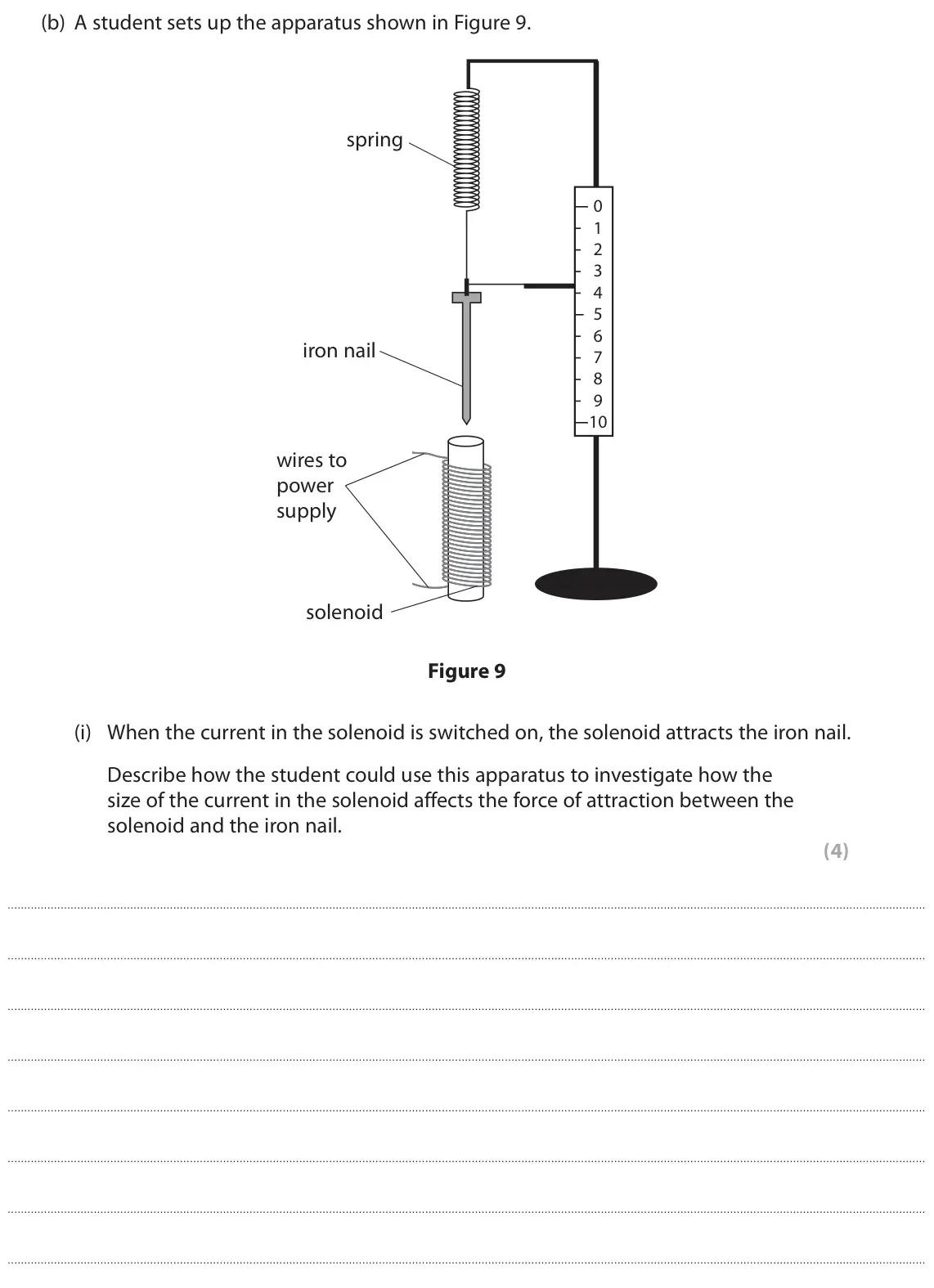

  16. Q5(b)(i)

    June 2018 · Paper 2 Higher

    4 marksElectromagnetism and solenoids
    The whole paper ↗
    June 2018 Paper 2 Higher, question 5(b)(i): When the current in the solenoid is switched on, the solenoid attracts the iron nail. Describe how the student could use this apparatus to investigate how the s

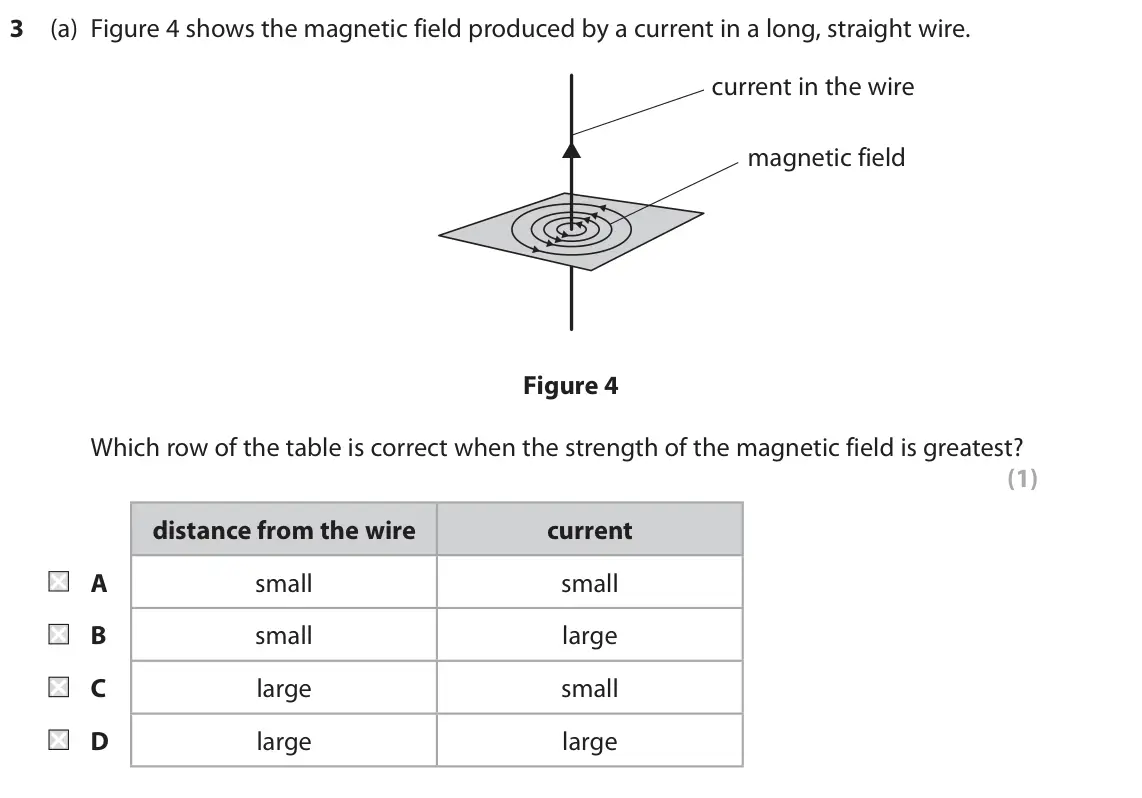

  17. Q3(a)

    June 2018 · Paper 2 Foundation

    1 markElectromagnetism and solenoids
    The whole paper ↗
    June 2018 Paper 2 Foundation, question 3(a): Figure 4 shows the magnetic field produced by a current in a long, straight wire. current in the wire magnetic field Figure 4 Which row of the table is correct
All 17 questions on Electromagnetism and solenoids, as a list
  1. June 2023, Paper 2 Foundation, Q4(b)(i) (1 mark): State how you can tell from Figure 9 that the strength of the field is greater at P than at Q. (1)
  2. June 2023, Paper 2 Foundation, Q4(b)(ii) (2 marks): The magnetic field strength is measured at P for different values of current in the wire. The results of this investigation are shown in Figure 10. 60 50 40 30
  3. June 2022, Paper 2 Higher, Q5(b) (1 mark): State how a uniform magnetic field may be obtained in a school laboratory. (1)
  4. June 2022, Paper 2 Foundation, Q4(a)(i) (1 mark): Suggest a suitable metal for the rod. (1)
  5. June 2022, Paper 2 Foundation, Q4(a)(ii) (2 marks): Give two reasons for your choice. (2) 1 2
  6. November 2021, Paper 2 Foundation, Q4(b)(i) (1 mark): Draw one magnetic field line on Figure 7, to show the shape of the magnetic field produced by the current. (1)
  7. November 2021, Paper 2 Foundation, Q4(b)(ii) (1 mark): Draw one arrow on the field line you have drawn to show the direction of the magnetic field. (1)
  8. November 2021, Paper 2 Foundation, Q4(c)(i) (2 marks): Plot the two extra points on Figure 8. (2)
  9. November 2021, Paper 2 Foundation, Q4(c)(ii) (1 mark): Draw a best fit curve on the graph in Figure 8. (1)
  10. November 2021, Paper 2 Foundation, Q4(c)(iii) (2 marks): Use the graph in Figure 8 to calculate the change in strength of magnetic field when the distance from the wire changes from 4 cm to 8 cm. (2) change in strengt
  11. November 2021, Paper 2 Foundation, Q4(c)(iv) (1 mark): The distance from the wire affects the strength of the magnetic field. State one other factor that affects the strength of the magnetic field. (1)
  12. November 2020, Paper 2 Higher, Q5(b) (2 marks): Figure 12 shows a wire carrying a current. wire piece of card Figure 12 Draw, on the card in Figure 12, the magnetic field that is produced by the current. (2)
  13. June 2019, Paper 2 Higher, Q5(a)(i) (1 mark): Which of these shows a possible direction of the compass needle when there is a current in the wire going from P to Q? (1) A B C D
  14. June 2019, Paper 2 Higher, Q5(a)(ii) (3 marks): Describe how the student could develop the investigation to find the shape of the magnetic field produced by the current. (3)
  15. June 2019, Paper 2 Foundation, Q3(b) (4 marks): A student has − a power pack − a long piece of wire − a stiff card − iron filings Describe how the student could use this equipment to show the shape of the mag
  16. June 2018, Paper 2 Higher, Q5(b)(i) (4 marks): When the current in the solenoid is switched on, the solenoid attracts the iron nail. Describe how the student could use this apparatus to investigate how the s
  17. June 2018, Paper 2 Foundation, Q3(a) (1 mark): Figure 4 shows the magnetic field produced by a current in a long, straight wire. current in the wire magnetic field Figure 4 Which row of the table is correct

Questions, mark schemes and examiner’s reports are © Pearson Edexcel, from their published past papers. Plumi isn’t affiliated with any exam board. Want whole papers? Every Edexcel GCSE Physics paper.
