plumiWork, energy and power: Edexcel A‑Level Physics questions
Every Edexcel A-Level Physics exam question on Work, energy and power (specification points 25–30), 2016–2025, with its mark scheme and examiner’s report.
Find questions1,540
Calculations
Q13(b)(ii)
The whole paper ↗
Q17(c)
The whole paper ↗
Q10(a)
The whole paper ↗
Q14(a)(i)
The whole paper ↗
Q14(a)(ii)
The whole paper ↗
Q13(b)(ii)
The whole paper ↗
Q15(b)(i)
The whole paper ↗
Q15(b)(ii)
The whole paper ↗
Q16(b)
The whole paper ↗
Q15(a)(ii)
The whole paper ↗
Q16(a)
The whole paper ↗
Q16(b)(i)
The whole paper ↗
Q16(b)(ii)
The whole paper ↗
Q16(b)(iii)
The whole paper ↗
Q11(a)
The whole paper ↗
Q3(a)
The whole paper ↗
All 66 questions on Work, energy and power, as a list
- June 2025, Paper 1, Q13(b)(ii) (3 marks): The area of the solar cell is 104 cm2 . Determine the efficiency of the solar cell when operating at maximum power. intensity of sunlight = 1000 W m–2 (3) Effic

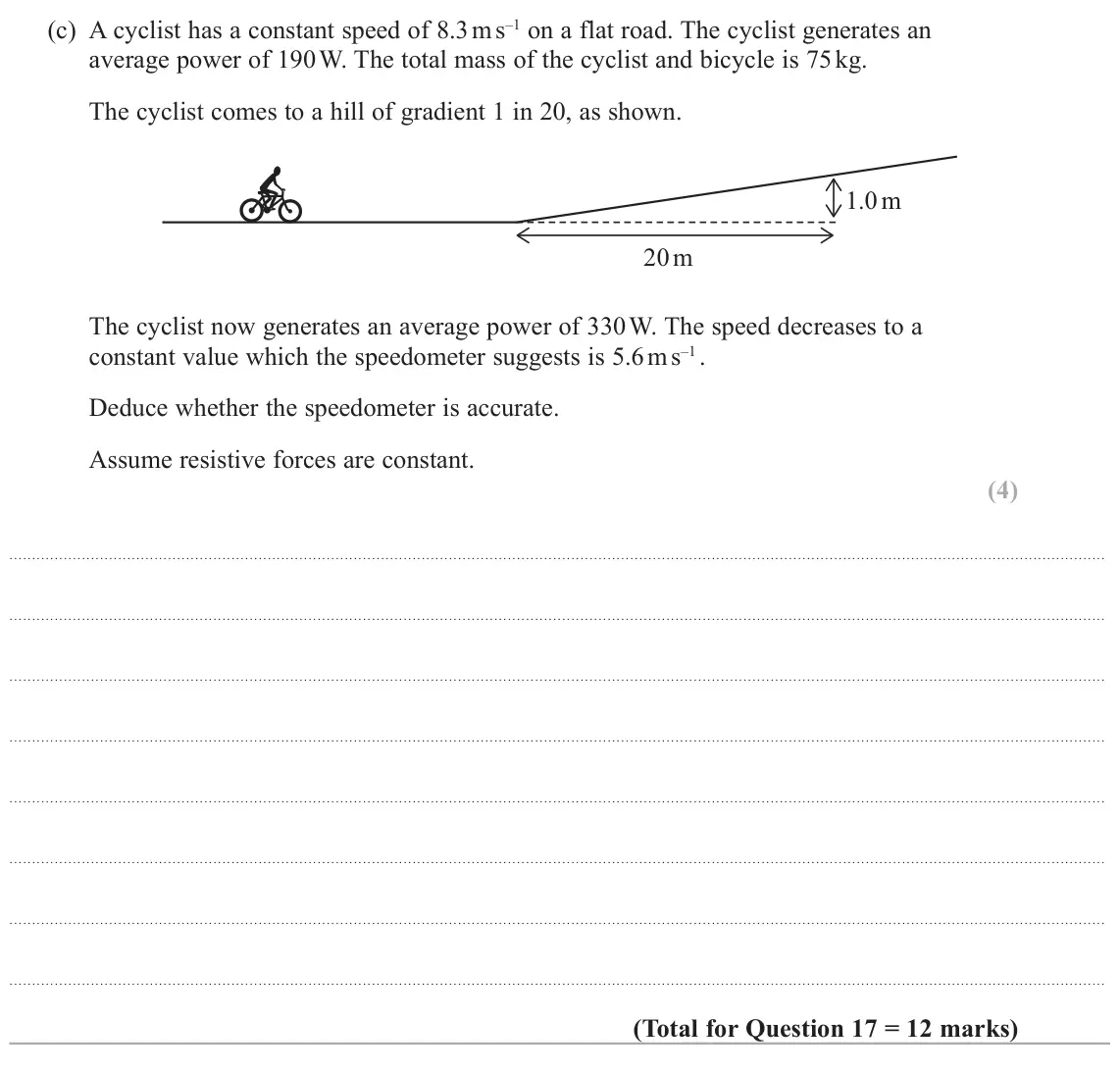

- June 2025, Paper 1, Q17(c) (4 marks): A cyclist has a constant speed of 8.3 m s–1 on a flat road. The cyclist generates an average power of 190 W. The total mass of the cyclist and bicycle is 75 kg.

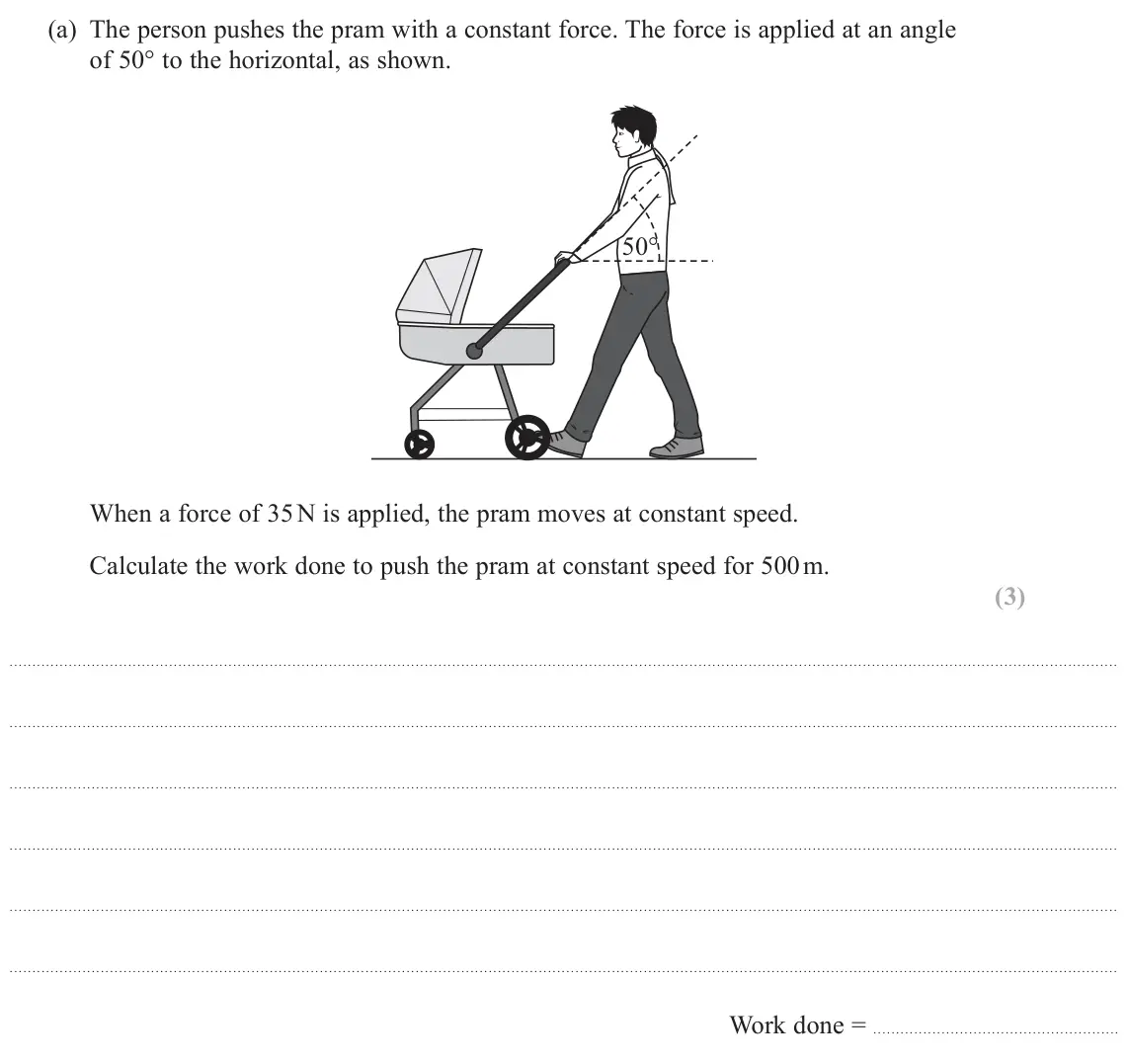

- June 2025, AS Paper 1, Q10(a) (3 marks): The person pushes the pram with a constant force. The force is applied at an angle of 50° to the horizontal, as shown. 50 When a force of 35 N is applied, the p

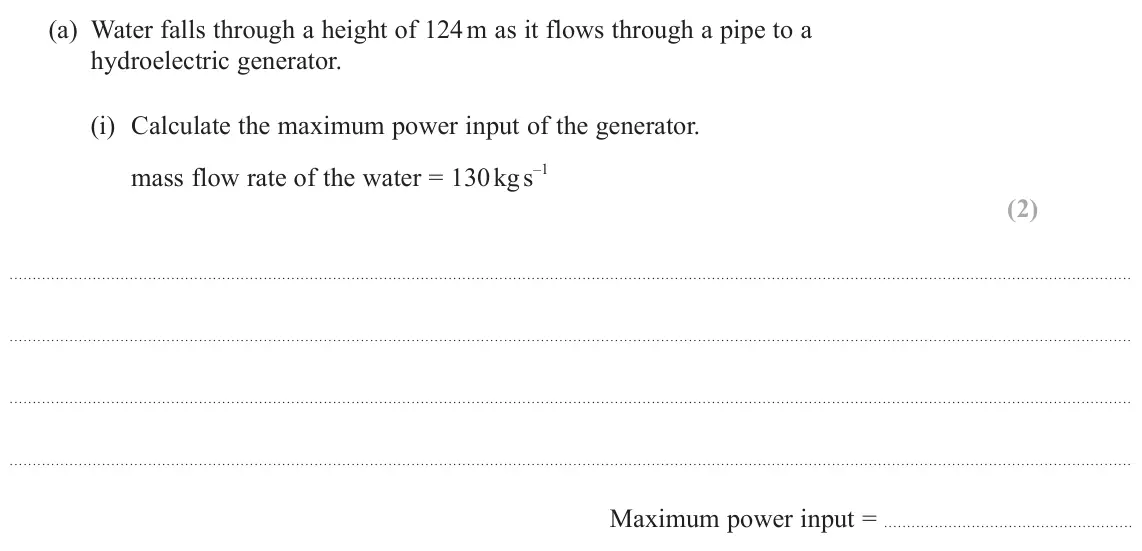

- June 2025, AS Paper 1, Q14(a)(i) (2 marks): Calculate the maximum power input of the generator. mass flow rate of the water = 130 kg s –1 (2) Maximum power input =

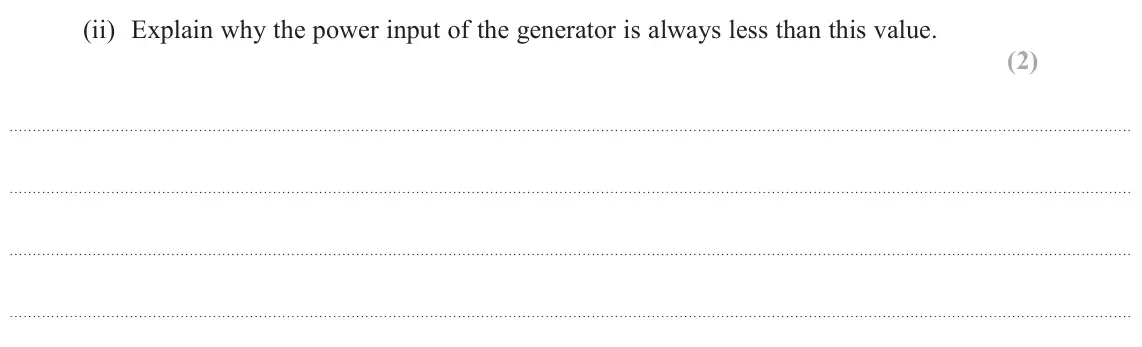

- June 2025, AS Paper 1, Q14(a)(ii) (2 marks): Explain why the power input of the generator is always less than this value. (2)

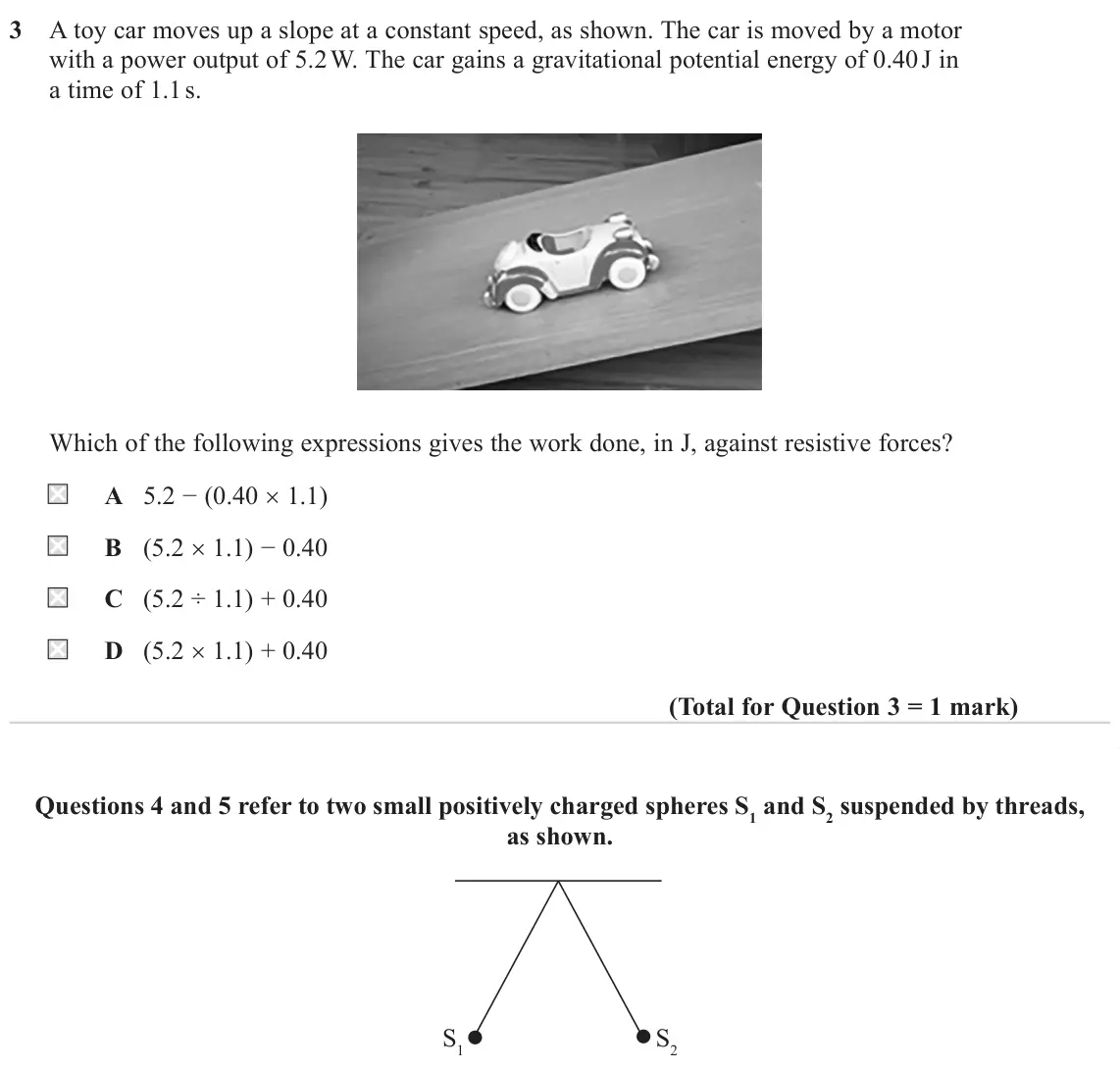

- June 2024, Paper 1, Q3 (1 mark): A toy car moves up a slope at a constant speed, as shown. The car is moved by a motor with a power output of 5.2 W. The car gains a gravitational potential ener

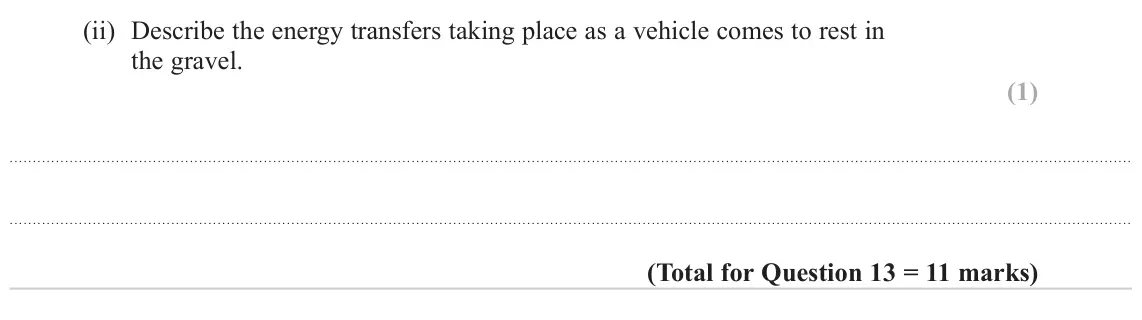

- June 2024, AS Paper 1, Q13(b)(ii) (1 mark): Describe the energy transfers taking place as a vehicle comes to rest in the gravel. (1)

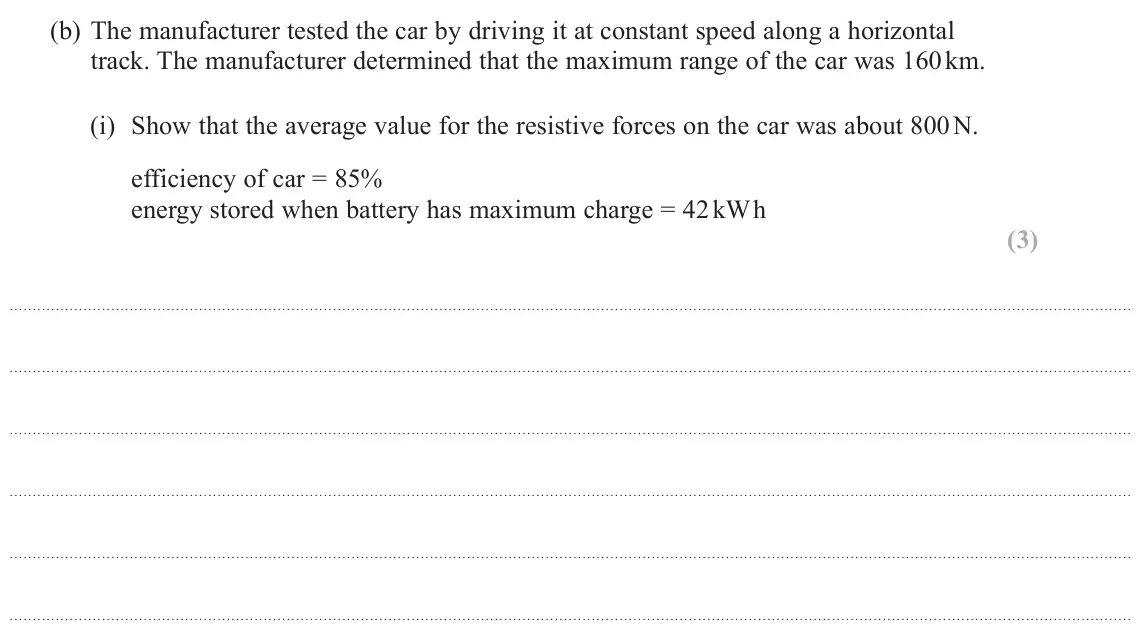

- June 2024, AS Paper 1, Q15(b)(i) (3 marks): Show that the average value for the resistive forces on the car was about 800 N. efficiency of car = 85% energy stored when battery has maximum charge = 42 kW h

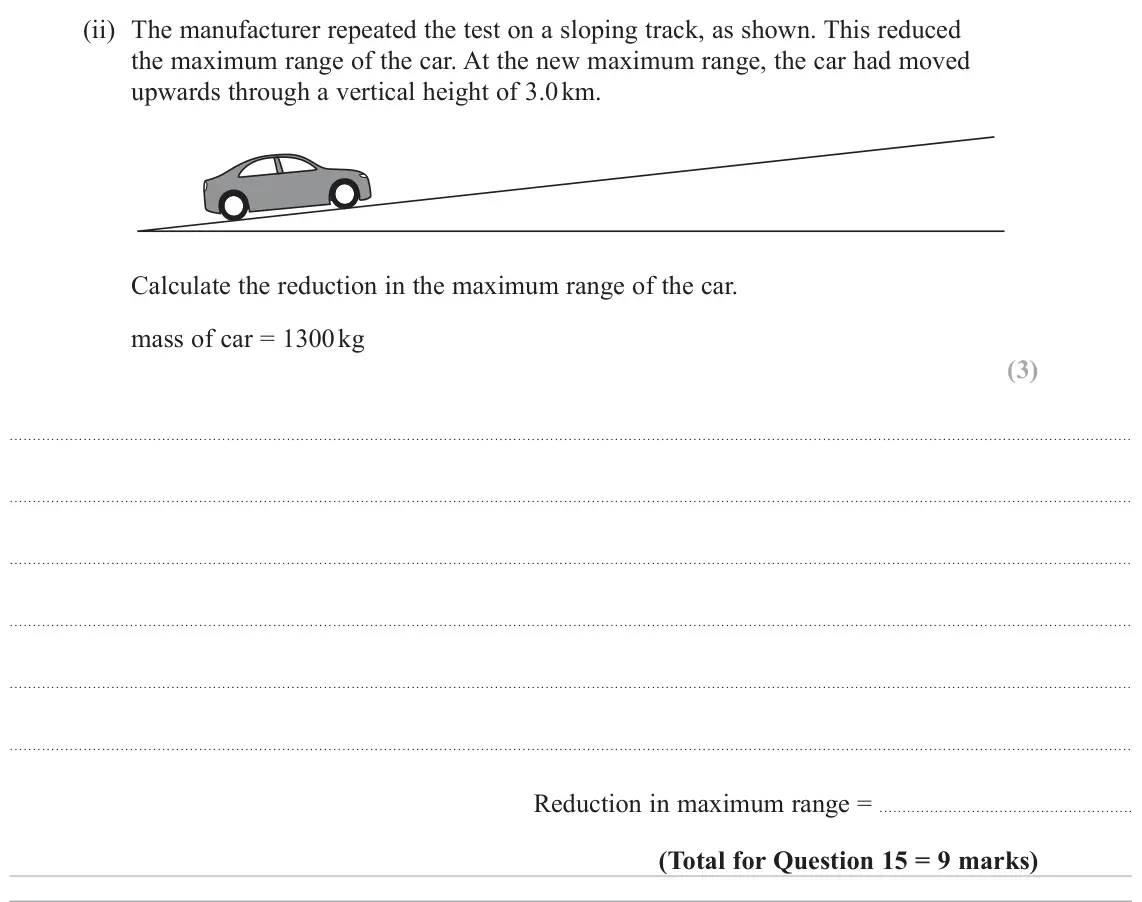

- June 2024, AS Paper 1, Q15(b)(ii) (3 marks): The manufacturer repeated the test on a sloping track, as shown. This reduced the maximum range of the car. At the new maximum range, the car had moved upwards

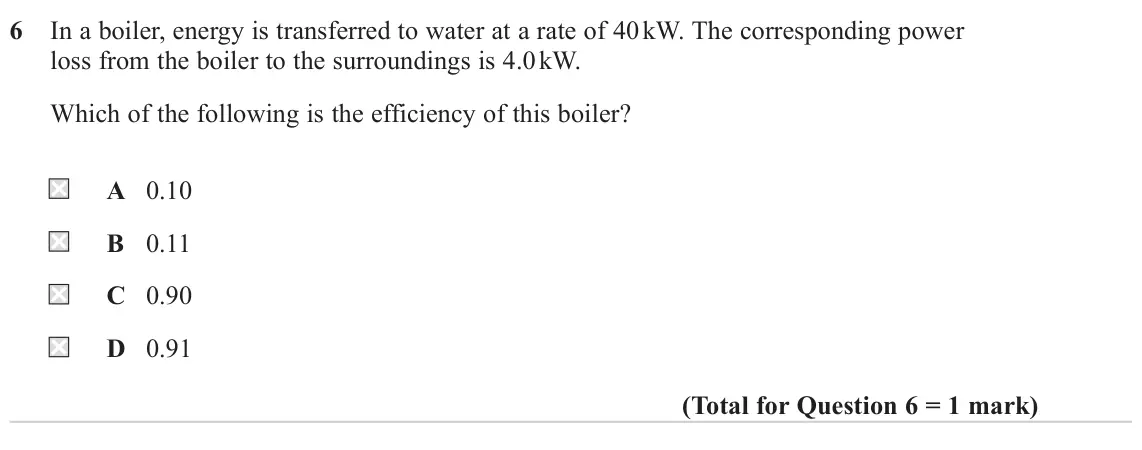

- June 2023, Paper 1, Q6 (1 mark): In a boiler, energy is transferred to water at a rate of 40 kW. The corresponding power loss from the boiler to the surroundings is 4.0 kW. Which of the followi

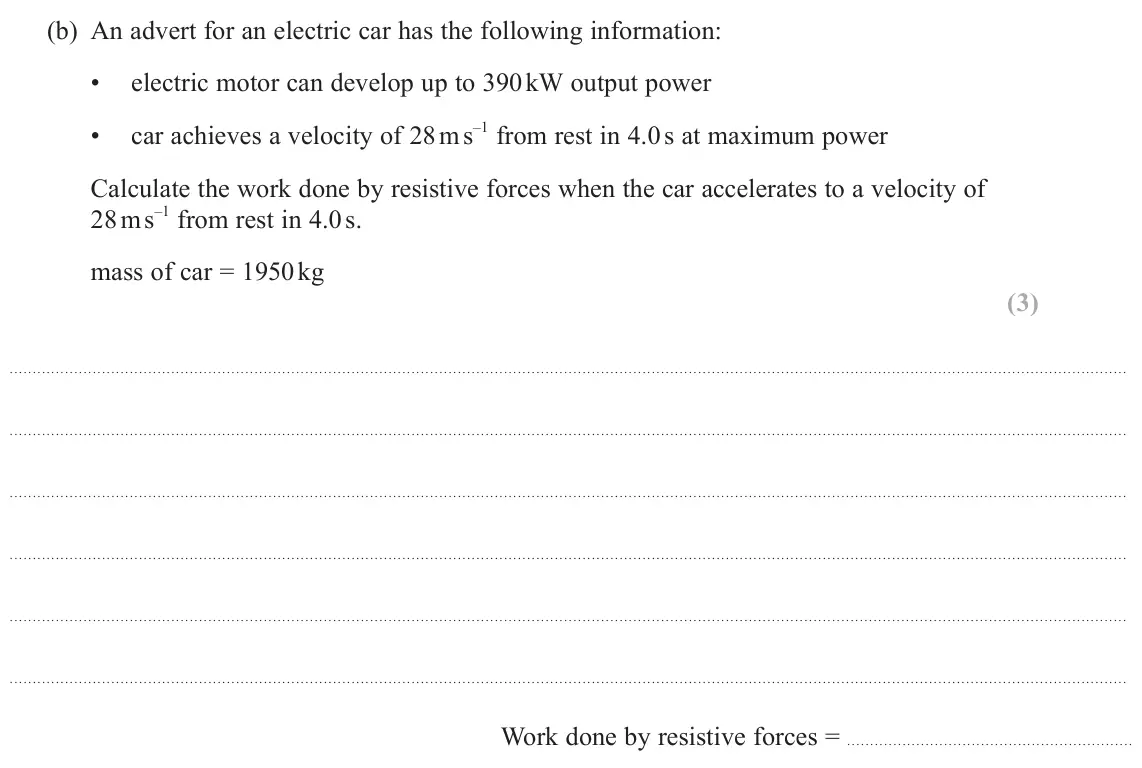

- June 2023, Paper 1, Q16(b) (3 marks): An advert for an electric car has the following information: • electric motor can develop up to 390 kW output power • car achieves a velocity of 28 m s–1 from r

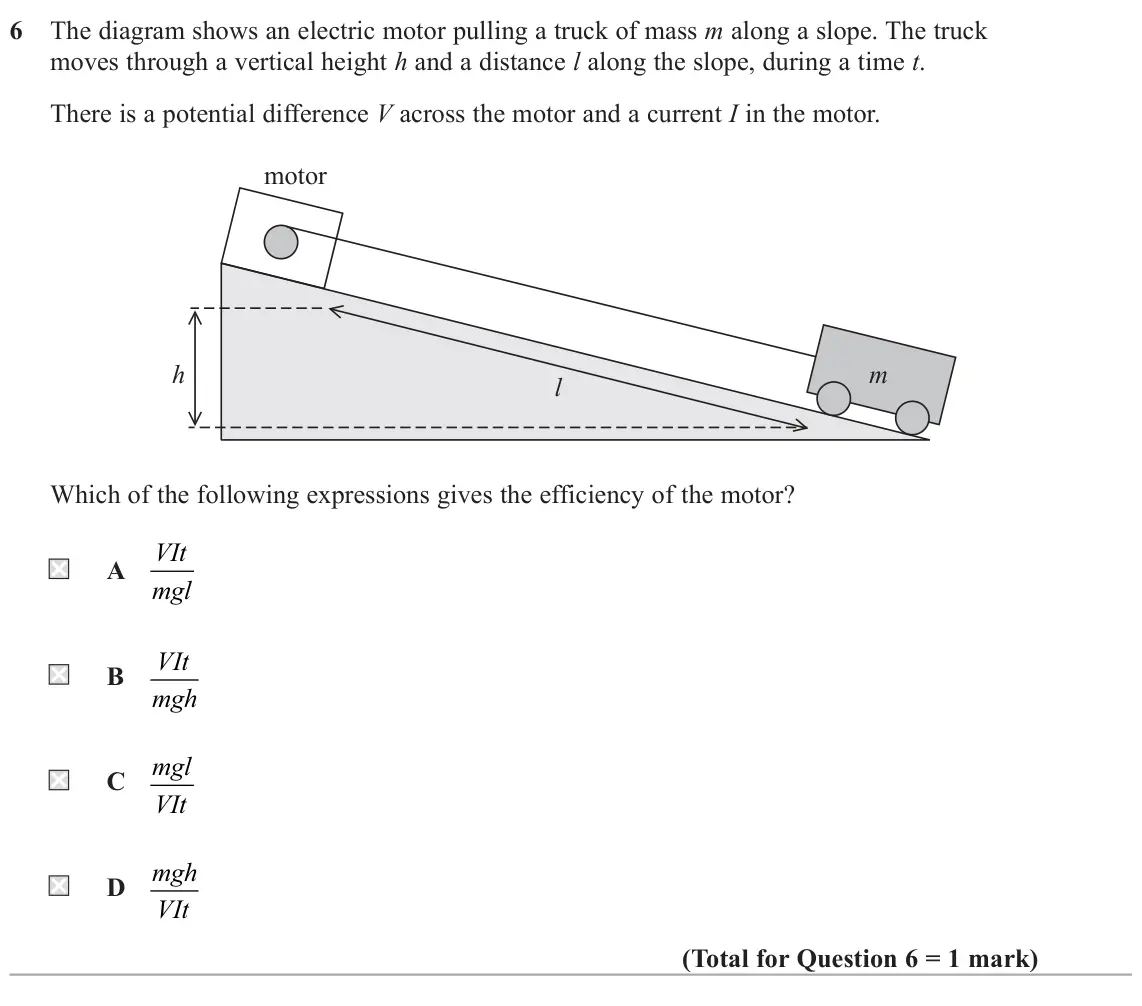

- June 2023, AS Paper 1, Q6 (1 mark): The diagram shows an electric motor pulling a truck of mass m along a slope. The truck moves through a vertical height h and a distance l along the slope, durin

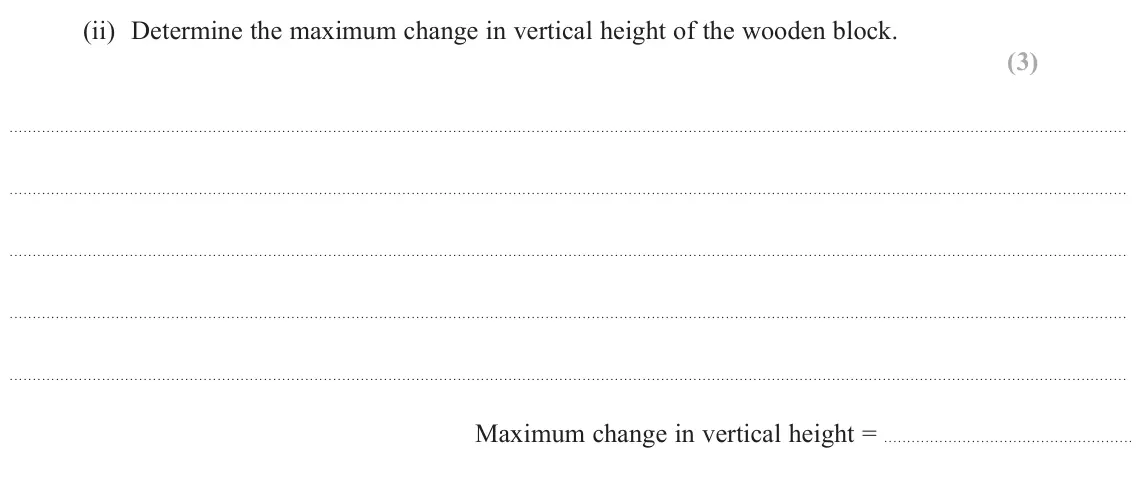

- June 2023, AS Paper 1, Q15(a)(ii) (3 marks): Determine the maximum change in vertical height of the wooden block. (3) Maximum change in vertical height =

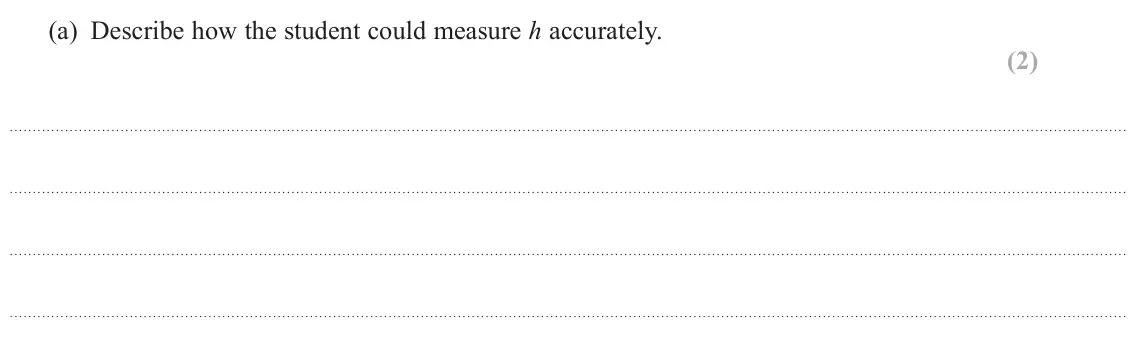

- June 2023, AS Paper 1, Q16(a) (2 marks): Describe how the student could measure h accurately. (2)

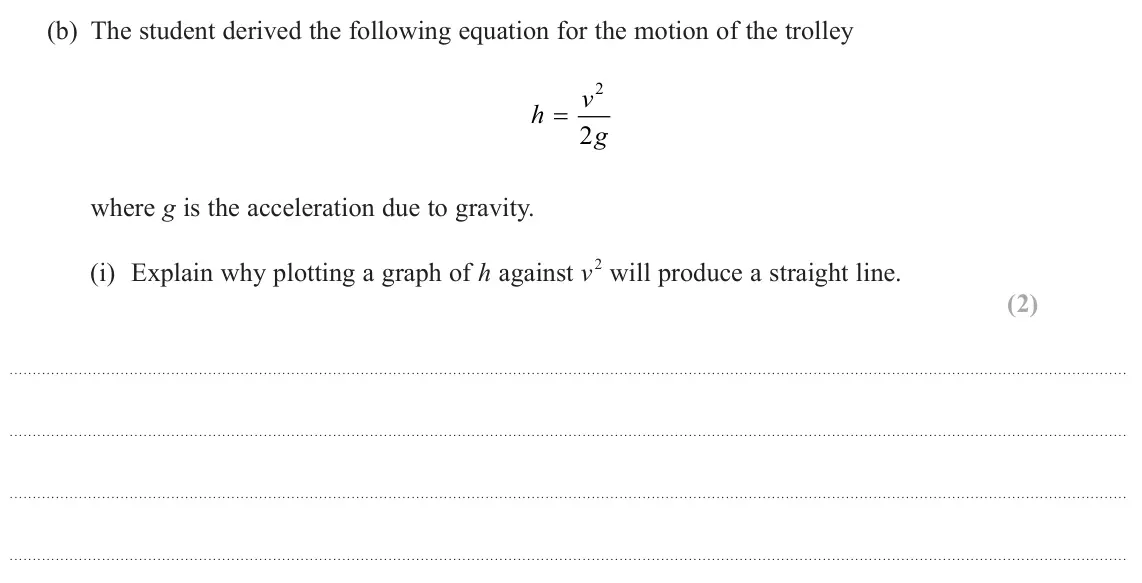

- June 2023, AS Paper 1, Q16(b)(i) (2 marks): Explain why plotting a graph of h against v 2 will produce a straight line. (2)

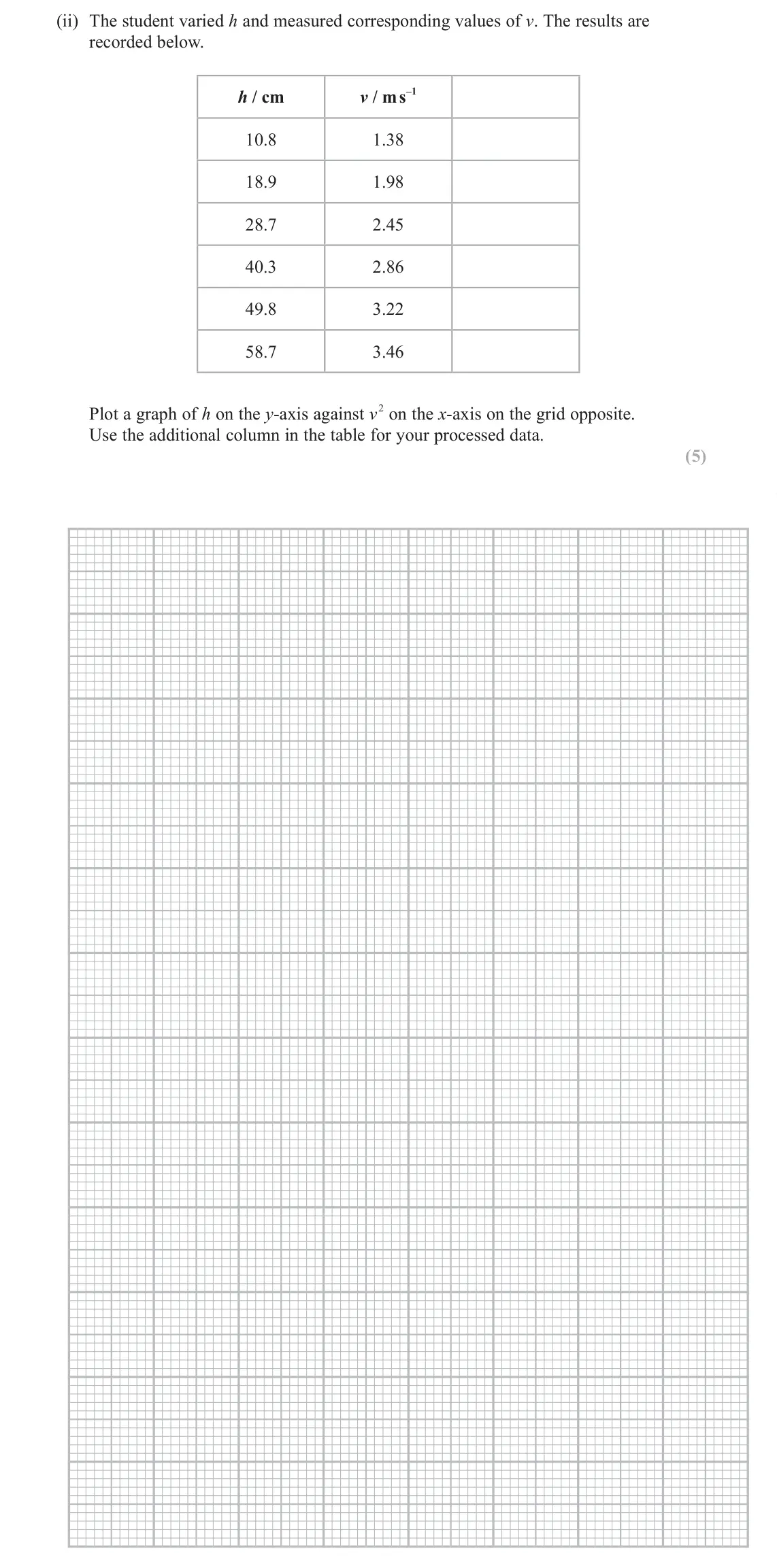

- June 2023, AS Paper 1, Q16(b)(ii) (5 marks): The student varied h and measured corresponding values of v. The results are recorded below. –1 h / cm v / m s 10.8 1.38 18.9 1.98 28.7 2.45 40.3 2.86 49.8 3.22

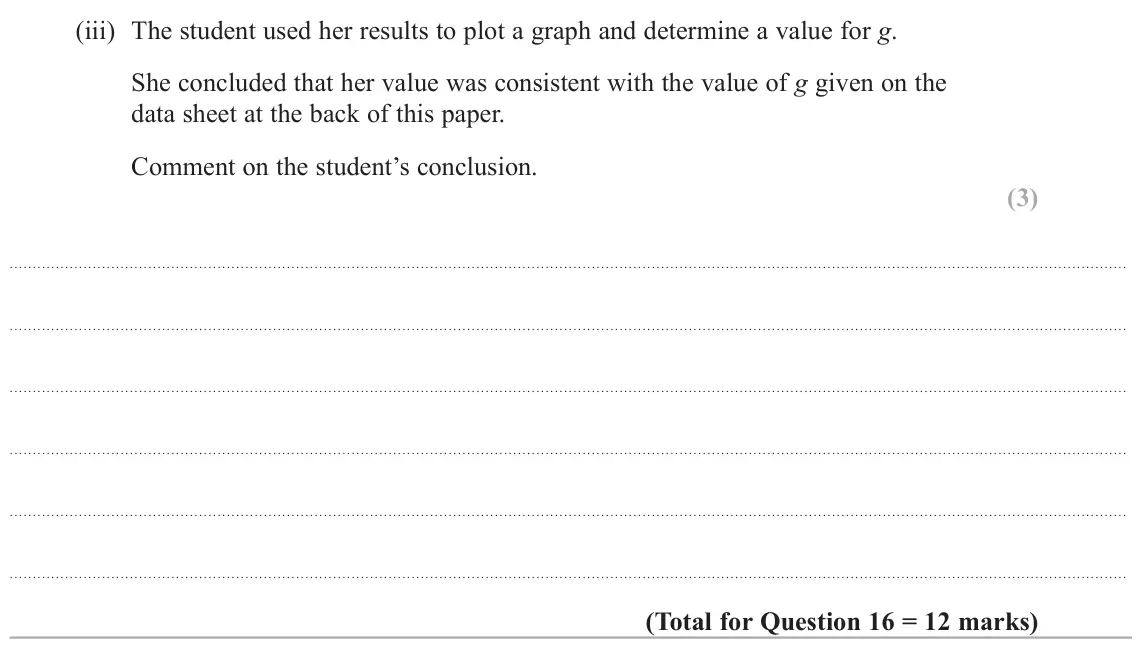

- June 2023, AS Paper 1, Q16(b)(iii) (3 marks): The student used her results to plot a graph and determine a value for g. She concluded that her value was consistent with the value of g given on the data shee

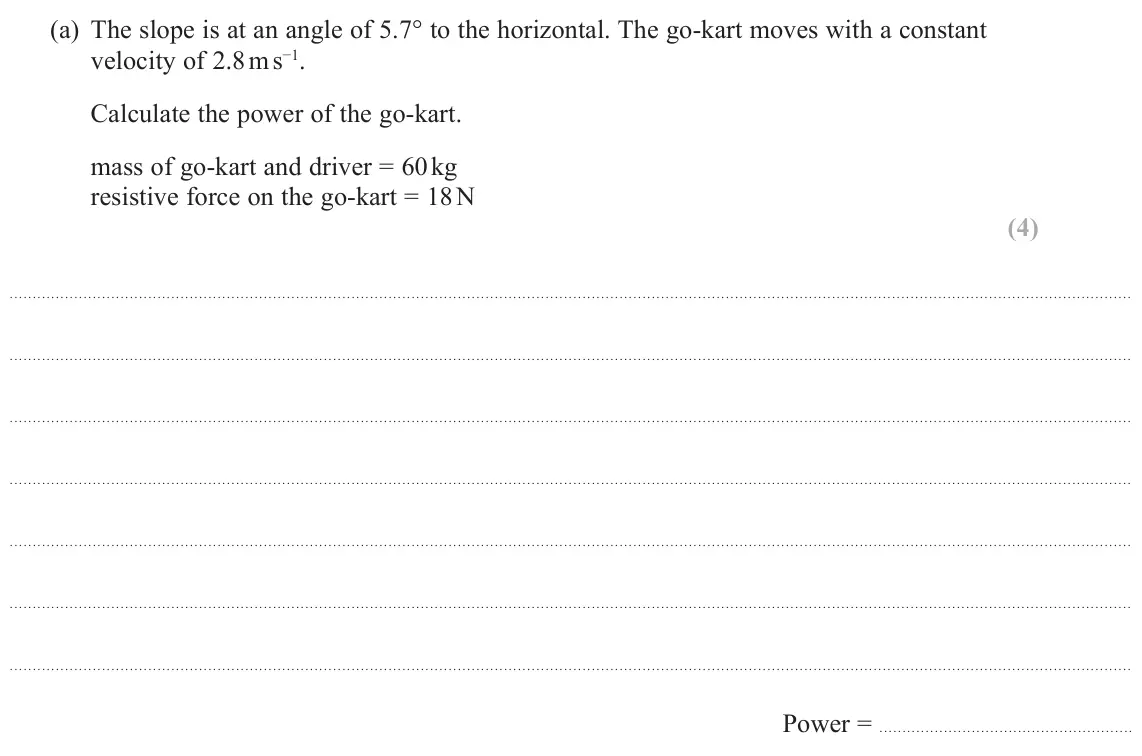

- June 2022, Paper 1, Q11(a) (4 marks): The slope is at an angle of 5.7° to the horizontal. The go‑kart moves with a constant velocity of 2.8 m s−1. Calculate the power of the go‑kart. mass of go‑kart

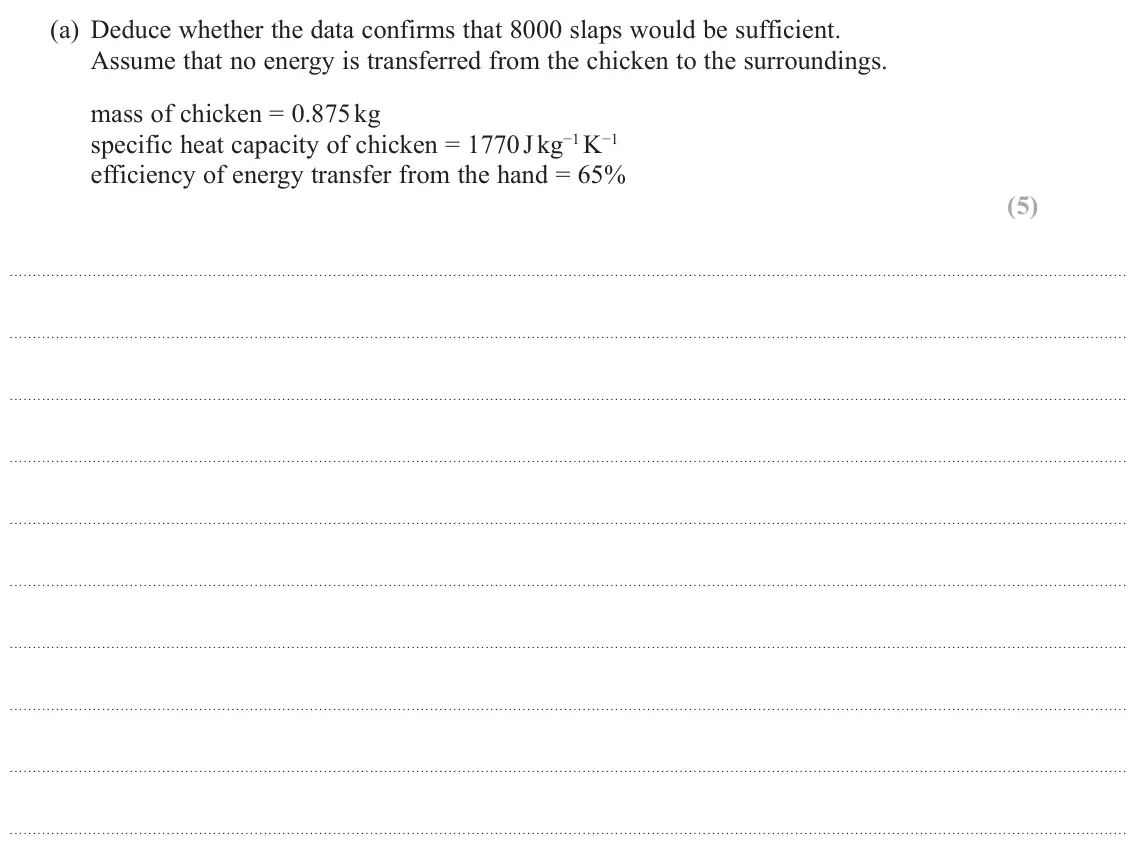

- June 2022, Paper 3, Q3(a) (5 marks): Deduce whether the data confirms that 8000 slaps would be sufficient. Assume that no energy is transferred from the chicken to the surroundings. mass of chicken

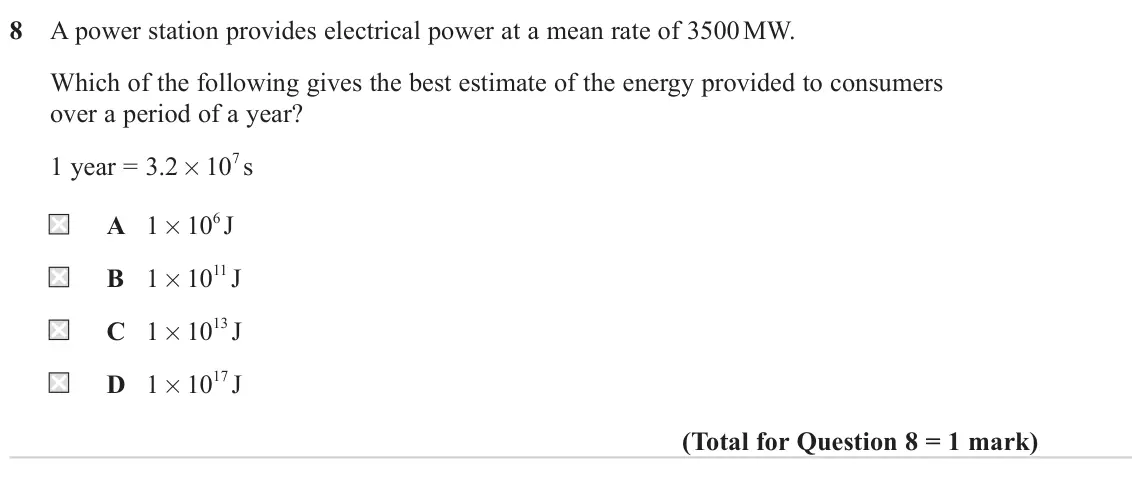

- June 2022, AS Paper 1, Q8 (1 mark): A power station provides electrical power at a mean rate of 3500 MW. Which of the following gives the best estimate of the energy provided to consumers over a p
- June 2022, AS Paper 1, Q13(a) (2 marks): A student assumes that all the gravitational potential energy transferred from the counterweight is transferred to the kinetic energy of the rock. Give two reas
- June 2022, AS Paper 1, Q13(c) (5 marks): The mass of the counterweight was reduced. The trebuchet was then used to project the rock again. Explain why the horizontal distance travelled by the rock decr
- June 2022, AS Paper 1, Q15(a) (4 marks): The truck moves through a vertical height of 0.20 m in 15 s. The current in the motor is 8.1 mA and the potential difference across the motor is 12 V. mass of t
- June 2022, AS Paper 2, Q16(a) (3 marks): One such system is planned to use a load of mass 2500 tonnes. The load will be at the top of a shaft. The load will be lowered down the shaft at a steady speed.
- June 2022, AS Paper 2, Q16(b) (2 marks): The system can generate “a short burst of electricity at high power”. Explain why high power can be generated for only a short time. (2)
- November 2021, Paper 1, Q14(c)(i) (3 marks): Calculate the initial acceleration of the vehicle as it starts from rest. mass of vehicle and driver = 420 kg (3) Initial acceleration =
- November 2021, Paper 1, Q14(c)(ii) (1 mark): State one assumption made in this calculation. (1)
- November 2021, Paper 1, Q14(d) (2 marks): Solar power alone would not be suitable for a family car because it is not sunny all the time. Give two further reasons why solar power alone would not be suita
- November 2021, AS Paper 1, Q3 (1 mark): A car of mass 1.5 × 103 kg is travelling at a speed of 25 m s–1. The driver applies the brakes and the car comes to rest. Which of the following gives the decre
- November 2021, AS Paper 1, Q4 (1 mark): A rope is used to apply a force F to a box as shown. The box is pulled a distance d along a horizontal surface. F direction of motion θ Which of the following c
- November 2021, AS Paper 1, Q8 (1 mark): A motor is used to lift an object as shown. The object is raised through a vertical height of 75 cm at a constant speed of 0.40 m s−1. motor 0.25 kg Which of th
- November 2021, AS Paper 1, Q13(c) (2 marks): When the male skater pushes the female skater forwards, the total kinetic energy of the skaters increases. Explain why kinetic energy is not conserved in this i
- November 2021, AS Paper 1, Q14(b) (4 marks): Grasshoppers with longer legs accelerate to their launch velocity over a longer time. Leg length has a negligible effect on both the mass of a grasshopper and t
- October 2020, Paper 1, Q16(a)(iii) (3 marks): The spider achieves this jump by extending its two back legs by 3.0 mm. Calculate the average force the spider exerts in each leg to achieve the jump. mass of s
- October 2020, Paper 3, Q11(b)(ii) (4 marks): It is claimed that the area of solar panels needed to generate 100 GW of power is about 0.5% of the surface area of the Earth. Assess the validity of this claim
- October 2020, AS Paper 1, Q2 (1 mark): An object of mass m is moved from the bottom to the top of a slope. The vertical height of the slope is y. The horizontal distance between the bottom and top of
- October 2020, AS Paper 1, Q13(a) (1 mark): State why the ‘efficiency’ given on the website cannot be a value of efficiency as defined in physics. (1)
- October 2020, AS Paper 1, Q13(b) (2 marks): Explain why the kilowatt-hour (kW h) is a unit of energy. (2)
- October 2020, AS Paper 1, Q13(c) (3 marks): Calculate the efficiency of the battery. (3) Efficiency = .
- October 2020, AS Paper 1, Q13(d) (2 marks): A comparable petrol car has a petrol consumption of 21 km / litre. Show that the electric car is cheaper to run. cost of 1 litre of petrol = £1.20 cost of 1 kW
- October 2020, AS Paper 1, Q13(e) (1 mark): Give one environmental advantage of an electric car. (1)
- October 2020, AS Paper 1, Q13(f) (3 marks): The website provides the following additional information. Maximum Engine Power 80 kW Maximum Performance 0 to 28 ms−1 in 11.5 s Mass of Car 1500 kg Deduce whet
- June 2019, Paper 3, Q8(a) (4 marks): A stone of mass 19.6 kg is accelerated uniformly for 1.25 s before being released by a curler. The stone then decelerates uniformly to rest, travelling 32.5 m i
- June 2019, Paper 3, Q10(a) (3 marks): Show that the energy per unit volume that would have to be absorbed by the seat belt is about 2 × 108 J m–3. mass of dummy = 75 kg (3)
- June 2019, Paper 3, Q12(a) (3 marks): In one test, the spheres were dropped from the same height. Determine the factor by which the kinetic energy of the sphere just before impact increases when the
- June 2019, Paper 3, Q12(b) (6 marks): The student also dropped the spheres from different heights. His results are shown in the table. Drop height / m Sphere diameter / cm Crater diameter / cm 2.0 3
- June 2019, AS Paper 1, Q12(a) (5 marks): The efficiency of the pump is 76%. Show that the water leaves the nozzle at a speed of about 8ms'. mass of water leaving the pump each second = 3.5 kgs' power o
- June 2019, AS Paper 1, Q14(b) (5 marks): The photograph shows sphere A just before it was released. A 11 cm B Determine the momentum of sphere A just before the collision. You should take measurements
- June 2018, Paper 1, Q13(b) (5 marks): The engine, which ran continuously, could lift a mass of 2500 kg of water through 12 m each minute. The engine used 1250 kg of coal a day. 1 kg of coal can rele
- June 2018, AS Paper 1, Q6 (1 mark): A car of mass 1.2× 103 kg is travelling at a speed of 18 m s–1. The driver applies the brakes and the car comes to rest. What is the work done by the brakes in
- June 2018, AS Paper 1, Q16(b)(ii) (3 marks): A light-emitting diode (LED) is used to provide the unpolarised white light for the liquid‑crystal display. Calculate the efficiency of the liquid‑crystal displ
- June 2018, AS Paper 2, Q15(c) (2 marks): During the night the motors are switched off for 4 hours. Calculate the battery energy saved by switching off the motors. (2) Battery energy saved =
- June 2018, AS Paper 2, Q15(d) (2 marks): The plane flies at the greater height during the day. At night it glides down to the lower height over a period of 4 hours, with the motors switched off. Calcul
- June 2018, AS Paper 2, Q15(e) (3 marks): After four hours the engines are switched on again. Explain whether the plane should fly at a slower horizontal speed at its lower height. (3)
- June 2018, AS Paper 2, Q15(f) (1 mark): Comment on how projects such as the Solar Impulse 2 might be of benefit to society at large. (1)
- June 2017, Paper 1, Q4 (1 mark): An object of mass m is moved from point A on the ground, to point B on a bench of height h as shown in the diagram. B h θ A Which of the following is a correct
- June 2017, Paper 1, Q11(b) (3 marks): A student makes the following statement. The work done by the cyclist is converted into the kinetic energy of the cyclist and bicycle. Criticise this statement.
- June 2017, Paper 1, Q18(a) (4 marks): A motor lifts a load in a time t. The axle of the motor has a radius r and exerts a force F. r axle F axle load load The power produced by a motor can be calcul
- June 2017, AS Paper 1, Q12(a) (3 marks): The spreadsheet shows the student’s results (columns A to E) and calculation (column F). A B C D E F potential change in 1 load / N current / A difference / V t
- June 2017, AS Paper 1, Q12(b) (5 marks): The student uses the spreadsheet to plot a graph. 0.2 – – 0.1 – 0.0 0.0 2.0 4.0 6.0 8.0 10.0 12.0 Load / N The student concludes that ‘the efficiency of the mot
- June 2017, AS Paper 1, Q13(b)(ii) (3 marks): The gardener continues to walk and pulls the trolley a distance of 15 m in a time of 4.2 s. Calculate the power developed while pulling the trolley. (3) Power =
- June 2017, AS Paper 1, Q16(b) (4 marks): Another trolley was adapted by placing a tube around the plunger so that it could be used to launch marbles. A marble was placed in the tube while the plunger w
- June 2017, AS Paper 1, Q16(c) (1 mark): The launch velocity was measured using a light gate and data logger. This produced a smaller value for the launch velocity than that calculated in (b). Give a r
- June 2016, AS Paper 1, Q9 (3 marks): A motor lifts a block of mass 0.050kg at a constant velocity of 0.40 m s–1. The current in the motor is 85mA and the potential difference across it is 3.0V. mot
- June 2016, AS Paper 1, Q13(a) (3 marks): The braking distance of a road train travelling at 15m s−1 is 70m. Assuming that the same braking force is applied at all speeds, show that the braking distance
- June 2016, AS Paper 1, Q13(c) (3 marks): One region of Australia decided to trial the removal of the speed limit on some roads. The following statements were made in an online forum discussing this iss
Questions, mark schemes and examiner’s reports are © Pearson Edexcel, from their published past papers. Plumi isn’t affiliated with any exam board. Want whole papers? Every Edexcel A-Level Physics paper.
