plumiPressure: CAIE IGCSE Physics questions
Every CAIE IGCSE Physics exam question on 1.8 Pressure, June 2024 and the specimen papers, with its mark scheme and examiner’s report.
Find questions355
Calculations
Q5(b)
The whole paper ↗
All 6 questions on Pressure, as a list

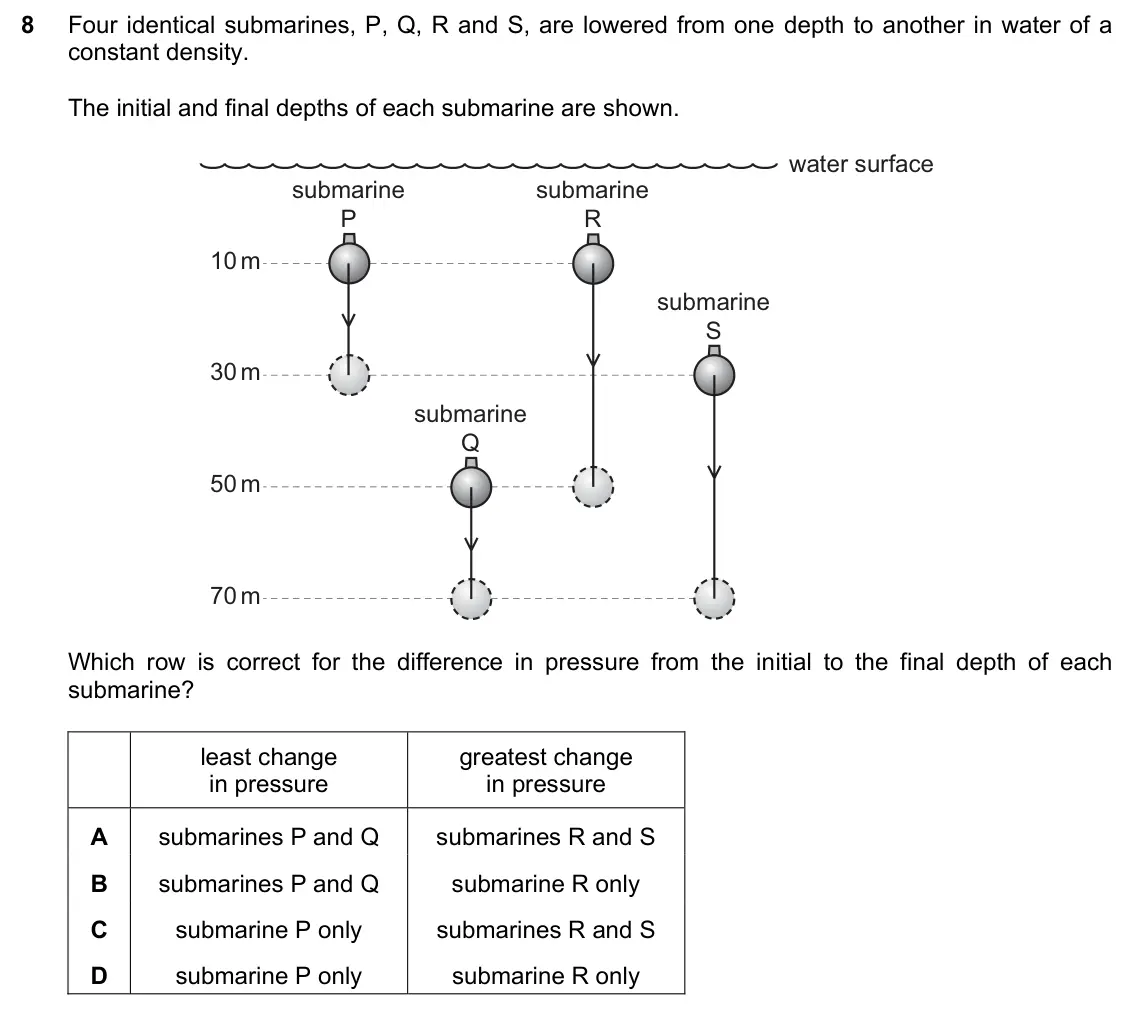

- June 2024, Paper 1, Q8 (1 mark): Four identical submarines, P, Q, R and S, are lowered from one depth to another in water of a constant density. The initial and final depths of each submarine a

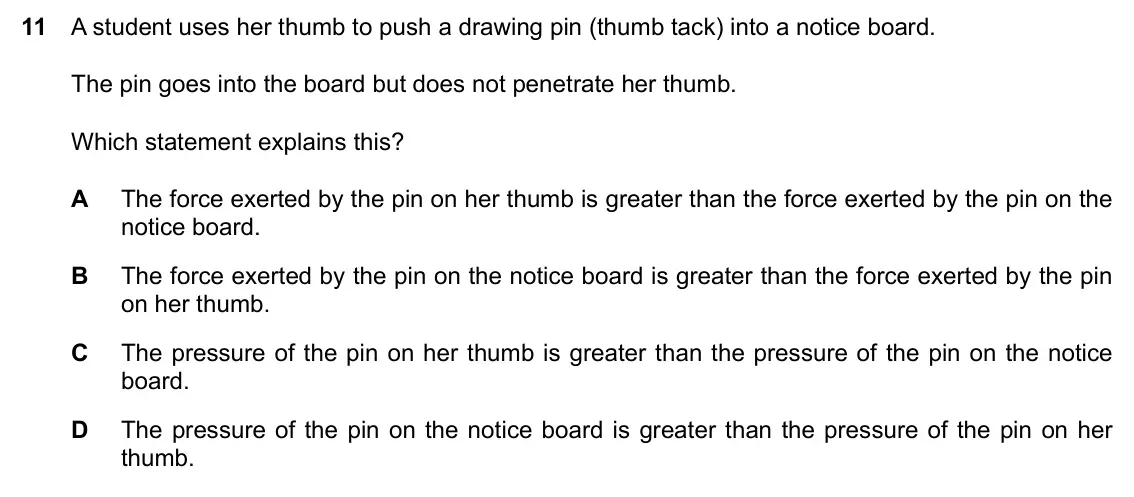

- Specimen, Paper 1, Q11 (1 mark): A student uses her thumb to push a drawing pin (thumb tack) into a notice board. The pin goes into the board but does not penetrate her thumb. Which statement e

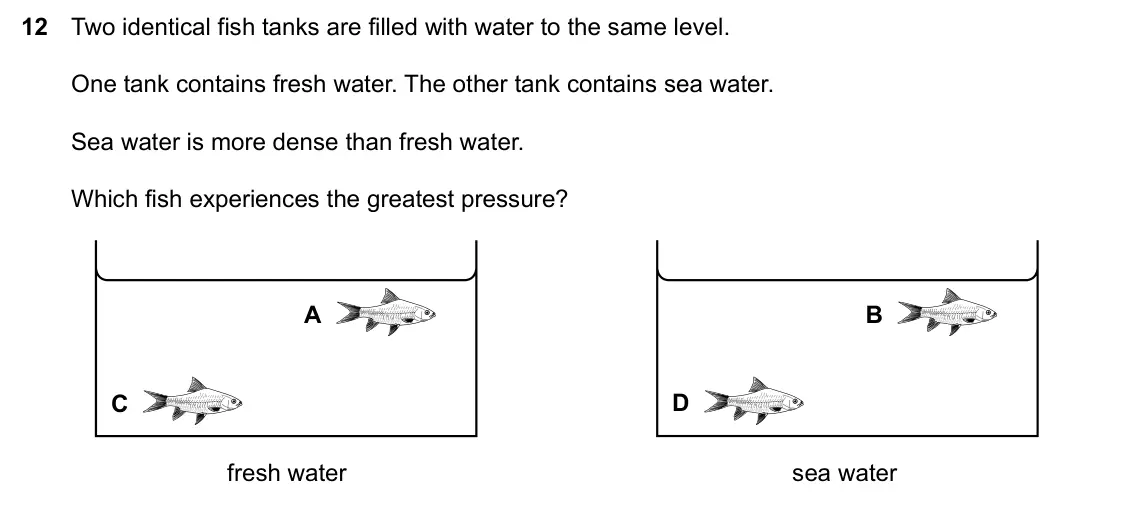

- Specimen, Paper 1, Q12 (1 mark): Two identical fish tanks are filled with water to the same level. One tank contains fresh water. The other tank contains sea water. Sea water is more dense than

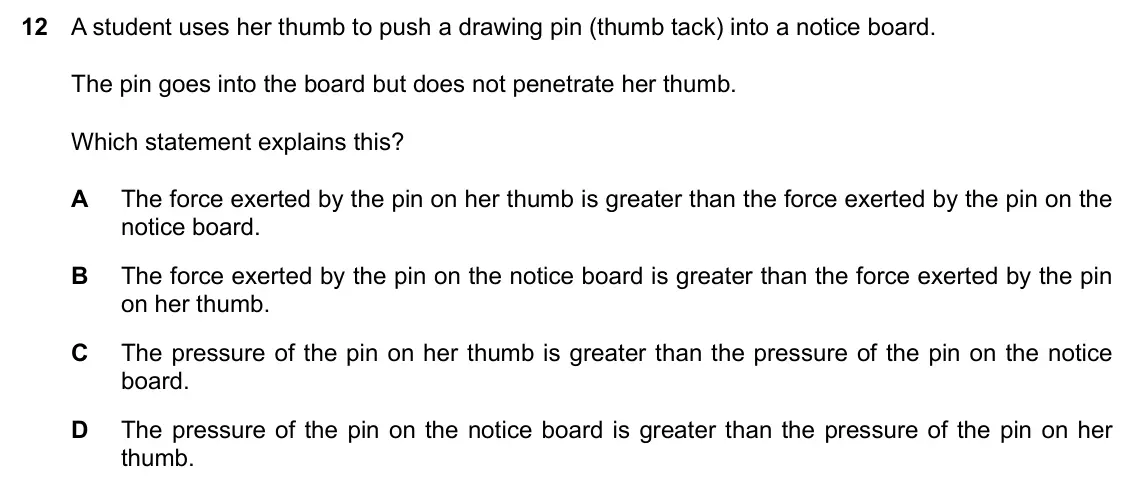

- Specimen, Paper 2, Q12 (1 mark): A student uses her thumb to push a drawing pin (thumb tack) into a notice board. The pin goes into the board but does not penetrate her thumb. Which statement e

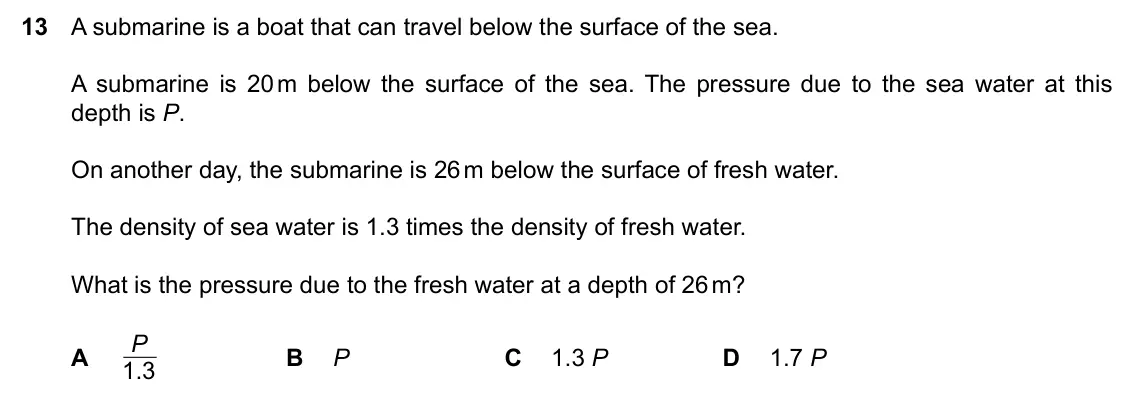

- Specimen, Paper 2, Q13 (1 mark): A submarine is a boat that can travel below the surface of the sea. A submarine is 20 m below the surface of the sea. The pressure due to the sea water at this

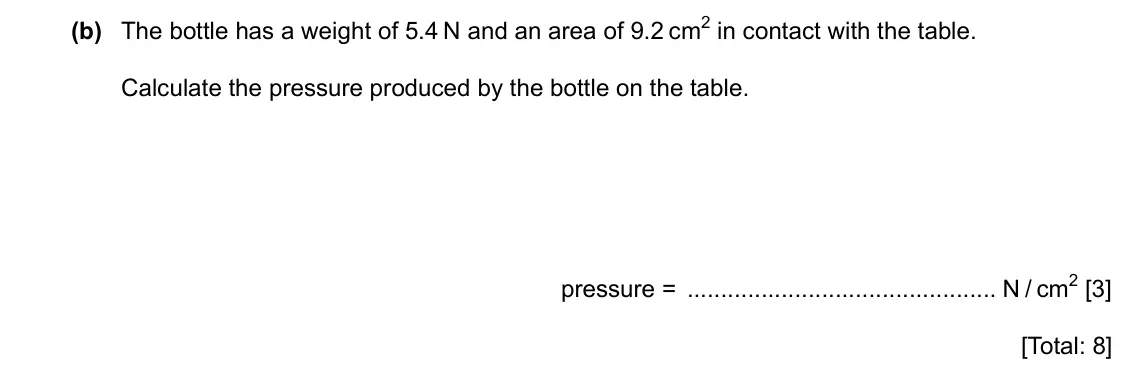

- Specimen, Paper 3, Q5(b) (3 marks): The bottle has a weight of 5.4 N and an area of 9.2 cm2 in contact with the table. Calculate the pressure produced by the bottle on the table. pressure = N / cm
