Rectification and smoothing: CAIE A‑Level Physics questions

Every CAIE A-Level Physics exam question on 21.2 Rectification and smoothing, June 2024 and the specimen papers, with its mark scheme and examiner’s report.

Find questions266
Calculations

266 questions

  1. Q7(a)

    June 2024 · Paper 4

    2 marks21.2 Rectification and smoothing
    The whole paper ↗

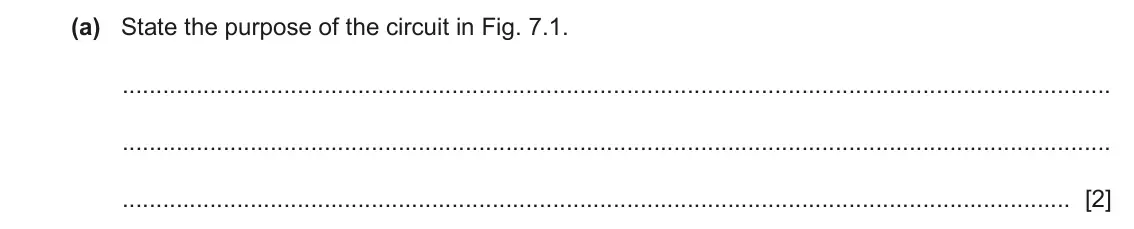

    June 2024 Paper 4, question 7(a): State the purpose of the circuit in Fig. 7.1. [2]

  2. Q7(c)

    June 2024 · Paper 4

    2 marks21.1 Characteristics of alternating currents21.2 Rectification and smoothing
    The whole paper ↗

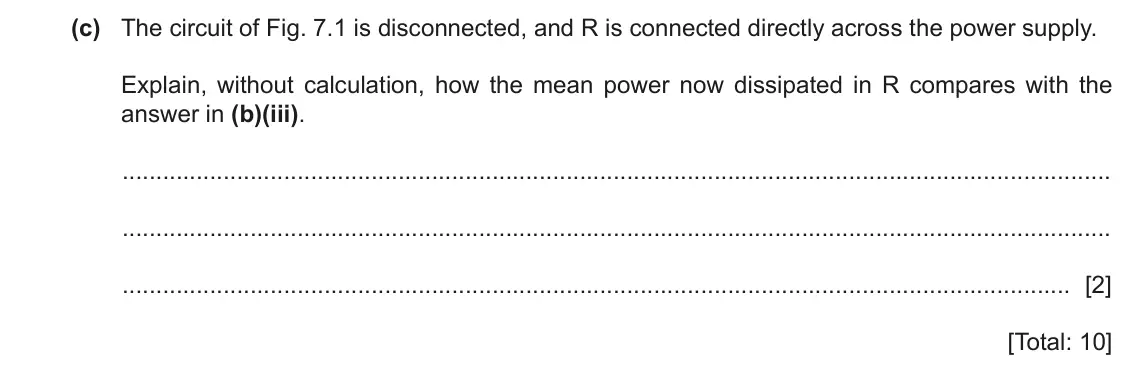

    June 2024 Paper 4, question 7(c): The circuit of Fig. 7.1 is disconnected, and R is connected directly across the power supply. Explain, without calculation, how the mean power now dissipated in

  3. Q5(a)(ii)

    Specimen · Paper 4

    1 mark21.2 Rectification and smoothing
    The whole paper ↗

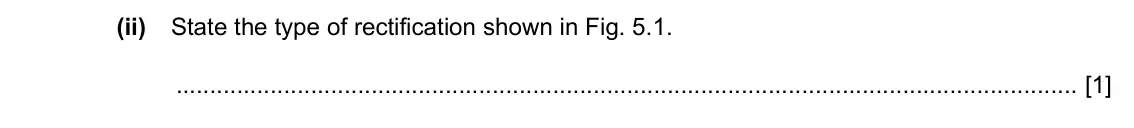

    Specimen Paper 4, question 5(a)(ii): State the type of rectification shown in Fig. 5.1. [1]

  4. Q5(b)(i)

    Specimen · Paper 4

    3 marks21.2 Rectification and smoothing
    The whole paper ↗

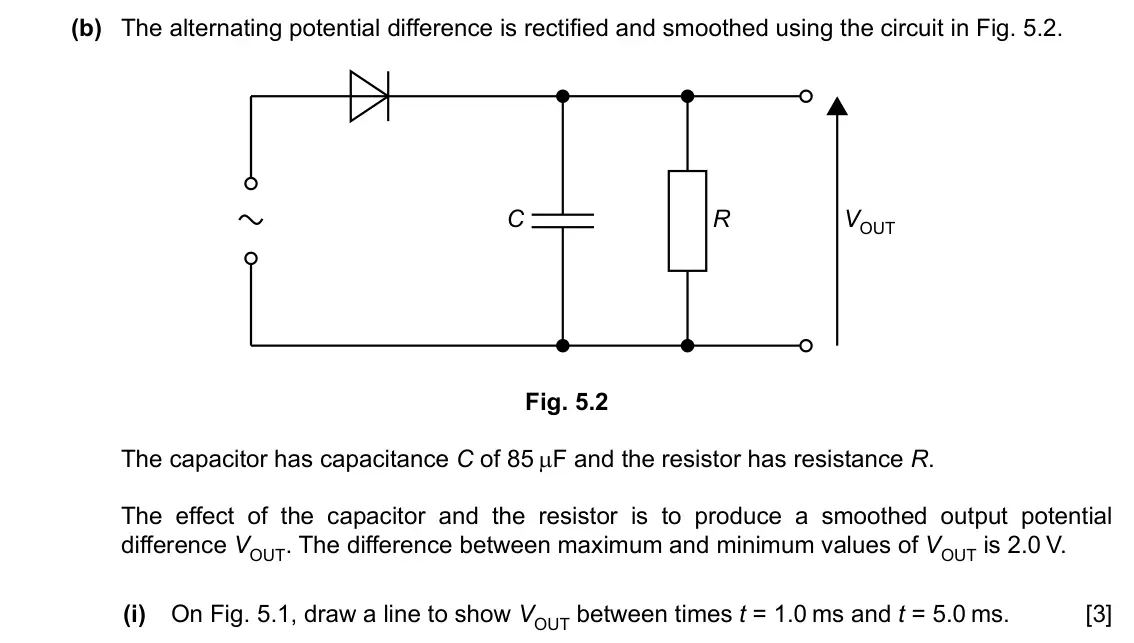

    Specimen Paper 4, question 5(b)(i): On Fig. 5.1, draw a line to show VOUT between times t = 1.0 ms and t = 5.0 ms. [3]

  5. Q5(b)(ii)

    Specimen · Paper 4

    1 mark21.2 Rectification and smoothing
    The whole paper ↗

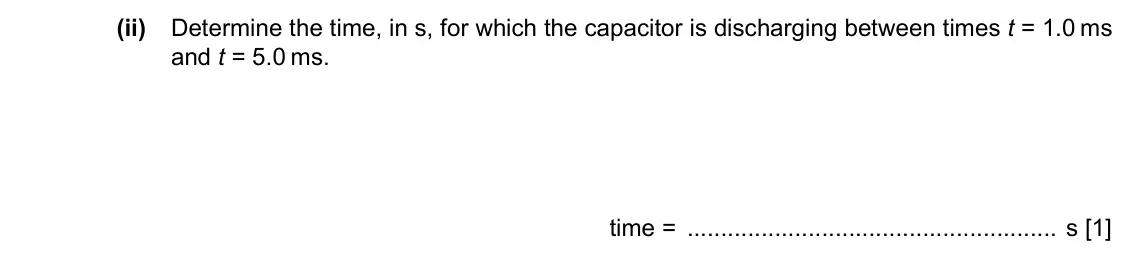

    Specimen Paper 4, question 5(b)(ii): Determine the time, in s, for which the capacitor is discharging between times t = 1.0 ms and t = 5.0 ms. time = s [1]

  6. Q5(b)(iii)

    Specimen · Paper 4

    2 marks21.2 Rectification and smoothing19.3 Discharging a capacitor
    The whole paper ↗

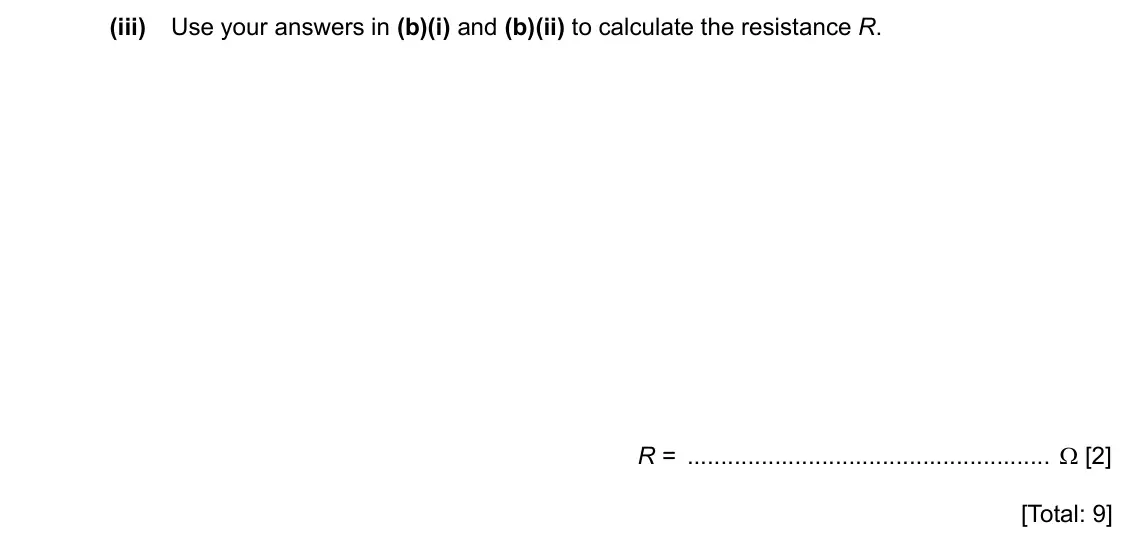

    Specimen Paper 4, question 5(b)(iii): Use your answers in (b)(i) and (b)(ii) to calculate the resistance R. R = Ω [2] [Total: 9]
All 6 questions on Rectification and smoothing, as a list
  1. June 2024, Paper 4, Q7(a) (2 marks): State the purpose of the circuit in Fig. 7.1. [2]
  2. June 2024, Paper 4, Q7(c) (2 marks): The circuit of Fig. 7.1 is disconnected, and R is connected directly across the power supply. Explain, without calculation, how the mean power now dissipated in
  3. Specimen, Paper 4, Q5(a)(ii) (1 mark): State the type of rectification shown in Fig. 5.1. [1]
  4. Specimen, Paper 4, Q5(b)(i) (3 marks): On Fig. 5.1, draw a line to show VOUT between times t = 1.0 ms and t = 5.0 ms. [3]
  5. Specimen, Paper 4, Q5(b)(ii) (1 mark): Determine the time, in s, for which the capacitor is discharging between times t = 1.0 ms and t = 5.0 ms. time = s [1]
  6. Specimen, Paper 4, Q5(b)(iii) (2 marks): Use your answers in (b)(i) and (b)(ii) to calculate the resistance R. R = Ω [2] [Total: 9]
