plumiMoments, levers and gears: AQA GCSE Physics questions
Every AQA GCSE Physics exam question on 4.5.4 Moments, levers and gears, 2018–2025, with its mark scheme and examiner’s report.
Find questions1,653
Calculations

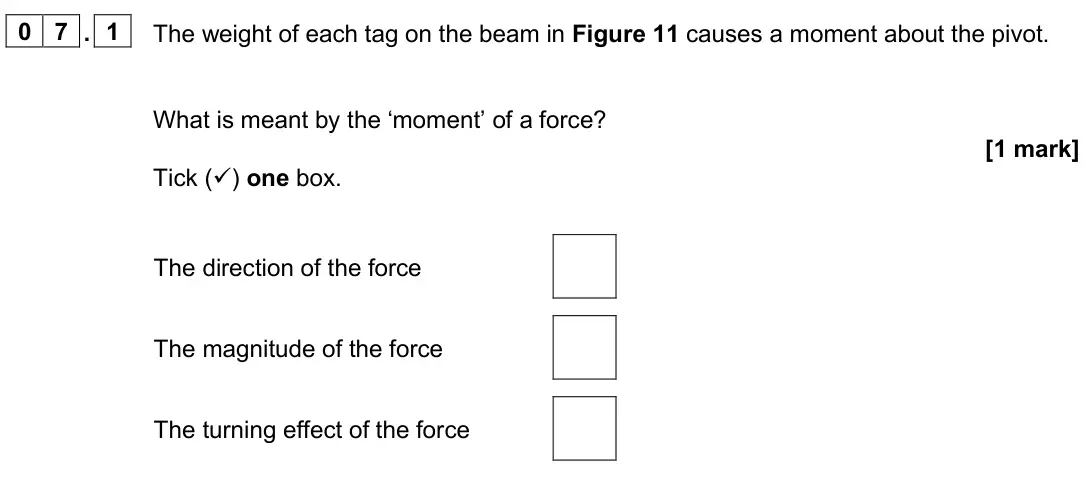

Q07.1
The whole paper ↗![June 2025 Paper 2 Foundation, question 07.1: The weight of each tag on the beam in Figure 11 causes a moment about the pivot. What is meant by the ‘moment’ of a force? [1 mark] Tick () one box. The direct](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-07-1-qp.webp)

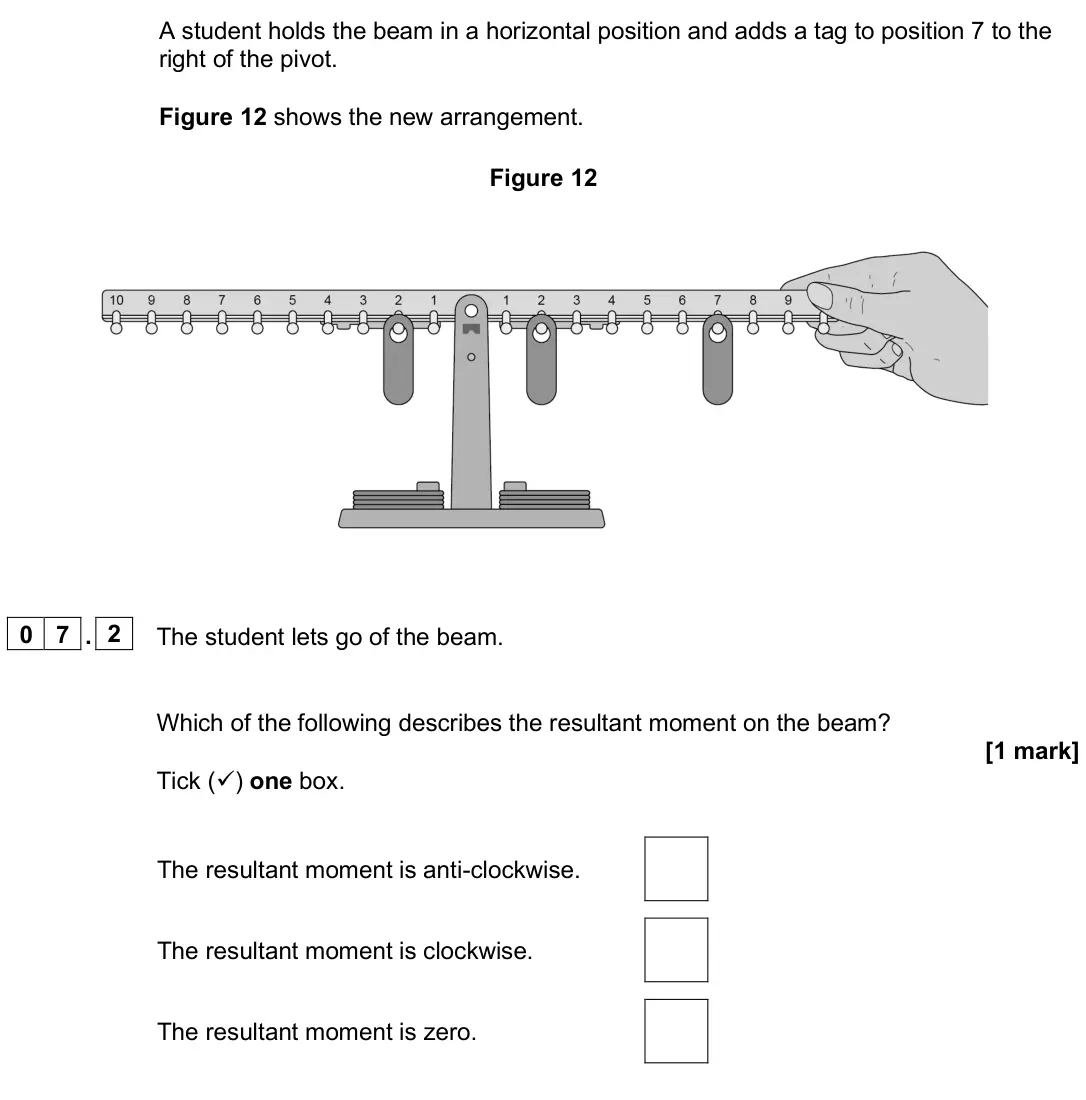

Q07.2
The whole paper ↗![June 2025 Paper 2 Foundation, question 07.2: The student lets go of the beam. Which of the following describes the resultant moment on the beam? [1 mark] Tick () one box. The resultant moment is anti-cloc](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-07-2-qp.webp)

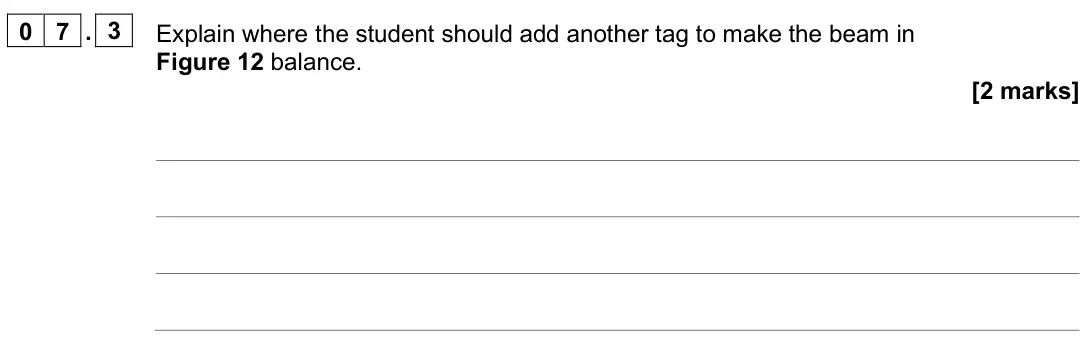

Q07.3
The whole paper ↗![June 2025 Paper 2 Foundation, question 07.3: Explain where the student should add another tag to make the beam in Figure 12 balance. [2 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-07-3-qp.webp)

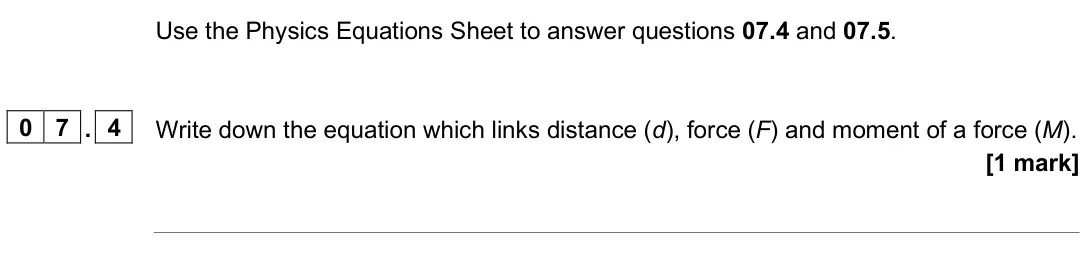

Q07.4
The whole paper ↗![June 2025 Paper 2 Foundation, question 07.4: and 07.5. 0 7 . 4 Write down the equation which links distance (d), force (F) and moment of a force (M). [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-07-4-qp.webp)
Q02.5
The whole paper ↗![June 2024 Paper 2 Higher, question 02.5: and 02.6. 0 2 . 5 Write down the equation which links distance (d), force (F) and moment of a force (M). [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-02-5-qp.webp)
Q02.6
The whole paper ↗
Q02.7
The whole paper ↗![June 2024 Paper 2 Higher, question 02.7: Explain what happens to gear B when the child applies the force to gear A. [2 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-02-7-qp.webp)

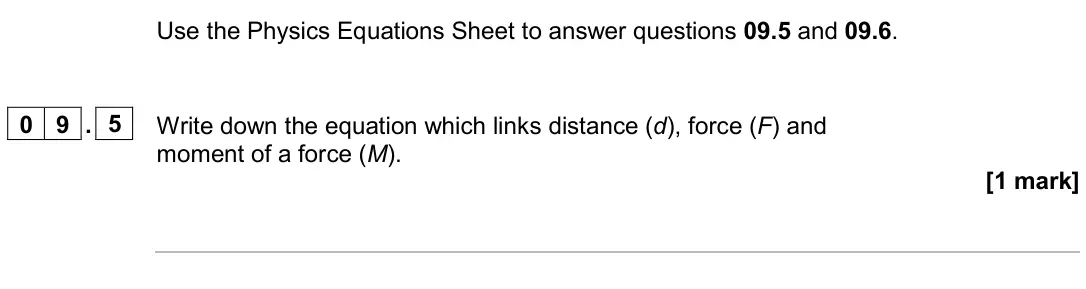

Q09.5
The whole paper ↗![June 2024 Paper 2 Foundation, question 09.5: and 09.6. 0 9 . 5 Write down the equation which links distance (d), force (F) and moment of a force (M). [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun24-09-5-qp.webp)
Q09.6
The whole paper ↗

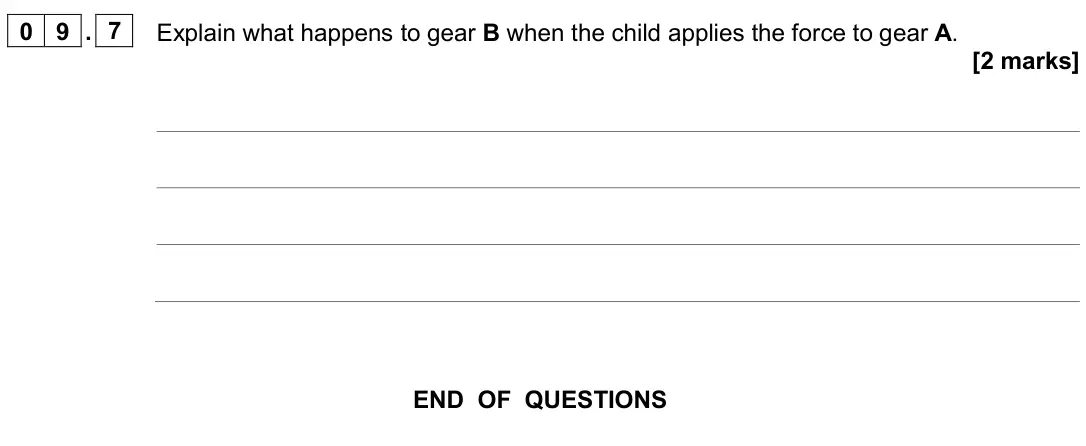

Q09.7
The whole paper ↗![June 2024 Paper 2 Foundation, question 09.7: Explain what happens to gear B when the child applies the force to gear A. [2 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun24-09-7-qp.webp)
Q03.1
The whole paper ↗
Q07.3
The whole paper ↗![November 2021 Paper 2 Higher, question 07.3: Figure 13 shows the gears on the bicycle. Figure 13 Describe how the force on the pedal causes a moment about the rear axle. [2 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-nov21-07-3-qp.webp)
Q02.4
The whole paper ↗

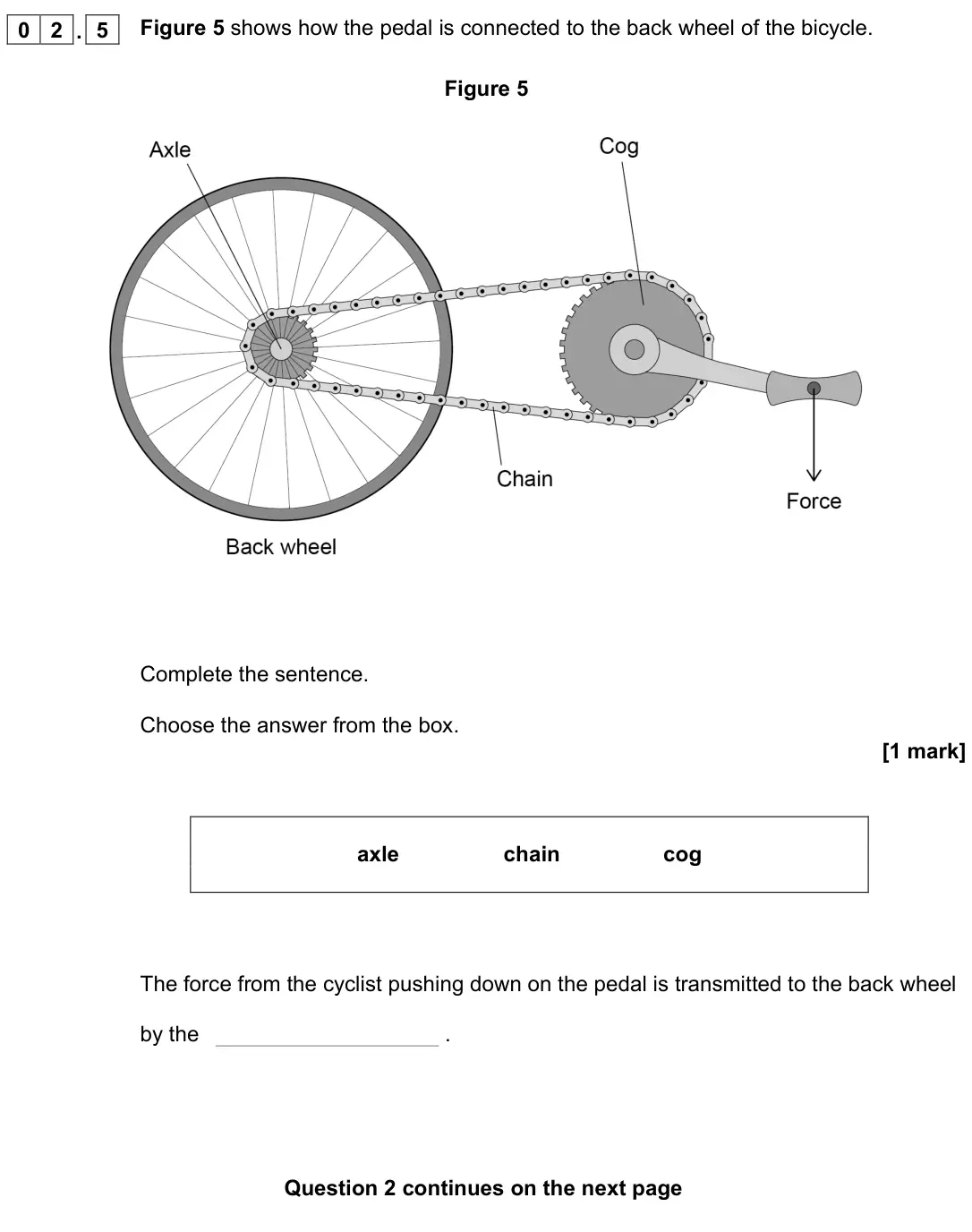

Q02.5
The whole paper ↗![November 2021 Paper 2 Foundation, question 02.5: Figure 5 shows how the pedal is connected to the back wheel of the bicycle. Figure 5 Complete the sentence. Choose the answer from the box. [1 mark] axle chain](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-nov21-02-5-qp.webp)
Q10.1
The whole paper ↗![June 2019 Paper 2 Higher, question 10.1: Explain why it is easier to lower the ramp by pulling on the rope rather than pulling on the handle. [2 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun19-10-1-qp.webp)
Q10.2
The whole paper ↗

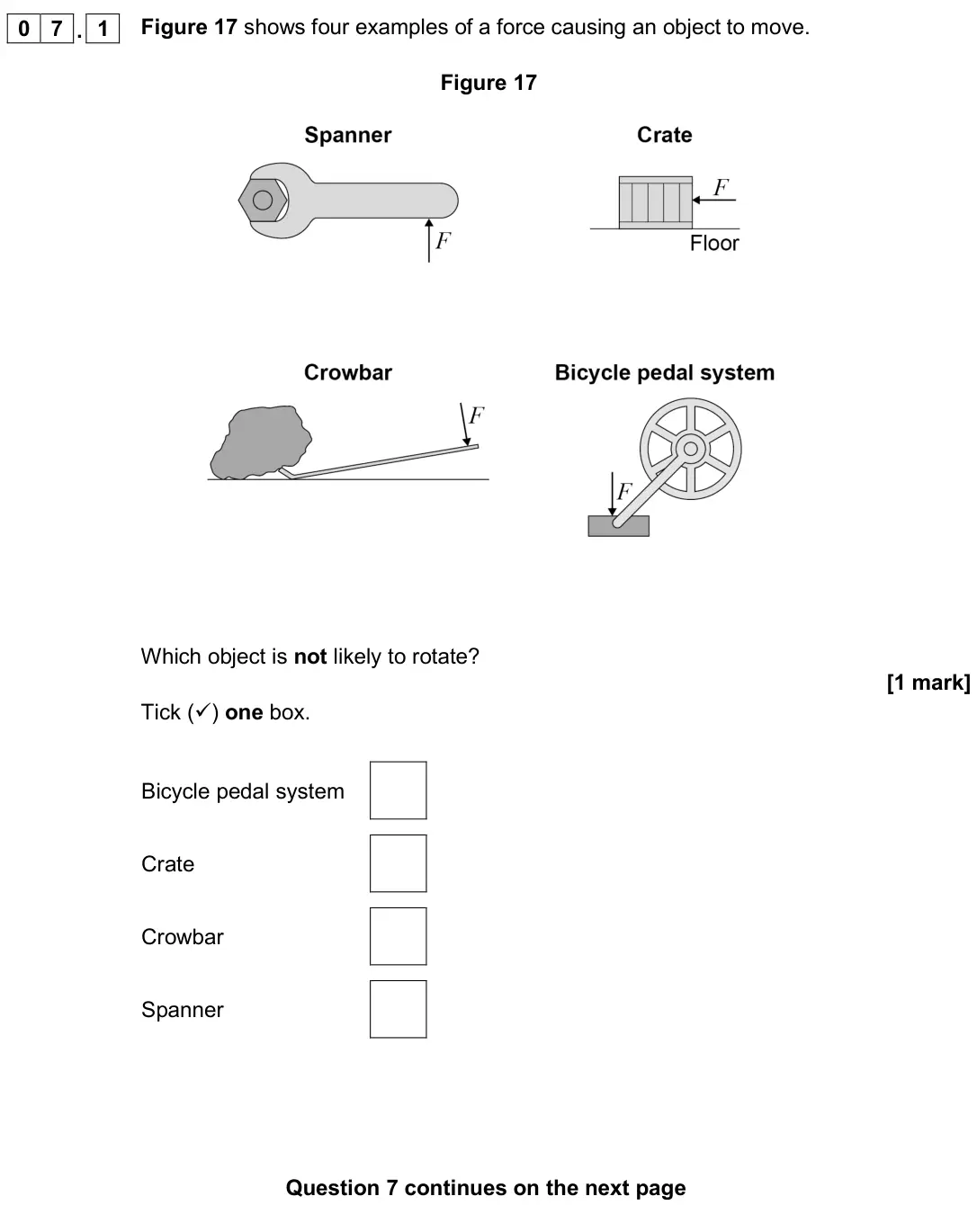

Q07.1
The whole paper ↗![June 2019 Paper 2 Foundation, question 07.1: Figure 17 shows four examples of a force causing an object to move. Figure 17 Which object is not likely to rotate? [1 mark] Tick () one box. Bicycle pedal sys](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun19-07-1-qp.webp)
Q07.3
The whole paper ↗![June 2019 Paper 2 Foundation, question 07.3: How does Figure 19 show that the weight of the device is balanced by the weight of the rice and basket? [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun19-07-3-qp.webp)

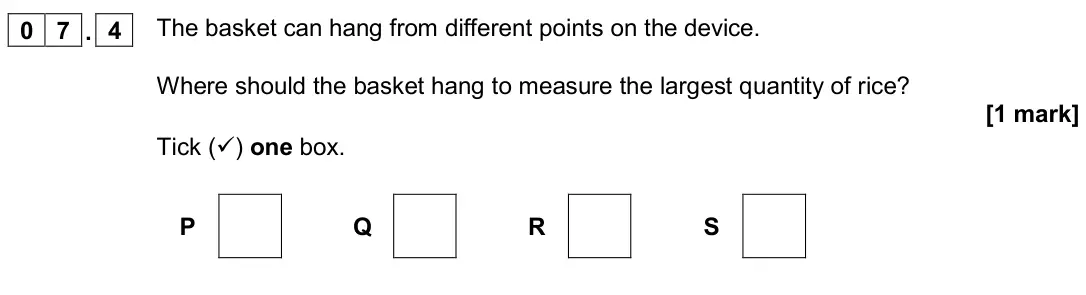

Q07.4
The whole paper ↗![June 2019 Paper 2 Foundation, question 07.4: The basket can hang from different points on the device. Where should the basket hang to measure the largest quantity of rice? [1 mark] Tick () one box. P Q R](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun19-07-4-qp.webp)
All 28 questions on Moments, levers and gears, as a list
- June 2025, Paper 2 Foundation, Q07.1 (1 mark): The weight of each tag on the beam in Figure 11 causes a moment about the pivot. What is meant by the ‘moment’ of a force? [1 mark] Tick () one box. The direct
- June 2025, Paper 2 Foundation, Q07.2 (1 mark): The student lets go of the beam. Which of the following describes the resultant moment on the beam? [1 mark] Tick () one box. The resultant moment is anti-cloc
- June 2025, Paper 2 Foundation, Q07.3 (2 marks): Explain where the student should add another tag to make the beam in Figure 12 balance. [2 marks]
- June 2025, Paper 2 Foundation, Q07.4 (1 mark): and 07.5. 0 7 . 4 Write down the equation which links distance (d), force (F) and moment of a force (M). [1 mark]

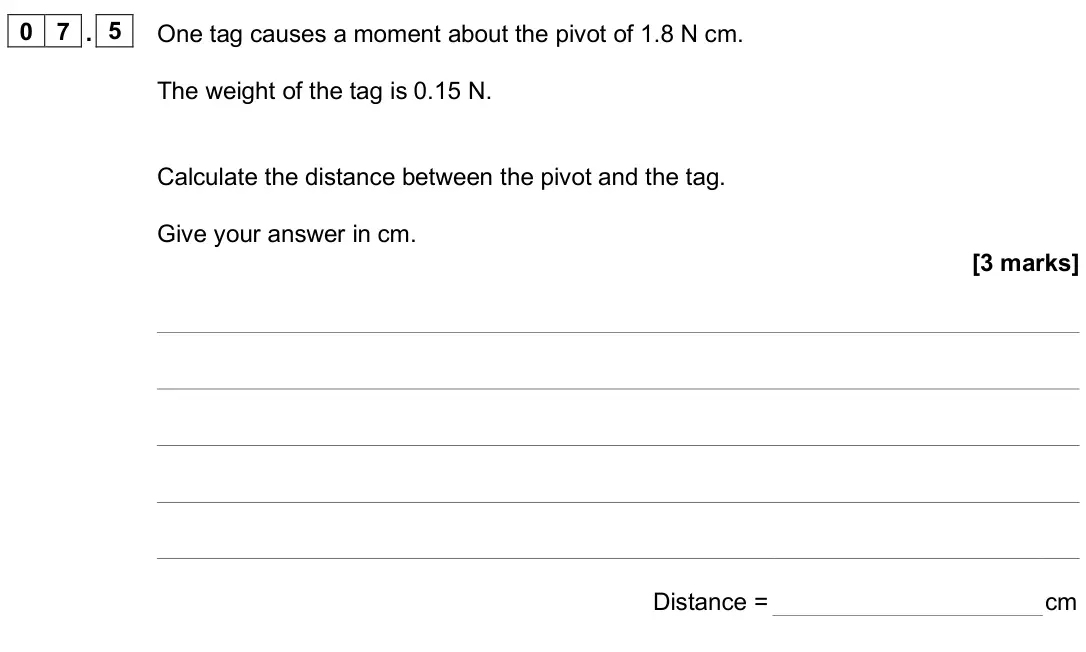

- June 2025, Paper 2 Foundation, Q07.5 (3 marks): One tag causes a moment about the pivot of 1.8 N cm. The weight of the tag is 0.15 N. Calculate the distance between the pivot and the tag. Give your answer in
- June 2024, Paper 2 Higher, Q02.5 (1 mark): and 02.6. 0 2 . 5 Write down the equation which links distance (d), force (F) and moment of a force (M). [1 mark]

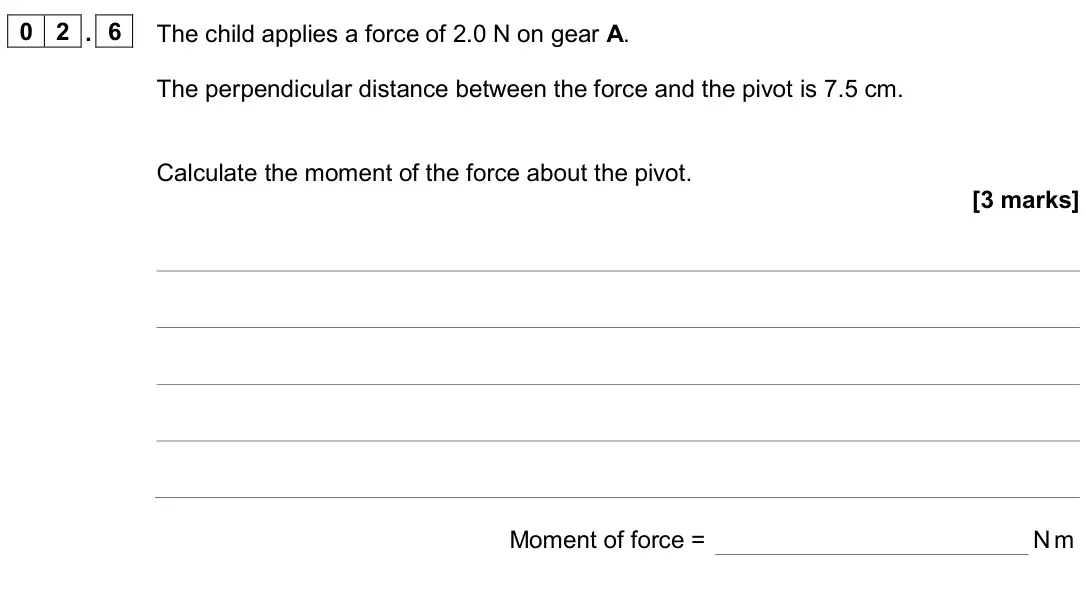

- June 2024, Paper 2 Higher, Q02.6 (3 marks): The child applies a force of 2.0 N on gear A. The perpendicular distance between the force and the pivot is 7.5 cm. Calculate the moment of the force about the

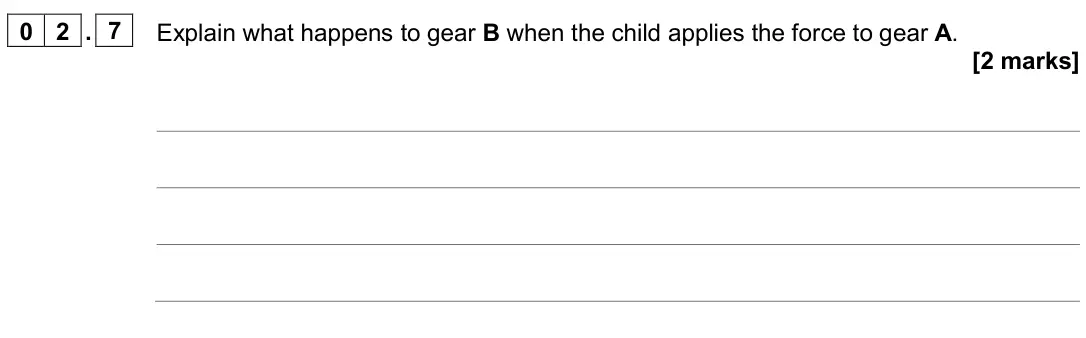

- June 2024, Paper 2 Higher, Q02.7 (2 marks): Explain what happens to gear B when the child applies the force to gear A. [2 marks]
- June 2024, Paper 2 Foundation, Q09.5 (1 mark): and 09.6. 0 9 . 5 Write down the equation which links distance (d), force (F) and moment of a force (M). [1 mark]
- June 2024, Paper 2 Foundation, Q09.6 (3 marks): The child applies a force of 2.0 N on gear A. The perpendicular distance between the force and the pivot is 7.5 cm. Calculate the moment of the force about the
- June 2024, Paper 2 Foundation, Q09.7 (2 marks): Explain what happens to gear B when the child applies the force to gear A. [2 marks]

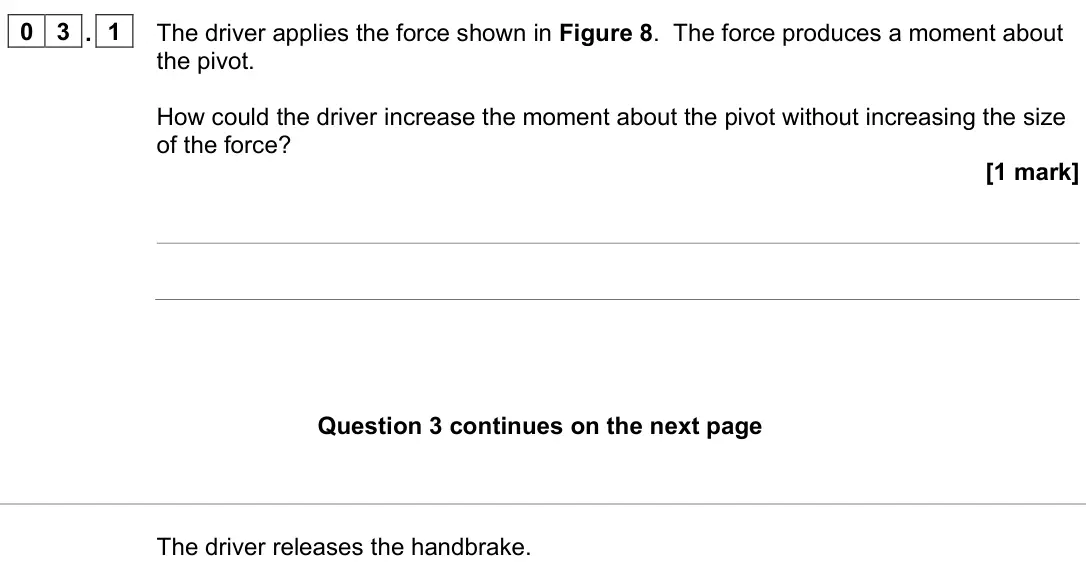

- June 2023, Paper 2 Higher, Q03.1 (1 mark): The driver applies the force shown in Figure 8. The force produces a moment about the pivot. How could the driver increase the moment about the pivot without in

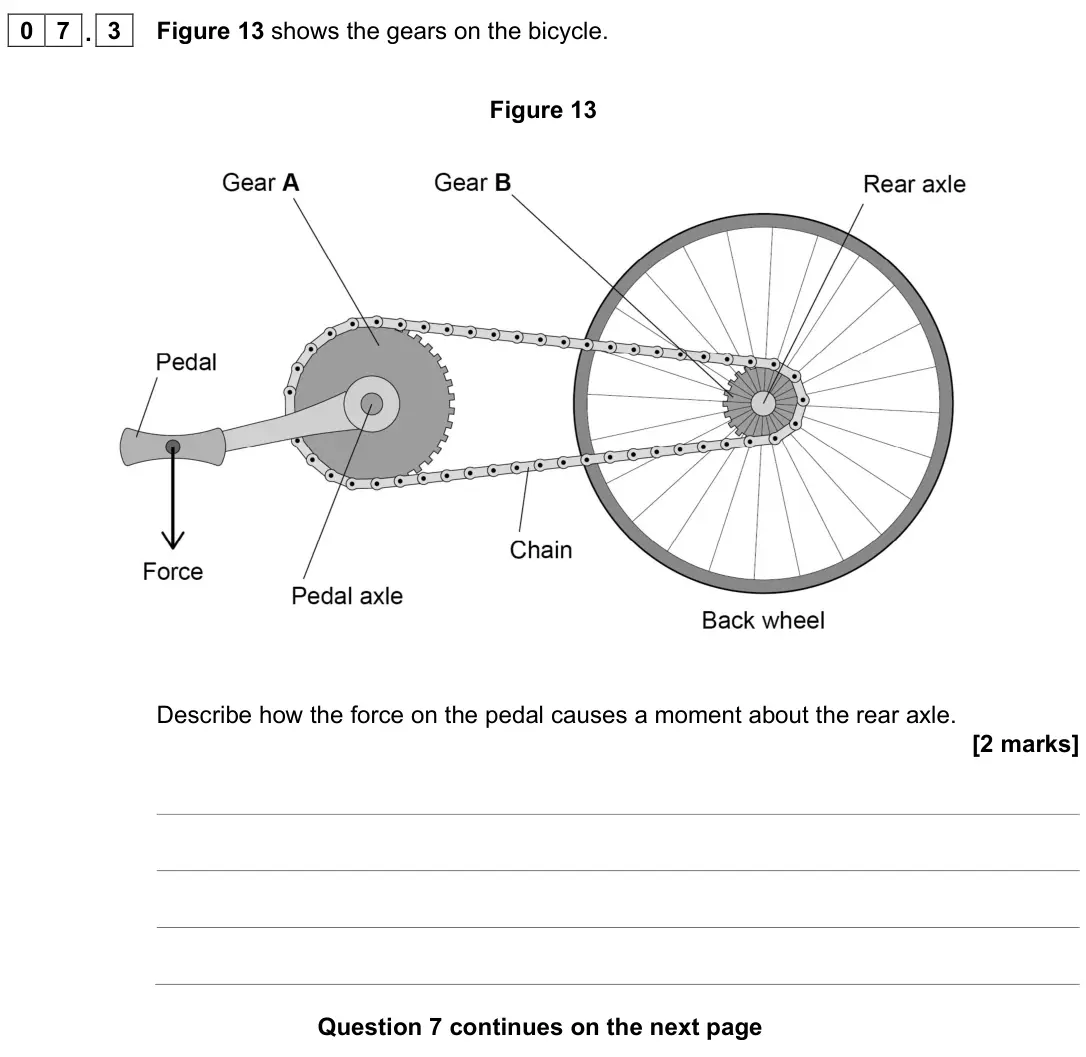

- November 2021, Paper 2 Higher, Q07.3 (2 marks): Figure 13 shows the gears on the bicycle. Figure 13 Describe how the force on the pedal causes a moment about the rear axle. [2 marks]

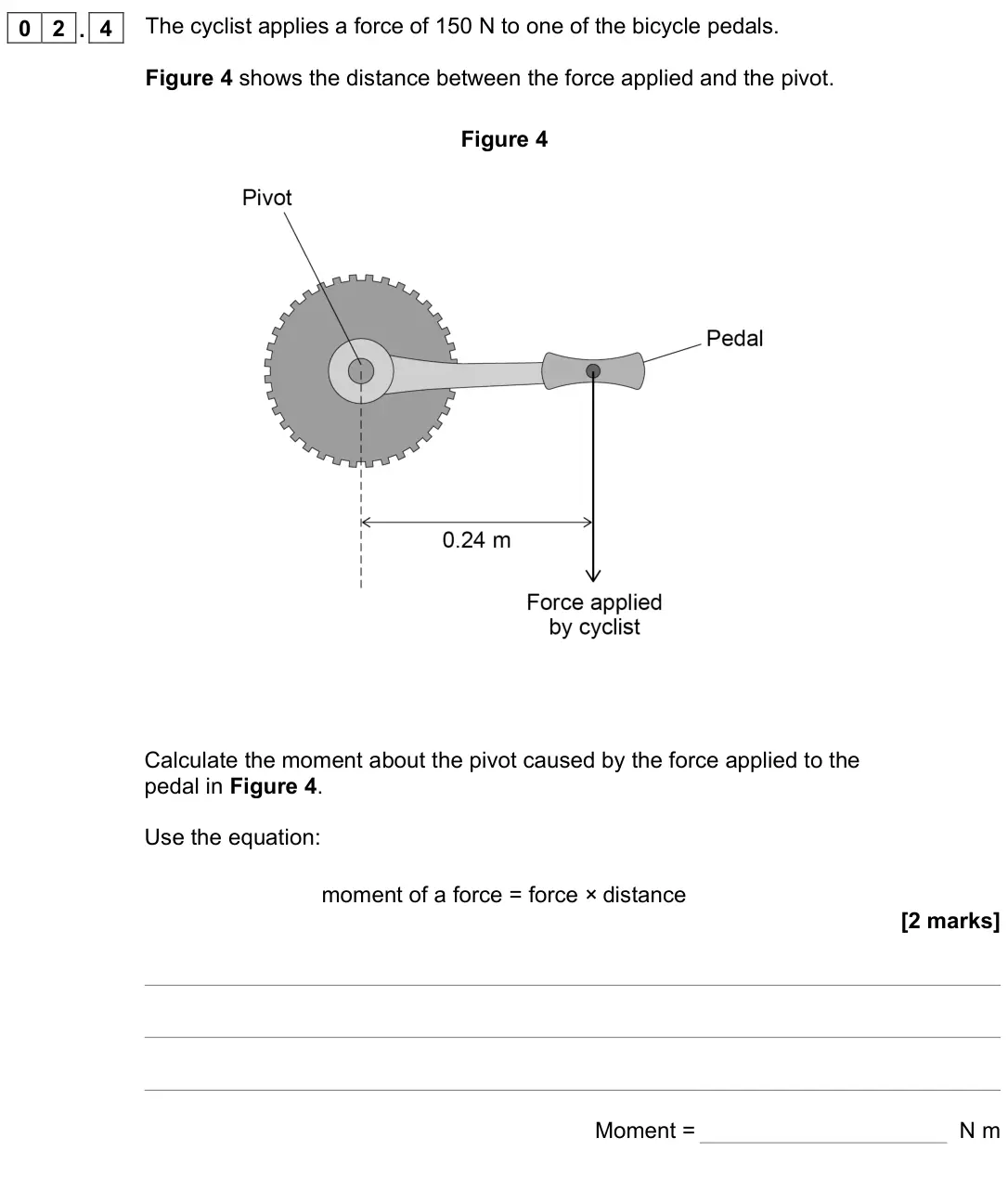

- November 2021, Paper 2 Foundation, Q02.4 (2 marks): The cyclist applies a force of 150 N to one of the bicycle pedals. Figure 4 shows the distance between the force applied and the pivot. Figure 4 Calculate the m
- November 2021, Paper 2 Foundation, Q02.5 (1 mark): Figure 5 shows how the pedal is connected to the back wheel of the bicycle. Figure 5 Complete the sentence. Choose the answer from the box. [1 mark] axle chain

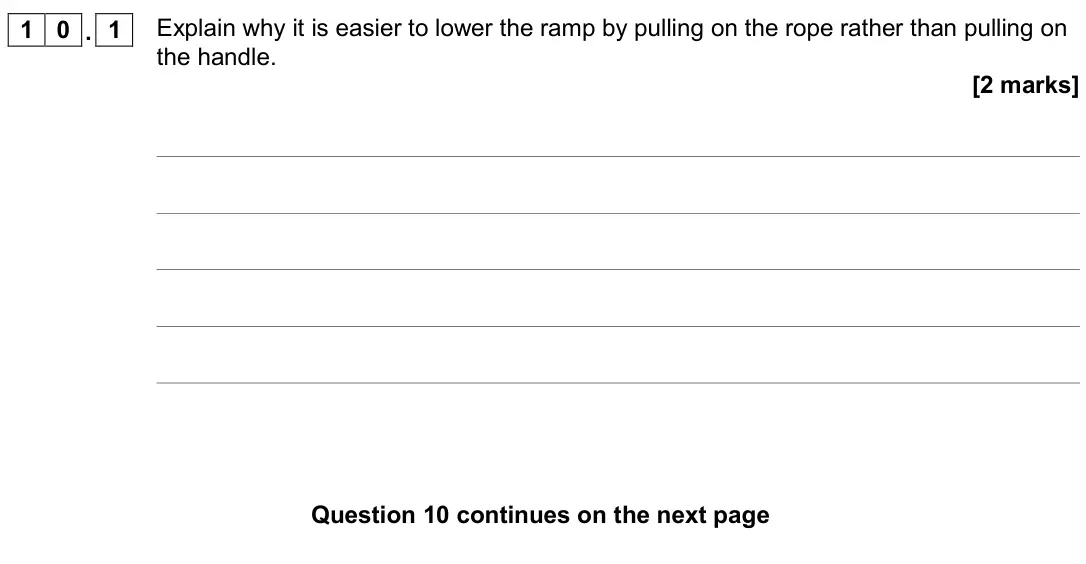

- June 2019, Paper 2 Higher, Q10.1 (2 marks): Explain why it is easier to lower the ramp by pulling on the rope rather than pulling on the handle. [2 marks]

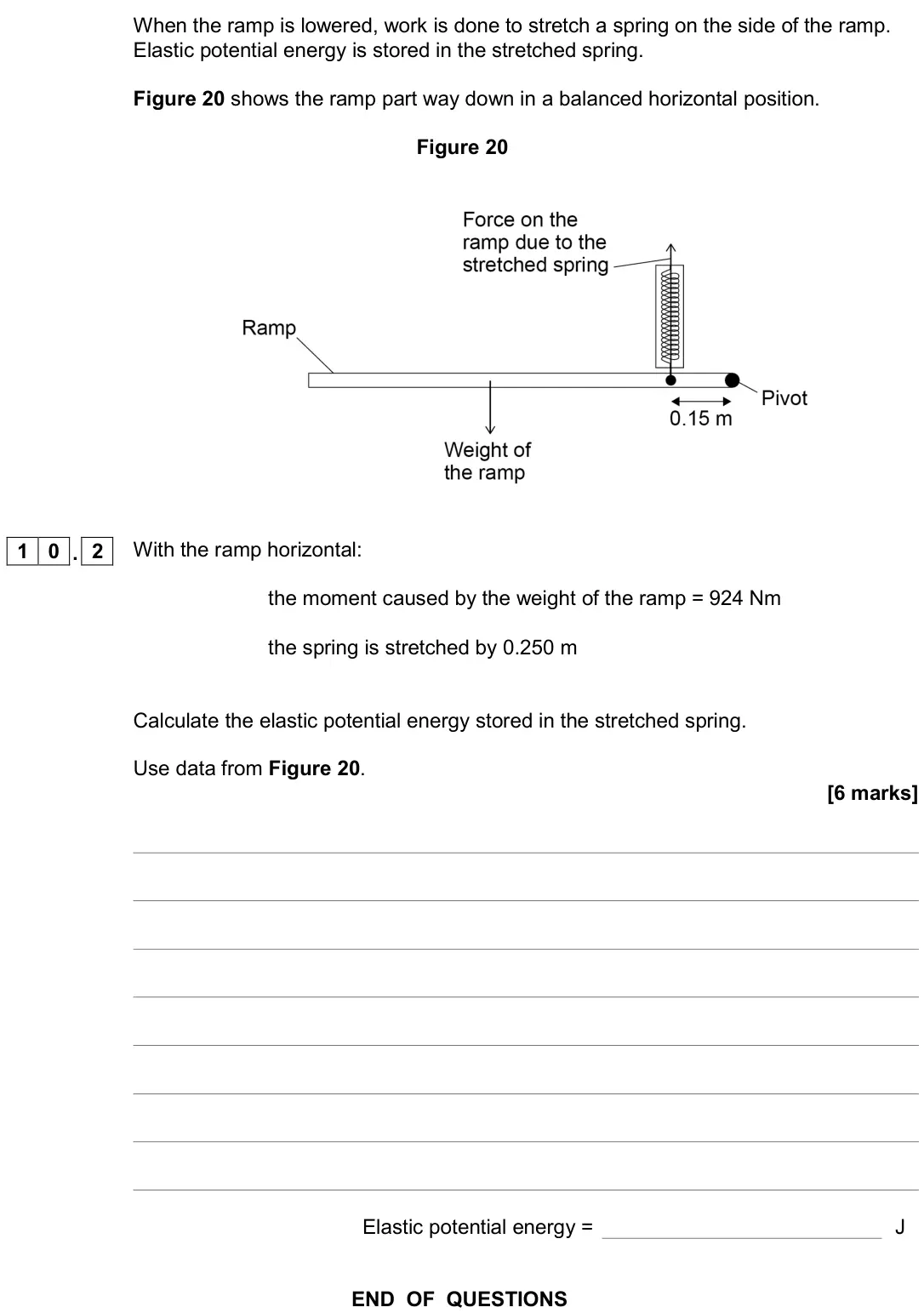

- June 2019, Paper 2 Higher, Q10.2 (6 marks): With the ramp horizontal: the moment caused by the weight of the ramp = 924 Nm the spring is stretched by 0.250 m Calculate the elastic potential energy stored
- June 2019, Paper 2 Foundation, Q07.1 (1 mark): Figure 17 shows four examples of a force causing an object to move. Figure 17 Which object is not likely to rotate? [1 mark] Tick () one box. Bicycle pedal sys

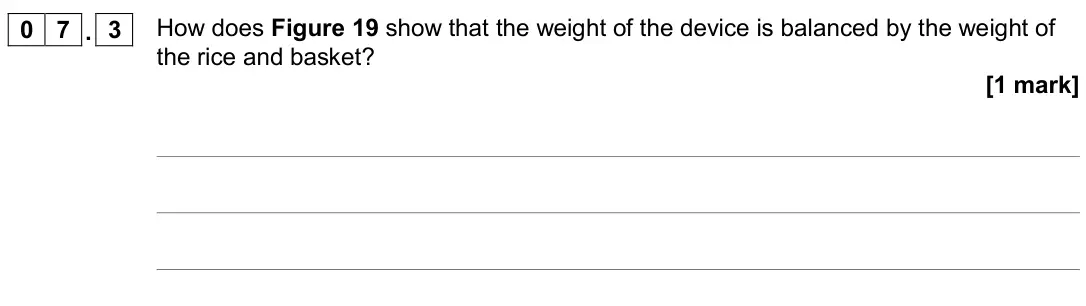

- June 2019, Paper 2 Foundation, Q07.3 (1 mark): How does Figure 19 show that the weight of the device is balanced by the weight of the rice and basket? [1 mark]
- June 2019, Paper 2 Foundation, Q07.4 (1 mark): The basket can hang from different points on the device. Where should the basket hang to measure the largest quantity of rice? [1 mark] Tick () one box. P Q R
- June 2019, Paper 2 Foundation, Q07.5 (1 mark): Write down the equation which links distance, force and moment of a force. [1 mark]
- June 2019, Paper 2 Foundation, Q07.6 (3 marks): In Figure 19, the weight of the device causes an anticlockwise moment of 0.15 Nm about the pivot. The weight of the rice and basket acts 0.06 m from the pivot.
- June 2018, Paper 2 Foundation, Q07.2 (1 mark): The weight of the fork-lift truck and driver cause an anticlockwise moment. What is the minimum size of the anticlockwise moment needed so that the fork-lift tr
- June 2018, Paper 2 Foundation, Q07.3 (1 mark): Write down the equation which links distance, force and moment of a force. [1 mark]
- June 2018, Paper 2 Foundation, Q07.4 (3 marks): Calculate the distance ‘d’ marked on Figure 9. [3 marks] Distance ‘d’ = m
- Specimen, Paper 2 Higher, Q12.3 (6 marks): Figure 20 shows a piece of apparatus called a current balance. Figure 20 When the switch is closed, the part of the wire labelled X experiences a force and move
- Specimen, Paper 2 Foundation, Q08.1 (2 marks): Two children, A and B, are sitting on a see-saw, as shown in Figure 14. The see-saw is balanced. Figure 14 0 8 Use the following equation to calculate the momen
- Specimen, Paper 2 Foundation, Q08.2 (3 marks): Two children, A and B, are sitting on a see-saw, as shown in Figure 14. The see-saw is balanced. Figure 14 0 8 Use the idea of moments to explain what happens w
