Forces and their interactions: AQA GCSE Physics questions

Every AQA GCSE Physics exam question on 4.5.1 Forces and their interactions, 2018–2025, with its mark scheme and examiner’s report.

Find questions1,653
Calculations

1,653 questions

  1. Q05.1

    June 2025 · Paper 2 Higher

    2 marks4.5.1 Forces and their interactions4.5.6 Forces and motion
    The whole paper ↗
    June 2025 Paper 2 Higher, question 05.1: Figure 6 shows an incomplete free-body diagram for the skydiver a few seconds after the start of the jump. Figure 6 The skydiver has not reached terminal veloci

  2. Q05.5

    June 2025 · Paper 2 Higher

    4 marks4.5.1 Forces and their interactions
    The whole paper ↗

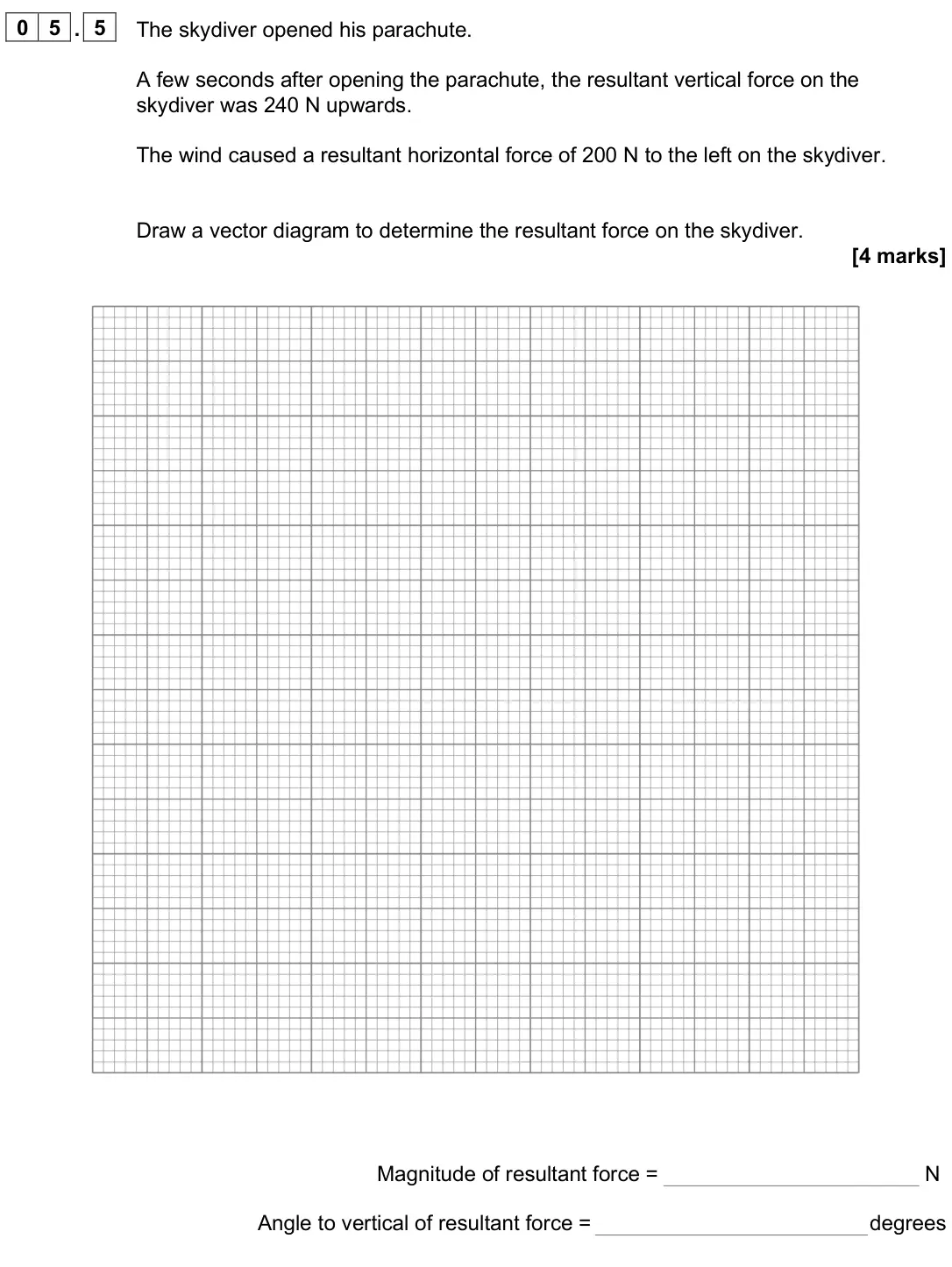

    June 2025 Paper 2 Higher, question 05.5: The skydiver opened his parachute. A few seconds after opening the parachute, the resultant vertical force on the skydiver was 240 N upwards. The wind caused a

  3. Q07.4

    June 2025 · Paper 2 Higher

    2 marks4.5.1 Forces and their interactions4.7.2 The motor effect
    The whole paper ↗
    June 2025 Paper 2 Higher, question 07.4: In Figure 8 the coil of the motor is in a horizontal position. Explain why the resultant moment on the coil is zero when the coil is in a vertical position. [2

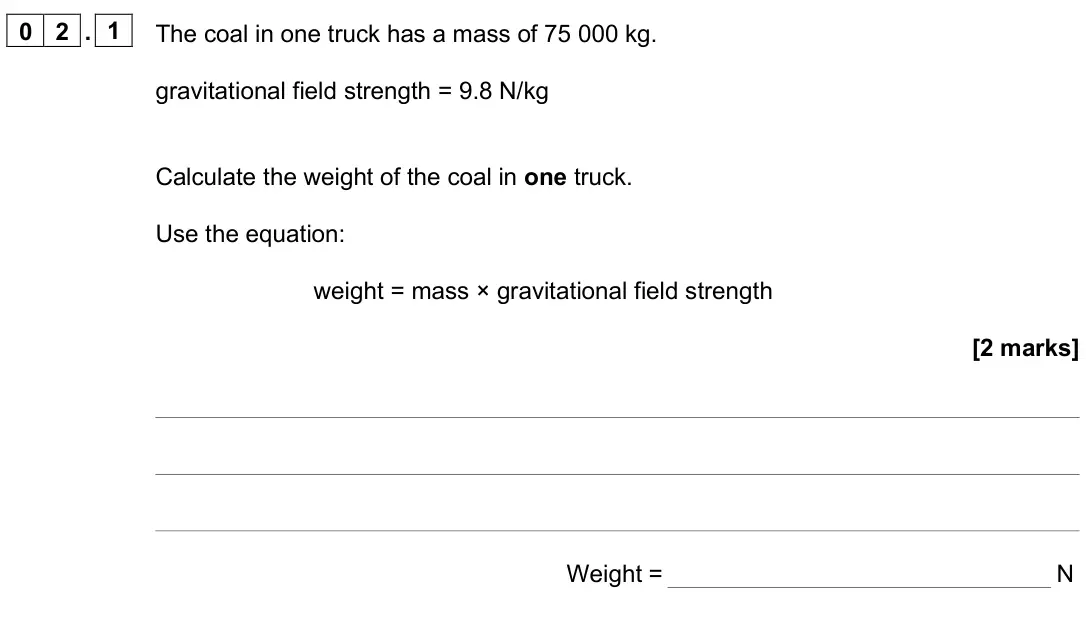

  4. Q02.1

    June 2025 · Paper 2 Foundation

    2 marks4.5.1 Forces and their interactions
    The whole paper ↗
    June 2025 Paper 2 Foundation, question 02.1: The coal in one truck has a mass of 75 000 kg. gravitational field strength = 9.8 N/kg Calculate the weight of the coal in one truck. Use the equation: weight =

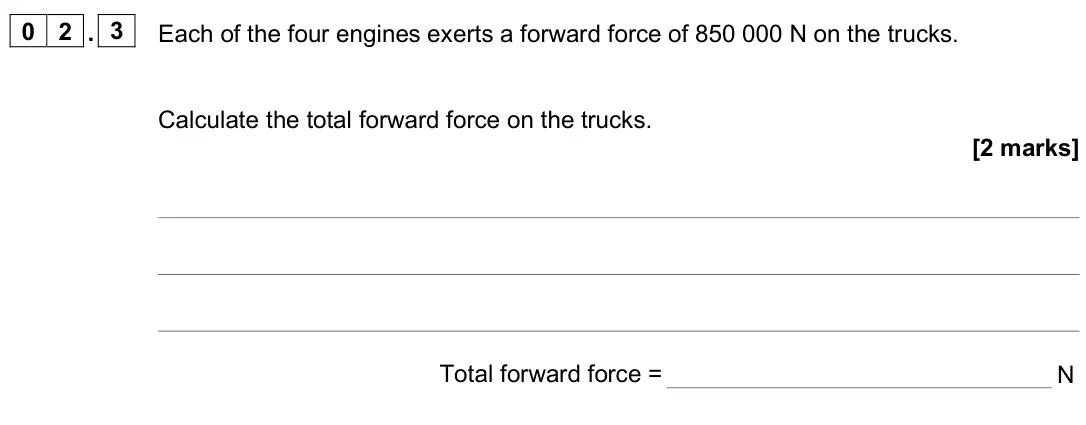

  5. Q02.3

    June 2025 · Paper 2 Foundation

    2 marks4.5.1 Forces and their interactions
    The whole paper ↗
    June 2025 Paper 2 Foundation, question 02.3: Each of the four engines exerts a forward force of 850 000 N on the trucks. Calculate the total forward force on the trucks. [2 marks] Total forward force = N

  6. Q02.4

    June 2025 · Paper 2 Foundation

    1 mark4.5.1 Forces and their interactions
    The whole paper ↗

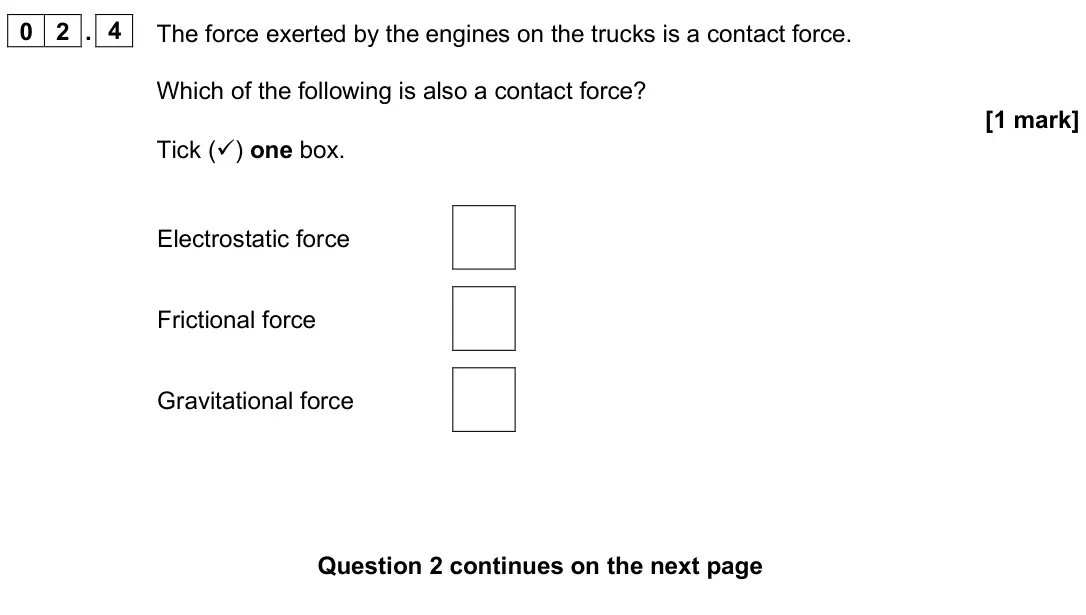

    June 2025 Paper 2 Foundation, question 02.4: The force exerted by the engines on the trucks is a contact force. Which of the following is also a contact force? [1 mark] Tick () one box. Electrostatic forc

  7. Q04.3

    June 2025 · Paper 2 Foundation

    4 marks4.5.1 Forces and their interactions4.5.6 Forces and motion
    The whole paper ↗
    June 2025 Paper 2 Foundation, question 04.3: A car moves at a constant speed on a level road. Figure 4 shows the horizontal forces on the car. Figure 4 The driver makes the car accelerate until the car rea

  8. Q02.4

    June 2024 · Paper 2 Higher

    2 marks4.5.1 Forces and their interactions4.5.6 Forces and motion
    The whole paper ↗

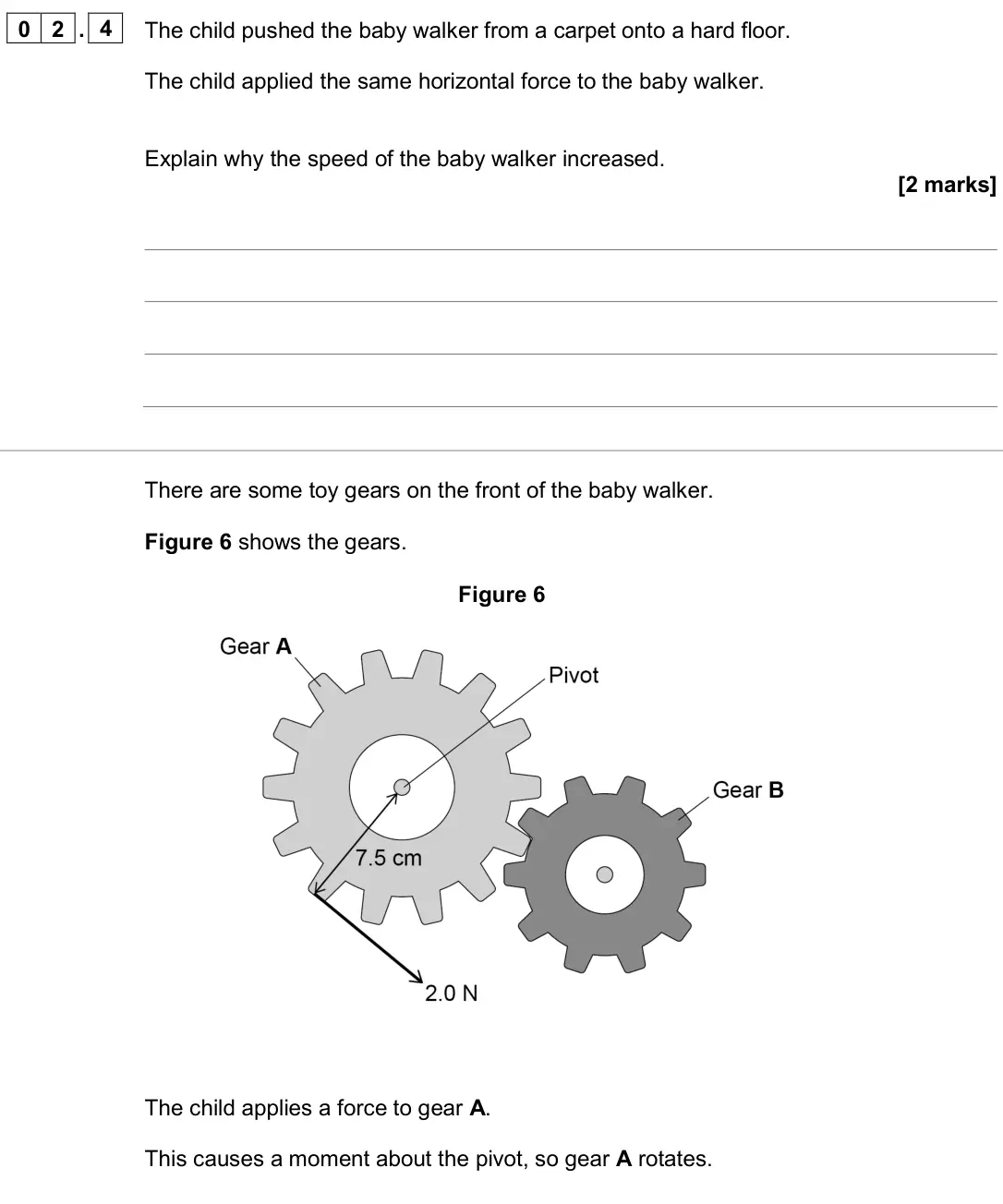

    June 2024 Paper 2 Higher, question 02.4: The child pushed the baby walker from a carpet onto a hard floor. The child applied the same horizontal force to the baby walker. Explain why the speed of the b

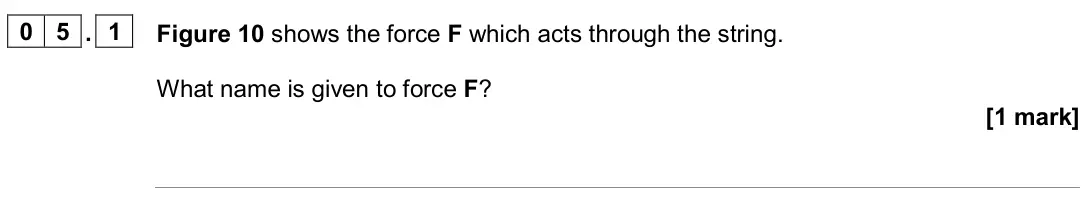

  9. Q05.1

    June 2024 · Paper 2 Higher

    1 mark4.5.1 Forces and their interactions
    The whole paper ↗
    June 2024 Paper 2 Higher, question 05.1: Figure 10 shows the force F which acts through the string. What name is given to force F? [1 mark]

  10. Q07.1

    June 2024 · Paper 2 Foundation

    2 marks4.5.1 Forces and their interactions
    The whole paper ↗

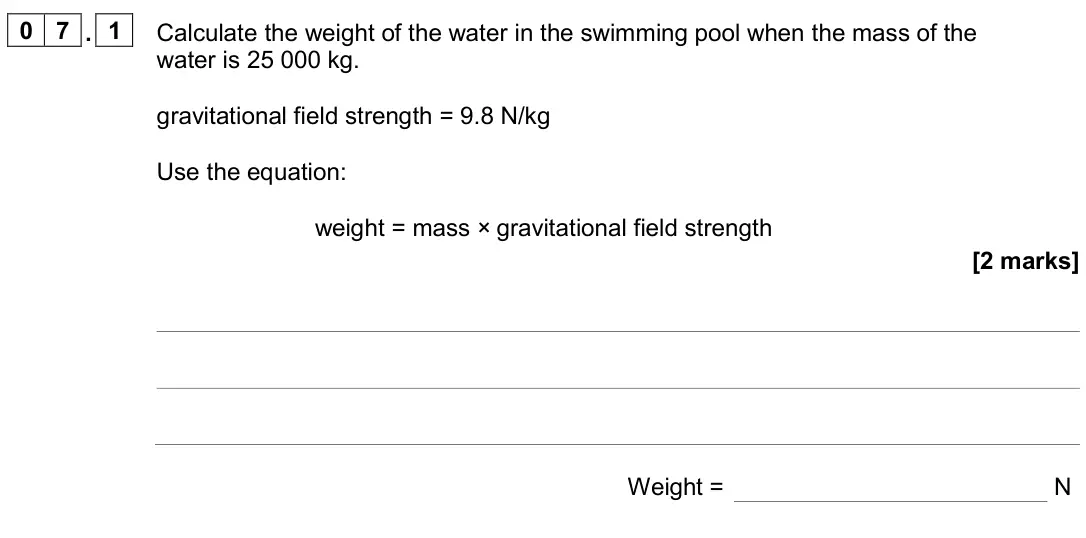

    June 2024 Paper 2 Foundation, question 07.1: Calculate the weight of the water in the swimming pool when the mass of the water is 25 000 kg. gravitational field strength = 9.8 N/kg Use the equation: weight

  11. Q09.4

    June 2024 · Paper 2 Foundation

    2 marks4.5.1 Forces and their interactions4.5.6 Forces and motion
    The whole paper ↗
    June 2024 Paper 2 Foundation, question 09.4: The child pushed the baby walker from a carpet onto a hard floor. The child applied the same horizontal force to the baby walker. Explain why the speed of the b

  12. Q02.2

    June 2023 · Paper 2 Higher

    1 mark4.5.1 Forces and their interactions
    The whole paper ↗
    June 2023 Paper 2 Higher, question 02.2: Determine the magnitude of the resultant horizontal force on the aeroplane. [1 mark] Resultant horizontal force = N

  13. Q02.4

    June 2023 · Paper 2 Higher

    1 mark4.5.1 Forces and their interactions
    The whole paper ↗
    June 2023 Paper 2 Higher, question 02.4: Air resistance and friction are contact forces. Give one other example of a contact force. [1 mark]

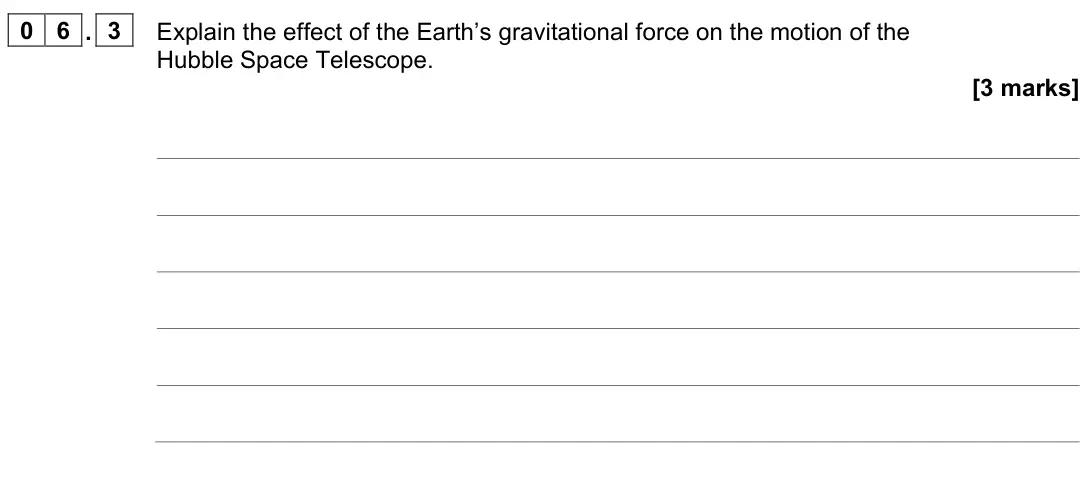

  14. Q06.3

    June 2023 · Paper 2 Higher

    3 marks4.5.1 Forces and their interactions4.5.6 Forces and motion
    The whole paper ↗
    June 2023 Paper 2 Higher, question 06.3: Explain the effect of the Earth’s gravitational force on the motion of the Hubble Space Telescope. [3 marks]

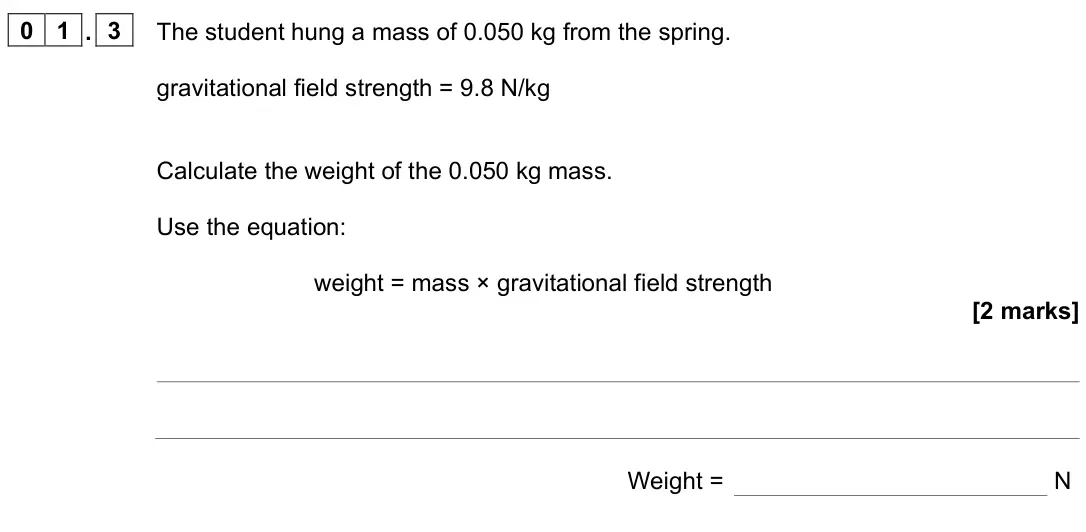

  15. Q01.3

    June 2023 · Paper 2 Foundation

    2 marks4.5.1 Forces and their interactions
    The whole paper ↗
    June 2023 Paper 2 Foundation, question 01.3: The student hung a mass of 0.050 kg from the spring. gravitational field strength = 9.8 N/kg Calculate the weight of the 0.050 kg mass. Use the equation: weight

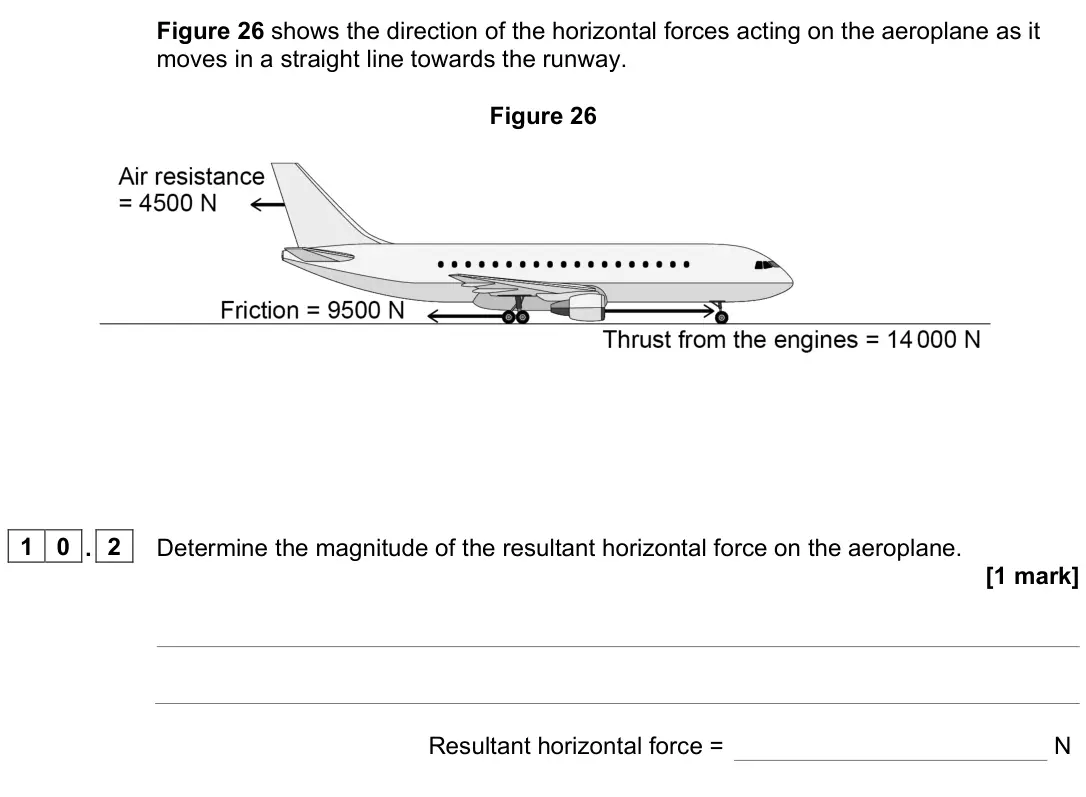

  16. Q10.2

    June 2023 · Paper 2 Foundation

    1 mark4.5.1 Forces and their interactions
    The whole paper ↗
    June 2023 Paper 2 Foundation, question 10.2: Determine the magnitude of the resultant horizontal force on the aeroplane. [1 mark] Resultant horizontal force = N

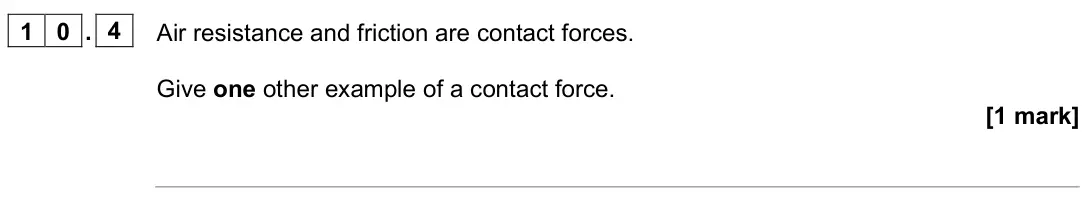

  17. Q10.4

    June 2023 · Paper 2 Foundation

    1 mark4.5.1 Forces and their interactions
    The whole paper ↗
    June 2023 Paper 2 Foundation, question 10.4: Air resistance and friction are contact forces. Give one other example of a contact force. [1 mark]

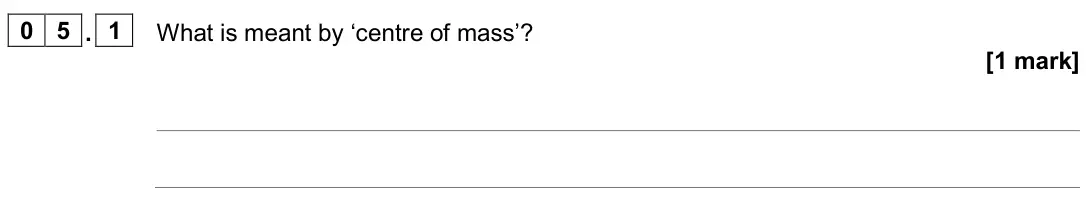

  18. Q05.1

    June 2022 · Paper 2 Higher

    1 mark4.5.1 Forces and their interactions
    The whole paper ↗
    June 2022 Paper 2 Higher, question 05.1: What is meant by ‘centre of mass’? [1 mark]

  19. Q05.2

    June 2022 · Paper 2 Higher

    3 marks4.5.1 Forces and their interactions
    The whole paper ↗

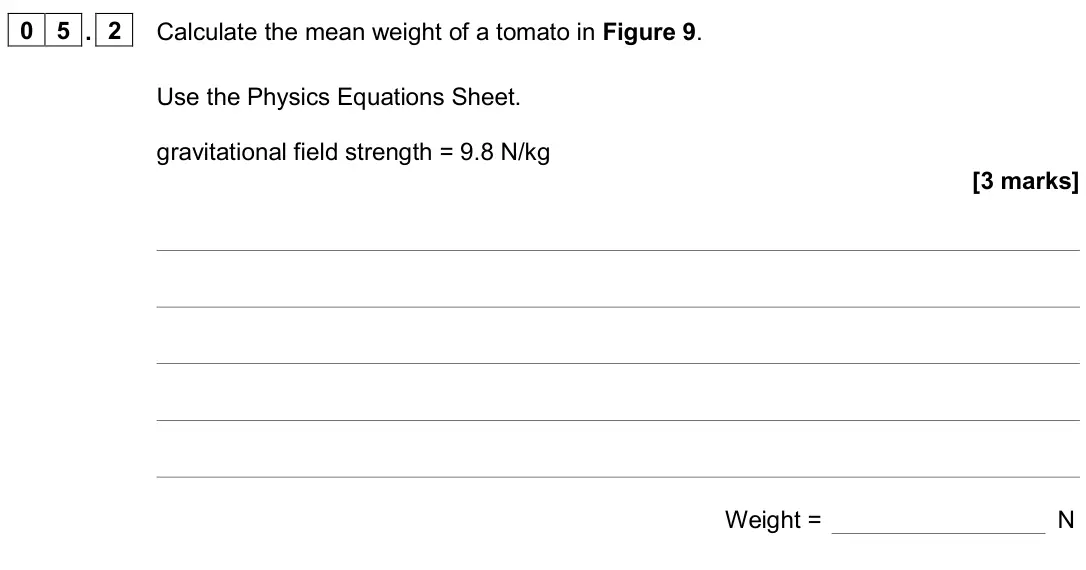

    June 2022 Paper 2 Higher, question 05.2: Calculate the mean weight of a tomato in Figure 9. Use the Physics Equations Sheet. gravitational field strength = 9.8 N/kg [3 marks] Weight = N

  20. Q08.1

    June 2022 · Paper 2 Higher

    3 marks4.5.1 Forces and their interactions4.5.5 Pressure and pressure differences in fluids
    The whole paper ↗
    June 2022 Paper 2 Higher, question 08.1: Explain why the forces on the brick at the bottom of the pool cause the brick to be stationary. [3 marks]
All 47 questions on Forces and their interactions, as a list
  1. June 2025, Paper 2 Higher, Q05.1 (2 marks): Figure 6 shows an incomplete free-body diagram for the skydiver a few seconds after the start of the jump. Figure 6 The skydiver has not reached terminal veloci
  2. June 2025, Paper 2 Higher, Q05.5 (4 marks): The skydiver opened his parachute. A few seconds after opening the parachute, the resultant vertical force on the skydiver was 240 N upwards. The wind caused a
  3. June 2025, Paper 2 Higher, Q07.4 (2 marks): In Figure 8 the coil of the motor is in a horizontal position. Explain why the resultant moment on the coil is zero when the coil is in a vertical position. [2
  4. June 2025, Paper 2 Foundation, Q02.1 (2 marks): The coal in one truck has a mass of 75 000 kg. gravitational field strength = 9.8 N/kg Calculate the weight of the coal in one truck. Use the equation: weight =
  5. June 2025, Paper 2 Foundation, Q02.3 (2 marks): Each of the four engines exerts a forward force of 850 000 N on the trucks. Calculate the total forward force on the trucks. [2 marks] Total forward force = N
  6. June 2025, Paper 2 Foundation, Q02.4 (1 mark): The force exerted by the engines on the trucks is a contact force. Which of the following is also a contact force? [1 mark] Tick () one box. Electrostatic forc
  7. June 2025, Paper 2 Foundation, Q04.3 (4 marks): A car moves at a constant speed on a level road. Figure 4 shows the horizontal forces on the car. Figure 4 The driver makes the car accelerate until the car rea
  8. June 2024, Paper 2 Higher, Q02.4 (2 marks): The child pushed the baby walker from a carpet onto a hard floor. The child applied the same horizontal force to the baby walker. Explain why the speed of the b
  9. June 2024, Paper 2 Higher, Q05.1 (1 mark): Figure 10 shows the force F which acts through the string. What name is given to force F? [1 mark]
  10. June 2024, Paper 2 Foundation, Q07.1 (2 marks): Calculate the weight of the water in the swimming pool when the mass of the water is 25 000 kg. gravitational field strength = 9.8 N/kg Use the equation: weight
  11. June 2024, Paper 2 Foundation, Q09.4 (2 marks): The child pushed the baby walker from a carpet onto a hard floor. The child applied the same horizontal force to the baby walker. Explain why the speed of the b
  12. June 2023, Paper 2 Higher, Q02.2 (1 mark): Determine the magnitude of the resultant horizontal force on the aeroplane. [1 mark] Resultant horizontal force = N
  13. June 2023, Paper 2 Higher, Q02.4 (1 mark): Air resistance and friction are contact forces. Give one other example of a contact force. [1 mark]
  14. June 2023, Paper 2 Higher, Q06.3 (3 marks): Explain the effect of the Earth’s gravitational force on the motion of the Hubble Space Telescope. [3 marks]
  15. June 2023, Paper 2 Foundation, Q01.3 (2 marks): The student hung a mass of 0.050 kg from the spring. gravitational field strength = 9.8 N/kg Calculate the weight of the 0.050 kg mass. Use the equation: weight
  16. June 2023, Paper 2 Foundation, Q10.2 (1 mark): Determine the magnitude of the resultant horizontal force on the aeroplane. [1 mark] Resultant horizontal force = N
  17. June 2023, Paper 2 Foundation, Q10.4 (1 mark): Air resistance and friction are contact forces. Give one other example of a contact force. [1 mark]
  18. June 2022, Paper 2 Higher, Q05.1 (1 mark): What is meant by ‘centre of mass’? [1 mark]
  19. June 2022, Paper 2 Higher, Q05.2 (3 marks): Calculate the mean weight of a tomato in Figure 9. Use the Physics Equations Sheet. gravitational field strength = 9.8 N/kg [3 marks] Weight = N
  20. June 2022, Paper 2 Higher, Q08.1 (3 marks): Explain why the forces on the brick at the bottom of the pool cause the brick to be stationary. [3 marks]
  21. June 2022, Paper 2 Foundation, Q02.6 (1 mark): What is the magnitude of the resultant force on the hailstone in Figure 5? [1 mark] Tick () one box. 0.15 N 0.48 N 0.63 N 0.78 N
  22. June 2022, Paper 2 Foundation, Q02.7 (1 mark): What is the direction of the resultant force on the hailstone in Figure 5? [1 mark]
  23. June 2022, Paper 2 Foundation, Q04.1 (1 mark): What name is given to point X in Figure 6? [1 mark] Tick () one box. Centre of force Centre of mass Centre of balance Centre of weight
  24. June 2022, Paper 2 Foundation, Q04.2 (1 mark): Weight and mass are not the same. The relationship between weight and mass for an object can be written as: weight ∝mass Which sentence describes the relationsh
  25. June 2022, Paper 2 Foundation, Q04.3 (2 marks): All 5 of the oranges have the same mass. Determine the mass of 1 orange. [2 marks] Mass = kg
  26. June 2022, Paper 2 Foundation, Q04.4 (2 marks): Calculate the weight of 1 orange. gravitational field strength = 9.8 N/kg Use the equation: weight = mass × gravitational field strength [2 marks] Weight = N
  27. November 2021, Paper 2 Higher, Q07.1 (1 mark): What name is given to force A? [1 mark]
  28. November 2021, Paper 2 Higher, Q07.5 (4 marks): The resultant force of the towbar on the trailer has a horizontal component and a vertical component. horizontal force = 200 N vertical force = 75 N Determine t
  29. November 2021, Paper 2 Foundation, Q02.1 (1 mark): What is force A? [1 mark] Tick () one box. Air resistance Friction Tension Upthrust
  30. November 2021, Paper 2 Foundation, Q02.2 (1 mark): What is force B? [1 mark] Tick () one box. Air resistance Magnetic Tension Upthrust
  31. November 2021, Paper 2 Foundation, Q06.1 (2 marks): A 2.5 kg mass would have a weight of 750 N at the surface of the Sun. Calculate the gravitational field strength at the surface of the Sun. Use the equation: gr
  32. November 2021, Paper 2 Foundation, Q06.2 (1 mark): Gravity is a non-contact force. Which of the following is also a non-contact force? [1 mark] Tick () one box. Air resistance Electrostatic Friction Tension
  33. November 2020, Paper 2 Foundation, Q01.7 (2 marks): The mass of a piece of modelling clay was 0.050 kg. gravitational field strength = 9.8 N/kg Calculate the weight of the piece of modelling clay. Use the equatio
  34. November 2020, Paper 2 Foundation, Q01.8 (2 marks): Weight causes the modelling clay to fall through the oil. Weight is a non-contact force. Which of the following are also non-contact forces? [2 marks] Tick ()
  35. June 2019, Paper 2 Higher, Q08.1 (2 marks): Figure 16 shows part of the free body diagram for the skydiver three seconds after jumping. Complete the free body diagram for the skydiver. [2 marks] Figure 16
  36. June 2019, Paper 2 Foundation, Q07.2 (1 mark): The weight of the device acts through the point labelled X. What is point X called? [1 mark] Tick () one box. Centre of balance Centre of mass Centre of weight
  37. June 2019, Paper 2 Foundation, Q07.7 (1 mark): Write down the equation which links gravitational field strength, mass and weight. [1 mark]
  38. June 2019, Paper 2 Foundation, Q07.8 (3 marks): The basket has a mass of 0.04 kg gravitational field strength = 9.8 N/kg Calculate the mass of rice in the basket. [3 marks] Mass = kg
  39. June 2018, Paper 2 Higher, Q06.1 (2 marks): Figure 9 shows part of the free body diagram for the boat. Complete the free body diagram for the boat. [2 marks] Figure 9
  40. June 2018, Paper 2 Higher, Q06.2 (4 marks): Calculate the mass of the boat. Use the information given in Figure 9. gravitational field strength = 9.8 N/kg Give your answer to two significant figures. [4 m
  41. June 2018, Paper 2 Higher, Q06.4 (4 marks): Figure 10 shows the boat towing a small dinghy. Figure 10 The tension force in the tow rope causes a horizontal force forwards and a vertical force upwards on t
  42. June 2018, Paper 2 Foundation, Q06.2 (2 marks): The lifebuoy has a mass of 2.5 kg. gravitational field strength = 9.8 N/kg Calculate the weight of the lifebuoy. Use the equation: weight = mass × gravitational
  43. Specimen, Paper 2 Higher, Q09.5 (2 marks): The stopping distance of a car is the sum of the thinking distance and the braking distance. Table 4 shows how the thinking distance and braking distance vary w
  44. Specimen, Paper 2 Foundation, Q07.1: Figure 11 shows a skier using a drag lift. The drag lift pulls the skier from the bottom to the top of a ski slope. The arrows, A, B, C and D represent the forc
  45. Specimen, Paper 2 Foundation, Q07.2: Figure 11 shows a skier using a drag lift. The drag lift pulls the skier from the bottom to the top of a ski slope. The arrows, A, B, C and D represent the forc
  46. Specimen, Paper 2 Foundation, Q09.3 (1 mark): Figure 15 shows the forces acting on a child who is balancing on a pogo stick. The child and pogo stick are not moving. Figure 15 0 9 The child has a weight of
  47. Specimen, Paper 2 Foundation, Q09.4 (3 marks): Figure 15 shows the forces acting on a child who is balancing on a pogo stick. The child and pogo stick are not moving. Figure 15 0 9 Calculate the mass of the
