Structure and bonding of carbon: AQA GCSE Combined Science questions

Every AQA GCSE Combined Science exam question on 5.2.3 Structure and bonding of carbon, 2018–2025, with its mark scheme and examiner’s report.

Find questions3,069
Calculations

3,069 questions

  1. Q02.5

    June 2025 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

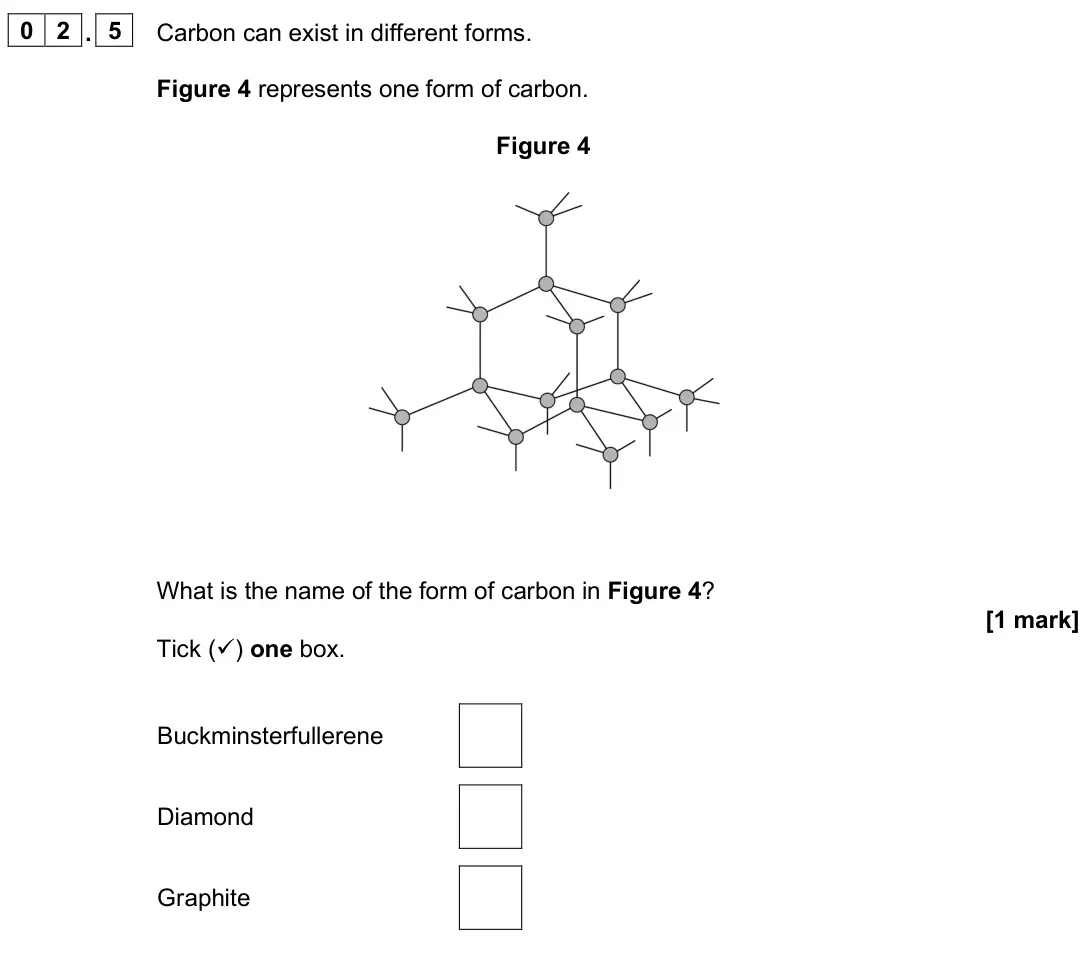

    June 2025 Chemistry Paper 1 Foundation, question 02.5: Carbon can exist in different forms. Figure 4 represents one form of carbon. Figure 4 What is the name of the form of carbon in Figure 4? [1 mark] Tick () one

  2. Q08.1

    June 2024 · Chemistry Paper 1 Higher

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

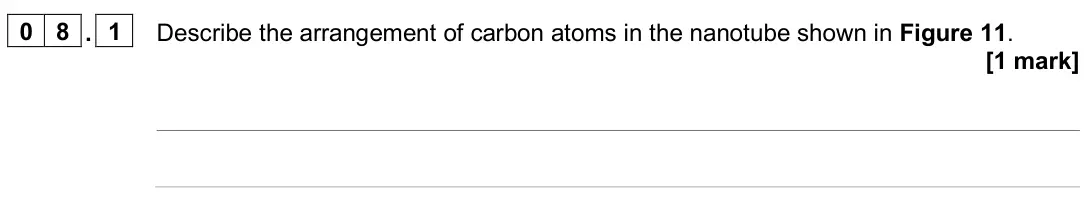

    June 2024 Chemistry Paper 1 Higher, question 08.1: Describe the arrangement of carbon atoms in the nanotube shown in Figure 11. [1 mark]

  3. Q08.2

    June 2024 · Chemistry Paper 1 Higher

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

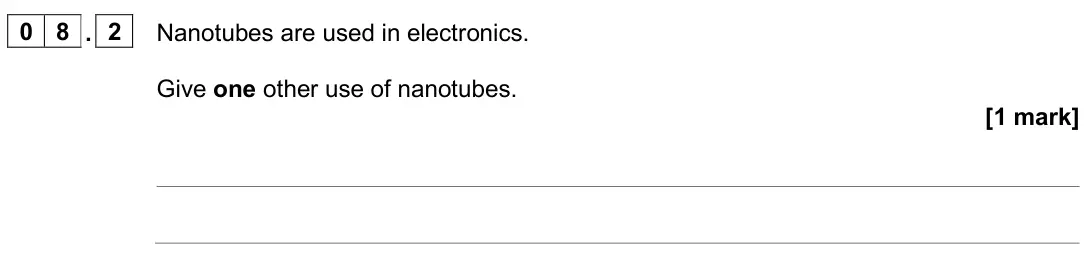

    June 2024 Chemistry Paper 1 Higher, question 08.2: Nanotubes are used in electronics. Give one other use of nanotubes. [1 mark]

  4. Q08.3

    June 2024 · Chemistry Paper 1 Higher

    2 marks5.2.3 Structure and bonding of carbon5.3.2 Use of amount of substance in relation to masses of pure substances
    The whole paper ↗
    June 2024 Chemistry Paper 1 Higher, question 08.3: A nanotube contains 2380 carbon atoms. Calculate the number of moles of carbon in this nanotube. The Avogadro constant is 6.02 × 1023 per mole. [2 marks] Number

  5. Q08.4

    June 2024 · Chemistry Paper 1 Higher

    3 marks5.2.3 Structure and bonding of carbon
    The whole paper ↗

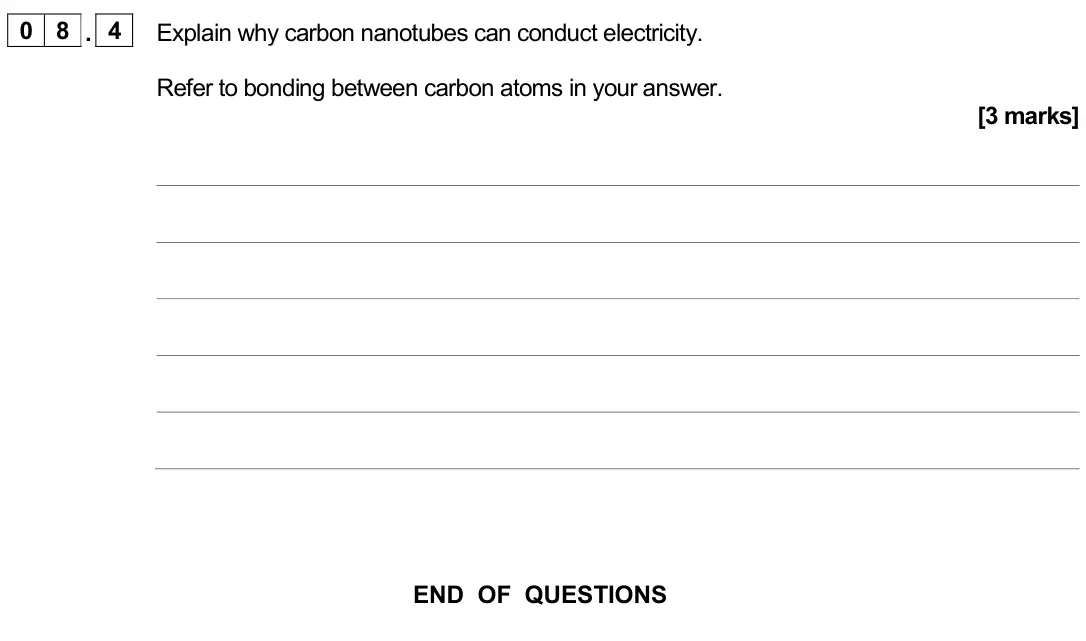

    June 2024 Chemistry Paper 1 Higher, question 08.4: Explain why carbon nanotubes can conduct electricity. Refer to bonding between carbon atoms in your answer. [3 marks]

  6. Q02.3

    June 2024 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon
    Mark scheme (PDF)
    The whole paper ↗

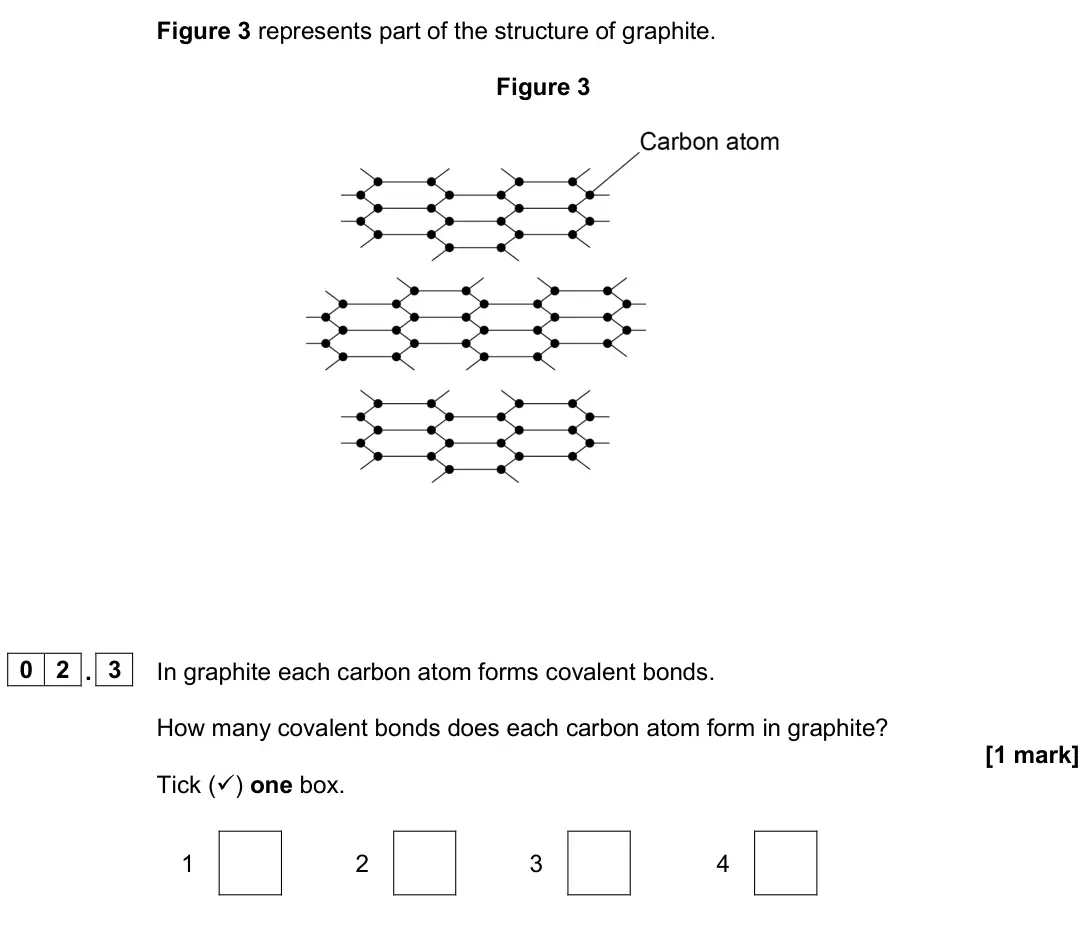

    June 2024 Chemistry Paper 1 Foundation, question 02.3: In graphite each carbon atom forms covalent bonds. How many covalent bonds does each carbon atom form in graphite? [1 mark] Tick () one box. 1 2 3 4

  7. Q02.4

    June 2024 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

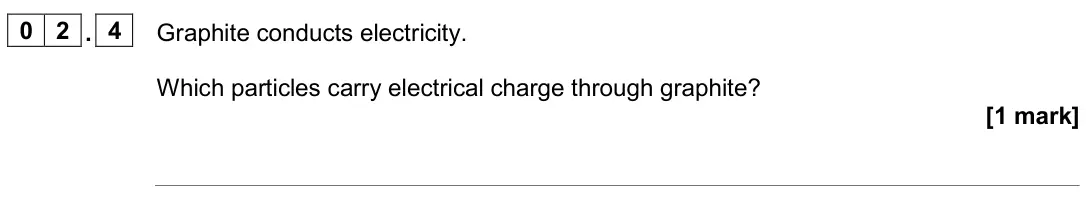

    June 2024 Chemistry Paper 1 Foundation, question 02.4: Graphite conducts electricity. Which particles carry electrical charge through graphite? [1 mark]

  8. Q02.5

    June 2024 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

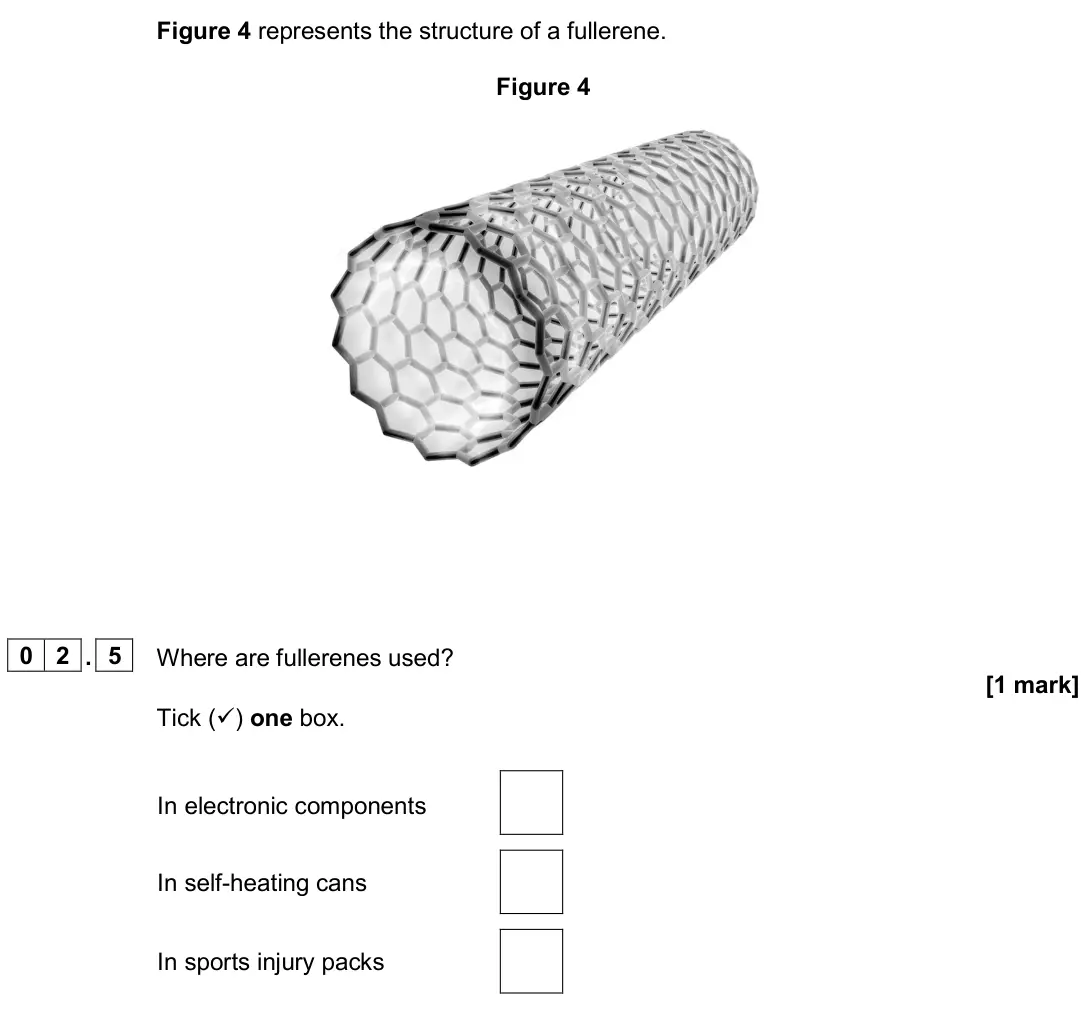

    June 2024 Chemistry Paper 1 Foundation, question 02.5: Where are fullerenes used? [1 mark] Tick () one box. In electronic components In self-heating cans In sports injury packs

  9. Q02.6

    June 2024 · Chemistry Paper 1 Foundation

    2 marks5.2.3 Structure and bonding of carbon
    The whole paper ↗

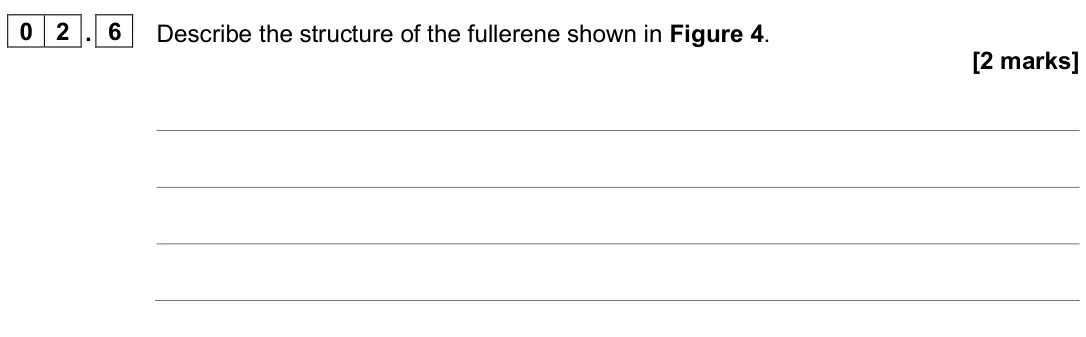

    June 2024 Chemistry Paper 1 Foundation, question 02.6: Describe the structure of the fullerene shown in Figure 4. [2 marks]

  10. Q07.1

    June 2023 · Chemistry Paper 1 Higher

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

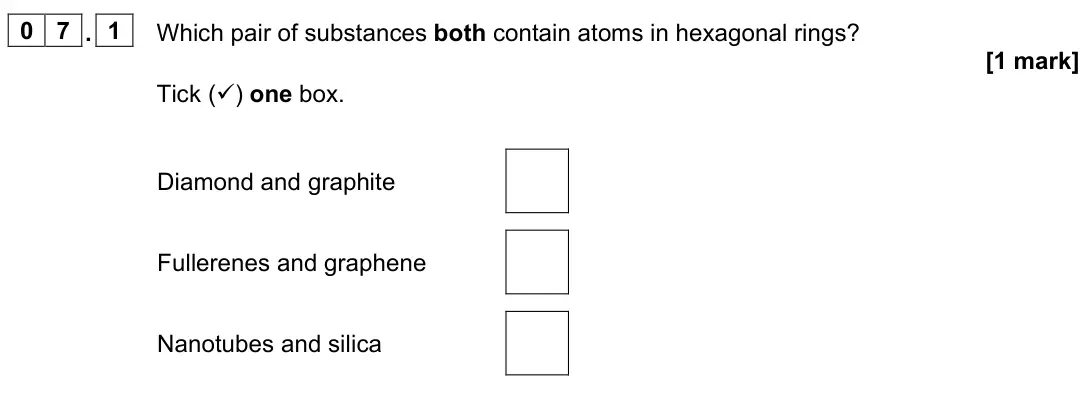

    June 2023 Chemistry Paper 1 Higher, question 07.1: Which pair of substances both contain atoms in hexagonal rings? [1 mark] Tick () one box. Diamond and graphite Fullerenes and graphene Nanotubes and silica

  11. Q05.1

    June 2022 · Chemistry Paper 1 Higher

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

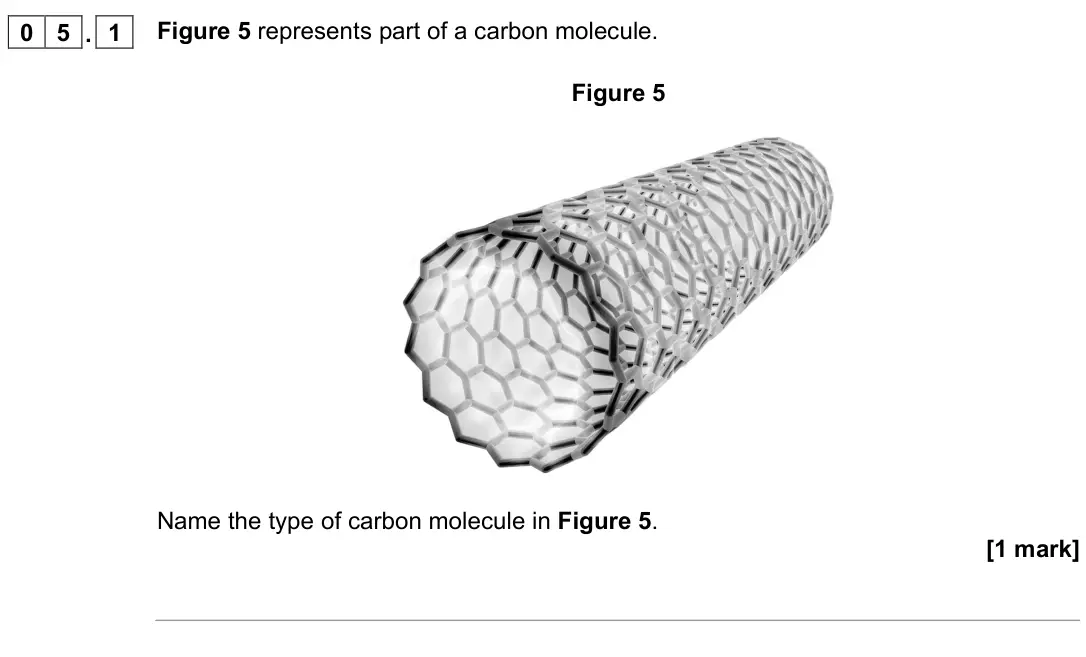

    June 2022 Chemistry Paper 1 Higher, question 05.1: Figure 5 represents part of a carbon molecule. Figure 5 Name the type of carbon molecule in Figure 5. [1 mark]

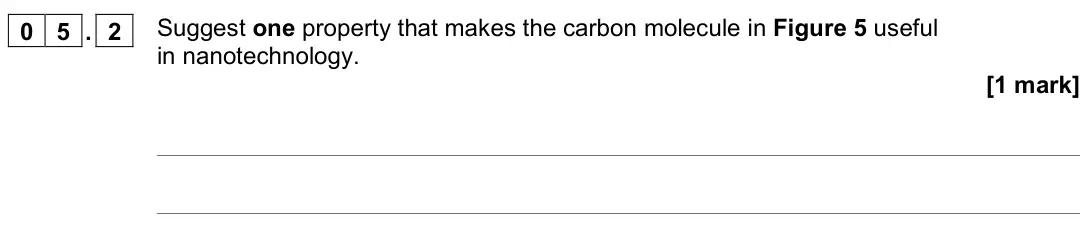

  12. Q05.2

    June 2022 · Chemistry Paper 1 Higher

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗
    June 2022 Chemistry Paper 1 Higher, question 05.2: Suggest one property that makes the carbon molecule in Figure 5 useful in nanotechnology. [1 mark]

  13. Q03.1

    June 2022 · Chemistry Paper 1 Foundation

    1 mark5.2.2 How bonding and structure are related to the properties of substances5.2.3 Structure and bonding of carbon
    The whole paper ↗

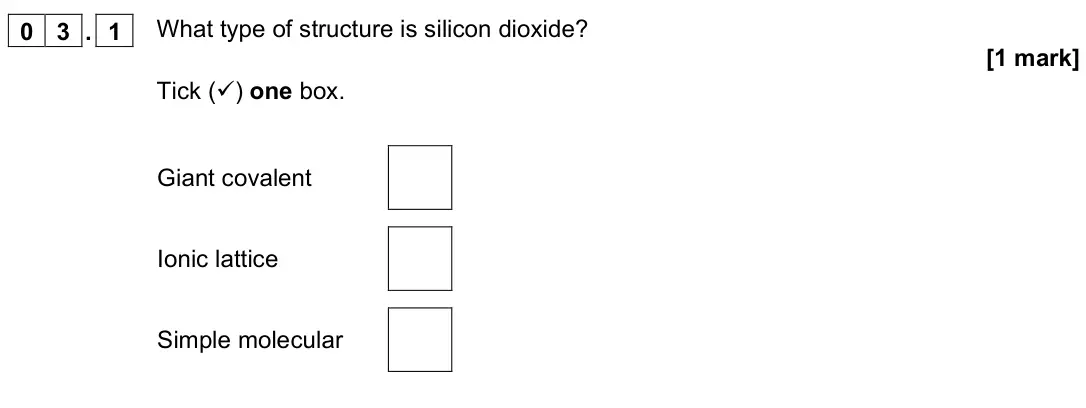

    June 2022 Chemistry Paper 1 Foundation, question 03.1: What type of structure is silicon dioxide? [1 mark] Tick () one box. Giant covalent Ionic lattice Simple molecular

  14. Q03.2

    June 2022 · Chemistry Paper 1 Foundation

    1 mark5.2.2 How bonding and structure are related to the properties of substances5.2.3 Structure and bonding of carbon
    The whole paper ↗

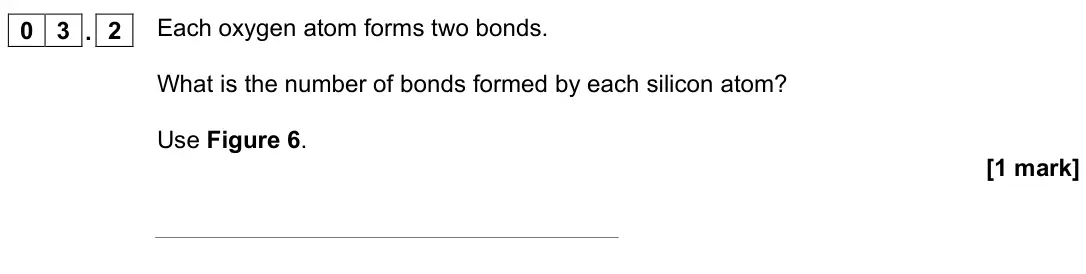

    June 2022 Chemistry Paper 1 Foundation, question 03.2: Each oxygen atom forms two bonds. What is the number of bonds formed by each silicon atom? Use Figure 6. [1 mark]

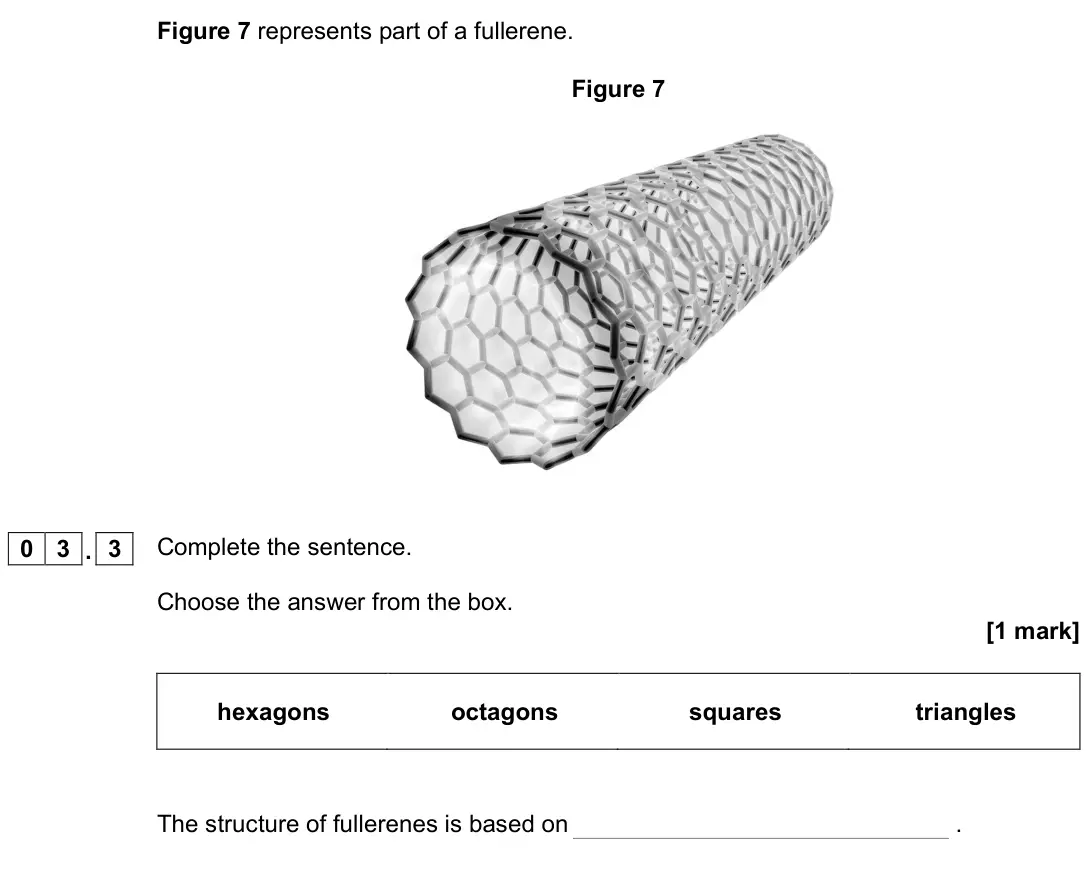

  15. Q03.3

    June 2022 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗
    June 2022 Chemistry Paper 1 Foundation, question 03.3: Complete the sentence. Choose the answer from the box. [1 mark] hexagons octagons squares triangles The structure of fullerenes is based on .

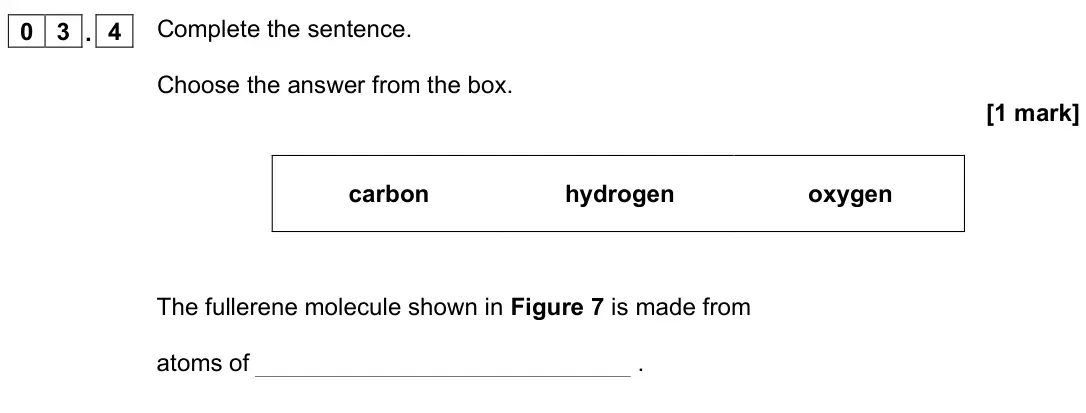

  16. Q03.4

    June 2022 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗
    June 2022 Chemistry Paper 1 Foundation, question 03.4: Complete the sentence. Choose the answer from the box. [1 mark] carbon hydrogen oxygen The fullerene molecule shown in Figure 7 is made from atoms of .

  17. Q03.5

    June 2022 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

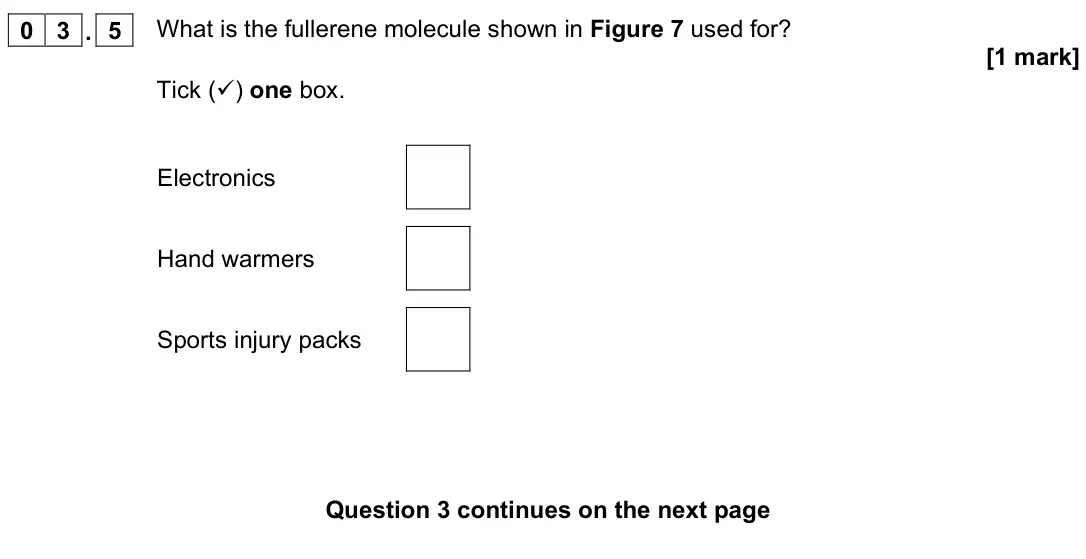

    June 2022 Chemistry Paper 1 Foundation, question 03.5: What is the fullerene molecule shown in Figure 7 used for? [1 mark] Tick () one box. Electronics Hand warmers Sports injury packs

  18. Q04.1

    November 2021 · Chemistry Paper 1 Higher

    1 mark5.2.3 Structure and bonding of carbon
    The whole paper ↗

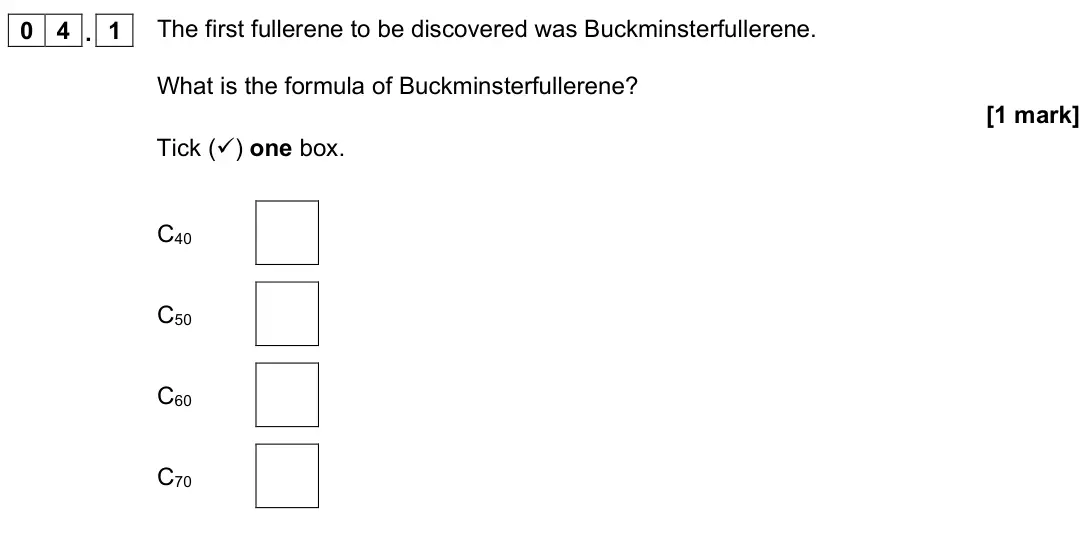

    November 2021 Chemistry Paper 1 Higher, question 04.1: The first fullerene to be discovered was Buckminsterfullerene. What is the formula of Buckminsterfullerene? [1 mark] Tick () one box. C40 C50 C60 C70

  19. Q04.2

    November 2021 · Chemistry Paper 1 Higher

    2 marks5.2.3 Structure and bonding of carbon
    The whole paper ↗

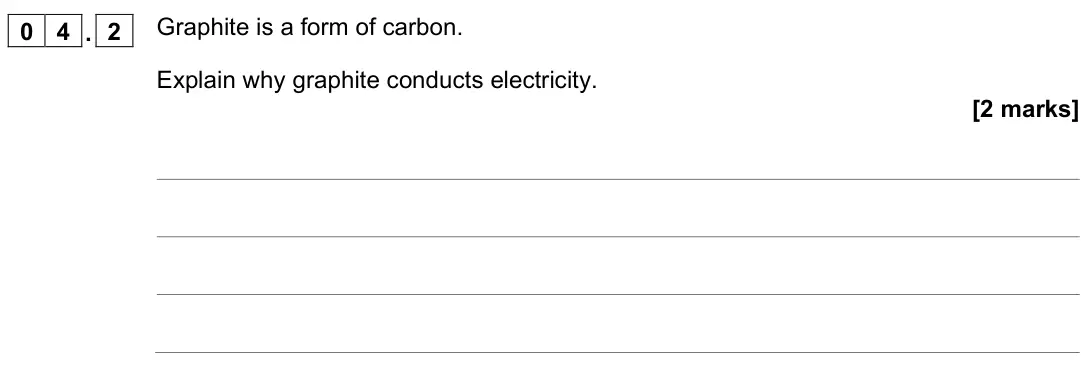

    November 2021 Chemistry Paper 1 Higher, question 04.2: Graphite is a form of carbon. Explain why graphite conducts electricity. [2 marks]

  20. Q02.1

    November 2021 · Chemistry Paper 1 Foundation

    1 mark5.2.3 Structure and bonding of carbon5.4.3 Electrolysis
    The whole paper ↗

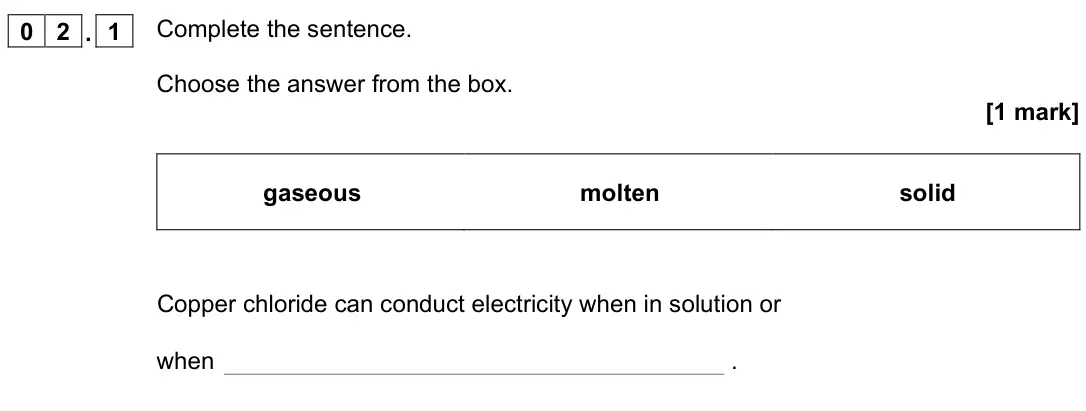

    November 2021 Chemistry Paper 1 Foundation, question 02.1: Complete the sentence. Choose the answer from the box. [1 mark] gaseous molten solid Copper chloride can conduct electricity when in solution or when .
All 34 questions on Structure and bonding of carbon, as a list
  1. June 2025, Chemistry Paper 1 Foundation, Q02.5 (1 mark): Carbon can exist in different forms. Figure 4 represents one form of carbon. Figure 4 What is the name of the form of carbon in Figure 4? [1 mark] Tick () one
  2. June 2024, Chemistry Paper 1 Higher, Q08.1 (1 mark): Describe the arrangement of carbon atoms in the nanotube shown in Figure 11. [1 mark]
  3. June 2024, Chemistry Paper 1 Higher, Q08.2 (1 mark): Nanotubes are used in electronics. Give one other use of nanotubes. [1 mark]
  4. June 2024, Chemistry Paper 1 Higher, Q08.3 (2 marks): A nanotube contains 2380 carbon atoms. Calculate the number of moles of carbon in this nanotube. The Avogadro constant is 6.02 × 1023 per mole. [2 marks] Number
  5. June 2024, Chemistry Paper 1 Higher, Q08.4 (3 marks): Explain why carbon nanotubes can conduct electricity. Refer to bonding between carbon atoms in your answer. [3 marks]
  6. June 2024, Chemistry Paper 1 Foundation, Q02.3 (1 mark): In graphite each carbon atom forms covalent bonds. How many covalent bonds does each carbon atom form in graphite? [1 mark] Tick () one box. 1 2 3 4
  7. June 2024, Chemistry Paper 1 Foundation, Q02.4 (1 mark): Graphite conducts electricity. Which particles carry electrical charge through graphite? [1 mark]
  8. June 2024, Chemistry Paper 1 Foundation, Q02.5 (1 mark): Where are fullerenes used? [1 mark] Tick () one box. In electronic components In self-heating cans In sports injury packs
  9. June 2024, Chemistry Paper 1 Foundation, Q02.6 (2 marks): Describe the structure of the fullerene shown in Figure 4. [2 marks]
  10. June 2023, Chemistry Paper 1 Higher, Q07.1 (1 mark): Which pair of substances both contain atoms in hexagonal rings? [1 mark] Tick () one box. Diamond and graphite Fullerenes and graphene Nanotubes and silica
  11. June 2022, Chemistry Paper 1 Higher, Q05.1 (1 mark): Figure 5 represents part of a carbon molecule. Figure 5 Name the type of carbon molecule in Figure 5. [1 mark]
  12. June 2022, Chemistry Paper 1 Higher, Q05.2 (1 mark): Suggest one property that makes the carbon molecule in Figure 5 useful in nanotechnology. [1 mark]
  13. June 2022, Chemistry Paper 1 Foundation, Q03.1 (1 mark): What type of structure is silicon dioxide? [1 mark] Tick () one box. Giant covalent Ionic lattice Simple molecular
  14. June 2022, Chemistry Paper 1 Foundation, Q03.2 (1 mark): Each oxygen atom forms two bonds. What is the number of bonds formed by each silicon atom? Use Figure 6. [1 mark]
  15. June 2022, Chemistry Paper 1 Foundation, Q03.3 (1 mark): Complete the sentence. Choose the answer from the box. [1 mark] hexagons octagons squares triangles The structure of fullerenes is based on .
  16. June 2022, Chemistry Paper 1 Foundation, Q03.4 (1 mark): Complete the sentence. Choose the answer from the box. [1 mark] carbon hydrogen oxygen The fullerene molecule shown in Figure 7 is made from atoms of .
  17. June 2022, Chemistry Paper 1 Foundation, Q03.5 (1 mark): What is the fullerene molecule shown in Figure 7 used for? [1 mark] Tick () one box. Electronics Hand warmers Sports injury packs
  18. November 2021, Chemistry Paper 1 Higher, Q04.1 (1 mark): The first fullerene to be discovered was Buckminsterfullerene. What is the formula of Buckminsterfullerene? [1 mark] Tick () one box. C40 C50 C60 C70
  19. November 2021, Chemistry Paper 1 Higher, Q04.2 (2 marks): Graphite is a form of carbon. Explain why graphite conducts electricity. [2 marks]
  20. November 2021, Chemistry Paper 1 Foundation, Q02.1 (1 mark): Complete the sentence. Choose the answer from the box. [1 mark] gaseous molten solid Copper chloride can conduct electricity when in solution or when .
  21. November 2021, Chemistry Paper 1 Foundation, Q03.3 (1 mark): How many bonds does each carbon atom have in graphite? Use Figure 4. [1 mark] Tick () one box. 1 2 3 4
  22. November 2021, Chemistry Paper 1 Foundation, Q03.4 (1 mark): What type of bonds hold the carbon atoms together in graphite? [1 mark] Tick () one box. Covalent Ionic Metallic
  23. November 2021, Chemistry Paper 1 Foundation, Q03.5 (1 mark): Lubricants allow objects to slide over each other easily. Suggest why graphite can be used as a lubricant. Use Figure 4. [1 mark]
  24. November 2021, Chemistry Paper 1 Foundation, Q03.6 (2 marks): The two structures represent different forms of carbon. Draw one line from each structure to the form of carbon. [2 marks] Structure Form of carbon Buckminsterf
  25. November 2020, Chemistry Paper 1 Higher, Q01.4 (3 marks): A substance conducts electricity because of free moving, charged particles. What are the free moving, charged particles in a: • carbon electrode (made from grap
  26. November 2020, Chemistry Paper 1 Higher, Q02.4 (1 mark): What is the number of bonds formed by each carbon atom in diamond? [1 mark] Tick () one box. 2 3 4 8
  27. November 2020, Chemistry Paper 1 Higher, Q02.5 (2 marks): Give two physical properties of diamond. [2 marks] 1 2
  28. November 2020, Chemistry Paper 1 Foundation, Q06.4 (3 marks): A substance conducts electricity because of free moving, charged particles. What are the free moving, charged particles in a: • carbon electrode (made from grap
  29. November 2020, Chemistry Paper 1 Foundation, Q07.4 (1 mark): What is the number of bonds formed by each carbon atom in diamond? [1 mark] Tick () one box. 2 3 4 8
  30. November 2020, Chemistry Paper 1 Foundation, Q07.5 (2 marks): Give two physical properties of diamond. [2 marks] 1 2
  31. June 2018, Chemistry Paper 1 Higher, Q05.1 (3 marks): Figure 5 shows part of the structure and bonding in diamond. Figure 5 Explain why diamond has a high melting point. [3 marks]
  32. June 2018, Chemistry Paper 1 Foundation, Q01.3 (1 mark): Figure 3 shows the structure of C60 Figure 3 Complete the sentence. Choose the answer from the box. [1 mark] diatomic giant ionic a fullerene giant metallic The
  33. June 2018, Chemistry Paper 1 Foundation, Q01.4 (1 mark): What type of bond is labelled A in Figure 4? [1 mark] Tick one box. covalent double ionic metallic
  34. June 2018, Chemistry Paper 1 Foundation, Q01.5 (1 mark): In graphite, each carbon atom forms bonds with other carbon atoms as shown in Figure 4 How many electrons does one carbon atom use to form one bond? [1 mark] Ti
