Ultrasound, infrasound and seismic waves: Edexcel GCSE Physics questions

Every Edexcel GCSE Physics exam question on Ultrasound, infrasound and seismic waves (specification points 4.13–4.16), 2018–2025, with its mark scheme and examiner’s report.

Find questions1,554
Exam
All years
Calculations

1,554 questions

  1. Q1(a)

    June 2025 · Paper 1 Higher

    1 markUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Higher, question 1(a): Which of these is a frequency of infrasound? (1) A 2.2 Hz B 2.2 kHz C 22 Hz D 22 kHz

  2. Q1(b)

    June 2025 · Paper 1 Higher

    3 marksUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Higher, question 1(b): Figure 1 shows a technician standing in front of a wall. wall technician 7.6 m Figure 1 The technician has a device that can emit and detect ultrasound. The dev

  3. Q1(c)

    June 2025 · Paper 1 Higher

    2 marksUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Higher, question 1(c): Explain why humans cannot hear infrasound. (2)

  4. Q3(b)(i)

    June 2025 · Paper 1 Higher

    1 markWave properties and the wave equationUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Higher, question 3(b)(i): State one other example of a transverse wave. (1)

  5. Q3(b)(ii)

    June 2025 · Paper 1 Higher

    2 marksWave properties and the wave equationUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Higher, question 3(b)(ii): A point in the crust is labelled R in Figure 6. There is a rock at point R. Describe the effect that this earthquake wave has on the rock at R as the wave passe

  6. Q3(b)(iii)

    June 2025 · Paper 1 Higher

    2 marksWave properties and the wave equationUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Higher, question 3(b)(iii): The wave from X reaches L 3.8 seconds after it passes through R. The speed of the wave is 4500 m / s. Calculate the distance between X and R. (2) distance = m

  7. Q9(b)(i)

    June 2025 · Paper 1 Foundation

    1 markWave properties and the wave equationUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Foundation, question 9(b)(i): State one other example of a transverse wave. (1)

  8. Q9(b)(ii)

    June 2025 · Paper 1 Foundation

    2 marksWave properties and the wave equationUltrasound, infrasound and seismic waves
    The whole paper ↗
    June 2025 Paper 1 Foundation, question 9(b)(ii): A point in the crust is labelled R in Figure 17. There is a rock at point R. Describe the effect that this earthquake wave has on the rock at R as the wave pass

  9. Q10(d)

    June 2024 · Paper 1 Higher

    6 marksUltrasound, infrasound and seismic waves
    The whole paper ↗

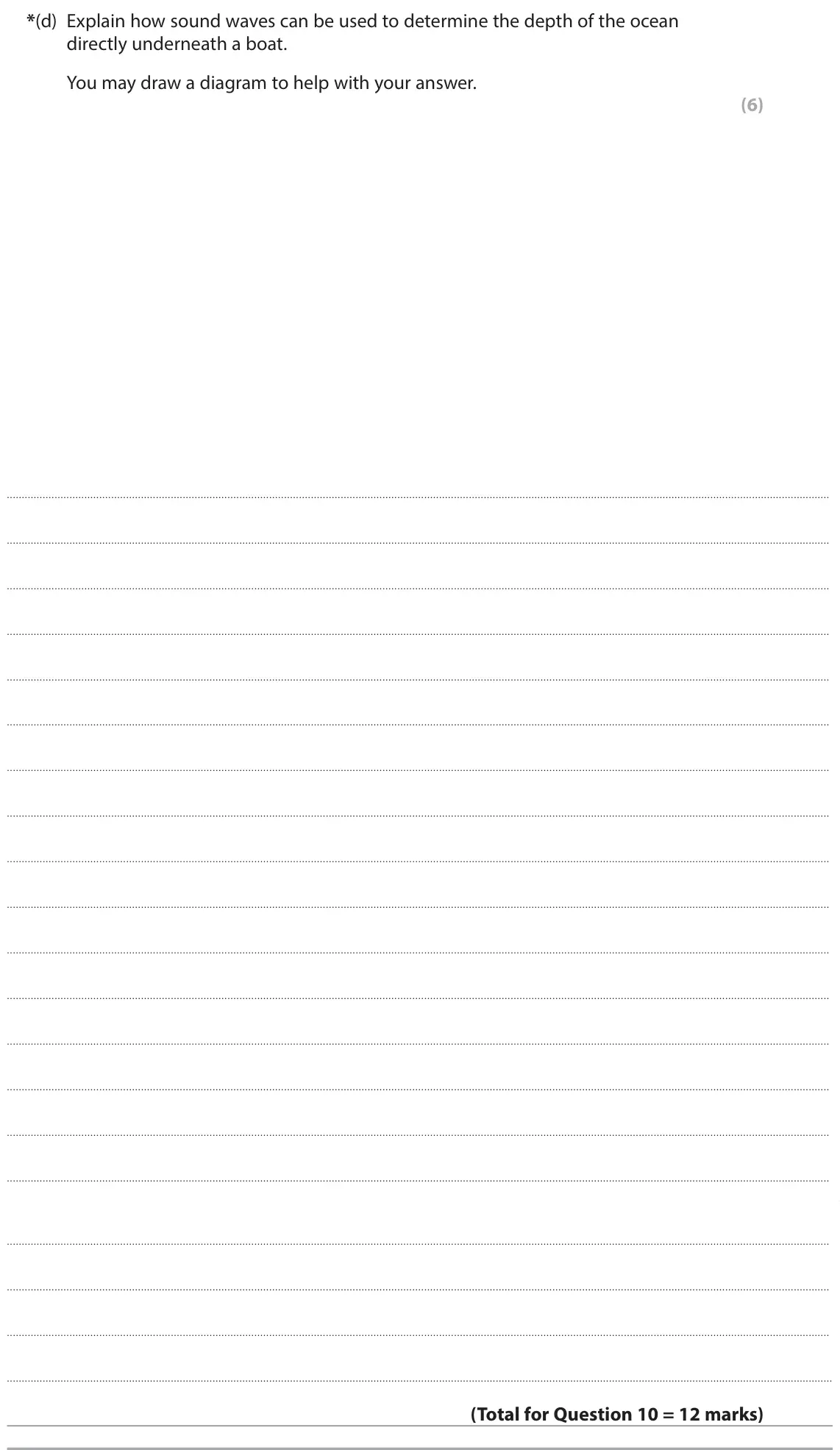

    June 2024 Paper 1 Higher, question 10(d): Explain how sound waves can be used to determine the depth of the ocean directly underneath a boat. You may draw a diagram to help with your answer. (6) .

  10. Q1(a)

    June 2023 · Paper 1 Higher

    2 marksUltrasound, infrasound and seismic waves
    Mark scheme (PDF)
    The whole paper ↗

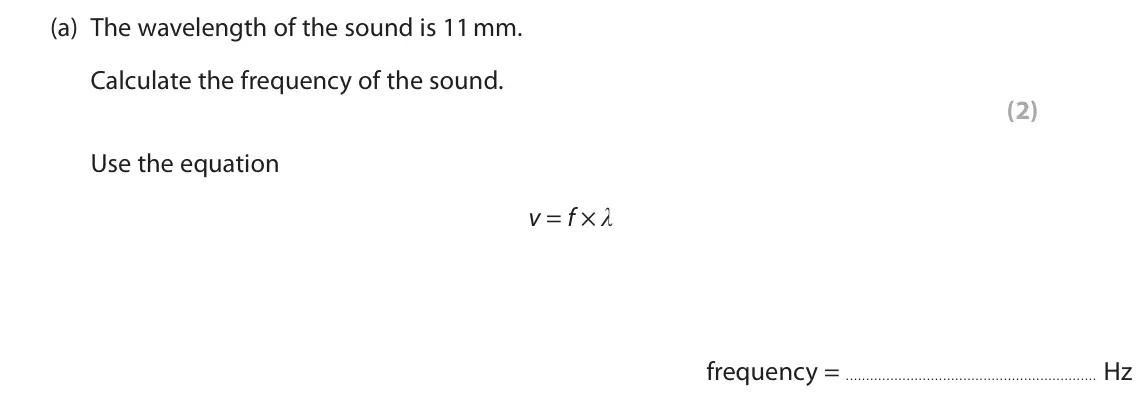

    June 2023 Paper 1 Higher, question 1(a): The wavelength of the sound is 11 mm. Calculate the frequency of the sound. (2) Use the equation v = f × λ frequency = Hz

  11. Q1(b)

    June 2023 · Paper 1 Higher

    4 marksUltrasound, infrasound and seismic waves
    Mark scheme (PDF)
    The whole paper ↗

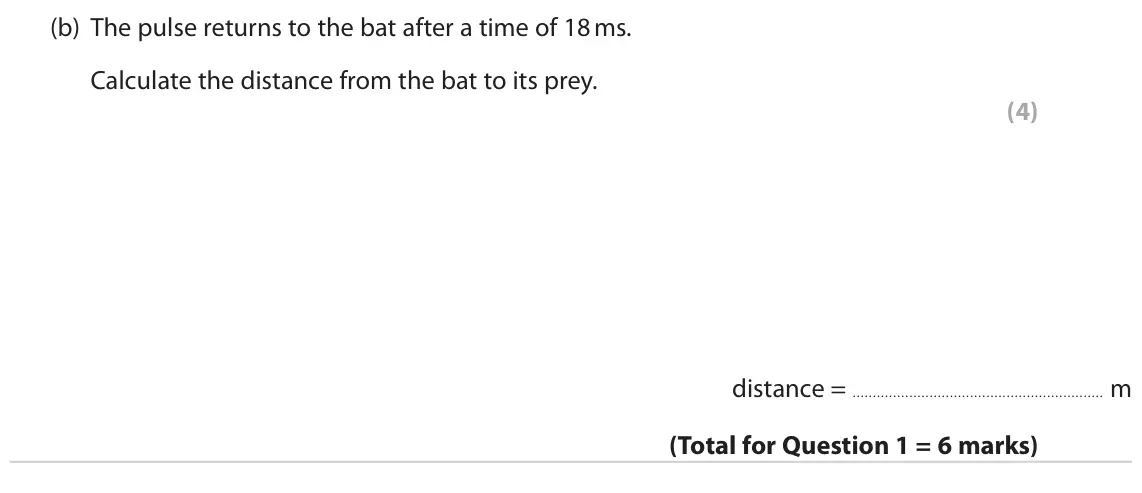

    June 2023 Paper 1 Higher, question 1(b): The pulse returns to the bat after a time of 18 ms. Calculate the distance from the bat to its prey. (4) distance = m

  12. Q10(a)(i)

    June 2022 · Paper 1 Higher

    1 markUltrasound, infrasound and seismic waves
    Mark scheme (PDF)
    The whole paper ↗

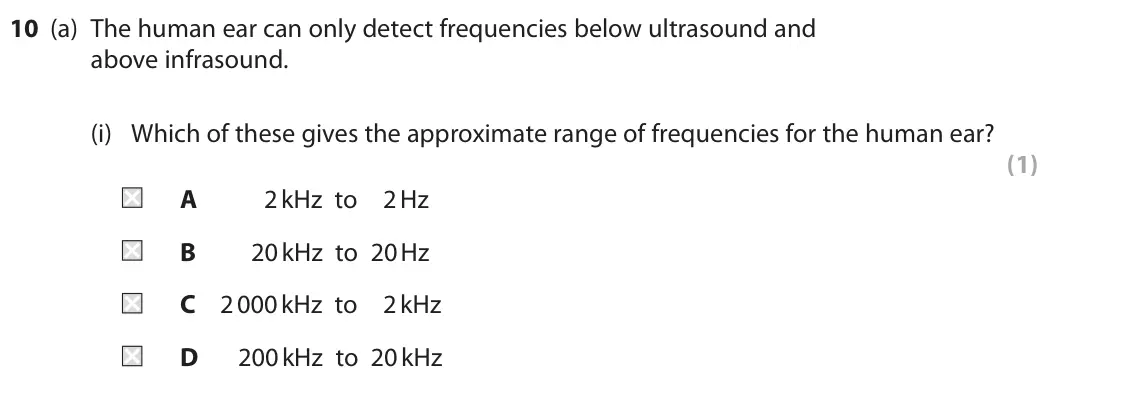

    June 2022 Paper 1 Higher, question 10(a)(i): Which of these gives the approximate range of frequencies for the human ear? (1) A 2 kHz to 2 Hz B 20 kHz to 20 Hz C 2 000 kHz to 2 kHz D 200 kHz to 20 kHz

  13. Q10(a)(ii)

    June 2022 · Paper 1 Higher

    2 marksUltrasound, infrasound and seismic waves
    The whole paper ↗

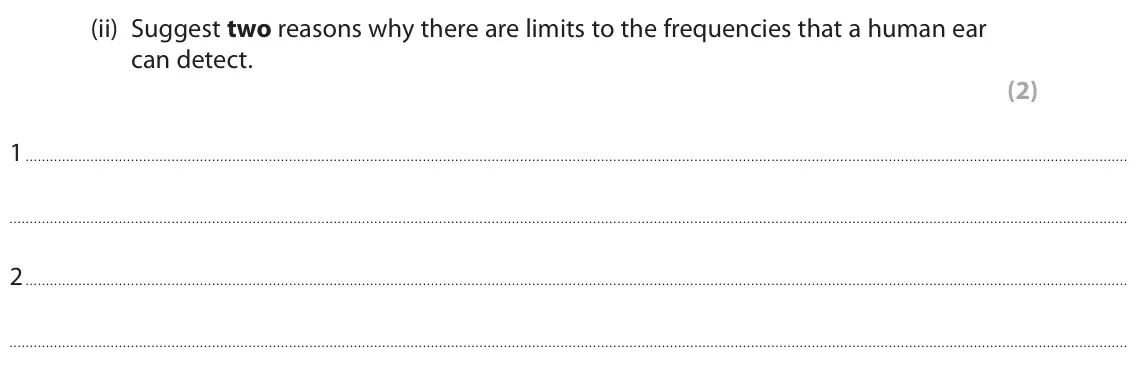

    June 2022 Paper 1 Higher, question 10(a)(ii): Suggest two reasons why there are limits to the frequencies that a human ear can detect. (2) 1 2

  14. Q10(b)(i)

    June 2022 · Paper 1 Higher

    2 marksUltrasound, infrasound and seismic waves
    The whole paper ↗

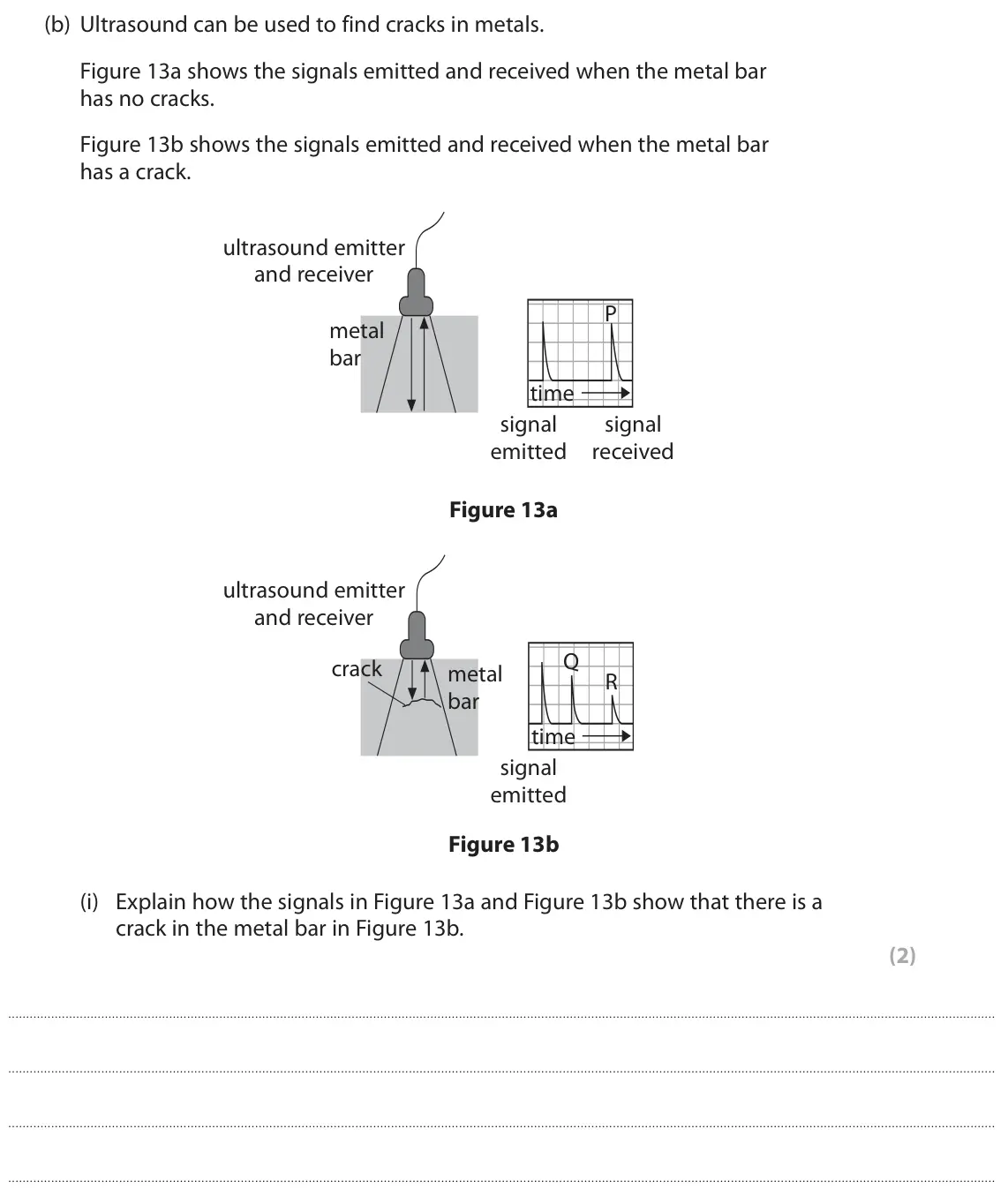

    June 2022 Paper 1 Higher, question 10(b)(i): Explain how the signals in Figure 13a and Figure 13b show that there is a crack in the metal bar in Figure 13b. (2)

  15. Q10(b)(ii)

    June 2022 · Paper 1 Higher

    1 markUltrasound, infrasound and seismic waves
    The whole paper ↗

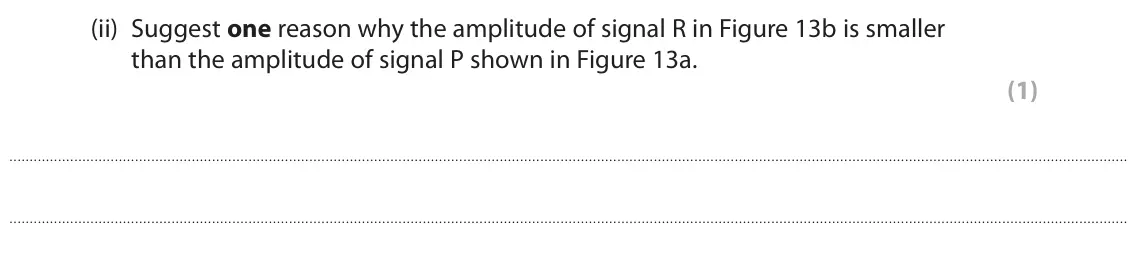

    June 2022 Paper 1 Higher, question 10(b)(ii): Suggest one reason why the amplitude of signal R in Figure 13b is smaller than the amplitude of signal P shown in Figure 13a. (1)

  16. Q10(c)

    June 2022 · Paper 1 Higher

    6 marksUltrasound, infrasound and seismic waves
    The whole paper ↗

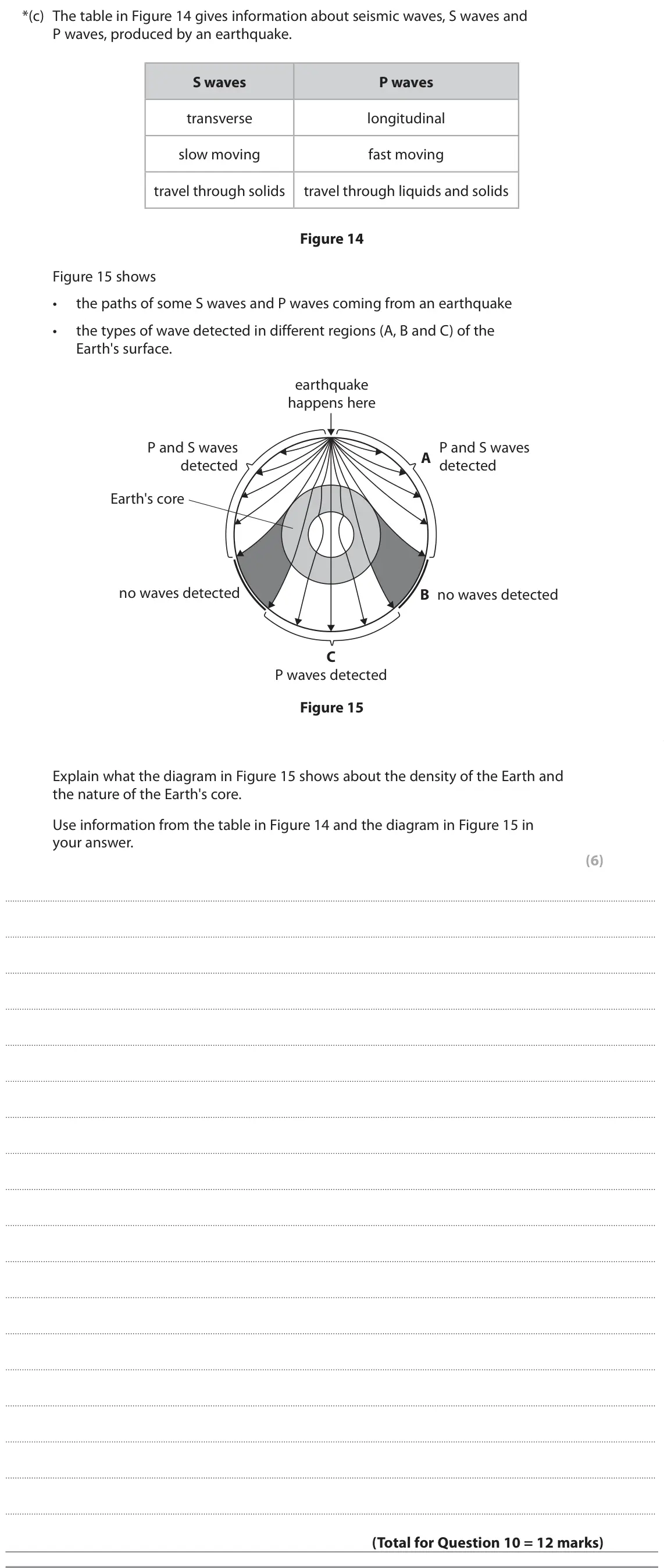

    June 2022 Paper 1 Higher, question 10(c): The table in Figure 14 gives information about seismic waves, S waves and P waves, produced by an earthquake. S waves P waves transverse longitudinal slow movin

  17. Q1(a)

    November 2021 · Paper 1 Higher

    1 markUltrasound, infrasound and seismic waves
    The whole paper ↗

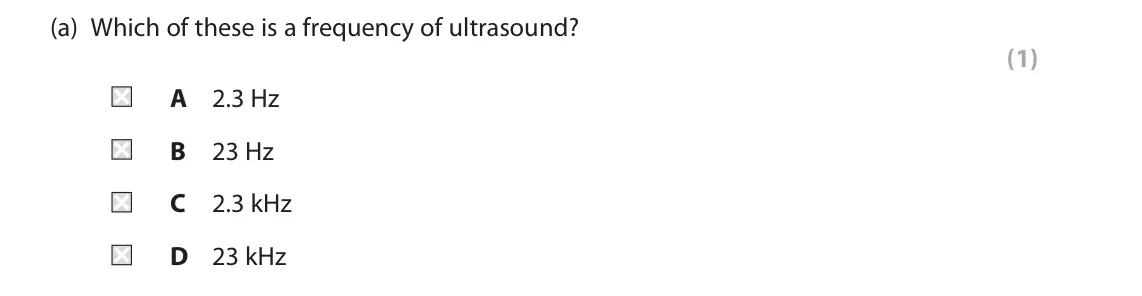

    November 2021 Paper 1 Higher, question 1(a): Which of these is a frequency of ultrasound? (1) A 2.3 Hz B 23 Hz C 2.3 kHz D 23 kHz

  18. Q1(b)(i)

    November 2021 · Paper 1 Higher

    2 marksUltrasound, infrasound and seismic waves
    The whole paper ↗

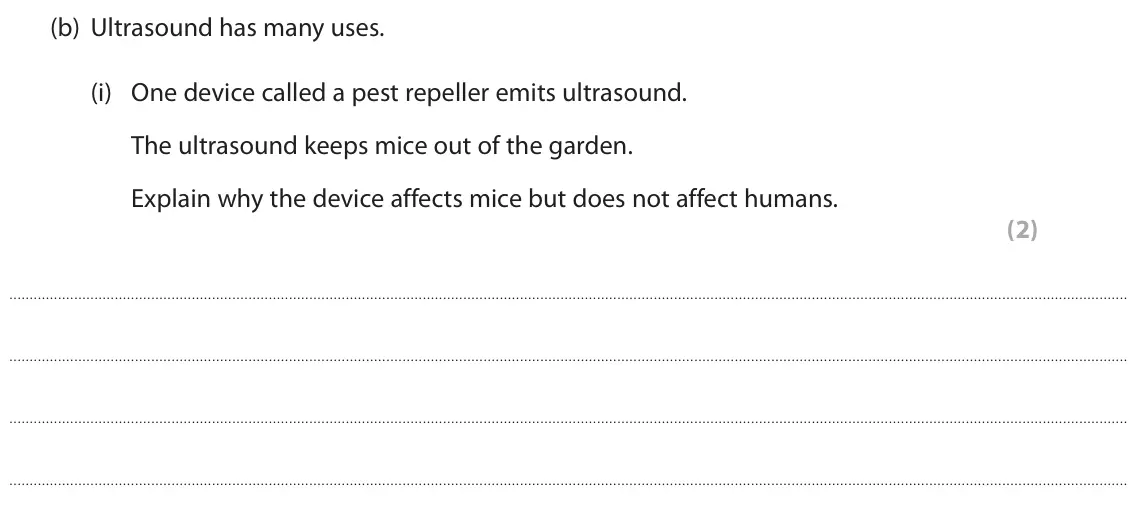

    November 2021 Paper 1 Higher, question 1(b)(i): One device called a pest repeller emits ultrasound. The ultrasound keeps mice out of the garden. Explain why the device affects mice but does not affect humans.

  19. Q1(b)(ii)

    November 2021 · Paper 1 Higher

    3 marksUltrasound, infrasound and seismic waves
    The whole paper ↗

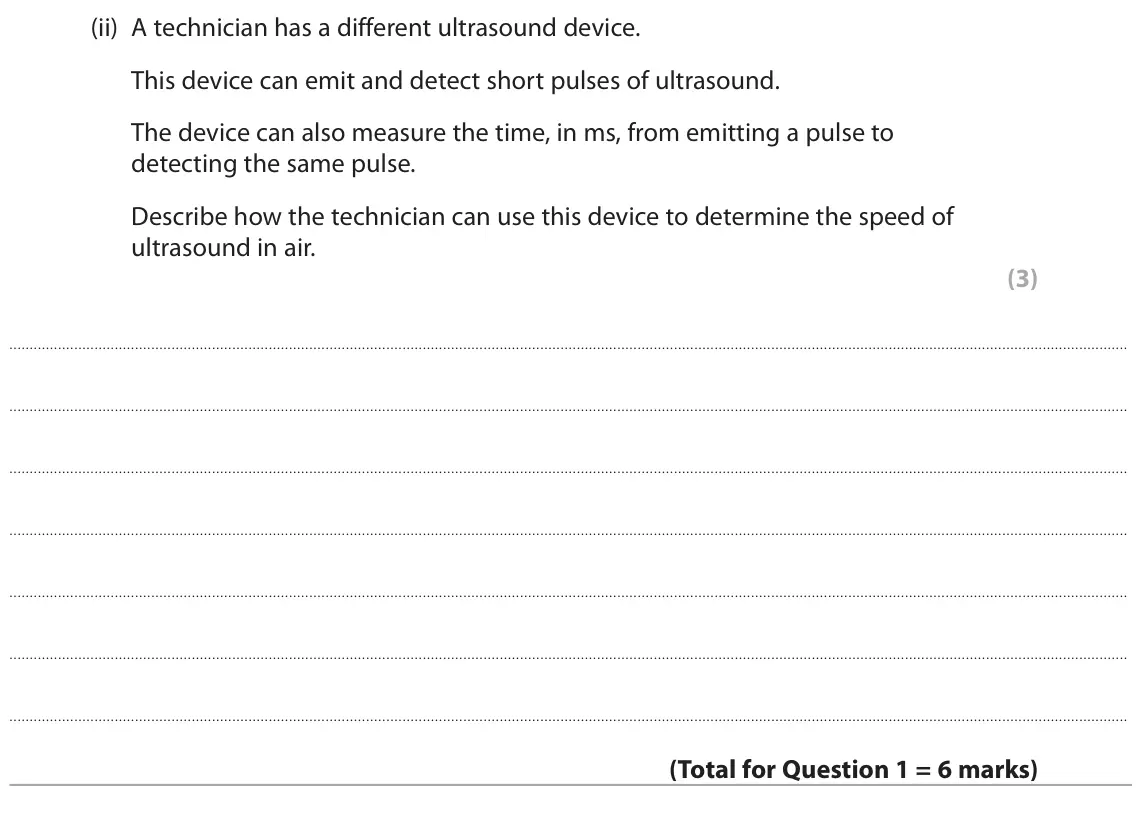

    November 2021 Paper 1 Higher, question 1(b)(ii): A technician has a different ultrasound device. This device can emit and detect short pulses of ultrasound. The device can also measure the time, in ms, from em

  20. Q10(a)(i)

    November 2020 · Paper 1 Higher

    2 marksUltrasound, infrasound and seismic waves
    The whole paper ↗

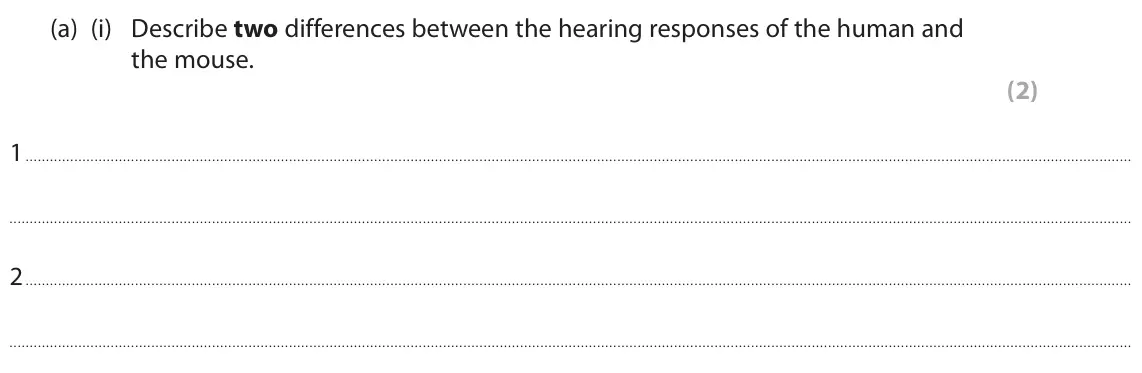

    November 2020 Paper 1 Higher, question 10(a)(i): Describe two differences between the hearing responses of the human and the mouse. (2) 1 2
All 31 questions on Ultrasound, infrasound and seismic waves, as a list
  1. June 2025, Paper 1 Higher, Q1(a) (1 mark): Which of these is a frequency of infrasound? (1) A 2.2 Hz B 2.2 kHz C 22 Hz D 22 kHz
  2. June 2025, Paper 1 Higher, Q1(b) (3 marks): Figure 1 shows a technician standing in front of a wall. wall technician 7.6 m Figure 1 The technician has a device that can emit and detect ultrasound. The dev
  3. June 2025, Paper 1 Higher, Q1(c) (2 marks): Explain why humans cannot hear infrasound. (2)
  4. June 2025, Paper 1 Higher, Q3(b)(i) (1 mark): State one other example of a transverse wave. (1)
  5. June 2025, Paper 1 Higher, Q3(b)(ii) (2 marks): A point in the crust is labelled R in Figure 6. There is a rock at point R. Describe the effect that this earthquake wave has on the rock at R as the wave passe
  6. June 2025, Paper 1 Higher, Q3(b)(iii) (2 marks): The wave from X reaches L 3.8 seconds after it passes through R. The speed of the wave is 4500 m / s. Calculate the distance between X and R. (2) distance = m
  7. June 2025, Paper 1 Foundation, Q9(b)(i) (1 mark): State one other example of a transverse wave. (1)
  8. June 2025, Paper 1 Foundation, Q9(b)(ii) (2 marks): A point in the crust is labelled R in Figure 17. There is a rock at point R. Describe the effect that this earthquake wave has on the rock at R as the wave pass
  9. June 2024, Paper 1 Higher, Q10(d) (6 marks): Explain how sound waves can be used to determine the depth of the ocean directly underneath a boat. You may draw a diagram to help with your answer. (6) .
  10. June 2023, Paper 1 Higher, Q1(a) (2 marks): The wavelength of the sound is 11 mm. Calculate the frequency of the sound. (2) Use the equation v = f × λ frequency = Hz
  11. June 2023, Paper 1 Higher, Q1(b) (4 marks): The pulse returns to the bat after a time of 18 ms. Calculate the distance from the bat to its prey. (4) distance = m
  12. June 2022, Paper 1 Higher, Q10(a)(i) (1 mark): Which of these gives the approximate range of frequencies for the human ear? (1) A 2 kHz to 2 Hz B 20 kHz to 20 Hz C 2 000 kHz to 2 kHz D 200 kHz to 20 kHz
  13. June 2022, Paper 1 Higher, Q10(a)(ii) (2 marks): Suggest two reasons why there are limits to the frequencies that a human ear can detect. (2) 1 2
  14. June 2022, Paper 1 Higher, Q10(b)(i) (2 marks): Explain how the signals in Figure 13a and Figure 13b show that there is a crack in the metal bar in Figure 13b. (2)
  15. June 2022, Paper 1 Higher, Q10(b)(ii) (1 mark): Suggest one reason why the amplitude of signal R in Figure 13b is smaller than the amplitude of signal P shown in Figure 13a. (1)
  16. June 2022, Paper 1 Higher, Q10(c) (6 marks): The table in Figure 14 gives information about seismic waves, S waves and P waves, produced by an earthquake. S waves P waves transverse longitudinal slow movin
  17. November 2021, Paper 1 Higher, Q1(a) (1 mark): Which of these is a frequency of ultrasound? (1) A 2.3 Hz B 23 Hz C 2.3 kHz D 23 kHz
  18. November 2021, Paper 1 Higher, Q1(b)(i) (2 marks): One device called a pest repeller emits ultrasound. The ultrasound keeps mice out of the garden. Explain why the device affects mice but does not affect humans.
  19. November 2021, Paper 1 Higher, Q1(b)(ii) (3 marks): A technician has a different ultrasound device. This device can emit and detect short pulses of ultrasound. The device can also measure the time, in ms, from em
  20. November 2020, Paper 1 Higher, Q10(a)(i) (2 marks): Describe two differences between the hearing responses of the human and the mouse. (2) 1 2
  21. November 2020, Paper 1 Higher, Q10(a)(ii) (1 mark): A farmer wants to use an alarm to scare away these birds. State which frequency would be most effective. Give the appropriate units. (1) frequency
  22. November 2020, Paper 1 Higher, Q10(a)(iii) (1 mark): State the reason for your choice of frequency in (ii). (1)
  23. November 2020, Paper 1 Higher, Q10(b) (2 marks): Describe the difference between ‘infrasound’ and ‘ultrasound’. (2)
  24. November 2020, Paper 1 Higher, Q10(c) (2 marks): A transducer can transmit and detect ultrasonic waves. Figure 15 shows ultrasonic waves transmitted by the transducer on the bottom of a ship. transducer D sea
  25. November 2020, Paper 1 Higher, Q10(d) (4 marks): Explain how vibrations from earthquakes may be used to study the core of the Earth. (4)
  26. November 2020, Paper 1 Foundation, Q6(b)(i) (2 marks): Draw arrows on Figure 13 to show how the rock at R moves when the seismic wave passes through R. (2)
  27. November 2020, Paper 1 Foundation, Q6(c) (2 marks): A technician measured the frequency of the water wave in part (a) by counting how many waves passed him in 15 s. Explain why this would not be a suitable method
  28. June 2019, Paper 1 Foundation, Q3(c) (2 marks): The speed of sound in air is 300m/s. The speed of sound in water is 1500 m/s. Calculate the ratio of the speed of sound in air to the speed of sound in water. (
  29. June 2018, Paper 1 Higher, Q1(a) (1 mark): State one other example of a use of ultrasound. (1)
  30. June 2018, Paper 1 Higher, Q1(b) (1 mark): State an example of a use of infrasound. (1)
  31. June 2018, Paper 1 Higher, Q1(c) (4 marks): Figure 1 shows the depth of the sea, measured using sonar, at different distances from the shore. distance from the shore in m 0 20 40 60 80 100 120 140 0 2 4 6
