plumiMoments: Edexcel A‑Level Maths questions
Every Edexcel A-Level Maths exam question on M.9 Moments, 2019–2025, with its mark scheme and examiner’s report.
Find questions447
All 6 questions on Moments, as a list

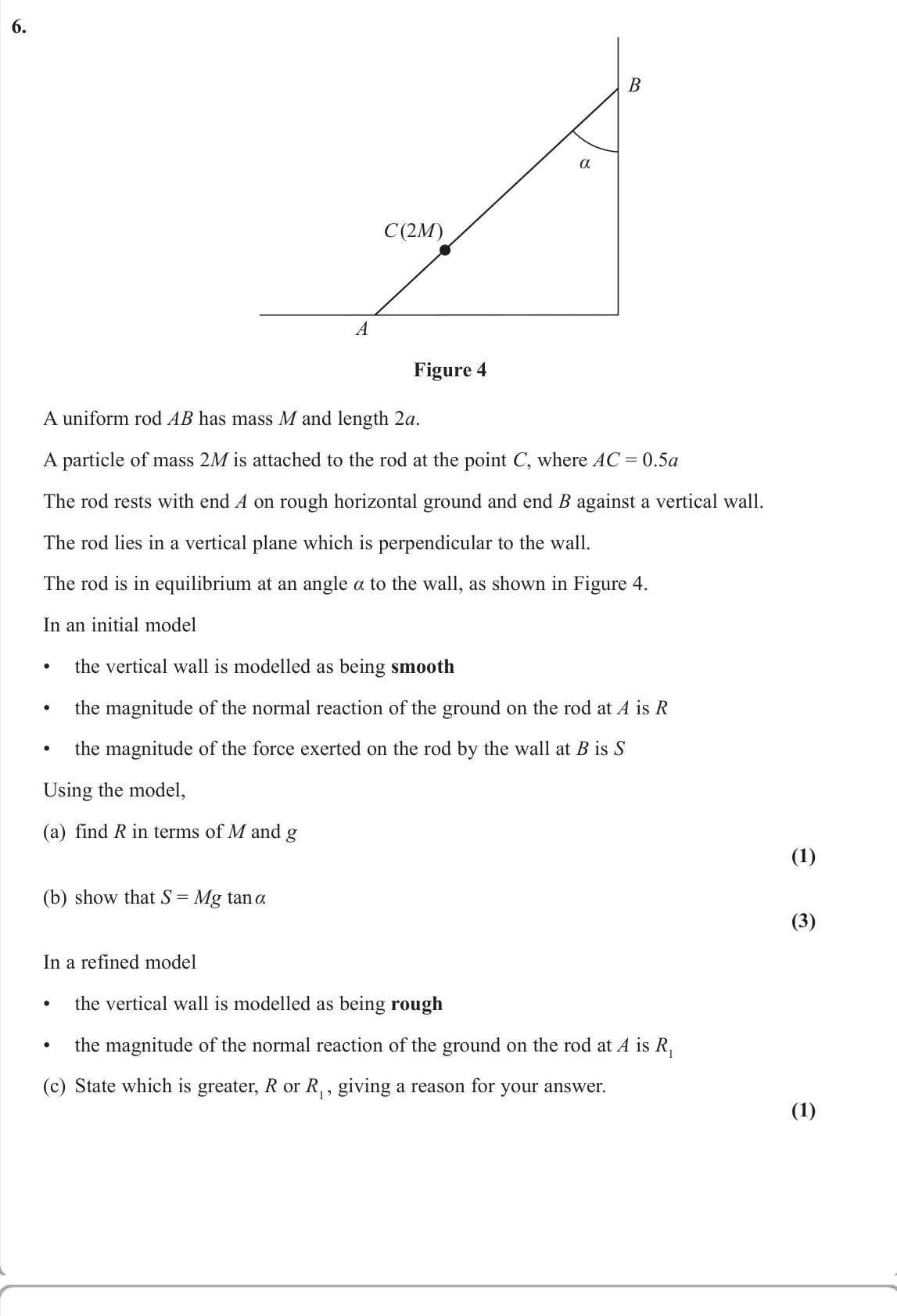

- June 2025, Mechanics, Q6 (11 marks): B C (2M) A α Figure 4 A uniform rod AB has mass M and length 2a. A particle of mass 2M is attached to the rod at the point C, where AC = 0.5a The rod rests with

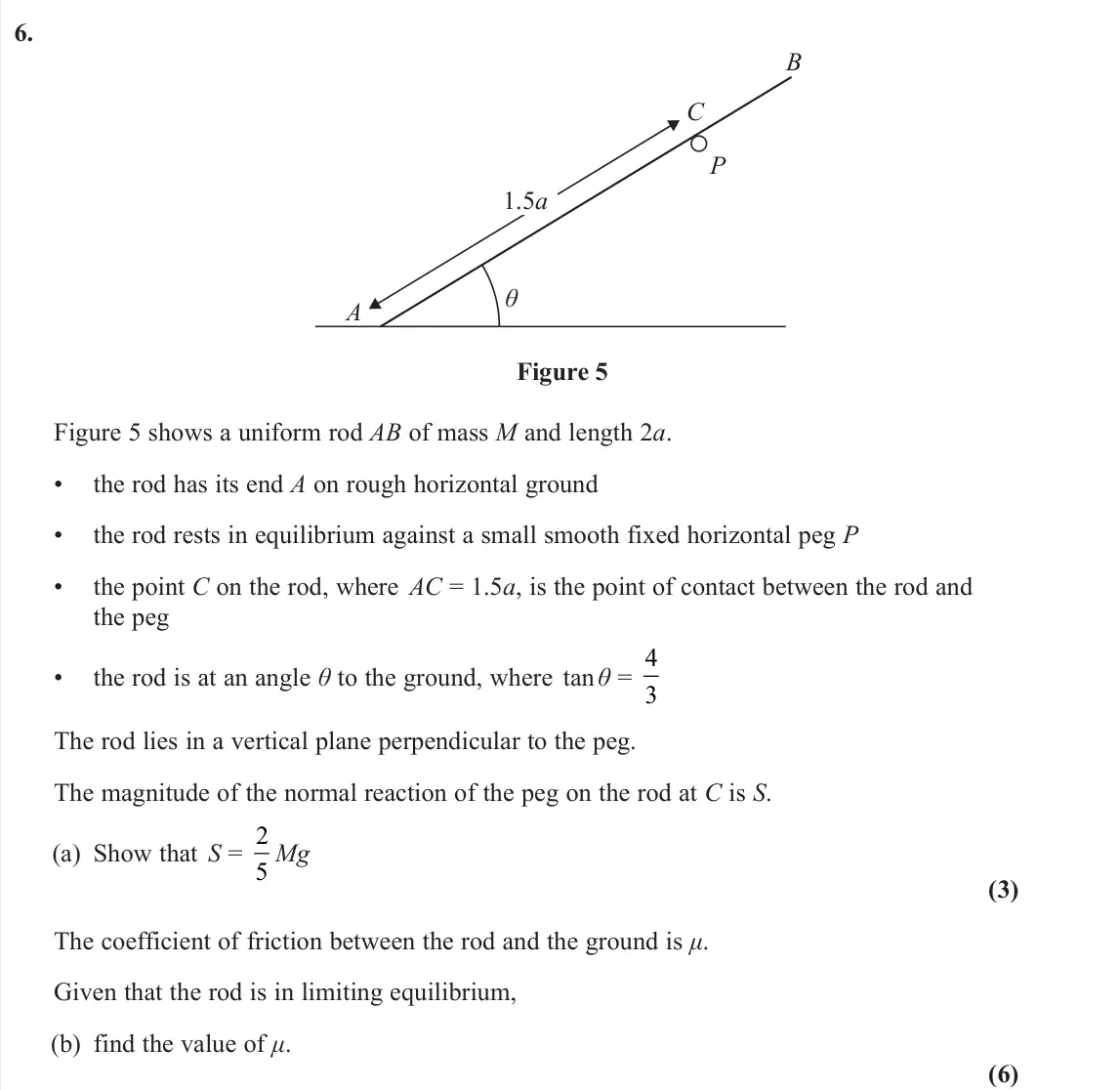

- June 2024, Mechanics, Q6 (9 marks): A 1.5a P θ B C Figure 5 Figure 5 shows a uniform rod AB of mass M and length 2a. • the rod has its end A on rough horizontal ground • the rod rests in equilibri

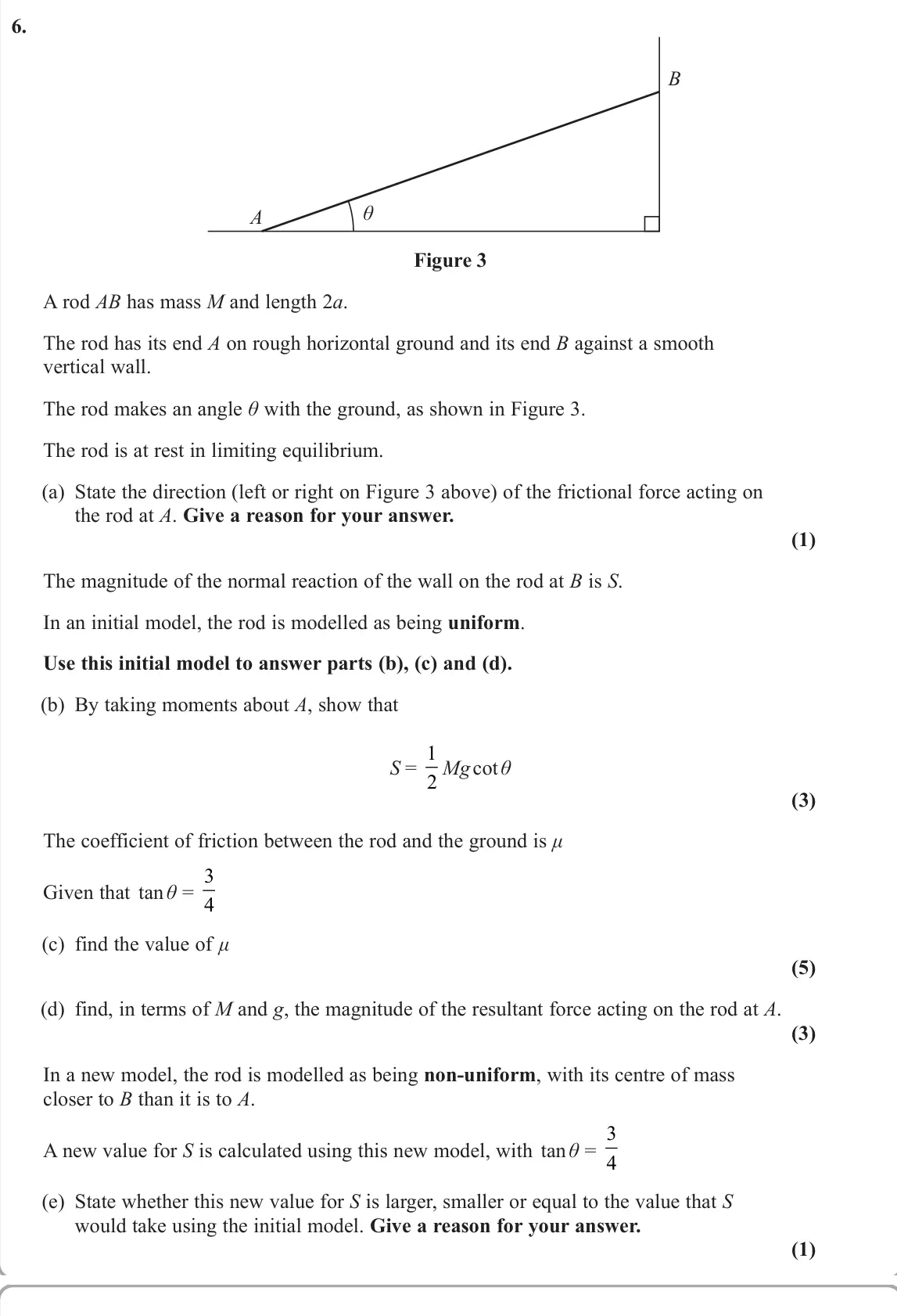

- June 2023, Mechanics, Q6 (13 marks): A B θ Figure 3 A rod AB has mass M and length 2a. The rod has its end A on rough horizontal ground and its end B against a smooth vertical wall. The rod makes a

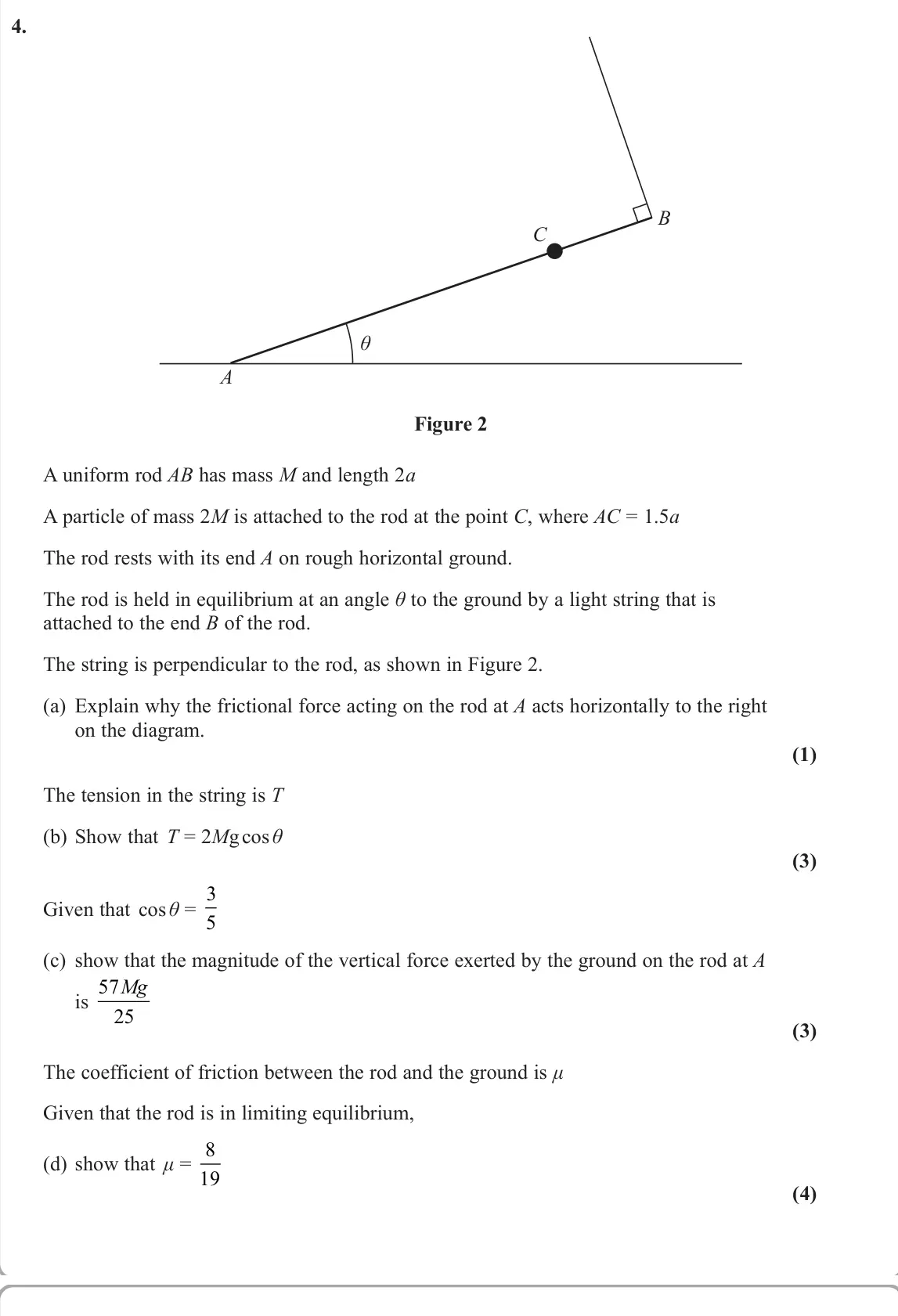

- June 2022, Mechanics, Q4 (11 marks): θ B A C Figure 2 A uniform rod AB has mass M and length 2a A particle of mass 2M is attached to the rod at the point C, where AC = 1.5a The rod rests with its e

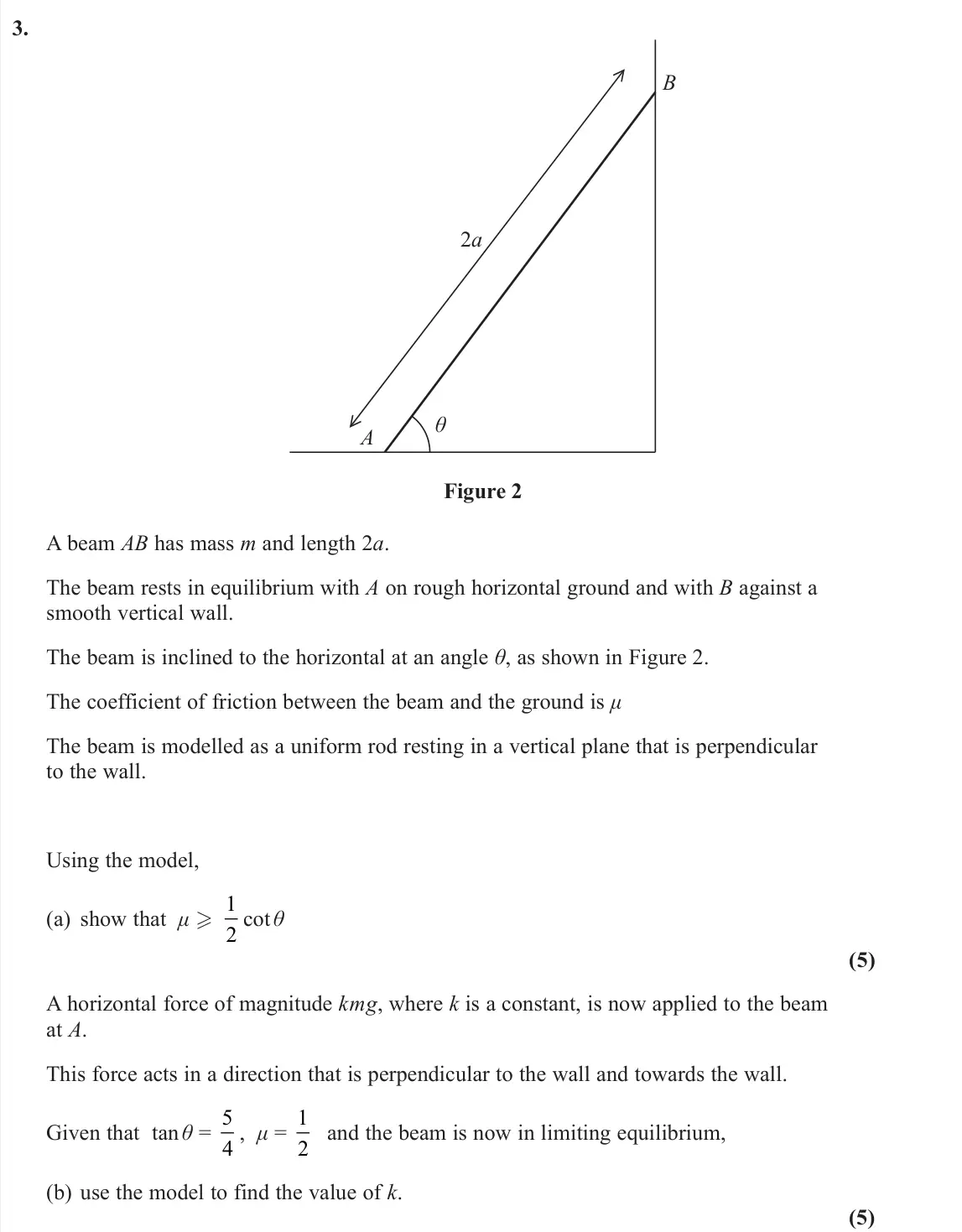

- November 2021, Mechanics, Q3 (10 marks): B θ A 2a Figure 2 A beam AB has mass m and length 2a. The beam rests in equilibrium with A on rough horizontal ground and with B against a smooth vertical wall.

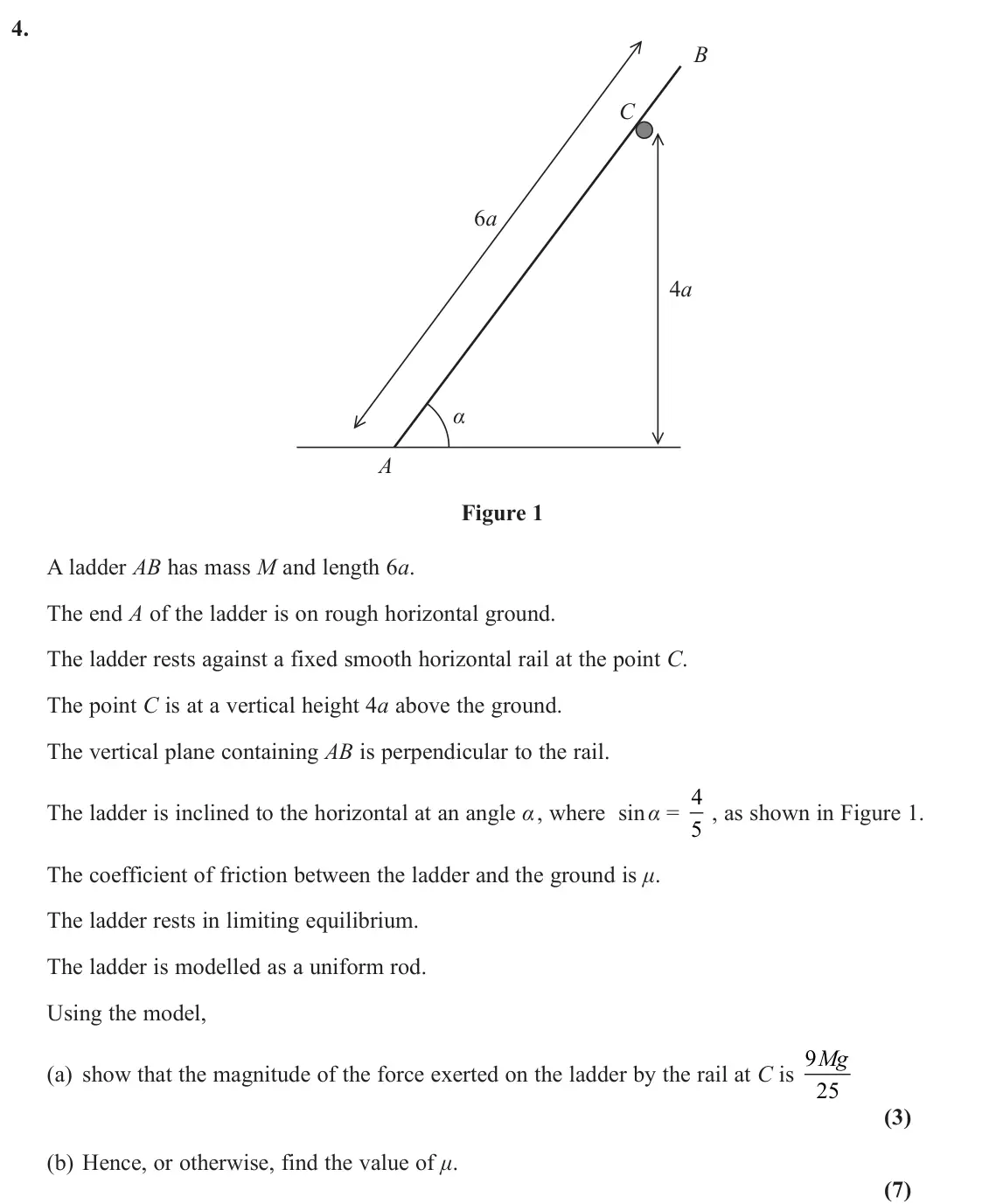

- November 2020, Mechanics, Q4 (10 marks): A C α 6a 4a B Figure 1 A ladder AB has mass M and length 6a. The end A of the ladder is on rough horizontal ground. The ladder rests against a fixed smooth hori
Questions, mark schemes and examiner’s reports are © Pearson Edexcel, from their published past papers. Plumi isn’t affiliated with any exam board. Want whole papers? Every Edexcel A-Level Maths paper, or our free Edexcel-style practice pack.
