plumiKinematics: Edexcel A‑Level Maths questions
Every Edexcel A-Level Maths exam question on M.7 Kinematics, 2019–2025, with its mark scheme and examiner’s report.
Find questions447
![June 2025 Mechanics, question 3: [In this question, i and j are horizontal unit vectors due east and due north respectively.] A particle P of mass 0.5 kg moves with constant acceleration (2i –](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/9ma0-32-jun25-03-qp.webp)
![June 2025 Mechanics, question 4: [In this question, position vectors are given relative to a fixed origin O.] At time t seconds, where t > 0, the position vector of a particle P is r metres whe](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/9ma0-32-jun25-04-qp.webp)
![June 2023 Mechanics, question 4: [In this question, i and j are horizontal unit vectors and position vectors are given relative to a fixed origin O] A particle P is moving on a smooth horizonta](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/9ma0-32-jun23-04-qp.webp)
![June 2022 Mechanics, question 1: [In this question, position vectors are given relative to a fixed origin.] At time t seconds, where t > 0 , a particle P has velocity v m s –1 where v = 3t 2i –](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/9ma0-32-jun22-01-qp.webp)
All 37 questions on Kinematics, as a list

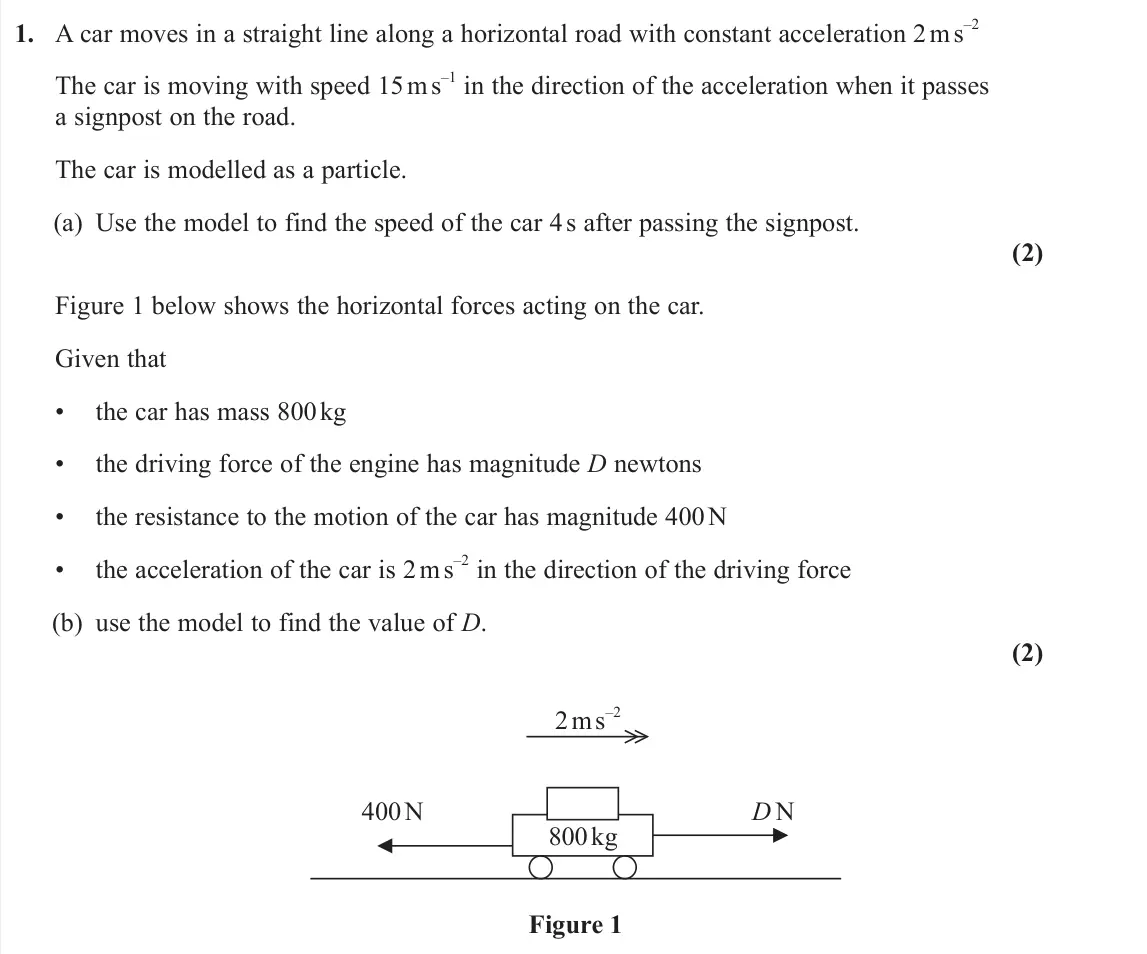

- June 2025, Mechanics, Q1 (4 marks): A car moves in a straight line along a horizontal road with constant acceleration 2 m s –2 The car is moving with speed 15 m s –1 in the direction of the accele

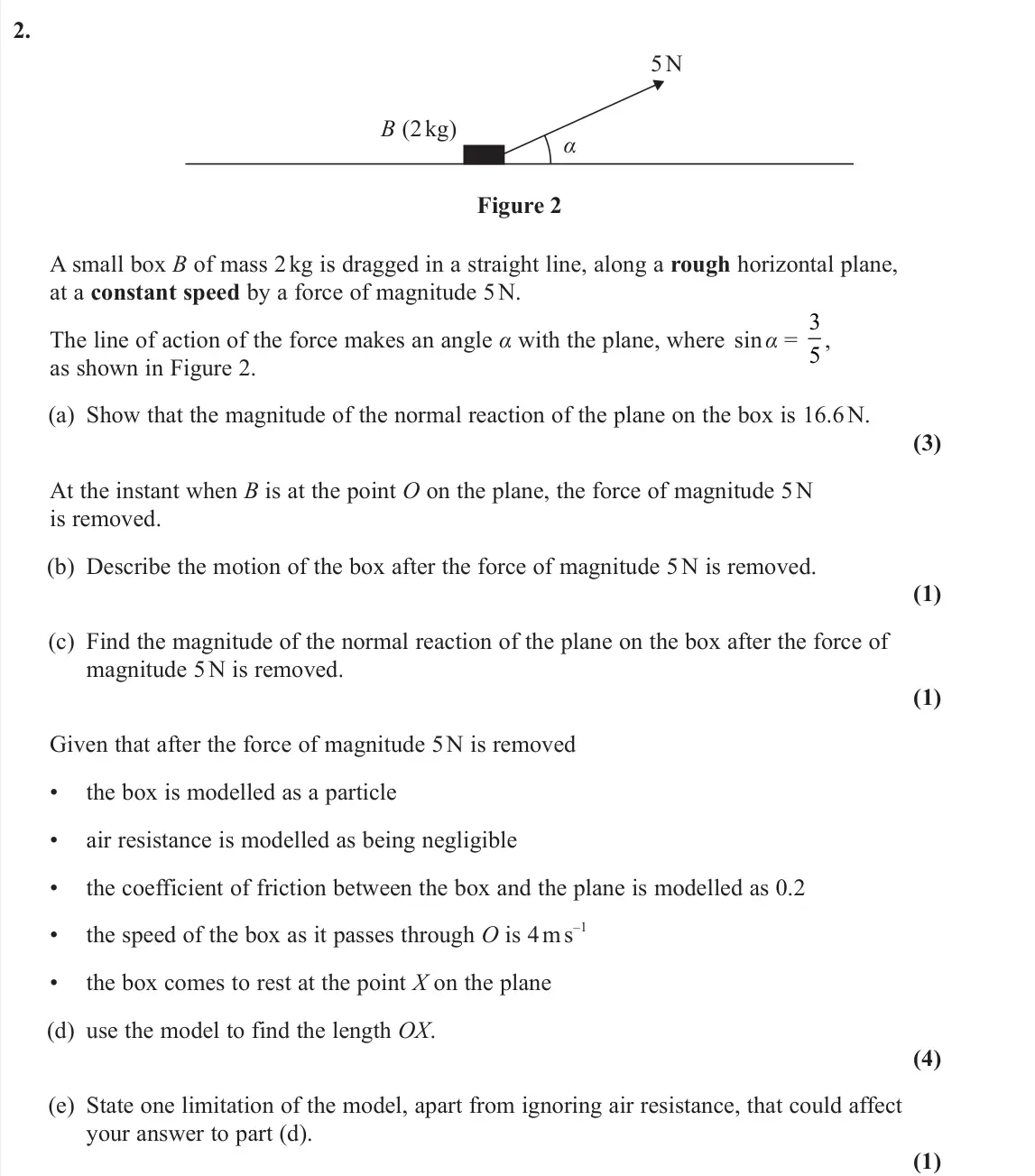

- June 2025, Mechanics, Q2 (10 marks): 5 N α B (2 kg) Figure 2 A small box B of mass 2 kg is dragged in a straight line, along a rough horizontal plane, at a constant speed by a force of magnitude 5
- June 2025, Mechanics, Q3 (8 marks): [In this question, i and j are horizontal unit vectors due east and due north respectively.] A particle P of mass 0.5 kg moves with constant acceleration (2i –

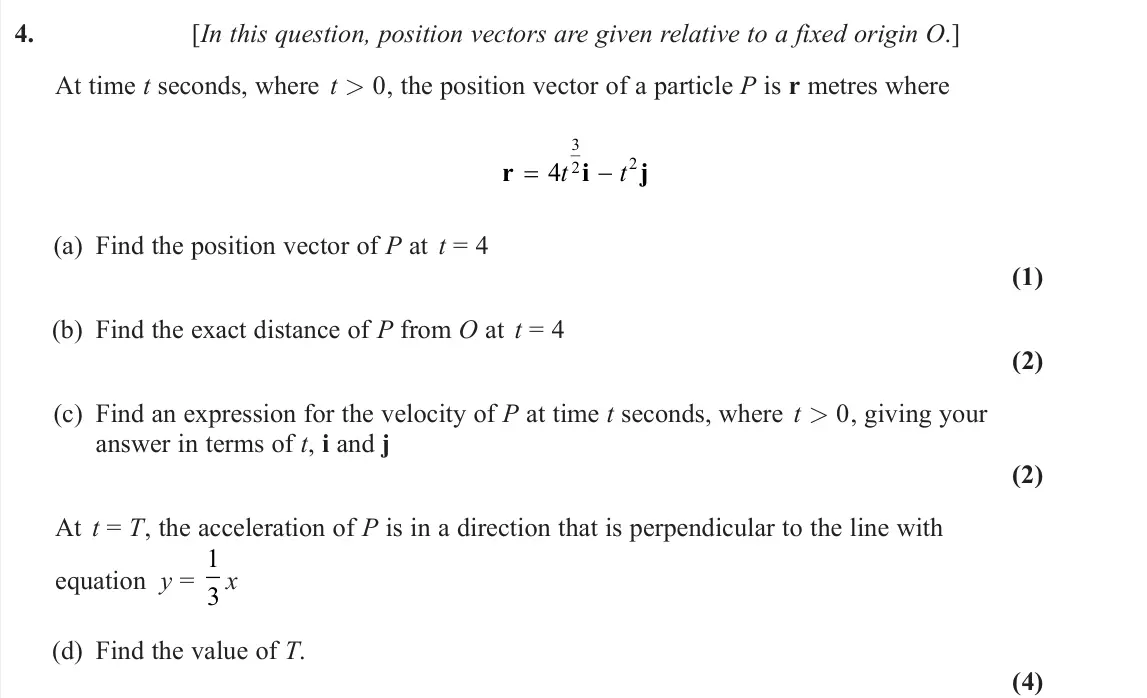

- June 2025, Mechanics, Q4 (9 marks): [In this question, position vectors are given relative to a fixed origin O.] At time t seconds, where t > 0, the position vector of a particle P is r metres whe

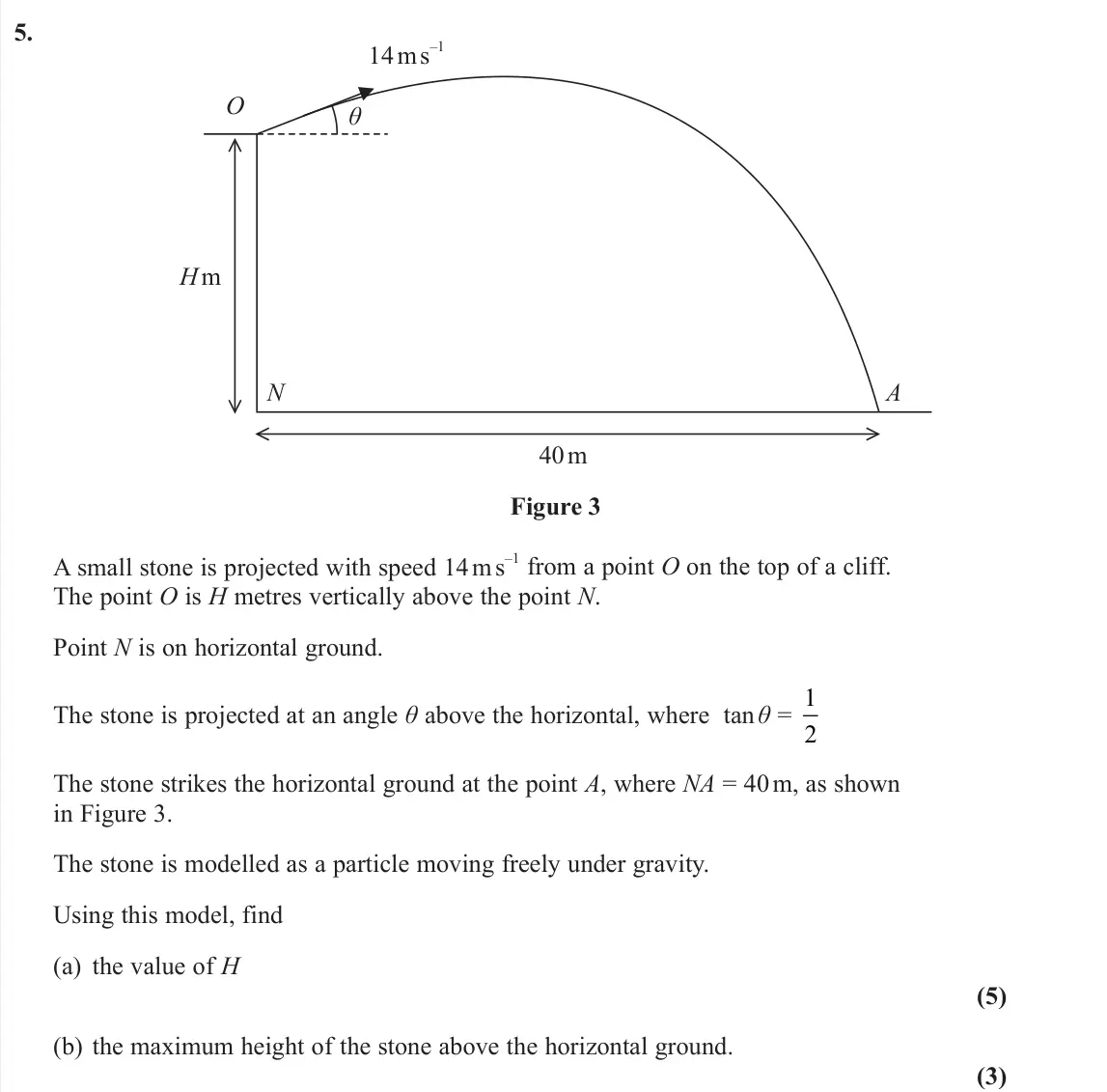

- June 2025, Mechanics, Q5 (8 marks): O 14 m s –1 θ H m N 40 m A Figure 3 A small stone is projected with speed 14 m s –1 from a point O on the top of a cliff. The point O is H metres vertically abo

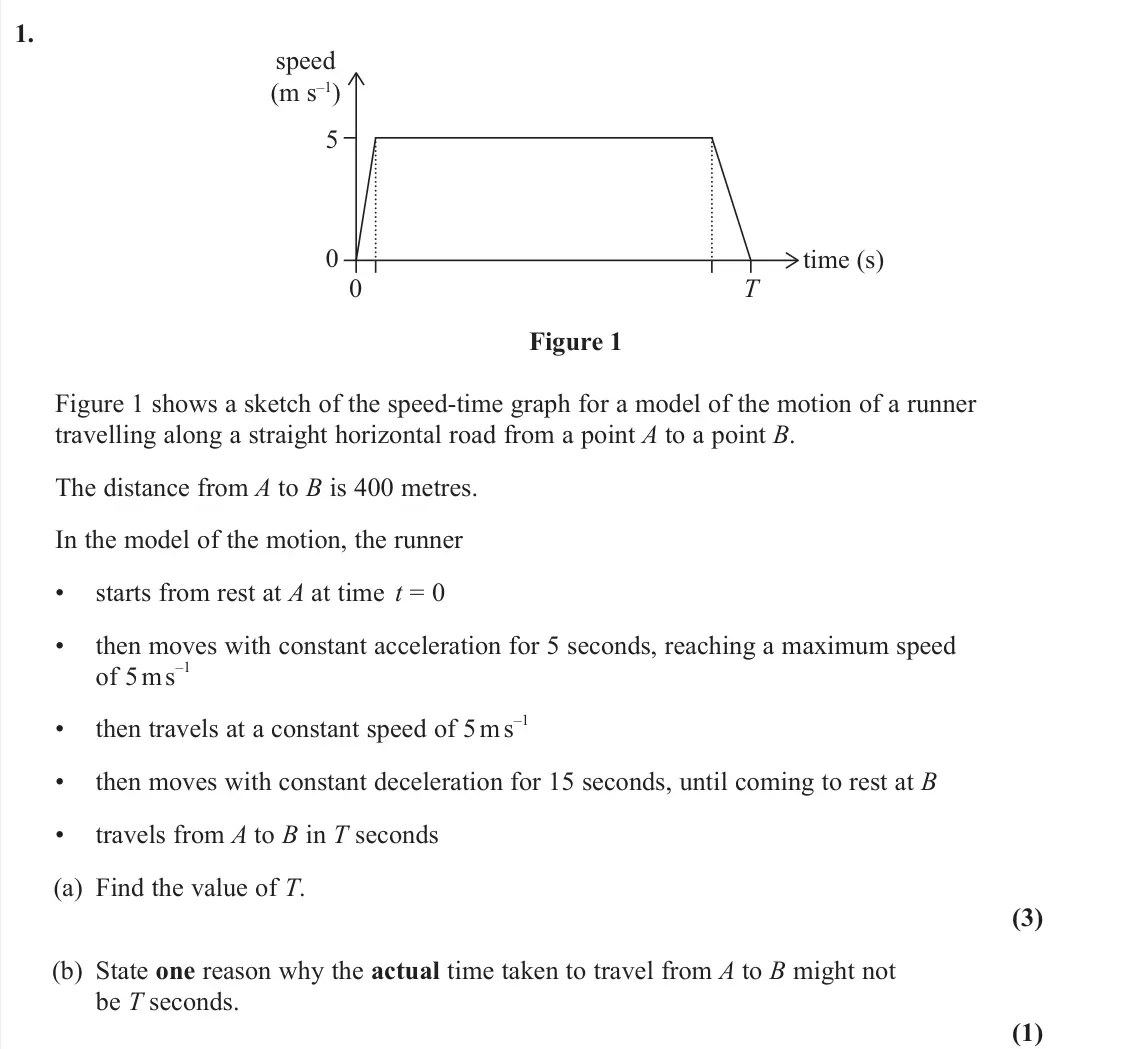

- June 2025, AS Mechanics, Q1 (4 marks): 0 5 0 T speed (m s–1) time (s) Figure 1 Figure 1 shows a sketch of the speed‑time graph for a model of the motion of a runner travelling along a straight horizo

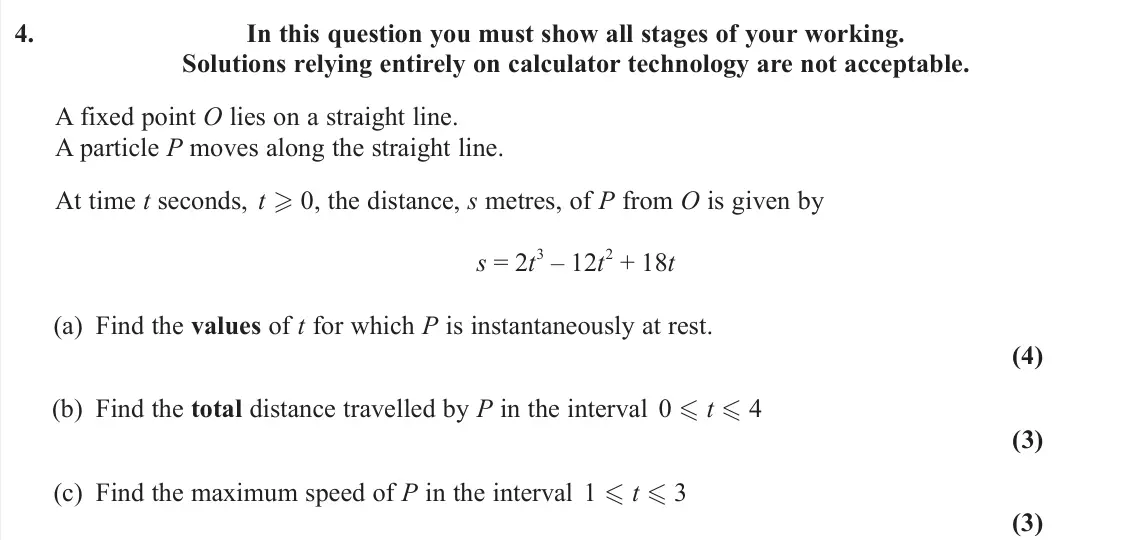

- June 2025, AS Mechanics, Q4 (10 marks): In this question you must show all stages of your working. Solutions relying entirely on calculator technology are not acceptable. A fixed point O lies on a str

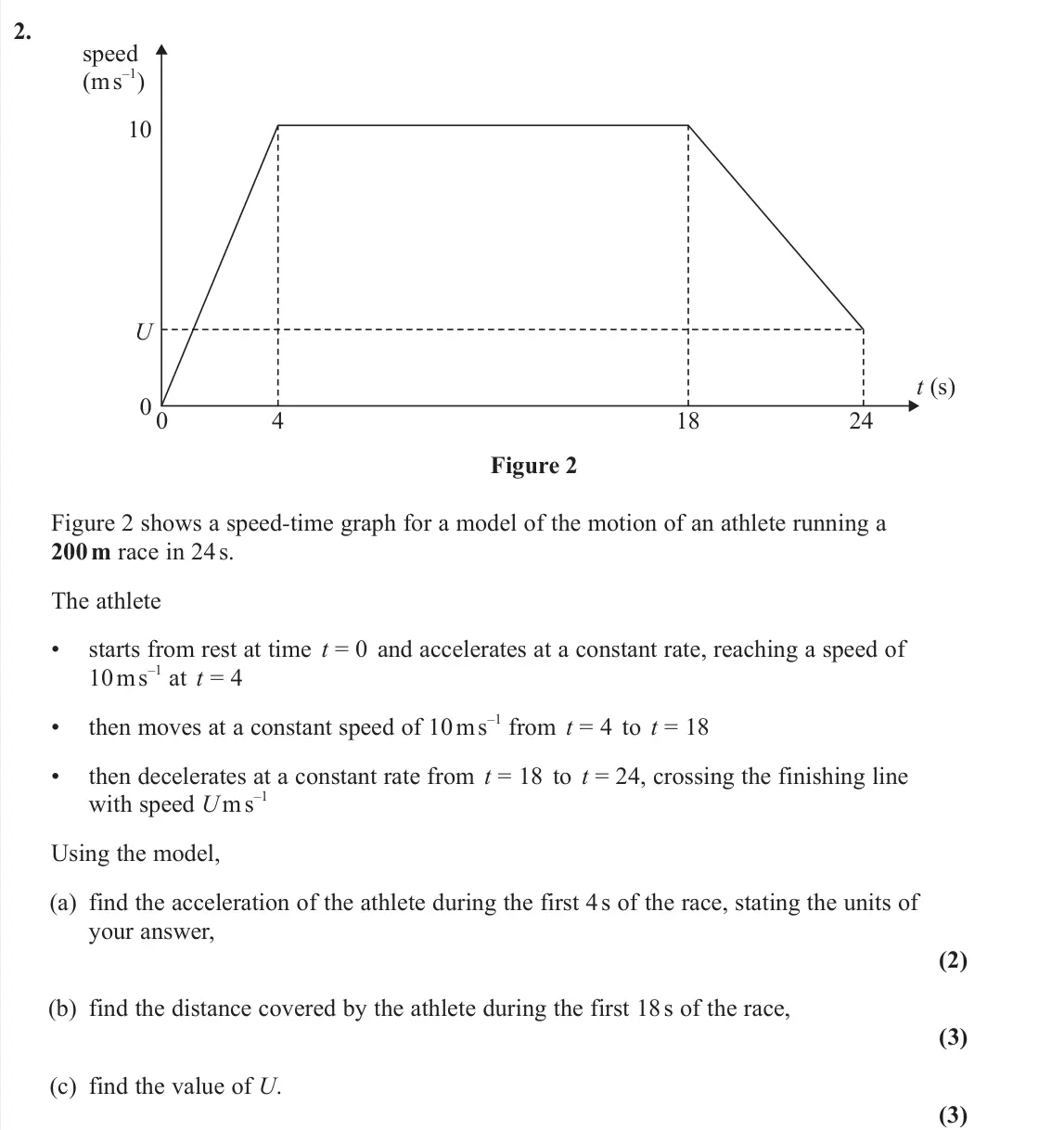

- June 2024, Mechanics, Q2 (8 marks): 0 0 10 4 U 24 18 t (s) speed (m s –1) Figure 2 Figure 2 shows a speed‑time graph for a model of the motion of an athlete running a 200 m race in 24 s. The athle

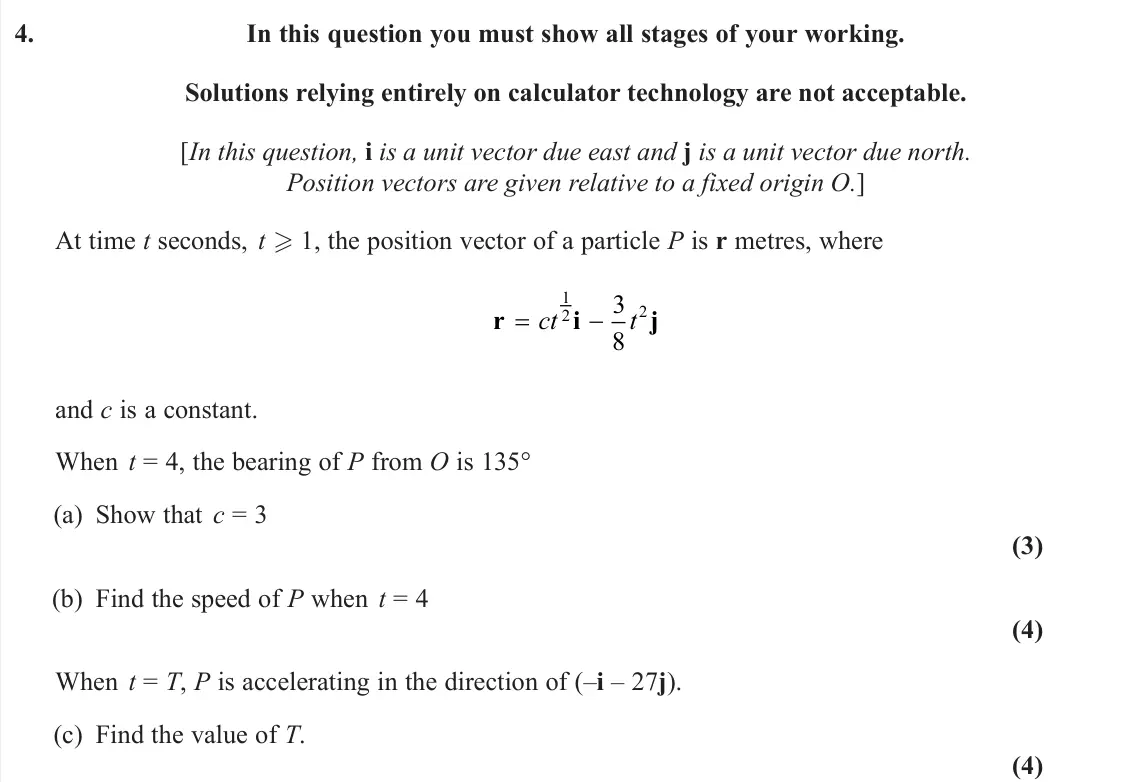

- June 2024, Mechanics, Q4 (11 marks): In this question you must show all stages of your working. Solutions relying entirely on calculator technology are not acceptable. [In this question, i is a uni

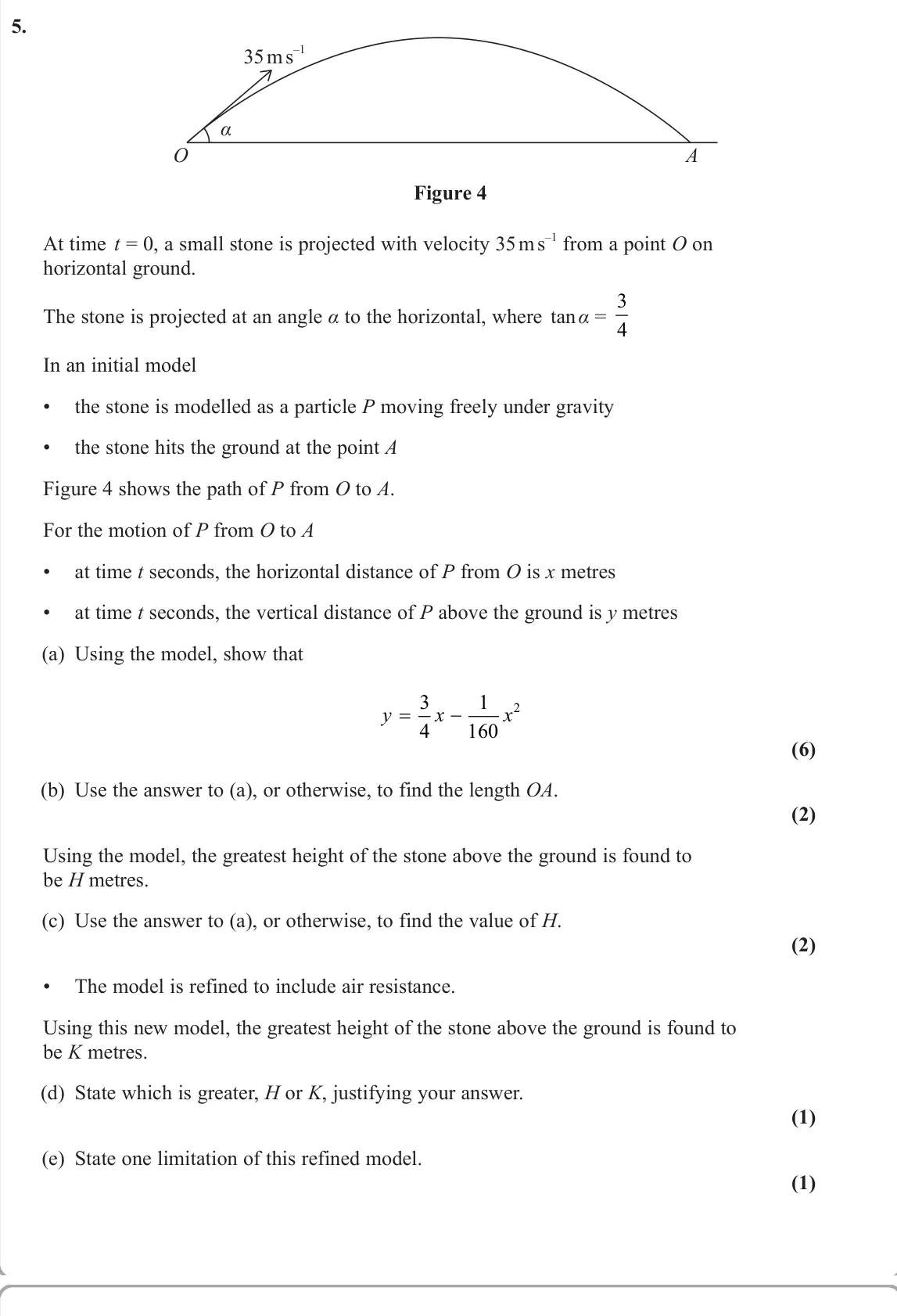

- June 2024, Mechanics, Q5 (12 marks): α 35 m s –1 A O Figure 4 At time t = 0, a small stone is projected with velocity 35 m s –1 from a point O on horizontal ground. The stone is projected at an ang

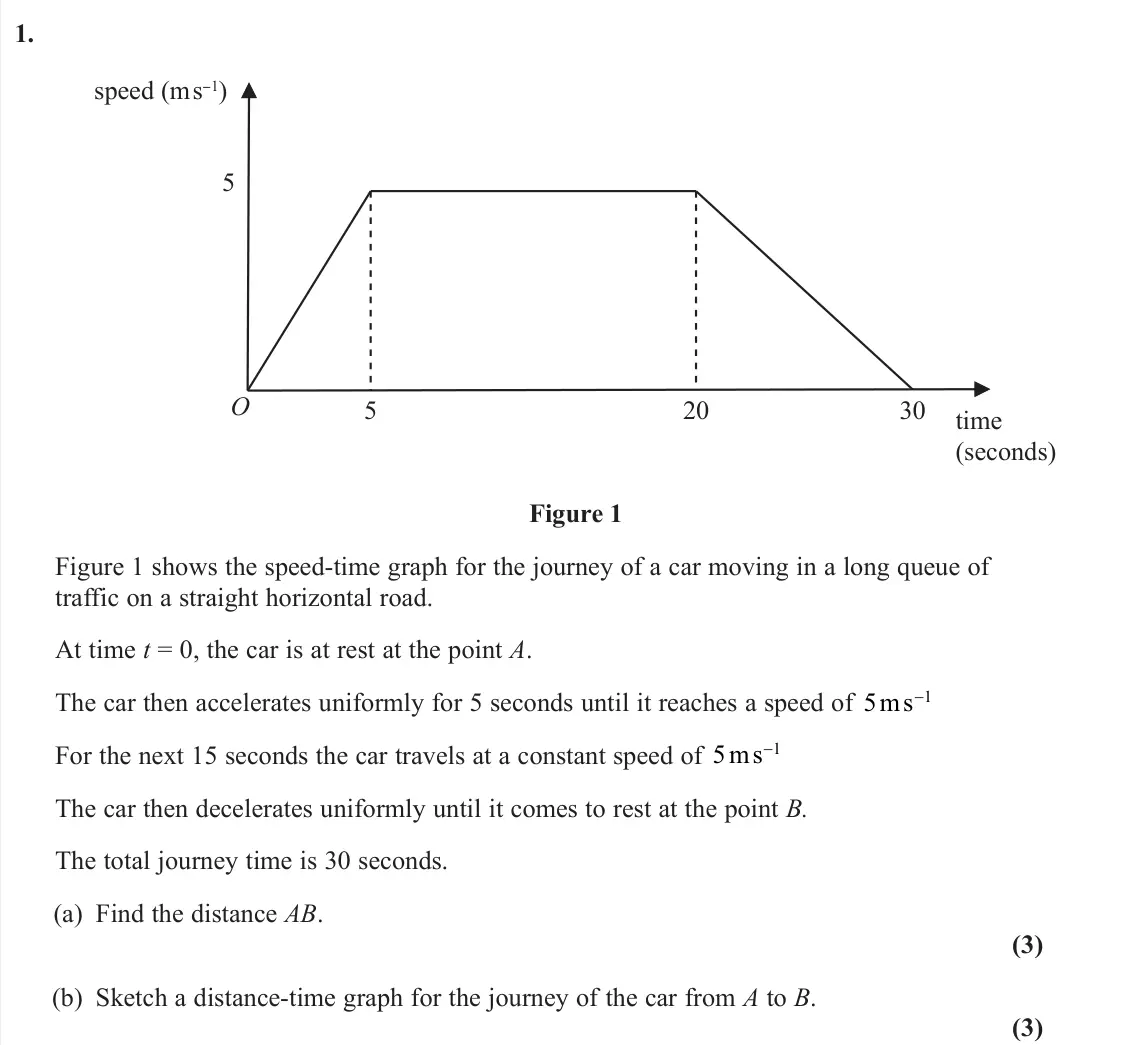

- June 2024, AS Mechanics, Q1 (6 marks): speed (m s−1) time (seconds) 20 5 5 30 O Figure 1 Figure 1 shows the speed-time graph for the journey of a car moving in a long queue of traffic on a straight h

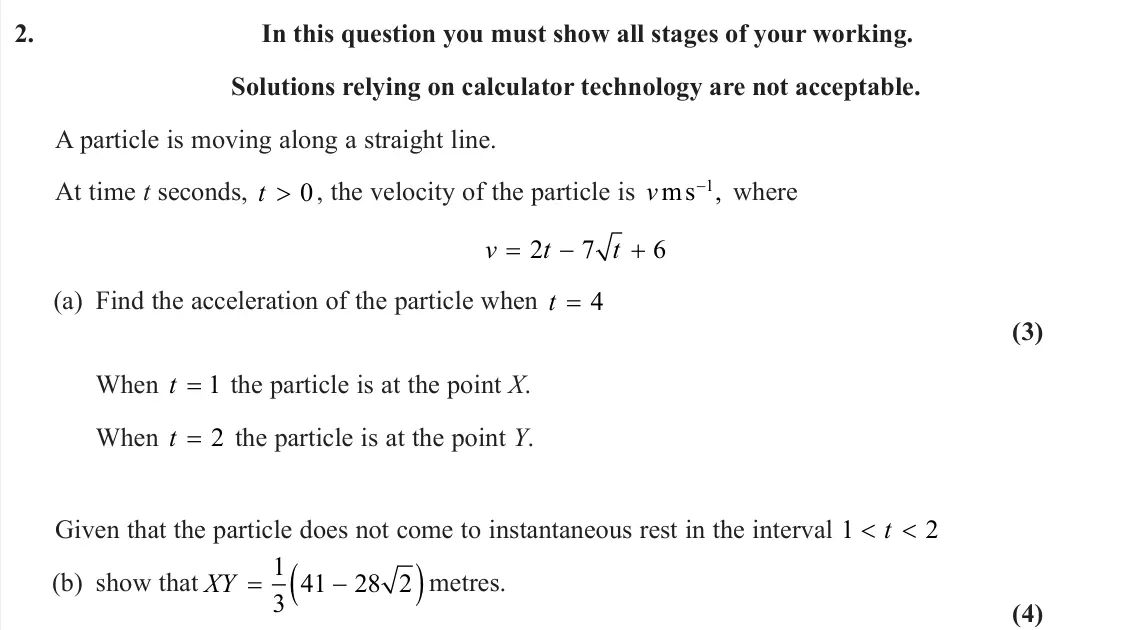

- June 2024, AS Mechanics, Q2 (7 marks): In this question you must show all stages of your working. Solutions relying on calculator technology are not acceptable. A particle is moving along a straight

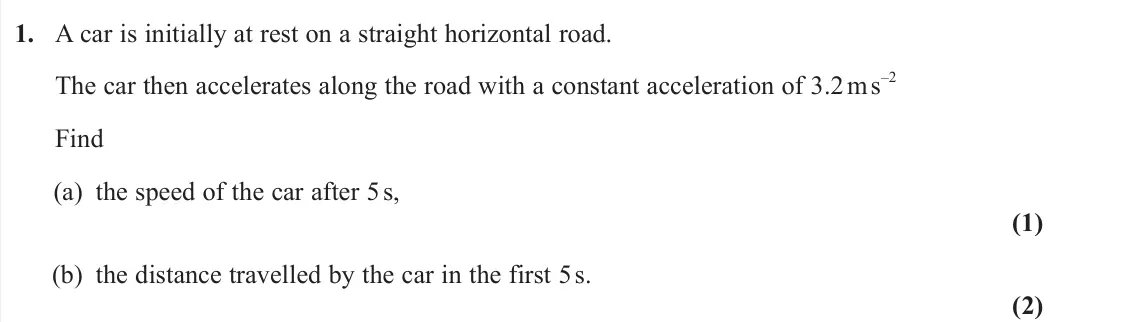

- June 2023, Mechanics, Q1 (3 marks): A car is initially at rest on a straight horizontal road. The car then accelerates along the road with a constant acceleration of 3.2 m s –2 Find (a) the speed

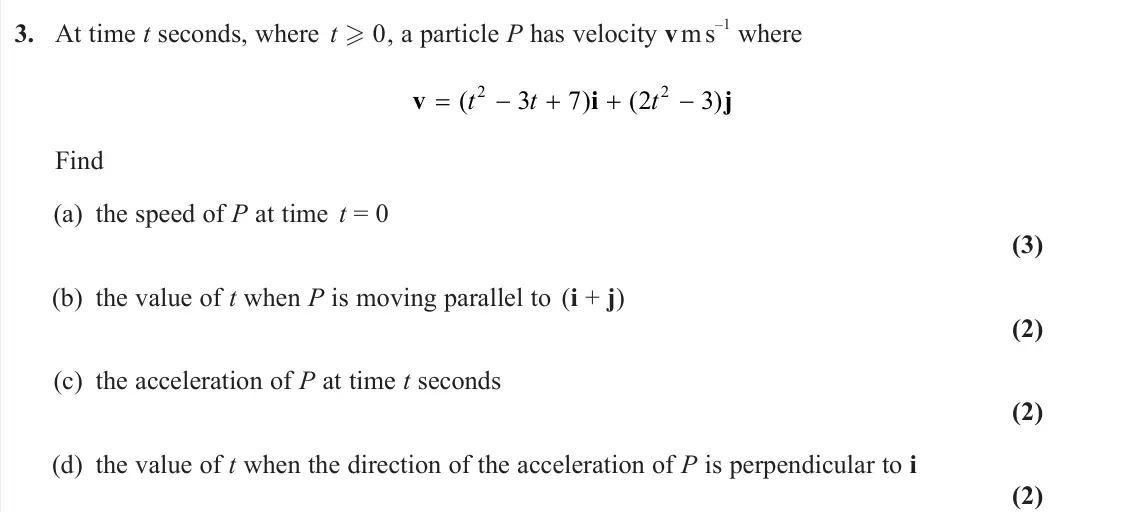

- June 2023, Mechanics, Q3 (9 marks): At time t seconds, where t 0, a particle P has velocity v m s –1 where v i j ( ) ( ) t t t 2 2 3 7 2 3 Find (a) the speed of P at time t = 0 (3) (b) the value

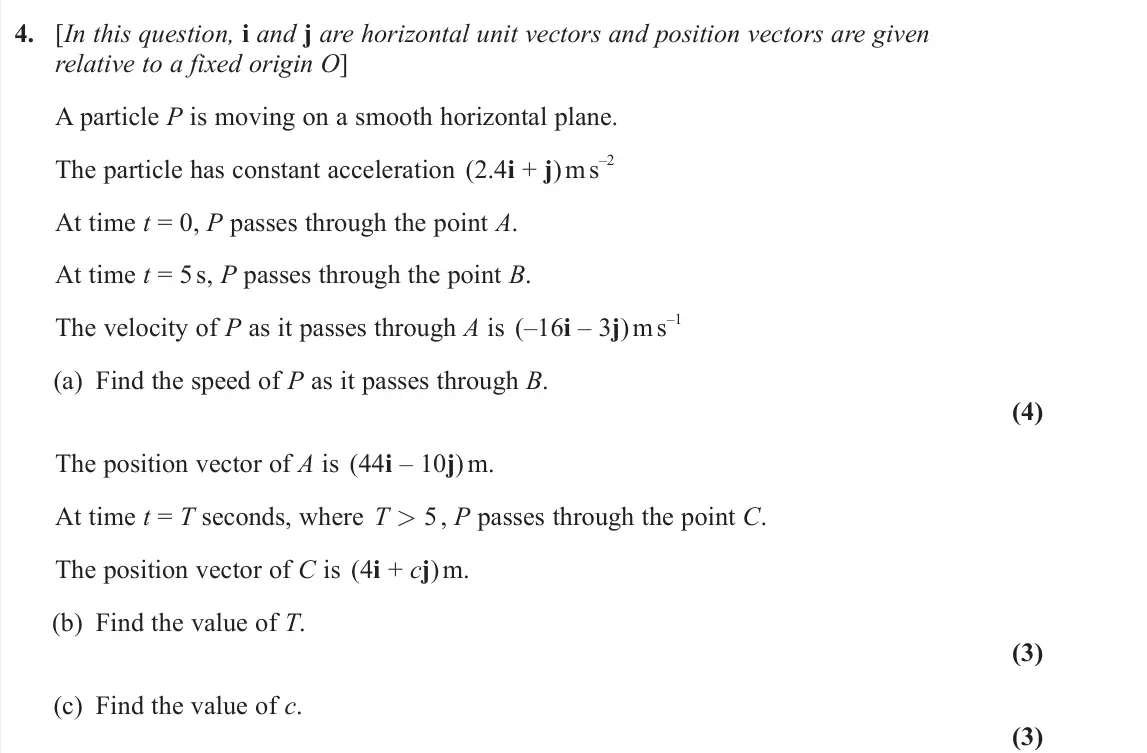

- June 2023, Mechanics, Q4 (10 marks): [In this question, i and j are horizontal unit vectors and position vectors are given relative to a fixed origin O] A particle P is moving on a smooth horizonta

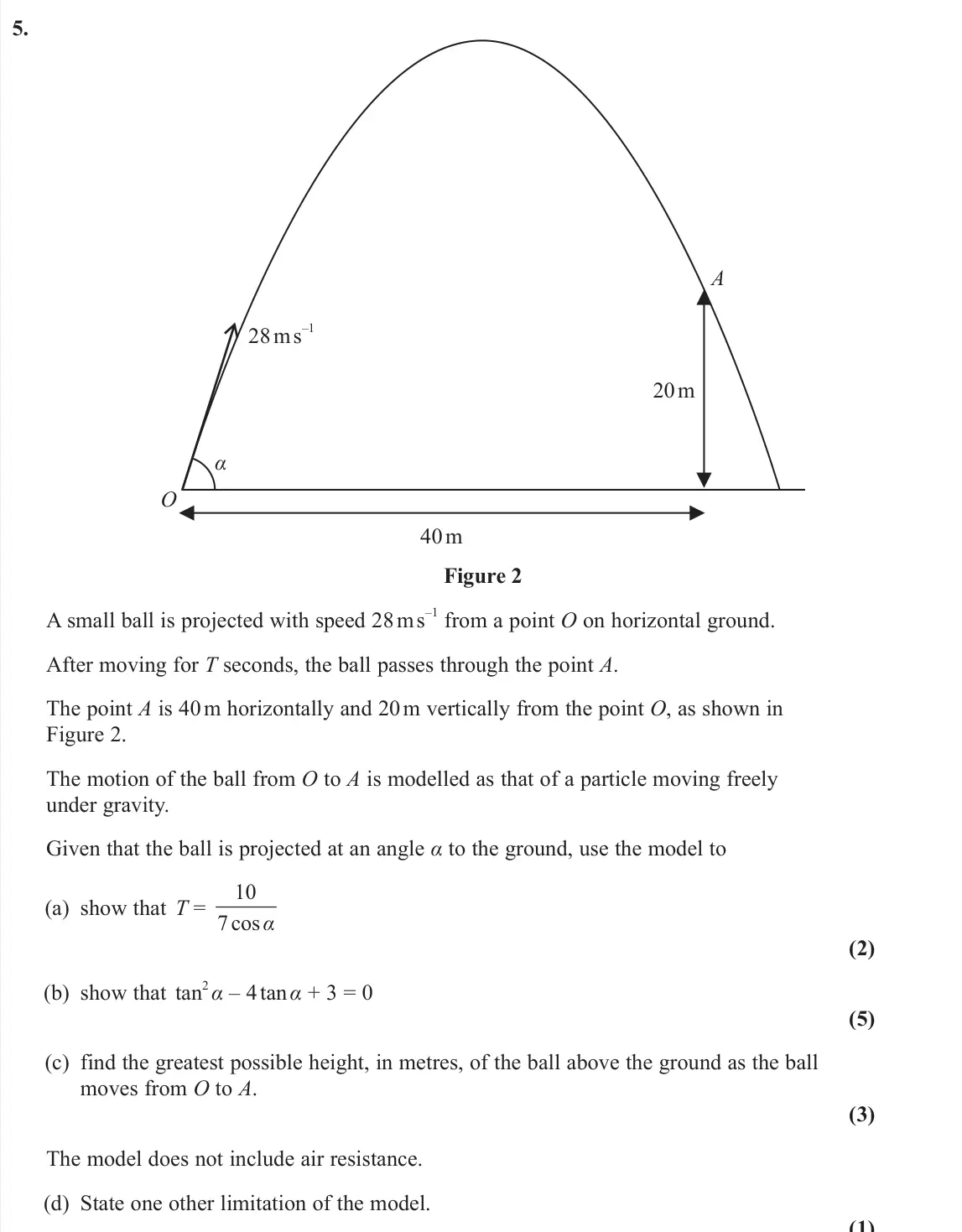

- June 2023, Mechanics, Q5 (11 marks): A O 28 m s –1 20 m 40 m α Figure 2 A small ball is projected with speed 28 m s –1 from a point O on horizontal ground. After moving for T seconds, the ball pass

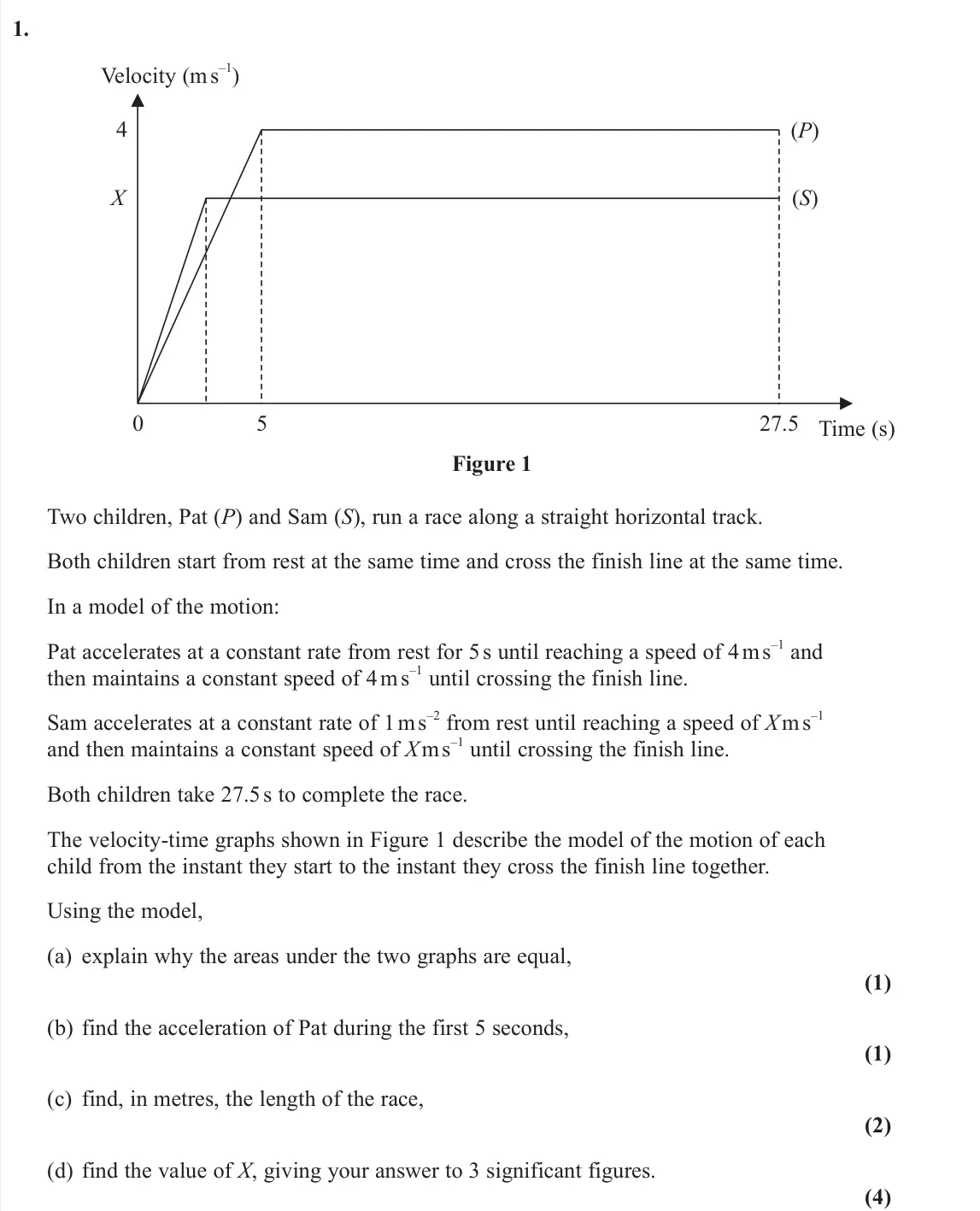

- June 2023, AS Mechanics, Q1 (8 marks): (P) (S) 27.5 0 5 4 X Velocity (m s –1) Time (s) Figure 1 Two children, Pat (P) and Sam (S), run a race along a straight horizontal track. Both children start fr

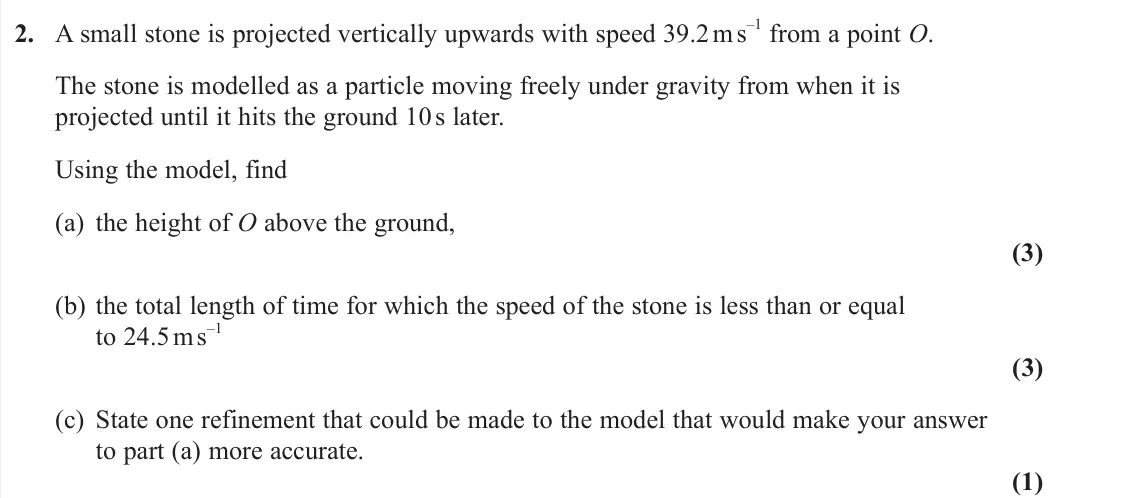

- June 2023, AS Mechanics, Q2 (7 marks): A small stone is projected vertically upwards with speed 39.2 m s –1 from a point O. The stone is modelled as a particle moving freely under gravity from when i

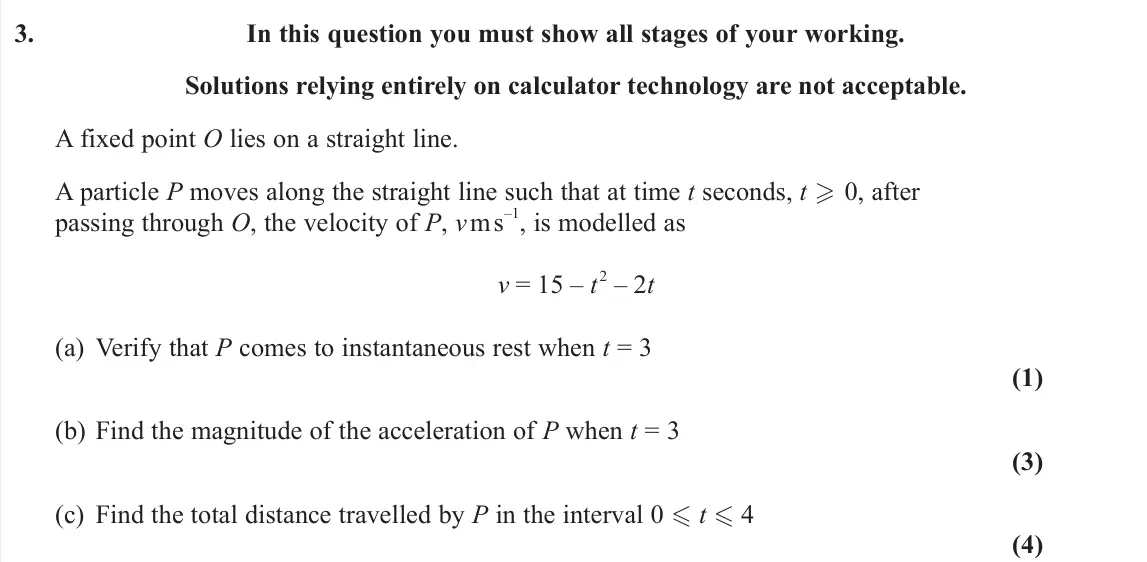

- June 2023, AS Mechanics, Q3 (8 marks): In this question you must show all stages of your working. Solutions relying entirely on calculator technology are not acceptable. A fixed point O lies on a str

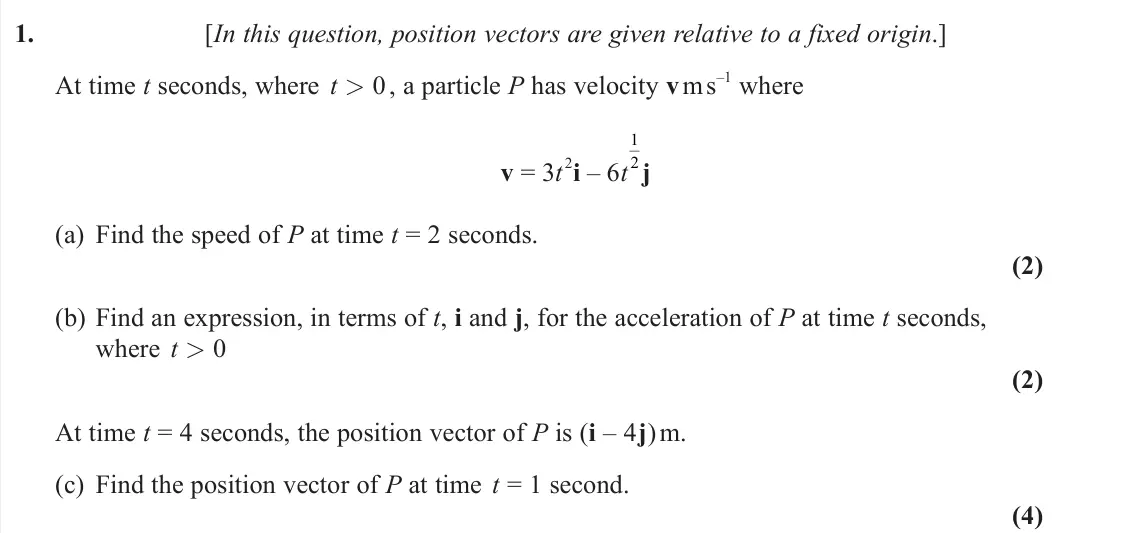

- June 2022, Mechanics, Q1 (8 marks): [In this question, position vectors are given relative to a fixed origin.] At time t seconds, where t > 0 , a particle P has velocity v m s –1 where v = 3t 2i –
- June 2022, Mechanics, Q3 (9 marks): [In this question, i and j are horizontal unit vectors.] A particle P of mass 4 kg is at rest at the point A on a smooth horizontal plane. At time t = 0, two fo
- June 2022, Mechanics, Q5 (12 marks): α B A 120 m Figure 3 A golf ball is at rest at the point A on horizontal ground. The ball is hit and initially moves at an angle α to the ground. The ball first
- June 2022, AS Mechanics, Q1 (7 marks): The point A is 1.8 m vertically above horizontal ground. At time t = 0, a small stone is projected vertically upwards with speed U m s−1 from the point A. At ti
- June 2022, AS Mechanics, Q2 (8 marks): A train travels along a straight horizontal track from station P to station Q. In a model of the motion of the train, at time t = 0 the train starts from rest a
- June 2022, AS Mechanics, Q3 (9 marks): A fixed point O lies on a straight line. A particle P moves along the straight line. At time t seconds, t 0, the distance, s metres, of P from O is given by s
- November 2021, Mechanics, Q1 (4 marks): A particle P moves with constant acceleration (2i − 3j) m s−2 At time t = 0, P is moving with velocity 4i m s−1 (a) Find the velocity of P at time t = 2 seconds
- November 2021, Mechanics, Q4 (10 marks): 70 m 65 m s−1 A N α O Figure 3 A small stone is projected with speed 65 m s−1 from a point O at the top of a vertical cliff. Point O is 70 m vertically above th
- November 2021, Mechanics, Q5 (14 marks): At time t seconds, a particle P has velocity v m s−1, where v = 3t 1 2 i − 2t j t > 0 (a) Find the acceleration of P at time t seconds, where t > 0 (2) (b) Find
- November 2021, AS Mechanics, Q1 (7 marks): At time t = 0, a small stone is thrown vertically upwards with speed 14.7 m s−1 from a point A. At time t = T seconds, the stone passes through A, moving downwa
- November 2021, AS Mechanics, Q2 (10 marks): A particle P moves along a straight line. At time t seconds, the velocity v m s−1 of P is modelled as v = 10t − t 2 − k t 0 where k is a constant. (a) Find th
- November 2020, Mechanics, Q2 (8 marks): A particle P moves with acceleration (4i − 5j) m s−2 At time t = 0, P is moving with velocity (−2i + 2j) m s−1 (a) Find the velocity of P at time t = 2 seconds.
- November 2020, Mechanics, Q3 (12 marks): (i) At time t seconds, where t 0 , a particle P moves so that its acceleration a m s−2 is given by a = (1 − 4t) i + (3 − t2) j At the instant when t = 0, the
- November 2020, Mechanics, Q5 (11 marks): N 45° O 25 m A U m s−1 100 m Figure 2 A small ball is projected with speed U m s−1 from a point O at the top of a vertical cliff. The point O is 25 m vertically
- November 2020, AS Mechanics, Q1 (12 marks): At time t = 0, a small ball is projected vertically upwards with speed U m s–1 from a point A that is 16.8 m above horizontal ground. The speed of the ball at t
- November 2020, AS Mechanics, Q3 (9 marks): A particle P moves along a straight line such that at time t seconds, t 0, after leaving the point O on the line, the velocity, v m s–1, of P is modelled as v
- June 2019, AS Mechanics, Q1 (10 marks): At time t = 0, a parachutist falls vertically from rest from a helicopter which is hovering at a height of 550 m above horizontal ground. The parachutist, who i
- June 2019, AS Mechanics, Q3 (8 marks): A particle, P, moves along a straight line such that at time t seconds, t . 0, the velocity of P, v m s–1, is modelled as v = 12 + 4t – t2 Find (a) the magnitud
