plumiCritical path analysis: Edexcel A‑Level Further Maths questions
Every Edexcel A-Level Further Maths exam question on D.3 Critical path analysis, 2018–2025, with its mark scheme and examiner’s report.
Find questions824
All 16 questions on Critical path analysis, as a list

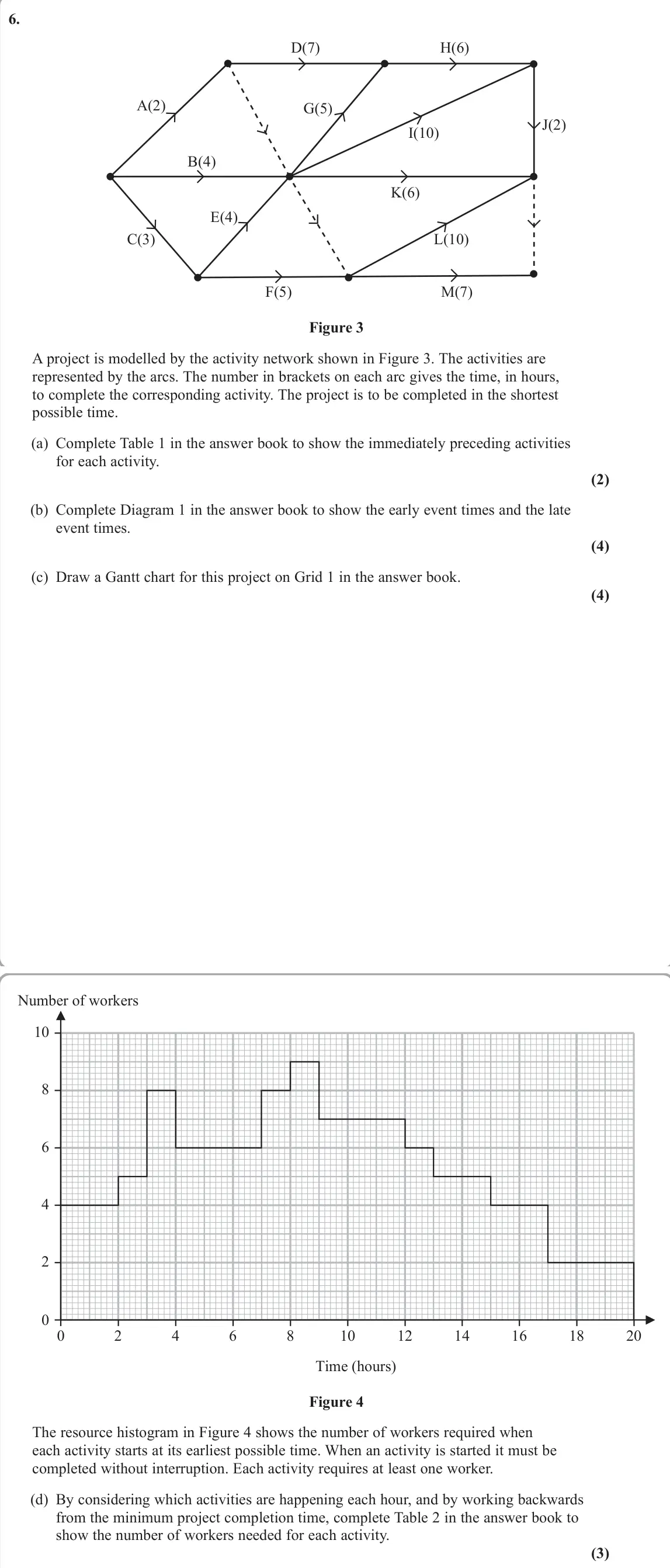

- June 2025, Decision 1, Q6 (13 marks): A(2) D(7) H(6) J(2) M(7) L(10) I(10) K(6) F(5) E(4) G(5) B(4) C(3) Figure 3 A project is modelled by the activity network shown in Figure 3. The activities are

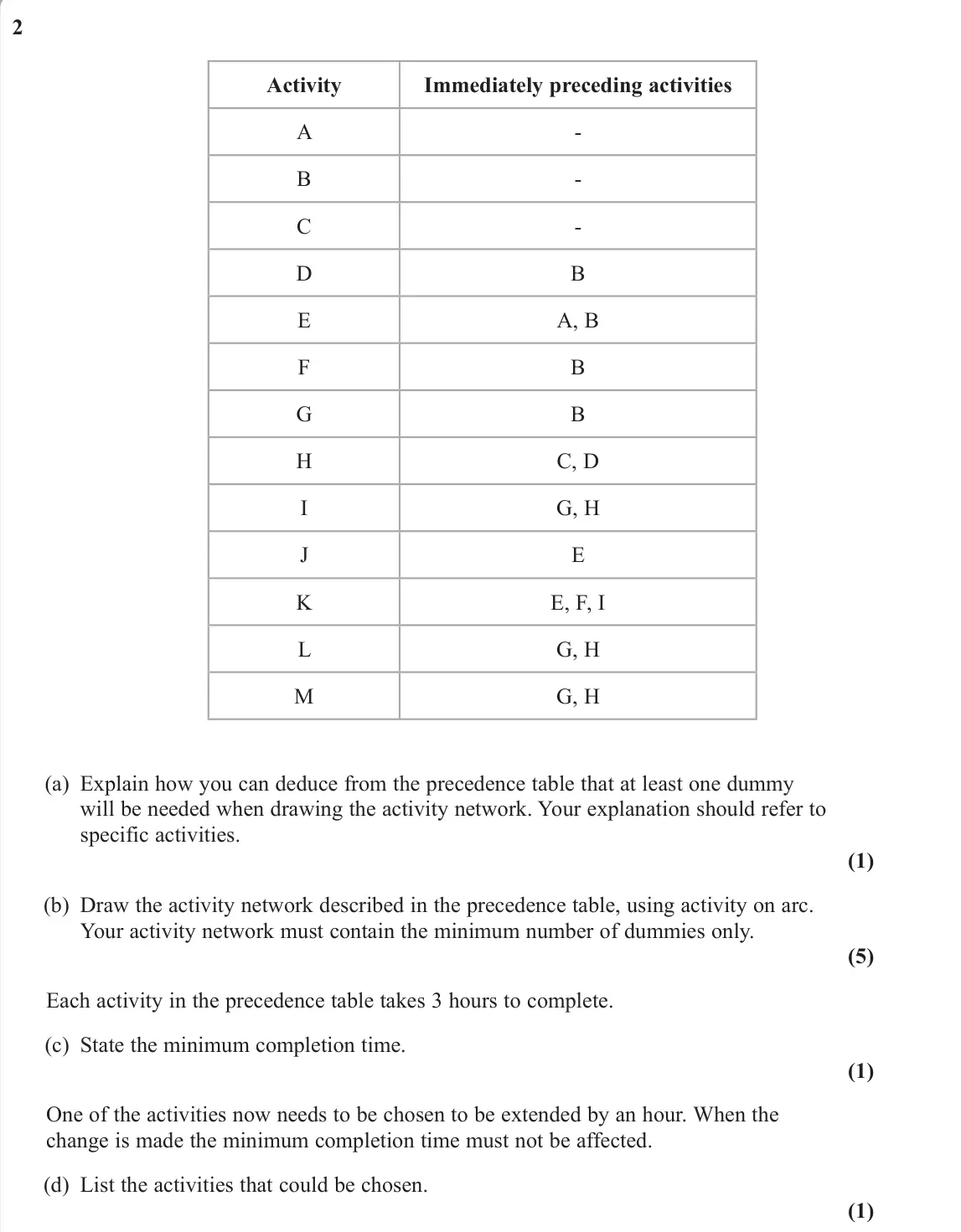

- June 2025, AS Decision 1, Q2 (8 marks): 2 Activity Immediately preceding activities A - B - C - D B E A, B F B G B H C, D I G, H J E K E, F, I L G, H M G, H (a) Explain how you can deduce from the pre

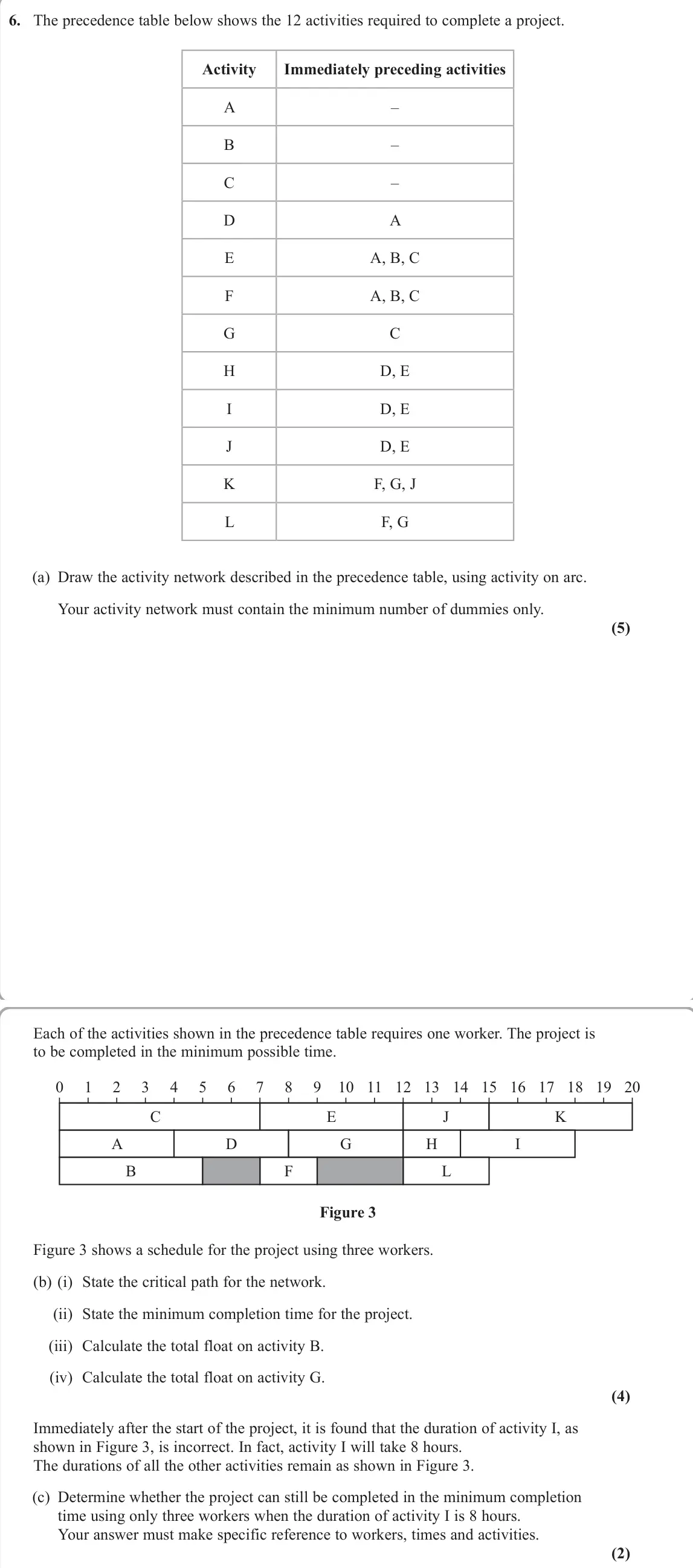

- June 2024, Decision 1, Q6 (11 marks): The precedence table below shows the 12 activities required to complete a project. Activity Immediately preceding activities A – B – C – D A E A, B, C F A, B, C

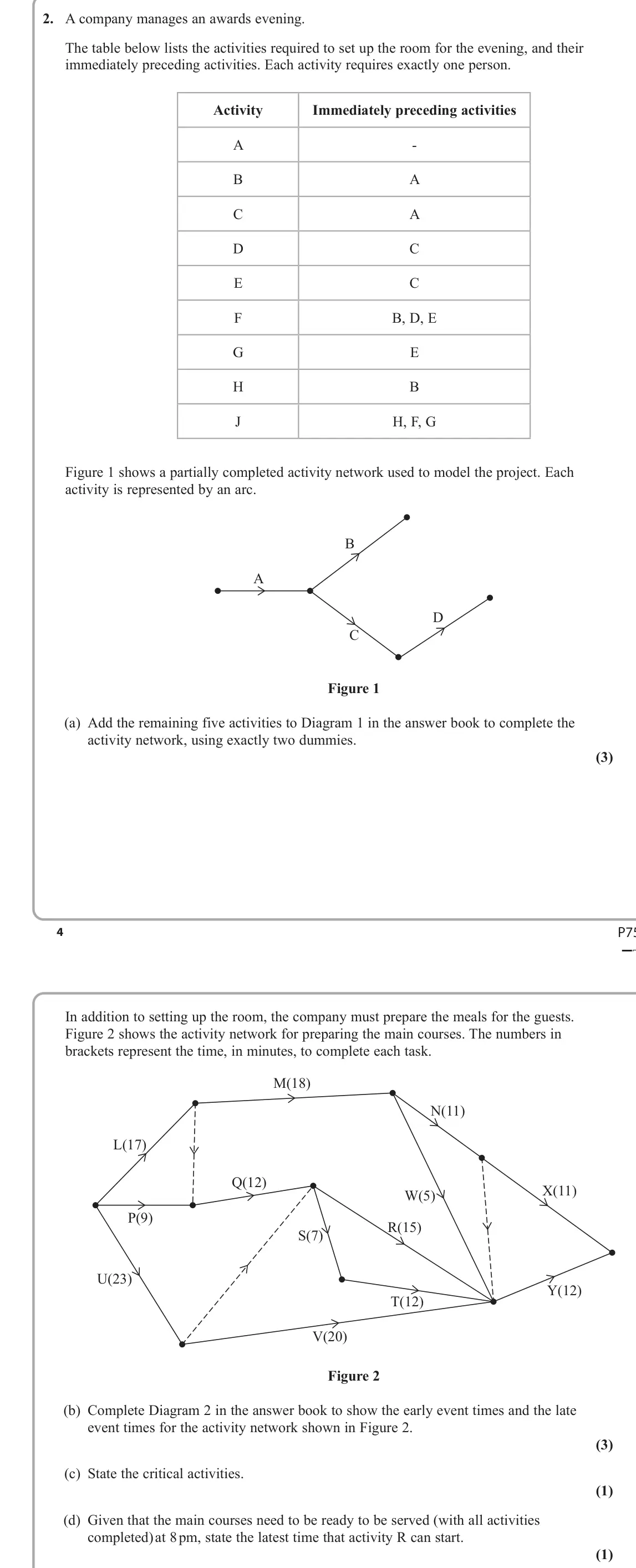

- June 2024, AS Decision 1, Q2 (8 marks): 4 P75 2. A company manages an awards evening. The table below lists the activities required to set up the room for the evening, and their immediately precedi

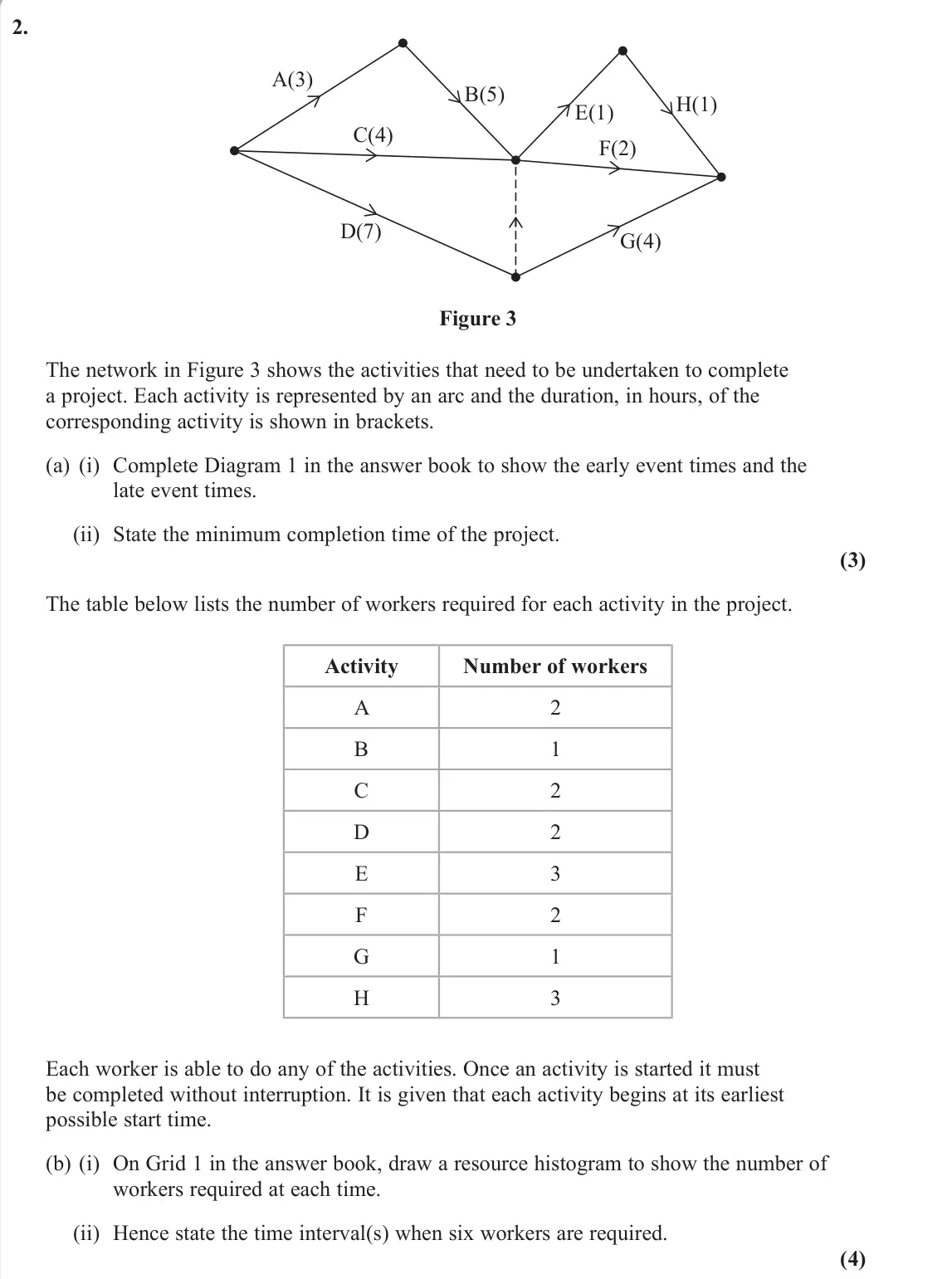

- June 2023, Decision 1, Q2 (7 marks): A(3) D(7) G(4) B(5) E(1) H(1) C(4) F(2) Figure 3 The network in Figure 3 shows the activities that need to be undertaken to complete a project. Each activity is

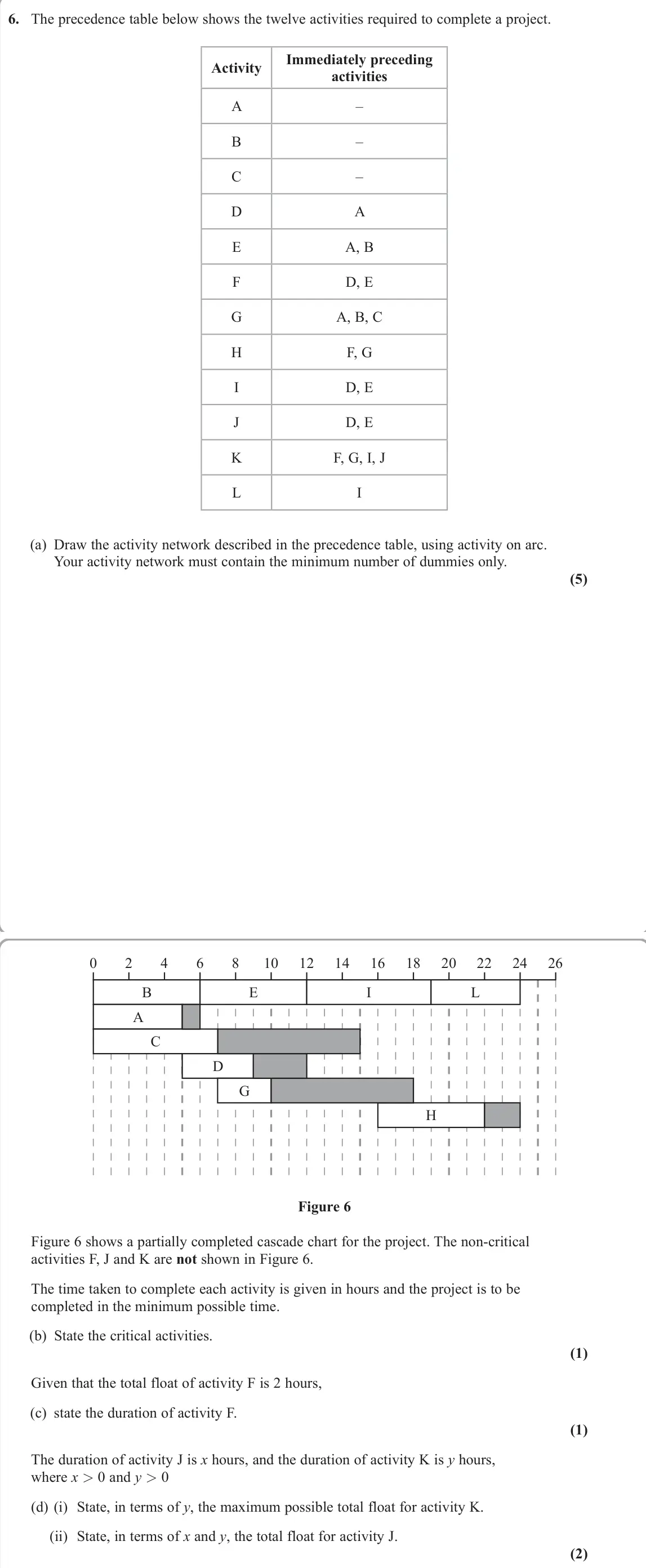

- June 2023, Decision 1, Q6 (9 marks): The precedence table below shows the twelve activities required to complete a project. Activity Immediately preceding activities A – B – C – D A E A, B F D, E G

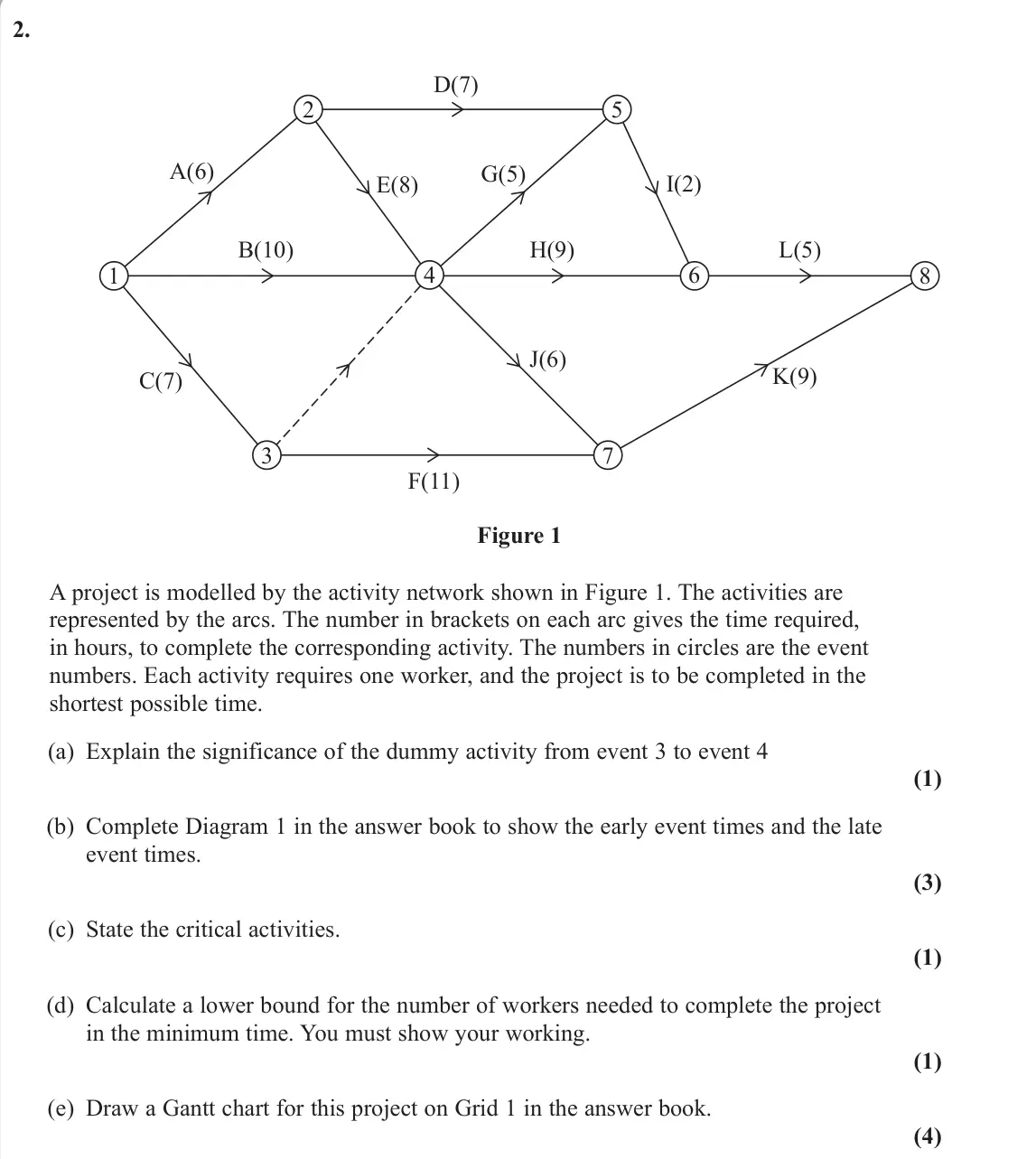

- June 2023, AS Decision 1, Q2 (10 marks): A(6) B(10) C(7) D(7) E(8) F(11) G(5) H(9) I(2) J(6) K(9) L(5) 1 3 7 4 6 8 2 5 Figure 1 A project is modelled by the activity network shown in Figure 1. The acti

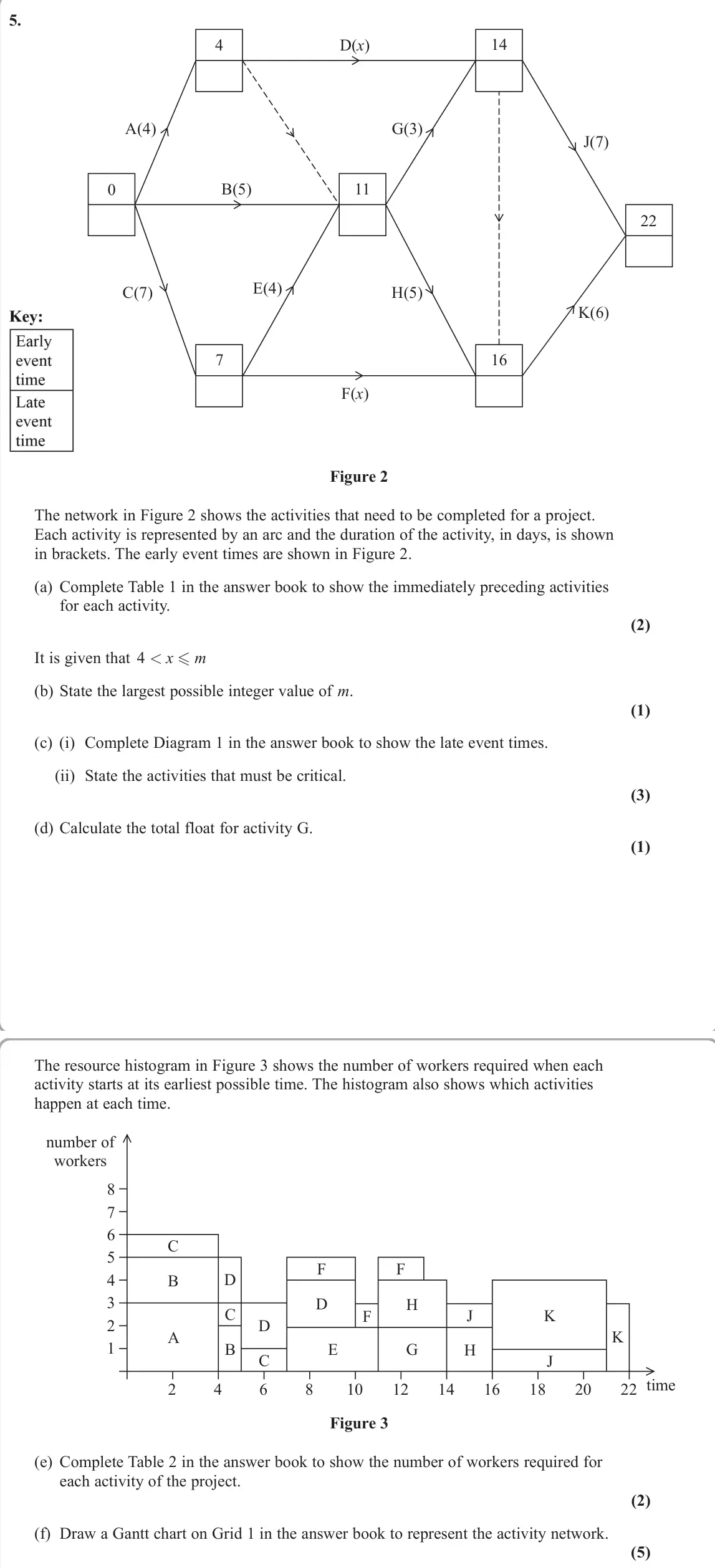

- June 2022, Decision 1, Q5 (14 marks): 4 D(x) A(4) C(7) E(4) G(3) H(5) J(7) K(6) B(5) 14 22 11 0 7 16 F(x) Figure 2 The network in Figure 2 shows the activities that need to be completed for a projec

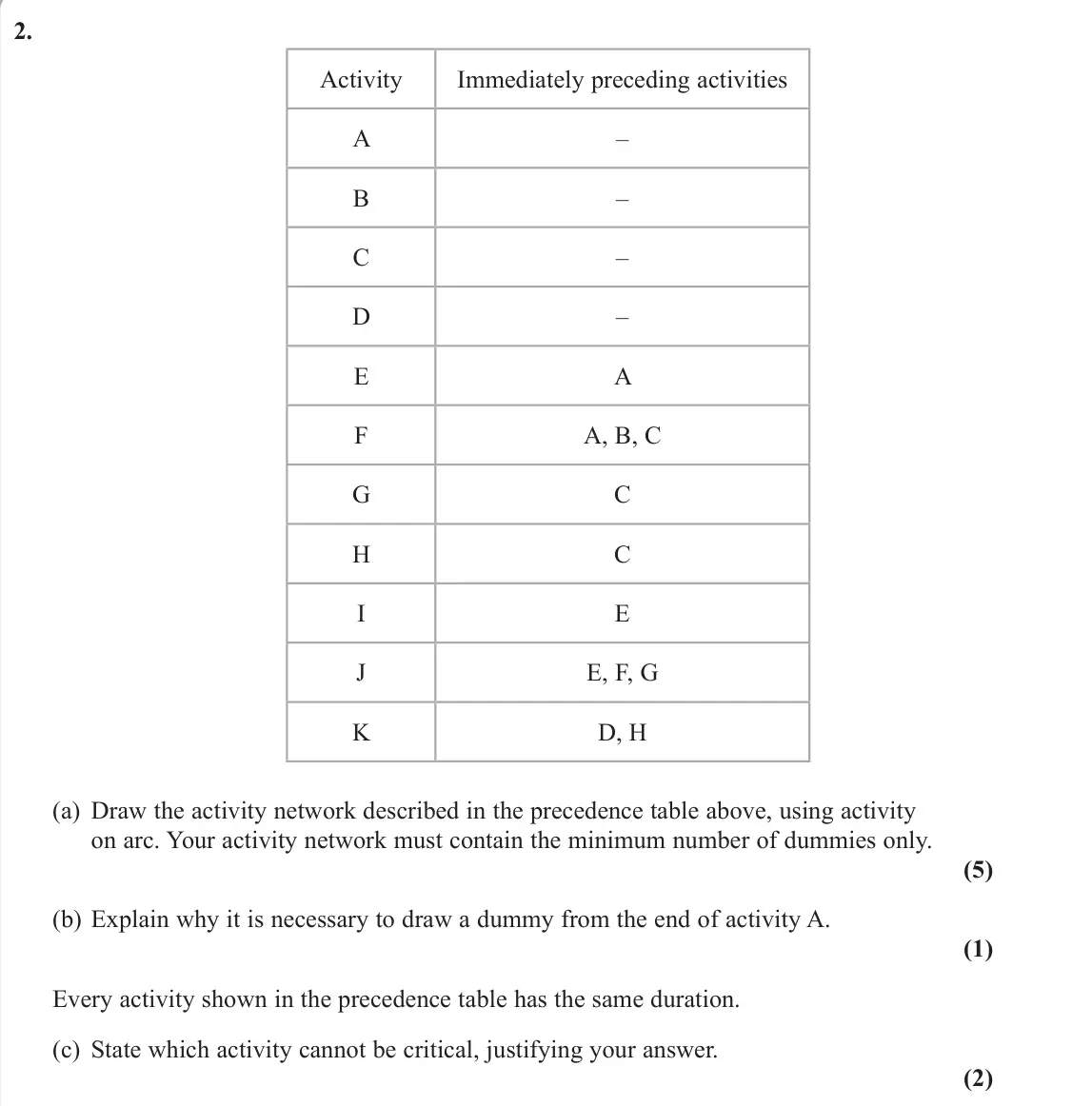

- June 2022, AS Decision 1, Q2 (8 marks): Activity Immediately preceding activities A – B – C – D – E A F A, B, C G C H C I E J E, F, G K D, H (a) Draw the activity network described in the precedence t

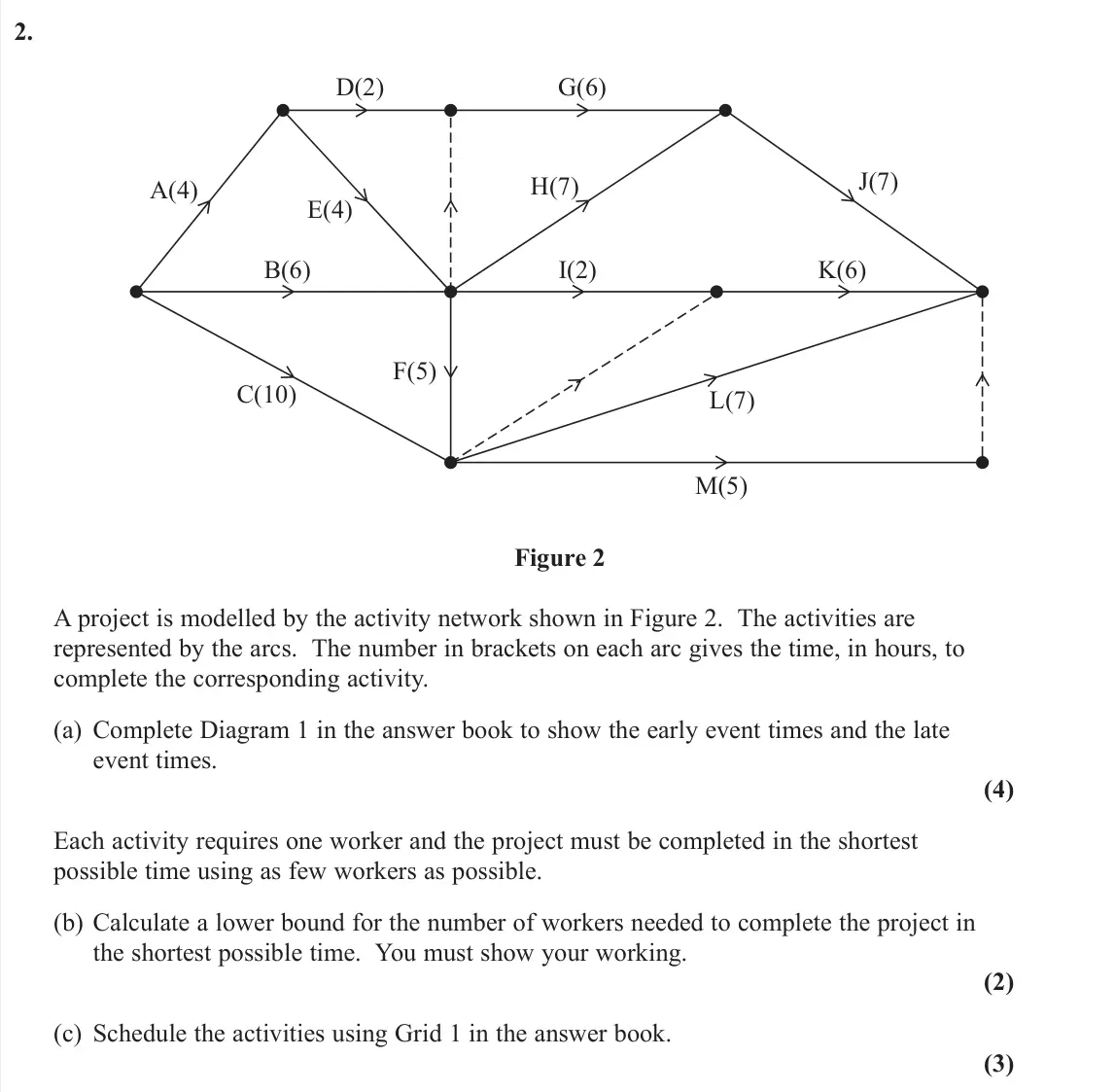

- November 2021, Decision 1, Q2 (9 marks): D(2) B(6) C(10) A(4) E(4) F(5) G(6) H(7) I(2) K(6) L(7) M(5) J(7) Figure 2 A project is modelled by the activity network shown in Figure 2. The activities are r

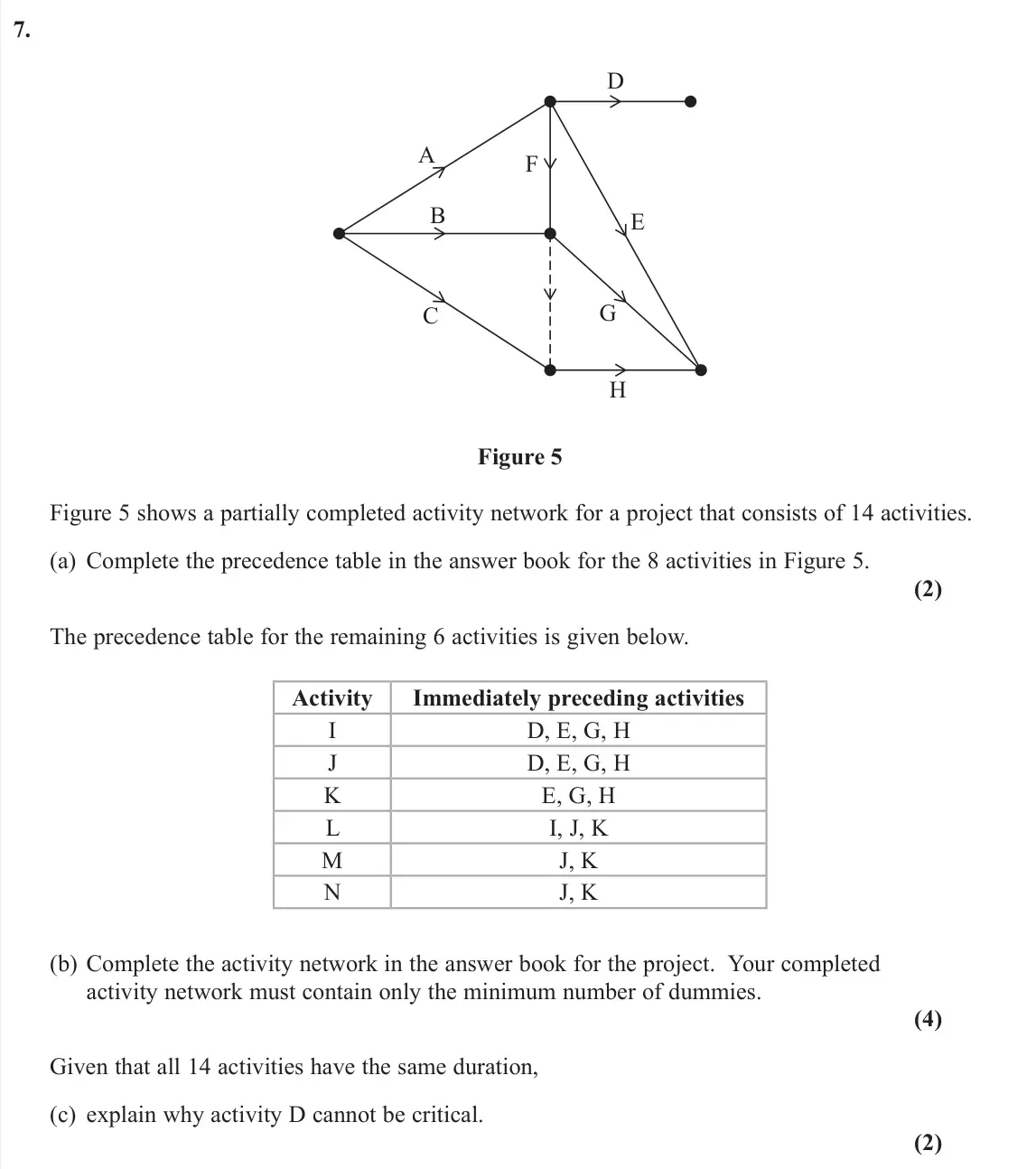

- November 2021, Decision 1, Q7 (8 marks): A G F E D C B H Figure 5 Figure 5 shows a partially completed activity network for a project that consists of 14 activities. (a) Complete the precedence table i

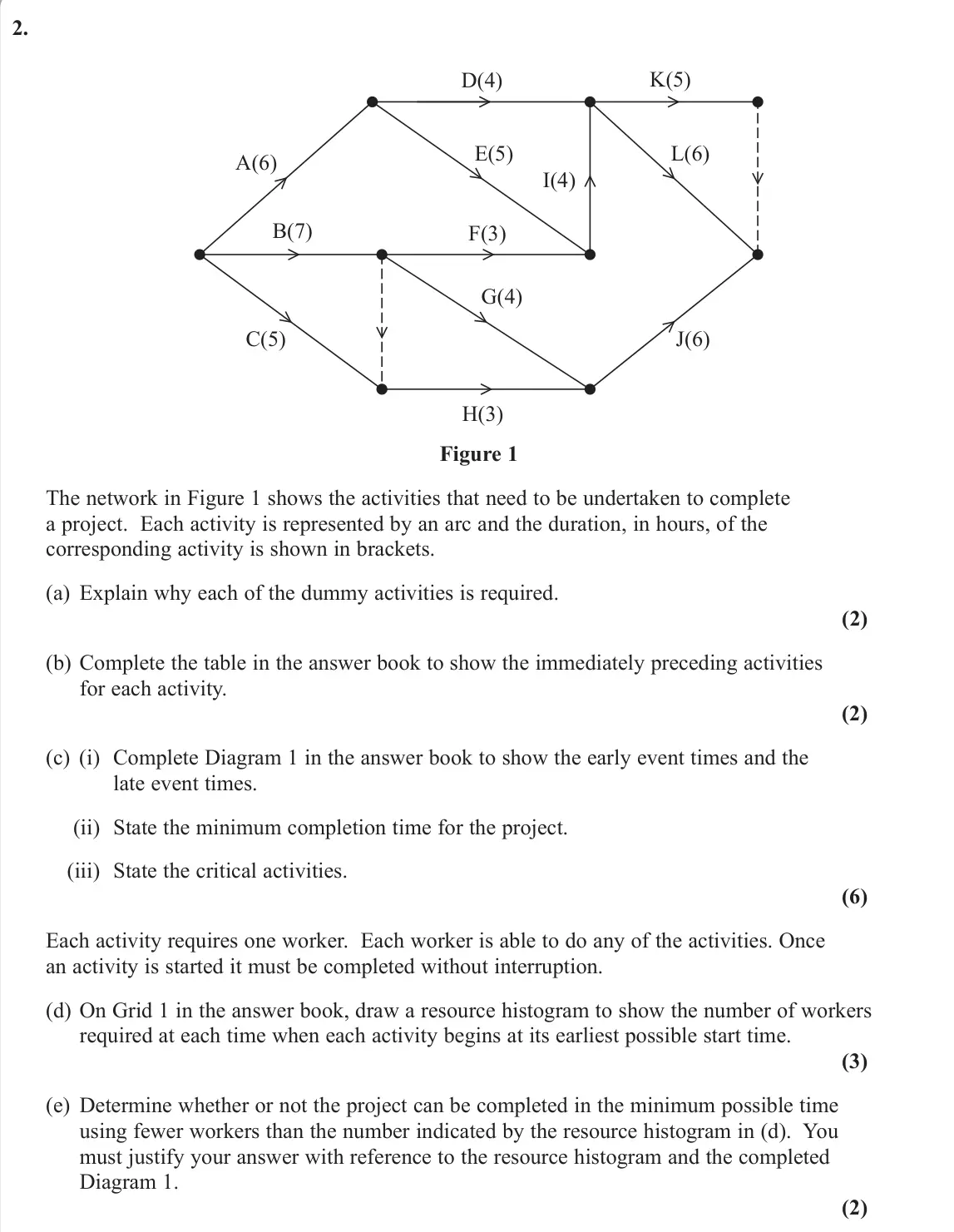

- November 2020, Decision 1, Q2 (15 marks): A(6) B(7) C(5) G(4) H(3) D(4) E(5) I(4) F(3) K(5) L(6) J(6) Figure 1 The network in Figure 1 shows the activities that need to be undertaken to complete a proje

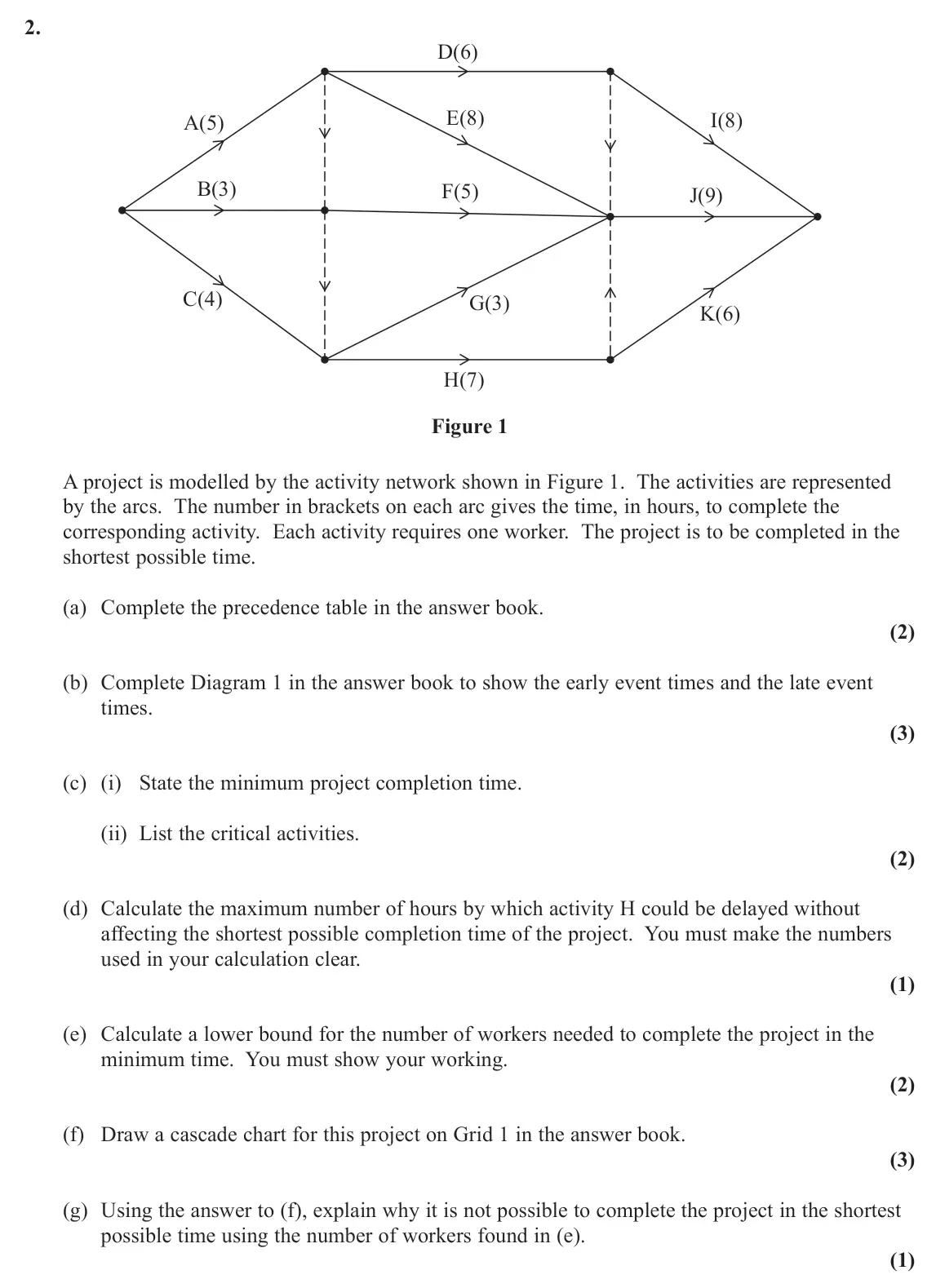

- November 2020, AS Decision 1, Q2 (14 marks): D(6) E(8) F(5) G(3) H(7) A(5) B(3) C(4) I(8) J(9) K(6) Figure 1 A project is modelled by the activity network shown in Figure 1. The activities are represented

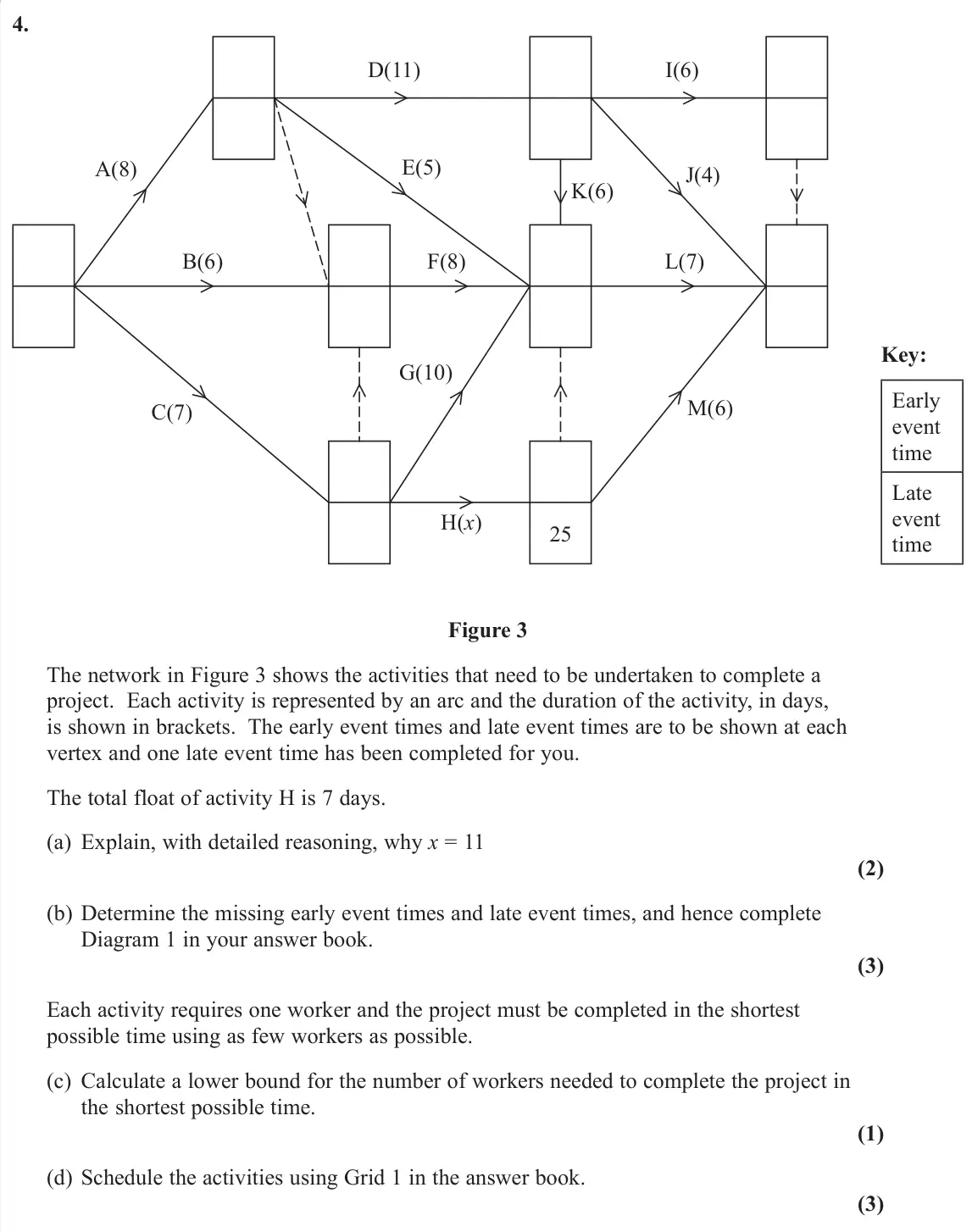

- June 2019, Decision 1, Q4 (9 marks): Early event time Late event time Key: 25 A(8) D(11) I(6) E(5) K(6) J(4) L(7) F(8) B(6) C(7) G(10) H(x) M(6) Figure 3 The network in Figure 3 shows the activitie

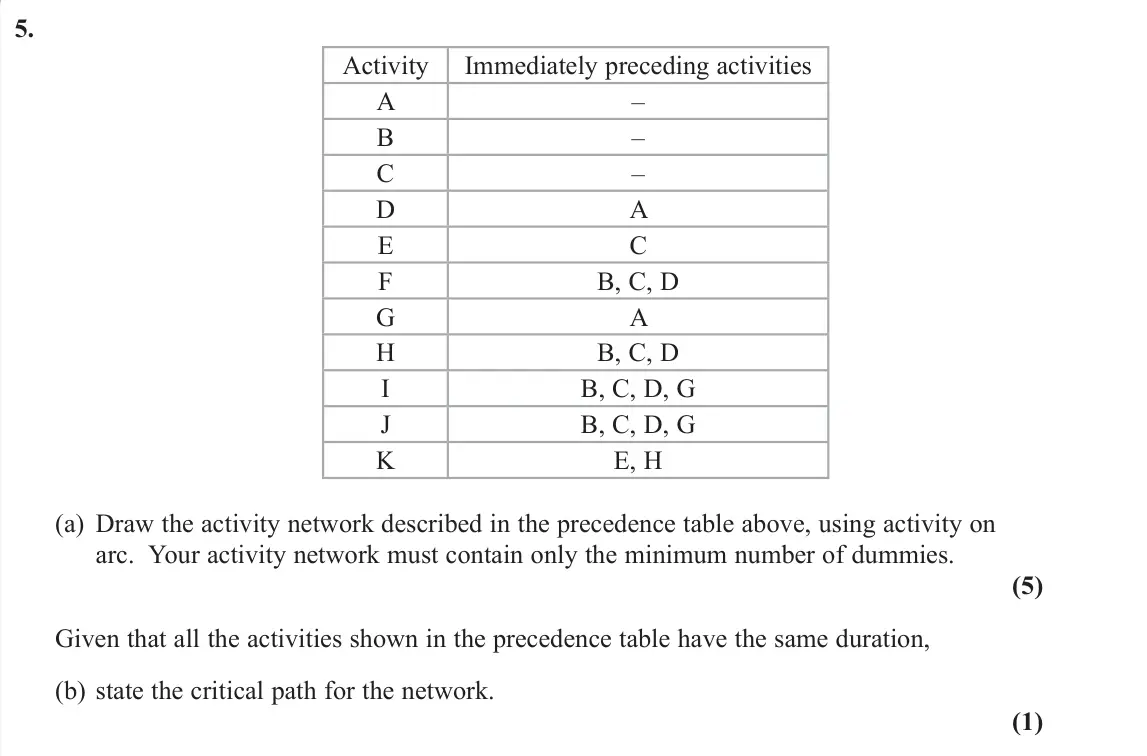

- June 2019, Decision 1, Q5 (6 marks): Activity Immediately preceding activities A – B – C – D A E C F B, C, D G A H B, C, D I B, C, D, G J B, C, D, G K E, H (a) Draw the activity network described i

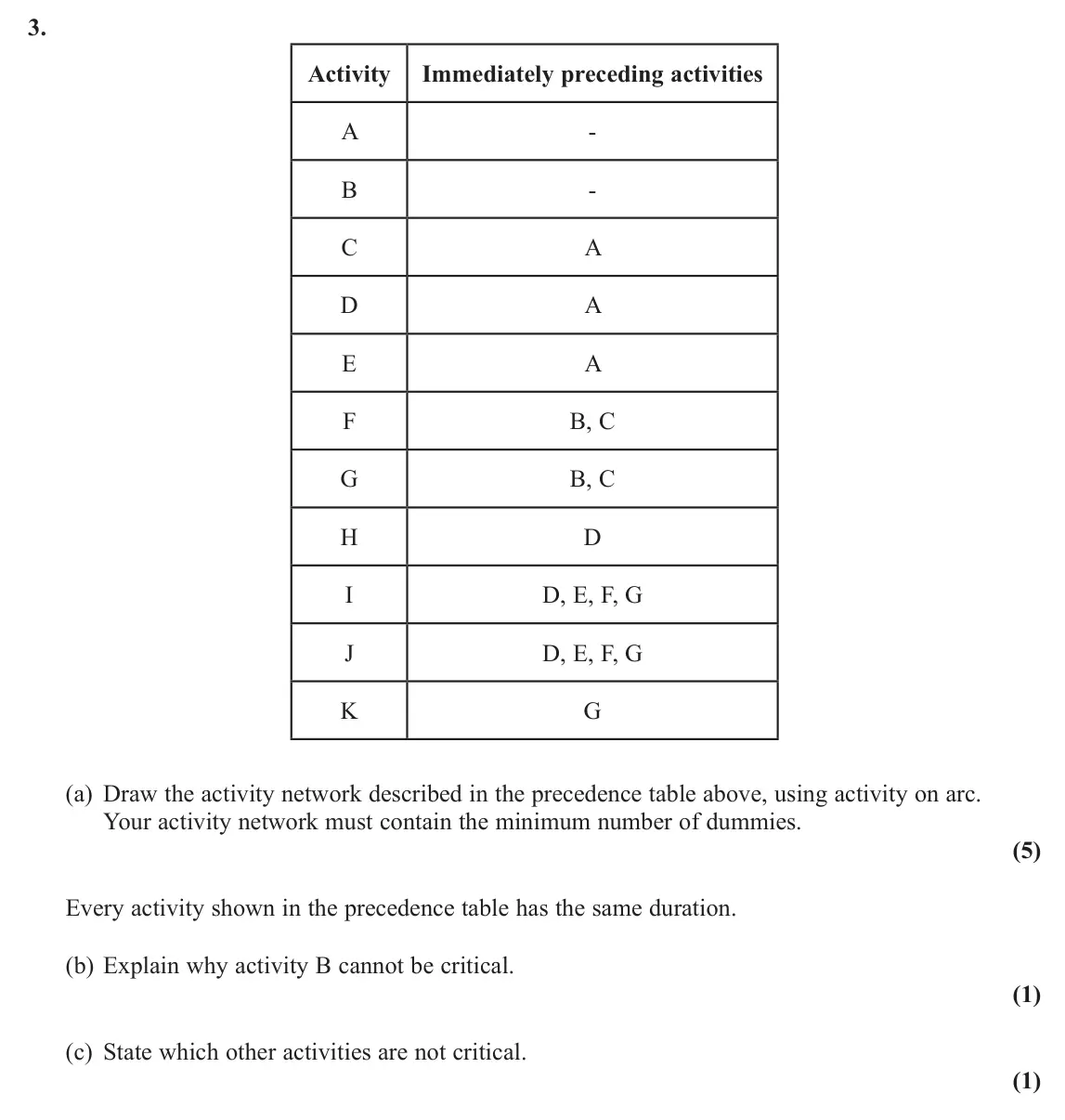

- June 2019, AS Decision 1, Q3 (7 marks): Activity Immediately preceding activities A - B - C A D A E A F B, C G B, C H D I D, E, F, G J D, E, F, G K G (a) Draw the activity network described in the pre
