Scale drawings: CAIE IGCSE Maths questions

Every CAIE IGCSE Maths exam question on 4.3 Scale drawings, June 2024 and the specimen papers, with its mark scheme and examiner’s report.

Find questions228

228 questions

  1. Q7

    June 2024 · Paper 3

    14 marks4.3 Scale drawings1.10 Limits of accuracy
    The whole paper ↗
    June 2024 Paper 3, question 7: (a) The scale drawing shows the position of a castle, C. The scale is 1 centimetre represents 2 kilometres. North C Scale: 1 cm to 2 km Micah walks at 4.8 km/h

  2. Q6

    June 2024 · Paper 4

    17 marks6.5 Non-right-angled triangles4.3 Scale drawings
    The whole paper ↗
    June 2024 Paper 4, question 6: North B C 11km 25° NOT TO A SCALE 32km 14km 55° H The diagram shows the positions of two lighthouses A and B, a boat C and a harbour H . C is due east of B. (a)

  3. Q15

    June 2024 (0980) · Paper 2

    3 marks4.3 Scale drawings4.6 Angles
    The whole paper ↗
    June 2024 (0980) Paper 2, question 15: North A NOT TO C SCALE B Three towns, A, B and C, are equidistant from each other. The bearing of C from A is 104°. Calculate the bearing of B from C. [3]

  4. Q8

    Specimen · Paper 1

    2 marks4.3 Scale drawings
    The whole paper ↗

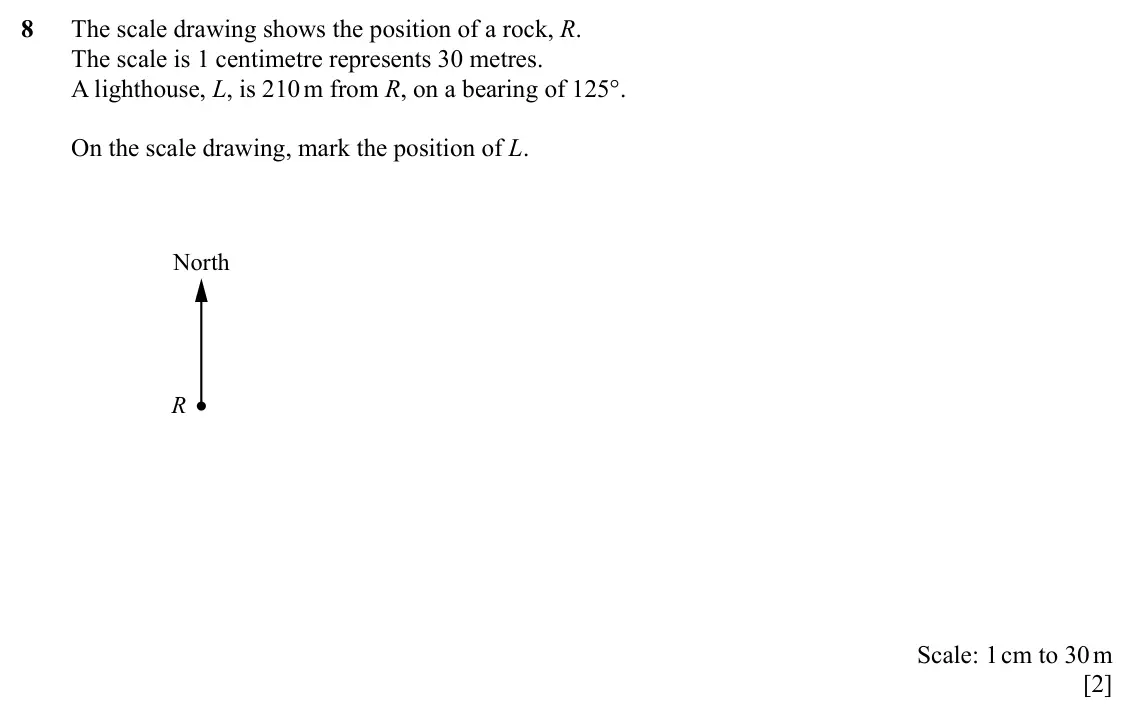

    Specimen Paper 1, question 8: The scale drawing shows the position of a rock, R. The scale is 1 centimetre represents 30 metres. A lighthouse, L, is 210 m from R, on a bearing of 125°. On th

  5. Q5

    Specimen · Paper 4

    4 marks4.3 Scale drawings
    The whole paper ↗

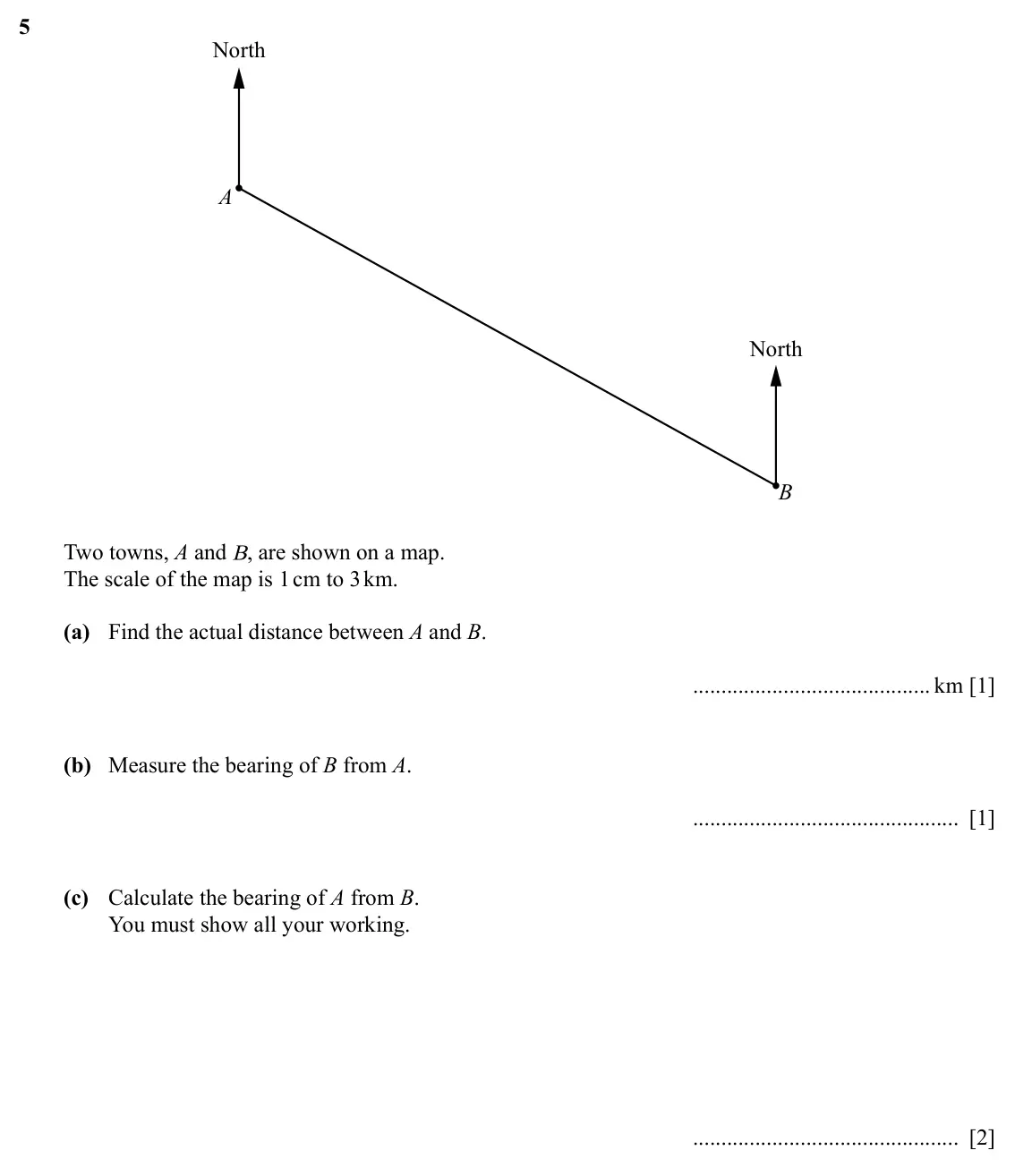

    Specimen Paper 4, question 5: North A North B Two towns, A and B, are shown on a map. The scale of the map is 1 cm to 3 km. (a) Find the actual distance between A and B. km [1] (b) Measure t
All 5 questions on Scale drawings, as a list
  1. June 2024, Paper 3, Q7 (14 marks): (a) The scale drawing shows the position of a castle, C. The scale is 1 centimetre represents 2 kilometres. North C Scale: 1 cm to 2 km Micah walks at 4.8 km/h
  2. June 2024, Paper 4, Q6 (17 marks): North B C 11km 25° NOT TO A SCALE 32km 14km 55° H The diagram shows the positions of two lighthouses A and B, a boat C and a harbour H . C is due east of B. (a)
  3. June 2024 (0980), Paper 2, Q15 (3 marks): North A NOT TO C SCALE B Three towns, A, B and C, are equidistant from each other. The bearing of C from A is 104°. Calculate the bearing of B from C. [3]
  4. Specimen, Paper 1, Q8 (2 marks): The scale drawing shows the position of a rock, R. The scale is 1 centimetre represents 30 metres. A lighthouse, L, is 210 m from R, on a bearing of 125°. On th
  5. Specimen, Paper 4, Q5 (4 marks): North A North B Two towns, A and B, are shown on a map. The scale of the map is 1 cm to 3 km. (a) Find the actual distance between A and B. km [1] (b) Measure t
