plumiAngles: CAIE IGCSE Maths questions
Every CAIE IGCSE Maths exam question on 4.6 Angles, June 2024 and the specimen papers, with its mark scheme and examiner’s report.
Find questions228

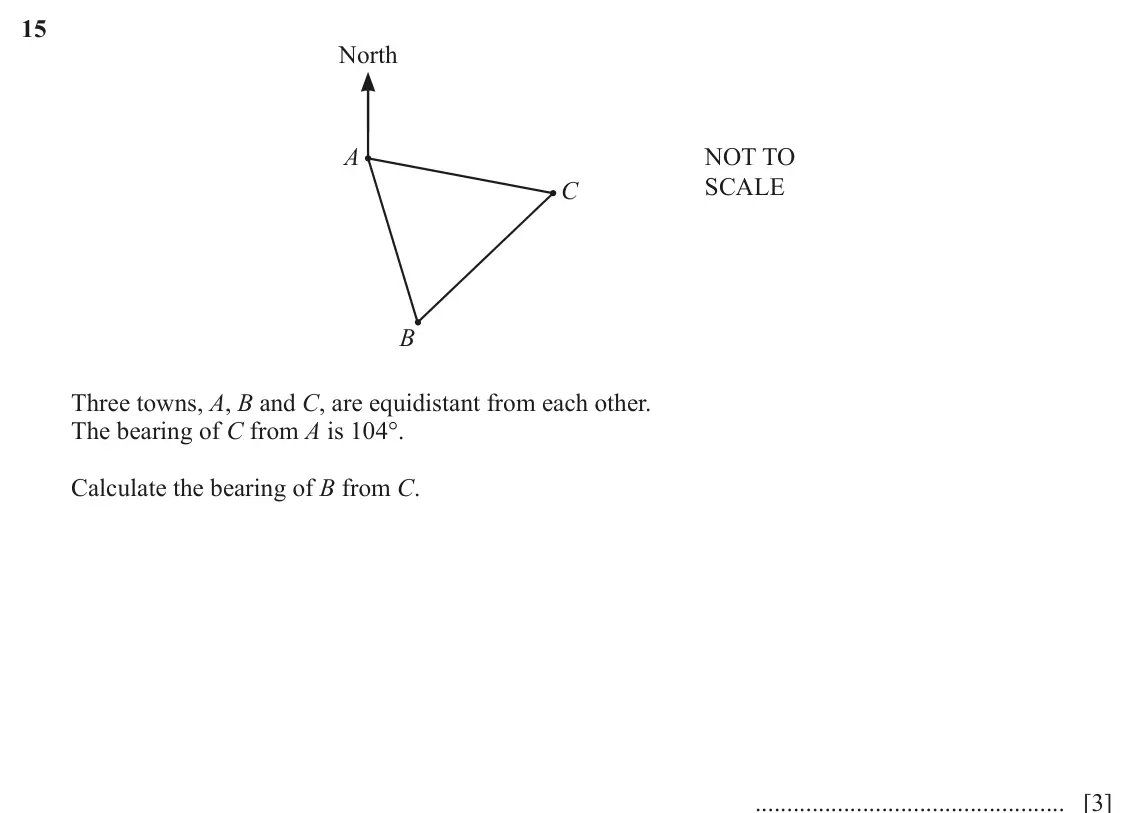

![June 2024 (0980) Paper 2, question 15: North A NOT TO C SCALE B Three towns, A, B and C, are equidistant from each other. The bearing of C from A is 104°. Calculate the bearing of B from C. [3]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/098022-jun24v2-15-qp.webp)

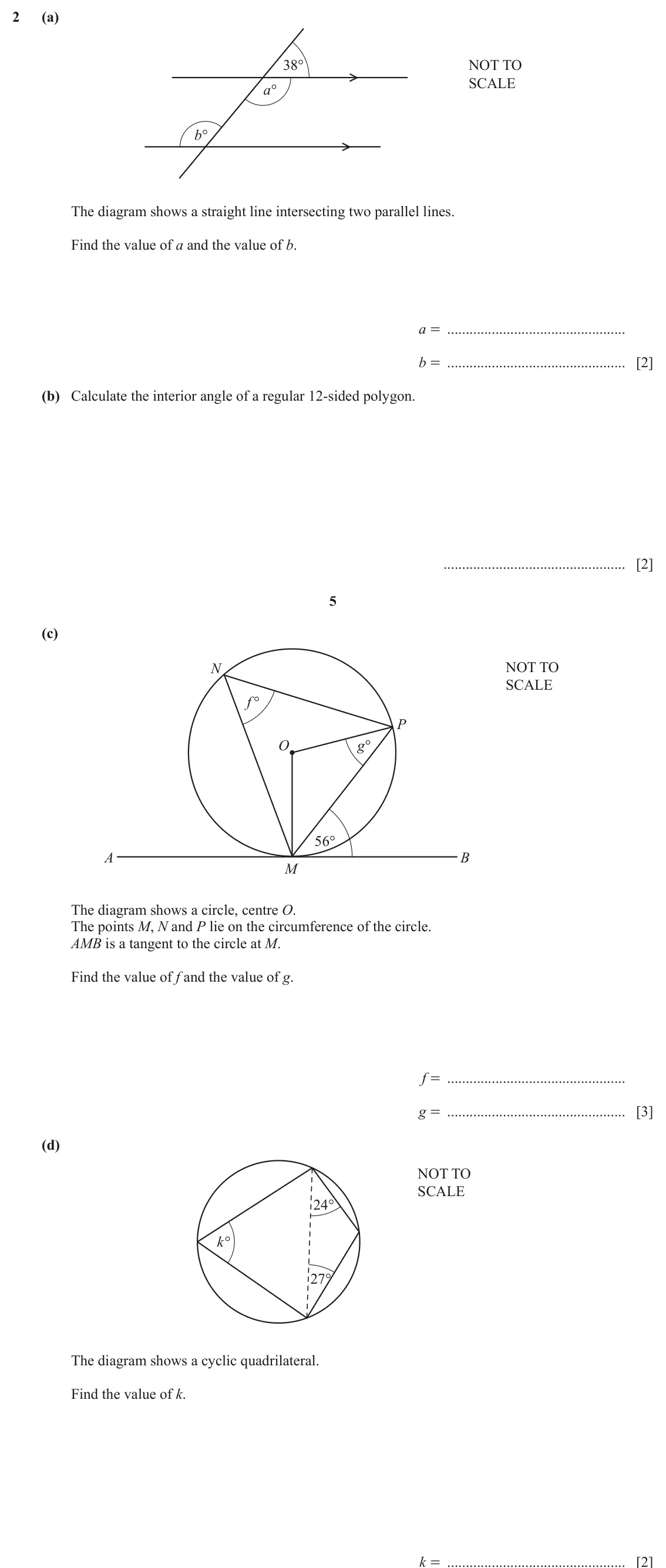

![June 2024 (0980) Paper 4, question 2: (a) 38° NOT TO SCALE a° b° The diagram shows a straight line intersecting two parallel lines. Find the value of a and the value of b. a = b = [2] (b) Calculate](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/098042-jun24v2-02-qp.webp)

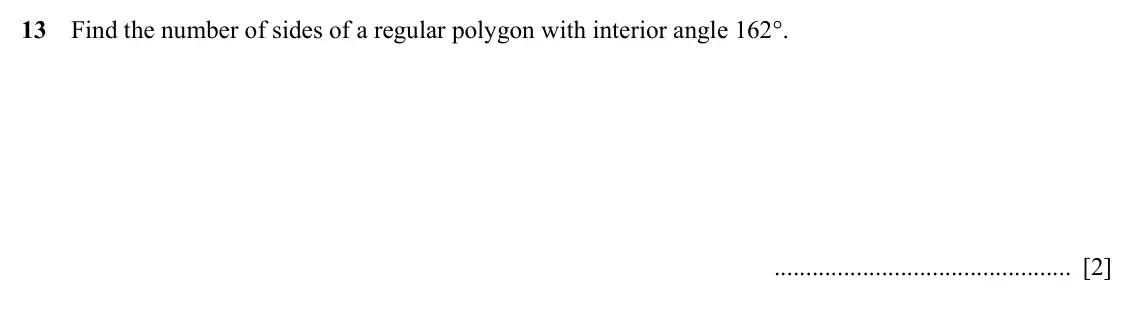

![Specimen Paper 2, question 13: Find the number of sides of a regular polygon with interior angle 162°. [2]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/058002-spec-13-qp.webp)
All 8 questions on Angles, as a list

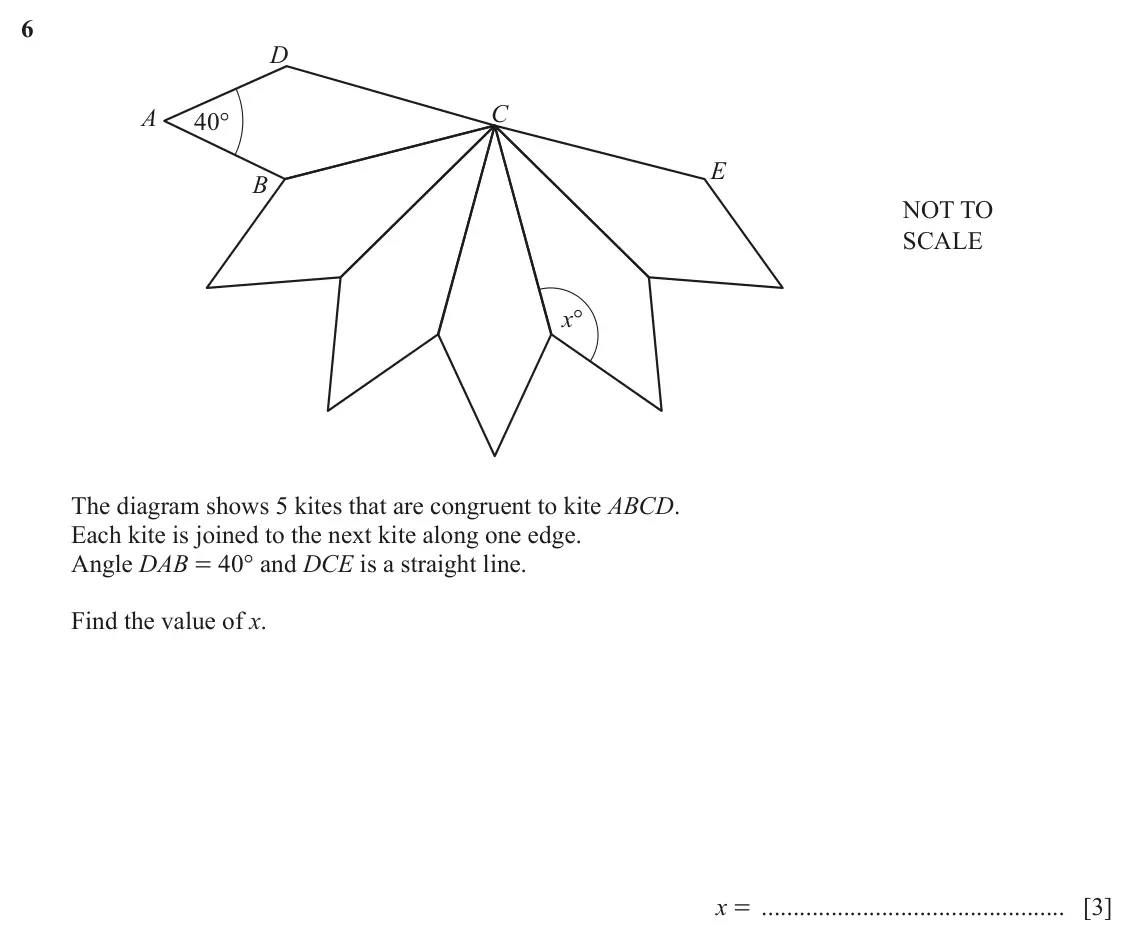

- June 2024, Paper 2, Q6 (3 marks): D A C 40° E B NOT TO SCALE x° The diagram shows 5 kites that are congruent to kite ABCD. Each kite is joined to the next kite along one edge. Angle DAB = 40° an
- June 2024, Paper 3, Q5 (13 marks): (a) H F I NOT TO f° 105° SCALE e° 52° E G The diagram shows a triangle EFG and a straight line HFI. HFI is parallel to EG. (i) Angle EFG 105 ° . = Write down th
- June 2024 (0980), Paper 2, Q15 (3 marks): North A NOT TO C SCALE B Three towns, A, B and C, are equidistant from each other. The bearing of C from A is 104°. Calculate the bearing of B from C. [3]
- June 2024 (0980), Paper 3, Q5 (12 marks): (a) NOT TO SCALE x° 125° The diagram shows a pair of parallel lines and a straight line. (i) Write down the mathematical name for the type of angle marked 125°.
- June 2024 (0980), Paper 4, Q2 (9 marks): (a) 38° NOT TO SCALE a° b° The diagram shows a straight line intersecting two parallel lines. Find the value of a and the value of b. a = b = [2] (b) Calculate

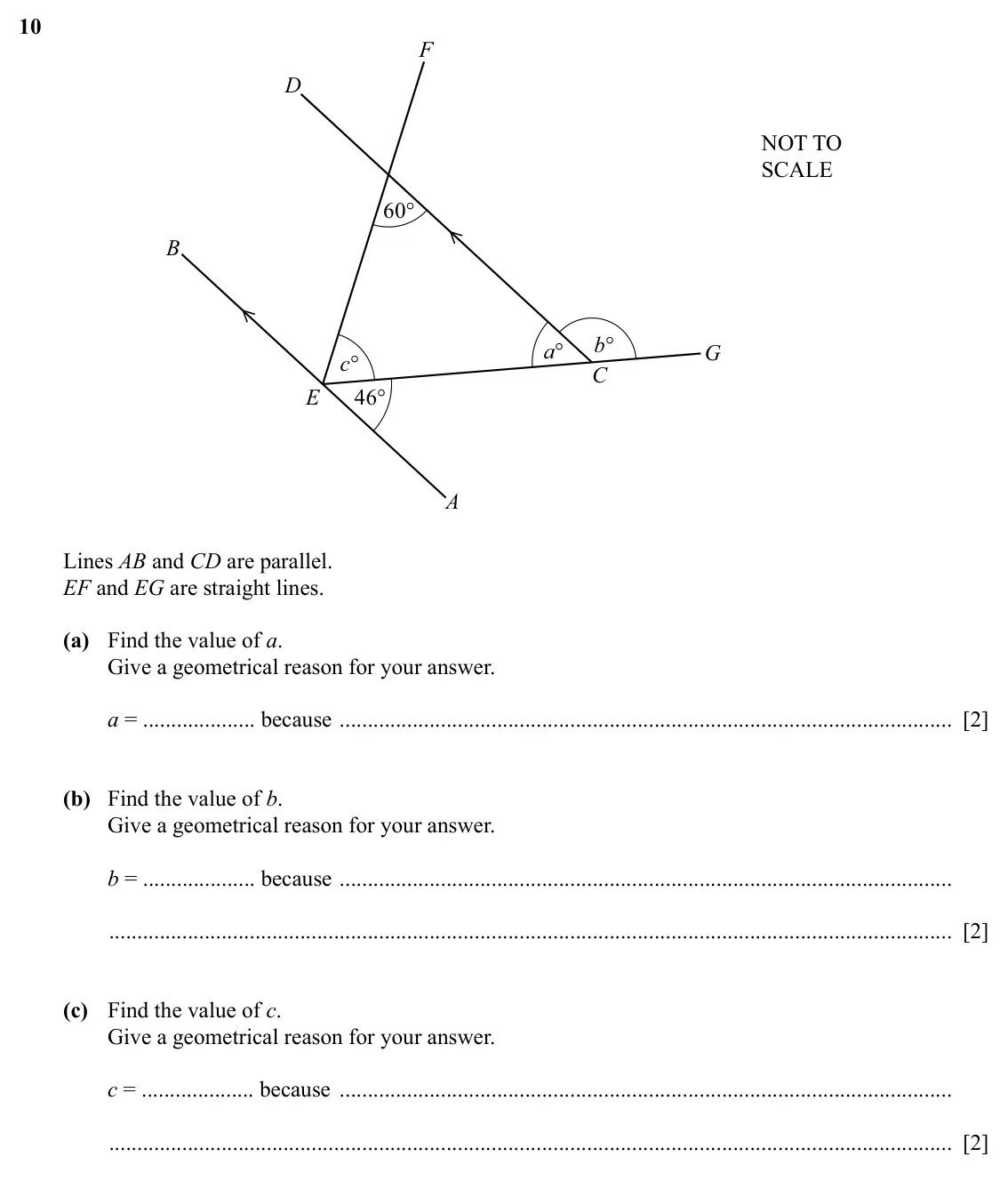

- Specimen, Paper 1, Q10 (6 marks): F D NOT TO SCALE 60° B b° a° G c° C E 46° A Lines AB and CD are parallel. EF and EG are straight lines. (a) Find the value of a. Give a geometrical reason for y

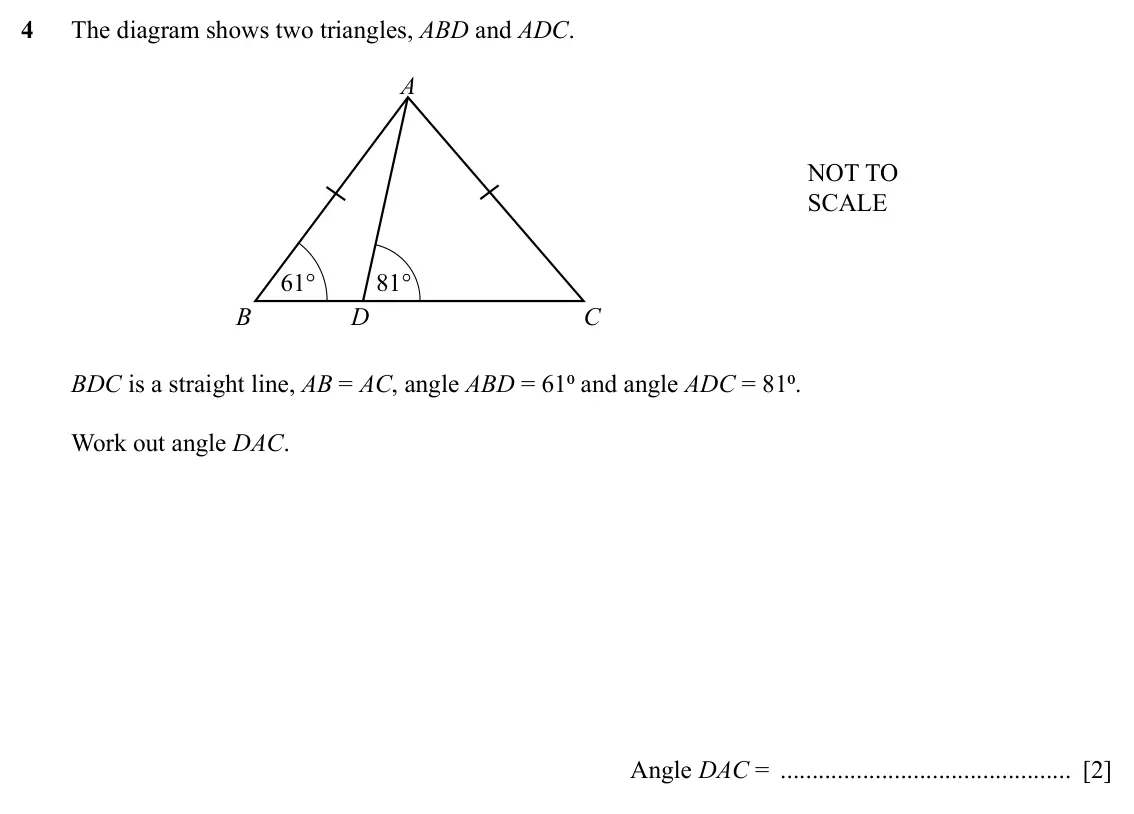

- Specimen, Paper 2, Q4 (2 marks): The diagram shows two triangles, ABD and ADC. A NOT TO SCALE 61° 81° B D C BDC is a straight line, AB = AC, angle ABD = 61⁰ and angle ADC = 81⁰. Work out angle
- Specimen, Paper 2, Q13 (2 marks): Find the number of sides of a regular polygon with interior angle 162°. [2]
