Simple molecules and covalent bonds: CAIE IGCSE Chemistry questions

Every CAIE IGCSE Chemistry exam question on 2.5 Simple molecules and covalent bonds, June 2024 and the specimen papers, with its mark scheme and examiner’s report.

Find questions407
Calculations

407 questions

  1. Q6

    June 2024 · Paper 1

    1 mark2.5 Simple molecules and covalent bonds
    The whole paper ↗
    June 2024 Paper 1, question 6: A covalent molecule, M, contains four shared pairs of electrons. What is M? A ammonia, NH3 B hydrogen chloride, HCl C methane, CH4 D water, H2O

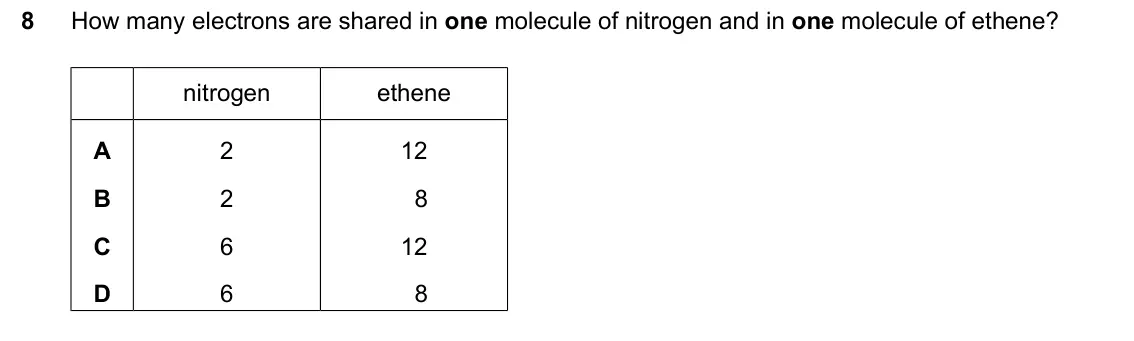

  2. Q8

    June 2024 · Paper 2

    1 mark2.5 Simple molecules and covalent bonds
    The whole paper ↗
    June 2024 Paper 2, question 8: How many electrons are shared in one molecule of nitrogen and in one molecule of ethene? nitrogen ethene A 2 12 B 2 8 C 6 12 D 6 8

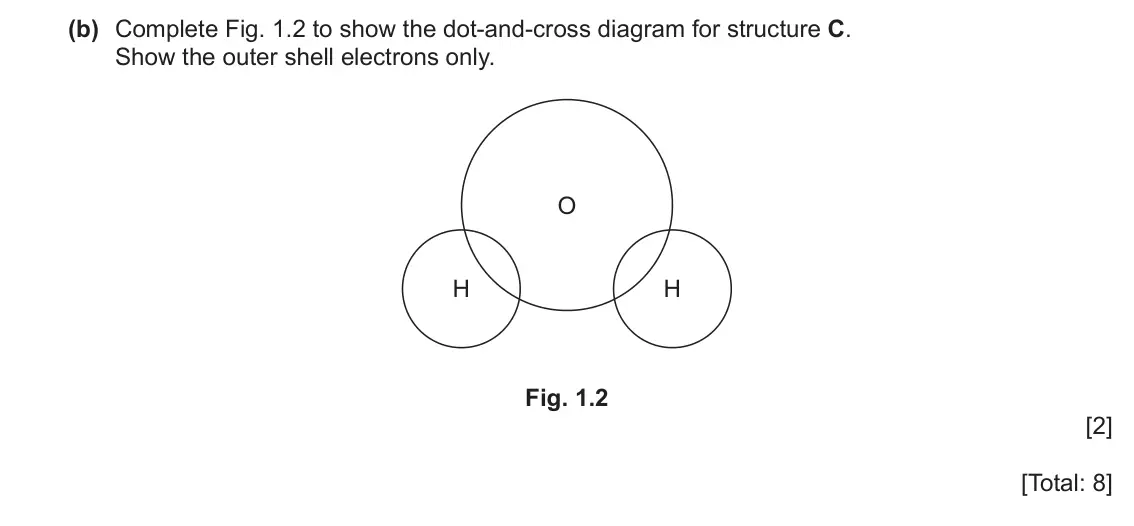

  3. Q1(b)

    June 2024 · Paper 3

    2 marks2.5 Simple molecules and covalent bonds
    The whole paper ↗
    June 2024 Paper 3, question 1(b): Complete Fig. 1.2 to show the dot-and-cross diagram for structure C. Show the outer shell electrons only. O H H Fig. 1.2 [2] [Total: 8]

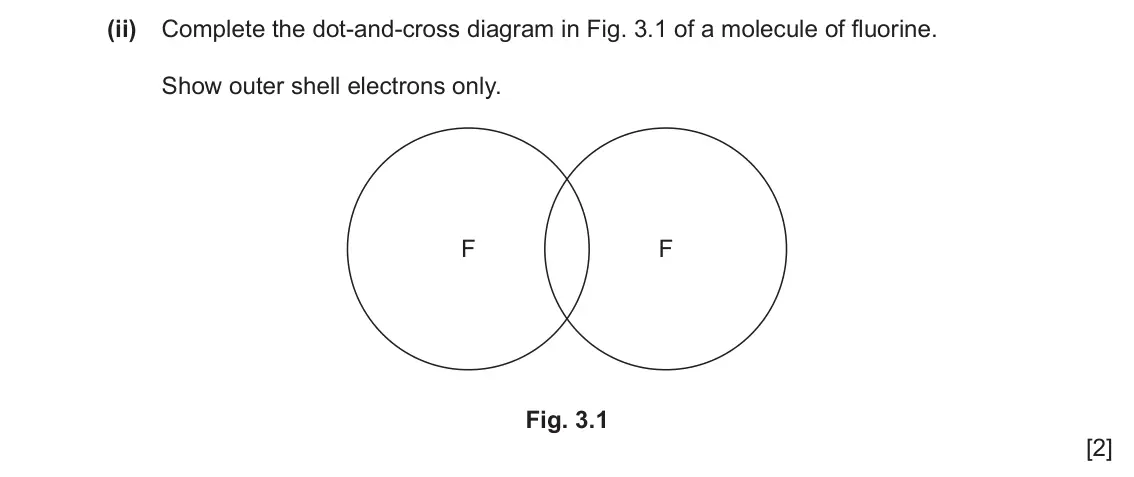

  4. Q3(b)(ii)

    June 2024 · Paper 4

    2 marks2.5 Simple molecules and covalent bonds
    The whole paper ↗
    June 2024 Paper 4, question 3(b)(ii): Complete the dot-and-cross diagram in Fig. 3.1 of a molecule of fluorine. Show outer shell electrons only. F F Fig. 3.1 [2]

  5. Q3(b)(iv)

    June 2024 · Paper 4

    3 marks2.4 Ions and ionic bonds2.5 Simple molecules and covalent bonds
    The whole paper ↗
    June 2024 Paper 4, question 3(b)(iv): Explain in terms of structure and bonding why sodium fluoride has a much higher melting point than fluorine. [3]

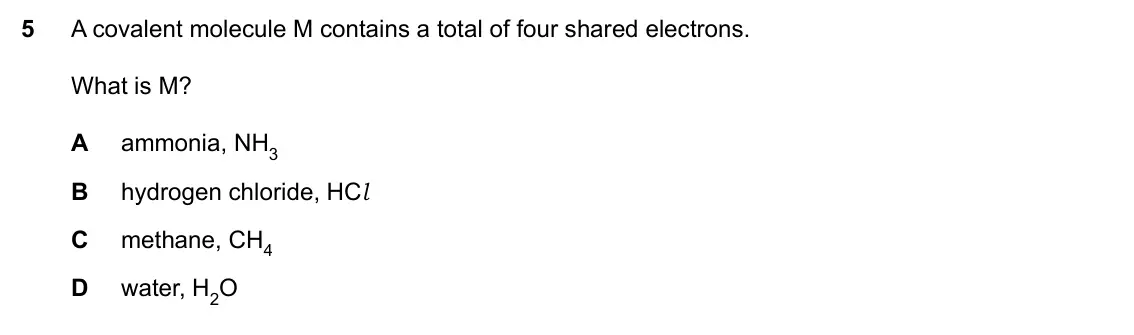

  6. Q5

    Specimen · Paper 1

    1 mark2.5 Simple molecules and covalent bonds
    The whole paper ↗
    Specimen Paper 1, question 5: A covalent molecule M contains a total of four shared electrons. What is M? A ammonia, NH3 B hydrogen chloride, HCl C methane, CH4 D water, H2O

  7. Q5(a)

    Specimen · Paper 3

    2 marks2.6 Giant covalent structures2.5 Simple molecules and covalent bonds
    The whole paper ↗
    Specimen Paper 3, question 5(a): Complete Table 5.1 to show the electrical conductivity of solid diamond and molten sulfur. [2]

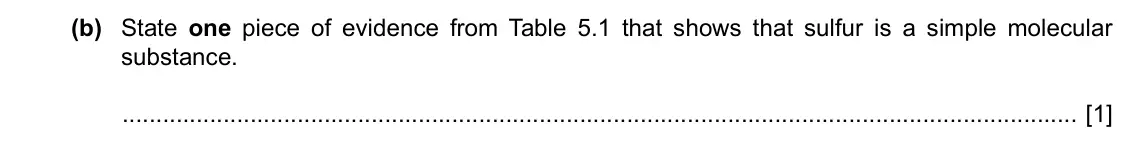

  8. Q5(b)

    Specimen · Paper 3

    1 mark2.5 Simple molecules and covalent bonds
    The whole paper ↗
    Specimen Paper 3, question 5(b): State one piece of evidence from Table 5.1 that shows that sulfur is a simple molecular substance. [1]

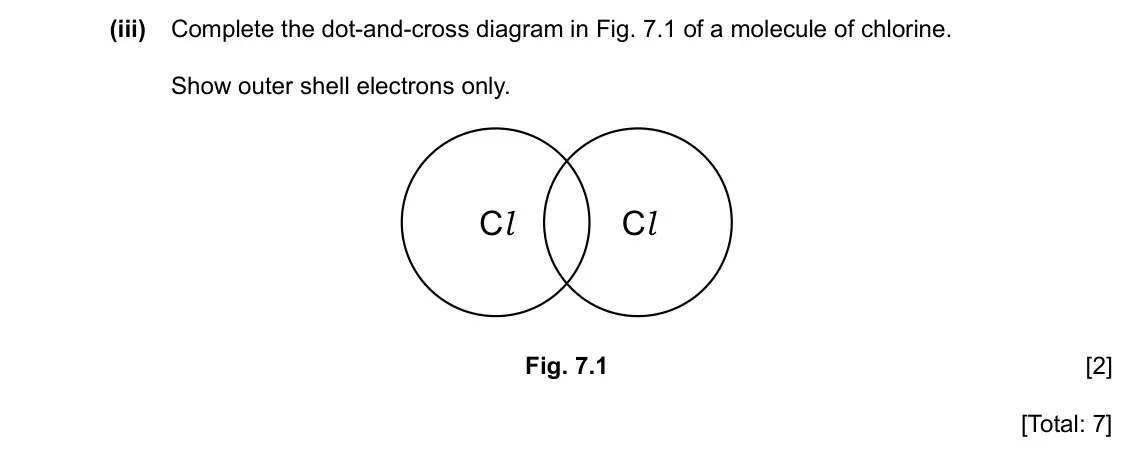

  9. Q7(b)(iii)

    Specimen · Paper 3

    2 marks2.5 Simple molecules and covalent bonds
    The whole paper ↗
    Specimen Paper 3, question 7(b)(iii): Complete the dot-and-cross diagram in Fig. 7.1 of a molecule of chlorine. Show outer shell electrons only. Cl Cl Fig. 7.1 [2] [Total: 7]

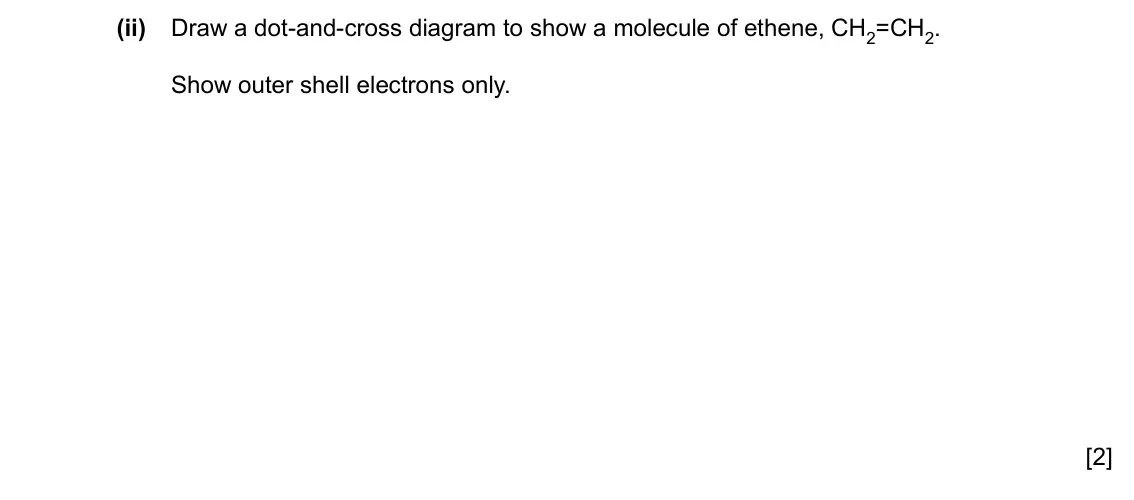

  10. Q6(c)(ii)

    Specimen · Paper 4

    2 marks2.5 Simple molecules and covalent bonds
    The whole paper ↗
    Specimen Paper 4, question 6(c)(ii): Draw a dot-and-cross diagram to show a molecule of ethene, CH2=CH2. Show outer shell electrons only. [2]
All 10 questions on Simple molecules and covalent bonds, as a list
  1. June 2024, Paper 1, Q6 (1 mark): A covalent molecule, M, contains four shared pairs of electrons. What is M? A ammonia, NH3 B hydrogen chloride, HCl C methane, CH4 D water, H2O
  2. June 2024, Paper 2, Q8 (1 mark): How many electrons are shared in one molecule of nitrogen and in one molecule of ethene? nitrogen ethene A 2 12 B 2 8 C 6 12 D 6 8
  3. June 2024, Paper 3, Q1(b) (2 marks): Complete Fig. 1.2 to show the dot-and-cross diagram for structure C. Show the outer shell electrons only. O H H Fig. 1.2 [2] [Total: 8]
  4. June 2024, Paper 4, Q3(b)(ii) (2 marks): Complete the dot-and-cross diagram in Fig. 3.1 of a molecule of fluorine. Show outer shell electrons only. F F Fig. 3.1 [2]
  5. June 2024, Paper 4, Q3(b)(iv) (3 marks): Explain in terms of structure and bonding why sodium fluoride has a much higher melting point than fluorine. [3]
  6. Specimen, Paper 1, Q5 (1 mark): A covalent molecule M contains a total of four shared electrons. What is M? A ammonia, NH3 B hydrogen chloride, HCl C methane, CH4 D water, H2O
  7. Specimen, Paper 3, Q5(a) (2 marks): Complete Table 5.1 to show the electrical conductivity of solid diamond and molten sulfur. [2]
  8. Specimen, Paper 3, Q5(b) (1 mark): State one piece of evidence from Table 5.1 that shows that sulfur is a simple molecular substance. [1]
  9. Specimen, Paper 3, Q7(b)(iii) (2 marks): Complete the dot-and-cross diagram in Fig. 7.1 of a molecule of chlorine. Show outer shell electrons only. Cl Cl Fig. 7.1 [2] [Total: 7]
  10. Specimen, Paper 4, Q6(c)(ii) (2 marks): Draw a dot-and-cross diagram to show a molecule of ethene, CH2=CH2. Show outer shell electrons only. [2]
