Gravitational potential energy and kinetic energy: CAIE A‑Level Physics questions

Every CAIE A-Level Physics exam question on 5.2 Gravitational potential energy and kinetic energy, June 2024 and the specimen papers, with its mark scheme and examiner’s report.

Find questions266
Calculations

266 questions

  1. Q20

    June 2024 · Paper 1

    1 mark5.2 Gravitational potential energy and kinetic energy
    The whole paper ↗

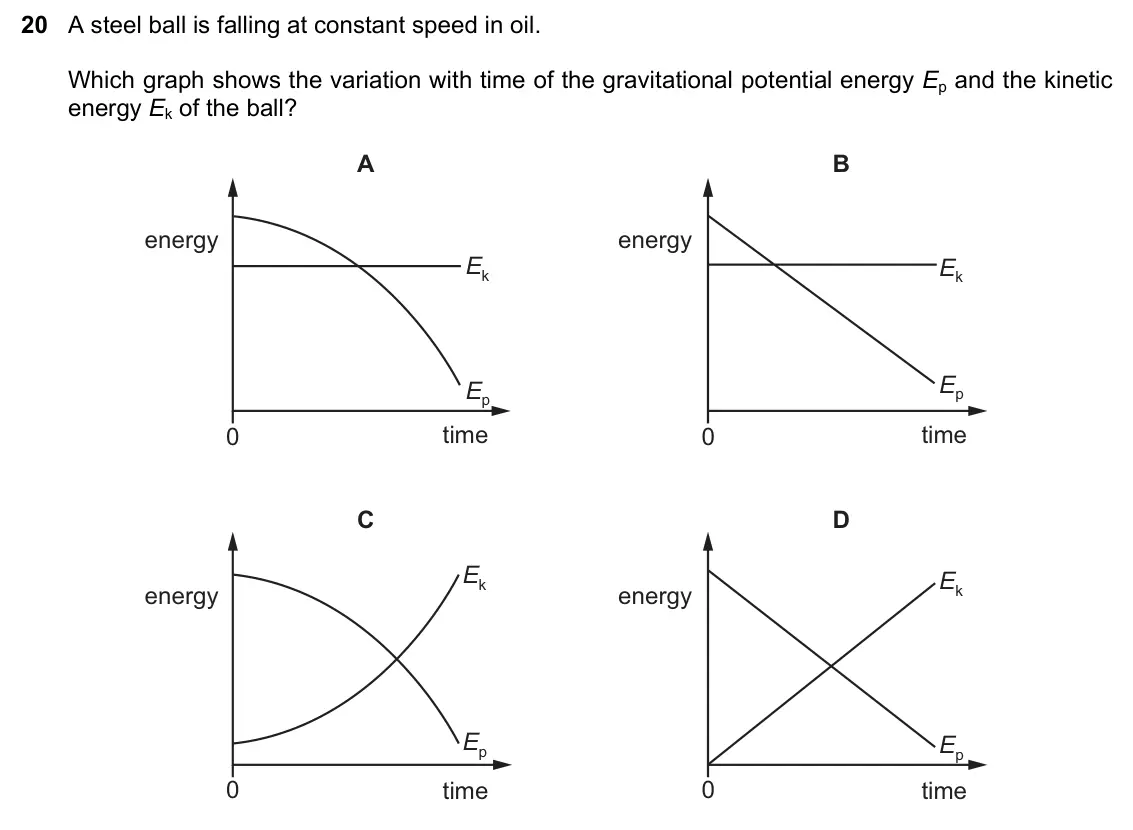

    June 2024 Paper 1, question 20: A steel ball is falling at constant speed in oil. Which graph shows the variation with time of the gravitational potential energy Ep and the kinetic energy Ek o

  2. Q3(c)

    June 2024 · Paper 2

    3 marks5.1 Energy conservation5.2 Gravitational potential energy and kinetic energy
    The whole paper ↗
    June 2024 Paper 2, question 3(c): An object of mass 4.2 kg is travelling in a straight line at a speed of 6.0 m s–1. The object is brought to rest in a distance of 0.050 m by a constant force. C

  3. Q17

    Specimen · Paper 1

    1 mark5.2 Gravitational potential energy and kinetic energy
    The whole paper ↗

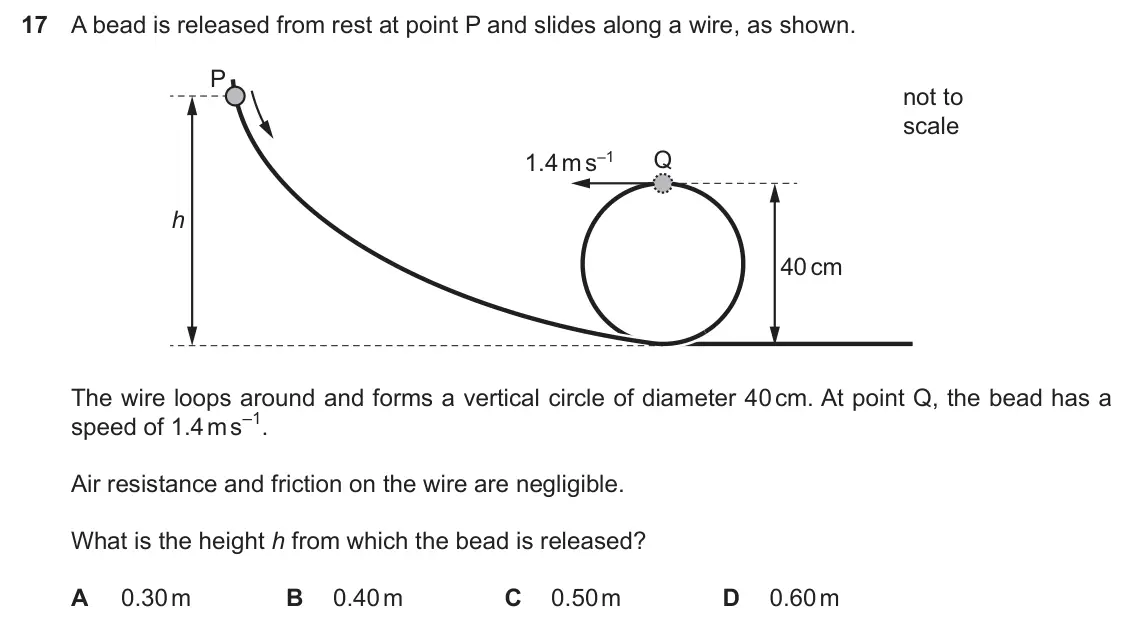

    Specimen Paper 1, question 17: A bead is released from rest at point P and slides along a wire, as shown. P not to scale 1.4 m s–1 Q h 40 cm The wire loops around and forms a vertical circle

  4. Q2(c)(ii)

    Specimen · Paper 2

    2 marks5.2 Gravitational potential energy and kinetic energy
    The whole paper ↗

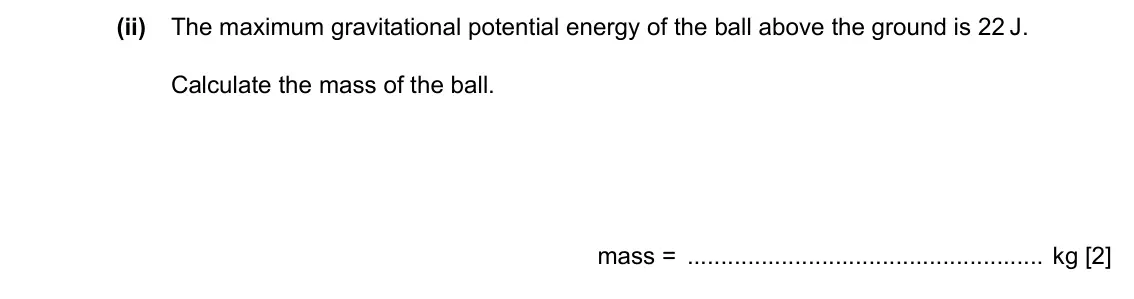

    Specimen Paper 2, question 2(c)(ii): The maximum gravitational potential energy of the ball above the ground is 22 J. Calculate the mass of the ball. mass = kg [2]

  5. Q3(b)(i)

    Specimen · Paper 2

    2 marks5.2 Gravitational potential energy and kinetic energy
    The whole paper ↗

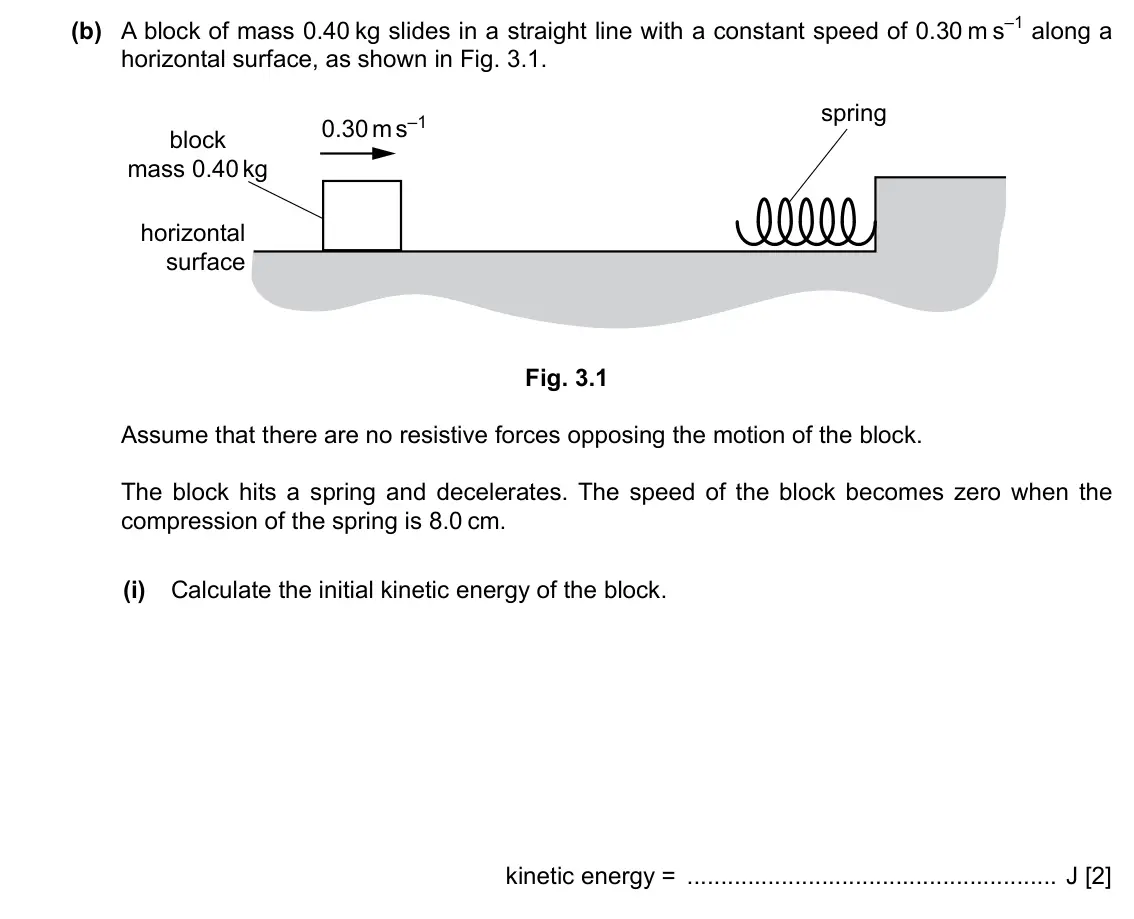

    Specimen Paper 2, question 3(b)(i): Calculate the initial kinetic energy of the block. kinetic energy = J [2]
All 5 questions on Gravitational potential energy and kinetic energy, as a list
  1. June 2024, Paper 1, Q20 (1 mark): A steel ball is falling at constant speed in oil. Which graph shows the variation with time of the gravitational potential energy Ep and the kinetic energy Ek o
  2. June 2024, Paper 2, Q3(c) (3 marks): An object of mass 4.2 kg is travelling in a straight line at a speed of 6.0 m s–1. The object is brought to rest in a distance of 0.050 m by a constant force. C
  3. Specimen, Paper 1, Q17 (1 mark): A bead is released from rest at point P and slides along a wire, as shown. P not to scale 1.4 m s–1 Q h 40 cm The wire loops around and forms a vertical circle
  4. Specimen, Paper 2, Q2(c)(ii) (2 marks): The maximum gravitational potential energy of the ball above the ground is 22 J. Calculate the mass of the ball. mass = kg [2]
  5. Specimen, Paper 2, Q3(b)(i) (2 marks): Calculate the initial kinetic energy of the block. kinetic energy = J [2]
