plumiWaves in air, fluids and solids: AQA GCSE Physics questions
Every AQA GCSE Physics exam question on 4.6.1 Waves in air, fluids and solids, 2018–2025, with its mark scheme and examiner’s report.
Find questions1,653
Calculations
Q01.1
The whole paper ↗![June 2025 Paper 2 Higher, question 01.1: Describe the similarities and differences between visible light waves and sound waves. [6 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun25-01-1-qp.webp)
Q01.1
The whole paper ↗![June 2025 Paper 2 Foundation, question 01.1: The student measured angle A and angle B. What equipment should the student have used to measure each angle? [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-01-1-qp.webp)
Q01.2
The whole paper ↗
Q01.3
The whole paper ↗![June 2025 Paper 2 Foundation, question 01.3: What is the relationship between angle A and angle B? [1 mark] Tick () one box. Angle A is directly proportional to angle B. There is a negative correlation be](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-01-3-qp.webp)
Q01.4
The whole paper ↗![June 2025 Paper 2 Foundation, question 01.4: Which letter represents the amplitude of the water wave in Figure 3? [1 mark] Tick () one box. A B C D](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-01-4-qp.webp)
Q01.5
The whole paper ↗![June 2025 Paper 2 Foundation, question 01.5: Which letter represents the wavelength of the water wave in Figure 3? [1 mark] Tick () one box. A B C D](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-01-5-qp.webp)
Q01.6
The whole paper ↗
Q01.7
The whole paper ↗![June 2025 Paper 2 Foundation, question 01.7: The wave has a frequency of 2.5 Hz. Calculate the period of the wave. Use the equation: period = 1 frequency [2 marks] Period = s](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-01-7-qp.webp)
Q08.1
The whole paper ↗![June 2025 Paper 2 Foundation, question 08.1: Describe the similarities and differences between visible light waves and sound waves. [6 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun25-08-1-qp.webp)
Q01.1
The whole paper ↗![June 2024 Paper 2 Higher, question 01.1: What is the resolution of the protractor used to measure the angles? [1 mark] Resolution = ° Table 1 shows the results. Table 1 Angle of incidence in degrees An](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-01-1-qp.webp)
Q01.2
The whole paper ↗![June 2024 Paper 2 Higher, question 01.2: Describe a method the student could have used to obtain the data in Table 1. You may include a labelled diagram. [6 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-01-2-qp.webp)
Q01.3
The whole paper ↗![June 2024 Paper 2 Higher, question 01.3: Complete Figure 2. You should: • plot the results from Table 2 • draw the line of best fit. [2 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-01-3-qp.webp)
Q01.4
The whole paper ↗![June 2024 Paper 2 Higher, question 01.4: How does Figure 2 show that the angle of refraction is not directly proportional to the angle of incidence? [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-01-4-qp.webp)
Q01.5
The whole paper ↗
Q04.3
The whole paper ↗![June 2024 Paper 2 Higher, question 04.3: Which statement describes P-waves and S-waves? [1 mark] Tick () one box. Both P-waves and S-waves are longitudinal. Both P-waves and S-waves are transverse. P-](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-04-3-qp.webp)
Q04.4
The whole paper ↗
Q04.5
The whole paper ↗![June 2024 Paper 2 Higher, question 04.5: An S-wave has a frequency of 3.6 Hz. The S-wave has a speed of 4.5 km/s. Calculate the wavelength of this S-wave. Use the Physics Equations Sheet. [3 marks] Wav](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632h-jun24-04-5-qp.webp)
Q04.1
The whole paper ↗![June 2024 Paper 2 Foundation, question 04.1: Which arrow represents the amplitude of the wave? [1 mark] Tick () one box. A B C D](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun24-04-1-qp.webp)
Q04.2
The whole paper ↗![June 2024 Paper 2 Foundation, question 04.2: Which arrow represents the wavelength of the wave? [1 mark] Tick () one box. A B C D](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84632f-jun24-04-2-qp.webp)
All 132 questions on Waves in air, fluids and solids, as a list
- June 2025, Paper 2 Higher, Q01.1 (6 marks): Describe the similarities and differences between visible light waves and sound waves. [6 marks]

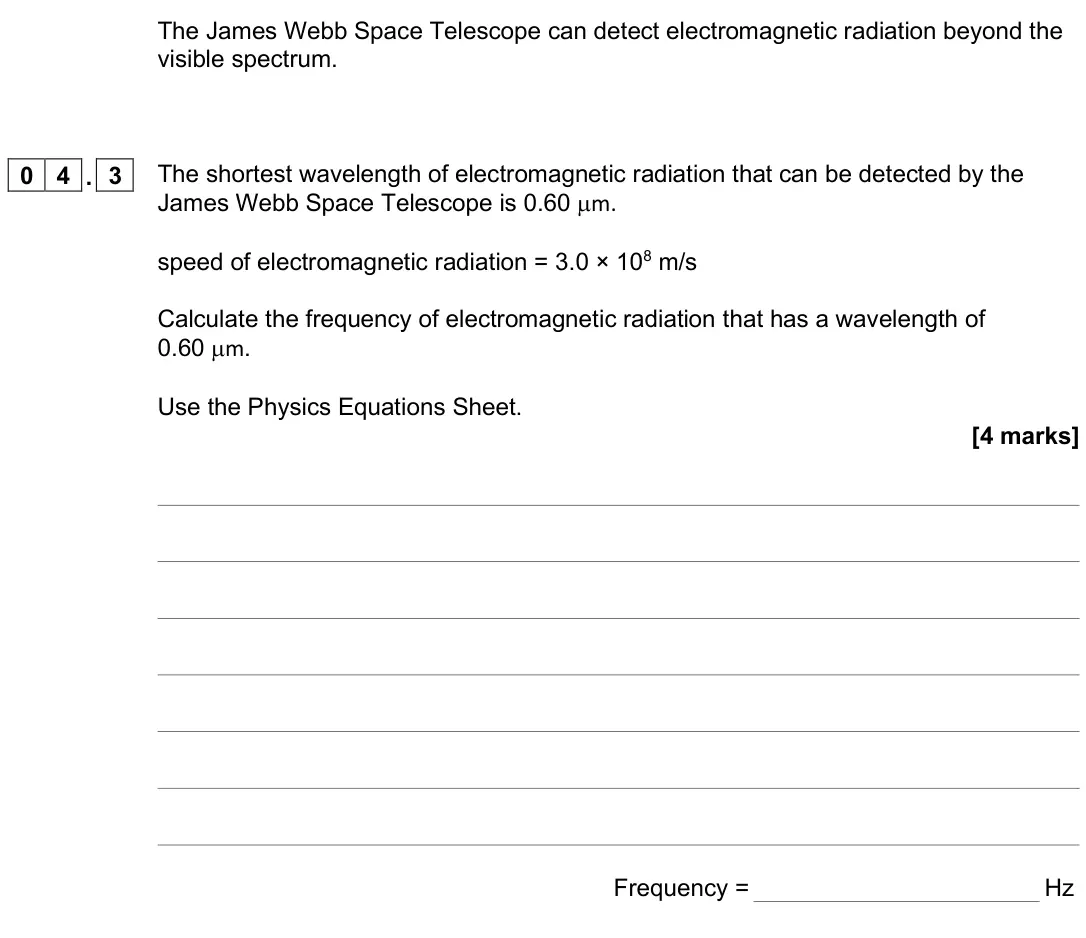

- June 2025, Paper 2 Higher, Q04.3 (4 marks): The shortest wavelength of electromagnetic radiation that can be detected by the James Webb Space Telescope is 0.60 µm. speed of electromagnetic radiation = 3.0

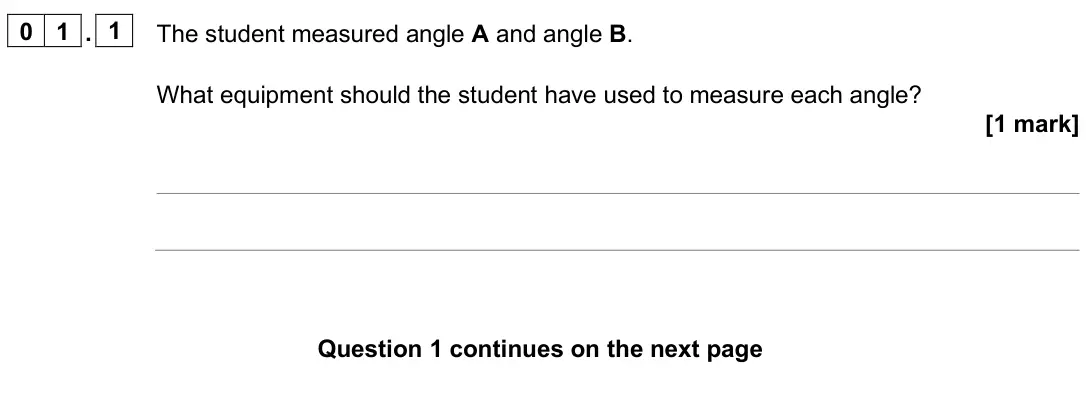

- June 2025, Paper 2 Foundation, Q01.1 (1 mark): The student measured angle A and angle B. What equipment should the student have used to measure each angle? [1 mark]

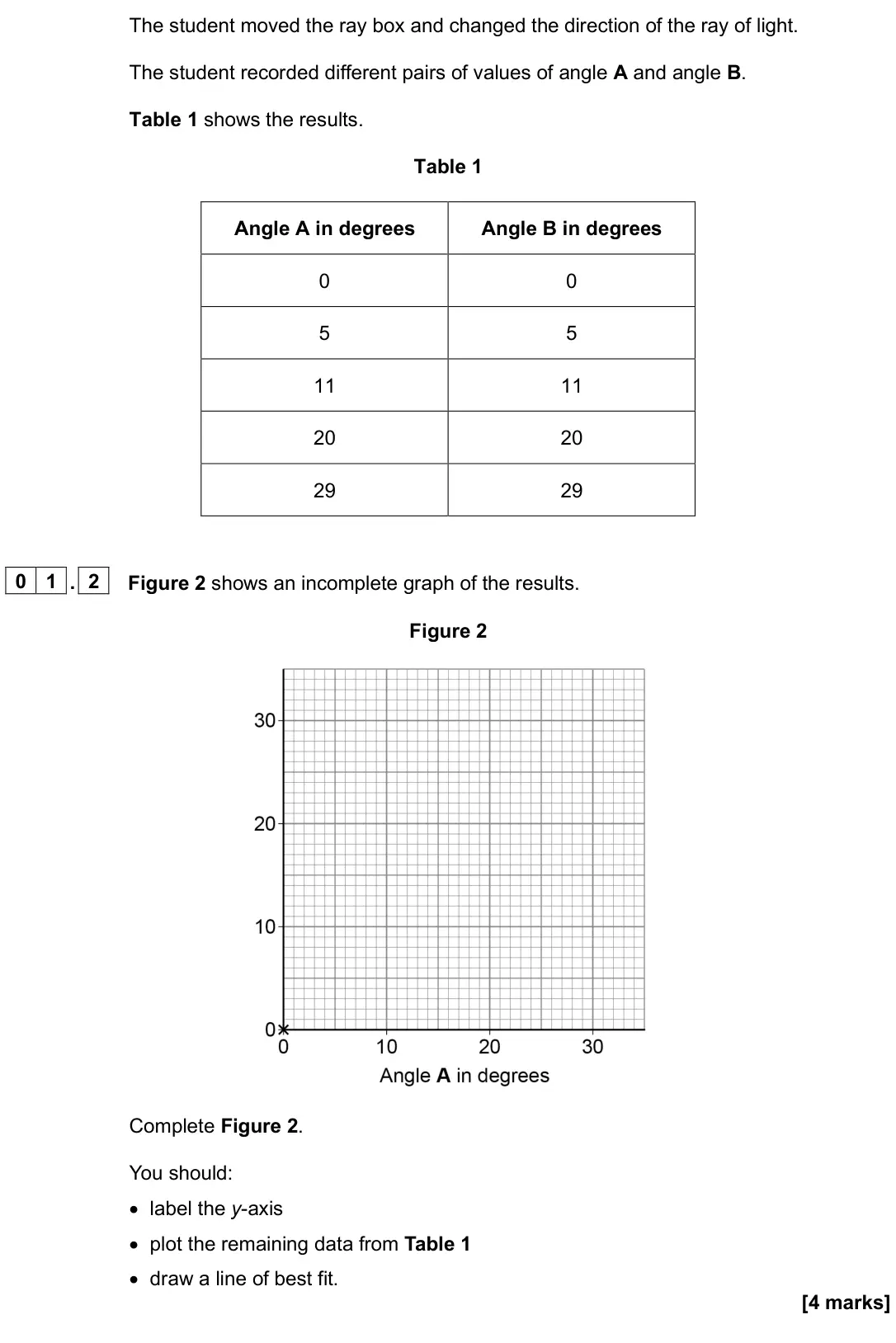

- June 2025, Paper 2 Foundation, Q01.2 (4 marks): Figure 2 shows an incomplete graph of the results. Figure 2 Complete Figure 2. You should: • label the y-axis • plot the remaining data from Table 1 • draw a li

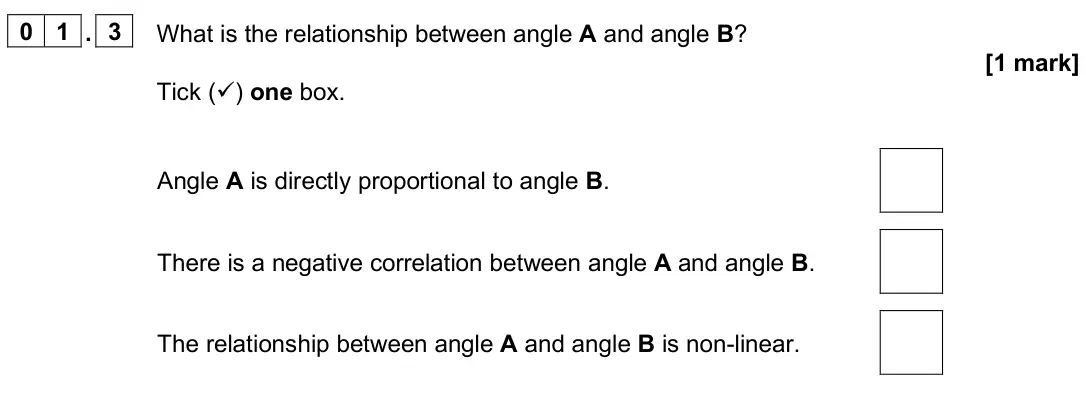

- June 2025, Paper 2 Foundation, Q01.3 (1 mark): What is the relationship between angle A and angle B? [1 mark] Tick () one box. Angle A is directly proportional to angle B. There is a negative correlation be

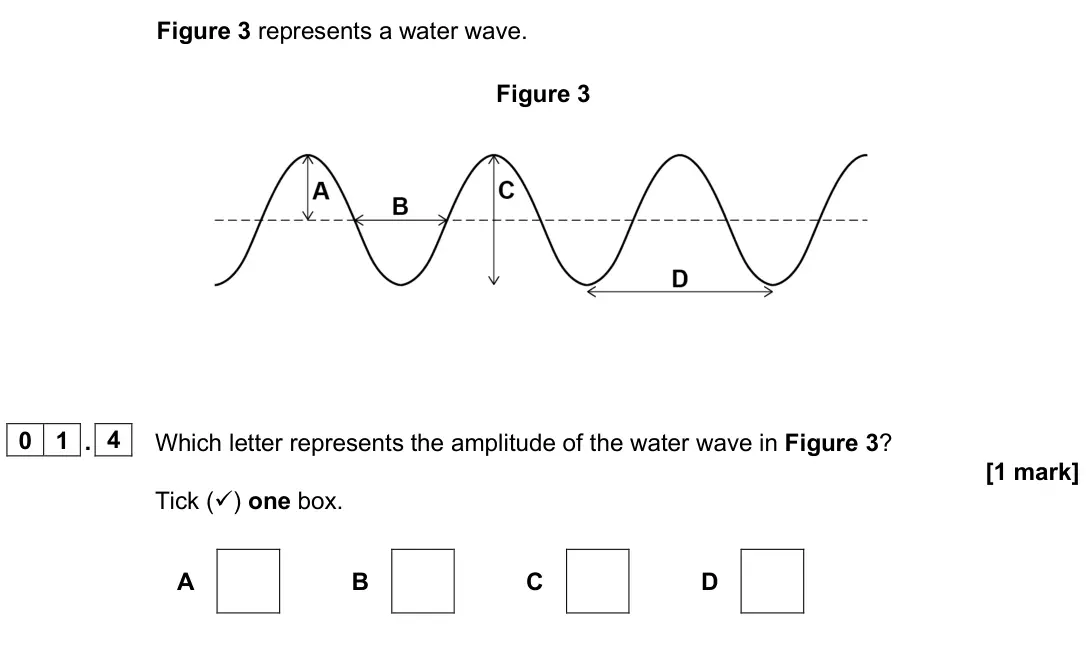

- June 2025, Paper 2 Foundation, Q01.4 (1 mark): Which letter represents the amplitude of the water wave in Figure 3? [1 mark] Tick () one box. A B C D

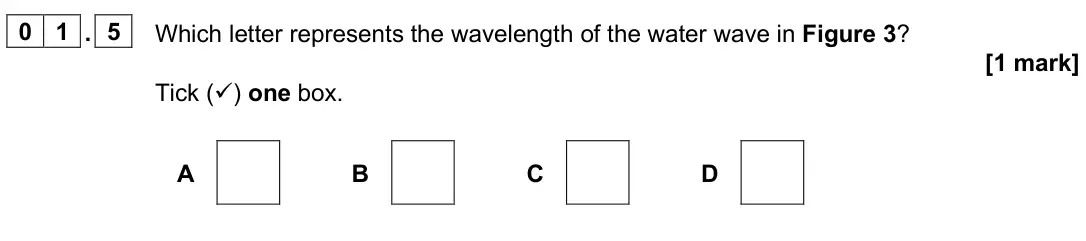

- June 2025, Paper 2 Foundation, Q01.5 (1 mark): Which letter represents the wavelength of the water wave in Figure 3? [1 mark] Tick () one box. A B C D

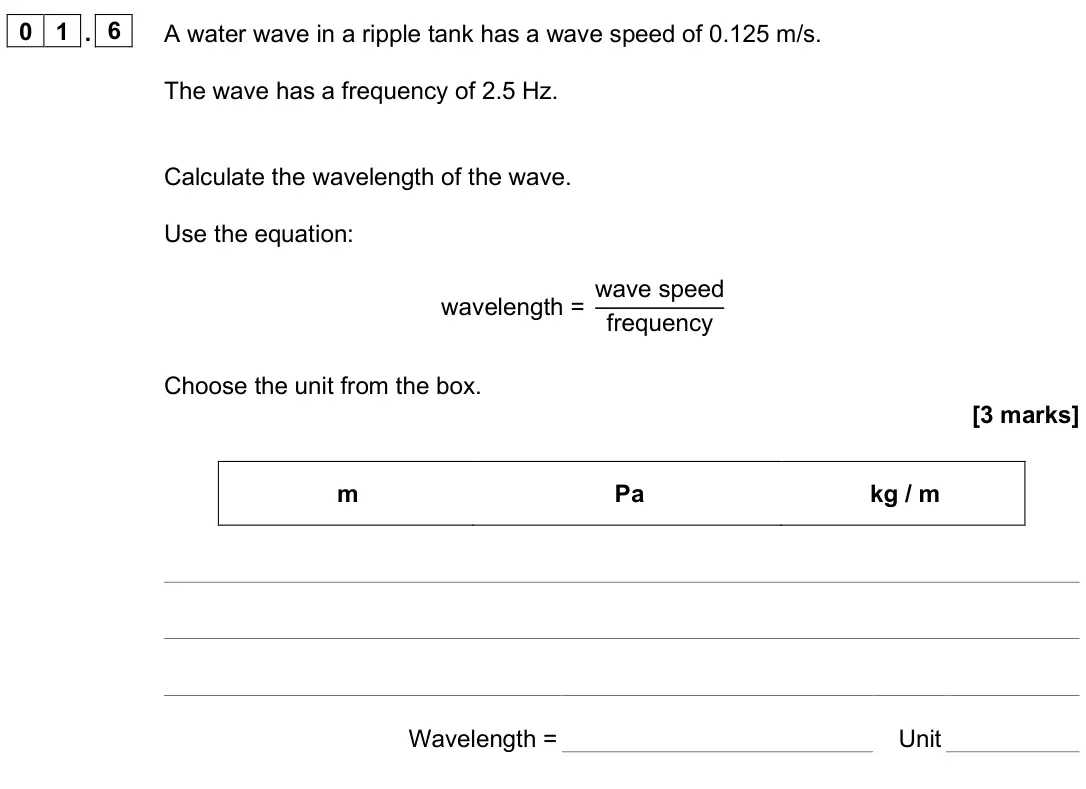

- June 2025, Paper 2 Foundation, Q01.6 (3 marks): A water wave in a ripple tank has a wave speed of 0.125 m/s. The wave has a frequency of 2.5 Hz. Calculate the wavelength of the wave. Use the equation: wavelen

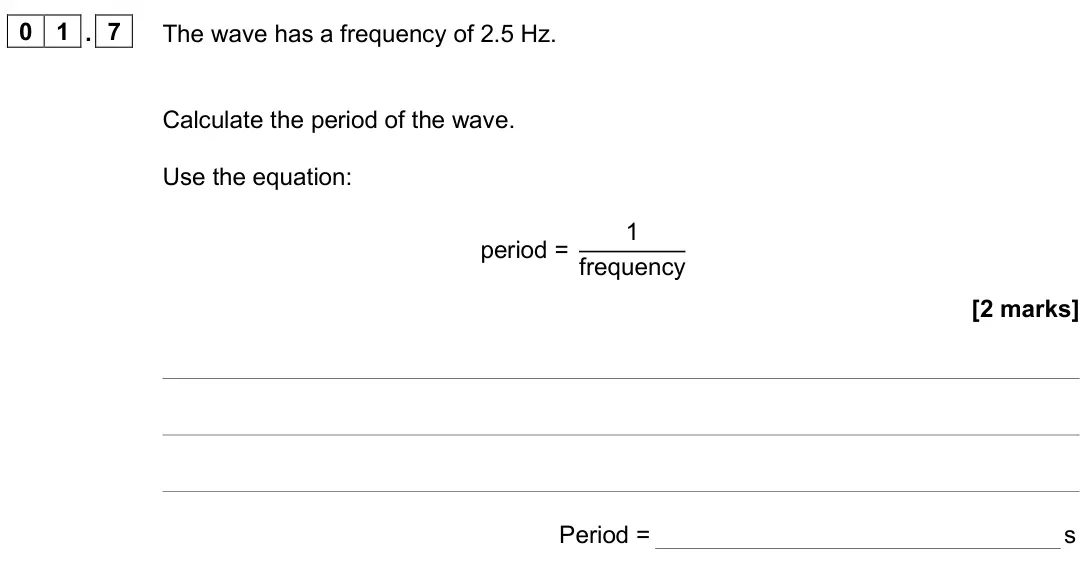

- June 2025, Paper 2 Foundation, Q01.7 (2 marks): The wave has a frequency of 2.5 Hz. Calculate the period of the wave. Use the equation: period = 1 frequency [2 marks] Period = s
- June 2025, Paper 2 Foundation, Q08.1 (6 marks): Describe the similarities and differences between visible light waves and sound waves. [6 marks]

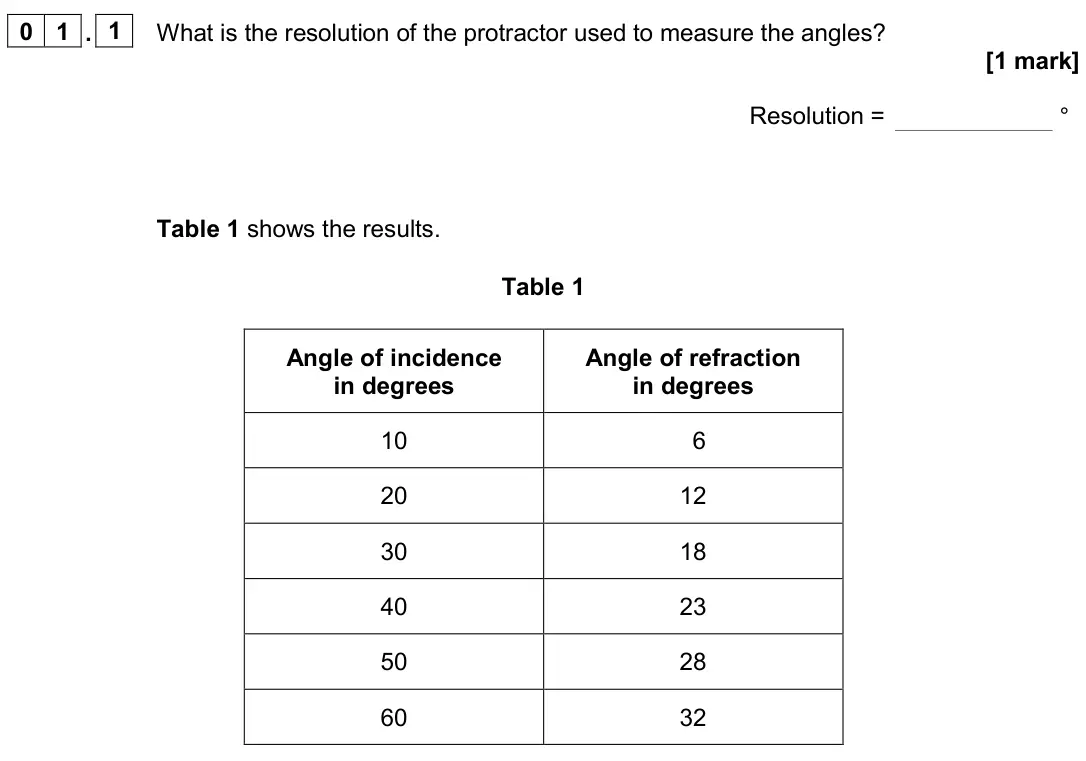

- June 2024, Paper 2 Higher, Q01.1 (1 mark): What is the resolution of the protractor used to measure the angles? [1 mark] Resolution = ° Table 1 shows the results. Table 1 Angle of incidence in degrees An

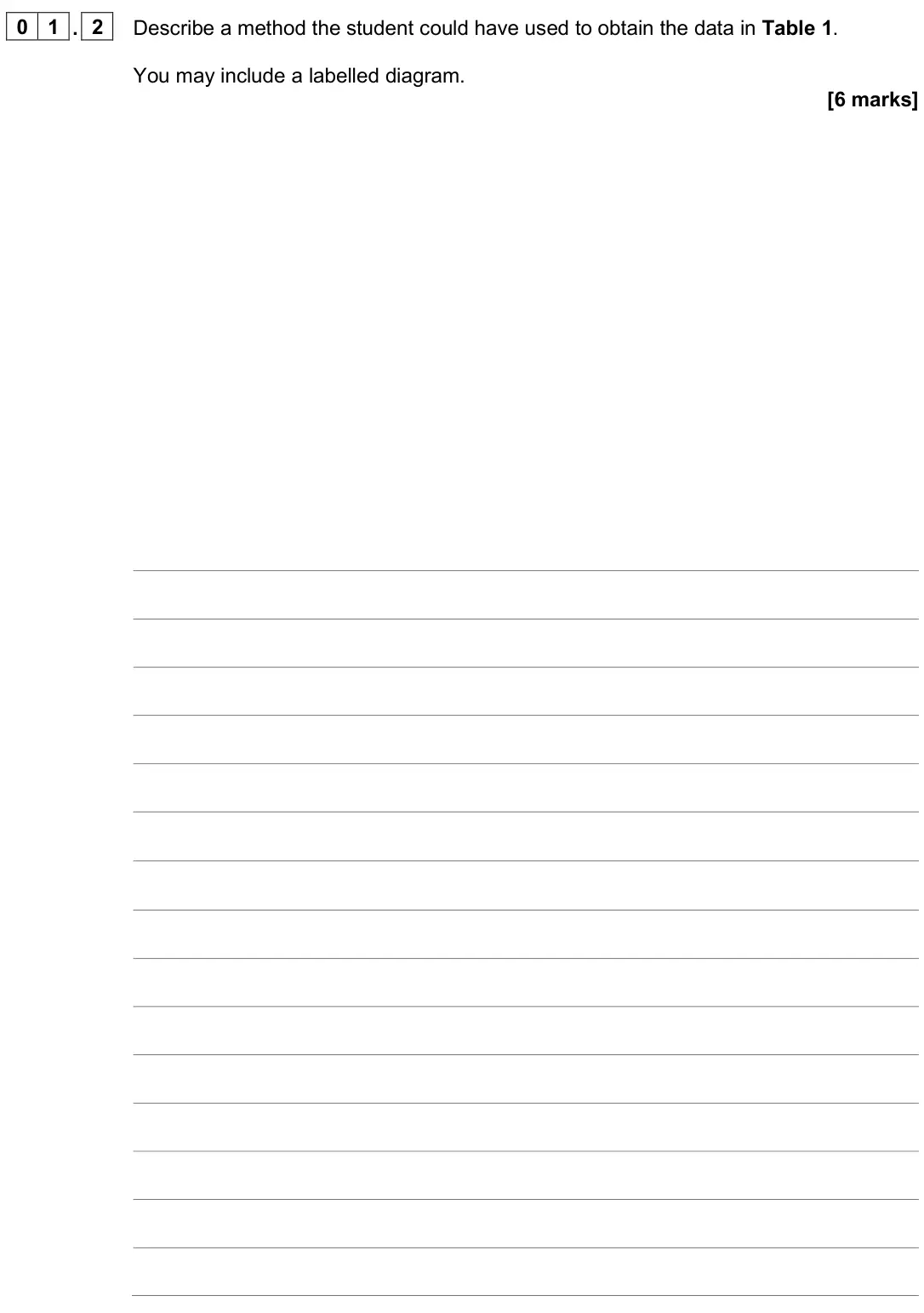

- June 2024, Paper 2 Higher, Q01.2 (6 marks): Describe a method the student could have used to obtain the data in Table 1. You may include a labelled diagram. [6 marks]

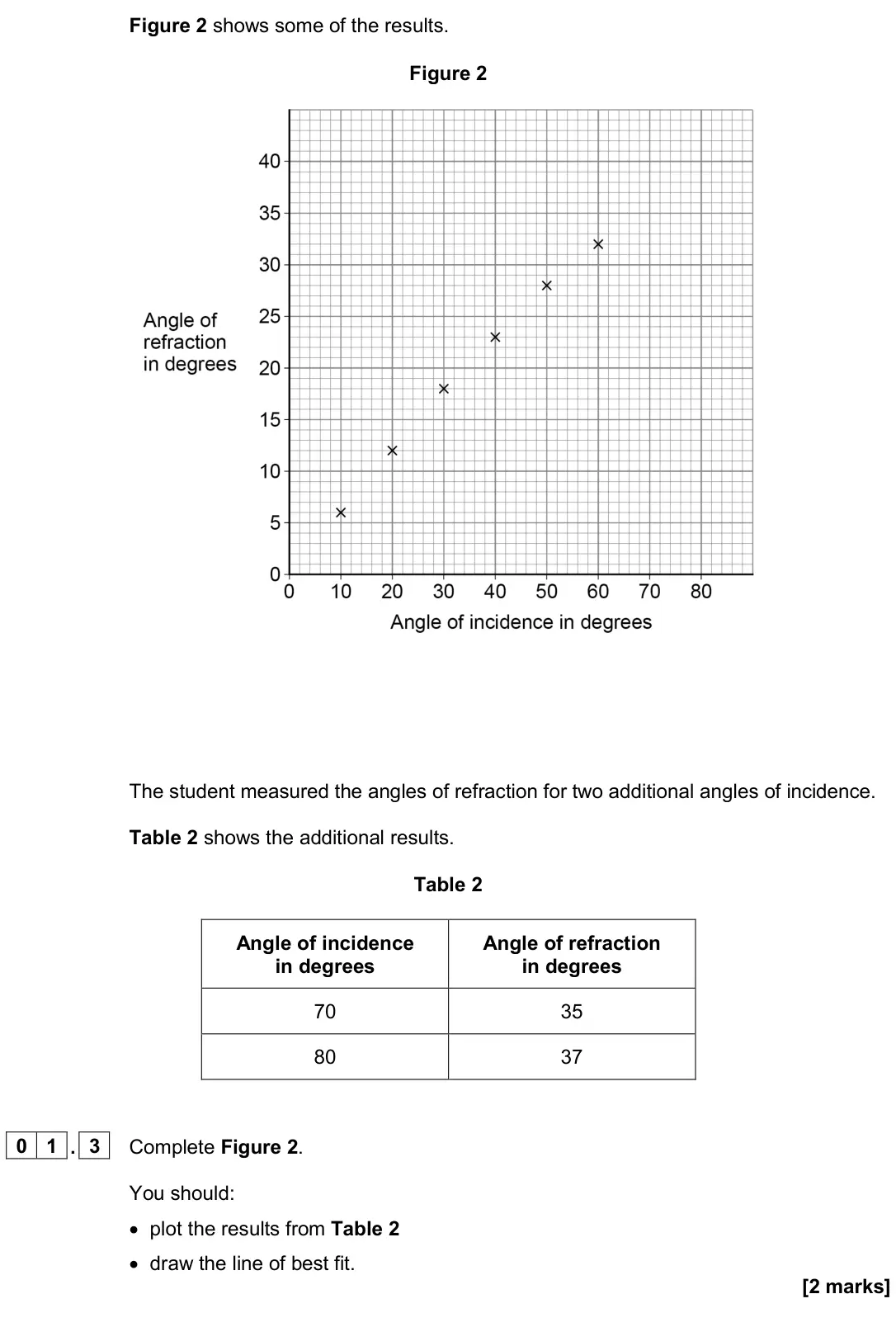

- June 2024, Paper 2 Higher, Q01.3 (2 marks): Complete Figure 2. You should: • plot the results from Table 2 • draw the line of best fit. [2 marks]

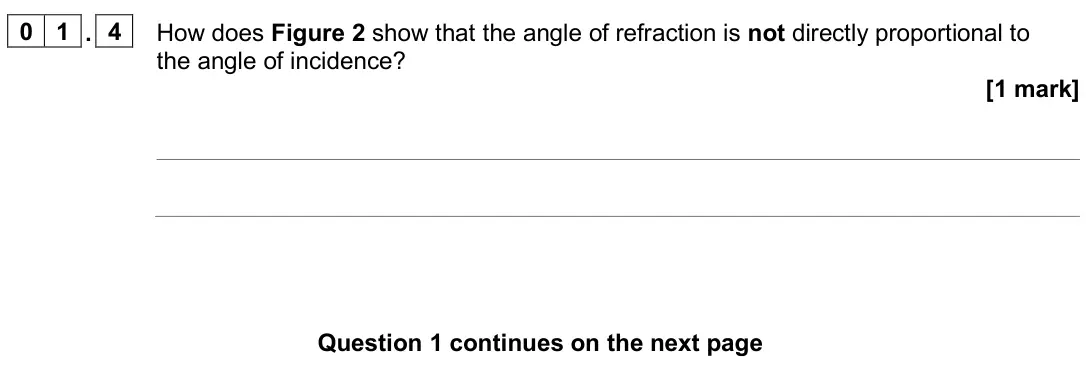

- June 2024, Paper 2 Higher, Q01.4 (1 mark): How does Figure 2 show that the angle of refraction is not directly proportional to the angle of incidence? [1 mark]

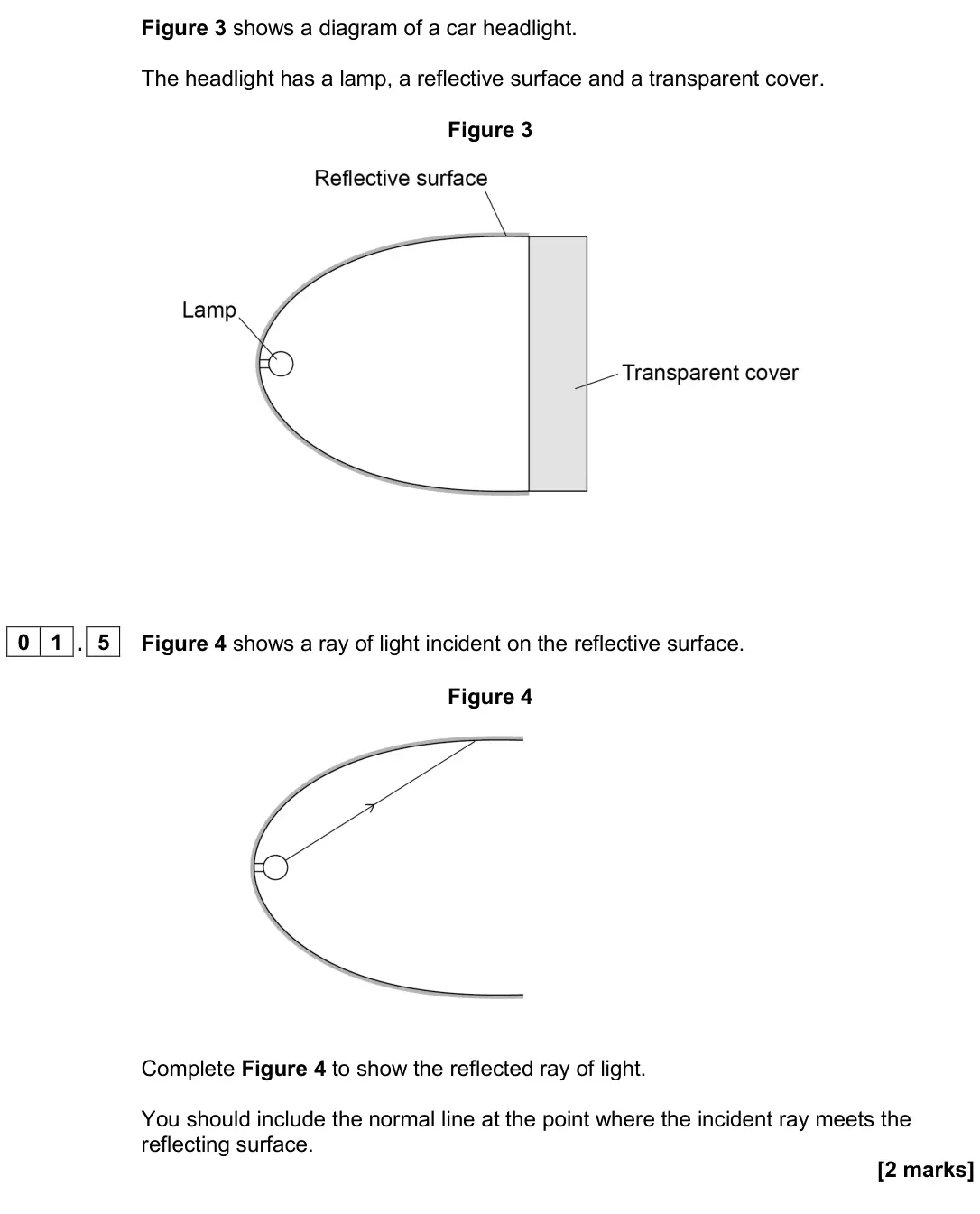

- June 2024, Paper 2 Higher, Q01.5 (2 marks): Figure 4 shows a ray of light incident on the reflective surface. Figure 4 Complete Figure 4 to show the reflected ray of light. You should include the normal l

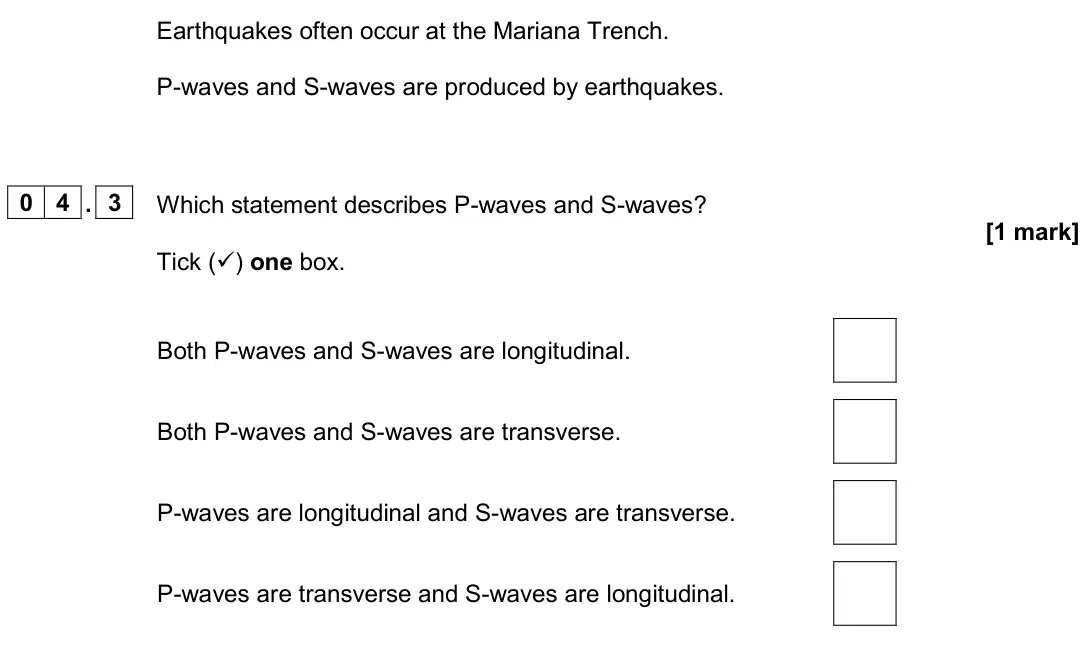

- June 2024, Paper 2 Higher, Q04.3 (1 mark): Which statement describes P-waves and S-waves? [1 mark] Tick () one box. Both P-waves and S-waves are longitudinal. Both P-waves and S-waves are transverse. P-

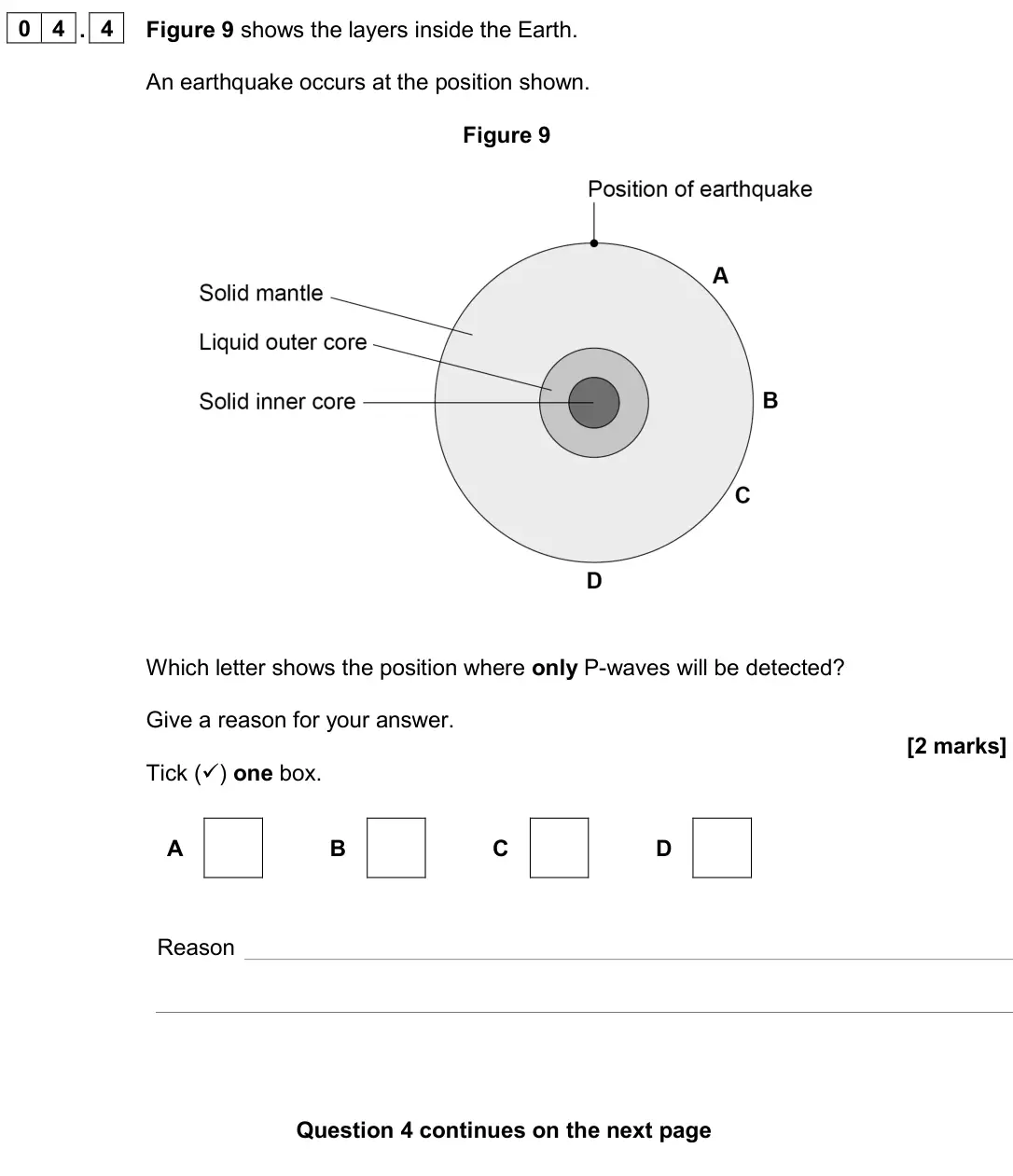

- June 2024, Paper 2 Higher, Q04.4 (2 marks): Figure 9 shows the layers inside the Earth. An earthquake occurs at the position shown. Figure 9 Which letter shows the position where only P-waves will be dete

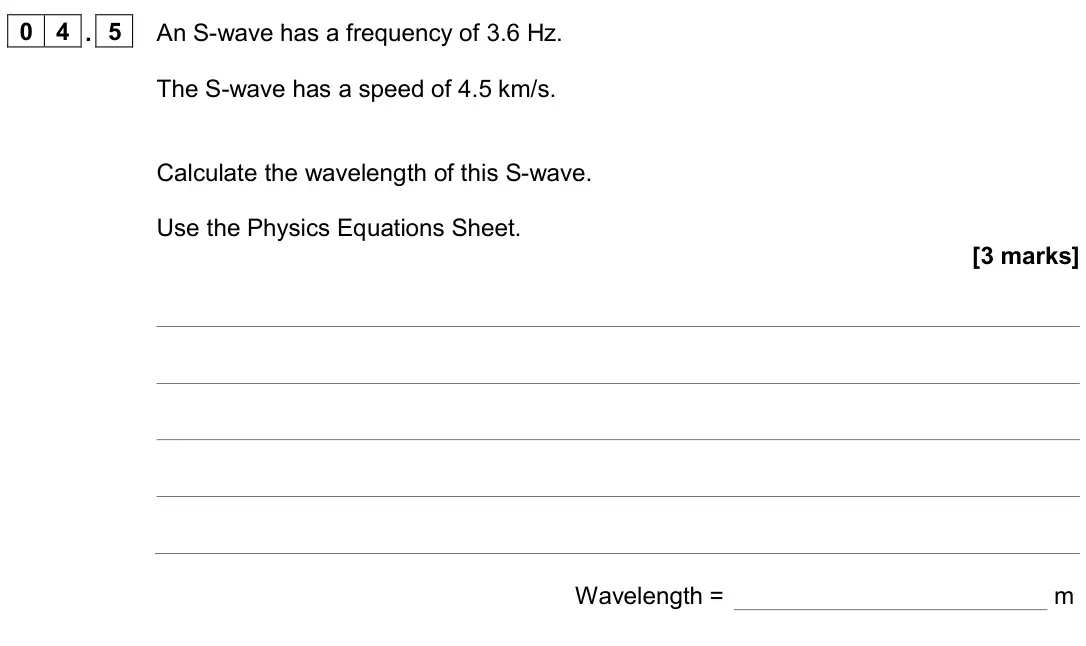

- June 2024, Paper 2 Higher, Q04.5 (3 marks): An S-wave has a frequency of 3.6 Hz. The S-wave has a speed of 4.5 km/s. Calculate the wavelength of this S-wave. Use the Physics Equations Sheet. [3 marks] Wav

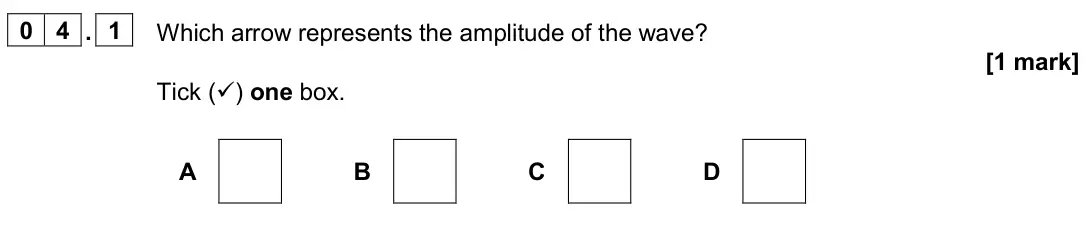

- June 2024, Paper 2 Foundation, Q04.1 (1 mark): Which arrow represents the amplitude of the wave? [1 mark] Tick () one box. A B C D

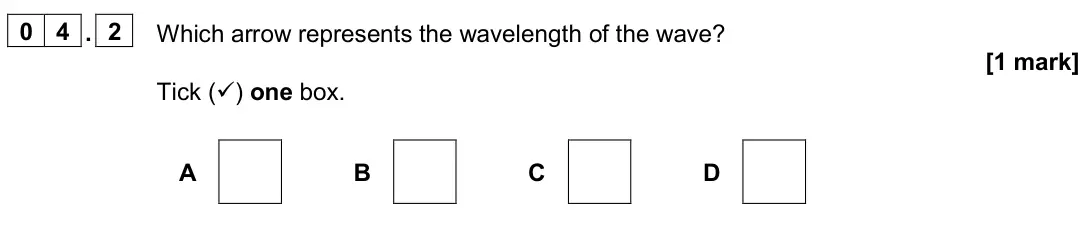

- June 2024, Paper 2 Foundation, Q04.2 (1 mark): Which arrow represents the wavelength of the wave? [1 mark] Tick () one box. A B C D
- June 2024, Paper 2 Foundation, Q04.3 (2 marks): A wave has a frequency of 5000 Hz. Calculate the period of the wave. Use the equation: period = 1 frequency [2 marks] Period = s
- June 2024, Paper 2 Foundation, Q04.5 (1 mark): Figure 8 represents a longitudinal wave. Figure 8 Which point is at the centre of a rarefaction? [1 mark] Tick () one box. E F G
- June 2024, Paper 2 Foundation, Q04.6 (2 marks): A sound wave has a frequency of 750 Hz. speed of sound in air = 330 m/s Calculate the wavelength of the sound wave. Use the equation: wavelength = wave speed fr
- June 2024, Paper 2 Foundation, Q04.7 (4 marks): Describe a method that could be used to determine the speed of sound in air. [4 marks]
- June 2024, Paper 2 Foundation, Q04.8 (1 mark): When a sound wave moves from air into water, the speed of the wave increases. The frequency of the sound wave does not change. Complete the sentence. Choose the
- June 2024, Paper 2 Foundation, Q08.1 (1 mark): What is the resolution of the protractor used to measure the angles? [1 mark] Resolution = ° Table 1 shows the results. Table 1 Angle of incidence in degrees An
- June 2024, Paper 2 Foundation, Q08.2 (6 marks): Describe a method the student could have used to obtain the data in Table 1. You may include a labelled diagram. [6 marks]
- June 2024, Paper 2 Foundation, Q08.3 (2 marks): Complete Figure 14. You should: • plot the results from Table 2 • draw the line of best fit. [2 marks]
- June 2024, Paper 2 Foundation, Q08.4 (1 mark): How does Figure 14 show that the angle of refraction is not directly proportional to the angle of incidence? [1 mark]
- June 2024, Paper 2 Foundation, Q08.5 (2 marks): Figure 16 shows a ray of light incident on the reflective surface. Figure 16 Complete Figure 16 to show the reflected ray of light. You should include the norma
- June 2023, Paper 2 Higher, Q01.1 (1 mark): Complete the sentence. [1 mark] In a transverse wave, the direction of oscillation is to the direction of energy transfer by the wave.
- June 2023, Paper 2 Higher, Q04.6 (4 marks): Megaphones can produce very loud sounds. A person’s hearing can be affected by age and by working in a loud environment. Figure 13 shows how frequency affects t
- June 2023, Paper 2 Higher, Q06.2 (5 marks): A space telescope uses microwaves to communicate with the Earth. A microwave has a wavelength of 12.5 cm. The speed of microwaves through space is 3.0 × 108 m/s
- June 2023, Paper 2 Higher, Q07.2 (1 mark): What conclusion can be made from the results in Table 2? [1 mark]
- June 2023, Paper 2 Higher, Q07.3 (2 marks): What type of error caused the variation in the results for the angle of reflection? Suggest one cause of this error. [2 marks] Type of error Cause of error
- June 2023, Paper 2 Higher, Q07.4 (1 mark): Figure 18 shows the path of a ray of light through a glass block. Figure 18 Why has refraction not occurred? [1 mark]
- June 2023, Paper 2 Higher, Q07.5 (2 marks): The student measured the angle of refraction for different angles of incidence. Figure 19 shows the protractor used. Figure 19 When the angle of incidence was 1
- June 2023, Paper 2 Foundation, Q03.6 (2 marks): The iron arm of the bell vibrates with a frequency of 6.25 Hz. Calculate the period of the iron arm. Use the equation: period = 1 frequency [2 marks] Period = s
- June 2023, Paper 2 Foundation, Q03.7 (1 mark): The sound waves produced by the bell are longitudinal waves. Figure 9 shows the position of the air particles at one point in time as the sound waves travel thr
- June 2023, Paper 2 Foundation, Q05.1 (1 mark): Which of the following gives the wavelength of the transverse wave? [1 mark] Tick () one box. wavelength = Q 2 wavelength = Q wavelength = 2 Q
- June 2023, Paper 2 Foundation, Q05.2 (1 mark): Which of the following gives the amplitude of the transverse wave? [1 mark] Tick () one box. amplitude = R 2 amplitude = R amplitude = 2 R
- June 2023, Paper 2 Foundation, Q06.1 (1 mark): Why is using a wide beam of light less likely to give accurate results than using a narrow beam? [1 mark] Tick () one box. It will be harder to judge where the
- June 2023, Paper 2 Foundation, Q06.3 (1 mark): What is the resolution of the protractor? [1 mark] Tick () one box. 1 degree 10 degrees 180 degrees
- June 2023, Paper 2 Foundation, Q06.4 (1 mark): For one angle of incidence the student measured the angle of refraction three times. The three measurements were: 35° 31° 33° Calculate the mean angle of refrac
- June 2023, Paper 2 Foundation, Q06.6 (1 mark): and 06.7. 0 6 . 6 Write down the equation which links frequency (f), wave speed (v) and wavelength (λ). [1 mark]
- June 2023, Paper 2 Foundation, Q06.7 (3 marks): Light has a wave speed of 3.0 × 108 m/s in air. The frequency of the red light is 4.0 × 1014 Hz. Calculate the wavelength of the red light in air. [3 marks] Wav
- June 2023, Paper 2 Foundation, Q09.1 (1 mark): Complete the sentence. [1 mark] In a transverse wave, the direction of oscillation is to the direction of energy transfer by the wave.
- June 2022, Paper 2 Higher, Q02.1 (6 marks): Describe a method the student could have used to obtain the results in Table 1. Your answer may include a labelled diagram. [6 marks]
- June 2022, Paper 2 Higher, Q02.2 (4 marks): Figure 2 is an incomplete graph of the results. Figure 2 Complete Figure 2 using data from Table 1. • Label the axes. • Plot the remaining data. • Draw a line o
- June 2022, Paper 2 Higher, Q02.3 (2 marks): Complete the ray diagram in Figure 3 to show the reflection of light from the surface of a plane mirror. You should: • draw the normal line • draw the reflected
- June 2022, Paper 2 Higher, Q02.4 (4 marks): Two students investigated the reflection of light by a plane mirror. Figure 4 shows the different equipment the students used. Figure 4 Explain two ways that Me
- June 2022, Paper 2 Foundation, Q07.1 (2 marks): Complete the sentences. Choose the answers from the box. [2 marks] amplitude frequency speed wavelength The distance between the centre of one compression of a
- June 2022, Paper 2 Foundation, Q07.2 (1 mark): Complete the sentence. Choose the answer from the box. [1 mark] opposite perpendicular parallel In a longitudinal wave, the oscillations are to the direction of
- June 2022, Paper 2 Foundation, Q07.3 (1 mark): A sound wave has a frequency of 8.0 kHz. Which of the following is the same as 8.0 kHz? [1 mark] Tick () one box. 0.0080 Hz 8.0 Hz 8000 Hz 800 000 Hz
- June 2022, Paper 2 Foundation, Q07.4 (2 marks): Calculate the period of a sound wave with a frequency of 8.0 kHz. Use the Physics Equations Sheet. [2 marks] Period = s
- June 2022, Paper 2 Foundation, Q07.8 (3 marks): The sound from each loudspeaker travels at the same speed. For the sound technician to hear the song clearly, the sound from loudspeaker B should be emitted sli
- June 2022, Paper 2 Foundation, Q09.1 (6 marks): Describe a method the student could have used to obtain the results in Table 5. Your answer may include a labelled diagram. [6 marks]
- June 2022, Paper 2 Foundation, Q09.2 (4 marks): Figure 16 is an incomplete graph of the results. Figure 16 Complete Figure 16 using data from Table 5. • Label the axes. • Plot the remaining data. • Draw a lin
- June 2022, Paper 2 Foundation, Q09.3 (2 marks): Complete the ray diagram in Figure 17 to show the reflection of light from the surface of a plane mirror. You should: • draw the normal line • draw the reflecte
- June 2022, Paper 2 Foundation, Q09.4 (4 marks): Two students investigated the reflection of light by a plane mirror. Figure 18 shows the different equipment the students used. Figure 18 Explain two ways that
- November 2021, Paper 2 Higher, Q05.3 (3 marks): The speed of ultraviolet waves is 3 × 108 m/s. Calculate the frequency of the ultraviolet wave. Use your answer to Question 05.2 [3 marks] Frequency = Hz
- November 2021, Paper 2 Higher, Q05.5 (2 marks): Electromagnetic waves are transverse. Some other types of wave are longitudinal. Describe the difference between transverse and longitudinal waves. [2 marks]
- November 2021, Paper 2 Higher, Q06.1 (1 mark): The teacher measured the time taken for 10 wave fronts to pass the mark. The teacher repeated this measurement three times and calculated the mean. What is the
- November 2021, Paper 2 Higher, Q06.2 (5 marks): The teacher’s measurements for the time taken for 10 wave fronts to pass the mark were: 8.4 s 7.8 s 8.1 s Calculate the mean frequency of the wave. Give your an
- November 2021, Paper 2 Higher, Q06.3 (3 marks): In a different investigation, the teacher wanted to determine the speed of water waves in the ripple tank. The teacher did not measure the wavelength of the wav
- November 2021, Paper 2 Higher, Q08.3 (2 marks): A student investigated how the loudness of sound from the loudspeaker depends on: • the number of turns on the coil • the frequency of the supply. Table 2 shows
- November 2021, Paper 2 Foundation, Q01.1 (1 mark): What type of wave is a water wave? [1 mark] Tick () one box. Electromagnetic Longitudinal Transverse
- November 2021, Paper 2 Foundation, Q01.2 (1 mark): Which statement describes the movement of the water at point X? [1 mark] Tick () one box. The water at point X does not move. The water at point X moves to the
- November 2021, Paper 2 Foundation, Q01.3 (3 marks): The wave has a frequency of 2.0 hertz. The wavelength is 0.032 metres. Calculate the wave speed. Use the equation: wave speed = frequency × wavelength Choose th
- November 2021, Paper 2 Foundation, Q01.4 (1 mark): What is transferred by all waves? [1 mark] Tick () one box. Energy Information Water
- November 2021, Paper 2 Foundation, Q01.5 (1 mark): Which wave has the longest wavelength? [1 mark] Tick () one box. A B C D
- November 2021, Paper 2 Foundation, Q01.6 (1 mark): Which wave has the highest frequency? [1 mark] Tick () one box. A B C D
- November 2020, Paper 2 Higher, Q03.1 (2 marks): The ray of light from the ray box should be as narrow as possible. Explain why using a wider ray would give less accurate results than using a narrower ray. [2
- November 2020, Paper 2 Higher, Q03.2 (2 marks): Estimate the angle of refraction when the angle of incidence is 80°. Show on Figure 4 how you obtained your answer. [2 marks] Angle of refraction = °
- November 2020, Paper 2 Higher, Q03.3 (6 marks): Describe a method the student could have used to obtain the results shown in Figure 4. [6 marks]
- November 2020, Paper 2 Higher, Q03.4 (2 marks): The student repeated each measurement three times. When the angle of incidence was 40° the three measured values for the angle of refraction were 28° 25° 22° Es
- November 2020, Paper 2 Higher, Q06.1 (5 marks): The remote control transmits radio waves to the car aerial. The transmitted radio waves have a frequency of 320 MHz. speed of radio waves = 3.0 × 108 m/s Calcul
- November 2020, Paper 2 Higher, Q06.3 (2 marks): The car produces sound waves. Give two ways in which radio waves are different to sound waves. [2 marks] 1 2
- November 2020, Paper 2 Foundation, Q03.1 (1 mark): Which arrow represents the wavelength of the waves? [1 mark] Tick () one box. P Q R S
- November 2020, Paper 2 Foundation, Q03.2 (1 mark): Which arrow represents the amplitude of the waves? [1 mark] Tick () one box. P Q R S
- November 2020, Paper 2 Foundation, Q03.3 (2 marks): The waves have a frequency of 0.20 hertz. Calculate the period of the waves. Use the equation: period = 1 frequency [2 marks] Period = s
- November 2020, Paper 2 Foundation, Q03.4 (1 mark): The frequency of the waves is increased. The speed of the waves stays the same. What happens to the wavelength of the waves? [1 mark] Tick () one box. The wave
- November 2020, Paper 2 Foundation, Q03.5 (1 mark): The student measured the length of the tray. What else should the student measure in order to calculate the speed of the wave? [1 mark] Tick () one box. Area o
- November 2020, Paper 2 Foundation, Q03.6 (1 mark): What was the independent variable in this investigation? [1 mark] Depth of water Length of tray Speed of waves Figure 4 shows the results. Figure 4
- November 2020, Paper 2 Foundation, Q03.7 (1 mark): Give one conclusion that can be made from Figure 4. [1 mark]
- November 2020, Paper 2 Foundation, Q03.8 (1 mark): What was the speed of a wave when the depth of water was 2.5 cm? [1 mark] Speed of wave = m/s
- November 2020, Paper 2 Foundation, Q04.2 (1 mark): What is the name given to the dotted line on Figure 5? [1 mark]
- November 2020, Paper 2 Foundation, Q04.3 (2 marks): Where the ray of light touches the edge of the optical fibre it is reflected. Draw the reflected ray on Figure 5. [2 marks]
- June 2019, Paper 2 Higher, Q02.1 (1 mark): The wavelength of the wave shown in Figure 4 was measured as 80 cm What piece of apparatus would have been suitable for measuring this wavelength? [1 mark]
- June 2019, Paper 2 Higher, Q02.2 (1 mark): Write down the equation which links frequency, wavelength and wave speed. [1 mark]
- June 2019, Paper 2 Higher, Q02.3 (3 marks): The string in Figure 4 vibrates at 55 Hz Calculate the wave speed of the wave shown in Figure 4. Use data given in Figure 4. [3 marks] Wave speed = m/s
- June 2019, Paper 2 Higher, Q02.4 (2 marks): The frequency of the signal generator is increased. This makes the wavelength of the wave change. The wave speed stays the same. Describe how the apparatus coul
- June 2019, Paper 2 Higher, Q02.5 (4 marks): A student wants to investigate how the speed of a wave on a stretched string depends on the tension in the string. The student uses the apparatus in Figure 4. D
- June 2019, Paper 2 Higher, Q09.1 (1 mark): Table 3 gives the frequencies in the hearing ranges of five different animals. Table 3 Animal Frequencies of hearing range Cat 55 Hz to 77 kHz Chicken 125 Hz to
- June 2019, Paper 2 Higher, Q09.3 (4 marks): Ultrasound travels at 6300 m/s in aluminium. Determine the depth of the crack below the top surface of the aluminium. Use information from Figure 17. Give your
- June 2019, Paper 2 Foundation, Q05.4 (1 mark): Complete the sentence. Choose an answer from the box. [1 mark] random systematic zero The student repeated the measurement three times and calculated the mean t
- June 2019, Paper 2 Foundation, Q05.5 (1 mark): For an angle of incidence of 40° the three measurements for the angle of refraction were: 23° 27° 25° Calculate the value of X in Table 2. [1 mark] X = o
- June 2019, Paper 2 Foundation, Q05.6 (1 mark): Complete the sentence. Choose the answer from the box. [1 mark] equal to greater than less than The student used the data in Table 2 and correctly concluded tha
- June 2019, Paper 2 Foundation, Q05.7 (1 mark): Why is the student’s conclusion only valid for angles of incidence between 20° and 50°? [1 mark]
- June 2019, Paper 2 Foundation, Q05.8 (1 mark): The student repeated the investigation using a transparent plastic block. Why did the student use a transparent block and not an opaque block? [1 mark]
- June 2019, Paper 2 Foundation, Q05.9 (1 mark): The student wanted to compare the refraction caused by the plastic with the refraction caused by the glass. What must the student keep the same for both the pla
- June 2019, Paper 2 Foundation, Q09.1 (1 mark): The wavelength of the wave shown in Figure 23 was measured as 80 cm What piece of apparatus would have been suitable for measuring this wavelength? [1 mark]
- June 2019, Paper 2 Foundation, Q09.2 (1 mark): Write down the equation which links frequency, wavelength and wave speed. [1 mark]
- June 2019, Paper 2 Foundation, Q09.3 (3 marks): The string in Figure 23 vibrates at 55 Hz Calculate the wave speed of the wave shown in Figure 23. Use data given in Figure 23. [3 marks] Wave speed = m/s
- June 2019, Paper 2 Foundation, Q09.4 (2 marks): The frequency of the signal generator is increased. This makes the wavelength of the wave change. The wave speed stays the same. Describe how the apparatus coul
- June 2019, Paper 2 Foundation, Q09.5 (4 marks): A student wants to investigate how the speed of a wave on a stretched string depends on the tension in the string. The student uses the apparatus in Figure 23.
- June 2018, Paper 2 Higher, Q03.1 (1 mark): Which one of the statements about P-waves and S-waves is correct? Tick one box. [1 mark] P-waves and S-waves are transverse. P-waves and S-waves are longitudina
- June 2018, Paper 2 Higher, Q03.2 (1 mark): Calculate the frequency of the P-wave shown in Figure 3. [1 mark] Frequency = Hz
- June 2018, Paper 2 Higher, Q03.3 (1 mark): Write down the equation which links frequency, wavelength and wave speed. [1 mark]
- June 2018, Paper 2 Higher, Q03.4 (3 marks): The P-wave shown in Figure 3 is travelling at 7200 m/s. Calculate the wavelength of the P-wave. [3 marks] Wavelength = m
- June 2018, Paper 2 Higher, Q03.5 (2 marks): Explain why the study of seismic waves provides evidence for the structure of the Earth’s core. [2 marks]
- June 2018, Paper 2 Higher, Q05.1 (1 mark): For each angle of incidence, the angle of reflection has a range of values. This is caused by an error. What type of error will have caused each angle of reflec
- June 2018, Paper 2 Higher, Q05.2 (1 mark): Suggest what the student may have done during the investigation to cause each angle of reflection to have a range of values. [1 mark]
- June 2018, Paper 2 Higher, Q05.3 (2 marks): Estimate the uncertainty in the angle of reflection when the angle of incidence is 50°. Show how you determine your estimate. [2 marks] Uncertainty = °
- June 2018, Paper 2 Higher, Q05.4 (2 marks): The student concluded that for a plane mirror, the angle of incidence is equal to the angle of reflection. Explain whether you agree with this conclusion. Use e
- June 2018, Paper 2 Higher, Q05.5 (1 mark): What extra evidence could be collected to support the student’s conclusion? [1 mark]
- June 2018, Paper 2 Higher, Q05.6 (1 mark): State one change the student should make to the apparatus if he wants to use the same method to investigate diffuse reflection. [1 mark]
- June 2018, Paper 2 Foundation, Q03.1 (1 mark): The student adjusted the speed of the motor so that the bar hit the water more times each second. What happened to the frequency of the waves produced? Tick one
- June 2018, Paper 2 Foundation, Q03.2 (2 marks): Describe how the frequency of the water waves in the ripple tank can be measured. [2 marks]
- June 2018, Paper 2 Foundation, Q03.3 (3 marks): The student measured the frequency of the water waves as 5 hertz. Calculate the period of the water waves. Use the equation: period = 1 frequency Choose the uni
- June 2018, Paper 2 Foundation, Q12.1 (1 mark): Which one of the statements about P-waves and S-waves is correct? Tick one box. [1 mark] P-waves and S-waves are transverse. P-waves and S-waves are longitudina
- June 2018, Paper 2 Foundation, Q12.2 (1 mark): Calculate the frequency of the P-wave shown in Figure 16. [1 mark] Frequency = Hz
- June 2018, Paper 2 Foundation, Q12.3 (1 mark): Write down the equation which links frequency, wavelength and wave speed. [1 mark]
- June 2018, Paper 2 Foundation, Q12.4 (3 marks): The P-wave shown in Figure 16 is travelling at 7200 m/s. Calculate the wavelength of the P-wave. [3 marks] Wavelength = m
- June 2018, Paper 2 Foundation, Q12.5 (2 marks): Explain why the study of seismic waves provides evidence for the structure of the Earth’s core. [2 marks]
- Specimen, Paper 2 Higher, Q11.1 (2 marks): Waves may be either longitudinal or transverse. 1 1 Describe the difference between a longitudinal and a transverse wave. [2 mark 1 1 . 1
- Specimen, Paper 2 Higher, Q11.2: Waves may be either longitudinal or transverse. 1 1 Describe one piece of evidence that shows when a sound wave travels through the a it is the wave and not the
- Specimen, Paper 2 Higher, Q11.3 (6 marks): Waves may be either longitudinal or transverse. 1 1 Figure 19 shows the parts of a moving-coil loudspeaker. A coil of wire is positioned in the gap between the
- Specimen, Paper 2 Foundation, Q05.1: Small water waves are created in a ripple tank by a wooden bar. The wooden bar vibrates up and down hitting the surface of the water. Figure 9 shows a cross-sec
- Specimen, Paper 2 Foundation, Q05.2: Small water waves are created in a ripple tank by a wooden bar. The wooden bar vibrates up and down hitting the surface of the water. Figure 9 shows a cross-sec
- Specimen, Paper 2 Foundation, Q05.3 (2 marks): Small water waves are created in a ripple tank by a wooden bar. The wooden bar vibrates up and down hitting the surface of the water. Figure 9 shows a cross-sec
- Specimen, Paper 2 Foundation, Q05.4 (4 marks): Small water waves are created in a ripple tank by a wooden bar. The wooden bar vibrates up and down hitting the surface of the water. Figure 9 shows a cross-sec
