Series and parallel circuits: AQA GCSE Physics questions

Every AQA GCSE Physics exam question on 4.2.2 Series and parallel circuits, 2018–2025, with its mark scheme and examiner’s report.

Find questions1,653
Calculations

1,653 questions

  1. Q06.3

    June 2025 · Paper 1 Higher

    3 marks4.2.2 Series and parallel circuits
    The whole paper ↗

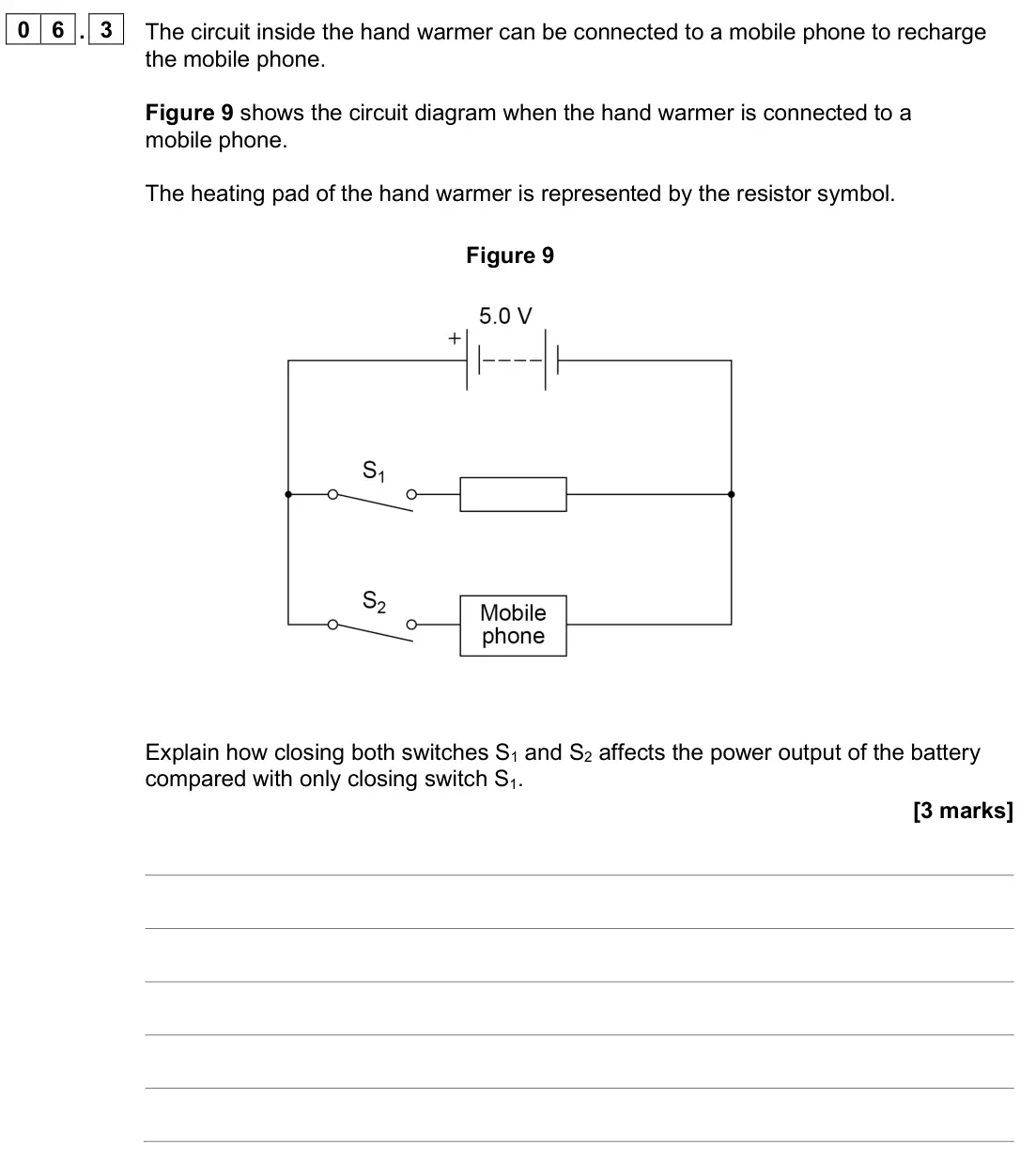

    June 2025 Paper 1 Higher, question 06.3: The circuit inside the hand warmer can be connected to a mobile phone to recharge the mobile phone. Figure 9 shows the circuit diagram when the hand warmer is c

  2. Q05.5

    June 2024 · Paper 1 Higher

    5 marks4.2.2 Series and parallel circuits
    The whole paper ↗

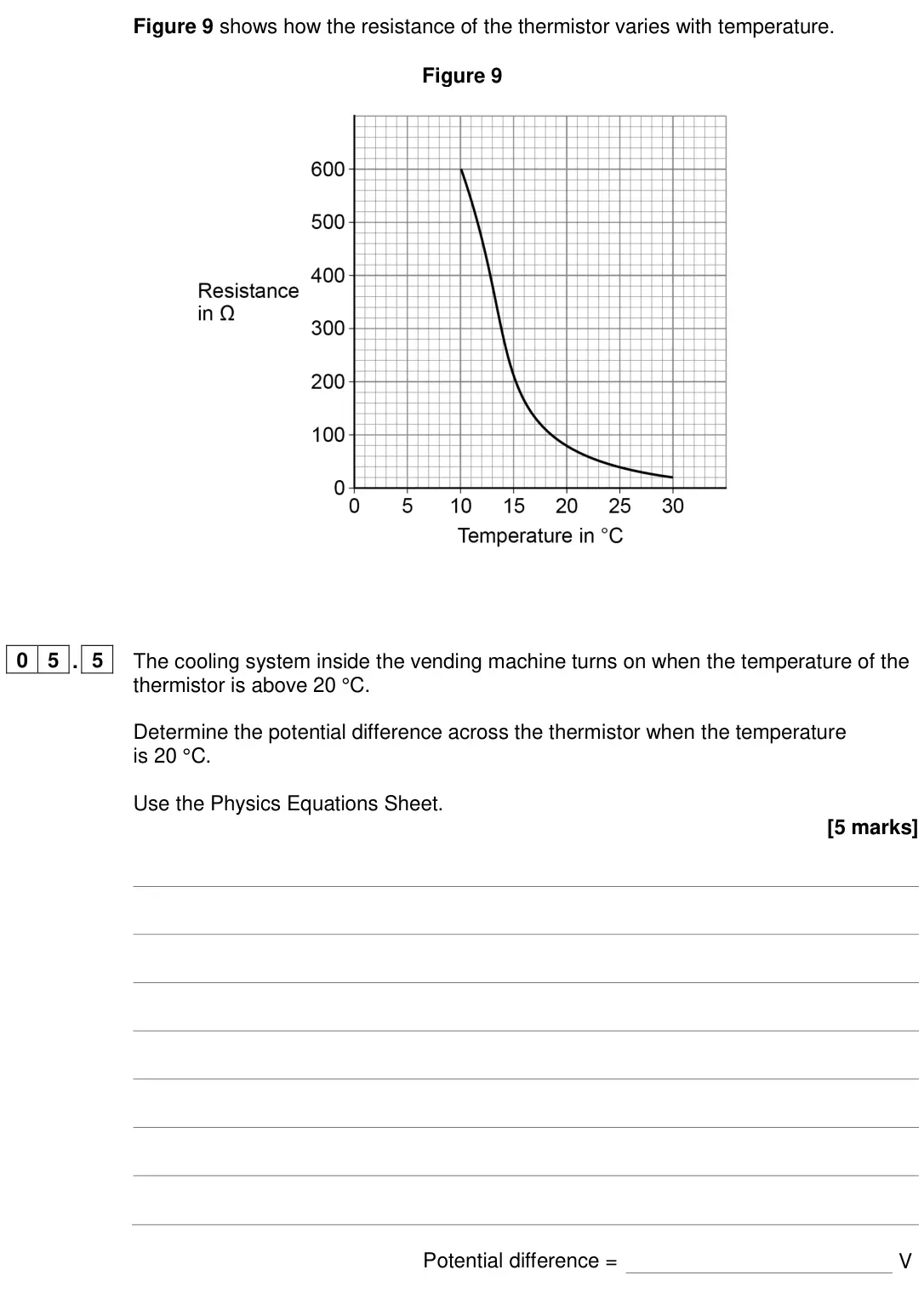

    June 2024 Paper 1 Higher, question 05.5: The cooling system inside the vending machine turns on when the temperature of the thermistor is above 20 °C. Determine the potential difference across the ther

  3. Q02.5

    June 2024 · Paper 1 Foundation

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

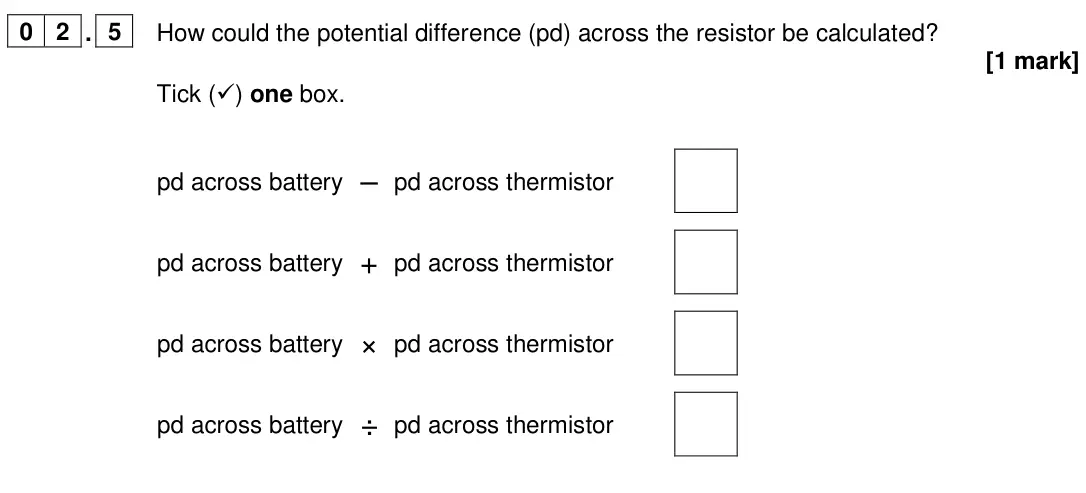

    June 2024 Paper 1 Foundation, question 02.5: How could the potential difference (pd) across the resistor be calculated? [1 mark] Tick () one box. pd across battery – pd across thermistor pd across battery

  4. Q02.6

    June 2024 · Paper 1 Foundation

    2 marks4.2.2 Series and parallel circuits
    The whole paper ↗

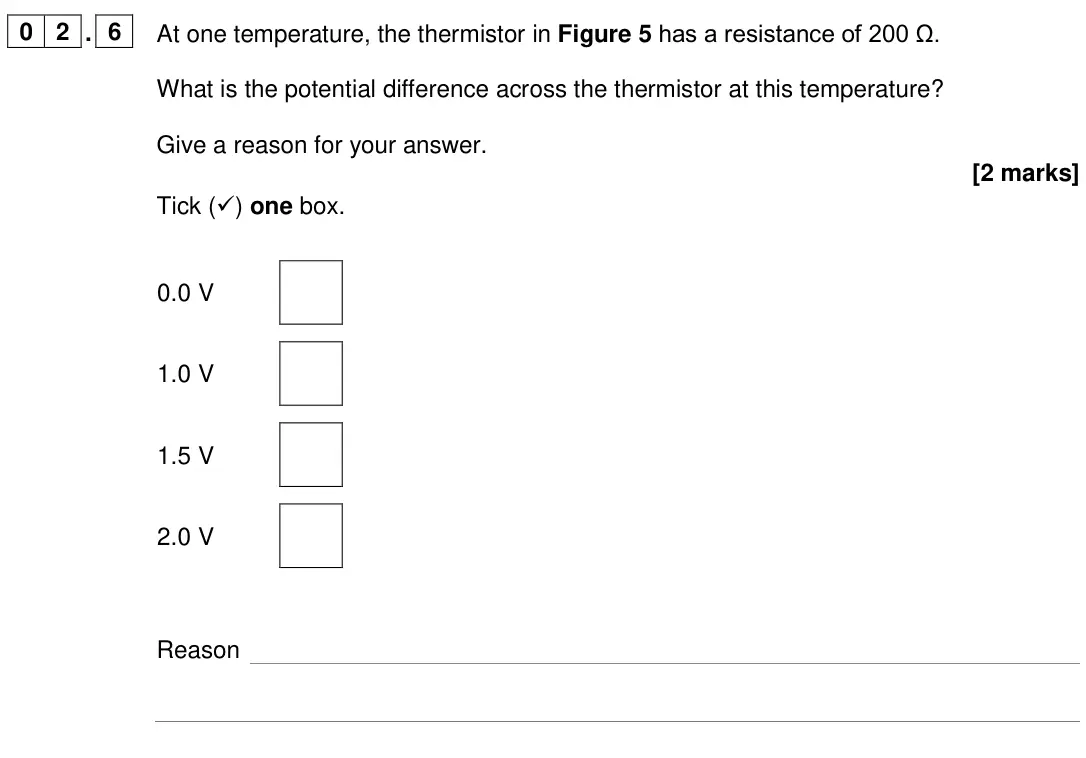

    June 2024 Paper 1 Foundation, question 02.6: At one temperature, the thermistor in Figure 5 has a resistance of 200 Ω. What is the potential difference across the thermistor at this temperature? Give a rea

  5. Q01.3

    June 2023 · Paper 1 Foundation

    3 marks4.2.2 Series and parallel circuits4.2.1 Current, potential difference and resistance
    The whole paper ↗

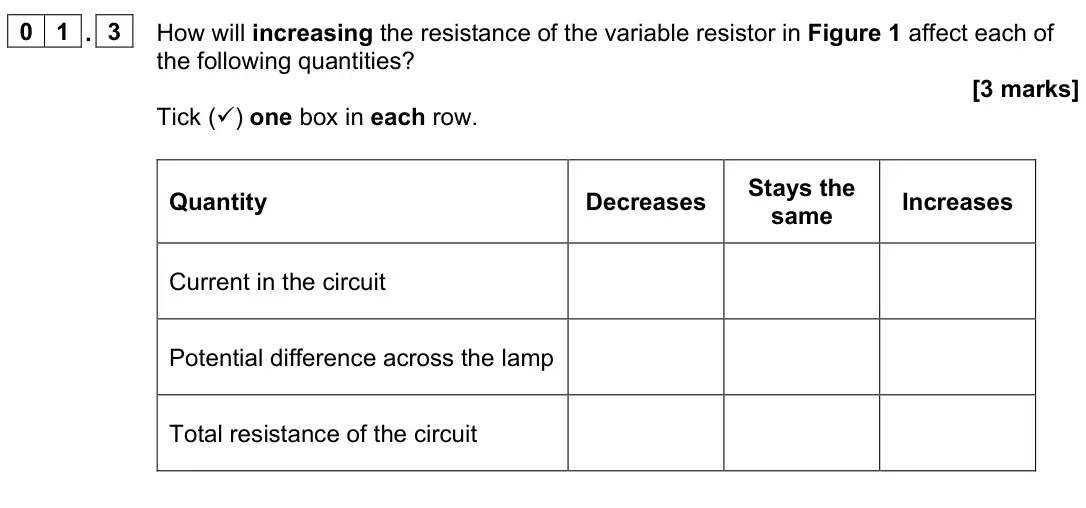

    June 2023 Paper 1 Foundation, question 01.3: How will increasing the resistance of the variable resistor in Figure 1 affect each of the following quantities? [3 marks] Tick () one box in each row. Quantit

  6. Q11.2

    June 2022 · Paper 1 Higher

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

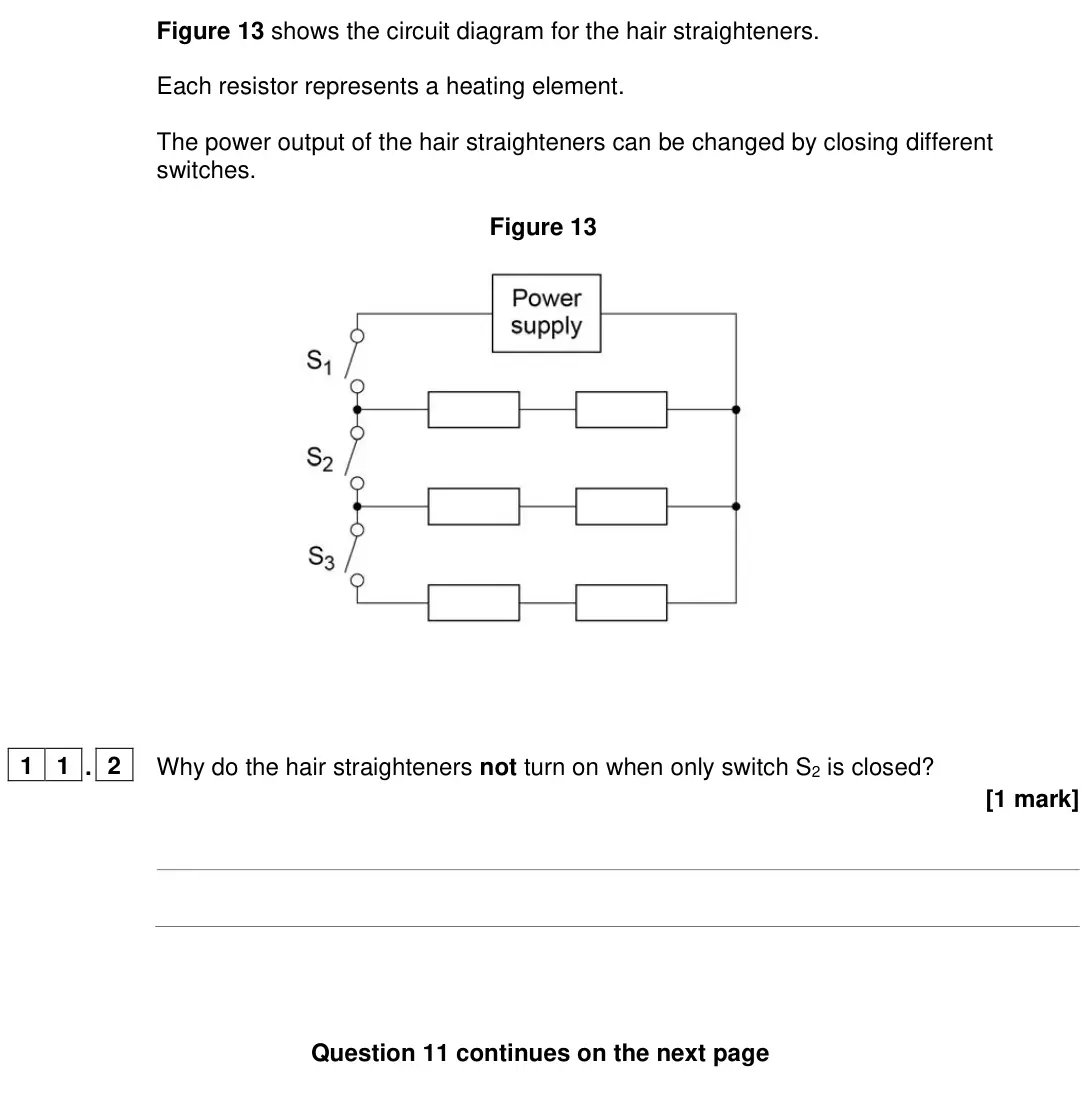

    June 2022 Paper 1 Higher, question 11.2: Why do the hair straighteners not turn on when only switch S2 is closed? [1 mark]

  7. Q11.4

    June 2022 · Paper 1 Higher

    3 marks4.2.4 Energy transfers4.2.2 Series and parallel circuits
    The whole paper ↗

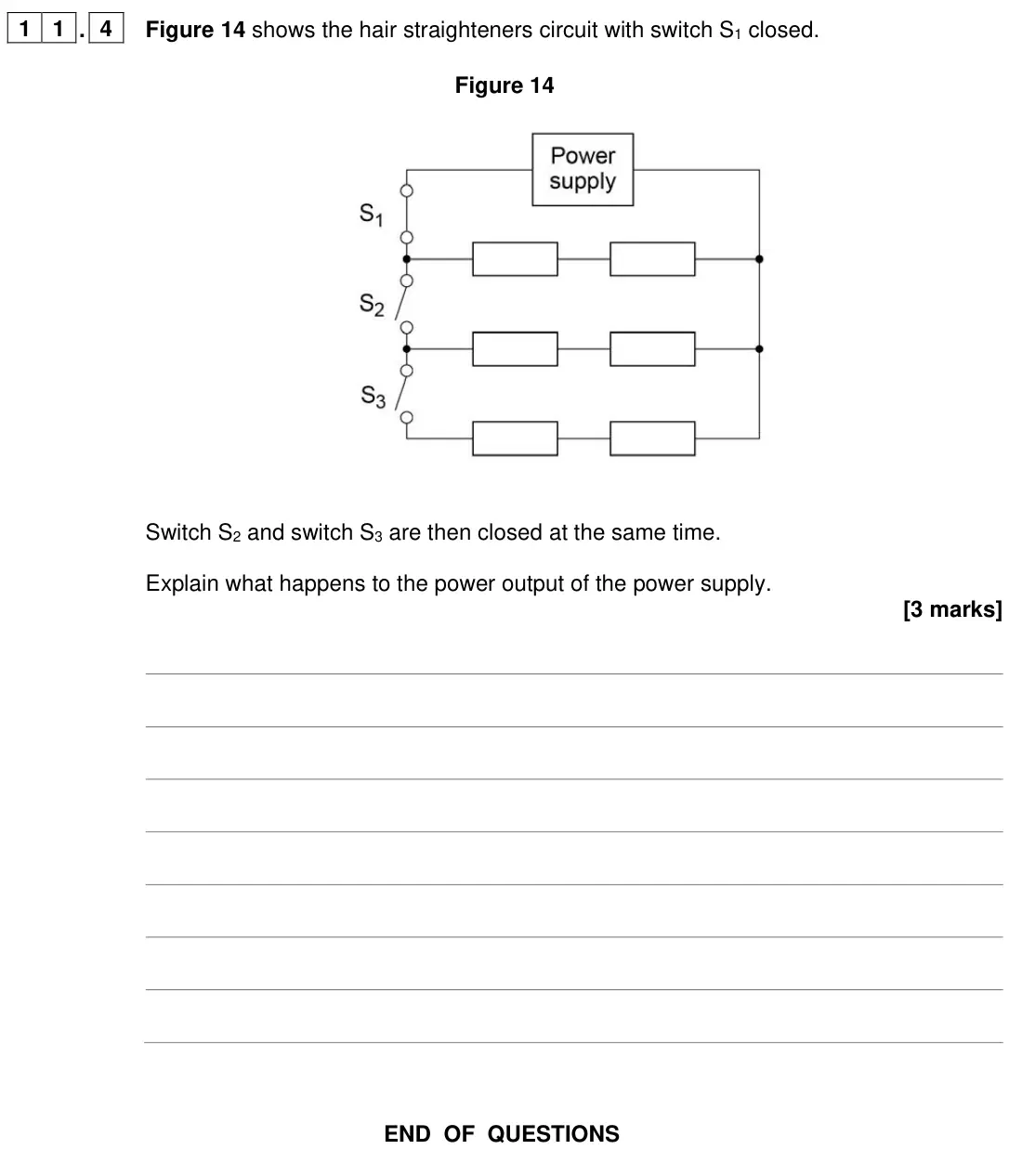

    June 2022 Paper 1 Higher, question 11.4: Figure 14 shows the hair straighteners circuit with switch S1 closed. Figure 14 Switch S2 and switch S3 are then closed at the same time. Explain what happens t

  8. Q06.1

    June 2022 · Paper 1 Foundation

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

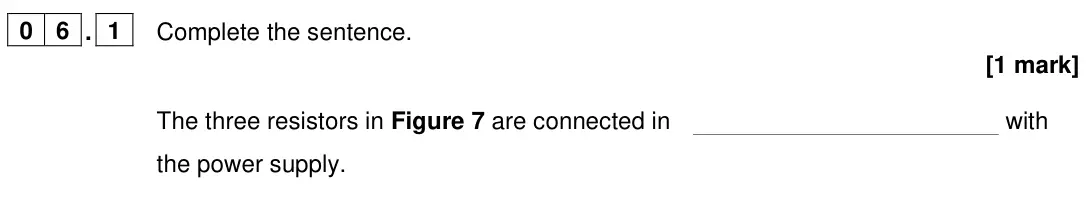

    June 2022 Paper 1 Foundation, question 06.1: Complete the sentence. [1 mark] The three resistors in Figure 7 are connected in with the power supply.

  9. Q06.2

    June 2022 · Paper 1 Foundation

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

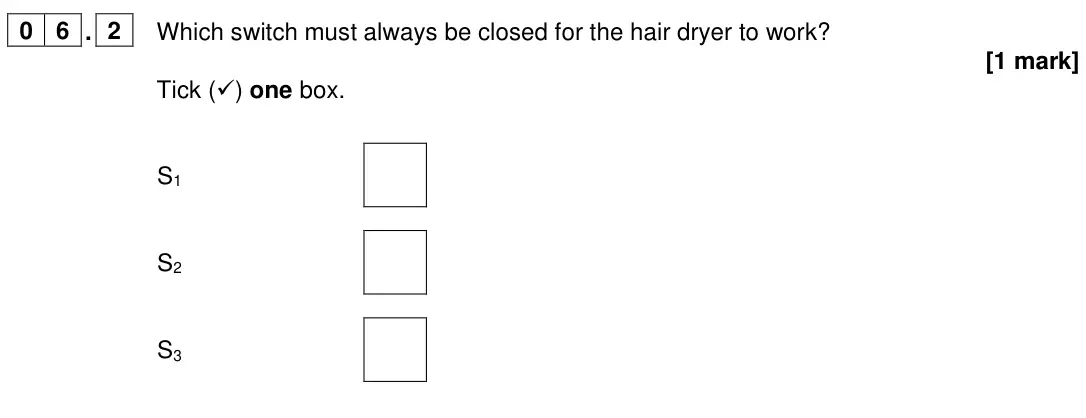

    June 2022 Paper 1 Foundation, question 06.2: Which switch must always be closed for the hair dryer to work? [1 mark] Tick () one box. S1 S2 S3

  10. Q06.3

    June 2022 · Paper 1 Foundation

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

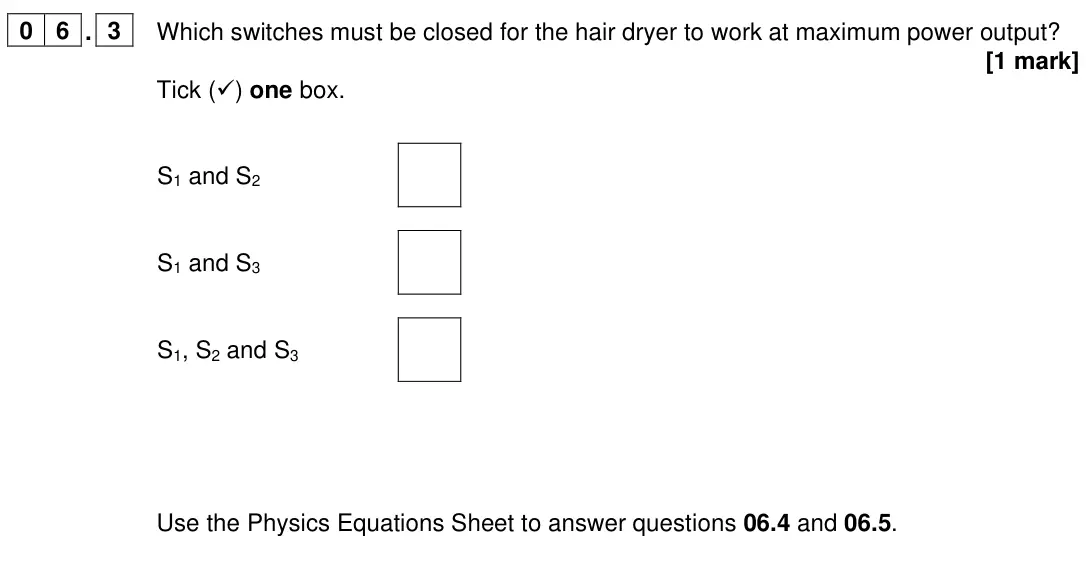

    June 2022 Paper 1 Foundation, question 06.3: Which switches must be closed for the hair dryer to work at maximum power output? [1 mark] Tick () one box. S1 and S2 S1 and S3 S1, S2 and S3 Use the Physics E

  11. Q03.3

    November 2021 · Paper 1 Higher

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

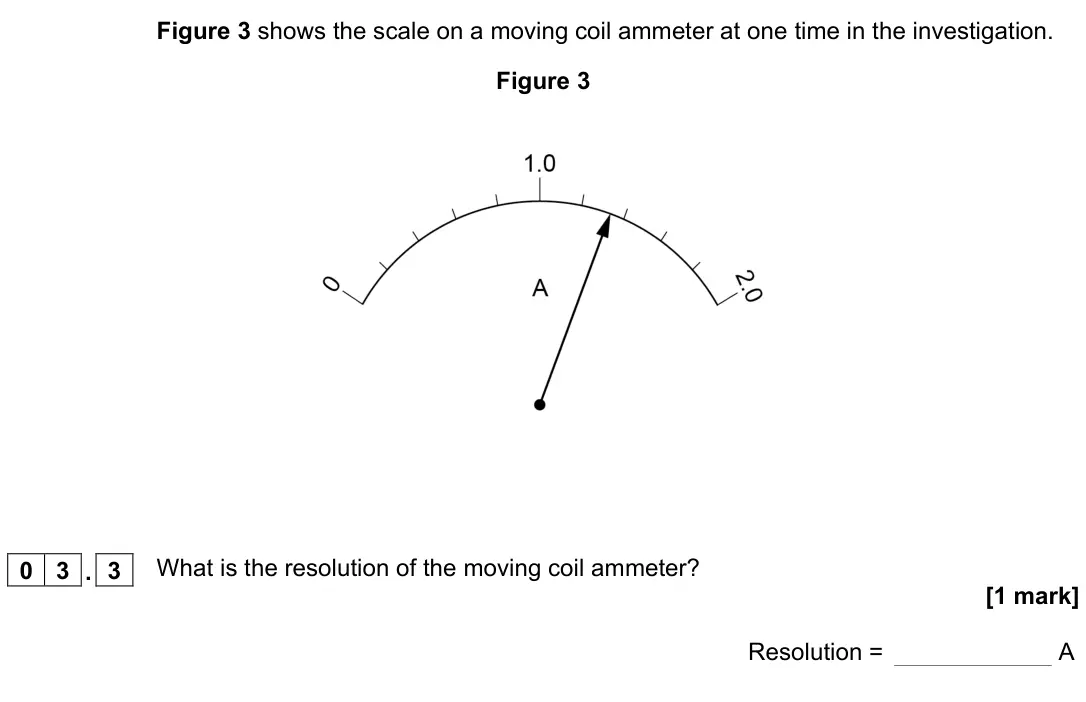

    November 2021 Paper 1 Higher, question 03.3: What is the resolution of the moving coil ammeter? [1 mark] Resolution = A

  12. Q03.4

    November 2021 · Paper 1 Higher

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

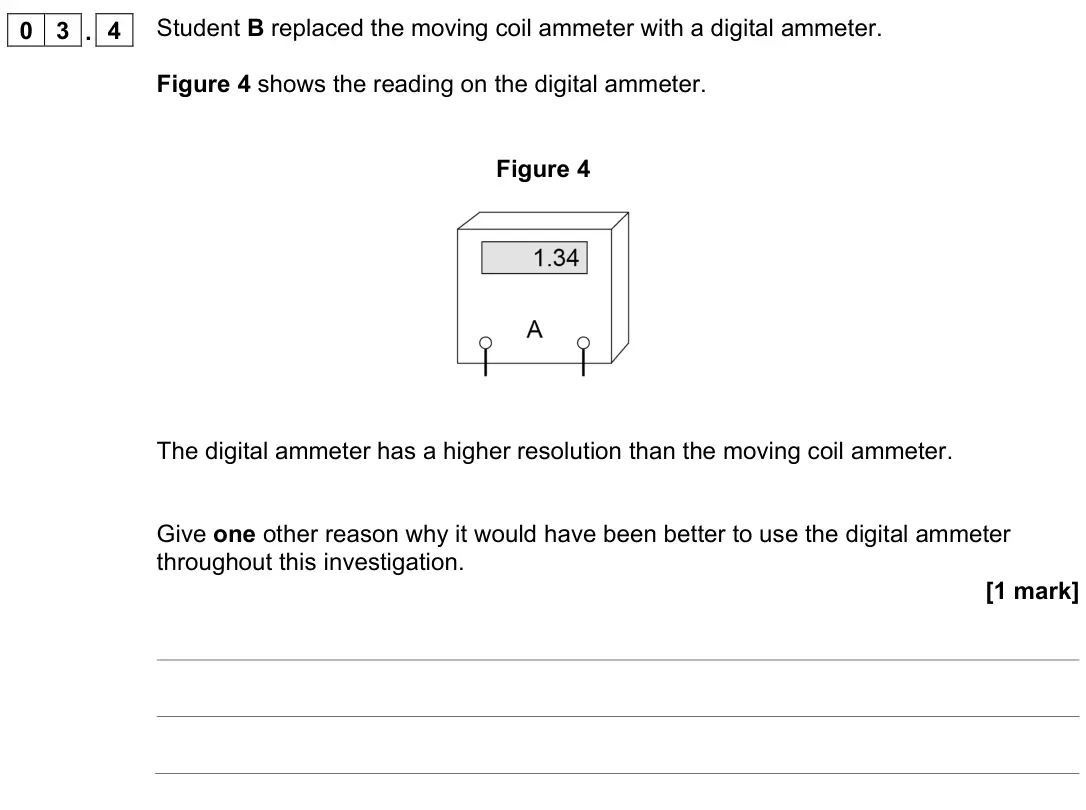

    November 2021 Paper 1 Higher, question 03.4: Student B replaced the moving coil ammeter with a digital ammeter. Figure 4 shows the reading on the digital ammeter. Figure 4 The digital ammeter has a higher

  13. Q07.3

    November 2021 · Paper 1 Higher

    2 marks4.2.2 Series and parallel circuits4.2.1 Current, potential difference and resistance
    The whole paper ↗

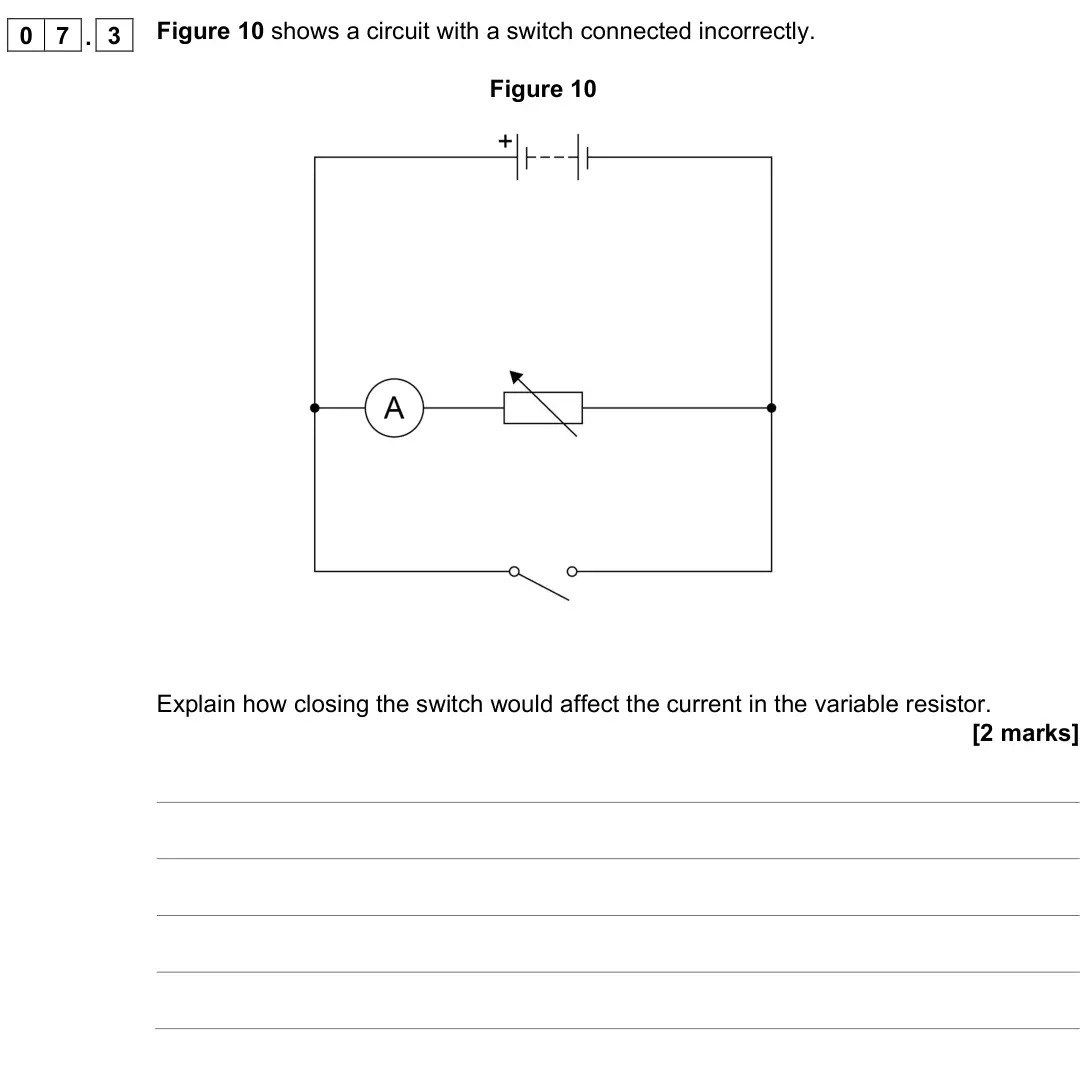

    November 2021 Paper 1 Higher, question 07.3: Figure 10 shows a circuit with a switch connected incorrectly. Figure 10 Explain how closing the switch would affect the current in the variable resistor. [2 ma

  14. Q10.4

    November 2021 · Paper 1 Higher

    2 marks4.2.2 Series and parallel circuits4.2.1 Current, potential difference and resistance
    The whole paper ↗

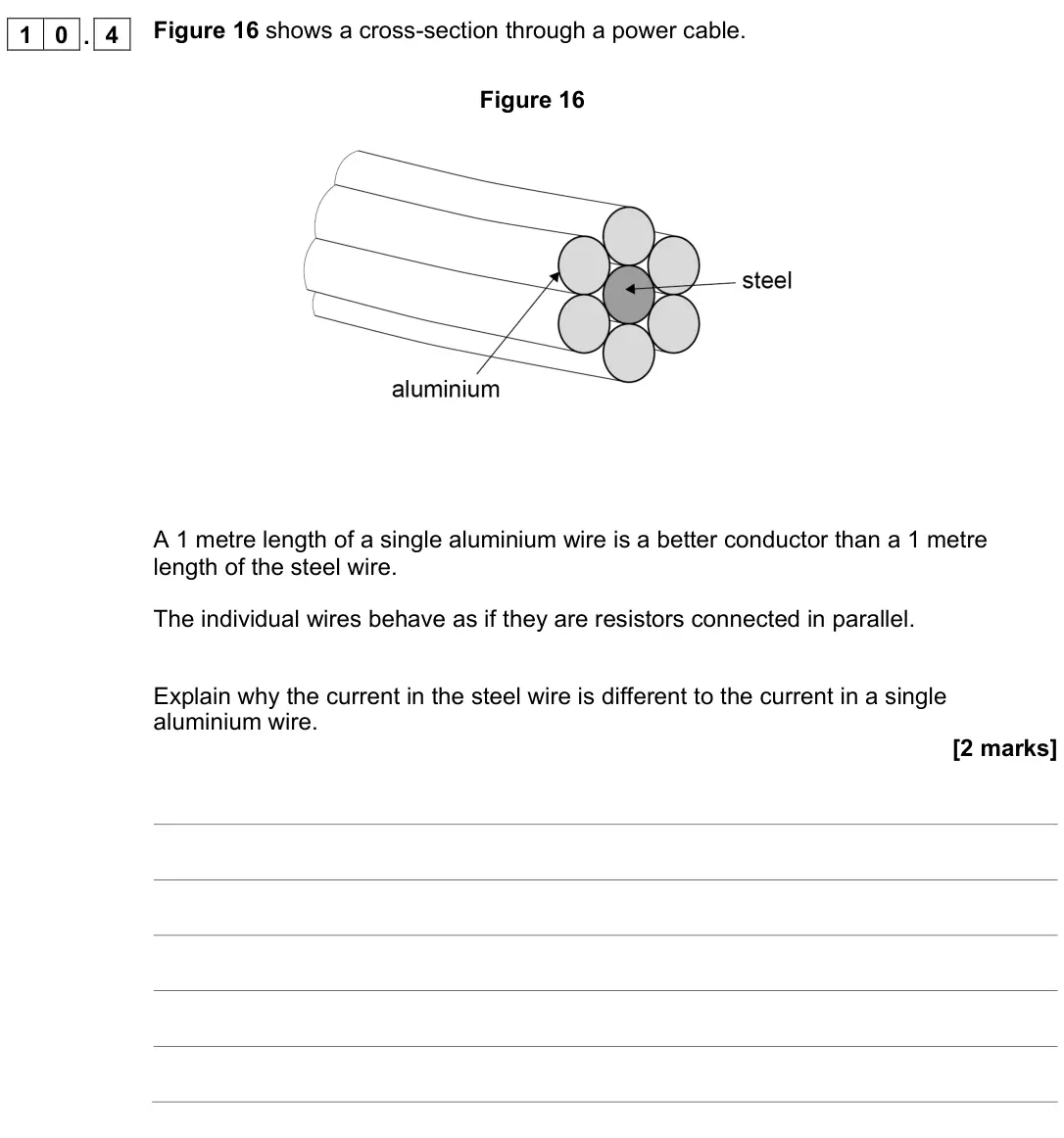

    November 2021 Paper 1 Higher, question 10.4: Figure 16 shows a cross-section through a power cable. Figure 16 A 1 metre length of a single aluminium wire is a better conductor than a 1 metre length of the

  15. Q04.1

    November 2021 · Paper 1 Foundation

    3 marks4.2.1 Current, potential difference and resistance4.2.2 Series and parallel circuits
    The whole paper ↗

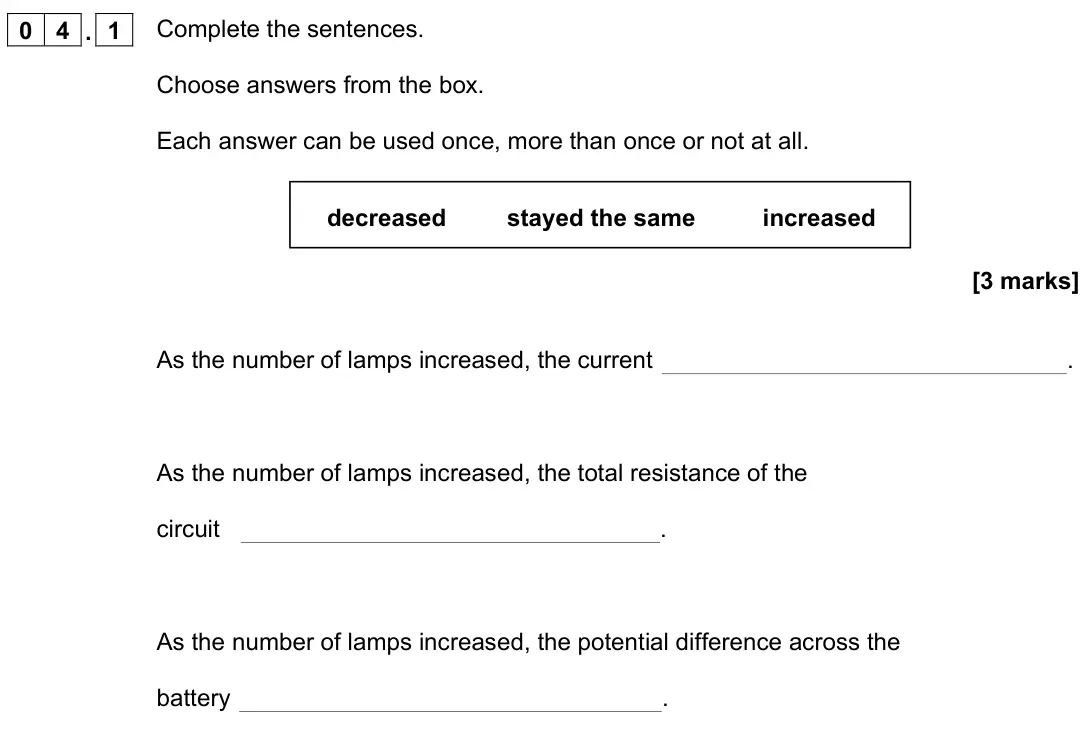

    November 2021 Paper 1 Foundation, question 04.1: Complete the sentences. Choose answers from the box. Each answer can be used once, more than once or not at all. [3 marks] As the number of lamps increased, the

  16. Q04.2

    November 2021 · Paper 1 Foundation

    1 mark4.2.1 Current, potential difference and resistance4.2.2 Series and parallel circuits
    The whole paper ↗

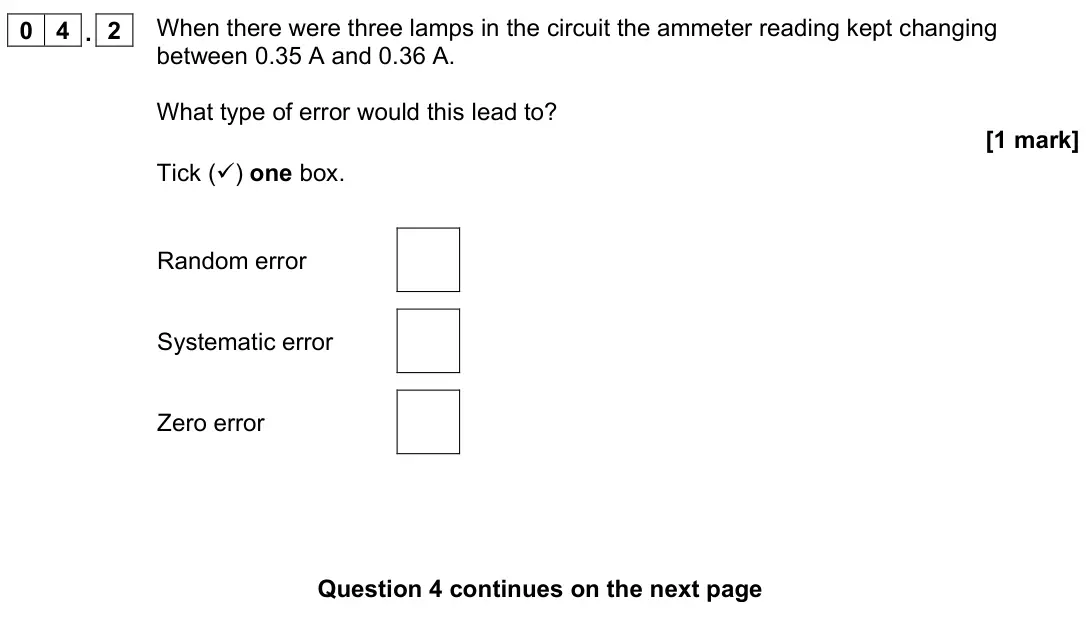

    November 2021 Paper 1 Foundation, question 04.2: When there were three lamps in the circuit the ammeter reading kept changing between 0.35 A and 0.36 A. What type of error would this lead to? [1 mark] Tick ()

  17. Q04.3

    November 2021 · Paper 1 Foundation

    2 marks4.2.2 Series and parallel circuits
    The whole paper ↗

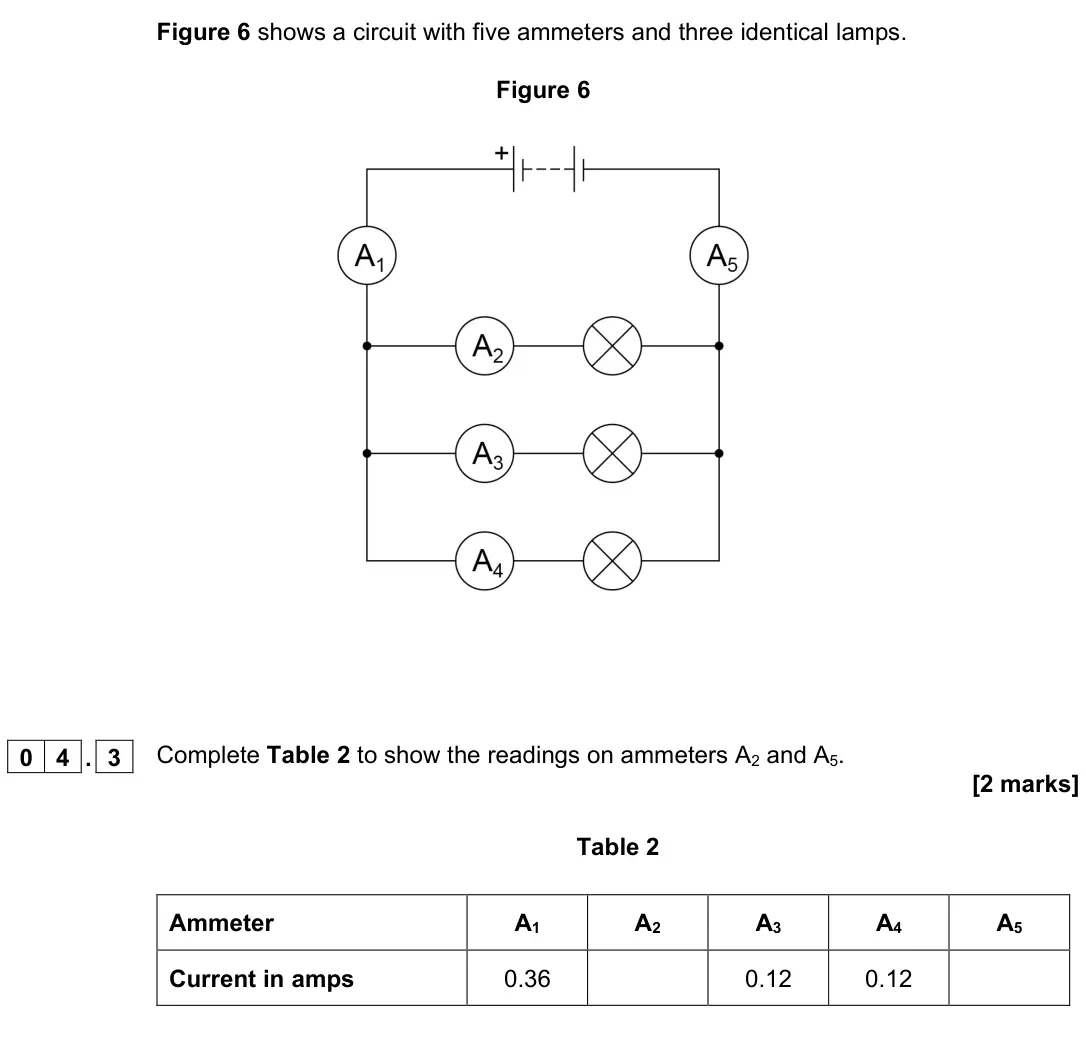

    November 2021 Paper 1 Foundation, question 04.3: Complete Table 2 to show the readings on ammeters A2 and A5. [2 marks] Table 2 Ammeter A1 A2 A3 A4 A5 Current in amps 0.36 0.12 0.12

  18. Q11.3

    November 2021 · Paper 1 Foundation

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

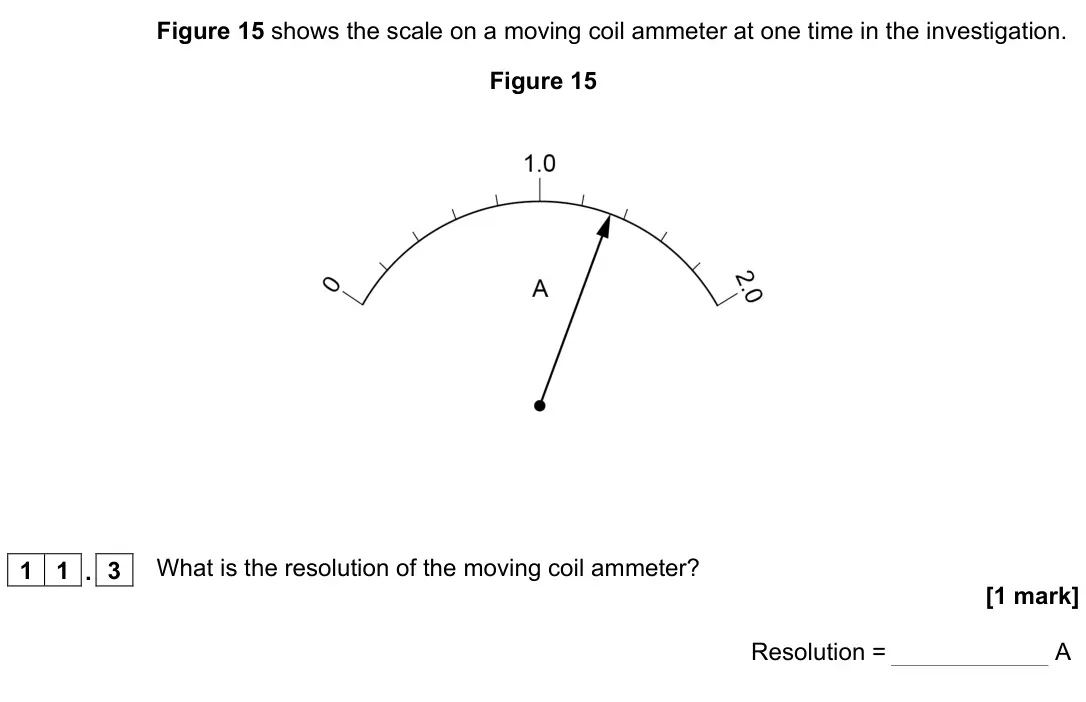

    November 2021 Paper 1 Foundation, question 11.3: What is the resolution of the moving coil ammeter? [1 mark] Resolution = A

  19. Q11.4

    November 2021 · Paper 1 Foundation

    1 mark4.2.2 Series and parallel circuits
    The whole paper ↗

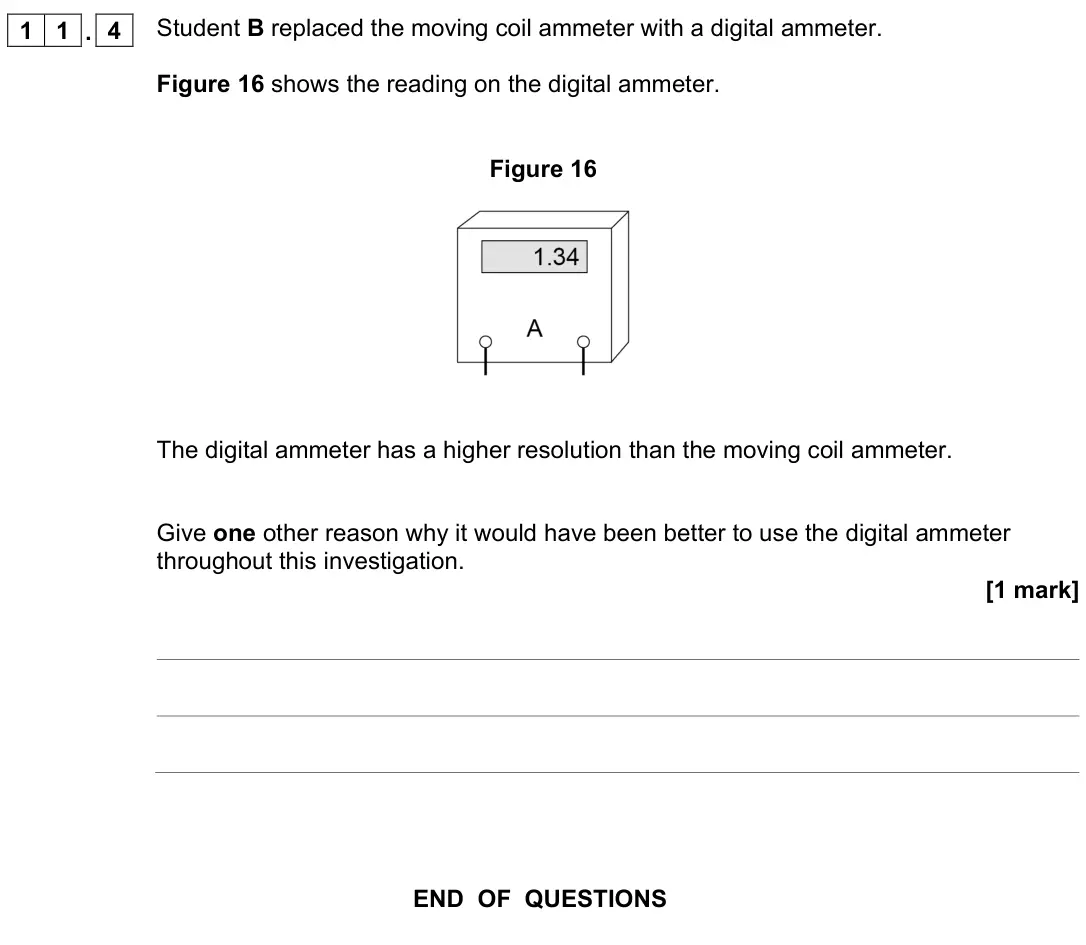

    November 2021 Paper 1 Foundation, question 11.4: Student B replaced the moving coil ammeter with a digital ammeter. Figure 16 shows the reading on the digital ammeter. Figure 16 The digital ammeter has a highe

  20. Q04.1

    November 2020 · Paper 1 Foundation

    2 marks4.2.2 Series and parallel circuits
    The whole paper ↗

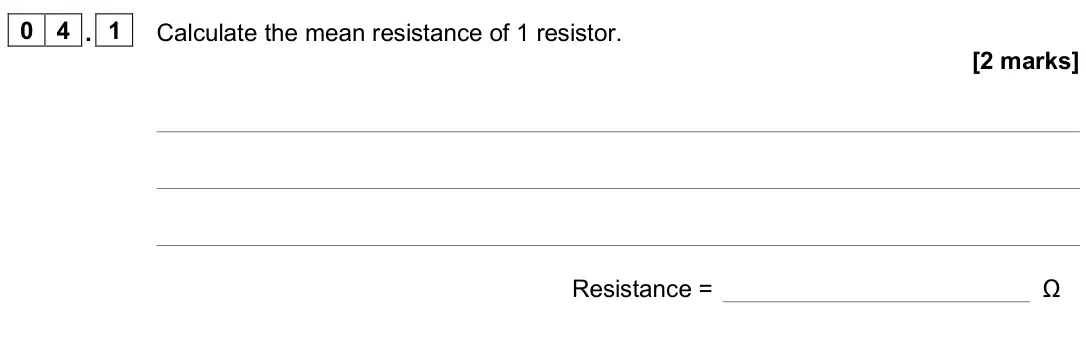

    November 2020 Paper 1 Foundation, question 04.1: Calculate the mean resistance of 1 resistor. [2 marks] Resistance = Ω
All 31 questions on Series and parallel circuits, as a list
  1. June 2025, Paper 1 Higher, Q06.3 (3 marks): The circuit inside the hand warmer can be connected to a mobile phone to recharge the mobile phone. Figure 9 shows the circuit diagram when the hand warmer is c
  2. June 2024, Paper 1 Higher, Q05.5 (5 marks): The cooling system inside the vending machine turns on when the temperature of the thermistor is above 20 °C. Determine the potential difference across the ther
  3. June 2024, Paper 1 Foundation, Q02.5 (1 mark): How could the potential difference (pd) across the resistor be calculated? [1 mark] Tick () one box. pd across battery – pd across thermistor pd across battery
  4. June 2024, Paper 1 Foundation, Q02.6 (2 marks): At one temperature, the thermistor in Figure 5 has a resistance of 200 Ω. What is the potential difference across the thermistor at this temperature? Give a rea
  5. June 2023, Paper 1 Foundation, Q01.3 (3 marks): How will increasing the resistance of the variable resistor in Figure 1 affect each of the following quantities? [3 marks] Tick () one box in each row. Quantit
  6. June 2022, Paper 1 Higher, Q11.2 (1 mark): Why do the hair straighteners not turn on when only switch S2 is closed? [1 mark]
  7. June 2022, Paper 1 Higher, Q11.4 (3 marks): Figure 14 shows the hair straighteners circuit with switch S1 closed. Figure 14 Switch S2 and switch S3 are then closed at the same time. Explain what happens t
  8. June 2022, Paper 1 Foundation, Q06.1 (1 mark): Complete the sentence. [1 mark] The three resistors in Figure 7 are connected in with the power supply.
  9. June 2022, Paper 1 Foundation, Q06.2 (1 mark): Which switch must always be closed for the hair dryer to work? [1 mark] Tick () one box. S1 S2 S3
  10. June 2022, Paper 1 Foundation, Q06.3 (1 mark): Which switches must be closed for the hair dryer to work at maximum power output? [1 mark] Tick () one box. S1 and S2 S1 and S3 S1, S2 and S3 Use the Physics E
  11. November 2021, Paper 1 Higher, Q03.3 (1 mark): What is the resolution of the moving coil ammeter? [1 mark] Resolution = A
  12. November 2021, Paper 1 Higher, Q03.4 (1 mark): Student B replaced the moving coil ammeter with a digital ammeter. Figure 4 shows the reading on the digital ammeter. Figure 4 The digital ammeter has a higher
  13. November 2021, Paper 1 Higher, Q07.3 (2 marks): Figure 10 shows a circuit with a switch connected incorrectly. Figure 10 Explain how closing the switch would affect the current in the variable resistor. [2 ma
  14. November 2021, Paper 1 Higher, Q10.4 (2 marks): Figure 16 shows a cross-section through a power cable. Figure 16 A 1 metre length of a single aluminium wire is a better conductor than a 1 metre length of the
  15. November 2021, Paper 1 Foundation, Q04.1 (3 marks): Complete the sentences. Choose answers from the box. Each answer can be used once, more than once or not at all. [3 marks] As the number of lamps increased, the
  16. November 2021, Paper 1 Foundation, Q04.2 (1 mark): When there were three lamps in the circuit the ammeter reading kept changing between 0.35 A and 0.36 A. What type of error would this lead to? [1 mark] Tick ()
  17. November 2021, Paper 1 Foundation, Q04.3 (2 marks): Complete Table 2 to show the readings on ammeters A2 and A5. [2 marks] Table 2 Ammeter A1 A2 A3 A4 A5 Current in amps 0.36 0.12 0.12
  18. November 2021, Paper 1 Foundation, Q11.3 (1 mark): What is the resolution of the moving coil ammeter? [1 mark] Resolution = A
  19. November 2021, Paper 1 Foundation, Q11.4 (1 mark): Student B replaced the moving coil ammeter with a digital ammeter. Figure 16 shows the reading on the digital ammeter. Figure 16 The digital ammeter has a highe
  20. November 2020, Paper 1 Foundation, Q04.1 (2 marks): Calculate the mean resistance of 1 resistor. [2 marks] Resistance = Ω
  21. November 2020, Paper 1 Foundation, Q04.2 (1 mark): What was the resolution of the ohmmeter the student used? Tick () one box. [1 mark] 0.1 Ω 0.2 Ω 1.1 Ω 36.0 Ω
  22. November 2020, Paper 1 Foundation, Q04.3 (1 mark): How do the results show that the student’s measurements were precise? [1 mark] Tick () one box. The measurements are accurate. The measurements are grouped clo
  23. November 2020, Paper 1 Foundation, Q04.4 (1 mark): How do the results show that the total resistance is directly proportional to the number of resistors? [1 mark] Tick () one box. The results give a line with a
  24. November 2020, Paper 1 Foundation, Q04.5 (1 mark): Predict the mean total resistance of 7 resistors. Use Figure 7. [1 mark] Mean total resistance of 7 resistors = Ω
  25. November 2020, Paper 1 Foundation, Q04.6 (2 marks): Some resistors are connected in series with a battery. When more resistors are added in series, the total resistance increases. Complete the sentences. Choose a
  26. June 2019, Paper 1 Foundation, Q07.1 (1 mark): In which position could a switch be placed so that both lamps can be switched on or off at the same time? [1 mark] Tick () one box. J K L M
  27. June 2019, Paper 1 Foundation, Q07.5 (1 mark): How would the reading on the ammeter in Circuit Y compare to the reading on the ammeter in Circuit X? [1 mark] Tick () one box. The reading in Y would be highe
  28. June 2019, Paper 1 Foundation, Q07.6 (1 mark): How does the total resistance of Circuit Y compare with the total resistance of Circuit X? [1 mark] Tick () one box. The total resistance of Y is greater. The
  29. Specimen, Paper 1 Higher, Q07.1 (2 marks): The ammeter displays a reading of 0.10 A. Calculate the potential difference across the 45 Ω resistor. [2 marks] Potential difference = V
  30. Specimen, Paper 1 Higher, Q07.2 (3 marks): Calculate the resistance of the resistor labelled R. [3 marks] Resistance = Ω
  31. Specimen, Paper 1 Higher, Q07.3 (2 marks): State what happens to the total resistance of the circuit and the current through the circuit when switch S is closed. [2 marks]
