plumiPurity, formulations and chromatography: AQA GCSE Chemistry questions
Every AQA GCSE Chemistry exam question on 4.8.1 Purity, formulations and chromatography, 2018–2025, with its mark scheme and examiner’s report.
Find questions1,744
Calculations
Q03.3
The whole paper ↗
Q05.1
The whole paper ↗
Q05.2
The whole paper ↗![June 2025 Paper 2 Foundation, question 05.2: Why should a pencil be used to draw the start line on the chromatography paper? [1 mark] The Rf value of a dye was 0.80](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun25-05-2-qp.webp)

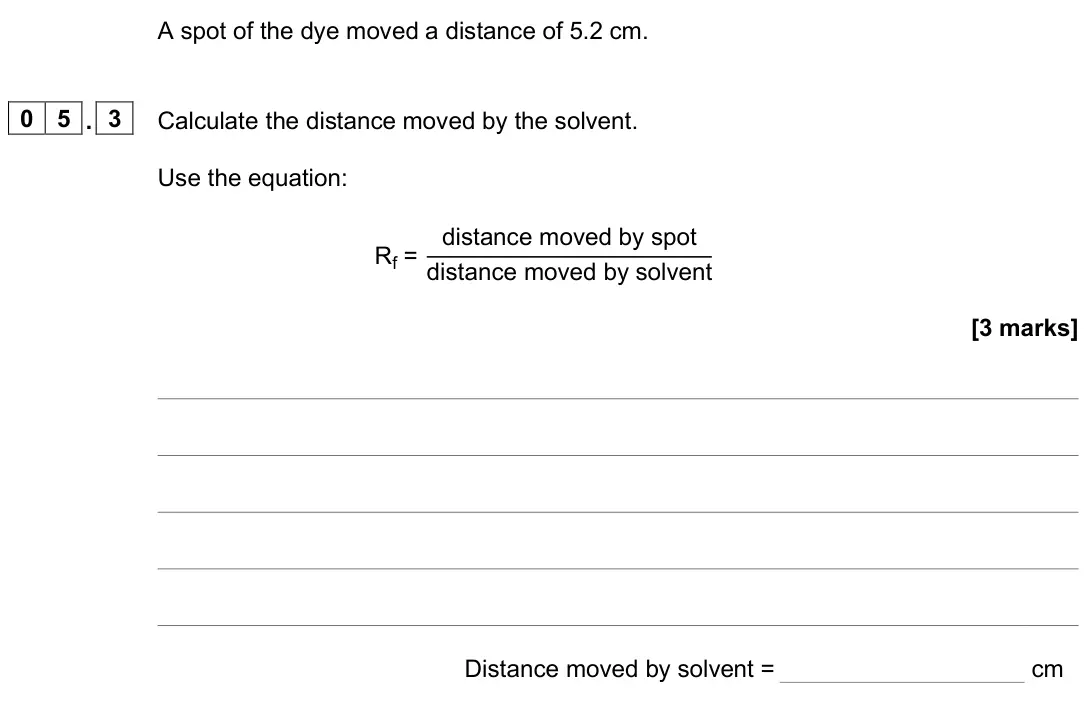

Q05.3
The whole paper ↗![June 2025 Paper 2 Foundation, question 05.3: Calculate the distance moved by the solvent. Use the equation: Rf = distance moved by spot distance moved by solvent [3 marks] Distance moved by solvent = cm](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun25-05-3-qp.webp)
Q05.4

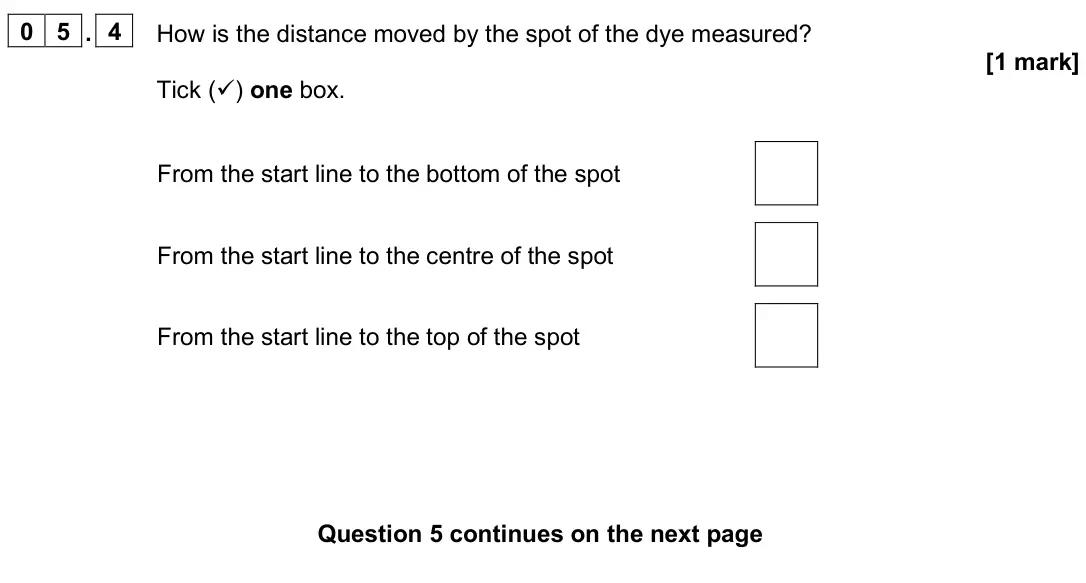

The whole paper ↗![June 2025 Paper 2 Foundation, question 05.4: How is the distance moved by the spot of the dye measured? [1 mark] Tick () one box. From the start line to the bottom of the spot From the start line to the c](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun25-05-4-qp.webp)
Q05.5

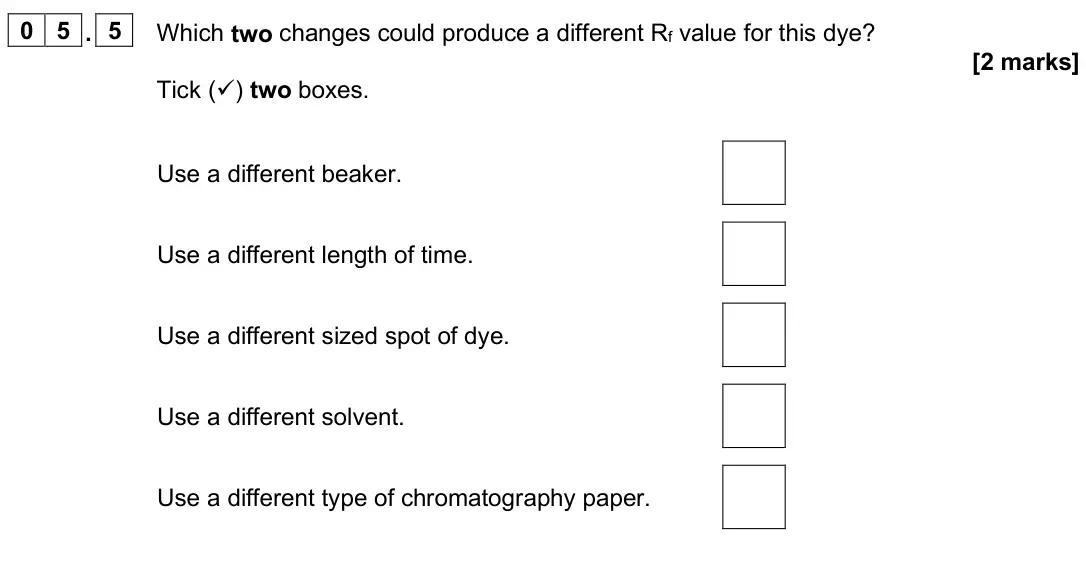

The whole paper ↗![June 2025 Paper 2 Foundation, question 05.5: Which two changes could produce a different Rf value for this dye? [2 marks] Tick () two boxes. Use a different beaker. Use a different length of time. Use a d](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun25-05-5-qp.webp)
![June 2025 Paper 2 Foundation, question 05.6: A different dye is a pure substance. How many spots will this dye produce during chromatography? [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun25-05-6-qp.webp)
Q10.3
The whole paper ↗
Q04.1
The whole paper ↗
Q04.2
The whole paper ↗
Q04.3

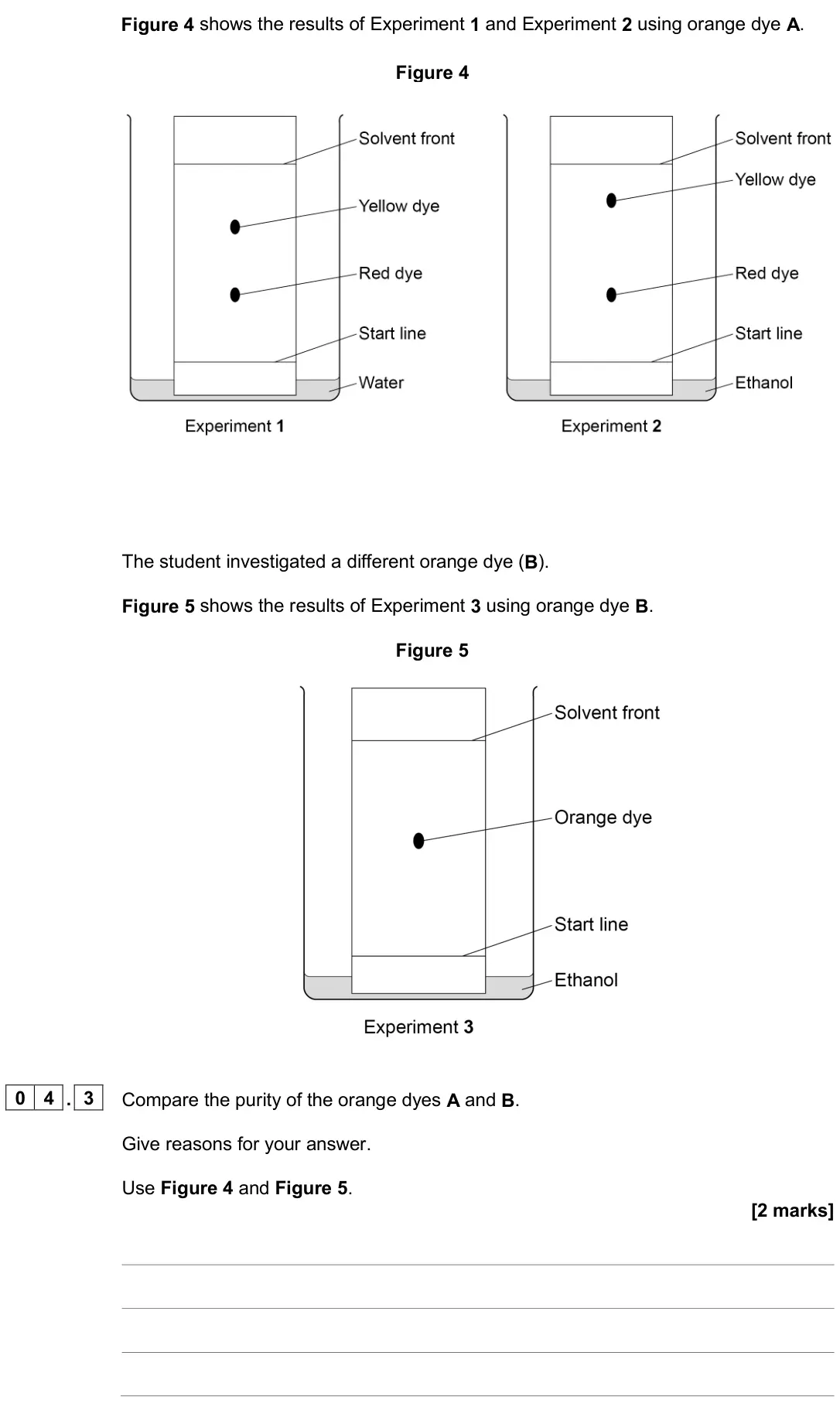

The whole paper ↗![June 2024 Paper 2 Higher, question 04.3: Compare the purity of the orange dyes A and B. Give reasons for your answer. Use Figure 4 and Figure 5. [2 marks]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622h-jun24-04-3-qp.webp)
Q04.5

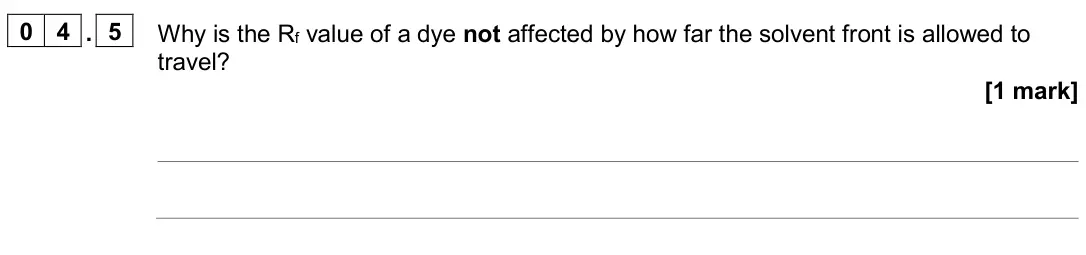

The whole paper ↗![June 2024 Paper 2 Higher, question 04.5: Why is the Rf value of a dye not affected by how far the solvent front is allowed to travel? [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622h-jun24-04-5-qp.webp)

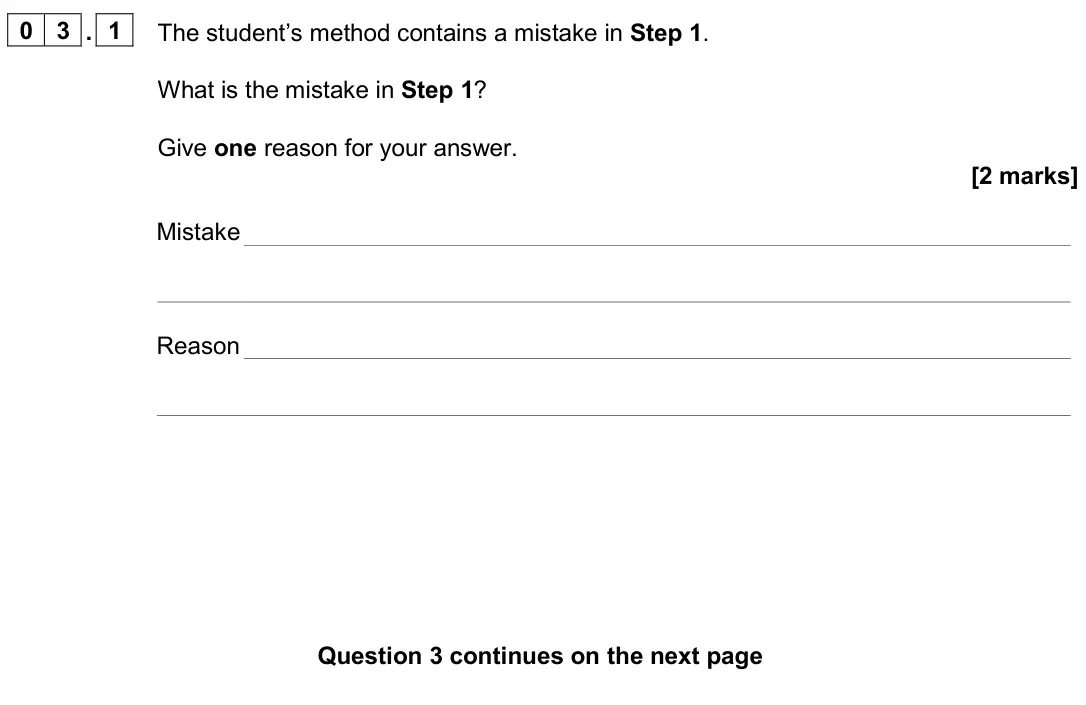

Q03.1
The whole paper ↗![June 2024 Paper 2 Foundation, question 03.1: The student’s method contains a mistake in Step 1. What is the mistake in Step 1? Give one reason for your answer. [2 marks] Mistake Reason](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun24-03-1-qp.webp)

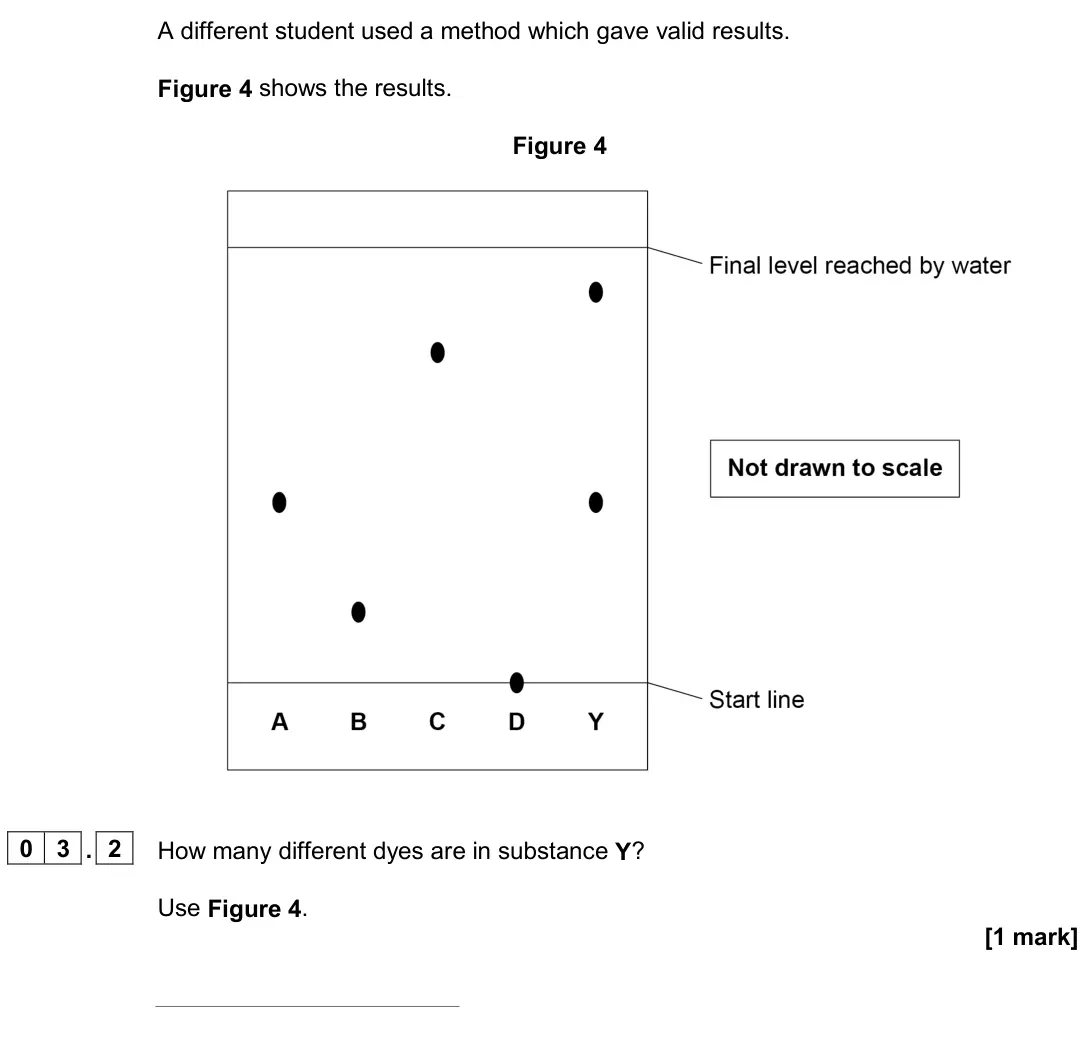

![June 2024 Paper 2 Foundation, question 03.2: How many different dyes are in substance Y? Use Figure 4. [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun24-03-2-qp.webp)
Q03.3

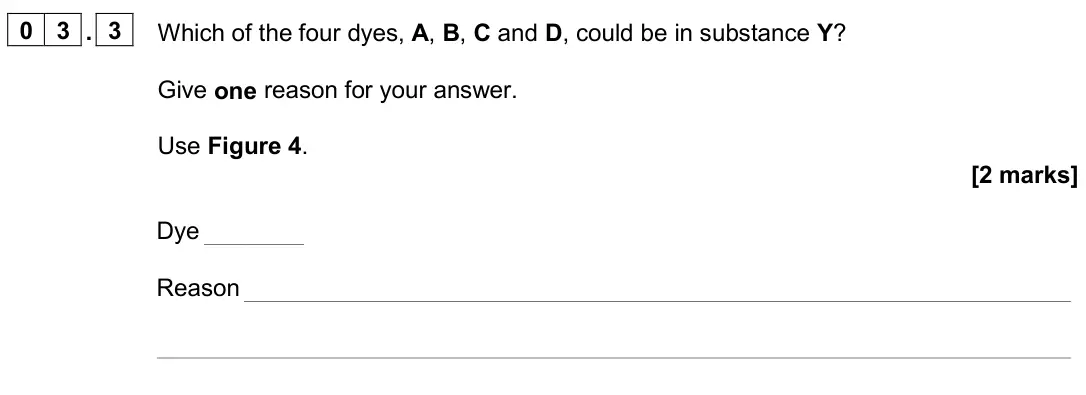

The whole paper ↗![June 2024 Paper 2 Foundation, question 03.3: Which of the four dyes, A, B, C and D, could be in substance Y? Give one reason for your answer. Use Figure 4. [2 marks] Dye Reason](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun24-03-3-qp.webp)
Q03.4
The whole paper ↗![June 2024 Paper 2 Foundation, question 03.4: Suggest why dye D remained on the start line at the end of the investigation. Use Figure 4. [1 mark]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun24-03-4-qp.webp)
Q03.5
The whole paper ↗
Q03.6

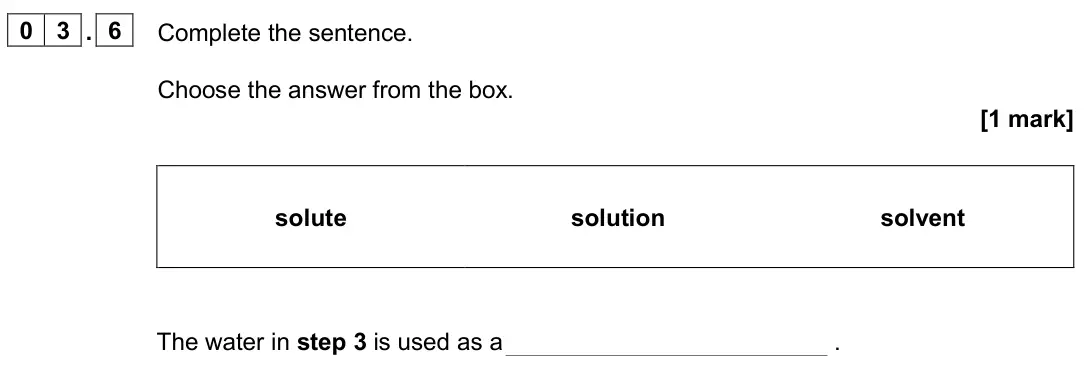

The whole paper ↗![June 2024 Paper 2 Foundation, question 03.6: Complete the sentence. Choose the answer from the box. [1 mark] solute solution solvent The water in step 3 is used as a .](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622f-jun24-03-6-qp.webp)

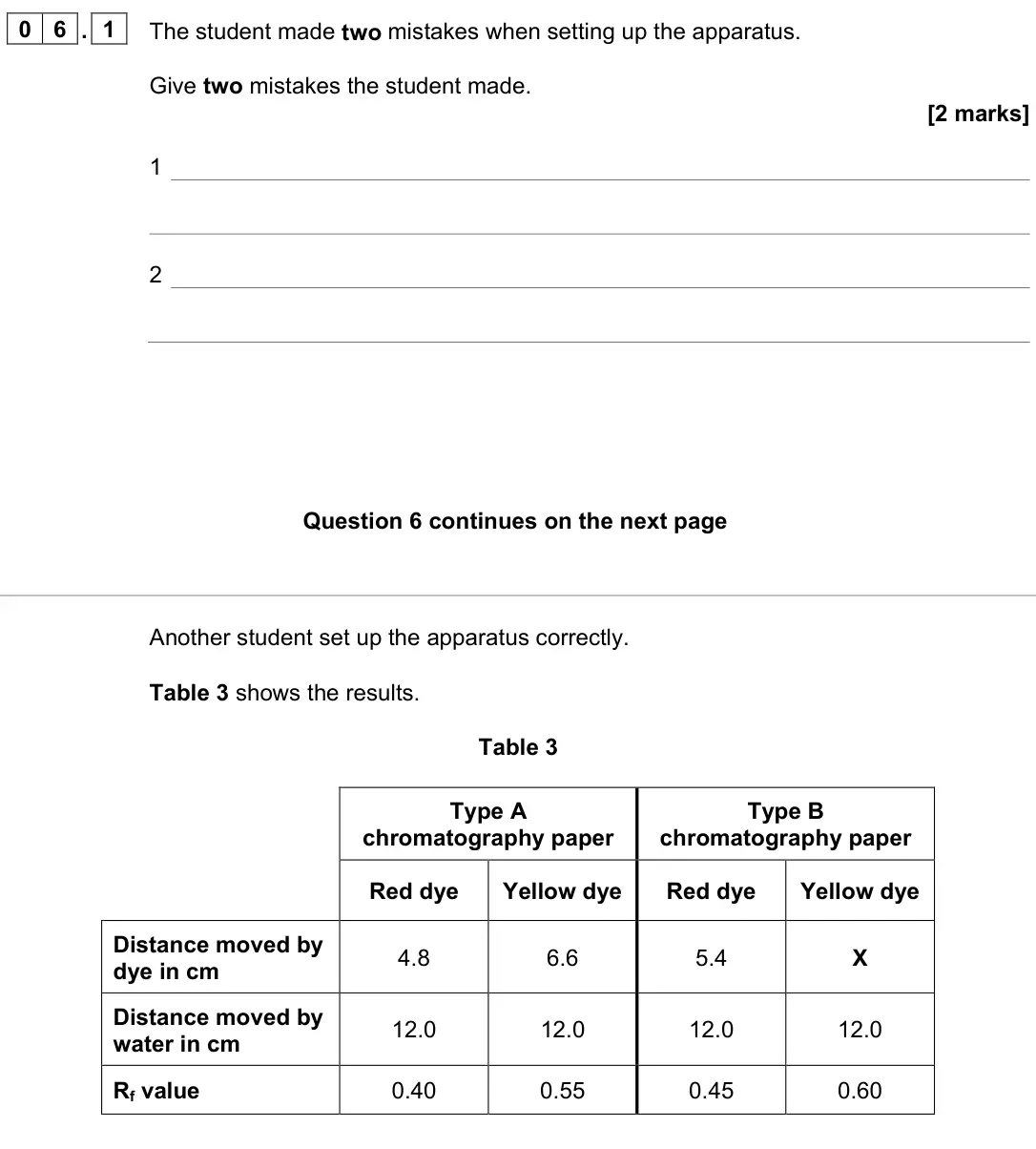

Q06.1
The whole paper ↗![June 2023 Paper 2 Higher, question 06.1: The student made two mistakes when setting up the apparatus. Give two mistakes the student made. [2 marks] 1 2 Another student set up the apparatus correctly. T](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/84622h-jun23-06-1-qp.webp)
All 68 questions on Purity, formulations and chromatography, as a list

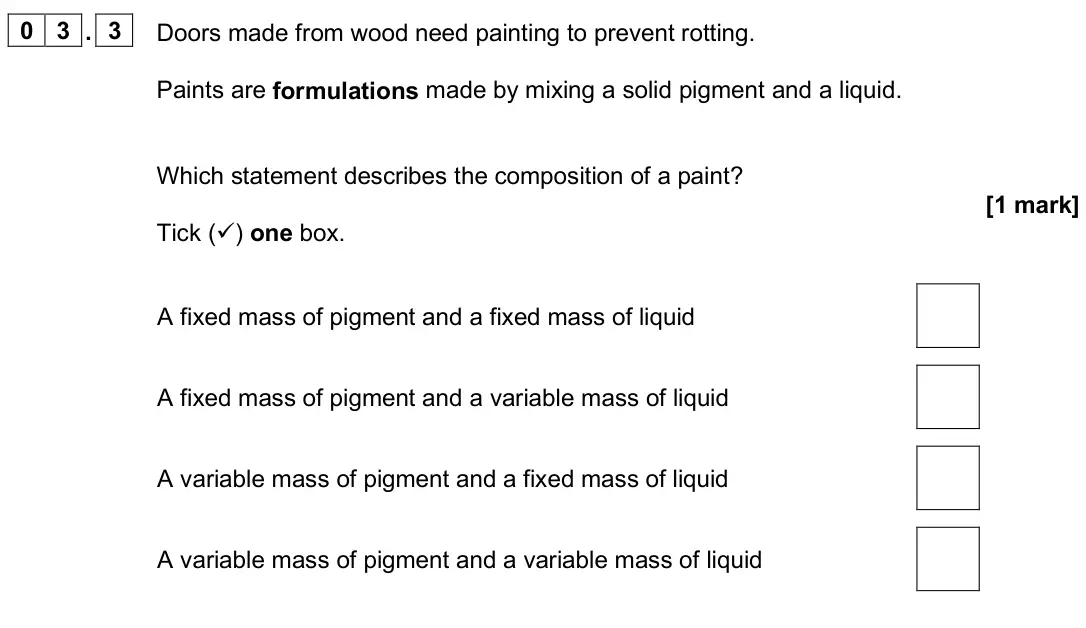

- June 2025, Paper 2 Higher, Q03.3 (1 mark): Doors made from wood need painting to prevent rotting. Paints are formulations made by mixing a solid pigment and a liquid. Which statement describes the compos

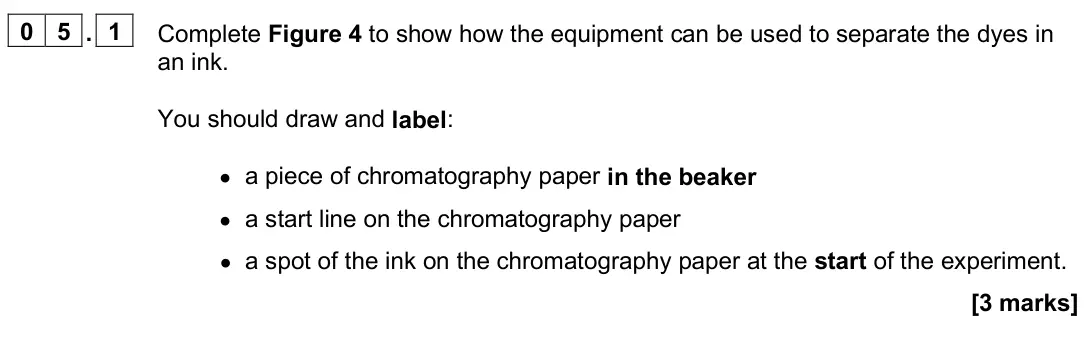

- June 2025, Paper 2 Foundation, Q05.1 (3 marks): Complete Figure 4 to show how the equipment can be used to separate the dyes in an ink. You should draw and label: • a piece of chromatography paper in the beak

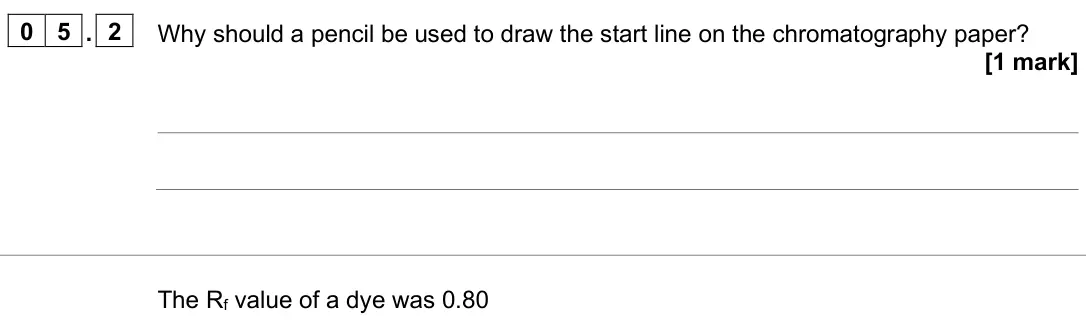

- June 2025, Paper 2 Foundation, Q05.2 (1 mark): Why should a pencil be used to draw the start line on the chromatography paper? [1 mark] The Rf value of a dye was 0.80
- June 2025, Paper 2 Foundation, Q05.3 (3 marks): Calculate the distance moved by the solvent. Use the equation: Rf = distance moved by spot distance moved by solvent [3 marks] Distance moved by solvent = cm
- June 2025, Paper 2 Foundation, Q05.4 (1 mark): How is the distance moved by the spot of the dye measured? [1 mark] Tick () one box. From the start line to the bottom of the spot From the start line to the c
- June 2025, Paper 2 Foundation, Q05.5 (2 marks): Which two changes could produce a different Rf value for this dye? [2 marks] Tick () two boxes. Use a different beaker. Use a different length of time. Use a d

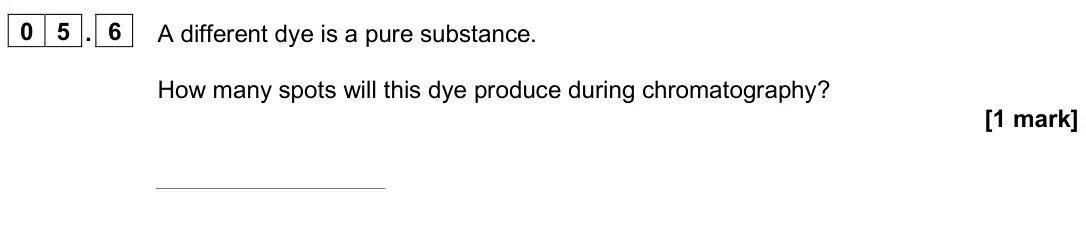

- June 2025, Paper 2 Foundation, Q05.6 (1 mark): A different dye is a pure substance. How many spots will this dye produce during chromatography? [1 mark]

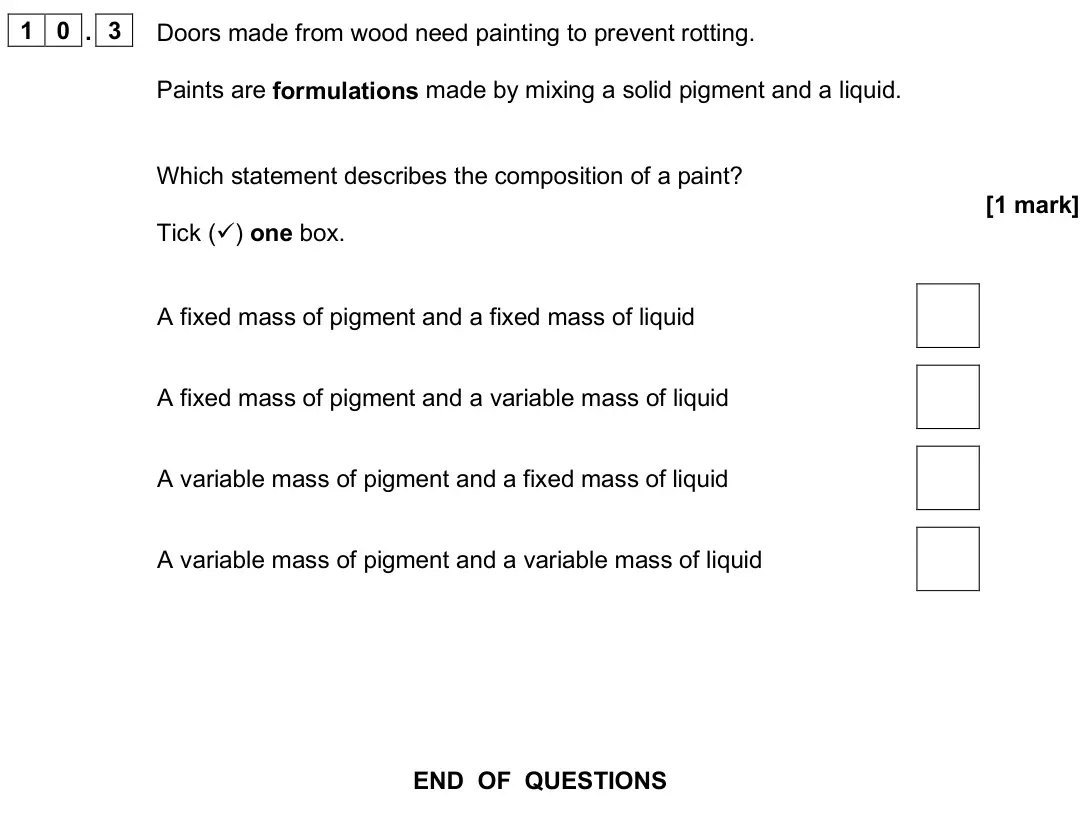

- June 2025, Paper 2 Foundation, Q10.3 (1 mark): Doors made from wood need painting to prevent rotting. Paints are formulations made by mixing a solid pigment and a liquid. Which statement describes the compos

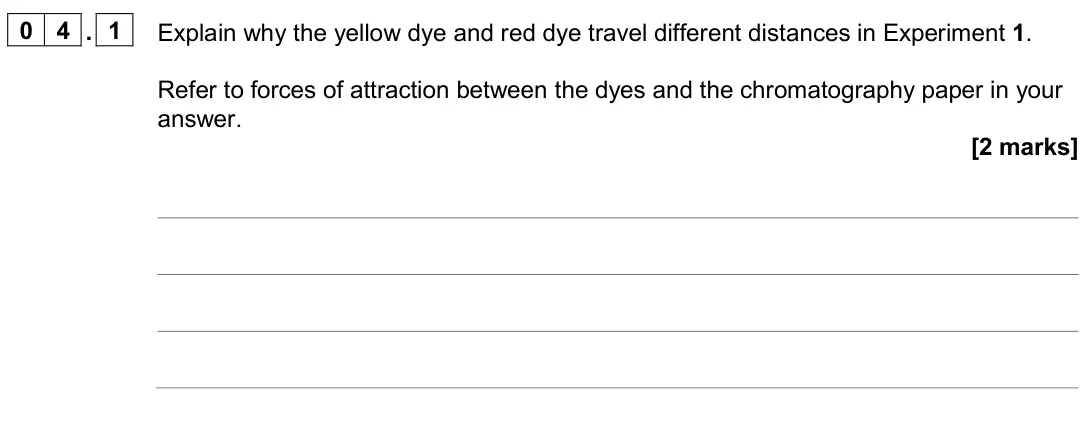

- June 2024, Paper 2 Higher, Q04.1 (2 marks): Explain why the yellow dye and red dye travel different distances in Experiment 1. Refer to forces of attraction between the dyes and the chromatography paper i

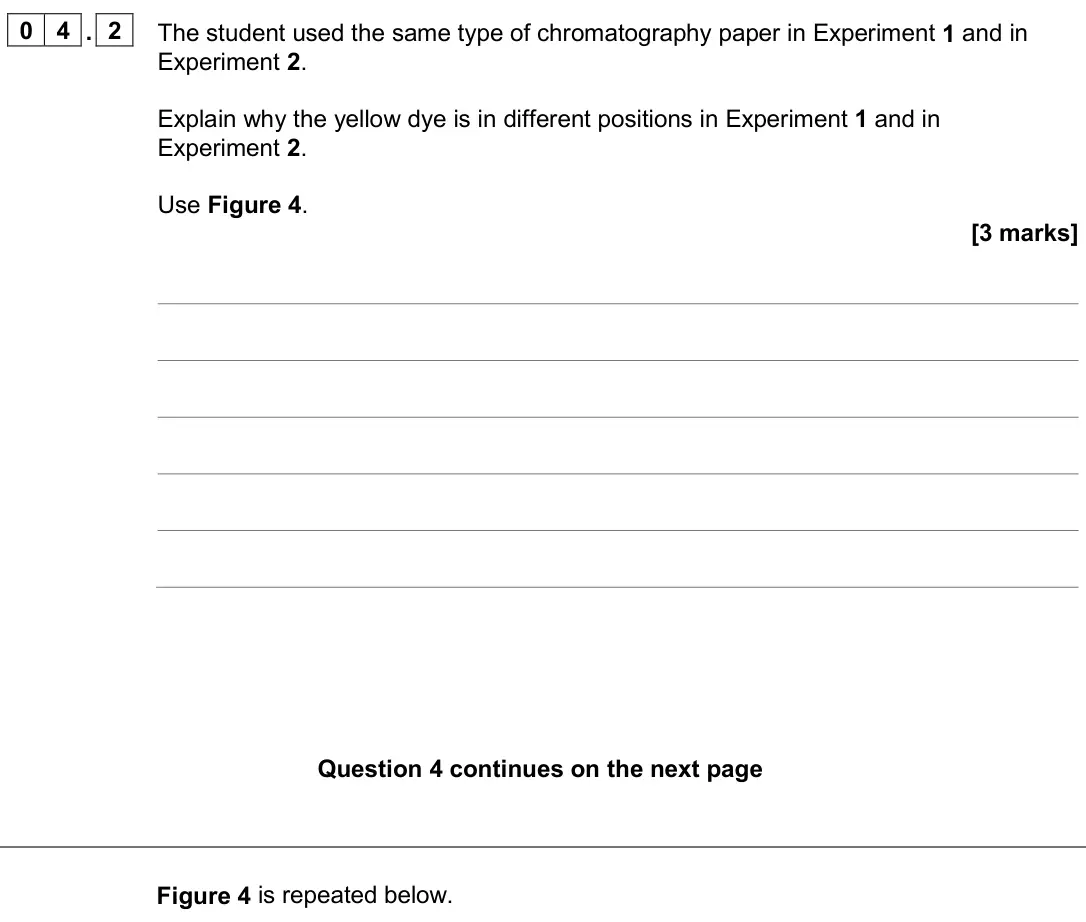

- June 2024, Paper 2 Higher, Q04.2 (3 marks): The student used the same type of chromatography paper in Experiment 1 and in Experiment 2. Explain why the yellow dye is in different positions in Experiment 1
- June 2024, Paper 2 Higher, Q04.3 (2 marks): Compare the purity of the orange dyes A and B. Give reasons for your answer. Use Figure 4 and Figure 5. [2 marks]

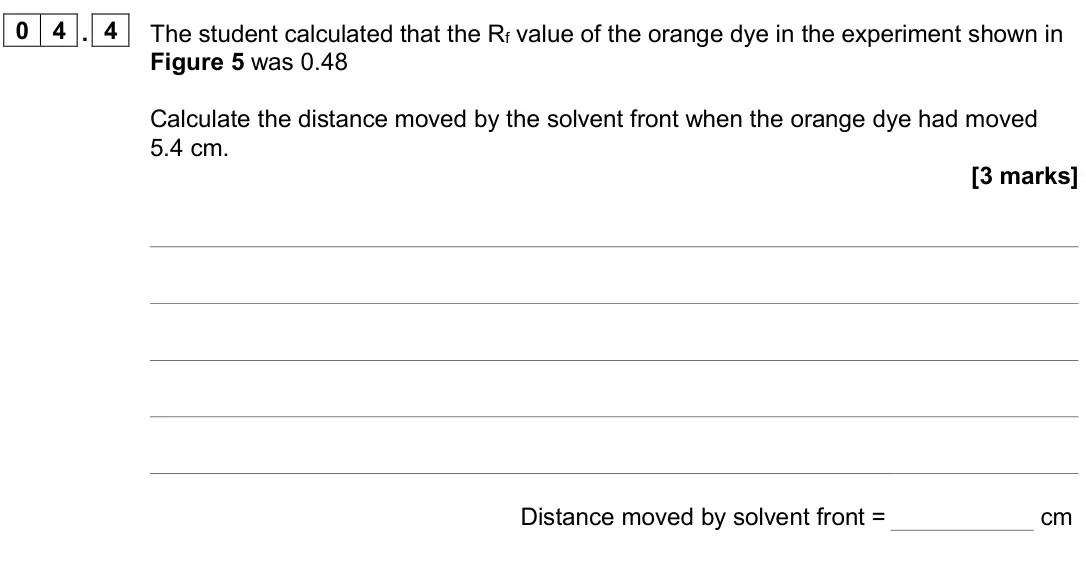

- June 2024, Paper 2 Higher, Q04.4 (3 marks): The student calculated that the Rf value of the orange dye in the experiment shown in Figure 5 was 0.48 Calculate the distance moved by the solvent front when t
- June 2024, Paper 2 Higher, Q04.5 (1 mark): Why is the Rf value of a dye not affected by how far the solvent front is allowed to travel? [1 mark]
- June 2024, Paper 2 Foundation, Q03.1 (2 marks): The student’s method contains a mistake in Step 1. What is the mistake in Step 1? Give one reason for your answer. [2 marks] Mistake Reason
- June 2024, Paper 2 Foundation, Q03.2 (1 mark): How many different dyes are in substance Y? Use Figure 4. [1 mark]
- June 2024, Paper 2 Foundation, Q03.3 (2 marks): Which of the four dyes, A, B, C and D, could be in substance Y? Give one reason for your answer. Use Figure 4. [2 marks] Dye Reason

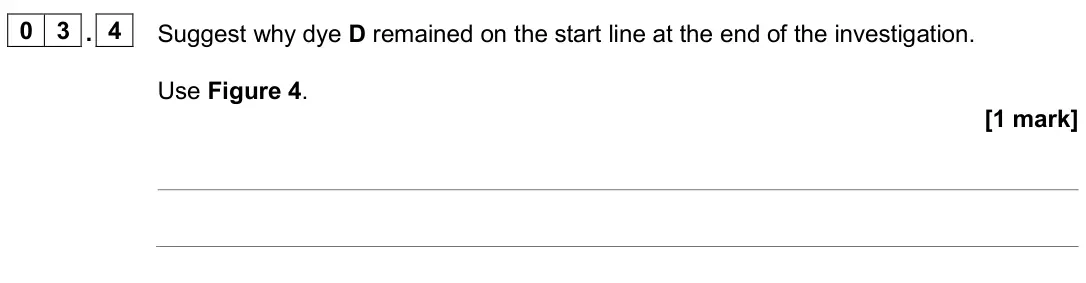

- June 2024, Paper 2 Foundation, Q03.4 (1 mark): Suggest why dye D remained on the start line at the end of the investigation. Use Figure 4. [1 mark]

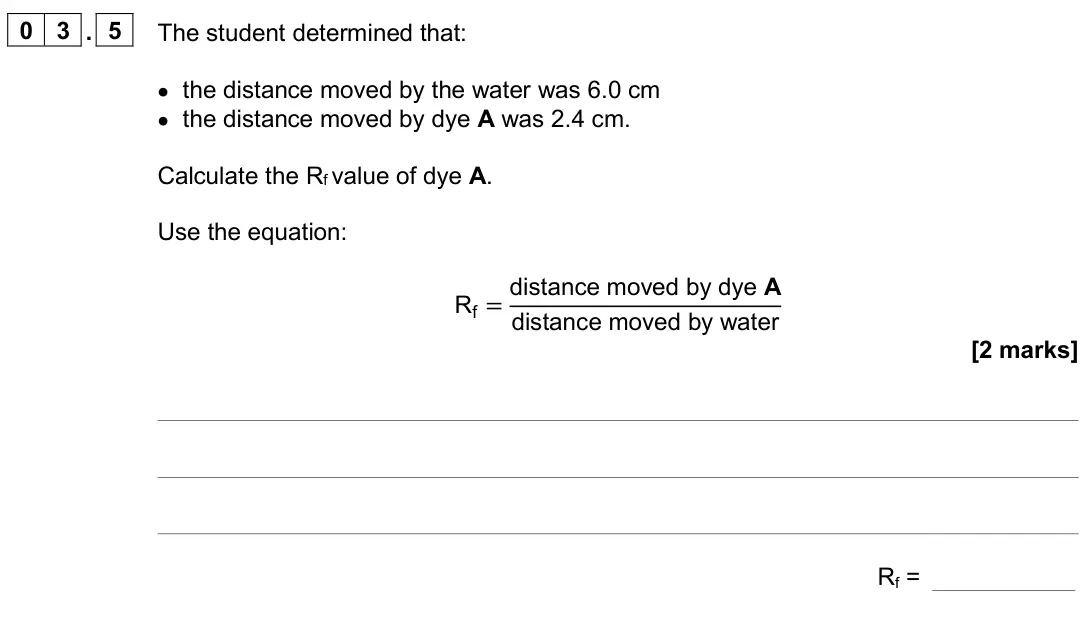

- June 2024, Paper 2 Foundation, Q03.5 (2 marks): The student determined that: • the distance moved by the water was 6.0 cm • the distance moved by dye A was 2.4 cm. Calculate the Rf value of dye A. Use the equ
- June 2024, Paper 2 Foundation, Q03.6 (1 mark): Complete the sentence. Choose the answer from the box. [1 mark] solute solution solvent The water in step 3 is used as a .
- June 2023, Paper 2 Higher, Q06.1 (2 marks): The student made two mistakes when setting up the apparatus. Give two mistakes the student made. [2 marks] 1 2 Another student set up the apparatus correctly. T
- June 2023, Paper 2 Higher, Q06.2 (3 marks): Determine value X in Table 3. [3 marks] X = cm
- June 2023, Paper 2 Higher, Q06.3 (3 marks): Explain why the Rf values for the red dye are different using the two types of chromatography paper. Use Table 3. [3 marks]
- June 2023, Paper 2 Higher, Q06.4 (1 mark): What other change to the investigation could result in a different Rf value for the red dye? [1 mark]
- June 2023, Paper 2 Foundation, Q03.1 (3 marks): Figure 3 shows the apparatus at the start of the investigation. Figure 3 Complete the labels on Figure 3. [3 marks]
- June 2023, Paper 2 Foundation, Q03.2 (1 mark): Figure 4 shows the results at the end of the investigation. Figure 4 The student made a mistake in the investigation. What mistake did the student make to produ
- June 2023, Paper 2 Foundation, Q03.3 (1 mark): How do the results in Figure 5 show that the orange dye is not a pure substance? [1 mark]
- June 2023, Paper 2 Foundation, Q03.4 (4 marks): Determine the Rf value for the red spot. You should measure: • the distance moved by the red spot • the distance moved by the solvent. Use Figure 5 and the equa
- June 2023, Paper 2 Foundation, Q03.5 (1 mark): Which spot had the greatest Rf value? Use Figure 5. [1 mark] Tick () one box. Dark yellow spot Pale yellow spot Red spot
- June 2022, Paper 2 Higher, Q05.5 (1 mark): After treatment the ground water in Table 5 is sold by a company as pure water. The ground water in Table 5 is not chemically pure because the water contains so
- June 2022, Paper 2 Foundation, Q01.1 (2 marks): Complete the sentences. Choose answers from the box. [2 marks] 0 4 7 10 25 100 Pure water has a boiling point of °C. Pure water has a pH of .
- June 2022, Paper 2 Foundation, Q04.3 (4 marks): Ethanol is used as a solvent in some inks. A student used paper chromatography to show that an ink contained two different dyes. Figure 4 shows the apparatus at
- June 2022, Paper 2 Foundation, Q04.5 (3 marks): Calculate the mass of ethanol in 4.4 kg of E5. Give your answer in grams. Use Table 6. [3 marks] Mass = g
- June 2022, Paper 2 Foundation, Q07.6 (1 mark): Some fertilisers are mixtures of different compounds in fixed proportions. What name is given to a mixture of different compounds in fixed proportions? [1 mark]
- November 2021, Paper 2 Higher, Q03.1 (6 marks): Plan an investigation to determine the Rf value for the dye in this food colouring. Rf = distance moved by substance distance moved by solvent Your plan should
- November 2021, Paper 2 Higher, Q03.2 (1 mark): Two students investigated a dye in a food colouring using paper chromatography. Each student did the investigation differently. The Rf values they determined fo
- November 2021, Paper 2 Higher, Q03.3 (1 mark): Paper chromatography involves a stationary phase. What is the stationary phase in paper chromatography? [1 mark] Tick () one box. Beaker Dye Paper Solvent
- November 2021, Paper 2 Foundation, Q02.5 (1 mark): Water obtained by distillation does not need to be sterilised and is safe to drink. Suggest why. [1 mark]
- November 2021, Paper 2 Foundation, Q10.1 (6 marks): Plan an investigation to determine the Rf value for the dye in this food colouring. Rf = distance moved by substance distance moved by solvent Your plan should
- November 2021, Paper 2 Foundation, Q10.2 (1 mark): Two students investigated a dye in a food colouring using paper chromatography. Each student did the investigation differently. The Rf values they determined fo
- November 2021, Paper 2 Foundation, Q10.3 (1 mark): Paper chromatography involves a stationary phase. What is the stationary phase in paper chromatography? [1 mark] Tick () one box. Beaker Dye Paper Solvent
- November 2020, Paper 2 Higher, Q04.1 (3 marks): The Rf value of the yellow dye = 0.60 The distance moved by the yellow dye = 5.7 cm Calculate the distance moved by the solvent. [3 marks] Distance moved by the
- November 2020, Paper 2 Higher, Q04.2 (1 mark): The green ink contains more than two compounds. Suggest one reason why only two spots are seen on Figure 2. [1 mark]
- November 2020, Paper 2 Higher, Q04.3 (2 marks): On the student’s chromatogram, the yellow and blue spots are very close together. Which two ways could increase the distance between the spots? [2 marks] Tick (
- November 2020, Paper 2 Higher, Q04.4 (1 mark): The manufacturers of the green ink always use the same proportions of yellow dye and blue dye. Suggest one reason why. [1 mark]
- November 2020, Paper 2 Higher, Q04.5 (1 mark): The Rf value of a dye depends on: • the solubility of the dye in the solvent • the attraction of the dye to the paper. Which will definitely produce a smaller R
- November 2020, Paper 2 Foundation, Q04.1 (2 marks): The student calculated the Rf value of the blue dye. The student measured: • the distance moved by the blue dye = 2.7 cm • the distance moved by the solvent = 9
- November 2020, Paper 2 Foundation, Q04.2 (1 mark): Which measurements on Figure 6 are needed to calculate the Rf value of the yellow dye? [1 mark] Tick () one box. A and B A and C B and D C and D
- November 2020, Paper 2 Foundation, Q04.3 (2 marks): Paper chromatography has a stationary phase and a mobile phase. Draw one line from each phase to the identity of that phase in the student’s investigation. [2 m
- November 2020, Paper 2 Foundation, Q04.4 (1 mark): Determine the simplest whole number ratio of yellow dye : blue dye in the green ink. [1 mark] Yellow dye : Blue dye = :
- November 2020, Paper 2 Foundation, Q04.5 (1 mark): Which word correctly describes the green ink? [1 mark] Tick () one box. Compound Element Formulation Solvent
- November 2020, Paper 2 Foundation, Q04.6 (1 mark): The student repeated the investigation using green ink containing 75% yellow dye and 25% blue dye. What would happen to the Rf value of the yellow dye? [1 mark]
- June 2018, Paper 2 Higher, Q02.1 (1 mark): What name is given to a useful product such as methylated spirit? [1 mark]
- June 2018, Paper 2 Higher, Q02.2 (2 marks): Calculate the percentage by mass of methanol in methylated spirit. Use Table 1. [2 marks] Percentage = %
- June 2018, Paper 2 Higher, Q04.1 (4 marks): The student made two mistakes in setting up the apparatus. Give one problem caused by each mistake. [4 marks] Mistake 1 Problem caused Mistake 2 Problem caused
- June 2018, Paper 2 Higher, Q04.2 (2 marks): Another student set up the apparatus correctly. Figure 5 represents the student’s results. Figure 5 Give two conclusions you can make from Figure 5. [2 marks] 1
- June 2018, Paper 2 Higher, Q04.3 (2 marks): Colour A has an Rf value of 0.65 Colour A moves 3.2 cm Calculate the distance moved by the solvent. [2 marks] Distance moved by solvent = cm
- Specimen, Paper 2 Higher, Q02.4 (2 marks): How could the water be tested to show it is pure? Give the expected result of the test for pure water. [2 marks]
- Specimen, Paper 2 Higher, Q07.1 (2 marks): Write down two mistakes the student made in setting up the experiment and explai what problems one of the mistakes would cause. [2 mark
- Specimen, Paper 2 Higher, Q07.2 (3 marks): Calculate the Rf value of dye A Give your answer to two significant figures. [3 marks] Rf value = 0
- Specimen, Paper 2 Higher, Q07.3: Dye D has an Rf value of 0.80. Calculate the distance that dye D moved on the chromatography paper. [1 ma Distance moved by dye D =
- Specimen, Paper 2 Higher, Q07.4: Explain how the different dyes in X are separated by paper chromatography. [4 mar
- Specimen, Paper 2 Foundation, Q01.1 (2 marks): Which two substances are mixtures? [2 mark Tick two boxes. Air Carbon dioxide Graphite Sodium Chloride Steel
- Specimen, Paper 2 Foundation, Q01.2 (2 marks): Draw one line from each context to the correct meaning. [2 mark 3
- Specimen, Paper 2 Foundation, Q04.1 (2 marks): Figure 3 shows the apparatus the student used. Figure 3 Give two mistakes the student made in setting up the experiment. [2 marks] Tick two boxes. The lid was o
- Specimen, Paper 2 Foundation, Q04.2: How many dyes were in X? [1 mar Tick one box. 1 3 4 6
- Specimen, Paper 2 Foundation, Q04.3: Which dye, A, B or C, is not in X?
- Specimen, Paper 2 Foundation, Q04.4 (6 marks): Use Figure 4 to complete Table 1. Calculate the value for Rf for dye A. [5 marks] Table 1 Distance in mm Distance moved by dye A ……………………….. Distance from start
- Specimen, Paper 2 Foundation, Q10.4 (2 marks): How could the water be tested to show it is pure? Give the expected result of the test for pure water. [2 mark
