plumiMoments: OCR MEI A‑Level Maths questions
Every OCR MEI A-Level Maths exam question on M.9 Moments, 2018–2025, with its mark scheme and examiner’s report.
Find questions560
All 8 questions on Moments, as a list
- June 2025, Paper 1, Q5 (3 marks): A uniform rectangular lamina ABCD has a mass of 0.12 kg. Length AB is 11 cm and length AD is 20 cm. The lamina ABCD is held by a smooth hinge at A. A horizontal

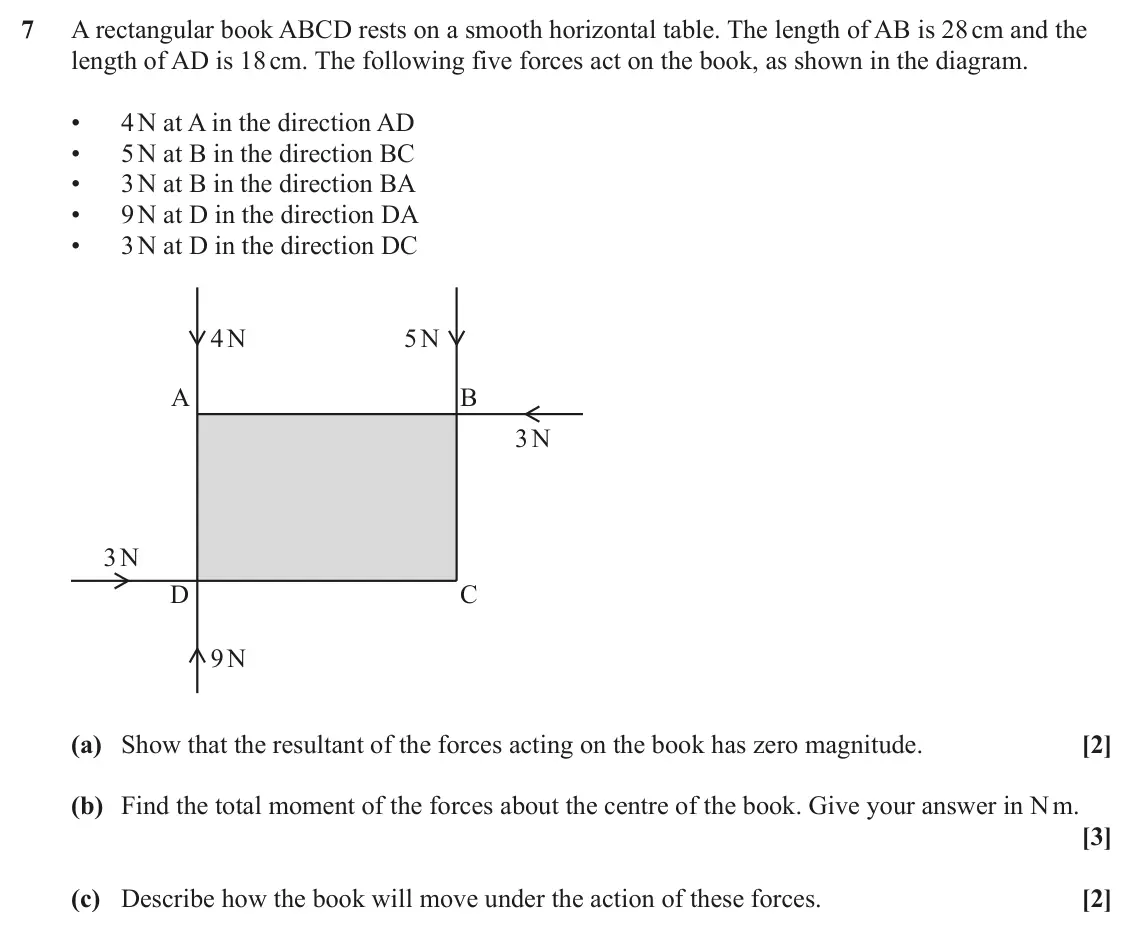

- June 2024, Paper 1, Q7 (7 marks): A rectangular book ABCD rests on a smooth horizontal table. The length of AB is 28 cm and the length of AD is 18 cm. The following five forces act on the book,

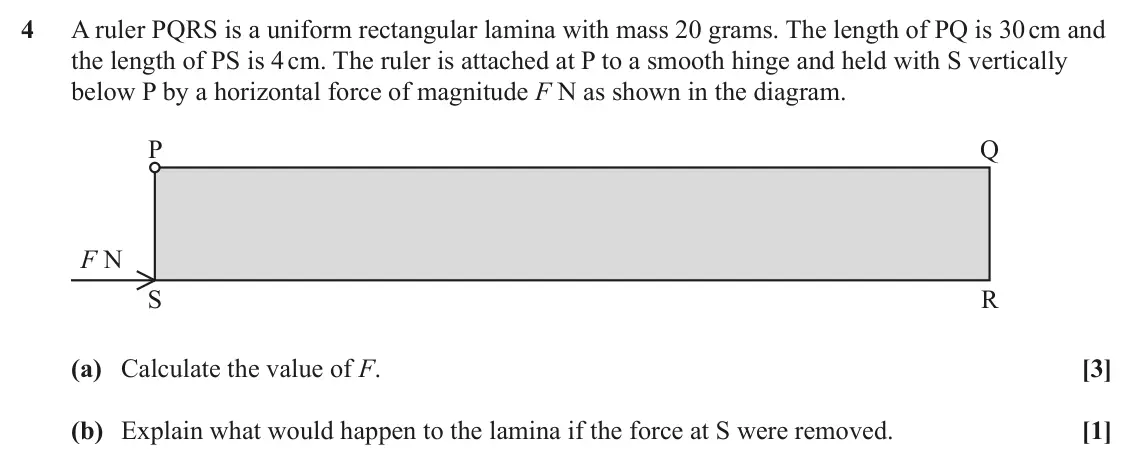

- June 2023, Paper 1, Q4 (4 marks): A ruler PQRS is a uniform rectangular lamina with mass 20 grams. The length of PQ is 30 cm and the length of PS is 4 cm. The ruler is attached at P to a smooth
- June 2022, Paper 1, Q6 (9 marks): A shelf consists of a horizontal uniform plank AB of length 0.8m and mass 5 kg with light inextensible vertical strings attached at each end. A stack of bricks

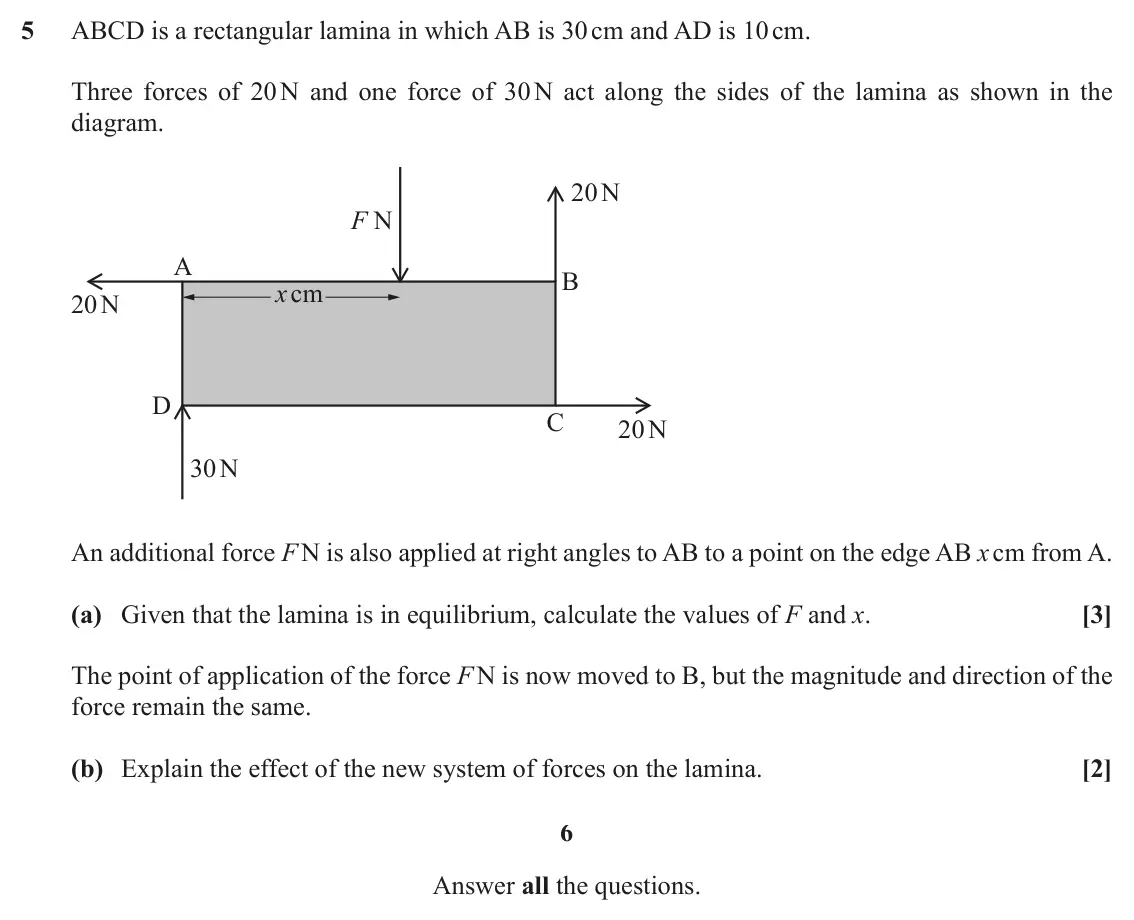

- November 2021, Paper 1, Q5 (5 marks): ABCD is a rectangular lamina in which AB is 30 cm and AD is 10 cm. Three forces of 20 N and one force of 30 N act along the sides of the lamina as shown in the

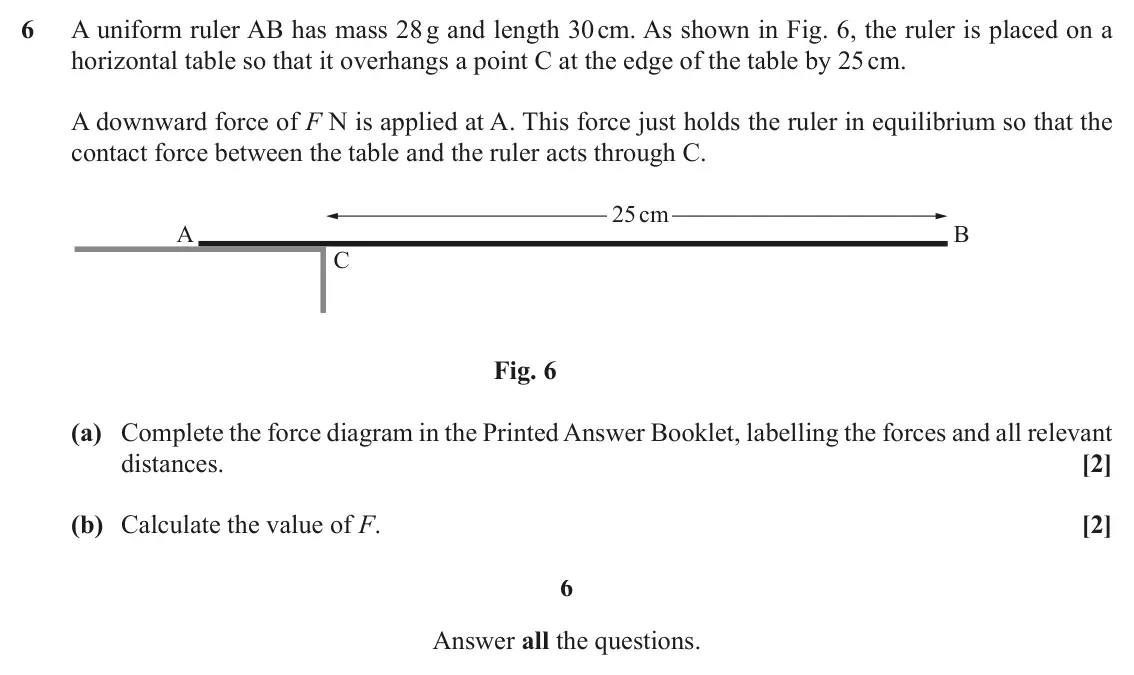

- November 2020, Paper 1, Q6 (4 marks): A uniform ruler AB has mass 28 g and length 30 cm. As shown in Fig. 6, the ruler is placed on a horizontal table so that it overhangs a point C at the edge of t

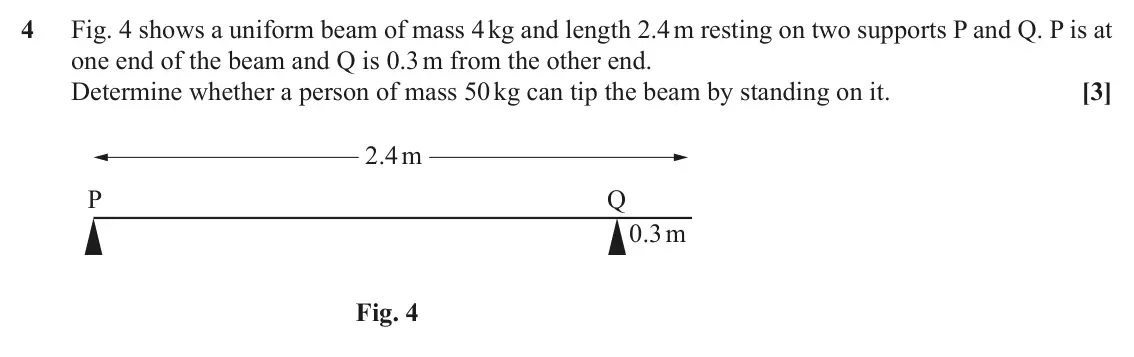

- June 2019, Paper 1, Q4 (3 marks): Fig. 4 shows a uniform beam of mass 4 kg and length 2.4 m resting on two supports P and Q. P is at one end of the beam and Q is 0.3 m from the other end. Determ

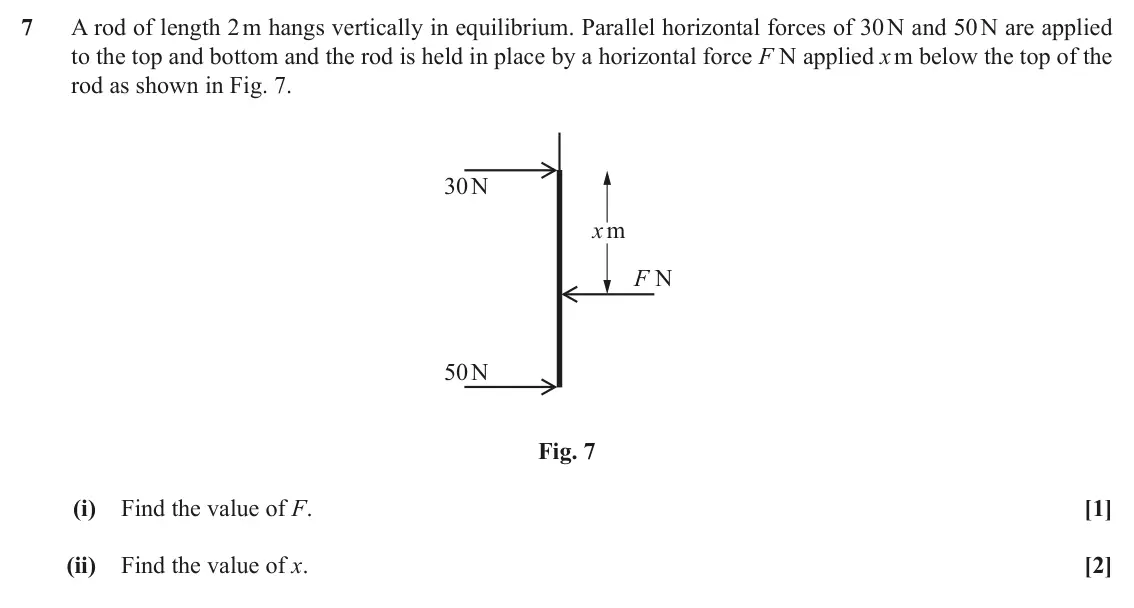

- June 2018, Paper 1, Q7 (3 marks): A rod of length 2 m hangs vertically in equilibrium. Parallel horizontal forces of 30 N and 50 N are applied to the top and bottom and the rod is held in place
Questions, mark schemes and examiner’s reports are © OCR, from their published past papers. Plumi isn’t affiliated with any exam board. Want whole papers? Every OCR MEI A-Level Maths paper.
Rather write your answers by hand on iPad? Plumi marks them against the same mark schemes.
