plumiMoments: OCR A‑Level Maths questions
Every OCR A-Level Maths exam question on M.9 Moments, 2018–2025, with its mark scheme and examiner’s report.
Find questions494
All 8 questions on Moments, as a list

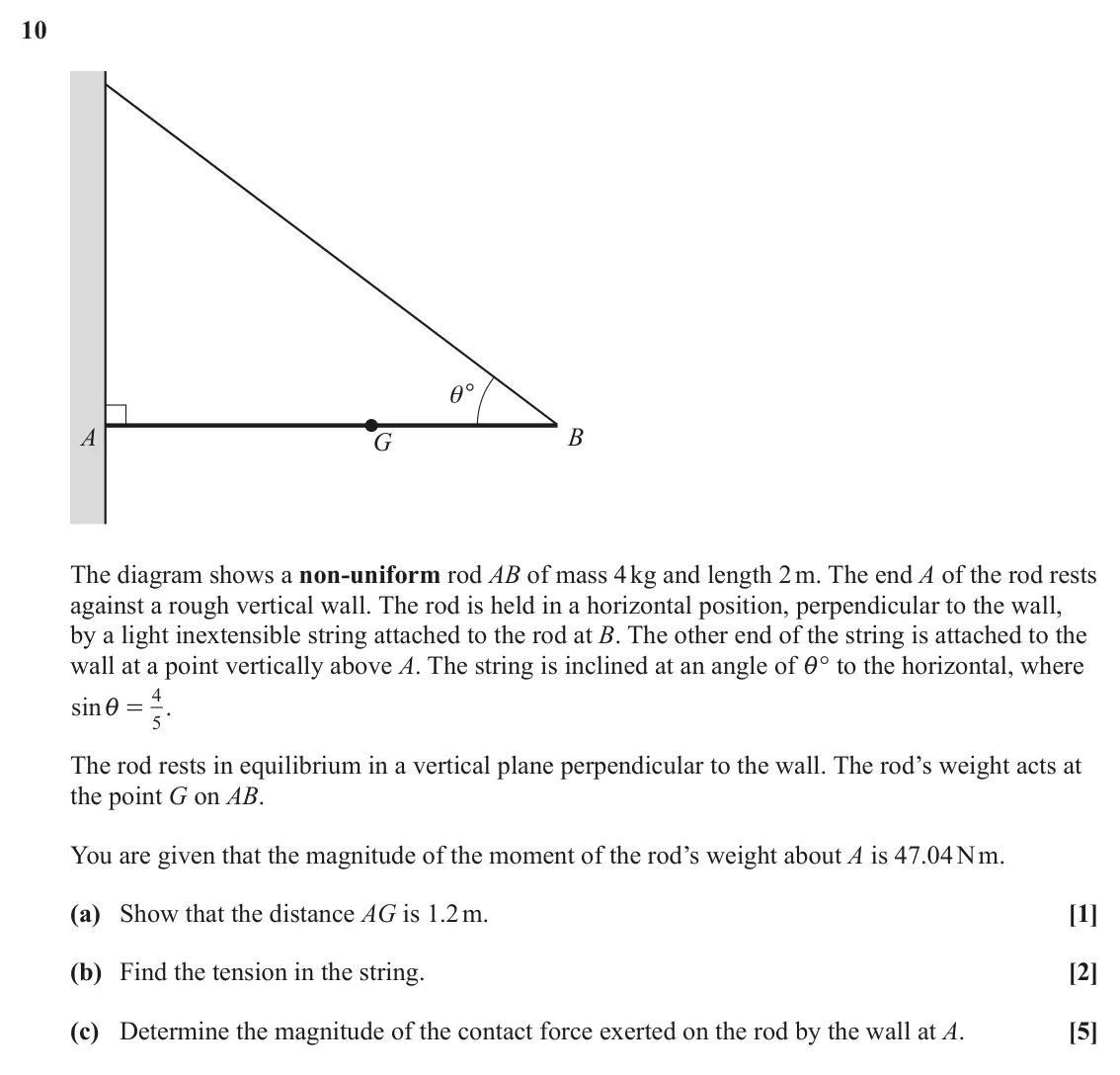

- June 2025, Paper 3, Q10 (8 marks): ° θ A B G The diagram shows a non-uniform rod AB of mass 4 kg and length 2 m. The end A of the rod rests against a rough vertical wall. The rod is held in a hor

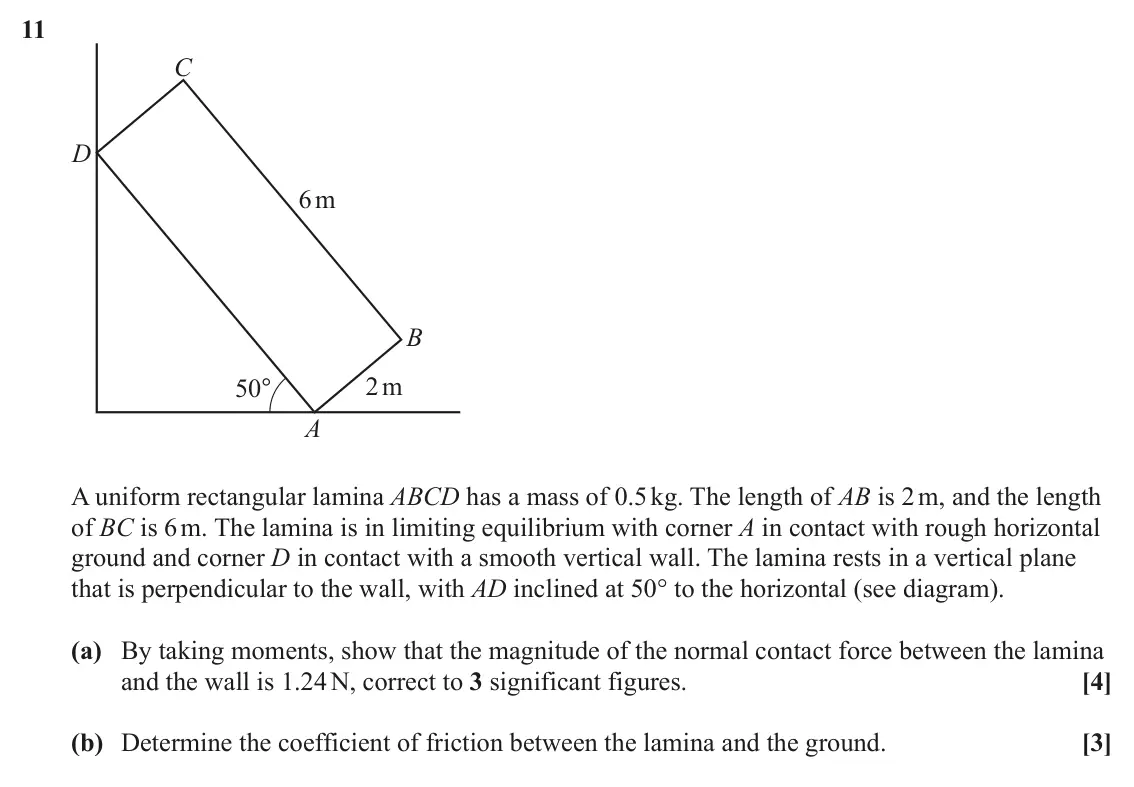

- June 2024, Paper 3, Q11 (7 marks): C D 6 m B 2 m 50° A A uniform rectangular lamina ABCD has a mass of 0.5 kg. The length of AB is 2 m, and the length of BC is 6 m. The lamina is in limiting equi

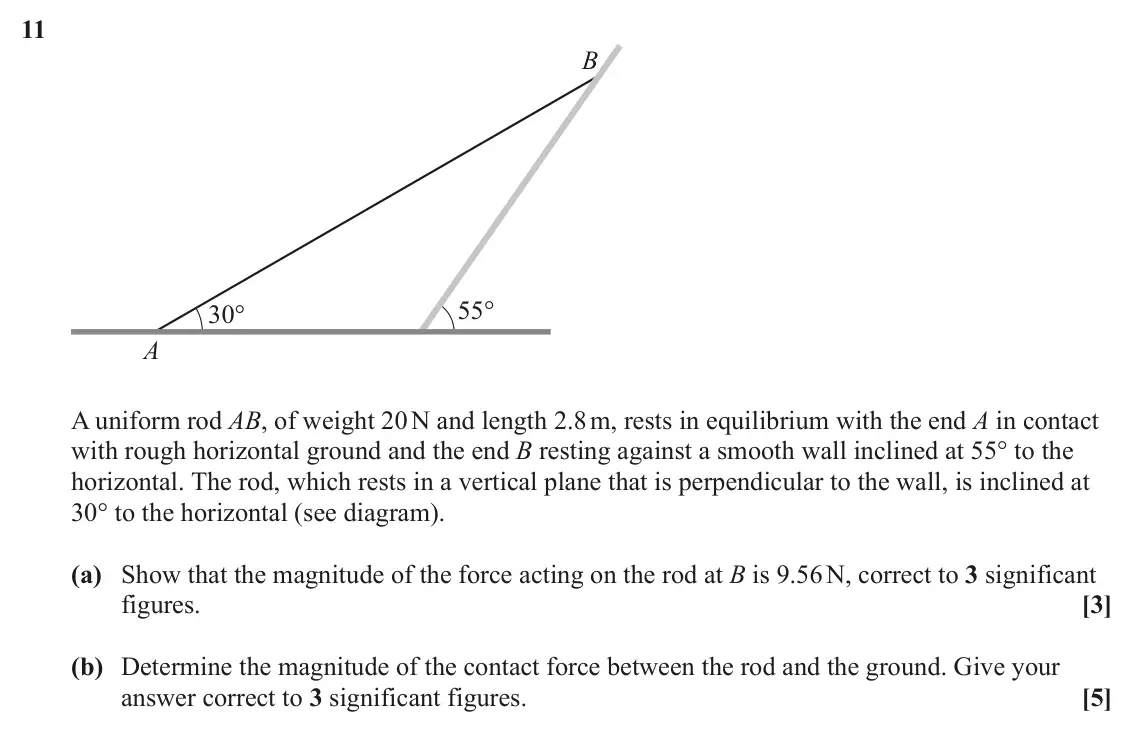

- June 2023, Paper 3, Q11 (8 marks): B 55° 30° A A uniform rod AB, of weight 20 N and length 2.8 m, rests in equilibrium with the end A in contact with rough horizontal ground and the end B resting

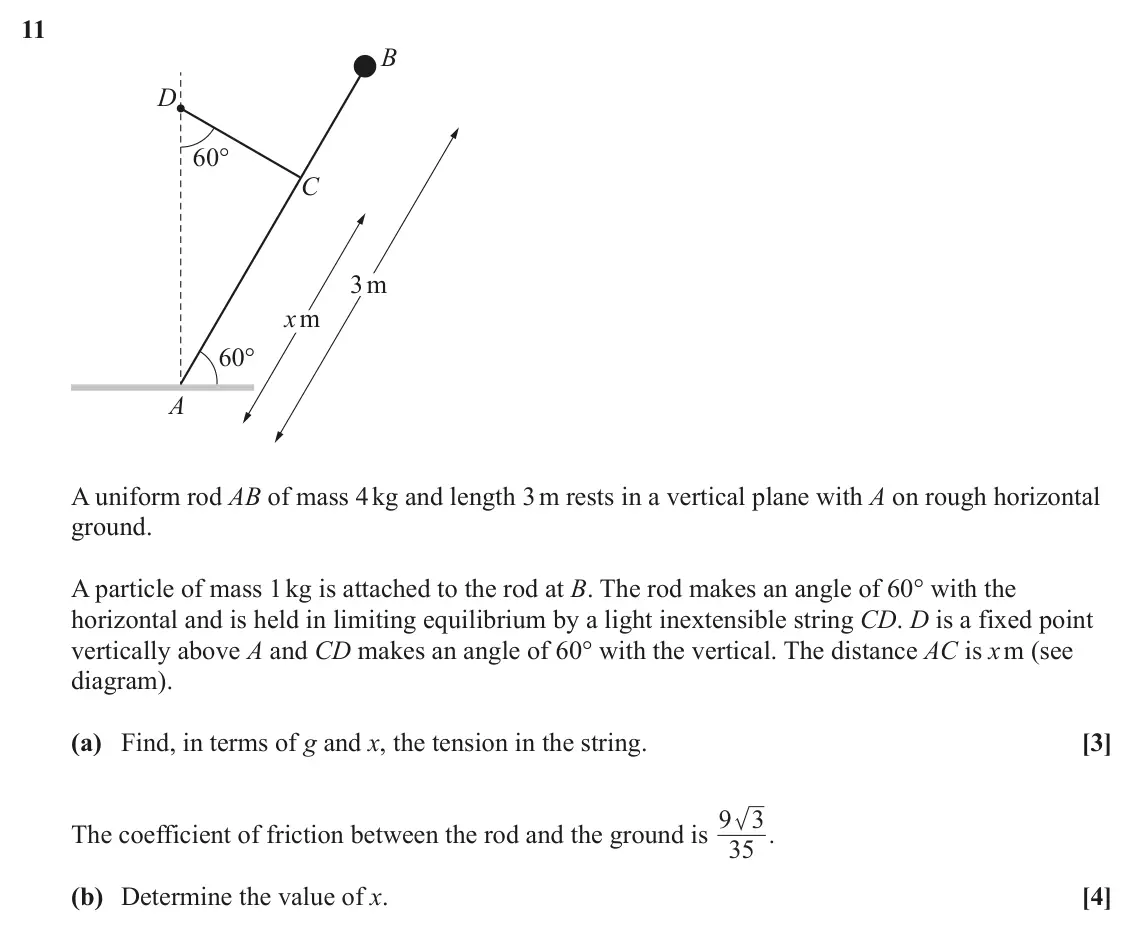

- June 2022, Paper 3, Q11 (7 marks): B D 60° C 3 m xm 60° A A uniform rod AB of mass 4 kg and length 3 m rests in a vertical plane with A on rough horizontal ground. A particle of mass 1 kg is atta

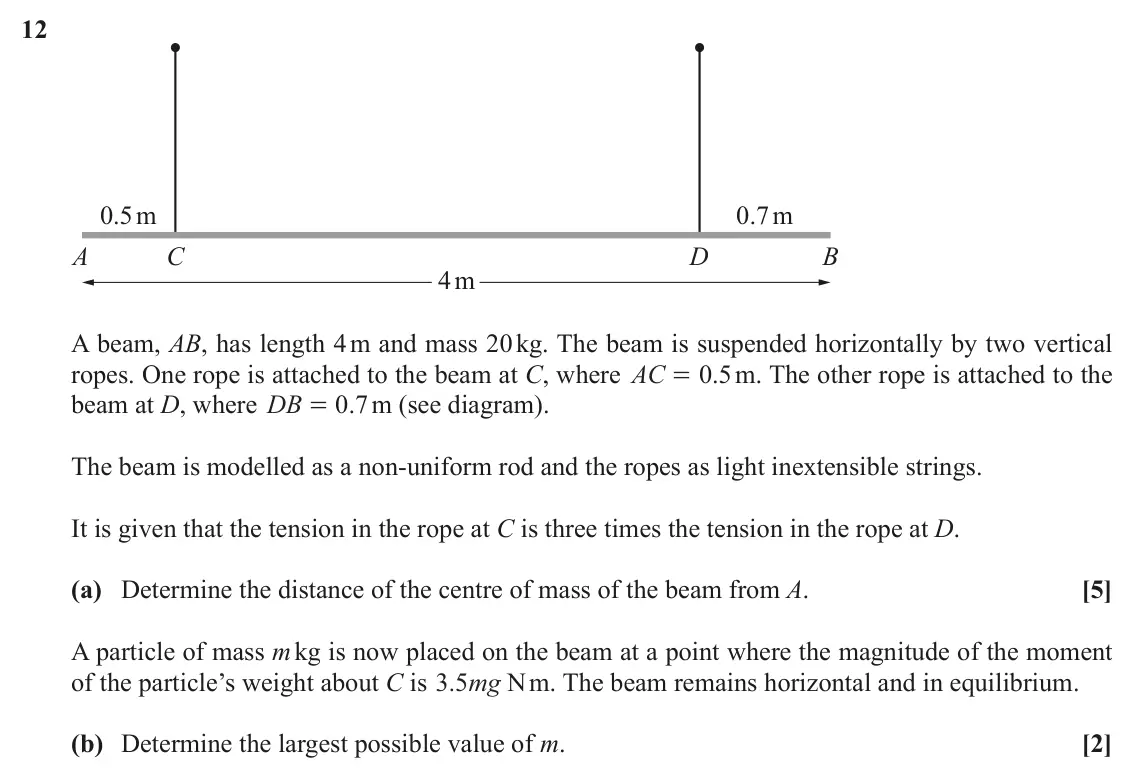

- November 2021, Paper 3, Q12 (7 marks): 0.5m 0.7 m A C D B 4m A beam, AB, has length 4 m and mass 20 kg. The beam is suspended horizontally by two vertical ropes. One rope is attached to the beam at C

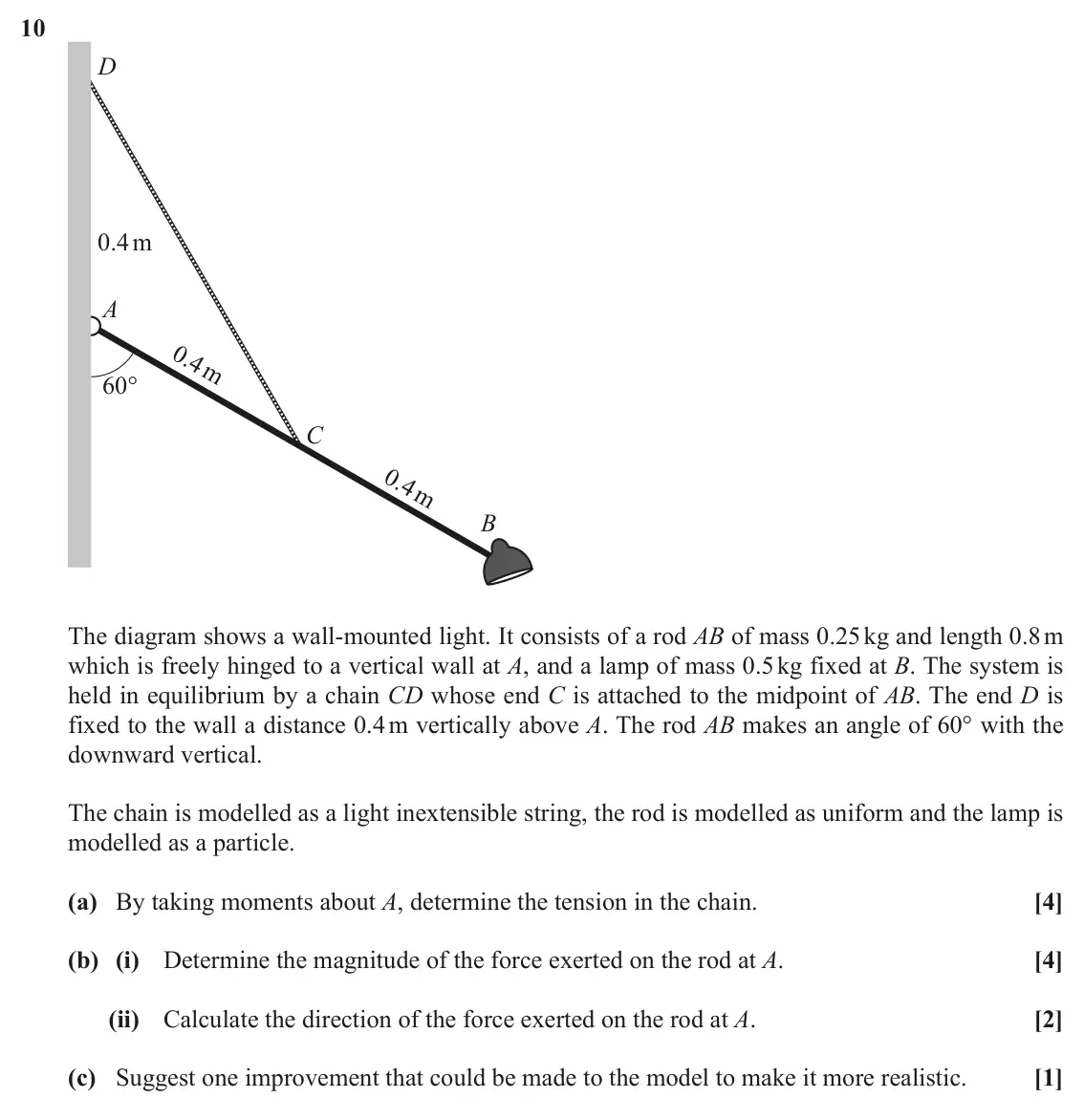

- November 2020, Paper 3, Q10 (11 marks): D 0.4 m A 60° C B The diagram shows a wall-mounted light. It consists of a rod AB of mass 0.25 kg and length 0.8 m which is freely hinged to a vertical wall at

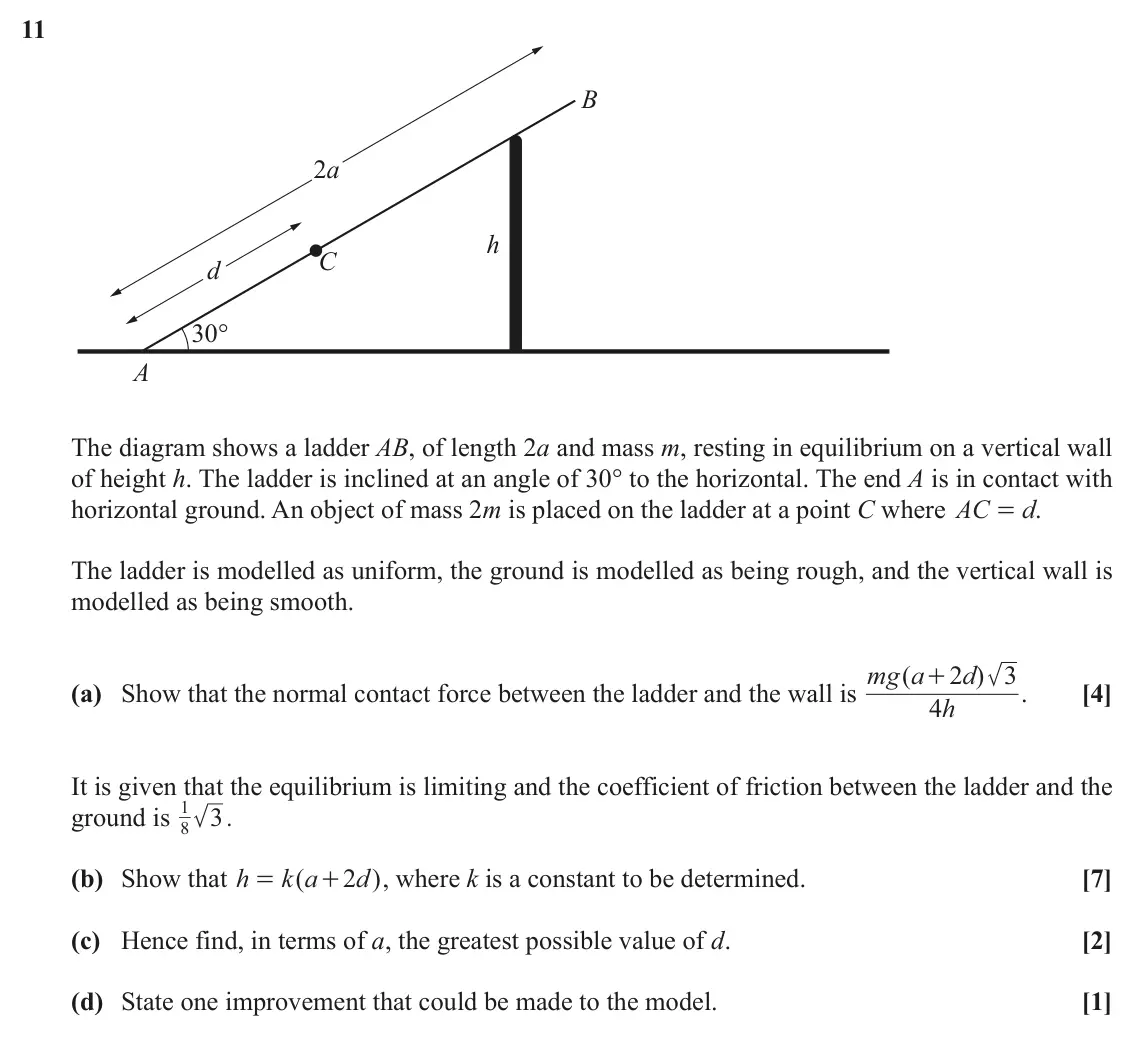

- June 2019, Paper 3, Q11 (14 marks): B 2a h C d 30° A The diagram shows a ladder AB, of length 2a and mass m, resting in equilibrium on a vertical wall of height h. The ladder is inclined at an ang

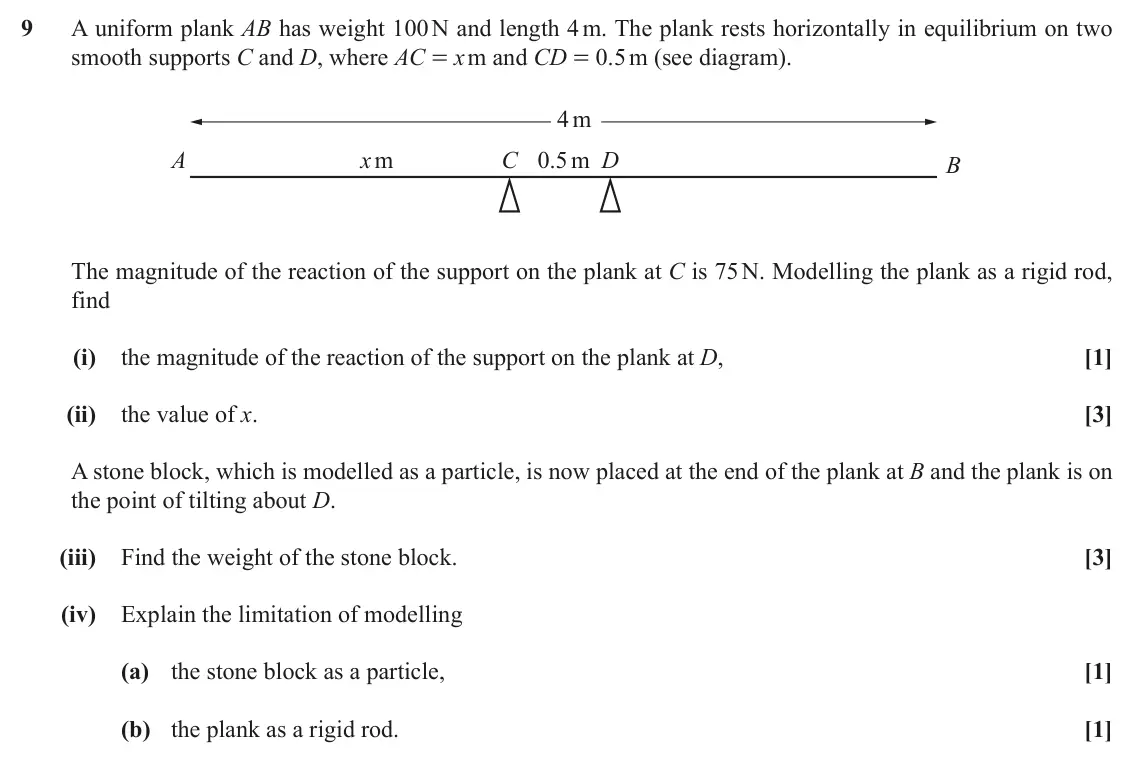

- June 2018, Paper 3, Q9 (9 marks): A uniform plank AB has weight 100 N and length 4 m. The plank rests horizontally in equilibrium on two smooth supports C and D, where AC = x m and CD = 0.5 m (s
Questions, mark schemes and examiner’s reports are © OCR, from their published past papers. Plumi isn’t affiliated with any exam board. Want whole papers? Every OCR A-Level Maths paper.
