plumiRadioactivity: CAIE IGCSE Physics questions
Every CAIE IGCSE Physics exam question on 5.2 Radioactivity, June 2024 and the specimen papers, with its mark scheme and examiner’s report.
Find questions355
Calculations
Q10(b)
The whole paper ↗![June 2024 Paper 3, question 10(b): Strontium-90 decays by emitting β-particles (beta-particles). Describe the nature of β-particles. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062531-jun24-10-b-qp.webp)
Q10(c)
The whole paper ↗
Q8(a)(i)
The whole paper ↗![June 2024 Paper 4, question 8(a)(i): Complete the equation for this decay. 208 81Tl Pb + β [3]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062541-jun24-08-ai-qp.webp)
Q8(a)(ii)
The whole paper ↗
Q8(a)(iii)
The whole paper ↗![June 2024 Paper 4, question 8(a)(iii): Suggest one reason why a nucleus of thallium-208 is unstable. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062541-jun24-08-aiii-qp.webp)
Q8(b)
The whole paper ↗
Q11(b)
The whole paper ↗
Q10(a)(i)
The whole paper ↗![Specimen Paper 4, question 10(a)(i): An americium (Am) nucleus decays by the emission of an α-particle into a neptunium (Np) nucleus. Complete the nuclear equation for this decay. 241 Am → 95 [2]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062504-spec-10-ai-qp.webp)
Q10(a)(ii)
The whole paper ↗![Specimen Paper 4, question 10(a)(ii): Americium is used in smoke detectors. Explain why beta (β) emitters or gamma (γ) emitters are not used in smoke detectors. [1]](https://pub-e8a9dbab8e2a4d089f52b2a45e0d0b50.r2.dev/bank/062504-spec-10-aii-qp.webp)
Q10(b)
The whole paper ↗
All 16 questions on Radioactivity, as a list

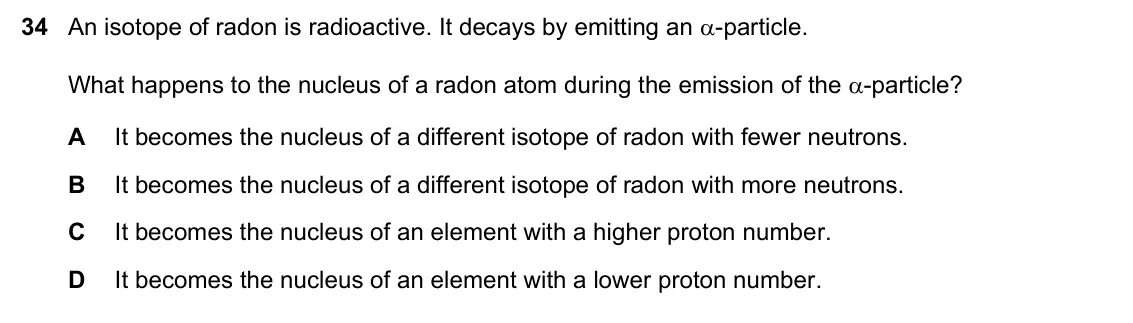

- June 2024, Paper 1, Q34 (1 mark): An isotope of radon is radioactive. It decays by emitting an -particle. What happens to the nucleus of a radon atom during the emission of the -particle? A It

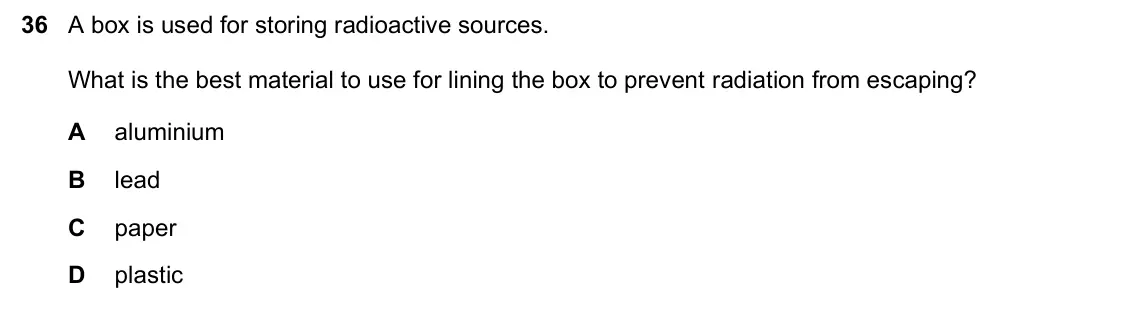

- June 2024, Paper 1, Q36 (1 mark): A box is used for storing radioactive sources. What is the best material to use for lining the box to prevent radiation from escaping? A aluminium B lead C pape

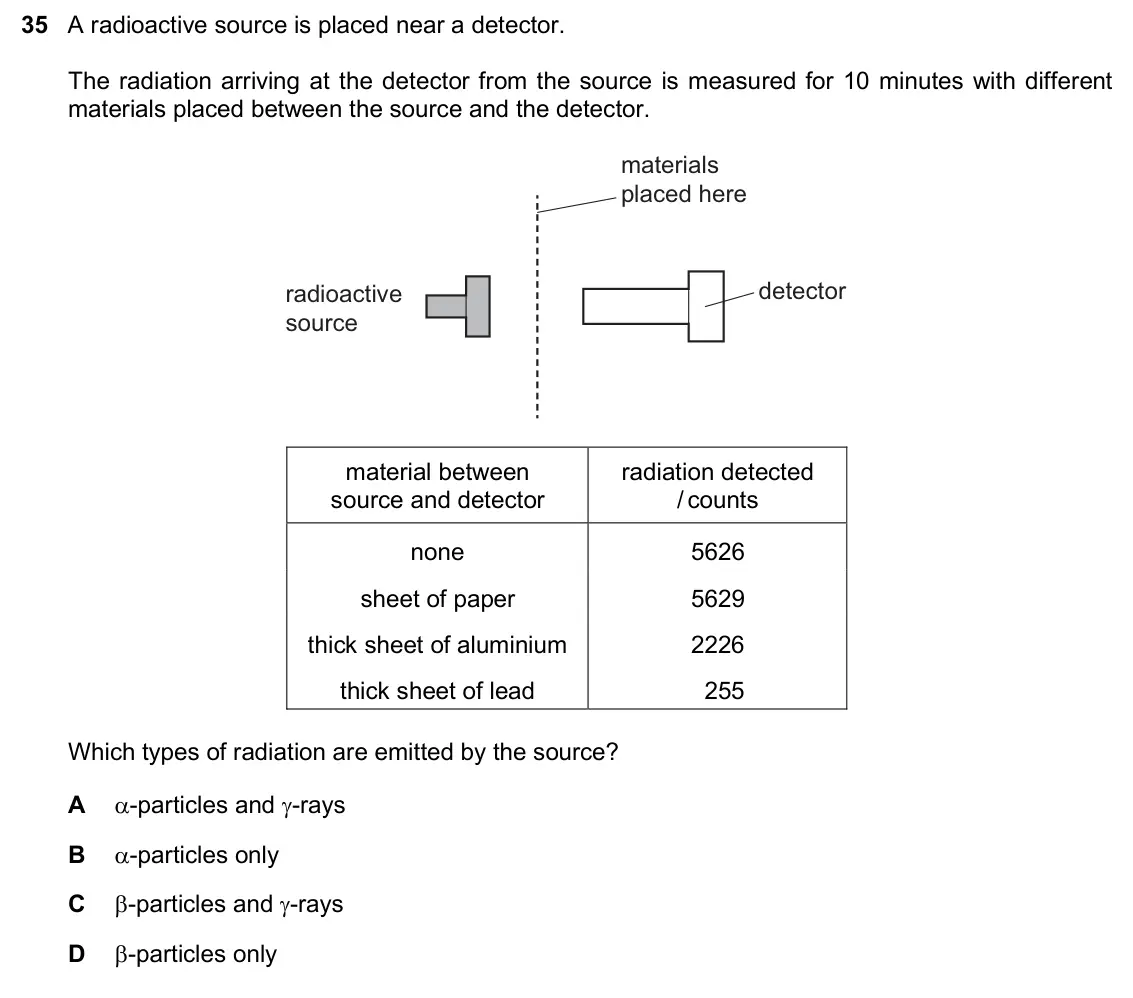

- June 2024, Paper 2, Q35 (1 mark): A radioactive source is placed near a detector. The radiation arriving at the detector from the source is measured for 10 minutes with different materials place

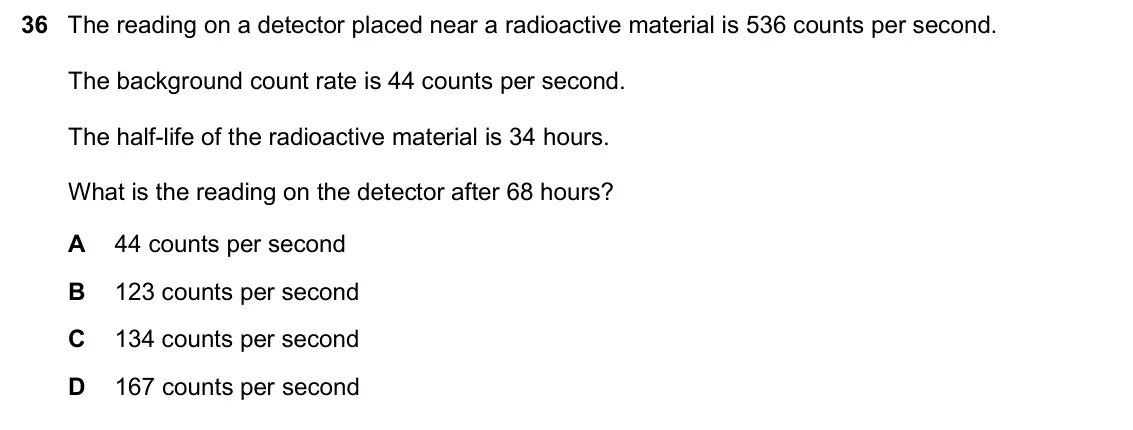

- June 2024, Paper 2, Q36 (1 mark): The reading on a detector placed near a radioactive material is 536 counts per second. The background count rate is 44 counts per second. The half-life of the r

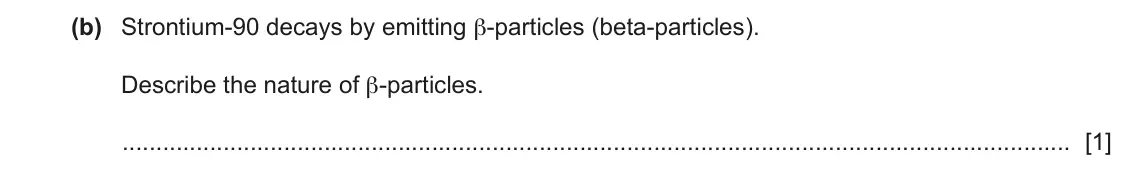

- June 2024, Paper 3, Q10(b) (1 mark): Strontium-90 decays by emitting β-particles (beta-particles). Describe the nature of β-particles. [1]

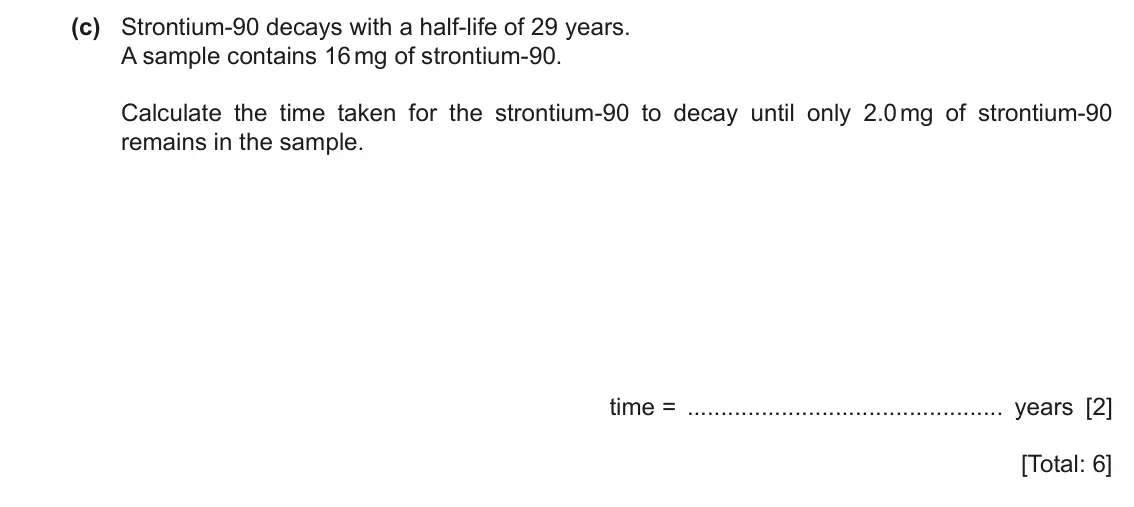

- June 2024, Paper 3, Q10(c) (2 marks): Strontium-90 decays with a half-life of 29 years. A sample contains 16 mg of strontium-90. Calculate the time taken for the strontium-90 to decay until only 2.0

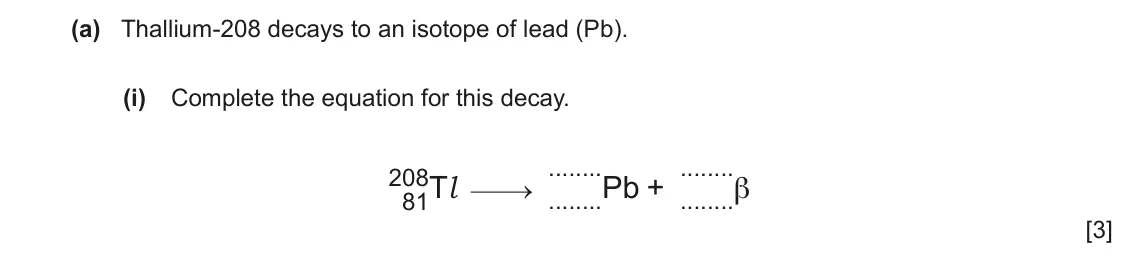

- June 2024, Paper 4, Q8(a)(i) (3 marks): Complete the equation for this decay. 208 81Tl Pb + β [3]

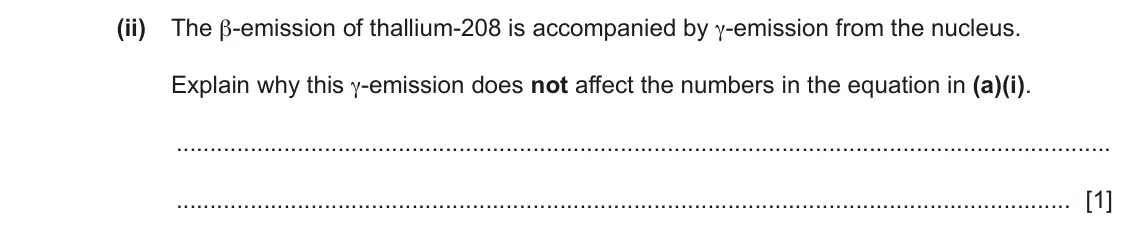

- June 2024, Paper 4, Q8(a)(ii) (1 mark): The β-emission of thallium-208 is accompanied by γ-emission from the nucleus. Explain why this γ-emission does not affect the numbers in the equation in (a)(i).

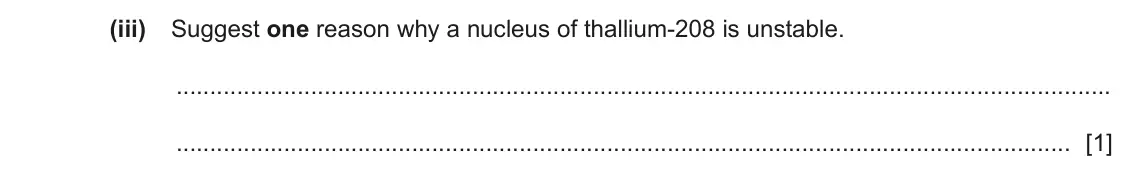

- June 2024, Paper 4, Q8(a)(iii) (1 mark): Suggest one reason why a nucleus of thallium-208 is unstable. [1]

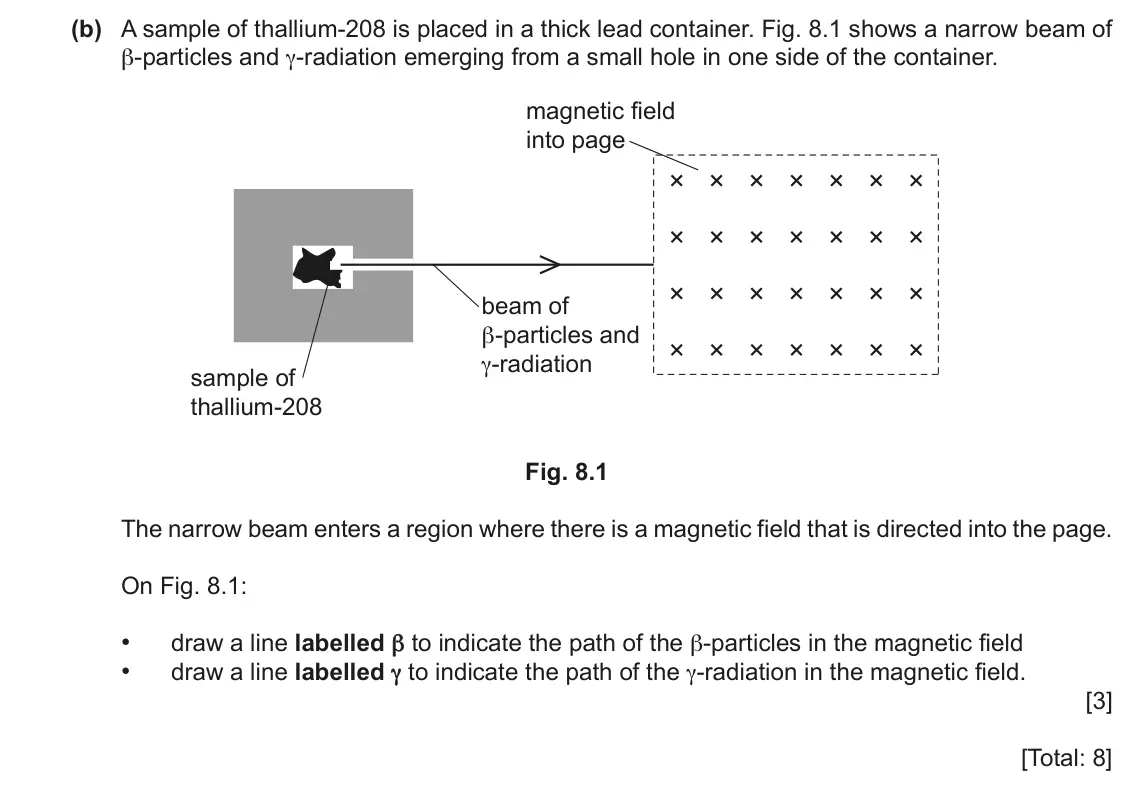

- June 2024, Paper 4, Q8(b) (3 marks): A sample of thallium-208 is placed in a thick lead container. Fig. 8.1 shows a narrow beam of β-particles and γ-radiation emerging from a small hole in one side

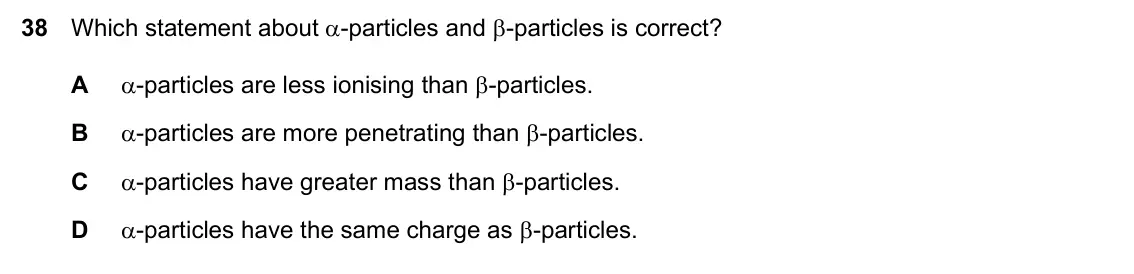

- Specimen, Paper 1, Q38 (1 mark): Which statement about α-particles and β-particles is correct? A α-particles are less ionising than β-particles. B α-particles are more penetrating than β-partic

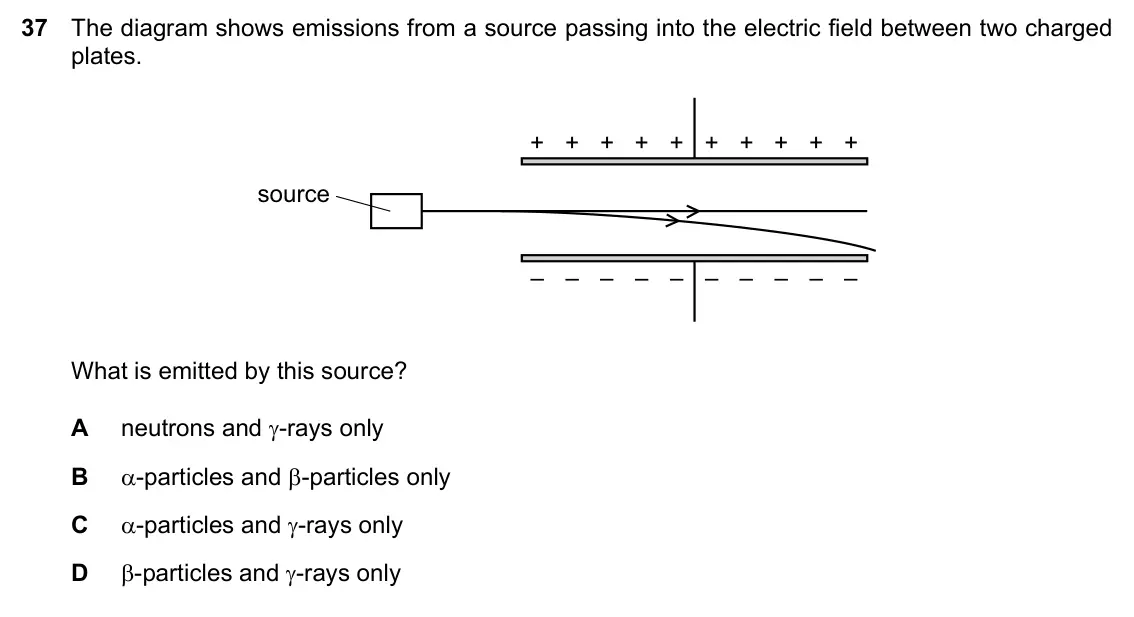

- Specimen, Paper 2, Q37 (1 mark): The diagram shows emissions from a source passing into the electric field between two charged plates. + + + + + + + + + + source – – – – – – – – – – What is emi

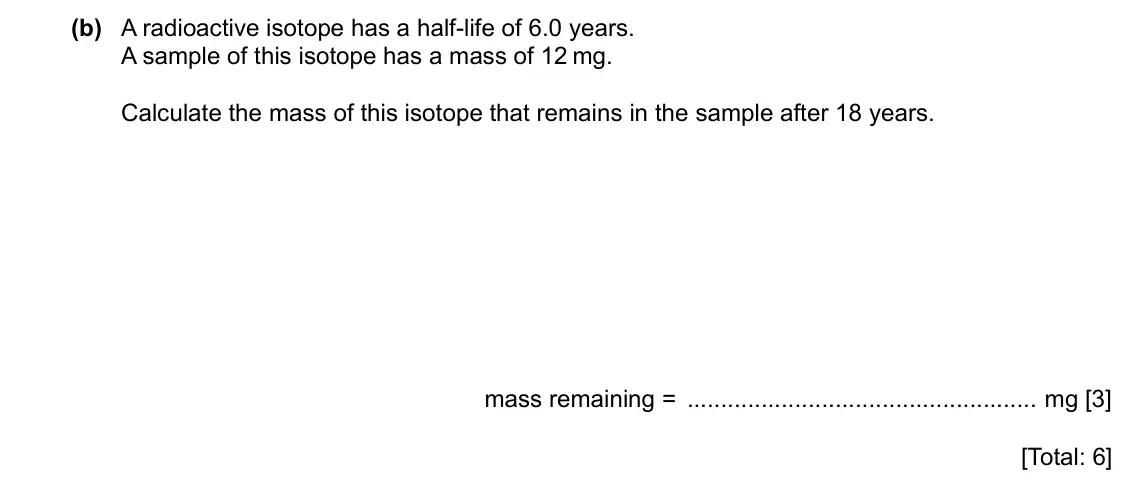

- Specimen, Paper 3, Q11(b) (3 marks): A radioactive isotope has a half-life of 6.0 years. A sample of this isotope has a mass of 12 mg. Calculate the mass of this isotope that remains in the sample

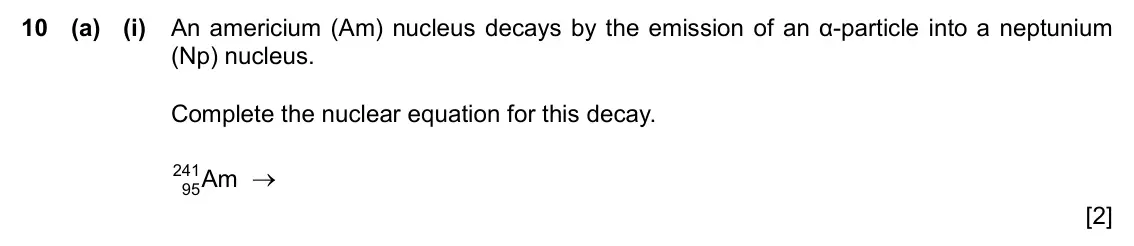

- Specimen, Paper 4, Q10(a)(i) (2 marks): An americium (Am) nucleus decays by the emission of an α-particle into a neptunium (Np) nucleus. Complete the nuclear equation for this decay. 241 Am → 95 [2]

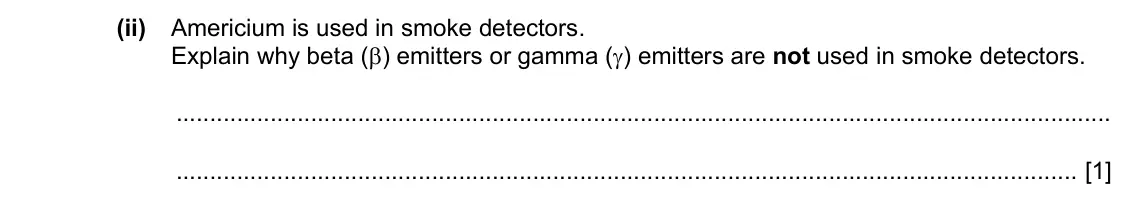

- Specimen, Paper 4, Q10(a)(ii) (1 mark): Americium is used in smoke detectors. Explain why beta (β) emitters or gamma (γ) emitters are not used in smoke detectors. [1]

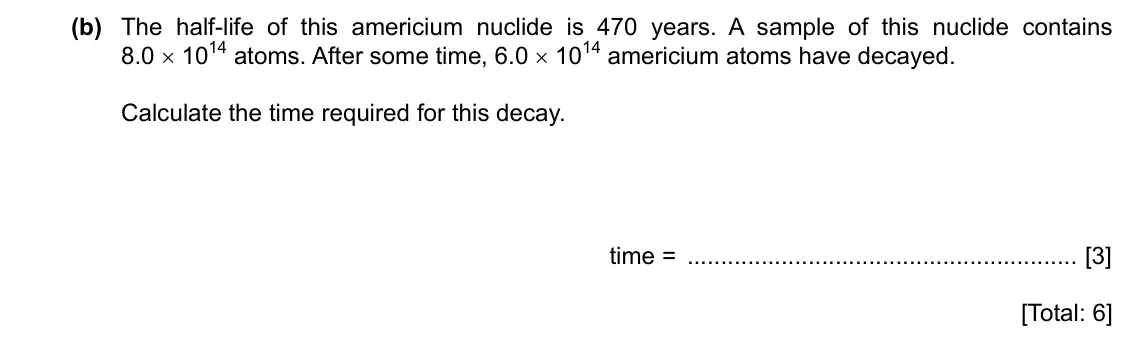

- Specimen, Paper 4, Q10(b) (3 marks): The half-life of this americium nuclide is 470 years. A sample of this nuclide contains 8.0 × 1014 atoms. After some time, 6.0 × 1014 americium atoms have decay
