Permanent and induced magnetism, magnetic forces and fields: AQA GCSE Physics questions

Every AQA GCSE Physics exam question on 4.7.1 Permanent and induced magnetism, magnetic forces and fields, 2018–2025, with its mark scheme and examiner’s report.

Find questions1,653
Calculations

1,653 questions

  1. Q06.1

    June 2025 · Paper 2 Foundation

    2 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

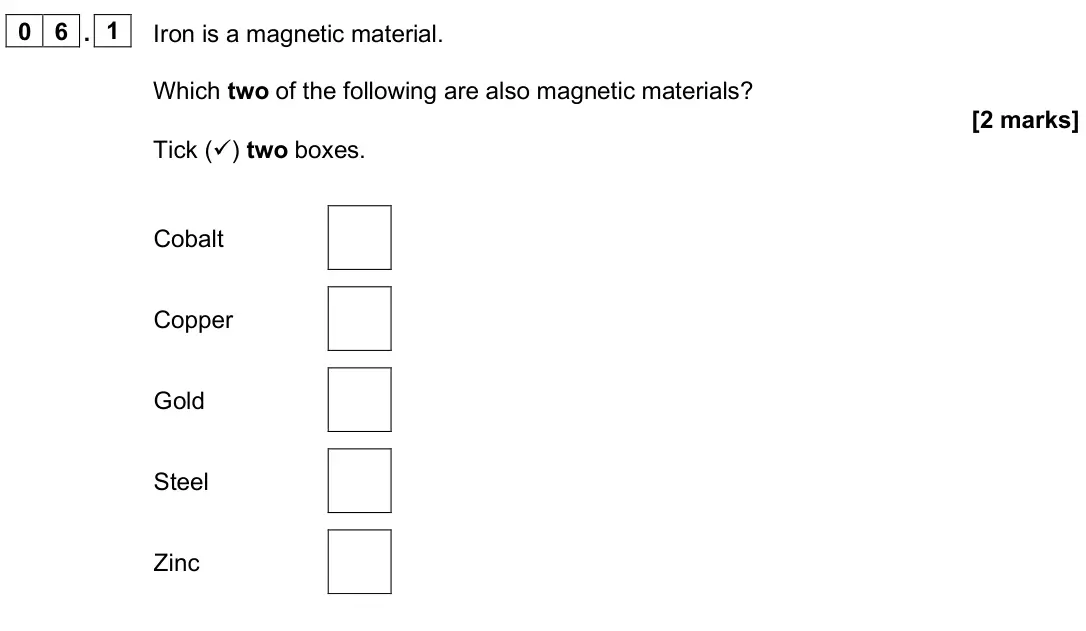

    June 2025 Paper 2 Foundation, question 06.1: Iron is a magnetic material. Which two of the following are also magnetic materials? [2 marks] Tick () two boxes. Cobalt Copper Gold Steel Zinc

  2. Q06.2

    June 2025 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

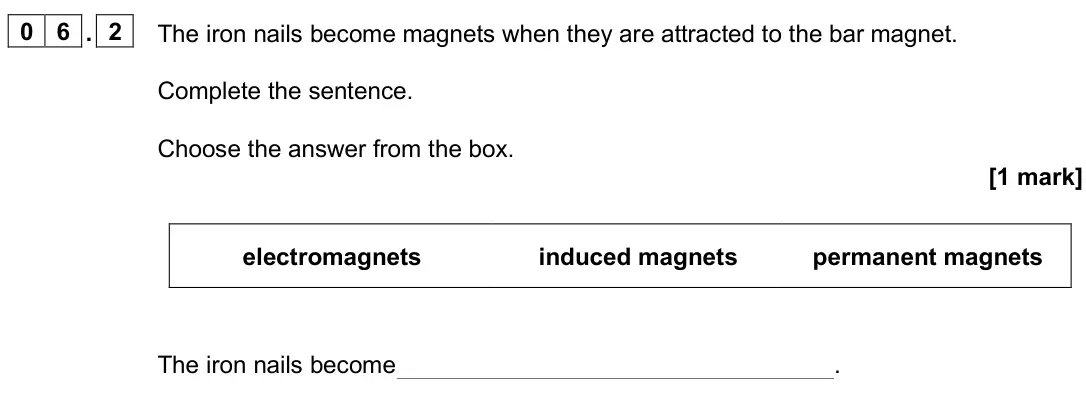

    June 2025 Paper 2 Foundation, question 06.2: The iron nails become magnets when they are attracted to the bar magnet. Complete the sentence. Choose the answer from the box. [1 mark] electromagnets induced

  3. Q06.3

    June 2025 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

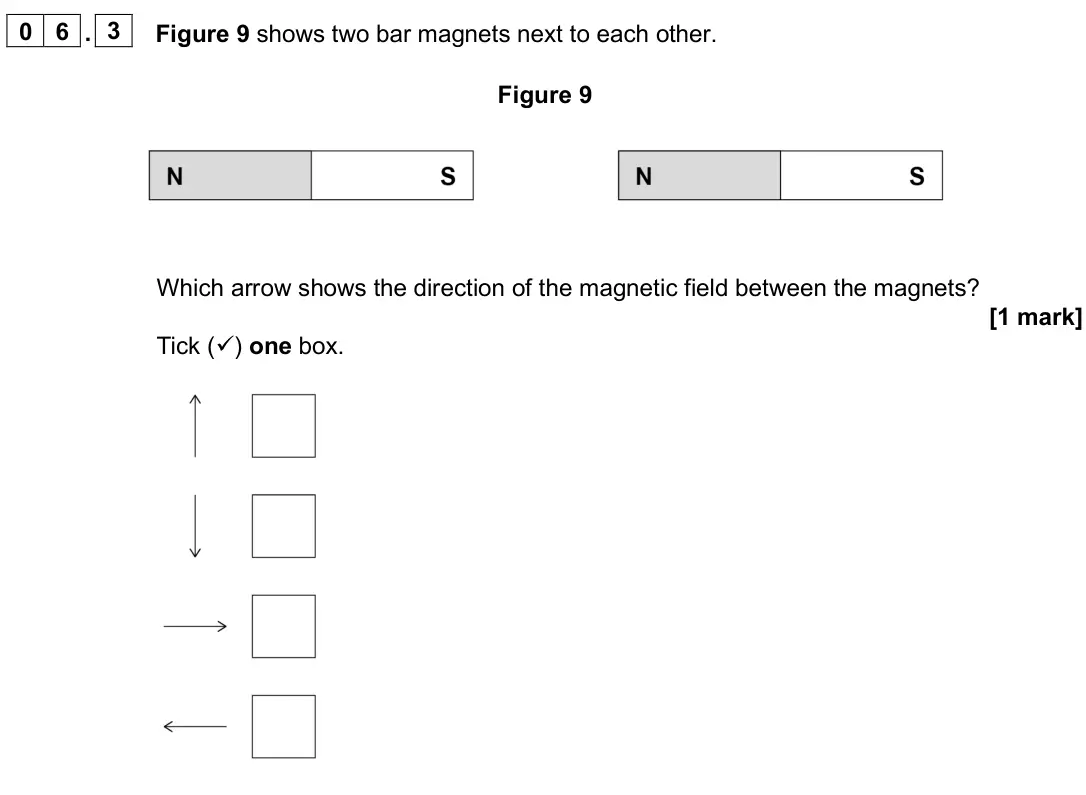

    June 2025 Paper 2 Foundation, question 06.3: Figure 9 shows two bar magnets next to each other. Figure 9 Which arrow shows the direction of the magnetic field between the magnets? [1 mark] Tick () one box

  4. Q02.1

    June 2024 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

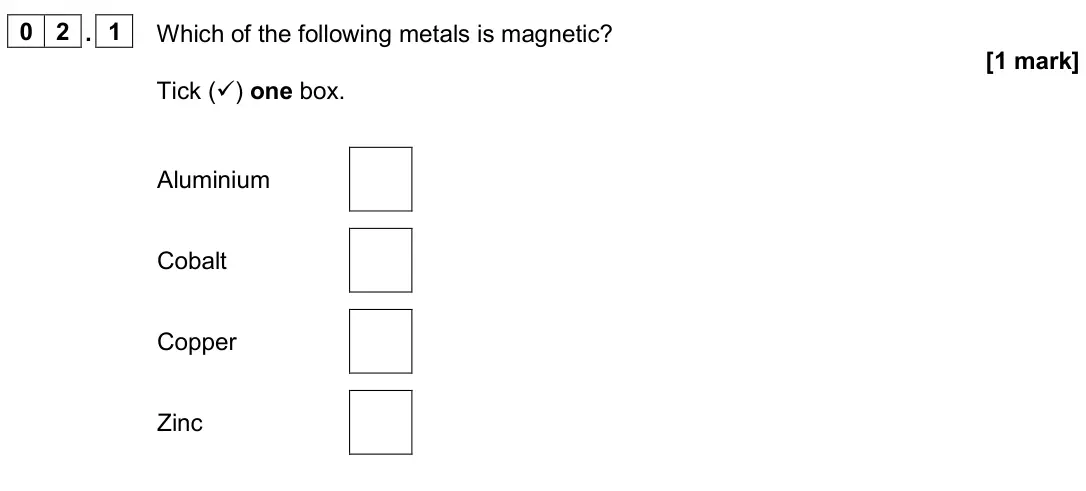

    June 2024 Paper 2 Foundation, question 02.1: Which of the following metals is magnetic? [1 mark] Tick () one box. Aluminium Cobalt Copper Zinc

  5. Q02.2

    June 2024 · Paper 2 Foundation

    2 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

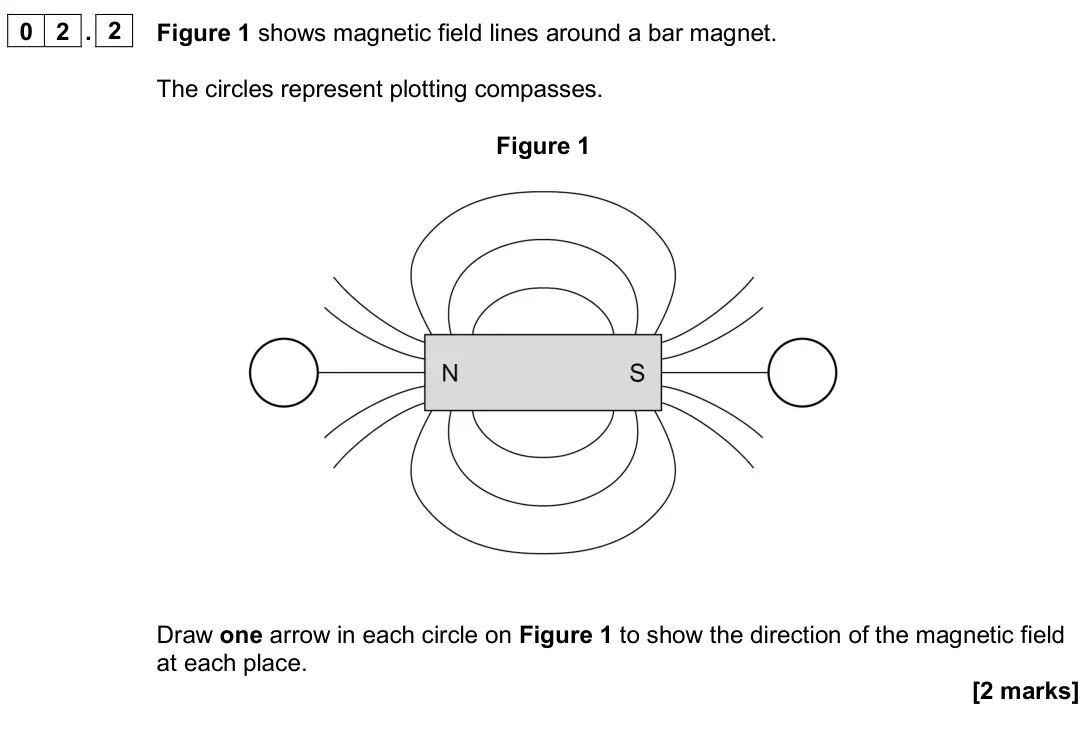

    June 2024 Paper 2 Foundation, question 02.2: Figure 1 shows magnetic field lines around a bar magnet. The circles represent plotting compasses. Figure 1 Draw one arrow in each circle on Figure 1 to show th

  6. Q02.3

    June 2024 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

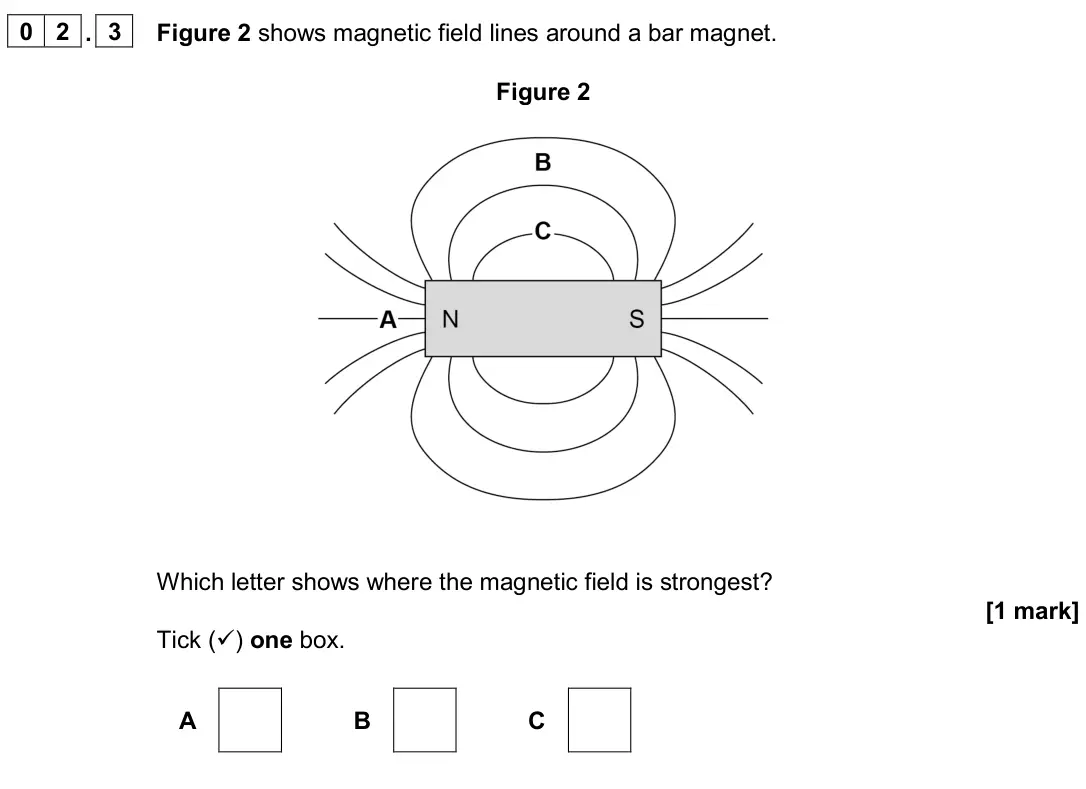

    June 2024 Paper 2 Foundation, question 02.3: Figure 2 shows magnetic field lines around a bar magnet. Figure 2 Which letter shows where the magnetic field is strongest? [1 mark] Tick () one box. A B C

  7. Q02.4

    June 2024 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

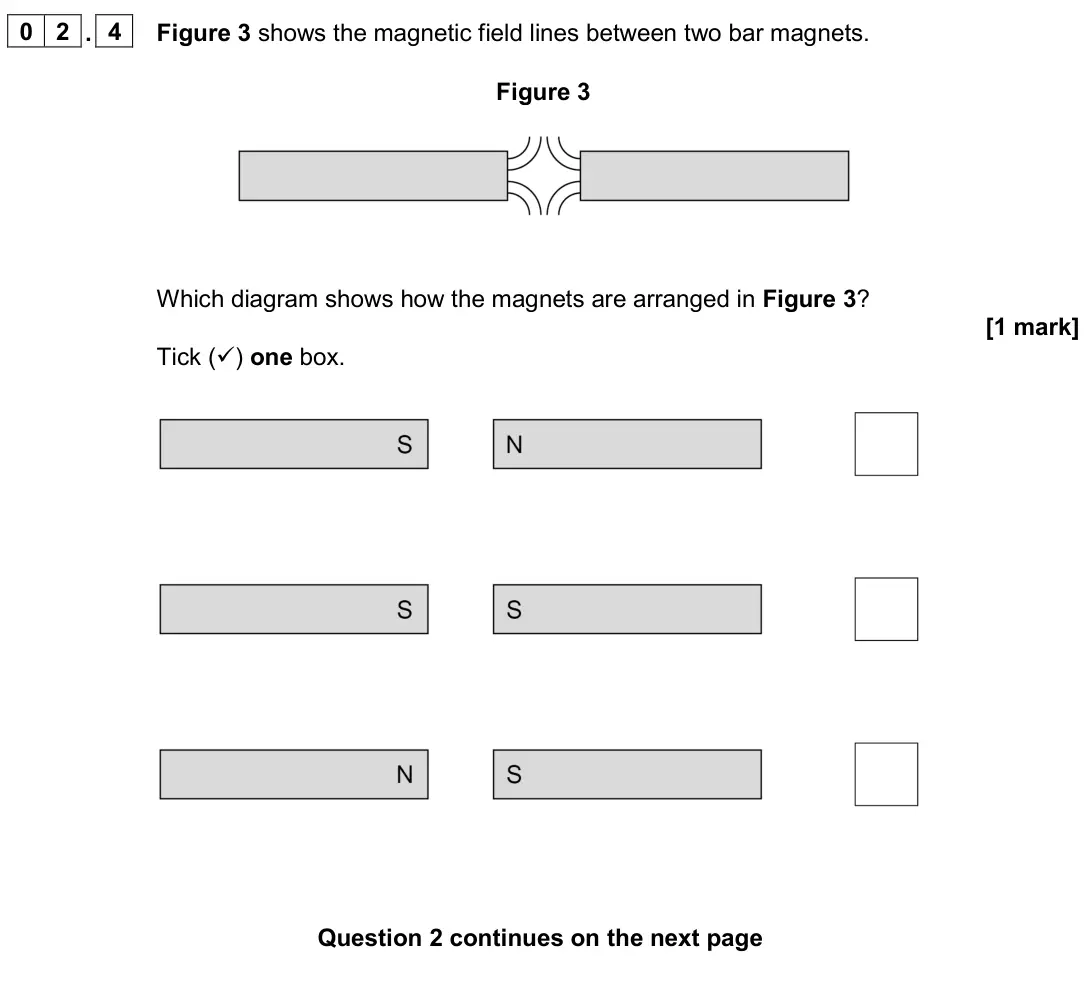

    June 2024 Paper 2 Foundation, question 02.4: Figure 3 shows the magnetic field lines between two bar magnets. Figure 3 Which diagram shows how the magnets are arranged in Figure 3? [1 mark] Tick () one bo

  8. Q04.2

    June 2023 · Paper 2 Higher

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

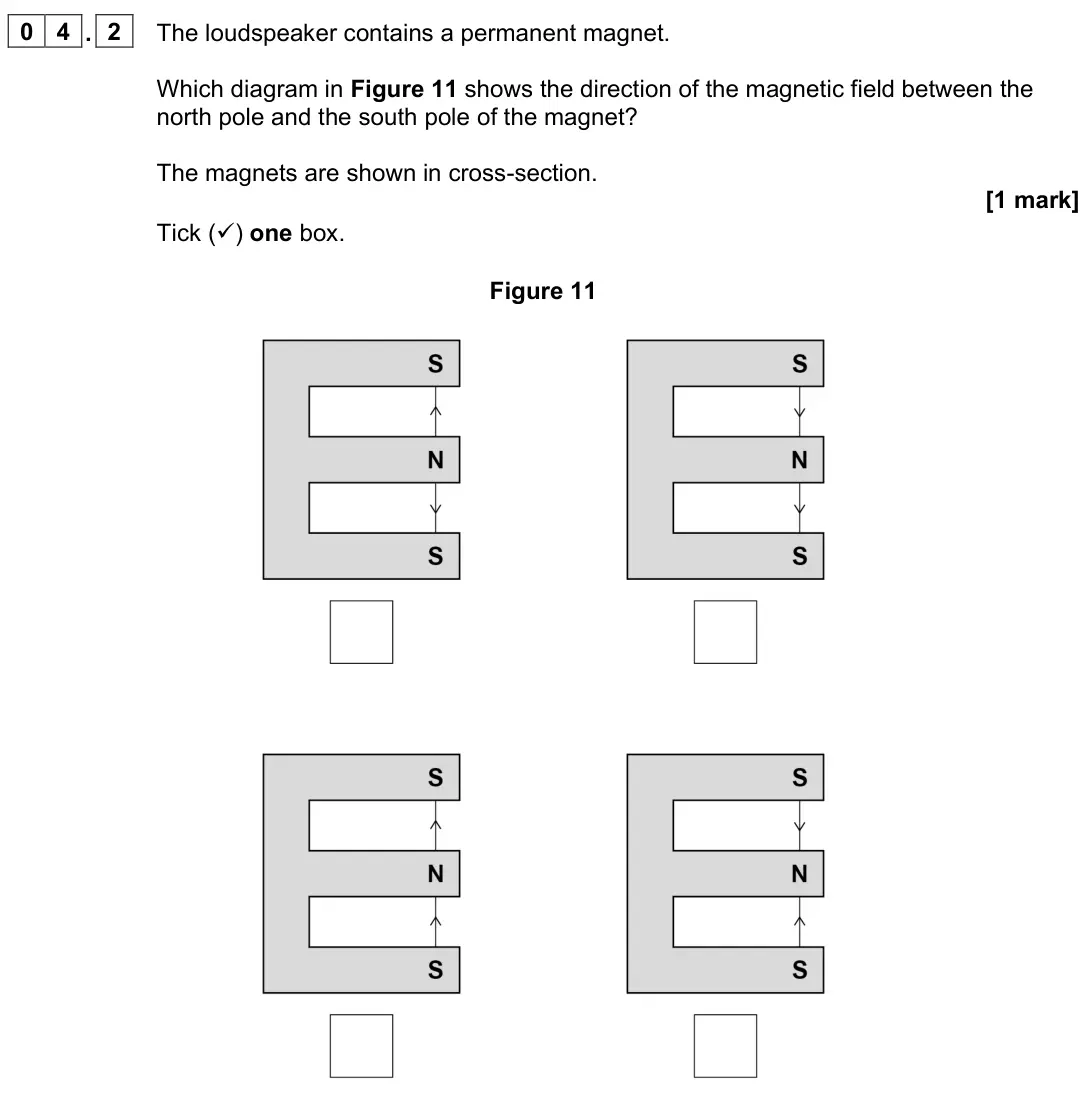

    June 2023 Paper 2 Higher, question 04.2: The loudspeaker contains a permanent magnet. Which diagram in Figure 11 shows the direction of the magnetic field between the north pole and the south pole of t

  9. Q04.3

    June 2023 · Paper 2 Higher

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

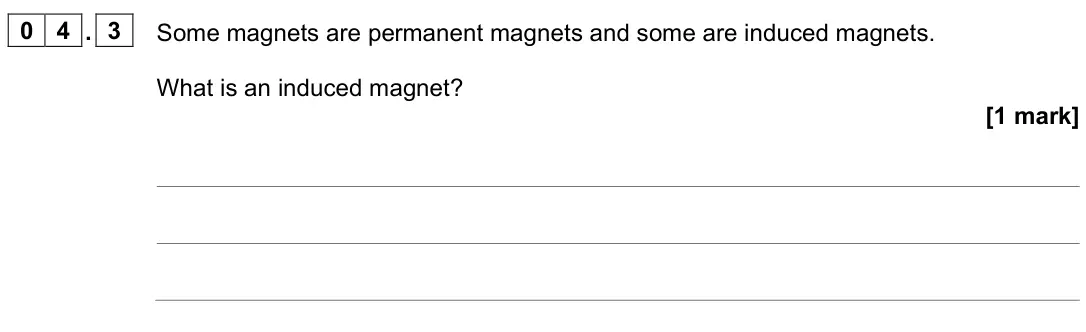

    June 2023 Paper 2 Higher, question 04.3: Some magnets are permanent magnets and some are induced magnets. What is an induced magnet? [1 mark]

  10. Q09.1

    June 2023 · Paper 2 Higher

    5 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields4.7.3 Induced potential, transformers and the National Grid
    The whole paper ↗
    June 2023 Paper 2 Higher, question 09.1: The coil is rotated. Explain why a direct current is induced in the coil. [5 marks]

  11. Q03.5

    June 2023 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields4.7.2 The motor effect
    The whole paper ↗
    June 2023 Paper 2 Foundation, question 03.5: Which of the following would increase the resultant force on the iron arm? [1 mark] Tick () one box. Decrease the distance between the electromagnet and the ir

  12. Q01.1

    June 2022 · Paper 2 Foundation

    2 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

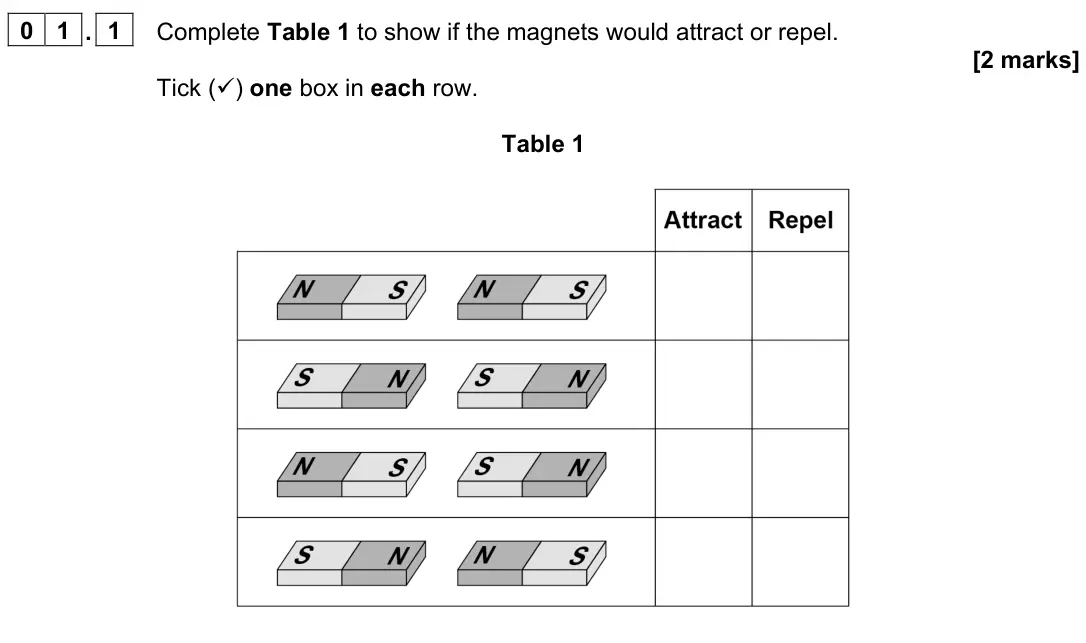

    June 2022 Paper 2 Foundation, question 01.1: Complete Table 1 to show if the magnets would attract or repel. [2 marks] Tick () one box in each row. Table 1

  13. Q01.2

    June 2022 · Paper 2 Foundation

    2 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

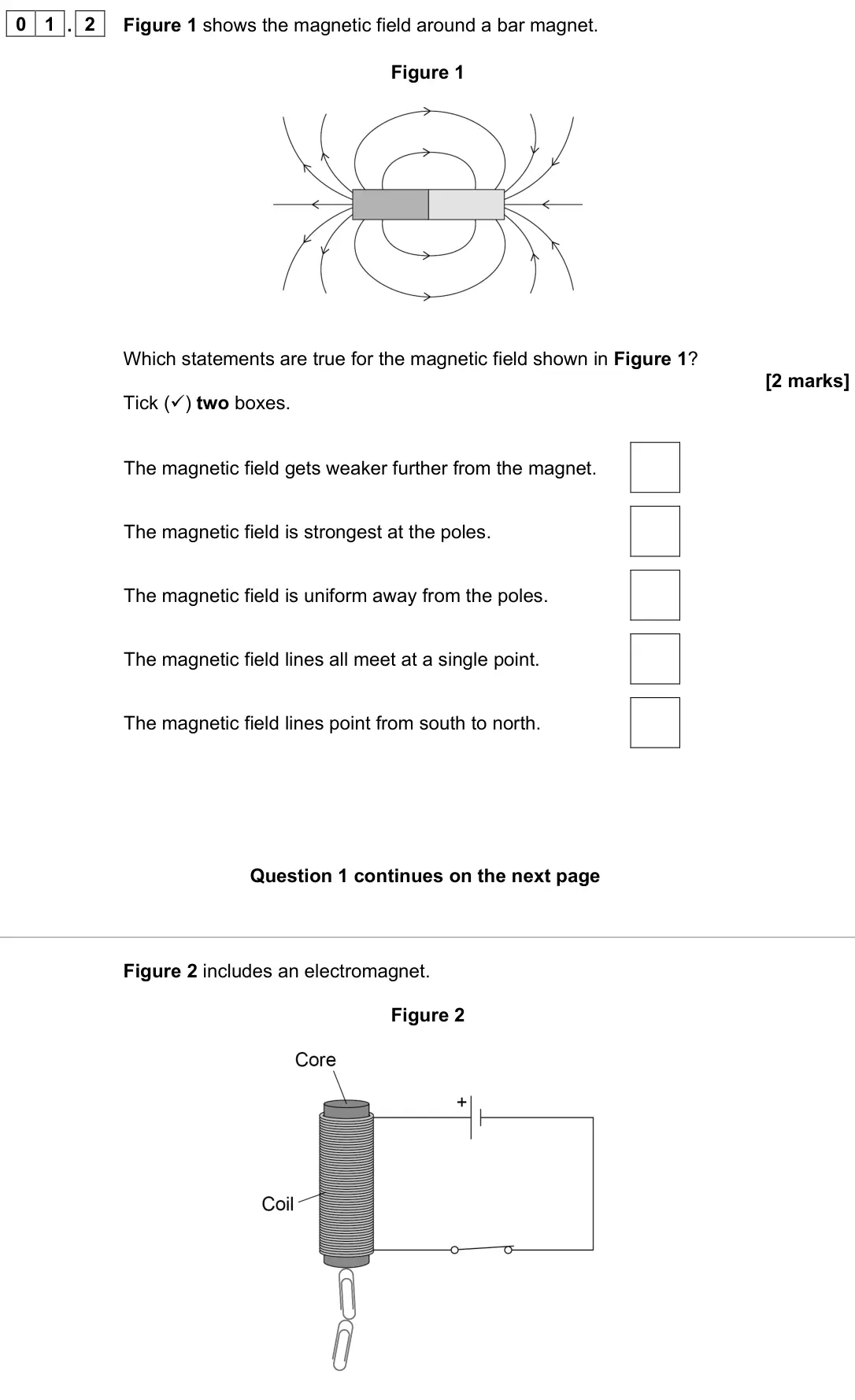

    June 2022 Paper 2 Foundation, question 01.2: Figure 1 shows the magnetic field around a bar magnet. Figure 1 Which statements are true for the magnetic field shown in Figure 1? [2 marks] Tick () two boxes

  14. Q01.3

    June 2022 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

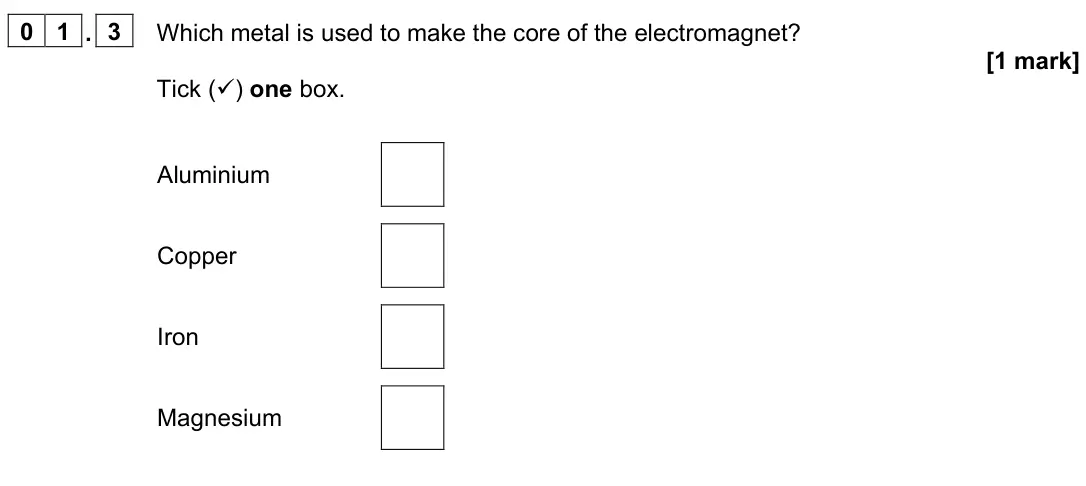

    June 2022 Paper 2 Foundation, question 01.3: Which metal is used to make the core of the electromagnet? [1 mark] Tick () one box. Aluminium Copper Iron Magnesium

  15. Q07.1

    November 2021 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

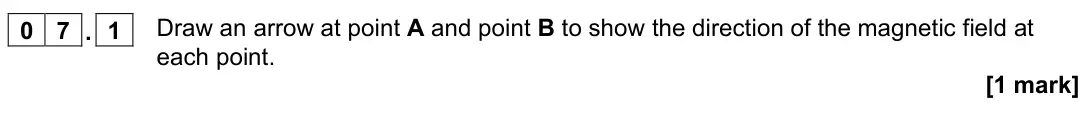

    November 2021 Paper 2 Foundation, question 07.1: Draw an arrow at point A and point B to show the direction of the magnetic field at each point. [1 mark]

  16. Q07.2

    November 2021 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

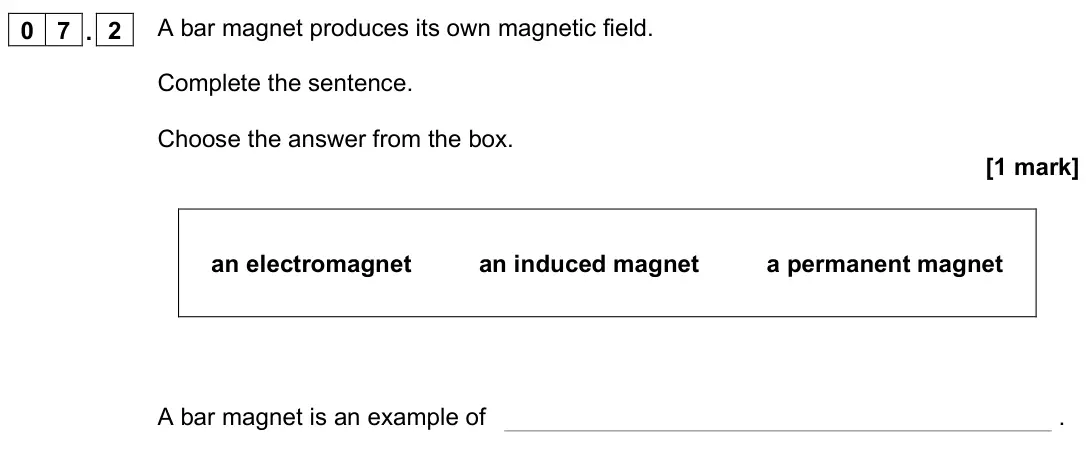

    November 2021 Paper 2 Foundation, question 07.2: A bar magnet produces its own magnetic field. Complete the sentence. Choose the answer from the box. [1 mark] an electromagnet an induced magnet a permanent mag

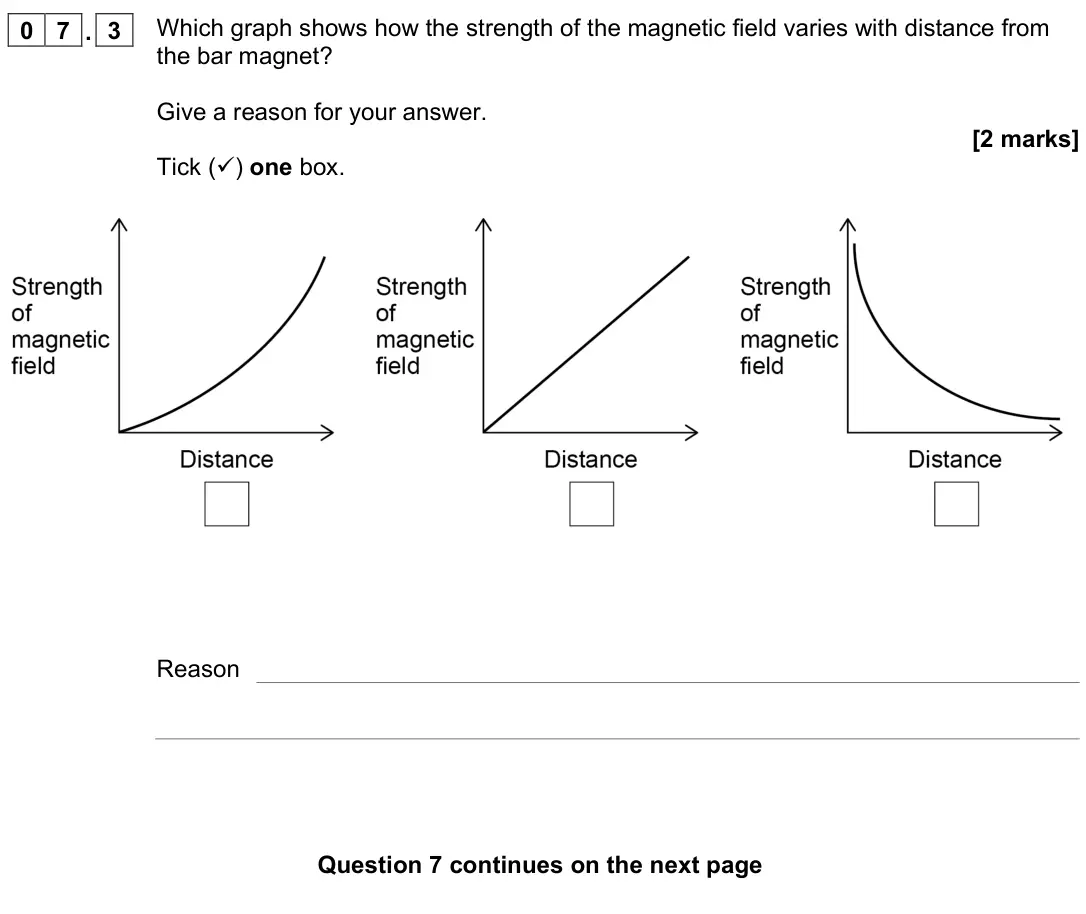

  17. Q07.3

    November 2021 · Paper 2 Foundation

    2 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗
    November 2021 Paper 2 Foundation, question 07.3: Which graph shows how the strength of the magnetic field varies with distance from the bar magnet? Give a reason for your answer. [2 marks] Tick () one box. Re

  18. Q07.4

    November 2021 · Paper 2 Foundation

    2 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

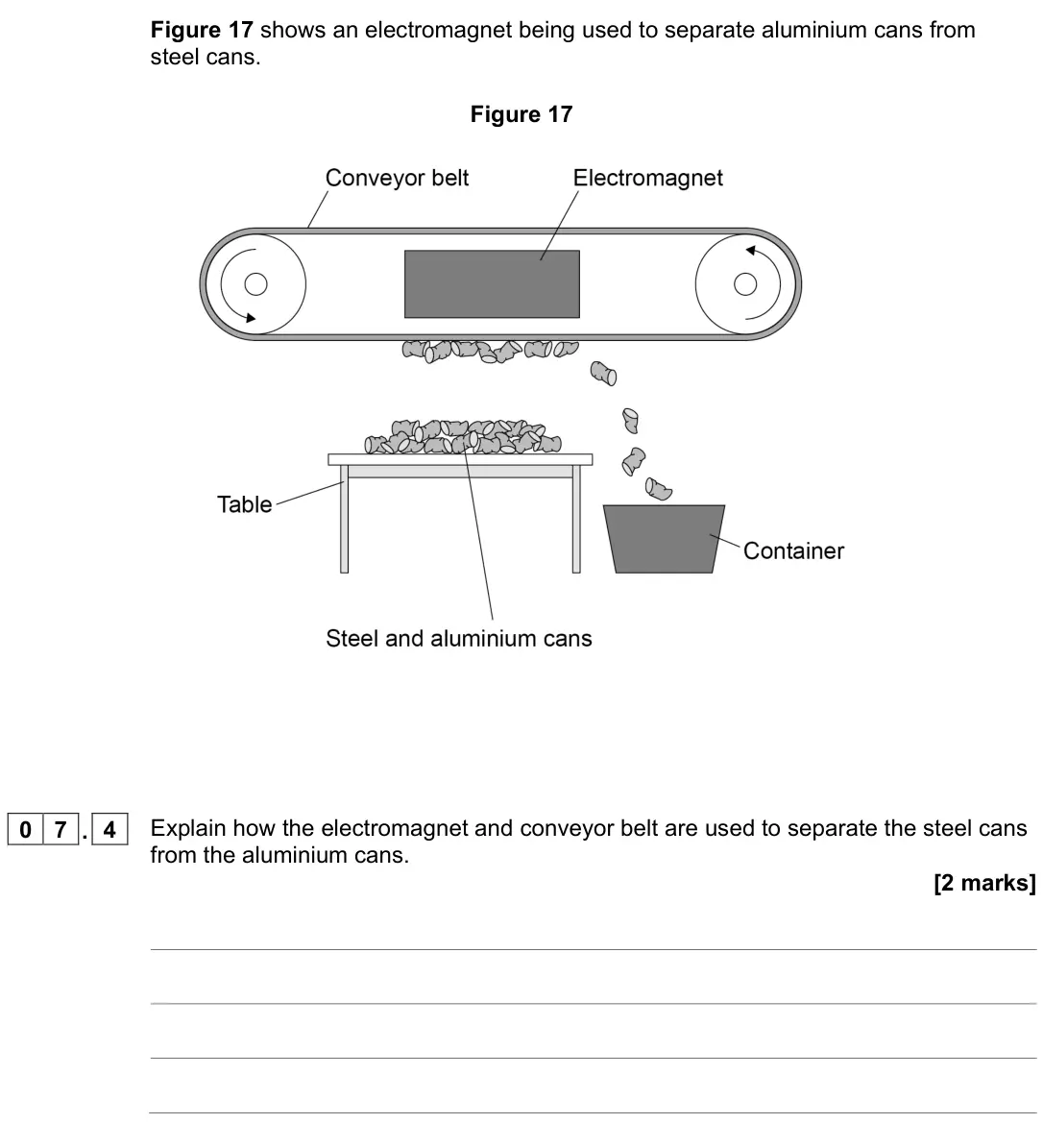

    November 2021 Paper 2 Foundation, question 07.4: Explain how the electromagnet and conveyor belt are used to separate the steel cans from the aluminium cans. [2 marks]

  19. Q05.1

    November 2020 · Paper 2 Foundation

    2 marks4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗

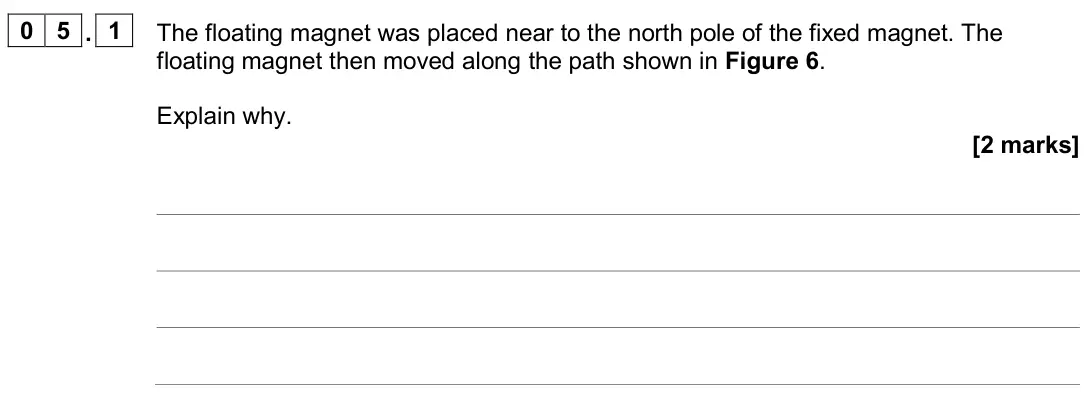

    November 2020 Paper 2 Foundation, question 05.1: The floating magnet was placed near to the north pole of the fixed magnet. The floating magnet then moved along the path shown in Figure 6. Explain why. [2 mark

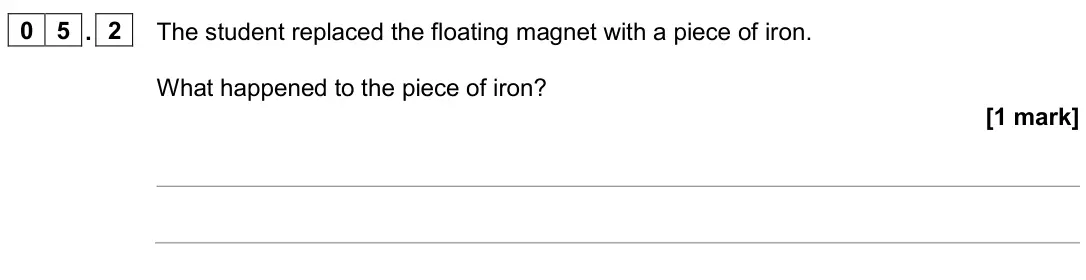

  20. Q05.2

    November 2020 · Paper 2 Foundation

    1 mark4.7.1 Permanent and induced magnetism, magnetic forces and fields
    The whole paper ↗
    November 2020 Paper 2 Foundation, question 05.2: The student replaced the floating magnet with a piece of iron. What happened to the piece of iron? [1 mark]
All 29 questions on Permanent and induced magnetism, magnetic forces and fields, as a list
  1. June 2025, Paper 2 Foundation, Q06.1 (2 marks): Iron is a magnetic material. Which two of the following are also magnetic materials? [2 marks] Tick () two boxes. Cobalt Copper Gold Steel Zinc
  2. June 2025, Paper 2 Foundation, Q06.2 (1 mark): The iron nails become magnets when they are attracted to the bar magnet. Complete the sentence. Choose the answer from the box. [1 mark] electromagnets induced
  3. June 2025, Paper 2 Foundation, Q06.3 (1 mark): Figure 9 shows two bar magnets next to each other. Figure 9 Which arrow shows the direction of the magnetic field between the magnets? [1 mark] Tick () one box
  4. June 2024, Paper 2 Foundation, Q02.1 (1 mark): Which of the following metals is magnetic? [1 mark] Tick () one box. Aluminium Cobalt Copper Zinc
  5. June 2024, Paper 2 Foundation, Q02.2 (2 marks): Figure 1 shows magnetic field lines around a bar magnet. The circles represent plotting compasses. Figure 1 Draw one arrow in each circle on Figure 1 to show th
  6. June 2024, Paper 2 Foundation, Q02.3 (1 mark): Figure 2 shows magnetic field lines around a bar magnet. Figure 2 Which letter shows where the magnetic field is strongest? [1 mark] Tick () one box. A B C
  7. June 2024, Paper 2 Foundation, Q02.4 (1 mark): Figure 3 shows the magnetic field lines between two bar magnets. Figure 3 Which diagram shows how the magnets are arranged in Figure 3? [1 mark] Tick () one bo
  8. June 2023, Paper 2 Higher, Q04.2 (1 mark): The loudspeaker contains a permanent magnet. Which diagram in Figure 11 shows the direction of the magnetic field between the north pole and the south pole of t
  9. June 2023, Paper 2 Higher, Q04.3 (1 mark): Some magnets are permanent magnets and some are induced magnets. What is an induced magnet? [1 mark]
  10. June 2023, Paper 2 Higher, Q09.1 (5 marks): The coil is rotated. Explain why a direct current is induced in the coil. [5 marks]
  11. June 2023, Paper 2 Foundation, Q03.5 (1 mark): Which of the following would increase the resultant force on the iron arm? [1 mark] Tick () one box. Decrease the distance between the electromagnet and the ir
  12. June 2022, Paper 2 Foundation, Q01.1 (2 marks): Complete Table 1 to show if the magnets would attract or repel. [2 marks] Tick () one box in each row. Table 1
  13. June 2022, Paper 2 Foundation, Q01.2 (2 marks): Figure 1 shows the magnetic field around a bar magnet. Figure 1 Which statements are true for the magnetic field shown in Figure 1? [2 marks] Tick () two boxes
  14. June 2022, Paper 2 Foundation, Q01.3 (1 mark): Which metal is used to make the core of the electromagnet? [1 mark] Tick () one box. Aluminium Copper Iron Magnesium
  15. November 2021, Paper 2 Foundation, Q07.1 (1 mark): Draw an arrow at point A and point B to show the direction of the magnetic field at each point. [1 mark]
  16. November 2021, Paper 2 Foundation, Q07.2 (1 mark): A bar magnet produces its own magnetic field. Complete the sentence. Choose the answer from the box. [1 mark] an electromagnet an induced magnet a permanent mag
  17. November 2021, Paper 2 Foundation, Q07.3 (2 marks): Which graph shows how the strength of the magnetic field varies with distance from the bar magnet? Give a reason for your answer. [2 marks] Tick () one box. Re
  18. November 2021, Paper 2 Foundation, Q07.4 (2 marks): Explain how the electromagnet and conveyor belt are used to separate the steel cans from the aluminium cans. [2 marks]
  19. November 2020, Paper 2 Foundation, Q05.1 (2 marks): The floating magnet was placed near to the north pole of the fixed magnet. The floating magnet then moved along the path shown in Figure 6. Explain why. [2 mark
  20. November 2020, Paper 2 Foundation, Q05.2 (1 mark): The student replaced the floating magnet with a piece of iron. What happened to the piece of iron? [1 mark]
  21. November 2020, Paper 2 Foundation, Q05.3 (4 marks): Describe how to use a compass to plot the magnetic field pattern around a bar magnet. Use Figure 7 to help you. [4 marks] Figure 7
  22. June 2019, Paper 2 Higher, Q04.2 (2 marks): Figure 6 shows two iron rods placed inside a solenoid. Figure 6 Explain why the iron rods move apart when the switch is closed. [2 marks]
  23. June 2019, Paper 2 Foundation, Q03.1 (1 mark): Figure 5 shows a bar magnet. Each circle represents a compass. Figure 5 Draw an arrow inside each circle to show the direction that each compass would point. [1
  24. June 2019, Paper 2 Foundation, Q03.2 (2 marks): Figure 6 shows part of a coat. The coat has two magnets hidden inside the material. Figure 7 shows how the magnets are used to fasten the coat. Figure 6 Figure
  25. June 2018, Paper 2 Foundation, Q04.1 (1 mark): Label the north and south poles of both paper clips. [1 mark]
  26. Specimen, Paper 2 Foundation, Q02.1: forced induced permanent
  27. Specimen, Paper 2 Foundation, Q02.2 (2 marks): Figure 2 shows two iron nails hanging from a bar magnet. The iron nails which were unmagnetised are now magnetised. Figure 2 0 2 Each of the three metal bars in
  28. Specimen, Paper 2 Foundation, Q02.3: Figure 2 shows two iron nails hanging from a bar magnet. The iron nails which were unmagnetised are now magnetised. Figure 2 0 2 A student investigated the stre
  29. Specimen, Paper 2 Foundation, Q02.4: Figure 2 shows two iron nails hanging from a bar magnet. The iron nails which were unmagnetised are now magnetised. Figure 2 0 2 Before starting the investigati
