Forces and elasticity: AQA GCSE Combined Science questions

Every AQA GCSE Combined Science exam question on 6.5.3 Forces and elasticity, 2018–2025, with its mark scheme and examiner’s report.

Find questions3,069
Calculations

3,069 questions

  1. Q02.1

    June 2024 · Physics Paper 2 Higher

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

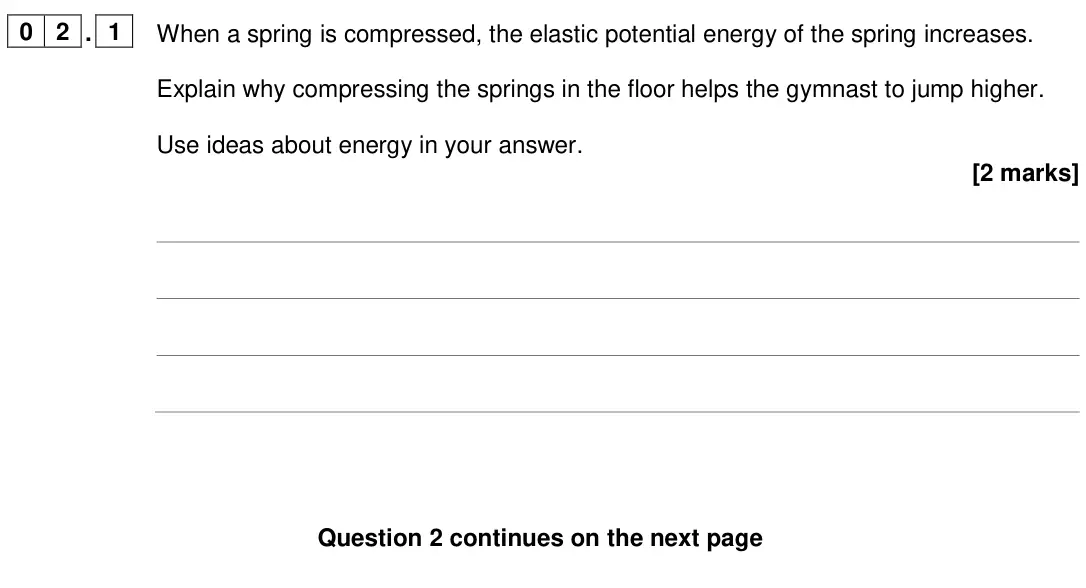

    June 2024 Physics Paper 2 Higher, question 02.1: When a spring is compressed, the elastic potential energy of the spring increases. Explain why compressing the springs in the floor helps the gymnast to jump hi

  2. Q02.2

    June 2024 · Physics Paper 2 Higher

    4 marks6.5.3 Forces and elasticity
    The whole paper ↗
    June 2024 Physics Paper 2 Higher, question 02.2: When the gymnast lands on the floor, one of the springs compresses by 1.2 cm. spring constant = 8500 N/m Calculate the elastic potential energy stored in the sp

  3. Q02.3

    June 2024 · Physics Paper 2 Higher

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

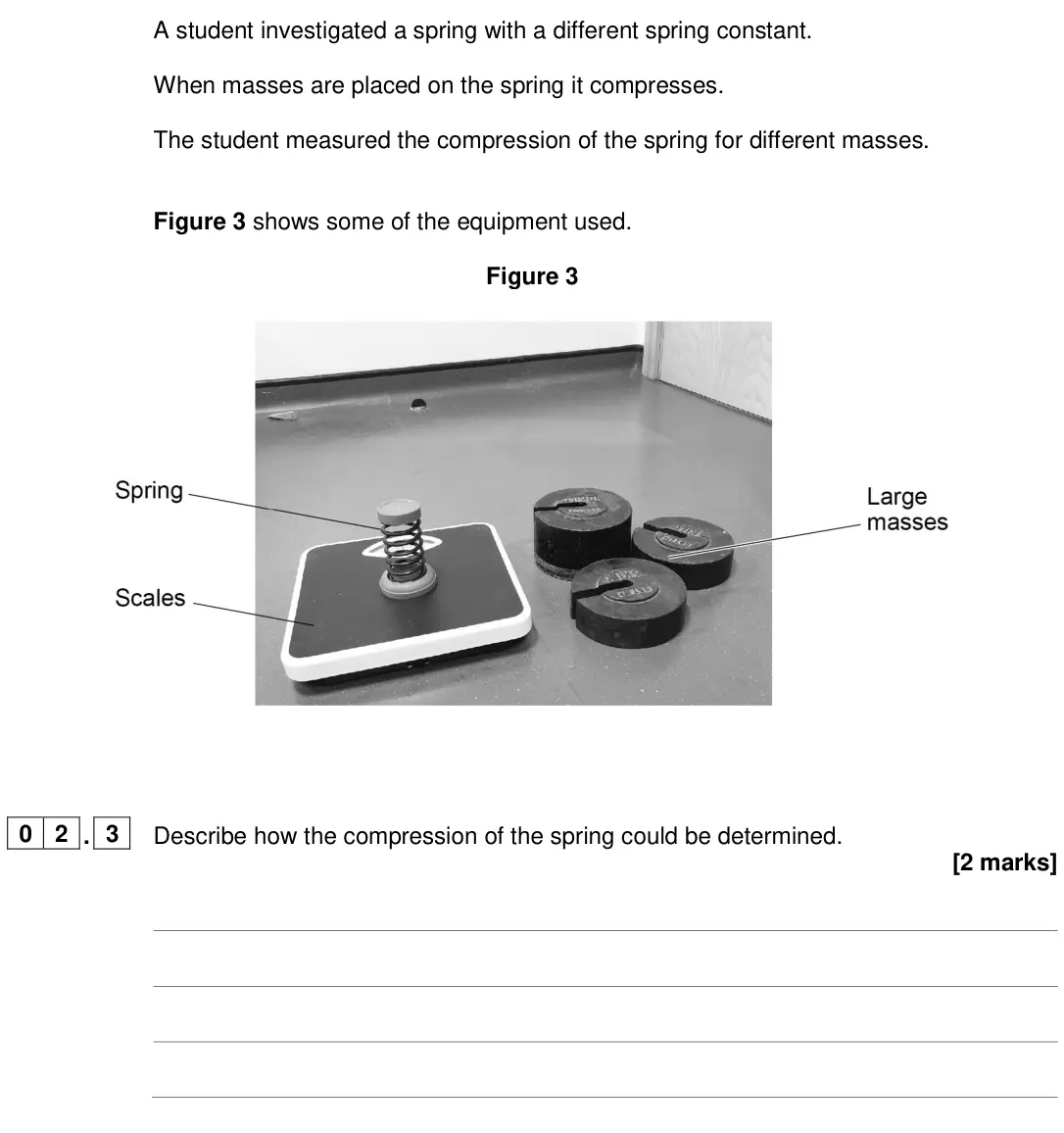

    June 2024 Physics Paper 2 Higher, question 02.3: Describe how the compression of the spring could be determined. [2 marks]

  4. Q02.4

    June 2024 · Physics Paper 2 Higher

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

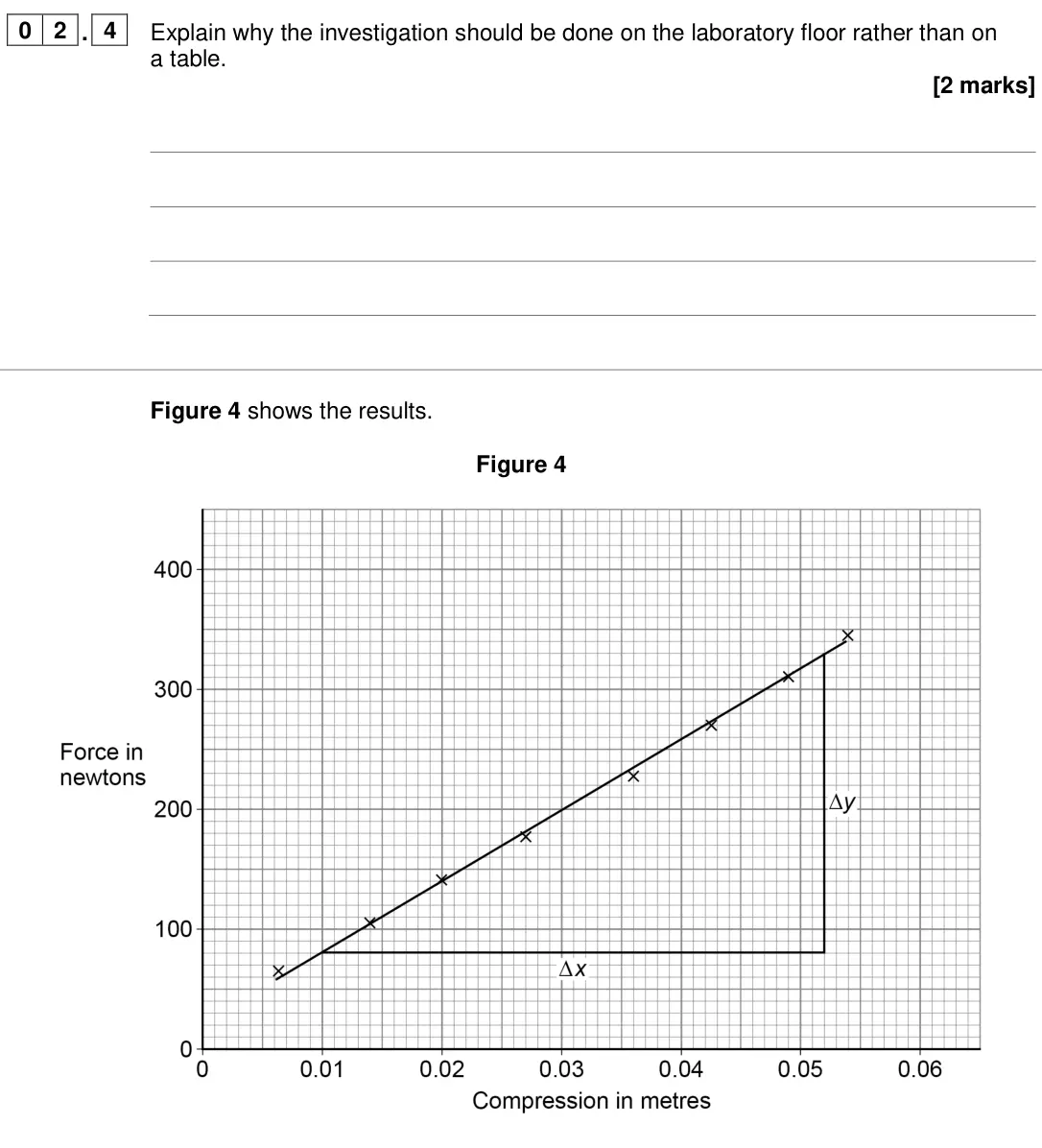

    June 2024 Physics Paper 2 Higher, question 02.4: Explain why the investigation should be done on the laboratory floor rather than on a table. [2 marks] Figure 4 shows the results. Figure 4

  5. Q02.5

    June 2024 · Physics Paper 2 Higher

    1 mark6.5.3 Forces and elasticity
    The whole paper ↗

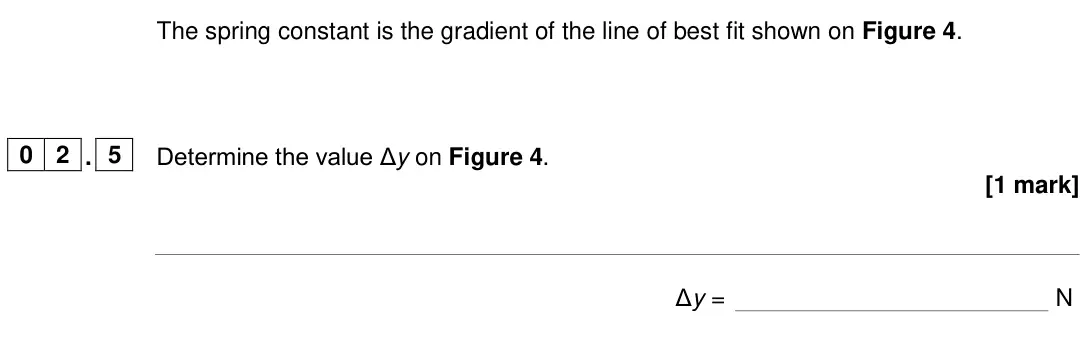

    June 2024 Physics Paper 2 Higher, question 02.5: Determine the value Δy on Figure 4. [1 mark] Δy = N

  6. Q02.6

    June 2024 · Physics Paper 2 Higher

    1 mark6.5.3 Forces and elasticity
    The whole paper ↗

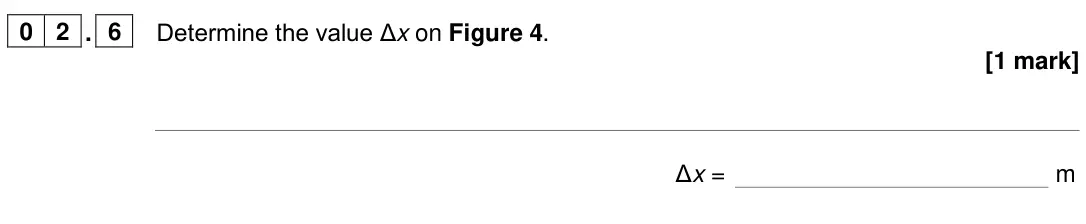

    June 2024 Physics Paper 2 Higher, question 02.6: Determine the value Δx on Figure 4. [1 mark] Δx = m

  7. Q02.7

    June 2024 · Physics Paper 2 Higher

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

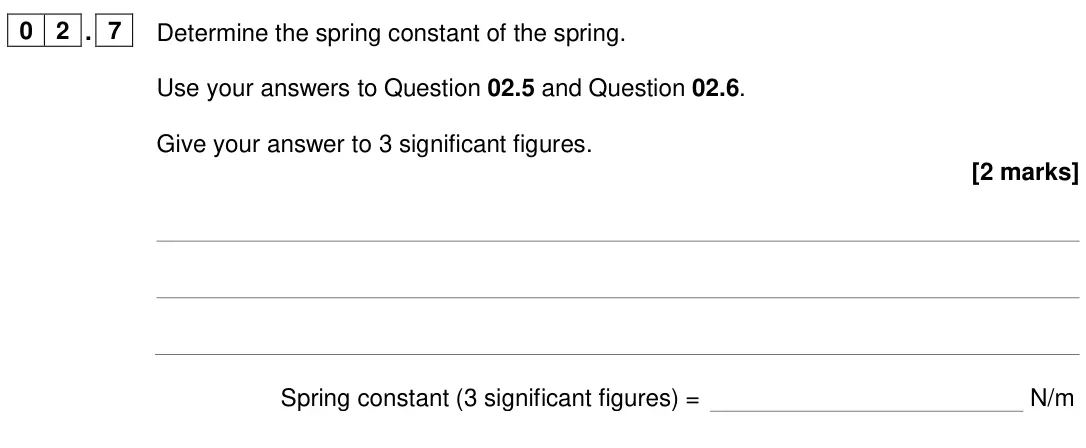

    June 2024 Physics Paper 2 Higher, question 02.7: Determine the spring constant of the spring. Use your answers to Question 02.5 and Question 02.6. Give your answer to 3 significant figures. [2 marks] Spring co

  8. Q07.1

    June 2024 · Physics Paper 2 Foundation

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

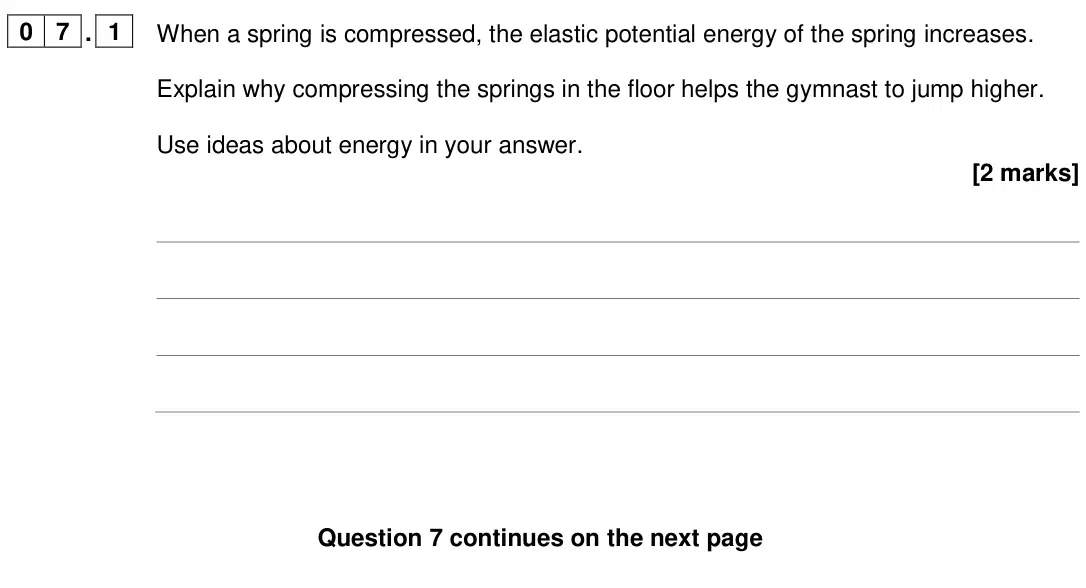

    June 2024 Physics Paper 2 Foundation, question 07.1: When a spring is compressed, the elastic potential energy of the spring increases. Explain why compressing the springs in the floor helps the gymnast to jump hi

  9. Q07.2

    June 2024 · Physics Paper 2 Foundation

    4 marks6.5.3 Forces and elasticity
    The whole paper ↗

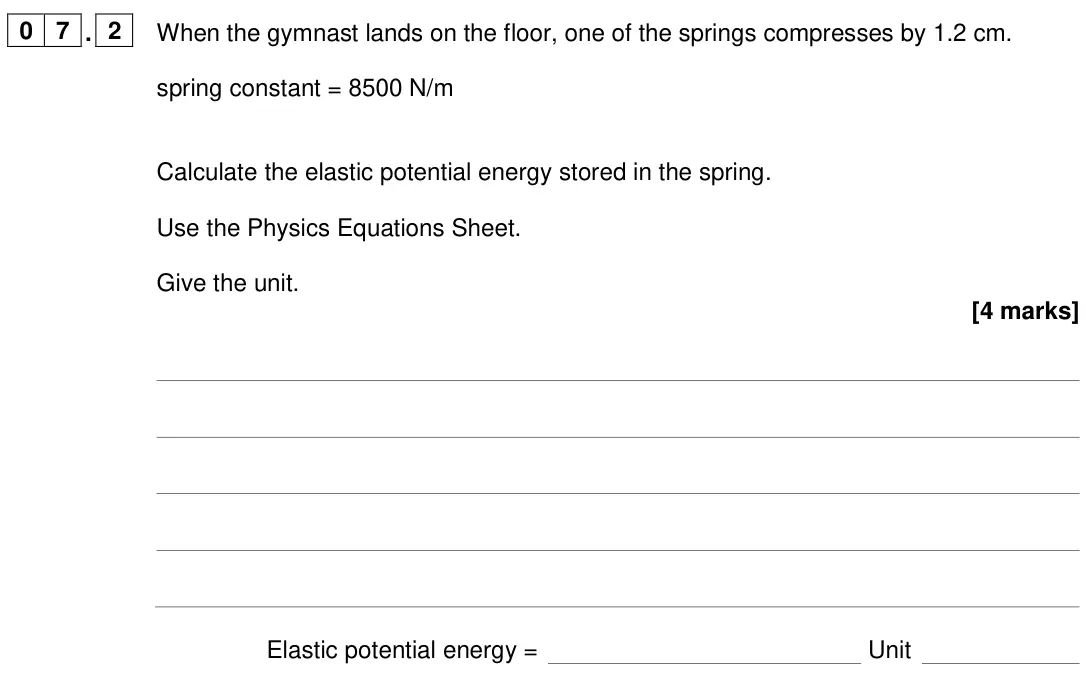

    June 2024 Physics Paper 2 Foundation, question 07.2: When the gymnast lands on the floor, one of the springs compresses by 1.2 cm. spring constant = 8500 N/m Calculate the elastic potential energy stored in the sp

  10. Q07.3

    June 2024 · Physics Paper 2 Foundation

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗
    June 2024 Physics Paper 2 Foundation, question 07.3: Describe how the compression of the spring could be determined. [2 marks]

  11. Q07.4

    June 2024 · Physics Paper 2 Foundation

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

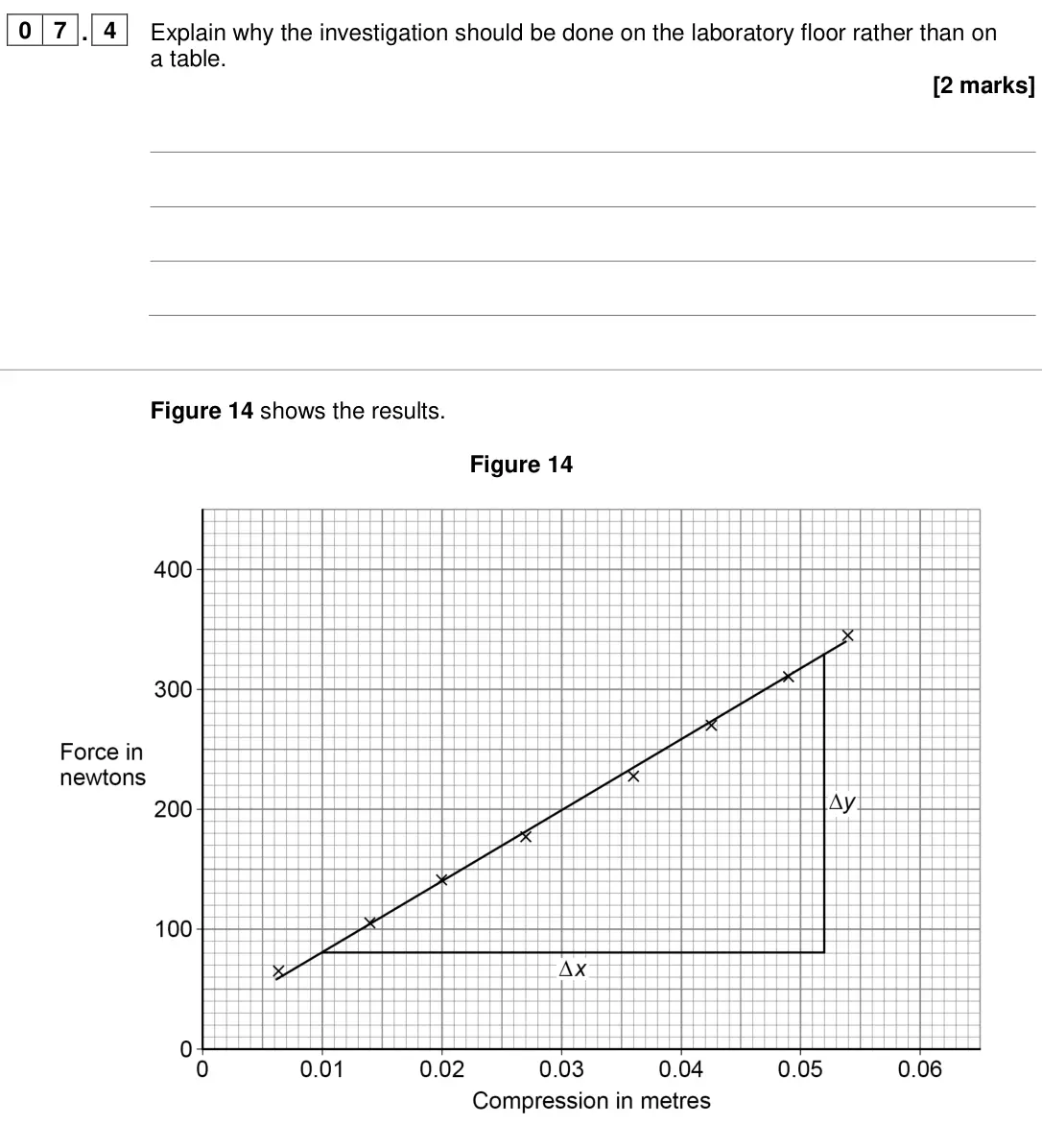

    June 2024 Physics Paper 2 Foundation, question 07.4: Explain why the investigation should be done on the laboratory floor rather than on a table. [2 marks] Figure 14 shows the results. Figure 14

  12. Q07.5

    June 2024 · Physics Paper 2 Foundation

    1 mark6.5.3 Forces and elasticity
    The whole paper ↗
    June 2024 Physics Paper 2 Foundation, question 07.5: Determine the value Δy on Figure 14. [1 mark] Δy = N

  13. Q07.6

    June 2024 · Physics Paper 2 Foundation

    1 mark6.5.3 Forces and elasticity
    The whole paper ↗

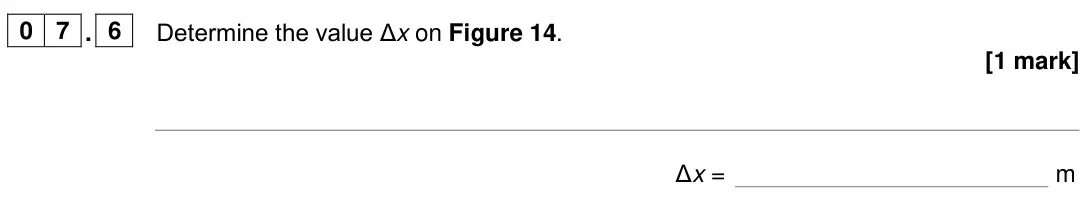

    June 2024 Physics Paper 2 Foundation, question 07.6: Determine the value Δx on Figure 14. [1 mark] Δx = m

  14. Q07.7

    June 2024 · Physics Paper 2 Foundation

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

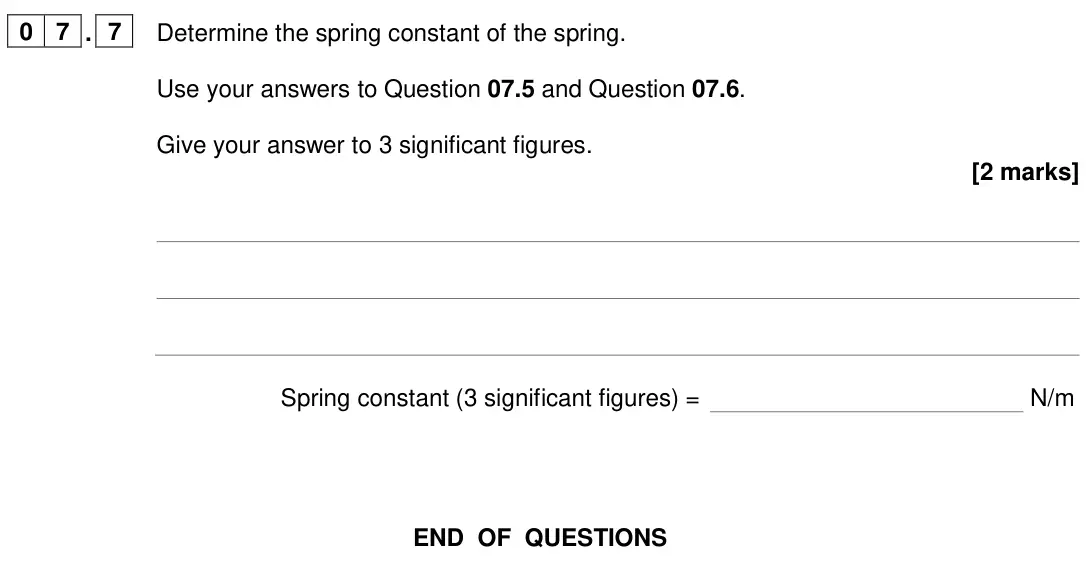

    June 2024 Physics Paper 2 Foundation, question 07.7: Determine the spring constant of the spring. Use your answers to Question 07.5 and Question 07.6. Give your answer to 3 significant figures. [2 marks] Spring co

  15. Q05.1

    June 2023 · Physics Paper 2 Higher

    1 mark6.5.3 Forces and elasticity
    The whole paper ↗

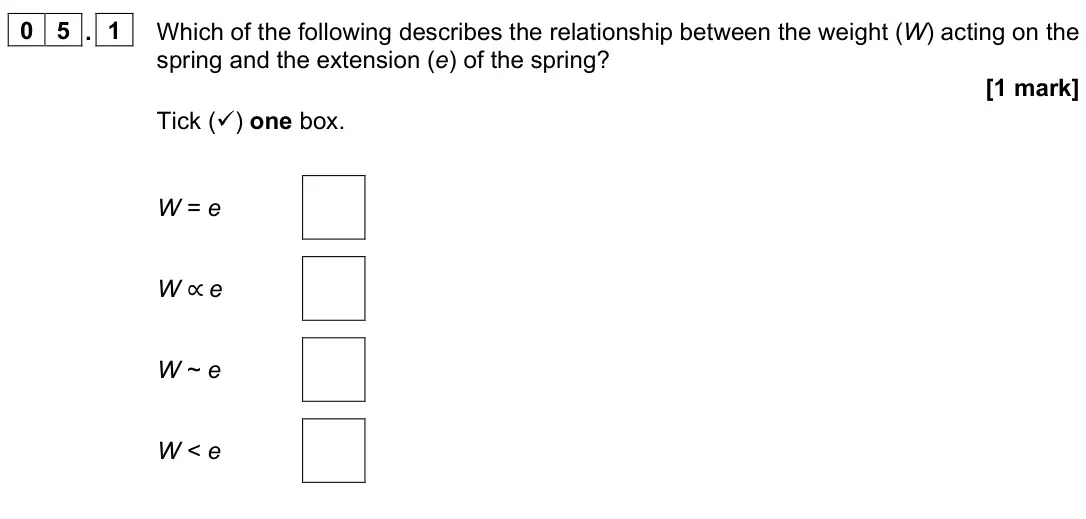

    June 2023 Physics Paper 2 Higher, question 05.1: Which of the following describes the relationship between the weight (W) acting on the spring and the extension (e) of the spring? [1 mark] Tick () one box. W

  16. Q05.2

    June 2023 · Physics Paper 2 Higher

    3 marks6.5.3 Forces and elasticity
    The whole paper ↗

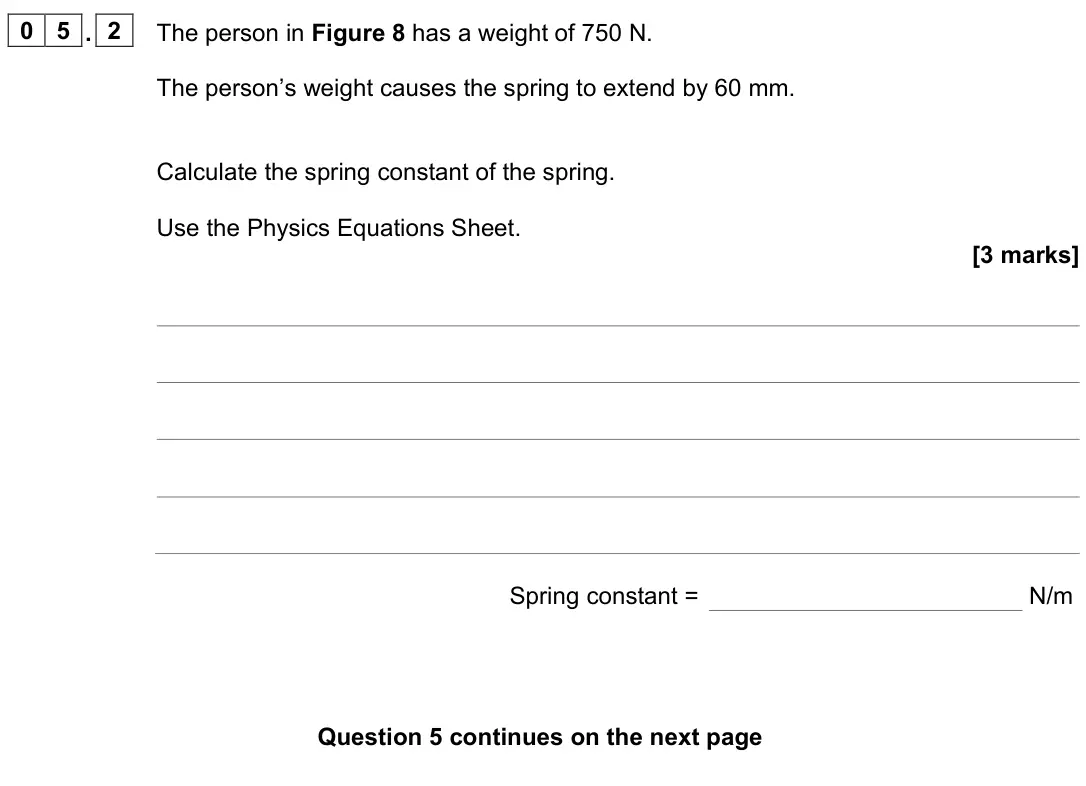

    June 2023 Physics Paper 2 Higher, question 05.2: The person in Figure 8 has a weight of 750 N. The person’s weight causes the spring to extend by 60 mm. Calculate the spring constant of the spring. Use the Phy

  17. Q05.3

    June 2023 · Physics Paper 2 Higher

    2 marks6.5.3 Forces and elasticity
    The whole paper ↗

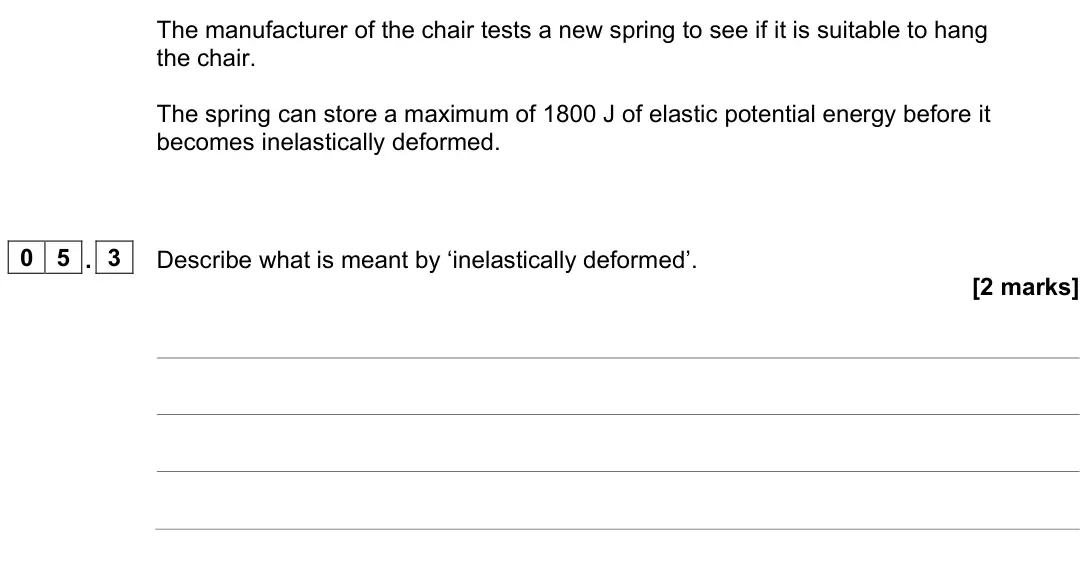

    June 2023 Physics Paper 2 Higher, question 05.3: Describe what is meant by ‘inelastically deformed’. [2 marks]

  18. Q05.4

    June 2023 · Physics Paper 2 Higher

    3 marks6.5.3 Forces and elasticity
    The whole paper ↗

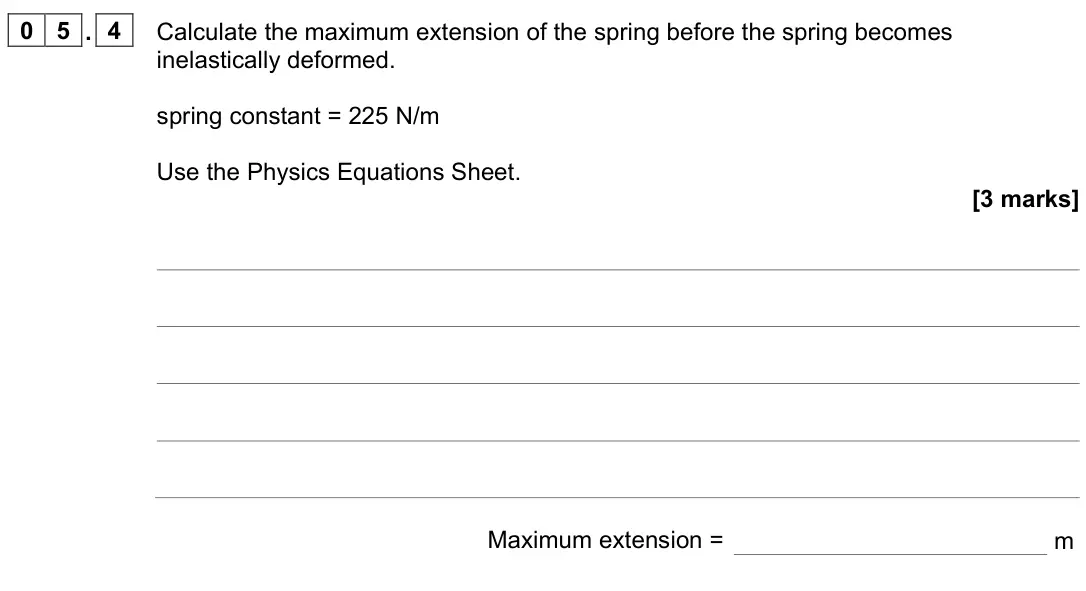

    June 2023 Physics Paper 2 Higher, question 05.4: Calculate the maximum extension of the spring before the spring becomes inelastically deformed. spring constant = 225 N/m Use the Physics Equations Sheet. [3 ma

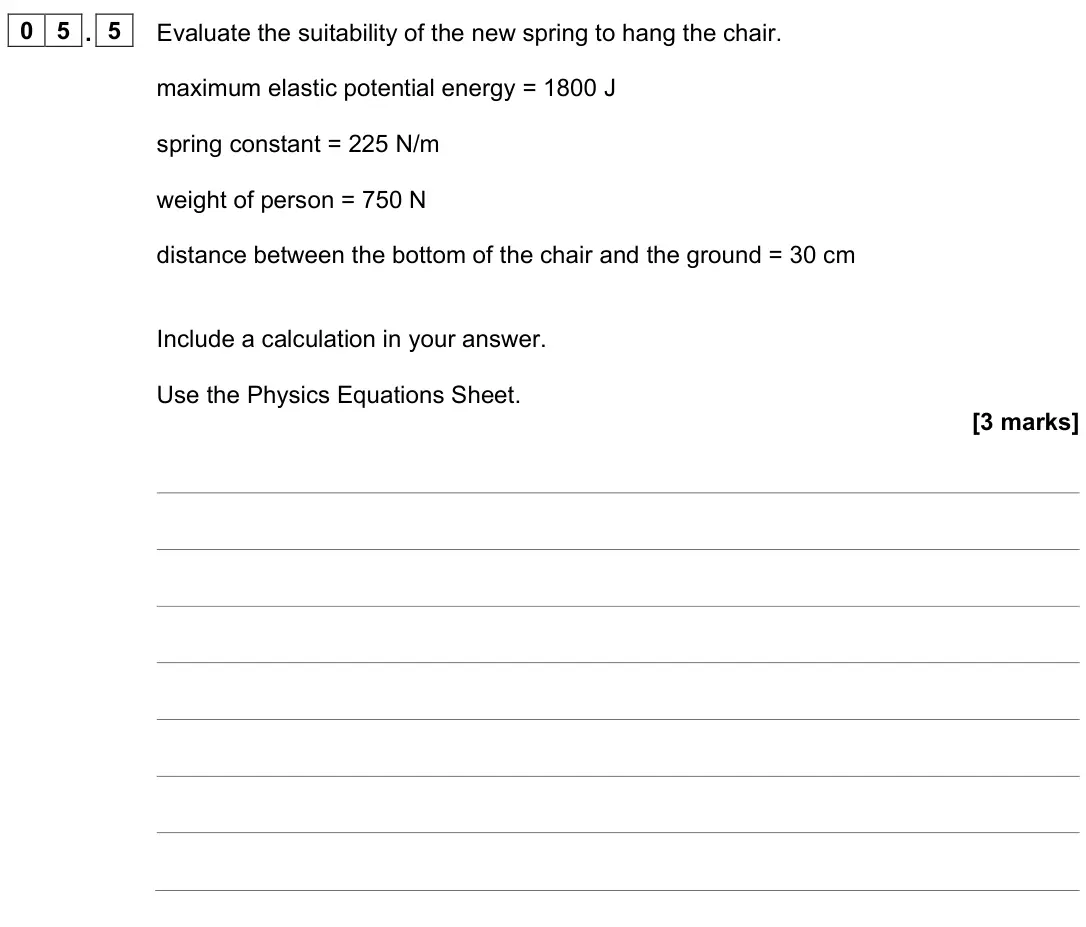

  19. Q05.5

    June 2023 · Physics Paper 2 Higher

    3 marks6.5.3 Forces and elasticity
    The whole paper ↗
    June 2023 Physics Paper 2 Higher, question 05.5: Evaluate the suitability of the new spring to hang the chair. maximum elastic potential energy = 1800 J spring constant = 225 N/m weight of person = 750 N dista

  20. Q01.1

    June 2023 · Physics Paper 2 Foundation

    1 mark6.5.3 Forces and elasticity
    The whole paper ↗

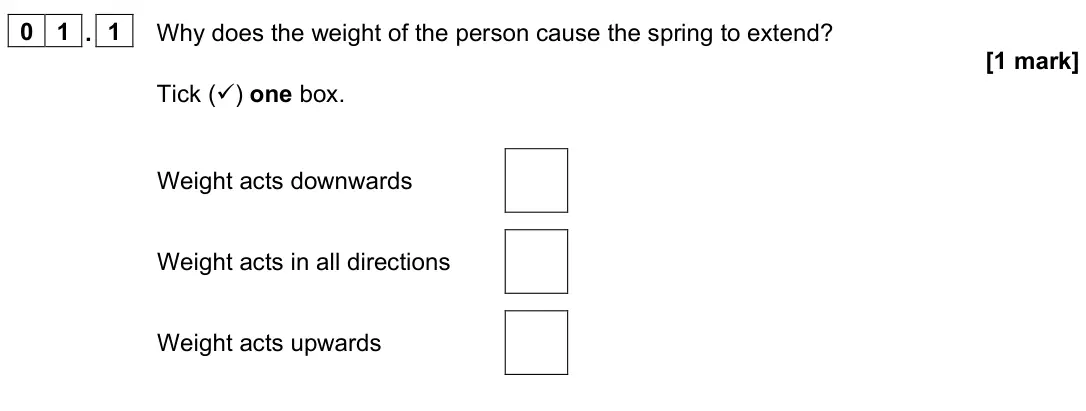

    June 2023 Physics Paper 2 Foundation, question 01.1: Why does the weight of the person cause the spring to extend? [1 mark] Tick () one box. Weight acts downwards Weight acts in all directions Weight acts upwards
All 50 questions on Forces and elasticity, as a list
  1. June 2024, Physics Paper 2 Higher, Q02.1 (2 marks): When a spring is compressed, the elastic potential energy of the spring increases. Explain why compressing the springs in the floor helps the gymnast to jump hi
  2. June 2024, Physics Paper 2 Higher, Q02.2 (4 marks): When the gymnast lands on the floor, one of the springs compresses by 1.2 cm. spring constant = 8500 N/m Calculate the elastic potential energy stored in the sp
  3. June 2024, Physics Paper 2 Higher, Q02.3 (2 marks): Describe how the compression of the spring could be determined. [2 marks]
  4. June 2024, Physics Paper 2 Higher, Q02.4 (2 marks): Explain why the investigation should be done on the laboratory floor rather than on a table. [2 marks] Figure 4 shows the results. Figure 4
  5. June 2024, Physics Paper 2 Higher, Q02.5 (1 mark): Determine the value Δy on Figure 4. [1 mark] Δy = N
  6. June 2024, Physics Paper 2 Higher, Q02.6 (1 mark): Determine the value Δx on Figure 4. [1 mark] Δx = m
  7. June 2024, Physics Paper 2 Higher, Q02.7 (2 marks): Determine the spring constant of the spring. Use your answers to Question 02.5 and Question 02.6. Give your answer to 3 significant figures. [2 marks] Spring co
  8. June 2024, Physics Paper 2 Foundation, Q07.1 (2 marks): When a spring is compressed, the elastic potential energy of the spring increases. Explain why compressing the springs in the floor helps the gymnast to jump hi
  9. June 2024, Physics Paper 2 Foundation, Q07.2 (4 marks): When the gymnast lands on the floor, one of the springs compresses by 1.2 cm. spring constant = 8500 N/m Calculate the elastic potential energy stored in the sp
  10. June 2024, Physics Paper 2 Foundation, Q07.3 (2 marks): Describe how the compression of the spring could be determined. [2 marks]
  11. June 2024, Physics Paper 2 Foundation, Q07.4 (2 marks): Explain why the investigation should be done on the laboratory floor rather than on a table. [2 marks] Figure 14 shows the results. Figure 14
  12. June 2024, Physics Paper 2 Foundation, Q07.5 (1 mark): Determine the value Δy on Figure 14. [1 mark] Δy = N
  13. June 2024, Physics Paper 2 Foundation, Q07.6 (1 mark): Determine the value Δx on Figure 14. [1 mark] Δx = m
  14. June 2024, Physics Paper 2 Foundation, Q07.7 (2 marks): Determine the spring constant of the spring. Use your answers to Question 07.5 and Question 07.6. Give your answer to 3 significant figures. [2 marks] Spring co
  15. June 2023, Physics Paper 2 Higher, Q05.1 (1 mark): Which of the following describes the relationship between the weight (W) acting on the spring and the extension (e) of the spring? [1 mark] Tick () one box. W
  16. June 2023, Physics Paper 2 Higher, Q05.2 (3 marks): The person in Figure 8 has a weight of 750 N. The person’s weight causes the spring to extend by 60 mm. Calculate the spring constant of the spring. Use the Phy
  17. June 2023, Physics Paper 2 Higher, Q05.3 (2 marks): Describe what is meant by ‘inelastically deformed’. [2 marks]
  18. June 2023, Physics Paper 2 Higher, Q05.4 (3 marks): Calculate the maximum extension of the spring before the spring becomes inelastically deformed. spring constant = 225 N/m Use the Physics Equations Sheet. [3 ma
  19. June 2023, Physics Paper 2 Higher, Q05.5 (3 marks): Evaluate the suitability of the new spring to hang the chair. maximum elastic potential energy = 1800 J spring constant = 225 N/m weight of person = 750 N dista
  20. June 2023, Physics Paper 2 Foundation, Q01.1 (1 mark): Why does the weight of the person cause the spring to extend? [1 mark] Tick () one box. Weight acts downwards Weight acts in all directions Weight acts upwards
  21. June 2023, Physics Paper 2 Foundation, Q01.3 (2 marks): Calculate the weight of the person. Use the equation: weight = spring constant × extension [2 marks] Weight = N
  22. June 2023, Physics Paper 2 Foundation, Q01.4 (2 marks): Calculate the elastic potential energy stored in the extended spring. Use the equation: elastic potential energy = 0.5 × spring constant × (extension)2 [2 marks
  23. June 2023, Physics Paper 2 Foundation, Q01.5 (1 mark): If there is more than one person on the chair, the spring could become inelastically deformed. What is meant by ‘inelastically deformed’? [1 mark] Tick () one
  24. June 2023, Physics Paper 2 Foundation, Q01.6 (1 mark): Figure 2 shows slotted masses hanging from the spring. The weight of the masses extends the spring. Figure 2 Which length in Figure 2 represents the extension o
  25. June 2023, Physics Paper 2 Foundation, Q01.7 (1 mark): Which graph shows that the extension of the spring is directly proportional to the force applied to the spring? [1 mark] Tick () one box.
  26. June 2023, Physics Paper 2 Foundation, Q01.8 (2 marks): Table 1 shows the results of the manufacturer’s investigation. Table 1 Force in newtons Extension in metres 100 0.008 200 0.016 Suggest two improvements to the
  27. November 2021, Physics Paper 2 Higher, Q01.1 (1 mark): What is meant by ‘elastically deformed’? [1 mark] Tick () one box. As the force on the spring increases the length of the spring increases. Only a very small f
  28. November 2021, Physics Paper 2 Higher, Q01.2 (2 marks): Describe a method to determine the extension of the spring. [2 marks]
  29. November 2021, Physics Paper 2 Higher, Q01.3 (3 marks): The extension of the spring is 80 mm. spring constant = 40 N/m Calculate the elastic potential energy of the spring. Use the Physics Equations Sheet. [3 marks]
  30. November 2021, Physics Paper 2 Higher, Q01.4 (1 mark): Write down the equation which links extension (e), force (F) and spring constant (k). [1 mark]
  31. November 2021, Physics Paper 2 Higher, Q01.5 (3 marks): A force of 300 N acts on a different spring. The force causes the spring to extend by 0.40 m. Calculate the spring constant of the spring. [3 marks] Spring cons
  32. November 2021, Physics Paper 2 Foundation, Q06.1 (1 mark): What is meant by ‘elastically deformed’? [1 mark] Tick () one box. As the force on the spring increases the length of the spring increases. Only a very small f
  33. November 2021, Physics Paper 2 Foundation, Q06.2 (2 marks): Describe a method to determine the extension of the spring. [2 marks]
  34. November 2021, Physics Paper 2 Foundation, Q06.3 (3 marks): The extension of the spring is 80 mm. spring constant = 40 N/m Calculate the elastic potential energy of the spring. Use the Physics Equations Sheet. [3 marks]
  35. November 2021, Physics Paper 2 Foundation, Q06.4 (1 mark): Write down the equation which links extension (e), force (F) and spring constant (k). [1 mark]
  36. November 2021, Physics Paper 2 Foundation, Q06.5 (3 marks): A force of 300 N acts on a different spring. The force causes the spring to extend by 0.40 m. Calculate the spring constant of the spring. [3 marks] Spring cons
  37. November 2020, Physics Paper 2 Higher, Q03.1 (1 mark): The springs behave elastically when a force is applied. What is meant by elastic behaviour? [1 mark] Tick () one box. The spring will be compressed when the fo
  38. November 2020, Physics Paper 2 Higher, Q03.2 (2 marks): Suggest two properties that should be the same for each spring. [2 marks] 1 2
  39. November 2020, Physics Paper 2 Higher, Q03.3 (3 marks): Figure 6 shows one of the keys and its spring. Figure 6 The key must be pressed with a minimum force of 0.80 N before the key touches the switch. Calculate the
  40. November 2020, Physics Paper 2 Higher, Q03.4 (2 marks): Figure 7 shows a spring that has been hung from a support. The spring is stationary and has been stretched beyond its limit of proportionality. Figure 7 Which t
  41. November 2020, Physics Paper 2 Foundation, Q02.1 (1 mark): Why do the keys have springs under them? [1 mark] Tick () one box. Springs make the keys easier to press. Springs make the keys lighter. Springs push the keys
  42. November 2020, Physics Paper 2 Foundation, Q02.2 (1 mark): Why does every spring used in the keyboard have the same spring constant? [1 mark] Tick () one box. So that more than one key can be pressed at the same time.
  43. November 2020, Physics Paper 2 Foundation, Q02.3 (1 mark): What happens to the length of the spring when the key is pressed? [1 mark]
  44. November 2020, Physics Paper 2 Foundation, Q02.4 (1 mark): How far must the key move before it touches the switch? [1 mark] Tick () one box. 4.0 mm 4.0 cm 4.0 μm
  45. November 2020, Physics Paper 2 Foundation, Q02.5 (2 marks): If a key is not pressed with enough force, no signal is sent to the computer. Explain why. [2 marks]
  46. November 2020, Physics Paper 2 Foundation, Q02.6 (2 marks): The spring in Figure 4 has a spring constant of 200 N/m Calculate the force on the spring when the key moves a distance of 0.0040 m Use the equation: force = sp
  47. November 2020, Physics Paper 2 Foundation, Q02.7 (2 marks): Suggest two ways the spring in the key in Figure 4 could be changed so that the switch can be closed more quickly. [2 marks] 1 2
  48. June 2018, Physics Paper 2 Higher, Q04.1 (2 marks): Figure 6 shows four newtonmeters. Each newtonmeter contains a spring. Figure 6 Which newtonmeter has the spring with the greatest spring constant? Give a reason
  49. June 2018, Physics Paper 2 Higher, Q04.2 (2 marks): The newtonmeter in Figure 7 will give an error when used to make a measurement. Figure 7 Name the type of error. Describe how this error can be corrected. [2 ma
  50. June 2018, Physics Paper 2 Higher, Q04.3 (6 marks): A student hangs a weight on a newtonmeter. The energy now stored in the spring in the newtonmeter is 4.5 × 10–2 J The student then increases the weight on the n
